H3C Access Controllers |
URL Filtering Configuration Examples |
|
Copyright © 2024 New H3C Technologies Co., Ltd. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.
Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners.
The information in this document is subject to change without notice.
Introduction
The following information provides an example of configuring URL filtering.
Prerequisites
The following information applies to Comware-based access controllers and access points. Procedures and information in the examples might be slightly different depending on the software or hardware version of the access controllers and access points.
The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.
The following information is provided based on the assumption that you have basic knowledge of URL filtering and security policy.
Example: Configuring URL filtering
Network configuration

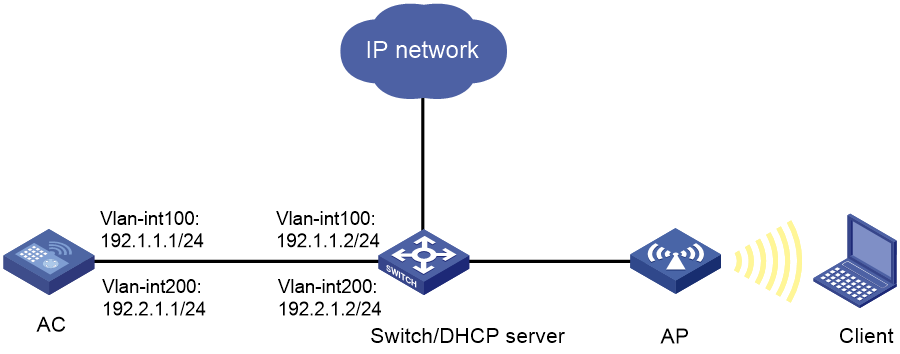

As shown in Figure 1, the switch acts as a DHCP server to assign IP addresses to the AP and client. The AP and AC establish CAPWAP tunnels in VLAN 100. The client accesses the wireless network in VLAN 200.
Configure a URL filtering policy on the AC so the AC performs the following operations:
· Permits the client to access website http://www.sina.com on the IP network.
· Drops and logs packets that match the Pre-Game URL category.
· Drops and logs packets that do not match any filtering rule in the URL filtering policy.
Restrictions and guidelines
Use the actual serial ID of an AP to uniquely identify that AP.
Procedures
Configuring the AC
1. Configure interfaces on the AC:
# Create VLAN 100 and VLAN-interface 100, and assign an IP address to the VLAN interface. The AP will obtain this IP address to establish CAPWAP tunnels with the AC.
<AC> system-view
[AC] vlan 100
[AC-vlan100] quit
[AC] interface vlan-interface 100
[AC-Vlan-interface100] ip address 192.1.1.1 24
[AC-Vlan-interface100] quit
# Create VLAN 200 and VLAN-interface 200, and assign an IP address to the VLAN interface. The client will access the wireless network in this VLAN.
[AC] vlan 200
[AC-vlan200] quit
[AC] interface vlan-interface 200
[AC-Vlan-interface200] ip address 192.2.1.1 24
[AC-Vlan-interface200] quit
# Set the link type of GigabitEthernet 1/0/1 (the interface connected to the switch) to trunk. Remove the interface from VLAN 1, and allow traffic from VLAN 100 and VLAN 200 to pass through the interface.
[AC] interface gigabitethernet 1/0/1
[AC-GigabitEthernet1/0/1] port link-type trunk
[AC-GigabitEthernet1/0/1] undo port trunk permit vlan 1
[AC-GigabitEthernet1/0/1] port trunk permit vlan 100 200
[AC-GigabitEthernet1/0/1] quit
2. Configure a wireless service:
# Create service template 1 and enter service template view.
[AC] wlan service-template 1
# Set the SSID to service.
[AC-wlan-st-1] ssid service
# Assign the client to VLAN 200 after it comes online.
[AC-wlan-st-1] vlan 200
# Specify the AKM mode as PSK, and configure the preshared key as 12345678 in plain text.
[AC-wlan-st-1] akm mode psk
[AC-wlan-st-1] preshared-key pass-phrase simple 12345678
# Specify the cipher suite as CCMP and the security IE as RSN.
[AC-wlan-st-1] cipher-suite ccmp
[AC-wlan-st-1] security-ie rsn
# Configure the AC to forward client data traffic. (Skip this step if the client data traffic forwarder is the AC by default.)
[AC-wlan-st-1] client forwarding-location ac
# Enable the service template.
[AC-wlan-st-1] service-template enable
[AC-wlan-st-1] quit
3. Configure the AP:
|
NOTE: In large-scale networks, configure AP groups instead of single APs as a best practice. |
# Create a manual AP named ap1, and specify the AP model.
[AC] wlan ap ap1 model WA6320
# Set the serial ID to 219801A28N819CE0002T.
[AC-wlan-ap-ap1] serial-id 219801A28N819CE0002T
[AC-wlan-ap-ap1] quit
# Create AP group group1 and add AP ap1 to AP group group1.
[AC] wlan ap-group group1
[AC-wlan-ap-group-group1] ap ap1
# Bind service template 1 to radio 2 in AP group group1.
[AC-wlan-ap-group-group1] ap-model WA6320
[AC-wlan-ap-group-group1-ap-model-WA6320] radio 2
[AC-wlan-ap-group-group1-ap-model-WA6320-radio-2] service-template 1
# Enable radio 2.
[AC-wlan-ap-group-group1-ap-model-WA6320-radio-2] radio enable
[AC-wlan-ap-group-group1-ap-model-WA6320-radio-2] quit
[AC-wlan-ap-group-group1-ap-model-WA6320] quit
[AC-wlan-ap-group-group1] quit
4. Configure an IP address object group named urlfilter and specify subnet 192.2.1.0/24 for the object group.
[AC] object-group ip address urlfilter
[AC-obj-grp-ip-urlfilter] network subnet 192.2.1.0 24
[AC-obj-grp-ip-urlfilter] quit
5. Configure URL filtering:
# Create a URL category named news, set its severity level to 2000, and enter URL category view.
[AC] url-filter category news severity 2000
# Create URL filtering rule 1 to match HTTP packets that contain host name www.sina.com in the URL.
[AC-url-filter-category-news] rule 1 host text www.sina.com
[AC-url-filter-category-news] quit
# Create a URL filtering policy named urlnews and enter URL filtering policy view.
[AC] url-filter policy urlnews
# In the URL filtering policy, specify action permit for URL category news.
[AC-url-filter-policy-urlnews] category news action permit
# In the URL filtering policy, specify action drop for predefined URL category Pre-Games and enable logging for the matching packets.
[AC-url-filter-policy-urlnews] category Pre-Games action drop logging
# In the URL filtering policy, set the default actions to drop and logging.
[AC-url-filter-policy-urlnews] default-action drop logging
[AC-url-filter-policy-urlnews] quit
6. Configure a DPI application profile:
# Create a DPI application profile named sec and enter DPI application profile view.
[AC] app-profile sec
# Apply URL filtering policy urlnews to the DPI application profile.
[AC-app-profile-sec] url-filter apply policy urlnews
[AC-app-profile-sec] quit
# Activate the URL filtering policy and rule settings.
[AC] inspect activate
7. Apply the DPI application profile to a security policy:
# Enter IPv4 security policy view.
[AC] security-policy ip
# Create a rule named urlfilter to permit the traffic from IP addresses in IP address object group urlfilter and apply DPI application profile sec to the security policy.
[AC-security-policy-ip] rule name urlfilter
[AC-security-policy-ip-13-urlfilter] source-ip urlfilter
[AC-security-policy-ip-13-urlfilter] action pass
[AC-security-policy-ip-13-urlfilter] profile sec
[AC-security-policy-ip-13-urlfilter] quit
# Activate rule matching acceleration.
[AC-security-policy-ip] accelerate enhanced enable
[AC-security-policy-ip] quit
Configuring the switch
1. Configure interfaces on the switch:
# Create VLAN 100 and VLAN-interface 100, and assign an IP address to the VLAN interface. The switch will use this VLAN to forward CAPWAP tunnel traffic between the AC and the AP.
<Switch> system-view
[Switch] vlan 100
[Switch-vlan100] quit
[Switch] interface vlan-interface 100
[Switch-Vlan-interface100] ip address 192.1.1.2 24
[Switch-Vlan-interface100] quit
# Create VLAN 200 and VLAN-interface 200, and assign an IP address to the VLAN interface. This VLAN will be used to forward wireless client packets.
[Switch] vlan 200
[Switch-vlan200] quit
[Switch] interface vlan-interface 200
[Switch-Vlan-interface200] ip address 192.2.1.2 24
[Switch-Vlan-interface200] quit
# Set the link type of GigabitEthernet 1/0/1 (the interface connected to the AC) to trunk. Remove the interface from VLAN 1, and allow traffic from VLAN 100 and VLAN 200 to pass through the interface.
[Switch] interface gigabitethernet 1/0/1
[Switch-GigabitEthernet1/0/1] port link-type trunk
[Switch-GigabitEthernet1/0/1] undo port trunk permit vlan 1
[Switch-GigabitEthernet1/0/1] port trunk permit vlan 100 200
[Switch-GigabitEthernet1/0/1] quit
# Set the link type of GigabitEthernet 1/0/2 (the interface connected to the AP) to trunk. Remove the interface from VLAN 1, allow traffic from VLAN 100 to pass through the interface, and set the PVID of the interface to 100.
[Switch] interface gigabitethernet 1/0/2
[Switch-GigabitEthernet1/0/2] port link-type trunk
[Switch-GigabitEthernet1/0/2] undo port trunk permit vlan 1
[Switch-GigabitEthernet1/0/2] port trunk permit vlan 100
[Switch-GigabitEthernet1/0/2] port trunk pvid vlan 100
# Enable PoE on GigabitEthernet 1/0/2.
[Switch-GigabitEthernet1/0/2] poe enable
[Switch-GigabitEthernet1/0/2] quit
2. Configure DHCP settings:
# Enable DHCP.
[Switch] dhcp enable
# Create a DHCP address pool named vlan100 to assign IP addresses and other configuration parameters to clients on subnet 192.1.1.0/24.
[Switch] dhcp server ip-pool vlan100
[Switch-dhcp-pool-vlan100] network 192.1.1.0 mask 255.255.255.0
# Exclude IP addresses 192.1.1.1 and 192.1.1.2 from dynamic allocation.
[Switch-dhcp-pool-vlan100] forbidden-ip 192.1.1.1 192.1.1.2
# Specify a gateway.
[Switch-dhcp-pool-vlan100] gateway-list 192.1.1.1
[Switch-dhcp-pool-vlan100] quit
# Create a DHCP address pool named vlan200 to assign IP addresses and other configuration parameters to clients on subnet 192.2.1.0/24.
[Switch] dhcp server ip-pool vlan200
[Switch-dhcp-pool-vlan200] network 192.2.1.0 mask 255.255.255.0
# Exclude IP addresses 192.2.1.1 and 192.2.1.2 from dynamic allocation.
[Switch-dhcp-pool-vlan200] forbidden-ip 192.2.1.1 192.2.1.2
# Specify a gateway and a DNS server.
[Switch-dhcp-pool-vlan200] gateway-list 192.2.1.2
[Switch-dhcp-pool-vlan200] dns-list 192.2.1.2
[Switch-dhcp-pool-vlan200] quit
Verifying the configuration
# Verify that the client can access website http://www.sina.com on the IP network. (Details not shown.)
# Verify that the device drops and logs the client's HTTP requests to game resources. (Details not shown.)
Configuration files
· AC:
#
vlan 100
#
vlan 200
#
object-group ip address urlfilter
0 network subnet 192.2.1.0 255.255.255.0
#
wlan service-template 1
ssid service
vlan 200
client forwarding-location ac
akm mode psk
preshared-key pass-phrase cipher $c$3$oLf6pOZ6bxrf25nodjOJKYEfnZ6g6ErccHyQ
cipher-suite ccmp
security-ie rsn
service-template enable
#
interface Vlan-interface100
ip address 192.1.1.1 255.255.255.0
#
interface Vlan-interface200
ip address 192.2.1.1 255.255.255.0
#
interface GigabitEthernet1/0/1
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100 200
#
url-filter policy urlnews
default-action drop logging
category news action permit
category Pre-Games action drop logging
#
url-filter category news severity 2000
rule 1 host text www.sina.com
#
app-profile sec
url-filter apply policy urlnews
#
wlan ap-group group1
ap ap1
ap-model WA6320
radio 1
radio 2
radio enable
service-template 1
#
wlan ap ap1 model WA6320
serial-id 219801A28N819CE0002T
#
security-policy ip
rule 13 name urlfilter
action pass
profile sec
source-ip urlfilter
#
· Switch:
#
dhcp enable
#
vlan 100
#
vlan 200
#
dhcp server ip-pool vlan100
gateway-list 192.1.1.1
network 192.1.1.0 mask 255.255.255.0
forbidden-ip 192.1.1.1 192.1.1.2
#
dhcp server ip-pool vlan200
gateway-list 192.2.1.2
network 192.2.1.0 mask 255.255.255.0
dns-list 192.2.1.2
forbidden-ip 192.2.1.1 192.2.1.2
#
interface Vlan-interface100
ip address 192.1.1.2 255.255.255.0
#
interface Vlan-interface200
ip address 192.2.1.2 255.255.255.0
#
interface GigabitEthernet1/0/1
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100 200
#
interface GigabitEthernet1/0/2
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
port trunk pvid vlan 100
poe enable
#
Related documentation
· Security Policy Command Reference in H3C Access Controllers Command References
· Security Policy Configuration Guide in H3C Access Controllers Configuration Guides
· URL Filtering Command Reference in H3C Access Controllers Command References
· URL Filtering Configuration Guide in H3C Access Controllers Configuration Guides
