Introduction

This document provides configuration examples of ARP attack protection.

ARP is easy to use but it does not have any security mechanisms. Attackers can easily attack the network by sending forged ARP packets. The device provides various ARP attack protection measures to prevent, detect, and resolve ARP attacks and ARP viruses on LANs.

Prerequisites

The configuration examples in this document were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

This document assumes that you have basic knowledge of ARP attack protection.

Example: Configuring ARP attack protection

Network configuration

As shown in Figure 1, the device connects to the server through GE1/0/3 as a gateway and connects to Host A and Host B in VLAN 10, and Host C and Host D in VLAN 20 through GE1/0/1 and GE1/0/2, respectively.

Configure ARP attack protection on the device to prevent the following ARP threats:

·     Host A sends forged ARP packets and forged gratuitous ARP packets to the device to edit the ARP entries on the device maliciously. As a result, other users cannot receive data packets normally.

·     Host C sends a large number of unresolvable IP packets to attack the device, causing the following results:

¡     The device CPU is busy, affecting normal service processing.

¡     The device sends a large number of ARP requests, overloading the target subnets.

·     Host D launches ARP flood attacks by sending a large number of ARP packets with different source IP addresses but fixed MAC address. Such attacks run out the ARP table resources on the device and cause a busy CPU, affecting normal service processing.

Besides, Host B might send a large number of ARP packets to the device. This is normal ARP behavior required by services. Do not filter out packets sent from Host B when you configure ARP attack protection.

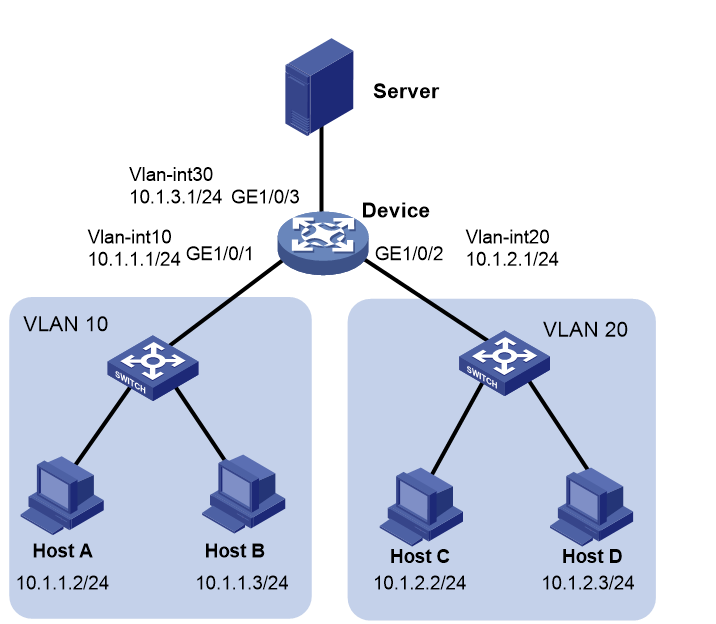

Figure 1 Network diagram



Analysis

To meet the network requirements, configure the device as follows:

·     To prevent forged ARP packets sent by Host A from updating the ARP entries on the device, configure ARP blackhole routing and ARP active acknowledgement in strict mode.

·     To prevent the forged gratuitous ARP packets sent by Host A from updating the ARP entries on the device, disable gratuitous ARP packet learning.

·     To avoid unresolvable packets sent by Host C, enable ARP source suppression and set the maximum number of unresolvable packets that the device can process per source IP address within 5 seconds.

·     To avoid ARP flood attacks caused by ARP packets with the same IP address, enable ARP packet rate limit and set the limit rate. When Host C launches ARP flood attacks on the device by sending a large number of ARP packets with the same source IP address, the device discards the packets that exceed the limit rate to avoid a busy CPU.

·     To avoid ARP flood attacks caused by ARP packets with different IP addresses but fixed MAC address sent by Host D, configure source MAC-based ARP attack detection. If you fail to configure this feature, the ARP table resources run out and the CPU is busy. To avoid filtering out packets sent by Host B, exclude the MAC address of Host B from this detection.

Applicable hardware and software versions

The following matrix shows the hardware and software versions to which this configuration example is applicable:



Hardware	Software version
S6812 switch series S6813 switch series	Release 6615Pxx, Release 6628Pxx
S6550XE-HI switch series	Release 6008 and later, Release 8106Pxx
S6525XE-HI switch series	Release 6008 and later, Release 8106Pxx
S5850 switch series	Release 8005 and later, Release 8106Pxx
S5570S-EI switch series	Release 11xx
S5560X-EI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
S5560X-HI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
S5500V2-EI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
MS4520V2-30F switch	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
MS4520V2-30C switch MS4520V2-54C switch	Release 65xx, Release 6615Pxx, Release 6628Pxx
MS4520V2-28S switch MS4520V2-24TP switch	Release 63xx
S6520X-HI switch series S6520X-EI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
S6520X-SI switch series S6520-SI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
S5000-EI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
MS4600 switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
ES5500 switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
S5560S-EI switch series S5560S-SI switch series	Release 63xx
S5500V3-24P-SI switch S5500V3-48P-SI switch	Release 63xx
S5500V3-SI switch series (excluding the S5500V3-24P-SI and S5500V3-48P-SI switches)	Release 11xx
S5170-EI switch series	Release 11xx
S5130S-HI switch series S5130S-EI switch series S5130S-SI switch series S5130S-LI switch series	Release 63xx
S5120V2-SI switch series S5120V2-LI switch series	Release 63xx
S5120V3-EI switch series	Release 11xx
S5120V3-36F-SI switch S5120V3-28P-HPWR-SI switch S5120V3-54P-PWR-SI switch	Release 11xx
S5120V3-SI switch series (excluding the S5120V3-36F-SI, S5120V3-28P-HPWR-SI, and S5120V3-54P-PWR-SI switches)	Release 63xx
S5120V3-LI switch series	Release 63xx
S3600V3-EI switch series	Release 11xx
S3600V3-SI switch series	Release 11xx
S3100V3-EI switch series S3100V3-SI switch series	Release 63xx
S5110V2 switch series	Release 63xx
S5110V2-SI switch series	Release 63xx
S5000V3-EI switch series S5000V5-EI switch series	Release 63xx
S5000E-X switch series S5000X-EI switch series	Release 63xx
E128C switch E152C switch E500C switch series E500D switch series	Release 63xx
MS4320V2 switch series MS4320V3 switch series MS4300V2 switch series MS4320 switch series MS4200 switch series	Release 63xx
WS5850-WiNet switch series	Release 63xx
WS5820-WiNet switch series WS5810-WiNet switch series	Release 63xx
WAS6000 switch series	Release 63xx
IE4300-12P-AC switch IE4300-12P-PWR switch IE4300-M switch series IE4320 switch series	Release 63xx
IE4520 switch series	Release 66xx
S5135S-EI switch series	Release 6658P01 and later



Restrictions and guidelines

When you configure ARP attack protection, follow these restrictions and guidelines:

·     When you configure ARP active acknowledgement in strict mode, make sure ARP blackhole routing is enabled.

·     After you disable gratuitous ARP packet learning, the device does not create ARP entries when receiving gratuitous ARP packets, but updates the existing corresponding ARP entries. If you do not want the device to create ARP entries for gratuitous ARP packets, disable gratuitous ARP packet learning to save ARP entry resources.

Procedures

Configuring VLANs and interface IP addresses

# (Optional.) Configure the operating mode of GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 as Layer 2.

<Device> system-view

[Device] interface gigabitethernet 1/0/1

[Device-GigabitEthernet1/0/1] port link-mode bridge

[Device-GigabitEthernet1/0/1] quit

[Device] interface gigabitethernet 1/0/2

[Device-GigabitEthernet1/0/2] port link-mode bridge

[Device-GigabitEthernet1/0/2] quit

[Device] interface gigabitethernet 1/0/3

[Device-GigabitEthernet1/0/3] port link-mode bridge

[Device-GigabitEthernet1/0/3] quit

# Create VLAN 10, and assign GigabitEthernet 1/0/1 to the VLAN.

[Device] vlan 10

[Device-vlan10] port gigabitethernet 1/0/1

[Device-vlan10] quit

# Create VLAN-interface 10, and assign IP address 10.1.1.1/24 to it.

[Device] interface vlan-interface 10

[Device-Vlan-interface10] ip address 10.1.1.1 255.255.255.0

[Device-Vlan-interface10] quit

# Create VLAN 20, and assign GigabitEthernet 1/0/2 to the VLAN.

[Device] vlan 20

[Device-vlan20] port gigabitethernet 1/0/2

[Device-vlan20] quit

# Create VLAN-interface 20, and assign IP address 10.1.2.1/24 to it.

[Device] interface vlan-interface 20

[Device-Vlan-interface20] ip address 10.1.2.1 255.255.255.0

[Device-Vlan-interface20] quit

# Create VLAN 30, and assign GigabitEthernet 1/0/3 to the VLAN.

[Device] vlan 30

[Device-vlan30] port gigabitethernet 1/0/3

[Device-vlan30] quit

# Create VLAN-interface 30, and assign IP address 10.1.3.1/24 to it.

[Device] interface vlan-interface 30

[Device-Vlan-interface30] ip address 10.1.3.1 255.255.255.0

Enabling ARP blackhole routing

<Device> system-view

[Device] arp resolving-route enable

Enabling ARP active acknowledgment in strict mode

<Device> system-view

[Device] arp active-ack strict enable

Disabling gratuitous ARP packet learning

<Device> system-view

[Device] undo gratuitous-arp-learning enable

Enabling ARP packet rate limit and setting the limit rate

<Device> system-view

[Device] interface gigabitethernet 1/0/1

[Device-GigabitEthernet1/0/1] arp rate-limit 50

[Device-GigabitEthernet1/0/1] quit

[Device] interface gigabitethernet 1/0/2

[Device-GigabitEthernet1/0/2] arp rate-limit 50

[Device-GigabitEthernet1/0/2] quit

Configuring ARP source suppression

[Device] arp source-suppression enable

[Device] arp source-suppression limit 40

Configuring source MAC-based ARP attack detection

The following switch series in R661x version do not support this feature:

·     S6520X-HI switch series.

·     S6520X-EI switch series.

·     S6520X-SI switch series.

·     S6520-SI switch series.

·     S5000-EI switch series.

·     MS4600 switch series.

·     S5560X-EI switch series.

·     S5560X-HI switch series.

·     S5500V2-EI switch series.

·     MS4520V2 switch series.

·     ES5500 switch series.

# Enable source MAC-based ARP attack detection, and specify the handling method as filter.

<Device> system-view

[Device] arp source-mac filter

# Set the threshold to 30.

[Device] arp source-mac threshold 30

# Set the lifetime for ARP attack entries to 60 seconds.

[Device] arp source-mac aging-time 60

# Exclude MAC address 0c68-d691-0606 from this detection.

[Device] arp source-mac exclude-mac 0c68-d691-0606

Verifying the configuration

# Display the current configuration information about ARP source suppression. ARP source suppression is enabled and the maximum number of unresolvable packets that can be processed per source IP address within 5 seconds is 40.

<Device> display arp source-suppression

 ARP source suppression is enable

 Current suppression limit: 40

# Display the ARP attack entries for Host D when Host D sends more than 30 ARP requests to the device within 5 seconds. The command output shows that an ARP attack entry has been generated for Host D. With this ARP attack entry, the device cannot create ARP entries for Host D.

<Device> display arp source-mac slot 1

Source-MAC     VLAN ID Interface                Aging time (sec) Packets dropped

0c68-be82-0206 20      GE1/0/2                  10               244

<Device> display arp

  Type: S-Static   D-Dynamic   O-Openflow   R-Rule   M-Multiport  I-Invalid

IP address      MAC address    VLAN/VSI name Interface                Aging Type

# Display the ARP attack entries when Host B sends more than 30 ARP requests to the device within 5 seconds. No ARP attack entries for Host B exist, so the device can create ARP entries for Host B.

<Device> display arp source-mac slot 1

Source-MAC     VLAN ID Interface                Aging time (sec) Packets dropped

<Device> display arp

  Type: S-Static   D-Dynamic   O-Openflow   R-Rule   M-Multiport  I-Invalid

IP address      MAC address    VLAN/VSI name Interface                Aging Type

10.1.1.3        0c68-d691-0606 10            GE1/0/1                  1197  D

# Stop sending ARP packets from Host D to the device and wait the lifetime of the ARP attack entry for Host D expires. Then, configure Host D to send ARP packets to the device. Use the following command to display ARP entries on the device. The output shows that the device has created ARP entries for Host D.

<Device> display arp

  Type: S-Static   D-Dynamic   O-Openflow   R-Rule   M-Multiport  I-Invalid

IP address      MAC address    VLAN/VSI name Interface                Aging Type

10.1.1.3        0c68-d691-0606 10            GE1/0/1                  944   D

10.1.2.3        0c68-be82-0206 20            GE1/0/2                  1195  D

Configuration files

IMPORTANT: Support for the port link-mode bridge command depends on the device model.



#

vlan 1



#

vlan 10



#

vlan 20



#

vlan 30



#

interface Vlan-interface10

 ip address 10.1.1.1 255.255.255.0



#

interface Vlan-interface20

 ip address 10.1.2.1 255.255.255.0



#

interface Vlan-interface30

 ip address 10.1.3.1 255.255.255.0



#

interface GigabitEthernet1/0/1

 port link-mode bridge

 port access vlan 10

 arp rate-limit 50



#

interface GigabitEthernet1/0/2

 port link-mode bridge

 port access vlan 20

 arp rate-limit 50



#

interface GigabitEthernet1/0/3

 port link-mode bridge

 port access vlan 30

#

 undo gratuitous-arp-learning enable

 arp source-mac filter

 arp source-mac aging-time 60

 arp source-mac exclude-mac 0c68-d691-0606

 arp active-ack strict enable

 arp source-suppression enable

 arp source-suppression limit 40
