Introduction

This document provides CFD configuration examples.

CFD is used for link connectivity detection, fault verification, and fault location in Layer 2 networks.

Prerequisites

The configuration examples in this document were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

This document assumes that you have basic knowledge of CFD.

Example: Configuring CFD

Network configuration

As shown in Figure 1, Device B and Device C reside in the central equipment room of a company. Device A, Device D, and Device E reside in other areas.

·     Research and development department users in VLAN 20 access the enterprise network through Device A and Device D.

·     Marketing department users in VLAN 30 access the enterprise network through Device A and Device E.

Configure CFD to verify and locate link faults.

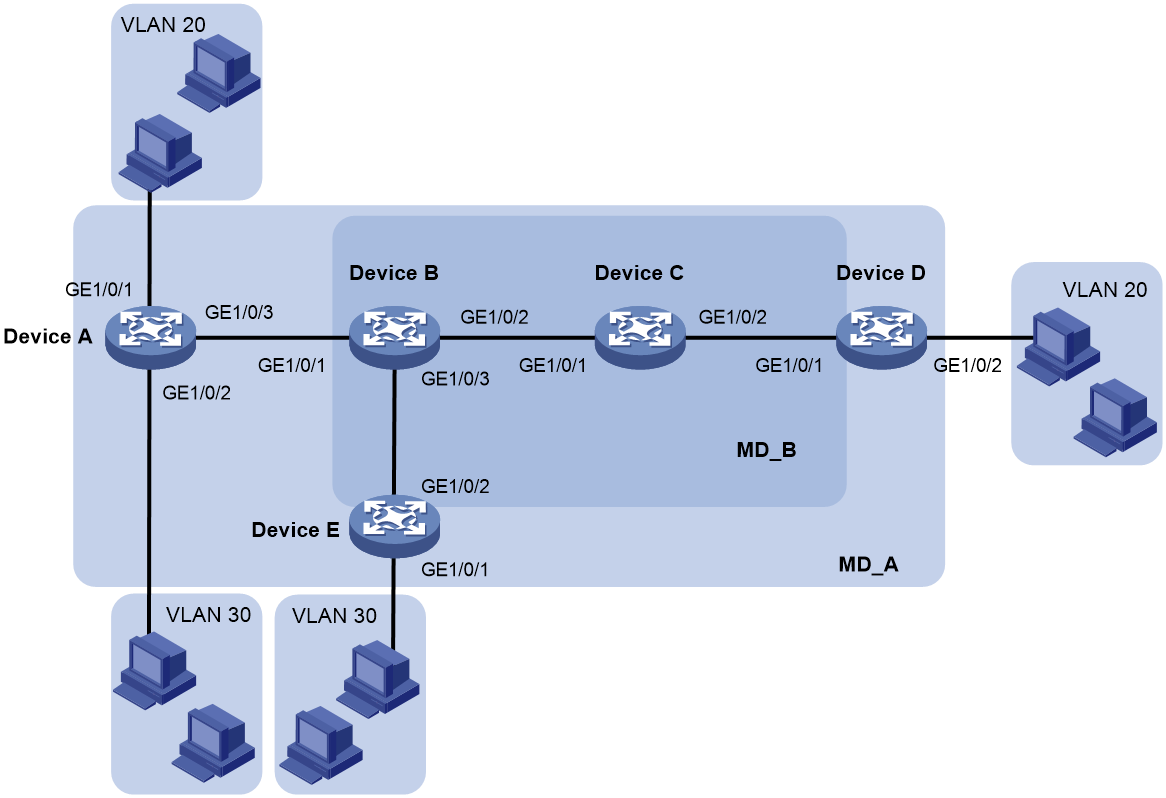

Figure 1 Network diagram



Analysis

To accurately locate link faults, assign the enterprise network to MD_A (level 5) and the central equipment room network to MD_B (level 3). MD_A nests MD_B.

To effectively implement CFD, assign MAs based on the VLANs of service traffic:

·     Assign VLAN 20 in MD_A to MA_A_1.

·     Assign VLAN 30 in MD_A to MA_A_2.

·     Assign VLAN 20 in MD_B to MA_B_1.

·     Assign VLAN 30 in MD_B to MA_A_2.

To verify link connectivity, configure MEPs on the interfaces located at the boundary of MAs, for example, MA_B_1:

·     Configure MEPs on interface GE1/0/1 of Device B and Device D to allow CFD packets from VLAN 20 to pass through the following interfaces:

¡     GE1/0/1 and GE1/0/2 of Device B.

¡     GE1/0/1 and GE1/0/2 of Device C.

¡     GE1/0/1 of Device D.

·     Configure GE1/0/1 of Device B as an inward-facing MEP because CFD packets are forwarded through other interfaces on the device.

·     Configure GE1/0/1 of Device D as an outward-facing MEP because CFD packets are forwarded through the interface.

To accurately locate link faults between Device B and Device D, configure the default MIP generation rule on Device C.

To detect connectivity among MEPs, configure CC on the MEPs.

To verify link faults detected through CC, use LB. To trace faulty paths or locate link faults, use LT after the status information of the entire network is obtained.

Figure 2 shows a CFD configuration diagram based on the previous analysis.

Figure 2 CFD configuration diagram



Applicable hardware and software versions

The following matrix shows the hardware and software versions to which this configuration example is applicable:



Hardware	Software version
S6812 switch series S6813 switch series	Release 6615Pxx, Release 6628Pxx
S6550XE-HI switch series	Release 6008 and later, Release 8106Pxx
S6525XE-HI switch series	Release 6008 and later, Release 8106Pxx
S5850 switch series	Not supported
S5570S-EI switch series	Release 11xx
S5560X-EI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
S5560X-HI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
S5500V2-EI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
MS4520V2-30F switch	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
MS4520V2-30C switch MS4520V2-54C switch	Release 65xx, Release 6615Pxx, Release 6628Pxx
MS4520V2-28S switch MS4520V2-24TP switch	Release 63xx
S6520X-HI switch series S6520X-EI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
S6520X-SI switch series S6520-SI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
S5000-EI switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
MS4600 switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
ES5500 switch series	Release 63xx, Release 65xx, Release 6615Pxx, Release 6628Pxx
S5560S-EI switch series S5560S-SI switch series	Release 63xx
S5500V3-24P-SI S5500V3-48P-SI	Release 63xx
S5500V3-SI switch series (excluding S5500V3-24P-SI, and S5500V3-48P-SI)	Release 11xx
S5170-EI switch series	Release 11xx
S5130S-HI switch series S5130S-EI switch series S5130S-SI switch series S5130S-LI switch series	Release 63xx
S5120V2-SI switch series S5120V2-LI switch series	Release 63xx
S5120V3-EI switch series	Release 11xx
S5120V3-36F-SI S5120V3-28P-HPWR-SI S5120V3-54P-PWR-SI	Release 11xx
S5120V3-SI switch series (excluding S5120V3-36F-SI, S5120V3-28P-HPWR-SI, and S5120V3-54P-PWR-SI)	Release 63xx
S5120V3-LI switch series	Release 63xx
S3600V3-EI switch series	Release 11xx
S3600V3-SI switch series	Release 11xx
S3100V3-EI switch series S3100V3-SI switch series	Release 63xx
S5110V2 switch series	Release 63xx
S5110V2-SI switch series	Release 63xx
S5000V3-EI switch series S5000V5-EI switch series	Release 63xx
S5000E-X switch series S5000X-EI switch series	Release 63xx
E128C switch E152C switch E500C switch series E500D switch series	Release 63xx
MS4320V2 switch series MS4320V3 switch series MS4300V2 switch series MS4320 switch series MS4200 switch series	Release 63xx
WS5850-WiNet switch series	Release 63xx
WS5820-WiNet switch series WS5810-WiNet switch series	Release 63xx
WAS6000 switch series	Release 63xx
IE4300-12P-AC switch IE4300-12P-PWR switch IE4300-M switch series IE4320 switch series	Release 63xx
IE4520 switch series	Release 66xx
S5135S-EI switch series	Release 6658P01 and later



Restrictions and guidelines

When you configure CFD, follow these restrictions and guidelines:

·     You cannot create a MEP if the MEP ID is not included in the MEP list of the service instance.

·     You can configure multiple MAs in an MD as needed. An MA serves only one VLAN.

·     Configure the same CCM interval field value for all MEPs in the same MA. In this example, the MEPs use the default CCM interval field value.

Procedures

Enabling CFD

# Enable CFD on Device A.

<DeviceA> system-view

[DeviceA] cfd enable

# Enable CFD on Device B through Device E. (Details not shown.)

Creating VLANs and assigning interfaces to the VLANs

1.     Configure Device A:

[DeviceA] vlan 20

[DeviceA-vlan20] quit

[DeviceA] vlan 30

[DeviceA-vlan30] quit

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] port access vlan 20

[DeviceA-GigabitEthernet1/0/1] quit

[DeviceA] interface gigabitethernet 1/0/2

[DeviceA-GigabitEthernet1/0/2] port access vlan 30

[DeviceA-GigabitEthernet1/0/2] quit

[DeviceA] interface gigabitethernet 1/0/3

[DeviceA-GigabitEthernet1/0/3] port link-type trunk

[DeviceA-GigabitEthernet1/0/3] port trunk permit vlan 20 30

[DeviceA-GigabitEthernet1/0/3] quit

2.     Configure Device B:

[DeviceB] vlan 20

[DeviceB-vlan20] quit

[DeviceB] vlan 30

[DeviceB-vlan30] quit

[DeviceB] interface gigabitethernet 1/0/1

[DeviceB-GigabitEthernet1/0/1] port link-type trunk

[DeviceB-GigabitEthernet1/0/1] port trunk permit vlan 20 30

[DeviceB-GigabitEthernet1/0/1] quit

[DeviceB] interface gigabitethernet 1/0/2

[DeviceB-GigabitEthernet1/0/2] port link-type trunk

[DeviceB-GigabitEthernet1/0/2] port trunk permit vlan 20

[DeviceB-GigabitEthernet1/0/2] quit

[DeviceB] interface gigabitethernet 1/0/3

[DeviceB-GigabitEthernet1/0/3] port link-type trunk

[DeviceB-GigabitEthernet1/0/3] port trunk permit vlan 30

[DeviceB-GigabitEthernet1/0/3] quit

3.     Configure Device C:

[DeviceC] vlan 20

[DeviceC-vlan20] quit

[DeviceC] interface gigabitethernet 1/0/1

[DeviceC-GigabitEthernet1/0/1] port link-type trunk

[DeviceC-GigabitEthernet1/0/1] port trunk permit vlan 20

[DeviceC-GigabitEthernet1/0/1] quit

[DeviceC] interface gigabitethernet 1/0/2

[DeviceC-GigabitEthernet1/0/2] port link-type trunk

[DeviceC-GigabitEthernet1/0/2] port trunk permit vlan 20

[DeviceC-GigabitEthernet1/0/2] quit

4.     Configure Device D:

[DeviceD] vlan 20

[DeviceD-vlan20] quit

[DeviceD] interface gigabitethernet 1/0/1

[DeviceD-GigabitEthernet1/0/1] port link-type trunk

[DeviceD-GigabitEthernet1/0/1] port trunk permit vlan 20

[DeviceD-GigabitEthernet1/0/1] quit

[DeviceD] interface gigabitethernet 1/0/2

[DeviceD-GigabitEthernet1/0/2] port access vlan 20

[DeviceD-GigabitEthernet1/0/2] quit

5.     Configure Device E:

[DeviceE] vlan 30

[DeviceE-vlan30] quit

[DeviceE] interface gigabitethernet 1/0/1

[DeviceE-GigabitEthernet1/0/1] port access vlan 30

[DeviceE-GigabitEthernet1/0/1] quit

[DeviceE] interface gigabitethernet 1/0/2

[DeviceE-GigabitEthernet1/0/2] port link-type trunk

[DeviceE-GigabitEthernet1/0/2] port trunk permit vlan 30

[DeviceE-GigabitEthernet1/0/2] quit

Configuring service instances

Based on the MAs to which the MEPs belong, perform the configurations as described in the following table:



Device	MD	MD level	MA	VLAN		Service instance
Device A	MD_A	5	MA_A_1		20	1
			MA_A_2		30	2
Device B	MD_B	3	MA_B_1		20	3
			MA_B_2		30	4
Device C	MD_B	3	MA_B_1		20	3
Device D	MD_A	5	MA_A_1		20	1
	MD_B	3	MA_B_1		20	3
Device E	MD_A	5	MA_A_2		30	2
	MD_B	3	MA_B_2		30	4



1.     Configure Device A:

# Create MD_A (level 5).

[DeviceA] cfd md MD_A level 5

# Create service instance 1, in which the MA named MA_A_1 serves VLAN 20.

[DeviceA] cfd service-instance 1 ma-id string MA_A_1 md MD_A vlan 20

# Create service instance 2, in which the MA named MA_A_2 serves VLAN 30.

[DeviceA] cfd service-instance 2 ma-id string MA_A_2 md MD_A vlan 30

Configure Device B through Device E in the same way Device A is configured.

2.     Configure Device B:

[DeviceB] cfd md MD_B level 3

[DeviceB] cfd service-instance 3 ma-id string MA_B_1 md MD_B vlan 20

[DeviceB] cfd service-instance 4 ma-id string MA_B_2 md MD_B vlan 30

3.     Configure Device C:

[DeviceC] cfd md MD_B level 3

[DeviceC] cfd service-instance 3 ma-id string MA_B_1 md MD_B vlan 20

4.     Configure Device D:

[DeviceD] cfd md MD_A level 5

[DeviceD] cfd service-instance 1 ma-id string MA_A_1 md MD_A vlan 20

[DeviceD] cfd md MD_B level 3

[DeviceD] cfd service-instance 3 ma-id string MA_B_1 md MD_B vlan 20

5.     Configure Device E:

[DeviceE] cfd md MD_A level 5

[DeviceE] cfd service-instance 2 ma-id string MA_A_2 md MD_A vlan 30

[DeviceE] cfd md MD_B level 3

[DeviceE] cfd service-instance 4 ma-id string MA_B_2 md MD_B vlan 30

Configuring MEPs

Assign MEP IDs as described in the following table:



Service instance	Device	Interface	MEP ID	MEP type
1	Device A	GigabitEthernet 1/0/1	1001	Inward-facing MEP
	Device D	GigabitEthernet 1/0/2	1002	Inward-facing MEP
2	Device A	GigabitEthernet 1/0/2	2001	Inward-facing MEP
	Device E	GigabitEthernet 1/0/1	2002	Inward-facing MEP
3	Device B	GigabitEthernet 1/0/1	3001	Inward-facing MEP
	Device D	GigabitEthernet 1/0/1	3002	Outward-facing MEP
4	Device B	GigabitEthernet 1/0/1	4001	Inward-facing MEP
	Device E	GigabitEthernet 1/0/2	4002	Outward-facing MEP



1.     Configure Device A:

# Configure a MEP list in service instances 1 and 2.

[DeviceA] cfd meplist 1001 1002 service-instance 1

[DeviceA] cfd meplist 2001 2002 service-instance 2

# Create inward-facing MEP 1001 in service instance 1 on GigabitEthernet 1/0/1.

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] cfd mep 1001 service-instance 1 inbound

[DeviceA-GigabitEthernet1/0/1] quit

# Create inward-facing MEP 2001 in service instance 2 on GigabitEthernet 1/0/2.

[DeviceA] interface gigabitethernet 1/0/2

[DeviceA-GigabitEthernet1/0/2] cfd mep 2001 service-instance 2 inbound

[DeviceA-GigabitEthernet1/0/2] quit

Configure Device B, Device D, and Device E in the same way Device A is configured.

2.     Configure Device B:

[DeviceB] cfd meplist 3001 3002 service-instance 3

[DeviceB] cfd meplist 4001 4002 service-instance 4

[DeviceB] interface gigabitethernet 1/0/1

[DeviceB-GigabitEthernet1/0/1] cfd mep 3001 service-instance 3 inbound

[DeviceB-GigabitEthernet1/0/1] cfd mep 4001 service-instance 4 inbound

[DeviceB-GigabitEthernet1/0/1] quit

3.     Configure Device D:

[DeviceD] cfd meplist 1001 1002 service-instance 1

[DeviceD] cfd meplist 3001 3002 service-instance 3

[DeviceD] interface gigabitethernet 1/0/2

[DeviceD-GigabitEthernet1/0/2] cfd mep 1002 service-instance 1 inbound

[DeviceD-GigabitEthernet1/0/2] quit

[DeviceD] interface gigabitethernet 1/0/1

[DeviceD-GigabitEthernet1/0/1] cfd mep 3002 service-instance 3 outbound

[DeviceD-GigabitEthernet1/0/1] quit

4.     Configure Device E:

[DeviceE] cfd meplist 2001 2002 service-instance 2

[DeviceE] cfd meplist 4001 4002 service-instance 4

[DeviceE] interface gigabitethernet 1/0/1

[DeviceE-GigabitEthernet1/0/1] cfd mep 2002 service-instance 2 inbound

[DeviceE-GigabitEthernet1/0/1] quit

[DeviceE] interface gigabitethernet 1/0/2

[DeviceE-GigabitEthernet1/0/2] cfd mep 4002 service-instance 4 outbound

[DeviceE-GigabitEthernet1/0/2] quit

Configuring a MIP generation rule

# Configure the MIP generation rule in service instance 3 on Device C as default.

[DeviceC] cfd mip-rule default service-instance 3

Configuring CC on MEPs

1.     Configure Device A:

# Enable the sending of CCM frames for MEP 1001 in service instance 1 on GigabitEthernet 1/0/1.

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] cfd cc service-instance 1 mep 1001 enable

[DeviceA-GigabitEthernet1/0/1] quit

# Enable the sending of CCM frames for MEP 2001 in service instance 2 on GigabitEthernet 1/0/2.

[DeviceA] interface gigabitethernet 1/0/2

[DeviceA-GigabitEthernet1/0/2] cfd cc service-instance 2 mep 2001 enable

[DeviceA-GigabitEthernet1/0/2] quit

Configure Device B, Device D, and Device E in the same way Device A is configured.

2.     Configure Device B:

[DeviceB] interface gigabitethernet 1/0/1

[DeviceB-GigabitEthernet1/0/1] cfd cc service-instance 3 mep 3001 enable

[DeviceB-GigabitEthernet1/0/1] cfd cc service-instance 4 mep 4001 enable

[DeviceB-GigabitEthernet1/0/1] quit

3.     Configure Device D:

[DeviceD] interface gigabitethernet 1/0/1

[DeviceD-GigabitEthernet1/0/1] cfd cc service-instance 3 mep 3002 enable

[DeviceD-GigabitEthernet1/0/1] quit

[DeviceD] interface gigabitethernet 1/0/2

[DeviceD-GigabitEthernet1/0/2] cfd cc service-instance 1 mep 1002 enable

[DeviceD-GigabitEthernet1/0/2] quit

4.     Configure Device E:

[DeviceE] interface gigabitethernet 1/0/1

[DeviceE-GigabitEthernet1/0/1] cfd cc service-instance 2 mep 2002 enable

[DeviceE-GigabitEthernet1/0/1] quit

[DeviceE] interface gigabitethernet 1/0/2

[DeviceE-GigabitEthernet1/0/2] cfd cc service-instance 4 mep 4002 enable

[DeviceE-GigabitEthernet1/0/2] quit

Verifying the configuration

In this example, the MAC addresses of Device A through Device E are 0010-FC01-6511, 0010-FC02-6512, 0010-FC03-6513, 0010-FC04-6514, and 0010-FC05-6515, respectively.

1.     Verify the configuration when the network is operating correctly:

# Display information about remote MEP 1001 in service instance 1 on Device A.

[DeviceA] display cfd remote-mep service-instance 1 mep 1001

MEP ID   MAC address      State        Time                  MAC status

1002     0010-fc04-6514   OK           2019/07/26 12:54:52   UP

The output shows that the remote MEP is operating correctly.

# Enable LB on Device A to verify the status of the link between MEP 1001 and MEP 1002 in service instance 1.

[DeviceA] cfd loopback service-instance 1 mep 1001 target-mep 1002

Loopback to MEP 1002 with the sequence number start from 1001-43404:

Reply from 0010-fc04-6514: sequence number=1001-43404 Time=5ms

Reply from 0010-fc04-6514: sequence number=1001-43405 Time=5ms

Reply from 0010-fc04-6514: sequence number=1001-43406 Time=5ms

Reply from 0010-fc04-6514: sequence number=1001-43407 Time=5ms

Reply from 0010-fc04-6514: sequence number=1001-43408 Time=5ms

Sent: 5        Received: 5        Lost: 0

The output shows that no link fault occurs on the link between MEP 1001 and MEP 1002 in service instance 1.

2.     Verify the configuration when a link fault occurs:

# Display information about remote MEP 1001 in service instance 1 on Device A.

[DeviceA] display cfd remote-mep service-instance 1 mep 1001

MEP ID   MAC address      State        Time                  MAC status

1002     0010-fc04-6514   FAILED       2019/07/26 13:01:52   DOWN

The output shows that the remote MEP is operating incorrectly.

# Enable LB on Device A to verify the status of the link between MEP 1001 and MEP 1002 in service instance 1.

[DeviceA] cfd loopback service-instance 1 mep 1001 target-mep 1002

Loopback to MEP 1002 with the sequence number start from 1001-43904:

Sent: 5        Received: 0        Lost: 5

The output shows that a link fault occurs on the link between MEP 1001 and MEP 1002 in service instance 1.

# Identify the path between MEP 3001 and MEP 3002 in service instance 3 on Device B.

[DeviceB] cfd linktrace service-instance 3 mep 3001 target-mep 3002

Linktrace to MEP 3002 with the sequence number 3001-43862:

MAC Address               TTL     Last Mac         Relay Action

0010-fc03-6513            63      0010-fc02-6512   MPDB

The output shows that MEP 3001 receives only the LTR messages from the MIP. No LTR messages are sent from MEP 3002 (GigabitEthernet 1/0/1 on Device D). The link between Device C and Device D fails, and you do not need to troubleshoot the network outside MD_B.

Configuration files

NOTE: Support for the port link-mode bridge command depends on the device model.



·     Device A:

#

 cfd enable

 cfd md MD_A index 1 level 5

 cfd service-instance 1 ma-id string MA_A_1 ma-index 1 md MD_A vlan 20

 cfd meplist 1001 to 1002 service-instance 1

 cfd service-instance 2 ma-id string MA_A_2 ma-index 1 md MD_A vlan 30

 cfd meplist 2001 to 2002 service-instance 2

#

vlan 20

#

vlan 30

#

interface GigabitEthernet1/0/1

 port link-mode bridge

 port access vlan 20

 cfd mep 1001 service-instance 1 inbound

 cfd cc service-instance 1 mep 1001 enable

#

interface GigabitEthernet1/0/2

 port link-mode bridge

 port access vlan 30

 cfd mep 2001 service-instance 2 inbound

 cfd cc service-instance 2 mep 2001 enable

#

interface GigabitEthernet1/0/3

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 20 30

·     Device B:

#

 cfd enable

 cfd md MD_B index 1 level 3

 cfd service-instance 3 ma-id string MA_B_1 ma-index 1 md MD_B vlan 20

 cfd meplist 3001 to 3002 service-instance 3

 cfd service-instance 4 ma-id string MA_B_2 ma-index 2 md MD_B vlan 30

 cfd meplist 4001 to 4002 service-instance 4

#

vlan 20

#

vlan 30

#

interface GigabitEthernet1/0/1

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 20 30

 cfd mep 3001 service-instance 3 inbound

 cfd cc service-instance 3 mep 3001 enable

 cfd mep 4001 service-instance 4 inbound

 cfd cc service-instance 4 mep 4001 enable

#

interface GigabitEthernet1/0/2

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 20

#

interface GigabitEthernet1/0/3

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 30

·     Device C:

#

 cfd enable

 cfd md MD_B index 1 level 3

 cfd service-instance 3 ma-id string MA_B_1 ma-index 1 md MD_B vlan 20

 cfd mip-rule default service-instance 3

#

vlan 20

#

interface GigabitEthernet1/0/1

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 20

#

interface GigabitEthernet1/0/2

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 20

·     Device D:

#

 cfd enable

 cfd md MD_A index 1 level 5

 cfd md MD_B index 2 level 3

 cfd service-instance 1 ma-id string MA_A_1 ma-index 1 md MD_A vlan 20

 cfd meplist 1001 to 1002 service-instance 1

 cfd service-instance 3 ma-id string MA_B_1 ma-index 1 md MD_B vlan 20

 cfd meplist 3001 to 3002 service-instance 3

#

vlan 20

#

interface GigabitEthernet1/0/1

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 20

 cfd mep 3002 service-instance 3 outbound

 cfd cc service-instance 3 mep 3002 enable

#

interface GigabitEthernet1/0/2

 port link-mode bridge

 port access vlan 20

 cfd mep 1002 service-instance 1 inbound

 cfd cc service-instance 1 mep 1002 enable

·     Device E:

#

 cfd enable

 cfd md MD_A index 1 level 5

 cfd md MD_B index 2 level 3

 cfd service-instance 2 ma-id string MA_A_2 ma-index 1 md MD_A vlan 30

 cfd meplist 2001 to 2002 service-instance 2

 cfd service-instance 4 ma-id string MA_B_2 ma-index 2 md MD_B vlan 30

 cfd meplist 4001 to 4002 service-instance 4

#

vlan 30

#

interface GigabitEthernet1/0/1

 port link-mode bridge

 port access vlan 30

 cfd mep 2002 service-instance 2 inbound

 cfd cc service-instance 2 mep 2002 enable

#

interface GigabitEthernet1/0/2

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 30

 cfd mep 4002 service-instance 4 outbound

 cfd cc service-instance 4 mep 4002 enable
