H3C S6860 Switch Series
Congestion Avoidance and Queue Scheduling Configuration Examples

























































Contents

Introduction· 1

Prerequisites· 1

Example: Configuring congestion avoidance and queue scheduling· 1

Network configuration· 1

Analysis· 2

Software versions used· 3

Procedures· 3

Verifying the configuration· 4

Configuration files· 5

Related documentation· 6



Introduction

This document provides examples for configuring congestion avoidance and queue scheduling profiles.

Prerequisites

The configuration examples in this document were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

This document assumes that you have basic knowledge of congestion avoidance and queue scheduling profiles.

Example: Configuring congestion avoidance and queue scheduling

Network configuration

As shown in Figure 1, three types of traffic come from the Internet to the device through the gateway.

·     Voice traffic—Transmitted in VLAN 6 and carries 802.1p priority 6.

·     Video traffic—Transmitted in VLAN 4 and carries 802.1p priority 4.

·     Data traffic—Transmitted in VLAN 2 and carries 802.1p priority 2.

Configure congestion avoidance and queue scheduling on the device to meet the following requirements:

·     The voice traffic, video traffic, and data traffic are scheduled in the ratio of 1:2:2 when congestion occurs.

·     WRED drop is used when serious congestion occurs.

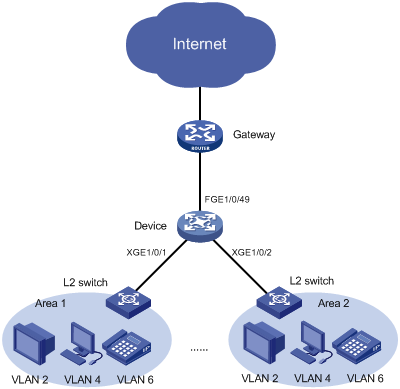

Figure 1 Network diagram



Analysis

To configure congestion avoidance and queue scheduling, you must perform the following tasks:

·     To assign different types of traffic to different queues, configure the inbound interface to trust the 802.1p priority in packets.

·     To schedule the three types of traffic in the ratio of 1:2:2, assign their queues to one WRR group and configure weights for these queues.

·     To minimize performance degradation for different types of traffic, use the drop parameters in Table 1.

Table 1 Drop parameters

Traffic type	Packet color	Lower limit	Upper limit	Drop probability
Voice	Yellow	1000	1500	3%
	Red	500	1000	30%
Video	Yellow	1000	1500	2%
	Red	500	1000	20%
Data	Yellow	1000	1500	1%
	Red	500	1000	10%



Software versions used

This configuration example was created and verified on S6860-CMW710-R2612.

Procedures

1.     Allow VLANs for different types of traffic to pass through:

# Create three VLANs .

<Device> system-view

[Device] vlan 2

[Device-vlan2] quit

[Device] vlan 4

[Device-vlan4] quit

[Device] vlan 6

[Device-vlan6] quit

# Assign interfaces to VLANs.

[Device] interface fortygige 1/0/49

[Device-FortyGigE1/0/49] port link-type trunk

[Device-FortyGigE1/0/49] port trunk permit vlan 2 4 6

[Device-FortyGigE1/0/49] quit

[Device] interface ten-gigabitethernet 1/0/1

[Device-Ten-GigabitEthernet1/0/1] port link-type trunk

[Device-Ten-GigabitEthernet1/0/1] port trunk permit vlan 2 4 6

[Device-Ten-GigabitEthernet1/0/1] quit

[Device] interface ten-gigabitethernet 1/0/2

[Device-Ten-GigabitEthernet1/0/2] port link-type trunk

[Device-Ten-GigabitEthernet1/0/2] port trunk permit vlan 2 4 6

[Device-Ten-GigabitEthernet1/0/2] quit

2.     Configure interface FortyGigE 1/0/49 to trust the 802.1p priority in packets.

[Device] interface fortygige 1/0/49

[Device-FortyGigE1/0/49] qos trust dot1p

[Device-FortyGigE1/0/49] quit

[Device] interface fortygige 1/0/49

[Device- interface fortygige 1/0/49] qos trust auto

[Device-FortyGigE1/0/49] quit

3.     Configure WRR on Ten-GigabitEthernet 1/0//1 and Ten-GigabitEthernet 1/0//2:

# Display the 802.1p-to-local precedence map to determine the local precedence for each type of traffic.

[Device] display qos map-table inbound dot1p-lp

MAP-TABLE NAME: dot1p-lp   TYPE: pre-define

IMPORT  :  EXPORT

   0    :    2

   1    :    0

   2    :    1

   3    :    3

   4    :    4

   5    :    5

   6    :    6

   7    :    7

# Enable weight-based WRR on Ten-GigabitEthernet 1/0/1.

[Device] interface ten-gigabitethernet 1/0/1

[Device-Ten-GigabitEthernet1/0/1] qos wrr weight

# Configure the weights of queue 1 (for data traffic), queue 4 (for video traffic), and queue 6 (for voice traffic) as 2, 2, and 1, respectively.

[Device-Ten-GigabitEthernet1/0/1] qos wrr 1 group 1 weight 2

[Device-Ten-GigabitEthernet1/0/1] qos wrr 4 group 1 weight 2

[Device-Ten-GigabitEthernet1/0/1] qos wrr 6 group 1 weight 1

[Device-Ten-GigabitEthernet1/0/1] quit

# Enable weight-based WRR on Ten-GigabitEthernet 1/0/2.

[Device] interface ten-gigabitethernet 1/0/2

[Device-Ten-GigabitEthernet1/0/2] qos wrr weight

# Configure the weights of queue 1 (for data traffic), queue 4 (for video traffic), and queue 6 (for voice traffic) as 2, 2, and 1, respectively.

[Device-Ten-GigabitEthernet1/0/2] qos wrr 1 group 1 weight 2

[Device-Ten-GigabitEthernet1/0/2] qos wrr 4 group 1 weight 2

[Device-Ten-GigabitEthernet1/0/2] qos wrr 6 group 1 weight 1

[Device-Ten-GigabitEthernet1/0/2] quit

4.     Configure congestion avoidance:

# Configure a WRED table.

[Device] qos wred queue table droppolicy

[Device-wred-table-droppolicy] queue 6 drop-level 1 low-limit 1000 high-limit 1500 discard-probability 3

[Device-wred-table-droppolicy] queue 6 drop-level 2 low-limit 500 high-limit 1000 discard-probability 30

[Device-wred-table-droppolicy] queue 4 drop-level 1 low-limit 1000 high-limit 1500 discard-probability 2

[Device-wred-table-droppolicy] queue 4 drop-level 2 low-limit 500 high-limit 1000 discard-probability 20

[Device-wred-table-droppolicy] queue 1 drop-level 1 low-limit 1000 high-limit 1500 discard-probability 1

[Device-wred-table-droppolicy] queue 1 drop-level 2 low-limit 500 high-limit 1000 discard-probability 10

[Device-wred-table-droppolicy] quit

# Apply the WRED table to interfaces Ten-GigabitEthernet 1/0/1 and Ten-GigabitEthernet 1/0/2.

[Device] interface ten-gigabitethernet 1/0/1

[Device-Ten-GigabitEthernet1/0/1] qos wred apply droppolicy

[Device-Ten-GigabitEthernet1/0/1] quit

[Device] interface ten-gigabitethernet 1/0/2

[Device-Ten-GigabitEthernet1/0/2] qos wred apply droppolicy

[Device-Ten-GigabitEthernet1/0/2] quit

Verifying the configuration

# Verify the WRR configuration on interfaces Ten-GigabitEthernet 1/0/1 and Ten-GigabitEthernet 1/0/2.

[Device] display qos queue wrr interface

Interface: Ten-GigabitEthernet1/0/1

 Output queue: Weighted Round Robin queuing

 Queue ID     Queue name     Group     Weight

 ---------------------------------------------------

 0            be             1         1

 1            af1            1         2

 2            af2            1         3

 3            af3            1         4

 4            af4            1         2

 5            ef             1         9

 6            cs6            1         1

 7            cs7            1         15

Interface: Ten-GigabitEthernet1/0/2

 Output queue: Weighted Round Robin queuing

 Queue ID     Queue name     Group     Weight

 ---------------------------------------------------

 0            be             1         1

 1            af1            1         2

 2            af2            1         3

 3            af3            1         4

 4            af4            1         2

 5            ef             1         9

 6            cs6            1         1

 7            cs7            1         15

# Display the WRED table configuration.

Table name: droppolicy

Table type: Queue based WRED

QID   gmin  gmax  gprob  ymin  ymax  yprob  rmin  rmax  rprob  exponent  ECN

----------------------------------------------------------------------------

0     100   1000  10     100   1000  10     100   1000  10     9         N

1     100   1000  10     1000  1500  1      500   1000  10     9         N

2     100   1000  10     100   1000  10     100   1000  10     9         N

3     100   1000  10     100   1000  10     100   1000  10     9         N

4     100   1000  10     1000  1500  2      500   1000  20     9         N

5     100   1000  10     100   1000  10     100   1000  10     9         N

6     100   1000  10     1000  1500  3      500   1000  30     9         N

7     100   1000  10     100   1000  10     100   1000  10     9         N

Configuration files

#

vlan 1

#

vlan 2

#

vlan 4

#

vlan 6

#

qos wred queue table droppolicy

 queue 1 drop-level 1 low-limit 1000 high-limit 1500 discard-probability 1

 queue 1 drop-level 2 low-limit 500 high-limit 1000 discard-probability 10

 queue 4 drop-level 1 low-limit 1000 high-limit 1500 discard-probability 2

 queue 4 drop-level 2 low-limit 500 high-limit 1000 discard-probability 20

 queue 6 drop-level 1 low-limit 1000 high-limit 1500 discard-probability 3

 queue 6 drop-level 2 low-limit 500 high-limit 1000 discard-probability 30

#

interface Ten-GigabitEthernet1/0/1

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 1 to 2 4 6

 qos wrr weight

 qos wrr af1 group 1 weight 2

 qos wrr af4 group 1 weight 2

 qos wrr cs6 group 1 weight 1

 qos wred apply droppolicy

#

interface Ten-GigabitEthernet1/0/2

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 1 to 2 4 6

 qos wrr weight

 qos wrr af1 group 1 weight 2

 qos wrr af4 group 1 weight 2

 qos wrr cs6 group 1 weight 1

 qos wred apply droppolicy

#

interface FortyGigE1/0/49

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 1 to 2 4 6

#

return

Related documentation

·     H3C S6860 Switch Series ACL and QoS Command Reference-Release 26xx

·     H3C S6860 Switch Series  ACL and QoS Configuration Guide-Release 26xx
