H3C S6805 & S6825 &S6850 & S9850 & S9820
Static Multicast MAC Address Entry
Configuration Examples























































































Contents

Introduction· 1

Prerequisites· 1

Example: Configuring static multicast MAC address entries· 1

Network configuration· 1

Analysis· 1

Applicable hardware and software versions· 2

Restrictions and guidelines· 2

Procedures· 2

Verifying the configuration· 3

Configuration files· 3

Related documentation· 3



Introduction

This document provides configuration examples of static multicast MAC address entries.

Prerequisites

The configuration examples in this document were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

This document assumes that you have basic knowledge of multicast MAC addresses.

Example: Configuring static multicast MAC address entries

Network configuration

As shown in Figure 1, Router A runs IGMP and acts as the IGMP querier. Switch A does not run a Layer 2 multicast protocol.

Configure a static multicast MAC address entry on Switch A so that only Host A and Host C can receive multicast data for multicast group 224.1.1.1.

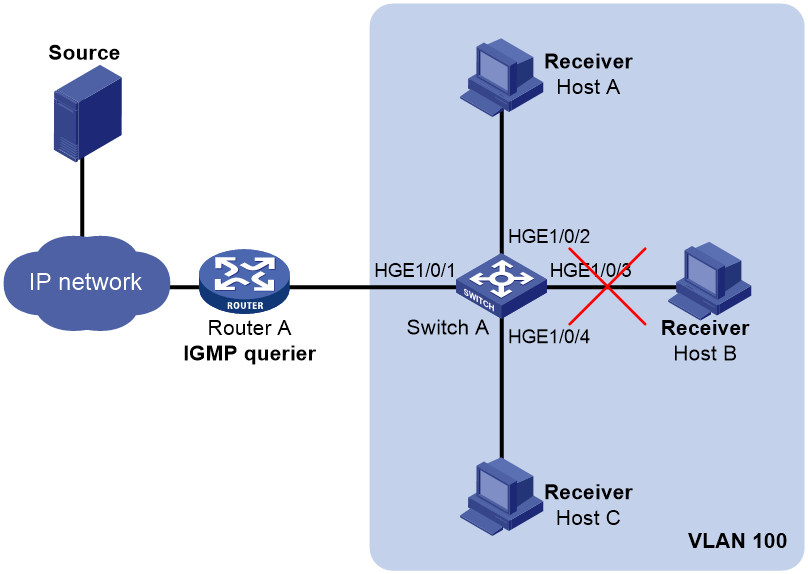

Figure 1 Network diagram



Analysis

Multicast MAC address entries guide Layer 2 multicast forwarding. They can be dynamically created through Layer 2 multicast protocols or manually configured by binding multicast MAC addresses and ports.

In this example, Switch A does not run a Layer 2 multicast protocol. To control destination ports of Layer 2 multicast data, configure a static multicast MAC address entry on Switch A.

Applicable hardware and software versions

The following matrix shows the hardware and software versions to which this configuration example is applicable:



Hardware	Software version
S6805 switch series	Release 6607, Release 6616, Release 6616P01, Release 6635 and later
S6825 switch series	Release 6616, Release 6616P01, Release 6635 and later
S6850 switch series S9850 switch series	Release 6555P01, Release 6607, Release 6616, Release 6616P01, Release 6635 and later
S9820-64H switch	Release 6555P01, Release 6607, Release 6616, Release 6616P01, Release 6635 and later
S9820-8C switch	Release 6607, Release 6616, Release 6616P01, Release 6635 and later



Restrictions and guidelines

When you configure multicast MAC address entries, follow these guidelines:

·     You must specify an unused multicast MAC address in a manually configured multicast MAC address entry.

·     By default, Ethernet interfaces, VLAN interfaces, and aggregate interfaces are shut down. You must first use the undo shutdown command to bring them up. This example assumes that all these interfaces are already up.

Procedures

# On Switch A, create VLAN 100.

<SwitchA> system-view

[SwitchA] vlan 100

[SwitchA-vlan100] quit

# Configure HundredGigE 1/0/1 through HundredGigE 1/0/4 to operate in Layer 2 mode, and assign the ports to VLAN 100.

[SwitchA] interface range hundredgige 1/0/1 to hundredgige 1/0/4

[SwitchA-if-range] port access vlan 100

[SwitchA-if-range] quit

# Translate the multicast IP address 224.1.1.1 to a multicast MAC address (0100-5e01-0101). (Details not shown.)

# Create a static entry for the multicast MAC address 0100-5e01-0101 with HundredGigE 1/0/2 and HundredGigE 1/0/4 in VLAN 100 as outgoing ports.

[SwitchA] mac-address multicast 0100-5e01-0101 interface hundredgige 1/0/2 hundredgige 1/0/4 vlan 100

Verifying the configuration

# Display static multicast MAC address entries for VLAN 100 on Switch A.

[SwitchA] display mac-address multicast vlan 100

MAC Address      VLAN ID    State            Port/NickName            Aging

0100-5e01-0101   100        Multicast        HGE1/0/2                 N

                                             HGE1/0/4

The output shows that HundredGigE 1/0/2 and HundredGigE 1/0/4 have become outgoing ports of the multicast MAC group 0100-5e01-0101.

Configuration files

#

vlan 100

#

interface HundredGigE1/0/1

 port link-mode bridge

 port access vlan 100

#

interface HundredGigE1/0/2

 port link-mode bridge

 port access vlan 100

#

interface HundredGigE1/0/3

 port link-mode bridge

 port access vlan 100

#

interface HundredGigE1/0/4

 port link-mode bridge

 port access vlan 100

#

mac-address multicast 0100-5e01-0101 interface HundredGigE1/0/2 HundredGigE1/0/4 vlan 100

#

Related documentation

Use this document in conjunction with the following documents for the product and software version you are working with:

·     IP Multicast Configuration Guide

·     IP Multicast Command Reference
