Introduction
This document provides DRNI configuration examples.
Distributed Resilient Network Interconnect (DRNI) virtualizes two physical devices into one system through multichassis link aggregation. The standard for DRNI is IEEE P802.1AX-REV™/D4.4c, Draft Standard for Local and Metropolitan Area Networks.
DRNI is typically applicable to data center environments.
Prerequisites
The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.
The following information is provided based on the assumption that you have basic knowledge of DRNI.
General restrictions and guidelines
DR system restrictions and guidelines
· A DR system supports only two DR member devices.
· Make sure the DR member devices are consistent in type 1 configuration, which includes the global and DR interface specific settings listed in Table 1 and Table 2, respectively.
Table 1 Global type 1 configuration
|
Setting |
Details |
|
IPP link type |
IPP link type, including access, hybrid, and trunk. |
|
PVID on the IPP |
PVID on the IPP. |
|
Spanning tree state |
· Global spanning tree state. · VLAN-specific spanning tree state. |
|
Spanning tree mode |
Spanning tree mode, including STP, RSTP, PVST, and MSTP. |
|
MST region settings |
· MST region name. · MST region revision level. · VLAN-to-MSTI mappings. |
Table 2 DR interface type 1 configuration
|
Setting |
Details |
|
Aggregation mode |
Aggregation mode, including static and dynamic. |
|
Spanning tree state |
Interface-specific spanning tree state. |
|
Link type |
Interface link type, including access, hybrid, and trunk. |
|
PVID |
Interface PVID. |
· If you attach a device to a DR system through a single link, attach it to the primary DR device. If you attach the device to the secondary DR device, traffic interruption will occur after the DR system splits.
· The data restoration interval specifies the maximum amount of time for the secondary DR device to synchronize data (including MAC and ARP entries) with the primary DR device during DR system setup. Make sure the data restoration interval is longer than the time required for the secondary DR device to start up and restore the table entries.
· As a best practice to avoid DR system split, do not modify the DR system MAC address, system number, or system priority of DR member devices after the DR system is established.
· For DR member devices to synchronize ARP entries, you must exclude the VLAN interfaces of the VLANs to which the DR interfaces and IPPs belong from the DRNI MAD DOWN action.
DR interface restrictions and guidelines
· You can configure only Layer 2 aggregate interfaces as DR interfaces.
· As a best practice, assign Layer 2 aggregate interfaces to a DR group with the same number as their interface numbers.
· Do not use automatic assignment or automatic link aggregation on the Layer 2 aggregate interfaces that act as DR interfaces.
· As a best practice, disable spanning tree on DR interfaces.
IPP restrictions and guidelines
· Do not use automatic assignment or automatic link aggregation on the Layer 2 aggregate interfaces that act as IPPs.
· As a best practice, configure IPPs as trunk ports and assign them to all VLANs that are permitted on DR interfaces. For the DR member devices to have Layer 3 connectivity over the IPL, create VLAN interfaces for those VLANs and assign IP addresses to them.
· To avoid multi-active collisions, use interfaces on different cards to set up the IPL and keepalive link.
Keepalive link restrictions and guidelines
· Use Layer 3 physical interfaces to set up the keepalive link. As a best practice, use management Ethernet interfaces.
· To avoid multi-active collisions, use interfaces on different cards to set up the IPL and keepalive link.
Example: Configuring DRNI at the access Layer
Network configuration

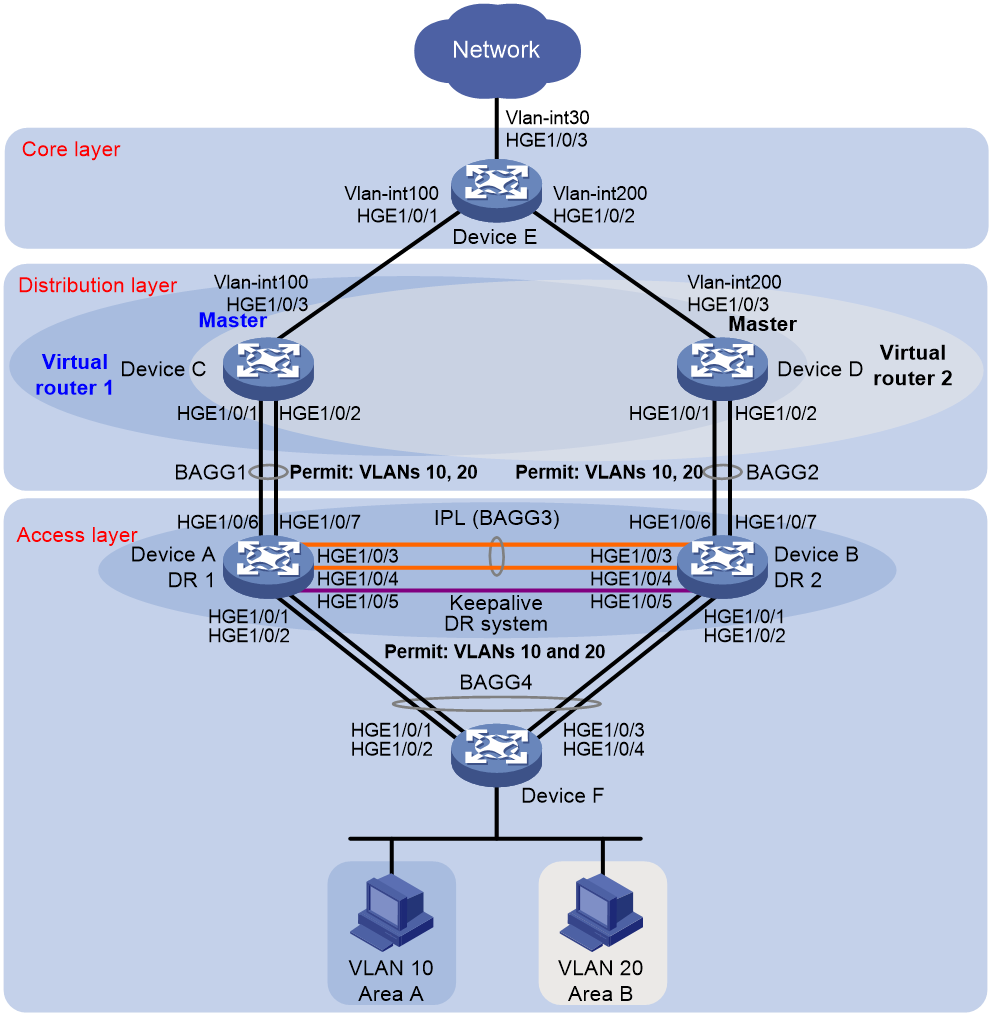

As shown in Figure 1:
· Configure Device A and Device B as a DR system to establish one multichassis aggregate link with Device F and one with Device C and Device D.
· Set up a keepalive link between HundredGigE 1/0/5 of Device A and HundredGigE 1/0/5 of Device B, and exclude the interfaces from the shutdown action by DRNI MAD.
· Configure two VRRP groups on Device C and Device D to provide gateway services for VLAN 10 and VLAN 20.
¡ Configure VRRP group 1 to provide gateway services for hosts in VLAN 10 (Area A). Add Device C and Device D to the group as the master and backup devices, respectively.
¡ Configure VRRP group 2 to provide gateway services for hosts in VLAN 20 (Area B). Add Device D and Device C to the group as the master and backup devices, respectively.
· Configure OSPF on Device C, Device D, and Device E for the hosts to communicate with external networks at Layer 3.
|
Device |
Interface |
IP address |
Device |
Interface |
IP address |
|
Device A |
HGE 1/0/5 |
1.1.1.1/24 |
Device B |
HGE1/0/5 |
1.1.1.2/24 |
|
Device C |
VLAN-interface 100 |
100.1.1.1/24 |
Device D |
VLAN-interface 100 |
200.1.1.1/24 |
|
|
VLAN-interface 10 |
10.1.1.1/24 |
|
VLAN-interface 10 |
10.1.1.2/24 |
|
|
VLAN-interface 20 |
20.1.1.1/24 |
|
VLAN-interface 20 |
20.1.1.2/24 |
|
|
Virtual IP 1 |
10.1.1.100/24 |
|
Virtual IP 1 |
10.1.1.100/24 |
|
|
Virtual IP 2 |
20.1.1.100/24 |
|
Virtual IP 2 |
20.1.1.100/24 |
|
Device E |
VLAN-interface 100 |
100.1.1.2/24 |
|
|
|
|
|
VLAN-interface 200 |
200.1.1.2/24 |
|
|
|
|
|
VLAN-interface 30 |
30.1.1.1/24 |
|
|
|
Analysis
For the secondary DR device to monitor the state of the primary device, establish a Layer 3 keepalive link between the DR member devices.
To balance traffic between two VRRP gateway devices, you can assign them to two VRRP groups with different priorities. In this example, Device C is assigned a higher priority than Device D in VRRP group 1 so Device C can become the master in this group. Device D is assigned a higher priority than Device C in VRRP group 2 so Device D can become the master in this group.
Applicable hardware and software versions
The following matrix shows the hardware and software versions to which this configuration example is applicable:
|
Hardware |
Software version |
|
S6805 switch series |
Release 6607, Release 6616, Release 6616P01, Release 6635 and later |
|
S6825 switch series |
Release 6616, Release 6616P01, Release 6635 and later |
|
S6850 switch series S9850 switch series |
Release 6555P01, Release 6607, Release 6616, Release 6616P01, Release 6635 and later |
|
S9820-64H |
Release 6555P01, Release 6607, Release 6616, Release 6616P01, Release 6635 and later |
|
S9820-8C |
Release 6616, Release 6616P01, Release 6635 and later |
Restrictions and guidelines
DRNI restrictions and guidelines
For the DR member devices to be identified as one DR system, you must configure the same DR system MAC address and DR system priority on them. You must assign different DR system numbers to the DR member devices.
A DR member device can have only one IPP.
For correct keepalive detection, you must exclude the interfaces used for keepalive detection from the shutdown action by DRNI MAD.
VRRP restrictions and guidelines
As a best practice, use VRRP standard mode.
You cannot specify the virtual IP address as any of the following IP addresses:
· All-zero address (0.0.0.0).
· Broadcast address (255.255.255.255).
· Loopback address.
· IP address of other than Class A, Class B, and Class C.
· Invalid IP address (for example, 0.0.0.1).
The virtual IP address of an IPv4 VRRP group must be on the same subnet as the downlink interface IP addresses of the VRRP group members to ensure successful traffic forwarding.
Procedures
Configuring Device A
# Configure DR system settings.
<DeviceA> system-view
[DeviceA] drni system-mac 1-1-1
Changing the system MAC might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
[DeviceA] drni system-number 1
Changing the system number might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
[DeviceA] drni system-priority 123
Changing the system priority might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
# Configure DR keepalive packet parameters.
[DeviceA] drni keepalive ip destination 1.1.1.2 source 1.1.1.1
# Configure HundredGigE 1/0/5 as a routed (Layer 3) interface and assign the interface an IP address. The IP address will be used as the source IP address of keepalive packets.
[DeviceA] interface hundredgige 1/0/5
[DeviceA-HundredGigE1/0/5] port link-mode route
[DeviceA-HundredGigE1/0/5] ip address 1.1.1.1 24
[DeviceA-HundredGigE1/0/5] quit
# Exclude the interface used for DR keepalive detection (HundredGigE 1/0/5) from the shutdown action by DRNI MAD.
[DeviceA] drni mad exclude interface hundredgige 1/0/5
# Create VLAN 10 and VLAN 20.
[DeviceA] vlan 10
[DeviceA-vlan10] quit
[DeviceA] vlan 20
[DeviceA-vlan20] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 1.
[DeviceA] interface bridge-aggregation 1
[DeviceA-Bridge-Aggregation1] link-aggregation mode dynamic
[DeviceA-Bridge-Aggregation1] quit
# Assign HundredGigE 1/0/6 and HundredGigE 1/0/7 to aggregation group 1.
[DeviceA] interface hundredgige 1/0/6
[DeviceA-HundredGigE1/0/6] port link-aggregation group 1
[DeviceA-HundredGigE1/0/6] quit
[DeviceA] interface hundredgige 1/0/7
[DeviceA-HundredGigE1/0/7] port link-aggregation group 1
[DeviceA-HundredGigE1/0/7] quit
# Set the link type of Bridge-Aggregation 1 to trunk and assign it to VLAN 10 and VLAN 20.
[DeviceA] interface bridge-aggregation 1
[DeviceA-Bridge-Aggregation1] port link-type trunk
Configuring HundredGigE1/0/6 done.
Configuring HundredGigE1/0/7 done.
[DeviceA-Bridge-Aggregation1] port trunk permit vlan 10 20
Configuring HundredGigE1/0/6 done.
Configuring HundredGigE1/0/7 done.
[DeviceA-Bridge-Aggregation1] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 3 and specify it as the IPP.
[DeviceA] interface bridge-aggregation 3
[DeviceA-Bridge-Aggregation3] link-aggregation mode dynamic
[DeviceA-Bridge-Aggregation3] port drni intra-portal-port 1
[DeviceA-Bridge-Aggregation3] quit
# Assign HundredGigE 1/0/3 and HundredGigE 1/0/4 to aggregation group 3.
[DeviceA] interface hundredgige 1/0/3
[DeviceA-HundredGigE1/0/3] port link-aggregation group 3
[DeviceA-HundredGigE1/0/3] quit
[DeviceA] interface hundredgige 1/0/4
[DeviceA-HundredGigE1/0/4] port link-aggregation group 3
[DeviceA-HundredGigE1/0/4] quit
# Set the link type of Bridge-Aggregation 3 to trunk and assign it to VLAN 10 and VLAN 20.
[DeviceA] interface bridge-aggregation 3
[DeviceA-Bridge-Aggregation3] port link-type trunk
Configuring HundredGigE1/0/3 done.
Configuring HundredGigE1/0/4 done.
[DeviceA-Bridge-Aggregation3] port trunk permit vlan 10 20
Configuring HundredGigE1/0/3 done.
Configuring HundredGigE1/0/4 done.
[DeviceA-Bridge-Aggregation3] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 4 and assign it to DR group 4.
[DeviceA] interface bridge-aggregation 4
[DeviceA-Bridge-Aggregation4] link-aggregation mode dynamic
[DeviceA-Bridge-Aggregation4] port drni group 4
[DeviceA-Bridge-Aggregation4] quit
# Assign HundredGigE 1/0/1 and HundredGigE 1/0/2 to aggregation group 4.
[DeviceA] interface hundredgige 1/0/1
[DeviceA-HundredGigE1/0/1] port link-aggregation group 4
[DeviceA-HundredGigE1/0/1] quit
[DeviceA] interface hundredgige 1/0/2
[DeviceA-HundredGigE1/0/2] port link-aggregation group 4
[DeviceA-HundredGigE1/0/2] quit
# Set the link type of Bridge-Aggregation 4 to trunk and assign it to VLAN 10 and VLAN 20.
[DeviceA] interface bridge-aggregation 4
[DeviceA-Bridge-Aggregation4] port link-type trunk
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceA-Bridge-Aggregation4] port trunk permit vlan 10 20
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceA-Bridge-Aggregation4] quit
Configuring Device B
# Configure DR system settings.
<DeviceB> system-view
[DeviceB] drni system-mac 1-1-1
Changing the system MAC might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
[DeviceB] drni system-number 2
Changing the system number might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
[DeviceB] drni system-priority 123
Changing the system priority might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
# Configure DR keepalive packet parameters.
[DeviceB] drni keepalive ip destination 1.1.1.1 source 1.1.1.2
# Configure HundredGigE 1/0/5 as a routed (Layer 3) interface and assign the interface an IP address. The IP address will be used as the source IP address of keepalive packets.
[DeviceB] interface hundredgige 1/0/5
[DeviceB-HundredGigE1/0/5] port link-mode route
[DeviceB-HundredGigE1/0/5] ip address 1.1.1.2 24
[DeviceB-HundredGigE1/0/5] quit
# Exclude the interface used for DR keepalive detection (HundredGigE 1/0/5) from the shutdown action by DRNI MAD.
[DeviceB] drni mad exclude interface hundredgige 1/0/5
# Create VLAN 10 and VLAN 20.
[DeviceB] vlan 10
[DeviceB-vlan10] quit
[DeviceB] vlan 20
[DeviceB-vlan20] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 2.
[DeviceB] interface bridge-aggregation 2
[DeviceB-Bridge-Aggregation2] link-aggregation mode dynamic
[DeviceB-Bridge-Aggregation2] quit
# Assign HundredGigE 1/0/6 and HundredGigE 1/0/7 to aggregation group 2.
[DeviceB] interface hundredgige 1/0/6
[DeviceB-HundredGigE1/0/6] port link-aggregation group 2
[DeviceB-HundredGigE1/0/6] quit
[DeviceB] interface hundredgige 1/0/7
[DeviceB-HundredGigE1/0/7] port link-aggregation group 2
[DeviceB-HundredGigE1/0/7] quit
# Set the link type of Bridge-Aggregation 2 to trunk and assign it to VLAN 10 and VLAN 20.
[DeviceB] interface bridge-aggregation 2
[DeviceB-Bridge-Aggregation2] port link-type trunk
Configuring HundredGigE1/0/6 done.
Configuring HundredGigE1/0/7 done.
[DeviceB-Bridge-Aggregation2] port trunk permit vlan 10 20
Configuring HundredGigE1/0/6 done.
Configuring HundredGigE1/0/7 done.
[DeviceB-Bridge-Aggregation2] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 3 and specify it as the IPP.
[DeviceB] interface bridge-aggregation 3
[DeviceB-Bridge-Aggregation3] link-aggregation mode dynamic
[DeviceB-Bridge-Aggregation3] port drni intra-portal-port 1
[DeviceB-Bridge-Aggregation3] quit
# Assign HundredGigE 1/0/3 and HundredGigE 1/0/4 to aggregation group 3.
[DeviceB] interface hundredgige 1/0/3
[DeviceB-HundredGigE1/0/3] port link-aggregation group 3
[DeviceB-HundredGigE1/0/3] quit
[DeviceB] interface hundredgige 1/0/4
[DeviceB-HundredGigE1/0/4] port link-aggregation group 3
[DeviceB-HundredGigE1/0/4] quit
# Set the link type of Bridge-Aggregation 3 to trunk and assign it to VLAN 10 and VLAN 20.
[DeviceB] interface bridge-aggregation 3
[DeviceB-Bridge-Aggregation3] port link-type trunk
Configuring HundredGigE1/0/3 done.
Configuring HundredGigE1/0/4 done.
[DeviceB-Bridge-Aggregation3] port trunk permit vlan 10 20
Configuring HundredGigE1/0/3 done.
Configuring HundredGigE1/0/4 done.
[DeviceB-Bridge-Aggregation3] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 4 and assign it to DR group 4.
[DeviceB] interface bridge-aggregation 4
[DeviceB-Bridge-Aggregation4] link-aggregation mode dynamic
[DeviceB-Bridge-Aggregation4] port drni group 4
[DeviceB-Bridge-Aggregation4] quit
# Assign HundredGigE 1/0/1 and HundredGigE 1/0/2 to aggregation group 4.
[DeviceB] interface hundredgige 1/0/1
[DeviceB-HundredGigE1/0/1] port link-aggregation group 4
[DeviceB-HundredGigE1/0/1] quit
[DeviceB] interface hundredgige 1/0/2
[DeviceB-HundredGigE1/0/2] port link-aggregation group 4
[DeviceB-HundredGigE1/0/2] quit
# Set the link type of Bridge-Aggregation 4 to trunk and assign it to VLAN 10 and VLAN 20.
[DeviceB] interface bridge-aggregation 4
[DeviceB-Bridge-Aggregation4] port link-type trunk
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceB-Bridge-Aggregation4] port trunk permit vlan 10 20
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceB-Bridge-Aggregation4] quit
Configuring Device C
# Create VLAN 10, VLAN 20, and VLAN 100.
<DeviceC> system-view
[DeviceC] vlan 10
[DeviceC-vlan10] quit
[DeviceC] vlan 20
[DeviceC-vlan20] quit
[DeviceC] vlan 100
# Assign HundredGigE 1/0/3 to VLAN 100.
[DeviceC] vlan 100
[DeviceC-vlan100] port hundredgige 1/0/3
[DeviceC-vlan100] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 1.
[DeviceC] interface bridge-aggregation 1
[DeviceC-Bridge-Aggregation1] link-aggregation mode dynamic
[DeviceC-Bridge-Aggregation1] quit
# Assign HundredGigE 1/0/1 and HundredGigE1/0/2 to aggregation group 1.
[DeviceC] interface range hundredgige 1/0/1 to hundredgige 1/0/2
[DeviceC-if-range] port link-aggregation group 1
[DeviceC-if-range] quit
# Set the link type of Bridge-Aggregation 1 to trunk and assign it to VLAN 10 and VLAN 20.
[DeviceC] interface bridge-aggregation 1
[DeviceC-Bridge-Aggregation1] port link-type trunk
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceC-Bridge-Aggregation1] port trunk permit vlan 10 20
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceC-Bridge-Aggregation1] quit
# Create uplink interface VLAN-interface 100 and assign it an IP address.
[DeviceC] interface vlan-interface 100
[DeviceC-Vlan-interface100] ip address 100.1.1.1 24
[DeviceC-Vlan-interface100] quit
# Create VLAN-interface 10 and VLAN-interface 20 and assign an IP address to each of them.
[DeviceC] interface vlan-interface 10
[DeviceC-vlan-interface10] ip address 10.1.1.1 24
[DeviceC-vlan-interface10] quit
[DeviceC] interface vlan-interface 20
[DeviceC-vlan-interface20] ip address 20.1.1.1 24
[DeviceC-vlan-interface20] quit
# Create VRRP group 1 on VLAN-interface 10 and set its virtual IP address to 10.1.1.100.
[DeviceC] interface vlan-interface 10
[DeviceC-Vlan-interface10] vrrp vrid 1 virtual-ip 10.1.1.100
# Set the priority of Device C to 200 for it to become the master in VRRP group 1.
[DeviceC-Vlan-interface10] vrrp vrid 1 priority 200
[DeviceC-Vlan-interface10] quit
# Create VRRP group 2 on VLAN-interface 20 and set its virtual IP address to 20.1.1.100.
[DeviceC] interface vlan-interface 20
[DeviceC-Vlan-interface20] vrrp vrid 2 virtual-ip 20.1.1.100
[DeviceC-vlan-interface20] quit
# Configure Device C to operate in preemptive mode in VRRP group 1. Set the preemption delay to 500 centiseconds to avoid frequent status switchover.
[DeviceC] interface vlan-interface 10
[DeviceC-Vlan-interface10] vrrp vrid 1 preempt-mode delay 500
[DeviceC-Vlan-interface10] quit
# Create track entry 1 to monitor the upstream link status of HundredGigE 1/0/3.
[DeviceC] track 1 interface hundredgige 1/0/3
# Configure Device C in VRRP group 1 to monitor track entry 1, and decrease its priority by 150 when the track entry transits to Negative.
[DeviceC] interface vlan-interface 10
[DeviceC-Vlan-interface10] vrrp vrid 1 track 1 priority reduced 150
[DeviceC-Vlan-interface10] quit
# Configure OSPF.
[DeviceC] ospf
[DeviceC-ospf-1] area 0
[DeviceC-ospf-1-area-0.0.0.0] network 10.1.1.0 0.0.0.255
[DeviceC-ospf-1-area-0.0.0.0] network 20.1.1.0 0.0.0.255
[DeviceC-ospf-1-area-0.0.0.0] network 100.1.1.0 0.0.0.255
[DeviceC-ospf-1-area-0.0.0.0] quit
[DeviceC-ospf-1] quit
Configuring Device D
# Create VLAN 10, VLAN 20, and VLAN 200.
<DeviceD> system-view
[DeviceD] vlan 10
[DeviceD-vlan10] quit
[DeviceD] vlan 20
[DeviceD-vlan20] quit
[DeviceD] vlan 200
# Assign HundredGigE 1/0/3 to VLAN 200.
[DeviceD] vlan 200
[DeviceD-vlan200] port hundredgige 1/0/3
[DeviceD-vlan200] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 2.
[DeviceD] interface bridge-aggregation 2
[DeviceD-Bridge-Aggregation2] link-aggregation mode dynamic
[DeviceD-Bridge-Aggregation2] quit
# Assign HundredGigE 1/0/1 and HundredGigE 1/0/2 to aggregation group 2.
[DeviceD] interface range hundredgige 1/0/1 to hundredgige 1/0/2
[DeviceD-if-range] port link-aggregation group 2
[DeviceD-if-range] quit
# Set the link type of Bridge-Aggregation 2 to trunk and assign it to VLAN 10 and VLAN 20.
[DeviceD] interface bridge-aggregation 2
[DeviceD-Bridge-Aggregation2] port link-type trunk
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceD-Bridge-Aggregation2] port trunk permit vlan 10 20
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceD-Bridge-Aggregation2] quit
# Create uplink interface VLAN-interface 200 and assign it an IP address.
[DeviceD] interface vlan-interface 200
[DeviceD-Vlan-interface200] ip address 200.1.1.1 24
[DeviceD-Vlan-interface200] quit
# Create VLAN-interface 10 and VLAN-interface 20 and assign an IP address to each of them.
[DeviceD] interface vlan-interface 10
[DeviceD-vlan-interface10] ip address 10.1.1.2 24
[DeviceD-vlan-interface10] quit
[DeviceD] interface vlan-interface 20
[DeviceD-vlan-interface20] ip address 20.1.1.2 24
[DeviceD-vlan-interface20] quit
# Create VRRP group 1 on VLAN-interface 10 and set its virtual IP address to 10.1.1.100.
[DeviceD] interface vlan-interface 10
[DeviceD-Vlan-interface10] vrrp vrid 1 virtual-ip 10.1.1.100
[DeviceD-vlan-interface10] quit
# Create VRRP group 2 on VLAN-interface 20 and set its virtual IP address to 20.1.1.100.
[DeviceD] interface vlan-interface 20
[DeviceD-Vlan-interface20] vrrp vrid 2 virtual-ip 20.1.1.100
# Set the priority of Device D to 200 for it to become the master in VRRP group 2.
[DeviceD-Vlan-interface20] vrrp vrid 2 priority 200
# Configure Device D to operate in preemptive mode in VRRP group 2. Set the preemption delay to 500 centiseconds to avoid frequent status switchover.
[DeviceD-Vlan-interface20] vrrp vrid 2 preempt-mode delay 500
[DeviceD-Vlan-interface20] quit
# Create track entry 2 to monitor the upstream link status of HundredGigE 1/0/3.
[DeviceD] track 2 interface hundredgige 1/0/3
# Configure Device D in VRRP group 2 to monitor track entry 2, and decrease its priority by 150 when the track entry transits to Negative.
[DeviceD] interface vlan-interface 20
[DeviceD-Vlan-interface20] vrrp vrid 2 track 2 priority reduced 150
[DeviceD-Vlan-interface20] quit
# Configure OSPF.
[DeviceD] ospf
[DeviceD-ospf-1] area 0
[DeviceD-ospf-1-area-0.0.0.0] network 10.1.1.0 0.0.0.255
[DeviceD-ospf-1-area-0.0.0.0] network 20.1.1.0 0.0.0.255
[DeviceD-ospf-1-area-0.0.0.0] network 200.1.1.0 0.0.0.255
[DeviceD-ospf-1-area-0.0.0.0] quit
[DeviceD-ospf-1] quit
Configuring Device E
# Create VLAN 100 and assign HundredGigE 1/0/1 to the VLAN.
<DeviceE> system-view
[DeviceE] vlan 100
[DeviceE-vlan100] port hundredgige 1/0/1
[DeviceE-vlan100] quit
# Create VLAN-interface 100 and assign it an IP address.
[DeviceE] interface vlan-interface 100
[DeviceE-vlan-interface100] ip address 100.1.1.2 24
[DeviceE-vlan-interface100] quit
# Create VLAN 200 and assign HundredGigE 1/0/2 to the VLAN.
[DeviceE] vlan 200
[DeviceE-vlan200] port hundredgige 1/0/2
[DeviceE-vlan200] quit
# Create VLAN-interface 200 and assign it an IP address.
[DeviceE] interface vlan-interface 200
[DeviceE-vlan-interface200] ip address 200.1.1.2 24
[DeviceE-vlan-interface200] quit
# Create VLAN 30 and assign HundredGigE 1/0/3 to the VLAN.
[DeviceE] vlan 30
[DeviceE-vlan30] port hundredgige 1/0/3
[DeviceE-vlan30] quit
# Create VLAN-interface 30 and assign it an IP address.
[DeviceE] interface vlan-interface 30
[DeviceE-vlan-interface30] ip address 30.1.1.1 24
[DeviceE-vlan-interface30] quit
# Configure OSPF.
[DeviceD] ospf
[DeviceD-ospf-1] area 0
[DeviceD-ospf-1-area-0.0.0.0] network 100.1.1.0 0.0.0.255
[DeviceD-ospf-1-area-0.0.0.0] network 200.1.1.0 0.0.0.255
[DeviceD-ospf-1-area-0.0.0.0] network 30.1.1.0 0.0.0.255
[DeviceD-ospf-1-area-0.0.0.0] quit
[DeviceD-ospf-1] quit
Configuring Device F
# Create VLAN 10 and VLAN 20.
[DeviceF] vlan 10
[DeviceF-vlan10] quit
[DeviceF] vlan 20
[DeviceF-vlan20] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 4.
[DeviceF] interface bridge-aggregation 4
[DeviceF-Bridge-Aggregation4] link-aggregation mode dynamic
[DeviceF-Bridge-Aggregation4] quit
# Assign HundredGigE 1/0/1 through HundredGigE 1/0/4 to aggregation group 4.
[DeviceF] interface range hundredgige 1/0/1 to hundredgige 1/0/4
[DeviceF-if-range] port link-aggregation group 4
[DeviceF-if-range] quit
# Set the link type of Bridge-Aggregation 4 to trunk and assign it to VLAN 10 and VLAN 20.
[DeviceF] interface bridge-aggregation 4
[DeviceF-Bridge-Aggregation4] port link-type trunk
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
Configuring HundredGigE1/0/3 done.
Configuring HundredGigE1/0/4 done.
[DeviceF-Bridge-Aggregation4] port trunk permit vlan 10 20
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
Configuring HundredGigE1/0/3 done.
Configuring HundredGigE1/0/4 done.
[DeviceF-Bridge-Aggregation4] quit
Verifying the configuration
# Verify that Device A and Device B have formed a DR system.
[DeviceA] display drni summary
Flags: A -- Aggregate interface down, B -- No peer DR interface configured
C -- Configuration consistency check failed
IPP: BAGG3
IPP state (cause): UP
Keepalive link state (cause): UP
DR interface information
DR interface DR group Local state (cause) Peer state Remaining down time(s)
BAGG4 4 UP UP -
[DeviceA] display drni verbose
Flags: A -- Home_Gateway, B -- Neighbor_Gateway, C -- Other_Gateway,
D -- IPP_Activity, E -- DRCP_Timeout, F -- Gateway_Sync,
G -- Port_Sync, H -- Expired
IPP/IPP ID: BAGG3/1
State: UP
Cause: -
Local DRCP flags/Peer DRCP flags: ABDFG/ABDFG
Local Selected ports (index): HGE1/0/3 (2), HGE1/0/4 (5)
Peer Selected ports indexes: 2, 5
DR interface/DR group ID: BAGG4/4
Local DR interface state: UP
Peer DR interface state: UP
DR group state: UP
Local DR interface down cause: -
Remaining DRNI DOWN time: -
Local DRCP flags/Peer DRCP flags: ABDFG/ABDFG
Local Selected ports (index): HGE1/0/1 (16385), HGE1/0/2 (16388)
Peer Selected ports indexes: 32769, 32772
# Verify that all member ports of aggregation group 4 are in Selected state on Device F, which indicates a successful link aggregation between the DR system and Device F.
[DeviceF] display link-aggregation verbose
Loadsharing Type: Shar -- Loadsharing, NonS -- Non-Loadsharing
Port Status: S -- Selected, U -- Unselected, I -- Individual
Port: A -- Auto port, M -- Management port, R -- Reference port
Flags: A -- LACP_Activity, B -- LACP_Timeout, C -- Aggregation,
D -- Synchronization, E -- Collecting, F -- Distributing,
G -- Defaulted, H -- Expired
Aggregate Interface: Bridge-Aggregation4
Creation Mode: Manual
Aggregation Mode: Dynamic
Loadsharing Type: Shar
Management VLANs: None
System ID: 0x8000, 1eba-3c46-0300
Local:
Port Status Priority Index Oper-Key Flag
HGE1/0/1 S 32768 1 1 {ACDEF}
HGE1/0/2 S 32768 2 1 {ACDEF}
HGE1/0/3 S 32768 3 1 {ACDEF}
HGE1/0/4 S 32768 4 1 {ACDEF}
Remote:
Actor Priority Index Oper-Key SystemID Flag
HGE1/0/1(R) 32768 16385 40004 0x7b , 0001-0001-0001 {ACDEF}
HGE1/0/2 32768 16388 40004 0x7b , 0001-0001-0001 {ACDEF}
HGE1/0/3 32768 32769 40004 0x7b , 0001-0001-0001 {ACDEF}
HGE1/0/4 32768 32772 40004 0x7b , 0001-0001-0001 {ACDEF}
# Verify that Device C is the master in VRRP group 1 and Device D is the master in VRRP group 2.
[DeviceC] display vrrp
IPv4 Virtual Router Information:
Running mode : Standard
Total number of virtual routers : 2
Interface VRID State Running Adver Auth Virtual
Pri Timer Type IP
---------------------------------------------------------------------
Vlan10 1 Master 200 100 None 10.1.1.100
Vlan20 2 Backup 100 100 None 20.1.1.100
[DeviceD] display vrrp
IPv4 Virtual Router Information:
Running mode : Standard
Total number of virtual routers : 2
Interface VRID State Running Adver Auth Virtual
Pri Timer Type IP
---------------------------------------------------------------------
Vlan10 1 Backup 100 100 None 10.1.1.100
Vlan20 2 Master 200 100 None 20.1.1.100
# Verify that Device E has established OSPF neighbor relationships with Device C and Device D.
[DeviceE] display ospf peer
OSPF Process 1 with Router ID 200.1.1.2
Neighbor Brief Information
Area: 0.0.0.0
Router ID Address Pri Dead-Time State Interface
100.1.1.1 100.1.1.1 1 35 Full/BDR Vlan100
200.1.1.1 200.1.1.1 1 33 Full/BDR Vlan200
# Verify that the host in Area A can ping VLAN-interface 30 (30.1.1.1) on Device E.
C:\Documents and Settings\Administrator>ping 30.1.1.1
Pinging 30.1.1.1 with 32 bytes of data:
Reply from 30.1.1.1: bytes=32 time=1ms TTL=126
Reply from 30.1.1.1: bytes=32 time=1ms TTL=126
Reply from 30.1.1.1: bytes=32 time=1ms TTL=126
Reply from 30.1.1.1: bytes=32 time=1ms TTL=126
Ping statistics for 30.1.1.1:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 1ms, Maximum = 1ms, Average = 1ms
Configuration files
· Device A:
#
vlan 10
#
vlan 20
#
interface Bridge-Aggregation1
port link-type trunk
port trunk permit vlan 1 10 20
link-aggregation mode dynamic
#
interface Bridge-Aggregation3
port link-type trunk
port trunk permit vlan 1 10 20
link-aggregation mode dynamic
port drni intra-portal-port 1
#
interface Bridge-Aggregation4
port link-type trunk
port trunk permit vlan 1 10 20
link-aggregation mode dynamic
port drni group 4
#
interface HundredGigE1/0/5
port link-mode route
ip address 1.1.1.1 255.255.255.0
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 4
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 4
#
interface HundredGigE1/0/3
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 3
#
interface HundredGigE1/0/4
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 3
#
interface HundredGigE1/0/6
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 1
#
interface HundredGigE1/0/7
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 1
#
drni system-mac 0001-0001-0001
drni system-number 1
drni system-priority 123
drni keepalive ip destination 1.1.1.2 source 1.1.1.1
#
drni mad exclude interface HundredGigE1/0/5
#
· Device B:
#
vlan 10
#
vlan 20
#
interface Bridge-Aggregation2
port link-type trunk
port trunk permit vlan 1 10 20
link-aggregation mode dynamic
#
interface Bridge-Aggregation3
port link-type trunk
port trunk permit vlan 1 10 20
link-aggregation mode dynamic
port drni intra-portal-port 1
#
interface Bridge-Aggregation4
port link-type trunk
port trunk permit vlan 1 10 20
link-aggregation mode dynamic
port drni group 4
#
interface HundredGigE1/0/5
port link-mode route
ip address 1.1.1.2 255.255.255.0
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 4
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 4
#
interface HundredGigE1/0/3
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 3
#
interface HundredGigE1/0/4
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 3
#
interface HundredGigE1/0/6
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 2
#
interface HundredGigE1/0/7
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 2
#
drni system-mac 0001-0001-0001
drni system-number 2
drni system-priority 123
drni keepalive ip destination 1.1.1.1 source 1.1.1.2
#
drni mad exclude interface HundredGigE1/0/5
#
· Device C:
#
ospf 1
area 0.0.0.0
network 10.1.1.0 0.0.0.255
network 20.1.1.0 0.0.0.255
network 100.1.1.0 0.0.0.255
#
vlan 10
#
vlan 20
#
vlan 100
#
interface Bridge-Aggregation1
port link-type trunk
port trunk permit vlan 1 10 20
link-aggregation mode dynamic
#
interface Vlan-interface10
ip address 10.1.1.1 255.255.255.0
vrrp vrid 1 virtual-ip 10.1.1.100
vrrp vrid 1 priority 200
vrrp vrid 1 preempt-mode delay 500
vrrp vrid 1 track 1 priority reduced 150
#
interface Vlan-interface20
ip address 20.1.1.1 255.255.255.0
vrrp vrid 2 virtual-ip 20.1.1.100
#
interface Vlan-interface100
ip address 100.1.1.1 255.255.255.0
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 1
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 1
#
interface HundredGigE1/0/3
port link-mode bridge
port access vlan 100
#
track 1 interface HundredGigE1/0/3
#
· Device D:
#
ospf 1
area 0.0.0.0
network 10.1.1.0 0.0.0.255
network 20.1.1.0 0.0.0.255
network 200.1.1.0 0.0.0.255
#
vlan 10
#
vlan 20
#
vlan 200
#
interface Bridge-Aggregation2
port link-type trunk
port trunk permit vlan 1 10 20
link-aggregation mode dynamic
#
interface Vlan-interface10
ip address 10.1.1.2 255.255.255.0
vrrp vrid 1 virtual-ip 10.1.1.100
#
interface Vlan-interface20
ip address 20.1.1.2 255.255.255.0
vrrp vrid 2 virtual-ip 20.1.1.100
vrrp vrid 2 priority 200
vrrp vrid 2 preempt-mode delay 500
vrrp vrid 2 track 2 priority reduced 150
#
interface Vlan-interface200
ip address 200.1.1.1 255.255.255.0
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 2
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 2
#
interface HundredGigE1/0/3
port link-mode bridge
port access vlan 200
#
track 2 interface HundredGigE1/0/3
#
· Device E:
#
ospf 1
area 0.0.0.0
network 30.1.1.0 0.0.0.255
network 100.1.1.0 0.0.0.255
network 200.1.1.0 0.0.0.255
#
vlan 30
#
vlan 100
#
vlan 200
#
interface Vlan-interface30
ip address 30.1.1.1 255.255.255.0
#
interface Vlan-interface100
ip address 100.1.1.2 255.255.255.0
#
interface Vlan-interface200
ip address 200.1.1.2 255.255.255.0
#
interface HundredGigE1/0/1
port link-mode bridge
port access vlan 100
#
interface HundredGigE1/0/2
port link-mode bridge
port access vlan 200
#
interface HundredGigE1/0/3
port link-mode bridge
port access vlan 30
#
· Device F:
#
vlan 10
#
vlan 20
#
interface Bridge-Aggregation4
port link-type trunk
port trunk permit vlan 1 10 20
link-aggregation mode dynamic
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 4
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 4
#
interface HundredGigE1/0/3
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 4
#
interface HundredGigE1/0/4
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 10 20
port link-aggregation group 4
#
Example: Configuring DRNI at the distribution Layer
Network configuration

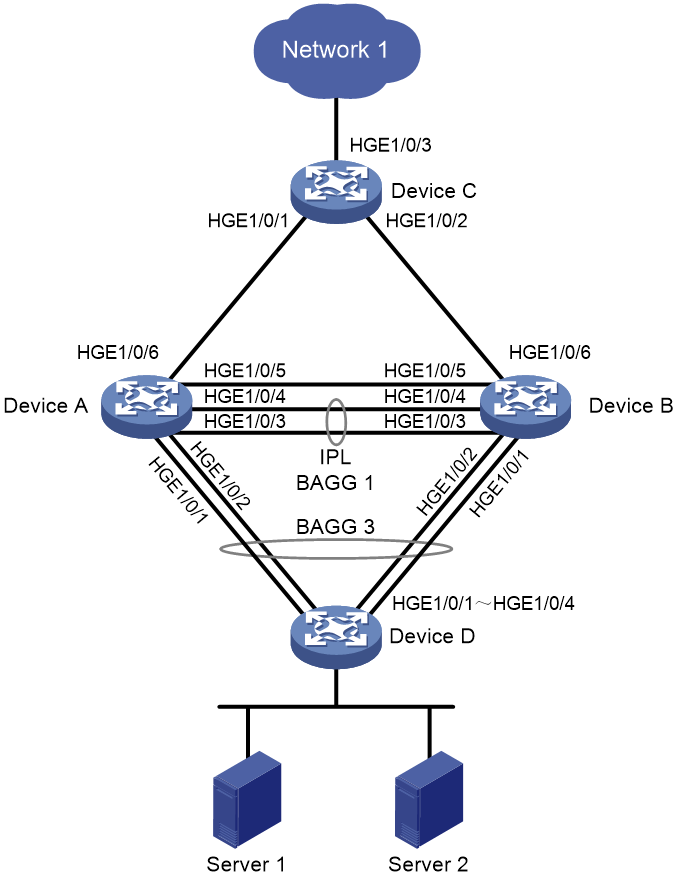

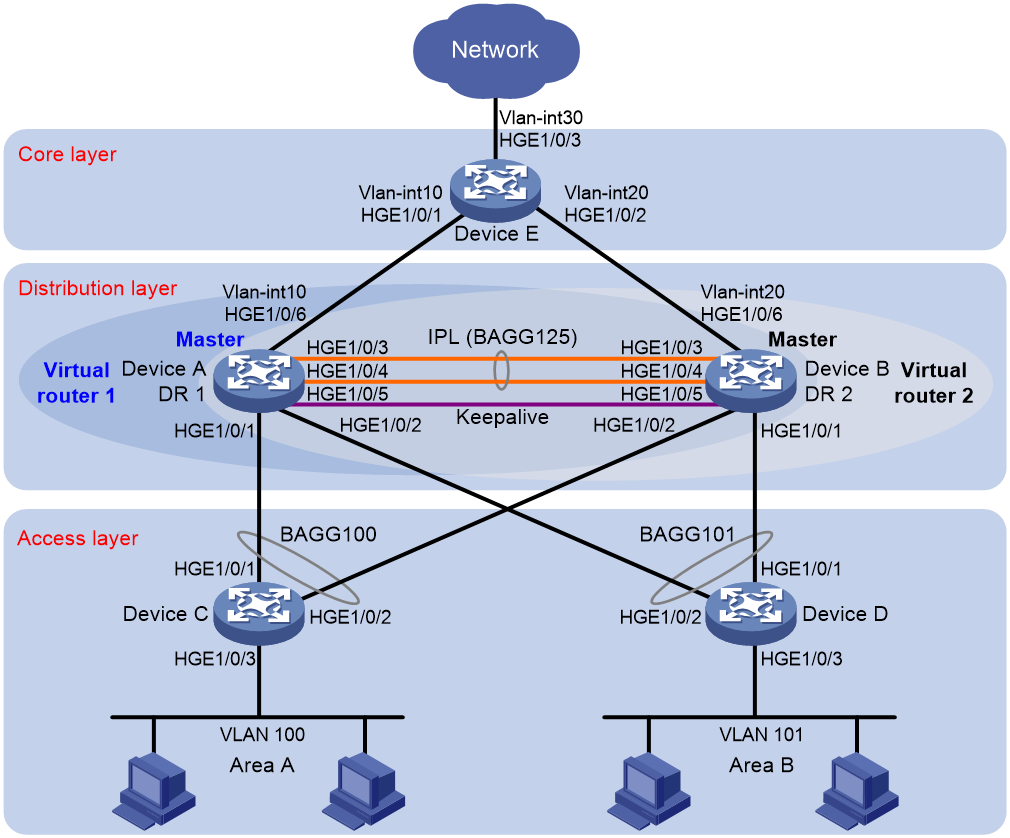

As shown in Figure 2:
· Configure Device A and Device B as a DR system to establish one multichassis aggregate link with Device C and Device D.
· Set up a keepalive link between HundredGigE 1/0/5 of Device A and HundredGigE 1/0/5 of Device B, and exclude the interfaces from the shutdown action by DRNI MAD.
· Configure two VRRP groups on Device A and Device B to provide gateway services for VLAN 100 and VLAN 101.
¡ Configure VRRP group 1 to provide gateway services for hosts in VLAN 100 (Area A). Add Device A and Device B to the group as the master and backup devices, respectively.
¡ Configure VRRP group 2 to provide gateway services for hosts in VLAN 101 (Area B). Add Device B and Device A to the group as the master and backup devices, respectively.
· Configure OSPF on Device A, Device B, and Device E for the hosts to communicate with external networks at Layer 3.
|
Device |
Interface |
IP address |
Device |
Interface |
IP address |
|
Device A |
HGE 1/0/5 |
1.1.1.1/24 |
Device B |
HGE 1/0/5 |
1.1.1.2/24 |
|
|
VLAN-interface 100 |
100.1.1.1/24 |
|
VLAN-interface 100 |
100.1.1.2/24 |
|
|
VLAN-interface 101 |
101.1.1.1/24 |
|
VLAN-interface 101 |
101.1.1.2/24 |
|
|
VLAN-interface 10 |
10.1.1.1/24 |
|
VLAN-interface 20 |
20.1.1.1/24 |
|
|
Virtual IP 1 |
100.1.1.100/24 |
|
Virtual IP 1 |
100.1.1.100/24 |
|
|
Virtual IP 2 |
101.1.1.100/24 |
|
Virtual IP 2 |
101.1.1.100/24 |
|
Device E |
VLAN-interface 10 |
10.1.1.2/24 |
|
|
|
|
|
VLAN-interface 20 |
20.1.1.2/24 |
|
|
|
|
|
VLAN-interface 30 |
30.1.1.1/24 |
|
|
|
Analysis
For the secondary DR device to monitor the state of the primary device, establish a Layer 3 keepalive link between the DR member devices.
For Device A to be the master in VRRP group 1, assign it a higher priority than Device B. For Device B to be the master in VRRP group 2, assign it a higher priority than Device A.
Applicable hardware and software versions
The following matrix shows the hardware and software versions to which this configuration example is applicable:
|
Hardware |
Software version |
|
S6805 switch series |
Release 6607, Release 6616, Release 6616P01, Release 6635 and later |
|
S6825 switch series |
Release 6616, Release 6616P01, Release 6635 and later |
|
S6850 switch series S9850 switch series |
Release 6555P01, Release 6607, Release 6616, Release 6616P01, Release 6635 and later |
|
S9820-64H |
Release 6555P01, Release 6607, Release 6616, Release 6616P01, Release 6635 and later |
|
S9820-8C |
Release 6616, Release 6616P01, Release 6635 and later |
Restrictions and guidelines
DRNI restrictions and guidelines
For the DR member devices to be identified as one DR system, you must configure the same DR system MAC address and DR system priority on them. You must assign different DR system numbers to the DR member devices.
To balance traffic between two VRRP gateway devices, you can assign them to two VRRP groups with different priorities. In this example, Device A is assigned a higher priority than Device B in VRRP group 1 so Device A can become the master in this group. Device B is assigned a higher priority than Device A in VRRP group 2 so Device B can become the master in this group.
A DR member device can have only one IPP.
For correct keepalive detection, you must exclude the interfaces used for keepalive detection from the shutdown action by DRNI MAD.
VRRP restrictions and guidelines
As a best practice, use VRRP standard mode.
You cannot specify the virtual IP address as any of the following IP addresses:
· All-zero address (0.0.0.0).
· Broadcast address (255.255.255.255).
· Loopback address.
· IP address of other than Class A, Class B, and Class C.
· Invalid IP address (for example, 0.0.0.1).
The virtual IP address of an IPv4 VRRP group must be on the same subnet as the downlink interface IP addresses of the VRRP group members to ensure successful traffic forwarding.
Procedures
Configuring Device A
# Configure DR system settings.
<DeviceA> system-view
[DeviceA] drni system-mac 1-1-1
Changing the system MAC might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
[DeviceA] drni system-number 1
Changing the system number might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
[DeviceA] drni system-priority 123
Changing the system priority might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
# Configure DR keepalive packet parameters.
[DeviceA] drni keepalive ip destination 1.1.1.2 source 1.1.1.1
# Configure HundredGigE 1/0/5 as a routed (Layer 3) interface and assign the interface an IP address. The IP address will be used as the source IP address of keepalive packets.
[DeviceA] interface hundredgige 1/0/5
[DeviceA-HundredGigE1/0/5] port link-mode route
[DeviceA-HundredGigE1/0/5] ip address 1.1.1.1 24
[DeviceA-HundredGigE1/0/5] quit
# Exclude the interface used for DR keepalive detection (HundredGigE 1/0/5) from the shutdown action by DRNI MAD.
[DeviceA] drni mad exclude interface hundredgige 1/0/5
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 125 and specify it as the IPP.
[DeviceA] interface bridge-aggregation 125
[DeviceA-Bridge-Aggregation125] link-aggregation mode dynamic
[DeviceA-Bridge-Aggregation125] port drni intra-portal-port 1
[DeviceA-Bridge-Aggregation125] quit
# Assign HundredGigE 1/0/3 and HundredGigE 1/0/4 to aggregation group 125.
[DeviceA] interface hundredgige 1/0/3
[DeviceA-HundredGigE1/0/3] port link-aggregation group 125
[DeviceA-HundredGigE1/0/3] quit
[DeviceA] interface hundredgige 1/0/4
[DeviceA-HundredGigE1/0/4] port link-aggregation group 125
[DeviceA-HundredGigE1/0/4] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 100 and assign it to DR group 1.
[DeviceA] interface bridge-aggregation 100
[DeviceA-Bridge-Aggregation100] link-aggregation mode dynamic
[DeviceA-Bridge-Aggregation100] port drni group 1
[DeviceA-Bridge-Aggregation100] quit
# Assign HundredGigE 1/0/1 to aggregation group 100.
[DeviceA] interface hundredgige 1/0/1
[DeviceA-HundredGigE1/0/1] port link-aggregation group 100
[DeviceA-HundredGigE1/0/1] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 101 and assign it to DR group 2.
[DeviceA] interface bridge-aggregation 101
[DeviceA-Bridge-Aggregation101] link-aggregation mode dynamic
[DeviceA-Bridge-Aggregation101] port drni group 2
[DeviceA-Bridge-Aggregation101] quit
# Assign HundredGigE 1/0/2 to aggregation group 101.
[DeviceA] interface hundredgige 1/0/2
[DeviceA-HundredGigE1/0/2] port link-aggregation group 101
[DeviceA-HundredGigE1/0/2] quit
# Create VLAN 10, VLAN 100, and VLAN 101.
[DeviceA] vlan 10
[DeviceA-vlan10] quit
[DeviceA] vlan 100
[DeviceA-vlan100] quit
[DeviceA] vlan 101
[DeviceA-vlan101] quit
# Assign HundredGigE 1/0/6 to VLAN 10.
[DeviceA] vlan 10
[DeviceA-vlan10] port hundredgige 1/0/6
[DeviceA-vlan10] quit
# Set the link type of Bridge-Aggregation 100 to trunk and assign it to VLAN 100.
[DeviceA] interface bridge-aggregation 100
[DeviceA-Bridge-Aggregation100] port link-type trunk
Configuring HundredGigE1/0/1 done.
[DeviceA-Bridge-Aggregation100] port trunk permit vlan 100
Configuring HundredGigE1/0/1 done.
[DeviceA-Bridge-Aggregation100] quit
# Set the link type of Bridge-Aggregation 101 to trunk and assign it to VLAN 101.
[DeviceA] interface bridge-aggregation 101
[DeviceA-Bridge-Aggregation101] port link-type trunk
Configuring HundredGigE1/0/2 done.
[DeviceA-Bridge-Aggregation101] port trunk permit vlan 101
Configuring HundredGigE1/0/2 done.
[DeviceA-Bridge-Aggregation101] quit
# Set the link type of Bridge-Aggregation 125 to trunk and assign it to VLAN 100 and VLAN 101.
[DeviceA] interface bridge-aggregation 125
[DeviceA-Bridge-Aggregation125] port link-type trunk
Configuring HundredGigE1/0/3 done.
Configuring HundredGigE1/0/4 done.
[DeviceA-Bridge-Aggregation125] port trunk permit vlan 100 101
Configuring HundredGigE1/0/3 done.
Configuring HundredGigE1/0/4 done.
[DeviceA-Bridge-Aggregation125] quit
# Create VLAN-interface 10, VLAN-interface 100, and VLAN-interface 101 and assign an IP address to each of them.
[DeviceA] interface vlan-interface 10
[DeviceA-vlan-interface10] ip address 10.1.1.1 24
[DeviceA-vlan-interface10] quit
[DeviceA] interface vlan-interface 100
[DeviceA-vlan-interface100] ip address 100.1.1.1 24
[DeviceA-vlan-interface100] quit
[DeviceA] interface vlan-interface 101
[DeviceA-vlan-interface101] ip address 101.1.1.1 24
[DeviceA-vlan-interface101] quit
# Configure OSPF.
[DeviceA] ospf
[DeviceA-ospf-1] area 0
[DeviceA-ospf-1-area-0.0.0.0] network 10.1.1.0 0.0.0.255
[DeviceA-ospf-1-area-0.0.0.0] network 100.1.1.0 0.0.0.255
[DeviceA-ospf-1-area-0.0.0.0] network 101.1.1.0 0.0.0.255
[DeviceA-ospf-1-area-0.0.0.0] quit
[DeviceA-ospf-1] quit
# Create VRRP group 1 on VLAN-interface 100 and set its virtual IP address to 100.1.1.100.
[DeviceA] interface vlan-interface 100
[DeviceA-Vlan-interface100] vrrp vrid 1 virtual-ip 100.1.1.100
# Set the priority of Device A to 200 for it to become the master in VRRP group 1.
[DeviceA-Vlan-interface100] vrrp vrid 1 priority 200
[DeviceA-Vlan-interface100] quit
# Create VRRP group 2 on VLAN-interface 101 and set its virtual IP address to 101.1.1.100.
[DeviceA] interface vlan-interface 101
[DeviceA-Vlan-interface101] vrrp vrid 2 virtual-ip 101.1.1.100
[DeviceA-Vlan-interface101] quit
# Configure Device A to operate in preemptive mode in VRRP group 1. Set the preemption delay to 500 centiseconds to avoid frequent status switchover.
[DeviceA] interface vlan-interface 100
[DeviceA-Vlan-interface100] vrrp vrid 1 preempt-mode delay 500
[DeviceA-Vlan-interface100] quit
# Create track entry 1 to monitor the upstream link status of HundredGigE 1/0/6.
[DeviceA] track 1 interface hundredgige 1/0/6
# Configure Device A in VRRP group 1 to monitor track entry 1, and decrease its priority by 150 when the track entry transits to Negative.
[DeviceA] interface vlan-interface 100
[DeviceA-Vlan-interface100] vrrp vrid 1 track 1 priority reduced 150
[DeviceA-Vlan-interface100] quit
Configuring Device B
# Configure DR system settings.
<DeviceB> system-view
[DeviceB] drni system-mac 1-1-1
Changing the system MAC might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
[DeviceB] drni system-number 2
Changing the system number might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
[DeviceB] drni system-priority 123
Changing the system priority might flap the intra-portal link and cause DR system setup failure. Continue? [Y/N]:y
# Configure DR keepalive packet parameters.
[DeviceB] drni keepalive ip destination 1.1.1.1 source 1.1.1.2
# Configure HundredGigE 1/0/5 as a routed (Layer 3) interface and assign the interface an IP address. The IP address will be used as the source IP address of keepalive packets.
[DeviceB] interface hundredgige 1/0/5
[DeviceB-HundredGigE1/0/5] port link-mode route
[DeviceB-HundredGigE1/0/5] ip address 1.1.1.2 24
[DeviceB-HundredGigE1/0/5] quit
# Exclude the interface used for DR keepalive detection (HundredGigE 1/0/5) from the shutdown action by DRNI MAD.
[DeviceB] drni mad exclude interface hundredgige 1/0/5
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 125 and specify it as the IPP.
[DeviceB] interface bridge-aggregation 125
[DeviceB-Bridge-Aggregation125] link-aggregation mode dynamic
[DeviceB-Bridge-Aggregation125] port drni intra-portal-port 1
[DeviceB-Bridge-Aggregation125] quit
# Assign HundredGigE 1/0/3 and HundredGigE 1/0/4 to aggregation group 125.
[DeviceB] interface hundredgige 1/0/3
[DeviceB-HundredGigE1/0/3] port link-aggregation group 125
[DeviceB-HundredGigE1/0/3] quit
[DeviceB] interface hundredgige 1/0/4
[DeviceB-HundredGigE1/0/4] port link-aggregation group 125
[DeviceB-HundredGigE1/0/4] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 100 and assign it to DR group 1.
[DeviceB] interface bridge-aggregation 100
[DeviceB-Bridge-Aggregation100] link-aggregation mode dynamic
[DeviceB-Bridge-Aggregation100] port drni group 1
[DeviceB-Bridge-Aggregation100] quit
# Assign HundredGigE 1/0/2 to aggregation group 100.
[DeviceB] interface hundredgige 1/0/2
[DeviceB-HundredGigE1/0/2] port link-aggregation group 100
[DeviceB-HundredGigE1/0/2] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 101 and assign it to DR group 2.
[DeviceB] interface bridge-aggregation 101
[DeviceB-Bridge-Aggregation101] link-aggregation mode dynamic
[DeviceB-Bridge-Aggregation101] port drni group 2
[DeviceB-Bridge-Aggregation101] quit
# Assign HundredGigE 1/0/1 to aggregation group 101.
[DeviceB] interface hundredgige 1/0/1
[DeviceB-HundredGigE1/0/1] port link-aggregation group 101
[DeviceB-HundredGigE1/0/1] quit
# Create VLAN 20, VLAN 100, and VLAN 101.
[DeviceB] vlan 20
[DeviceB-vlan20] quit
[DeviceB] vlan 100
[DeviceB-vlan100] quit
[DeviceB] vlan 101
[DeviceB-vlan101] quit
# Assign HundredGigE 1/0/6 to VLAN 20.
[DeviceB] vlan 20
[DeviceB-vlan20] port hundredgige 1/0/6
[DeviceB-vlan20] quit
# Set the link type of Bridge-Aggregation 100 to trunk and assign it to VLAN 100.
[DeviceB] interface bridge-aggregation 100
[DeviceB-Bridge-Aggregation100] port link-type trunk
Configuring HundredGigE1/0/2 done.
[DeviceB-Bridge-Aggregation100] port trunk permit vlan 100
Configuring HundredGigE1/0/2 done.
[DeviceB-Bridge-Aggregation100] quit
# Set the link type of Bridge-Aggregation 101 to trunk and assign it to VLAN 101.
[DeviceB] interface bridge-aggregation 101
[DeviceB-Bridge-Aggregation101] port link-type trunk
Configuring HundredGigE1/0/1 done.
[DeviceB-Bridge-Aggregation101] port trunk permit vlan 101
Configuring HundredGigE1/0/1 done.
[DeviceB-Bridge-Aggregation101] quit
# Set the link type of Bridge-Aggregation 125 to trunk and assign it to VLAN 100 and VLAN 101.
[DeviceB] interface bridge-aggregation 125
[DeviceB-Bridge-Aggregation125] port link-type trunk
Configuring HundredGigE1/0/3 done.
Configuring HundredGigE1/0/4 done.
[DeviceB-Bridge-Aggregation125] port trunk permit vlan 100 101
Configuring HundredGigE1/0/3 done.
Configuring HundredGigE1/0/4 done.
[DeviceB-Bridge-Aggregation125] quit
# Create VLAN-interface 20, VLAN-interface 100, and VLAN-interface 101 and assign an IP address to each of them.
[DeviceB] interface vlan-interface 20
[DeviceB-vlan-interface20] ip address 20.1.1.1 24
[DeviceB-vlan-interface20] quit
[DeviceB] interface vlan-interface 100
[DeviceB-vlan-interface100] ip address 100.1.1.2 24
[DeviceB-vlan-interface100] quit
[DeviceB] interface vlan-interface 101
[DeviceB-vlan-interface101] ip address 101.1.1.2 24
[DeviceB-vlan-interface101] quit
# Configure OSPF.
[DeviceB] ospf
[DeviceB-ospf-1] area 0
[DeviceB-ospf-1-area-0.0.0.0] network 20.1.1.0 0.0.0.255
[DeviceB-ospf-1-area-0.0.0.0] network 100.1.1.0 0.0.0.255
[DeviceB-ospf-1-area-0.0.0.0] network 101.1.1.0 0.0.0.255
[DeviceB-ospf-1-area-0.0.0.0] quit
[DeviceB-ospf-1] quit
# Create VRRP group 1 on VLAN-interface 100 and set its virtual IP address to 100.1.1.100.
[DeviceB] interface vlan-interface 100
[DeviceB-Vlan-interface100] vrrp vrid 1 virtual-ip 100.1.1.100
[DeviceB-Vlan-interface100] quit
# Create VRRP group 2 on VLAN-interface 101 and set its virtual IP address to 101.1.1.100.
[DeviceB] interface vlan-interface 101
[DeviceB-Vlan-interface101] vrrp vrid 2 virtual-ip 101.1.1.100
# Set the priority of Device B to 200 for it to become the master in VRRP group 2.
[DeviceB-Vlan-interface101] vrrp vrid 2 priority 200
# Configure Device B to operate in preemptive mode in VRRP group 2. Set the preemption delay to 500 centiseconds to avoid frequent status switchover.
[DeviceB-Vlan-interface101] vrrp vrid 2 preempt-mode delay 500
[DeviceB-Vlan-interface101] quit
# Create track entry 2 to monitor the upstream link status of HundredGigE 1/0/6.
[DeviceB] track 2 interface hundredgige 1/0/6
# Configure Device B in VRRP group 2 to monitor track entry 2, and decrease its priority by 150 when the track entry transits to Negative.
[DeviceB] interface vlan-interface 101
[DeviceB-Vlan-interface101] vrrp vrid 2 track 2 priority reduced 150
[DeviceB-Vlan-interface101] quit
Configuring Device C
# Create VLAN 100.
[DeviceC] vlan 100
[DeviceC-vlan100] quit
# Assign HundredGigE 1/0/3 to VLAN 100.
[DeviceC] interface hundredgige 1/0/3
[DeviceC-HundredGigE1/0/3] port access vlan 100
[DeviceC-HundredGigE1/0/3] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 100.
<DeviceC> system-view
[DeviceC] interface bridge-aggregation 100
[DeviceC-Bridge-Aggregation100] link-aggregation mode dynamic
[DeviceC-Bridge-Aggregation100] quit
# Assign HundredGigE 1/0/1 and HundredGigE 1/0/2 to aggregation group 100.
[DeviceC] interface range hundredgige 1/0/1 to hundredgige 1/0/2
[DeviceC-if-range] port link-aggregation group 100
[DeviceC-if-range] quit
# Set the link type of Bridge-Aggregation 100 to trunk and assign it to VLAN 100.
[DeviceC] interface bridge-aggregation 100
[DeviceC-Bridge-Aggregation100] port link-type trunk
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceC-Bridge-Aggregation100] port trunk permit vlan 100
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceC-Bridge-Aggregation100] quit
Configuring Device D
# Create VLAN 101.
[DeviceD] vlan 101
[DeviceD-vlan101] quit
# Assign HundredGigE 1/0/3 to VLAN 101.
[DeviceD] interface hundredgige 1/0/3
[DeviceD-HundredGigE1/0/3] port access vlan 101
[DeviceD-HundredGigE1/0/3] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 101.
<DeviceD> system-view
[DeviceD] interface bridge-aggregation 101
[DeviceD-Bridge-Aggregation101] link-aggregation mode dynamic
[DeviceD-Bridge-Aggregation101] quit
# Assign HundredGigE 1/0/1 and HundredGigE 1/0/2 to aggregation group 101.
[DeviceD] interface range hundredgige 1/0/1 to hundredgige 1/0/2
[DeviceD-if-range] port link-aggregation group 101
[DeviceD-if-range] quit
# Set the link type of Bridge-Aggregation 101 to trunk and assign it to VLAN 101.
[DeviceD] interface bridge-aggregation 101
[DeviceD-Bridge-Aggregation101] port link-type trunk
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceD-Bridge-Aggregation101] port trunk permit vlan 101
Configuring HundredGigE1/0/1 done.
Configuring HundredGigE1/0/2 done.
[DeviceD-Bridge-Aggregation101] quit
Configuring Device E
# Create VLAN 10 and assign HundredGigE 1/0/1 to the VLAN.
<DeviceE> system-view
[DeviceE] vlan 10
[DeviceE-vlan10] port hundredgige 1/0/1
[DeviceE-vlan10] quit
# Create VLAN-interface 10 and assign it an IP address.
[DeviceE] interface vlan-interface 10
[DeviceE-vlan-interface10] ip address 10.1.1.2 24
[DeviceE-vlan-interface10] quit
# Create VLAN 20 and assign HundredGigE 1/0/2 to the VLAN.
[DeviceE] vlan 20
[DeviceE-vlan20] port hundredgige 1/0/2
[DeviceE-vlan20] quit
# Create VLAN-interface 20 and assign it an IP address.
[DeviceE] interface vlan-interface 20
[DeviceE-vlan-interface20] ip address 20.1.1.2 24
[DeviceE-vlan-interface20] quit
# Create VLAN 30 and assign HundredGigE 1/0/3 to the VLAN.
[DeviceE] vlan 30
[DeviceE-vlan30] port hundredgige 1/0/3
[DeviceE-vlan30] quit
# Create VLAN-interface 30 and assign it an IP address.
[DeviceE] interface vlan-interface 30
[DeviceE-vlan-interface30] ip address 30.1.1.1 24
[DeviceE-vlan-interface30] quit
# Configure OSPF.
[DeviceE] ospf
[DeviceE-ospf-1] area 0
[DeviceE-ospf-1-area-0.0.0.0] network 10.1.1.0 0.0.0.255
[DeviceE-ospf-1-area-0.0.0.0] network 20.1.1.0 0.0.0.255
[DeviceE-ospf-1-area-0.0.0.0] network 30.1.1.0 0.0.0.255
[DeviceE-ospf-1-area-0.0.0.0] quit
[DeviceE-ospf-1] quit
Verifying the configuration
# Verify that Device A and Device B have formed a DR system.
[DeviceA] display drni summary
Flags: A -- Aggregate interface down, B -- No peer DR interface configured
C -- Configuration consistency check failed
IPP: BAGG125
IPP state (cause): UP
Keepalive link state (cause): UP
DR interface information
DR interface DR group Local state (cause) Peer state Remaining down time(s)
BAGG100 1 UP UP -
BAGG101 2 UP UP -
[DeviceA] display drni verbose
Flags: A -- Home_Gateway, B -- Neighbor_Gateway, C -- Other_Gateway,
D -- IPP_Activity, E -- DRCP_Timeout, F -- Gateway_Sync,
G -- Port_Sync, H -- Expired
IPP/IPP ID: BAGG125/1
State: UP
Cause: -
Local DRCP flags/Peer DRCP flags: ABDFG/ABDFG
Local Selected ports (index): HGE1/0/3 (1), HGE1/0/4 (4)
Peer Selected ports indexes: 1, 4
DR interface/DR group ID: BAGG100/1
Local DR interface state: UP
Peer DR interface state: UP
DR group state: UP
Local DR interface down cause: -
Remaining DRNI DOWN time: -
Local DRCP flags/Peer DRCP flags: ABDFG/ABDFG
Local Selected ports (index): HGE1/0/1 (16386)
Peer Selected ports indexes: 32771
DR interface/DR group ID: BAGG101/2
Local DR interface state: UP
Peer DR interface state: UP
DR group state: UP
Local DR interface down cause: -
Remaining DRNI DOWN time: -
Local DRCP flags/Peer DRCP flags: ABDFG/ABDFG
Local Selected ports (index): HGE1/0/2 (16387)
Peer Selected ports indexes: 32772
# Verify that all member ports of aggregation group 100 are in Selected state on Device C, which indicates a successful link aggregation between the DR system and Device C.
[DeviceC] display link-aggregation verbose
Loadsharing Type: Shar -- Loadsharing, NonS -- Non-Loadsharing
Port Status: S -- Selected, U -- Unselected, I -- Individual
Port: A -- Auto port, M -- Management port, R -- Reference port
Flags: A -- LACP_Activity, B -- LACP_Timeout, C -- Aggregation,
D -- Synchronization, E -- Collecting, F -- Distributing,
G -- Defaulted, H -- Expired
Aggregate Interface: Bridge-Aggregation100
Creation Mode: Manual
Aggregation Mode: Dynamic
Loadsharing Type: Shar
Management VLANs: None
System ID: 0x8000, 8e33-8e4a-0300
Local:
Port Status Priority Index Oper-Key Flag
HGE1/0/1 S 32768 1 1 {ACDEF}
HGE1/0/2 S 32768 2 1 {ACDEF}
Remote:
Actor Priority Index Oper-Key SystemID Flag
HGE1/0/1(R) 32768 16386 40001 0x7b , 0001-0001-0001 {ACDEF}
HGE1/0/2 32768 32770 40001 0x7b , 0001-0001-0001 {ACDEF}
# Verify that all member ports of aggregation group 101 are in Selected state on Device D, which indicates a successful link aggregation between the DR system and Device D.
[DeviceD] display link-aggregation verbose
Loadsharing Type: Shar -- Loadsharing, NonS -- Non-Loadsharing
Port Status: S -- Selected, U -- Unselected, I -- Individual
Port: A -- Auto port, M -- Management port, R -- Reference port
Flags: A -- LACP_Activity, B -- LACP_Timeout, C -- Aggregation,
D -- Synchronization, E -- Collecting, F -- Distributing,
G -- Defaulted, H -- Expired
Aggregate Interface: Bridge-Aggregation101
Creation Mode: Manual
Aggregation Mode: Dynamic
Loadsharing Type: Shar
Management VLANs: None
System ID: 0x8000, 8e33-9400-0400
Local:
Port Status Priority Index Oper-Key Flag
HGE1/0/1 S 32768 1 1 {ACDEF}
HGE1/0/2 S 32768 2 1 {ACDEF}
Remote:
Actor Priority Index Oper-Key SystemID Flag
HGE1/0/1(R) 32768 16387 40002 0x7b , 0001-0001-0001 {ACDEF}
HGE1/0/2 32768 32771 40002 0x7b , 0001-0001-0001 {ACDEF}
# Verify that Device A is the master in VRRP group 1 and Device B is the master in VRRP group 2.
[DeviceA] display vrrp
IPv4 Virtual Router Information:
Running mode : Standard
Total number of virtual routers : 2
Interface VRID State Running Adver Auth Virtual
Pri Timer Type IP
---------------------------------------------------------------------
Vlan100 1 Master 200 100 None 100.1.1.100
Vlan101 2 Backup 100 100 None 101.1.1.100
[DeviceB] display vrrp
IPv4 Virtual Router Information:
Running mode : Standard
Total number of virtual routers : 2
Interface VRID State Running Adver Auth Virtual
Pri Timer Type IP
---------------------------------------------------------------------
Vlan100 1 Backup 100 100 None 100.1.1.100
Vlan101 2 Master 200 100 None 101.1.1.100
# Verify that Device E has established OSPF neighbor relationships with Device A and Device B.
[DeviceE] display ospf peer
OSPF Process 1 with Router ID 30.1.1.1
Neighbor Brief Information
Area: 0.0.0.0
Router ID Address Pri Dead-Time State Interface
101.1.1.1 10.1.1.1 1 34 Full/DR Vlan10
101.1.1.2 20.1.1.1 1 36 Full/DR Vlan20
# Verify that a host in Area A can ping the host at 101.1.1.4 in Area B.
C:\Documents and Settings\Administrator>ping 101.1.1.4
Pinging 101.1.1.4 with 32 bytes of data:
Reply from 101.1.1.4: bytes=32 time=1ms TTL=126
Reply from 101.1.1.4: bytes=32 time=1ms TTL=126
Reply from 101.1.1.4: bytes=32 time=1ms TTL=126
Reply from 101.1.1.4: bytes=32 time=1ms TTL=126
Ping statistics for 101.1.1.4:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 1ms, Maximum = 1ms, Average = 1ms
# Verify that a host in Area A can ping VLAN-interface 30 (30.1.1.1) on Device E.
C:\Documents and Settings\Administrator>ping 30.1.1.1
Pinging 30.1.1.1 with 32 bytes of data:
Reply from 30.1.1.1: bytes=32 time=1ms TTL=126
Reply from 30.1.1.1: bytes=32 time=1ms TTL=126
Reply from 30.1.1.1: bytes=32 time=1ms TTL=126
Reply from 30.1.1.1: bytes=32 time=1ms TTL=126
Ping statistics for 30.1.1.1:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 1ms, Maximum = 1ms, Average = 1ms
Configuration files
· Device A:
#
ospf 1
area 0.0.0.0
network 10.1.1.0 0.0.0.255
network 100.1.1.0 0.0.0.255
network 101.1.1.0 0.0.0.255
#
vlan 10
#
vlan 100 to 101
#
interface Bridge-Aggregation100
port link-type trunk
port trunk permit vlan 1 100
link-aggregation mode dynamic
port drni group 1
#
interface Bridge-Aggregation101
port link-type trunk
port trunk permit vlan 1 101
link-aggregation mode dynamic
port drni group 2
#
interface Bridge-Aggregation125
port link-type trunk
port trunk permit vlan 1 100 to 101
link-aggregation mode dynamic
port drni intra-portal-port 1
#
interface Vlan-interface10
ip address 10.1.1.1 255.255.255.0
#
interface Vlan-interface100
ip address 100.1.1.1 255.255.255.0
vrrp vrid 1 virtual-ip 100.1.1.100
vrrp vrid 1 priority 200
vrrp vrid 1 preempt-mode delay 500
vrrp vrid 1 track 1 priority reduced 150
#
interface Vlan-interface101
ip address 101.1.1.1 255.255.255.0
vrrp vrid 2 virtual-ip 101.1.1.100
#
interface HundredGigE1/0/5
port link-mode route
ip address 1.1.1.1 255.255.255.0
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 100
port link-aggregation group 100
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 101
port link-aggregation group 101
#
interface HundredGigE1/0/3
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 100 to 101
port link-aggregation group 125
#
interface HundredGigE1/0/4
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 100 to 101
port link-aggregation group 125
#
interface HundredGigE1/0/6
port link-mode bridge
port access vlan 10
#
drni system-mac 0001-0001-0001
drni system-number 1
drni system-priority 123
drni keepalive ip destination 1.1.1.2 source 1.1.1.1
#
drni mad exclude interface HundredGigE1/0/5
#
track 1 interface HundredGigE1/0/6
#
· Device B:
ospf 1
area 0.0.0.0
network 20.1.1.0 0.0.0.255
network 100.1.1.0 0.0.0.255
network 101.1.1.0 0.0.0.255
#
vlan 20
#
vlan 100 to 101
#
interface Bridge-Aggregation100
port link-type trunk
port trunk permit vlan 1 100
link-aggregation mode dynamic
port drni group 1
#
interface Bridge-Aggregation101
port link-type trunk
port trunk permit vlan 1 101
link-aggregation mode dynamic
port drni group 2
#
interface Bridge-Aggregation125
port link-type trunk
port trunk permit vlan 1 100 to 101
link-aggregation mode dynamic
port drni intra-portal-port 1
#
interface Vlan-interface20
ip address 20.1.1.1 255.255.255.0
#
interface Vlan-interface100
ip address 100.1.1.2 255.255.255.0
vrrp vrid 1 virtual-ip 100.1.1.100
#
interface Vlan-interface101
ip address 101.1.1.2 255.255.255.0
vrrp vrid 2 virtual-ip 101.1.1.100
vrrp vrid 2 priority 200
vrrp vrid 2 preempt-mode delay 500
vrrp vrid 2 track 2 priority reduced 150
#
interface HundredGigE1/0/5
port link-mode route
ip address 1.1.1.2 255.255.255.0
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 101
port link-aggregation group 101
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 100
port link-aggregation group 100
#
interface HundredGigE1/0/3
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 100 to 101
port link-aggregation group 125
#
interface HundredGigE1/0/4
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 100 to 101
port link-aggregation group 125
#
interface HundredGigE1/0/6
port link-mode bridge
port access vlan 20
#
drni system-mac 0001-0001-0001
drni system-number 2
drni system-priority 123
drni keepalive ip destination 1.1.1.1 source 1.1.1.2
#
drni mad exclude interface HundredGigE1/0/5
#
track 2 interface HundredGigE1/0/6
#
· Device C:
#
vlan 100
#
interface Bridge-Aggregation100
port link-type trunk
port trunk permit vlan 1 100
link-aggregation mode dynamic
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 100
port link-aggregation group 100
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 100
port link-aggregation group 100
#
interface HundredGigE1/0/3
port link-mode bridge
port access vlan 100
#
· Device D:
#
vlan 101
#
interface Bridge-Aggregation101
port link-type trunk
port trunk permit vlan 1 101
link-aggregation mode dynamic
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 101
port link-aggregation group 101
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
port trunk permit vlan 1 101
port link-aggregation group 101
#
interface HundredGigE1/0/3
port link-mode bridge
port access vlan 101
#
· Device E:
#
ospf 1
area 0.0.0.0
network 10.1.1.0 0.0.0.255
network 20.1.1.0 0.0.0.255
network 30.1.1.0 0.0.0.255
#
vlan 10
#
vlan 20
#
vlan 30
#
interface Vlan-interface10
ip address 10.1.1.2 255.255.255.0
#
interface Vlan-interface20
ip address 20.1.1.2 255.255.255.0
#
interface Vlan-interface30
ip address 30.1.1.1 255.255.255.0
#
interface HundredGigE1/0/1
port link-mode bridge
port access vlan 10
#
interface HundredGigE1/0/2
port link-mode bridge
port access vlan 20
#
interface HundredGigE1/0/3
port link-mode bridge
port access vlan 30
#
Example: Configure IPv4 and IPv6 dual-active gateways on a DR system
Network configuration
As shown in Figure 3:
· Set up a DR system with Device A and Device B and configure IPv4 and IPv6 dual-active gateways for the servers on Device A and Device B.
· Attach Device D to DR interfaces on the DR system.
· Configure ECMP routes between the DR system and Device C.
|
Interface |
IP address |
Peer device and interface |
|
|
Device A |
HGE1/0/1 |
- |
Device D: HGE1/0/1 |
|
HGE1/0/2 |
- |
Device D: HGE1/0/2 |
|
|
HGE1/0/3 |
- |
Device B: HGE1/0/3 |
|
|
HGE1/0/4 |
- |
Device B: HGE1/0/4 |
|
|
HGE1/0/5 |
IPv4: 21.1.1.1 IPv6: 21::1 |
Device B: HGE1/0/5 |
|
|
HGE1/0/6 |
- |
Device C: HGE1/0/1 |
|
|
Vlan-int100 |
IPv4: 100.1.1.100/24 IPv6: 100::100/64 |
- |
|
|
Vlan-int101 |
IPv4: 101.1.1.1/24 IPv6: 101::1/64 |
Device B: Vlan-int101 · IPv4: 101.1.1.2/24 · IPv6: 101::2/64 |
|
|
Vlan-int32 |
IPv4: 32.1.1.1/24 IPv6: 32::1/64 |
Device C: Vlan-int32 · IPv4: 32.1.1.2/24 · IPv6: 32::2/64 |
|
|
Device B |
HGE1/0/1 |
- |
Device D: HGE1/0/3 |
|
HGE1/0/2 |
- |
Device D: HGE1/0/4 |
|
|
HGE1/0/3 |
- |
Device A: HGE1/0/3 |
|
|
HGE1/0/4 |
- |
Device A: HGE1/0/4 |
|
|
HGE1/0/5 |
IPv4: 21.1.1.2 IPv6: 21::2 |
Device A: HGE1/0/5 |
|
|
HGE1/0/6 |
- |
Device C: HGE1/0/6 |
|
|
Vlan-int100 |
IPv4: 100.1.1.100/24 IPv6: 100::100/64 |
- |
|
|
Vlan-int101 |
IPv4: 101.1.1.2/24 IPv6: 101::2/64 |
Device A: Vlan-int101 · IPv4: 101.1.1.1/24 · IPv6: 101::1/64 |
|
|
Vlan-int33 |
IPv4: 33.1.1.1/24 IPv6: 33::1/64 |
Device C: Vlan-int33 · IPv4: 33.1.1.2/24 · IPv6: 33::2/64 |
|
|
Device C |
HGE1/0/1 |
- |
Device A: HGE1/0/6 |
|
HGE1/0/2 |
- |
Device B: HGE1/0/6 |
|
|
HGE1/0/3 |
- |
Network 1 |
|
|
Vlan-int22 |
IPv4: 22.1.1.1/24 IPv6: 22::1/64 |
Network 1 |
|
|
Vlan-int32 |
IPv4: 32.1.1.2/24 IPv6: 32::2/64 |
Device A: Vlan-int32 · IPv4: 32.1.1.1/24 · IPv6: 32::1/64 |
|
|
Vlan-int33 |
IPv4: 33.1.1.2/24 IPv6: 33::2/64 |
Device B: Vlan-int33 · IPv4: 33.1.1.1/24 · IPv6: 33::1/64 |
|
|
Device D |
HGE1/0/1 |
- |
Device A: HGE1/0/1 |
|
HGE1/0/2 |
- |
Device A: HGE1/0/2 |
|
|
HGE1/0/3 |
- |
Device B: HGE1/0/1 |
|
|
HGE1/0/4 |
- |
Device B: HGE1/0/2 |
Analysis
· On Device A and Device B, assign the same IPv4 address, IPv6 address, MAC address, and IPv6 link-local address to VLAN-interface 100 for the VLAN interfaces to provide external network access for both IPv4 and IPv6 users.
· On Device A and Device B, configure VLAN-interface 101 to set up Layer 3 connectivity between the devices. If Device A's or Device B's uplink to Device C fails, traffic fails over to the DR peer for forwarding.
Applicable hardware and software versions
The following matrix shows the hardware and software versions to which this configuration example is applicable:
|
Hardware |
Software version |
|
S6805 switch series |
Release 6607, Release 6616, Release 6616P01, Release 6635 and later |
|
S6825 switch series |
Release 6616, Release 6616P01, Release 6635 and later |
|
S6850 switch series S9850 switch series |
Release 6555P01, Release 6607, Release 6616, Release 6616P01, Release 6635 and later |
|
S9820-64H |
Release 6555P01, Release 6607, Release 6616, Release 6616P01, Release 6635 and later |
|
S9820-8C |
Release 6616, Release 6616P01, Release 6635 and later |
Restrictions and guidelines
For the DR member devices to be identified as one DR system, you must configure the same DR system MAC address on them. You must assign unique DR system MAC addresses to DR systems.
Procedures
Configuring Device A
# Configure DR system settings.
<DeviceA> system-view
[DeviceA] drni system-mac 0002-0002-0002
[DeviceA] drni system-number 1
[DeviceA] drni system-priority 123
# Configure DR keepalive parameters.
[DeviceA] drni keepalive ip destination 21.1.1.2 source 21.1.1.1
# Set the link mode of HundredGigE 1/0/5 to Layer 3, and assign the interface IPv4 and IPv6 addresses. The IPv4 address will be used as the source IP address of keepalive packets.
[DeviceA] interface hundredgige 1/0/5
[DeviceA-HundredGigE1/0/5] port link-mode route
[DeviceA-HundredGigE1/0/5] ip address 21.1.1.1 255.255.255.0
[DeviceA-HundredGigE1/0/5] ipv6 address 21::1 64
[DeviceA-HundredGigE1/0/5] quit
# Exclude the interface used for DR keepalive detection (HundredGigE 1/0/5) from the shutdown action by DRNI MAD.
[DeviceA] drni mad exclude interface hundredgige 1/0/5
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 1.
[DeviceA] interface bridge-aggregation 1
[DeviceA-Bridge-Aggregation1] link-aggregation mode dynamic
[DeviceA-Bridge-Aggregation1] quit
# Assign HundredGigE 1/0/3 and HundredGigE 1/0/4 to aggregation group 1.
[DeviceA] interface hundredgige 1/0/3
[DeviceA-HundredGigE1/0/3] port link-aggregation group 1
[DeviceA-HundredGigE1/0/3] quit
[DeviceA] interface hundredgige 1/0/4
[DeviceA-HundredGigE1/0/4] port link-aggregation group 1
[DeviceA-HundredGigE1/0/4] quit
# Configure Bridge-Aggregation 1 as the IPP.
[DeviceA] interface bridge-aggregation 1
[DeviceA-Bridge-Aggregation1] port drni intra-portal-port 1
[DeviceA-Bridge-Aggregation1] undo port trunk permit vlan 1
[DeviceA-Bridge-Aggregation1] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 3, and assign it to DR group 1.
[DeviceA] interface bridge-aggregation 3
[DeviceA-Bridge-Aggregation3] link-aggregation mode dynamic
[DeviceA-Bridge-Aggregation3] port drni group 1
[DeviceA-Bridge-Aggregation3] quit
# Assign HundredGigE 1/0/1 and HundredGigE 1/0/2 to aggregation group 3.
[DeviceA] interface hundredgige 1/0/1
[DeviceA-HundredGigE1/0/1] port link-aggregation group 3
[DeviceA-HundredGigE1/0/1] quit
[DeviceA] interface hundredgige 1/0/2
[DeviceA-HundredGigE1/0/2] port link-aggregation group 3
[DeviceA-HundredGigE1/0/2] quit
# Create VLAN 100 and VLAN 101.
[DeviceA] vlan 100
[DeviceA-vlan100] quit
[DeviceA] vlan 101
[DeviceA-vlan101] quit
# Set the link type of Bridge-Aggregation 3 to trunk, and assign it to VLAN 100.
[DeviceA] interface bridge-aggregation 3
[DeviceA-Bridge-Aggregation3] port link-type trunk
[DeviceA-Bridge-Aggregation3] port trunk permit vlan 100
[DeviceA-Bridge-Aggregation3] undo port trunk permit vlan 1
[DeviceA-Bridge-Aggregation3] quit
# Assign IPv4 address 100.1.1.100 and MAC address 0000-0010-0010 to VLAN-interface 100 for the interface to act as an IPv4 gateway.
[DeviceA] interface vlan-interface 100
[DeviceA-Vlan-interface100] ip address 100.1.1.100 255.255.255.0
[DeviceA-Vlan-interface100] mac-address 0000-0010-0010
# Assign IPv6 address 100::100 and link-local address FE80::80 to VLAN-interface 100 for the interface to act as an IPv6 gateway.
[DeviceA] interface vlan-interface 100
[DeviceA-Vlan-interface100] ipv6 address 100::100 64
[DeviceA-Vlan-interface100] ipv6 address FE80::80 link-local
# Exclude VLAN-interface 100 from the shutdown action by DRNI MAD.
[DeviceA] drni mad exclude interface vlan-interface100
# Create VLAN-interface 101. Assign an IPv4 address and an IPv6 address to it to interconnect the DR member devices at Layer 3.
[DeviceA] interface vlan-interface 101
[DeviceA-Vlan-interface101] ip address 101.1.1.1 255.255.255.0
[DeviceA-Vlan-interface101] ipv6 address 101::1 64
[DeviceA-Vlan-interface101] quit
# Exclude VLAN-interface 101 from the shutdown action by DRNI MAD.
[DeviceA] drni mad exclude interface vlan-interface101
# Configure the router ID as 3.3.3.3.
[DeviceA] router id 3.3.3.3
# Configure OSPF to set up IPv4 connectivity between the DR member devices. Enable OSPF on VLAN-interface 100 and VLAN-interface 101. Configure VLAN-interface 100 as an OSPF silent interface.
[DeviceA] ospf 1
[DeviceA-ospf-1] silent-interface vlan-interface 100
[DeviceA-ospf-1] import-route direct
[DeviceA-ospf-1] area 0
[DeviceA-ospf-1-area-0.0.0.0] quit
[DeviceA-ospf-1] quit
[DeviceA] interface vlan-interface 100
[DeviceA-Vlan-interface100] ospf 1 area 0.0.0.0
[DeviceA-Vlan-interface100] quit
[DeviceA] interface vlan-interface 101
[DeviceA-Vlan-interface101] ospf 1 area 0.0.0.0
[DeviceA-Vlan-interface101] quit
# Configure OSPFv3 to set up IPv6 connectivity between the DR member devices. Enable OSPFv3 on VLAN-interface 100 and VLAN-interface 101. Configure VLAN-interface 100 as an OSPFv3 silent interface.
[DeviceA] ospfv3 1
[DeviceA-ospfv3-1] silent-interface vlan-interface 100
[DeviceA-ospfv3-1] import-route direct
[DeviceA-ospfv3-1] area 0
[DeviceA-ospfv3-1-area-0.0.0.0] quit
[DeviceA-ospfv3-1] quit
[DeviceA] interface vlan-interface 100
[DeviceA-Vlan-interface100] ospfv3 1 area 0.0.0.0
[DeviceA-Vlan-interface100] quit
[DeviceA] interface vlan-interface 101
[DeviceA-Vlan-interface101] ospfv3 1 area 0.0.0.0
[DeviceA-Vlan-interface101] quit
# Create VLAN 32, and assign uplink DR aggregation member port HundredGigE 1/0/6 to the VLAN.
[DeviceA] vlan 32
[DeviceA-vlan32] quit
[DeviceA] interface hundredgige 1/0/6
[DeviceA-HundredGigE1/0/6] port link-type trunk
[DeviceA-HundredGigE1/0/6] port trunk permit vlan 32
[DeviceA-HundredGigE1/0/6] undo port trunk permit vlan 1
[DeviceA-HundredGigE1/0/6] quit
# Create VLAN-interface 32. Assign an IPv4 address and an IPv6 address to the interface, and enable OSPF and OSPFv3 on the interface.
[DeviceA] interface vlan-interface 32
[DeviceA-Vlan-interface32] ip address 32.1.1.1 255.255.255.0
[DeviceA-Vlan-interface32] ipv6 address 32::1 64
[DeviceA-Vlan-interface32] ospf 1 area 0
[DeviceA-Vlan-interface32] ospfv3 1 area 0
[DeviceA-Vlan-interface32] quit
Configuring Device B
# Configure DR system settings.
<DeviceB> system-view
[DeviceB] drni system-mac 0002-0002-0002
[DeviceB] drni system-number 2
[DeviceB] drni system-priority 123
# Configure DR keepalive parameters.
[DeviceB] drni keepalive ip destination 21.1.1.1 source 21.1.1.2
# Set the link mode of HundredGigE 1/0/5 to Layer 3, and assign the interface IPv4 and IPv6 addresses. The IPv4 address will be used as the source IP address of keepalive packets.
[DeviceB] interface hundredgige 1/0/5
[DeviceB-HundredGigE1/0/5] port link-mode route
[DeviceB-HundredGigE1/0/5] ip address 21.1.1.2 255.255.255.0
[DeviceB-HundredGigE1/0/5] ipv6 address 21::2 64
[DeviceB-HundredGigE1/0/5] quit
# Exclude the interface used for DR keepalive detection (HundredGigE 1/0/5) from the shutdown action by DRNI MAD.
[DeviceB] drni mad exclude interface hundredgige 1/0/5
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 1.
[DeviceB] interface bridge-aggregation 1
[DeviceB-Bridge-Aggregation1] link-aggregation mode dynamic
[DeviceB-Bridge-Aggregation1] quit
# Assign HundredGigE 1/0/3 and HundredGigE 1/0/4 to aggregation group 1.
[DeviceB] interface hundredgige 1/0/3
[DeviceB-HundredGigE1/0/3] port link-aggregation group 1
[DeviceB-HundredGigE1/0/3] quit
[DeviceB] interface hundredgige 1/0/4
[DeviceB-HundredGigE1/0/4] port link-aggregation group 1
[DeviceB-HundredGigE1/0/4] quit
# Configure Bridge-Aggregation 1 as the IPP.
[DeviceB] interface bridge-aggregation 1
[DeviceB-Bridge-Aggregation1] port drni intra-portal-port 1
[DeviceB-Bridge-Aggregation1] undo port trunk permit vlan 1
[DeviceB-Bridge-Aggregation1] quit
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 3, and assign it to DR group 1.
[DeviceB] interface bridge-aggregation 3
[DeviceB-Bridge-Aggregation3] link-aggregation mode dynamic
[DeviceB-Bridge-Aggregation3] port drni group 1
[DeviceB-Bridge-Aggregation3] quit
# Assign HundredGigE 1/0/1 and HundredGigE 1/0/2 to aggregation group 3.
[DeviceB] interface hundredgige 1/0/1
[DeviceB-HundredGigE1/0/1] port link-aggregation group 3
[DeviceB-HundredGigE1/0/1] quit
[DeviceB] interface hundredgige 1/0/2
[DeviceB-HundredGigE1/0/2] port link-aggregation group 3
[DeviceB-HundredGigE1/0/2] quit
# Create VLAN 100 and VLAN 101.
[DeviceB] vlan 100
[DeviceB-vlan100] quit
[DeviceB] vlan 101
[DeviceB-vlan101] quit
# Set the link type of Bridge-Aggregation 3 to trunk, and assign it to VLAN 100.
[DeviceB] interface bridge-aggregation 3
[DeviceB-Bridge-Aggregation3] port link-type trunk
[DeviceB-Bridge-Aggregation3] port trunk permit vlan 100
[DeviceB-Bridge-Aggregation3] undo port trunk permit vlan 1
[DeviceB-Bridge-Aggregation3] quit
# Assign IPv4 address 100.1.1.100 and MAC address 0000-0010-0010 to VLAN-interface 100 for the interface to act as an IPv4 gateway.
[DeviceB] interface vlan-interface 100
[DeviceB-Vlan-interface100] ip address 100.1.1.100 255.255.255.0
[DeviceB-Vlan-interface100] mac-address 0000-0010-0010
# Assign IPv6 address 100::100 and link-local address FE80::80 to VLAN-interface 100 for the interface to act as an IPv6 gateway.
[DeviceB] interface vlan-interface 100
[DeviceB-Vlan-interface100] ipv6 address 100::100 64
[DeviceB-Vlan-interface100] ipv6 address FE80::80 link-local
# Exclude VLAN-interface 100 from the shutdown action by DRNI MAD.
[DeviceB] drni mad exclude interface vlan-interface100
# Create VLAN-interface 101. Assign an IPv4 address and an IPv6 address to it to interconnect the DR member devices at Layer 3.
[DeviceB] interface vlan-interface 101
[DeviceB-vlan-interface101] ip address 101.1.1.2 24
[DeviceB-vlan-interface101] ipv6 address 101::2 64
[DeviceB-vlan-interface101] quit
# Exclude VLAN-interface 101 from the shutdown action by DRNI MAD.
[DeviceB] drni mad exclude interface vlan-interface101
# Configure the router ID as 4.4.4.4.
[DeviceB] router id 4.4.4.4
# Configure OSPF to set up IPv4 connectivity between the DR member devices. Enable OSPF on VLAN-interface 100 and VLAN-interface 101. Configure VLAN-interface 100 as an OSPF silent interface.
[DeviceB] ospf 1
[DeviceB-ospf-1] silent-interface vlan-interface100
[DeviceB-ospf-1] import-route direct
[DeviceB-ospf-1] area 0
[DeviceB-ospf-1-area-0.0.0.0] quit
[DeviceB-ospf-1] quit
[DeviceB] interface vlan-interface 100
[DeviceB-Vlan-interface100] ospf 1 area 0.0.0.0
[DeviceB-Vlan-interface100] quit
[DeviceB] interface vlan-interface 101
[DeviceB-Vlan-interface101] ospf 1 area 0.0.0.0
[DeviceB-Vlan-interface101] quit
# Configure OSPFv3 to set up IPv6 connectivity between the DR member devices. Enable OSPFv3 on VLAN-interface 100 and VLAN-interface 101. Configure VLAN-interface 100 as an OSPFv3 silent interface.
[DeviceB] ospfv3 1
[DeviceB-ospf-1] silent-interface vlan-interface100
[DeviceB-ospfv3-1] import-route direct
[DeviceB-ospfv3-1] area 0
[DeviceB-ospfv3-1-area-0.0.0.0] quit
[DeviceB-ospfv3-1] quit
[DeviceB] interface vlan-interface 100
[DeviceB-vlan-interface100] ospfv3 1 area 0
[DeviceB-vlan-interface100] quit
[DeviceB] interface vlan-interface 101
[DeviceB-vlan-interface101] ospfv3 1 area 0
[DeviceB-vlan-interface101] quit
# Create VLAN 33, and assign uplink DR aggregation member port HundredGigE 1/0/6 to the VLAN.
[DeviceB] vlan 33
[DeviceB-vlan33] quit
[DeviceB] interface hundredgige 1/0/6
[DeviceB-HundredGigE1/0/6] port link-type trunk
[DeviceB-HundredGigE1/0/6] port trunk permit vlan 33
[DeviceB-HundredGigE1/0/6] undo port trunk permit vlan 1
[DeviceB-HundredGigE1/0/6] quit
# Create VLAN-interface 33. Assign an IPv4 address and an IPv6 address to the interface, and enable OSPF and OSPFv3 on the interface.
[DeviceB] interface vlan-interface 33
[DeviceB-Vlan-interface33] ip address 33.1.1.1 255.255.255.0
[DeviceB-Vlan-interface33] ipv6 address 33::1 64
[DeviceB-Vlan-interface33] ospf 1 area 0
[DeviceB-Vlan-interface33] ospfv3 1 area 0
[DeviceB-Vlan-interface33] quit
Configuring Device C
# Create VLAN 32, and assign HundredGigE 1/0/1 connected to Device A to the VLAN. Assign an IPv4 address and an IPv6 address to VLAN-interface 32.
<DeviceC> system-view
[DeviceC] vlan 32
[DeviceC-vlan32] quit
[DeviceC] interface hundredgige 1/0/1
[DeviceC-HundredGigE1/0/1] port link-type trunk
[DeviceC-HundredGigE1/0/1] port trunk permit vlan 32
[DeviceC-HundredGigE1/0/1] undo port trunk permit vlan 1
[DeviceC-HundredGigE1/0/] quit
[DeviceC] interface vlan-interface 32
[DeviceC-Vlan-interface32] ip address 32.1.1.2 24
[DeviceC-Vlan-interface32] ipv6 address 32::2 64
[DeviceC-Vlan-interface32] quit
# Create VLAN 33, and assign HundredGigE 1/0/2 connected to Device B to the VLAN. Assign an IPv4 address and an IPv6 address to VLAN-interface 33.
[DeviceC] vlan 33
[DeviceC-vlan33] quit
[DeviceC] interface hundredgige 1/0/2
[DeviceC-HundredGigE1/0/2] port link-type trunk
[DeviceC-HundredGigE1/0/2] port trunk permit vlan 33
[DeviceC-HundredGigE1/0/2] undo port trunk permit vlan 1
[DeviceC-HundredGigE1/0/2] quit
[DeviceC] interface vlan-interface 33
[DeviceC-Vlan-interface33] ip address 33.1.1.2 24
[DeviceC-Vlan-interface33] ipv6 address 33::2 64
[DeviceC-Vlan-interface33] quit
# Configure the router ID as 5.5.5.5.
[DeviceC] router id 5.5.5.5
# Enable OSPF on VLAN-interface 32 and VLAN-interface 33.
[DeviceC] ospf 1
[DeviceC-ospf-1] import-route direct
[DeviceC-ospf-1] area 0
[DeviceC-ospf-1-area-0.0.0.0] quit
[DeviceC-ospf-1] quit
[DeviceC] interface vlan-interface 32
[DeviceC-Vlan-interface32] ospf 1 area 0
[DeviceC-Vlan-interface32] quit
[DeviceC] interface vlan-interface 33
[DeviceC-Vlan-interface33] ospf 1 area 0
[DeviceC-Vlan-interface33] quit
# Enable OSPFv3 on VLAN-interface 32 and VLAN-interface 33.
[DeviceC] ospfv3 1
[DeviceC-ospfv3-1] import-route direct
[DeviceC-ospfv3-1] area 0
[DeviceC-ospfv3-1-area-0.0.0.0] quit
[DeviceC-ospfv3-1] quit
[DeviceC] interface vlan-interface 32
[DeviceC-Vlan-interface32] ospfv3 1 area 0
[DeviceC-Vlan-interface32] quit
[DeviceC] interface vlan-interface 33
[DeviceC-Vlan-interface33] ospfv3 1 area 0
[DeviceC-Vlan-interface33] quit
# Create VLAN 22, and assign HundredGigE 1/0/3 connected to Network 1 to the VLAN. Assign an IPv4 address and an IPv6 address to VLAN-interface 22.
[DeviceC] vlan 22
[DeviceC-vlan22] quit
[DeviceC] interface hundredgige 1/0/3
[DeviceC-HundredGigE1/0/3] port link-type trunk
[DeviceC-HundredGigE1/0/3] port trunk permit vlan 22
[DeviceC-HundredGigE1/0/3] undo port trunk permit vlan 1
[DeviceC-HundredGigE1/0/3] quit
[DeviceC] interface vlan-interface 22
[DeviceC-Vlan-interface22] ip address 22.1.1.1 24
[DeviceC-Vlan-interface22] ipv6 address 22::1 64
[DeviceC-Vlan-interface22] quit
Configuring Device D
# Create Layer 2 dynamic aggregate interface Bridge-Aggregation 3.
<DeviceD> system-view
[DeviceD] interface bridge-aggregation 3
[DeviceD-Bridge-Aggregation3] link-aggregation mode dynamic
[DeviceD-Bridge-Aggregation3] quit
# Assign HundredGigE 1/0/1 through HundredGigE 1/0/4 to aggregation group 3.
[DeviceD] interface range hundredgige 1/0/1 to hundredgige 1/0/4
[DeviceD-if-range] port link-aggregation group 3
[DeviceD-if-range] quit
# Create VLAN 100.
[DeviceD] vlan 100
[DeviceD-vlan100] quit
# Set the link type of Bridge-Aggregation 3 to trunk, and assign it to VLAN 100.
[DeviceD] interface bridge-aggregation 3
[DeviceD-Bridge-Aggregation3] port link-type trunk
[DeviceD-Bridge-Aggregation3] port trunk permit vlan 100
[DeviceD-Bridge-Aggregation3] undo port trunk permit vlan 1
[DeviceD-Bridge-Aggregation3] quit
Verifying the configuration
Verifying the DR system status
Verify that the DR system has been set up successfully. The following tasks use Device A as an example.
# Verify that Device A has formed a DR system with Device B.
[DeviceA] display drni summary
Flags: A -- Aggregate interface down, B -- No peer DR interface configured
C -- Configuration consistency check failed
IPP: BAGG1
IPP state (cause): UP
Keepalive link state (cause): UP
DR interface information
DR interface DR group Local state (cause) Peer state Remaining down time (s)
BAGG3 1 UP UP -
# Verify that the DR keepalive information is correct.
[DeviceA] display drni keepalive
Neighbor keepalive link status: Up
Neighbor is alive for: 64765 s 28 ms
Keepalive packet transmission status:
Sent: Successful
Received: Successful
Last received keepalive packet information:
Source IP address: 21.1.1.2
Time: 2021/01/17 17:10:52
Action: Accept
Distributed relay keepalive parameters:
Destination IP address: 21.1.1.2
Source IP address: 21.1.1.1
Keepalive UDP port : 6400
Keepalive VPN name : N/A
Keepalive interval : 1000 ms
Keepalive timeout : 5 sec
Keepalive hold time: 3 sec
# Verify that the DR system information is correct.
<Sysname> display drni system
System information
Local system number: 1 Peer system number: 2
Local system MAC: 0002-0002-0002 Peer system MAC: 0002-0002-0002
Local system priority: 123 Peer system priority: 123
Local bridge MAC: 3cd4-3ce1-0200 Peer bridge MAC: 3cd4-437d-0300
Local effective role: Primary Peer effective role: Secondary
Health level: 0
Standalone mode on split: Disabled
In standalone mode: No
System timer information
Timer State Value (s) Remaining time (s)
Auto recovery Disabled - -
Restore delay Disabled 30 -
Consistency-check delay Disabled 15 -
Standalone delay Disabled - -
Role to None delay Disabled 60 -
# Verify that the DR system interface information is correct.
[DeviceA] display drni verbose
Flags: A -- Home_Gateway, B -- Neighbor_Gateway, C -- Other_Gateway,
D -- IPP_Activity, E -- DRCP_Timeout, F -- Gateway_Sync,
G -- Port_Sync, H -- Expired
IPP/IPP ID: BAGG1/1
State: UP
Cause: -
Local DRCP flags/Peer DRCP flags: ABDFG/ABDFG
Local Selected ports (index): HGE1/0/3 (27), HGE1/0/4 (32)
Peer Selected ports indexes: 125, 130
DR interface/DR group ID: BAGG3/1
Local DR interface state: UP
Peer DR interface state: UP
DR group state: UP
Local DR interface down cause: -
Remaining DRNI DOWN time: -
Local DR interface LACP MAC: Config=N/A, Effective=0002-0002-0002
Peer DR interface LACP MAC: Config=N/A, Effective=0002-0002-0002
Local DR interface LACP priority: Config=32768, Effective=123
Peer DR interface LACP priority: Config=32768, Effective=123
Local DRCP flags/Peer DRCP flags: ABDFG/ABDFG
Local Selected ports (index): HGE1/0/1 (12), HGE1/0/2 (13)
Peer Selected ports indexes: 56, 57
Verifying routing
# Verify that Device A have established OSPF neighbor relationships.
[DeviceA] display ospf peer
OSPF Process 1 with Router ID 3.3.3.3
Neighbor Brief Information
Area: 0.0.0.0
Router ID Address Pri Dead-Time State Interface
4.4.4.4 101.1.1.2 1 36 Full/DR Vlan101
5.5.5.5 32.1.1.2 1 38 Full/DR Vlan32
# Verify that Device A have established OSPFv3 neighbor relationships.
[DeviceA] display ospfv3 peer
OSPFv3 Process 1 with Router ID 3.3.3.3
Area: 0.0.0.0
-------------------------------------------------------------------------
Router ID Pri State Dead-Time InstID Interface
4.4.4.4 1 Full/DR 00:00:36 0 Vlan101
5.5.5.5 1 Full/DR 00:00:35 0 Vlan32
# Verify that Device B have established OSPF neighbor relationships.
[DeviceB] display ospf peer
OSPF Process 1 with Router ID 4.4.4.4
Neighbor Brief Information
Area: 0.0.0.0
Router ID Address Pri Dead-Time State Interface
3.3.3.3 101.1.1.1 1 32 Full/BDR Vlan101
5.5.5.5 33.1.1.2 1 33 Full/DR Vlan33
# Verify that Device B have established OSPFv3 neighbor relationships.
[DeviceB] display ospfv3 peer
OSPFv3 Process 1 with Router ID 4.4.4.4
Area: 0.0.0.0
-------------------------------------------------------------------------
Router ID Pri State Dead-Time InstID Interface
3.3.3.3 1 Full/BDR 00:00:35 0 Vlan101
5.5.5.5 1 Full/DR 00:00:38 0 Vlan33
# Verify that Device C have established OSPF neighbor relationships.
[DeviceC] display ospf peer
OSPF Process 1 with Router ID 5.5.5.5
Neighbor Brief Information
Area: 0.0.0.0
Router ID Address Pri Dead-Time State Interface
3.3.3.3 32.1.1.1 1 32 Full/DR Vlan32
4.4.4.4 33.1.1.1 1 38 Full/DR Vlan33
# Verify that Device C have established OSPFv3 neighbor relationships.
[DeviceC] display ospfv3 peer
OSPFv3 Process 1 with Router ID 5.5.5.5
Area: 0.0.0.0
-------------------------------------------------------------------------
Router ID Pri State Dead-Time InstID Interface
3.3.3.3 1 Full/DR 00:00:37 0 Vlan32
4.4.4.4 1 Full/DR 00:00:34 0 Vlan33
Verifying connectivity between the servers and Network 1
Verify that Server 1 and Server 2 have IPv4 and IPv6 connectivity with Network 1.
Verifying traffic failover
On Device A, disconnect the interface connected to Device C. Verify that Server 1 and Server 2 have connectivity with Network 1 and only transient traffic loss occurs during traffic failover.
Configuration files
· Device A:
#
router id 3.3.3.3
#
ospf 1
import-route direct
silent-interface Vlan-interface100
area 0.0.0.0
#
ospfv3 1
import-route direct
silent-interface Vlan-interface100
area 0.0.0.0
#
vlan 1
#
vlan 32
#
vlan 100 to 101
#
interface Bridge-Aggregation1
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 2 to 4094
link-aggregation mode dynamic
port drni intra-portal-port 1
#
interface Bridge-Aggregation3
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
link-aggregation mode dynamic
port drni group 1
#
interface Vlan-interface32
ip address 32.1.1.1 255.255.255.0
ospf 1 area 0.0.0.0
ospfv3 1 area 0.0.0.0
ipv6 address 32::1/64
#
interface Vlan-interface100
ip address 100.1.1.100 255.255.255.0
ospf 1 area 0.0.0.0
ospfv3 1 area 0.0.0.0
mac-address 0000-0010-0010
ipv6 address FE80::80 link-local
ipv6 address 100::100/64
#
interface Vlan-interface101
ip address 101.1.1.1 255.255.255.0
ospf 1 area 0.0.0.0
ospfv3 1 area 0.0.0.0
ipv6 address 101::1/64
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
combo enable fiber
port link-aggregation group 3
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
combo enable fiber
port link-aggregation group 3
#
interface HundredGigE1/0/3
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 2 to 4094
port link-aggregation group 1
#
interface HundredGigE1/0/4
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 2 to 4094
port link-aggregation group 1
#
interface HundredGigE1/0/5
port link-mode route
ip address 21.1.1.1 255.255.255.0
ipv6 address 21::1/64
#
interface HundredGigE1/0/6
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 32
#
drni system-mac 0002-0002-0002
drni system-number 1
drni system-priority 123
drni keepalive ip destination 21.1.1.2 source 21.1.1.1
drni mad exclude interface HundredGigE2/0/19
drni mad exclude interface Vlan-interface100
drni mad exclude interface Vlan-interface101
#
· Device B:
#
router id 4.4.4.4
#
ospf 1
import-route direct
silent-interface Vlan-interface100
area 0.0.0.0
#
ospfv3 1
import-route direct
silent-interface Vlan-interface100
area 0.0.0.0
#
vlan 1
#
vlan 33
#
vlan 100 to 101
#
interface Bridge-Aggregation1
port link-type trunk
port trunk permit vlan all
link-aggregation mode dynamic
port drni intra-portal-port 1
#
interface Bridge-Aggregation3
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
link-aggregation mode dynamic
port drni group 1
#
interface Vlan-interface33
ip address 33.1.1.1 255.255.255.0
ospf 1 area 0.0.0.0
ospfv3 1 area 0.0.0.0
ipv6 address 33::1/64
#
interface Vlan-interface100
ip address 100.1.1.100 255.255.255.0
ospf 1 area 0.0.0.0
ospfv3 1 area 0.0.0.0
mac-address 0000-0010-0010
ipv6 address FE80::80 link-local
ipv6 address 100::100/64
#
interface Vlan-interface101
ip address 101.1.1.2 255.255.255.0
ospf 1 area 0.0.0.0
ospfv3 1 area 0.0.0.0
ipv6 address 101::2/64
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
combo enable fiber
port link-aggregation group 3
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
combo enable fiber
port link-aggregation group 3
#
interface HundredGigE1/0/3
port link-mode bridge
port link-type trunk
port trunk permit vlan all
port link-aggregation group 1
#
interface HundredGigE1/0/4
port link-mode bridge
port link-type trunk
port trunk permit vlan all
port link-aggregation group 1
#
interface HundredGigE1/0/5
port link-mode route
ip address 21.1.1.2 255.255.255.0
ipv6 address 21::2/64
#
interface HundredGigE1/0/6
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 33
#
drni system-mac 0002-0002-0002
drni system-number 2
drni system-priority 123
drni keepalive ip destination 21.1.1.1 source 21.1.1.2
drni mad exclude interface HundredGigE2/0/19
drni mad exclude interface Vlan-interface100
drni mad exclude interface Vlan-interface101
#
· Device C:
#
router id 5.5.5.5
#
ospf 1
import-route direct
area 0.0.0.0
#
ospfv3 1
import-route direct
area 0.0.0.0
#
vlan 1
#
vlan 22
#
vlan 32 to 33
#
interface Vlan-interface22
ip address 22.1.1.1 255.255.255.0
ipv6 address 22::1/64
#
interface Vlan-interface32
ip address 32.1.1.1 255.255.255.0
ospf 1 area 0.0.0.0
ospfv3 1 area 0.0.0.0
ipv6 address 32::2/64
#
interface Vlan-interface33
ip address 33.1.1.2 255.255.255.0
ospf 1 area 0.0.0.0
ospfv3 1 area 0.0.0.0
ipv6 address 33::2/64
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 32
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 33
#
interface HundredGigE1/0/3
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 22
#
· Device D:
#
vlan 1
#
vlan 100
#
interface Bridge-Aggregation3
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
link-aggregation mode dynamic
#
interface HundredGigE1/0/1
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
port link-aggregation group 3
#
interface HundredGigE1/0/2
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
port link-aggregation group 3
#
interface HundredGigE1/0/3
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
port link-aggregation group 3
#
interface HundredGigE1/0/4
port link-mode bridge
port link-type trunk
undo port trunk permit vlan 1
port trunk permit vlan 100
port link-aggregation group 3
#
Related documentation
Use this document in conjunction with the following documents for the product and software version you are working with:
· Layer 2—LAN Switching Configuration Guide
· Layer 2—LAN Switching Command Reference
