Anti-virus configuration examples



·     Introduction

·     Prerequisites

·     Restrictions and guidelines

·     Example: Configuring anti-virus



The following information provides anti-virus configuration examples.

The anti-virus feature supports the following application protocols:

·     FTP.

·     HTTP.

·     IMAP.

·     NFS.

·     POP3.

·     SMB.

·     SMTP.



This document is not restricted to specific software or hardware versions. Procedures and information in the examples might be slightly different depending on the software or hardware version of the device.

The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

The following information is provided based on the assumption that you have basic knowledge of the anti-virus feature.



For anti-virus to inspect HTTPS protocol packets, you must also configure the application proxy feature. To configure the application proxy feature, access the Policies > Application Proxy page.

The anti-virus feature requires a license to run on the device. After the license expires, anti-virus can use the existing virus signature library on the device, but the library cannot be updated.

Network configuration

As shown in Figure 1, a security gateway device is deployed at the border of the enterprise network. Internal users need to transfer files and emails by using the Web server and email server on the Internet.

Configure anti-virus on the device to perform virus detection on the files and emails transferred by the internal users to protect the enterprise network.

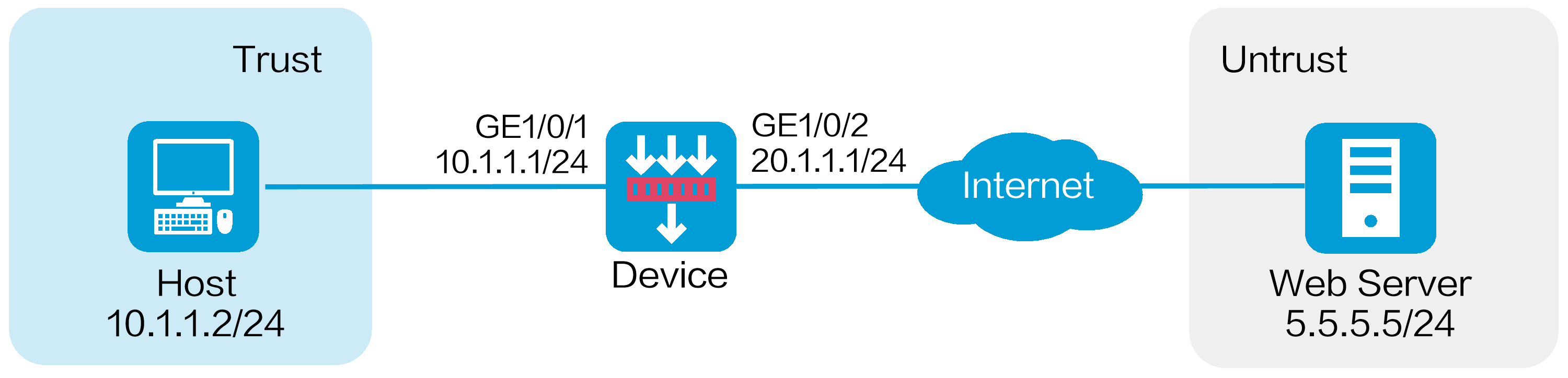

Figure 1 Network diagram



Software versions used

This configuration example was created and verified on E8371 of the F5000-AI160 device.

This configuration example was created and verified on E9671 of the M9000-X06 device.

Procedure

1.     Assign IP addresses to interfaces and add the interfaces to security zones:

# On the top navigation bar, click Network.

# From the navigation pane, select Interface Configuration > Interfaces.

# Click the Edit icon for GE 1/0/1.

# In the dialog box that opens, configure the interface:

a.     Select the Trust security zone.

b.     Click the IPv4 Address tab, and then enter the IP address and mask length of the interface. In this example, use 10.1.1.1/24.

c.     Use the default settings for other parameters.

d.     Click OK.

# Add GE 1/0/2 to the Untrust security zone and set its IP address to 20.1.1.1./24 in the same way you configure GE 1/0/1.

2.     Configure settings for routing:

This example configures a static route. If dynamic routes are used, configure a routing protocol.

# On the top navigation bar, click Network.

# From the navigation pane, select Routing > Static Routing.

# On the IPv4 Static Routing tab, click Create.

# In the dialog box that opens, create an IPv4 static route:

¡     Enter destination address 5.5.5.0.

¡     Enter mask length 24.

¡     Enter next hop address 20.1.1.2.

¡     Use the default settings for other parameters.

# Click OK.

3.     Update the virus signature library to the latest version. (Details not shown.)

4.     Configure an anti-virus profile.

# On the top navigation bar, click Objects.

# From the navigation pane, select APP Security > Anti-Virus > Profile.

# Click Create.

# In the dialog box that opens, configure an anti-virus profile:

a.     Enter the name antivirus.

b.     In the Protocols area, configure anti-virus protection for file transfer protocols and mail protocols, as shown in Figure 2.

-     Clear the check boxes for the Upload and Download options of the FTP protocol.

-     Set the action to Block for the SMTP and POP3 mail protocols.

c.     Click OK.

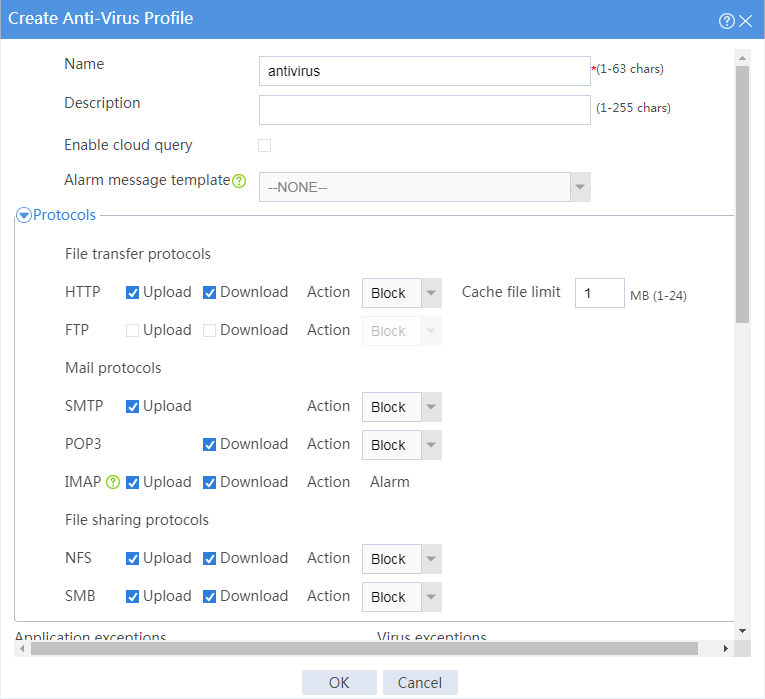

Figure 2 Creating an anti-virus profile



5.     Configure security policies:

# On the top navigation bar, click Policies.

# From the navigation pane, select Security Policies > Security Policies.

# Click Create, and then click Create a policy.

# In the dialog box that opens, configure a security policy:

¡     Enter policy name trust-untrust.

¡     Select source zone Trust.

¡     Select destination zone Untrust.

¡     Select type IPv4.

¡     Select action Permit.

¡     Select source IP address 10.1.1.0/24.

¡     Select anti-virus profile antivirus in the Content security area.

# Click OK.

# Create security policy untrust-trust in the same way you create security policy trust-untrust:

¡     Enter policy name untrust-trust.

¡     Select source zone Untrust.

¡     Select destination zone Trust.

¡     Select type IPv4.

¡     Select action Permit.

¡     Select destination IP address 10.1.1.0/24.

¡     Select anti-virus profile antivirus in the Content security area.

# Click OK.

6.     Activate the settings on the Security Policies page:

# After you apply the anti-virus profile to the security policy, click Submit to have the content security configuration take effect.

# Click Activate to activate security policy matching acceleration.

7.     Enable logging:

# On the top navigation bar, click System.

# From the navigation pane, select Log Settings > Basic Settings.

# Click the Storage Space Settings tab.

# Select the check box next to threat to enable logging for threat logs.

Verifying the configuration

Verify that anti-virus detect and block virus-infected files and emails transmitted by internal users to protect the enterprise network.

To view the threat logs generated by anti-virus, click Monitor on the top navigation bar, and then select Security Logs > Threat Logs from the navigation pane.
