Introduction to ARP

ARP Function

Address Resolution Protocol (ARP) is used to resolve an IP address into a data link layer address.

An IP address is the address of a host at the network layer. To send a network layer packet to a destination host, the device must know the data link layer address (MAC address, for example) of the destination host or the next hop. To this end, the IP address must be resolved into the corresponding data link layer address.





ARP Message Format

ARP messages are classified as ARP request messages and ARP reply messages. Figure 1-1 illustrates the format of these two types of ARP messages.

l          As for an ARP request, all the fields except the hardware address of the receiver field are set. The hardware address of the receiver is what the sender requests for.

l          As for an ARP reply, all the fields are set.

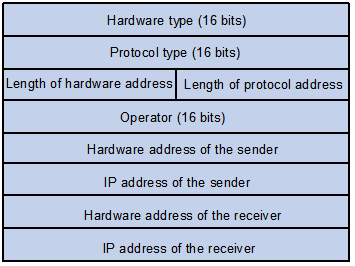

Figure 1-1 ARP message format



Table 1-1 describes the fields of an ARP packet.

Table 1-1 Description on the fields of an ARP packet



Table 1-2 Description on the values of the hardware type field



ARP Table

In an Ethernet, the MAC addresses of two hosts must be available for the two hosts to communicate with each other. Each host in an Ethernet maintains an ARP table, where the latest used IP address-to-MAC address mapping entries are stored. The device provides the display arp command to display the information about ARP mapping entries.

ARP entries in a device can either be static entries or dynamic entries, as described in Table 1-3.

Table 1-3 ARP entries



ARP Process

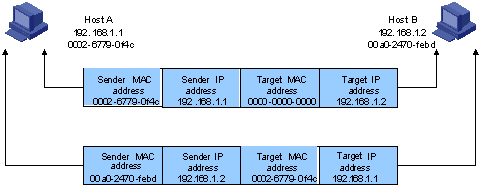

Figure 1-2 ARP process



Suppose that Host A and Host B are on the same subnet and that Host A sends a message to Host B. The resolution process is as follows:

1)        Host A looks in its ARP mapping table to see whether there is an ARP entry for Host B. If Host A finds it, Host A uses the MAC address in the entry to encapsulate the IP packet into a data link layer frame and sends the frame to Host B.

2)        If Host A finds no entry for Host B, Host A buffers the packet and broadcasts an ARP request, in which the source IP address and source MAC address are respectively the IP address and MAC address of Host A and the destination IP address and MAC address are respectively the IP address of Host B and an all-zero MAC address. Because the ARP request is sent in broadcast mode, all hosts on this subnet can receive the request, but only the requested host (namely, Host B) will process the request.

3)        Host B compares its own IP address with the destination IP address in the ARP request. If they are the same, Host B saves the source IP address and source MAC address into its ARP mapping table, encapsulates its MAC address into an ARP reply, and unicasts the reply to Host A.

4)        After receiving the ARP reply, Host A adds the MAC address of Host B into its ARP mapping table for subsequent packet forwarding. Meanwhile, Host A encapsulates the IP packet and sends it out.

Usually ARP dynamically implements and automatically seeks mappings from IP addresses to MAC addresses, without manual intervention.

Introduction to ARP Attack Detection

Man-in-the-middle attack

According to the ARP design, after receiving an ARP response, a host adds the IP-to-MAC mapping of the sender into its ARP mapping table even if the MAC address is not the real one. This can reduce the ARP traffic in the network, but it also makes ARP spoofing possible.

In Figure 1-3, Host A communicates with Host C through Switch. To intercept the traffic between Host A and Host C, the hacker (Host B) forwards invalid ARP reply messages to Host A and Host C respectively, causing the two hosts to update the MAC address corresponding to the peer IP address in their ARP tables with the MAC address of Host B. Then, the traffic between Host A and C will pass through Host B which acts like a “man-in-the-middle” that may intercept and modify the communication information. Such attack is called man-in-the-middle attack.

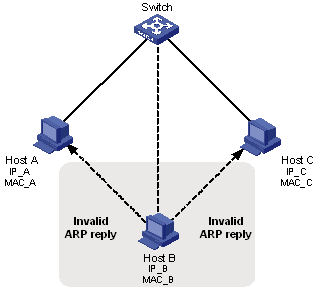

Figure 1-3 Network diagram for ARP man-in-the-middle attack



ARP attack detection

To guard against the man-in-the-middle attacks launched by hackers or attackers, the device supports the ARP attack detection function. All ARP (both request and response) packets passing through the device are redirected to the CPU, which checks the validity of all the ARP packets by using the DHCP snooping table or the manually configured IP binding table. For description of DHCP snooping table and the manually configured IP binding table, refer to DHCP snooping section in DHCP in H3C WX3000 Series Unified Switches Switching Engine Configuration Guide.

After you enable the ARP attack detection function, the device will check the following items of an ARP packet: the source MAC address, source IP address, port number of the port receiving the ARP packet, and the ID of the VLAN the port resides. If these items match the entries of the DHCP snooping table or the manual configured IP binding table, the device will forward the ARP packet; if not, the device discards the ARP packet.

l          With trusted ports configured, ARP packets coming from the trusted ports will not be checked, while those from other ports will be checked through the DHCP snooping table or the manually configured IP binding table.

l          With the ARP restricted forwarding function enabled, ARP request packets are forwarded through trusted ports only; ARP response packets are forwarded according to the MAC addresses in the packets, or through trusted ports if the MAC address table contains no such destination MAC addresses.

Introduction to Gratuitous ARP

The following are the characteristics of gratuitous ARP packets:

l          Both source and destination IP addresses carried in a gratuitous ARP packet are the local addresses, and the source MAC address carried in it is the local MAC addresses.

l          If a device finds that the IP addresses carried in a received gratuitous packet conflict with those of its own, it returns an ARP response to the sending device to notify of the IP address conflict.

By sending gratuitous ARP packets, a network device can:

l          Determine whether or not IP address conflicts exist between it and other network devices.

l          Trigger other network devices to update its hardware address stored in their caches.

The gratuitous ARP packet learning function:

When the gratuitous ARP packet learning function is enabled on a device and the device receives a gratuitous ARP packet, the device updates the existing ARP entry (contained in the cache of the device) that matches the received gratuitous ARP packet using the hardware address of the sender carried in the gratuitous ARP packet.

Configuring ARP

Configuring ARP Basic Functions

Follow these steps to configure ARP basic functions:





Configuring ARP Attack Detection

Follow these steps to configure the ARP attack detection function:





Configuring Gratuitous ARP

Follow these steps to configure the gratuitous ARP:





Displaying and Maintaining ARP



ARP Configuration Example

ARP Basic Configuration Example

Network requirement

l          Disable ARP entry check on the device.

l          Set the aging time for dynamic ARP entries to 10 minutes.

l          Add a static ARP entry, with the IP address being 192.168.1.1, the MAC address being 000f-e201-0000, and the outbound port being GigabitEthernet 1/0/10 of VLAN 1.

Configuration procedure

<device> system-view

[device] undo arp check enable

[device] arp timer aging 10

[device] arp static 192.168.1.1 000f-e201-0000 1 gigabitethernet 1/0/10

ARP Attack Detection Configuration Example

Network requirements

As shown in Figure 1-4, GigabitEthernet 1/0/1 of Switch A connects to DHCP Server; GigabitEthernet 1/0/2 connects to Client A, GigabitEthernet 1/0/3 connects to Client B. GigabitEthernet 1/0/1, GigabitEthernet 1/0/2 and GigabitEthernet 1/0/3 belong to VLAN 1.

l          Enable DHCP snooping on Switch A and specify GigabitEthernet 1/0/1 as the DHCP snooping trusted port.

l          Enable ARP attack detection in VLAN 1 to prevent ARP man-in-the-middle attacks, and specify GigabitEthernet 1/0/1 as the ARP trusted port.

Figure 1-4 ARP attack detection configuration



Configuration procedure

# Enable DHCP snooping on Switch A.

<SwitchA> system-view

[SwitchA] dhcp-snooping

# Specify GigabitEthernet 1/0/1 as the DHCP snooping trusted port and the ARP trusted port.

[SwitchA] interface gigabitethernet 1/0/1

[SwitchA-GigabitEthernet1/0/1] dhcp-snooping trust

[SwitchA-GigabitEthernet1/0/1] arp detection trust

[SwitchA-GigabitEthernet1/0/1] quit

# Enable ARP attack detection on all ports in VLAN 1.

[SwitchA] vlan 1

[SwitchA-vlan1] arp detection enable
