11 Appendix B  Cable management

General cabling requirements

Minimum curvature radius of cables

·     Attached power cord, communication cable, or ribbon cable—A minimum of five times the cable’s outer diameter. If the cable is frequently bent, connected and removed, the curvature radius must be a minimum of seven times the cable's outer diameter.

·     Ordinary attached coaxial cable—A minimum of seven times the cable's outer diameter. If the coaxial cable is frequently bent, connected and removed, the curvature radius must be a minimum of 10 times the cable's outer diameter.

·     High-speed cable (SFP+ cable for example)—A minimum of five times the cable's outer diameter. If the coaxial cable is frequently bent, plugged and unplugged, the curvature radius must be a minimum of 10 times the cable's outer diameter.

Minimum curvature radius of fibers

·     When the fiber is wrapped up around the cabling plate, the diameter of the cabling plate must be a minimum of 25 times the fiber's diameter.

·     When the fiber is being moved, the curvature radius of the fiber must be a minimum of 20 times the fiber's diameter.

·     When the fiber is attached, the curvature radius of the fiber must be a minimum of 10 times the fiber's diameter.



	NOTE: The fiber's diameter refers to the outer diameter of the fiber jacket. Typically, the diameter of a single-core fiber is 0.9 mm (0.04 in), 2.0 mm (0.08 in), or 3.0 mm (0.12 in).



Cable binding guidelines

When you route and bundle up cables, follow these guidelines:

·     Label cables before you route or bundle them. For more information about labeling cables, see "Appendix E Engineering labels."

·     Bind and route the cables neatly inside the rack, and make sure they are not kinked or bent.

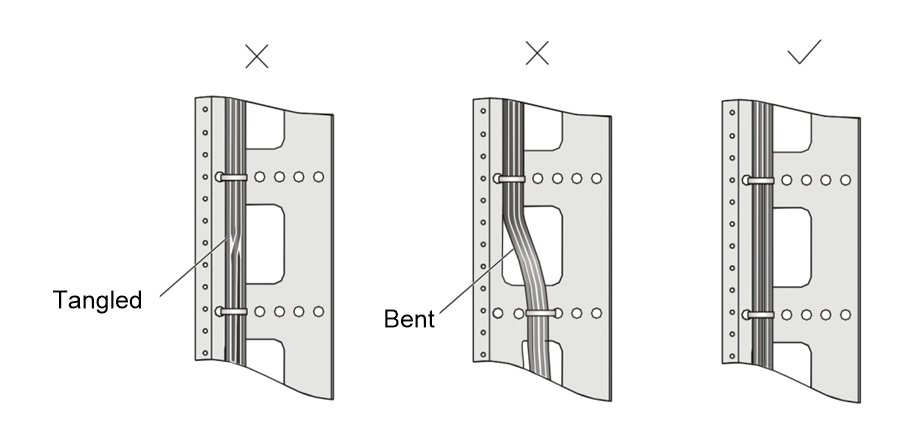

Figure11-1 Correct and incorrect cable binding



·     Route different types of cables (power cords and signal cables for example) separately. If they are close to one another, cross them over one another. If you route them in parallel, keep a minimum distance of 30 mm (1.18 in) between a power cord bundle and a signal cable bundle.

·     The cable management brackets and cable routing slots, inside or outside the rack, are smooth and do not have sharp edges or tips.

·     When you route cables through sharp sheet metal penetration points or along sharp edges of mechanical parts, use bushings or take any other action to protect the cables from being cut or abraded. The sheet metal penetration points must be smooth and fully rounded.

·     Use the correct type of ties to bind the cables. Do not bind cables with joined ties. The following types of ties are available: 100 × 2.5 mm (3.94 × 0.10 in), 150 × 3.6 mm (5.91 × 0.14 in), 300 × 3.6 mm (11.81 × 0.14 in), 530 × 9 mm (20.87 × 0.35 in), and 580 × 13 mm (22.83 × 0.51 in).

·     After binding the cables, cut the excess from the ties, leaving no sharp or angular tips. See Figure11-2.

Figure11-2 Cutting cable ties



·     When you bend cables, bind them as shown in Figure11-3. To avoid excessive stress causing cable core break, do not tie up the cables in the bending area.

Figure11-3 Binding cables where they must be bent



·     Route, bind, and attach excess cables for easy, safe maintenance activities and correct operations.

·     Do not tie power cords to slide rails.

·     When you connect a cable to an articulated part, for example, when you connect a grounding cable to a cabinet door, leave enough slack in cables and make sure they are not stressed from any movement of the part.

·     Cables must be protected at points where they might rub or come in contact with sharp edges or heated areas. Use high temperature cables near heat sources.

·     Securely fasten cables and take adequate measures to prevent loose connections.

Figure11-4 Securely fastening cables

(1) Flat washer	(2) Spring washer	(3) Nut



·     Fasten heavy or rigid power cords at the connectors to relief stress.

·     Do not use tapping screws to fasten the connecting terminals.

·     Bind together cables that are the same type and routed in the same direction.

Table11-1 lists the cable bundling specifications.

Table11-1 Tie-binding parameters

Cable bundle diameter (mm)	Space between bundles (mm)
10	80 to 150
10 to 30	150 to 200
30	200 to 300



·     Do not tie cables or bundles in a knot.

·     The metal parts of the crimped cold-pressed terminal blocks (such as circuit breaker) cannot protrude beyond the blocks.

Routing signal cables

The chassis cable management brackets are installed along the left and right edges of the front panel. The fabric module cable management brackets are installed along the top and bottom edges of the MPU and fabric module slots.



NOTE: For videos on routing signal cables, access the official website or scan the QR code on a cable management bracket.



Routing MPU cables

The MPUs are on the left of the front panel. As a best practice, route MPU cables along the left chassis cable management brackets, as shown in Figure11-5.

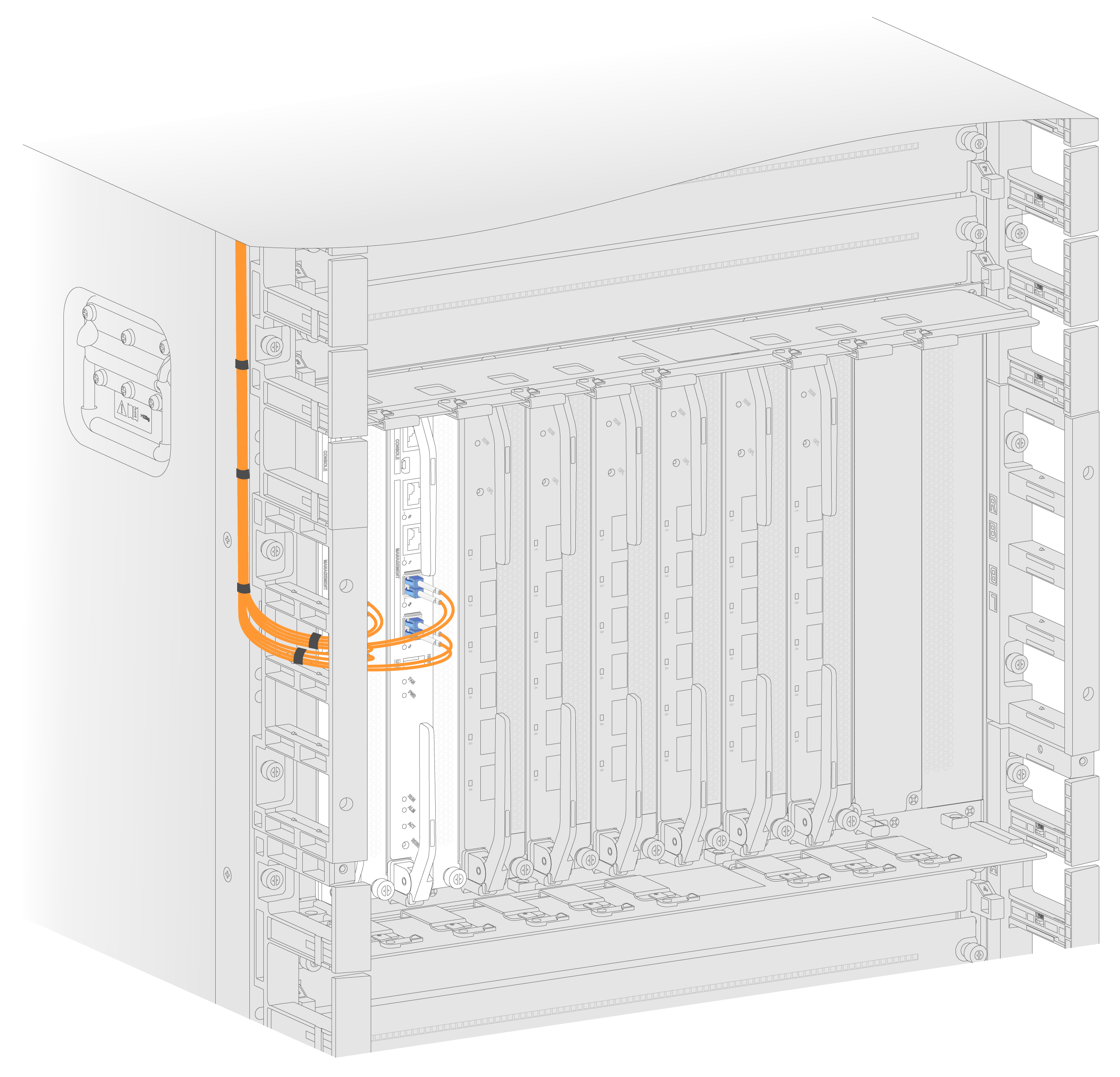

Figure11-5 Routing MPU cables



Routing fabric module cables

As a best practice, route the fabric module cables along the nearest fabric module cable management bracket and the nearest cable management brackets, as shown in Figure11-6.

Figure11-6 Routing fabric module cables



Routing interface module cables

For easy maintenance, route cables from ports on the left part of an interface module along the left chassis cable management bracket and from ports on the right part along the right chassis cable management bracket.

Figure11-7 Routing interface module cables



Routing power cords

CAUTION: To protect cable adapters and converters, place them at the cabinet bottom. Do not place them at a location out of the cabinet and easy to reach.



Before routing power cords in the equipment room, consider the layout of the equipment room, including the locations of the power distribution box, AC power strips, and lighting protection box.

The power supplies are at the rear of the chassis. As a best practice, route power cords leftwards or rightwards as required.
