Appendix D  Slot arrangement and port numbering

Slot arrangement

Figure 1 Slot arrangement on the SR8804-X router

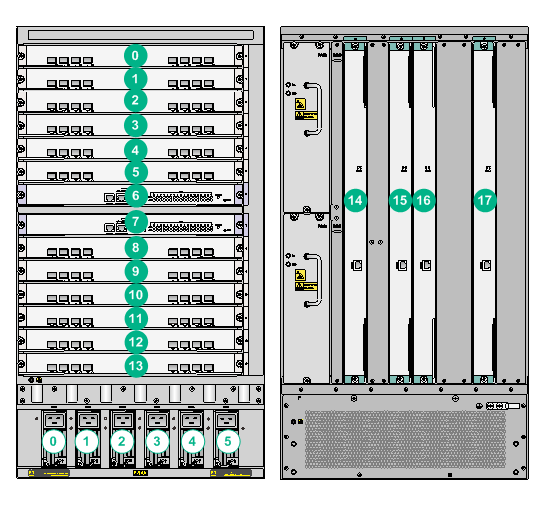

Figure 2 Slot arrangement on the SR8812-X router

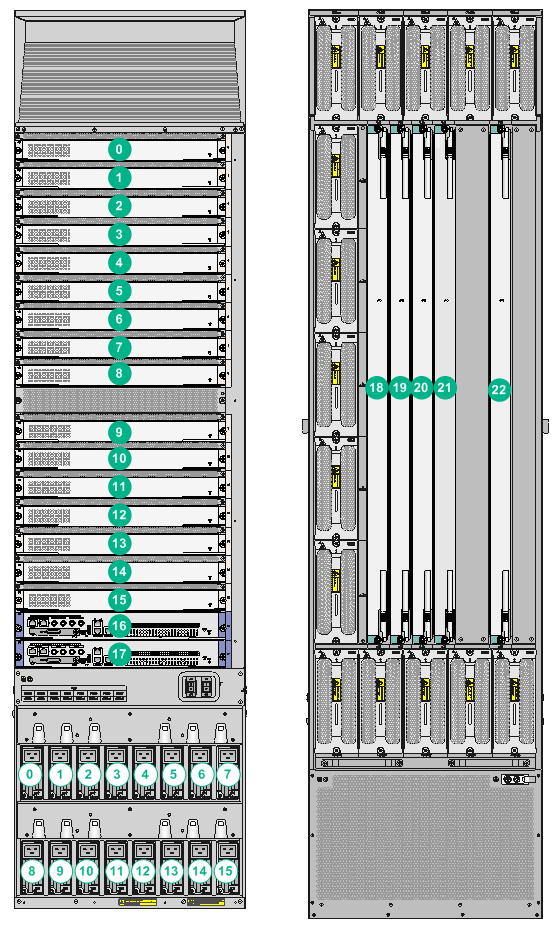

Figure 3 Slot arrangement on the SR8816-X router



Card slot arrangement

Table 1 Card slot arrangement

MPU installation location	Model	Card slot numbering	Card slot arrangement
Two uppermost card slots on the front panel	SR8804-X	As shown in Figure 1, the card slots are numbered as follows: ·     On the front panel, the card slots are numbered 0 to 5 from top to bottom. ·     On the rear panel, the card slots are numbered 6 to 9 from left to right.	·     MPU slots: slots 0 and 1 ·     Service module slots: slots 2 to 5 ·     Switching fabric module slots: slots 6 to 9
	SR8808H-X	The card slots are numbered as follows: ·     On the front panel, the card slots are numbered 0 to 9 from top to bottom. ·     On the rear panel, the card slots are numbered 10 to 14 from left to right.	·     MPU slots: slots 0 and 1 ·     Service module slots: slots 2 to 9 ·     Switching fabric module slots: slots 10 to 14
Two middle card slots on the front panel	SR8808-X (one fan tray) SR8808-X (two fan trays)	The card slots are numbered as follows: ·     On the front panel, the card slots are numbered 0 to 9 from left to right. ·     On the rear panel, the card slots are numbered 10 to 13 from top to bottom.	·     MPU slots: slots 4 and 5 ·     Service module slots: slots 0 to 3 and slots 6 to 9 ·     Switching fabric module slots: slots 10 to 13
	SR8812-X	As shown in Figure 2, the card slots are numbered as follows: ·     On the front panel, the card slots are numbered 0 to 13 from top to bottom. ·     On the rear panel, the card slots are numbered 14 to 17 from left to right.	·     MPU slots: slots 6 and 7 ·     Service module slots: slots 0 to 5 and slots 8 to 13 ·     Switching fabric module slots: slots 14 to 17
Two lowermost card slots on the front panel	SR8816-X	As shown in Figure 3, the card slots are numbered as follows: ·     On the front panel, the card slots are numbered 0 to 17 from top to bottom. ·     On the rear panel, the card slots are numbered 18 to 22 from left to right.	·     MPU slots: slots 16 and 17 ·     Service module slots: slots 0 to 15 ·     Switching fabric module slots: slots 18 to 22



Subcard slot arrangement and port numbering

The subcard slots and ports on a subcard follow the same numbering sequence: from left to right and top to bottom.

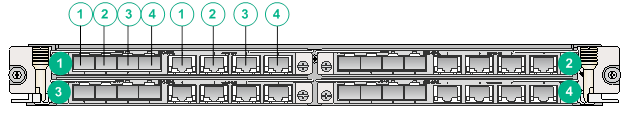

As shown in Figure 4, two MIC-GP4L subcards are installed on a CSPEX-1504X base card. The numbers in the green circles are subslot numbers. The numbers in the white circles are port numbers. The fiber and copper ports of a combo interface are numbered the same.

Figure 4 Subcard slot arrangement and port numbering



Power supply slot arrangement

The power supply slots are numbered from left to right and top to bottom.

·     As shown by the slot arrangement on the SR8804-X router in Figure 1, the power supply slots are numbered 0 to 3 from left to right.

·     As shown by the slot arrangement on the SR8812-X router in Figure 2, the power supply slots are numbered 0 to 5 from left to right

·     As shown by the slot arrangement on the SR8816-X router in Figure 3, the power supply slots in the top row are numbered 0 to 7 from left to right. In the bottom row, the slots are number 8 to 15 from left to right.

Port numbering

Conventions

The router provides multiple types of ports, including console port, USB console port, GE port, XGE port, network management port, and POS port.

When the router is in standalone mode, the ports are numbered in the interface-type slot/subslot/num format. When the router is in IRF mode, the ports are numbered in the interface-type chassis/slot/subslot/num format.

Where,

·     interface-type—Port type, GE port and POS port for example.

·     chassis—IRF member ID of the router. For information about IRF member IDs, see H3C SR8800-X Router Series Virtual Technologies Configuration Guide.

·     slot—Number of the slot where the card resides, as shown by the number in the green circles in Figure 1, Figure 2, and Figure 3.

·     subslot—Number of the slot where the subcard resides on the SPEX/CSPEX/MPE/SPE base card, as shown by the number in the green circles in Figure 4.

For the SPC/CSPC/CEPC/OAA card, the subcard slot number is 0.

·     num—Number of the port on an SPC/a CSPC/CEPC/OAA card or a subcard, as shown by the number in the white circles in Figure 4.

For each port type on an SPC/a CSPC/CEPC/OAA card or a subcard, the number num starts from 1.

The slot number, subslot number, and port number of the network management port on an MPU are all 0.



	IMPORTANT: ·     Different subcards on the same SPEX/CSPEX/MPE/SPE base card have the same slot number. ·     Different interfaces on the same subcard have the same subslot number.



Example

Example 1

Two SR05SRP1L1 MPUs are installed in the SR8804-X router.

The network management port on the MPU is numbered M-GigabitEthernet 0/0/0.

Example 2

A MIC-GP4L subcard is installed on a CSPEX-1504X base card in slot 3 of the router.

·     If the MIC-GP4L subcard is installed in subslot 1 of the CSPEX-1504X base card, the GE ports 1 to 4 on the MIC-GP4L subcard are numbered GigabitEthernet 3/1/1 to GigabitEthernet 3/1/4, respectively.

·     If the MIC-GP4L subcard is installed in subslot 2 of the CSPEX-1504X base card, the GE ports 1 to 4 on the MIC-GP4L subcard are numbered GigabitEthernet 3/2/1 to GigabitEthernet 3/2/4, respectively.

·     If the MIC-GP4L subcard is installed in subslot 3 of the CSPEX-1504X base card, the GE ports 1 to 4 on the MIC-GP4L subcard are numbered GigabitEthernet 3/3/1 to GigabitEthernet 3/3/4, respectively.

·     If the MIC-GP4L subcard is installed in subslot 4 of the CSPEX-1504X base card, the GE ports 1 to 4 on the MIC-GP4L subcard are numbered GigabitEthernet 3/4/1 to GigabitEthernet 3/4/4, respectively.

Example 3

An SPC-GP48LB card is installed in slot 3 of the router. Ports 1 to 48 on the card are numbered GigabitEthernet 3/0/1 to GigabitEthernet 3/0/48, respectively.
