Contents
Appendix A Chassis views and technical specifications
Module power consumption and system power consumption
Appendix A Chassis views and technical specifications
Chassis views
H3C SR8800-X routers include the following models:
· SR8804-X
· SR8808-X (one fan tray)
· SR8808-X (two fan trays)
· SR8808H-X
· SR8812-X
· SR8816-X
|
|
NOTE: · The chassis views in this section are for illustration only. · The available chassis models and accessories vary by country and region. This document describes only the preceding models. For the chassis models and accessories available in your country or region, contact the local H3C marketing personnel. |

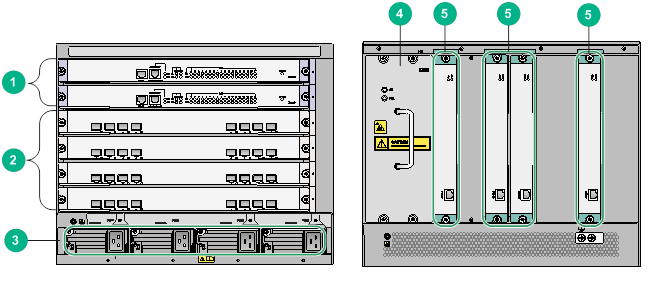

Figure 1 SR8804-X front and rear views
|
(1) MPUs (slots 0 and 1) |
(2) Service modules (slots 2 to 5) |
(3) Power supplies |
|
(4) Fan tray |
(5) Switching fabric modules (slots 6 to 9) |
|

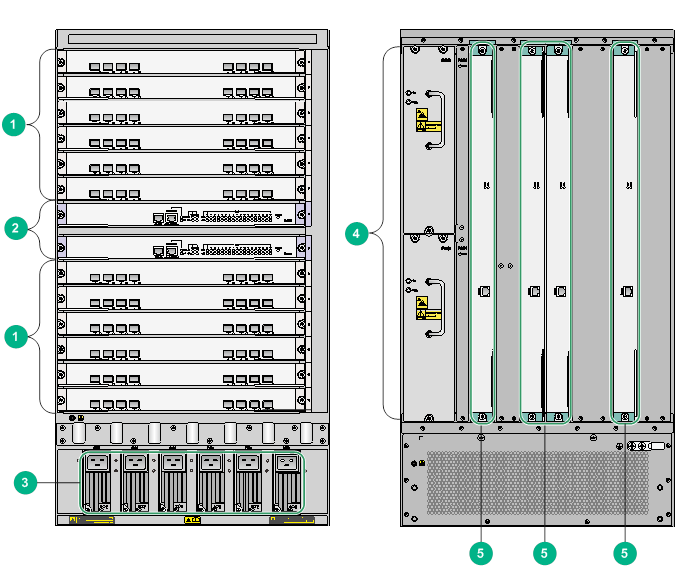

Figure 2 SR8808-X (one fan tray) front and rear views
|
(1) Service modules (slots 0 to 3 and slots 6 to 9) |
(2) MPUs (slots 4 and 5) |
(3) Power supplies |
|
(4) Fan tray |
(5) Switching fabric modules (slots 10 to 13) |
|

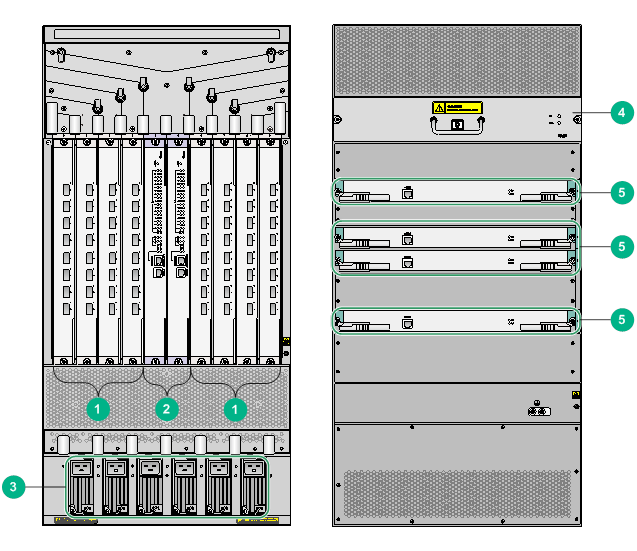

Figure 3 SR8808-X (two fan trays) front and rear views
|
(1) Service modules (slots 0 to 3 and slots 6 to 9) |
(2) MPUs (slots 4 and 5) |
(3) Power supplies |
|
(4) Fan trays |
(5) Switching fabric modules (slots 10 to 13) |
|

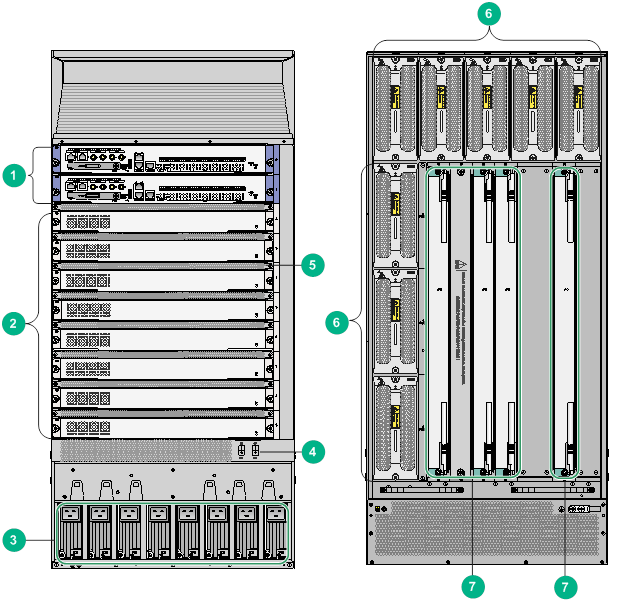

Figure 4 SR8808H-X front and rear views
|
(1) MPUs (slots 0 and 1) |
(2) Service modules (slots 2 to 9) |
(3) Power supplies |
|
(4) Power switches |
(5) Air duct |
(6) Fan trays |
|
(7) Switching fabric modules (slots 10 to 14) (slot 11 can be used only when five switching fabric modules are required) |
||

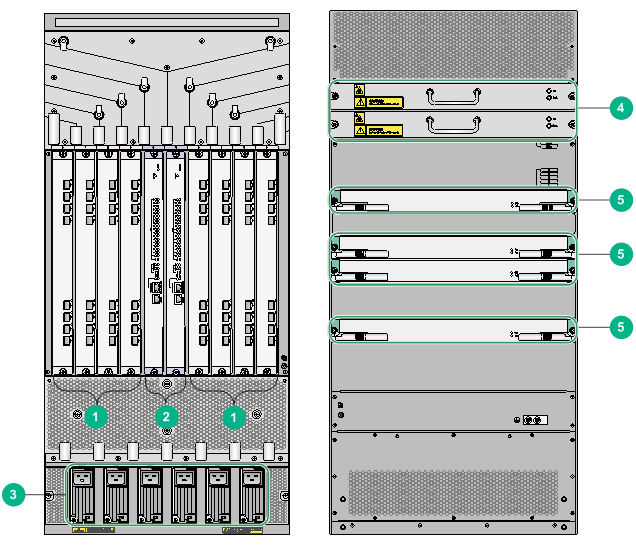

Figure 5 SR8812-X front and rear views
|
(1) Service modules (slots 0 to 5 and slots 8 to 13) |
(2) MPUs (slots 6 and 7) |
(3) Power supplies |
|
(4) Fan trays |
(5) Switching fabric modules (slots 14 to 17) |
|

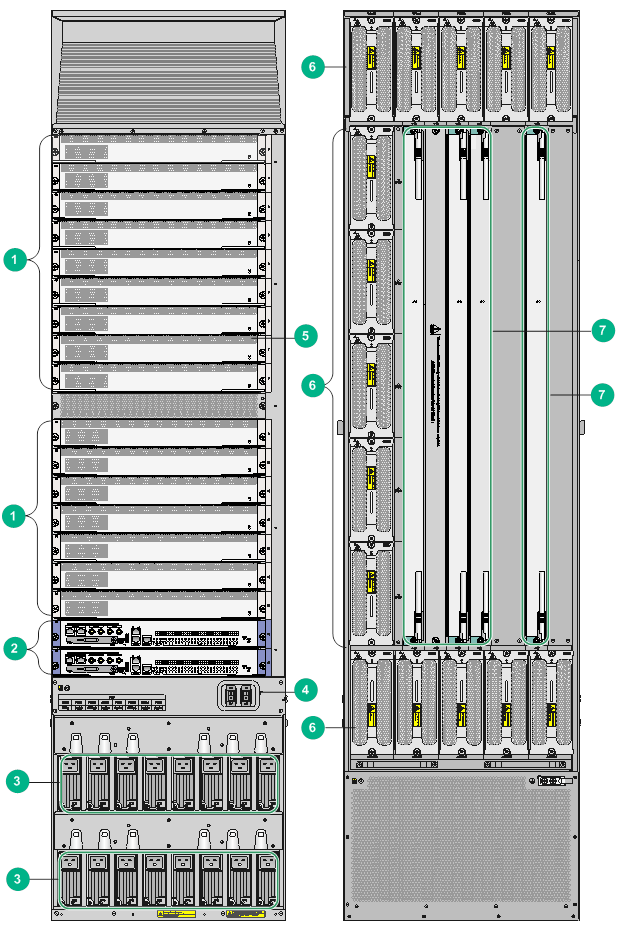

Figure 6 SR8816-X front and rear views
|
(1) Service modules (slots 0 to 15) |
(2) MPUs (slots 16 and 17) |
(3) Power supplies |
|
(4) Power switches |
(5) Air duct |
(6) Fan trays |
|
(7) Switching fabric modules (slots 18 to 22) (slot 19 can be used only when five switching fabric modules are required) |
||
Weights and dimensions
Table 1 Chassis weights and dimensions
|
Model |
Weight (full configuration) |
Height |
Width |
Depth |
|
SR8804-X |
≤ 76 kg (167.55 lb) |
353 mm (13.90 in) (8 RU) |
440 mm (17.32 in) |
660 mm (25.98 in) |
|
SR8808-X (one fan tray) |
≤ 120 kg (264.55 lb) |
886 mm (34.88 in) (20 RU) |
440 mm (17.32 in) |
660 mm (25.98 in) |
|
SR8808-X (two fan trays) |
≤ 170 kg (374.78 lb) |
930 mm (36.61 in) (21 RU) |
440 mm (17.32 in) |
660 mm (25.98 in) |
|
SR8808H-X |
≤ 245 kg (540.12 lb) |
931 mm (36.65 in) (21 RU) |
440 mm (17.32 in) |
640 mm (25.20 in) |
|
SR8812-X |
≤ 174 kg (383.60 lb) |
797 mm (31.38 in) (18 RU) |
440 mm (17.32 in) |
660 mm (25.98 in) |
|
SR8816-X |
≤ 440 kg (970.02 lb) |
1687 mm (66.42 in) (38 RU) |
440 mm (17.32 in) |
640 mm (25.20 in) |
|
|
NOTE: · Rack height is measured in RUs. One RU is 44.45 mm (1.75 in). · Table 1 lists the dimensions of the chassis, excluding mounting brackets, cable management brackets, cards, and power supplies. |
Table 2 Card weights and dimensions
|
Card model |
Net weight |
Height |
Width |
Depth |
|
MPUs |
||||
|
SR05SRP1L1 |
3.05 kg (6.72 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SR05SRP1L3 |
3.18 kg (7.01 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSR05SRP1P1 |
4.30 kg (9.48 lb) |
52.2 mm (2.06 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SR05SRP1P3 |
6.10 kg (13.45 lb) |
52.2 mm (2.06 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSR05SRP1P3-G |
4.50 kg (9.92 lb) |
52.2 mm (2.06 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSR05SRP1R3 |
4.90 kg (10.80 lb) |
52.2 mm (2.06 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC/CSPC cards |
||||
|
SPC-GT48LA1 |
3.31 kg (7.30 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPC-GE24L-E |
4.45 kg (9.81 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-GP24LA1 |
3.01 kg (6.64 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-GP48LA1 |
3.25 kg (7.16 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-GP48LB |
3.25 kg (7.16 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-GP24XP2LA |
3.08 kg (6.79 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-GP24XP2LB |
3.08 kg (6.79 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPC-GP24GE8XP2L-E |
4.45 kg (9.81 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPC-GE16XP4L-E |
4.35 kg (9.59 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-GP44XP4LAX |
3.60 kg (7.94 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-GP44XP4LCX |
3.60 kg (7.94 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XP2LA1 |
2.93 kg (6.46 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XP4LA1 |
2.93 kg (6.46 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XP4LB |
2.93 kg (6.46 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XP8LA |
3.44 kg (7.58 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XP8LB |
3.44 kg (7.58 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XP12LAX |
3.65 kg (8.047 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XP12LCX |
3.65 kg (8.047 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XP24LAX |
4.15 kg (9.15 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XP24LCX |
4.15 kg (9.15 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XLP6LAX |
3.95 kg (8.71 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-XLP6LCX |
3.95 kg (8.71 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-CP1LAX |
3.50 kg (7.72 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-CP1LCX |
3.50 kg (7.72 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-CP2LA |
4.06 kg (8.95 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPC-CP2LB |
4.06 kg (8.95 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CEPC cards |
||||
|
CEPC-XP4LX |
4.90 kg (10.80 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (15.71 in) |
|
CEPC-XP24LX |
4.70 kg (10.36 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CEPC-XP48RX |
4.75 kg (10.47 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CEPC-CP4RX |
4.20 kg (9.26 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CEPC-CP4RX-L |
5.20 kg (11.46 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CEPC-CQ8L |
8.00 kg (17.64 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
370 mm (14.57 in) |
|
CEPC-CQ16L1 |
11.40 kg (25.13 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
370 mm (14.57 in) |
|
MPE base cards |
||||
|
MPE-1104 |
3.52 kg (7.76 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
SPE base cards |
||||
|
RX-SPE200 |
5.35 kg (11.79 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
RX-SPE200-E |
5.00 kg (11.02 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
361 mm (14.21 in) |
|
SPEX/CSPEX base cards |
||||
|
SPEX-1204 |
3.50 kg (7.72 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1104-E |
3.45 kg (7.61 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1304X |
3.75 kg (8.27 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1404X |
3.60 kg (7.94 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1502X |
3.95 kg (8.71 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1504X |
3.80 kg (8.38 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1602X |
7.50 kg (16.53 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1802X |
9.00 kg (19.84 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1802XB |
9.00 kg (19.84 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1804X |
6.30 kg (13.89 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1512X |
5.40 kg (11.90 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1612X |
8.75 kg (19.29 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1812X |
5.95 kg (13.12 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-1812X-E |
8.40 kg (18.52 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-2304X-G |
4.40 kg (9.70 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
CSPEX-2612X-E |
6.20 kg (13.67 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
PIC subcards |
||||
|
PIC-GP10L |
0.45 kg (0.99 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
PIC-TCP8L |
0.40 kg (0.88 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
PIC-PSP4L |
0.40 kg (0.88 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
PIC-PS2G4L |
0.40 kg (0.88 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
PIC-PUP1L |
0.50 kg (1.10 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
PIC-XP1L |
0.45 kg (0.99 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC subcards |
||||
|
MIC-GT20L |
0.40 kg (0.88 lb) |
37 mm (1.46 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-ET16L |
0.33 kg (0.73 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-CLP2L |
0.32 kg (0.71 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-CLP4L |
0.33 kg (0.73 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-CQ1L2 |
0.45 kg (0.99 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-SP4L |
0.33 kg (0.73 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-SP8L |
0.30 kg (0.66 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-GP4L |
0.31 kg (0.68 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-GP8L |
0.29 kg (0.64 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-GP10L1 |
0.30 kg (0.66 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-GP10L-V2 |
0.35 kg (0.77 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-GP20L |
0.50 kg (1.10 lb) |
37 mm (1.46 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-GP20L1 |
0.80 kg (1.76 lb) |
38 mm (1.50 in) |
179 mm (7.05 in) |
149 mm (5.87 in) |
|
MIC-XP2L |
0.29 kg (0.64 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-XP2L-LAN |
0.28 kg (0.62 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-XP4L1 |
0.30 kg (0.66 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-XP5L |
0.30 kg (0.66 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-XP5L1 |
0.35 kg (0.77 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-XP8L |
0.70 kg (1.54 lb) |
38 mm (1.50 in) |
179 mm (7.05 in) |
149 mm (5.87 in) |
|
MIC-XP20L |
0.95 kg (2.09 lb) |
38 mm (1.50 in) |
179 mm (7.05 in) |
149 mm (5.87 in) |
|
MIC-QP1L |
0.35 kg (0.77 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-CP1L |
0.55 kg (1.21 lb) |
37 mm (1.46 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-CP1L-V2 |
0.45 kg (0.99 lb) |
23 mm (0.91 in) |
137 mm (5.39 in) |
119 mm (4.69 in) |
|
MIC-CP2L |
0.80 kg (1.76 lb) |
38 mm (1.50 in) |
179 mm (7.05 in) |
149 mm (5.87 in) |
|
MIC-CP2L-V2 |
0.40 kg (0.88 lb) |
23 mm (0.91 in) |
137 mm (5.39 in) |
119 mm (4.69 in) |
|
MIC-CQ1L1 |
0.50 kg (1.10 lb) |
37 mm (1.46 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-CQ2L |
0.40 kg (0.88 lb) |
38 mm (1.50 in) |
179 mm (7.05 in) |
149 mm (5.87 in) |
|
MIC-SM |
0.90 kg (1.98 lb) |
37 mm (1.46 in) |
179 mm (7.05 in) |
149 mm (5.87 in) |
|
MIC-PSP4L |
0.40 kg (0.88 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
MIC-TCP8L |
0.40 kg (0.88 lb) |
18 mm (0.71 in) |
171 mm (6.73 in) |
157 mm (6.18 in) |
|
NIC subcards |
||||
|
NIC-GT20L |
0.75 kg (1.65 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-GP20L |
0.65 kg(1.43 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-GP24L |
0.50 kg (1.10 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-GP24L1 |
1.00 kg (2.20 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-GP24L1B |
1.00 kg (2.20 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-XP5L |
0.60 kg (1.32 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-XP10L |
0.65 kg (1.43 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-XP20L |
0.90 kg (1.98 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-XP20L1 |
1.00 kg (2.20 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-XP20L1B |
1.00 kg (2.20 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-CC1L |
0.60 kg (1.32 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-CC2L |
0.85 kg (1.87 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-CQ1L |
0.35 kg (0.77 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-CQ2L |
0.35 kg (0.77 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
NIC-CQ2LB |
0.75 kg (1.65 lb) |
48.0 mm (1.89 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-GP20L |
0.65 kg (1.43 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-XP5L |
0.60 kg (1.32 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-XP10L |
0.65 kg (1.43 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-XP20L |
1.00 kg (2.20 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-YGS4L |
0.80 kg (1.76 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-LGQ2L |
0.85 kg (1.87 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-LGQ4L |
0.90 kg (1.98 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-CQ1LF |
0.80 kg (1.76 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-CQ2LF |
1.00 kg (2.20 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-CC1L |
0.60 kg (1.32 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
RX-NIC-CC2L |
0.85 kg (1.87 lb) |
47.5 mm (1.87 in) |
179 mm (7.05 in) |
118 mm (4.65 in) |
|
OAA modules |
||||
|
IM-NGFWX-IV |
4.80 kg (10.58 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
LSU1FWCEA0 |
3.90 kg (8.60 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
LSU3FWCEA0 |
3.90 kg (8.60 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
IM-IPSX-IV |
4.80 kg (10.58 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
LSU1IPSBEA0 |
3.90 kg (8.60 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
IM-ACG1000X-IV |
4.80 kg (10.58 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
LSU1ADECEA0 |
3.90 kg (8.60 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
IM modules |
||||
|
IM-MSUX |
4.95 kg (10.91 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
IM-MSEX-B |
3.12 kg (6.88 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
IM-SP-B |
1.20 kg (2.65 lb) |
47.5 mm (1.87 in) |
170 mm (6.69 in) |
192 mm (7.56 in) |
|
IM-SMUX |
4.85 kg (10.69 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
IM-SFMX |
4.05 kg (8.93 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
IM-OAPX |
6.25 kg (13.78 lb) |
52.5 mm (2.07 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
Switching fabric modules |
||||
|
SFC-04-1 |
1.00 kg (2.20 lb) |
40 mm (1.57 in) |
256 mm (10.08 in) |
298 mm (11.73 in) |
|
SFC-04-2 |
1.00 kg (2.20 lb) |
40 mm (1.57 in) |
256 mm (10.08 in) |
298 mm (11.73 in) |
|
SFC-04-3 |
1.00 kg (2.20 lb) |
40 mm (1.57 in) |
256 mm (10.08 in) |
298 mm (11.73 in) |
|
SFC-04-4 |
1.00 kg (2.20 lb) |
40 mm (1.57 in) |
256 mm (10.08 in) |
298 mm (11.73 in) |
|
SFC-04B |
1.71 kg (3.77 lb) |
40 mm (1.57 in) |
256 mm (10.08 in) |
298 mm (11.73 in) |
|
SFC-04D |
1.71 kg (3.77 lb) |
40 mm (1.57 in) |
256 mm (10.08 in) |
298 mm (11.73 in) |
|
SFC-08B |
2.50 kg (5.51 lb) |
40 mm (1.57 in) |
426 mm (16.77 in) |
298 mm (11.73 in) |
|
SFC-08D |
2.77 kg (6.11 lb) |
40 mm (1.57 in) |
426 mm (16.77 in) |
298 mm (11.73 in) |
|
SFC-08E |
3.55 kg (7.83 lb) |
40 mm (1.57 in) |
426 mm (16.77 in) |
298 mm (11.73 in) |
|
SFC-08E1 |
5.15 kg (11.35 lb) |
40 mm (1.57 in) |
562 mm (22.13 in) |
298 mm (11.73 in) |
|
SFC-08T |
5.15 kg (11.35 lb) |
40 mm (1.57 in) |
562 mm (22.13 in) |
298 mm (11.73 in) |
|
SFC-12B |
3.98 kg (8.77 lb) |
40 mm (1.57 in) |
602 mm (23.70 in) |
298 mm (11.73 in) |
|
SFC-12D |
4.51 kg (9.94 lb) |
40 mm (1.57 in) |
602 mm (23.70 in) |
298 mm (11.73 in) |
|
SFC-12E |
5.30 kg (11.68 lb) |
40 mm (1.57 in) |
602 mm (23.70 in) |
298 mm (11.73 in) |
|
SFC-16E |
9.40 kg (20.72 lb) |
40 mm (1.57 in) |
961 mm (37.83 in) |
298 mm (11.73 in) |
|
SFC-16T |
10.25 kg (22.60 lb) |
40 mm (1.57 in) |
961 mm (37.83 in) |
298 mm (11.73 in) |
|
CSFC-08T-G |
5.30 kg (11.68 lb) |
40 mm (1.57 in) |
562 mm (22.13 in) |
298 mm (11.73 in) |
|
CSFC-16T-G |
10.45 kg (23.04 lb) |
40 mm (1.57 in) |
961 mm (37.83 in) |
298 mm (11.73 in) |
|
|
NOTE: · Card dimensions are expressed in Height (H) × Width (W) × Depth (D) format: ¡ H—Height of the front panel of the card ¡ W—Width of the front panel of the card ¡ D—Depth from the front panel of the card to the connector. · Card models listed in Table 2 are the models marked on the cards. |
Table 3 Hard disk weights and dimensions
|
Model |
Net weight |
Form factor |
|
UIS-SSD-960GB-SATA-6G-SFF-EV |
68 g (0.15 lb) |
2.5 in |
|
UN-SSD-960G-SATA-6G-SFF-EV-1 |
68 g (0.15 lb) |
2.5 in |
Table 4 Power supply weights and dimensions
|
Model |
Net weight |
Height |
Width |
Depth |
|
LSUM1AC1200 |
2.27 kg (5.00 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
410 mm (16.14 in) |
|
PSR1200B-12A |
2.27 kg (5.00 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
410 mm (16.14 in) |
|
LSUM1AC2500 |
2.50 kg (5.51 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
410 mm (16.14 in) |
|
PSR2500-12A |
2.50 kg (5.51 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
410 mm (16.14 in) |
|
LSUM1DC2400 |
2.40 kg (5.29 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
410 mm (16.14 in) |
|
PSR2400-12D |
2.40 kg (5.29 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
410 mm (16.14 in) |
|
PSR2400-D |
2.40 kg (5.29 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
410 mm (16.14 in) |
|
PSR2500B-12AHD-F |
2.75 kg (6.06 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
410 mm (16.14 in) |
Table 5 Fan tray weights and dimensions (lying flat on a workbench)
|
Fan tray |
Net weight |
Height |
Width |
Depth |
|
SR8804-X fan tray |
4.70 kg (10.36 lb) |
106 mm (4.17 in) |
255 mm (10.04 in) |
643 mm (25.32 in) |
|
SR8808-X (one fan tray) fan tray |
8.30 kg (18.30 lb) |
80 mm (3.15 in) |
440 mm (17.32 in) |
654 mm (25.75 in) |
|
SR8808-X (two fan trays) fan tray |
7.40 kg (16.31 lb) |
49 mm (1.93 in) |
440 mm (17.32 in) |
654 mm (25.75 in) |
|
SR8808H-X fan tray |
1.35 kg (2.98 lb) |
191 mm (7.52 in) |
81 mm (3.19 in) |
159 mm (6.26 in) |
|
SR8808-X upper fan tray |
4.49 kg (9.90 lb) |
84 mm (3.31 in) |
301 mm (11.85 in) |
646 mm (25.43 in) |
|
SR8812-X lower fan tray |
3.61 kg (7.96 lb) |
84 mm (3.31 in) |
301 mm (11.85 in) |
646 mm (25.43 in) |
|
SR8816-X fan tray |
1.35 kg (2.98 lb) |
191 mm (7.52 in) |
81 mm (3.19 in) |
159 mm (6.26 in) |
Module power consumption and system power consumption
Card power consumption
The power consumption varies by card model and state. Table 6 shows the power consumption for different card models.
|
|
NOTE: Card models listed in Table 6 are the models marked on the cards. |
Table 6 Card power consumption
|
Model |
Minimum power consumption |
Maximum power consumption |
|
MPUs |
||
|
SR05SRP1L1 |
46 W |
53 W |
|
SR05SRP1L3 |
50 W |
53 W |
|
CSR05SRP1P1 |
58 W |
64 W |
|
SR05SRP1P3 |
58 W |
64 W |
|
CSR05SRP1R3 |
86 W |
130 W |
|
CSR05SRP1P3-G |
40 W |
60 W |
|
SPC/CSPC cards |
||
|
SPC-GT48LA1 |
67 W |
95 W |
|
CSPC-GE24L-E |
108 W |
114 W |
|
SPC-GP24LA1 |
47 W |
75 W |
|
SPC-GP48LA1 |
44 W |
95 W |
|
SPC-GP48LB |
43 W |
110 W |
|
SPC-GP24XP2LA |
54 W |
95 W |
|
SPC-GP24XP2LB |
51 W |
100 W |
|
CSPC-GP24GE8XP2L-E |
101 W |
126 W |
|
CSPC-GE16XP4L-E |
107 W |
127 W |
|
SPC-GP44XP4LAX |
110 W |
125 W |
|
SPC-GP44XP4LCX |
118 W |
142 W |
|
SPC-XP2LA1 |
43 W |
55 W |
|
SPC-XP4LA1 |
53 W |
80 W |
|
SPC-XP4LB |
53 W |
80 W |
|
SPC-XP8LA |
117 W |
140 W |
|
SPC-XP8LB |
117 W |
170 W |
|
SPC-XP12LAX |
107 W |
130 W |
|
SPC-XP12LCX |
122 W |
173 W |
|
SPC-XP24LAX |
153 W |
209 W |
|
SPC-XP24LCX |
178 W |
294 W |
|
SPC-XLP6LAX |
142 W |
183 W |
|
SPC-XLP6LCX |
181 W |
290 W |
|
SPC-CP1LAX |
103 W |
135 W |
|
SPC-CP1LCX |
115 W |
173 W |
|
SPC-CP2LA |
144 W |
197 W |
|
SPC-CP2LB |
150 W |
197 W |
|
CEPC cards |
||
|
CEPC-XP4LX |
102 W |
184 W |
|
CEPC-XP24LX |
238 W |
321 W |
|
CEPC-XP48RX |
235 W |
407 W |
|
CEPC-CP4RX |
229 W |
368 W |
|
CEPC-CP4RX-L |
191 W |
354 W |
|
CEPC-CQ8L |
695 W |
1100 W |
|
CEPC-CQ16L1 |
764 W |
1300 W |
|
MPE base cards |
||
|
MPE-1104 |
91 W |
158 W |
|
SPE base cards |
||
|
RX-SPE200 |
131 W |
530 W |
|
RX-SPE200-E |
120 W |
270 W |
|
SPEX/CSPEX base cards |
||
|
SPEX-1204 |
88 W |
190 W |
|
CSPEX-1104-E |
79 W |
164 W |
|
CSPEX-1304X |
90 W |
184 W |
|
CSPEX-1404X |
112 W |
230 W |
|
CSPEX-1502X |
175 W |
354 W |
|
CSPEX-1504X |
112 W |
261 W |
|
CSPEX-1602X |
175 W |
354 W |
|
CSPEX-1802X |
275 W |
486 W |
|
CSPEX-1802XB |
275 W |
486 W |
|
CSPEX-1804X |
460 W |
625 W |
|
CSPEX-1512X |
185 W |
281 W |
|
CSPEX-1612X |
200 W |
320 W |
|
CSPEX-1812X |
413 W |
657 W |
|
CSPEX-1812X-E |
390 W |
750 W |
|
CSPEX-2304X-G |
200 W |
280 W |
|
CSPEX-2612X-E |
390 W |
750 W |
|
PIC subcards |
||
|
PIC-GP10L |
9.5 W |
21 W |
|
PIC-TCP8L |
9.7 W |
17 W |
|
PIC-PSP4L |
9.7 W |
18 W |
|
PIC-PS2G4L |
9.3 W |
16 W |
|
PIC-PUP1L |
14.3 W |
19 W |
|
PIC-XP1L |
12.5 W |
23.7 W |
|
MIC subcards |
||
|
MIC-GT20L |
9.2 W |
11.9 W |
|
MIC-ET16L |
8.6 W |
8.7 W |
|
MIC-CLP2L |
9.8 W |
10.9 W |
|
MIC-CLP4L |
9.8 W |
12.9 W |
|
MIC-SP4L |
9.6 W |
13.5 W |
|
MIC-SP8L |
14 W |
16.3 W |
|
MIC-GP4L |
0.8 W |
5.5 W |
|
MIC-GP8L |
0.6 W |
4.7 W |
|
MIC-GP10L1 |
2.1 W |
7.9 W |
|
MIC-GP10L-V2 |
9.3 W |
9.4 W |
|
MIC-GP20L |
7.6 W |
23 W |
|
MIC-GP20L1 |
7 W |
18 W |
|
MIC-XP2L |
10 W |
13 W |
|
MIC-XP2L-LAN |
6 W |
9 W |
|
MIC-XP4L1 |
11 W |
13 W |
|
MIC-XP5L |
10.4 W |
14.2 W |
|
MIC-XP5L1 |
11 W |
13 W |
|
MIC-XP8L |
16 W |
22 W |
|
MIC-XP20L |
38.3 W |
53 W |
|
MIC-QP1L |
3 W |
7 W |
|
MIC-CP1L |
3.3 W |
11.8 W |
|
MIC-CP1L-V2 |
6 W |
8.7 W |
|
MIC-CP2L |
8.6 W |
18.1 W |
|
MIC-CP2L-V2 |
9.3 W |
15 W |
|
MIC-CQ1L1 |
9 W |
15 W |
|
MIC-CQ1L2 |
9 W |
15 W |
|
MIC-CQ2L |
8 W |
16 W |
|
MIC-SM |
25 W |
40 W |
|
MIC-PSP4L |
29 W |
33 W |
|
MIC-TCP8L |
28 W |
30 W |
|
NIC subcards |
||
|
NIC-GT20L |
14.6 W |
16.5 W |
|
NIC-GP20L |
12 W |
13.8 W |
|
NIC-GP24L |
20 W |
28 W |
|
NIC-GP24L1 |
41 W |
47 W |
|
NIC-GP24L1B |
41 W |
47 W |
|
NIC-XP5L |
11 W |
14.9 W |
|
NIC-XP10L |
26.9 W |
27.4 W |
|
NIC-XP20L |
39 W |
58 W |
|
NIC-XP20L1 |
50 W |
60 W |
|
NIC-XP20L1B |
50 W |
60 W |
|
NIC-CC1L |
9.6 W |
9.7 W |
|
NIC-CC2L |
19.2 W |
21 W |
|
NIC-CQ1L |
8 W |
13 W |
|
NIC-CQ2L |
16 W |
26 W |
|
NIC-CQ2LB |
16 W |
26 W |
|
RX-NIC-GP20L |
12 W |
13.8 W |
|
RX-NIC-XP5L |
11 W |
14.9 W |
|
RX-NIC-XP10L |
26.9 W |
27.4 W |
|
RX-NIC-XP20L |
39 W |
58 W |
|
RX-NIC-YGS4L |
25 W |
38 W |
|
RX-NIC-LGQ2L |
38 W |
61 W |
|
RX-NIC-LGQ4L |
55 W |
92 W |
|
RX-NIC-CQ1LF |
35 W |
53 W |
|
RX-NIC-CQ2LF |
38 W |
61 W |
|
RX-NIC-CC1L |
9.6 W |
9.7 W |
|
RX-NIC-CC2L |
19.2 W |
21 W |
|
OAA modules |
||
|
LSU1ADECEA0 |
109 W |
150 W |
|
LSU1FWCEA0 |
109 W |
150 W |
|
LSU3FWCEA0 |
109 W |
150 W |
|
LSU1IPSBEA0 |
109 W |
150 W |
|
IM-IPSX-IV |
175 W |
198 W |
|
IM-ACG1000X-IV |
175 W |
198 W |
|
IM-NGFWX-IV |
175 W |
198 W |
|
IM modules |
||
|
IM-MSUX |
158 W |
186 W |
|
IM-MSEX-B |
248 W |
400 W |
|
IM-SP-B |
95 W |
130 W |
|
IM-SMUX |
158 W |
186 W |
|
IM-SFMX |
90 W |
165 W |
|
IM-OAPX |
295 W |
320 W |
|
Switching fabric modules |
||
|
SFC-04-1 |
N/A |
N/A |
|
SFC-04-2 |
N/A |
N/A |
|
SFC-04-3 |
N/A |
N/A |
|
SFC-04-4 |
N/A |
N/A |
|
SFC-04B |
48 W |
65 W |
|
SFC-04D |
60 W |
80 W |
|
SFC-08B |
44 W |
60 W |
|
SFC-08D |
101 W |
135 W |
|
SFC-08E |
73 W |
140 W |
|
SFC-08E1 |
75 W |
125 W |
|
SFC-08T |
100 W |
129 W |
|
SFC-12B |
107 W |
140 W |
|
SFC-12D |
195 W |
255 W |
|
SFC-12E |
146 W |
178 W |
|
SFC-16E |
159 W |
248 W |
|
SFC-16T |
267 W |
402 W |
|
CSFC-08T-G |
70 W |
126 W |
|
CSFC-16T-G |
100 W |
120 W |
|
|
NOTE: The maximum power consumption of an MPE, SPE, SPEX, or CSPEX card refers to the power usage when the card is fully configured with subcards that have the highest power consumption. |
Fan tray power consumption
The router uses fan trays that can automatically adjust the fan speed to meet the cooling requirements. The fan tray power consumption varies by fan speed.
Table 7 Fan tray power consumption
|
Model |
Minimum fan tray power consumption |
Maximum fan tray power consumption |
|
SR8804-X |
12 W |
240 W |
|
SR8808-X (one fan tray) |
13 W |
300 W |
|
SR8808-X (two fan trays) |
18 W |
300 W |
|
SR8808H-X |
18 W |
143 W |
|
SR8812-X (upper fan tray) |
9 W |
190 W |
|
SR8812-X (lower fan tray) |
7 W |
110 W |
|
SR8816-X |
18 W |
143 W |
System power consumption
The system power consumption of the router depends on the type and number of cards and the fan tray power consumption.
· The minimum system power consumption is the total static power consumption of all cards plus the minimum fan tray power consumption. For example, for an SR8808-X (one fan tray) router that has two SR05SRP1L1 MPUs, two SPC-XP4LB service modules, two SFC-08B switching fabric modules, and one fan tray, the minimum system power consumption of the router is 2 × 46 + 2 × 53 + 2 × 44 + 13 = 299 W.
· The maximum system power consumption is the total dynamic power consumption of all cards plus the maximum fan tray power consumption. For example, for an SR8808-X (one fan tray) router that has two SR05SRP1L1 MPUs, two SPC-XP4LB service modules, two SFC-08B switching fabric modules, and one fan tray, the maximum system power consumption of the router is 2 × 53 + 2 × 80 + 2 × 60 + 300 = 686 W.
Heat dissipation
Heat dissipation is measured in BTU/h, and 1 W equals 3.4121 BTU/h.
The heat dissipation of a router depends on its power consumption. To calculate heat dissipation of the router, assume 90% power consumption is converted to heat, and the efficiency of the power supply is 90%. Heat dissipation/hour of the router is 0.9 × (total power consumption of the cards plus power consumption of the fan tray)/0.9 × 3.4121.
For the power consumption of the cards and fan trays of the H3C SR8800-X routers, see "Module power consumption and system power consumption."
Environmental specifications
Table 8 Environmental specifications
|
Description |
Operating |
Non-operating |
|
Temperature |
0°C to 45°C (32°F to 113°F) |
–40°C to +70°C (–40°F to +158°F) |
|
Relative humidity |
10% RH to 95% RH, noncondensing |
5% RH to 95% RH, non-condensing |
Noise
The router uses fan trays that can automatically adjust the fan speed to meet the cooling requirements. The sound pressure level of the device varies by fan speed.
|
Model |
Sound pressure level under normal temperature |
Sound pressure level when the fan tray operates at full speed |
|
SR8804-X |
62.3 dBA |
75.5 dBA |
|
SR8808-X (one fan tray) |
61.6 dBA |
72.6 dBA |
|
SR8808-X (two fan trays) |
65.7 dBA |
73.3 dBA |
|
SR8808H-X |
66.4 dBA |
84.0 dBA |
|
SR8812-X |
66 dBA |
79 dBA |
|
SR8816-X |
75.9 dBA |
91 dBA |
