· Server A and Server B belong to VXLAN 10, and Server C belongs to VXLAN 20. Server A and Server B communicate with Server C in dual stack through the distributed VXLAN IP gateways.

· When a link between the two M-LAG member devices fails, the servers can still communicate.

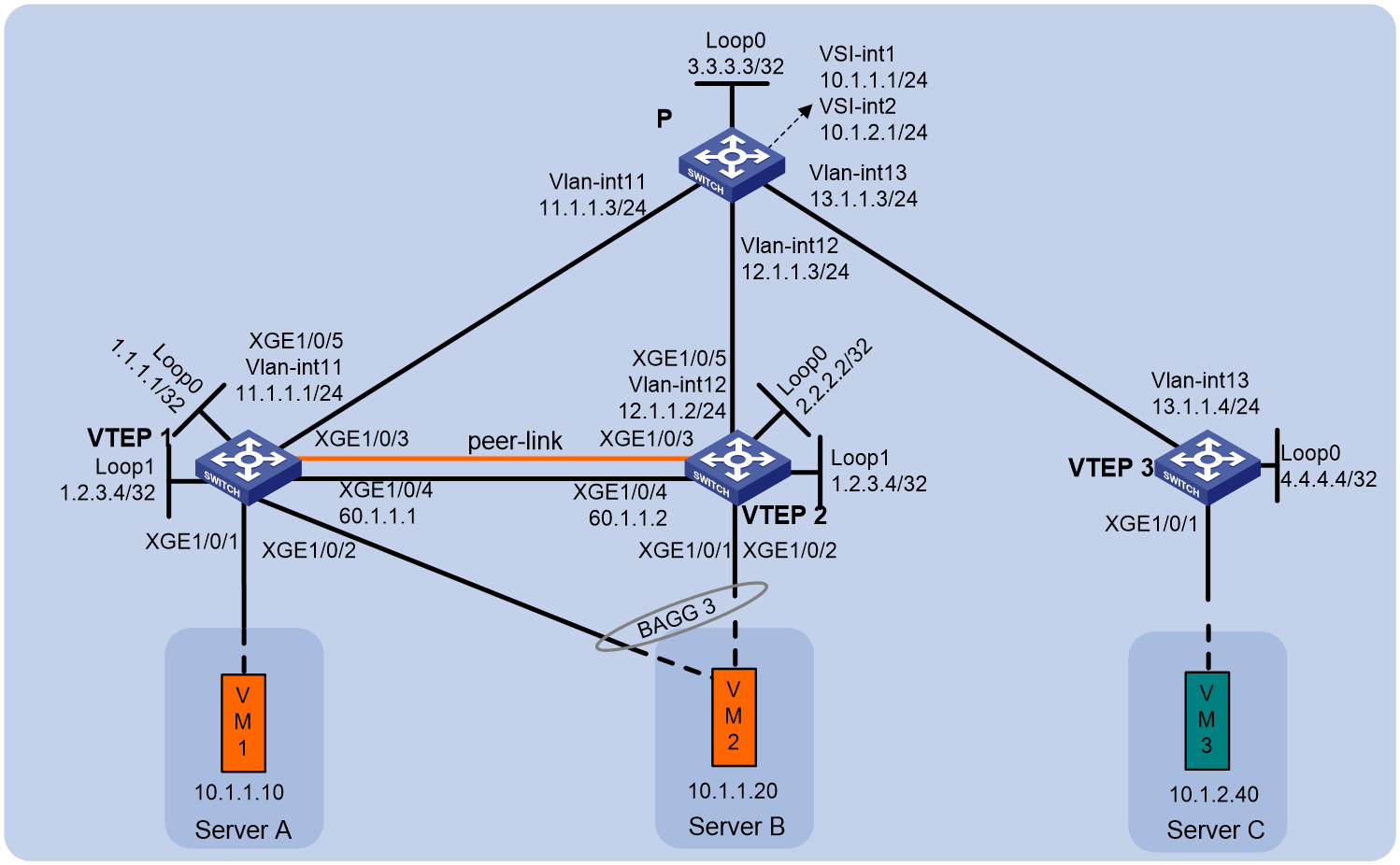

Figure 1 Network diagram

Device	Interface	IP address	Remarks
VTEP 1	Loopback0	1.1.1.1/32	Loopback interface address. Interface excluded from the shutdown action by M-LAG MAD.
	Loopback1	1.2.3.4/32	Loopback interface address. Tunnel source interface.
	XGE 1/0/1	N/A	Server A. Single-homed interface.
	XGE 1/0/2	N/A	Server B. M-LAG member interface.
	XGE 1/0/3	N/A	VTEP 2: XGE 1/0/3. Peer link member interface.
	XGE 1/0/4	60.1.1.1/24	VTEP 2: XGE 1/0/4. Keepalive link interface.
	XGE 1/0/5	N/A	P: XGE 1/0/5.
	Vlan-interface 11	11.1.1.1/24	VLAN interface connecting to device P.
	Vlan-interface 2	40.94.1.1/24	Interface of the Layer 3 link connecting the two M-LAG member devices, which is used for forwarding east-west traffic or allowing north-south traffic to escape.
	VSI-interface 1	10.1.1.1/24 101:10::1/64	Gateway interface of VXLAN 10.
	VSI-interface 2	10.1.2.1/24 101:10::1/64	Gateway interface of VXLAN 20.
VTEP 2	Loopback0	2.2.2.2/32	Loopback interface address. Interface excluded from the shutdown action by M-LAG MAD.
	Loopback1	1.2.3.4/32	Loopback interface address. Tunnel source interface.
	XGE 1/0/2	N/A	Server B. M-LAG member interface.
	XGE 1/0/3	N/A	VTEP 1: XGE 1/0/3. Peer link member interface.
	XGE 1/0/4	60.1.1.2/24	VTEP 1: XGE 1/0/4. Keepalive link interface.
	XGE 1/0/5	N/A	P: XGE 1/0/6.
	Vlan-interface 12	12.1.1.2/24	VLAN interface connecting to device P.
	Vlan-interface 2	40.94.1.2/24	Interface of the Layer 3 link connecting the two M-LAG member devices, which is used for forwarding east-west traffic or allowing north-south traffic to escape.
	VSI-interface 1	10.1.1.1/24 101:10::1/64	Gateway interface of VXLAN 10.
	VSI-interface 2	10.1.2.1/24 101:10::1/64	Gateway interface of VXLAN 20.
VTEP 3	Loopback0	4.4.4.4	Loopback interface address. Tunnel source interface.
	XGE 1/0/1	N/A	Server C.
	XGE 1/0/5	N/A	P: XGE 1/0/7.
	Vlan-interface 13	13.1.1.4/24	VLAN interface connecting to device P.
	VSI-interface 1	10.1.1.1/24 101:10::1/64	Gateway interface of VXLAN 10.
	VSI-interface 2	10.1.2.1/24 101:10::1/64	Gateway interface of VXLAN 20.
P	Loopback0	3.3.3.3	Loopback interface address. Router ID.
	XGE 1/0/5	N/A	Leaf 1: XGE 1/0/5.
	XGE 1/0/6	N/A	Leaf 2: XGE 1/0/5.
	XGE 1/0/7	N/A	Leaf 3: XGE 1/0/5.
	Vlan-interface 11	11.1.1.3/24	VLAN interface connecting to VTEP 1.
	Vlan-interface 12	12.1.1.3/24	VLAN interface connecting to VTEP 2.
	Vlan-interface 13	13.1.1.3/24	VLAN interface connecting to VTEP 3.

Applicable product matrix

NOTE:

In addition to running an applicable software version, you must also install the most recent patch, if any.

Device	Software version
S10500, S10500X, S7600, S7600-X, S7600E-X, S7500X, S7500E	R7625 and later
S12500G-AF (type T cards)	R7625 and later
S12500G-AF (type S cards)	R8054P04 and later
S10500X-G, S7500X-G	R7754P04 and later
S5590XP-HI-G	R7754P04 and later

Analysis

· VTEP 1 and VTEP 2 act as M-LAG member devices, and an Ethernet aggregate link acts as the peer link.

· VTEP 1 and VTEP 2 are connected to the uplink device P through ECMP routes.

· Configure OSPF neighbors on the peer link between VTEP 1 and VTEP 2 to connect the single-homed services. The peer link also acts as a backup path for the network side and single-homed services.

· On the overlay, both IPv4 and IPv6 network settings exist.

All devices in this example were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.

The primary and secondary M-LAG member devices must deploy different uplink VLAN interfaces to avoid loops. As a best practice, disable the spanning tree protocol on the interfaces when making sure no physical loops exist.

On the primary and secondary M-LAG member devices, the frame match criteria of the dynamic ACs on the peer link must be the same.

· Solution 1: Use the l2vpn m-lag peer-link ac-match-rule vxlan-mapping command to enable the device to create frame match criteria based on VXLAN IDs for the dynamic ACs on the peer link.

If an M-LAG system uses an Ethernet aggregate link as the peer link, each member device creates a dynamic AC on the peer link when an AC (Ethernet service instance) is configured on a site-facing interface. The dynamic AC and the site-facing AC have the same frame match criteria and VSI mapping. If two site-facing ACs on different interfaces have the same frame match criteria but different VSI mappings, the dynamic ACs created for the site-facing ACs will conflict with each other on the peer link. Use this command to resolve the preceding issue.

· Solution 2: Create an AC on the peer link interface based on the frame match criteria of the site-facing Ethernet service instance.

You do not need to configure other settings. This solution is used by default.

Configuring IP addresses and unicast routing protocols

# On Server A and Server B, specify the gateway address as 10.1.1.1/101: 10::1. On Server C, specify the gateway address as 10.1.2.1/102: 10::1.

# Configure the IP address and subnet mask for each interface. (Details not shown.)

# Configure OSPF on the IP core network to advertise routes for subnets attached to the interfaces (including Loopback interfaces) on each node. Make sure the switches have connectivity to each other. As a best practice, execute the ospf peer hold-max-cost duration 300000 command on OSPF interfaces. (Details not shown.)

Configuring M-LAG member devices

Procedure summary

· Configuring M-LAG

· Configuring the Layer 3 link connecting the M-LAG member devices

· Configuring the interconnect links between the M-LAG member devices and servers

· Configuring VXLAN

Configuring M-LAG

VTEP 1	VTEP 2	Description	Remarks
m-lag system-mac 1-1-1	m-lag system-mac 1-1-1	Configure the M-LAG system MAC address.	You must assign the same M-LAG system MAC address to the member devices in an M-LAG system.
m-lag system-number 1	m-lag system-number 2	Set the M-LAG system number.	You must assign different M-LAG system numbers to the member devices in an M-LAG system.
m-lag system-priority 10	m-lag system-priority 10	Set the M-LAG system priority.	You must set the same M-LAG system priority on the member devices in an M-LAG system.
m-lag restore-delay 300	m-lag restore-delay 300	Set the data restoration interval.	This parameter specifies the maximum amount of time for the secondary M-LAG member device to synchronize data with the primary M-LAG member device during M-LAG system setup.
m-lag standalone enable	m-lag standalone enable	(Optional.) Enable M-LAG standalone mode.	Enable M-LAG standalone mode to avoid forwarding issues in the multi-active situation that might occur when the M-LAG system splits. Configure this feature before the M-LAG system splits.
m-lag keepalive ip destination 60.1.1.2 source 60.1.1.1	m-lag keepalive ip destination 60.1.1.1 source 60.1.1.2	Configure the destination and source IPv4 addresses of keepalive packets.	N/A
interface Ten-gigabitethernet1/0/4	interface Ten-gigabitethernet1/0/4	Enter the interface view for the keepalive link.	N/A
port link-mode route	port link-mode route	Configure the interface for the keepalive link to operate in route mode as a Layer 3 interface.	N/A
ip address 60.1.1.1 24	ip address 60.1.1.2 24	Configure the source IPv4 address of keepalive packets.	N/A
quit	quit	Return to system view.	N/A
m-lag mad exclude interface Ten-gigabitethernet1/0/4	m-lag mad exclude interface Ten-gigabitethernet1/0/4	Exclude the interface for the keepalive link from the shutdown action by M-LAG MAD.	N/A
interface bridge-aggregation 1	interface bridge-aggregation 1	Create an Ethernet aggregate interface.	The interface is used as the peer link interface.
link-aggregation mode dynamic	link-aggregation mode dynamic	Configure the aggregate interface of the peer link to operate in dynamic mode.	N/A
quit	quit	Return to system view.	N/A
interface Ten-gigabitethernet 1/0/3	interface Ten-gigabitethernet 1/0/3	Enter the view of the physical interface for the peer link.	N/A
port link-aggregation group 1	port link-aggregation group 1	Assign the physical interface for the peer link to the peer link aggregation group.	N/A
quit	quit	Return to system view.	N/A
interface bridge-aggregation 1	interface bridge-aggregation 1	Enter Ethernet aggregate interface view.	N/A
port m-lag peer-link 1	port m-lag peer-link 1	Configure Bridge-Aggregation 1 as the peer link interface.	N/A
port trunk pvid vlan 4094	port trunk pvid vlan 4094	Set the PVID of the trunk port to VLAN 4094.	N/A
undo mac-address static source-check enable	undo mac-address static source-check enable	Disable source MAC check on the interface to avoid interruption of traffic forwarded at Layer 3 across the peer link.	N/A
quit	quit	Return to system view.	N/A

Configuring the Layer 3 link connecting the M-LAG member devices

VTEP 1	VTEP 2	Description	Remarks
vlan 2	vlan 2	Create VLAN 2.	N/A
quit	quit	Return to system view.	N/A
interface vlan-interface 2	interface vlan-interface 2	Create VLAN-interface 2.	Interface of the Layer 3 link connecting the two M-LAG member devices, which is used for forwarding east-west traffic or allowing north-south traffic to escape.
ip address 40.94.1.1 255.255.255.0	ip address 40.94.1.2 255.255.255.0	Assign an IPv4 address to VLAN-interface 2.	N/A
ospf 1 area 0.0.0.0	ospf 1 area 0.0.0.0	Enable OSPF on the interface.	N/A
m-lag mad exclude interface Vlan-interface 2	m-lag mad exclude interface Vlan-interface 2	Exclude the VLAN interface from the shutdown action by M-LAG MAD.	N/A

Configuring the interconnect links between the M-LAG member devices and servers

VTEP 1	VTEP 2	Description	Remarks
interface bridge-aggregation 3	interface bridge-aggregation 3	Create the Ethernet aggregate interface connecting to Server B.	N/A
link-aggregation mode dynamic	link-aggregation mode dynamic	Configure the aggregate interface to operate in dynamic mode.	N/A
port m-lag group 2	port m-lag group 2	Assign the aggregate interface to M-LAG group 2.	N/A
quit	quit	Return to system view.	N/A
interface Ten-gigabitethernet 1/0/2	interface Ten-gigabitethernet 1/0/2	Enter the view of the physical interface connecting the M-LAG system to Server B.	N/A
port link-aggregation group 3	port link-aggregation group 3	Assign the interfaces to an M-LAG group.	N/A
quit	quit	Return to system view.	N/A
monitor-link group 1	monitor-link group 1	Create a monitor link group.	This feature triggers downlink switchover when an uplink fails to reduce traffic forwarded across the peer link.
port Ten-gigabitethernet 1/0/5 uplink	port Ten-gigabitethernet 1/0/5 uplink	Configure the network-side interface as an uplink interface.	N/A
port Ten-gigabitethernet 1/0/2 downlink	port Ten-gigabitethernet 1/0/2 downlink	Configure an M-LAG member interface as a downlink interface.	N/A
quit	quit	Return to system view.	N/A

Configuring VXLAN

VTEP 1	VTEP 2	Description	Remarks
l2vpn enable	l2vpn enable	Enable L2VPN.	N/A
interface tunnel 1 mode vxlan	interface tunnel 1 mode vxlan	Establish a VXLAN tunnel between Leaf 1/Leaf 2 and Leaf 3.	N/A
source 1.2.3.4	source 1.2.3.4	Specify the source address of the tunnel (IP address of Loopback1).	The two VTEPs in an M-LAG system must use the same tunnel source IP address to establish VXLAN tunnels to other VTEPs.
destination 4.4.4.4	destination 4.4.4.4	Specify the destination address of the tunnel (IP address of Loopback0 on VTEP 3).	N/A
quit	quit	Return to system view.	N/A
vsi vpna	vsi vpna	Create VSI instance vpna.	N/A
vxlan 10	vxlan 10	Configure VXLAN 10.	N/A
tunnel 1	tunnel 1	Assign tunnel 1 to VXLAN 10.	N/A
quit	quit	Return to VSI view.	N/A
quit	quit	Return to system view.	N/A
vsi vpnb	vsi vpnb	Create VSI instance vpnb.	N/A
vxlan 20	vxlan 20	Configure VXLAN 20.	N/A
tunnel 1	tunnel 1	Assign tunnel 1 to VXLAN 20.	N/A
quit	quit	Return to VSI view.	N/A
quit	quit	Return to system view.	N/A
interface Ten-gigabitethernet 1/0/1	N/A	Single-homed interface connecting Leaf 1 to Server A.	N/A
service-instance 1000	N/A	Create Ethernet service instance 1000 on the interface connecting to the server.	N/A
encapsulation s-vid 2	N/A	Configure the instance to match data frames of VLAN 2.	N/A
xconnect vsi vpna	N/A	Map Ethernet service instance 1000 to VSI vpna.	N/A
quit	N/A	Return to Ethernet interface view.	N/A
quit	N/A	Return to system view.	N/A
interface bridge-aggregation 3	interface bridge-aggregation 3	Enter Ethernet aggregate interface view.	N/A
service-instance 1000	service-instance 1000	Create Ethernet service instance 1000 on interface Bridge-Aggregation 5 connecting to the server.	N/A
encapsulation s-vid 3	encapsulation s-vid 3	Configure the instance to match data frames of VLAN 3.	N/A
xconnect vsi vpna	xconnect vsi vpna	Map Ethernet service instance 1000 to VSI vpna.	N/A
quit	quit	Return to Ethernet aggregate interface view.	N/A
quit	quit	Return to system view.	N/A
interface vsi-interface 1	interface vsi-interface 1	Create VSI-interface 1.	N/A
ip address 10.1.1.1 255.255.255.0	ip address 10.1.1.1 255.255.255.0	Configure an IP address, which is to be used as the gateway address of VMs in VXLAN 10.	N/A
ipv6 address 101:10::1/64	ipv6 address 101:10::1/64	Configure an IPv6 address, which is to be used as the gateway address of VMs in VXLAN 10.	N/A
mac-address 0-0-1	mac-address 0-0-1	Assign a MAC address to the interface.	N/A
distributed-gateway local	distributed-gateway local	Specify the VSI interface as a distribute gateway.	N/A
local-proxy-arp enable	local-proxy-arp enable	Enable local proxy ARP.	N/A
local-proxy-nd enable	local-proxy-nd enable	Enable local proxy ND.	N/A
quit	quit	Return to system view.	N/A
interface vsi-interface 2	interface vsi-interface 2	Create VSI-interface 2.	N/A
ip address 10.1.2.1 255.255.255.0	ip address 10.1.2.1 255.255.255.0	Configure an IP address, which is to be used as the gateway address of VMs in VXLAN 20.	N/A
ipv6 address 102:10::1/64	ipv6 address 102:10::1/64	Configure an IPv6 address, which is to be used as the gateway address of VMs in VXLAN 20.	N/A
mac-address 0-0-2	mac-address 0-0-2	Assign a MAC address to the interface.	N/A
distributed-gateway local	distributed-gateway local	Specify the VSI interface as a distribute gateway.	N/A
local-proxy-arp enable	local-proxy-arp enable	Enable local proxy ARP.	N/A
local-proxy-nd enable	local-proxy-nd enable	Enable local proxy ND.	N/A
quit	quit	Return to system view.	N/A
arp distributed-gateway dynamic-entry synchronize	arp distributed-gateway dynamic-entry synchronize	Enable dynamic ARP entry synchronization for distributed VXLAN IP gateways.	When local proxy ARP is enabled on distributed VXLAN IP gateways, each gateway learns ARP information independently. A gateway does not forward ARP packets destined for its local VSI interfaces to other gateways. For distributed VXLAN IP gateways to have the same ARP entries, you must enable dynamic ARP entry synchronization.
vsi vpna	vsi vpna	Configure a VSI.	N/A
gateway vsi-interface 1	gateway vsi-interface 1	Specify VSI-interface 1 as the gateway interface for the VSI of VXLAN 10.	N/A
quit	quit	Return to system view.	N/A
vsi vpnb	vsi vpnb	Configure a VSI.	N/A
gateway vsi-interface 2	gateway vsi-interface 2	Specify VSI-interface 2 as the gateway interface for the VSI of VXLAN 20.	N/A
quit	quit	Return to system view.	N/A
m-lag mad exclude interface loopback 1	m-lag mad exclude interface loopback 1	Exclude interface Loopback 1 from the shutdown action by M-LAG MAD.	Exclude all VXLAN interfaces from the shutdown action by M-LAG MAD.
m-lag mad exclude interface interface vsi-interface 1	m-lag mad exclude interface interface vsi-interface 1	Exclude VSI-interface 1 from the shutdown action by M-LAG MAD.
m-lag mad exclude interface interface vsi-interface 2	m-lag mad exclude interface interface vsi-interface 2	Exclude VSI-interface 2 from the shutdown action by M-LAG MAD.
m-lag mad exclude interface vlan-interface 11	m-lag mad exclude interface vlan-interface 12	Exclude the underlay VLAN interface from the shutdown action by M-LAG MAD.

Configuring VTEP 3

Procedure summary

· Configuring VXLAN

Configuring VXLAN

VTEP 3	Description	Remarks
l2vpn enable	Enable L2VPN.	N/A
interface tunnel 1 mode vxlan	Establish a VXLAN channel between VTEP 3 and VTEP 1 or VTEP 2.	N/A
source 4.4.4.4	Specify the source address of the tunnel (IP address of Loopback0).	N/A
destination 1.2.3.4	Specify the destination address of the tunnel (IP address of Loopback1 on VTEP 1 or VTEP 2).	N/A
vsi vpna	Create VSI instance vpna.	N/A
vxlan 10	Configure VXLAN 10.	N/A
tunnel 1	Assign tunnel 1 to VXLAN 10.	N/A
quit	Return to VSI view.	N/A
quit	Return to system view.	N/A
vsi vpnb	Create VSI instance vpnb.	N/A
vxlan 20	Configure VXLAN 20.	N/A
tunnel 1	Assign tunnel 1 to VXLAN 20.	N/A
quit	Return to VSI view.	N/A
quit	Return to system view.	N/A
interface Ten-gigabitethernet1/0/3	Enter Ethernet interface view.	N/A
service-instance 1000	Create Ethernet service instance 1000 on the interface connecting to the server.	N/A
encapsulation s-vid 4	Configure the instance to match data frames of VLAN 2.	N/A
xconnect vsi vpnb	Map Ethernet service instance 1000 to VSI vpnb.	N/A
quit	Return to Ethernet interface view.	N/A
quit	Return to system view.	N/A
interface vsi-interface 1	Create VSI-interface 1.	N/A
ip address 10.1.1.1 255.255.255.0	Configure an IP address, which is to be used as the gateway address of VMs in VXLAN 10.	N/A
ipv6 address 101:10::1/64	Configure an IPv6 address, which is to be used as the gateway address of VMs in VXLAN 10.	N/A
mac-address 0-0-1	Assign a MAC address to the interface.	N/A
distributed-gateway local	Specify the VSI interface as a distribute gateway.	N/A
local-proxy-arp enable	Enable local proxy ARP.	N/A
local-proxy-nd enable	Enable local proxy ND.	N/A
quit	Return to system view.	N/A
interface vsi-interface 2	Create VSI-interface 2.	N/A
ip address 10.1.2.1 255.255.255.0	Configure an IP address, which is to be used as the gateway address of VMs in VXLAN 20.	N/A
ipv6 address 101:10::1/64	Configure an IPv6 address, which is to be used as the gateway address of VMs in VXLAN 20.	N/A
mac-address 0-0-2	Assign a MAC address to the interface.	N/A
distributed-gateway local	Specify the VSI interface as a distribute gateway.	N/A
local-proxy-arp enable	Enable local proxy ARP.	N/A
local-proxy-nd enable	Enable local proxy ND.	N/A
quit	Return to system view.	N/A
arp distributed-gateway dynamic-entry synchronize	Enable dynamic ARP entry synchronization for distributed VXLAN IP gateways.	When local proxy ARP is enabled on distributed VXLAN IP gateways, each gateway learns ARP information independently. A gateway does not forward ARP packets destined for its local VSI interfaces to other gateways. For distributed VXLAN IP gateways to have the same ARP entries, you must enable dynamic ARP entry synchronization.
vsi vpna	Enter VSI view.	N/A
gateway vsi-interface 1	Specify VSI-interface 1 as the gateway interface for the VSI of VXLAN 10.	N/A
quit	Return to system view.	N/A
vsi vpnb	Enter VSI view.	N/A
gateway vsi-interface 2	Specify VSI-interface 2 as the gateway interface for the VSI of VXLAN 20.	N/A
quit	Return to system view.	N/A

Traffic model

About the traffic model

The traffic model contains the following information:

· ID—Traffic ID, in O-X-XXX format. The first segment (O) represents overlay traffic. The second segment (X) represents the IP version (4 for IPv4 and 6 for IPv6). The third segment (XXX) represents a unique number for the traffic.

· Type—Traffic type, such as known unicast/IPv4 and unicast/L2.

· Direction—Traffic direction, such as inter-leaf east-west traffic and north-south traffic.

· Path—The nodes that the traffic traverses from the source to the destination.

· Simulation method—Traffic simulation method. Testers are used to simulate the patterns of traffic on the network set up in this example.

· Simulation traffic load—The network can be tested under light load (fewer than 1000 simulation traffic flows) or heavy load (more than 1000 simulation traffic flows).

Overlay traffic

ID	Type	Direction	Path	Simulation method	Simulation traffic load	Traffic direction to firewalls/LBs	Remarks
O-4-001	Known unicast/IPv4	Inter-VTEP east-west traffic	Server A-VTEP 1-P-VTEP 3-Server C	Tester	Light	N/A	When the uplink interface fails, traffic is forwarded along the Layer 3 link between M-LAG member devices
O-4-002	Known unicast/IPv4	Inter-VTEP east-west traffic	Server B-VTEP 1&2-P-VTEP 3-Server C	Tester	Light	N/A	When an uplink interface fails, the monitor link group shuts down the corresponding downlink interface and forwards all traffic through the peer device.
O-6-001	Known unicast/IPv6	Inter-VTEP east-west traffic	Server A-VTEP 1-P-VTEP 3-Server C	Tester	Light	N/A	When the uplink interface fails, traffic is forwarded along the Layer 3 link between M-LAG member devices
O-6-002	Known unicast/IPv6	Inter-VTEP east-west traffic	Server B-VTEP 1&2-P-VTEP 3-Server C	Tester	Light	N/A	When an uplink interface fails, the monitor link group shuts down the corresponding downlink interface and forwards all traffic through the peer device.

Convergence performance test results

Failure test results

Table 1 Link failure test results

Device	Failure cause	Traffic downtime	Remarks
VTEP 1	Single member link failure in an M-LAG interface	≤ 500 ms	N/A
	Recovery from a single M-LAG interface member link failure	≤ 200 ms	N/A
	Single uplink failure	≤ 500 ms	N/A
	Recovery from a single uplink failure	≤ 200 ms	N/A
	Complete peer link failure	≤ 500 ms	Focus on M-LAG interface services. Single-homed interface services are not assured.
	Recovery from a complete peer link failure	≤ 200 ms	Focus on M-LAG interface services. Single-homed interface services can recover.
	Keepalive link failure	0 ms	N/A
	Recovery from a keepalive link failure	0 ms	N/A
	Keepalive link and peer link failure	≤ 4000 ms	Focus on M-LAG interface services. Single-homed interface services are not assured.
	Recovery from a keepalive link and peer link failure	≤ 4000 ms	Focus on M-LAG interface services. Single-homed interface services can recover.
	Restart of one M-LAG member device	≤ 500 ms	Focus on M-LAG interface services. Single-homed interface services are not assured.
	Recover from M-LAG member device restart	≤ 200 ms	Focus on M-LAG interface services. Single-homed interface services can recover.
	Switching fabric module failure	≤ 100 ms	N/A
	Recovery from a switching fabric module failure	≤ 100 ms	N/A

Verifying the configuration

Verification commands

Table 2 Verification commands

VTEP 1	VTEP 2	Description
display interface tunnel	display interface tunnel	Displays tunnel interface information.
display l2vpn vsi	display l2vpn vsi	Displays VSI information.

Procedure

1. Verify that the VXLANs of the M-LAG system are normal.

# On VTEP 1, view tunnel interface information to verify that the VXLAN tunnel is up. The source address of the tunnel is 1.2.3.4.

[VTEP 1]display interface tunnel

Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Tunnel source 1.2.3.4, destination 4.4.4.4

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 50506 bytes/sec, 404048 bits/sec, 295 packets/sec

Input: 4 packets, 240 bytes, 0 drops

Output: 257011 packets, 43395523 bytes, 0 drops

# View the VSI information on VTEP 1 to verify that ACs are automatically created on the peer link and they are associated with VSIs.

[VTEP 1] display l2vpn vsi name vpna verbose

VSI Name: vpna

VSI Index : 0

VSI State : Up

MTU : 1500

Bandwidth : -

Broadcast Restrain : 5120 kbps

Multicast Restrain : 5120 kbps

Unknown Unicast Restrain: 5120 kbps

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : Unlimited

Drop Unknown : Disabled

Flooding : Enabled

Statistics : Disabled

Gateway Interface : VSI-interface 1

VXLAN ID : 10

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel1 0x5000001 UP Manual Disabled

ACs:

AC Link ID State Type

XGE1/0/1 srv1000 0 Up Manual

BAGG1 srv1 1 Up Dynamic (M-LAG)

BAGG3 srv1000 2 Up Manual

# On VTEP 3, view tunnel interface information to verify that the VXLAN tunnel is up.

[VTEP 3]display interface tunnel

Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Tunnel source 4.4.4.4, destination 1.2.3.4

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 8 packets, 480 bytes, 0 drops

Output: 4 packets, 240 bytes, 0 drops

# On VTEP 3, display VSI information to view the VXLANs created in VSIs, VXLAN tunnels associated with VXLANs, and VSI interfaces associated with VSIs.

[VTEP 3] display l2vpn vsi verbose

VSI Name: vpna

VSI Index : 0

VSI State : Up

MTU : 1500

Bandwidth : -

Broadcast Restrain : 5120 kbps

Multicast Restrain : 5120 kbps

Unknown Unicast Restrain: 5120 kbps

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : Unlimited

Drop Unknown : Disabled

Flooding : Enabled

Statistics : Disabled

Gateway Interface : VSI-interface 1

VXLAN ID : 10

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel1 0x5000001 UP Manual Disabled

VSI Name: vpnb

VSI Index : 1

VSI State : Up

MTU : 1500

Bandwidth : -

Broadcast Restrain : 5120 kbps

Multicast Restrain : 5120 kbps

Unknown Unicast Restrain: 5120 kbps

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : Unlimited

Drop Unknown : Disabled

Flooding : Enabled

Statistics : Disabled

Gateway Interface : VSI-interface 2

VXLAN ID : 20

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel1 0x5000001 UP Manual Disabled

ACs:

AC Link ID State Type

XGE1/0/3 srv1000 0 Up Manual

2. Verify that Server A/Server B can normally communicate with Server C.

3. Verify that traffic can still be forwarded between Server B and Server C when the downlink M-LAG member interface of VTEP 1 or VTEP 2 fails.

Transient packet loss might occur during the switchover process.

4. Verify that traffic can still be forwarded between Server A/Server B and Server C when the uplink interface of VTEP 1 or VTEP 2 fails.

Transient packet loss might occur during the switchover process.

Upgrade procedure

Pre-upgrade verification commands

Before you perform an upgrade, use the commands in “Verifying the configuration” and the commands in the following table to verify that all requirements are met for an upgrade.

Table 3 Pre-upgrade verification commands

VTEP 1	VTEP 2	Description
display device	display device	Displays summary information about the peer-link interfaces and M-LAG interfaces in the M-LAG system.
display boot-loader	display boot-loader	Displays the current software images and startup software images.
display version	display version	Displays system version information.

Upgrade procedure

To upgrade software:

1. Execute the display version command to verify the current BootWare image version and startup software version.

2. Use the release notes for the upgrade software version to evaluate the upgrade impact on your network and verify the following items:

¡ Software and hardware compatibility.

¡ Version and size of the upgrade software.

¡ Compatibility of the upgrade software with the current BootWare image and startup software image.

3. Use the release notes to verify whether the upgrade software images require a license. If licenses are required, check the system for availability of valid licenses. If no license exists on the device, first install a license. If you do not install a license, the software package will fail to be installed.

4. Use the dir command to verify that the device has sufficient storage space for the upgrade images. If the storage space is not sufficient, delete unused files by using the delete command. Make sure all MPUs in the system have sufficient storage space.

5. After VTEP 1 and VTEP 2 form an M-LAG system, perform the following tasks:

a. Check the LLDP neighbors of VTEP 1 to obtain the LLDP state information of all interfaces on VTEP 1.

b. Manually shut down all interfaces connecting to the other devices (except M-LAG peer link interfaces and keepalive interfaces) on VTEP 1 to switch all incoming and outgoing traffic of VTEP 1 to VTEP 2.

6. Save the configuration on VTEP 1, and use FTP or TFTP to transfer the upgrade image file to the root directory of a file system. Upgrade VTEP 1 and reboot it.

7. When VTEP 1 is being rebooted, manually shut down the interfaces connecting VTEP 2 to VTEP 1. The interfaces are typically peer link interfaces and keepalive interfaces.

8. After VTEP 1 is rebooted, bring up the interfaces that have been shut down on VTEP 2. Wait for M-LAG to restore between VTEP 1 and VTEP 2.

9. After VTEP 1 and VTEP 2 form an M-LAG system again, bring up the interfaces connecting to other devices. Wait for the traffic to restore.

For more information about upgrading software on an M-LAG system, see H3C Switches M-LAG System Upgrade Guide.

Upgrade the software. For more information about the software upgrade procedure, see the fundamentals configuration guide for the device.

Estimated upgrade downtime

See “Convergence performance test results.” The upgrade downtime of each device contains the traffic downtime for restart of one M-LAG member device and recovery from M-LAG member device restart.

Post-upgrade verification commands

After the upgrade finishes, use the commands in “Verifying the configuration” and the commands in the following table to verify that the upgrade has been done correctly.

Table 4 Post-upgrade verification commands

VTEP 1	VTEP 2	Description
display device	display device	Displays summary information about the peer-link interfaces and M-LAG interfaces in the M-LAG system.
display boot-loader	display boot-loader	Displays the current software images and startup software images.
display version	display version	Displays system version information.

Node expansion

Pre-expansion verification commands

Before you perform a node expansion, use the commands in “Verifying the configuration” and the commands in the following table to verify that all requirements are met for an expansion.

Table 5 Pre-expansion verification commands

VTEP 1	VTEP 2	Description
display device	display device	Displays summary information about the peer link interfaces and M-LAG interfaces in the M-LAG system.
display boot-loader	display boot-loader	Displays the current software images and startup software images.
display version	display version	Displays system version information.

Node expansion

1. Make sure the expansion device is not connected to the management network.

2. Upgrade the device to the target software version.

3. Configure the device.

4. Connect the device to the management network.

Estimated expansion downtime

N/A

Post-expansion verification commands

After the expansion finishes, use the commands in the following table to verify that the expansion has been done correctly.

Table 6 Post-expansion verification commands

VTEP 1	VTEP 2	Description
display device	display device	Displays summary information about the peer link interfaces and M-LAG interfaces in the M-LAG system.
display boot-loader	display boot-loader	Displays the current software images and startup software images.
display version	display version	Displays system version information.

Replacement procedure

Service module replacement

Pre-replacement verification commands

Execute the commands in “Verifying the configuration” and the following commands to verify that all requirements are met for a replacement.

Table 7 Pre-replacement verification commands

VTEP 1	VTEP 2	Description
display device	display device	Displays device information
display boot-loader	display boot-loader	Displays the current software images and startup software images.
display version	display version	Displays system version information.

Replacement procedure

Before you replace an interface module, make sure the service and management traffic has switched over to other interface modules that are operating correctly.

Replace the interface modules online while the system is operating or power off the system before you do the replacement, depending on the evaluation of the conditions.

Estimated replacement downtime

See “Convergence performance test results.” The replacement downtime of each interface module contains the traffic downtime for single member link failure in an M-LAG interface, single uplink failure, recovery from a single member link failure in an M-LAG interface, and recovery from a single uplink failure.

Post-replacement verification commands

Use the same commands for pre-replacement verification to verify that the system can operate correctly after the hardware replacement.

Switching fabric module replacement

Pre-replacement verification commands

Execute the commands in “Verifying the configuration” and the following commands to verify that all requirements are met for a replacement.

Table 8 Pre-replacement verification commands

VTEP 1	VTEP 2	Description
display device	display device	Displays summary information about the peer link interfaces and M-LAG interfaces in the M-LAG system.
display boot-loader	display boot-loader	Displays the current software images and startup software images.
display version	display version	Displays system version information.

Replacement procedure

Replace the switching fabric module online while the system is operating or power off the system before you do the replacement, depending on the evaluation of the conditions.

Estimated replacement downtime

See “Convergence performance test results.” The replacement downtime of each switching fabric module contains the traffic downtime for switching fabric module failure and recovery from a switching fabric module failure.

Post-replacement verification commands

Use the same commands for pre-replacement verification to verify that the system can operate correctly after the hardware replacement.

H3C Campus Switches M-LAG Configuration Guide-6W101

Analysis

Configuring M-LAG

Overlay traffic

Convergence performance test results

Verifying the configuration

Pre-replacement verification commands

Replacement procedure

Estimated replacement downtime

Post-replacement verification commands

Pre-replacement verification commands

Replacement procedure

Estimated replacement downtime

Post-replacement verification commands

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

Company Information

News & Events

Contact Us
