H3C Access Controllers |
|
Comware 7 Layer 2 Static Link Aggregation |
|
Configuration Example |
Copyright © 2024 New H3C Technologies Co., Ltd. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.
Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners.
The information in this document is subject to change without notice.
Contents
Example: Configuring a Layer 2 static link aggregation group
Configuring an aggregation group on AC 1
Configuring an aggregation group on AC 2
Overview
The following information provides an example for configuring Layer 2 static link aggregation.
Prerequisites
The following information applies to Comware 7-based access controllers. Procedures and information in the examples might be slightly different depending on the software or hardware version of the H3C access controllers.
The configuration examples were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.
The following information is provided based on the assumption that you have basic knowledge of Layer 2 static link aggregation.
Example: Configuring a Layer 2 static link aggregation group
Network configuration
As shown in Figure 1, set up a static aggregate link between AC 1 and AC 2.
Procedures
Configuring an aggregation group on AC 1
1. Click the System View tab at the bottom of the page.
2. From the navigation pane, select Network Settings > Interfaces > Link Aggregation.
3. Click the Create button
to create aggregation group 1.

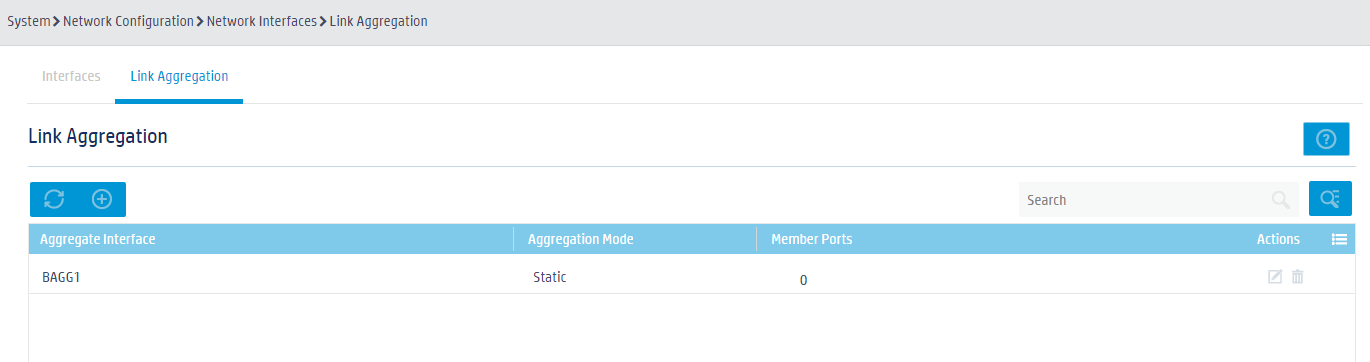

Figure 2 Creating an aggregation group
4. Set the aggregation mode to static and assign GigabitEthernet 1/0/1 through GigabitEthernet 1/0/3 to aggregation group 1.

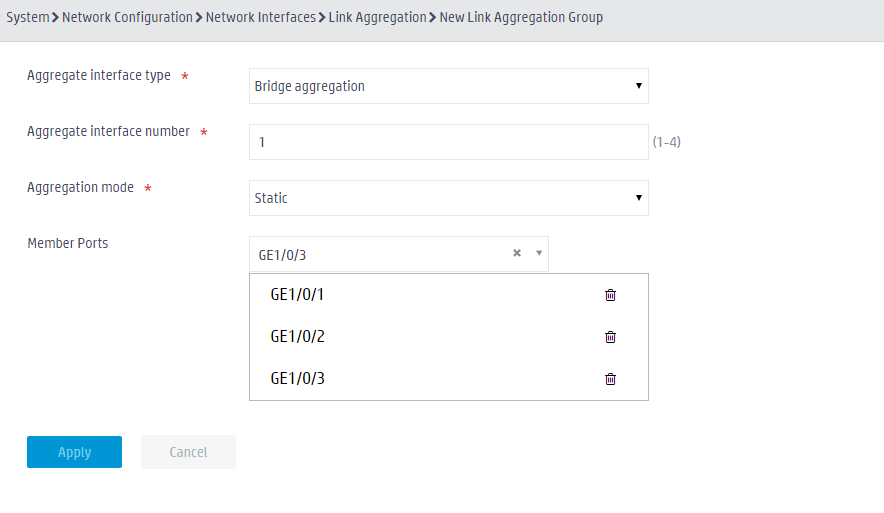

Figure 3 Configuring an aggregation group
5. Click the System View tab at the bottom of the page.
6. From the navigation pane, select Network Settings > VLAN.

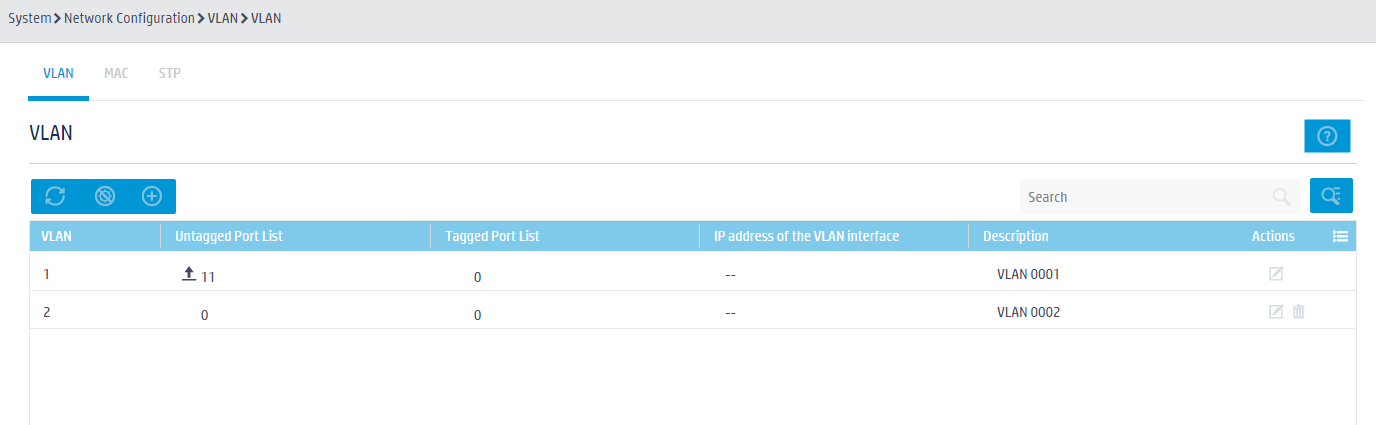

Figure 4 VLAN list
7. Click the Create VLANs
button
to create VLAN 10.

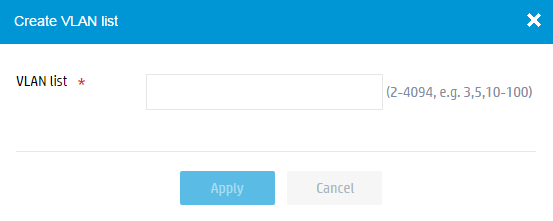

Figure 5 Creating a VLAN
8. Click the Edit
button
for VLAN 10 to assign GigabitEthernet 1/0/4 as an untagged member and GigabitEthernet 1/0/1 through GigabitEthernet 1/0/3 as tagged
members to the VLAN.

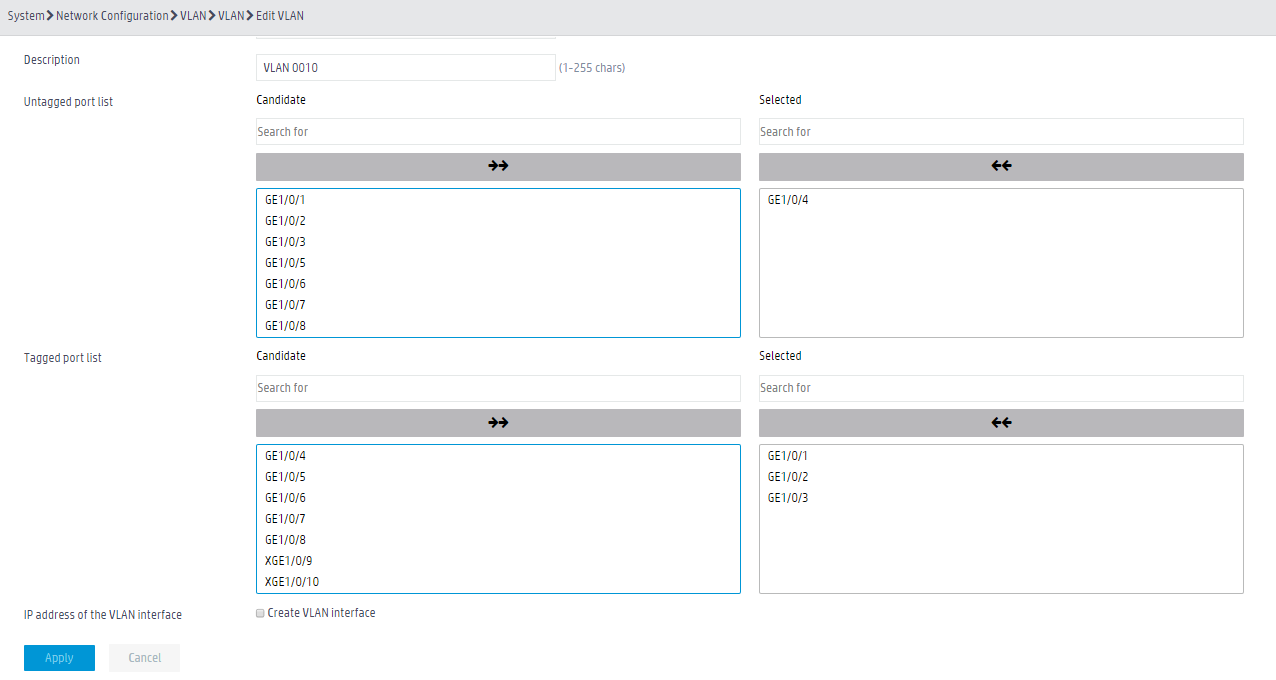

Figure 6 Adding physical interfaces
Configuring an aggregation group on AC 2
Configure AC 2 in the same way you configured AC 1. (Details not shown.)
Verifying the configuration
1. Verify that GigabitEthernet 1/0/1 through GigabitEthernet 1/0/3 have been assigned to aggregation group 1 on the ACs. (Details not shown.)
2. Verify that Host A can ping Host B. (Details not shown.)
3. Verify that Host A can ping Host B when one of the links between the ACs fails. (Details not shown.)
Related documentation
H3C Access Controllers Web-Based Configuration Guide
