11-Appendix E Slot arrangement and interface numbering

Appendix E  Slot arrangement and interface numbering

Slot arrangement

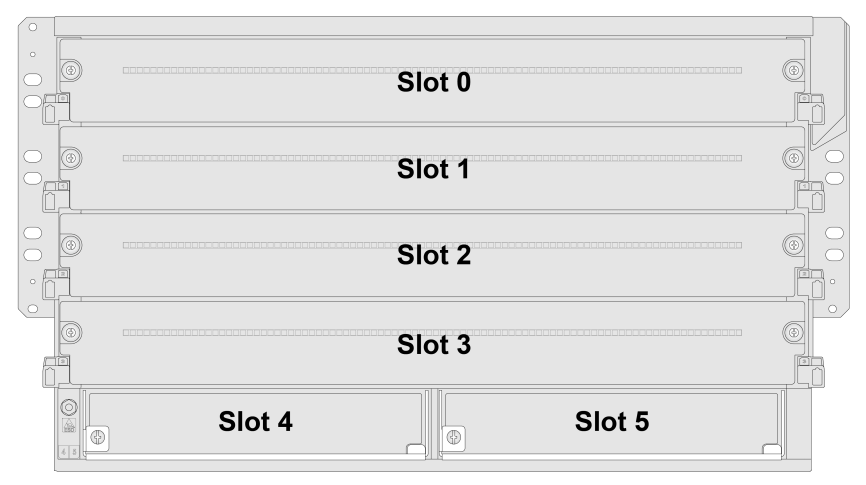

Figure 1 Slot arrangement of the M9000-X06

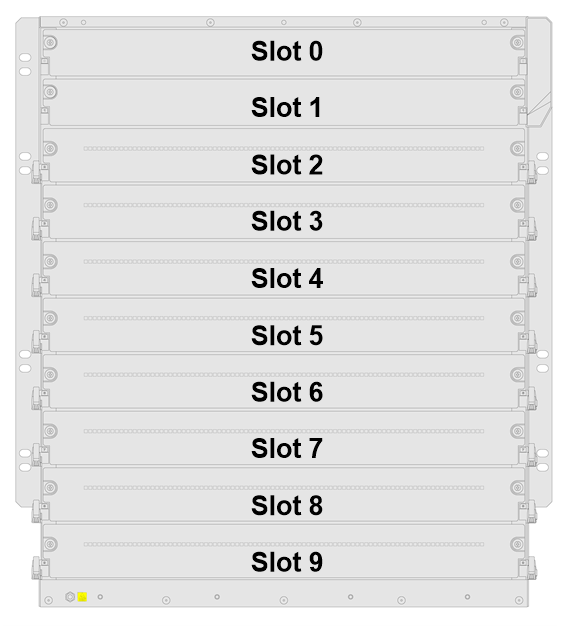

Figure 2 Slot arrangement of the M9000-X10



Table 1 Slot arrangement

Model

Card slot arrangement

Slot mark location

M9000-X06

Supervisor engine module (SEM) slots: slots 4 and 5

At the left edge of the slot

Slots for interface switch modules and service modules: slots 0 through 3

At the left and right edges of the slot

M9000-X10

SEM slots: slots 0 and 1

At the left and right edges of the slot

Slots for interface switch modules and service modules: slots 2 through 9





NOTE:

To install an interface module or service module on the gateway, first install it on an interface switch module and then install the interface switch module on the gateway. For the available slots for an interface module or service module, see the card manual that come with the interface module or service module.



Example

You can execute the display device command to view the slot arrangement on the device.

<Sysname> display device

Slot No. Brd Type         Brd Status   Subslot Sft Ver                Patch Ver

 0       NONE             Absent       0       NONE                   None

 1       NSQM7MBSHA0      Normal       0       M9000-X06-9671P20      None

Interface numbering

The gateway provides many types of interfaces, including console, M-GigabitEthernet, Ten-GigabitEthernet, Forty-GigabitEthernet, Hundred-GigabitEthernet, blade, aggregate, tunnel, Virtual-Template, and VLAN interfaces.

The numbering of the gateway interfaces varies by the gateway mode.

·     Standalone modeinterface-type X/Y/Z.

·     IRF modeinterface-type W/X/Y/Z.

Where,

·     interface-typeType of the interface such as GigabitEthernet interface.

·     W—IRF member device ID.

·     XNumber of the slot where the card resides. For more information about the slot number on the gateway, see Table 1.

·     Y—Number of the slot where the subcard resides on the interface switch module. The value is 1 or 2.

·     Z—Number of the port on the card. The number starts from 1 for each port type.

The management ports are numbered M-GE0/0/0, M-GE0/0/1, M-GE0/0/2, and M-GE0/0/3, respectively when the gateway operates in standalone mode and M-GE1/0/0/0, M-GE1/0/0/1, M-GE1/0/0/2, and M-GE1/0/0/3, respectively when the gateway operates in IRF mode.

Example

·     The gateway operates in standalone mode and has an interface switch module installed in slot 2 and an NS-C300-TG24A1 interface module installed in slot 1 of the interface switch module. The interfaces on the interface module are numbered as shown in the output of the display interface Ten-GigabitEthernet brief command.

<Sysname> display interface Ten-GigabitEthernet brief

Brief information on interface(s) in route mode:

Link: ADM - administratively down; Stby - standby

Protocol: (s) - spoofing

Interface            Link Protocol Primary IP         Description

XGE2/1/1             DOWN DOWN     --

XGE2/1/2             DOWN DOWN     --

XGE2/1/3             DOWN DOWN     --

XGE2/1/4             DOWN DOWN     --

……

XGE2/1/23             DOWN DOWN     --

XGE2/1/24             DOWN DOWN     --

·     The gateway operates in IRF mode and its IRF member device ID is 1. An interface switch module is installed in slot 2 of the gateway and an NS-C300-TG24A1 interface module in slot 1 of the interface switch module. The interfaces on the interface module are numbered as shown in the output of the display interface Ten-GigabitEthernet brief command.

<Sysname> display interface Ten-GigabitEthernet brief

Brief information on interface(s) in route mode:

Link: ADM - administratively down; Stby - standby

Protocol: (s) - spoofing

Interface            Link Protocol Primary IP         Description

XGE1/2/1/1           DOWN DOWN     --

XGE1/2/1/2           DOWN DOWN     --

XGE1/2/1/3           DOWN DOWN     --

XGE1/2/1/4           DOWN DOWN     --

XGE1/2/1/5           DOWN DOWN     --

……

XGE1/2/1/23          DOWN DOWN     --

XGE1/2/1/24          DOWN DOWN     --
