8 Appendix B FRUs and compatibility matrixes
For the compatibility between cards and the system software, see the release notes.
For the compatibility between transceiver modules and cards, see H3C S10500 Switch Series Cards and Transceiver Modules Compatibility Matrixes.
MPUs
|
MPU model |
Specifications |
||||
|
Flash memory |
NVRAM |
SDRAM |
Ports |
Compatible device models |
|
|
LSU1SUPA0 |
128 MB |
512 KB |
1 GB |
· 1 × console port · 1 × network management port |
S10504/S10508/S10508-V/S10512 |
|
LSU1SUPB0 |
512 MB |
512 KB |
8 GB |
· 1 × console port · 1 × network management port |
S10504/S10508/S10508-V/S10512 |
|
LSUM1SUPC0 |
2 GB |
1 MB |
4 GB |
· 1 × console port · 1 × USB console port · 4 × network management ports (two RJ-45 ports and two SFP ports) · 1 × USB port |
S10504/S10508/S10508-V/S10512 |
|
LSUM1SUPD0 |
512 MB |
1 MB |
8 GB |
· 1 × console port · 1 × USB console port · 1 × network management port · 1 × CF card slot · 1 × USB port |
S10504/S10508/S10508-V/S10512 |
|
LSUM1MPU06B0 |
1 GB |
1 MB |
8 GB |
· 1 × console port · 1 × USB console port · 4 × network management ports (two RJ-45 ports and two SFP ports) · 1 × RS485 port · 1 × USB port |
S10506 |
|
LSUM1MPU10A0 |
1 GB |
1 MB |
4 GB |
· 1 × console port · 1 × USB console port · 4 × network management ports (two RJ-45 ports and two SFP ports) · 1 × RS485 port · 1 × USB port |
S10510 |
|
LSUM1MPU10C0 |
1 GB |
1 MB |
8 GB |
· 1 × console port · 1 × USB console port · 4 × network management ports (two RJ-45 ports and two SFP ports) · 1 × RS485 port · 1 × USB port |
S10510 |
|
LSUM2MPU10C0 |
2 GB |
1 MB |
8 GB |
· 1 × console port · 1 × USB console port · 4 × network management ports (two RJ-45 ports and two SFP ports) · 4 × SFP+ ports (only for IRF connection) · 1 × RS485 port · 1 × USB port |
S10510 |
|
|
NOTE: · The card models listed in Table 8-1 are marked on the card panels. They might be slightly different from the card models marked on the card packages. For example, LSU1SUPB0 and LSUM1SUPB0 identify the same card. LSU1SUPB0 is marked on the card panel. When you order the card, you refer to it as LSUM1SUPB0. · Among the network management ports on the LSUM1SUPC0, LSUM1MPU06B0, LSUM1MPU10A0, LSUM1MPU10C0, and LSUM2MPU10C0 MPUs, only port 0 is available during the startup of the switch. · To connect an SFP network management port on the MPUs, make sure the peer port operates at 1000 Mbps in full-duplex mode. · Do not use USB extension cables to connect the USB ports on the MPUs. |
Service modules
Ethernet interface cards
Table 8-2 Ethernet interface card specifications
|
Model |
Port quantity |
Port type |
Compatible transceiver modules and network cables |
|
LSU1CGC2SE0 |
2 |
100GBASE-R CFP fiber port |
100G CFP transceiver module |
|
LSUM1CGC2EC0 |
2 |
100GBASE-R CFP fiber port |
100G CFP transceiver module |
|
LSUM1CGS8SH0 |
8 |
8 × 100GBASE-R QSFP28 fiber ports |
· QSFP28 transceiver module · QSFP+ transceiver module · QSFP28 DAC cable · QSFP+ DAC cable · QSFP28 to SFP28 DAC cable · QSFP+ to SFP+ DAC cable · QSFP+ AOC cable · QSFP28 AOC cable |
|
LSUM1CGS8QSSH0 |
16 |
· 8 × 100GBASE-R QSFP28 fiber ports · 8 × 40GBASE-R QSFP+ fiber ports |
· QSFP28 transceiver module · QSFP+ transceiver module · QSFP28 DAC cable · QSFP+ DAC cable · QSFP28 to SFP28 DAC cable · QSFP+ to SFP+ DAC cable · QSFP+ AOC cable · QSFP28 AOC cable |
|
LSU1QGC4SF0 |
4 |
40GBASE-R CFP fiber port |
40G CFP transceiver module |
|
LSUM2CQGS12SG0 |
12 |
12 × 40GBASE-R QSFP+ fiber ports or 4 × 100GBASE-R QSFP28 fiber ports |
· QSFP28 transceiver module · QSFP28 DAC cable · QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable |
|
LSUM1CGS2FE0 |
2 |
100GBASE-R QSFP28 fiber port |
· QSFP28 transceiver module · QSFP28 DAC cable |
|
LSUM1YGS24CSSH0 |
28 |
· 24 × 25GBASE-R SFP28 fiber ports · 4 × 100GBASE-R QSFP28 fiber ports |
· SFP28 transceiver module · QSFP28 transceiver module · QSFP+ transceiver module · 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · SFP28 DAC cable · QSFP28 DAC cable · QSFP+ DAC cable · QSFP+ AOC cable · SFP28 AOC cable · QSFP28 AOC cable |
|
LSUM2TGS32QSSG0 |
36 |
· 32 × 10GBASE-R SFP+ fiber ports · 4 × 40GBASE-R QSFP+ fiber ports |
· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable · 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSUM2QGS24RSG0 |
24 |
40GBASE-R-QSFP+ fiber port |
· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable |
|
LSUM1QGS12SG0 |
12 |
40GBASE-R QSFP+ fiber port |
· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable |
|
LSUM2QGS12SG0 |
12 |
40GBASE-R-QSFP+ fiber port |
· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable |
|
LSU1QGS8SF0 |
8 |
40GBASE-R QSFP+ fiber port |
· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable |
|
LSU1QGS4SF0 |
4 |
40GBASE-R QSFP+ fiber port |
· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable |
|
LSUM1QGS6EC0 |
6 |
40GBASE-R QSFP+ fiber port |
· QSFP+ transceiver module |
|
LSU1GP24TXSE0 |
26 |
· 2 × 10GBASE-R/W XFP/LC fiber ports · 24 × 1000BASE-X-SFP/LC fiber ports · 8 × combo interfaces |
· 10-GE XFP transceiver module · FE/GE SFP transceiver module · Category 5 twisted-pair cable |
|
LSU1GP24TXEA0 |
26 |
· 2 × 10GBASE-R/W XFP/LC fiber ports · 24 × 1000BASE-X-SFP/LC fiber ports · 8 × combo interfaces |
· 10-GE XFP transceiver module · FE/GE SFP transceiver module · Category 5 twisted-pair cable |
|
LSU1GP24TXEB0 |
26 |
· 2 × 10GBASE-R/W XFP/LC fiber ports · 24 × 1000BASE-X-SFP/LC fiber ports · 8 × combo interfaces |
· 10-GE XFP transceiver module · FE/GE SFP transceiver module · Category 5 twisted-pair cable |
|
LSU1P24XGSE3 |
26 |
· 2 × 10GBASE-R XFP/LC fiber ports · 24 × 1000BASE-X-SFP/LC fiber ports |
· 10-GE XFP transceiver module · FE/GE SFP transceiver module |
|
LSU1T24XGSE3 |
26 |
· 2 × 10GBASE-R XFP/LC fiber ports · 24 × 10/100/1000BASE-T-RJ45 copper ports |
· 10-GE XFP transceiver module · Category 5 twisted-pair cable |
|
LSU1TGX4SE0 |
4 |
10GBASE-R XFP/LC fiber port |
10-GE XFP transceiver module |
|
LSU1TGX4EA0 |
4 |
10GBASE-R XFP/LC fiber port |
10-GE XFP transceiver module |
|
LSU1TGX4EB0 |
4 |
10GBASE-R XFP/LC fiber port |
10-GE XFP transceiver module |
|
LSUM2GT24PTSSE0 |
48 |
· 4 × 10GBASE-R SFP+/LC fiber ports · 20 × 1000BASE-X-SFP/LC fiber ports · 24 × 10/100/1000BASE-T-RJ45 copper ports |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module · Category 5 twisted-pair cable |
|
LSUM2GT24TSSE0 |
28 |
· 4 × 10GBASE-R SFP+/LC fiber ports · 24 × 10/100/1000BASE-T-RJ45 copper ports |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module · Category 5 twisted-pair cable |
|
LSUM2GP44TSSE0 |
48 |
· 4 × 10GBASE-R SFP+/LC fiber ports · 44 × 1000BASE-X-SFP/LC fiber ports |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module |
|
LSUM2GP24TSSE0 |
28 |
· 4 × 10GBASE-R SFP+/LC fiber ports · 24 × 1000BASE-X-SFP/LC fiber ports |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module |
|
LSU1TGS48SF0 |
48 |
10GBASE-R SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSUM1GP40TS8FD0 |
48 |
· 8 × 10GBASE-R SFP+/LC fiber ports · 40 × 1000BASE-X-SFP/LC fiber ports |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module |
|
LSUM2GP40TS8FD0 |
48 |
· 8 × 10GBASE-R SFP+ fiber ports · 40 × 1000BASE-X-SFP fiber ports |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module |
|
LSUM1TGS48SH0 |
48 |
48 × 10GBASE-R SFP+ fiber ports |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSUM2TGS48SH0 |
48 |
48 × 10GBASE-R SFP+ fiber ports |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSUM1TGS48RSH0 |
48 |
48 × 10GBASE-R SFP+ fiber ports |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSUM1TGS48SG0 |
48 |
10GBASE-R/ SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSUM2TGS48SG0 |
48 |
10GBASE-R-SFP+ port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSU1TGS32SF0 |
32 |
10GBASE-R/ SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSUM1TGS24FD0 |
24 |
10GBASE-R-SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSU1TGS16SF0 |
16 |
10GBASE-R SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSU1TGS16SC0 |
16 |
10GBASE-R SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSUM1TGS16FD0 |
16 |
10GBASE-R SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSUM2TGS16SF0 |
16 |
10GBASE-R SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSU1TGS8EA0 |
8 |
10GBASE-R SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSU1TGS8EB0 |
8 |
10GBASE-R SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSU1TGS8SF0 |
8 |
10GBASE-R SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSU1TGS8SE0 |
8 |
10GBASE-R SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module |
|
LSUM1GP44TSEC0 |
48 |
· 4 × 10GBASE-R SFP+/LC fiber ports · 44 × 1000BASE-X-SFP/LC fiber ports |
· 10-GE SFP+ transceiver module · GE SFP transceiver module |
|
LSUM1TGS24EC0 |
24 |
10GBASE-R-SFP+/LC fiber port |
· 10-GE SFP+ transceiver module · GE SFP transceiver module |
|
LSUM2GP24TSSA0 |
28 |
· 4 × 10GBASE-R/ SFP+/LC fiber ports · 24 × 1000BASE-X-SFP/LC fiber ports |
· 10-GE SFP+ transceiver module · FE/GE SFP transceiver module |
|
LSU1GT40PSE3 |
48 |
· 8 × 1000BASE-X-SFP/LC fiber ports · 40 × 10/100/1000BASE-T-RJ45 copper ports |
· FE/GE SFP transceiver module · Category 5 twisted-pair cable |
|
LSU1GP24TSE0 |
24 |
· 24 × 1000BASE-X-SFP/LC fiber ports · 8 × combo interfaces |
· FE/GE SFP transceiver module · Category 5 twisted-pair cable |
|
LSU1GP24TSE3 |
16 |
· 16 × 1000BASE-X-SFP/LC fiber ports · 8 × combo interfaces |
· FE/GE SFP transceiver module · Category 5 twisted-pair cable |
|
LSU1GP48SE0 |
48 |
1000BASE-X-SFP/LC fiber port |
FE/GE SFP transceiver module |
|
LSU1GP48EA0 |
48 |
1000BASE-X-SFP/LC fiber port |
FE/GE SFP transceiver module |
|
LSU1GP48EB0 |
48 |
1000BASE-X-SFP/LC fiber port |
FE/GE SFP transceiver module |
|
LSUM2GP48SA0 |
48 |
1000BASE-X-SFP/LC fiber port |
FE/GE SFP transceiver module |
|
LSU1GP48SE3 |
48 |
1000BASE-X-SFP/LC fiber port |
FE/GE SFP transceiver module |
|
LSU1GP24SE3 |
24 |
1000BASE-X-SFP/LC fiber port |
FE/GE SFP transceiver module |
|
LSU1GP12SE3 |
12 |
1000BASE-X-SFP/LC fiber port |
FE/GE SFP transceiver module |
|
LSUM1GP48FD0 |
48 |
1000BASE-X-SFP/LC fiber port |
GE SFP transceiver module |
|
LSU1TGT24SF0 |
24 |
10GBASE-T-RJ45 copper port |
Category 6A/7 twisted-pair cable |
|
LSUM1TGT24FD0 |
24 |
10GBASE-T-RJ45 copper port |
Category 6A/7 twisted-pair cable |
|
LSU1GT48SE3 |
48 |
10/100/1000BASE-T-RJ45 copper port |
Category 5 twisted-pair cable |
|
LSUM1GT48FD0 |
48 |
10/100/1000BASE-T-RJ45 copper port |
Category 5 twisted-pair cable |
|
LSUM2GT48SA0 |
48 |
10/100/1000BASE-T-RJ45 copper port |
Category 5 twisted-pair cable |
|
LSU1GT48SE0 |
48 |
10/100/1000BASE-T-RJ45 copper port |
Category 5 twisted-pair cable |
|
LSU1GT48EA0 |
48 |
10/100/1000BASE-T-RJ45 copper port |
Category 5 twisted-pair cable |
|
LSUM2GT48SE0 |
48 |
10/100/1000BASE-T-RJ45 copper port |
Category 5 twisted-pair cable |
|
LSUM2GV48SE0 |
48 |
10/100/1000BASE-T-RJ45 copper port |
Category 5 twisted-pair cable |
|
LSU1GT24SE3 |
24 |
10/100/1000BASE-T-RJ45 copper port |
Category 5 twisted-pair cable |
|
|
NOTE: · A combo interface is a logical interface that contains an SFP port and an RJ-45 Ethernet port. Only one of them can be activated at a time. · The Ethernet copper ports on the LSUM2GV48SE0, LSUM2GT48SE0, LSUM2GT24TSSE0, and LSUM2GT24PTSSE0 cards and all fiber ports cannot be configured or automatically negotiated to operate in half-duplex mode. For more information about the duplex mode of Ethernet interfaces, see H3C S10500 Switch Series Fundamentals Command Reference. · When you use the using hundredgige-from-fortygige interface command to convert 40-GE ports on the LSUM2CQGS12SG0 to 100-GE ports, only ports 1, 4, 7, and 10 are available. |
Base cards
Table 8-3 Base card specifications
|
Model |
Subcard slots |
Description |
|
LSUM1SPMAEC0 |
4 |
Multi-service base card |
Subcards
You must install the subcards in base cards.
The LSR1DRUP1L1 subcards must be installed in both slots 1 and 2 of an LSUM1SPMAEC0 base card.
To connect two subcards in different S10500 switches, connect the subcard in slot 1 on one base card to that in slot 2 on the other-end base card, or vice versa.
Table 8-4 Subcard specifications
|
Model |
Description |
Connector |
Number of ports |
Available transceiver modules and cables |
|
LSR1DRUP1L1 |
1-port OC192c/STM64c-XFP optical interface card |
LC |
1 |
10-GE XFP transceiver module |
|
InfiniBand 4X |
1 |
InfiniBand high-speed cable |
OAA cards
Table 8-5 OAA card specifications
|
Model |
Description |
Ports |
Compatible transceiver modules |
|
LSU1WCME0 |
High-performance access controller module |
· 1 × console port · 1 × 100/1000BASE-T out-of-band management Ethernet port |
Category 5 or above twisted pair cable |
|
LSU3WCMD0 |
High-performance access controller module |
· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSQ1WCMD0 |
High-performance access controller module |
· 1 × console port · 2 × USB ports · 1 × 10/100/1000BASE-T copper port |
Category 5 twisted-pair cable |
|
LSUM1WCMX20RT |
Access controller module |
· 1 × console port · 1 × 100/1000BASE-T out-of-band management Ethernet port |
Category 5 twisted-pair cable |
|
LSUM1WCMX40RT |
Access controller module |
· 1 × console port · 1 × 100/1000BASE-T out-of-band management Ethernet port |
Category 5 twisted-pair cable |
|
LSQM1FWDSC0 |
Firewall module |
· 1 × console port · 1 × USB port (reserved for future use) · 1 × GE copper port · 1 × hardware disk slot |
Category 5 twisted-pair cable |
|
LSU1FWCEA0 |
Firewall module |
· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports (reserved for future use) · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSU3FWCEA0 |
Firewall module |
· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSUM1FWCEAB0 |
Firewall module |
· 1 × console port · 2 × USB ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSUM1FWDEC0 |
Firewall module |
· 1 × console port · 1 × USB port (reserved for future use) · 1 × GE copper port · 1 × hard disk slot |
Category 5 twisted-pair cable |
|
LSQ2FWBSC0 |
Firewall module |
· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSQ1FWBSC0 |
Firewall module |
· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSU1NSCEA0 |
10-GE high performance NetStream module |
· 1 × console port · 2 × USB ports (reserved for future use) · 2 × GE combo interfaces |
· Category 5 or above twisted pair cable · GE SFP transceiver module |
|
LSUM1NSDEC0 |
NetStream module |
· 1 × console port · 1 × USB port (reserved for future use) · 1 × GE copper port · 1 × hard disk slot |
Category 5 twisted-pair cable |
|
LSQ1NSMSC0 |
NetStream module |
· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSQM1NSDSC0 |
NetStream module |
· 1 × console port · 1 × USB port (reserved for future use) · 1 × GE copper port · 1 × hard disk slot |
Category 5 twisted-pair cable |
|
LSU1IPSBEA0 |
Intrusion prevention system module |
· 1 × console port · 2 × USB ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSQ1IPSSC0 |
Intrusion prevention system module |
· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSQM1IPSDSC0 |
Intrusion prevention system module |
· 1 × console port · 1 × USB port (only for PFC power supply) · 1 × 10/100/1000BASE-T copper port · 1 × hard disk slot |
Category 5 twisted-pair cable |
|
LSQ1SSLSC0 |
SSL VPN module |
· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSU1ADECEA0 |
Application delivery module |
· 1 × console port · 2 × USB ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSQ1ACGASC0 |
Application control gateway module |
· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSQM1ACGDSC0 |
Application control gateway module |
· 1 × console port · 1 × USB port (reserved for future use) · 1 × 10/100/1000BASE-T copper port · 1 × hard disk slot |
Category 5 twisted-pair cable |
|
LSUM1ACGDEC0 |
Application control gateway module |
· 1 × console port · 1 × USB port (reserved for future use) · 1 × 10/100/1000BASE-T copper port · 1 × hard disk slot |
Category 5 twisted-pair cable |
|
LSQM1ADEDSC0 |
Application delivery engine module |
· 1 × console port · 1 × USB port (only for PFC power supply) · 1 × 10/100/1000BASE-T copper port · 1 × hard disk slot |
Category 5 twisted-pair cable |
|
LSQ1LBSC0 |
Load balancing module |
· 1 × Console port · 1 × CF card slot (supporting a 256-MB, 512-MB, or 1-GB CF card) · 2 USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces |
· Category 5 twisted-pair cable · GE SFP transceiver module |
|
LSQM2FWDSC0 |
High-performance module |
· 1 × console port · 2 × USB ports · 2 × GE combo interfaces · 4 × 10GBASE-R fiber ports · 1 × hard disk slot |
· Category 5 twisted-pair cable · GE SFP transceiver module · 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable |
|
LSUM1EPSB0 |
EPS endpoint security module |
· 3 × USB 2.0 ports (used only by technical personnel for debugging) · 1 × VGA connector · 1 × 10/100/1000BASE-T management Ethernet port · 1 × console port (used only by technical personnel for debugging) |
Category 5 twisted-pair cable |
|
LSUM1SDNB0 |
SDN automation module |
· 3 × USB 2.0 ports (only for debugging use) · 1 × VGA connector · 1 × 10/100/1000BASE-T management Ethernet port · 1 × console port (used only by technical personnel for debugging) |
Category 5 twisted-pair cable |
|
LSUM1WBCZ720XRT |
Multiservice access controller module |
· 3 × USB 2.0 ports (used only by technical personnel for debugging) · 1 × VGA connector · 1 × 1000BASE-T management Ethernet port · 1 × console port |
Category 5 twisted-pair cable |
Restrictions and guidelines
Follow these restrictions and guidelines to use the service modules:
· The LSUM2GV48SE0 interface card is supported only by the S10506 and S10510 switches.
· The LSQ series OAA cards are supported only by the S10504, S10506, S10508, S10508-V, and S10512 switches. For the OAA cards to successfully start up, make sure a minimum of one switch fabric module is installed in either of the two lowest numbered switching fabric module slots.
· Do not install any one of the following cards on an S10510 switch when the LSUM2MPU10C0 MPU is used:
¡ EA cards, except the LSU1TGS8EA0.
¡ EB cards, except the LSU1TGS8EB0.
¡ SE cards LSU1GP24TXSE0, LSU1GT48SE0, LSU1GP48SE0, LSU1TGX4SE0, and LSU1GP24TSE0.
¡ OAA cards, except the LSUM1ACGDEC0, LSUM1FWDEC0, LSUM1NSDEC0, LSUM1WCMX20RT, and LSUM1WCMX40RT.
· Do not install any one of the following cards in slots 4 to 9 on the S10510 switch:
¡ EA cards, except the LSU1TGS8EA0.
¡ EB cards, except the LSU1TGS8EB0.
¡ SE cards LSU1GP24TXSE0, LSU1GT48SE0, LSU1GP48SE0, LSU1TGX4SE0, and LSU1GP24TSE0.
¡ OAA cards, except the LSUM1ACGDEC0, LSUM1FWDEC0, LSUM1NSDEC0, LSUM1WCMX20RT, and LSUM1WCMX40RT.
· Cards supported by the S10506 switch vary by the forwarding mode of the slots. For information about the supported cards, see device management configuration in H3C S10500 Switch Series Fundamentals Configuration Guide.
Switching fabric modules
Follow these restrictions and guidelines when you install switching fabric modules:
· Do not install A-type switching fabric modules (LSU1FAB04A0 and LSU1FAB08A0) and service modules with LSUM-prefixed model numbers on the same switch.
· Do not install switching fabric modules of different types on the same switch.
· For the S10504, S10508, S10508-V, or S10512 switch, make sure a minimum of one switching fabric module is installed in either of the two lowest numbered switching fabric module slots.
¡ Slot 6 or 7 on the S10504.
¡ Slot 10 or 11 on the S10508 or S10508-V.
¡ Slot 14 or 15 on the S10512.
As a best practice, use the two lowest numbered switching fabric module slots for installation first.
· The console port of the switching fabric module for the S10500 is used for H3C Support to maintain the switches. Do not use the console port if you have not been trained for that.
Table 8-6 Available switching fabric modules and specifications
|
Chassis model |
Switching fabric module model |
Connector |
Port |
Installation requirements |
|
S10504 |
LSU1FAB04A0 (LSUM1FAB04A0) |
RJ-45 |
One console port |
Two to four switching fabric modules are required. |
|
LSU1FAB04B0 (LSUM1FAB04B0) |
RJ-45 |
One console port |
Two to four switching fabric modules are required. |
|
|
LSU1FAB04D0 (LSUM1FAB04D0) |
RJ-45 |
One console port |
Two to four switching fabric modules are required. |
|
|
S10506 |
LSUM1FAB06C0 |
RJ-45 |
One console port |
A maximum of two switching fabric modules are required. |
|
· S10508 · S10508-V |
LSU1FAB08A0 (LSUM1FAB08A0) |
RJ-45 |
One console port |
Two to four switching fabric modules are required. |
|
LSU1FAB08B0 (LSUM1FAB08B0) |
RJ-45 |
One console port |
Two to four switching fabric modules are required. |
|
|
LSU1FAB08D0 (LSUM1FAB08D0) |
RJ-45 |
One console port |
Two to four switching fabric modules are required. |
|
|
S10510 |
LSUM1FAB10A0 |
RJ-45 |
One console port |
A maximum of two switching fabric modules are required. |
|
LSUM1FAB10C0 |
RJ-45 |
One console port |
A maximum of two switching fabric modules are required. |
|
|
LSUM2FAB10C0 |
RJ-45 |
One console port |
A maximum of two switching fabric modules are required. |
|
|
S10512 |
LSU1FAB12B0 (LSUM1FAB12B0) |
RJ-45 |
One console port |
Two to four switching fabric modules are required. |
|
LSU1FAB12D0 (LSUM1FAB12D0) |
RJ-45 |
One console port |
Two to four switching fabric modules are required. |
Power system
Power modules
|
|
CAUTION: Do not install power modules of different models on the same switch. |
The LSUM1AC1200 and LSUM2AC2500 AC power modules and the LSUM1DC2400 DC power module are available for the switch.
Table 8-7 Power module specifications
|
Item |
LSUM1AC1200 specifications |
LSUM1AC2500 specifications |
LSUM1DC2400 specifications |
|
Rated input voltage range |
100 VAC to 240 VAC @ 50/60 Hz |
100 VAC to 240 VAC @ 50/60 Hz |
–48 VDC to –60 VDC |
|
Rated output voltage |
12 VDC |
12 VDC |
12 VDC |
|
Maximum input current |
16 A |
16 A |
60 A |
|
Maximum output current |
100 A |
· 208 A (220 VAC) · 100 A (110 VAC) |
200 A |
|
Maximum output power |
1200 W |
· 1200 W (110 VAC) · 2500 W (220 VAC) |
2400 W |
|
Temperature requirements |
Operating temperature: –10°C to +50°C (14°F to 122°F) |
Operating temperature: –10°C to +50°C (14°F to 122°F) |
Operating temperature: –10°C to +50°C (14°F to 122°F) |
|
Storage temperature: –40°C to +85°C (–40°F to +185°F) |
Storage temperature: –40°C to +85°C (–40°F to +185°F) |
Storage temperature: –40°C to +85°C (–40°F to +185°F) |
|
|
Supported switch models |
All S10500 models |
All S10500 models |
All S10500 models |
The S10504 and S10506 support a maximum of four power modules. The S10508, S10508-V, S10510, and S10512 support a maximum of six power modules. Make sure the total maximum output power of the ordered power modules is greater than the system power consumption. As a best practice, reserve 20% of the maximum output power.
|
|
NOTE: When the temperature of a power module exceeds the acceptable temperature range, the power module is automatically powered off. When the temperature returns to the acceptable temperature range, the power module is automatically powered on. |
Power cords
DC power cords
DC power cords are used for connecting DC power modules of the switch to the external DC power source.
Table 8-8 DC power cord quantity for different models of S10500 switches
|
Chassis model |
Cable quantity |
|
· S10504 · S10506 |
1 to 4 |
|
· S10508 · S10508-V · S10510 · S10512 |
1 to 6 |
Table 8-9 DC power cord specifications
|
DC power cord |
Cable length |
Description |
|
0404A0E1 |
3 m (9.84 ft) |
Used for the LSUM1DC2400 power module |
|
0404A0E2 |
15 m (49.21 ft) |
AC power cords
AC power cords are used for connecting AC power modules of the switch to the external AC power source.
· Select AC power cords according to the power of the power module.
· The connector type varies by country or region. Select a compliant type as needed.
· For the AC power module, select 16 A AC power cords. For the connector types of different countries or regions, see Table 8-10.
Table 8-10 16A AC power cords used in different countries or regions
|
1 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||
|
I type |
04043396 (3 m, or 9.8 ft) |
Mainland China |
N/A |
N/A |
|||
|

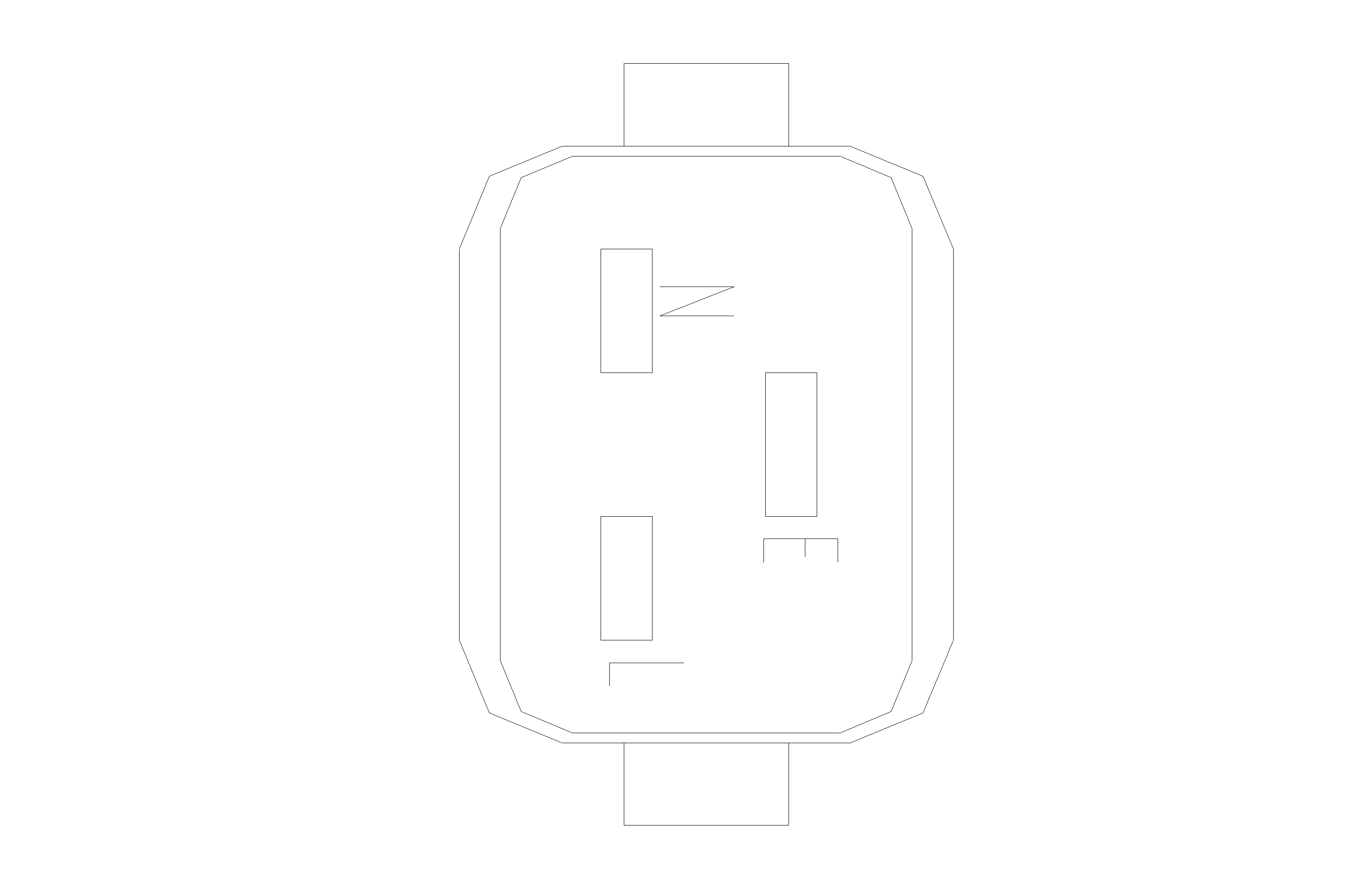

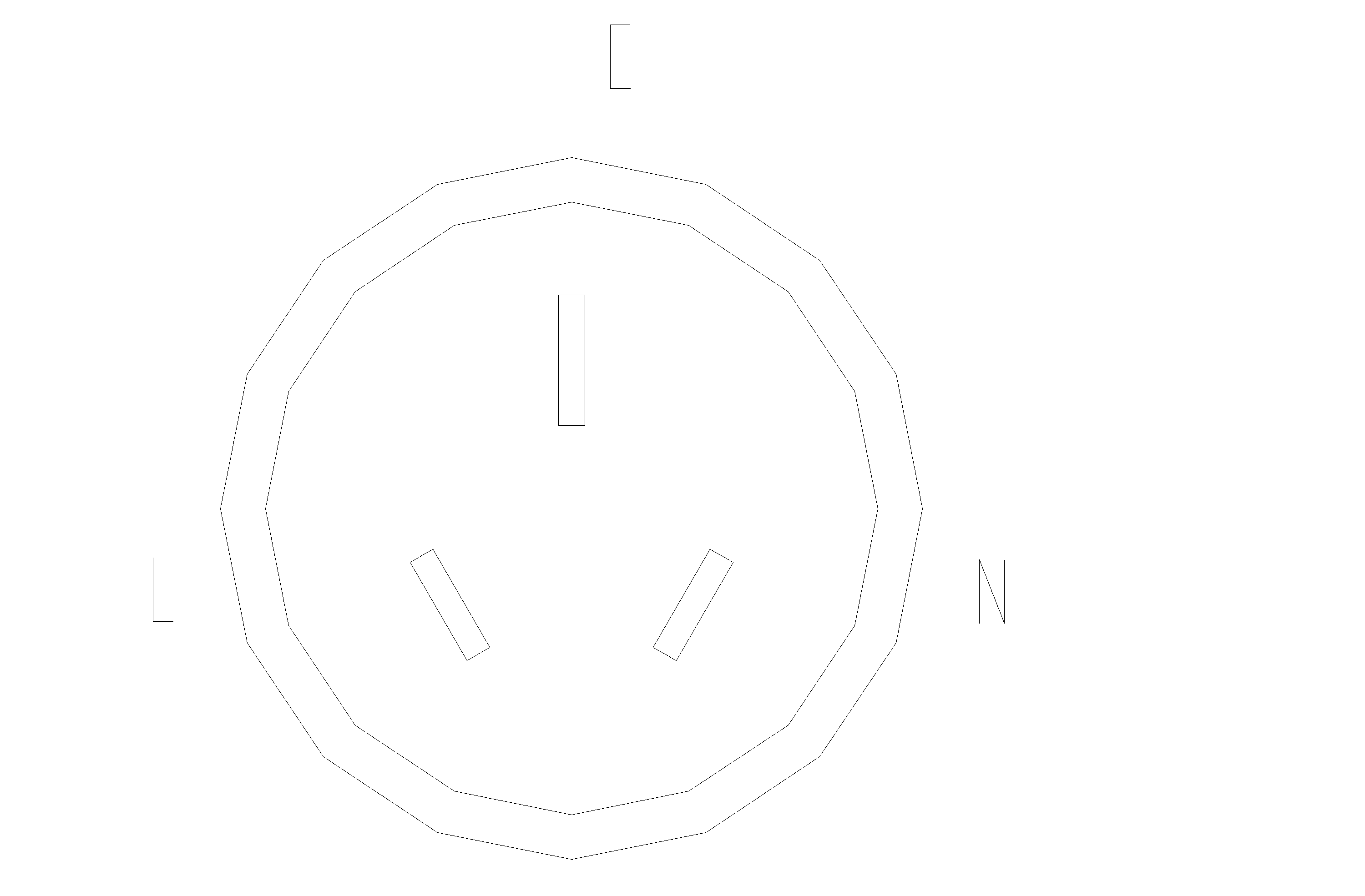

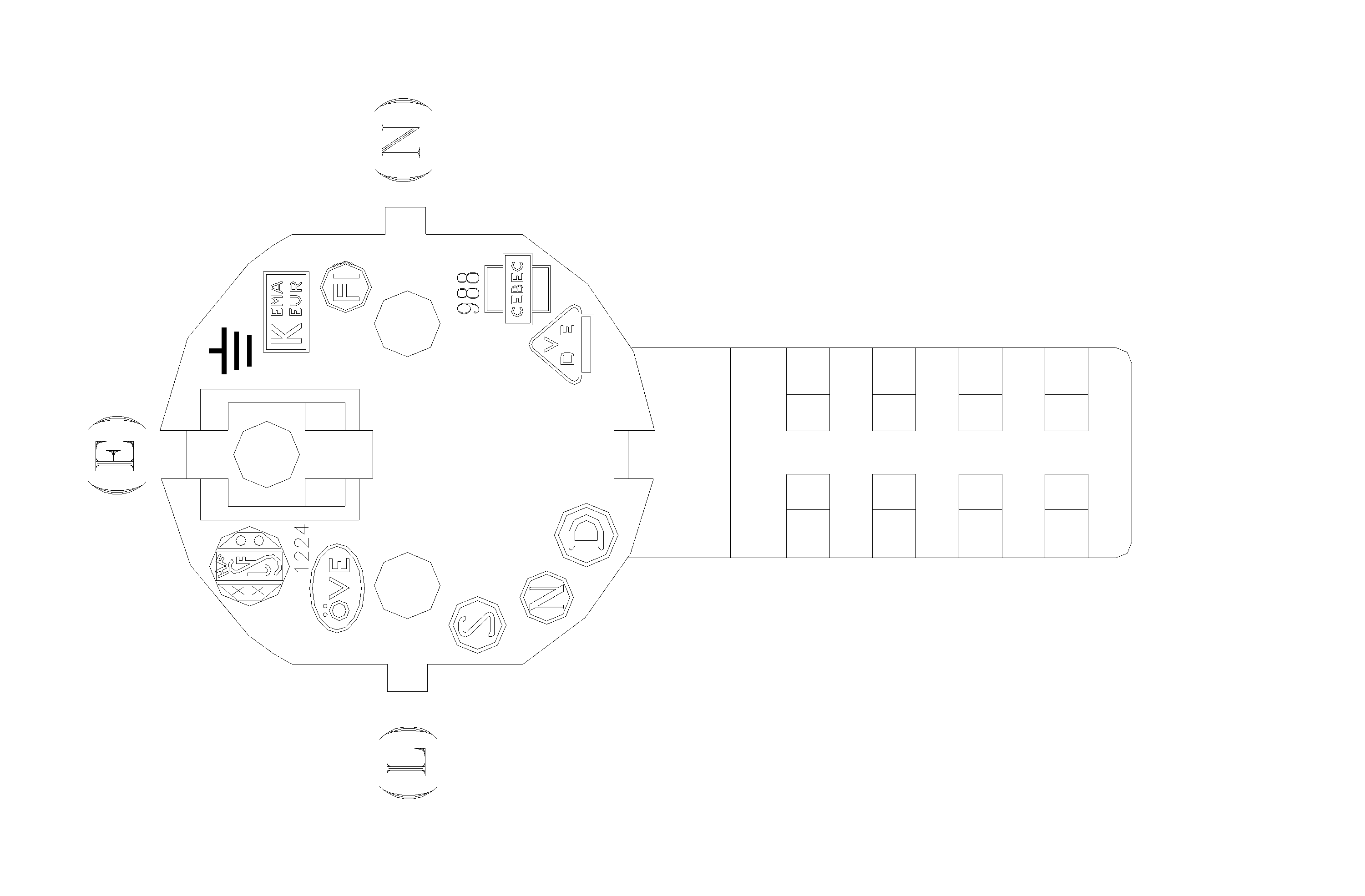

Plug outline |

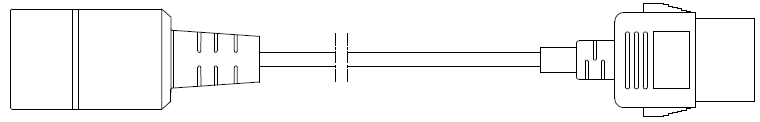

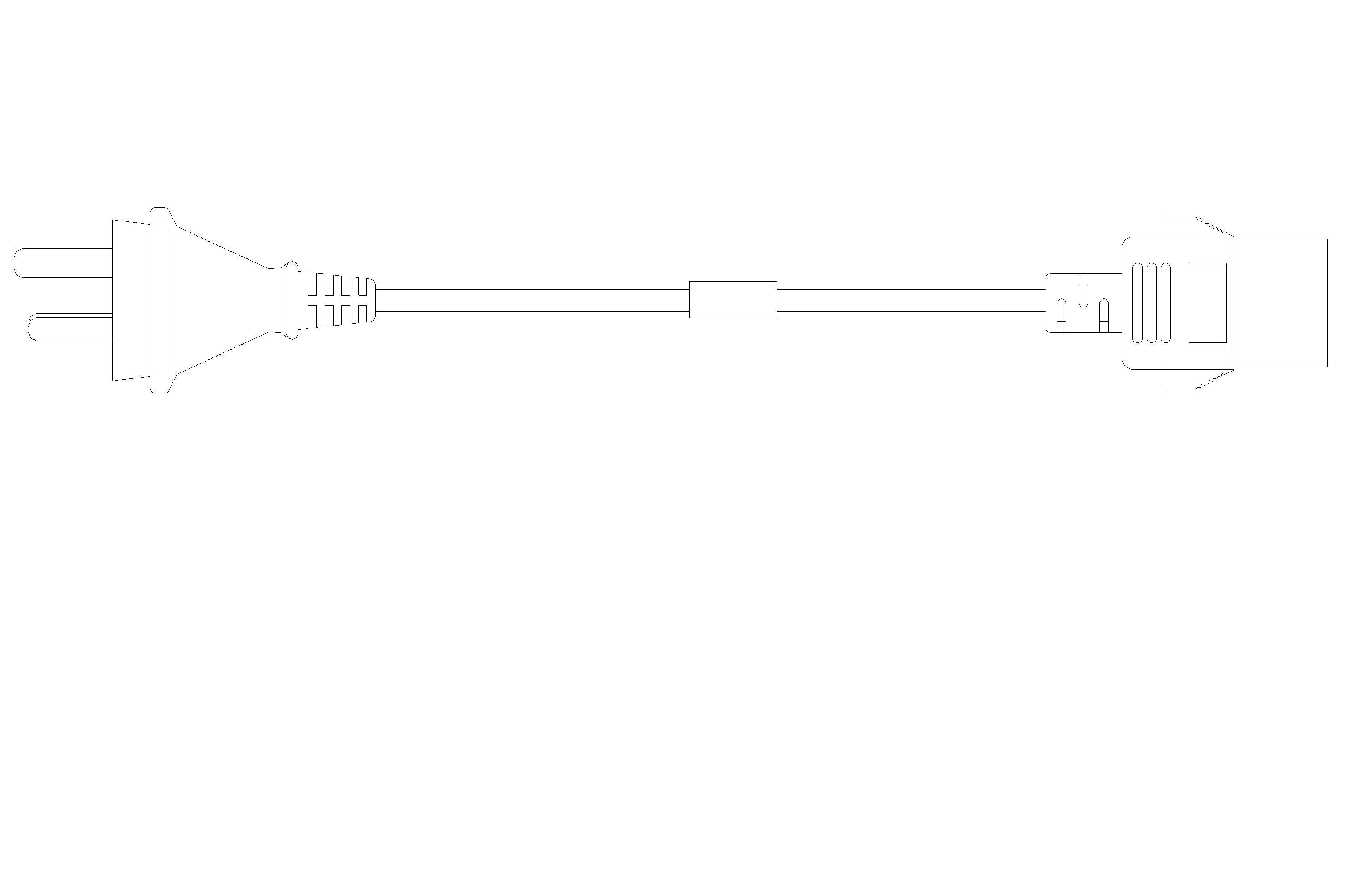

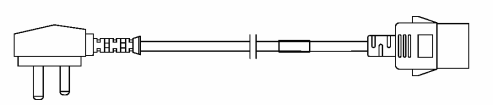

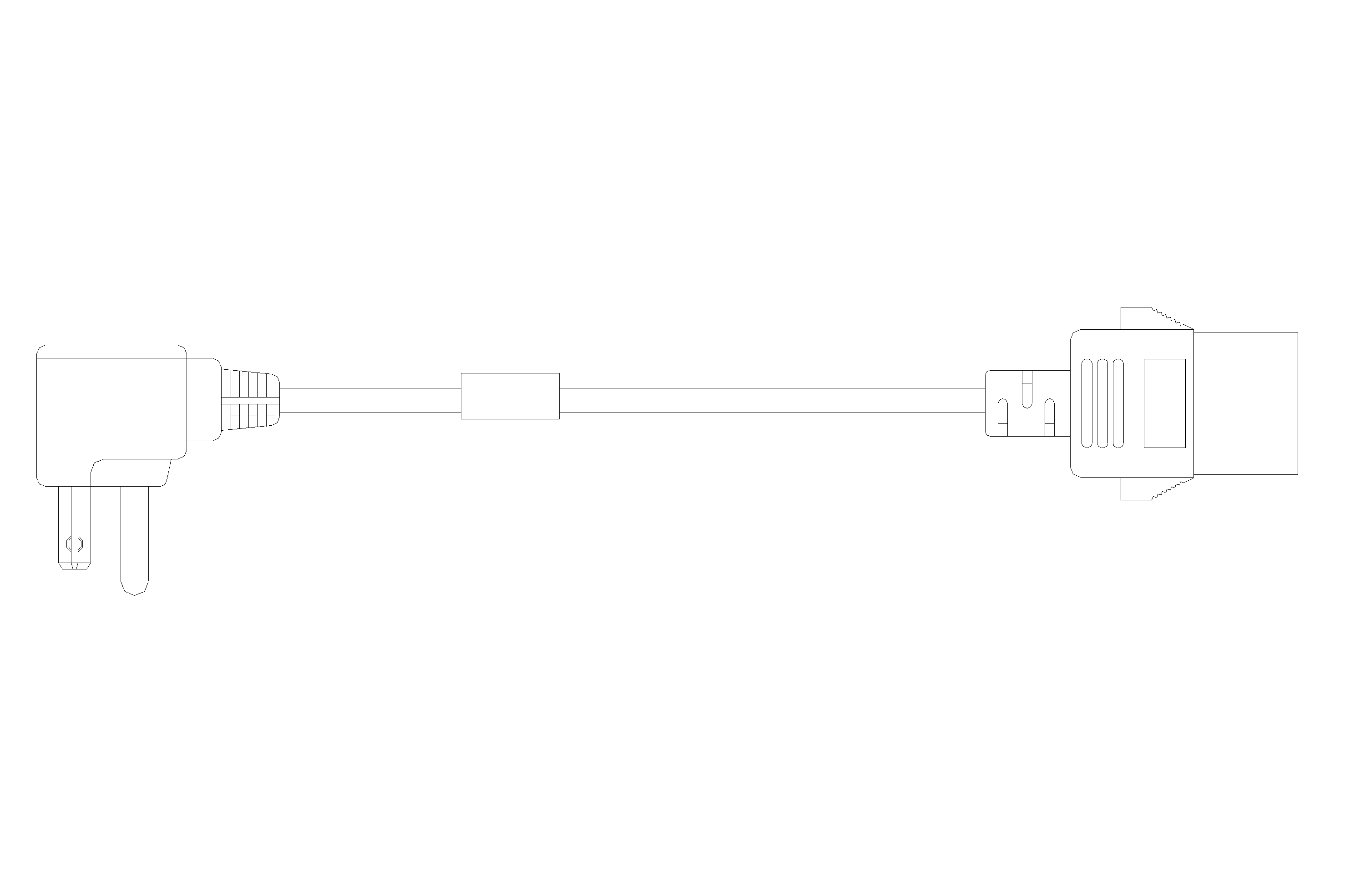

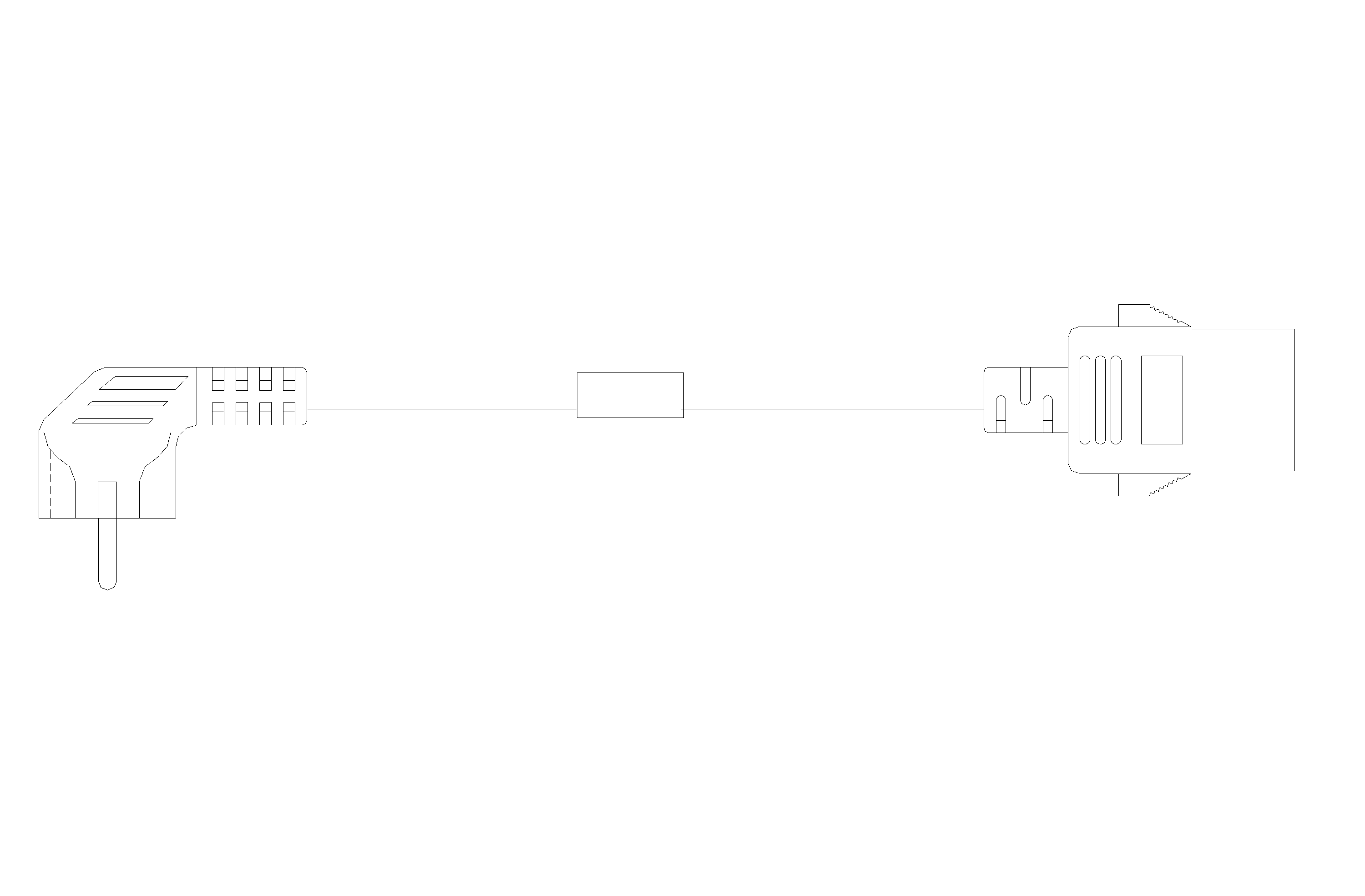

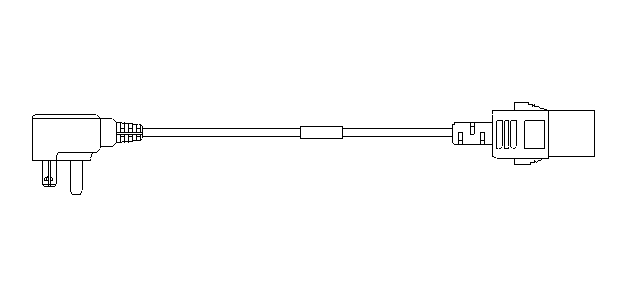

Power cord outline |

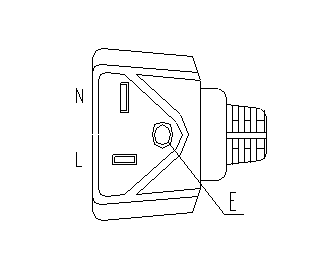

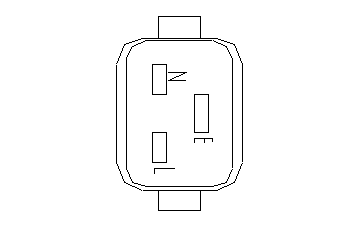

Connector outline |
|||||
|
|
|
|
|||||
|
2 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||
|
C20 type |
0404A0C2 (3 m, or 9.8 ft) |
Mainland China |
N/A |
N/A |
|||
|
Plug outline |
Power cord outline |
Connector outline |
|||||
|
|
|
|
|||||
|
3 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||
|
B type |
0404A063 (3 m, or 9.8 ft) |
Canada and U.S.A |
Mexico, Argentina, Brazil, Columbia, Venezuela, Thailand, Peru, Philippine, and A6 countries or regions |
N/A |
|||
|
Plug outline |
Power cord outline |
Connector outline |
|||||
|
|
|
|
|||||
|
4 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||
|
F type |
0404A061 (3 m, or 9.8 ft) |
Holland, Denmark, Sweden, Finland, Norway, Germany, France, Austria, Belgium, and Italy |
Indonesia, Turkey, Russia, and CIS |
N/A |
|||
|
Plug outline |
Power cord outline |
Connector outline |
|||||
|
|
|
|
|||||
|
5 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||
|
B type |
0404A062 (3 m, or 9.8 ft) |
Japan |
N/A |
N/A |
|||
|
Plug outline |
Power cord outline |
Connector outline |
|||||
|
|
|
|
|||||
|
6 |
Plug type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||
|
I type |
0404A01A (3 m, or 9.8 ft) |
Australia |
N/A |
N/A |
|||
|
Plug outline |
Power cord outline |
Connector outline |
|||||
|
|
|
|
|||||
|
|
NOTE: The connector outline figures shown in the table are connectors for connecting devices. |
PoE power system (optional)
PoE PEM
Table 8-11 PoE PEM specifications
|
Item |
LSUM1PPEMA0 |
LSUM1PPEMB0 |
|
Input voltage range |
–52 to +57 VDC |
–52 to +57 VDC |
|
Input current |
60 A |
2 × 45 A |
|
Compatible device models |
1 × S10506 |
1 × S10510 |
PoE power modules
You can use a maximum of six PoE power modules for an external PoE power frame.
Table 8-12 PoE power module specifications
|
Item |
LSTM2PSRA |
|
Rated input voltage range |
100 VAC to 120 VAC @ 50/60 Hz 200 VAC to 240 VAC @ 50/60 Hz |
|
Maximum input voltage range |
90 VAC to 264 VAC @ 47 to 63 Hz |
|
Maximum input current |
13.3 A |
|
Maximum output power |
1200 W (100 VAC to 120 VAC) 2000 W (200 VAC to 240 VAC) |
PoE power cords
· PoE DC power cords
PoE DC power cords are used to connect the PoE PEMs and PoE external power frames for the S10506 and S10510 switches.
Table 8-13 PoE DC power cord specifications
|
Code |
Length |
Type |
Description |
|
0404A0KC |
3 m (9.84 ft) |
DC power cord |
For the S10506 and S10510 switches and the PSE16KA0 external PoE power frames. |
· PoE AC power cords
PoE AC power cords are used to connect the PoE AC PEMs held in the PoE external power frames and the external AC power source. The connector type varies by country or region. For more information, see Table 8-10.
Fan trays
The switch comes with fan trays installed. If a fan tray fails, select a fan tray compatible with the switch to replace the failed one.
Table 8-14 Fan tray specifications
|
Fan tray |
Number of fans |
Fan diameter |
Maximum air flow rate |
|
S10504 fan tray |
8 |
92 mm (3.62 in) |
680 CFM |
|
S10506 fan tray |
6 × 92 mm fans and 2 × 120 mm fans |
92 mm (3.62 in) |
680 CFM |
|
120 mm (4.72 in) |
680 CFM |
||
|
S10508 fan tray |
8 |
120 mm (4.72 in) |
920 CFM |
|
S10508-V fan tray |
12 |
120 mm (4.72 in) |
840 CFM |
|
S10510 fan tray |
8 |
120 mm (4.72 in) |
920 CFM |
|
S10512 upper fan tray |
8 |
120 mm (4.72 in) |
980 CFM |
|
S10512 lower fan tray |
4 |
120 mm (4.72 in) |
480 CFM |
