7 Appendix A Chassis views and technical specifications
Module power consumption and system power consumption
7 Appendix A Chassis views and technical specifications
Chassis views
This section uses the S10506 and S10510 switches as examples. The figures are for illustration only.
S10506

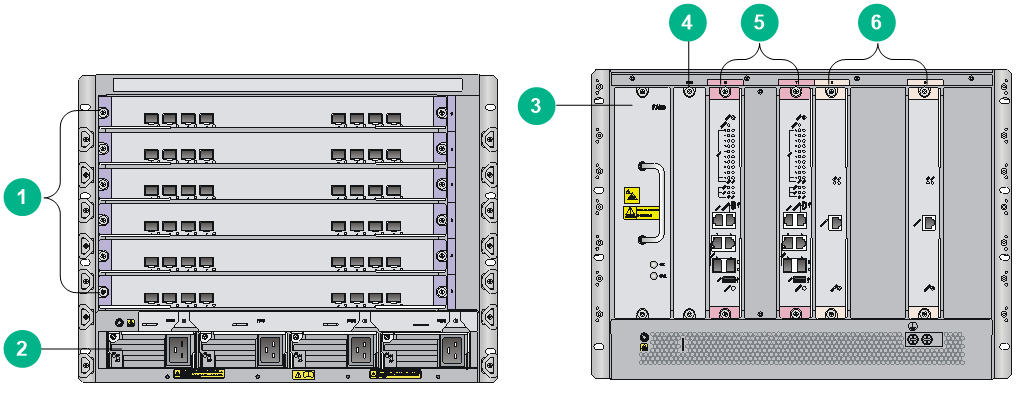

Figure 7-1 S10506 front and rear panels
|
(1) LPU slots (slots 0 to 5) |
(2) Power module |
|
(3) Fan tray |
(4) PoE PEM slot |
|
(5) MPU slots (slots 6 and 7) |
(6) Switching fabric module slots (slots 8 and 9) |
S10510

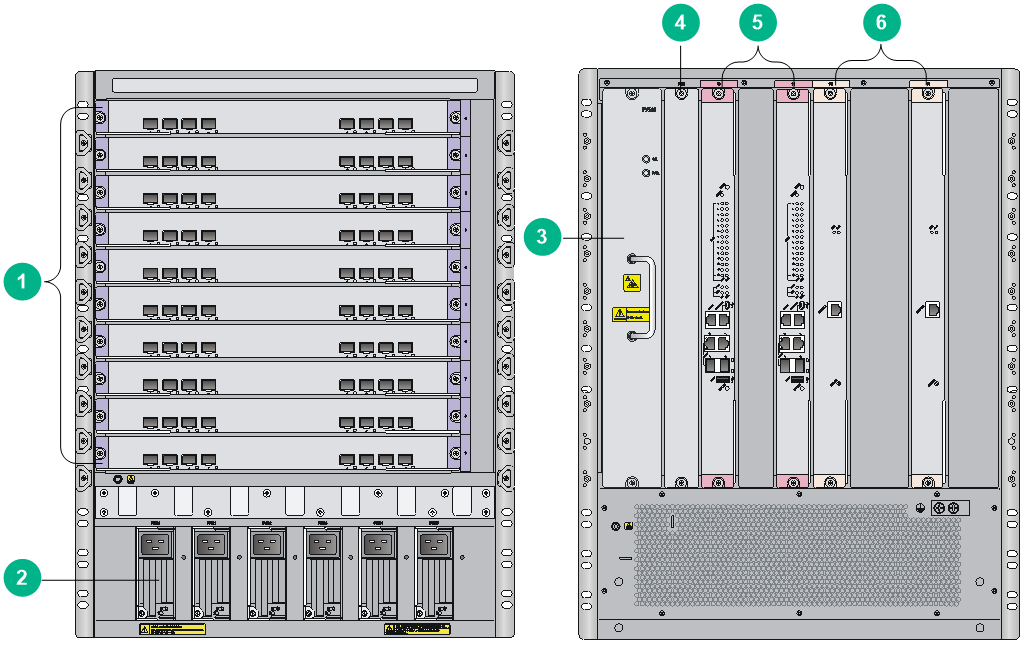

Figure 7-2 S10510 front and rear panels
|
(1) LPU slots (slots 0 to 9) |
(2) Power module |
|
(3) Fan tray |
(4) PoE PEM slot |
|
(5) MPU slots (slots 10 and 11) |
(6) Switching fabric module slots (slots 12 and 13) |
Weights and dimensions
Table 7-1 lists dimensions for the chassis, excluding mounting brackets, cable management brackets, cards, and power modules. Rack height is measured in RUs. One RU is 44.45 mm (1.75 in).
Table 7-1 Switch weights and dimensions
|
Model |
Weight (fully configured) |
Height |
Width |
Depth |
|
S10504 |
< 75 kg (165.34 lb) |
353 mm (13.90 in) (8 RU) |
440 mm (17.32 in) |
660 mm (25.98 in) |
|
S10506 |
< 75 kg (165.34 lb) |
353 mm (13.90 in) (8 RU) |
440 mm (17.32 in) |
660 mm (25.98 in) |
|
S10508 |
< 115 kg (253.53 lb) |
620 mm (24.41 in) (14 RU) |
440 mm (17.32 in) |
660 mm (25.98 in) |
|
S10508-V |
< 130 kg (286.60 lb) |
886 mm (34.88 in) (20 RU) |
440 mm (17.32 in) |
660 mm (25.98 in) |
|
S10510 |
< 115 kg (253.53 lb) |
620 mm (24.41 in) (14 RU) |
440 mm (17.32 in) |
660 mm (25.98 in) |
|
S10512 |
< 150 kg (330.69 lb) |
797 mm (31.38 in) |
440 mm (17.32 in) |
660 mm (25.98 in) |
Table 7-2 lists the cards available for the chassis. The card models in this table are marked on the card panels. For cards that have a prefix of LSU or LSQ on the card panel, the prefix is LSUM or LSQM on the card package. For example, LSU1SUPB0 and LSUM1SUPB0 identify the same card. When you order these cards, use the card model marked on the card package.
Table 7-2 Card weights and dimensions
|
Card model |
Weight |
Height |
Width |
Depth |
|
LSU1SUPA0 |
2.83 kg (6.24 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
LSU1SUPB0 |
2.97 kg (6.55 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
LSUM1SUPC0 |
2.80 kg (6.17 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
LSUM1SUPD0 |
3.05 kg (6.72 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
352 mm (13.86 in) |
|
LSUM1MPU06B0 |
2.00 kg (4.41 lb) |
40 mm (1.57 in) |
264 mm (10.39 in) |
318 mm (12.52 in) |
|
LSUM1MPU10A0 |
2.75 kg (6.06 lb) |
40 mm (1.57 in) |
433 mm (17.05 in) |
318 mm (12.52 in) |
|
LSUM1MPU10C0 |
2.90 kg (6.39 lb) |
40 mm (1.57 in) |
433 mm (17.05 in) |
318 mm (12.52 in) |
|
LSUM2MPU10C0 |
2.97 kg (6.55 lb) |
40 mm (1.57 in) |
433 mm (17.05 in) |
318 mm (12.52 in) |
|
LSU1FAB04A0 |
1.61 kg (3.55 lb) |
40 mm (1.57 in) |
256 mm (10.08 in) |
298 mm (11.73 in) |
|
LSU1FAB04B0 |
1.71 kg (3.77 lb) |
40 mm (1.57 in) |
256 mm (10.08 in) |
298 mm (11.73 in) |
|
LSU1FAB04D0 |
1.71 kg (3.77 lb) |
40 mm (1.57 in) |
256 mm (10.08 in) |
298 mm (11.73 in) |
|
LSUM1FAB06C0 |
1.80 kg (3.97 lb) |
40 mm (1.57 in) |
264 mm (10.39 in) |
318 mm (12.52 in) |
|
LSU1FAB08A0 |
2.53 kg (5.58 lb) |
40 mm (1.57 in) |
426 mm (16.77 in) |
298 mm (11.73 in) |
|
LSU1FAB08B0 |
2.50 kg (5.51 lb) |
40 mm (1.57 in) |
426 mm (16.77 in) |
298 mm (11.73 in) |
|
LSU1FAB08D0 |
2.77 kg (6.11 lb) |
40 mm (1.57 in) |
426 mm (16.77 in) |
298 mm (11.73 in) |
|
LSUM1FAB10A0 |
2.60 kg (5.73 lb) |
40 mm (1.57 in) |
433 mm (17.05 in) |
318 mm (12.52 in) |
|
LSUM1FAB10C0 |
2.75 kg (6.06 lb) |
40 mm (1.57 in) |
433 mm (17.05 in) |
318 mm (12.52 in) |
|
LSUM2FAB10C0 |
2.79 kg (6.15 lb) |
40 mm (1.57 in) |
433 mm (17.05 in) |
318 mm (12.52 in) |
|
LSU1FAB12B0 |
3.98 kg (8.77 lb) |
40 mm (1.57 in) |
602 mm (23.70 in) |
298 mm (11.73 in) |
|
LSU1FAB12D0 |
4.51 kg (9.94 lb) |
40 mm (1.57 in) |
602 mm (23.70 in) |
298 mm (11.73 in) |
|
LSU1CGC2SE0 |
3.97 kg (8.75 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1CGC2EC0 |
4.06 kg (8.95 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1QGC4SF0 |
3.47 kg (7.65 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2CQGS12SG0 |
3.20 kg (7.05 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1CGS2FE0 |
2.82 kg (6.22 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1CGS8SH0 |
3.10 kg (6.83 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1CGS8QSSH0 |
3.30 kg (7.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2TGS32QSSG0 |
3.50 kg (7.72 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2QGS24RSG0 |
3.40 kg (7.50 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1QGS12SG0 |
3.30 kg (7.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2QGS12SG0 |
3.40 kg (7.50 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1YGS24CSSH0 |
3.45 kg (7.61 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1QGS8SF0 |
3.37 kg (7.43 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1QGS4SF0 |
3.14 kg (6.92 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1QGS6EC0 |
3.95 kg (8.71 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP24TXSE0 |
3.08 kg (6.79 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP24TXEA0 |
3.08 kg (6.79 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP24TXEB0 |
3.08 kg (6.79 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1P24XGSE3 |
2.95 kg (6.50 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1T24XGSE3 |
2.92 kg (6.4374 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGX4SE0 |
2.93 kg (6.46 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGX4EA0 |
2.93 kg (6.46 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGX4EB0 |
2.93 kg (6.46 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2GT24PTSSE0 |
2.80 kg (6.17 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2GT24TSSE0 |
2.60 kg (5.73 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1TGS48SH0 |
3.55 kg (7.83 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2TGS48SH0 |
3.55 kg (7.83 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1TGS48RSH0 |
3.55 kg (7.83 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2GP44TSSE0 |
3.00 kg (6.61 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2GP24TSSE0 |
2.85 kg (6.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGS48SF0 |
4.13 kg (9.10 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1GP40TS8FD0 |
3.20 kg (7.05 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2GP40TS8FD0 |
3.20 kg (7.05 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1TGS48SG0 |
3.60 kg (7.94 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2TGS48SG0 |
3.55 kg (7.83 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGS32SF0 |
3.45 kg (7.61 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1TGS24FD0 |
3.05 kg (6.72 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGS16SF0 |
3.16 kg (6.97 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGS16SC0 |
3.03 kg (6.68 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1TGS16FD0 |
2.91 kg (6.42 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2TGS16SF0 |
3.00 kg (6.61 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGS8EA0 |
3.43 kg (7.56 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGS8EB0 |
3.44 kg (7.58 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGS8SF0 |
3.02 kg (6.66 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGS8SE0 |
3.29 kg (7.25 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1GP44TSEC0 |
3.60 kg (7.94 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1TGS24EC0 |
4.15 kg (9.15 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2GP24TSSA0 |
2.85 kg (6.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GT40PSE3 |
3.02 kg (6.66 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP24TSE0 |
3.01 kg (6.64 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP24TSE3 |
2.77 kg (6.11 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP48SE0 |
3.25 kg (7.16 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP48EA0 |
3.25 kg (7.16 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP48EB0 |
3.25 kg (7.16 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2GP48SA0 |
3.00 kg (6.61 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP48SE3 |
3.04 kg (6.70 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP24SE3 |
2.78 kg (6.13 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GP12SE3 |
2.66 kg (5.86 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1GP48FD0 |
3.10 kg (6.83 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1TGT24SF0 |
3.53 kg (7.78 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1TGT24FD0 |
3.40 kg (7.50 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GT48SE3 |
3.09 kg (6.81 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1GT48FD0 |
3.45 kg (7.61 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2GT48SA0 |
2.71 kg (5.97 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GT48SE0 |
3.31 kg (7.30 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GT48EA0 |
3.31 kg (7.30 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2GT48SE0 |
2.71 kg (5.97 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM2GV48SE0 |
3.12 kg (6.88 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1GT24SE3 |
2.72 kg (6.00 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1SPMAEC0 |
3.98 kg (8.77 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSR1DRUP1L1 |
0.39 kg (0.86 lb) |
18 mm (0.71 in) |
165 mm (6.450 in) |
142 mm (5.59 in) |
|
LSU1WCME0 |
4.00 kg (8.82 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU3WCMD0 |
3.62 kg (7.98 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQ1WCMD0 |
3.40 kg (7.4956 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1FWCEA0 |
3.90 kg (8.60 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU3FWCEA0 |
3.90 kg (8.60 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQM1FWDSC0 |
3.80 kg (8.38 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1FWCEAB0 |
3.90 kg (8.60 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1FWDEC0 |
3.80 kg (8.38 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQM1NSDSC0 |
3.80 kg (8.38 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1NSDEC0 |
3.80 kg (8.38 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1WCMX20RT |
4.00 kg (8.82 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1WCMX40RT |
4.00 kg (8.82 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQ2FWBSC0 |
3.23 kg (7.12 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQ1FWBSC0 |
3.23 kg (7.12 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1NSCEA0 |
3.90 kg (8.60 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQ1NSMSC0 |
3.23 kg (7.12 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1IPSBEA0 |
3.90 kg (8.60 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQ1IPSSC0 |
3.23 kg (7.12 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQM1IPSDSC0 |
3.80 kg (8.38 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQ1SSLSC0 |
3.10 kg (6.83 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSU1ADECEA0 |
3.90 kg (8.60 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQ1ACGASC0 |
3.23 kg (7.12 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQM1ACGDSC0 |
3.80 kg (8.38 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1ACGDEC0 |
3.80 kg (8.38 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQM1ADEDSC0 |
3.80 kg (8.38 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQ1LBSC0 |
3.23 kg (7.12 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSQM2FWDSC0 |
3.30 kg (7.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1EPSB0 |
3.25 kg (7.16 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1SDNB0 |
3.25 kg (7.16 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSUM1WBCZ720XRT |
3. 5 kg (7.72 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
|
NOTE: Card dimensions are expressed as follows: · H—Height of the front panel of the card. · W—Width of the front panel of the card. · D—Depth from the front panel of the card to the connector. |
Table 7-3 Power module weights and dimensions
|
Model |
Weight |
Height |
Width |
Depth |
|
LSUM1AC1200 |
2.27 kg (5.00 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
400 mm (15.75 in) |
|
LSUM2AC2500 |
2.50 kg (5.51 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
400 mm (15.75 in) |
|
LSUM1DC2400 |
2.40 kg (5.29 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
400 mm (15.75 in) |
Table 7-4 Fan tray weights and dimensions
|
Fan tray |
Weight |
Height |
Width |
Depth |
|
S10504 fan tray |
4.60 kg (10.14 lb) |
106 mm (4.17 in) |
255 mm (10.04 in) |
643 mm (25.32 in) |
|
S10506 fan tray |
4.50 kg (9.92 lb) |
66 mm (2.60 in) |
263 mm (10.35 in) |
643 mm (25.32 in) |
|
S10508 fan tray |
7.40 kg (16.31 lb) |
107 mm (4.21 in) |
425 mm (16.73 in) |
645 mm (25.39 in) |
|
S10508-V fan tray |
8.45 kg (18.63 lb) |
80 mm (3.15 in) |
440 mm (17.32 in) |
654 mm (25.75 in) |
|
S10510 fan tray |
6.85 kg (15.10 lb) |
66 mm (2.60 in) |
433 mm (17.05 in) |
645 mm (25.39 in) |
|
S10512 upper fan tray |
4.50 kg (9.92 lb) |
84 mm (3.31 in) |
300 mm (11.81 in) |
646 mm (25.43 in) |
|
S10512 lower fan tray |
3.8 kg (8.38 lb) |
84 mm (3.31 in) |
299 mm (11.77 in) |
646 mm (25.43 in) |
Table 7-5 PoE power system module weights and dimensions
|
Module |
Model |
Weight |
Height |
Width |
Depth |
|
PoE PEM |
LSUM1PPEMA0 |
1.80 kg (3.97 lb) |
40 mm (1.57 in) |
264 mm (10.39 in) |
298 mm (11.73 in) |
|
LSUM1PPEMB0 |
3.70 kg (8.16 lb) |
40 mm (1.57 in) |
433 mm (17.05 in) |
298 mm (11.73 in) |
|
|
External PoE power frame |
LSUM1PSE16KA0 |
14.40 kg (31.75 lb) |
88 mm (3.46 in) |
440 mm (17.32 in) |
600 mm (23.62 in) |
|
PoE power module |
LSTM2PSRA |
2.19 kg (4.83 lb) |
41 mm (1.61 in) |
102 mm (4.02 in) |
352 mm (13.86 in) |
Module power consumption and system power consumption
Card power consumption
The power consumption of the cards depends on the card model and state.
· Static power consumption (min)—Power consumed by the card when the card is running but all ports on the card are down and when no transceiver module is available on the optical interface of the card.
· Dynamic power consumption (max)—Power consumed by the card when all the ports on the card are link up and send broadcasts.
Table 7-6 Card power consumption
|
Model |
Static power consumption (min) |
Dynamic power consumption (max) |
|
LSU1SUPA0 |
38 W |
50 W |
|
LSU1SUPB0 |
45 W |
50 W |
|
LSUM1SUPC0 |
33 W |
45 W |
|
LSUM1SUPD0 |
46 W |
52 W |
|
LSUM1MPU06B0 |
40 W |
78 W |
|
LSUM1MPU10A0 |
56 W |
92 W |
|
LSUM1MPU10C0 |
81 W |
145 W |
|
LSUM2MPU10C0 |
58 W |
99 W |
|
LSU1FAB04A0 |
41 W |
50 W |
|
LSU1FAB04B0 |
48 W |
65 W |
|
LSU1FAB04D0 |
60 W |
80 W |
|
LSUM1FAB06C0 |
40 W |
79 W |
|
LSU1FAB08A0 |
68 W |
85 W |
|
LSU1FAB08B0 |
44 W |
60 W |
|
LSU1FAB08D0 |
101 W |
135 W |
|
LSUM1FAB10A0 |
48 W |
70 W |
|
LSUM1FAB10C0 |
69 W |
136 W |
|
LSUM2FAB10C0 |
56 W |
81 W |
|
LSU1FAB12B0 |
107 W |
140 W |
|
LSU1FAB12D0 |
195 W |
255 W |
|
LSU1CGC2SE0 |
163 W |
220 W |
|
LSUM1CGC2EC0 |
144 W |
197 W |
|
LSU1QGC4SF0 |
53 W |
85 W |
|
LSUM2CQGS12SG0 |
55 W |
147 W |
|
LSUM1CGS2FE0 |
55 W |
77 W |
|
LSUM1CGS8SH0 |
58 W |
138 W |
|
LSUM1CGS8QSSH0 |
72 W |
183 W |
|
LSUM2TGS32QSSG0 |
60 W |
147 W |
|
LSUM2QGS24RSG0 |
65 W |
198 W |
|
LSUM1QGS12SG0 |
103 W |
205 W |
|
LSUM2QGS12SG0 |
76 W |
163 W |
|
LSUM1YGS24CSSH0 |
68 W |
161 W |
|
LSU1QGS8SF0 |
100 W |
135 W |
|
LSU1QGS4SF0 |
82 W |
100 W |
|
LSUM1QGS6EC0 |
142 W |
183 W |
|
LSU1GP24TXSE0 |
54 W |
95 W |
|
LSU1GP24TXEA0 |
54 W |
95 W |
|
LSU1GP24TXEB0 |
51 W |
100 W |
|
LSU1P24XGSE3 |
40 W |
55 W |
|
LSU1T24XGSE3 |
50 W |
75 W |
|
LSU1TGX4SE0 |
53 W |
80 W |
|
LSU1TGX4EA0 |
53 W |
80 W |
|
LSU1TGX4EB0 |
53 W |
80 W |
|
LSUM2GT24PTSSE0 |
38 W |
60 W |
|
LSUM2GT24TSSE0 |
35 W |
45 W |
|
LSUM2GP44TSSE0 |
39 W |
70 W |
|
LSUM2GP24TSSE0 |
36 W |
55 W |
|
LSUM1TGS48SH0 |
54 W |
130 W |
|
LSUM2TGS48SH0 |
54 W |
130 W |
|
LSUM1TGS48RSH0 |
47 W |
109 W |
|
LSU1TGS48SF0 |
164 W |
255 W |
|
LSUM1GP40TS8FD0 |
47 W |
96 W |
|
LSUM2GP40TS8FD0 |
45 W |
84 W |
|
LSUM1TGS48SG0 |
107 W |
215 W |
|
LSUM2TGS48SG0 |
82 W |
173 W |
|
LSU1TGS32SF0 |
126 W |
170 W |
|
LSUM1TGS24FD0 |
50 W |
104 W |
|
LSU1TGS16SF0 |
98 W |
115 W |
|
LSU1TGS16SC0 |
84 W |
115 W |
|
LSUM1TGS16FD0 |
54 W |
96 W |
|
LSUM2TGS16SF0 |
45 W |
75 W |
|
LSU1TGS8EA0 |
111 W |
140 W |
|
LSU1TGS8EB0 |
117 W |
170 W |
|
LSU1TGS8SF0 |
81 W |
95 W |
|
LSU1TGS8SE0 |
104 W |
135 W |
|
LSUM1GP44TSEC0 |
110 W |
125 W |
|
LSUM1TGS24EC0 |
153 W |
209 W |
|
LSUM2GP24TSSA0 |
31 W |
50 W |
|
LSU1GT40PSE3 |
41 W |
95 W |
|
LSU1GP24TSE0 |
47 W |
75 W |
|
LSU1GP24TSE3 |
25 W |
45 W |
|
LSU1GP48SE0 |
44 W |
95 W |
|
LSU1GP48EA0 |
44 W |
95 W |
|
LSU1GP48EB0 |
43 W |
110 W |
|
LSUM2GP48SA0 |
34 W |
65 W |
|
LSU1GP48SE3 |
43 W |
85 W |
|
LSU1GP24SE3 |
38 W |
55 W |
|
LSU1GP12SE3 |
26 W |
35 W |
|
LSUM1GP48FD0 |
49 W |
78 W |
|
LSU1TGT24SF0 |
103 W |
190 W |
|
LSUM1TGT24FD0 |
60 W |
112 W |
|
LSU1GT48SE3 |
60 W |
90 W |
|
LSUM1GT48FD0 |
48 W |
65 W |
|
LSUM2GT48SA0 |
33 W |
47 W |
|
LSU1GT48SE0 |
67 W |
95 W |
|
LSU1GT48EA0 |
67 W |
95 W |
|
LSUM2GT48SE0 |
37 W |
51 W |
|
LSUM2GV48SE0 |
37 W |
51 W |
|
LSU1GT24SE3 |
42 W |
50 W |
|
LSUM1SPMAEC0 |
94 W |
105 W |
|
LSR1DRUP1L1 |
14 W |
18 W |
|
LSU1WCME0 |
125 W |
180 W |
|
LSU3WCMD0 |
118 W |
150 W |
|
LSQ1WCMD0 |
86 W |
117 W |
|
LSU1FWCEA0 |
109 W |
157 W |
|
LSU3FWCEA0 |
109 W |
157 W |
|
LSQM1FWDSC0 |
115 W |
123 W |
|
LSUM1FWCEAB0 |
109 W |
157 W |
|
LSUM1FWDEC0 |
156 W |
170 W |
|
LSQM1NSDSC0 |
115 W |
123 W |
|
LSUM1NSDEC0 |
156 W |
170 W |
|
LSUM1WCMX20RT |
125 W |
180 W |
|
LSUM1WCMX40RT |
125 W |
180 W |
|
LSQ2FWBSC0 |
80 W |
104 W |
|
LSQ1FWBSC0 |
80 W |
104 W |
|
LSU1NSCEA0 |
109 W |
157 W |
|
LSQ1NSMSC0 |
80 W |
104 W |
|
LSU1IPSBEA0 |
109 W |
157 W |
|
LSQ1IPSSC0 |
80 W |
104 W |
|
LSQM1IPSDSC0 |
116 W |
124 W |
|
LSQ1SSLSC0 |
80 W |
89 W |
|
LSU1ADECEA0 |
109 W |
157 W |
|
LSQ1ACGASC0 |
80 W |
104 W |
|
LSQM1ACGDSC0 |
116 W |
124 W |
|
LSUM1ACGDEC0 |
157 W |
170 W |
|
LSQM1ADEDSC0 |
116 W |
124 W |
|
LSQ1LBSC0 |
80 W |
104 W |
|
LSQM2FWDSC0 |
60 W |
66 W |
|
LSUM1EPSB0 |
106 W |
126 W |
|
LSUM1SDNB0 |
106 W |
126 W |
|
LSUM1WBCZ720XRT |
160 W |
210 W |
Fan tray power consumption
The switch uses fan trays that can automatically adjust the fan speed based on the heat dissipation condition of the switch. The power consumed by a fan tray depends on the fan speed. Table 7-7 shows the power consumption of different fan trays.
Table 7-7 Fan tray power consumption
|
Model |
Minimum fan tray power consumption |
Maximum fan tray power consumption |
|
S10504 |
12 W |
240 W |
|
S10506 |
19 W |
195 W |
|
S10508 |
11 W |
234 W |
|
S10508-V |
13 W |
329 W |
|
S10510 |
21 W |
255 W |
|
S10512 (upper fan tray) |
9 W |
200 W |
|
S10512 (lower fan tray) |
7 W |
124 W |
Power consumption
For the S10504, S10508, S10508-V, or S10512, the total power consumption of the switch equals its system power consumption.
For the S10506 or S10510, the total power consumption of the switch equals its system power consumption plus its PoE power consumption.
System power consumption
The system power consumption of the switch depends on the type and number of cards and the fan tray power consumption.
· The minimum system power consumption is the total static power consumption of all cards plus the minimum fan tray power consumption. For example, for an S10506 switch that has two LSUM1MPU06B0 MPUs, two LSUM1CGC2EC0 LPUs, two LSUM1FAB06C0 switching fabric modules, and one fan tray, the minimum system power consumption of the switch is 2 × 40 + 2 × 144 + 2 × 40 + 19 = 467 W.
· The maximum system power consumption is the total dynamic power consumption of all cards plus the maximum fan tray power consumption. For example, for an S10506 switch that has two LSUM1MPU06B0 MPUs, two LSUM1CGC2EC0 LPUs, two LSUM1FAB06C0 switching fabric modules, and one fan tray, the maximum system power consumption of the switch is 2 × 78 + 2 × 197 + 2 × 79 +195 = 903 W.
Table 7-8 lists the max power consumption for each model of the S10500 in full and max configuration.
· Max system power consumption (full and max configuration)—Max system power consumption when the switch is fully configured with cards and fan trays that have the highest power consumptions.
· Max card and fan tray power consumption (full and max configuration)—Max card and fan tray power consumption when the switch is fully configured with cards and fan trays that have the highest power consumptions.
Table 7-8 Max system/Max card and fan tray power consumption in full and max configuration
|
Model |
Max system power consumption (full and max configuration) |
Max card and fan tray power consumption (full and max configuration) |
|
S10504-AC |
1900 W |
1680 W |
|
S10504-DC |
1890 W |
1680 W |
|
S10506-AC |
2300 W |
2039 W |
|
S10506-DC |
2290 W |
2039 W |
|
S10508-AC |
3290 W |
2914 W |
|
S10508-DC |
3270 W |
2914 W |
|
S10508-V-AC |
3400 W |
3009 W |
|
S10508-V-DC |
3380 W |
3009 W |
|
S10510-AC |
3800 W |
3367 W |
|
S10510-DC |
3780 W |
3367 W |
|
S10512-AC |
5080 W |
4504 W |
|
S10512-DC |
5060 W |
4504 W |
PoE power consumption
The power over Ethernet (PoE) power consumption refers to the power that all powered devices (PDs) receive from the switch.
The PoE power consumption is decided by the following items:
· Number of the PoE cards installed on the switch. The LSUM2GV48SE0 PoE card is available for the switch.
On the S10506 switch, only slots 0 to 3 support the LSUM2GV48SE0 PoE cards. On the S10510 switch, only slots 0 to 5 support the LSUM2GV48SE0 PoE cards.
· Number of the power interfaces (PIs) that each PoE card provides.
An LSUM2GV48SE0 PoE card provides 48 PIs. The power for each port is 0 to 30 W.
· Maximum power of each PoE card.
The maximum power of an LSUM2GV48SE0 PoE card is 800 W.
For example, for an S10506 switch that is installed with three LSUM2GV48SE0 PoE cards, the maximum PoE power consumption is 2400 W (800 W × 3).
|
|
NOTE: For information about PoE power supply, see "(Optional) Setting up a PoE system." |
Heat dissipation
Heat dissipation is measured in BTU/h, and 1 W equals 3.4121BTU/h.
The heat dissipation of a switch depends on its power consumption. To calculate heat dissipation of the switch, assume 90% power consumption is converted to heat, and the efficiency of the power module is 90%. Heat dissipation/hour of the switch is 0.9 × (total power consumption of the cards plus power consumption of the fan tray)/0.9 × 3.4121.
Table 7-9 shows the heat dissipation for each switch model.
|
Model |
Heat dissipation (BTU/h) |
|
S10504 |
5732 |
|
S10506 |
6957 |
|
S10508 |
9943 |
|
S10508-V |
10267 |
|
S10510 |
11489 |
|
S10512 |
15369 |
For the power consumption of the cards and fan trays of the H3C S10500 Switch Series, see "Module power consumption and system power consumption."
Environmental specifications
Table 7-10 Environmental specifications
|
Item |
Operating environment |
Storage environment |
|
Temperature |
0°C to 45°C (32°F to 113°F) |
–40°C to +70°C (–40°F to +158°F) |
|
Relative humidity |
5% to 95% (non-condensing) |
5% to 95% (non-condensing) |
Noise
The switch uses fan trays that can adjust the fan speed automatically based on the device temperature. The sound pressure levels vary by fan speed. For more information, see Table 7-11.
Table 7-11 Sound pressure levels
|
Model |
Sound pressure level in the acceptable temperature range |
Sound pressure level when the fan tray operates at full speed |
|
S10504 |
62.3 dBA |
75.5 dBA |
|
S10506 |
66.9 dBA |
74.4 dBA |
|
S10508 |
63 dBA |
75.8 dBA |
|
S10508-V |
61.6 dBA |
72.6 dBA |
|
S10510 |
63 dBA |
75.8 dBA |
|
S10512 |
66 dBA |
79 dBA |
