Chapter 1  Product Overview

1.1  Introduction

1.1.1  Introduction to S7500 Series Ethernet Switches

H3C S7500 Series Ethernet Switches (hereinafter referred to as the S7500 series) are modular, large-capacity L2/L3 Ethernet switches that support wire-speed forwarding. The S7500 series are designed for IP metropolitan area networks (MANs), large enterprise networks, and campus networks.

Together with Huawei MA5200 Ethernet Access Management Systems, H3C S3100/S3600/S5600/S9500 Series Ethernet Switches, and H3C series routers, the S7500 series can provide comprehensive networking solutions for MANs and enterprise networks.

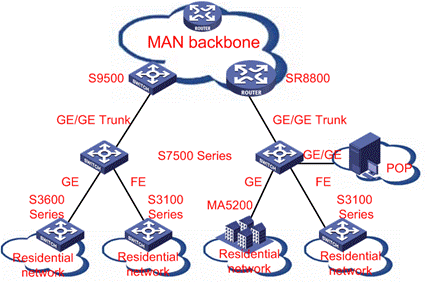

Figure 1-1 S7500 series in MAN

The S7500 series support AC and DC power supply redundancy, and now include the models S7502, S7503, S7506, and S7506R.

l           The S7502 provides one switching & routing processing unit (SRPU) slot and one line processing unit (LPU) slot. Both the SRPU and LPU can provide high-density service ports.

l           The S7503 provides one SRPU slot and three LPU slots.

l           The S7506 provides one SRPU slot and six LPU slots.

l           The S7506R provides two SRPU slots for redundancy backup and six LPU slots.





1.1.2  Introduction to Switching Engines

Switching engines, also known as SRPUs, are the core of the S7500 series, and include the following models:

l           Salience III (LS81SRPG)

l           Salience III Plus (LS81SRPG1)

l           Salience III Edge (LS81SRPG3)

An SRPU generally has the following functions:

l           L2 and L3 data forwarding between LPUs

l           Route calculation

l           LPU monitoring

l           Processing of monitoring signals of components such as the system power and fans

Salience III series SRPUs provide a high packet forwarding rate and switching capacity. Each SRPU provides four 1000Base-X SFP ports (only for Salience III and Salience III Edge) and one hot-swappable CF card port. The CF card stores the log and host version to facilitate online software upgrade.

1.2  Technical Specifications for SRPUs

Table 1-1 Technical specifications for SRPUs

Item	Salience III	Salience III Plus	Salience III Edge
Switching capacity	384 Gbps[1]	768 Gbps[1]	96 Gbps
Packet forwarding rate	198 Mpps[1]	432 Mpps[1]	72 Mpps
Number of VLANs	4 K	4 K	4 K
MAC address table size	32 K[2]	32 K[2]	32 K
IP address table size	64 K[3]	64 K[3]	64 K



[1]: This is the switching capacity when load sharing is implemented by configuring two Salience III/Salience III plus engines on the S7506R.

[2]: Extendable.

[3]: Extendable up to 256 K.

1.3  Salience III Series SRPUs

Salience III series SRPUs include:

l           Salience III: If load sharing is implemented on the S7506R, the switching capacity can be up to 384 Gbps. It provides an XG high speed bus, supporting LPUs applying an XG high speed bus.

l           Salience III Plus: If load sharing is implemented on the S7506R, the switching capacity can be up to 768 Gbps. It provides XG high speed bus, supporting LPUs applying an XG high speed bus.

l           Salience III Edge: The switching capacity is 96 Gbps.

The Salience III series SRPUs provide one console port, one 10Base-T /100Base-TX port, four 1000Base-X-SFP ports (only for Salience III and Salience III Edge), and one port for a hot-swappable CF card, which stores the host version to facilitate the online software upgrade.





The following figures show the appearance of these three SRPU models.

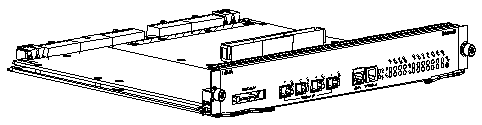

Figure 1-2 Salience III

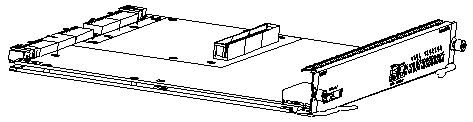

Figure 1-3 Salience III Plus

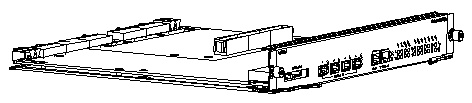

Figure 1-4 Salience III Edge

1.3.1  Applicable Switch Models

l           S7503 Ethernet Switch

l           S7506 Ethernet Switch

l           S7506R Ethernet Switch





1.3.2  Technical Specifications

Table 1-2 Technical specifications for Salience III series SRPUs

Item	Salience III (LS81SRPG)	Salience III Plus (LS81SRPG1)		Salience III Edge (LS81SRPG3)
CPU	MPC8245, 300 MHz
Boot ROM	512 KB
Flash memory	32 MB
SDRAM	256 MB
Dimensions (H x W x D)	45.1 × 376.7 × 354.5 mm (1.8 × 14.8 × 14 in.)
Number of ports	l      One console port, supporting local configuration management or remote configuration management through dialup connection l      One 10Base-T/100Base-TX port for upgrade and network management l      One port for a hot-swappable CF card
	Four 1000Base-X-SFP optical ports		—	Four 1000Base-X-SFP optical ports
Max power consumption	80 W





1.3.3  Panel and LEDs

You can find one CF card port, four 1000Base-X-SFP ports (only for Salience III and Salience III Edge), one console port, one 10Base-T/100Base-TX port, system status LEDs, and one RESET button on the panel of a Salience III Series SRPU, as shown in Figure 1-5.

(1) SFP port number	(2) SFP port (Gigabit)
(3) Console port	(4) Management Ethernet port
(5) LINK LED of the management Ethernet port	(6) ACT LED of the management Ethernet port
(7) RUN LED of LPU	(8) ALM LED of LPU
(9) RUN LED of SRPU	(10) ALM LED of SRPU
(11) Silkscreen	(12) Captive screw
(13) SRPU edge (pink)	(14) RESET button
(15) Ejector lever	(16) OK LED of the power
(17) FAIL LED of the power	(18) OK LED of the fan
(19) FAIL LED of the fan	(20) SFP port status LED
(21) CF card port	(22) Button for ejecting the CF card

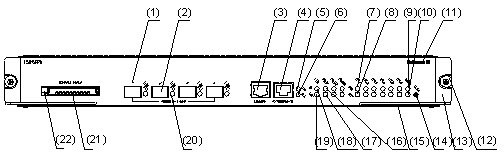

Figure 1-5 Panel of a Salience III Series SRPU (LS81SRPG)





1.3.4  Ports

I. CF card port

The port supports standard CF cards. The CF card stores the host version to facilitate the online software upgrade.





II. Console port

The console port uses an RJ-45 connector and common asynchronous serial cable to connect to a terminal computer for local debugging, configuration, maintenance, management, and program loading, or connect to a Modem for remote system debugging, configuration, maintenance, and management.

Table 1-3 Technical specifications for the console port

Item	Specification
Connector type	RJ-45
Number of ports	1
Compliant standard	Asynchronous EIA/TIA-232
Baud rate	≤ 115,200 bps, defaulting to 9,600 bps
Transmission distance	≤ 15 m (49 ft)
Function and service	l      Connected to the character terminal l      Connected to a serial port of a local PC or remote PC through a pair of Modems and run the terminal emulation on the PC



III. Management Ethernet port (10Base-T/100Base-TX)

The port uses an RJ-45 connector to connect to a computer for program loading and system debugging, or to a remote network management workstation for remote system management.

Table 1-4 Technical specifications for the management Ethernet port

Item	Description
Connector type	RJ-45
Number of ports	1
Port speed	l      10/100 Mbps, half-/full-duplex l      MDI/MDI-X auto-sensing
Transmission medium and maximum transmission distance	Category-5 twisted pair with a maximum transmission distance of 100 m (328 ft)
Function and service	Used for the switch’s software upgrade and network management



The following table describes the port status LEDs.

Table 1-5 10Base-T/100Base-TX port LED state description

LED	State	Description
LINK	OFF	No link is present.
	ON	A link is present.
ACT	OFF	No data is being transmitted or received.
	Blinking	Data is being transmitted or received.





IV. 1000Base-X-SFP ports (only for Salience III and Salience III Edge)

Salience III series (only Salience III and Salience III Edge) SRPUs each provide four 1000 Mbps full-duplex SFP ports. Table 1-6 describes the cables used for the 1000Base-X-SFP ports.

Table 1-6 Cables for 1000Base-X-SFP ports

SFP module	Central wavelength	Connector	Matching cable	Maximum transmission distance
SFP-GE-SX-MM850-A	850 nm	LC	50 µm/125 µm multimode optical fiber	550 m (1,804 ft)
			62.5 µm/125 µm multimode optical fiber	275 m (902 ft)
SFP-GE-LX-SM1310-A	1,310 nm	LC	9 µm/125 µm single-mode optical fiber	10 km (6 mi)
SFP-GE-LH40-SM1310				40 km (about 25 mi)
SFP-GE-LH40-SM1550	1,550 nm	LC	9 µm/125 µm single-mode optical fiber	40 km (about 25 mi)
SFP-GE-LH70-SM1550				70 km (43 mi)
SFP-GE-LH100-SM1550				100 km (62 mi)
SFP-GE-LH70-SM1470-CW	1,470 nm	LC	9 µm/125 µm single-mode optical fiber	70 km (43 mi)
SFP-GE-LH70-SM1490-CW	1,490 nm	LC	9 µm/125 µm single-mode optical fiber	70 km (43 mi)
SFP-GE-LH70-SM1510-CW	1,510 nm	LC	9 µm/125 µm single-mode optical fiber	70 km (43 mi)
SFP-GE-LH70-SM1530-CW
1,530 nm	LC	9 µm/125 µm single-mode optical fiber	70 km (43 mi)
SFP-GE-LH70-SM1550-CW	1,550 nm	LC	9 µm/125 µm single-mode optical fiber	70 km (43 mi)
SFP-GE-LH70-SM1570-CW	1,570 nm	LC	9 µm/125 µm single-mode optical fiber	70 km (43 mi)
SFP-GE-LH70-SM1590-CW	1,590 nm	LC	9 µm/125 µm single-mode optical fiber	70 km (43 mi)
SFP-GE-LH70-SM1610-CW	1,610 nm	LC	9 µm/125 µm single-mode optical fiber	70 km (43 mi)
SFP-GE-T	—	RJ-45	—	100 m (328 ft)



Table 1-7 describes the 1000Base-X-SFP port status LED.

Table 1-7 Description of the 1000Base-X-SFP port status LED

LED	State	Description
LINK/ACT	OFF	No link is present.
	ON	A link is present
	Blinking	Data is being transmitted or received.



1.3.5  System Status LEDs





I. Board LEDs

SRPG: The LEDs of the SRPG show the status of the SRPU.

LPU1, LPU2, LPU3 (LPU4, LPU5, LPU6): The LEDs of these LPUs respectively show the status of three LPUs (for the S7503), or six LPUs (for the S7506 or S7506R).

Table 1-8 Description of board LEDs

LED	Description
RUN (Green)	l      ON or OFF: The board is faulty or the board is not in position. l      Blinking (0.5 Hz): The board operates normally.
ALM (Red)	l      OFF: The board operates normally or the board is not in position. l      ON: The board is faulty.





II. Power LEDs (PWR1, PWR2 and PWR3)

PWR1, PWR2 and PWR3: The LEDs of the PWR1, PWR2 and PWR3 respectively show the status of the three (AC or DC) power modules.

Table 1-9 Description of the power LEDs

LED	Description
OK (Green)	l      ON: The power module operates normally. l      OFF: The power module is faulty or not in position.
FAIL (Red)	l      ON: The power module is faulty. l      OFF: The power module operates normally or is not in position.





III. Fan tray LEDs (FAN)

FAN: The LEDs of the fan tray show the status of the fan tray.

Table 1-10 Description of fan tray LEDs

LED	State description
OK (Green)	ON: The fan tray operates normally. OFF: The fan tray is faulty or the fan tray is not in position.
FAIL (Red)	ON: The fan tray is faulty or the fan tray is not in position. OFF: The fan tray operates normally.



1.3.6  RESET Button

l           If a switch is equipped with one SRPU, the switch will be reset after you press the RESET button.

l           If the S7506R is equipped with two SRPUs, the active SRRU is reset and the standby SRPU immediately becomes the active SRPU after you press the RESET button.

1.4  Compatibility Matrix Between SRPU, Chassis and LPU

1.4.1  Compatibility Matrix Between SRPU and Chassis

Table 1-11 Compatibility matrix between SRPU and chassis

SRPU Chassis	Salience III	Salience III Plus	Salience III Edge
S7503 XGbus	√	√	√
S7506 XGbus	√	√	√
S7506R XGbus	√	√	√



1.4.2  Compatibility Matrix Between SRPU and LPU

Table 1-12 Compatibility Between SRPU and LPU

SRPU LPU	Salience III	Salience III Plus	Salience III Edge
LS81FT48E	√	√	√
LS81FT48F	√	√	√
LS81FP48	√	√	√
LS81GT8UE	√	—	√
LS82GT20	√	√	√
LS82GT20A	√	√	√
LS81GT48	√	√	√
LS81GT48A	√	√	√
LS81GT48B	√	√	-
LS81T12P	√	√	√
LS81T12PE	√	√	√
LS81T16P	√	√	—
LS81T32P	√	√	—
LS81P12T	√	√	√
LS81P12TE	√	√	√
LS81GP8UB	√	—	√
LS82GP20	√	√	√
LS82GP20A	√	√	√
LS81GP48	√	√	—
LS81TGX1C	√	√	√
LS81TGX2	√	√	—
LS81TGX4	√	√	—
LS81VSNP	√	√	—



1.5  Physical Description of the S7500 Series

1.5.1  Chassis and Slots

The integrated chassis of the S7500 series consists of a board area, fan area, power supply area, and power distribution area.

XGbus is silkscreened on the S7500 series chassis (hereinafter referred to as the S7500 XGbus). The backplane of the S7500 series supports XG high speed bus, and thus can provide even higher switching capacity.

Depending on the input power, the chassis of the S7500 series can be divided into AC chassis and DC chassis.

S7503:

l           S7503-AC-XG-PoE: PoE-capable S7503 XGbus AC chassis

l           S7503-DC-XG-PoE: PoE-capable S7503 XGbus AC chassis

S7506:

l           S7506-AC-XG-PoE: PoE-capable S7506 XGbus AC chassis

l           S7506-DC-XG-PoE: PoE-capable S7506 XGbus DC chassis

S7506R:

l           S7506R-AC-XG-PoE: PoE-capable S7506R XGbus AC chassis

l           S7506R-DC-XG-PoE: PoE-capable S7506R XGbus DC chassis





I. S7503

Figure 1-6 shows the chassis and slots of the S7503.

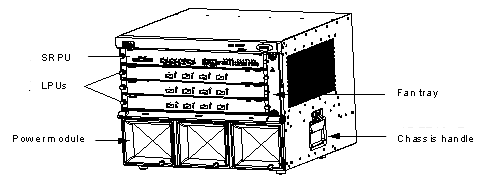

Figure 1-6 Chassis of the S7503

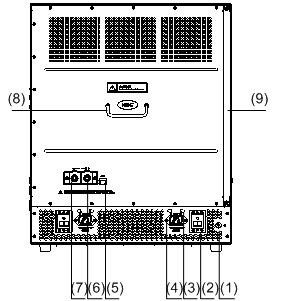

Figure 1-7 shows the chassis back of the S7503.

(1) Grounding screw	(2) Power switch of power distribution box
(3) Bail latch	(4) Socket of AC power distribution box
(5) COM port (PSE monitoring port)	(6) RTN (+) terminal of the PoE power input:
(7) NEG (-) terminal of the PoE power input	(8) Handle on the rear panel
(9) Air filter

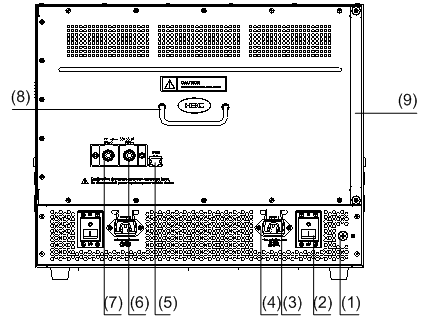

Figure 1-7 Rear view of the S7503 chassis (S7503-AC-XG-PoE chassis in the example)





Each area is hot-swappable.

l           In the board area, there are four horizontal slots. The topmost slot is  for a required SRPU and the other three are for optional LPUs.

l           The fan area is on the right of the chassis. The fan tray slot is vertical.

l           The power supply area is at the bottom of the chassis. The power modules work in 1+1 redundancy mode and they support dual AC or DC power supply. You can select either AC power supply or DC power supply as required.

l           The power distribution area is at the chassis bottom near to the rear panel. There is an AC power distribution box for AC power input or a DC power distribution box for DC power input.

l           There are a –48 VDC power input terminal and a COM port (PoE management Ethernet port) on the back of the PoE-capable S7503 XGbus chassis.

II. S7506

Figure 1-8 shows the chassis and slots of the S7506.

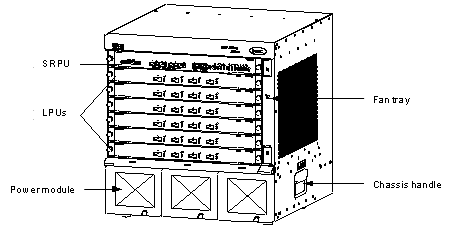

Figure 1-8 Chassis of the S7506

Figure 1-9 shows the chassis back of the S7506.

(1) Grounding screw	(2) Power switch
(3) Bail latch	(4) Power socket
(5) COM port (PSE monitoring port)	(6) RTN (+) terminal of PoE power input
(7) NEG (-) terminal of PoE power input	(8) Handle on the rear panel
(9) Air filter

Figure 1-9 Rear view of the S7506 chassis (S7506-AC-XG-PoE chassis in the example)

Each area is hot-swappable.

l           The board area contains seven horizontal slots. The topmost slot top is for a required SRPU and the other six slots for optional LPUs.

l           The fan area is on the right of a chassis. The fan tray slot is vertical.

l           The power supply area is at the bottom of the chassis and contains three power module slots to implement 2+1 redundancy. You can select AC power modules for AC power input or DC power modules for DC power input as required.

l           The power distribution area is at the chassis bottom near to the back panel. There is an AC power distribution box for AC power input or a DC power distribution box for DC power input.

l           There are a –48 VDC power input terminal and a COM port (PoE management port) on the back of the PoE-capable S7506 XGbus chassis.

III. S7506R

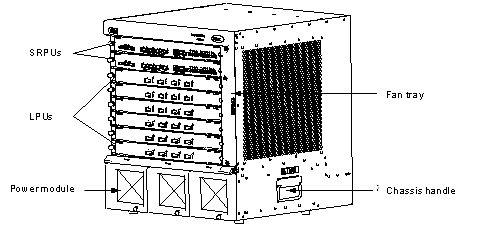

Figure 1-10 shows the chassis and slots of the S7506R.

Figure 1-10 Chassis of the S7506R

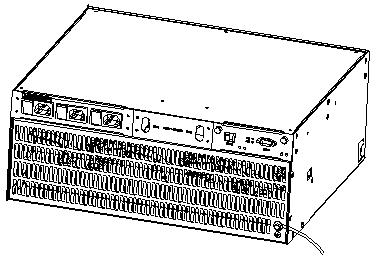

The rear panel of the chassis of the S7506R is similar to that of the S7506. For the layout, see Figure 1-9.

Each area is hot-swappable.

l           In the board area, there are eight horizontal slots. The topmost two slots are for required SRPUs. The S7506R provides SRPU redundancy backup. The other six are for optional LPUs.

l           The fan area is on the right of a chassis. The fan tray slot is vertical.

l           The power module area is at the bottom of the chassis and contains three power module slots to implement 2+1 redundancy. You can select AC power modules for AC power input or DC power modules for DC power input as required.

l           The power distribution area is at the chassis bottom near to the back panel. There is an AC power distribution box for AC power input or a DC power distribution box for DC power input.

l           There are a –48 VDC power input terminal and a COM port (PoE management port) on the back of the PoE-capable S706R chassis.

1.5.2  Color of Board Edges

l           The boards that can only serve as SRPUs of the S7503/S7506/S7506R have pink edges.

l           The boards that can only serve as LPUs of the S7503/S7506/S7506R have purple edges.

l           The boards that can not only serve as SPRUs of the S7502, but also LPUs of the S7503/S7506/S7506R have green edges.





1.5.3  Backplane

The backplane of the S7500 series is located in the integrated chassis and implements high-speed data exchange and management & control signal exchange between SRPUs and LPUs. The backplane in the S7500 chassis supports XG high speed bus.

The backplane has the following functions:

l           Providing communication channels for signal exchange between boards

l           Supporting online insertion and removal of boards

l           Supporting slot auto-identification

l           Connecting to the power modules to provide distributed power supply for LPUs and SRPUs

l           Connecting to fan tray and power monitoring signal cables

l           Supporting switchover between the active and standby SRPUs (only for the S7506R)

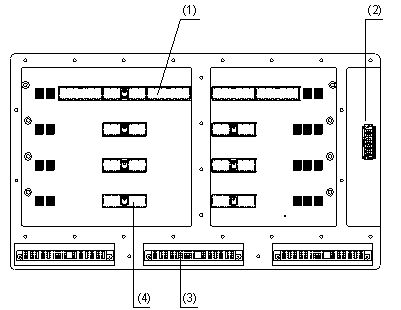

(1) SRPU socket	(2) Fan tray socket
(3) PWR socket	(4) LPU socket

Figure 1-11 Backplane of the S7503

1.5.4  Power Supply





AC power modules and DC power modules of the S7500 series must

l           Have exactly the same dimensions and ports.

l           Have exactly the same type of output connector in the same position.

l           Not be inserted into one switch.

l           Use their corresponding power distribution boxes.

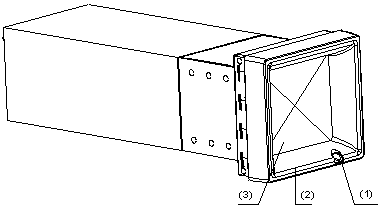

(1) Captive screw	(2) Front shell of power module
(3) Air filter

Figure 1-12 Power module

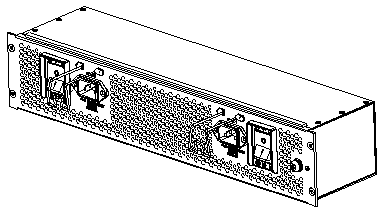

Figure 1-13 Power distribution box (dual-input dual-switch AC power distribution box in the example)

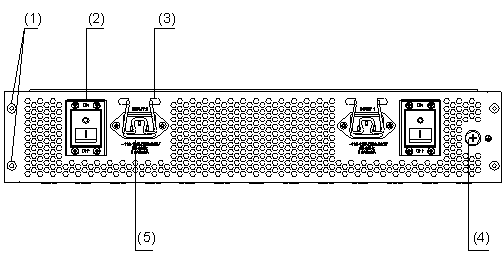

(1) Screw holes	(2) Power switch
(3) Bail latch	(4) Grounding screw
(5) Power socket

Figure 1-14 Rear view of power distribution box (dual-input dual-switch AC power distribution box in the example)

I. Introduction to power distribution box

The power distribution box is mainly used for filtering, current make/break, and current shunt. The AC power distribution box and DC power distribution box have the same dimensions.

1)         S7503

l           The DC power distribution box of the S7503 supports two power inputs, each of which has a separate power switch. One input can only support the normal operation of the corresponding DC power module. Only when two inputs are connected, the two DC power modules can work in 1+1 redundancy mode. When two DC power modules are equipped but only one input is connected, the SRPU displays alarm information for the unsupplied module.

l           The AC power distribution box of the S7503 supports two power inputs, each of which has a separate power switch. One input can only maintain the normal operation of the corresponding AC power module. Only when the two inputs are connected, the two AC power modules can work in 1+1 redundancy mode. When two AC power modules are equipped but only one input is connected, the SRPU displays alarm information for the unsupplied module.

2)         S7506 and S7506R

l           The DC power distribution box of the S7506 and S7506R supports two power inputs, each of which has a separate power switch. Either of the two inputs can maintain the normal operation of the three DC power modules at the same time. When one input is connected, the three DC power modules can work in 2+1 redundancy mode. When two inputs are connected, the DC power inputs can work in 1+1  redundancy mode.

l           The AC power distribution box of the S7506 and S7506R supports two power inputs, each of which has a separate power switch. Either of the two inputs can maintain the normal operation of the three AC power modules at the same time. When only one input is connected, the three AC power modules can work in 2+1 redundancy mode. When two inputs are connected, the AC power inputs can work in 1+1 redundancy mode.

Table 1-13 AC power distribution boxes of S7506 and S7506R

AC power distribution box	Input voltage range	Applicable chassis
110-120V/220-240V, dual-input, dual-switch	110-120 V/220-240 VAC; 50 Hz or 60 Hz; 9.0A/5.0 A	S7500-AC-XG-PoE



II. AC power module

For AC power supply, you should use AC power modules and AC power distribution boxes.

Table 1-14 Specifications for AC power module

Item	Specification
Rated voltage range	100 VAC to 240 VAC, 50 Hz or 60 Hz
Input voltage range	90 VAC to 264 VAC, 50 Hz or 60 Hz
Maximum output power	450 W



III. DC power module

For DC power supply, you should use DC power modules and DC power distribution boxes.

Table 1-15 Specifications for DC power module

Item	Specification
Rated voltage range	–48 VDC to –60 VDC
Input voltage range	–36 VDC to –72 VDC
Maximum output power	450 W



1.5.5  PoE Power Supply

The S7500 series support power-over-Ethernet (PoE). Equipped with power sourcing equipment (PSE) and PoE-capable boards, the S7500 series can provide –48 VDC power to remote powered devices (PDs) such as IP Phones, WLAN APs, and network cameras through twisted pairs. Choose a chassis that supports PoE if PoE is needed.

Figure 1-15 Power sourcing equipment–PSE2500-A3





1.5.6  Fan Tray

The fan tray is located on the right side of the S7500 series. The fan tray is directly connected to the backplane through a connector. All fan fault signals flow to the backplane and then the backplane sends them to the SRPU for processing. The fan tray is hot swappable.

Fan trays of the S7506R, S7503, and S7506 are slightly different. Fan trays of the S7506R and S7503 are fixed by screws, while the fan tray of the S7506 is fixed by two locks.

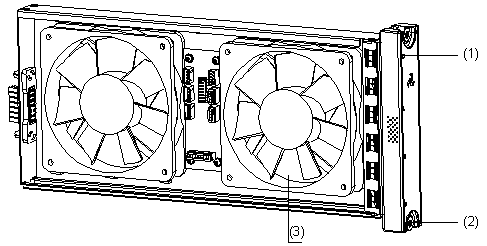

(1) LPU slot number (0 to 3)	(2) Captive screw
(3) Fan

Figure 1-16 Fan tray of the S7503

(1) Fan	(2) Lock
(3) LPU slot number (0 to 6)

Figure 1-17 Fan tray of the S7506

(1) Captive screw	(2) LPU slot number (0 to 7)
(3) Fan

Figure 1-18 Fan tray of the S7506R

The fan trays of the S7503 and S7506R are different from that of the S7506 in design.

l           The fan trays of the S7503 and S7506R are fixed by screws.

l           The fan tray of the S7506 is fixed by two locks.

Follow these steps to remove the fan tray from the S7503 chassis or S7506R chassis:

1)         Remove the screws from the fan tray.

2)         Grasp the edge of the fan tray and gently pull it out.

Follow these steps to remove the fan tray from the S7506 chassis:

1)         Simutaneously pull the two locks outward to release them.

2)         Gently pull the fan tray out.

1.6  Technical Specifications for the S7500 Series

Table 1-16 Technical specifications for the S7500 series

Item		S7503	S7506	S7506R
Physical dimensions (H ´ W ´ D)		352.8 ´ 436 ´ 480 mm (13.9 x 17.2 x 18.9 in.)	486.2 ´ 436 ´ 480 mm (19.1 x 17.2 x 18.9 in.)	530.6 ´ 436 ´ 480 mm (20.9 x 17.2 x 18.9 in.)
Weight (fully configured)		≤ 50 kg (110.2 lb.)	≤ 70 kg (154.3 lb.)	≤ 80 kg (176.4 lb.)
Number of SRPU slots		1	1	2
Number of LPU slots		3	6	6
Mean time between failures (MTBF)		185,000 h	160,000 h	221,000 h
Mean time to repair (MTTR)		1 h
Power distribution box	Dual-input dual-switch AC power distribution box	110-120/220-240 VAC; 50 Hz or 60 Hz; 9.0/5.0 A
	S7503 AC power distribution box	100 VAC to 240 VAC, 50 Hz or 60 Hz
	DC power distribution box	Rated voltage: –48 VDC to –60 VDC Maximum tolerance: –36 VDC to –72 VDC
PoE input voltage		–46 DCV to –55 DCV; 55.0 A
Operating temperature		0ºC to 45ºC (32ºF to 113ºF)
Operating humidity (non-condensing)		10% to 90%



1.7  Compatibility Matrix Between Software Feature, SRPU and LPU

Table 1-17 Compatibility matrix between software feature, SRPU, and LPU

Feature	SRPU	LPU	Host software version
MSTP	Salience III Series	All LPUs listed in this manual	Release 3000/3100 series
LACP	Salience III Series	No limitation	Release 3000/3100 series
IPX	Salience III Series	No limitation	Release 3000/3100 series
Protocol-based VLAN	Salience III Series	All LPUs listed in this manual	Release 3000/3100 series
