Use this MIB to manage the device configuration. For example, access this MIB to save, back up, or restore the configuration. This MIB also contains notifications about configuration changes.

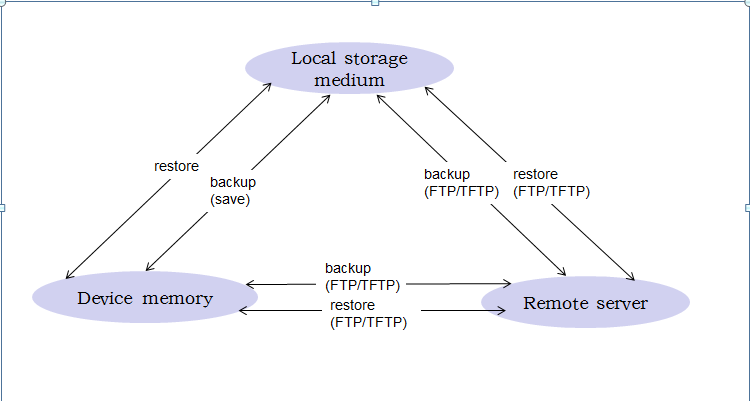

The following figure shows the relationship among the device memory, local storage medium, and remote server in configuration backup and restoration:

Root object

iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).hh3c(25506).hh3cCommon(2).hh3cConfig(4)

Scalar objects

hh3cCfgRunModifiedLast (1.3.6.1.4.1.25506.2.4.1.1.1)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgRunModifiedLast (1.3.6.1.4.1.25506.2.4.1.1.1)	read-only	TimeTicks	Standard MIB values.	Time when the running configuration was last modified.	As per the MIB.

hh3cCfgRunSavedLast (1.3.6.1.4.1.25506.2.4.1.1.2)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgRunSavedLast (1.3.6.1.4.1.25506.2.4.1.1.2)	read-only	TimeTicks	Standard MIB values.	Time when the running configuration was last saved.	As per the MIB.

hh3cCfgStartModifiedLast (1.3.6.1.4.1.25506.2.4.1.1.3)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgStartModifiedLast (1.3.6.1.4.1.25506.2.4.1.1.3)	read-only	TimeTicks	Standard MIB values.	Time when the next-startup configuration file used currently was last modified.	As per the MIB.

hh3cCfgLogLimitedEntries (1.3.6.1.4.1.25506.2.4.1.1.4)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgLogLimitedEntries (1.3.6.1.4.1.25506.2.4.1.1.4)	read-only	Integer32	Integer32 (0..2147483647)	Maximum number of rows in the hh3cCfgLogTable.	As per the MIB.

hh3cCfgLogDeletedEntries (1.3.6.1.4.1.25506.2.4.1.1.5)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgLogDeletedEntries (1.3.6.1.4.1.25506.2.4.1.1.5)	read-only	Counter32	Counter32 (0..2147483647)	Total number of rows deleted from the hh3cCfgLogTable.	As per the MIB.

hh3cCfgLogWantBackup (1.3.6.1.4.1.25506.2.4.1.1.6)

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgLogWantBackup (1.3.6.1.4.1.25506.2.4.1.1.6)

read-write

TruthValue

true(1)

false(2)

Whether to back up the values of objects for the hh3cCfgLogTable.

The value for IRF-incapable devices is false.

The value can be set to true for IRF-capable devices.

hh3cCfgOperateGlobalEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.1)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgOperateGlobalEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.1)	read-only	Integer32	Integer32 (1..10)	Maximum number of rows in the hh3cCfgOperateTable.	As per the MIB.

hh3cCfgOperateEntryAgeOutTime (1.3.6.1.4.1.25506.2.4.1.2.2)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgOperateEntryAgeOutTime (1.3.6.1.4.1.25506.2.4.1.2.2)	read-write	Integer32	Integer32 (1..60)	Aging time for entries in the hh3cCfgOperateTable, in minutes.	As per the MIB.

hh3cCfgOperateResultGlobalEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.3)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgOperateResultGlobalEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.3)	read-write	Integer32	Integer32 (1..50)	Maximum number of rows in the hh3cCfgOperateResultTable.	As per the MIB.

hh3cCfgExecuteOperateResultEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.6.1)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgExecuteOperateResultEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.6.1)	read-write	Integer32	Integer32 (5..20)	Maximum number of rows in the hh3cCfgExecuteResultTable.	As per the MIB.

hh3cCfgFirstTrapTime (1.3.6.1.4.1.25506.2.4.1.1.8)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgFirstTrapTime (1.3.6.1.4.1.25506.2.4.1.1.8)	accessible-for-notify	TimeTicks	TimeTicks (0..4294967295)	Time when the first notification was sent.	As per the MIB.

hh3cCfgBackupToServerIPType (1.3.6.1.4.1.25506.2.4.5.1)

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgBackupToServerIPType (1.3.6.1.4.1.25506.2.4.5.1)

accessible-for-notify

InetAddressType

unknown(0)

ipv4(1)

ipv6(2)

ipv4z(3)

ipv6z(4)

dns(16)

Server IP address type.

As per the MIB.

hh3cCfgBackupToServerIP (1.3.6.1.4.1.25506.2.4.5.2)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgBackupToServerIP (1.3.6.1.4.1.25506.2.4.5.2)	accessible-for-notify	InetAddress	OCTET STRING (0..255)	Server IP address.	As per the MIB.

hh3cCfgBackupToServerVPNName (1.3.6.1.4.1.25506.2.4.5.3)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgBackupToServerVPNName (1.3.6.1.4.1.25506.2.4.5.3)	accessible-for-notify	DisplayString	OCTET STRING (0..255)	Name of the VPN instance to which the server IP address belongs.	As per the MIB.

hh3cCfgBackupToServerTransType (1.3.6.1.4.1.25506.2.4.5.4)

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgBackupToServerTransType (1.3.6.1.4.1.25506.2.4.5.4)

accessible-for-notify

INTEGER

ftp(1),

tftp(2),

scp(3)

File transfer method.

As per the MIB.

hh3cCfgBackupToServerFailReason (1.3.6.1.4.1.25506.2.4.5.5)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgBackupToServerFailReason (1.3.6.1.4.1.25506.2.4.5.5)	accessible-for-notify	DisplayString	OCTET STRING (0..255)	Backup failure reason.	As per the MIB.

hh3cCfgBackupToServerErrorCode (1.3.6.1.4.1.25506.2.4.5.6)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgBackupToServerErrorCode (1.3.6.1.4.1.25506.2.4.5.6)	accessible-for-notify	Integer32	Integer32 (0..2147483647)	Backup failure error code.	As per the MIB.

hh3cCfgRestoreType (1.3.6.1.4.1.25506.2.4.5.7)

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgRestoreType (1.3.6.1.4.1.25506.2.4.5.7)

accessible-for-notify

INTEGER

binary(1)

text(2)

1 represents DBM configuration restoration.

2 represents text configuration restoration.

As per the MIB.

hh3cCfgSaveFailNotifyErrorNumber (1.3.6.1.4.1.25506.2.4.5.8)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgSaveFailNotifyErrorNumber (1.3.6.1.4.1.25506.2.4.5.8)	accessible-for-notify	Integer32	Integer32 (0..2147483647)	Error code for a configuration save failure.	As per the MIB.

hh3cCfgSaveFailNotifyDateTime (1.3.6.1.4.1.25506.2.4.5.9)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgSaveFailNotifyDateTime (1.3.6.1.4.1.25506.2.4.5.9)	accessible-for-notify	DateAndTime	OCTET STRING (8)	Time when the configuration save failure occurred.	As per the MIB.

hh3cCfgSaveFailNotifySrcChassis (1.3.6.1.4.1.25506.2.4.5.10)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgSaveFailNotifySrcChassis (1.3.6.1.4.1.25506.2.4.5.10)	accessible-for-notify	Integer32	Integer32 (0..2147483647)	Number of the chassis where the configuration save failure occurred.	As per the MIB.

hh3cCfgSaveFailNotifySrcSlot (1.3.6.1.4.1.25506.2.4.5.11)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgSaveFailNotifySrcSlot (1.3.6.1.4.1.25506.2.4.5.11)	accessible-for-notify	Integer32	Integer32 (0..2147483647)	Number of the slot where the configuration save failure occurred.	As per the MIB.

hh3cCfgSaveFailNotifySrcCpu (1.3.6.1.4.1.25506.2.4.5.12)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgSaveFailNotifySrcCpu (1.3.6.1.4.1.25506.2.4.5.12)	accessible-for-notify	Integer32	Integer32 (0..2147483647)	Number of the CPU where the configuration save failure occurred.	As per the MIB.

hh3cCfgFileChangeUI (1.3.6.1.4.1.25506.2.4.5.13)

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgFileChangeUI (1.3.6.1.4.1.25506.2.4.5.13)

accessible-for-notify

Integer32

Integer32 (0..2147483647)

Source that triggered configuration changes:

1—CLI.

2—NETCONF.

3—MIB.

4—Other.

As per the MIB.

hh3cCfgFileChangeAction (1.3.6.1.4.1.25506.2.4.5.14)

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgFileChangeAction (1.3.6.1.4.1.25506.2.4.5.14)

accessible-for-notify

Integer32

Integer32 (0..2147483647)

Actions that triggered the configuration changes:

1—RESET.

2—SAVE.

3—DELETE.

4—RENAME.

5—MOVEORCOPY.

6—FILETRANSFER.

7—REDIRECT.

8—UNDELETE.

9—SET.

As per the MIB.

hh3cCfgFileChangeOperater (1.3.6.1.4.1.25506.2.4.5.15)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgFileChangeOperater (1.3.6.1.4.1.25506.2.4.5.15)	accessible-for-notify	DisplayString	OCTET STRING (0..255)	Name of the operator that triggered the configuration changes.	As per the MIB.

hh3cCfgFileChangeOperateTime (1.3.6.1.4.1.25506.2.4.5.16)

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgFileChangeOperateTime (1.3.6.1.4.1.25506.2.4.5.16)	accessible-for-notify	DateAndTime	OCTET STRING (8)	Time when the configuration changes were triggered.	As per the MIB.

hh3cCfgFileChangeFileType (1.3.6.1.4.1.25506.2.4.5.17)

Object (OID)

Access

Syntax

Value range

Description

Implementation

hh3cCfgFileChangeFileType (1.3.6.1.4.1.25506.2.4.5.17)

accessible-for-notify

INTEGER

main(1)

backup(2)

File type that triggered configuration changes.

1 represents the main configuration file.

2 represents the backup configuration file.

As per the MIB.

Tabular objects

hh3cCfgLogTable

About this table

Use this table to obtain configuration change records.

Support for operations

Create：Not supported

Edit/Modify：Not supported

Delete：Not supported

Read：Supported

Columns

The table index is hh3cCfgLogIndex.

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgLogIndex (1.3.6.1.4.1.25506.2.4.1.1.7.1.1)	not-accessible	Integer32	Integer32 (1..2147483647)	Index of a configuration log.	As per the MIB.
hh3cCfgLogTime (1.3.6.1.4.1.25506.2.4.1.1.7.1.2)	read-only	TimeTicks	TimeTicks (0..4294967295)	Time when the configuration log was generated.	As per the MIB.
hh3cCfgLogSrcCmd (1.3.6.1.4.1.25506.2.4.1.1.7.1.3)	read-only	INTEGER	cmdLine(1) snmp(2) other(3)	Type of the source command that caused the log generation.	As per the MIB.
hh3cCfgLogSrcData (1.3.6.1.4.1.25506.2.4.1.1.7.1.4)	read-only	INTEGER	erase(1) runningData(2) commandSource(3) startupData(4) local(5) netFtp(6) hotPlugging(7)	Source data recorded in the configuration log.	As per the MIB.
hh3cCfgLogDesData (1.3.6.1.4.1.25506.2.4.1.1.7.1.5)	read-only	INTEGER	unknown(1) runningData(2) commandSource(3) startupData(4) local(5) netFtp(6) hotPlugging(7)	Destination data recorded in the configuration log.	As per the MIB.
hh3cCfgLogTerminalType (1.3.6.1.4.1.25506.2.4.1.1.7.1.6)	read-only	INTEGER	notApplicable(1) unknown(2) console(3) terminal(4) virtual(5) auxiliary(6)	Terminal type recorded in the configuration log.	As per the MIB.
hh3cCfgLogTerminalUser (1.3.6.1.4.1.25506.2.4.1.1.7.1.7)	read-only	DisplayString	OCTET STRING (0..255)	Name of the user that logged in to the CLI.	If the user uses SNMP to modify the device configuration, the value of this object is the SNMPv3 username.
hh3cCfgLogTerminalNum (1.3.6.1.4.1.25506.2.4.1.1.7.1.8)	read-only	Integer32	Integer32 (-2147483648..2147483647)	Number of terminals recorded in the configuration log.	If the value of hh3cCfgLogSrcCmd is not cmdLine, the value of this object must be -1.
hh3cCfgLogTerminalLocation (1.3.6.1.4.1.25506.2.4.1.1.7.1.9)	read-only	DisplayString	OCTET STRING (0..64)	User location information recorded in the configuration log.	As per the MIB.
hh3cCfgLogCmdSrcAddress (1.3.6.1.4.1.25506.2.4.1.1.7.1.10)	read-only	IpAddress	OCTET STRING (4)	User IP address information recorded in the configuration log.	As per the MIB.
hh3cCfgLogVirHost (1.3.6.1.4.1.25506.2.4.1.1.7.1.11)	read-only	DisplayString	OCTET STRING (0..64)	Host name of the remote system recorded in the configuration log.	If the value of hh3cCfgLogTerminalType is virtual, the value of this object is the host name of the remote system connected to the system. In other situations, the value of this object is a zero-length string.
hh3cCfgLogUserName (1.3.6.1.4.1.25506.2.4.1.1.7.1.12)	read-only	DisplayString	OCTET STRING (0..64)	Service username recorded in the configuration log.	If the value of the hh3cCfgLogSrcData and hh3cCfgLogDesData nodes are any values other than netFtp, the value of this node is a zero-length string.
hh3cCfgLogServerAddress (1.3.6.1.4.1.25506.2.4.1.1.7.1.13)	read-only	IpAddress	OCTET STRING (4)	Server address recorded in the configuration log.	If the values of the hh3cCfgLogSrcData and hh3cCfgLogDesData nodes are any values other than netFtp, the value of this node is 0.0.0.0.
hh3cCfgLogFile (1.3.6.1.4.1.25506.2.4.1.1.7.1.14)	read-only	DisplayString	OCTET STRING (0..64)	Current configuration file name recorded in the configuration log.	As per the MIB.
hh3cCfgLogCmdSrcAddrType (1.3.6.1.4.1.25506.2.4.1.1.7.1.15)	read-only	InetAddressType	unknown(0) ipv4(1) ipv6(2) ipv4z(3) ipv6z(4) dns(16)	Type of the command source address recorded in the configuration log.	Not supported.
hh3cCfgLogCmdSrcAddrRev (1.3.6.1.4.1.25506.2.4.1.1.7.1.16)	read-only	InetAddress	OCTET STRING (0..255)	Command source address recorded in the configuration log.	Not supported.
hh3cCfgLogCmdSrcAddrVPNName(1.3.6.1.4.1.25506.2.4.1.1.7.1.17)	read-only	DisplayString	OCTET STRING (0..255)	Name of the VPN instance to which the command source address belongs.	Not supported.
hh3cCfgLogServerAddrType (1.3.6.1.4.1.25506.2.4.1.1.7.1.18)	read-only	InetAddressType	unknown(0) ipv4(1) ipv6(2) ipv4z(3) ipv6z(4) dns(16)	Type of the server address recorded in the configuration log.	Not supported
hh3cCfgLogServerAddrRev (1.3.6.1.4.1.25506.2.4.1.1.7.1.19)	read-only	InetAddress	OCTET STRING (0..255)	Server address recorded in the configuration log.	Not supported.
hh3cCfgLogServerAddrVPNName(1.3.6.1.4.1.25506.2.4.1.1.7.1.20)	read-only	DisplayString	OCTET STRING (0..255)	Name of the VPN instance to which the server address belongs.	Not supported.

hh3cCfgOperateTable

About this table

Use this MIB to manage configuration file transfers between the NMS and the device, for example, through FTP or TFTP.

Support for operations

Create：Supported

Edit/Modify：Supported

Delete：Supported

Read：Supported

Columns

The table index is hh3cCfgOperateIndex.

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgOperateIndex (1.3.6.1.4.1.25506.2.4.1.2.4.1.1)	not-accessible	Integer32	Integer32 (1..2147483647)	Index of a configuration file operation.	As per the MIB.
hh3cCfgOperateType (1.3.6.1.4.1.25506.2.4.1.2.4.1.2)	read-create	ConfigOperationType	running2Startup(1) startup2Running(2) running2Net(3) net2Running(4) net2Startup(5) startup2Net(6) running2File(7) file2Running(8)	Operation type: 1—Save the running configuration to a file and specify the file as a next-startup configuration file. 2—Configuration rollback. 3—Upload the running configuration. 4—Download configuration and perform configuration rollback. 5—Download a configuration file and specify it as a next-startup configuration file. 6—Upload a next-startup configuration file. 7—Save the running configuration to a file. 8—Configuration deployment.	As per the MIB.
hh3cCfgOperateProtocol (1.3.6.1.4.1.25506.2.4.1.2.4.1.3)	read-create	INTEGER	ftp(1) tftp(2) clusterftp(3) clustertftp(4)	Protocol used for file transfer.	As per the MIB.
hh3cCfgOperateFileName (1.3.6.1.4.1.25506.2.4.1.2.4.1.4)	read-create	DisplayString	OCTET STRING (1..128)	Configuration file name.	As per the MIB.
hh3cCfgOperateServerAddress (1.3.6.1.4.1.25506.2.4.1.2.4.1.5)	read-create	IpAddress	OCTET STRING (4)	Address of the remote configuration file server.	As per the MIB.
hh3cCfgOperateUserName (1.3.6.1.4.1.25506.2.4.1.2.4.1.6)	read-create	DisplayString	OCTET STRING (0..40)	Username used to access the remote server.	If the value of hh3cCfgOperateType is running2Net, net2Running, net2Startup, or startup2Net and the value of hh3cCfgOperateProtocol is ftp, this node represents the username used to access the FTP server. In this case, you must specify this node for the create operation.
hh3cCfgOperateUserPassword (1.3.6.1.4.1.25506.2.4.1.2.4.1.7)	read-create	DisplayString	OCTET STRING (0..40)	Password used to access the remote server.	If the value of hh3cCfgOperateType is running2Net, net2Running, net2Startup, or startup2Net and the value of hh3cCfgOperateProtocol is ftp, this node represents the password used to access the FTP server. In this case, you must specify this node for the create operation. When read, this node returns a zero-length string.
hh3cCfgOperateEndNotificationSwitch (1.3.6.1.4.1.25506.2.4.1.2.4.1.8)	read-create	TruthValue	true(1) false(2)	Whether to notify that the operation completes. By default, the value is false.	As per the MIB.
hh3cCfgOperateRowStatus (1.3.6.1.4.1.25506.2.4.1.2.4.1.9)	read-create	RowStatus	active(1) notInService(2) notReady(3) createAndGo(4) createAndWait(5) destroy(6)	Row status.	A row entry cannot be modified if its row status is active.
hh3cCfgOperateServerPort (1.3.6.1.4.1.25506.2.4.1.2.4.1.10)	read-create	Integer32	Integer32 (0..65535)	Remote port number. If the value is an invalid port number, the default port number is used.	As per the MIB.
hh3cCfgOperateSrvAddrType (1.3.6.1.4.1.25506.2.4.1.2.4.1.11)	read-create	InetAddressType	unknown(0) ipv4(1) ipv6(2) ipv4z(3) ipv6z(4) dns(16)	Address type of the remote server.	Supports only ipv4, ipv6, and dns.
hh3cCfgOperateSrvAddrRev (1.3.6.1.4.1.25506.2.4.1.2.4.1.12)	read-create	InetAddress	OCTET STRING (0..255)	Address of the remote server.	If the value of the hh3cCfgOperateSrvAddrType object is ipv4, ipv6, or dns, you must specify this object. An IPv4 address is in dotted decimal notation. An IPv6 address is a colon-separated hexadecimal string. A DNS address is a string of up to 253 characters.
hh3cCfgOperateSrvVPNName(1.3.6.1.4.1.25506.2.4.1.2.4.1.13)	read-create	DisplayString	OCTET STRING (0..255)	Name of the VPN instance to which the remote server belongs.	As per the MIB.

hh3cCfgOperateResultTable

About this table

Use this table to obtain the creation result of rows in the hh3cCfgOperateTable.

Support for operations

Create：Not supported

Edit/Modify：Not supported

Delete：Supported

Read：Supported

Columns

The table index is hh3cCfgOperateResultIndex.

Object (OID)	Access	Syntax	Value range	Description	Implementation
hh3cCfgOperateResultIndex (1.3.6.1.4.1.25506.2.4.1.2.5.1.1)	not-accessible	Integer32	Integer32 (1..2147483647)	Index of the hh3cCfgOperateResultIndex table.	As per the MIB.
hh3cCfgOperateResultOptIndex (1.3.6.1.4.1.25506.2.4.1.2.5.1.2)	read-only	Integer32	Integer32 (1..2147483647)	Index of a configuration file operation in the hh3cCfgOperateTable.	As per the MIB.
hh3cCfgOperateResultOpType (1.3.6.1.4.1.25506.2.4.1.2.5.1.3)	read-only	ConfigOperationType	running2Startup(1) startup2Running(2) running2Net(3) net2Running(4) net2Startup(5) startup2Net(6) running2File(7) file2Running(8)	Type of the operation.	As per the MIB.
hh3cCfgOperateState (1.3.6.1.4.1.25506.2.4.1.2.5.1.4)	read-only	ConfigOperationStateType	opInProgress(1) opSuccess(2) opInvalidOperation(3) opInvalidProtocol(4) opInvalidSourceName(5) opInvalidDestName(6) opInvalidServerAddress(7) opDeviceBusy(8) opDeviceOpenError(9) opDeviceError(10) opDeviceNotProgrammable(11) opDeviceFull(12) opFileOpenError(13) opFileTransferError(14) opFileChecksumError(15) opNoMemory(16) opAuthFail(17) opTimeOut(18) opUnknownFailure(19) opInvalidConfigFile(20) opSlaveFull(21) opCopyToSlaveFailure(22)	Operation state type.	If the value is opFileOpenError(13), the configuration file might be invalid, might not exist, or might not be accessible.
hh3cCfgOperateTime (1.3.6.1.4.1.25506.2.4.1.2.5.1.5)	read-only	TimeTicks	Standard MIB values.	Time when the configuration started.	As per the MIB.
hh3cCfgOperateEndTime (1.3.6.1.4.1.25506.2.4.1.2.5.1.6)	read-only	TimeTicks	Standard MIB values.	Time when the configuration was finished.	As per the MIB.
hh3cCfgOperFailReason (1.3.6.1.4.1.25506.2.4.1.2.5.1.7)	read-only	DisplayString	OCTET STRING (0..255)	Failure reason of the configuration file operation.	As per the MIB.

Notifications

hh3cCfgManEventlog

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.2.1	Configuration change event.	Informational	Warning	N/A (N/A)	ON

Notification triggers

This notification is generated as follows:

The save command is used.

A next-startup configuration file is specified.

An operation that affects the next-startup configuration file is performed, for example, copy, rename, and delete.

SNMP detects a data change.

System impact

Change of the system running configuration or next-startup configuration file.

Status control

CLI: Use the snmp-agent trap enable configuration command.

OFF

CLI: Use the undo snmp-agent trap enable configuration command.

Object

OID (object name)	Description	Index	Type	Value range
1.3.6.1.4.1.25506.2.4.1.1.7.1.3 (hh3cCfgLogSrcCmd)	Configuration source.	hh3cCfgLogIndex	INTEGER	cmdLine(1), snmp(2)
1.3.6.1.4.1.25506.2.4.1.1.7.1.4 (hh3cCfgLogSrcData)	Source data.	hh3cCfgLogIndex	INTEGER	runningData(2), startupData(4)
1.3.6.1.4.1.25506.2.4.1.1.7.1.5 (hh3cCfgLogDesData)	Destination data.	hh3cCfgLogIndex	INTEGER	runningData(2), startupData(4)

Recommended action

Check the system running configuration. If necessary, save the running configuration.

hh3cCfgBackupToServerFailed

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.4.0.2	Failed to back up a configuration file to a server.	Informational	Minor	N/A (N/A)	ON

Notification triggers

This notification is generated when the system fails to back up a configuration file to a server after the archive configuration command is executed. The failure might be caused by configuration error or link failure.

System impact

Configuration file backup failure.

Status control

CLI: Use the snmp-agent trap enable configuration command.

OFF

CLI: Use the undo snmp-agent trap enable configuration command.

Object

OID (object name)	Description	Index	Type	Value range
1.3.6.1.4.1.25506.2.4.5.1 (hh3cCfgBackupToServerIPType)	Server IP address type.	N/A	InetAddressType	As per the MIB.
1.3.6.1.4.1.25506.2.4.5.2 (hh3cCfgBackupToServerIP)	Server IP address.	N/A	InetAddress	As per the MIB.
1.3.6.1.4.1.25506.2.4.5.3 (hh3cCfgBackupToServerVPNName)	Name of the VPN instance to which the server IP address belongs.	N/A	DisplayString	As per the MIB.
1.3.6.1.4.1.25506.2.4.5.4 (hh3cCfgBackupToServerTransType)	File transfer method.	N/A	INTEGER	As per the MIB.
1.3.6.1.4.1.25506.2.4.5.5 (hh3cCfgBackupToServerFailReason)	Backup failure reason.	N/A	DisplayString	As per the MIB.
1.3.6.1.4.1.25506.2.4.5.6 (hh3cCfgBackupToServerErrorCode)	Backup failure error code.	N/A	INTEGER	As per the MIB.

Recommended action

1.Use the ping command to verify connectivity between the client and server.

2.Use the device as the client to access the server.

hh3cCfgRestoreSuccess

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.4.0.3	The main startup configuration file was restored successfully.	Informational	Warning	N/A (N/A)	ON

Notification triggers

This notification is generated when the main startup configuration file is restored successfully.

System impact

System running configuration change, depending on the configuration that has been restored.

Status control

CLI: Use the snmp-agent trap enable configuration command.

OFF

CLI: Use the undo snmp-agent trap enable configuration command.

Object

OID (object name)	Description	Index	Type	Value range
1.3.6.1.4.1.25506.2.4.5.7 (hh3cCfgRestoreType)	Configuration restoration type.	N/A	INTEGER	binary(1), text(2)

Recommended action

No action is required.

hh3cCfgSaveFailNotify

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.4.0.4	A configuration save operation failed.	Informational	Minor	N/A (N/A)	ON

Notification triggers

This notification is generated when a configuration save operation fails.

System impact

The configuration file fails to be saved.

Status control

CLI: Use the snmp-agent trap enable configuration command.

OFF

CLI: Use the undo snmp-agent trap enable configuration command.

Object

OID (object name)	Description	Index	Type	Value range
1.3.6.1.4.1.25506.2.4.5.8 (hh3cCfgSaveFailNotifyErrorNumber)	Error code for a configuration save failure.	N/A	Integer32	Integer32 (0..2147483647)
1.3.6.1.4.1.25506.2.4.5.9 (hh3cCfgSaveFailNotifyDateTime)	Time when the configuration save failure occurred.	N/A	DateAndTime	OCTET STRING (8)
1.3.6.1.4.1.25506.2.4.5.10 (hh3cCfgSaveFailNotifySrcChassis)	Number of the chassis where the configuration save failure occurred.	N/A	Integer32	Integer32 (0..2147483647)
1.3.6.1.4.1.25506.2.4.5.11 (hh3cCfgSaveFailNotifySrcSlot)	Number of the slot where the configuration save failure occurred.	N/A	Integer32	Integer32 (0..2147483647)
1.3.6.1.4.1.25506.2.4.5.12 (hh3cCfgSaveFailNotifySrcCpu)	Number of the CPU where the configuration save failure occurred.	N/A	Integer32	Integer32 (0..2147483647)

Recommended action

Identify whether a disk damage exists on the active and standby MPUs or the active and standby MPUs have insufficient space.

hh3cCfgFileChange

Basic information

OID	Event	Type	Severity	Recovery notification	Default status
1.3.6.1.4.1.25506.2.4.4.0.5	A startup configuration file was modified.	Informational	Warning	N/A (N/A)	ON

Notification triggers

This notification is generated when a startup configuration file is modified.

System impact

No impact on services.

Status control

CLI: Use the snmp-agent trap enable configuration command.

OFF

CLI: Use the undo snmp-agent trap enable configuration command.

Object

OID (object name)	Description	Index	Type	Value range
1.3.6.1.4.1.25506.2.4.5.13 (hh3cCfgFileChangeUI)	Source that triggered configuration changes.	N/A	Integer32	Integer32 (0..2147483647)
1.3.6.1.4.1.25506.2.4.5.14 (hh3cCfgFileChangeAction)	Actions that triggered the configuration changes.	N/A	Integer32	Integer32 (0..2147483647)
1.3.6.1.4.1.25506.2.4.5.15 (hh3cCfgFileChangeOperater)	Name of the operator that triggered the configuration changes.	N/A	DisplayString	OCTET STRING (0..255)
1.3.6.1.4.1.25506.2.4.5.16 (hh3cCfgFileChangeOperateTime)	Time when the configuration changes were triggered.	N/A	DateAndTime	OCTET STRING (8)
1.3.6.1.4.1.25506.2.4.5.17 (hh3cCfgFileChangeFileType)	File type that triggered configuration changes: 1 represents the main configuration file. 2 represents the backup configuration file.	N/A	INTEGER	main(1), backup(2)

Recommended action

No action is required.

02-Fundamentals

About this table

Support for operations

Columns

About this table

Support for operations

Columns

About this table

Support for operations

Columns

Basic information

Notification triggers

System impact

Status control

Object

Recommended action

Basic information

Notification triggers

System impact

Status control

Object

Recommended action

Basic information

Notification triggers

System impact

Status control

Object

Recommended action

Basic information

Notification triggers

System impact

Status control

Object

Recommended action

Basic information

Notification triggers

System impact

Status control

Object

Recommended action

Basic information

Notification triggers

System impact

Status control

Object

Recommended action

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
