For the dual-link backup feature to function correctly, configure auto AP or manual APs on the two ACs. The manual AP configuration must be identical on both ACs. For more information, see "Managing APs."

You can configure APs by using the following methods:

· Configure APs one by one in AP view.

· Assign APs to an AP group and configure the AP group in AP group view.

· Configure all APs in global configuration view.

For an AP, the settings made in these views for the same parameter take effect in descending order of AP view, AP group view, and global configuration view.

Dual-link backup tasks at a glance

To configure dual-link backup, perform the following tasks:

1. Setting AP connection priority and specifying a backup AC

2. (Optional.) Configuring master CAPWAP tunnel preemption

Setting AP connection priority and specifying a backup AC

About this task

Set a higher AP connection priority for the master AC to ensure that APs can associate with the master AC first.

After an AP establishes a CAPWAP tunnel with the master AC, the AP will establish a backup CAPWAP tunnel with the specified backup AC.

Procedure

1. Enter system view.

system-view

2. Enter AP view or AP group view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

3. Set the AP connection priority.

priority priority

By default:

¡ In AP view, an AP uses the configuration in AP group view.

¡ In AP group view, the AP connection priority is 4.

4. Specify a backup AC.

backup-ac { ip ipv4-address | ipv6 ipv6-address }

By default:

¡ In AP view, an AP uses the configuration in AP group view.

¡ In AP group view, no backup AC is specified.

Configuring master CAPWAP tunnel preemption

About this task

This feature enables a backup CAPWAP tunnel to become a master tunnel after a 10-minute delay if the backup AC has higher AP connection priority than the master AC.

Procedure

1. Enter system view.

system-view

2. Enter AP view, AP group view, or global configuration view.

¡ Enter AP view.

wlan ap ap-name

¡ Enter AP group view.

wlan ap-group group-name

¡ Enter global configuration view.

wlan global-configuration

3. Configure master CAPWAP tunnel preemption.

wlan tunnel-preempt { disable | enable }

By default:

¡ In AP view, an AP uses the configuration in AP group view. If no configuration exists in AP group view, the AP uses the configuration in global configuration view.

¡ In AP group view, an AP uses the configuration in global configuration view.

¡ In global configuration view, master CAPWAP tunnel preemption is disabled.

Dual-link backup configuration examples

Example: Configuring dual-link backup

Network configuration

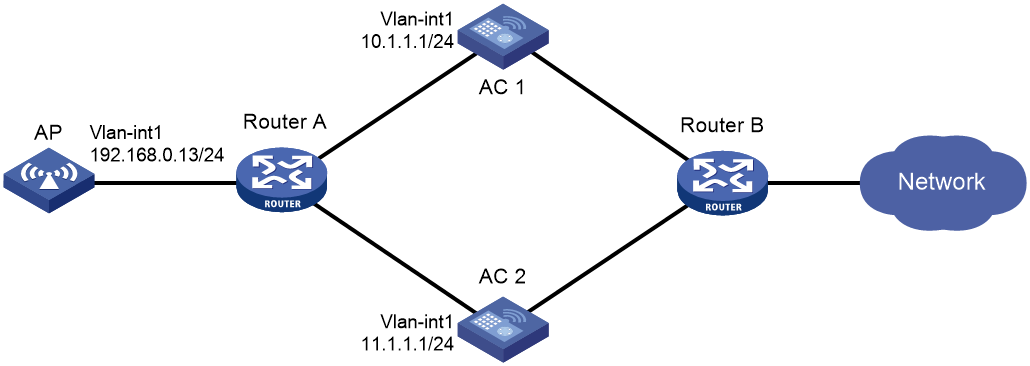

As shown in Figure 2, configure AC 1 to act as the master AC and AC 2 as the backup AC. When AC 1 fails and AC 2 takes over, the AP can communicate through AC 2. Configure the master CAPWAP tunnel preemption feature on the two ACs so that the AP reconnects to AC 1 when AC 1 recovers.

Figure 2 Network diagram

‌

Procedure

1. Configure AC 1:

# Create VLAN-interface 1 and assign an IP address to it.

<AC1> system-view

[AC1] interface vlan-interface 1

[AC1-Vlan-interface1] ip address 10.1.1.1 24

[AC1-Vlan-interface1] quit

# Create an AP named ap1, and specify the AP model and serial ID. Set the AP connection priority to 7.

[AC1] wlan ap ap1 model WA6320

[AC1-wlan-ap-ap1] serial-id 219801A28N819CE0002T

[AC1-wlan-ap-ap1] priority 7

# Specify a backup AC.

[AC1-wlan-ap-ap1] backup-ac ip 11.1.1.1

# Enable master CAPWAP tunnel preemption.

[AC1-wlan-ap-ap1] wlan tunnel-preempt enable

[AC1-wlan-ap-ap1] quit

2. Configure AC 2:

# Create VLAN-interface 1 and assign an IP address to it.

<AC2> system-view

[AC2] interface Vlan-interface 1

[AC2-Vlan-interface1] ip address 11.1.1.1 24

[AC2-Vlan-interface1] quit

# Create an AP named ap1, and specify the AP model and serial ID. Set the AP connection priority to 5.

[AC2] wlan ap ap1 model WA6320

[AC2-wlan-ap-ap1] serial-id 219801A28N819CE0002T

[AC2-wlan-ap-ap1] priority 5

# Specify a backup AC.

[AC2-wlan-ap-ap1] backup-ac ip 10.1.1.1

# Enable master CAPWAP tunnel preemption.

[AC2-wlan-ap-ap1] wlan tunnel-preempt enable

[AC2-wlan-ap-ap1] quit

Verifying the configuration

# Get the AP online on AC 1. (Details not shown.)

# Shut down VLAN-interface 1 on AC 1 and wait no longer than 3 minutes, during which service interruption occurs. (Details not shown.)

# Verify that the AP comes online on AC 2 and the AP state is R/M on AC 2. (Details not shown.)

# Bring up VLAN-interface 1 on AC 1. (Details not shown.)

# Verify that the AP comes online on AC 1 again and the AP state is R/M on AC 1 and R/B in AC 2. (Details not shown.)

Configuring AP backup

About AP backup

AP backup use IRF to enable multiple ACs to form an IRF fabric to ensure centralized AP management and avoid wireless service interruption in case of AC failures.

AC roles

An AC has the following roles:

Role	Description
Master AC	Master in an IRF fabric. The master AC manages the entire IRF fabric.
Subordinate AC	Subordinate in an IRF fabric. A subordinate AC processes services, forwards packets, and acts as a backup for the master AC. When the master AC fails, the system automatically elects a new master AC from the subordinate ACs in the IRF fabric.
Active AC	An AC that can establish CAPWAP tunnels with APs. The master AC is always an active AC.
Non-active AC	An AC that cannot establish CAPWAP tunnels with APs. Non-active ACs can only be subordinate ACs. When an active AC fails, a non-active AC will be elected as an active AC.
Directly connected AC	An AC that receives the first packet from an AP when the AP launches a CAPWAP tunnel establishment process.
Non-directly connected AC	An AC that does not receive the first packet from an AP when the AP launches a CAPWAP tunnel establishment process.

‌

AP backup and recovery

AP backup enables the active AC (master AC) in an IRF fabric to synchronize information about connected APs to all the non-active ACs. When the active AC fails, one of the non-active ACs becomes active to provide services, ensuring service continuity.

AP backup tasks at a glance

To configure AP backup, perform the following tasks:

1. Enabling AP backup

2. (Optional.) Setting the keepalive timeout for AP backup

Prerequisites for AP backup

Before configuring AP backup, set up an IRF fabric for the target ACs. For information about IRF, see Virtual Technologies Configuration Guide.

Enabling AP backup

About this task

This feature enables the active AC to synchronize information about connected APs to all the non-active ACs. When the active AC fails, one of the non-active AC becomes active to provide services.

Restrictions and guidelines

Disabling this feature removes backup AP information from all ACs.

Procedure

1. Enter system view.

system-view

2. Enable AP backup.

wlan ap-backup hot-backup enable global

By default, AP backup is disabled.

Setting the keepalive timeout for AP backup

About this task

By default, member ACs use the IRF hello packet mechanism to identify AC status. You can set the keepalive timeout for AP backup as required. Each IRF member AC periodically broadcasts keepalive packets and determines that a member fails If no keepalive packets are received from that member within the keepalive timeout time.

· If the master AC fails, the system will automatically select a new master AC from the subordinate ACs.

· If a subordinate AC fails, the master AC will record the AC failure and transfer services on the subordinate AC to another subordinate AC.

Procedure

1. Enter system view.

system-view

2. Set the keepalive timeout for AP backup.

wlan hot-backup keepalive timeout milliseconds

The default setting is 10000 milliseconds.

Display and maintenance commands for AP backup

Execute display commands in any view.

Task	Command
Display AP backup status for all IRF member ACs.	display wlan ap backup multislot

‌

AP backup configuration examples

Example: Configuring AP backup

Network configuration

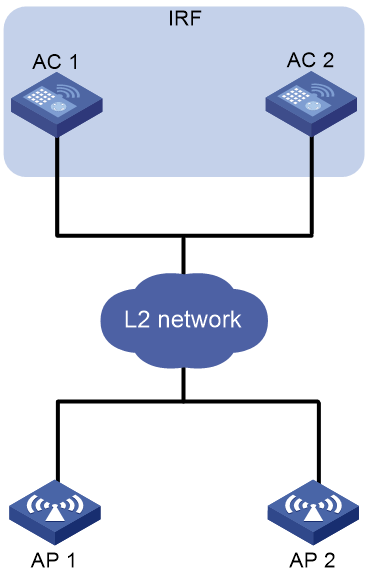

As shown in Figure 3, AC 1 and AC 2 form an IRF fabric. To keep APs online in case of AC failures, configure one AC as the active AC and configure the other AC to back up AP information.

Figure 3 Network diagram

‌

Procedure

# Set up an IRF fabric. (Details not shown.)

For more information, see High Availability Configuration Guide.

# Configure wireless services on the IRF fabric. (Details not shown.)

For more information, see "Configuring WLAN access."

# Enable AP backup.

[AC] wlan ap-backup hot-backup enable global

Verifying the configuration

Verify that the AP is still online after the active AC fails. (Details not shown.)

Configuring client backup

About client backup

Client backup enables IRF member ACs to backup client information with each other to keep clients online in case of AC failures. Client backup is triggered every time client information changes.

Client backup must work with AP backup. After both features are enabled, active ACs back up connected AP and client information to other member ACs. When an active AC fails, the master AC will select another AC in the IRF fabric to recover information of AP and clients connected to the failed AC. For information about AP backup and AC selection, see "Configuring AP backup."

Restrictions and guidelines: Client backup configuration

Active ACs back up client information only for clients that come online after client backup is enabled. Disabling client backup deletes client backup information from all member ACs.

Prerequisites for client backup

Enable AP backup.

Enabling client backup

1. Enter system view.

system-view

2. Enable client backup.

wlan client-backup hot-backup enable

By default, client backup is disabled.

Setting the client backup delay

Restrictions and guidelines

This feature takes effect only when client backup is enabled.

This feature takes effect only on clients that come online after the client backup delay is set.

If an active/standby switchover occurs during the delay time, online clients whose information has not been backed up will be logged off and need to come online again. An active/standby switchover can be triggered by a restart of the active AC process.

Procedure

1. Enter system view.

system-view

2. Set the client backup delay.

wlan client-backup hot-backup delay delay-time

By default, the client backup delay is 60 seconds.

Display and maintenance commands for client backup

Execute display commands in any view.

Task	Command
Display backup information about 802.1X clients associated with the specified IRF member device.	display dot1x connection-backup [ ap ap-name [ radio radio-id ] ] slot slot-number
Display backup information about MAC authentication clients associated with the specified IRF member device.	display mac-authentication connection-backup [ ap ap-name [ radio radio-id ] ] slot slot-number
Display client backup information for the specified IRF member device.	display wlan client-backup [ ap ap-name [ radio radio-id ] \| mac-address mac-address ] [ verbose ] [ slot slot-number ]

‌

Client backup configuration examples

Example: Configuring client backup

Network configuration

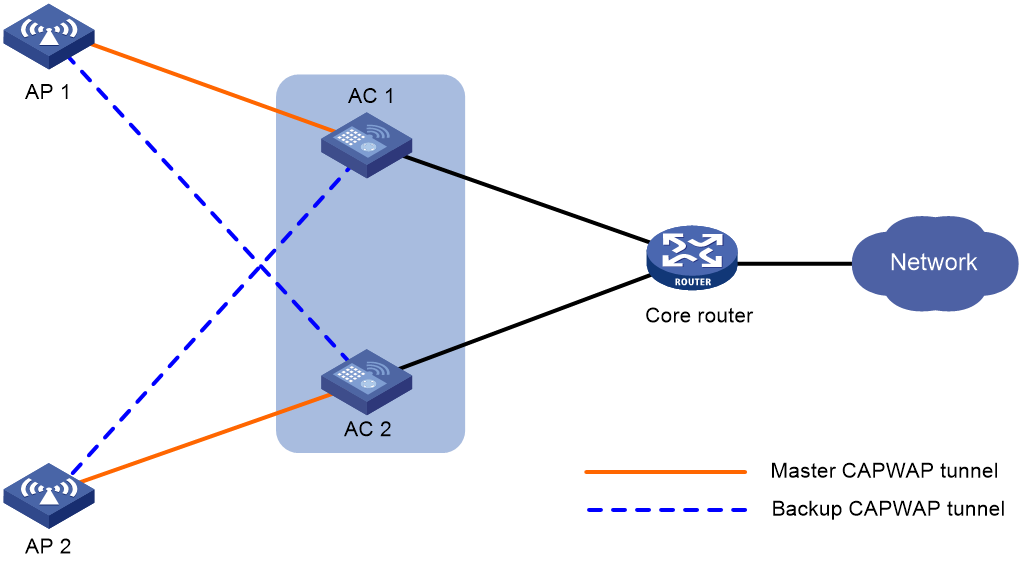

As shown in Figure 4, AC 1 and AC 2 form an IRF fabric. To keep clients online in case of AC failures, configure one AC as the active AC and configure the other AC to back up AP information and client information.

Figure 4 Network diagram

Procedure

# Set up an IRF fabric. (Details not shown.)

For more information, see Virtual Technologies Configuration Guide.

# Configure wireless services on the IRF fabric. (Details not shown.)

For more information, see "Configuring WLAN access."

# Enable AP backup.

[AC] wlan ap-backup hot-backup enable global

# Enable client backup.

[AC] wlan client-backup hot-backup enable

Verifying the configuration

# Verify that AC 2 has backed up client information.

[AC] display wlan client-backup slot 2

Total number of clients: 1

MAC address Username AP name RID IP address IPv6 address VLAN

7854-2e1c-c59e user ap1 1 1.1.1.1 1::2:0:0:3 1

Configuring WLAN uplink detection

About WLAN uplink detection

When the uplink of an AC fails, clients cannot access external networks through the APs that are connected to the AC. WLAN uplink detection associates the uplink state of an AC with the radio state of the connected APs. When the uplink fails, the AC disables the radios of the APs. When the uplink recovers, the AC enables the radios of the APs. The association ensures that clients can associate with APs connected to another AC when the uplink of an AC fails.

This feature collaborates with a detection module and the Track module to function.

· When the track entry is in Positive state, the AC enables the radios of the connected APs.

· When the track entry is in Negative state, the AC disables the radios of the connected APs.

· When the track entry is in Invalid state, the AC does not change the radio state of the connected APs.

For more information about the track module, see Network Management and Monitoring Configuration Guide.

Restrictions and guidelines: WLAN uplink detection

For the WLAN uplink detection feature to function correctly, configure a detection module to detect the uplink state, and associate a track entry with the detection module. For more information, see track configuration in Network Management and Monitoring Configuration Guide.

Configuring WLAN uplink detection

1. Enter system view.

system-view

2. Associate a track entry with the WLAN uplink detection feature.

wlan uplink track track-entry-number

By default, WLAN uplink detection is not associated with any track entry.

WLAN uplink detection configuration examples

Example: Configuring WLAN uplink detection

Network configuration

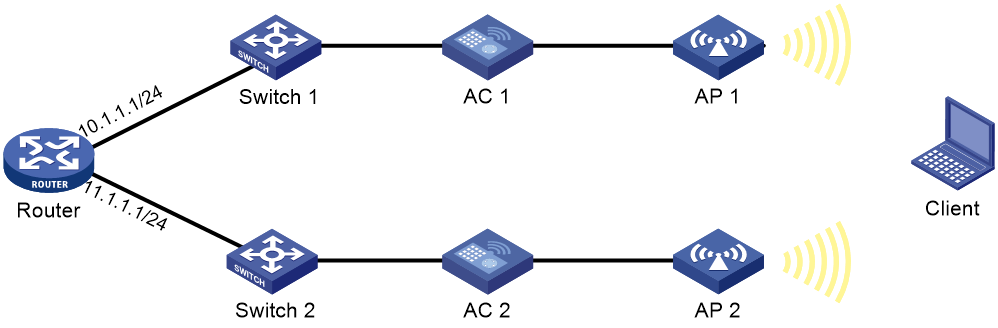

As shown in Figure 5, use an NQA operation to test the reachability of each AC's uplink. Configure WLAN uplink detection on each AC so that clients can associate with the AP connected to another AC when the uplink of an AC fails.

Figure 5 Network diagram

‌

Procedure

1. Configure AC 1:

# Create an ICMP echo operation.

<AC1> system-view

[AC1] nqa entry admin test

[AC1-nqa-admin-test] type icmp-echo

# Specify 10.1.1.1 as the destination IP address of ICMP echo requests.

[AC1-nqa-admin-test-icmp-echo] destination ip 10.1.1.1

# Create reaction entry 1. If the number of consecutive probe failures reaches 5, collaboration is triggered.

[AC1-nqa-admin-test-icmp-echo] reaction 1 checked-element probe-fail threshold-type consecutive 5 action-type trigger-only

[AC1-nqa-admin-test-icmp-echo] quit

# Start the ICMP echo operation.

[AC1] nqa schedule admin test start-time now lifetime forever

# Configure track entry 1, and associate it with reaction entry 1 of the NQA operation (with administrator admin and operation tag test).

[AC1] track 1 nqa entry admin test reaction 1

# Associate track entry 1 with WLAN uplink detection.

[AC1] wlan uplink track 1

[AC1] quit

2. Configure AC 2:

# Create an ICMP echo operation.

<AC2> system-view

[AC2] nqa entry admin test

[AC2-nqa-admin-test] type icmp-echo

# Specify 11.1.1.1 as the destination IP address of ICMP echo requests.

[AC2-nqa-admin-test-icmp-echo] destination ip 11.1.1.1

# Create reaction entry 1. If the number of consecutive probe failures reaches 5, collaboration is triggered.

[AC2-nqa-admin-test-icmp-echo] reaction 1 checked-element probe-fail threshold-type consecutive 5 action-type trigger-only

[AC2-nqa-admin-test-icmp-echo] quit

# Start the ICMP echo operation.

[AC2] nqa schedule admin test start-time now lifetime forever

# Configure track entry 1, and associate it with reaction entry 1 of the NQA operation (with administrator admin and operation tag test).

[AC2] track 1 nqa entry admin test reaction 1

# Associate track entry 1 with WLAN uplink detection.

[AC2] wlan uplink track 1

[AC2] quit

Verifying the configuration

This example uses AC 1 to verify the configuration.

1. Verify that the radio state of AP 1 is Up when the state of track entry 1 is Positive:

# Display information about track entry 1.

<AC1> display track 1

Track ID: 1

State: Positive

Duration: 0 days 1 hours 5 minutes 48 seconds

Notification delay: Positive 0, Negative 0 (in seconds)

Tracked object:

NQA entry: admin test

Reaction: 1

# Display detailed information about AP ap1.

<AC1> display wlan ap name ap1 verbose

AP name : ap1

AP ID : 1

AP group name : default-group

State : Run

Backup type : Idle

Online time : 0 days 3 hours 25 minutes 12 seconds

System up time : 0 days 2 hours 22 minutes 12 seconds

Model : WA6320

Region code : CN

Region code lock : Disabled

Serial ID : 219801A28N819CE0002T

MAC address : 83D5-AB43-67FF

IP address : 1.1.1.2

UDP control port number : N/A

UDP data port number : N/A

H/W version : Ver.C

S/W version : V700R001B62D001

Boot version : 1.01

USB state : N/A

Power level : N/A

Power info : N/A

Description : wtp1

Priority : 4

Echo interval : 10 seconds

Echo count : 3 counts

Keepalive interval : 10 seconds

Discovery-response wait-time : 2 seconds

Statistics report interval : 50 seconds

Fragment size (data) : 1500

Fragment size (control) : 1450

MAC type : Local MAC & Split MAC

Tunnel mode : Local Bridging & 802.3 Frame & Native Frame

CAPWAP data-tunnel status : Up

Discovery type : DHCP

Retransmission count : 3

Retransmission interval : 5 seconds

Firmware upgrade : Enabled

Sent control packets : 1

Received control packets : 1

Echo requests : 0

Lost echo responses : 0

Average echo delay : 0

Last reboot reason : N/A

Latest IP address : N/A

Current AC IP : N/A

Tunnel down reason : N/A

Connection count : 1

Backup Ipv4 : Not configured

Backup Ipv6 : Not configured

Ctrl-tunnel encryption : Disabled

Ctrl-tunnel encryption state : Not encrypted

Data-tunnel encryption : Disabled

Data-tunnel encryption state : Not encrypted

LED mode : Normal

Remote configuration : Disabled

EnergySaving Level : 0

Radio 1:

Basic BSSID : N/A

Admin state : Up

Radio type : 802.11ax

Antenna type : internal

Client dot11ac-only : Disabled

Client dot11n-only : Disabled

Channel band-width : 20/40/80MHz

Operating bandwidth : 20/40/80MHz

Secondary channel offset : SCA

Short GI for 20MHz : Supported

Short GI for 40MHz : Supported

Short GI for 80MHz : Supported

Short GI for 160MHz : Not supported

mimo : Not Config

Green-Energy-Management : Disabled

A-MSDU : Enabled

A-MPDU : Enabled

LDPC : Not Supported

STBC : Supported

Operational VHT-MCS Set:

Mandatory : Not configured

Supported : NSS1 0,1,2,3,4,5,6,7,8,9

NSS2 0,1,2,3,4,5,6,7,8,9

Multicast : Not configured

Operational HT MCS Set:

Mandatory : Not configured

Supported : 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,

10, 11, 12, 13, 14, 15

Multicast : Not configured

Channel : 52(auto)

Max power : 20 dBm

Operational rate:

Mandatory : 6, 12, 24 Mbps

Supported : 9, 18, 36, 48, 54 Mbps

Multicast : 24 Mbps

Disabled : Not configured

Distance : 1 km

ANI : Enabled

Fragmentation threshold : 2346 bytes

Beacon interval : 100 TU

Protection threshold : 2346 bytes

Long retry threshold : 4

Short retry threshold : 7

Maximum rx duration : 2000 ms

Noise Floor : 0 dBm

Protection mode : cts-to-self

MU-TxBF : Enabled

SU-TxBF : Enabled

Continuous mode : N/A

Client dot11ax-only : Disabled

Operational HE-MCS Set:

Mandatory : Not configured

Supported : NSS1 0,1,2,3,4,5,6,7,8,9,10,11

NSS2 0,1,2,3,4,5,6,7,8,9,10,11

Multicast : Not configured

OFDMA random access RUs : Not Supported

Channel Width Set : 0x02

DL-OFDMA : Enabled

UL-OFDMA : Enabled

UL-MU-MIMO : Disabled

BSS-COLOR : Enabled

TWT negotiation : Disabled

HT protection mode : No protection

Radio 2:

Basic BSSID : N/A

Admin state : Up

Radio type : 802.11gax

Antenna type : internal

Client dot11ac-only : Disabled

Client dot11n-only : Disabled

Channel bandwidth : 20MHz

Operating bandwidth : 20MHz

Secondary channel offset : SCN

Short GI for 20MHz : Supported

Short GI for 40MHz : Supported

Short GI for 80MHz : Not supported

Short GI for 160MHz : Not supported

mimo : Not Config

Green-Energy-Management : Disabled

A-MSDU : Enabled

A-MPDU : Enabled

LDPC : Supported

STBC : Supported

Operational VHT-MCS Set:

Mandatory : Not configured

Supported : Not configured

Multicast : Not configured

Operational HT MCS Set:

Mandatory : Not configured

Supported : 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,

10, 11, 12, 13, 14, 15

Multicast : Not configured

Channel : 11(auto)

Channel usage(%) : 0

Max power : 20 dBm

Operational rate:

Mandatory : 1, 2, 5.5, 11 Mbps

Multicast : Auto

Supported : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Disabled : Not configured

Distance : 1 km

ANI : Enabled

Fragmentation threshold : 2346 bytes

Beacon interval : 100 TU

Protection threshold : 2346 bytes

Long retry threshold : 4

Short retry threshold : 7

Maximum rx duration : 2000 ms

Noise floor : 0 dBm

Protection mode : cts-to-self

SU-TxBF : Enabled

Continuous mode : N/A

Client dot11ax-only : Disabled

Operational HE-MCS Set:

Mandatory : Not configured

Supported : NSS1 0,1,2,3,4,5,6,7,8,9,10,11

NSS2 0,1,2,3,4,5,6,7,8,9,10,11

Multicast : Not configured

OFDMA random access RUs : Not Supported

Channel Width Set : 0x01

DL-OFDMA : Enabled

UL-OFDMA : Enabled

UL-MU-MIMO : Disabled

BSS-COLOR : Enabled

TWT negotiation : Disabled

HT protection mode : No protection

2. Verify that the radio state of AP 1 is Down when the state of track entry 1 is Negative:

# Display information about track entry 1.

<AC1> display track 1

Track ID: 1

State: Negative

Duration: 0 days 2 hours 5 minutes 48 seconds

Notification delay: Positive 0, Negative 0 (in seconds)

Tracked object:

NQA entry: admin test

Reaction: 1

# Display detailed information about AP ap1.

<AC1> display wlan ap name ap1 verbose

AP name : ap1

AP ID : 1

AP group name : default-group

State : Run

Backup type : Idle

Online time : 0 days 3 hours 25 minutes 12 seconds

System up time : 0 days 2 hours 22 minutes 12 seconds

Model : WA6320

Region code : CN

Region code lock : Disabled

Serial ID : 219801A28N819CE0002T

MAC address : 83D5-AB43-67FF

IP address : 1.1.1.2

UDP control port number : N/A

UDP data port number : N/A

H/W version : Ver.C

S/W version : V700R001B62D001

Boot version : 1.01

USB state : N/A

Power level : N/A

Power info : N/A

Description : wtp1

Priority : 4

Echo interval : 10 seconds

Echo count : 3 counts

Keepalive interval : 10 seconds

Discovery-response wait-time : 2 seconds

Statistics report interval : 50 seconds

Fragment size (data) : 1500

Fragment size (control) : 1450

MAC type : Local MAC & Split MAC

Tunnel mode : Local Bridging & 802.3 Frame & Native Frame

CAPWAP data-tunnel status : Up

Discovery type : DHCP

Retransmission count : 3

Retransmission interval : 5 seconds

Firmware upgrade : Enabled

Sent control packets : 1

Received control packets : 1

Echo requests : 0

Lost echo responses : 0

Average echo delay : 0

Last reboot reason : N/A

Latest IP address : N/A

Current AC IP : N/A

Tunnel down reason : N/A

Connection count : 1

Backup Ipv4 : Not configured

Backup Ipv6 : Not configured

Ctrl-tunnel encryption : Disabled

Ctrl-tunnel encryption state : Not encrypted

Data-tunnel encryption : Disabled

Data-tunnel encryption state : Not encrypted

LED mode : Normal

Remote configuration : Disabled

EnergySaving Level : 0

Radio 1:

Basic BSSID : N/A

Admin state : Down

Radio type : 802.11ax

Antenna type : internal

Client dot11ac-only : Disabled

Client dot11n-only : Disabled

Channel band-width : 20/40/80MHz

Operating bandwidth : 20/40/80MHz

Secondary channel offset : SCA

Short GI for 20MHz : Supported

Short GI for 40MHz : Supported

Short GI for 80MHz : Supported

Short GI for 160MHz : Not supported

mimo : Not Config

Green-Energy-Management : Disabled

A-MSDU : Enabled

A-MPDU : Enabled

LDPC : Not Supported

STBC : Supported

Operational VHT-MCS Set:

Mandatory : Not configured

Supported : NSS1 0,1,2,3,4,5,6,7,8,9

NSS2 0,1,2,3,4,5,6,7,8,9

Multicast : Not configured

Operational HT MCS Set:

Mandatory : Not configured

Supported : 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,

10, 11, 12, 13, 14, 15

Multicast : Not configured

Channel : 52(auto)

Max power : 20 dBm

Operational rate:

Mandatory : 6, 12, 24 Mbps

Supported : 9, 18, 36, 48, 54 Mbps

Multicast : 24 Mbps

Disabled : Not configured

Distance : 1 km

ANI : Enabled

Fragmentation threshold : 2346 bytes

Beacon interval : 100 TU

Protection threshold : 2346 bytes

Long retry threshold : 4

Short retry threshold : 7

Maximum rx duration : 2000 ms

Noise Floor : 0 dBm

Protection mode : cts-to-self

MU-TxBF : Enabled

SU-TxBF : Enabled

Continuous mode : N/A

Client dot11ax-only : Disabled

Operational HE-MCS Set:

Mandatory : Not configured

Supported : NSS1 0,1,2,3,4,5,6,7,8,9,10,11

NSS2 0,1,2,3,4,5,6,7,8,9,10,11

Multicast : Not configured

OFDMA random access RUs : Not Supported

Channel Width Set : 0x02

DL-OFDMA : Enabled

UL-OFDMA : Enabled

UL-MU-MIMO : Disabled

BSS-COLOR : Enabled

TWT negotiation : Disabled

HT protection mode : No protection

Radio 2:

Basic BSSID : N/A

Admin state : Down

Radio type : 802.11gax

Antenna type : internal

Client dot11ac-only : Disabled

Client dot11n-only : Disabled

Channel bandwidth : 20MHz

Operating bandwidth : 20MHz

Secondary channel offset : SCN

Short GI for 20MHz : Supported

Short GI for 40MHz : Supported

Short GI for 80MHz : Not supported

Short GI for 160MHz : Not supported

mimo : Not Config

Green-Energy-Management : Disabled

A-MSDU : Enabled

A-MPDU : Enabled

LDPC : Supported

STBC : Supported

Operational VHT-MCS Set:

Mandatory : Not configured

Supported : Not configured

Multicast : Not configured

Operational HT MCS Set:

Mandatory : Not configured

Supported : 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,

10, 11, 12, 13, 14, 15

Multicast : Not configured

Channel : 11(auto)

Channel usage(%) : 0

Max power : 20 dBm

Operational rate:

Mandatory : 1, 2, 5.5, 11 Mbps

Multicast : Auto

Supported : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Disabled : Not configured

Distance : 1 km

ANI : Enabled

Fragmentation threshold : 2346 bytes

Beacon interval : 100 TU

Protection threshold : 2346 bytes

Long retry threshold : 4

Short retry threshold : 7

Maximum rx duration : 2000 ms

Noise floor : 0 dBm

Protection mode : cts-to-self

SU-TxBF : Enabled

Continuous mode : N/A

Client dot11ax-only : Disabled

Operational HE-MCS Set:

Mandatory : Not configured

Supported : NSS1 0,1,2,3,4,5,6,7,8,9,10,11

NSS2 0,1,2,3,4,5,6,7,8,9,10,11

Multicast : Not configured

OFDMA random access RUs : Not Supported

Channel Width Set : 0x01

DL-OFDMA : Enabled

UL-OFDMA : Enabled

UL-MU-MIMO : Disabled

BSS-COLOR : Enabled

TWT negotiation : Disabled

HT protection mode : No protection

21-WLAN Configuration Guide

About this task

Procedure

About this task

Procedure

Network configuration

Procedure

Verifying the configuration

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

Network configuration

Procedure

Verifying the configuration

Restrictions and guidelines

Procedure

Network configuration

Procedure

Verifying the configuration

WLAN uplink detection configuration examples

Network configuration

Procedure

Verifying the configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
