· Color—Color attribute for the forwarding path. You can use the color attribute to distinguish an SR-TE policy from other SR-TE policies that are configured for the same source and destination nodes.

· End point—IP address of the destination node.

Candidate path

A candidate path is a forwarding path that an SR-TE policy can use to forward packets.

An SR-TE policy can have multiple candidate paths. Two SR-TE policies cannot share the same candidate path.

Preference

Candidate paths are uniquely identified by their preference values. An SR-TE policy chooses a candidate path from all its candidate paths based on the preference values.

Segment list

A segment list is a list of SIDs that indicates a packet forwarding subpath. Each SID identifies the segment for forwarding packets to the next hop along the subpath.

A segment list is also call a SID list.

A candidate path can have a single SID list or multiple SID lists that use different weight values.

Weight

A SID list can have a weight value. After an SR-TE policy chooses a candidate path with multiple SID lists, the traffic will be load shared among the subpaths based on weight values.

SR-TE policy tunnel

An SR-TE policy tunnel is a virtual point-to-point connection between the node deployed with the SR-TE policy and the destination node of the SR-TE policy. The tunnel is automatically created upon SR-TE policy creation. SR-TE policy tunnels use SRLSPs.

SR-TE policy group

An SR-TE policy group is a collection of SR-TE policies. You can add SR-TE policies to an SR-TE policy group to implement SR-TE policy based forwarding according to DSCP values of packets.

SR-TE policy validity

The following describes the rules for identifying the validity of a SR-TE policy:

1. An SR-TE policy is valid only if it has valid candidate paths.

2. A candidate path is valid only if it has a valid SID list.

3. A SID list is valid if none of the following situations exists:

¡ The SID list is empty.

¡ The weight of the SID list is 0.

¡ An SR node cannot find the outgoing interface or next hop address based on the SID at the top of the SID list stack.

SR-TE policy routing procedure

The following describes how the device chooses and uses an SR-TE policy to route a packet:

1. Upon receiving a packet whose stack top label is a BSID, the device identifies the valid SR-TE policies based on the BSID.

2. If multiple valid SR-TE policies are available, the device chooses the SR-TE policy that was first bound to the BSID.

3. If the chosen SR-TE policy has multiple candidate paths, the device chooses the candidate path with the greatest preference value.

4. If the chosen candidate path has multiple SID lists, the traffic will be load shared based on the weight values among the subpaths identified by the SID lists. The load of SID list x is equal to Weight x/(Weight 1 + Weight 2 + … + Weight n).

For example, Device A in Figure 1 first chooses a valid SR-TE policy by BSID. Then, the device chooses a candidate path by preference. The candidate path has two valid SID lists: SID list 1 and SID list 2. The weight value of SID list 1 is 20 and the weight value of SID list 2 is 80. One fifth of the traffic will be forwarded through the subpath identified by SID list 1. Four fifth of the traffic will be forwarded through the subpath identified by SID list 2.

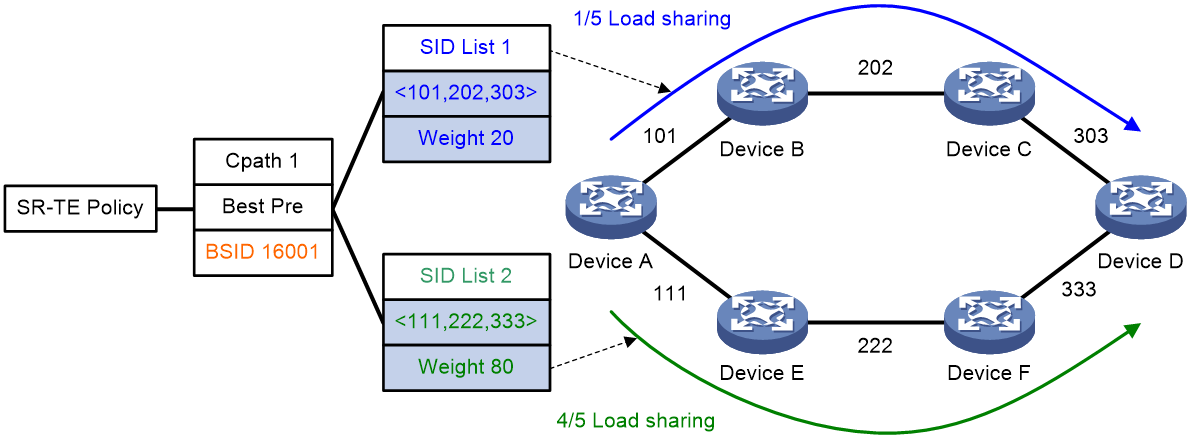

Figure 1 SR-TE policy routing diagram

SR-TE policy forwarding procedure

As shown in Figure 2, the SR-TE policy forwarding procedure is as follows:

1. After Device A receives a packet with the stack top label 16001, it searches its LFIB and determines that the label is a BSID. Then, Device A obtains the outgoing label stack and next hop (Device B), pops the BSID, pushes SID list {20002, 21003, 22004}, and forwards the packet to Device B. 20002 is the SID of the segment for a packet to travel from Device A to Device B. 21003 is the SID of the segment for a packet to travel from Device B to Device C. 22004 is the SID of the segment for a packet to travel from Device C to Device D.

2. After Device B receives the packet, it searches its LFIB by the incoming label and determines that the next hop is Device C. Then, Device B forwards the packet to Device C.

3. After Device C receives the packet, it searches its LFIB by the incoming label and determines that the next hop is Device D. Then, Device C forwards the packet to Device D.

4. After Device D receives the packet, it identifies whether the packet is carrying a label. If yes, Device D searches its LFIB to forward the packet. If not, Device D searches its IP FIB to forward the packet.

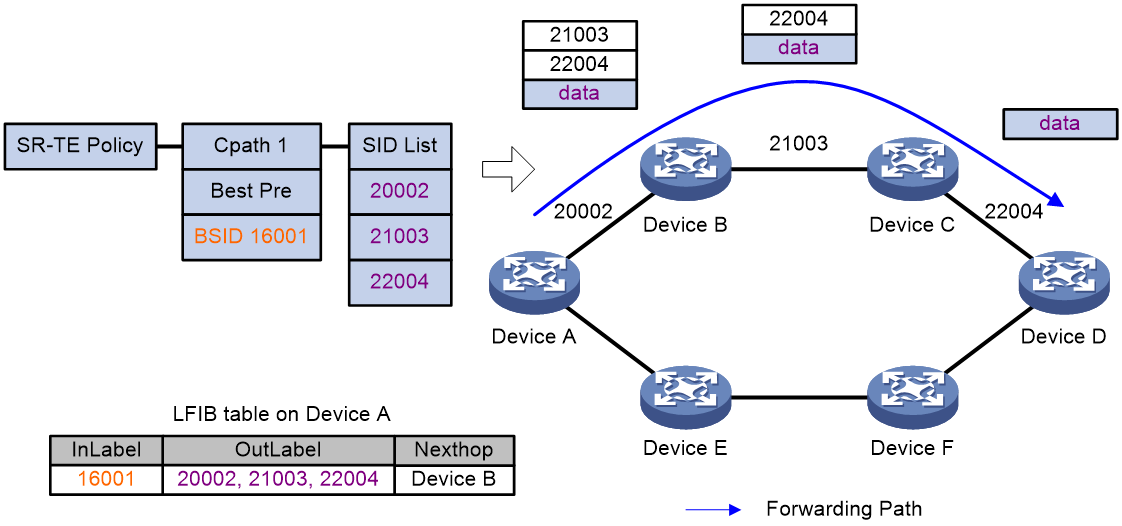

Figure 2 SR-TE policy forwarding diagram

Traffic steering to an SR-TE policy

You can steer traffic to an SR-TE policy for further forwarding based on the following criteria:

· BSID—Upon receiving a packet whose stack top label is a BSID, the device chooses an SR-TE policy based on the BSID to forward the packet.

· Color—The device searches for an SR-TE policy whose color value and end point match the color extended community attribute and next hop of a BGP route. If an SR-TE policy is found, route recursion is performed for the BGP route. Packets matching the BGP route will be steered to the SR-TE policy for further forwarding.

· Tunnel policy—In an MPLS L3VPN or EVPN L3VPN, use a tunnel policy to specify the paths of an SR-TE policy as preferred tunnels or tunnels for load sharing. This allows the paths to be used as public network tunnels to carry VPN packets. For more information about tunnel policies, see MPLS Configuration Guide.

· DSCP value—Create color-to-DSCP mappings for an SR-TE policy group, and create a tunnel policy that binds a destination IP address to the SR-TE policy group. Upon receiving a packet with the specified destination IP address, the device searches for the SR-TE policy containing the color value mapped to the DCSP value of the packet. The device will use the SR-TE policy to forward the packet.

SR-TE policy association with SBFD

Typically, SR-TE policies use SBFD to maintain policy state and detect path failures. By default, SBFD detects the SID lists for only the candidate path of the highest preference in an SR-TE policy.

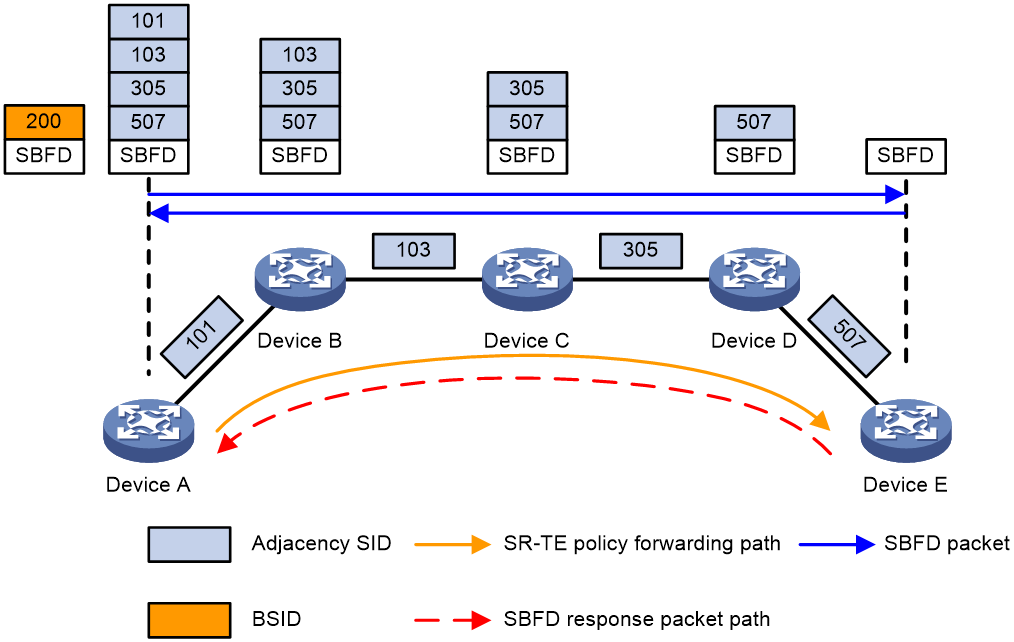

Figure 3 SR-TE policy association with SBFD

‌

As shown in Figure 3, the SR-TE policy is associated with SBFD on source node Device A. The end point IP address is specified as the remote discriminator of the SBFD session. If the candidate path of the highest preference in the SR-TE policy has multiple SID lists, multiple SBFD sessions are established to detect the forwarding path for each SID list. All SBFD sessions use the same remote discriminator.

The SR-TE policy uses SBFD to detect the forwarding paths as follows:

1. The source node (Device A) sends an SBFD packet that encapsulates the target SID lists of the SR-TE policy.

2. Upon receiving the SBFD packet, the destination node (Device E) sends a response along the shortest path obtained through routing table lookup.

3. Upon receiving the SBFD response, Device A determines that the forwarding path for the SID list is available. If no response is received, Device A determines that the forwarding path is faulty. If all SID lists for the current candidate path are faulty, another candidate path takes over.

Because SBFD response packets are forwarded according to routing table lookup, all SBFD sessions between a source and a destination node use the same response path. A failure of the SBFD response path will cause all associated SR-TE policies to go down. Make sure you understand the potential impact before using this feature.

SR-TE policy hot standby

If an SR-TE policy has multiple valid candidate paths, the device chooses the candidate path with the greatest preference value. If the chosen path fails, the SR-TE policy must select another candidate path. During path reselection, packet loss might occur to affect service continuity.

The SR-TE hot standby feature can address this issue. This feature takes the candidate path with the greatest preference value as the primary path and that with the second greatest preference value as the standby path. As shown in Figure 4, when the forwarding paths corresponding to all SID lists of the primary path fails, the standby path immediately takes over to minimize service interruption.

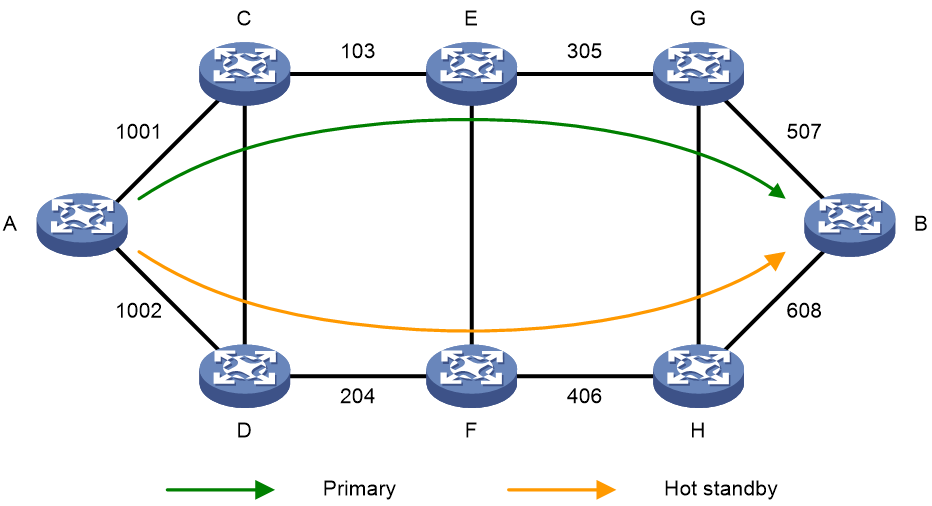

Figure 4 SR-TE policy hot standby

‌

You can configure both the hot standby and SBFD features for an SR-TE policy. SBFD detects the availability of all SID lists of the primary path and the smallest SID of the standby path. If all SID lists of the primary path become unavailable, the standby path takes over and a path recalculation is performed. The standby path becomes the new primary path, and a new standby path is selected. If both the primary and standby paths fail, the SR-TE policy will calculate new primary and standby paths.

MP-BGP extension for SR-TE policy-based routing

To support SR-TE policies, MP-BGP increases the following definitions:

· BGP IPv4 SR-TE policy address family.

· SR-TE policy routes, which are also called SR-TE policy NLRI.

SR-TE policy route information carries SR-TE policy settings, including the BSIDs, color values, end points, preference values, and weight values. After the device advertises SR-TE policy routes to a peer, the peer can also use SR-TE policies to steer traffic.

The device supports the color extended community attribute. Upon receiving a packet that matches a route with the color extended community attribute, the device searches for an SR-TE policy that has the same color value as the route. If an SR-TE policy is found, the device forwards the packet based on the SR-TE policy. If not, the device uses the optimal route to forward the packet.

The color extended community attribute is in the format of 2-bit Color-Only flag:32-bit user-defined color value, for example, 10:3.

SR-TE policy configuration tasks at a glance

To configure an SR-TE policy, perform the following tasks:

1. Configuring IGP-based SID advertisement

Perform this task on each SR node. For more information, see MPLS SR configuration in Segment Routing Configuration Guide.

2. Configuring a SID list

3. Creating an SR-TE policy

4. Configuring SR-TE policy attributes

5. Configuring a candidate path

6. (Optional.) Configuring BGP to advertise SR-TE policy routes

a. Enabling BGP to advertise SR-TE policy routes

b. Configuring BGP to redistribute routes from the SR-TE policy

c. (Optional.) Advertising SR-TE policy routes to EBGP peers

d. (Optional.) Filtering SR-TE policy routes by router ID

e. (Optional.) Configuring BGP to control SR-TE policy route selection and advertisement

f. (Optional.) Maintaining BGP sessions

7. (Optional.) Steering traffic to an SR-TE policy

8. (Optional.) Enabling SBFD for SR-TE policies

9. (Optional.) Enabling hot standby for SR-TE policies

10. (Optional.) Configuring the SR TE forwarding statistics feature

Configuring a SID list

About this task

After you add nodes to a SID list, the system will sort the nodes in ascending order of node index.

Procedure

1. Enter system view.

system-view

2. Enter segment routing view.

segment-routing

3. Create and enter the SR TE view.

traffic-engineering

4. Create a SID list and enter its view.

segment-list segment-list-name

5. Add a node to the SID list.

index index-number mpls label label-value

Creating an SR-TE policy

1. Enter system view.

system-view

2. Enter segment routing view.

segment-routing

3. Enter the SR TE view.

traffic-engineering

4. Create an SR-TE policy and enter its view.

policy policy-name

Configuring SR-TE policy attributes

About this task

An SR-TE policy is identified by the following items: BSID, color, and end point. Upon receiving a packet whose stack top label is a BSID, the device chooses an SR-TE policy based on the BSID to forward the packet.

You can bind a BSID to the policy manually, or set only the color and end point attributes of the policy so the system automatically assigns a BSID to the policy. If you use both methods, the manually bound BSID takes effect.

Restrictions and guidelines

If you configure an MPLS label as the BSID but the label is not in the range of the SRGB or SRLB or is already used by a protocol, the configuration does not take effect. For more information about SRGB or SRLB, see "Configuring MPLS SR."

Each SR-TE policy must have a unique color value. However, multiple SR-TE policies can have the same end point.

Procedure

1. Enter system view.

system-view

2. Enter segment routing view.

segment-routing

3. Enter the SR TE view.

traffic-engineering

4. Enter SR-TE policy view.

policy policy-name

5. Bind a BSID to the policy.

binding-sid mpls mpls-label

6. Set the color and end point attributes.

color color-value end-point ipv4 ipv4-address

Configuring a candidate path

1. Enter system view.

system-view

2. Enter segment routing view.

segment-routing

3. Enter SR TE view.

traffic-engineering

4. Enter SR-TE policy view.

policy policy-name

5. Create and enter SR-TE policy candidate path view.

candidate-paths

6. Set the preference for a candidate path and enter candidate path preference view.

preference preference-value

By default, no candidate path preferences are set.

Each preference represents a candidate path.

7. Specify an explicit path for the candidate path.

explicit segment-list segment-list-name [ weight weight-value ]

A candidate path can have multiple SID lists.

Configuring BGP to advertise SR-TE policy routes

Restrictions and guidelines for SR-TE policy routes advertisement

For more information about BGP commands, see Layer 3—IP Routing Commands.

Enabling BGP to advertise SR-TE policy routes

1. Enter system view.

system-view

2. Configure a global router ID.

router id router-id

By default, no global router ID is configured.

3. Enable a BGP instance and enter its view.

bgp as-number [ instance instance-name ]

By default, BGP is disabled and no BGP instances exist.

4. Configure a peer.

peer { group-name | ipv4-address [ mask-length ] } as-number as-number

5. Create the BGP IPv4 SR-TE policy address family and enter its view.

address-family ipv4 sr-policy

6. Enable BGP to exchange SR-TE policy routing information with the peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } enable

By default, the device cannot use BGP to exchange SR-TE policy routing information with a peer or peer group.

Configuring BGP to redistribute routes from the SR-TE policy

About this task

After you configure BGP to redistribute SR-TE policy routes, the system will redistribute the local SR-TE policy routes to the BGP routing table and advertise the routes to peers. Then, the peers can forward traffic based on the SR-TE policy.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP IPv4 SR-TE policy address family view.

address-family ipv4 sr-policy

4. Enable BGP to redistribute routes from the SR-TE policy.

import-route sr-policy

By default, BGP does not redistribute SR-TE policy routes.

Advertising SR-TE policy routes to EBGP peers

About this task

By default, only IBGP peers exchange SR-TE policy routes. Perform this task to advertise SR-TE policy routes to EBGP peers.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP IPv4 SR-TE policy address family view.

address-family ipv4 sr-policy

4. Advertise SR-TE policy routes to EBGP peers.

advertise ebgp enable

By default, SR-TE policy routes are not advertised to EBGP peers.

Filtering SR-TE policy routes by router ID

About this task

When a large number of SR-TE policy routes exist in the network, perform this task to enable the device to process only specific SR-TE policy routes.

Upon receiving SR-TE policy routes, the device checks the Route Target (RT) attribute in received SR-TE policy routes. Only the routes containing the local router ID in the RT attribute are accepted.

Restrictions and guidelines

To avoid incorrect route learning or filtering, configure a routing policy to add an appropriate RT attribute to SR-TE policy routes before using this feature.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP IPv4 SR-TE policy address family view.

address-family ipv4 sr-policy

4. Enable SR-TE policy route filtering by router ID.

router-id filter

By default, SR-TE policy route filtering by router ID is disabled.

Configuring BGP to control SR-TE policy route selection and advertisement

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP IPv4 SR-TE policy address family view.

address-family ipv4 sr-policy

4. Specify the local router as the next hop for routes sent to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } next-hop-local

By default, BGP sets the local router as the next hop for all routes sent to an EBGP peer or peer group. BGP does not set the local router as the next hop for routes sent to an IBGP peer or peer group.

5. Allow a local AS number to exist in the AS_PATH attribute of routes from a peer or peer group, and to set the number of times the local AS number can appear.

peer { group-name | ipv4-address [ mask-length ] } allow-as-loop [ number ]

By default, the local AS number is not allowed to exist in the AS_PATH attribute of routes from a peer or peer group.

6. Specify a preferred value for routes received from a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } preferred-value value

By default, the preferred value is 0 for routes received from a peer or peer group.

7. Set the maximum number of routes that can be received from a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } route-limit prefix-number [ { alert-only | discard | reconnect reconnect-time } | percentage-value ] *

By default, the number of routes that can be received from a peer or peer group is not limited.

8. Configure the device as a route reflector and specify a peer or peer group as a client.

peer { group-name | ipv4-address [ mask-length ] } reflect-client

By default, neither the route reflector nor the client is configured.

9. Specify a prefix list to filter routes received from or advertised to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } prefix-list ipv4-prefix-list-name { export | import }

By default, no prefix list based filtering is configured.

10. Apply a routing policy to routes incoming from or outgoing to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } route-policy route-policy-name { export | import }

By default, no routing policy is applied to routes incoming from or outgoing to a peer or peer group.

11. Advertise the COMMUNITY attribute to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } advertise-community

By default, no COMMUNITY attribute is advertised to any peers or peer groups.

12. Advertise the extended community attribute to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } advertise-ext-community

By default, no extended community attribute is advertised to any peers or peer groups.

Maintaining BGP sessions

To maintain BGP sessions, execute the following commands in user view:

· Reset BGP sessions for the BGP IPv4 SR-TE policy address family.

reset bgp [ instance instance-name ] { as-number | ipv4-address [ mask-length ] | all | external | group group-name | internal } ipv4 sr-policy

· Manually soft-reset BGP sessions for the BGP IPv4 SR-TE policy address family.

refresh bgp [ instance instance-name ] { ipv4-address [ mask-length ] | all | external | group group-name | internal } { export | import } ipv4 sr-policy

Steering traffic to an SR-TE policy

Configuring traffic steering criteria

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Configure the criteria to steer traffic to an SR-TE policy.

sr-policy steering [ disable | policy-based ]

By default, traffic is steered to an SR-TE policy based on the color value.

Configuring color-based traffic steering

1. Enter system view.

system-view

2. Enter routing policy node view.

route-policy route-policy-name { deny | permit } node node-number

3. Set the color extended community attribute for BGP routes.

apply extcommunity color color [ additive ]

By default, no BGP route attributes are configured.

4. Return to system view.

quit

5. Enter BGP instance view.

bgp as-number [ instance instance-name ]

6. Enter BGP IPv4 unicast address family view, BGP IPv6 unicast address family view, BGP VPNv4 address family view, BGP VPNv6 address family view, or BGP EVPN address family view.

¡ Enter BGP IPv4 unicast address family view.

address-family ipv4 [ unicast ]

¡ Enter BGP IPv6 unicast address family view.

address-family ipv6 [ unicast ]

¡ Enter BGP VPNv4 address family view.

address-family vpnv4

¡ Enter BGP VPNv6 address family view.

address-family vpnv6

¡ Enter BGP EVPN address family view.

address-family l2vpn evpn

7. Specify a routing policy to filter routes advertised to or received from a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } route-policy route-policy-name { export | import }

By default, no routing policy is specified.

Configuring tunnel policy-based traffic steering

1. Enter system view.

system-view

2. Create a tunnel policy and enter tunnel policy view.

tunnel-policy tunnel-policy-name [ default ]

3. Configure the tunnel policy. Choose one option as needed:

¡ Configure an SR-TE policy tunnel as a preferred tunnel.

preferred-path sr-policy name sr-policy-name

By default, no preferred tunnels are configured.

¡ Configure a tunnel load sharing policy.

select-seq sr-policy load-balance-number number

By default, no tunnel load sharing policies are configured.

For more information about the commands, see MPLS Command Reference.

4. Return to system view.

quit

5. Enter VPN instance view, VPN instance IPv4 address family view, or VPN instance IPv6 address family view.

¡ Enter VPN instance view.

ip vpn-instance vpn-instance-name

¡ Execute the following commands in sequence to enter VPN instance IPv4 address family view.

ip vpn-instance vpn-instance-name

address-family ipv4

¡ Execute the following commands in sequence to enter VPN instance IPv6 address family view.

ip vpn-instance vpn-instance-name

address-family ipv6

6. Apply a tunnel policy to the VPN instance.

tnl-policy tunnel-policy-name

By default, no tunnel policy is applied to the VPN instance.

For more information about this command, see MPLS Command Reference.

Configuring DSCP-based traffic steering

About this task

Each SR-TE policy in an SR-TE policy group has a different color attribute value. By configuring color-to-DSCP mappings for an SR-TE policy group, you associate DSCP values to SR-TE policies. This allows IP packets containing a specific DSCP value to be steered to the corresponding SR-TE policy for further forwarding.

Restrictions and guidelines

You can map the color values of only valid SR-TE policies to DSCP values.

You can configure color-to-DSCP mappings separately for the IPv4 address family and IPv6 address family. For a specific address family, a DSCP value can be mapped to only one color value.

Use the color match dscp default command to specify the default SR-TE policy for an address family. If no SR-TE policy in an SR-TE policy group matches a specific DSCP value, the default SR-TE policy is used to forward packets containing the DSCP value. Only one default SR-TE policy can be specified for an address family.

When the device receives an IPv4 or IPv6 packet that does not match any color-to-DSCP mapping, the device selects a valid SR-TE policy for the packet in the following order:

1. The default SR-TE policy specified for the same address family as the packet.

2. The default SR-TE policy specified for the other address family.

3. The SR-TE policy mapped to the smallest DSCP value in the same address family as the packet.

4. The SR-TE policy mapped to the smallest DSCP value in the other address family.

Procedure

1. Enter system view.

system-view

2. Enter segment routing view.

segment-routing

3. Create and enter the SR TE view.

traffic-engineering

4. Create an SR-TE policy group and enter its view.

policy-group group-id

5. Configure the endpoint IP address for the SR-TE policy group.

end-point ipv4 ipv4-address

By default, no endpoint IP address is configured for the SR-TE policy group.

The SR-TE policies added to the SR-TE policy group must use the same endpoint IP address as the SR-TE policy group.

6. Create color-to-DSCP mappings for the SR-TE policy group.

color color-value match dscp { ipv4 | ipv6 } dscp-value-list

color color-value match dscp { ipv4 | ipv6 } default

By default, no color-to-DSCP mappings are created for the SR-TE policy group.

DSCP-based traffic steering cannot function if no color-to-DSCP mappings are created.

7. Return to system view.

quit

8. Create a tunnel policy and enter tunnel policy view.

tunnel-policy tunnel-policy-name [ default ]

9. Bind the SR-TE policy group to a destination IP address.

binding-destination dest-ip-address sr-policy group sr-policy-group-id [ ignore-destination-check ] [ down-switch ]

By default, a tunnel policy does not bind any SR-TE policy group to a destination IP address.

For more information about the command, see MPLS Command Reference.

Enabling SBFD for SR-TE policies

Restrictions and guidelines

You can enable SBFD for all SR-TE policies globally in SR TE view or for a specific SR-TE policy in SR-TE policy view. The policy-specific configuration takes precedence over the global configuration. An SR-TE policy uses the global configuration only when it has no policy-specific configuration.

Procedure

1. Enter system view.

system-view

2. Enter segment routing view.

segment-routing

3. Enter SR TE view.

traffic-engineering

4. Enable SBFD for all SR-TE policies.

sr-policy sbfd enable

By default, SBFD is disabled for all SR-TE policies.

5. Enter SR-TE policy view.

policy policy-name

6. Configure SBFD for the SR-TE policy.

sbfd { disable | enable }

By default, SBFD is not configured for an SR-TE policy.

7. (Optional.) Configure SBFD detection timer parameters.

sr-policy sbfd timer { detect-multiplier multiplier-value | min-transmit-interval transmit-interval }

By default, the SBFD detection time multiplier is 5, and the minimum SBFD packet transmission interval is 10 milliseconds.

Enabling hot standby for SR-TE policies

Restrictions and guidelines

You can enable hot standby for all SR-TE policies globally in SR TE view or for a specific SR-TE policy in SR-TE policy view. The policy-specific configuration takes precedence over the global configuration. An SR-TE policy uses the global configuration only when it has no policy-specific configuration.

Procedure

1. Enter system view.

system-view

2. Enter segment routing view.

segment-routing

3. Enter SR TE view.

traffic-engineering

4. Enable hot standby for all SR-TE policies.

sr-policy backup hot-standby enable

By default, hot standby is disabled for all SR-TE policies.

5. Enter SR-TE policy view.

policy policy-name

6. Configure hot standby for the SR-TE policy.

backup hot-standby { disable | enable }

By default, hot standby is not configured for an SR-TE policy.

Configuring the SR TE forwarding statistics feature

About the SR TE forwarding statistics feature

The SR TE forwarding statistics feature collects statistics on traffic forwarded by SR-TE policies.

Procedure

1. Enter system view.

system-view

2. Enter segment routing view.

segment-routing

3. Enter SR TE view.

traffic-engineering

4. Enable SR TE forwarding statistics.

forwarding statistics enable

By default, SR TE forwarding statistics is disabled.

5. (Optional.) Set the SR TE forwarding statistics interval.

forwarding statistics interval interval

By default, the SR TE forwarding statistics interval is 30 seconds.

Display and maintenance commands for SR-TE policies

Execute display commands in any view. Execute reset commands in user view.

Task	Command
Display BGP peer or peer group information.	display bgp [ instance instance-name ] peer ipv4 sr-policy [ ipv4-address mask-length \| { ipv4-address \| group-name group-name } log-info \| [ ipv4-address ] verbose ]
Display BGP IPv4 SR-TE policy routing information.	display bgp [ instance instance-name ] routing-table ipv4 sr-policy [ sr-policy-prefix [ advertise-info ] \| [ color color-value ] [ end-point ipv4 ipv4-address ] \| peer ipv4-address { advertised-routes \| received-routes } [ statistics ] [ color color-value ] [ end-point ipv4 ipv4-address ] \| statistics [ color color-value ] [ end-point ipv4 ipv4-address ] ]
Display SR TE forwarding information.	display segment-routing te forwarding [ policy { policy-name \| { color color-value \| end-point ipv4 ip-address } * } ] [ verbose ]
Display SR-TE policy information.	display segment-routing te policy [ policy-name \| down \| up \| { color color-value \| end-point ipv4 ip-address } * ]
Display SR-TE policy statistics.	display segment-routing te policy statistics
Display SR-TE policy group information.	display segment-routing te policy-group [ group-id ] [ verbose ]
Display SR-TE SID list information.	display segment-routing te segment-list [ name segment-list-name \| id id-value ]
Clear SR TE forwarding statistics.	reset segment-routing te forwarding statistics

SR-TE policy configuration examples

Example: Configuring SR-TE policy-based forwarding

Network configuration

As shown in Figure 5, perform the following tasks on the devices to implement SR-TE policy-based forwarding:

· Configure Device A through Device D to run IS-IS to implement Layer 3 connectivity.

· Configure MPLS SR on Device A through Device D to establish an SRLSP.

· Configure an SR-TE policy on Device A to forward user packets along path Device A > Device B > Device C > Device D.

Figure 5 Network diagram

‌

Device	Interface	IP address	Device	Interface	IP address
Device A	Loop1	1.1.1.1/32	Device B	Loop1	2.2.2.2/32
	GE1/2/0/1	12.0.0.1/24		GE1/2/0/1	12.0.0.2/24
	GE1/2/0/2	14.0.0.1/24		GE1/2/0/2	23.0.0.2/24
Device C	Loop1	3.3.3.3/32	Device D	Loop1	4.4.4.4/32
	GE1/2/0/1	34.0.0.3/24		GE1/2/0/1	34.0.0.4/24
	GE1/2/0/2	23.0.0.3/24		GE1/2/0/2	14.0.0.4/24

Procedure

1. Configure IP addresses and masks for interfaces. (Details not shown.)

2. Configure Device A:

# Configure IS-IS and set the IS-IS cost style to wide.

<DeviceA> system-view

[DeviceA] isis 1

[DeviceA-isis-1] network-entity 00.0000.0000.0001.00

[DeviceA-isis-1] cost-style wide

[DeviceA-isis-1] quit

[DeviceA] interface gigabitethernet 1/2/0/1

[DeviceA-GigabitEthernet1/2/0/1] isis enable 1

[DeviceA-GigabitEthernet1/2/0/1] quit

[DeviceA] interface gigabitethernet 1/2/0/2

[DeviceA-GigabitEthernet1/2/0/2] isis enable 1

[DeviceA-GigabitEthernet1/2/0/2] quit

[DeviceA] interface loopback 1

[DeviceA-LoopBack1] isis enable 1

[DeviceA-LoopBack1] quit

# Configure the MPLS LSR ID, and enable MPLS and MPLS TE.

[DeviceA] mpls lsr-id 1.1.1.1

[DeviceA] mpls te

[DeviceA-te] quit

[DeviceA] interface gigabitethernet 1/2/0/1

[DeviceA-GigabitEthernet1/2/0/1] mpls enable

[DeviceA-GigabitEthernet1/2/0/1] quit

[DeviceA] interface gigabitethernet 1/2/0/2

[DeviceA-GigabitEthernet1/2/0/2] mpls enable

[DeviceA-GigabitEthernet1/2/0/2] quit

# Configure the SRGB and enable MPLS SR in IPv4 unicast address family view.

[DeviceA] isis 1

[DeviceA-isis-1] segment-routing global-block 16000 16999

[DeviceA-isis-1] address-family ipv4

[DeviceA-isis-1-ipv4] segment-routing mpls

[DeviceA-isis-1-ipv4] quit

[DeviceA-isis-1] quit

# Configure the IS-IS prefix SID.

[DeviceA] interface loopback 1

[DeviceA-LoopBack1] isis prefix-sid index 10

[DeviceA-LoopBack1] quit

# Configure an SID list.

[DeviceA] segment-routing

[DeviceA-segment-routing] traffic-engineering

[DeviceA-sr-te] segment-list s1

[DeviceA-sr-te-sl-s1] index 10 mpls label 16020

[DeviceA-sr-te-sl-s1] index 20 mpls label 17030

[DeviceA-sr-te-sl-s1] index 30 mpls label 18040

[DeviceA-sr-te-sl-s1] quit

# Create an SR-TE policy and set the attributes.

[DeviceA-sr-te] policy p1

[DeviceA-sr-te-policy-p1] binding-sid mpls 15000

[DeviceA-sr-te-policy-p1] color 10 end-point ipv4 4.4.4.4

# Configure a candidate path for the SR-TE policy and specify an explicit path for the candidate path.

[DeviceA-sr-te-policy-p1] candidate-paths

[DeviceA-sr-te-policy-p1-path] preference 10

[DeviceA-sr-te-policy-p1-path-pref-10] explicit segment-list s1

[DeviceA-sr-te-policy-p1-path-pref-10] quit

[DeviceA-sr-te-policy-p1-path] quit

[DeviceA-sr-te-policy-p1] quit

[DeviceA-sr-te] quit

[DeviceA-segment-routing] quit

3. Configure Device B:

# Configure IS-IS and set the IS-IS cost style to wide.

<DeviceB> system-view

[DeviceB] isis 1

[DeviceB-isis-1] network-entity 00.0000.0000.0002.00

[DeviceB-isis-1] cost-style wide

[DeviceB-isis-1] quit

[DeviceB] interface gigabitethernet 1/2/0/1

[DeviceB-GigabitEthernet1/2/0/1] isis enable 1

[DeviceB-GigabitEthernet1/2/0/1] quit

[DeviceB] interface gigabitethernet 1/2/0/2

[DeviceB-GigabitEthernet1/2/0/2] isis enable 1

[DeviceB-GigabitEthernet1/2/0/2] quit

[DeviceB] interface loopback 1

[DeviceB-LoopBack1] isis enable 1

[DeviceB-LoopBack1] quit

# Configure the MPLS LSR ID, and enable MPLS and MPLS TE.

[DeviceB] mpls lsr-id 2.2.2.2

[DeviceB] mpls te

[DeviceB-te] quit

[DeviceB] interface gigabitethernet 1/2/0/1

[DeviceB-GigabitEthernet1/2/0/1] mpls enable

[DeviceB-GigabitEthernet1/2/0/1] quit

[DeviceB] interface gigabitethernet 1/2/0/2

[DeviceB-GigabitEthernet1/2/0/2] mpls enable

[DeviceB-GigabitEthernet1/2/0/2] quit

# Configure the SRGB and enable MPLS SR in IPv4 unicast address family view.

[DeviceB] isis 1

[DeviceB-isis-1] segment-routing global-block 17000 17999

[DeviceB-isis-1] address-family ipv4

[DeviceB-isis-1-ipv4] segment-routing mpls

[DeviceB-isis-1-ipv4] quit

[DeviceB-isis-1] quit

# Configure the IS-IS prefix SID.

[DeviceB] interface loopback 1

[DeviceB-LoopBack1] isis prefix-sid index 20

[DeviceB-LoopBack1] quit

4. Configure Device C:

# Configure IS-IS and set the IS-IS cost style to wide.

<DeviceC> system-view

[DeviceC] isis 1

[DeviceC-isis-1] network-entity 00.0000.0000.0003.00

[DeviceC-isis-1] cost-style wide

[DeviceC-isis-1] quit

[DeviceC] interface gigabitethernet 1/2/0/1

[DeviceC-GigabitEthernet1/2/0/1] isis enable 1

[DeviceC-GigabitEthernet1/2/0/1] quit

[DeviceC] interface gigabitethernet 1/2/0/2

[DeviceC-GigabitEthernet1/2/0/2] isis enable 1

[DeviceC-GigabitEthernet1/2/0/2] quit

[DeviceC] interface loopback 1

[DeviceC-LoopBack1] isis enable 1

[DeviceC-LoopBack1] quit

# Configure the MPLS LSR ID, and enable MPLS and MPLS TE.

[DeviceC] mpls lsr-id 3.3.3.3

[DeviceC] mpls te

[DeviceC-te] quit

[DeviceC] interface gigabitethernet 1/2/0/1

[DeviceC-GigabitEthernet1/2/0/1] mpls enable

[DeviceC-GigabitEthernet1/2/0/1] quit

[DeviceC] interface gigabitethernet 1/2/0/2

[DeviceC-GigabitEthernet1/2/0/2] mpls enable

[DeviceC-GigabitEthernet1/2/0/2] quit

# Configure the SRGB and enable MPLS SR in IPv4 unicast address family view.

[DeviceC] isis 1

[DeviceC-isis-1] segment-routing global-block 18000 18999

[DeviceC-isis-1] address-family ipv4

[DeviceC-isis-1-ipv4] segment-routing mpls

[DeviceC-isis-1-ipv4] quit

[DeviceC-isis-1] quit

# Configure the IS-IS prefix SID.

[DeviceC] interface loopback 1

[DeviceC-LoopBack1] isis prefix-sid index 30

[DeviceC-LoopBack1] quit

5. Configure Device D:

# Configure IS-IS and set the IS-IS cost style to wide.

<DeviceD> system-view

[DeviceD] isis 1

[DeviceD-isis-1] network-entity 00.0000.0000.0004.00

[DeviceD-isis-1] cost-style wide

[DeviceD-isis-1] quit

[DeviceD] interface gigabitethernet 1/2/0/1

[DeviceD-GigabitEthernet1/2/0/1] isis enable 1

[DeviceD-GigabitEthernet1/2/0/1] quit

[DeviceD] interface gigabitethernet 1/2/0/2

[DeviceD-GigabitEthernet1/2/0/2] isis enable 1

[DeviceD-GigabitEthernet1/2/0/2] quit

[DeviceD] interface loopback 1

[DeviceD-LoopBack1] isis enable 1

[DeviceD-LoopBack1] quit

# Configure the MPLS LSR ID, and enable MPLS and MPLS TE.

[DeviceD] mpls lsr-id 4.4.4.4

[DeviceD] mpls te

[DeviceD-te] quit

[DeviceD] interface gigabitethernet 1/2/0/1

[DeviceD-GigabitEthernet1/2/0/1] mpls enable

[DeviceD-GigabitEthernet1/2/0/1] quit

[DeviceD] interface gigabitethernet 1/2/0/2

[DeviceD-GigabitEthernet1/2/0/2] mpls enable

[DeviceD-GigabitEthernet1/2/0/2] quit

# Configure the SRGB and enable MPLS SR in IPv4 unicast address family view.

[DeviceD] isis 1

[DeviceD-isis-1] segment-routing global-block 19000 19999

[DeviceD-isis-1] address-family ipv4

[DeviceD-isis-1-ipv4] segment-routing mpls

[DeviceD-isis-1-ipv4] quit

[DeviceD-isis-1] quit

# Configure the IS-IS prefix SID.

[DeviceD] interface loopback 1

[DeviceD-LoopBack1] isis prefix-sid index 40

[DeviceD-LoopBack1] quit

Verifying the configuration

# Display SR TE policy information on Device A.

[DeviceA] display segment-routing te policy

Name/ID: p1/0

Color: 10

Endpoint: 4.4.4.4

Name from Bgp: <none>

BSID:

Mode: Explict Type: Type_1 Request state: Succeeded

Current BSID: 15000 Explicit BSID: 15000 Dynamic BSID: -

Reference counts: 4

Flags: A/BS/NC

Status: Up

Up time: 2019-10-25 11:16:15

Down time: 2019-10-25 11:16:00

Hot-standby: Not configured

BFD: Not configured

PolicyNid: 20971521

Candidate paths state: Configured

Candidate paths statistics:

CLI paths: 1 BGP paths: 0 PCEP paths: 0

Candidate paths:

Preference : 10

CPathName: <none>

Instance ID: 0 ASN: 0 Node Address: 0.0.0.0

Peer address: 0.0.0.0

Optimal: Y Flags: V/A

Explict SID list:

ID: 1 Name: s1

Weight: 1 Nid: 24117249

State: Up BFD state: -

The output shows that the SR-TE policy is in up state. The device can use the SR-TE policy to forward packets.

# Display SR TE forwarding information on Device A.

[DeviceA] display segment-routing te forwarding verbose

Total Forwarding entries: 1

Policy name/ID: p1/0

Binding SID: 15000

Policy NID: 0x01400001

Main path:

SegList ID: 1

SegList NID: 0x01700001

Weight: 1

Outgoing NID: 0x01600001

OutLabels: 3

Interface: GE1/2/0/1

NextHop: 12.0.0.2

Path ID: 0

Label stack: {17030, 18040}

The output shows that the label stack for packets forwarded by using the SR-TE policy is {17030, 18040}.

# Display MPLS LSP information on Device A.

[DeviceA] display mpls lsp

FEC Proto In/Out Label Out Inter/NHLFE/LSINDEX

12.0.0.2 Local -/- GE1/2/0/1

14.0.0.4 Local -/- GE1/2/0/2

1.1.1.1/32 ISIS 16010/- -

2.2.2.2/32 ISIS 16020/3 GE1/2/0/1

2.2.2.2/32 ISIS -/3 GE1/2/0/1

3.3.3.3/32 ISIS 16030/17030 GE1/2/0/1

3.3.3.3/32 ISIS -/17030 GE1/2/0/1

3.3.3.3/32 ISIS 16030/19030 GE1/2/0/2

3.3.3.3/32 ISIS -/19030 GE1/2/0/2

4.4.4.4/32 ISIS 16040/3 GE1/2/0/2

4.4.4.4/32 ISIS -/3 GE1/2/0/2

4.4.4.4/32/20971521 SRPolicy -/17030 GE1/2/0/1

18040

24117249 SRPolicy -/- LSINDEX23068673

4.4.4.4/10 SRPolicy 15000/- NHLFE24117249

The output shows that the forwarding paths used by the SR-TE policy.

10-Segment Routing Configuration Guide

Configuring SR-TE policies

About SR-TE policies

SR-TE policy identification

Candidate path

Preference

Segment list

Weight

SR-TE policy tunnel

SR-TE policy group

MP-BGP extension for SR-TE policy-based routing

About this task

Procedure

Configuring SR-TE policy attributes

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

Maintaining BGP sessions

About this task

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

About the SR TE forwarding statistics feature

Procedure

Network configuration

Procedure

Verifying the configuration

Cloud & AI

InterConnect

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Resources

Partner Business Management

Company Information

News & Events

Contact Us
