Appendix C Optional transceiver modules
Transceiver module, fiber connector, and optical fiber views
Transceiver module specifications
Appendix C Optional transceiver modules
Transceiver module, fiber connector, and optical fiber views
The device provides SFP+ ports. To connect an SFP+ port on the device, use an SFP+ transceiver module and an optical fiber with LC connectors.
Figure1-1 SFP transceiver module
Figure1-2 SFP+ transceiver module

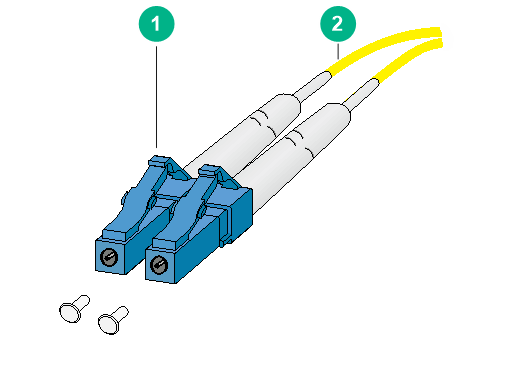

Figure1-3 Optical fiber with LC connectors
|
(1) LC connector |
(2) Optical fiber |
Transceiver module specifications
Table1-1 SFP+ port specifications
|
Item |
Specification |
|
Connector type |
Duplex LC |
|
Supported transceiver modules |
Table1-2 SFP transceiver modules
|
Transceiver module type |
Model |
Central wavelength |
Max receive sensitivity |
Fiber diameter |
Transmission rate |
Max transmission distance |
|
GE-MMF |
SFP-GE-SX-MM850-A |
850 nm |
–17 dBm |
50 µm |
1.25 Gb/s |
550 m (1804.46 ft) |
|
SFP-GE-SX-MM850-D |
850 nm |
–17 dBm |
50 µm |
1.25 Gb/s |
550 m (1804.46 ft) |
|
|
GE-SMF |
SFP-GE-LX-SM1310-A |
1310 nm |
–20 dBm |
9 µm |
1.25 Gb/s |
10 km (6.21 miles) |
|
SFP-GE-LX-SM1310-D |
1310 nm |
–20 dBm |
9 µm |
1.25 Gb/s |
10 km (6.21 miles) |
Table1-3 SFP+ transceiver modules
|
Transceiver module type |
Model |
Central wavelength |
Max receive sensitivity |
Fiber diameter |
Transmission rate |
Max transmission distance |
|
10GE-MMF |
SFP-XG-SX-MM850-A |
850 nm |
–9.9 dBm |
50 µm |
10.31 Gb/s |
300 m (984.25 ft) |
|
SFP-XG-SX-MM850-D |
850 nm |
–9.9 dBm |
50 µm |
10.31 Gb/s |
300 m (984.25 ft) |
|
|
SFP-XG-SX-MM850-E |
850 nm |
–9.9 dBm |
50 µm |
10.31 Gb/s |
300 m (984.25 ft) |
|
|
10GE-SMF |
SFP-XG-LX-SM1310 |
1310 nm |
–14.4 dBm |
9 µm |
10.31 Gb/s |
10 km (6.21 miles) |
|
SFP-XG-LX-SM1310-D |
1310 nm |
–14.4 dBm |
9 µm |
10.31 Gb/s |
10 km (6.21 miles) |
|
|
SFP-XG-LX-SM1310-E |
1310 nm |
–14.4 dBm |
9 µm |
10.31 Gb/s |
10 km (6.21 miles) |
