Appendix A Chassis views and technical specifications
Chassis views

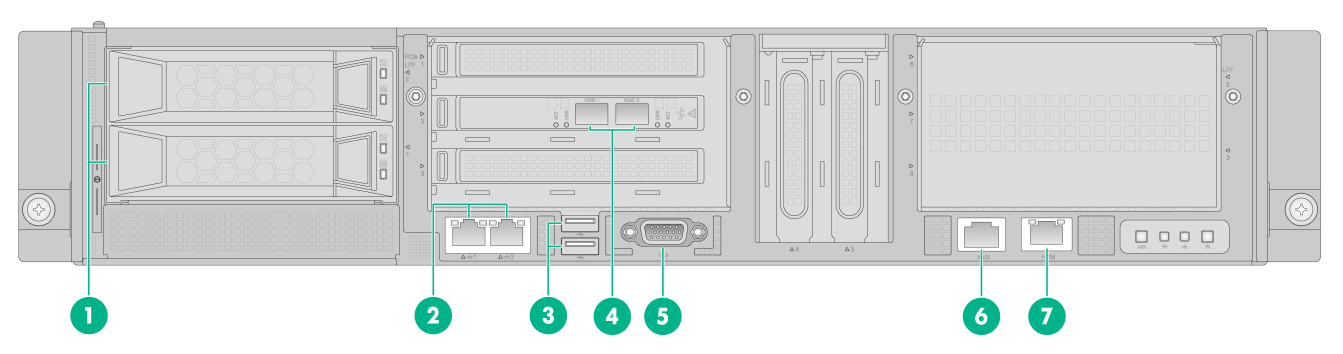

Figure1-1 Front panel
|
(1) 4TB drives |
(2) 1000BASE-T Ethernet ports |
|
(3) USB 2.0 connectors |
(4) SFP+ fiber ports |
|
(5) VGA connector |
(6) BIOS serial port |
|
(7) 1000BASE-T HDM dedicated network port (default IP address 192.168.1.2/24) |
|
Table1-1 Port and connector description
|
Port or connector |
Connector type |
Description |
|
4TB drive |
SATA |
N/A |
|
1000BASE-T Ethernet port |
RJ-45 |
Used together with an Ethernet cable to provide network connection. |
|
USB connector |
USB 2.0 |
Used for connecting the following USB devices: · USB flash disk. · USB keyboard or mouse. · USB optical drive. |
|
SFP+ fiber port |
LC |
Used together with an optical fiber to provide network connection. |
|
VGA connector |
DB-15 |
Used for connecting a display terminal, such as a monitor. |
|
BIOS serial port |
RJ-45 |
· Used for connecting to the device to locate the fault when remote access to the device fails. · Used for applications such as dongle and SMS modem. |
|
1000BASE-T HDM dedicated network port |
RJ-45 |
Used for logging in to the HDM Web interface. |

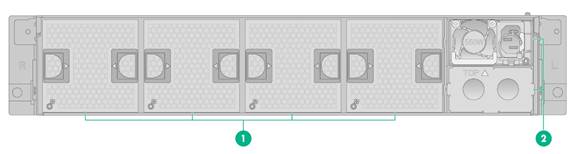

Figure1-2 Rear panel
|
(1) Fan module slots |
(2) Power supply slots 1 and 2 |
Technical specifications
Table1-2 Technical specifications
|
Item |
Specifications |
|
Chassis height |
2 U 1 U equals 44.45 mm (1.75 in) |
|
Dimensions (H × W × D) (excluding the mounting brackets) |
87.5 × 440 × 451 mm (3.44 × 17.32 × 17.76 in) |
|
Weight (including two power supplies) |
14 kg (30.86 lb) |
|
Memory |
128 GB |
|
Storage |
4TB 6G SATA 7.2K 3.5in HDD General Intelligent Disk Equipment Module (FIO) |
|
Power supply |
550W power supply |
|
Power consumption |
≤ 451.56 W |
|
Rated input voltage |
100 to 240 VAC @ 50 or 60 Hz |
|
Network ports |
· 2 × embedded 1000 Mbps Ethernet ports · 2 × 10 Gbps Ethernet fiber ports · 1 × HDM dedicated network port |
|
I/O connectors |
· 2 × USB 2.0 connectors · 1 × VGA connector · 1 × BIOS serial port |
Table1-3 AC power supply specifications
|
Item |
Specifications |
|
Vendor model |
DPS-550AB-22 G |
|
Product code |
DPS-550W-12A |
|
Rated input voltage |
100 VAC to 240 VAC @ 50 or 60 Hz |
|
Rated power consumption |
550W |
