Configuring SQA

About SQA

Service quality analysis (SQA) enables the device to identify SIP or H.323-based multimedia traffic and preferentially forward this traffic to ensure multimedia service quality. Use this feature to decrease multimedia stuttering and improve user experience.

Restrictions and guidelines: SQA configuration

SQA does not support analysis of encrypted SIP or H.323 protocol packets.

Configuring SIP-based SQA

Make sure SQA uses different port numbers to listen for SIP and H.323 packets.

To configure SIP-based SQA:



Step	Command	Remarks
1.     Enter system view.	system-view	N/A
2.     Enter SQA view.	sqa	N/A
3.     Enable SIP-based SQA.	sqa-sip enable	By default, SIP-based SQA is disabled.
4.     Specify the SIP listening port number.	sqa-sip port port-number	By default, the SIP listening port number is 5060. Make sure the SIP listening port number on the device is the same as that on the SIP server.
5.     (Optional.) Specify an IP address range for SIP-based SQA.	sqa-sip filter address start-address end-address	By default, no IP address range is specified for SQA. The device performs SQA on all SIP packets. After this command is executed, the device performs SQA only on SIP calls in the specified IP address range. If you execute this command multiple times, the most recent configuration takes effect.



Configuring H.323-based SQA

Make sure SQA uses different port numbers to listen for SIP and H.323 packets.

To configure H.323-based SQA:



Step	Command	Remarks
1.     Enter system view.	system-view	N/A
2.     Enter SQA view.	sqa	N/A
3.     Enable H.323-based SQA.	sqa-h323 enable	By default, H.323-based SQA is disabled.
4.     Specify the H.255 listening port number.	sqa-h225 port port-number	By default, the H.255 listening port number is 1720. Make sure the H.255 listening port number on the device is the same as that on the H.323 server.
5.     (Optional.) Specify an IP address range for H.323-based SQA.	sqa-h323 filter address start-address end-address	By default, no IP address range is specified for H.323-based SQA. The device performs SQA on all H.323 packets. After this command is executed, the device performs SQA only on H.323 calls in the specified IP address range. If you execute this command multiple times, the most recent configuration takes effect.



Re-marking a priority of VoIP protocol packets

To cooperate with QoS to schedule application packets of different forwarding priorities, perform this task to re-mark a priority of VoIP packets.

You can use the remark { sip | h323 } dot1p dot1p-value command or the remark dot1p command to re-mark the 802.1p priority of VoIP packets. If you configure both of the commands, the 802.1p priority set by using the remark { sip | h323 } dot1p dot1p-value command takes effect.

To re-mark a priority of VoIP protocol packets:



Step	Command	Remarks
1.     Enter system view.	system-view	N/A
2.     Enter SQA view.	sqa	N/A
3.     Re-marks a priority of VoIP protocol packets.	remark { sip | h323 } { dot1p dot1p-value | dscp { dscp-name | dscp-value } }	By default, the device does not re-mark the DSCP priority of VoIP protocol packets.



Display and maintenance commands for SQA

Execute display commands in any view .



Task	Command
Display SIP or H.323 call information.	display sqa { h323 | sip } call [ [ call-id call-id ] verbose ]
Display SIP or H.323 call statistics.	display sqa { h323 | sip } call-statistics



SQA configuration examples

SIP-based SQA configuration example

Network configuration

As shown in Figure 1, the SIP server installed with third-party VoIP server software acts as both the SIP proxy server and SIP registrar to manage SIP UA registration and SIP calls. Host A and Host B installed with third-party client software can place calls to each other.

Configure SIP-based SQA on Device A, Device B, and Device C to optimize multimedia traffic of SIP calls to provide high qualified multimedia services.

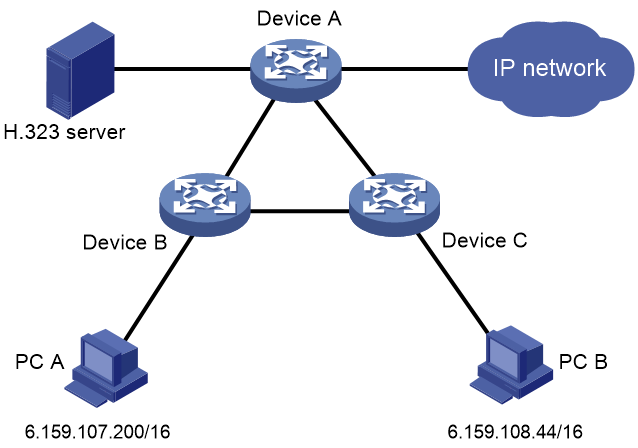

Figure 1 Network diagram



Prerequisites

Assign IP addresses to interfaces, and make sure the devices can reach each other.

Procedure

1.     Configure the SIP server:

Install third-party VoIP server software, register UAs, and specify usernames and passwords. (Details not shown.)

2.     Configure PC A and PC B:

Install third-party VoIP client software, specify the IP address of the SIP server, configure the phone number, and specify the username, password, and domain name on each PC. (Details not shown.)

3.     Configure Device A:

# Enable SIP-based SQA.

<DeviceA> system-view

[DeviceA] sqa

[DeviceA-sqa] sqa-sip enable

# Specify 5066 as the SIP listening port number. (Make sure this SIP listening port number is the same as that on the SIP server.)

[DeviceA-sqa] sqa-sip port 5066

# Specify an IP address range for SIP-based SQA. (Make sure Host A's IP address is included in the range.)

[DeviceA-sqa] sqa-sip filter address 6.159.107.200 6.159.107.200

[DeviceA-sqa] quit

4.     Configure Device B and Device C:

# Configure Device B and Device C in the same way as Device A is configured. (Details not shown.)

Verifying the configuration

# Place a call from Host A to Host B. (Details not shown.)

# Display brief information about all SIP calls on Device A.

<DeviceA> display sqa sip call

Caller                 Callee                 CallId

6.159.107.207:49172    6.159.108.51:52410     3101326658

6.159.107.203:49172    6.159.108.47:52410     4530332933

6.159.107.208:49172    6.159.108.52:52410     4445702693

6.159.107.206:49172    6.159.108.50:52410     8263542841

6.159.107.201:49172    6.159.108.45:52410     4752123310

6.159.107.200:49172    6.159.108.44:52410     99462146

The output shows that Device A has performed SQA on the call that Host A placed to Host B.

# Display detailed information about the SIP call that Host A placed to Host B.

<DeviceA> display sqa sip call call-id 99462146 verbose

Call ID: 99462146

  Caller information:

    IP: 6.159.107.200      Port: 49172    MAC: a036-9fd4-b5bd

    Tag: [email protected]

  Callee information:

    IP: 6.159.108.44       Port: 52410    MAC: a036-9fd4-b5bc

    Tag: [email protected]

  Type: Audio     VLAN: 1               StartTime: 2019-7-14 15:40:39

  MOS(F): 88      MOS(R): 86

  Forward flow (octets): 4793344        Forward flow (packet): 4681

  Reverse flow (octets): 3810304        Reverse flow (packet): 3721

The output shows that the MOS value for both forward and reverse traffic is high, which indicates the quality of the audio service is high.

H.323-based SQA configuration example

Network configuration

As shown in Figure 2, the H.323 server installed with third-party VoIP server software acts as both the H.323 proxy server and H.323 registrar to manage H.323 user registration and H.323 calls. Host A and Host B installed with third-party client software can place calls to each other.

Configure H.323-based SQA on Device A, Device B, and Device C to optimize multimedia traffic of H.323 calls to provide high-quality multimedia services.

Figure 2 Network diagram



Prerequisites

Assign IP addresses to interfaces, and make sure the devices can reach each other.

Procedure

1.     Configure the H.323 proxy server:

Install third-party VoIP server software, and specify the usernames (phone numbers) and passwords for the clients. (Details not shown.)

2.     Configure PC A and PC B:

Install third-party VoIP client software, specify the IP address of the H.323 server, and configure the username (phone number), password, and other parameters on each PC. (Details not shown.)

3.     Configure Device A:

# Enable H.323-based SQA.

<DeviceA> system-view

[DeviceA] sqa

[DeviceA-sqa] sqa-h323 enable

# Specify 1720 as the H.323 listening port number. (Make sure this H.323 listening port number is the same as that on the H.323 server.)

[DeviceA-sqa] sqa-h225 port 1720

# Specify an IP address range for SQA. (Make sure Host A's IP address is included in the range.)

[DeviceA-sqa] sqa-h323 filter address 6.159.107.200 6.159.107.210

[DeviceA-sqa] quit

[DeviceA] quit

4.     Configure Device B and Device C:

# Configure Device B and Device C in the same way as Device A is configured. (Details not shown.)

Verifying the configuration

# Place a call from Host A to Host B. (Details not shown.)

# Display brief information about all H.323 calls on Device A.

<DeviceA> display sqa h323 call

Caller                Callee                CallId

6.159.107.207:49172   6.159.108.51:52410    42910c03-e31c-1910-9a63-000c29209aa9

6.159.107.203:49172   6.159.108.47:52410    3e33ecbd-6f1d-1910-8b52-6805ca5d1208

6.159.107.208:49172   6.159.108.52:52410    01a788fe-e21c-1910-8ee7-000c29209aa9

6.159.107.206:49172   6.159.108.50:52410    4e9516ff-e21c-1910-8f98-000c29209aa9

6.159.107.200:49172   6.159.108.44:52410    703b6fff-e21c-1910-9f51-000c29209aa9

The output shows that Device A has performed SQA on the call that Host A placed to Host B.

# Display detailed information about the H.323 call that Host A placed to Host B.

<DeviceA> display sqa h323 call call-id 703b6fff-e21c-1910-9f51-000c29209aa9 verbose

Call ID: 703b6fff-e21c-1910-9f51-000c29209aa9

  Caller information:

    IP: 6.159.107.200      Port: 49172    MAC: a036-9fd4-b5bd

  Callee information:

    IP: 6.159.108.44       Port: 52410    MAC: a036-9fd4-b5bc

  GUID: 703b6fff-e21c-1910-9f61-000c29209aa9

  Protocol: TCP(6)

  Session ID: 2

  Type: Audio          Vlan: 1          StartTime: 2019-7-14 15:40:39

  MOS(F): 4       MOS(R): 4

  Forward flow (octets): 4793344        Forward flow (packet): 4681

  Reverse flow (octets): 3810304        Reverse flow (packet): 3721

The output shows that the MOS value for both originating and returning traffic is high, which indicates the quality of the audio service is high.
