sLOM network adapter specifications

The figures in this section are for illustration only.

sLOM network adapter list

Table 1 sLOM network adapters

Model	Specifications
NIC-GE-4P-360T-s2	4-port GE electrical interface sLOM network adapter
NIC-10GE-2P-530F-s3	2-port 10-GE optical interface sLOM network adapter (SFP+)
NIC-ETH561F-sL-2*10G	2-port 10-GE optical interface sLOM network adapter (SFP+)
NIC-ETH561F-sL-4*10G	4-port 10-GE optical interface sLOM network adapter (SFP+)
NIC-ETH640F-L-2*25G	2-port 25-GE optical interface sLOM network adapter (SFP28)
NIC-ETH563T-SL-2P	2-port 10-GE electrical interface sLOM network adapter (RJ-45)

NIC-GE-4P-360T-s2

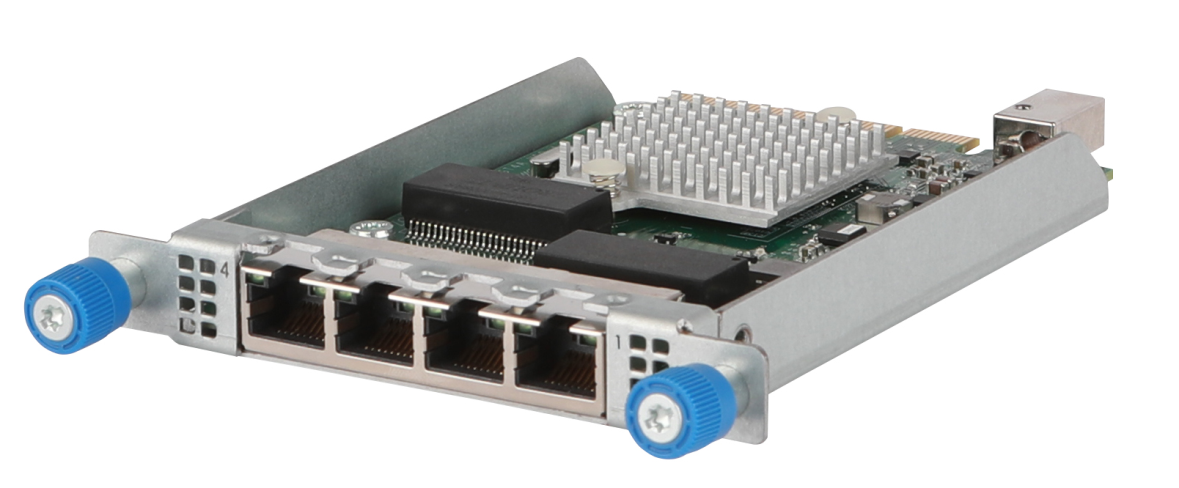

Figure 1 NIC-GE-4P-360T-s2

Ports and LEDs

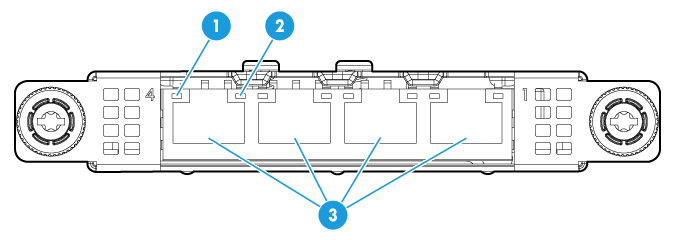

Figure 2 NIC-GE-4P-360T-s2 front panel

(1) RJ-45 copper port LINK LED	(2) RJ-45 copper port ACT LED
(3) 1000Base-T Ethernet ports 1 through 4 (from left to right)

NOTE:

For information about the copper port LEDs, see Table 15.

Technical specifications

Table 2 NIC-GE-4P-360T-s2 technical specifications

Item	Specifications
Basic properties
Chip model	Intel NHI350AM4
Maximum power consumption	6 W
Bus type	PCIe 2.0 ×4
Form factor	Embedded sLOM (128 × 78 mm or 5.04 × 3.07 in)
Network properties
Connectors	4 × RJ-45
Data rate	10/100/1000 Mbit/s
Transmission media	STP cable
Duplex mode	Full duplex/half duplex
Standards	802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az

Features

Table 3 NIC-GE-4P-360T-s2 features

Feature	Supported
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√*
VMDq	√
Multiple Rx Queues (RSS)	×
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	×
Wake-on-LAN	√
RDMA over Converged Ethernet version 1 (RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	×
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

NIC-10GE-2P-530F-s3

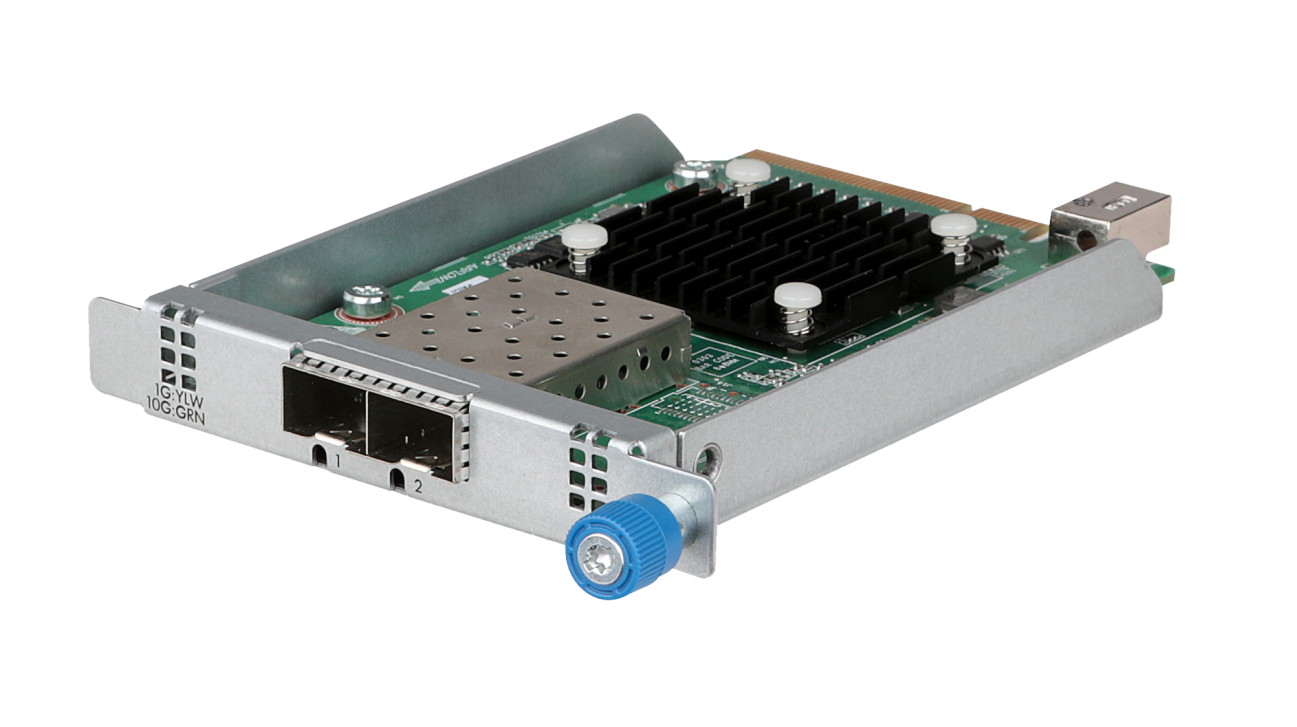

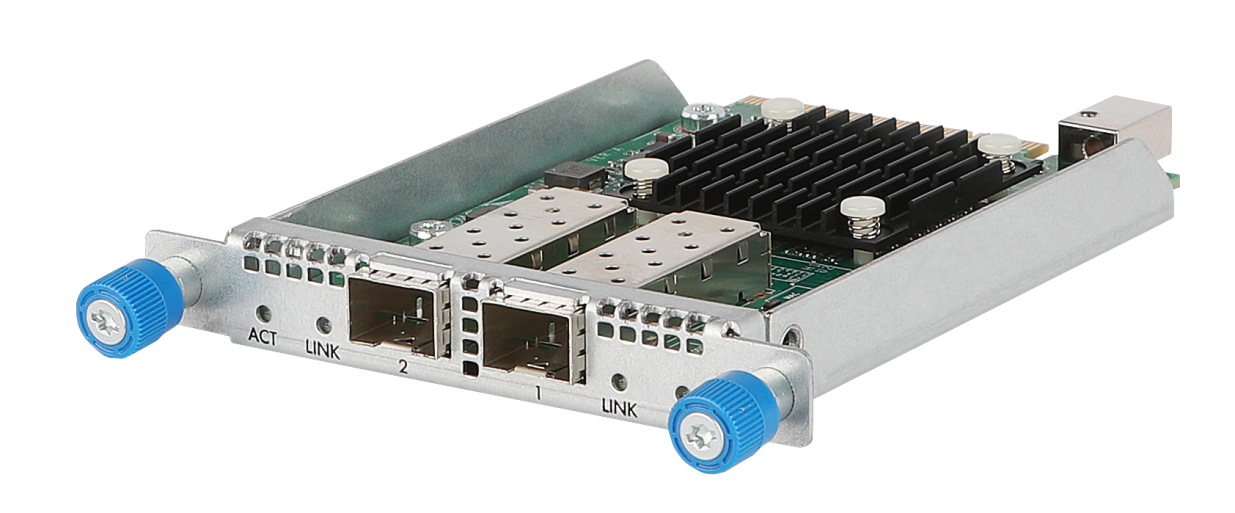

Figure 3 NIC-10GE-2P-530F-s3

Ports and LEDs

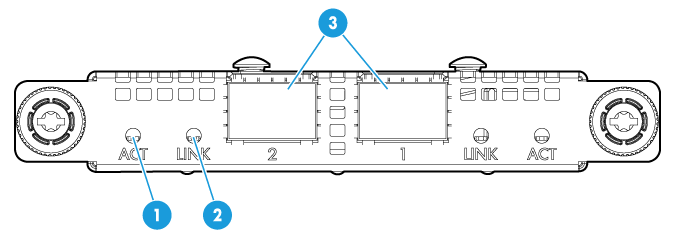

Figure 4 NIC-10GE-2P-530F-s3 front panel

(1) SFP+ fiber port ACT LED	(2) SFP+ fiber port LINK LED
(3) 10-GE SFP+ fiber ports (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 14.

Technical specifications

Table 4 NIC-10GE-2P-530F-s3 technical specifications

Item	Specifications
Basic properties
Chip model	BCM57810S
Maximum power consumption	10 W
Bus type	PCIe 2.0 ×8
Form factor	Embedded sLOM (128 × 78 mm or 5.04 × 3.07 in)
Network properties
Connectors	2 × 10-GE SFP+
Data rate	1/10 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex
Standards	802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az

Features

Table 5 NIC-10GE-2P-530F-s3 features

Feature	Supported
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√
TCP/IP Offload Engine (TOE)	√
Wake-on-LAN	√
RDMA over Converged Ethernet version 1 (RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	√
NCSI	√
NIC bonding	√
DPDK	×
IPv6	√
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Only one port on the network adapter supports NCSI at a time.

NIC-ETH561F-sL-2*10G

Ports and LEDs

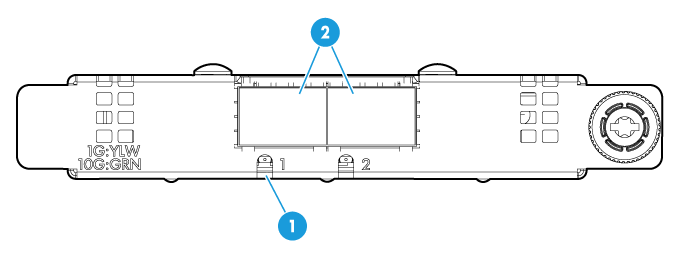

Figure 5 NIC-ETH561F-sL-2*10G front panel

(1) SFP+ fiber port LED (one for each port)	(2) 10-GE SFP+ fiber ports (2 in total)

NOTE:

For information about the fiber port LED, see Table 16.

Technical specifications

Table 6 NIC-ETH561F-sL-2*10G technical specifications

Item	Specifications
Basic properties
Chip model	Intel X710-BM2
Maximum power consumption	10 W
Bus type	PCIe 3.0 ×8
Form factor	Embedded sLOM (128 × 78 mm or 5.04 × 3.07 in)
Network properties
Connectors	2 × 10-GE SFP+
Data rate	10 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex/half duplex
Standards	802.3, 802.3ad, 802.1Qbg, 802.1as, 802.1Q, 802.1p

Features

Table 7 NIC-ETH561F-sL-2*10G features

Feature	Supported
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√*
Multiple Rx Queues (RSS)	√*
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1 (RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√^#
FCoE Boot	×
iSCSI Boot	√^#

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

· A pound sign (#) indicates that the feature is available only in UEFI mode.

NIC-ETH561F-sL-4*10G

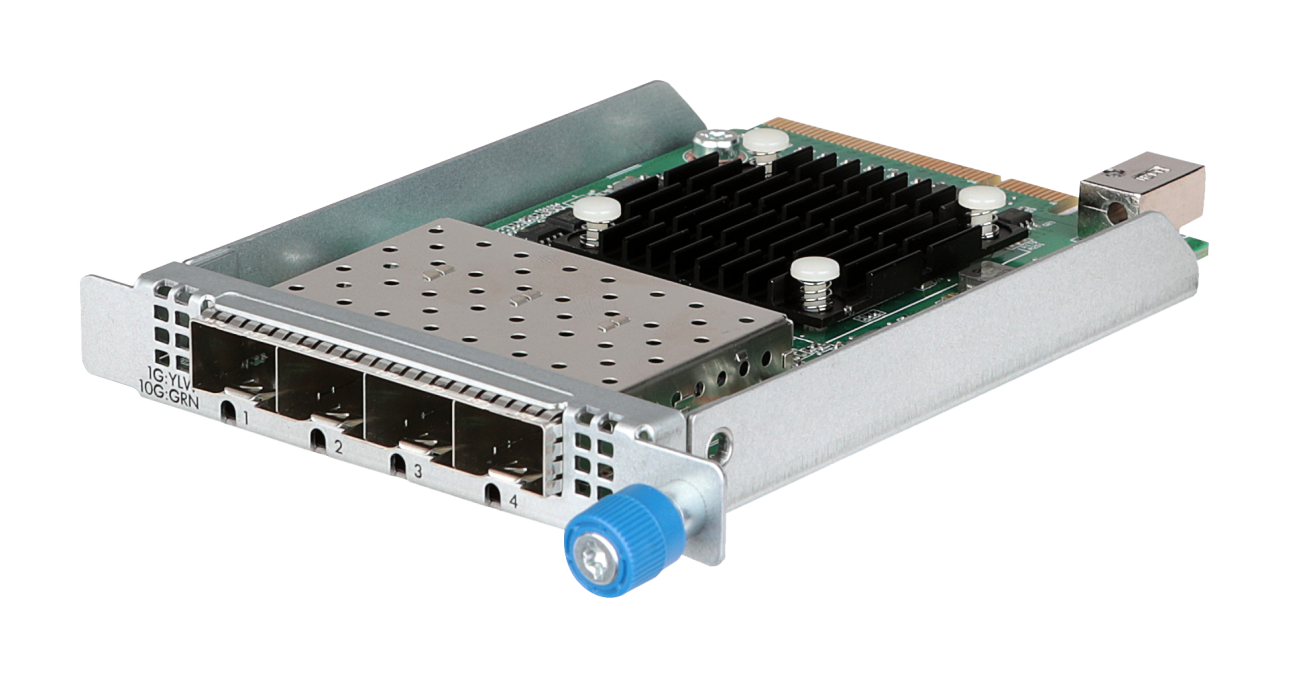

Figure 6 NIC-ETH561F-sL-4*10G

Ports and LEDs

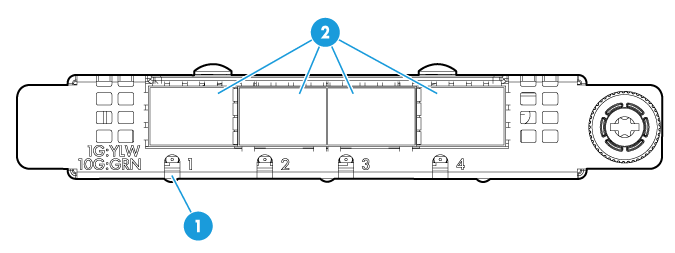

Figure 7 NIC-ETH561F-sL-4*10G front panel

(1) SFP+ fiber port LED (one for each port)	(2) 10-GE SFP+ fiber ports 1 through 4 (from left to right)

NOTE:

For information about the fiber port LED, see Table 16.

Technical specifications

Table 8 NIC-ETH561F-sL-4*10G

Item	Specifications
Basic properties
Chip model	Intel XL710-BM1
Maximum power consumption	13 W
Bus type	PCIe 3.0 ×8
Form factor	Embedded sLOM (128 × 78 mm or 5.04 × 3.07 in)
Network properties
Connectors	4 × 10-GE SFP+
Data rate	10 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex/half duplex
Standards	802.3, 802.3ad, 802.1Qbg, 802.1as, 802.1Q, 802.1p

Features

Table 9 NIC-ETH561F-sL-4*10G features

Feature	Supported
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√*
Multiple Rx Queues (RSS)	√*
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1 (RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√*
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√^#
FCoE Boot	×
iSCSI Boot	√^#

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

· A pound sign (#) indicates that the feature is available only in UEFI mode.

NIC-ETH640F-L-2*25G

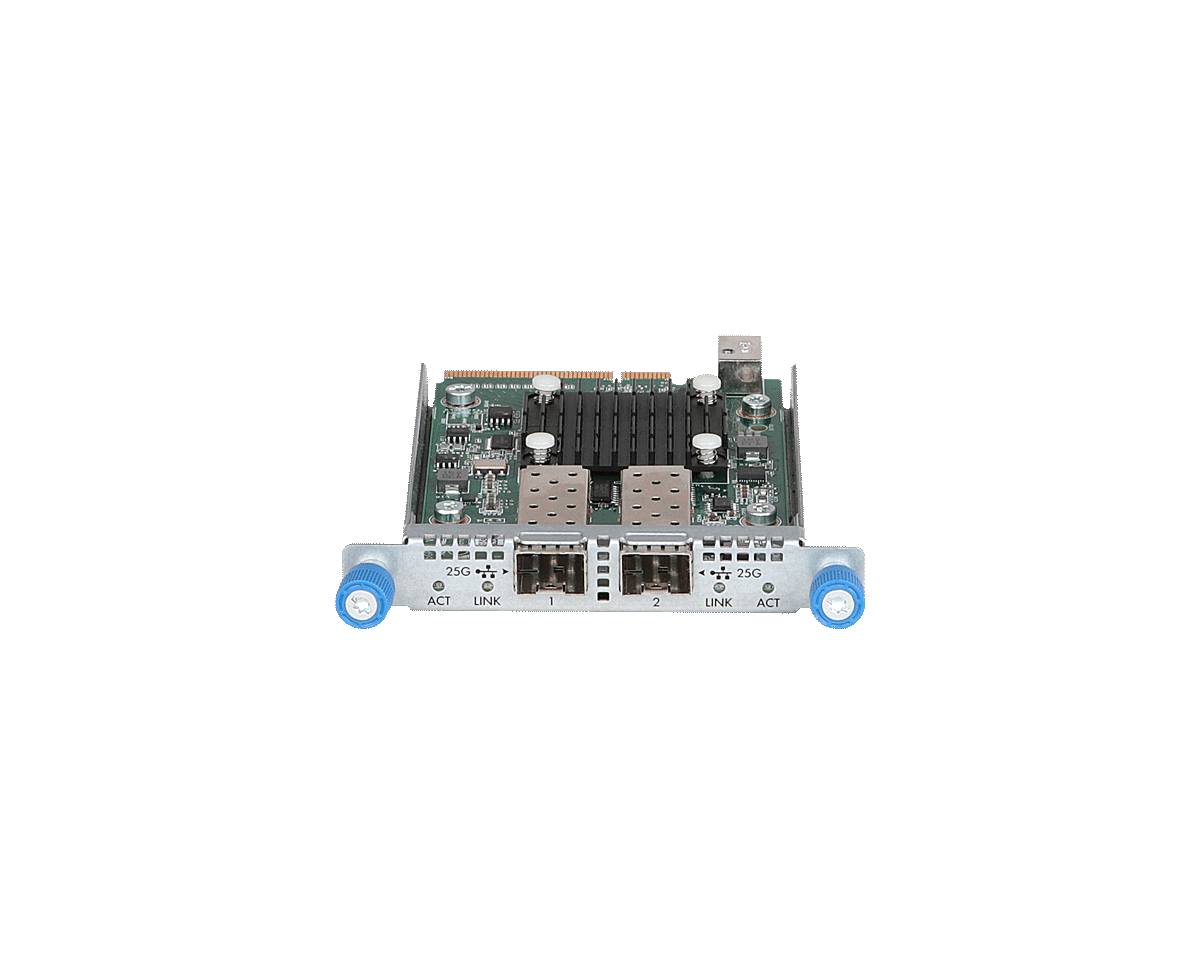

Figure 8 NIC-ETH640F-L-2*25G

Ports and LEDs

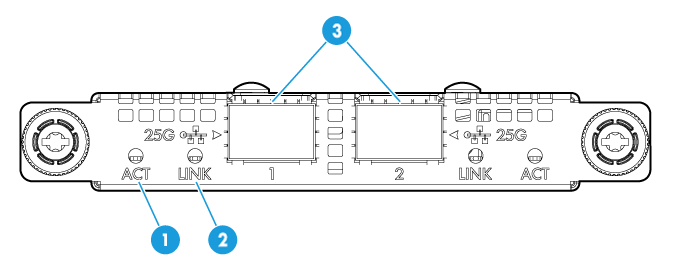

Figure 9 NIC-ETH640F-L-2*25G front panel

(1) SFP28 fiber port ACT LED	(2) SFP28 fiber port LINK LED
(3) SFP28 fiber port (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 14.

Technical specifications

Table 10 NIC-ETH640F-L-2*25G technical specifications

Item	Specifications
Basic properties
Chip model	Mellanox ConnectX-4 Lx (MT27712A0-FDCF-AE)
Maximum power consumption	9.2 W
Bus type	PCIe3.0 ×8
Form factor	Embedded sLOM (128 × 78 mm or 5.04 × 3.07 in)
Network properties
Connectors	2 × 25-GE SFP28
Data rate	10/25 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex
Standards	802.3, 802.3ad, 802.3az, 802.3ae, 802.3ap, 802.1Q, 802.1p, 802.1Qau, 802.1Qbb, 802.1Qbg, and IEEE802.3BYY2016
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 11 NIC-ETH640F-L-2*25G features

Feature	Supported
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√*
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1 (RoCE v1)	√
RDMA over Converged Ethernet version 2 (RoCE v2)	√
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

NIC-ETH563T-sL-2P

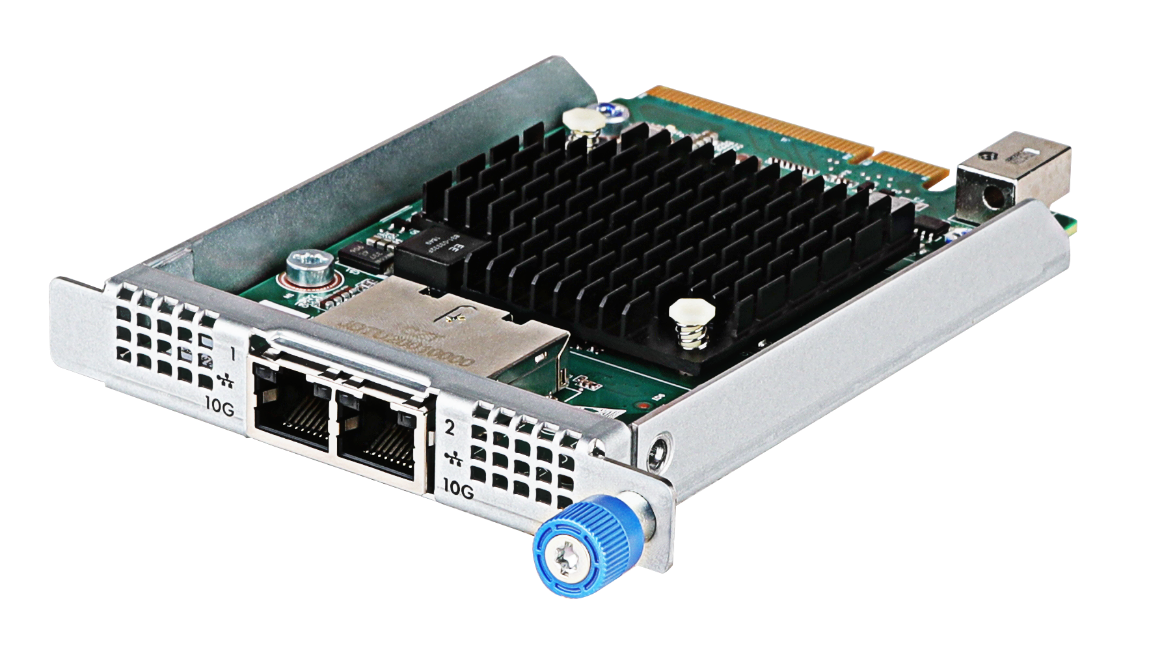

Figure 10 NIC-ETH563T-sL-2P

Ports and LEDs

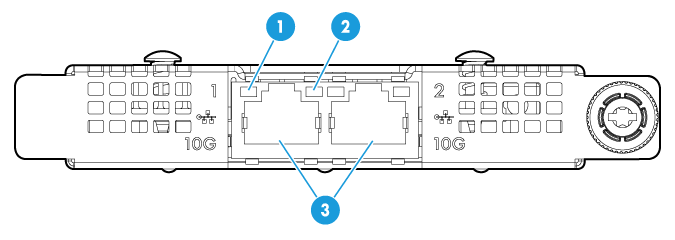

(1) RJ-45 copper port LINK LED	(2) RJ-45 copper port ACT LED
(3) RJ-45 copper ports (2 in total)

NOTE:

For information about the copper port LEDs, see Table 15.

Technical specifications

Table 12 NIC-ETH563T-sL-2P technical specifications

Item	Specifications
Basic properties
Chip model	Intel ELX550AT2SLL2E
Maximum power consumption	16.2 W
Bus type	PCIE3.0 ×4
Form factor	Embedded sLOM (128 × 78 mm or 5.04 × 3.07 in)
Network properties
Connectors	2 × 10-GE RJ-45
Data rate	1/10 Gbit/s
Transmission media	STP cable
Duplex mode	Full duplex
Standards	802.3, 802.3ab, 802.3ad, 802.1q, 802.3az

Features

Table 13 NIC-ETH563T-sL-2P features

Feature	Supported
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1 (RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	×
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

LEDs

Table 14 SFP+/SFP28 port status LED description

Status		Description
LINK (amber)	ACT (green)	Description
Steady on	Flashing	The port is sending or receiving data.
Steady on	Off	A link is present, but the port is not sending or receiving data.
Off	Off	No link is present.

Table 15 RJ-45 port status LED description

Status		Description
LINK (green)	ACT (green)	Description
Steady on	Flashing	The port is sending or receiving data.
Steady on	Off	A link is present, but the port is not sending or receiving data.
Off	Off	No link is present.

Table 16 SFP+ port status LED description for NIC-ETH561F-sL-2*10G and NIC-ETH561F-sL-4*10G

Status	Description
Steady green	A 10-GE link is present, but no data is being sent or received.
Flashing green	A 10-GE link is present, and the port is sending or receiving data.
Steady amber	A GE link is present, but no data is being sent or received.
Flashing amber	A GE link is present, and the port is sending or receiving data.
Off	No link is present.

H3C Network Adapter Datasheet-6W102

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
