Model	Description
CNA-10GE-2P-510F-B2	2-port 10GE optical interface network adapter (SFP+)
NIC-10GE-2P-520F-B2	2-port 10GE optical interface network adapter (SFP+)
NIC-10GE-2P-530F-B2	2-port 10GE optical interface network adapter (SFP+)
CNA-10GE-2P-560F-B2	2-port 10GE optical interface network adapter (SFP+)
NIC-GE-4P-360T-B2	4-port GE electrical interface network adapter
CNA-560T-B2-10Gb-2P	2-port 10GE electrical interface network adapter
NIC-620F-B2-25Gb-2P	2-port 25GE optical interface network adapter (SFP28)
NIC-ETH540F-LP-2P	2-port 10GE optical interface network adapter (SFP+)
NIC-ETH1060F-LP-2P	2-port 100GE optical interface network adapter (QSFP28)
NIC-ETH531F-LP-2P	2-port 10GE optical interface network adapter (SFP+)
NIC-ETH630F-LP-2P	2-port 25GE optical interface network adapter (SFP28)
NIC-ETH641F-LP-2P	2-port 25GE optical interface network adapter (SFP28)
NIC-ETH330T-LP-4P	4-port GE electrical interface network adapter

CNA-10GE-2P-510F-B2

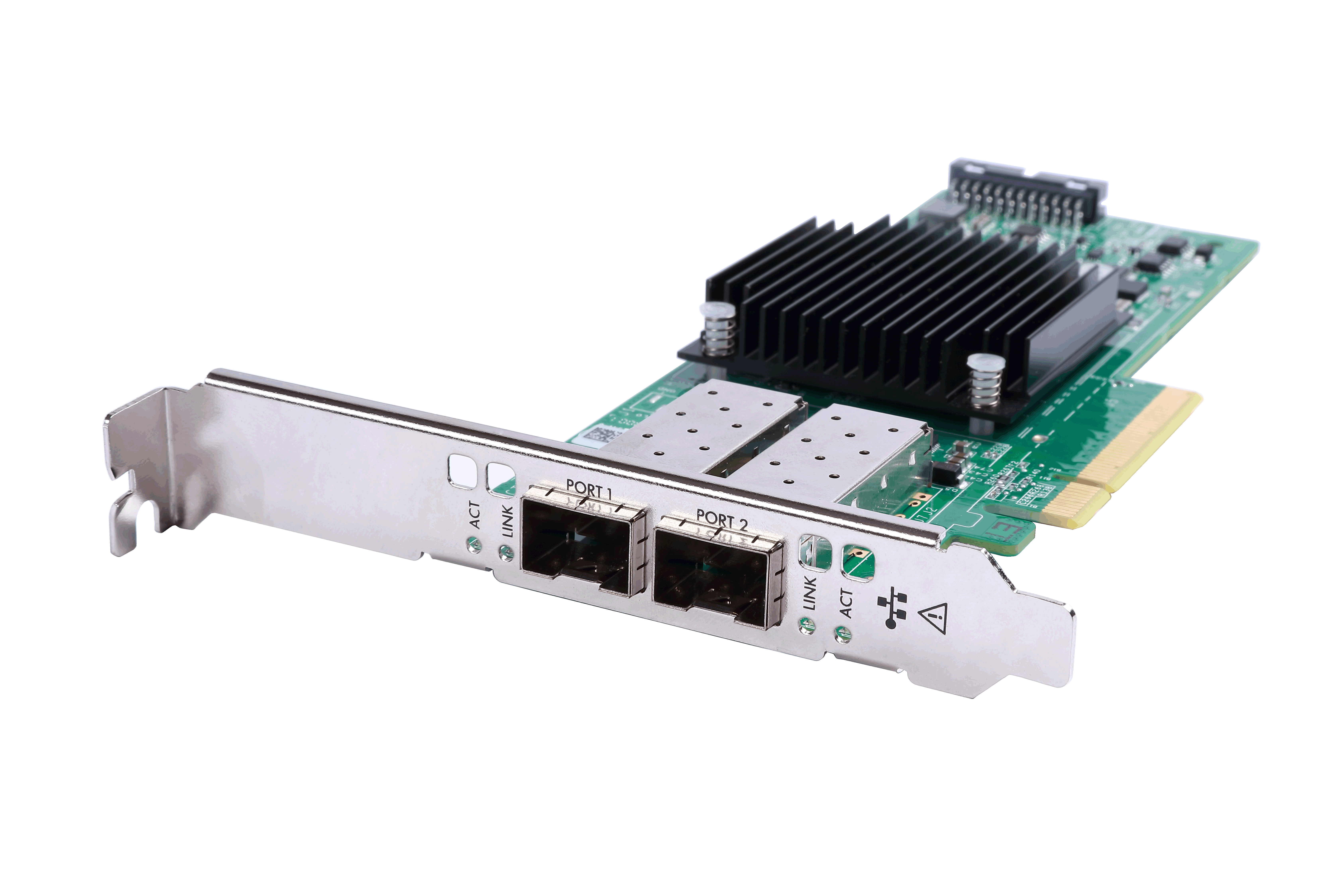

Figure 1 CNA-10GE-2P-510F-B2

Ports and LEDs

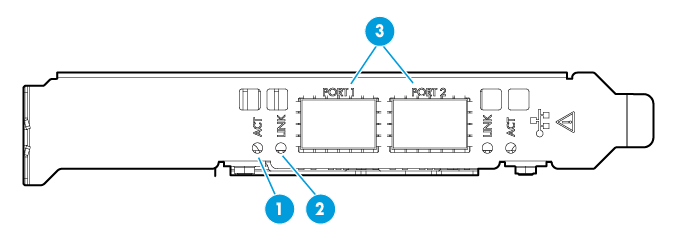

Figure 2 CNA-10GE-2P-510F-B2 front panel

(1) SFP+ fiber port ACT LED	(2) SFP+ fiber port LINK LED
(3) 10-GE SFP+ fiber ports (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 28.

Technical specifications

Table 2 CNA-10GE-2P-510F-B2 technical specifications

Item	Specifications
Basic properties
Chip model	Chelsio T5
Maximum power consumption	25 W
Bus type	PCIe3.0 ×8
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × 10-GE SFP+
Data rate	10 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex
Standards	802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 3 CNA-10GE-2P-510F-B2 features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	√**
iSCSI	√
SRIOV	√*
VMDq	√*
Multiple Rx Queues (RSS)	√*
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	×
RDMA over Converged Ethernet version 1 (RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	√*
NPAR	×
NCSI	×
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	×
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Two asterisks (**) indicate that the feature is not available for H3C CAS or VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

NIC-10GE-2P-520F-B2

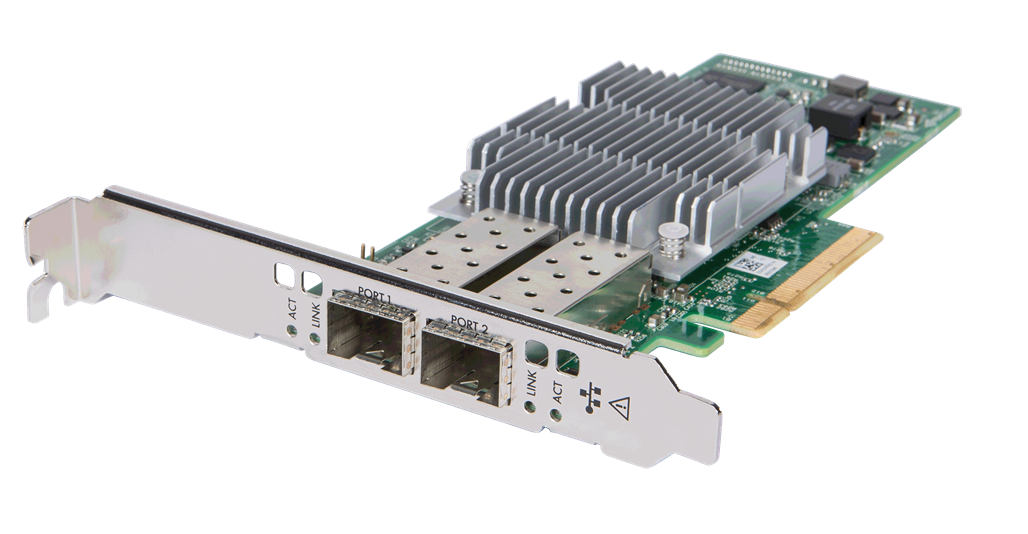

Figure 3 NIC-10GE-2P-520F-B2

Ports and LEDs

Figure 4 NIC-10GE-2P-520F-B2 front panel

(1) SFP+ fiber port ACT LED	(2) SFP+ fiber port LINK LED
(3) 10-GE SFP+ fiber ports (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 28.

Technical specifications

Table 4 NIC-10GE-2P-520F-B2 technical specifications

Item	Specifications
Basic properties
Chip model	Mellanox ConnectX-3 Pro
Maximum power consumption	10 W
Bus type	PCIe3.0 ×8
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × 10-GE SFP+
Data rate	10 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex
Standards	802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 5 NIC-10GE-2P-520F-B2 features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√**
VMDq	√**
Multiple Rx Queues (RSS)	√**
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√**
Wake-on-LAN	×
RDMA over Converged Ethernet version 1 (RoCE v1)	√*
RDMA over Converged Ethernet version 2(RoCE v2)	√*
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	×
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	×
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Two asterisks (**) indicate that the feature is not available for H3C CAS or VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· iSCSI is not available for H3C CAS.

NIC-10GE-2P-530F-B2

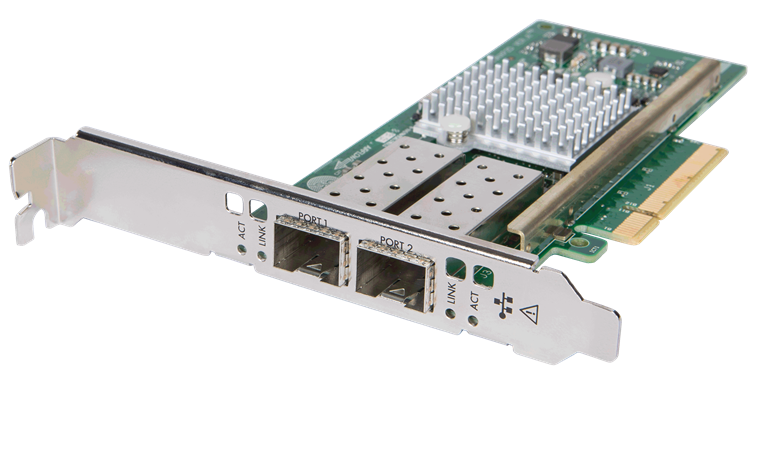

Figure 5 NIC-10GE-2P-530F-B2

Ports and LEDs

Figure 6 NIC-10GE-2P-530F-B2 front panel

(1) SFP+ fiber port ACT LED	(2) SFP+ fiber port LINK LED
(3) 10GE SFP+ fiber ports (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 28.

Technical specifications

Table 6 NIC-10GE-2P-530F-B2 technical specifications

Item	Specifications
Basic properties
Chip model	Qlogic BCM57810S
Maximum power consumption	10 W
Bus type	PCIe2.0 ×8
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × 1/10GE SFP/SFP+
Data rate	1/10 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex
Standards	802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 7 NIC-10GE-2P-530F-B2 features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√*
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	×
RDMA over Converged Ethernet version 1 (RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	√
NCSI	×
NIC bonding	√
DPDK	×
IPv6	√
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

CNA-10GE-2P-560F-B2

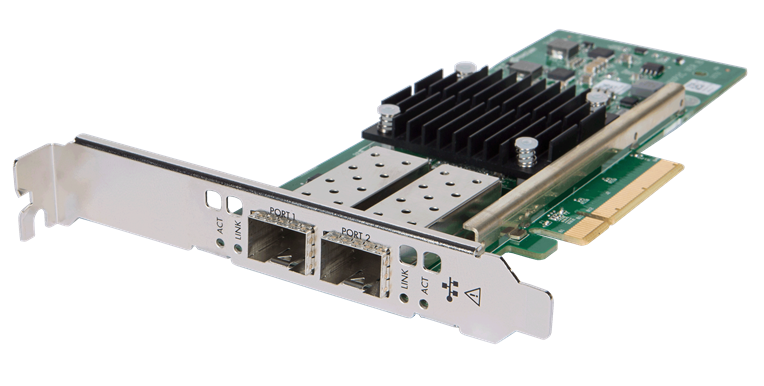

Figure 7 CNA-10GE-2P-560F-B2

Ports and LEDs

Figure 8 CNA-10GE-2P-560F-B2 front panel

(1) SFP+ fiber port ACT LED	(2) SFP+ fiber port LINK LED
(3) 10GE SFP+ fiber ports (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 28.

Technical specifications

Table 8 CNA-10GE-2P-560F-B2 technical specifications

Item	Specifications
Basic properties
Chip model	Intel JL82599ES
Maximum power consumption	15 W
Bus type	PCIe2.0 ×8
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × 1/10GE SFP/SFP+
Data rate	1/10 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex
Standards	802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 9 CNA-10GE-2P-560F-B2 features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	√**
iSCSI	√
SRIOV	√
VMDq	√
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	×
RDMA over Converged Ethernet version 1(RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	×
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	×
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Two asterisks (**) indicate that the feature is not available for H3C CAS or VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

NIC-GE-4P-360T-B2

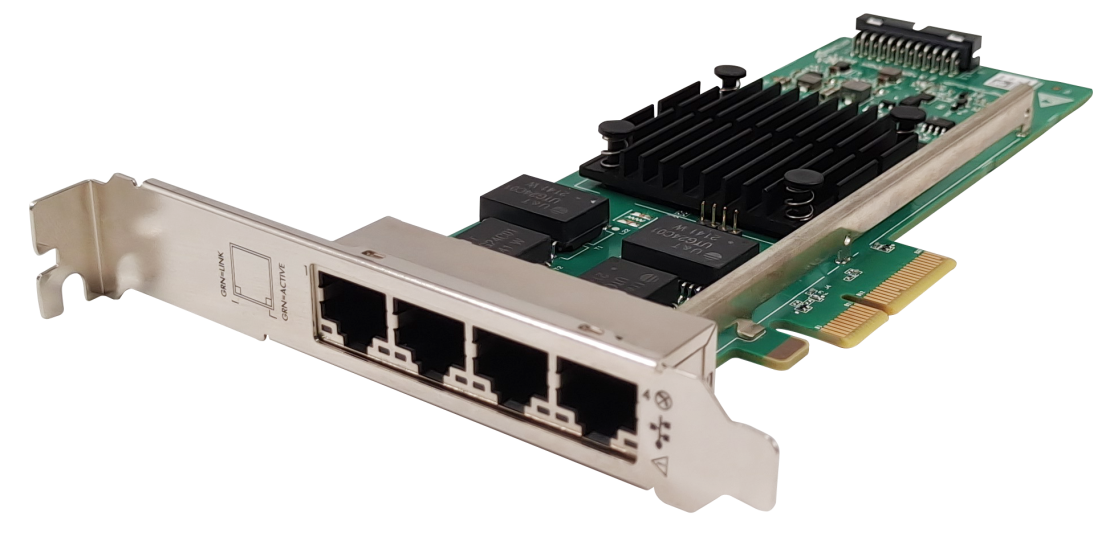

Figure 9 NIC-GE-4P-360T-B2

Ports and LEDs

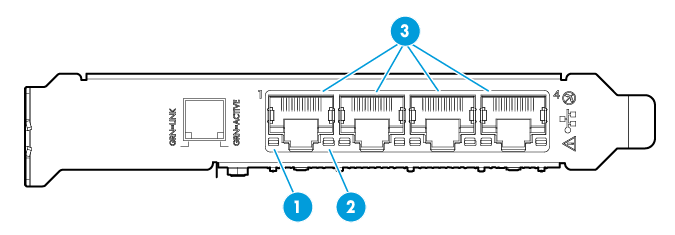

Figure 10 NIC-GE-4P-360T-B2 front panel

(1) RJ-45 copper port LINK LED	(2) RJ-45 copper port ACT LED
(3) 10/100/1000Base-T autosensing Ethernet ports 1 through 4 (from left to right)

NOTE:

For information about the copper port LEDs, see Table 29.

Technical specifications

Table 10 NIC-GE-4P-360T-B2 technical specifications

Item	Specifications
Basic properties
Chip model	Intel NHI350AM4
Maximum power consumption	5 W
Bus type	PCIe2.0 ×4
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	4 × RJ-45
Data rate	10/100/1000 Mbit/s
Transmission media	STP cable
Duplex mode	Full duplex
Standards	802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az

Features

Table 11 NIC-GE-4P-360T-B2 features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√*
VMDq	√*
Multiple Rx Queues (RSS)	√*
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	×
Wake-on-LAN	×
RDMA over Converged Ethernet version 1(RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	×
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	×
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

CNA-560T-B2-10Gb-2P

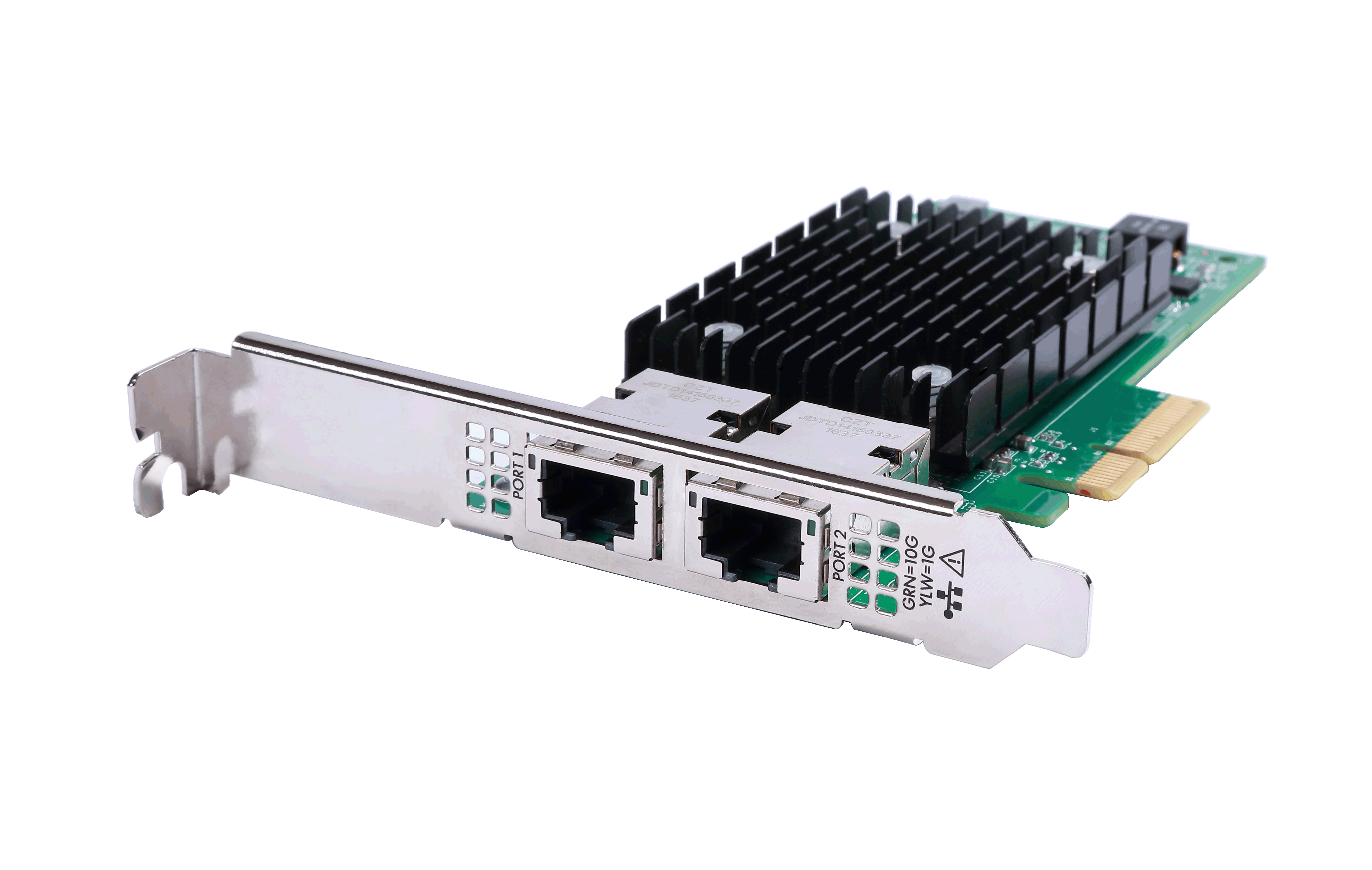

Figure 11 CNA-560T-B2-10Gb-2P

Ports and LEDs

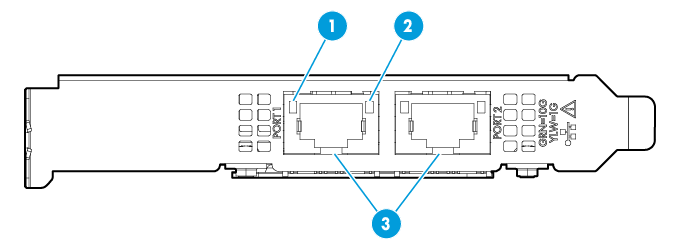

Figure 12 CNA-560T-B2-10Gb-2P front panel

(1) RJ-45 copper port LINK LED	(2) RJ-45 copper port ACT LED
(3) 1/10Gbit/s autosensing Ethernet ports (2 in total)

NOTE:

For information about the copper port LEDs, see Table 29.

Technical specifications

Table 12 CNA-560T-B2-10Gb-2P technical specifications

Item	Specifications
Basic properties
Chip model	Intel ELX550AT2SLL2E
Maximum power consumption	12 W
Bus type	PCIe3.0 ×4
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × RJ-45
Data rate	1/10 Gbit/s
Transmission media	STP cable
Duplex mode	Full duplex
Standards	802.3, 802.3u, 802.3x, 802.1q, 802.3az, 802.3an, 802.3bz, 802.3ac, 802.1Qbb, 802.1Qaz, 802.1p

Features

Table 13 CNA-560T-B2-10Gb-2P features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	×
RDMA over Converged Ethernet version 1(RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	×
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	×
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

NIC-620F-B2-25Gb-2P

Figure 13 NIC-620F-B2-25Gb-2P

Ports and LEDs

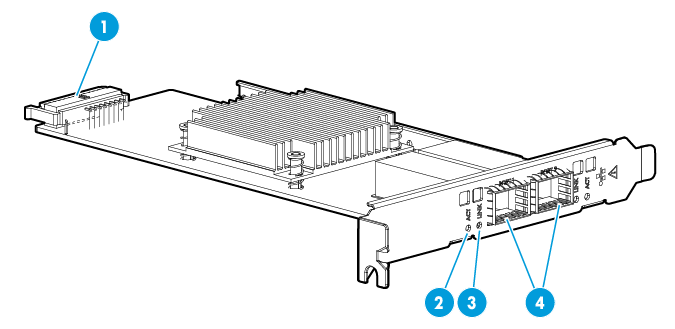

Figure 14 NIC-620F-B2-25Gb-2P ports and LEDs

(1) NCSI connector	(2) SFP28 fiber port ACT LED
(3) SFP28 fiber port LINK LED	(4) 25-GE SFP28 fiber ports (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 28.

Technical specifications

Table 14 NIC-620F-B2-25Gb-2P technical specifications

Item	Specifications
Basic properties
Chip model	Mellanox ConnectX-4 Lx (MT27712A0-FDCF-AE)
Maximum power consumption	12 W
Bus type	PCIe3.0 ×8
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × 25GE SFP28 and 1 × NCSI
Data rate	1/10/25 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex
Standards	802.3, 802.3ad, 802.3az, 802.3ae, 802.3ap, 802.1Q, 802.1p, 802.1Qau, 802.1Qbb, 802.1Qbg, and IEEE802.3BYY2016
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 15 NIC-620F-B2-25Gb-2P features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√*
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1(RoCE v1)	√
RDMA over Converged Ethernet version 2 (RoCE v2)	√
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

NIC-ETH540F-LP-2P

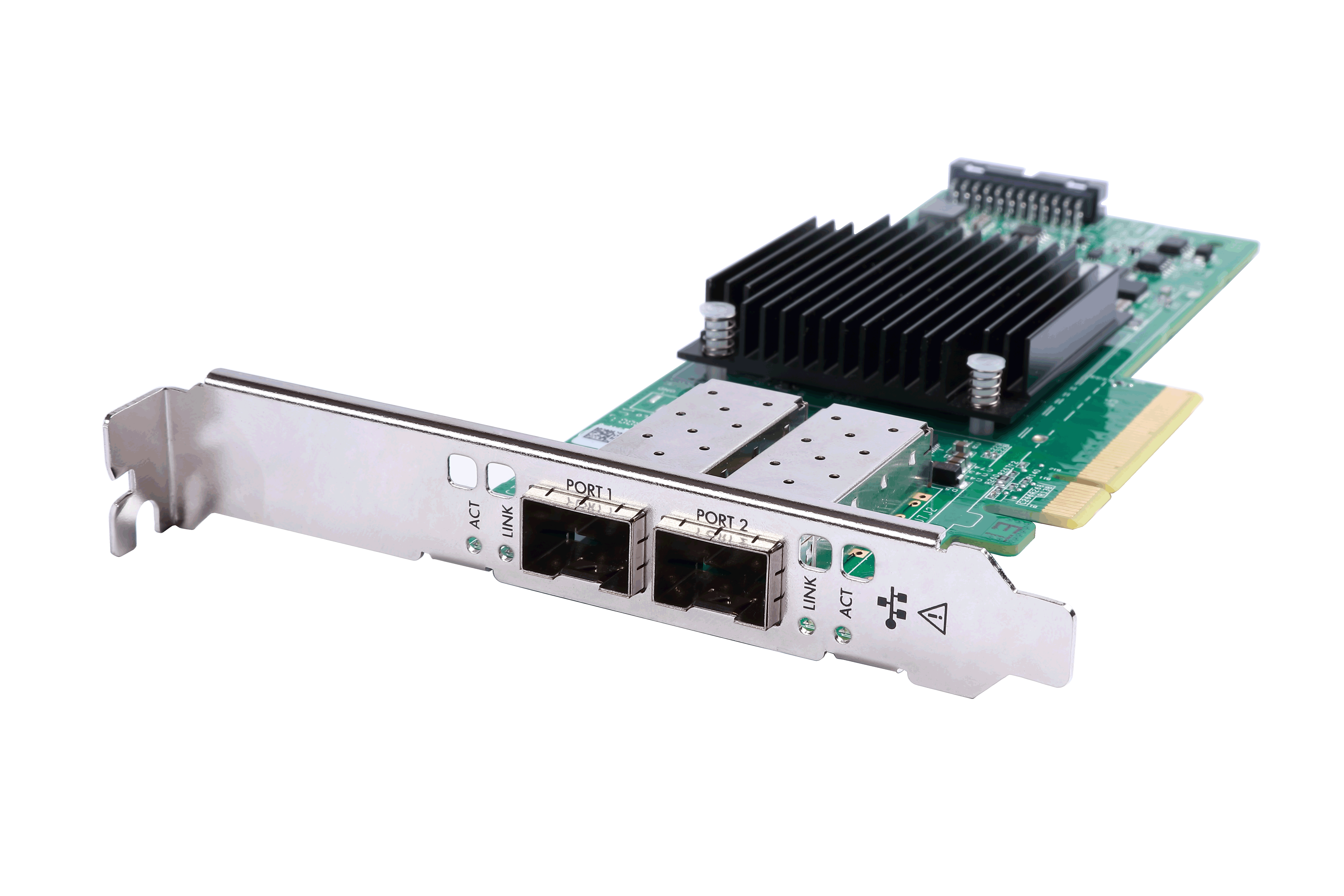

Figure 15 NIC-ETH540F-LP-2P

Ports and LEDs

Figure 16 NIC-ETH540F-LP-2P ports and LEDs

(1) NCSI connector	(2) SFP+ fiber port ACT LED
(3) SFP+ fiber port LINK LED	(4) 10-GE SFP+ fiber ports (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 28.

Technical specifications

Table 16 NIC-ETH540F-LP-2P technical specifications

Item	Specifications
Basic properties
Chip model	Mellanox ConnectX-4 Lx (MT27712A0-FDCF-XE)
Maximum power consumption	12 W
Bus type	PCIe3.0 ×8
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × 10-GE SFP and 1 × NCSI
Data rate	10 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex
Standards	802.3, 802.3ad, 802.3az, 802.3ae, 802.3ap, 802.1Q, 802.1p, 802.1Qau, 802.1Qbb, 802.1Qbg
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 17 NIC-ETH540F-LP-2P features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√*
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1(RoCE v1)	√
RDMA over Converged Ethernet version 2 (RoCE v2)	√
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

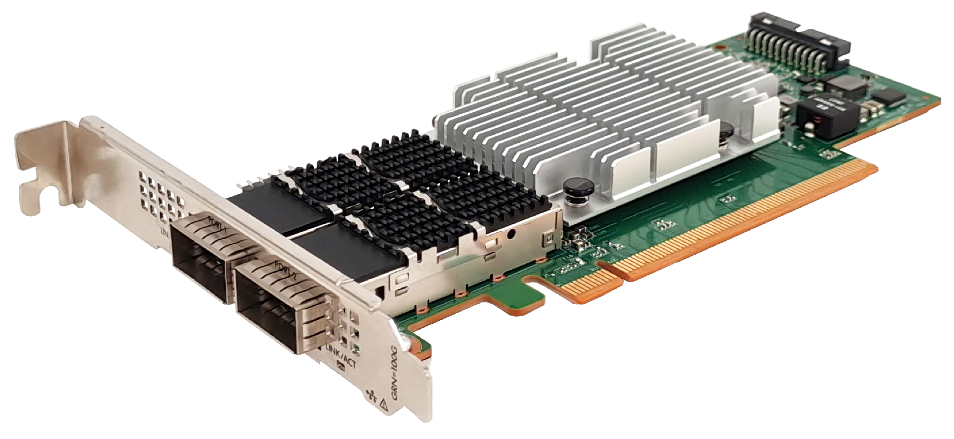

NIC-ETH1060F-LP-2P

Figure 17 NIC-ETH1060F-LP-2P

Ports and LEDs

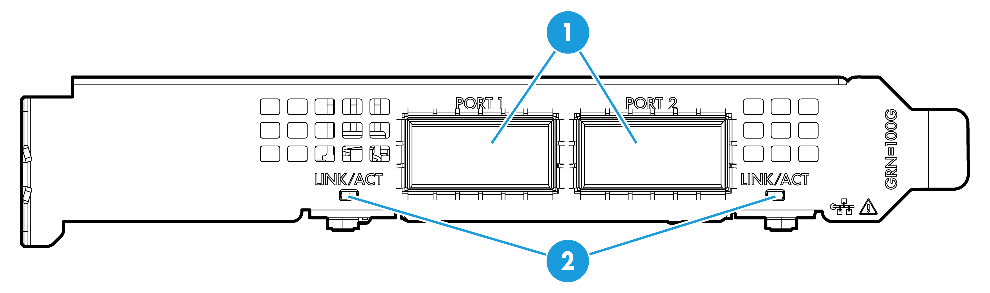

Figure 18 NIC-ETH1060F-LP-2P ports and LEDs

(1) 100-GE QSFP28 fiber ports (2 in total)	(2) QSFP28 fiber port LINK/ACT LED

NOTE:

For information about the fiber port LEDs, see Table 30.

Technical specifications

Table 18 NIC-ETH1060F-LP-2P technical specifications

Item	Specifications
Basic properties
Chip model	E810-CAM2
Maximum power consumption	25 W
Bus type	PCIe4.0 x16
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × 100GE QSFP28 and 1 × NCSI
Data rate	100 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex in active/standby mode
Standards	802.3, 802.3bd, 802.3ae, 802.3an, 802.3ap, 802.3az, 802.3ba, 802.3z
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 19 NIC-ETH1060F-LP-2P features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√
Multiple Rx Queues (RSS)	√*
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1(RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	√
Internet Wide Area RDMA Protocol (iWARP)	√
NPAR	×
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

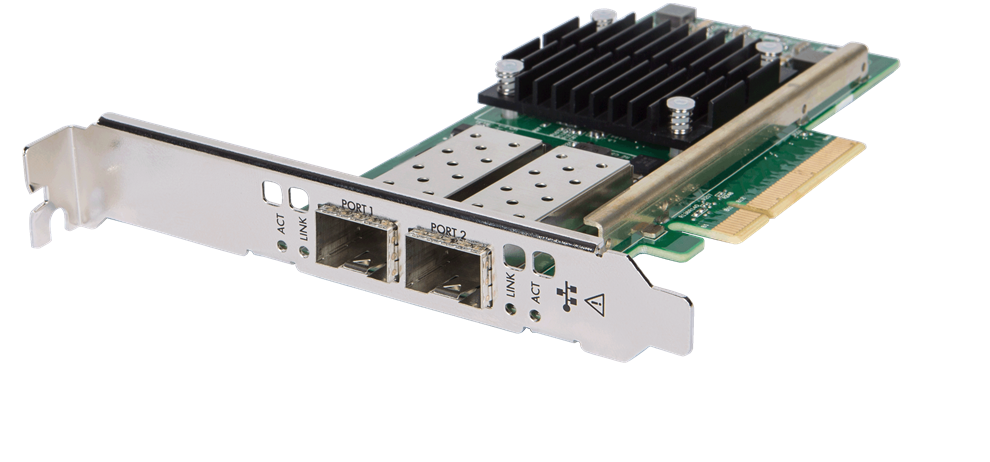

NIC-ETH531F-LP-2P

Figure 19 NIC-ETH531F-LP-2P

Ports and LEDs

Figure 20 NIC-ETH531F-LP-2P ports and LEDs

(1) Network adapter NCSI connector	(2) SFP+ fiber port ACT LED
(3) SFP+ fiber port LINK LED	(4) 10-GE SFP+ fiber ports (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 28.

Technical specifications

Table 20 NIC-ETH531F-LP-2P technical specifications

Item	Specifications
Basic properties
Chip model	BCM57412
Maximum power consumption	10 W
Bus type	PCIe3.0 x8
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × 10GE SFP+ and 1 × NCSI
Data rate	10 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex in active/standby mode
Standards	802.3, 802.3x, 802.3ad, 802.3az, 802.3u, 802.1q, 802.1Qbb, 802.1Qaz, 802.1Qau
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 21 NIC-ETH531F-LP-2P features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√*
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1(RoCE v1)	√
RDMA over Converged Ethernet version 2 (RoCE v2)	√
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	√
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

NIC-ETH630F-LP-2P

Figure 21 NIC-ETH630F-LP-2P

Ports and LEDs

Figure 22 NIC-ETH630F-LP-2P ports and LEDs

(1) Network adapter NCSI connector	(2) SFP28 fiber port ACT LED
(3) SFP28 fiber port LINK LED	(4) 25-GE SFP28 fiber ports (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 28.

Technical specifications

Table 22 NIC-ETH630F-LP-2P technical specifications

Item	Specifications
Basic properties
Chip model	BCM57414
Maximum power consumption	13 W
Bus type	PCIe3.0 x8
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × 25GE SFP28 and 1 × NCSI
Data rate	25 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex
Standards	802.3, 802.3x, 802.3ad, 802.3az, 802.3u, 802.1q, 802.1Qbb, 802.1Qaz, 802.1Qau
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 23 NIC-ETH630F-LP-2P features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√*
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1 (RoCE v1)	√
RDMA over Converged Ethernet version 2 (RoCE v2)	√
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	√
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

NIC-ETH641F-LP-2P

Figure 23 NIC-ETH641F-LP-2P

Ports and LEDs

Figure 24 NIC-ETH641F-LP-2P ports and LEDs

(1) Network adapter NCSI connector	(2) SFP28 fiber port ACT LED
(3) SFP28 fiber port LINK LED	(4) 25-GE SFP28 fiber ports (2 in total)

NOTE:

For information about the fiber port LEDs, see Table 28.

Technical specifications

Table 24 NIC-ETH641F-LP-2P technical specifications

Item	Specifications
Basic properties
Chip model	Mellanox ConnectX-6 Lx (MT28942A0-NCCF-AE)
Maximum power consumption	13 W
Bus type	PCIe4.0 x8
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	2 × 25GE SFP28 and 1 × NCSI
Data rate	25 Gbit/s
Transmission media	Optical fiber
Duplex mode	Full duplex
Standards	802.3, 802.3x, 802.3ad, 802.3az, 802.3u, 802.1q, 802.1Qbb, 802.1Qaz, 802.1Qau
Available transceiver modules	See "About H3C Network Adapters."

Features

Table 25 NIC-ETH641F-LP-2P features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	√
VMDq	√*
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1(RoCE v1)	√
RDMA over Converged Ethernet version 2 (RoCE v2)	√
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	√
NIC bonding	√
DPDK	√***
IPv6	√
LLDP	√
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

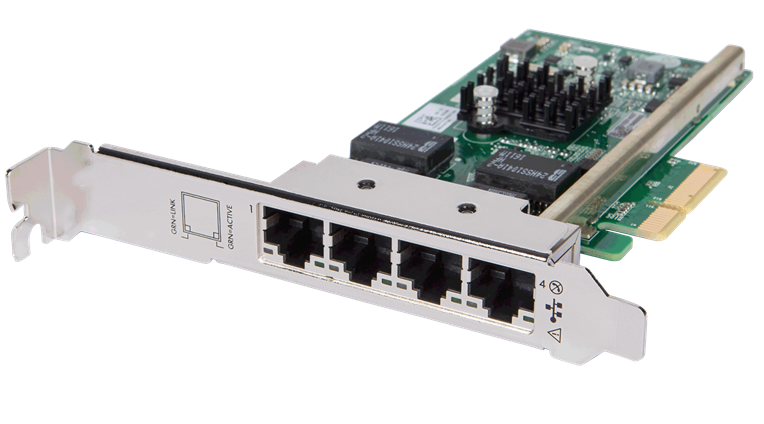

NIC-ETH330T-LP-4P

Figure 25 NIC-ETH330T-LP-4P

Ports and LEDs

Figure 26 NIC-ETH330T-LP-4P ports and LEDs

(1) RJ-45 copper port LINK LED	(2) RJ-45 copper port ACT LED
(3) 10/100/1000Base-T autosensing Ethernet ports (4 in total)

NOTE:

For information about the copper port LEDs, see Table 29.

Technical specifications

Table 26 UN-NIC-ETH330T-LP-4P technical specifications

Item	Specifications
Basic properties
Chip model	BCM5719A1KFBG
Maximum power consumption	8 W
Bus type	PCIe2.0 x4
Form factor	LP By default, the network adapter comes with a full-height bracket installed. You can install a half-height bracket instead.
Network properties
Connectors	4 × RJ-45
Data rate	10/100/1000 Mbit/s
Transmission media	Twisted pair cables
Duplex mode	Full duplex
Standards	802.3, 802.3ab, 802.3u, 802.3x, 802.3ap, 802.1q, 802.3az

Features

Table 27 NIC-ETH330T-LP-4P features

Feature	Supported or not
Jumbo Frames	√
Load Balancing	√
802.1Q VLANs	√
Auto-Negotiation	√
FCoE	×
iSCSI	√
SRIOV	×
VMDq	√*
Multiple Rx Queues (RSS)	√
TCP/IP Stateless Offloading	√*
TCP/IP Offload Engine (TOE)	√*
Wake-on-LAN	√
RDMA over Converged Ethernet version 1(RoCE v1)	×
RDMA over Converged Ethernet version 2 (RoCE v2)	×
Internet Wide Area RDMA Protocol (iWARP)	×
NPAR	×
NCSI	√
NIC bonding	√
DPDK	×
IPv6	√
LLDP	×
LLDP Pass-through	√
Remote boot
PXE Boot	√
FCoE Boot	×
iSCSI Boot	×

NOTE:

· One asterisk (*) indicates that the feature is not available for VMware ESXi.

· Three asterisks (***) indicate that the feature is available only for Linux and BSD.

· Only one port on the network adapter supports NCSI at a time.

LEDs

Table 28 SFP+/SFP28 port status LED description

Status		Description
LINK (amber)	ACT (green)	Description
Steady on	Flashing	The port is sending or receiving data.
Steady on	Off	A link is present, but the port is not sending or receiving data.
Off	Off	No link is present.

Table 29 RJ-45 port status LED description

Status		Description
LINK (green)	ACT (green)	Description
Steady on	Flashing	The port is sending or receiving data.
Steady on	Off	A link is present, but the port is not sending or receiving data.
Off	Off	No link is present.

Table 30 QSFP28 port status LED description for NIC-ETH1060F-LP-2P

Status	Description
Steady green	A 100-GE link is present, but no data is being sent or received
Flashing green	A 100-GE link is present, and the port is sending or receiving data.
Off	No link is present.

H3C Network Adapter Datasheet-6W102

Ports and LEDs

Technical specifications

Features

NIC-10GE-2P-520F-B2

Ports and LEDs

Technical specifications

Features

Features

Ports and LEDs

Features

Ports and LEDs

Features

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
