Appendix C Optional transceiver modules
Views
You must use an SFP transceiver module and optical fiber with an LC connector to connect the fiber port on the AC.

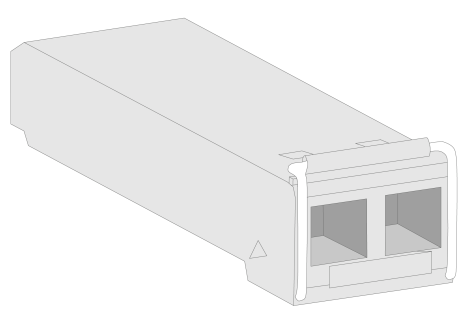

Figure8-1 SFP transceiver module

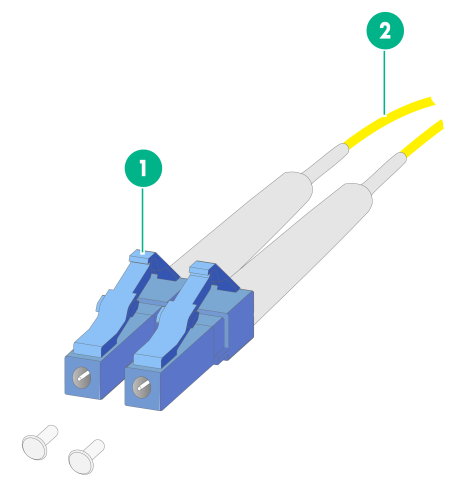

Figure8-2 Optical fibers with LC connectors
|
(1) LC connector |
(2) Optical fiber |
Specifications
A transceiver module that has "MM" in its name supports multi-mode optical fibers. A transceiver module that has "SM" in its name supports single-mode optical fibers.
The H3C transceiver modules are subject to change over time. For the most recent list of H3C transceiver modules, contact Technical Support or marketing staff.
Table8-1 SFP-GE-SX-MM850-A transceiver module specifications
|
Item |
SFP-GE-SX-MM850-A |
|
Central wavelength |
850 nm |
|
Max transmission distance |
550 m (1804.46 ft) |
|
Data rate |
1250 Mb/s |
|
Connector type |
Duplex LC connector |
|
Fiber mode |
MMF |
|
Fiber diameter |
50 μm |
|
Output power |
–9.5 to 0 dBm |
|
Receiver sensitivity |
≤ –17 dBm |
|
Light saturation |
≤ –3 dBm |
Table8-2 SFP-GE-LX-SM1310-A specifications
|
Item |
SFP-GE-LX-SM1310-A |
|
Central wavelength |
1310 nm |
|
Max transmission distance |
10 km (6.21 miles) |
|
Data rate |
1250 Mb/s |
|
Connector type |
Duplex LC connector |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 μm |
|
Output power |
–9.5 to –3 dBm |
|
Receiver sensitivity |
≤ –20 dBm |
|
Light saturation |
≤ –3 dBm |
