Appendix A Chassis views and technical specifications

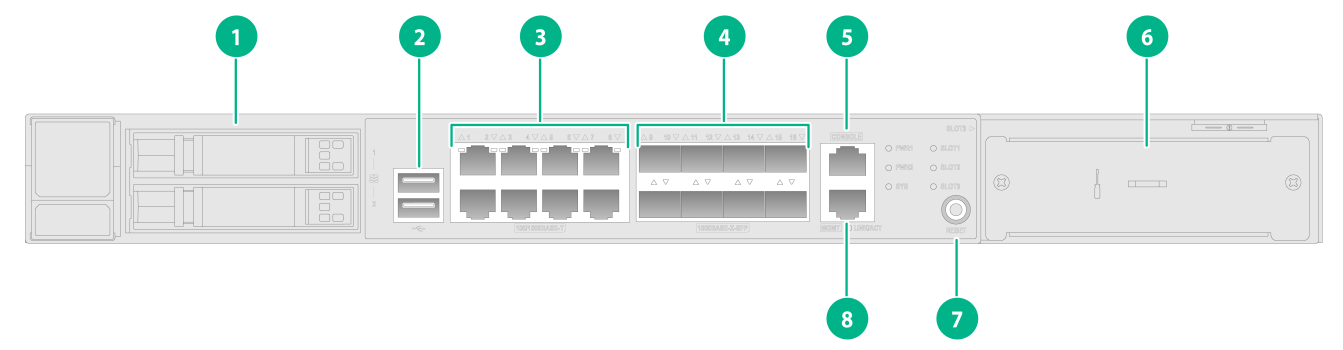

Chassis views
|
(1) Drive slot |
(2) USB port |
|
(3) 100/1000BASE-T autosensing Ethernet ports 1 through 7 |
(4) 1000BASE-X SFP ports 9 through 16 |
|
(5) Console port |
(6) Expansion slot |
|
(7) Reset button (RESET) |
(8) 100/1000BASE-T out-of-band Ethernet port |

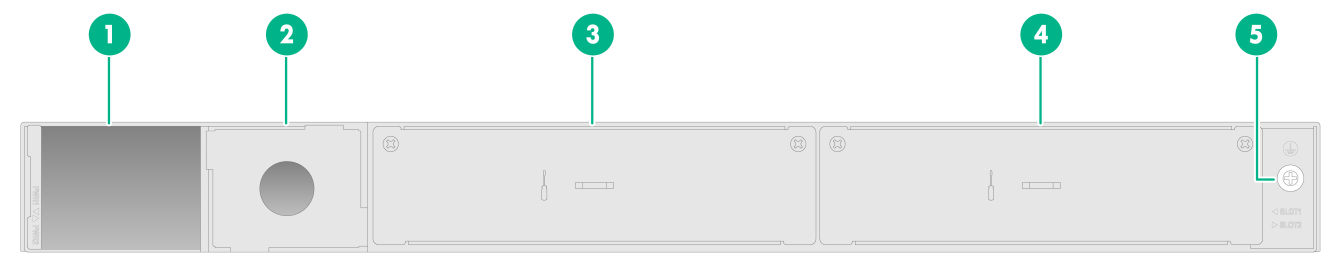

Figure6-2 Rear view
|
(1) Power supply slot PWR1 |
(2) Power supply slot PWR2 |
|
(3) Expansion slot 1 |
(4) Expansion slot 2 |
|
(5) Grounding screw |
|
Power supply views
AC power supply

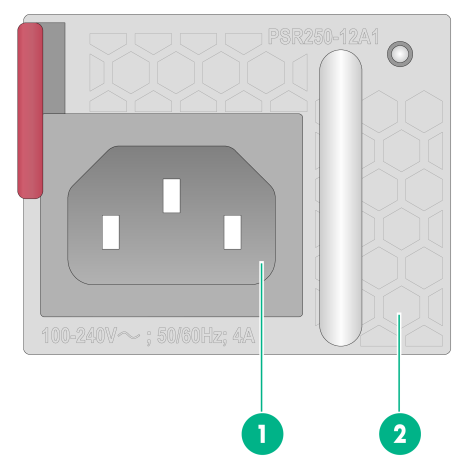

Figure6-3 AC power supply
|
(1) Power receptacle |
(2) Air outlet vent |
DC power supply

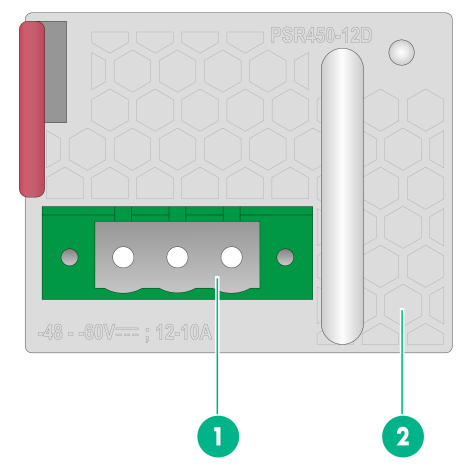

Figure6-4 DC power supply
|
(1) Power receptacle |
(2) Air outlet vent |
Interface arrangement
The access controller provides fixed interfaces GigabitEthernet 1/0/1 through GigabitEthernet 1/0/16. You can identify an interface by its mark.
· GigabitEthernet 1/0/1 through GigabitEthernet 1/0/8—100/1000BASE-T autosensing Ethernet ports.
· GigabitEthernet 1/0/9 through GigabitEthernet 1/0/16—1000BASE-X SFP ports.
Internal interfaces GigabitEthernet1/0/17 and GigabitEthernet1/0/18 are 100/1000BASE-T autosensing Ethernet interfaces for connecting expansion modules. You can edit interface settings as needed.
Technical specifications
Table6-1 Technical specifications
|
Item |
Specification |
|
Console port |
1, 9600 bps (default) to 115200bps |
|
GE port |
8 × 100/1000BASE-T autosensing Ethernet ports |
|
Management port |
1 × 100/1000BASE-T management Ethernet port |
|
SFP port |
8 × 1000BASE-X SFP ports |
|
Reset button (RESET) |
· To restore the device to factory default settings, press and hold the button for more than 5 seconds. · To reset the device, press and hold the button for more than 1 second. |
|
Memory |
16GB DDR4 |
|
Storage media |
8GB eMMC |
|
Dimensions (H × W × D) (excluding the rubber feet and mounting brackets) |
44 × 440 × 435 mm (1.73 × 17.32 × 17.13 in) |
|
AC power supply |
Rated voltage range: 100 to 240 VAC @ 50/60 Hz |
|
DC power supply |
Rated voltage range: –48 VDC to –60 VDC |
|
System power consumption |
36 W to 107 W |
|
Weight |
9 kg (19.84 lb) |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating humidity (non condensing) |
5% RH to 95% RH |
Table6-2 AC power supply specifications
|
Item |
Specification |
|
Model |
PSR250-12A1 |
|
Product code |
PSR250-12A1-D |
|
Rate input voltage range |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
Rated power |
250 W |
Table6-3 DC power supply specifications
|
Item |
Specification |
|
Model |
PSR450-12D |
|
Product code |
PSR450-12D |
|
Rate input voltage range |
–48 VDC to –60 VDC |
|
Rated power |
450 W |
