Public network IP over SRv6 uses SRv6 tunnels to carry public network IP services. This technology establishes SRv6 tunnels among geographically dispersed customer sites over an IPv6 network and transparently forwards Layer 3 customer traffic to remote sites over the IPv6 network through the tunnels.

Basic principle

Figure 1 shows a typical public network IP over SRv6 network. PE 1 and PE 2 use BGP to advertise public network IPv6 routes to each other over the IPv6 backbone network. The PEs use an SRv6 tunnel between them to forward public network traffic across sites.

Public network IP over SRv6 connects geographically dispersed sites that belong to the public network over the IPv6 backbone network.

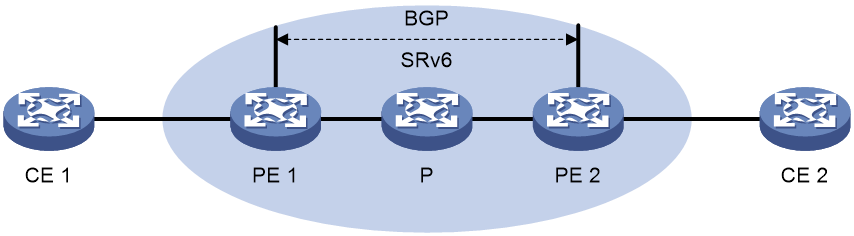

Figure 1 Network diagram

‌

Route advertisement

Public network IPv4 over SRv6 and public network IPv6 over SRv6 use the same process to advertise routes. The following information uses public network IPv4 over SRv6 as an example to illustrate the process.

As shown in Figure 1, local routes of CE 1 are advertised to CE 2 by using the following process:

1. CE 1 uses static routing, OSPF, IS-IS, EBGP, or IBGP to advertise routes of the local site to PE 1.

2. After learning the route information of CE 1, PE 1 stores the routes of the local site to the routing table of the public network. At the same time, PE 1 converts the routes to BGP IPv4 unicast routes and adds an SID to each of the routes. Then, PE 1 advertises the BGP IPv4 unicast routes with the SID to PE 2.

¡ If next hop-based dynamic SID allocation is not enabled, all the public network routes are allocated the same End.DT4 or End.DT46 SID.

¡ If next hop-based dynamic SID allocation is enabled, public network routes with the same next hop are allocated the same End.DX4 SID.

3. When PE 2 receives the IPv4 unicast routes advertised by PE 1, it adds the routes to the routing table of the public network. PE 2 removes the End.DT4 or End.DT46 SID information from the routes, records the End.DT4, End.DT46 SID, End.DX4 SID information, and then advertises the routes to CE 2.

4. By adding the received IPv4 unicast routes to the routing table, CE 2 learns the routes of CE 1.

Packet forwarding

Public network IP over SRv6 supports the following route recursion modes:

· SRv6 BE mode.

· SRv6 TE mode.

· SRv6 TE and SRv6 BE hybrid mode.

The packet forwarding process differs by the route recursion mode in use.

SRv6 BE mode

This mode is also called SID-based forwarding mode. In this mode, a PE forwards an SRv6 packet by searching the IPv6 routing table based on the SRv6 SID encapsulated in the packet.

Public network IPv4 over SRv6 and public network IPv6 over SRv6 use the same process to forward packets. The following information uses public network IPv4 over SRv6 as an example to illustrate the process.

As shown in Figure 1, CE 2 forwards an IPv4 packet to CE 1 as follows:

1. CE 2 sends the IPv4 packet to PE 2.

2. After PE 2 receives the packet, it searches for a route that matches the destination IPv4 address of the packet in the routing table of the public network. The corresponding End.DT4, End.DT46, or End.DX4 SID is found. Then, PE 2 encapsulates an outer IPv6 header for the packet. The End.DT4, End.DT46, or End.DX4 SID is encapsulated in the outer IPv6 header as the destination address.

3. PE 2 searches the IPv6 routing table based on the End.DT4, End.DT46, or End.DX4 SID for the optimal IGP route and forwards the packet to P through the route.

4. P searches the IPv6 routing table based on the End.DT4, End.DT46, or End.DX4 SID for the optimal IGP route and forwards the packet to PE 1 through the route.

5. When PE 1 receives the packet, it processes the packet as follows:

¡ If the packet header contains an End.DT4 or End.DT46 SID, PE 1 searches the local SID forwarding table for the SID and removes the outer IPv6 header. Then, PE 1 matches the packet to the public instance based on the SID, looks up the public network routing table, and forwards the packet to CE 1.

¡ If the packet header contains an End.DX4 SID, PE 1 searches the local SID forwarding table for the SID and removes the outer IPv6 header. Then, PE 1 forwards the packet to CE 1 according to the next hop and output interface bound to the SID.

SRv6 TE mode

This mode is also called SRv6 TE policy-based forwarding mode. In this mode, when a PE forwards a customer packet, it first searches for a matching SRv6 TE policy based on the packet attributes. Then, the PE adds an SRH to the packet. The SRH includes the destination SRv6 SID and the SID list of the SRv6 TE policy. Finally, the PE forwards the encapsulated packet based on the SRv6 TE policy.

The following modes are available to steer traffic to an SRv6 TE policy:

· Color—The device searches for an SRv6 TE policy that has the same color and endpoint address as the color and nexthop address of a BGP route. If a matching SRv6 TE policy exists, the device recurses the BGP route to that SRv6 TE policy. When the device receives packets that match the BGP route, it forwards the packets through the SRv6 TE policy.

· Tunnel policy—The device searches the tunnel policies for a matching SRv6 TE policy based on the next hop of a matching route. Configure a preferred tunnel or load sharing tunnel policy that uses the SRv6 TE policy. In this way, the SRv6 TE policy will be used as the public tunnel to carry the SRv6 PW that forwards the packets of customer network packets.

For more information about tunnel policies, see MPLS Configuration Guide. For more information about SRv6 TE policies, see "Configuring SRv6 TE policies."

SRv6 TE and SRv6 BE hybrid mode

In this mode, the PE preferentially uses the SRv6 TE mode to forward a packet. If no SRv6 TE policy is available for the packet, the PE forwards the packet in SRv6 BE mode.

Restrictions and guidelines: Public network IP over SRv6 configuration

The device does not support End.DX4 or End.DX6 SIDs in the current software version.

Public network IP over SRv6 tasks at a glance

To configure public network IP over SRv6, perform the following tasks:

1. Configuring route exchange between a PE and a CE

Configure an IPv4 routing protocol (static routing, OSPF, IS-IS, EBGP, or IBGP) or an IPv6 routing protocol (IPv6 static routing, OSPFv3, IPv6 IS-IS, EBGP, or IBGP) to exchange routes between a PE and a CE

On the CE, configure an IPv4 or IPv6 routing protocol to advertise routes of the local site to the PE. For more information about routing protocol configurations, see Layer 3—IP Routing Configuration Guide.

2. Configuring route exchange between PEs

a. Configuring an SRv6 SID

Perform this task to manually configure an End.DT4, End.DT6, End.DT46, End.DX4, or End.DX6 SID.

b. Applying a locator to a BGP instance

Perform this task to use BGP IPv4 or IPv6 unicast routes to advertise SRv6 SIDs in the specified locator.

c. Configuring PEs to exchange BGP IPv4 or IPv6 unicast routes

d. Configuring IPv6 peers to exchange SRv6 SIDs

This feature enables PEs to exchange End.DT4, End.DT6, or End.DT46 SIDs through BGP IPv4 or IPv6 unicast routes.

e. (Optional.) Configuring BGP IPv4 or IPv6 unicast routes

For more information about configuring BGP IPv4 or IPv6 unicast routes, see BGP configuration in Layer 3—IP Routing Configuration Guide.

3. Configuring the route recursion mode

4. Specifying a source address for the outer IPv6 header of SRv6-encapsulated packets

This feature specifies the source address of the outer IPv6 header for SRv6 packets that are delivered between two public network sites over the backbone network.

Configuring an SRv6 SID

1. Enter system view.

system-view

2. Enable SRv6 and enter SRv6 view.

segment-routing ipv6

3. Configure a locator and enter SRv6 locator view.

locator locator-name [ ipv6-prefix ipv6-address prefix-length [ args args-length | static static-length ] * ]

4. Configure an opcode. Perform one of the following tasks:

¡ Configure an End.DT4 SID.

opcode { opcode | hex hex-opcode } end-dt4

¡ Configure an End.DT6 SID.

opcode { opcode | hex hex-opcode } end-dt6

¡ Configure an End.DT46 SID.

opcode { opcode | hex hex-opcode } end-dt46

Applying a locator to a BGP instance

About this task

In the public network IP over SRv6 scenario, use this feature in BGP IPv4 or IPv6 unicast address family view to apply for SRv6 SIDs for IPv4 or IPv6 routes.

Use this feature if the device will use End.DT4, End.DT6, End.DT46, End.DX4, or End.DX6 SIDs to deliver public network traffic across sites.

Prerequisites

Before you perform this task, you must create the specified locator.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP IPv4 or IPv6 unicast address family view.

¡ Enter BGP IPv4 unicast address family view.

address-family ipv4 [ unicast ]

¡ Enter BGP IPv6 unicast address family view.

address-family ipv6 [ unicast ]

4. Apply a locator to the BGP instance.

segment-routing ipv6 locator locator-name [ auto-sid-disable ]

By default, no locator is applied to a BGP instance.

Configuring PEs to exchange BGP IPv4 or IPv6 unicast routes

Restrictions and guidelines

For more information about the commands in this task, see BGP in Layer 3—IP Routing Command Reference.

To ensure optimal route selection and SRv6 tunnel traffic forwarding, make sure a pair of PEs are not both IPv4 and IPv6 peers to each other.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Specify a remote PE as an IPv6 peer.

peer { group-name | ipv6-address [ prefix-length ] } as-number as-number

4. Specify a source interface (IPv6 address) for establishing TCP connections to an IPv6 peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } connect-interface interface-type interface-number

By default, BGP uses the output interface in the optimal route destined for a BGP peer or peer group as the source interface for establishing TCP connections.

5. Enter BGP IPv4 or IPv6 unicast address family view.

¡ Enter BGP IPv4 unicast address family view.

address-family ipv4 [ unicast ]

¡ Enter BGP IPv6 unicast address family view.

address-family ipv6 [ unicast ]

6. Enable BGP to exchange IPv4 or IPv6 unicast routing information with an IPv6 peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } enable

By default, BGP cannot exchange IPv4 or IPv6 unicast routing information with an IPv6 peer or peer group.

Configuring IPv6 peers to exchange SRv6 SIDs

About this task

Perform this task to configure IPv6 peers to exchange SRv6 SID information through BGP IPv4 or IPv6 unicast routes.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP IPv4 or IPv6 unicast address family view.

¡ Enter BGP IPv4 unicast address family view.

address-family ipv4 [ unicast ]

¡ Enter BGP IPv6 unicast address family view.

address-family ipv6 [ unicast ]

4. Enable BGP to exchange SRv6 SID information with an IPv6 peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } prefix-sid

By default, BGP cannot exchange SRv6 SID information with an IPv6 peer or peer group.

Configuring the route recursion mode

About this task

After a PE receives a customer packet destined for an SRv6 SID, it forwards the packet according to the route recursion mode.

· SRv6 BE mode—This mode is also called SID-based forwarding mode. In this mode, the PE first encapsulates the End.DT4, End.DT6, or End.DT46 SID into the packet. Then, the PE searches the IPv6 routing table based on the SID encapsulated in the packet to forward the packet.

· SRv6 TE mode—This mode is also called SRv6 TE policy-based forwarding mode. In this mode, the PE first searches for a matching SRv6 TE policy based on the packet attributes. Then, the PE adds an SRH to the packet. The SRH includes the End.DT4, End.DT6, or End.DT46 SID and the SID list of the SRv6 TE policy. Finally, the PE forwards the encapsulated packet through the SRv6 TE policy. For more information, see "Configuring SRv6 TE policies."

· SRv6 TE and SRv6 BE hybrid mode—In this mode, the PE preferentially uses the SRv6 TE mode to forward the packet. If no SRv6 TE policy is available for the packet, the PE forwards the packet in SRv6 BE mode.

Prerequisites

To use the SRv6 TE mode or the SRv6 TE and SRv6 BE hybrid mode, you must configure a tunnel policy and SRv6 TE policy. For more information, see tunnel policy configuration in MPLS Configuration Guide and "Configuring SRv6 TE policies."

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP IPv4 or IPv6 unicast address family view.

¡ Enter BGP IPv4 unicast address family view.

address-family ipv4 [ unicast ]

¡ Enter BGP IPv6 unicast address family view.

address-family ipv6 [ unicast ]

4. Configure the route recursion mode.

segment-routing ipv6 { best-effort | traffic-engineer | traffic-engineer best-effort }

By default, a PE searches the IPv6 routing table based on the next hop of a matching route to forward traffic.

Specifying a source address for the outer IPv6 header of SRv6-encapsulated packets

Restrictions and guidelines

To ensure correct traffic forwarding in the public network IPv6 over SRv6 scenario, you must specify a source address for the outer IPv6 header of SRv6-encapsulated packets.

You cannot specify a loopback address, link-local address, multicast address, or unspecified address as the source IPv6 address. You must specify an IPv6 address of the local device as the source IPv6 address, and make sure the IPv6 address has been advertised by a routing protocol. As a best practice, specify a loopback interface address of the local device as the source IPv6 address.

Procedure

1. Enter system view.

system-view

2. Enter SRv6 view.

segment-routing ipv6

3. Specify a source address for the outer IPv6 header of SRv6-encapsulated packets.

encapsulation source-address ipv6-address [ ip-ttl ttl-value ]

By default, no source address is specified for the outer IPv6 header of SRv6-encapsulated packets.

Display and maintenance commands for public network IP over SRv6

Resetting BGP sessions

For BGP setting changes to take effect, you must reset BGP sessions. Resetting BGP sessions updates BGP routing information by tearing down and re-establishing the BGP sessions.

Execute the command in this section in user view. For more information about the command, see BGP in Layer 3—IP Routing Command Reference.

‌

Task	Command
Reset BGP sessions of the BGP IPv6 unicast address family.	reset bgp [ instance instance-name ] { as-number \| ipv6-address [ prefix-length ] \| all \| external \| group group-name \| internal } ipv6 [ unicast ]

‌

Displaying and maintaining the running status of public network IP over SRv6

Execute display commands in any view and reset commands in user view.

For more information about the commands in this section, see BGP in Layer 3—IP Routing Command Reference.

Task	Command
Display BGP IPv6 unicast route information.	display bgp [ instance instance-name ] routing-table ipv6 [ unicast ] [ ipv6-address prefix-length [ advertise-info ] \| as-path-acl as-path-acl-number \| community-list { { basic-community-list-number \| comm-list-name } [ whole-match ] \| adv-community-list-number } \| peer ipv6-address { advertised-routes \| received-routes } [ ipv6-address prefix-length \| statistics ] \| statistics ]
Clear flap statistics for BGP IPv6 unicast routes.	reset bgp [ instance instance-name ] flap-info ipv6 [ unicast ] [ ipv6-address prefix-length \| as-path-acl as-path-acl-number \| peer ipv6-address [ prefix-length ] ]

‌

Public network IP over SRv6 configuration examples

Example: Configuring public network IPv6 over SRv6 in SRv6 BE mode

Network configuration

As shown in Figure 2, the backbone network is an IPv6 network. Deploy public network IPv6 over SRv6 between PE 1 and PE 2 and use an SRv6 tunnel to transmit IPv4 traffic between the PEs.

· Configure EBGP to exchange customer site routing information between the CEs and PEs.

· Configure IPv6 IS-IS on the PEs in the same AS to realize IPv6 network connectivity.

· Configure IBGP to exchange IPv4 routing information between the PEs.

Figure 2 Network diagram

‌

Table 1 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
CE 1	XGE2/0/0	111::1/96	PE 2	Loop0	3::3/128
PE 1	Loop0	1::1/128		XGE2/0/0	222::2/96
	XGE2/0/0	111::2/96		XGE2/0/1	2002::1/96
	XGE2/0/1	2001::1/96	CE 2	XGE2/0/0	222::1/96
P	Loop0	2::2/128
	XGE2/0/0	2001::2/96
	XGE2/0/1	2002::2/96

‌

Prerequisites

Configure IP addresses for the interfaces (including the Loopback interfaces), as shown in Figure 2.

Procedure

1. Configure IPv6 IS-IS on the PEs and device P for network connectivity between the devices:

# Configure PE 1.

<PE1> system-view

[PE1] isis 1

[PE1-isis-1] is-level level-1

[PE1-isis-1] cost-style wide

[PE1-isis-1] network-entity 10.1111.1111.1111.00

[PE1-isis-1] address-family ipv6 unicast

[PE1-isis-1-ipv6] quit

[PE1-isis-1] quit

[PE1] interface loopback 0

[PE1-LoopBack0] isis ipv6 enable 1

[PE1-LoopBack0] quit

[PE1] interface ten-gigabitethernet 2/0/1

[PE1-Ten-GigabitEthernet2/0/1] isis ipv6 enable

[PE1-Ten-GigabitEthernet2/0/1] quit

# Configure P.

<P> system-view

[P] isis

[P-isis-1] is-level level-1

[P-isis-1] cost-style wide

[P-isis-1] network-entity 10.2222.2222.2222.00

[P-isis-1] address-family ipv6 unicast

[P-isis-1-ipv6] quit

[P-isis-1] quit

[P] interface loopback 0

[P-LoopBack0] isis ipv6 enable

[P-LoopBack0] quit

[P] interface ten-gigabitethernet 2/0/0

[P-Ten-GigabitEthernet2/0/0] isis ipv6 enable

[P-Ten-GigabitEthernet2/0/0] quit

[P] interface ten-gigabitethernet 2/0/1

[P-Ten-GigabitEthernet2/0/1] isis ipv6 enable

[P-Ten-GigabitEthernet2/0/1] quit

# Configure PE 2.

<PE2> system-view

[PE2] isis

[PE2-isis-1] is-level level-1

[PE2-isis-1] cost-style wide

[PE2-isis-1] network-entity 10.3333.3333.3333.00

[PE2-isis-1] address-family ipv6 unicast

[PE2-isis-1-ipv6] quit

[PE2-isis-1] quit

[PE2] interface loopback 0

[PE2-LoopBack0] isis ipv6 enable

[PE2-LoopBack0] quit

[PE2] interface ten-gigabitethernet 2/0/1

[PE2-Ten-GigabitEthernet2/0/1] isis ipv6 enable

[PE2-Ten-GigabitEthernet2/0/1] quit

2. Set up an EBGP peer relationship between each PE and its local CE and distribute CE routes to EBGP:

# Configure CE 1.

<CE1> system-view

[CE1] bgp 65410

[CE1-bgp-default] peer 111::2 as-number 100

[CE1-bgp-default] address-family ipv6 unicast

[CE1-bgp-default-ipv6] peer 111::2 enable

[CE1-bgp-default-ipv6] import-route direct

[CE1-bgp-default-ipv6] quit

[CE1-bgp-default] quit

# Configure CE 2 in the same way as CE 1 is configured. (Details not shown.)

# Configure PE 1.

[PE1] bgp 100

[PE1-bgp-default] router-id 1.1.1.1

[PE1-bgp-default] peer 111::1 as-number 65410

[PE1-bgp-default] address-family ipv6 unicast

[PE1-bgp-default-ipv6] peer 111::1 enable

[PE1-bgp-default-ipv6] import-route direct

[PE1-bgp-default-ipv6] quit

[PE1-bgp-default] quit

# Configure PE 2 in the same way PE 1 is configured. (Details not shown.)

3. Set up an IBGP peer relationship between PE 1 and PE 2:

# Configure PE 1.

[PE1] bgp 100

[PE1-bgp-default] peer 3::3 as-number 100

[PE1-bgp-default] peer 3::3 connect-interface loopback 0

[PE1-bgp-default] address-family ipv6 unicast

[PE1-bgp-default-ipv6] peer 3::3 enable

[PE1-bgp-default-ipv6] quit

[PE1-bgp-default] quit

# Configure PE 2.

[PE2] bgp 100

[PE2-bgp-default] peer 1::1 as-number 100

[PE2-bgp-default] peer 1::1 connect-interface loopback 0

[PE2-bgp-default] address-family ipv6 unicast

[PE2-bgp-default-ipv6] peer 1::1 enable

[PE2-bgp-default-ipv6] quit

[PE2-bgp-default] quit

4. Specify a source address for the outer IPv6 header of SRv6-encapsulated public network IP packets on PE 1 and PE 2:

# Configure PE 1.

[PE1] segment-routing ipv6

[PE1-segment-routing-ipv6] encapsulation source-address 1::1

# Configure PE 2.

[PE2] segment-routing ipv6

[PE2-segment-routing-ipv6] encapsulation source-address 3::3

5. Configure the destination address (End.DT4 SID) of the outer IPv6 header for SRv6-encapsulated public network IP packets:

# Configure PE 1.

[PE1-segment-routing-ipv6] locator aaa ipv6-prefix 1:2::1:0 96 static 8

[PE1-segment-routing-ipv6-locator-aaa] quit

[PE1-segment-routing-ipv6] quit

[PE1] isis 1

[PE1-isis-1] address-family ipv6 unicast

[PE1-isis-1-ipv6] segment-routing ipv6 locator aaa

[PE1-isis-1-ipv6] quit

[PE1-isis-1] quit

# Configure PE 2.

[PE2-segment-routing-ipv6] locator bbb ipv6-prefix 6:5::1:0 96 static 8

[PE2-segment-routing-ipv6-locator-bbb] quit

[PE2-segment-routing-ipv6] quit

[PE2] isis 1

[PE2-isis-1] address-family ipv6 unicast

[PE2-isis-1-ipv6] segment-routing ipv6 locator bbb

[PE2-isis-1-ipv6] quit

[PE2-isis-1] quit

6. Add End.DT4 SIDs to public network routes of the customer sites on PE 1 and PE 2:

# Configure PE 1.

[PE1] bgp 100

[PE1-bgp-default] address-family ipv6 unicast

[PE1-bgp-default-ipv6] segment-routing ipv6 locator aaa

[PE1-bgp-default-ipv6] quit

[PE1-bgp-default] quit

# Configure PE 2.

[PE2] bgp 100

[PE2-bgp-default] address-family ipv6 unicast

[PE2-bgp-default-ipv6] segment-routing ipv6 locator bbb

[PE2-bgp-default-ipv6] quit

[PE2-bgp-default] quit

7. Enable IPv6 peers on the PEs to exchange End.DT4 SIDs and enable SRv6 BE route recursion mode:

# Configure PE 1.

[PE1] bgp 100

[PE1-bgp-default] address-family ipv6 unicast

[PE1-bgp-default-ipv6] peer 3::3 prefix-sid

[PE1-bgp-default-ipv6] segment-routing ipv6 best-effort

[PE1-bgp-default-ipv6] quit

[PE1-bgp-default] quit

# Configure PE 2.

[PE2] bgp 100

[PE2-bgp-default] address-family ipv6 unicast

[PE2-bgp-default-ipv6] peer 1::1 prefix-sid

[PE2-bgp-default-ipv6] segment-routing ipv6 best-effort

[PE2-bgp-default-ipv6] quit

[PE2-bgp-default] quit

Verifying the configuration

# Display IPv6 routing table information on the PEs and verify that each PE has a route destined for the remote CE and the next hop of the route is the End.DT4 SID of the route. This step uses PE 1 as an example.

[PE1] display ipv6 routing-table 222::1 96

Summary count : 1

Destination: 222::/96 Protocol : BGP4+

NextHop : 6:5:: Preference: 255

Interface : XGE2/0/1 Cost : 0

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

07-Segment Routing Configuration Guide

About public network IP over SRv6

SRv6 BE mode

SRv6 TE mode

SRv6 TE and SRv6 BE hybrid mode

Public network IP over SRv6 tasks at a glance

About this task

Prerequisites

Procedure

Restrictions and guidelines

Procedure

About this task

Procedure

About this task

Prerequisites

Procedure

Specifying a source address for the outer IPv6 header of SRv6-encapsulated packets

Restrictions and guidelines

Procedure

Display and maintenance commands for public network IP over SRv6

Network configuration

Prerequisites

Procedure

Verifying the configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
