EVPN L3VPN over SRv6 uses SRv6 tunnels to carry EVPN L3VPN services. This technology establishes SRv6 tunnels among geographically dispersed customer sites over the IPv6 backbone network and transparently forwards EVPN L3VPN customer traffic through the tunnels. For more information about EVPN L3VPN configuration, see EVPN Configuration Guide.

Basic principle

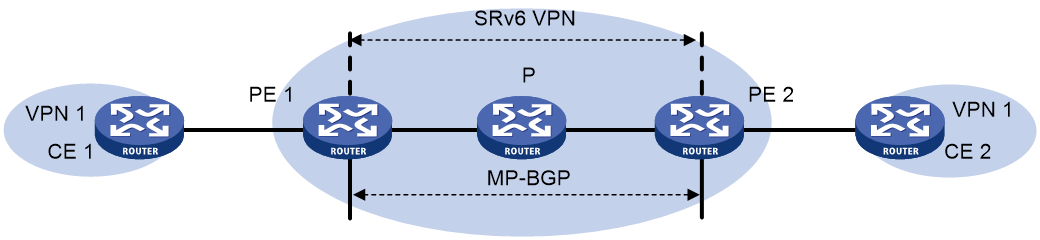

Figure 1 shows a typical EVPN L3VPN over SRv6 network.

· PE 1 and PE 2 use MP-BGP to advertise EVPN IP advertisement routes to each other over the IPv6 backbone network. The EVPN IP advertisement routes contain IPv4 or IPv6 VPN routing information and SID information.

· The PEs have a single-hop SRv6 tunnel between them and they use the SRv6 tunnel to forward EVPN L3VPN traffic across sites.

· The devices in the IPv6 backbone network forward the SRv6-encapsulated EVPN L3VPN traffic through the optimal path calculated by IGP.

EVPN L3VPN over SRv6 connects geographically dispersed sites that belong to the same VPN over the IPv6 backbone network.

Figure 1 Network diagram

‌

Route advertisement

The route advertisement process of IPv4 EVPN L3VPN over SRv6 is similar to that of IPv6 EVPN L3VPN over SRv6. This section uses IPv4 EVPN L3VPN over SRv6 to illustrate the process.

As shown in Figure 1, local routes of CE 1 are advertised to CE 2 by using the following process:

1. CE 1 uses static routing, OSPF, IS-IS, EBGP, or IBGP to advertise routes of the local site to PE 1.

2. PE 1 stores the routes advertised by CE 1 to the routing table of VPN 1. Then, PE 1 converts the routes to BGP EVPN IP advertisement routes and advertises the IP advertisement routes to PE 2 by using MP-BGP. The IP advertisement routes carry RD, RT, and SID attributes (the SID attribute is used as the private network label).

¡ If next hop-based dynamic SID allocation is not used, all private network routes of the VPN instance are allocated the same End.DT4 or End.DT46 SID.

¡ If next hop-based dynamic SID allocation is used, private network routes with the same next hop are allocated the same End.DX4 SID in the VPN instance.

3. PE 2 adds the IP advertisement routes to the routing table of VPN 1, converts the IP advertisement routes to IPv4 routes, and advertises the IPv4 routes to CE 2.

4. By adding the received IPv4 routes to the routing table, CE 2 learns the private network routes of CE 1.

Packet forwarding

EVPN L3VPN over SRv6 supports the following route recursion modes:

· SRv6 BE mode.

· SRv6 TE mode.

· SRv6 TE and SRv6 BE hybrid mode.

The packet forwarding process differs by the route recursion mode in use.

SRv6 BE mode

This mode is also called SID-based forwarding mode. In this mode, a PE forwards an SRv6 packet by searching the IPv6 routing table based on the SRv6 SID encapsulated in the packet.

The packet forwarding process of IPv4 EVPN L3VPN over SRv6 is similar to that of IPv6 EVPN L3VPN over SRv6. This section uses IPv4 EVPN L3VPN over SRv6 to illustrate the process.

As shown in Figure 1, CE 2 forwards an IPv4 packet to CE 1 as follows:

1. CE 2 sends the IPv4 packet to PE 2.

2. PE 2 receives the packet on an interface associated with VPN 1. PE 2 searches for a route that matches the destination IPv4 address of the packet in the routing table of VPN 1. The corresponding End.DT4, End.DT46, or End.DX4 SID is found. Then, PE 2 encapsulates an outer IPv6 header for the packet. The End.DT4, End.DT46, or End.DX4 SID is encapsulated in the outer IPv6 header as the destination address.

3. PE 2 searches the IPv6 routing table based on the End.DT4, End.DT46, or End.DX4 SID for the optimal IGP route and forwards the packet to P through the route.

4. P searches the IPv6 routing table based on the End.DT4, End.DT46, or End.DX4 SID for the optimal IGP route and forwards the packet to PE 1 through the route.

5. When PE 1 receives the packet, it processes the packet as follows:

¡ If the packet header contains an End.DT4 or End.DT46 SID, PE 1 searches the local SID forwarding table for the SID and removes the outer IPv6 header. Then, PE 1 matches the packet to VPN 1 based on the SID, searches the routing table of VPN 1 for the optimal route and forwards the packet to CE 1.

¡ If the packet header contains an End.DX4 SID, PE 1 searches the local SID forwarding table for the SID and removes the outer IPv6 header. Then, PE 1 forwards the packet to CE 1 according to the next hop and output interface bound to the SID.

SRv6 TE mode

This mode is also called SRv6 TE policy-based forwarding mode. In this mode, when a PE forwards a customer packet, it first searches for a matching SRv6 TE policy based on the packet attributes. Then, the PE adds an SRH to the packet. The SRH includes the destination SRv6 SID and the SID list of the SRv6 TE policy. Finally, the PE forwards the encapsulated packet based on the SRv6 TE policy.

The following modes are available to steer traffic to an SRv6 TE policy:

· Color—The device searches for an SRv6 TE policy that has the same color and endpoint address as the color and nexthop address of a BGP EVPN route. If a matching SRv6 TE policy exists, the device recurses the BGP EVPN route to that SRv6 TE policy. When the device receives packets that match the BGP EVPN route, it forwards the packets through the SRv6 TE policy.

· Tunnel policy—The device searches the tunnel policies for a matching SRv6 TE policy based on the next hop of a matching route. Configure a preferred tunnel or load sharing tunnel policy that uses the SRv6 TE policy. In this way, the SRv6 TE policy will be used as the public tunnel to carry the SRv6 PW that forwards the packets of private network packets.

For more information about tunnel policies, see MPLS Configuration Guide. For more information about SRv6 TE policies, see "Configuring SRv6 TE policies."

SRv6 TE and SRv6 BE hybrid mode

In this mode, the PE preferentially uses the SRv6 TE mode to forward a packet. If no SRv6 TE policy is available for the packet, the PE forwards the packet in SRv6 BE mode.

EVPN L3VPN over SRv6 FRR

EVPN L3VPN over SRv6 Fast Reroute (FRR) is applicable to a dualhomed scenario, as shown in Figure 2. By using static BFD to detect the primary link, FRR enables a PE to use the backup link when the primary link fails. The PE then selects a new optimal route, and uses the new optimal route to forward traffic.

EVPN L3VPN over SRv6 uses EVPN route backup for an EVPN route.

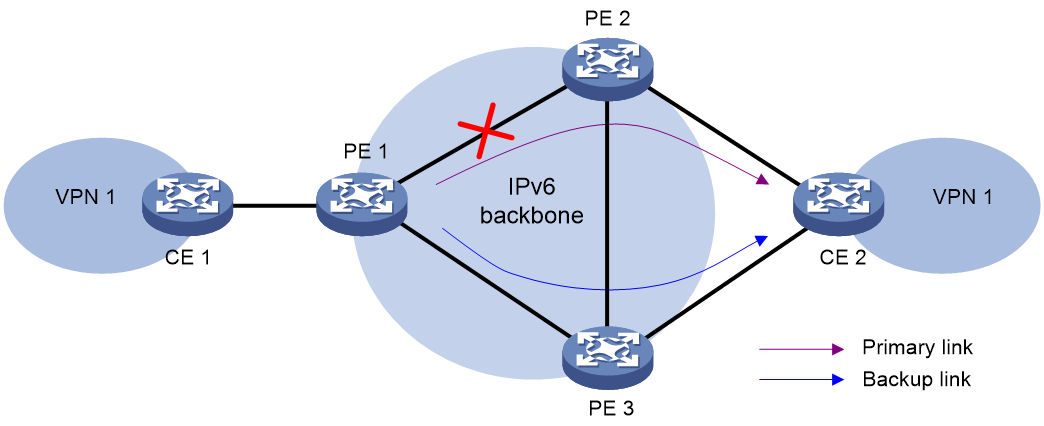

Figure 2 Network diagram of EVPN route backup for an EVPN route

As shown in Figure 2, configure FRR on the ingress node PE 1, and specify the backup next hop for VPN 1 as PE 3. When PE 1 receives an EVPN route to CE 2 from both PE 2 and PE 3, it uses the route from PE 2 as the primary link, and the route from PE 3 as the backup link.

Configure static BFD for public tunnels on PE 1 to detect the connectivity of the public tunnel from PE 1 to PE 2. When the tunnel PE 1—PE 2 operates correctly, traffic from CE 1 to CE 2 goes through the path CE 1—PE 1—PE 2—CE 2. When the tunnel fails, the traffic goes through the path CE 1—PE 1—PE 3—CE 2.

In this scenario, PE 1 is responsible for primary link detection and traffic switchover.

For more information about static BFD, see BFD configuration in High Availability Configuration Guide.

Restrictions and guidelines: EVPN L3VPN over SRv6 configuration

The device does not support End.DX4 or End.DX6 SIDs in the current software version.

EVPN L3VPN over SRv6 tasks at a glance

To configure EVPN L3VPN over SRv6, perform the following tasks:

1. Configuring a VPN instance and associating interfaces connected to CEs with the VPN instance

Perform this task on PEs. For more information, see MPLS L3VPN in MPLS Configuration Guide.

2. Configuring route exchange between a PE and a CE

Configure an IPv4 routing protocol (static routing, OSPF, IS-IS, EBGP, or IBGP) or an IPv6 routing protocol (IPv6 static routing, OSPFv3, IPv6 IS-IS, EBGP, or IBGP) to exchange routes between a PE and a CE

On the CE, configure an IPv4 or IPv6 routing protocol to advertise routes of the local site to the PE. On the PE, associate the routing protocol with the VPN instance. For more information about routing protocol configurations, see Layer 3—IP Routing Configuration Guide.

3. Configuring route exchange between PEs

a. Configuring an SRv6 SID

Perform this task to manually configure an End.DT4, End.DT6, End.DT46, End.DX4, or End.DX6 SID.

b. Applying a locator to a BGP VPN instance

BGP can advertise SRv6 SIDs through BGP routes only after you apply a locator to BGP.

c. Configuring SRv6-encapsulated EVPN route advertisement

Perform this task to advertise VPN routes as EVPN routes to a peer or peer group in the EVPN L3VPN over SRv6 network.

d. Configuring PEs to exchange BGP EVPN routes

e. (Optional.) Configuring BGP EVPN route settings

4. Configuring the route recursion mode

5. Specifying a source address for the outer IPv6 header of SRv6-encapsulated EVPN L3VPN packets

This feature specifies the source address of the outer IPv6 header for SRv6 packets forwarded between two private network sites over the backbone network.

6. (Optional.) Configuring EVPN L3VPN over SRv6 FRR

Configuring an SRv6 SID

1. Enter system view.

system-view

2. Enable SRv6 and enter SRv6 view.

segment-routing ipv6

3. Configure a locator and enter SRv6 locator view.

locator locator-name [ ipv6-prefix ipv6-address prefix-length [ args args-length | static static-length ] * ]

4. Configure an opcode. Perform one of the following tasks:

¡ Configure an End.DT4 SID.

opcode { opcode | hex hex-opcode } end-dt4 vpn-instance vpn-instance-name evpn

The specified VPN instance must exist. An End.DT4 SID cannot be configured in different VPN instances.

¡ Configure an End.DT6 SID.

opcode { opcode | hex hex-opcode } end-dt6 vpn-instance vpn-instance-name evpn

The specified VPN instance must exist. An End.DT6 SID cannot be configured in different VPN instances.

¡ Configure an End.DT46 SID.

opcode { opcode | hex hex-opcode } end-dt46 vpn-instance vpn-instance-name evpn

The specified VPN instance must exist. An End.DT46 SID cannot be configured in different VPN instances.

Applying a locator to a BGP VPN instance

About this task

Use this feature in BGP-VPN IPv4 or IPv6 unicast address family view of a VPN instance to apply for SRv6 SIDs for the private network routes of the VPN instance.

Use this feature if the device will use End.DT4, End.DT6, End.DT46, End.DX4, or End.DX6 SIDs to deliver EVPN traffic across sites.

Restrictions and guidelines

The VPN instance of the specified locator must be the same as the VPN instance of the private network. To specify a VPN instance for a locator, use the opcode end-dt4, opcode end-dt6, opcode end-dt46, opcode end-dx4, or opcode end-dx6 command in SRv6 locator view.

Prerequisites

Before you perform this task, you must create the specified locator.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP-VPN instance view.

ip vpn-instance vpn-instance-name

4. Enter BGP-VPN IPv4 unicast address family view or BGP-VPN IPv6 unicast address family view.

¡ Enter BGP-VPN IPv4 unicast address family view.

address-family ipv4 [ unicast ]

¡ Enter BGP-VPN IPv6 unicast address family view.

address-family ipv6 [ unicast ]

5. Apply a locator to the BGP VPN instance.

segment-routing ipv6 locator locator-name evpn [ auto-sid-disable ]

By default, no locator is applied to a BGP VPN instance.

Configuring SRv6-encapsulated EVPN route advertisement

About this task

Perform this task to ensure that a PE can advertise VPN routes as EVPN routes to a peer or peer group in an EVPN L3VPN over SRv6 network.

Restrictions and guidelines

Perform this task on the edge nodes of the EVPN L3VPN network and RRs.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Enable SRv6 encapsulation for the EVPN IP prefix advertisement routes advertised to a peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } advertise encap-type srv6

By default, IP prefix advertisement routes use VXLAN encapsulation.

Configuring PEs to exchange BGP EVPN routes

Restrictions and guidelines

To ensure optimal route selection and SRv6 tunnel traffic forwarding, make sure a pair of PEs are not both IPv4 and IPv6 peers to each other.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Configure an IPv6 peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } as-number as-number

4. Specify the source interface of TCP connections to a peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } connect-interface interface-type interface-number

By default, BGP uses the IPv6 address of the output interface in the optimal route to the BGP peer or peer group as the source address of TCP connections to the peer or peer group.

5. Enter BGP EVPN address family view.

address-family l2vpn evpn

6. Enable BGP to exchange EVPN routes with an IPv6 peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } enable

By default, BGP cannot exchange EVPN routes with an IPv6 peer or peer group.

Configuring BGP EVPN route settings

Restrictions and guidelines for BGP EVPN route configuration

For more information about the commands in this section, see BGP commands in Layer 3—IP Routing Command Reference.

Configuring BGP route reflection

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Configure the device as an RR and specify a peer or peer group as its client.

peer { group-name | ipv6-address [ prefix-length ] } reflect-client

By default, no RR or client is configured.

5. (Optional.) Enable BGP EVPN route reflection between clients.

reflect between-clients

By default, BGP EVPN route reflection between clients is enabled.

6. (Optional.) Configure the cluster ID of the RR.

reflector cluster-id { cluster-id | ip-address }

By default, an RR uses its own router ID as the cluster ID.

7. (Optional.) Create a reflection policy for the RR to filter reflected BGP EVPN routes.

rr-filter { ext-comm-list-number | ext-comm-list-name }

By default, an RR does not filter reflected BGP EVPN routes.

8. (Optional.) Enable the RR to change the attributes of routes to be reflected.

reflect change-path-attribute

By default, an RR cannot change the attributes of routes to be reflected.

Configuring attributes of BGP EVPN routes

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Set the local router as the next hop for routes advertised to a peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } next-hop-local

By default, BGP sets the local router as the next hop for all routes advertised to a peer or peer group.

5. Permit the local AS number to appear in routes from a peer or peer group and set the number of appearances.

peer { group-name | ipv6-address [ prefix-length ] } allow-as-loop [ number ]

By default, the local AS number is not allowed in routes from peers.

6. Advertise the COMMUNITY attribute to a peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } advertise-community

By default, the device does not advertise the COMMUNITY attribute to peers or peer groups.

7. Advertise the Large community attribute to a peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } advertise-large-community

By default, the Large community attribute is not advertised to a peer or peer group.

Filtering BGP EVPN routes

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Filter routes advertised to a peer or peer group.

filter-policy { mac-acl-number | name mac-acl-name } export

By default, routes advertised to peers or peer groups are not filtered.

5. Filter routes received from a peer or peer group.

filter-policy { mac-acl-number | name mac-acl-name } import

By default, routes received from peers or peer groups are not filtered.

6. Apply a routing policy to routes received from or advertised to a peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } route-policy route-policy-name { export | import }

By default, no routing policies are applied to routes received from or advertised to peers or peer groups.

7. Enable route target filtering for BGP EVPN routes.

policy vpn-target

By default, route target filtering is enabled for BGP EVPN routes.

Configuring the BGP Additional Paths feature

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Configure the BGP Additional Paths capabilities.

peer { group-name | ipv6-address [ prefix-length ] } additional-paths { receive | send } *

By default, no BGP Additional Paths capabilities are configured.

5. Set the maximum number of Add-Path optimal routes that can be advertised to a peer or peer group.

peer { group-name | ipv6-address [ prefix-length ] } advertise additional-paths best number

By default, a maximum of one Add-Path optimal route can be advertised to a peer or peer group.

6. (Optional.) Set the optimal route selection delay timer.

route-select delay delay-value

By default, the optimal route selection delay timer is 0 seconds, which means optimal route selection is not delayed.

Configuring the route recursion mode

About this task

After a PE receives a customer packet destined for an SRv6 SID, it forwards the packet according to the route recursion mode.

· SRv6 BE mode—This mode is also called SID-based forwarding mode. In this mode, the PE first encapsulates the End.DT4, End.DT6, or End.DT46 SID into the packet. Then, the PE searches the IPv6 routing table based on the SID encapsulated in the packet to forward the packet.

· SRv6 TE mode—This mode is also called SRv6 TE policy-based forwarding mode. In this mode, the PE first searches for a matching SRv6 TE policy based on the packet attributes. Then, the PE adds an SRH to the packet. The SRH includes the End.DT4, End.DT6, or End.DT46 SID and the SID list of the SRv6-TE policy. Finally, the PE forwards the encapsulated packet through the SRv6-TE policy. For more information, see "Configuring SRv6 TE policies."

· SRv6 TE and SRv6 BE hybrid mode—In this mode, the PE preferentially uses the SRv6 TE mode to forward the packet. If no SRv6 TE policy is available for the packet, the PE forwards the packet in SRv6 BE mode.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP-VPN instance view.

ip vpn-instance vpn-instance-name

4. Enter BGP-VPN IPv4 unicast address family view or BGP-VPN IPv6 unicast address family view.

¡ Enter BGP-VPN IPv4 unicast address family view.

address-family ipv4 [ unicast ]

¡ Enter BGP-VPN IPv6 unicast address family view.

address-family ipv6 [ unicast ]

5. Configure the route recursion mode.

segment-routing ipv6 { best-effort | traffic-engineer | traffic-engineer best-effort } evpn

By default, a PE searches the IPv6 routing table based on the next hop of a matching route to forward traffic.

Specifying a source address for the outer IPv6 header of SRv6-encapsulated EVPN L3VPN packets

Restrictions and guidelines

To ensure correct VPN traffic forwarding in an EVPN L3VPN over SRv6 network, you must specify a source address for the outer IPv6 header of SRv6-encapsulated EVPN L3VPN packets.

You cannot specify a loopback address, link-local address, multicast address, or unspecified address as the source IPv6 address. You must specify an IPv6 address of the local device as the source IPv6 address, and make sure the IPv6 address has been advertised by a routing protocol. As a best practice, specify a loopback interface address of the local device as the source IPv6 address.

Procedure

1. Enter system view.

system-view

2. Enter SRv6 view.

segment-routing ipv6

3. Specify a source address for the outer IPv6 header of SRv6-encapsulated EVPN L3VPN packets.

encapsulation source-address ipv6-address [ ip-ttl ttl-value ]

By default, no source address is specified for the outer IPv6 header of SRv6-encapsulated EVPN L3VPN packets.

Configuring EVPN L3VPN over SRv6 FRR

About this task

EVPN L3VPN over SRv6 FRR enables the device to calculate backup routes for all routes of a VPN instance to reduce the traffic interruption caused by link or device failures on the backbone. If the device learns two unequal-cost routes destined for the same network from different peers, the optimal route is backed up by the other route. When the optimal route becomes unavailable, the device uses the backup route to forward traffic. At the same time, the device calculates a new optimal route and then uses it to direct traffic forwarding.

Restrictions and guidelines

This feature might cause routing loops in certain conditions. Make sure you are fully aware of this feature when you use it on a live network.

Procedure

1. Enter system view.

system-view

2. Configure static BFD.

bfd static session-name [ peer-ipv6 ipv6-address [ vpn-instance vpn-instance-name ] source-ipv6 ipv6-address [ discriminator local local-value remote remote-value ] [ track-interface interface-type interface-number ] ]

3. Return to system view.

quit

4. Enter BGP instance view.

bgp as-number [ instance instance-name ]

5. Configure BGP FRR to use BFD to detect next hop connectivity for the primary route.

primary-path-detect bfd echo

By default, BGP FRR uses ARP to detect the connectivity to the next hop of the primary route.

For more information about this command, see BGP commands in Layer 3—IP Routing Command Reference.

6. Enter BGP EVPN address family view.

address-family l2vpn evpn

7. Enable FRR for the address family.

pic

By default, FRR is disabled.

For more information about this command, see BGP commands in Layer 3—IP Routing Command Reference.

Display and maintenance commands for EVPN L3VPN over SRv6

Resetting BGP sessions

For BGP setting changes to take effect, you must reset or soft-reset BGP sessions. Soft-resetting BGP sessions updates BGP routing information without tearing down the BGP sessions. Resetting BGP sessions updates BGP routing information by tearing down and re-establishing the BGP sessions. Soft-reset requires that both the local router and the peer support ROUTE-REFRESH messages.

Execute the commands in this section in user view. For more information about the commands, see BGP in Layer 3—IP Routing Command Reference.

‌

Task	Command
Soft-reset BGP sessions of the BGP VPNv4 address family.	refresh bgp [ instance instance-name ] ipv6-address [ prefix-length ] { export \| import } l2vpn evpn
Reset BGP sessions of the BGP VPNv4 address family.	reset bgp [ instance instance-name ] ipv6-address [ prefix-length ] l2vpn evpn

‌

Displaying and maintaining the running status of EVPN L3VPN over SRv6

Execute display commands in any view.

Task	Command
Display BGP EVPN route information.	display bgp [ instance instance-name ] l2vpn evpn [ peer ipv4-address { advertised-routes \| received-routes } [ statistics ] \| route-distinguisher route-distinguisher [ route-type ip-prefix ] [ evpn-route route-length [ advertise-info ] ] \| route-type { auto-discovery \| es \| imet \| ip-prefix \| mac-ip } \| statistics ]

‌

EVPN L3VPN over SRv6 configuration examples

Example: Configuring IPv4 EVPN L3VPN over SRv6 in SRv6 BE mode

Network configuration

As shown in Figure 3, the backbone network is an IPv6 network, and VPN 1 is an IPv4 network. Deploy EVPN L3VPN over SRv6 in SRv6 BE mode between PE 1 and PE 2 and use an SRv6 tunnel to transmit EVPN traffic between the PEs.

· Configure EBGP to exchange VPN routing information between the CEs and PEs.

· Configure IPv6 IS-IS on the PEs in the same AS to realize IPv6 network connectivity.

· Configure MP-IBGP to exchange EVPN routing information between the PEs.

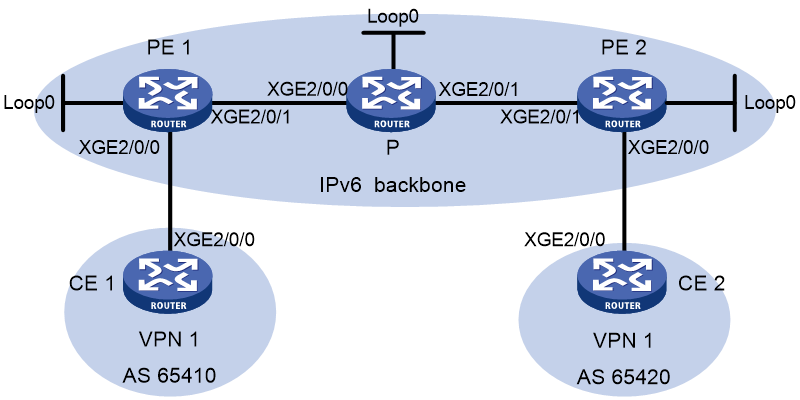

Figure 3 Network diagram

‌

Table 1 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
CE 1	XGE2/0/0	10.1.1.2/24	PE 2	Loop0	3::3/128
PE 1	Loop0	1::1/128		XGE2/0/0	10.2.1.1/24
	XGE2/0/0	10.1.1.1/24		XGE2/0/1	2002::1/96
	XGE2/0/1	2001::1/96	CE 2	XGE2/0/0	10.2.1.2/24
P	Loop0	2::2/128
	XGE2/0/0	2001::2/96
	XGE2/0/1	2002::2/96

‌

Procedure

1. Configure IPv6 IS-IS on the PEs and device P for network connectivity between the devices:

# Configure PE 1.

<PE1> system-view

[PE1] isis 1

[PE1-isis-1] is-level level-1

[PE1-isis-1] cost-style wide

[PE1-isis-1] network-entity 10.1111.1111.1111.00

[PE1-isis-1] address-family ipv6 unicast

[PE1-isis-1-ipv6] quit

[PE1-isis-1] quit

[PE1] interface loopback 0

[PE1-LoopBack0] ipv6 address 1::1 128

[PE1-LoopBack0] isis ipv6 enable 1

[PE1-LoopBack0] quit

[PE1] interface ten-gigabitethernet 2/0/1

[PE1-Ten-GigabitEthernet2/0/1] ipv6 address 2001::1 96

[PE1-Ten-GigabitEthernet2/0/1] isis ipv6 enable

[PE1-Ten-GigabitEthernet2/0/1] quit

# Configure P.

<P> system-view

[P] isis

[P-isis-1] is-level level-1

[P-isis-1] cost-style wide

[P-isis-1] network-entity 10.2222.2222.2222.00

[P-isis-1] address-family ipv6 unicast

[P-isis-1-ipv6] quit

[P-isis-1] quit

[P] interface loopback 0

[P-LoopBack0] ipv6 address 2::2 128

[P-LoopBack0] isis ipv6 enable

[P-LoopBack0] quit

[P] interface ten-gigabitethernet 2/0/0

[P-Ten-GigabitEthernet2/0/0] ipv6 address 2001::2 96

[P-Ten-GigabitEthernet2/0/0] isis ipv6 enable

[P-Ten-GigabitEthernet2/0/0] quit

[P] interface ten-gigabitethernet 2/0/1

[P-Ten-GigabitEthernet2/0/1] ipv6 address 2002::2 96

[P-Ten-GigabitEthernet2/0/1] isis ipv6 enable

[P-Ten-GigabitEthernet2/0/1] quit

# Configure PE 2.

<PE2> system-view

[PE2] isis

[PE2-isis-1] is-level level-1

[PE2-isis-1] cost-style wide

[PE2-isis-1] network-entity 10.3333.3333.3333.00

[PE2-isis-1] address-family ipv6 unicast

[PE2-isis-1-ipv6] quit

[PE2-isis-1] quit

[PE2] interface loopback 0

[PE2-LoopBack0] ipv6 address 3::3 128

[PE2-LoopBack0] isis ipv6 enable

[PE2-LoopBack0] quit

[PE2] interface ten-gigabitethernet 2/0/1

[PE2-Ten-GigabitEthernet2/0/1] ipv6 address 2002::1 96

[PE2-Ten-GigabitEthernet2/0/1] isis ipv6 enable

[PE2-Ten-GigabitEthernet2/0/1] quit

# Verify that PE 1, P, and PE 2 have established IPv6 IS-IS neighbor relationships and the neighbor state is up.

[PE1] display isis peer

[P] display isis peer

[PE2] display isis peer

# Verify that PE 1 and PE 2 each learn a route destined for the loopback interface of each other.

[PE1] display isis route ipv6

[PE2] display isis route ipv6

2. Configure VPN instance settings on PE 1 and PE 2 and verify that each CE can access its local PE:

# Configure PE 1.

[PE1] ip vpn-instance vpn1

[PE1-vpn-instance-vpn1] route-distinguisher 100:1

[PE1-vpn-instance-vpn1] vpn-target 111:1

[PE1-vpn-instance-vpn1] quit

[PE1] interface ten-gigabitethernet 2/0/0

[PE1-Ten-GigabitEthernet2/0/0] ip binding vpn-instance vpn1

[PE1-Ten-GigabitEthernet2/0/0] ip address 10.1.1.1 24

[PE1-Ten-GigabitEthernet2/0/0] quit

# Configure PE 2.

[PE2] ip vpn-instance vpn1

[PE2-vpn-instance-vpn1] route-distinguisher 100:1

[PE2-vpn-instance-vpn1] vpn-target 111:1

[PE2-vpn-instance-vpn1] quit

[PE2] interface ten-gigabitethernet 2/0/0

[PE2-Ten-GigabitEthernet2/0/0] ip binding vpn-instance vpn1

[PE2-Ten-GigabitEthernet2/0/0] ip address 10.2.1.1 24

[PE2-Ten-GigabitEthernet2/0/0] quit

# Configure IP addresses for the interfaces on the CEs, as shown in Figure 3. (Details not shown.)

# Display VPN instance settings on each PE. This step uses PE 1 as an example.

[PE1] display ip vpn-instance

Total VPN-Instances configured : 1

Total IPv4 VPN-Instances configured : 1

Total IPv6 VPN-Instances configured : 1

VPN-Instance Name RD Address family Create time

vpn1 100:1 IPv4/IPv6 2019/08/12 13:59:39

# Verify that each PE can ping its local CE. This step uses PE 1 and CE 1 as an example.

[PE1] ping -vpn-instance vpn1 10.1.1.2

Ping 10.1.1.2 (10.1.1.2): 56 data bytes, press CTRL+C to break

56 bytes from 10.1.1.2: icmp_seq=0 ttl=255 time=2.000 ms

56 bytes from 10.1.1.2: icmp_seq=1 ttl=255 time=0.000 ms

56 bytes from 10.1.1.2: icmp_seq=2 ttl=255 time=1.000 ms

56 bytes from 10.1.1.2: icmp_seq=3 ttl=255 time=0.000 ms

56 bytes from 10.1.1.2: icmp_seq=4 ttl=255 time=0.000 ms

--- Ping statistics for 10.1.1.2 in VPN instance vpn1 ---

5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss

round-trip min/avg/max/std-dev = 0.000/0.600/2.000/0.800 ms

3. Set up an EBGP peer relationship between each PE and its local CE and distribute VPN routes to EBGP:

# Configure CE 1.

<CE1> system-view

[CE1] bgp 65410

[CE1-bgp-default] peer 10.1.1.1 as-number 100

[CE1-bgp-default] address-family ipv4 unicast

[CE1-bgp-default-ipv4] peer 10.1.1.1 enable

[CE1-bgp-default-ipv4] import-route direct

[CE1-bgp-default-ipv4] quit

[CE1-bgp-default] quit

# Configure CE 2 in the same way as CE 1 is configured. (Details not shown.)

# Configure PE 1.

[PE1] bgp 100

[PE1-bgp-default] router-id 1.1.1.1

[PE1-bgp-default] ip vpn-instance vpn1

[PE1-bgp-default-vpn1] peer 10.1.1.2 as-number 65410

[PE1-bgp-default-vpn1] address-family ipv4 unicast

[PE1-bgp-default-ipv4-vpn1] peer 10.1.1.2 enable

[PE1-bgp-default-ipv4-vpn1] quit

[PE1-bgp-default-vpn1] quit

# Configure PE 2 in the same way PE 1 is configured. (Details not shown.)

# Verify that the PEs have established BGP peer relationships with their local CEs and the peers are in established state.

[PE1] display bgp peer ipv4 vpn-instance

[PE2] display bgp peer ipv4 vpn-instance

4. Set up an MP-IBGP peer relationship between PE 1 and PE 2:

# Configure PE 1.

[PE1] bgp 100

[PE1-bgp-default] peer 3::3 as-number 100

[PE1-bgp-default] peer 3::3 connect-interface loopback 0

[PE1-bgp-default] address-family l2vpn evpn

[PE1-bgp-default-evpn] peer 3::3 enable

[PE1-bgp-default-evpn] quit

[PE1-bgp-default] quit

# Configure PE 2.

[PE2] bgp 100

[PE2-bgp-default] peer 1::1 as-number 100

[PE2-bgp-default] peer 1::1 connect-interface loopback 0

[PE2-bgp-default] address-family l2vpn evpn

[PE2-bgp-default-evpn] peer 1::1 enable

[PE2-bgp-default-evpn] quit

[PE2-bgp-default] quit

# Verify that the PEs have established a BGP peer relationship and the peers are in established state.

[PE1] display bgp peer l2vpn evpn

[PE2] display bgp peer l2vpn evpn

5. Specify a source address for the outer IPv6 header of SRv6-encapsulated IPv4 EVPN L3VPN packets on PE 1 and PE 2:

# Configure PE 1.

[PE1] segment-routing ipv6

[PE1-segment-routing-ipv6] encapsulation source-address 1::1

# Configure PE 2.

[PE2] segment-routing ipv6

[PE2-segment-routing-ipv6] encapsulation source-address 3::3

6. Configure the destination address (End.DT4 SID) of the outer IPv6 header for SRv6-encapsulated IPv4 EVPN L3VPN packets:

# Configure PE 1.

[PE1-segment-routing-ipv6] locator aaa ipv6-prefix 1:2::1:0 96 static 8

[PE1-segment-routing-ipv6-locator-aaa] quit

[PE1-segment-routing-ipv6] quit

[PE1] isis 1

[PE1-isis-1] address-family ipv6 unicast

[PE1-isis-1-ipv6] segment-routing ipv6 locator aaa

[PE1-isis-1-ipv6] quit

[PE1-isis-1] quit

# Configure PE 2.

[PE2-segment-routing-ipv6] locator bbb ipv6-prefix 6:5::1:0 96 static 8

[PE2-segment-routing-ipv6-locator-bbb] quit

[PE2-segment-routing-ipv6] quit

[PE2] isis 1

[PE2-isis-1] address-family ipv6 unicast

[PE2-isis-1-ipv6] segment-routing ipv6 locator bbb

[PE2-isis-1-ipv6] quit

[PE2-isis-1] quit

# Verify that the PEs have distributed the End.DT4 SIDs to the routing table and generated SRv6 routes. This step uses PE 1 as an example.

[PE1] display ipv6 routing-table protocol srv6

Summary count : 1

SRv6 Routing table status : <Active>

Summary count : 1

Destination: 1:2::101/128 Protocol : SRv6

NextHop : ::1 Preference: 4

Interface : InLoop0 Cost : 0

SRv6 Routing table status : <Inactive>

Summary count : 0

7. Add End.DT4 SIDs to private network routes on PE 1 and PE 2:

# Configure PE 1.

[PE1] bgp 100

[PE1-bgp-default] ip vpn-instance vpn1

[PE1-bgp-default-vpn1] address-family ipv4 unicast

[PE1-bgp-default-ipv4-vpn1] segment-routing ipv6 locator aaa evpn

[PE1-bgp-default-ipv4-vpn1] quit

[PE1-bgp-default-vpn1] quit

[PE1-bgp-default] quit

# Configure PE 2.

[PE2] bgp 100

[PE2-bgp-default] ip vpn-instance vpn1

[PE2-bgp-default-vpn1] address-family ipv4 unicast

[PE2-bgp-default-ipv4-vpn1] segment-routing ipv6 locator bbb evpn

[PE2-bgp-default-ipv4-vpn1] quit

[PE2-bgp-default-vpn1] quit

[PE2-bgp-default] quit

8. Enable IPv6 peers on the PEs to exchange End.DT4 SIDs and enable SRv6 BE mode:

# Configure PE 1.

[PE1] bgp 100

[PE1-bgp-default] address-family l2vpn evpn

[PE1-bgp-default-evpn] peer 3::3 advertise encap-type srv6

[PE1-bgp-default-evpn] quit

[PE1-bgp-default] ip vpn-instance vpn1

[PE1-bgp-default-vpn1] address-family ipv4 unicast

[PE1-bgp-default-ipv4-vpn1] segment-routing ipv6 best-effort evpn

[PE1-bgp-default-ipv4-vpn1] quit

[PE1-bgp-default-vpn1] quit

[PE1-bgp-default] quit

# Configure PE 2.

[PE2] bgp 100

[PE2-bgp-default] address-family l2vpn evpn

[PE2-bgp-default-evpn] peer 1::1 advertise encap-type srv6

[PE2-bgp-default-evpn] quit

[PE2-bgp-default] ip vpn-instance vpn1

[PE2-bgp-default-vpn1] address-family ipv4 unicast

[PE2-bgp-default-ipv4-vpn1] segment-routing ipv6 best-effort evpn

[PE2-bgp-default-ipv4-vpn1] quit

[PE2-bgp-default-vpn1] quit

[PE2-bgp-default] quit

# Display BGP EVPN routing information on each PE and verify that the routes advertised by the PEs have the SID attribute. This step uses PE 1 as an example.

[PE1] display bgp l2vpn evpn [5][0][24][10.2.1.0]/80

BGP local router ID: 1.1.1.1

Local AS number: 100

Route distinguisher: 100:1(vpn1)

Total number of routes: 1

Paths: 1 available, 1 best

BGP routing table information of [5][0][24][10.2.1.0]/80:

From : 3::3 (3.3.3.3)

Rely nexthop : FE80::2A96:34FF:FE9D:216

Original nexthop: 3::3

Out interface : Ten-GigabitEthernet2/0/1

Route age : 00h14m23s

OutLabel : NULL

Ext-Community : <RT: 111:1>

RxPathID : 0x0

TxPathID : 0x0

PrefixSID : End.DT4 SID <6:5::101>

AS-path : 65420

Origin : incomplete

Attribute value : MED 0, localpref 100, pref-val 0

State : valid, internal, best

IP precedence : N/A

QoS local ID : N/A

Traffic index : N/A

EVPN route type : IP prefix advertisement route

ESI : 0000.0000.0000.0000.0000

Ethernet tag ID : 0

IP prefix : 10.2.1.0/24

Gateway address : 0.0.0.0

MPLS label : 16777215

Tunnel policy : NULL

Rely tunnel IDs : N/A

Verifying the configuration

# Display IPv4 routing table information on the PEs and verify that each PE has a route destined for the remote CE and the next hop of the route is the End.DT4 SID of the route. This step uses PE 1 as an example.

[PE1] display ip routing-table vpn-instance vpn1

Destinations : 11 Routes : 11

Destination/Mask Proto Pre Cost NextHop Interface

0.0.0.0/32 Direct 0 0 127.0.0.1 InLoop0

10.1.1.0/24 Direct 0 0 10.1.1.1 XGE2/0/0

10.1.1.0/32 Direct 0 0 10.1.1.1 XGE2/0/0

10.1.1.1/32 Direct 0 0 127.0.0.1 InLoop0

10.1.1.255/32 Direct 0 0 10.1.1.1 XGE2/0/0

10.2.1.0/24 BGP 255 0 6:5::1:0 XGE2/0/1

127.0.0.0/8 Direct 0 0 127.0.0.1 InLoop0

127.0.0.0/32 Direct 0 0 127.0.0.1 InLoop0

127.0.0.1/32 Direct 0 0 127.0.0.1 InLoop0

127.255.255.255/32 Direct 0 0 127.0.0.1 InLoop0

255.255.255.255/32 Direct 0 0 127.0.0.1 InLoop0

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

Example: Configuring inter-AS option B VPN

Network configuration

As shown in Figure 4, an EVPN L3VPN network is deployed in AS 100 and an EVPN L3VPN over SRv6 network is deployed in AS 200. Configure inter-AS option B VPN to permit users in the same VPN instance to communicate with each other across the EVPN L3VPN and EVPN L3VPN over SRv6 networks.

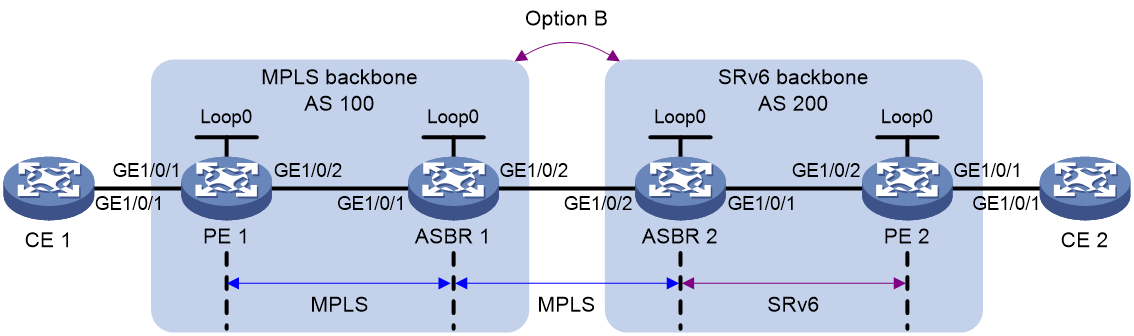

Figure 4 Network diagram

‌

Device	Interface	IP address	Device	Interface	IP address
CE 1	XGE2/0/0	10.1.1.2/24	CE 2	XGE2/0/0	20.1.1.2/24
PE 1	Loop0	1.1.1.1/32	PE 2	Loop0	1::1/128
	XGE2/0/0	10.1.1.1/24		XGE2/0/0	20.1.1.1/24
	XGE2/0/1	11.1.1.1/24		XGE2/0/1	100::1/96
ASBR 1	Loop0	2.2.2.2/32	ASBR 2	Loop0	2::2/128
	XGE2/0/0	11.1.1.2/24		XGE2/0/0	100::2/96
	XGE2/0/1	12.1.1.1/24		XGE2/0/1	12.1.1.2/24

Procedure

1. Configure CE 1:

# Establish EBGP peer relationship with PE 1 and import VPN routes.

<CE1> system-view

[CE1] bgp 101

[CE1-bgp-default] peer 10.1.1.1 as-number 100

[CE1-bgp-default] address-family ipv4 unicast

[CE1-bgp-default-ipv4] peer 10.1.1.1 enable

[CE1-bgp-default-ipv4] import-route direct

[CE1-bgp-default-ipv4] quit

[CE1-bgp-default] quit

2. Configure PE 1:

# Run IS-IS on PE 1.

<PE1> system-view

[PE1] isis 1

[PE1-isis-1] cost-style wide

[PE1-isis-1] network-entity 10.1111.1111.1111.00

[PE1-isis-1] quit

# Specify an LSR ID and enable MPLS and LDP.

[PE1] mpls lsr-id 1.1.1.1

[PE1] mpls ldp

[PE1-ldp] quit

# On interface Ten-GigabitEthernet 2/0/1, specify an IP address, run IS-IS, and enable MPLS and LDP.

[PE1] interface ten-gigabitethernet 2/0/1

[PE1-Ten-GigabitEthernet2/0/1] ip address 11.1.1.1 255.0.0.0

[PE1-Ten-GigabitEthernet2/0/1] isis enable 1

[PE1-Ten-GigabitEthernet2/0/1] mpls enable

[PE1-Ten-GigabitEthernet2/0/1] mpls ldp enable

[PE1-Ten-GigabitEthernet2/0/1] quit

# Create interface Loopback 0, specify an IP address for the interface, and run IS-IS on the interface.

[PE1] interface loopback 0

[PE1-LoopBack0] ip address 1.1.1.1 32

[PE1-LoopBack0] isis enable 1

[PE1-LoopBack0] quit

# Create a VPN instance named vpn1 and configure a RD and route target for the VPN instance.

[PE1] ip vpn-instance vpn1

[PE1-vpn-instance-vpn1] route-distinguisher 100:1

[PE1-vpn-instance-vpn1] vpn-target 100:1

[PE1-vpn-instance-vpn1] quit

# Associate the interface connected to CE 1 with VPN instance vpn1.

[PE1] interface ten-gigabitethernet 2/0/0

[PE1-Ten-GigabitEthernet2/0/0] ip binding vpn-instance vpn1

[PE1-Ten-GigabitEthernet2/0/0] ip address 10.1.1.1 24

[PE1-Ten-GigabitEthernet2/0/0] quit

# Run BGP on PE 1.

[PE1] bgp 100

[PE1-bgp-default] router-id 1.1.1.1

# Configure PE 1 to exchange BGP EVPN routes with peer 2.2.2.2.

[PE1-bgp-default] peer 2.2.2.2 as-number 100

[PE1-bgp-default] peer 2.2.2.2 connect-interface loopback 0

[PE1-bgp-default] address-family l2vpn evpn

[PE1-bgp-default-evpn] peer 2.2.2.2 enable

[PE1-bgp-default-evpn] quit

# Establish EBGP peer relationship with CE 1 and import VPN routes.

[PE1-bgp-default] ip vpn-instance vpn1

[PE1-bgp-default-vpn1] peer 10.1.1.2 as-number 101

[PE1-bgp-default-vpn1] address-family ipv4 unicast

[PE1-bgp-default-ipv4-vpn1] peer 10.1.1.2 enable

[PE1-bgp-default-ipv4-vpn1] quit

[PE1-bgp-default-vpn1] quit

3. Configure ASBR 1:

# Run IS-IS on ASBR 1.

<ASBR1> system-view

[ASBR1] isis 1

[ASBR1-isis-1] cost-style wide

[ASBR1-isis-1] network-entity 10.2222.2222.2222.00

[ASBR1-isis-1] quit

# Specify an LSR ID and enable MPLS and LDP.

[ASBR1] mpls lsr-id 2.2.2.2

[ASBR1] mpls ldp

[ASBR1-ldp] quit

# On interface Ten-GigabitEthernet 2/0/0, specify an IP address, run IS-IS, and enable MPLS and LDP.

[ASBR1] interface ten-gigabitethernet 2/0/0

[ASBR1-Ten-GigabitEthernet2/0/0] ip address 11.1.1.2 255.0.0.0

[ASBR1-Ten-GigabitEthernet2/0/0] isis enable 1

[ASBR1-Ten-GigabitEthernet2/0/0] mpls enable

[ASBR1-Ten-GigabitEthernet2/0/0] mpls ldp enable

[ASBR1-Ten-GigabitEthernet2/0/0] quit

# On interface Ten-GigabitEthernet 2/0/1, specify an IP address and enable MPLS.

[ASBR1] interface ten-gigabitethernet 2/0/1

[ASBR1-Ten-GigabitEthernet2/0/1] ip address 12.1.1.1 255.0.0.0

[ASBR1-Ten-GigabitEthernet2/0/1] mpls enable

[ASBR1-Ten-GigabitEthernet2/0/1] quit

# Create interface Loopback 0, specify an IP address and run IS-IS on the interface.

[ASBR1] interface loopback 0

[ASBR1-LoopBack0] ip address 2.2.2.2 32

[ASBR1-LoopBack0] isis enable 1

[ASBR1-LoopBack0] quit

# Run BGP on ASBR 1.

[ASBR1] bgp 100

[ASBR1-bgp-default] router-id 2.2.2.2

[ASBR1-bgp-default] peer 1.1.1.1 as-number 100

[ASBR1-bgp-default] peer 1.1.1.1 connect-interface loopback 0

[ASBR1-bgp-default] peer 12.1.1.2 as-number 200

[ASBR1-bgp-default] peer 12.1.1.2 connect-interface ten-gigabitethernet 2/0/1

# Configure BGP to not filter received BGP EVPN routes based on route targets.

[ASBR1-bgp-default] address-family l2vpn evpn

[ASBR1-bgp-default-evpn] undo policy vpn-target

# Configure ASBR 1 to exchange BGP EVPN routes with IBGP peer 1.1.1.1 and EBGP peer 12.1.1.2.

[ASBR1-bgp-default-evpn] peer 12.1.1.2 enable

[ASBR1-bgp-default-evpn] peer 1.1.1.1 enable

[ASBR1-bgp-default-evpn] quit

[ASBR1-bgp-default] quit

4. Configure ASBR 2:

# Run IPv6 IS-IS on ASBR 2.

<ASBR2> system-view

[ASBR2] isis 1

[ASBR2-isis-1] cost-style wide

[ASBR2-isis-1] network-entity 10.3333.3333.3333.00

[ASBR2-isis-1] address-family ipv6 unicast

[ASBR2-isis-1-ipv6] quit

[ASBR2-isis-1] quit

# On interface Ten-GigabitEthernet 2/0/0, specify an IPv6 address and run IPv6 IS-IS.

[ASBR2] interface ten-gigabitethernet 2/0/0

[ASBR2-Ten-GigabitEthernet2/0/0] ipv6 address 100::2 96

[ASBR2-Ten-GigabitEthernet2/0/0] isis ipv6 enable 1

[ASBR2-Ten-GigabitEthernet2/0/0] quit

# On interface Ten-GigabitEthernet 2/0/1, specify an IP address and enable MPLS.

[ASBR2] interface ten-gigabitethernet 2/0/1

[ASBR2-Ten-GigabitEthernet2/0/1] ip address 12.1.1.2 255.0.0.0

[ASBR2-Ten-GigabitEthernet2/0/1] mpls enable

[ASBR2-Ten-GigabitEthernet2/0/1] quit

# Create interface Loopback 0, specify an IPv6 address for the interface, and run IPv6 IS-IS on the interface.

[ASBR2] interface loopback 0

[ASBR2-LoopBack0] ipv6 address 2::2 128

[ASBR2-LoopBack0] isis ipv6 enable 1

[ASBR2-LoopBack0] quit

# Run BGP on ASBR 2.

[ASBR2] bgp 200

[ASBR2-bgp-default] router-id 3.3.3.3

[ASBR2-bgp-default] peer 12.1.1.1 as-number 100

[ASBR2-bgp-default] peer 12.1.1.1 connect-interface ten-gigabitethernet 2/0/1

[ASBR2-bgp-default] peer 1::1 as-number 200

[ASBR2-bgp-default] peer 1::1 connect-interface loopback 0

# Configure BGP to not filter received BGP EVPN routes based on route targets.

[ASBR2-bgp-default] address-family l2vpn evpn

[ASBR2-bgp-default-evpn] undo policy vpn-target

# Configure ASBR 2 to exchange BGP EVPN routes with IBGP peer 1::1 and EBGP peer 12.1.1.1.

[ASBR2-bgp-default-evpn] peer 12.1.1.1 enable

[ASBR2-bgp-default-evpn] peer 1::1 enable

[ASBR2-bgp-default-evpn] quit

[ASBR2-bgp-default] quit

# Configure EVPN L3VPN over SRv6 BE.

[ASBR2] segment-routing ipv6

[ASBR2-segment-routing-ipv6] encapsulation source-address 2::2

[ASBR2-segment-routing-ipv6] locator abc ipv6-prefix 43:1:: 64 static 32

[ASBR2-segment-routing-ipv6-locator-abc] quit

[ASBR2-segment-routing-ipv6] quit

[ASBR2] bgp 200

[ASBR2-bgp-default] address-family l2vpn evpn

[ASBR2-bgp-default-evpn] peer 1::1 advertise encap-type srv6

[ASBR2-bgp-default-evpn] segment-routing ipv6 best-effort evpn

[ASBR2-bgp-default-evpn] segment-routing ipv6 locator abc evpn

# Enable SRv6 and MPLS interworking.

[ASBR2-bgp-default-evpn] srv6-mpls-interworking enable

[ASBR2-bgp-default-evpn] quit

[ASBR2-bgp-default] quit

# Apply a locator to IPv6 IS-IS.

[ASBR2] isis 1

[ASBR2-isis-1] address-family ipv6 unicast

[ASBR2-isis-1-ipv6] segment-routing ipv6 locator abc

[ASBR2-isis-1-ipv6] quit

[ASBR2-isis-1] quit

5. Configure PE 2:

# Run IPv6 IS-IS on PE 2.

<PE2> system-view

[PE2] isis 1

[PE2-isis-1] cost-style wide

[PE2-isis-1] network-entity 10.4444.4444.4444.00

[PE2-isis-1] address-family ipv6 unicast

[PE2-isis-1-ipv6] quit

[PE2-isis-1] quit

# On interface Ten-GigabitEthernet 2/0/1, specify an IPv6 address and run IPv6 IS-IS.

[PE2] interface ten-gigabitethernet 2/0/1

[PE2-Ten-GigabitEthernet2/0/1] ipv6 address 100::1 96

[PE2-Ten-GigabitEthernet2/0/1] isis ipv6 enable 1

[PE2-Ten-GigabitEthernet2/0/1] quit

# Create interface Loopback 0, specify an IPv6 address and run IPv6 IS-IS on the interface.

[PE2] interface loopback 0

[PE2-LoopBack0] ipv6 address 1::1 128

[PE2-LoopBack0] isis ipv6 enable 1

[PE2-LoopBack0] quit

# Create a VPN instance named vpn1 and configure a RD and route target for the VPN instance.

[PE2] ip vpn-instance vpn1

[PE2-vpn-instance-vpn1] route-distinguisher 100:1

[PE2-vpn-instance-vpn1] vpn-target 100:1

[PE2-vpn-instance-vpn1] quit

# Associate the interface connected to CE 2 with VPN instance vpn1.

[PE2] interface ten-gigabitethernet 2/0/0

[PE2-Ten-GigabitEthernet2/0/0] ip binding vpn-instance vpn1

[PE2-Ten-GigabitEthernet2/0/0] ip address 20.1.1.1 24

[PE2-Ten-GigabitEthernet2/0/0] quit

# Run BGP on PE 2.

[PE2] bgp 200

[PE2-bgp-default] router-id 4.4.4.4

# Configure PE 2 to exchange BGP EVPN routes with IBGP peer 2::2.

[PE2-bgp-default] peer 2::2 as-number 200

[PE2-bgp-default] peer 2::2 connect-interface loopback 0

[PE2-bgp-default] address-family l2vpn evpn

[PE2-bgp-default-evpn] peer 2::2 enable

[PE2-bgp-default-evpn] quit

# Establish EBGP peer relationship with CE 2 and import VPN routes.

[PE2-bgp-default] ip vpn-instance vpn1

[PE2-bgp-default-vpn1] peer 20.1.1.2 as-number 201

[PE2-bgp-default-vpn1] address-family ipv4 unicast

[PE2-bgp-default-ipv4-vpn1] peer 20.1.1.2 enable

[PE2-bgp-default-ipv4-vpn1] quit

[PE2-bgp-default-vpn1] quit

# Configure L3VPN over SRv6 BE.

[PE2] segment-routing ipv6

[PE2-segment-routing-ipv6] encapsulation source-address 1::1

[PE2-segment-routing-ipv6] locator abc ipv6-prefix 42:1:: 64 static 32

[PE2-segment-routing-ipv6-locator-abc] quit

[PE2-segment-routing-ipv6] quit

[PE2] bgp 200

[PE2-bgp-default] ip vpn-instance vpn1

[PE2-bgp-default-vpn1] address-family ipv4 unicast

[PE2-bgp-default-ipv4-vpn1] segment-routing ipv6 best-effort evpn

[PE2-bgp-default-ipv4-vpn1] segment-routing ipv6 locator abc evpn

[PE2-bgp-default-ipv4-vpn1] quit

[PE2-bgp-default-vpn1] quit

[PE2-bgp-default] address-family l2vpn evpn

[PE2-bgp-default-evpn] peer 2::2 advertise encap-type srv6

[PE2-bgp-default-evpn] quit

[PE2-bgp-default] quit

# Apply a locator to IPv6 IS-IS.

[PE2] isis 1

[PE2-isis-1] address-family ipv6 unicast

[PE2-isis-1-ipv6] segment-routing ipv6 locator abc

[PE2-isis-1-ipv6] quit

[PE2-isis-1] quit

6. Configure CE 2:

# Establish EBGP peer relationship with PE 2 and import VPN routes.

<CE2> system-view

[CE2] bgp 201

[CE2-bgp-default] peer 20.1.1.1 as-number 200

[CE2-bgp-default] address-family ipv4 unicast

[CE2-bgp-default-ipv4] peer 20.1.1.1 enable

[CE2-bgp-default-ipv4] import-route direct

[CE2-bgp-default-ipv4] quit

[CE2-bgp-default] quit

Verifying the configuration

# On ASBR 2, verify that the MPLS label and SRv6 SID have established mapping relationship. The LSP out label is the SRv6 SID.

[ASBR2] display mpls lsp srv6-mpls-interworking

FEC : 3::3/43:1::1:0:2

Protocol : BGP

In Label : 600127

Out SRv6 SID : 43:1::1:0:2

Path ID : 0x16000000.1

# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)

07-Segment Routing Configuration Guide

About EVPN L3VPN over SRv6

SRv6 BE mode

SRv6 TE mode

SRv6 TE and SRv6 BE hybrid mode

EVPN L3VPN over SRv6 tasks at a glance

About this task

Restrictions and guidelines

Prerequisites

Procedure

About this task

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

About this task

Procedure

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

Display and maintenance commands for EVPN L3VPN over SRv6

Example: Configuring IPv4 EVPN L3VPN over SRv6 in SRv6 BE mode

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
