· Flexibility—A VLAN can be logically divided on a workgroup basis. Hosts in the same workgroup can be assigned to the same VLAN, regardless of their physical locations.

VLAN frame encapsulation

To identify Ethernet frames from different VLANs, IEEE 802.1Q inserts a four-byte VLAN tag between the destination and source MAC address (DA&SA) field and the Type field.

Figure 1 VLAN tag placement and format

‌

A VLAN tag includes the following fields:

· TPID—16-bit tag protocol identifier that indicates whether a frame is VLAN-tagged. By default, the hexadecimal TPID value 8100 identifies a VLAN-tagged frame. A device vendor can set the TPID to a different value. For compatibility with a neighbor device, set the TPID value on the device to be the same as the neighbor device. For more information about setting the TPID value, see "Configuring QinQ."

· Priority—3-bit long, identifies the 802.1p priority of the frame. For more information, see ACL and QoS Configuration Guide.

· CFI—1-bit long canonical format indicator that indicates whether the MAC addresses are encapsulated in the standard format when packets are transmitted across different media. Available values include:

¡ 0 (default)—The MAC addresses are encapsulated in the standard format.

¡ 1—The MAC addresses are encapsulated in a non-standard format.

This field is always set to 0 for Ethernet.

· VLAN ID—12-bit long, identifies the VLAN to which the frame belongs. The VLAN ID range is 0 to 4095. VLAN IDs 0 and 4095 are reserved, and VLAN IDs 1 to 4094 are user configurable.

The way a network device handles an incoming frame depends on whether the frame has a VLAN tag and the value of the VLAN tag (if any).

Ethernet supports encapsulation formats Ethernet II, 802.3/802.2 LLC, 802.3/802.2 SNAP, and 802.3 raw. The Ethernet II encapsulation format is used here. For information about the VLAN tag fields in other frame encapsulation formats, see related protocols and standards.

For a frame that has multiple VLAN tags, the device handles it according to its outermost VLAN tag and transmits its inner VLAN tags as the payload.

VLAN types

The following VLAN types are available:

· Port-based VLAN.

· MAC-based VLAN.

· IP subnet-based VLAN.

· Protocol-based VLAN.

If all these types of VLANs are configured on a port, the port processes packets in the following descending order of priority by default:

· MAC-based VLAN.

· IP subnet-based VLAN.

· Protocol-based VLAN.

· Port-based VLAN.

Port-based VLANs

Port-based VLANs group VLAN members by port. A port forwards packets from a VLAN only after it is assigned to the VLAN.

Port link type

You can set the link type of a port to access, trunk, or hybrid. The port link type determines whether the port can be assigned to multiple VLANs. The link types use the following VLAN tag handling methods:

· Access—An access port can forward packets only from one VLAN and send these packets untagged. An access port is typically used in the following conditions:

¡ Connecting to a terminal device that does not support VLAN packets.

¡ In scenarios that do not distinguish VLANs.

· Trunk—A trunk port can forward packets from multiple VLANs. Except packets from the port VLAN ID (PVID), packets sent out of a trunk port are VLAN-tagged. Ports connecting network devices are typically configured as trunk ports.

· Hybrid—A hybrid port can forward packets from multiple VLANs. The tagging status of the packets forwarded by a hybrid port depends on the port configuration. In one-to-two VLAN mapping, hybrid ports are used to remove SVLAN tags for downlink traffic. For more information about one-to-two VLAN mapping, see "Configuring VLAN mapping."

PVID

The PVID identifies the default VLAN of a port. Untagged packets received on a port are considered as the packets from the port PVID.

An access port can join only one VLAN. The VLAN to which the access port belongs is the PVID of the port. A trunk or hybrid port supports multiple VLANs and the PVID configuration.

How ports of different link types handle frames

Actions	Access	Trunk	Hybrid
In the inbound direction for an untagged frame	Tags the frame with the PVID tag.	· If the PVID is permitted on the port, tags the frame with the PVID tag. · If not, drops the frame.
In the inbound direction for a tagged frame	· Receives the frame if its VLAN ID is the same as the PVID. · Drops the frame if its VLAN ID is different from the PVID.	· Receives the frame if its VLAN is permitted on the port. · Drops the frame if its VLAN is not permitted on the port.
In the outbound direction	Removes the VLAN tag and sends the frame.	· Removes the tag and sends the frame if the frame carries the PVID tag and the port belongs to the PVID. · Sends the frame without removing the tag if its VLAN is carried on the port but is different from the PVID.		Sends the frame if its VLAN is permitted on the port. The tagging status of the frame depends on the port hybrid vlan command configuration.

‌

MAC-based VLANs

The MAC-based VLAN feature assigns hosts to a VLAN based on their MAC addresses. This feature is also called user-based VLAN because VLAN configuration remains the same regardless of a user's physical location.

Static MAC-based VLAN assignment

Use static MAC-based VLAN assignment in networks that have a small number of VLAN users. To configure static MAC-based VLAN assignment on a port, perform the following tasks:

1. Create MAC-to-VLAN entries.

2. Enable the MAC-based VLAN feature on the port.

3. Assign the port to the MAC-based VLAN.

A port configured with static MAC-based VLAN assignment processes a received frame as follows before sending the frame out:

· For an untagged frame, the port determines its VLAN ID in the following workflow:

a. The port first performs a fuzzy match as follows:

- Searches for the MAC-to-VLAN entries whose masks are not all Fs.

- Performs a logical AND operation on the source MAC address and each of these masks.

If an AND operation result matches the MAC address in a MAC-to-VLAN entry, the port tags the frame with the VLAN ID specific to this entry.

b. If the fuzzy match fails, the port performs an exact match. It searches for MAC-to-VLAN entries whose masks are all Fs. If the source MAC address of the frame exactly matches the MAC address of a MAC-to-VLAN entry, the port tags the frame with the VLAN ID specific to this entry.

c. If no matching VLAN ID is found, the port determines the VLAN for the packet by using the following matching order:

- IP subnet-based VLAN.

- Protocol-based VLAN.

- Port-based VLAN.

When a match is found, the port tags the packet with the matching VLAN ID.

· For a tagged frame, the port determines whether the VLAN ID of the frame is permitted on the port.

¡ If the VLAN ID of the frame is permitted on the port, the port forwards the frame.

¡ If the VLAN ID of the frame is not permitted on the port, the port drops the frame.

Dynamic MAC-based VLAN assignment

When you cannot determine the target MAC-based VLANs of a port, use dynamic MAC-based VLAN assignment on the port. To use dynamic MAC-based VLAN assignment, perform the following tasks:

1. Create MAC-to-VLAN entries.

2. Enable the MAC-based VLAN feature on the port.

3. Enable dynamic MAC-based VLAN assignment on the port.

Dynamic MAC-based VLAN assignment uses the following workflow, as shown in Figure 2:

1. When a port receives a frame, it first determines whether the frame is tagged.

¡ If the frame is tagged, the port gets the source MAC address of the frame.

¡ If the frame is untagged, the port selects a VLAN for the frame by using the following matching order:

- MAC-based VLAN (fuzzy and exact MAC address match).

- IP subnet-based VLAN.

- Protocol-based VLAN.

- Port-based VLAN.

After tagging the frame with the selected VLAN, the port gets the source MAC address of the frame.

2. The port uses the source MAC address and VLAN of the frame to match the MAC-to VLAN entries.

¡ If the source MAC address of the frame exactly matches the MAC address in a MAC-to-VLAN entry, the port checks whether the VLAN ID of the frame matches the VLAN in the entry.

- If the two VLAN IDs match, the port joins the VLAN and forwards the frame.

- If the two VLAN IDs do not match, the port drops the frame.

¡ If the source MAC address of the frame does not exactly match any MAC addresses in MAC-to-VLAN entries, the port checks whether the VLAN ID of the frame is its PVID.

- If the VLAN ID of the frame is the PVID of the port, the port determines whether it allows the PVID.

If the PVID is allowed, the port forwards the frame within the PVID. If the PVID is not allowed, the port drops the frame.

- If the VLAN ID of the frame is not the PVID of the port, the port determines whether the VLAN ID is the primary VLAN ID and the port PVID is a secondary VLAN ID. If yes, the port forwards the frame. Otherwise, the port drops the frame.

Figure 2 Flowchart for processing a frame in dynamic MAC-based VLAN assignment

‌

Server-assigned MAC-based VLAN

Use this feature with access authentication to implement secure and flexible terminal access.

To implement server-assigned MAC-based VLAN, perform the following tasks:

1. Configure the server-assigned MAC-based VLAN feature on the access device.

2. Configure username-to-VLAN entries on the access authentication server.

When a user passes authentication of the access authentication server, the server assigns the authorization VLAN information for the user to the device. The device then performs the following operations:

1. Generates a MAC-to-VLAN entry by using the source MAC address of the user packet and the authorization VLAN information. The authorization VLAN is a MAC-based VLAN.

The generated MAC-to-VLAN entry cannot conflict with the existing static MAC-to-VLAN entries. If a confliction exists, the dynamic MAC-to-VLAN entry cannot be generated.

2. Assigns the port that connects the user to the MAC-based VLAN.

When the user goes offline, the device automatically deletes the MAC-to-VLAN entry and removes the port from the MAC-based VLAN. For more information about MAC authentication, see Security Configuration Guide.

IP subnet-based VLANs

The IP subnet-based VLAN feature assigns untagged packets to VLANs based on their source IP addresses and subnet masks.

Use this feature when untagged packets from an IP subnet or IP address must be transmitted in a VLAN.

Protocol-based VLANs

The protocol-based VLAN feature assigns inbound packets to different VLANs based on their protocol types and encapsulation formats. The protocols available for VLAN assignment include IP, IPX, and AT. The encapsulation formats include Ethernet II, 802.3 raw, 802.2 LLC, and 802.2 SNAP.

This feature associates the available network service types with VLANs and facilitates network management and maintenance.

Layer 3 communication between VLANs

Hosts of different VLANs use VLAN interfaces to communicate at Layer 3. VLAN interfaces are virtual interfaces that do not exist as physical entities on devices. For each VLAN, you can create one VLAN interface and assign an IP address to it. The VLAN interface acts as the gateway of the VLAN to forward packets at Layer 3 across subnets.

Protocols and standards

IEEE 802.1Q, IEEE Standard for Local and Metropolitan Area Networks: Virtual Bridged Local Area Networks

Configuring a VLAN

Restrictions and guidelines

· As the system default VLAN, VLAN 1 cannot be created or deleted.

· Before you delete a dynamic VLAN or a VLAN locked by an application, you must first remove the configuration from the VLAN.

VLAN configuration tasks at a glance

To configure VLANs, perform the following tasks:

1. Creating VLANs

2. (Optional.) Enabling packet dropping in the VLAN

Creating VLANs

1. Enter system view.

system-view

2. Create one or multiple VLANs.

¡ Create a VLAN and enter its view.

vlan vlan-id

¡ Create multiple VLANs and enter VLAN view.

Create VLANs.

vlan { vlan-id-list | all }

Enter VLAN view.

vlan vlan-id

By default, only the system default VLAN (VLAN 1) exists.

3. (Optional.) Set a name for the VLAN.

name text

By default, the name of a VLAN is VLAN vlan-id. The vlan-id argument specifies the VLAN ID in a four-digit format. If the VLAN ID has fewer than four digits, leading zeros are added. For example, the name of VLAN 100 is VLAN 0100.

4. (Optional.) Configure the description for the VLAN.

description text

By default, the description of a VLAN is VLAN vlan-id. The vlan-id argument specifies the VLAN ID in a four-digit format. If the VLAN ID has fewer than four digits, leading zeros are added. For example, the default description of VLAN 100 is VLAN 0100.

Enabling packet dropping in the VLAN

About this task

This feature enables the device to drop packets (including protocol packets) forwarded by the software in a VLAN. To drop all packets that are received and transmitted in the VLAN, you must configure a QoS policy. For more information about configuring QoS policies, see QoS configuration in ACL and QoS Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Enter VLAN view.

vlan vlan-id

3. Enable packet dropping in the VLAN.

block outbound

By default, packet dropping is disabled in a VLAN.

Configuring port-based VLANs

Restrictions and guidelines for port-based VLANs

· When you use the undo vlan command to delete the PVID of a port, either of the following events occurs depending on the port link type:

¡ For an access port, the PVID of the port changes to VLAN 1.

¡ For a hybrid or trunk port, the PVID setting of the port does not change.

You can use a nonexistent VLAN as the PVID for a hybrid or trunk port, but not for an access port.

· As a best practice, set the same PVID for a local port and its peer.

· To prevent a port from dropping untagged packets or PVID-tagged packets, assign the port to its PVID.

Assigning an access port to a VLAN

About this task

You can assign an access port to a VLAN in VLAN view or interface view.

Assigning one or multiple access ports to a VLAN in VLAN view

1. Enter system view.

system-view

2. Enter VLAN view.

vlan vlan-id

3. Assign one or multiple access ports to the VLAN.

port interface-list

By default, all ports belong to VLAN 1.

Assigning an access port to a VLAN in interface view

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

3. Set the port link type to access.

port link-type access

By default, all ports are access ports.

4. Assign the access port to a VLAN.

port access vlan vlan-id

By default, all access ports belong to VLAN 1.

Assigning a trunk port to a VLAN

About this task

A trunk port supports multiple VLANs. You can assign it to a VLAN in interface view.

Restrictions and guidelines

To change the link type of a port from trunk to hybrid, set the link type to access first.

To enable a trunk port to transmit packets from its PVID, you must assign the trunk port to the PVID by using the port trunk permit vlan command.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

3. Set the port link type to trunk.

port link-type trunk

By default, all ports are access ports.

4. Assign the trunk port to the specified VLANs.

port trunk permit vlan { vlan-id-list | all }

By default, a trunk port permits only VLAN 1.

5. (Optional.) Set the PVID for the trunk port.

port trunk pvid vlan vlan-id

The default setting is VLAN 1.

Assigning a hybrid port to a VLAN

About this task

A hybrid port supports multiple VLANs. You can assign it to the specified VLANs in interface view. Make sure the VLANs have been created.

Restrictions and guidelines

To change the link type of a port from trunk to hybrid, set the link type to access first.

To enable a hybrid port to transmit packets from its PVID, you must assign the hybrid port to the PVID by using the port hybrid vlan command.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

3. Set the port link type to hybrid.

port link-type hybrid

By default, all ports are access ports.

4. Assign the hybrid port to the specified VLANs.

port hybrid vlan vlan-id-list { tagged | untagged }

By default, the hybrid port is an untagged member of the VLAN to which the port belongs when its link type is access.

5. (Optional.) Set the PVID for the hybrid port.

port hybrid pvid vlan vlan-id

By default, the PVID of a hybrid port is the ID of the VLAN to which the port belongs when its link type is access.

Configuring MAC-based VLANs

Restrictions and guidelines for MAC-based VLANs

· MAC-based VLANs are available only on hybrid ports.

· The MAC-based VLAN feature is mainly configured on downlink ports of user access devices. Do not use this feature with link aggregation.

Configuring static MAC-based VLAN assignment

1. Enter system view.

system-view

2. Create a MAC-to-VLAN entry.

mac-vlan mac-address mac-address [ mask mac-mask ] vlan vlan-id [ dot1p priority ]

By default, no MAC-to-VLAN entries exist.

3. Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

4. Set the port link type to hybrid.

port link-type hybrid

By default, all ports are access ports.

5. Assign the hybrid port to the MAC-based VLANs.

port hybrid vlan vlan-id-list { tagged | untagged }

By default, a hybrid port is an untagged member of the VLAN to which the port belongs when its link type is access.

6. Enable the MAC-based VLAN feature.

mac-vlan enable

By default, this feature is disabled.

7. (Optional.) Configure the interface to match VLANs based on MAC addresses preferentially.

vlan precedence mac-vlan

By default, the system assigns VLANs based on the MAC address preferentially when both the MAC-based VLAN and IP subnet-based VLAN are configured on a port.

Configuring dynamic MAC-based VLAN assignment

About this task

For successful dynamic MAC-based VLAN assignment, use static VLANs when you create MAC-to-VLAN entries.

When a port joins a VLAN specified in the MAC-to-VLAN entry, one of the following events occurs depending on the port configuration:

· If the port has not been configured to allow packets from the VLAN to pass through, the port joins the VLAN as an untagged member.

· If the port has been configured to allow packets from the VLAN to pass through, the port configuration remains the same.

The 802.1p priority of the VLAN in a MAC-to-VLAN entry determines the transmission priority of the matching packets.

Restrictions and guidelines

· If you configure both static and dynamic MAC-based VLAN assignments on a port, dynamic MAC-based VLAN assignment takes effect.

· As a best practice, do not both configure dynamic MAC-based VLAN assignment and disable MAC address learning on a port. If the two features are configured together on a port, the port forwards only packets exactly matching the MAC-to-VLAN entries and drops inexactly matching packets.

· As a best practice, do not configure both dynamic MAC-based VLAN assignment and the MAC learning limit on a port.

If the two features are configured together on a port and the port learns the configured maximum number of MAC address entries, the port processes packets as follows:

¡ Forwards only packets matching the MAC address entries learnt by the port.

¡ Drops unmatching packets.

· As a best practice, do not use dynamic MAC-based VLAN assignment with MSTP. In MSTP mode, if a port is blocked in the MSTI of its target VLAN, the port drops the received packets instead of delivering them to the CPU. As a result, the port will not be dynamically assigned to the target VLAN.

· As a best practice, do not configure both dynamic MAC-based VLAN assignment and automatic voice VLAN assignment mode on a port. They can have a negative impact on each other.

Procedure

1. Enter system view.

system-view

2. Create a MAC-to-VLAN entry.

mac-vlan mac-address mac-address vlan vlan-id [ dot1p priority ]

By default, no MAC-to-VLAN entries exist.

3. Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

4. Set the port link type to hybrid.

port link-type hybrid

By default, all ports are access ports.

5. Enable the MAC-based VLAN feature.

mac-vlan enable

By default, MAC-based VLAN is disabled.

6. Enable dynamic MAC-based VLAN assignment.

mac-vlan trigger enable

By default, dynamic MAC-based VLAN assignment is disabled.

The VLAN assignment for a port is triggered only when the source MAC address of its receiving packet exactly matches the MAC address in a MAC-to-VLAN entry.

7. (Optional.) Configure the system to assign VLANs based on the MAC address preferentially.

vlan precedence mac-vlan

By default, the system assigns VLANs based on the MAC address preferentially when both the MAC-based VLAN and IP subnet-based VLAN are configured on a port.

8. (Optional.) Disable the port from forwarding packets that fail the exact MAC address match in its PVID.

port pvid forbidden

By default, when a port receives packets whose source MAC addresses fail the exact match, the port forwards them in its PVID.

Configuring server-assigned MAC-based VLAN

1. Enter system view.

system-view

2. Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

3. Set the port link type to hybrid.

port link-type hybrid

By default, all ports are access ports.

4. Assign the hybrid port to the MAC-based VLANs.

port hybrid vlan vlan-id-list { tagged | untagged }

By default, a hybrid port is an untagged member of the VLAN to which the port belongs when its link type is access.

5. Enable the MAC-based VLAN feature.

mac-vlan enable

By default, MAC-based VLAN is disabled.

6. Configure MAC authentication.

For more information, see Security Command Reference.

Configuring IP subnet-based VLANs

Restrictions and guidelines

This feature is available only on hybrid ports, and it processes only untagged packets.

Procedure

1. Enter system view.

system-view

2. Enter VLAN view.

vlan vlan-id

3. Associate the VLAN with an IP subnet or IP address.

ip-subnet-vlan [ ip-subnet-index ] ip ip-address [ mask ]

By default, a VLAN is not associated with an IP subnet or IP address.

A multicast subnet or a multicast address cannot be associated with a VLAN.

4. Return to system view.

quit

5. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

6. Set the port link type to hybrid.

port link-type hybrid

By default, all ports are access ports.

7. Assign the hybrid port to the specified IP subnet-based VLANs.

port hybrid vlan vlan-id-list { tagged | untagged }

By default, a hybrid port is an untagged member of the VLAN to which the port belongs when its link type is access.

8. Associate the hybrid port with the specified IP subnet-based VLAN.

port hybrid ip-subnet-vlan vlan vlan-id

By default, a hybrid port is not associated with a subnet-based VLAN.

Configuring protocol-based VLANs

About this task

A protocol-based VLAN has one or multiple protocol templates. A protocol template defines a protocol type and an encapsulation format as the match criteria to match inbound packets. Each protocol template has a unique index in the protocol-based VLAN. All protocol templates in a protocol-based VLAN have the same VLAN ID.

For a port to assign inbound packets to protocol-based VLANs, perform the following tasks:

· Assign the port to the protocol-based VLANs.

· Associate the port with the protocol templates of the protocol-based VLANs.

When an untagged packet arrives at the port, the port processes the packet as follows:

· If the protocol type and encapsulation format in the packet match a protocol template, the port tags the packet with the VLAN tag specific to the protocol template.

· If no protocol templates are matched, the port tags the packet with its PVID.

Restrictions and guidelines

The voice VLAN in automatic mode processes only tagged voice traffic. Do not configure a VLAN as both a protocol-based VLAN and a voice VLAN.

Procedure

1. Enter system view.

system-view

2. Enter VLAN view.

vlan vlan-id

3. Associate the VLAN with a protocol template.

protocol-vlan [ protocol-index ] { at | ipv4 | ipv6 | ipx { ethernetii | llc | raw | snap } | mode { ethernetii etype etype-id | llc { dsap dsap-id [ ssap ssap-id ] | ssap ssap-id } | snap etype etype-id } }

By default, a VLAN is not associated with a protocol template.

4. Exit VLAN view.

quit

5. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

6. Set the port link type to hybrid.

port link-type hybrid

By default, all ports are access ports.

7. Assign the hybrid port to the specified protocol-based VLANs.

port hybrid vlan vlan-id-list { tagged | untagged }

By default, a hybrid port is an untagged member of the VLAN to which the port belongs when its link type is access.

8. Associate the hybrid port with the specified protocol-based VLAN.

port hybrid protocol-vlan vlan vlan-id { protocol-index [ to protocol-end ] | all }

By default, a hybrid port is not associated with a protocol-based VLAN.

Configuring a VLAN group

About this task

A VLAN group includes a set of VLANs.

On an authentication server, a VLAN group name represents a group of authorization VLANs. When a MAC authentication user passes authentication, the authentication server assigns a VLAN group name to the device. The device then uses the received VLAN group name to match the locally configured VLAN group names. If a match is found, the device selects a VLAN from the group and assigns the VLAN to the user. For more information about MAC authentication, see Security Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Create a VLAN group and enter its view.

vlan-group group-name

3. Add VLANs to the VLAN group.

vlan-list vlan-id-list

By default, no VLANs exist in a VLAN group.

You can add multiple VLAN lists to a VLAN group.

Configuring VLAN interfaces

VLAN interfaces configuration tasks at a glance

To configure VLAN interfaces, perform the following tasks:

1. Creating a VLAN interface

2. (Optional.) Specifying a traffic processing slot for the VLAN interface

3. (Optional.) Restoring the default settings for the VLAN interface

Prerequisites

Before you create a VLAN interface for a VLAN, create the VLAN first.

Creating a VLAN interface

1. Enter system view.

system-view

2. Create a VLAN interface and enter its view.

interface vlan-interface interface-number

3. Assign an IP address to the VLAN interface.

ip address ip-address { mask | mask-length } [ sub ]

By default, no IP address is assigned to a VLAN interface.

4. (Optional.) Configure the description for the VLAN interface.

description text

The default setting is the VLAN interface name. For example, Vlan-interface1 Interface.

5. (Optional.) Set the MTU for the VLAN interface.

mtu size

By default, the MTU of a VLAN interface is 1500 bytes.

6. (Optional.) Set a MAC address for the VLAN interface.

mac-address mac-address

By default, the MAC address of a VLAN interface is assigned by the device.

7. (Optional.) Set the expected bandwidth for the interface.

bandwidth bandwidth-value

By default, the expected bandwidth (in kbps) is the interface baud rate divided by 1000.

8. Bring up the VLAN interface.

undo shutdown

By default, a VLAN interface is not manually shut down.

Specifying a traffic processing slot for the VLAN interface

About this task

Specify a traffic processing slot for a VLAN interface if all traffic on the VLAN interface must be processed on the same slot.

Procedure

1. Enter system view.

system-view

2. Enter a VLAN interface view.

interface vlan-interface interface-number

3. Specify a traffic processing slot for the VLAN interface.

service slot slot-number

By default, no traffic processing slot is specified for the VLAN interface.

Restoring the default settings for the VLAN interface

Restrictions and guidelines

‌

CAUTION:

This feature might interrupt ongoing network services. Make sure you are fully aware of the impact of this feature when you use it on a live network.

‌

This feature might fail to restore the default settings for some commands for reasons such as command dependencies or system restrictions. Use the display this command in interface view to identify these commands, and then use their undo forms or follow the command reference to restore their default settings. If your restoration attempt still fails, follow the error message instructions to resolve the problem.

Procedure

1. Enter system view.

system-view

2. Enter a VLAN interface view.

interface vlan-interface interface-number

3. Restore the default settings for the VLAN interface.

default

Display and maintenance commands for VLANs

Execute display commands in any view and reset commands in user view.

Task	Command
Display VLAN interface information.	display interface [ vlan-interface [ interface-number ] ] [ brief [ description \| down ] ]
Display information about IP subnet-based VLANs that are associated with the specified ports.	display ip-subnet-vlan interface { interface-type interface-number1 [ to interface-type interface-number2 ] \| all }
Display information about IP subnet-based VLANs.	display ip-subnet-vlan vlan { vlan-id1 [ to vlan-id2 ] \| all }
Display MAC-to-VLAN entries.	display mac-vlan { all \| dynamic \| mac-address mac-address [ mask mac-mask ] \| static \| vlan vlan-id }
Display all ports that are enabled with the MAC-based VLAN feature.	display mac-vlan interface
Display hybrid ports or trunk ports on the device.	display port { hybrid \| trunk }
Display information about protocol-based VLANs that are associated with the specified ports.	display protocol-vlan interface { interface-type interface-number1 [ to interface-type interface-number2 ] \| all }
Display information about protocol-based VLANs.	display protocol-vlan vlan { vlan-id1 [ to vlan-id2 ] \| all }
Display VLAN information.	display vlan [ vlan-id1 [ to vlan-id2 ] \| all \| dynamic \| reserved \| static ]
Display brief VLAN information.	display vlan brief
Display VLAN group information.	display vlan-group [ group-name ]
Clear statistics on a VLAN interface.	reset counters interface [ vlan-interface [ interface-number ] ]

‌

VLAN configuration examples

Example: Configuring port-based VLANs

Network configuration

As shown in Figure 3:

· Host A and Host C belong to Department A. VLAN 100 is assigned to Department A.

· Host B and Host D belong to Department B. VLAN 200 is assigned to Department B.

Configure port-based VLANs so that only hosts in the same department can communicate with each other.

Figure 3 Network diagram

‌

Procedure

1. Configure Device A:

# Create VLAN 100, and assign Twenty-FiveGigE 1/1/1 to VLAN 100.

<DeviceA> system-view

[DeviceA] vlan 100

[DeviceA-vlan100] port twenty-fivegige 1/1/1

[DeviceA-vlan100] quit

# Create VLAN 200, and assign Twenty-FiveGigE 1/1/2 to VLAN 200.

[DeviceA] vlan 200

[DeviceA-vlan200] port twenty-fivegige 1/1/2

[DeviceA-vlan200] quit

# Configure Twenty-FiveGigE 1/1/3 as a trunk port, and assign the port to VLANs 100 and 200.

[DeviceA] interface twenty-fivegige 1/1/3

[DeviceA-Twenty-FiveGigE1/1/3] port link-type trunk

[DeviceA-Twenty-FiveGigE1/1/3] port trunk permit vlan 100 200

Please wait... Done.

2. Configure Device B in the same way Device A is configured. (Details not shown.)

3. Configure hosts:

d. Configure Host A and Host C to be on the same IP subnet. For example, 192.168.100.0/24.

e. Configure Host B and Host D to be on the same IP subnet. For example, 192.168.200.0/24.

Verifying the configuration

# Verify that Host A and Host C can ping each other, but they both fail to ping Host B and Host D. (Details not shown.)

# Verify that Host B and Host D can ping each other, but they both fail to ping Host A and Host C. (Details not shown.)

# Verify that VLANs 100 and 200 are correctly configured on Device A.

[DeviceA-Twenty-FiveGigE1/1/3] display vlan 100

VLAN ID: 100

VLAN type: Static

Route interface: Not configured

Description: VLAN 0100

Name: VLAN 0100

Tagged ports:

Twenty-FiveGigE1/1/3

Untagged ports:

Twenty-FiveGigE1/1/1

[DeviceA-Twenty-FiveGigE1/1/3] display vlan 200

VLAN ID: 200

VLAN type: Static

Route interface: Not configured

Description: VLAN 0200

Name: VLAN 0200

Tagged ports:

Twenty-FiveGigE1/1/3(U)

Untagged ports:

Twenty-FiveGigE1/1/2(U)

Example: Configuring MAC-based VLANs

Network configuration

As shown in Figure 4:

· Twenty-FiveGigE 1/1/1 of Device A and Device C are each connected to a meeting room. Laptop 1 and Laptop 2 are used for meetings and might be used in either of the two meeting rooms.

· One department uses VLAN 100 and owns Laptop 1. The other department uses VLAN 200 and owns Laptop 2.

Configure MAC-based VLANs, so that Laptop 1 and Laptop 2 can access Server 1 and Server 2, respectively, no matter which meeting room they are used in.

Figure 4 Network diagram

‌

Procedure

1. Configure Device A:

# Create VLANs 100 and 200.

<DeviceA> system-view

[DeviceA] vlan 100

[DeviceA-vlan100] quit

[DeviceA] vlan 200

[DeviceA-vlan200] quit

# Associate the MAC addresses of Laptop 1 and Laptop 2 with VLANs 100 and 200, respectively.

[DeviceA] mac-vlan mac-address 000d-88f8-4e71 vlan 100

[DeviceA] mac-vlan mac-address 0014-222c-aa69 vlan 200

# Configure Twenty-FiveGigE 1/1/1 as a hybrid port, and assign it to VLANs 100 and 200 as an untagged VLAN member.

[DeviceA] interface twenty-fivegige 1/1/1

[DeviceA-Twenty-FiveGigE1/1/1] port link-type hybrid

[DeviceA-Twenty-FiveGigE1/1/1] port hybrid vlan 100 200 untagged

# Enable the MAC-based VLAN feature on Twenty-FiveGigE 1/1/1.

[DeviceA-Twenty-FiveGigE1/1/1] mac-vlan enable

[DeviceA-Twenty-FiveGigE1/1/1] quit

# Configure the uplink port (Twenty-FiveGigE 1/1/2) as a trunk port, and assign it to VLANs 100 and 200.

[DeviceA] interface twenty-fivegige 1/1/2

[DeviceA-Twenty-FiveGigE1/1/2] port link-type trunk

[DeviceA-Twenty-FiveGigE1/1/2] port trunk permit vlan 100 200

[DeviceA-Twenty-FiveGigE1/1/2] quit

2. Configure Device B:

# Create VLAN 100, and assign Twenty-FiveGigE 1/1/3 to VLAN 100.

<DeviceB> system-view

[DeviceB] vlan 100

[DeviceB-vlan100] port twenty-fivegige 1/1/3

[DeviceB-vlan100] quit

# Create VLAN 200 and assign Twenty-FiveGigE 1/1/4 to VLAN 200.

[DeviceB] vlan 200

[DeviceB-vlan200] port twenty-fivegige 1/1/4

[DeviceB-vlan200] quit

# Configure Twenty-FiveGigE 1/1/1 as a trunk port, and assign the port to VLANs 100 and 200.

[DeviceB] interface twenty-fivegige 1/1/1

[DeviceB-Twenty-FiveGigE1/1/1] port link-type trunk

[DeviceB-Twenty-FiveGigE1/1/1] port trunk permit vlan 100 200

[DeviceB-Twenty-FiveGigE1/1/1] quit

# Configure Twenty-FiveGigE 1/1/2 as a trunk port, and assign the port to VLANs 100 and 200.

[DeviceB] interface twenty-fivegige 1/1/2

[DeviceB-Twenty-FiveGigE1/1/2] port link-type trunk

[DeviceB-Twenty-FiveGigE1/1/2] port trunk permit vlan 100 200

[DeviceB-Twenty-FiveGigE1/1/2] quit

3. Configure Device C in the same way as the Device A is configured. (Details not shown.)

Verifying the configuration

# Verify that Laptop 1 can access only Server 1, and Laptop 2 can access only Server 2. (Details not shown.)

# Verify the MAC-to-VLAN entries on Device A and Device C, for example, on Device A.

[DeviceA] display mac-vlan all

The following MAC VLAN addresses exist:

S:Static D:Dynamic

MAC address Mask VLAN ID Priority State

000d-88f8-4e71 ffff-ffff-ffff 100 0 S

0014-222c-aa69 ffff-ffff-ffff 200 0 S

Total MAC VLAN address count: 2

Example: Configuring IP subnet-based VLANs

Network configuration

As shown in Figure 5, the hosts in the office belong to different IP subnets.

Configure Device C to transmit packets from 192.168.5.0/24 and 192.168.50.0/24 in VLANs 100 and 200, respectively.

Figure 5 Network diagram

‌

Procedure

1. Configure Device C:

# Associate IP subnet 192.168.5.0/24 with VLAN 100.

<DeviceC> system-view

[DeviceC] vlan 100

[DeviceC-vlan100] ip-subnet-vlan ip 192.168.5.0 255.255.255.0

[DeviceC-vlan100] quit

# Associate IP subnet 192.168.50.0/24 with VLAN 200.

[DeviceC] vlan 200

[DeviceC-vlan200] ip-subnet-vlan ip 192.168.50.0 255.255.255.0

[DeviceC-vlan200] quit

# Configure Twenty-FiveGigE 1/1/2 as a hybrid port, and assign it to VLAN 100 as a tagged VLAN member.

[DeviceC] interface twenty-fivegige 1/1/2

[DeviceC-Twenty-FiveGigE1/1/2] port link-type hybrid

[DeviceC-Twenty-FiveGigE1/1/2] port hybrid vlan 100 tagged

[DeviceC-Twenty-FiveGigE1/1/2] quit

# Configure Twenty-FiveGigE 1/1/3 as a hybrid port, and assign it to VLAN 200 as a tagged VLAN member.

[DeviceC] interface twenty-fivegige 1/1/3

[DeviceC-Twenty-FiveGigE1/1/3] port link-type hybrid

[DeviceC-Twenty-FiveGigE1/1/3] port hybrid vlan 200 tagged

[DeviceC-Twenty-FiveGigE1/1/3] quit

# Configure Twenty-FiveGigE 1/1/1 as a hybrid port, and assign it to VLANs 100 and 200 as an untagged VLAN member.

[DeviceC] interface twenty-fivegige 1/1/1

[DeviceC-Twenty-FiveGigE1/1/1] port link-type hybrid

[DeviceC-Twenty-FiveGigE1/1/1] port hybrid vlan 100 200 untagged

# Associate Twenty-FiveGigE 1/1/1 with the IP subnet-based VLANs 100 and 200.

[DeviceC-Twenty-FiveGigE1/1/1] port hybrid ip-subnet-vlan vlan 100

[DeviceC-Twenty-FiveGigE1/1/1] port hybrid ip-subnet-vlan vlan 200

[DeviceC-Twenty-FiveGigE1/1/1] quit

2. Configure Device A and Device B to forward packets from VLANs 100 and 200, respectively. (Details not shown.)

Verifying the configuration

# Verify the IP subnet-based VLAN configuration on Device C.

[DeviceC] display ip-subnet-vlan vlan all

VLAN ID: 100

Subnet index IP address Subnet mask

0 192.168.5.0 255.255.255.0

VLAN ID: 200

Subnet index IP address Subnet mask

0 192.168.50.0 255.255.255.0

# Verify the IP subnet-based VLAN configuration on Twenty-FiveGigE 1/1/1 of Device C.

[DeviceC] display ip-subnet-vlan interface twenty-fivegige 1/1/1

Interface: Twenty-FiveGigE1/1/1

VLAN ID Subnet index IP address Subnet mask Status

100 0 192.168.5.0 255.255.255.0 Active

200 0 192.168.50.0 255.255.255.0 Active

Example: Configuring protocol-based VLANs

Network configuration

As shown in Figure 6:

· The majority of hosts in a lab environment run the IPv4 protocol.

· The other hosts run the IPv6 protocol for teaching purposes.

To isolate IPv4 and IPv6 traffic at Layer 2, configure protocol-based VLANs to associate the IPv4 and ARP protocols with VLAN 100, and associate the IPv6 protocol with VLAN 200.

Figure 6 Network diagram

‌

Procedure

In this example, L2 Switch A and L2 Switch B use the factory configuration.

1. Configure Device:

# Create VLAN 100, and configure the description for VLAN 100 as protocol VLAN for IPv4.

<Device> system-view

[Device] vlan 100

[Device-vlan100] description protocol VLAN for IPv4

# Assign Twenty-FiveGigE 1/1/3 to VLAN 100.

[Device-vlan100] port twenty-fivegige 1/1/3

[Device-vlan100] quit

# Create VLAN 200, and configure the description for VLAN 200 as protocol VLAN for IPv6.

[Device] vlan 200

[Device-vlan200] description protocol VLAN for IPv6

# Assign Twenty-FiveGigE 1/1/4 to VLAN 200.

[Device-vlan200] port twenty-fivegige 1/1/4

# Configure VLAN 200 as a protocol-based VLAN, and create an IPv6 protocol template with the index 1 for VLAN 200.

[Device-vlan200] protocol-vlan 1 ipv6

[Device-vlan200] quit

# Configure VLAN 100 as a protocol-based VLAN. Create an IPv4 protocol template with the index 1, and create an ARP protocol template with the index 2. (In Ethernet II encapsulation, the protocol type ID for ARP is 0806 in hexadecimal notation.)

[Device] vlan 100

[Device-vlan100] protocol-vlan 1 ipv4

[Device-vlan100] protocol-vlan 2 mode ethernetii etype 0806

[Device-vlan100] quit

# Configure Twenty-FiveGigE 1/1/1 as a hybrid port, and assign it to VLANs 100 and 200 as an untagged VLAN member.

[Device] interface twenty-fivegige 1/1/1

[Device-Twenty-FiveGigE1/1/1] port link-type hybrid

[Device-Twenty-FiveGigE1/1/1] port hybrid vlan 100 200 untagged

# Associate Twenty-FiveGigE 1/1/1 with the IPv4 and ARP protocol templates of VLAN 100 and the IPv6 protocol template of VLAN 200.

[Device-Twenty-FiveGigE1/1/1] port hybrid protocol-vlan vlan 100 1 to 2

[Device-Twenty-FiveGigE1/1/1] port hybrid protocol-vlan vlan 200 1

[Device-Twenty-FiveGigE1/1/1] quit

# Configure Twenty-FiveGigE 1/1/2 as a hybrid port, and assign it to VLANs 100 and 200 as an untagged VLAN member.

[Device] interface twenty-fivegige 1/1/2

[Device-Twenty-FiveGigE1/1/2] port link-type hybrid

[Device-Twenty-FiveGigE1/1/2] port hybrid vlan 100 200 untagged

# Associate Twenty-FiveGigE 1/1/2 with the IPv4 and ARP protocol templates of VLAN 100 and the IPv6 protocol template of VLAN 200.

[Device-Twenty-FiveGigE1/1/2] port hybrid protocol-vlan vlan 100 1 to 2

[Device-Twenty-FiveGigE1/1/2] port hybrid protocol-vlan vlan 200 1

[Device-Twenty-FiveGigE1/1/2] quit

2. Configure hosts and servers:

a. Configure IPv4 Host A, IPv4 Host B, and IPv4 server to be on the same network segment (192.168.100.0/24, for example). (Details not shown.)

b. Configure IPv6 Host A, IPv6 Host B, and IPv6 server to be on the same network segment (2001::1/64, for example). (Details not shown.)

Verifying the configuration

1. Verify the following:

¡ The hosts and the server in VLAN 100 can successfully ping one another. (Details not shown.)

¡ The hosts and the server in VLAN 200 can successfully ping one another. (Details not shown.)

¡ The hosts or the server in VLAN 100 cannot ping the hosts or server in VLAN 200. (Details not shown.)

2. Verify the protocol-based VLAN configuration:

# Display protocol-based VLANs on Device.

[Device] display protocol-vlan vlan all

VLAN ID: 100

Protocol index Protocol type

1 IPv4

2 Ethernet II Etype 0x0806

VLAN ID: 200

Protocol index Protocol type

1 IPv6

# Display protocol-based VLANs on the ports of Device.

[Device] display protocol-vlan interface all

Interface: Twenty-FiveGigE1/1/1

VLAN ID Protocol index Protocol type Status

100 1 IPv4 Active

100 2 Ethernet II Etype 0x0806 Active

200 1 IPv6 Active

Interface: Twenty-FiveGigE1/1/2

VLAN ID Protocol index Protocol type Status

100 1 IPv4 Active

100 2 Ethernet II Etype 0x0806 Active

200 1 IPv6 Active

Configuring voice VLANs

About voice VLANs

A voice VLAN is used for transmitting voice traffic. The device can configure QoS parameters for voice packets to ensure higher transmission priority of the voice packets.

Common voice devices include IP phones and integrated access devices (IADs). This chapter uses IP phones as an example.

Working mechanism

When an IP phone accesses a device, the device performs the following operations:

1. Identifies the IP phone in the network and obtains the MAC address of the IP phone.

2. Advertises the voice VLAN information to the IP phone.

After receiving the voice VLAN information, the IP phone performs automatic configuration. Voice packets sent from the IP phone can then be transmitted within the voice VLAN.

Methods of identifying IP phones

Devices can use the OUI addresses or LLDP to identify IP phones.

Identifying IP phones through OUI addresses

A device identifies voice packets based on their source MAC addresses. A packet whose source MAC address complies with an Organizationally Unique Identifier (OUI) address of the device is regarded as a voice packet.

You can use system default OUI addresses (see Table 1) or configure OUI addresses for the device. You can manually remove or add the system default OUI addresses.

Table 1 Default OUI addresses

Number	OUI address	Vendor
1	0001-e300-0000		Siemens phone
2	0003-6b00-0000		Cisco phone
3	0004-0d00-0000		Avaya phone
4	000f-e200-0000		H3C Aolynk phone
5	0060-b900-0000		Philips/NEC phone
6	00d0-1e00-0000		Pingtel phone
7	00e0-7500-0000		Polycom phone
8	00e0-bb00-0000		3Com phone

‌

Typically, an OUI address refers to the first 24 bits of a MAC address (in binary notation) and is a globally unique identifier that IEEE assigns to a vendor. However, OUI addresses in this chapter are addresses that the system uses to identify voice packets. They are the logical AND results of the mac-address and oui-mask arguments in the voice-vlan mac-address command.

Automatically identifying IP phones through LLDP

If IP phones support LLDP, configure LLDP for automatic IP phone discovery on the device. The device can then automatically discover the peer through LLDP, and exchange LLDP TLVs with the peer.

If the LLDP System Capabilities TLV received on a port indicates that the peer can act as a telephone, the device performs the following operations:

1. Sends an LLDP TLV with the voice VLAN configuration to the peer.

2. Assigns the receiving port to the voice VLAN.

3. Increases the transmission priority of the voice packets sent from the IP phone.

4. Adds the MAC address of the IP phone to the MAC address table to ensure that the IP phone can pass authentication.

Use LLDP instead of the OUI list to identify IP phones if the network has more IP phone categories than the maximum number of OUI addresses supported on the device. LLDP has higher priority than the OUI list.

For more information about LLDP, see "Configuring LLDP."

Advertising the voice VLAN information to IP phones

Figure 7 shows the workflow of advertising the voice VLAN information to IP phones.

Figure 7 Workflow of advertising the voice VLAN information to IP phones

‌

IP phone access methods

Connecting the host and the IP phone in series

As shown in Figure 8, the host is connected to the IP phone, and the IP phone is connected to the device. In this scenario, the following requirements must be met:

· The host and the IP phone use different VLANs.

· The IP phone is able to send out VLAN-tagged packets, so that the device can differentiate traffic from the host and the IP phone.

· The port connecting to the IP phone forwards packets from the voice VLAN and the PVID.

Figure 8 Connecting the host and IP phone in series

‌

Connecting the IP phone to the device

As shown in Figure 9, IP phones are connected to the device without the presence of the host. Use this connection method when IP phones sends out untagged voice packets. In this scenario, you must configure the voice VLAN as the PVID of the access port of the IP phone, and configure the port to forward the packets from the PVID.

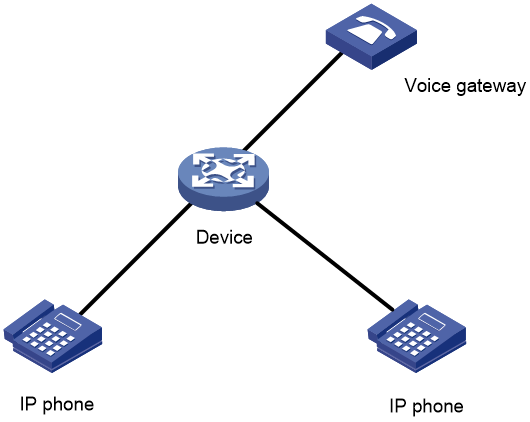

Figure 9 Connecting the IP phone to the device

‌

Voice VLAN assignment modes

A port can be assigned to a voice VLAN automatically or manually.

Automatic mode

Use automatic mode when PCs and IP phones are connected in series to access the network through the device, as shown in Figure 8. Ports on the device transmit both voice traffic and data traffic.

When an IP phone is powered on, it sends out protocol packets. After receiving these protocol packets, the device uses the source MAC address of the protocol packets to match its OUI addresses. If the match succeeds, the device performs the following operations:

· Assigns the receiving port of the protocol packets to the voice VLAN.

· Issues ACL rules to set the packet precedence.

· Starts the voice VLAN aging timer.

If no voice packet is received from the port before the aging timer expires, the device will remove the port from the voice VLAN. The aging timer is also configurable.

When the IP phone reboots, the port is reassigned to the voice VLAN to ensure the correct operation of the existing voice connections. The reassignment occurs automatically without being triggered by voice traffic as long as the voice VLAN operates correctly.

Manual mode

Use manual mode when only IP phones access the network through the device, as shown in Figure 9. In this mode, ports are assigned to a voice VLAN that transmits voice traffic exclusively. No data traffic affects the voice traffic transmission.

You must manually assign the port that connects to the IP phone to a voice VLAN. The device uses the source MAC address of the received voice packets to match its OUI addresses. If the match succeeds, the device issues ACL rules to set the packet precedence.

To remove the port from the voice VLAN, you must manually remove it.

Cooperation of voice VLAN assignment modes and IP phones

Some IP phones send out VLAN-tagged packets, and others send out only untagged packets. For correct packet processing, ports of different link types must meet specific configuration requirements in different voice VLAN assignment modes.

Configuration requirements for transmitting tagged voice traffic

Port link type	Voice VLAN assignment mode	Configuration requirements
Trunk	Automatic	The PVID of the port cannot be the voice VLAN.
Trunk	Manual	The PVID of the port cannot be the voice VLAN. The port must forward packets from the voice VLAN.
Hybrid	Automatic	The PVID of the port cannot be the voice VLAN.
Hybrid	Manual	The PVID of the port cannot be the voice VLAN. The port must forward packets from the voice VLAN with VLAN tags.

‌

Configuration requirements for transmitting untagged voice traffic

When IP phones send out untagged packets, you must set the voice VLAN assignment mode to manual.

Table 2 Configuration requirements for ports in manual mode to support untagged voice traffic

Port link type	Configuration requirements
Access	The voice VLAN must be the PVID of the port.
Trunk	The voice VLAN must be the PVID of the port. The port must forward packets from the voice VLAN.
Hybrid	The voice VLAN must be the PVID of the port. The port must forward packets from the voice VLAN without VLAN tags.

‌

Security mode and normal mode of voice VLANs

Depending on the filtering mechanisms to incoming packets, a voice VLAN-enabled port can operate in one of the following modes:

· Normal mode—The port receives voice-VLAN-tagged packets and forwards them in the voice VLAN without examining their MAC addresses. If the PVID of the port is the voice VLAN and the port operates in manual VLAN assignment mode, the port forwards all the received untagged packets in the voice VLAN.

In this mode, voice VLANs are vulnerable to traffic attacks. Malicious users might send a large number of forged voice-VLAN-tagged or untagged packets to affect voice communication.

· Security mode—The port uses the source MAC addresses of voice packets to match the OUI addresses of the device. Packets that fail the match will be dropped.

In a safe network, you can configure the voice VLANs to operate in normal mode. This mode reduces system resource consumption in source MAC address checking.

In either mode, the device modifies the transmission priority only for voice VLAN packets whose source MAC addresses match OUI addresses of the device.

As a best practice, do not transmit both voice traffic and non-voice traffic in a voice VLAN. If you must transmit different traffic in a voice VLAN, make sure the voice VLAN security mode is disabled.

Table 3 Packet processing on a voice VLAN-enabled port in normal or security mode

Voice VLAN mode	Packet type	Packet processing
Normal	· Untagged packets · Packets with the voice VLAN tags	The port does not examine their source MAC addresses. The device forwards voice packets and non-voice packets in the voice VLAN.
Normal	Packets with other VLAN tags	The port forwards or drops them depending on whether the port permits packets from these VLANs to pass through.
Security	· Untagged packets · Packets with the voice VLAN tags	· If the source MAC address of a packet matches an OUI address on the device, the device forwards the packet in the voice VLAN. · If the source MAC address of a packet does not match an OUI address on the device, the packet is dropped.
Security	Packets with other VLAN tags	The port forwards or drops them depending on whether the port permits packets from these VLANs to pass through.

‌

Restrictions and guidelines: Voice VLAN configuration

The aging timer of a voice VLAN starts only when the dynamic MAC address entry of the voice VLAN ages out. The aging period for the voice VLAN equals the sum of the voice VLAN aging timer and the aging timer for its dynamic MAC address entry. For more information about the aging timer for dynamic MAC address entries, see "Configuring the MAC address table."

As a best practice, do not both configure voice VLAN and disable MAC address learning on a port. If the two features are configured together on a port, the port forwards only packets exactly matching the OUI addresses and drops inexactly matching packets.

As a best practice, do not configure both voice VLAN and the MAC learning limit on a port. If the two features are configured together on a port and the port learns the configured maximum number of MAC address entries, the port processes packets as follows:

· Forwards only packets matching the MAC address entries learnt by the port and OUI addresses.

· Drops unmatching packets.

Voice VLAN tasks at a glance

To configure a voice VLAN, perform the following tasks:

1. Configuring the QoS priority settings for voice traffic

2. Use one of the following methods:

¡ Configuring a port to operate in automatic voice VLAN assignment mode

¡ Configuring a port to operate in manual voice VLAN assignment mode

3. (Optional.) Enabling LLDP for automatic IP phone discovery

4. (Optional.) Use one of the following methods:

¡ Configuring LLDP to advertise a voice VLAN

¡ Configuring CDP to advertise a voice VLAN

Configuring the QoS priority settings for voice traffic

About this task

You can configure the device to modify the QoS priority settings (CoS and DSCP values) for voice traffic.

Restrictions and guidelines

You cannot configure the QoS priority settings on a voice VLAN-enabled port. Before you configure the QoS priority settings for voice traffic on a port, you must disable the voice VLAN feature on it.

If you execute the voice-vlan qos and voice-vlan qos trust commands multiple times, the most recent configuration takes effect.

Procedure

1. Enter system view.

system-view

2. Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

3. Configure QoS priority settings for incoming voice VLAN packets.

¡ Configure the port to trust the QoS priority settings and not to modify the priority settings for packets.

voice-vlan qos trust

¡ Configure the port to modify the CoS and DSCP values.

voice-vlan qos cos-value dscp-value

By default, a port modifies the CoS and DSCP values for voice VLAN packets to 6 and 46, respectively.

If a port trusts the QoS priority settings in incoming voice VLAN packets, the port does not modify their CoS and DSCP values.

Configuring voice VLAN assignment modes for a port

Configuring a port to operate in automatic voice VLAN assignment mode

Restrictions and guidelines

· Do not configure a VLAN as both a voice VLAN and a protocol-based VLAN.

¡ A voice VLAN in automatic mode on a hybrid port processes only tagged incoming voice traffic.

¡ A protocol-based VLAN on a hybrid port processes only untagged incoming packets. For more information about protocol-based VLANs, see "Configuring protocol-based VLANs."

· As a best practice, do not use this mode with MSTP. In MSTP mode, if a port is blocked in the MSTI of the target voice VLAN, the port drops the received packets instead of delivering them to the CPU. As a result, the port will not be dynamically assigned to the voice VLAN.

· As a best practice, do not configure both dynamic MAC-based VLAN assignment and automatic voice VLAN assignment mode on a port. They can have a negative impact on each other.

Procedure

1. Enter system view.

system-view

2. (Optional.) Set the voice VLAN aging timer.

voice-vlan aging minutes

By default, the aging timer of a voice VLAN is 1440 minutes.

The voice VLAN aging timer takes effect only on ports in automatic voice VLAN assignment mode.

3. (Optional.) Enable the voice VLAN security mode.

voice-vlan security enable

By default, the voice VLAN security mode is enabled.

4. (Optional.) Add an OUI address for voice packet identification.

voice-vlan mac-address oui mask oui-mask [ description text ]

By default, system default OUI addresses exist. For more information, see Table 1.

5. Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

6. Configure the link type of the port.

¡ port link-type trunk

¡ port link-type hybrid

7. Configure the port to operate in automatic voice VLAN assignment mode.

voice-vlan mode auto

By default, the automatic voice VLAN assignment mode is enabled.

8. Enable the voice VLAN feature on the port.

voice-vlan vlan-id enable

By default, the voice VLAN feature is disabled.

Before you execute this command, make sure the specified VLAN already exists.

Configuring a port to operate in manual voice VLAN assignment mode

Restrictions and guidelines

· You can configure different voice VLANs for different ports on the same device. Make sure the following requirements are met:

¡ One port can be configured with only one voice VLAN.

¡ Voice VLANs must be existing static VLANs.

· Do not enable voice VLAN on the member ports of a link aggregation group. For more information about link aggregation, see "Configuring Ethernet link aggregation."

· To make a voice VLAN take effect on a port operating in manual mode, you must manually assign the port to the voice VLAN.

Procedure

1. Enter system view.

system-view

2. (Optional.) Enable the voice VLAN security mode.

voice-vlan security enable

By default, the voice VLAN security mode is enabled.

3. (Optional.) Add an OUI address for voice packet identification.

voice-vlan mac-address oui mask oui-mask [ description text ]

By default, system default OUI addresses exist. For more information, see Table 1.

4. Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

5. Configure the port to operate in manual voice VLAN assignment mode.

undo voice-vlan mode auto

By default, a port operates in automatic voice VLAN assignment mode.

6. Assign the access, trunk, or hybrid port to the voice VLAN.

¡ For the access port, see "Assigning an access port to a VLAN."

¡ For the trunk port, see "Assigning a trunk port to a VLAN."

¡ For the hybrid port, see "Assigning a hybrid port to a VLAN."

After you assign an access port to the voice VLAN, the voice VLAN becomes the PVID of the port.

7. (Optional.) Configure the voice VLAN as the PVID of the trunk or hybrid port.

¡ For the trunk port, see "Assigning a trunk port to a VLAN."

¡ For the hybrid port, see "Assigning a hybrid port to a VLAN."

This step is required for untagged incoming voice traffic and prohibited for tagged incoming voice traffic.

8. Enable the voice VLAN feature on the port.

voice-vlan vlan-id enable

By default, the voice VLAN feature is disabled.

Before you execute this command, make sure the specified VLAN already exists.

Enabling LLDP for automatic IP phone discovery

Restrictions and guidelines

· Before you enable this feature, enable LLDP both globally and on access ports.

· Use this feature only with the automatic voice VLAN assignment mode.

· Do not use this feature together with CDP compatibility.

Procedure

1. Enter system view.

system-view

2. Enable LLDP for automatic IP phone discovery.

voice-vlan track lldp

By default, this feature is disabled.

Configuring LLDP or CDP to advertise a voice VLAN

Configuring LLDP to advertise a voice VLAN

About this task

For IP phones that support LLDP, the device advertises the voice VLAN information to the IP phones through the LLDP-MED TLVs.

Prerequisites

Before you configure this feature, enable LLDP both globally and on access ports.

Procedure

1. Enter system view.

system-view

2. Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

3. Configure an advertised voice VLAN ID.

lldp tlv-enable med-tlv network-policy vlan-id

By default, no advertised voice VLAN ID is configured.

For more information about the command, see Layer 2—LAN Switching Command Reference.

4. (Optional.) Display the voice VLAN advertised by LLDP.

display lldp local-information

For more information about the command, see Layer 2—LAN Switching Command Reference.

Configuring CDP to advertise a voice VLAN

About this task

If an IP phone supports CDP but does not support LLDP, it will send out CDP packets to the device to request the voice VLAN ID. If the IP phone does not receive the voice VLAN ID within a time period, it will send out untagged packets. The device cannot differentiate untagged voice packets from other types of packets.

You can configure CDP compatibility on the device to enable it to perform the following operations:

· Receive and identify CDP packets from the IP phone.

· Send CDP packets to the IP phone. The voice VLAN information is carried in the CDP packets.

After receiving the advertised VLAN information, the IP phone performs automatic voice VLAN configuration. Packets from the IP phone will be transmitted in the dedicated voice VLAN.

LLDP packets sent from the device carry the priority information. CDP packets sent from the device do not carry the priority information.

Prerequisites

Before you configure this feature, enable LLDP globally and on access ports.

Procedure

1. Enter system view.

system-view

2. Enable CDP compatibility.

lldp compliance cdp

By default, CDP compatibility is disabled.

3. Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

4. Configure CDP-compatible LLDP to operate in TxRx mode.

lldp compliance admin-status cdp txrx

By default, CDP-compatible LLDP operates in Disable mode.

5. Configure an advertised voice VLAN ID.

cdp voice-vlan vlan-id

By default, no advertised voice VLAN ID is configured.

For more information about the command, see Layer 2—LAN Switching Command Reference.

Display and maintenance commands for voice VLANs

Execute display commands in any view.

Task	Command
Display OUI addresses on a device.	display voice-vlan mac-address
Display the voice VLAN state.	display voice-vlan state

‌

Voice VLAN configuration examples

Example: Configuring automatic voice VLAN assignment mode

Network configuration

As shown in Figure 10, Device A transmits traffic from IP phones and hosts.

For correct voice traffic transmission, perform the following tasks on Device A:

· Configure voice VLANs 2 and 3 to transmit voice packets from IP phone A and IP phone B, respectively.

· Configure Twenty-FiveGigE 1/1/1 and Twenty-FiveGigE 1/1/2 to operate in automatic voice VLAN assignment mode.

· Add MAC addresses of IP phones A and B to the device for voice packet identification. The mask of the two MAC addresses is FFFF-FF00-0000.

· Set an aging timer for voice VLANs.

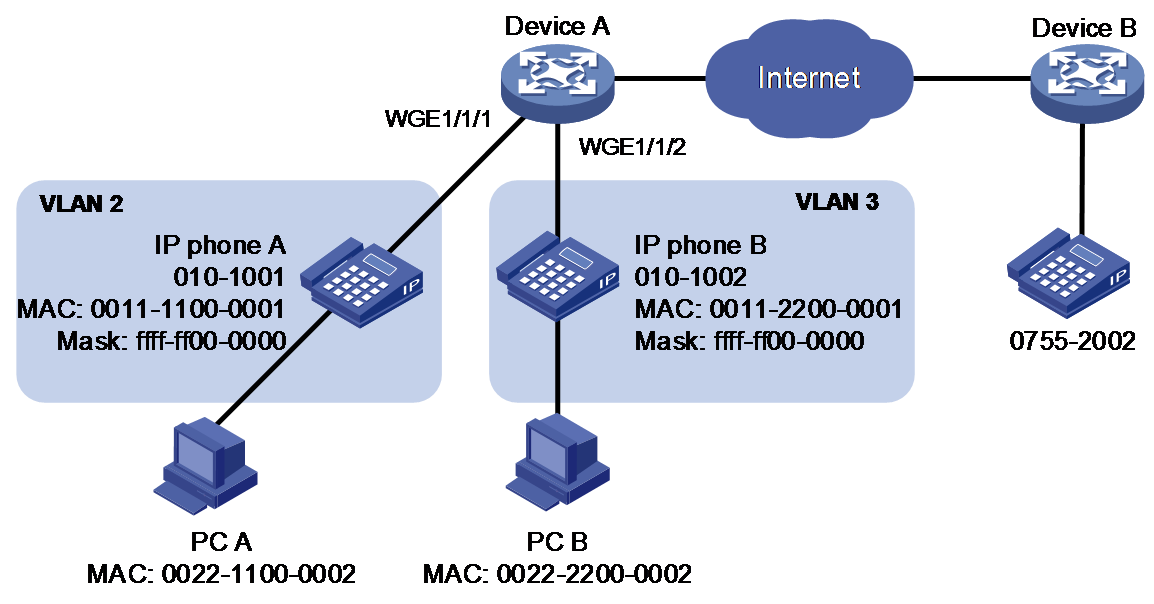

Figure 10 Network diagram

‌

Procedure

1. Configure voice VLANs:

# Create VLANs 2 and 3.

<DeviceA> system-view

[DeviceA] vlan 2 to 3

# Set the voice VLAN aging timer to 30 minutes.

[DeviceA] voice-vlan aging 30

# Enable security mode for voice VLANs.

[DeviceA] voice-vlan security enable

# Add MAC addresses of IP phones A and B to the device with mask FFFF-FF00-0000.

[DeviceA] voice-vlan mac-address 0011-1100-0001 mask ffff-ff00-0000 description IP phone A

[DeviceA] voice-vlan mac-address 0011-2200-0001 mask ffff-ff00-0000 description IP phone B

2. Configure Twenty-FiveGigE 1/1/1:

# Configure Twenty-FiveGigE 1/1/1 as a hybrid port.

[DeviceA] interface twenty-fivegige 1/1/1

[DeviceA-Twenty-FiveGigE1/1/1] port link-type hybrid

# Configure Twenty-FiveGigE 1/1/1 to operate in automatic voice VLAN assignment mode.

[DeviceA-Twenty-FiveGigE1/1/1] voice-vlan mode auto

# Enable voice VLAN on Twenty-FiveGigE 1/1/1 and configure VLAN 2 as the voice VLAN for it.

[DeviceA-Twenty-FiveGigE1/1/1] voice-vlan 2 enable

[DeviceA-Twenty-FiveGigE1/1/1] quit

3. Configure Twenty-FiveGigE 1/1/2:

# Configure Twenty-FiveGigE 1/1/2 as a hybrid port.

[DeviceA] interface twenty-fivegige 1/1/2

[DeviceA-Twenty-FiveGigE1/1/2] port link-type hybrid

# Configure Twenty-FiveGigE 1/1/2 to operate in automatic voice VLAN assignment mode.

[DeviceA-Twenty-FiveGigE1/1/2] voice-vlan mode auto

# Enable voice VLAN on Twenty-FiveGigE 1/1/2 and configure VLAN 3 as the voice VLAN for it.

[DeviceA-Twenty-FiveGigE1/1/2] voice-vlan 3 enable

[DeviceA-Twenty-FiveGigE1/1/2] quit

Verifying the configuration

# Display the OUI addresses supported on Device A.

[DeviceA] display voice-vlan mac-address

OUI Address Mask Description

0001-e300-0000 ffff-ff00-0000 Siemens phone

0003-6b00-0000 ffff-ff00-0000 Cisco phone

0004-0d00-0000 ffff-ff00-0000 Avaya phone

000f-e200-0000 ffff-ff00-0000 H3C Aolynk phone

0011-1100-0000 ffff-ff00-0000 IP phone A

0011-2200-0000 ffff-ff00-0000 IP phone B

0060-b900-0000 ffff-ff00-0000 Philips/NEC phone

00d0-1e00-0000 ffff-ff00-0000 Pingtel phone

00e0-7500-0000 ffff-ff00-0000 Polycom phone

00e0-bb00-0000 ffff-ff00-0000 3Com phone

# Display the voice VLAN state.

[DeviceA] display voice-vlan state

Current voice VLANs: 2

Voice VLAN security mode: Security

Voice VLAN aging time: 30 minutes

Voice VLAN enabled ports and their modes:

Port VLAN Mode CoS DSCP

WGE1/1/1 2 Auto 6 46

WGE1/1/2 3 Auto 6 46

Example: Configuring manual voice VLAN assignment mode

Network configuration

As shown in Figure 11, IP phone A send untagged voice traffic.

To enable Twenty-FiveGigE 1/1/1 to transmit only voice packets, perform the following tasks on Device A:

· Create VLAN 2. This VLAN will be used as a voice VLAN.

· Configure Twenty-FiveGigE 1/1/1 to operate in manual voice VLAN assignment mode and add it to VLAN 2.

· Add the OUI address of IP phone A to the OUI list of Device A.

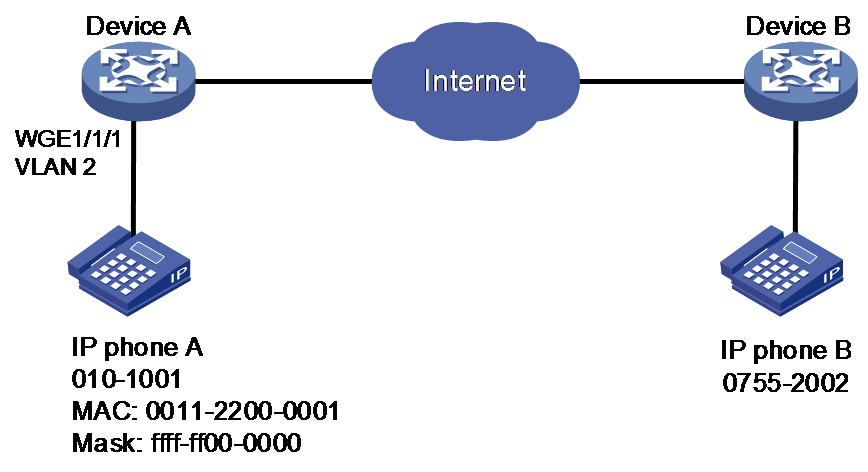

Figure 11 Network diagram

‌

Procedure

# Enable security mode for voice VLANs.

<DeviceA> system-view

[DeviceA] voice-vlan security enable

# Add MAC address 0011-2200-0001 with mask FFFF-FF00-0000.

[DeviceA] voice-vlan mac-address 0011-2200-0001 mask ffff-ff00-0000 description test

# Create VLAN 2.

[DeviceA] vlan 2

[DeviceA-vlan2] quit

# Configure Twenty-FiveGigE 1/1/1 to operate in manual voice VLAN assignment mode.

[DeviceA] interface twenty-fivegige 1/1/1

[DeviceA-Twenty-FiveGigE1/1/1] undo voice-vlan mode auto

# Configure Twenty-FiveGigE 1/1/1 as a hybrid port.

[DeviceA-Twenty-FiveGigE1/1/1] port link-type hybrid

# Set the PVID of Twenty-FiveGigE 1/1/1 to VLAN 2.

[DeviceA-Twenty-FiveGigE1/1/1] port hybrid pvid vlan 2

# Assign Twenty-FiveGigE 1/1/1 to VLAN 2 as an untagged VLAN member.

[DeviceA-Twenty-FiveGigE1/1/1] port hybrid vlan 2 untagged

# Enable voice VLAN and configure VLAN 2 as the voice VLAN on Twenty-FiveGigE 1/1/1.

[DeviceA-Twenty-FiveGigE1/1/1] voice-vlan 2 enable

[DeviceA-Twenty-FiveGigE1/1/1] quit

Verifying the configuration

# Display the OUI addresses supported on Device A.

[DeviceA] display voice-vlan mac-address

OUI Address Mask Description

0001-e300-0000 ffff-ff00-0000 Siemens phone

0003-6b00-0000 ffff-ff00-0000 Cisco phone

0004-0d00-0000 ffff-ff00-0000 Avaya phone

000f-e200-0000 ffff-ff00-0000 H3C Aolynk phone

0011-2200-0000 ffff-ff00-0000 test

0060-b900-0000 ffff-ff00-0000 Philips/NEC phone

00d0-1e00-0000 ffff-ff00-0000 Pingtel phone

00e0-7500-0000 ffff-ff00-0000 Polycom phone

00e0-bb00-0000 ffff-ff00-0000 3Com phone

# Display the voice VLAN state.

[DeviceA] display voice-vlan state

Current voice VLANs: 1

Voice VLAN security mode: Security

Voice VLAN aging time: 1440 minutes

Voice VLAN enabled ports and their modes:

Port VLAN Mode CoS DSCP

WGE1/1/1 2 Manual 6 46

04-Layer 2 - LAN Switching Configuration Guide

Configuring VLANs

About VLANs

Port link type

PVID

How ports of different link types handle frames

Static MAC-based VLAN assignment

Dynamic MAC-based VLAN assignment

Server-assigned MAC-based VLAN

About this task

Procedure

Assigning an access port to a VLAN

About this task

Assigning one or multiple access ports to a VLAN in VLAN view

Assigning an access port to a VLAN in interface view

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

Configuring MAC-based VLANs

About this task

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

About this task

Procedure

Restrictions and guidelines

Procedure

Display and maintenance commands for VLANs

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Verifying the configuration

Configuring voice VLANs

About voice VLANs

Automatic mode

Manual mode

Configuration requirements for transmitting tagged voice traffic

Configuration requirements for transmitting untagged voice traffic

Restrictions and guidelines: Voice VLAN configuration

About this task

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Restrictions and guidelines

Procedure

Enabling LLDP for automatic IP phone discovery

About this task

Prerequisites

Procedure

About this task

Prerequisites

Procedure

Network configuration

Procedure

Verifying the configuration

Network configuration

Procedure

Verifying the configuration

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help
