3 Slot arrangement and interface numbering
The MSR3600-28-SI/MSR3600-28-SI-GL/MSR3600-51-SI/MSR3610E-X1/MSR3610E-X1-DP router does not support IRF.
The MSR 3600 router provides slots for SICs and HMIMs. On the MSR 36-20/MSR 36-40/MSR 36-60 router, you can combine two SIC slots into one DSIC slot by removing the slot divider.
The slot number of all fixed ports on the router panel is Slot 0.

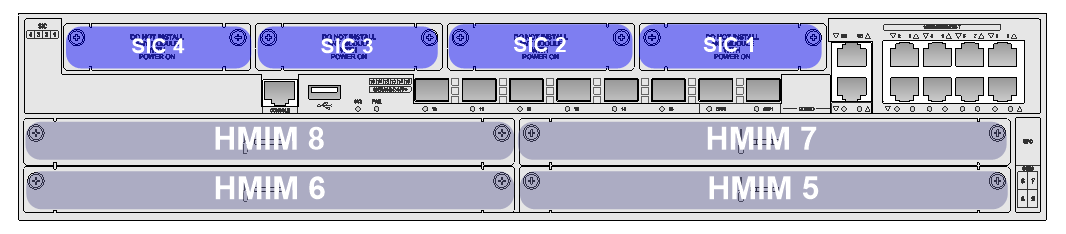

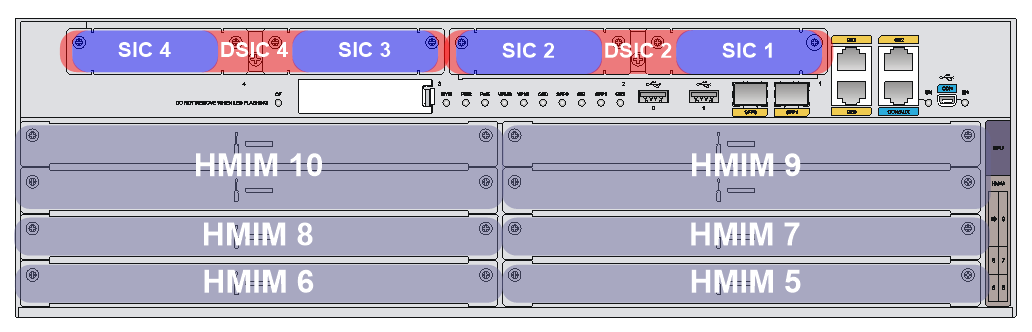

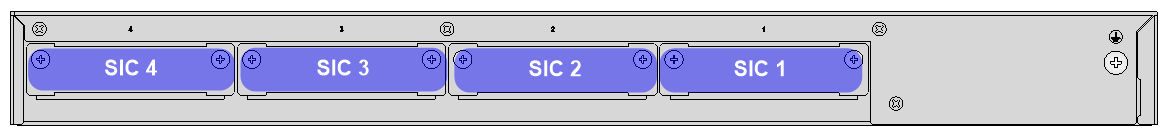

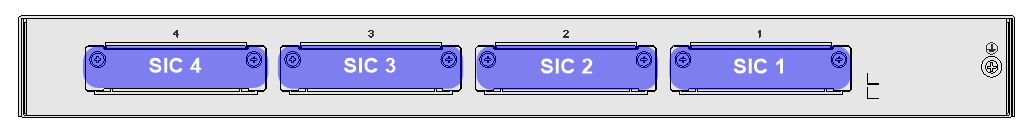

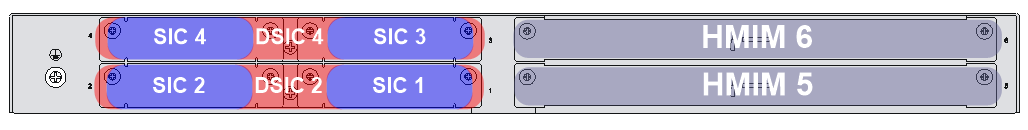

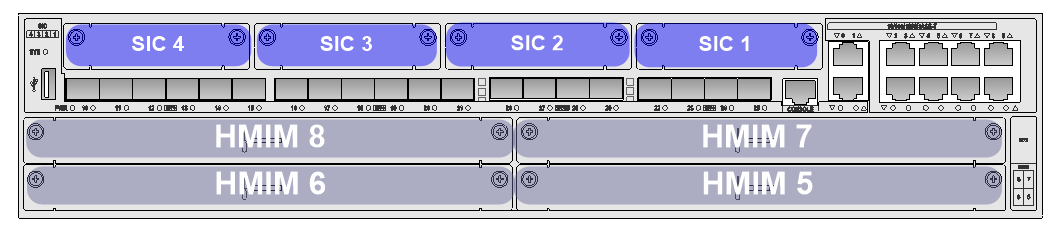

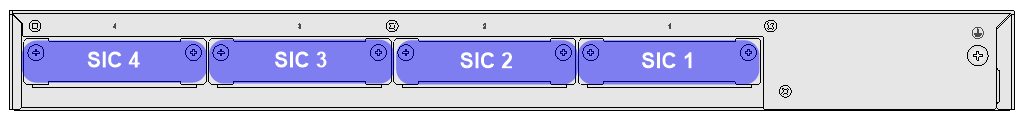

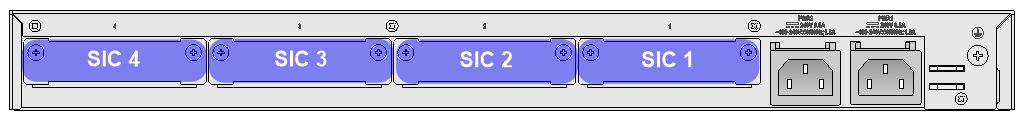

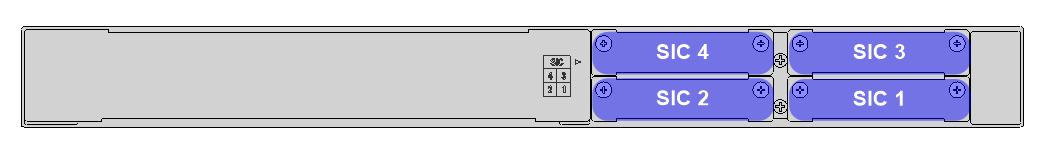

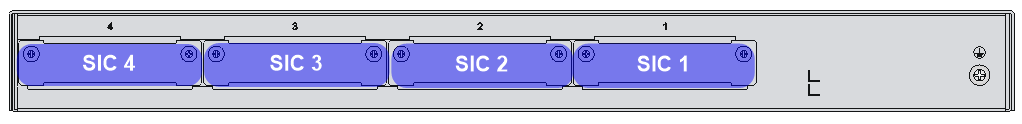

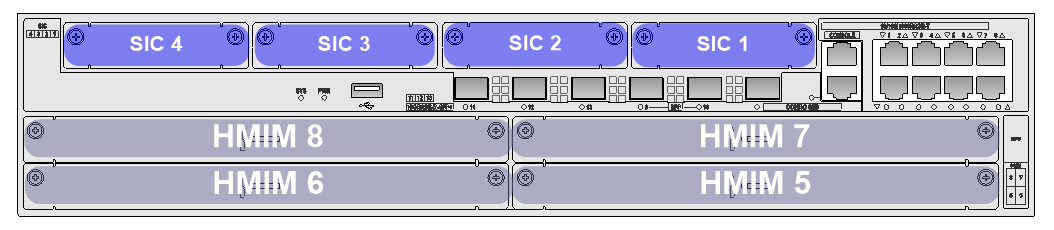

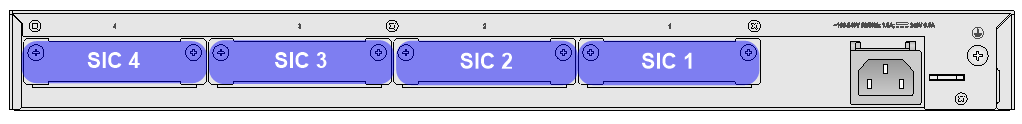

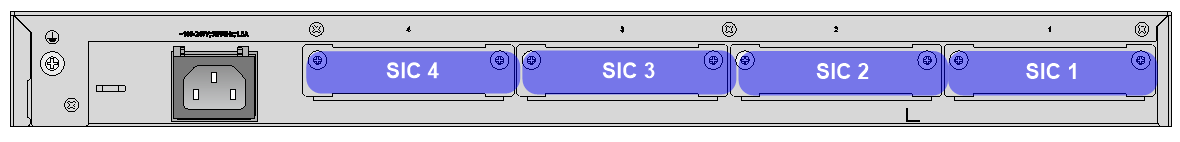

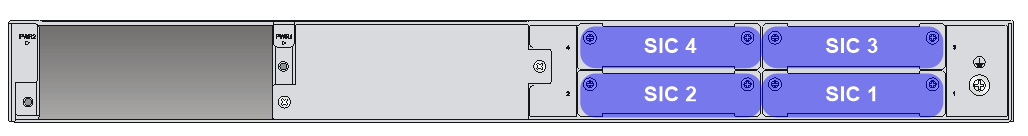

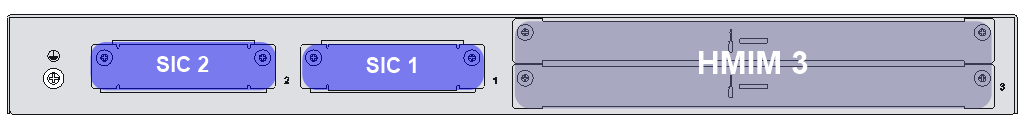

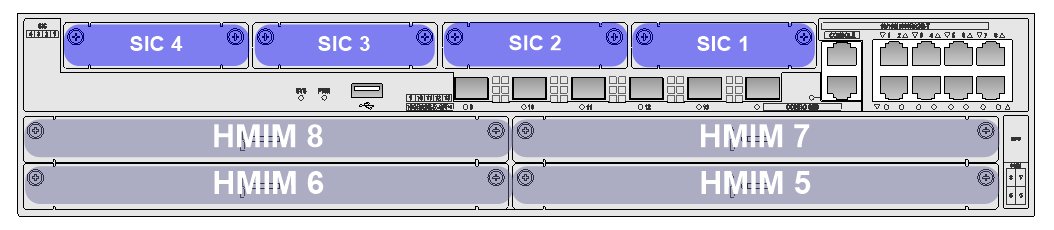

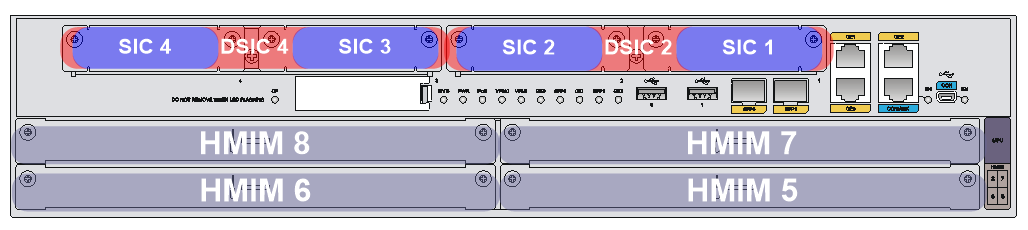

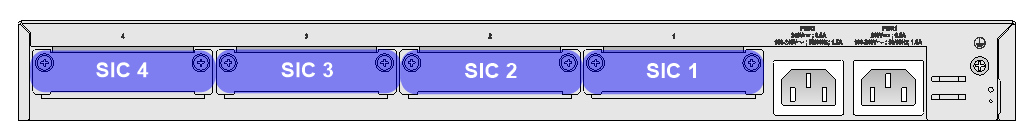

Table3-1 Slot arrangement and interface numbering on the MSR 3600 routers
|
Model |
Slot arrangement |
Interface ID description |
|
MSR 36-10 |
|
· In standalone mode, an interface ID is slot number/interface number. For example, GE5/0 is interface 0 on slot 5. · In IRF mode, an interface ID is chassis number/slot number/interface number. For example, GE1/5/0 is interface 0 on slot 5 of member device 1. |
|
MSR 36-20 |
|
|
|
MSR 3610-G |
|
|
|
MSR3610-X1/MSR3610-XS |
|
|
|
MSR3610-X1-DP |
|
|
|
MSR3610-X1-DC |
|
|
|
MSR3610-X1-DP-DC |
|
|
|
MSR3610E-X1/MSR3610E-X1-DP |
|
|
|
MSR 3620-G |
|
|
|
MSR3620-X1/MSR3620-X1-XS/MSR3620-DP/MSR3620-XS |
|
|
|
MSR 36-40 |
|
|
|
MSR 36-60 |
|
|
|
MSR3640-G |
|
|
|
MSR3640-X1 |
|
|
|
MSR3640-XS |
|
|
|
MSR3640-X1-HI |
|
|
|
MSR3660-XS |
|
|
|
MSR3600-28 |
|
|
|
MSR3600-28-SI |
|
|
|
MSR3600-28-SI-GL |
|
|
|
MSR3600-28-X1/MSR3600-28-XS/MSR3600-28-X1-DP |
|
|
|
MSR3600-51 |
|
|
|
MSR3600-51-SI |
|
|
|
MSR3600-51-X1 |
|
|
|
MSR3600-51-X1-DP |
|
|
|
MSR3600-28-G-DP/MSR3600-51-G-DP |
|
|
|
|
||
