2 LEDs
Panel LEDs

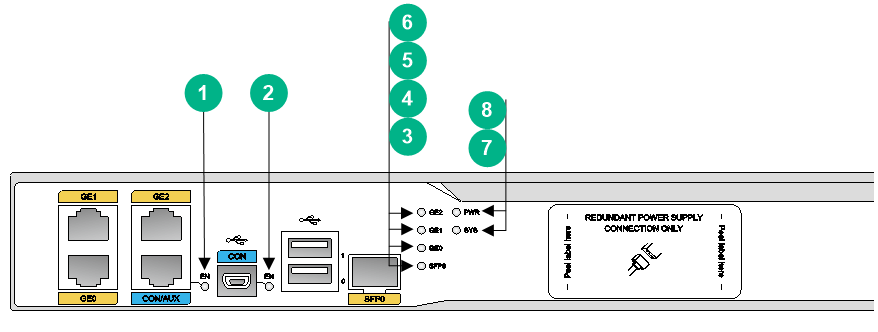

MSR 36-10
Figure2-1 MSR 36-10 LEDs
|
(1) Console port LED |
(2) USB console port LED |
(3) SFP port LED (SFP0) |
|
(4) Gigabit Ethernet port LED (GE0) |
(5) Gigabit Ethernet port LED (GE1) |
(6) Gigabit Ethernet port LED (GE2) |
|
(7) System LED (SYS) |
(8) Power supply LED (PWR) |
|

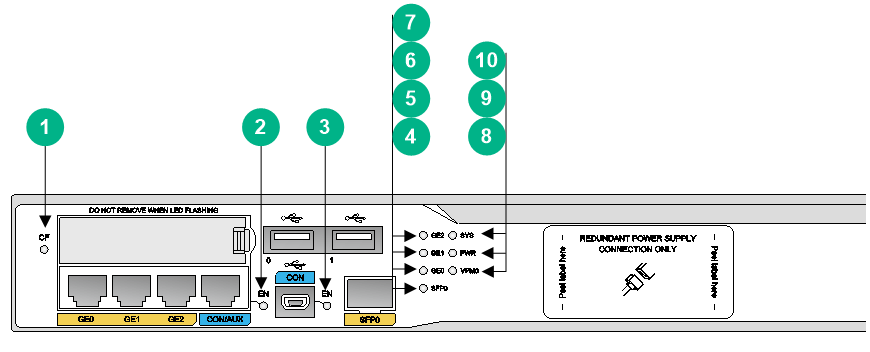

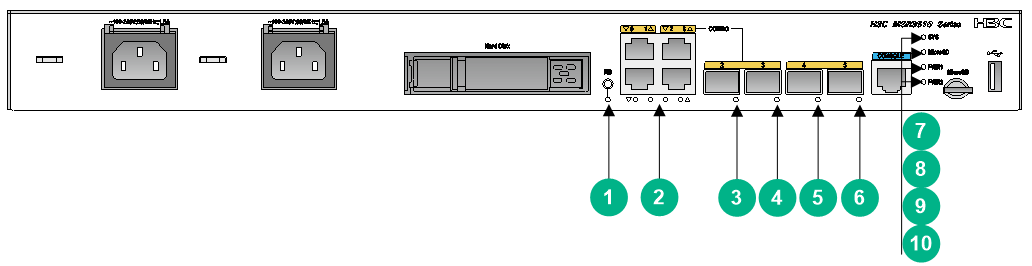

MSR 36-20
Figure2-2 MSR 36-20 LEDs
|
(1) CF card LED |
(2) Console port LED |
(3) USB console port LED |
|
(4) SFP port LED (SFP0) |
(5) Gigabit Ethernet port LED (GE0) |
(6) Gigabit Ethernet port LED (GE1) |
|
(7) Gigabit Ethernet port LED (GE2) |
(8) VPM (slot 0) LED (VPM0) |
(9) Power supply LED (PWR) |
|
(10) System LED (SYS) |
||

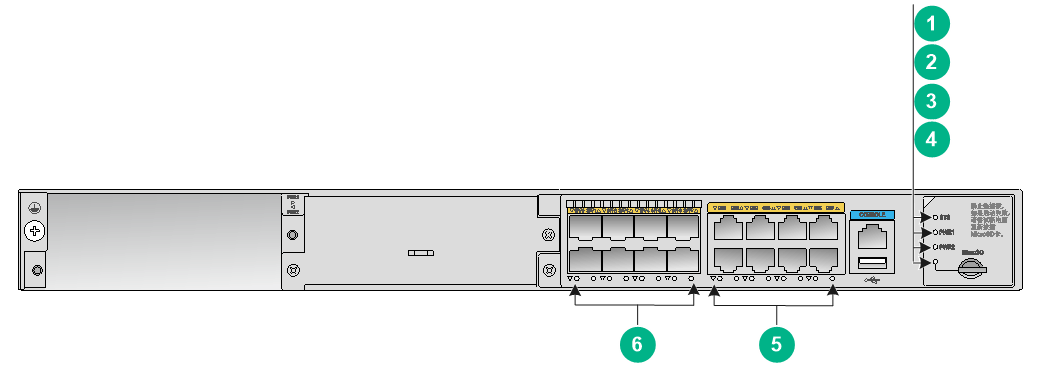

MSR3610-G/MSR3620-G
Figure2-3 MSR3610-G/MSR3620-G LEDs
|
(1) System LED (SYS) |
(2) Power supply LED (PWR1) |
(3) Power supply LED (PWR2) |
|
(4) Micro SD card LED |
(5) SFP port LEDs (SFP0 to SFP7) |
(6) Gigabit Ethernet port LEDs (GE0 to GE7) |

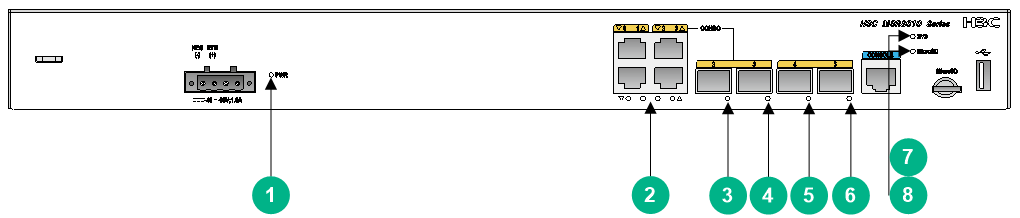

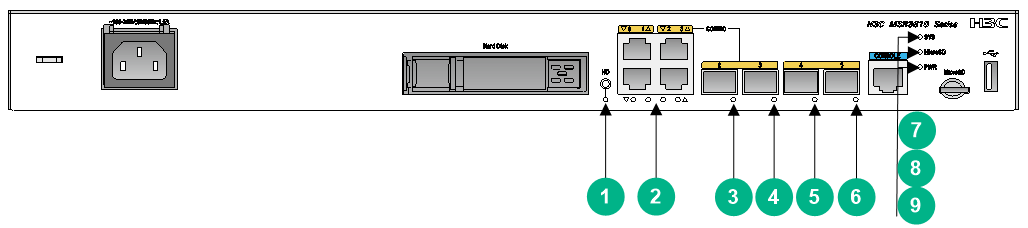

MSR3610-X1/MSR3610-XS
Figure2-4 MSR3610-X1/MSR3610-XS LEDs
|
(1) Hard disk LED |
(2) LEDs for Gigabit Ethernet ports GE0 to GE3 |
(3) LED for SFP fiber port SFP2 |
|
(4) LED for SFP fiber port SFP3 |
(5) LED for SFP fiber port SFP4 |
(6) LED for SFP fiber port SFP5 |
|
(7) System status LED (SYS) |
(8) Micro SD card LED (MicroSD) |
(9) Power status LED (PWR) |
MSR3610-X1-DP
Figure2-5 MSR3610-X1-DP LEDs
|
(1) Hard disk LED |
(2) LEDs for Gigabit Ethernet ports GE0 to GE3 |
(3) LED for SFP fiber port SFP2 |
|
(4) LED for SFP fiber port SFP3 |
(5) LED for SFP fiber port SFP4 |
(6) LED for SFP fiber port SFP5 |
|
(7) System status LED (SYS) |
(8) Micro SD card LED (MiscroSD) |
(9) Power status LED (PWR1) |
|
(10) Power status LED (PWR2) |
||

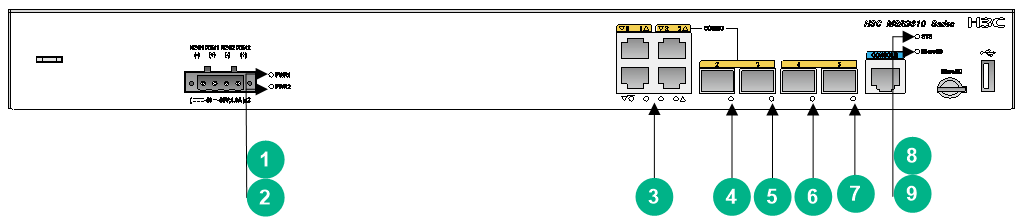

MSR3610-X1-DC
Figure2-6 MSR3610-X1-DC LEDs
|
(1) Power status LED (PWR) |
(2) LEDs for Gigabit Ethernet ports GE0 to GE3 |
(3) LED for SFP fiber port SFP2 |
|
(4) LED for SFP fiber port SFP3 |
(5) LED for SFP fiber port SFP4 |
(6) LED for SFP fiber port SFP5 |
|
(7) System status LED (SYS) |
(8) Micro SD card LED (MicroSD) |
|
MSR3610-X1-DP-DC
Figure2-7 MSR3610-X1-DP-DC LEDs
|
(1) Power status LED (PWR1) |
(2) Power status LED (PWR2) |
(3) LEDs for Gigabit Ethernet ports GE0 to GE3 |
|
(4) LED for SFP fiber port SFP2 |
(5) LED for SFP fiber port SFP3 |
(6) LED for SFP fiber port SFP4 |
|
(7) LED for SFP fiber port SFP5 |
(8) System status LED (SYS) |
(9) Micro SD card LED (MiscroSD) |

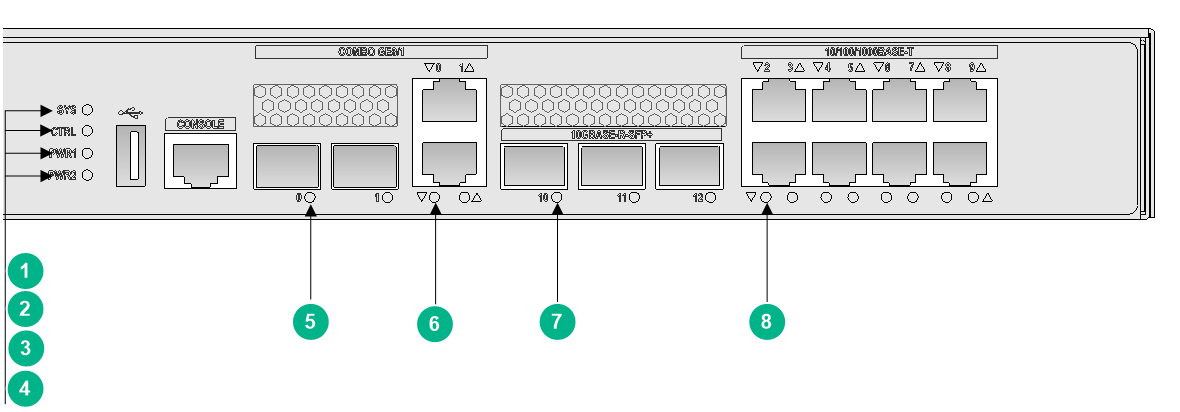

MSR3610E-X1

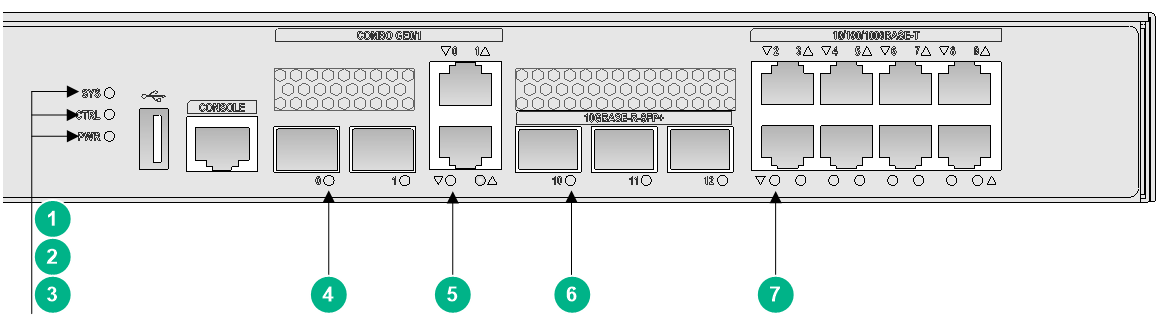

Figure2-8 MSR3610E-X1 LEDs
|
(1) System status LED (SYS) |
(2) CTRL LED (CTRL) |
(3) Power status LED (PWR) |
|
(4) LEDs for combo fiber ports SFP0 and SFP1 |
(5) LEDs for combo copper ports GE0 and GE1 |
(6) LEDs for 10GE fiber ports SFP+10 to SFP+12 |
|
(7) LEDs for GE copper ports GE2 to GE9 |
||
MSR3610E-X1-DP
Figure2-9 MSR3610E-X1-DP LEDs
|
(1) System status LED (SYS) |
(2) CTRL LED (CTRL) |
(3) Power status LED (PWR1) |
|
(4) Power status LED (PWR2) |
(5) LEDs for combo fiber ports SFP0 and SFP1 |
(6) LEDs for combo copper ports GE0 and GE1 |
|
(7) LEDs for 10GE fiber ports SFP+10 to SFP+12 |
(8) LEDs for GE copper ports GE2 to GE9 |
|
MSR3620-X1/MSR3620-X1-XS

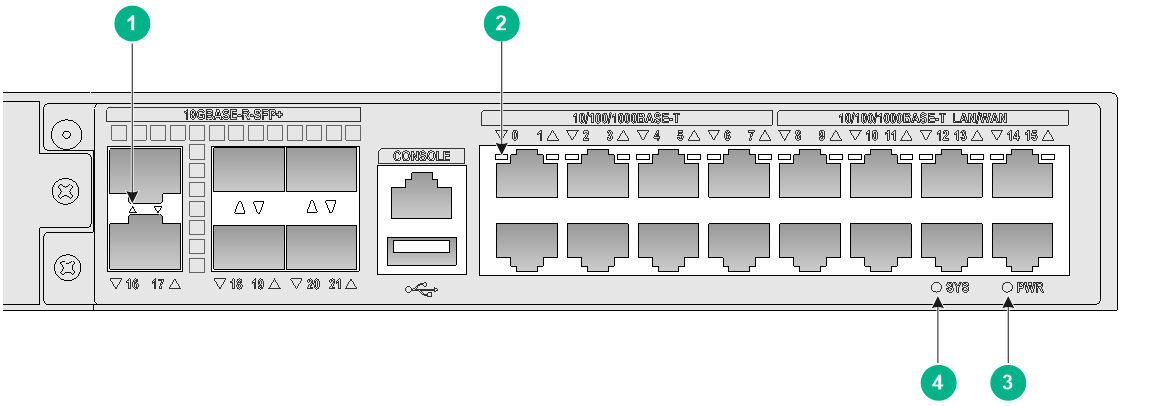

Figure2-10 MSR3620-X1/MSR3620-X1-XS LEDs
|
(1) 10GBASE-R-SFP+ Ethernet fiber port LEDs (16 to 21) |
(2) 10/100/1000BASE-T Ethernet copper port LEDs (0 to 15) |
|
(3) Power supply LED (PWR) |
(4) System LED (SYS) |

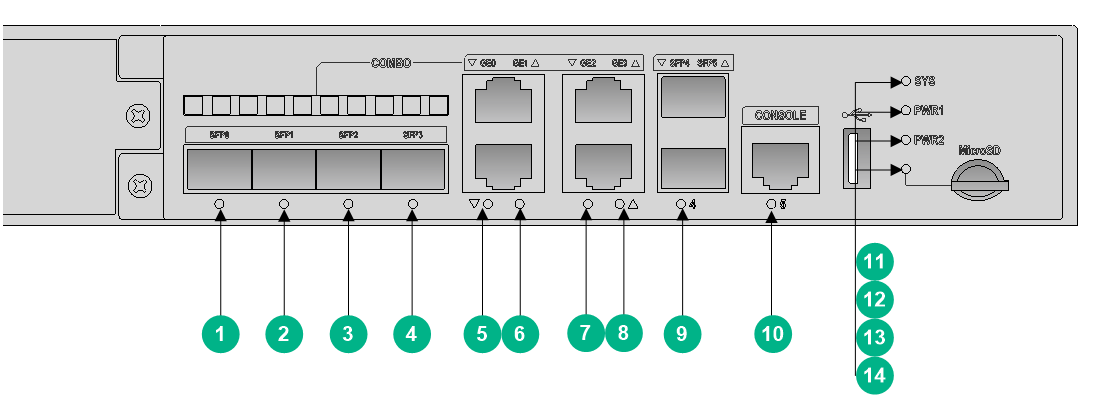

MSR3620-DP/MSR3620-XS
Figure2-11 MSR3620-DP/MSR3620-XS LEDs
|
(1) SFP port LED (SFP0) |
(2) SFP port LED (SFP1) |
(3) SFP port LED (SFP2) |
|
(4) SFP port LED (SFP3) |
(5) Gigabit Ethernet port LED (GE0) |
(6) Gigabit Ethernet port LED (GE1) |
|
(7) Gigabit Ethernet port LED (GE2) |
(8) Gigabit Ethernet port LED (GE3) |
(9) SFP port LED (SFP4) |
|
(10) SFP port LED (SFP5) |
(11) System LED (SYS) |
(12) Power supply LED (PWR1) |
|
(13) Power supply LED (PWR2) |
(14) Micro SD card LED |
|

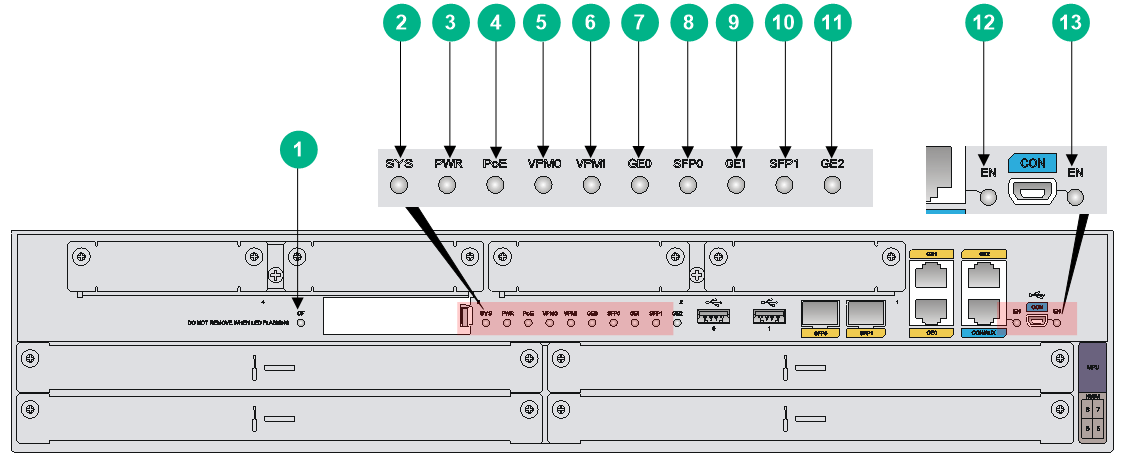

MSR 36-40

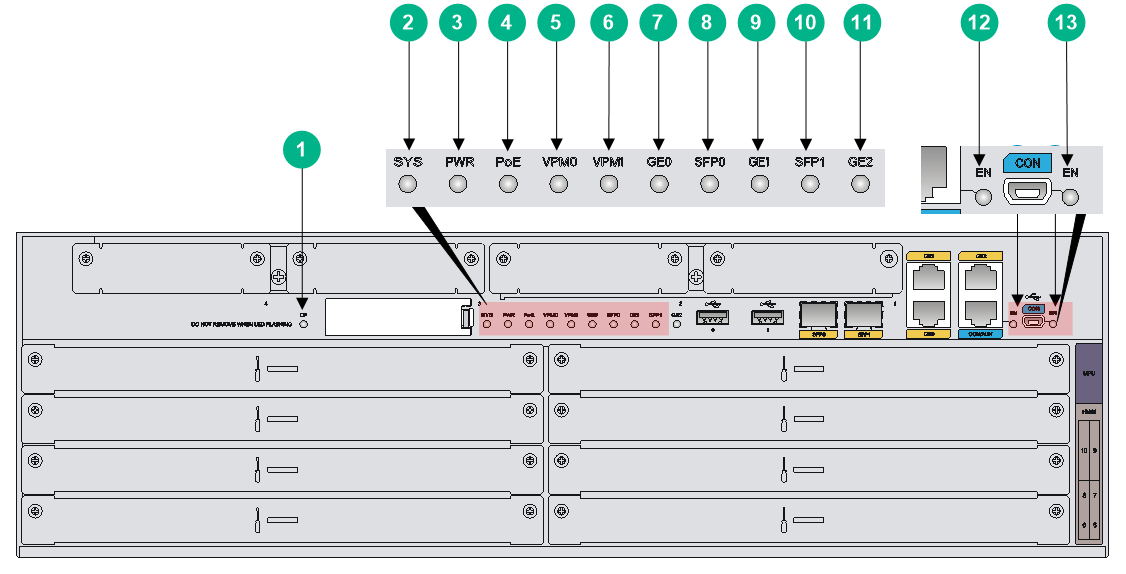

Figure2-12 MSR 36-40 LEDs
|
(1) CF card LED |
(2) System LED (SYS) |
(3) Power supply LED (PWR) |
|
(4) PoE power supply LED |
(5) VPM (slot 0) LED (VPM0) |
(6) VPM (slot 1) LED (VPM1) |
|
(7) Gigabit Ethernet port LED (GE0) |
(8) SFP port LED (SFP0) |
(9) Gigabit Ethernet port LED (GE1) |
|
(10) SFP port LED (SFP1) |
(11) Gigabit Ethernet port LED (GE2) |
(12) Console port LED |
|
(13) USB console port LED |
||
MSR 36-60
Figure2-13 MSR 36-60 LEDs
|
(1)CF card LED |
(2) System LED (SYS) |
(3) Power supply LED (PWR) |
|
(4) PoE power supply LED |
(5) VPM (slot 0) LED (VPM0) |
(6) VPM (slot 1) LED (VPM1) |
|
(7) Gigabit Ethernet port LED (GE0) |
(8) SFP port LED (SFP0) |
(9) Gigabit Ethernet port LED (GE1) |
|
(10) SFP port LED (SFP1) |
(11) Gigabit Ethernet port LED (GE2) |
(12) Console port LED |
|
(13) USB console port LED |
||
MSR3640-G
Figure2-14 MSR3640-G LEDs
|
(1) System LED (SYS) |
(2) 10/100/1000BASE-T Ethernet copper port LEDs (2 to 9) |
|
(3) Gigabit Ethernet port LEDs (GE0 and GE1) |
(4) SFP port LEDs (SFP0 and SFP1) |
|
(5) 10GBASE-R-SFP+ Ethernet fiber port LEDs (10 to 15) |
(6) Power supply LED (PWR) |
MSR3640-X1
Figure2-15 MSR3640-X1 LEDs
|
(1) System LED (SYS) |
(2) 10/100/1000BASE-T Ethernet copper port LEDs (1 to 8) |
|
(3) Gigabit Ethernet port LED (GE0) |
(4) SFP port LED (SFP0) |
|
(5) 10GBASE-R-SFP+ Ethernet fiber port LEDs (9 to 13) |
(6) Power supply LED (PWR) |
MSR3640-XS
Figure2-16 MSR3640-XS LEDs
|
(1) System LED (SYS) |
(2) 10/100/1000BASE-T Ethernet copper port LEDs (1 to 8) |
|
(3) Gigabit Ethernet port LED (GE0) |
(4) SFP port LED (SFP0) |
|
(5) SFP port LEDs (SFP9 and SFP10) |
(6) 10GBASE-R-SFP+ Ethernet fiber port LEDs (11 to 13) |
|
(7) Power supply LED (PWR) |
|

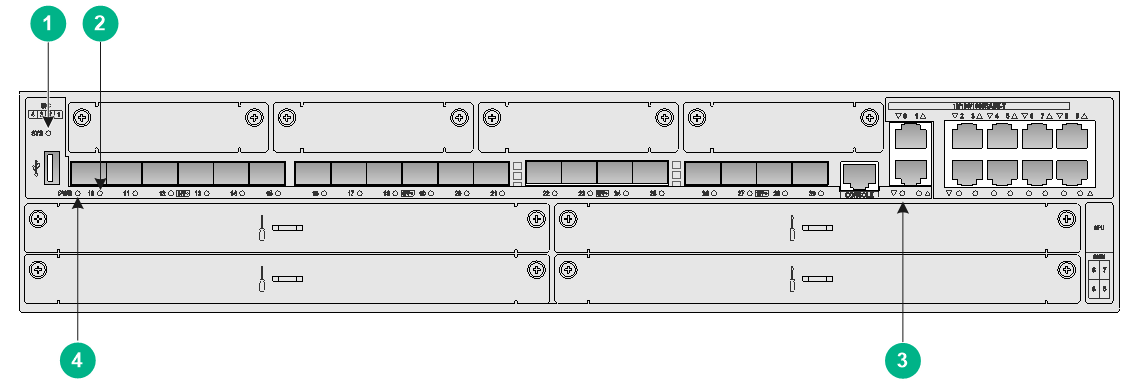

MSR3640-X1-H1
Figure2-17 MSR3640-X1-H1 LEDs
|
(1) System LED (SYS) |
(2) SFP+ port LEDs (SFP+10 and SFP+25) |
(3) SFP28 port LEDs (26 to 29) |
|
(4) 10/100/1000BASE-T Ethernet copper port LEDs (0 to 9) |
(5) Power supply LED (PWR) |
|

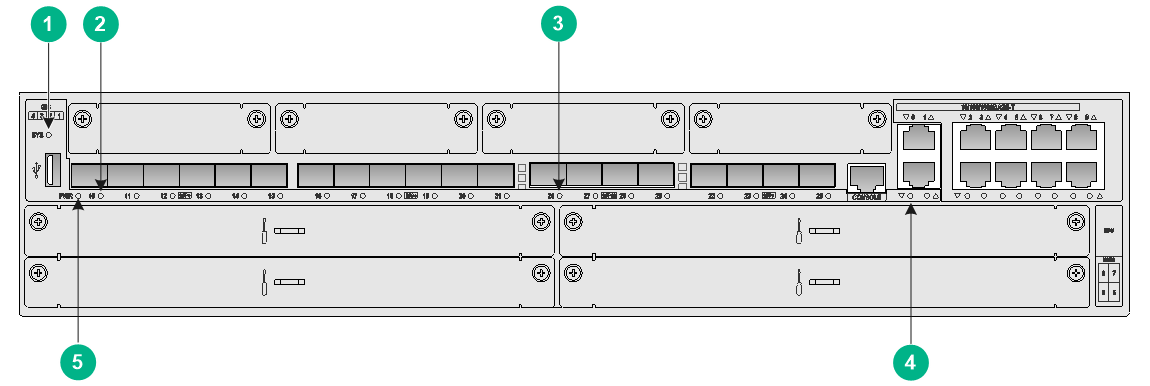

MSR3660-XS
Figure2-18 MSR3660-XS LEDs
|
(1) System LED (SYS) |
(2) SFP+ port LEDs (SFP+10 to SFP+29) |
(3) 10/100/1000BASE-T Ethernet copper port LEDs (0 to 9) |
|
(4) Power supply LED (PWR) |
||

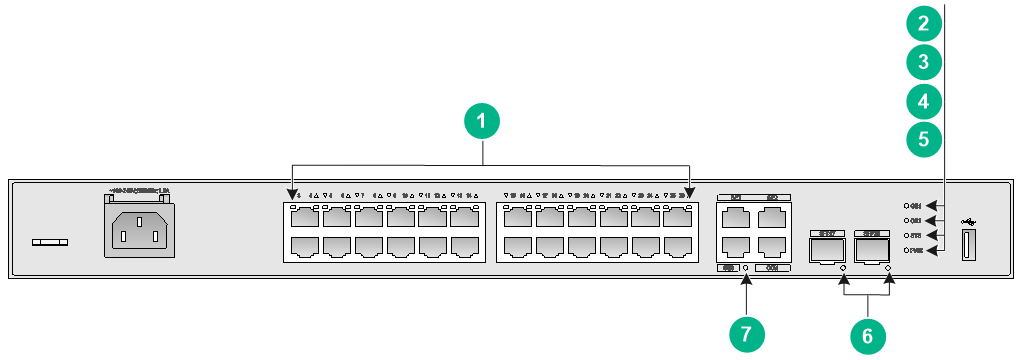

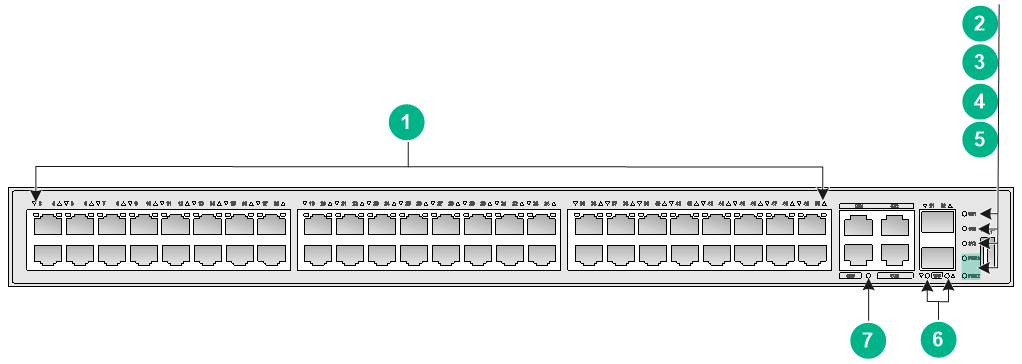

MSR3600-28
Figure2-19 MSR3600-28 LEDs
|
(1) Gigabit Ethernet ports LEDs (GE3 to GE26) |
(2) Power supply LED (PWR) |
|
(3) System LED (SYS) |
(4) Gigabit Ethernet port LED (GE2) |
|
(5) Gigabit Ethernet port LED (GE1) |
(6) SFP port LED (SFP27) |
|
(7) Gigabit Ethernet port LED (GE0) |
|
MSR3600-28-SI
Figure2-20 MSR3600-28-SI LEDs
|
(1) Fast Ethernet port LEDs (FE3 to FE26) |
(2) Power supply LED (PWR) |
|
(3) SFP port LED (SFP27) |
(4) Gigabit Ethernet port LED (GE0) |
|
(5) Gigabit Ethernet port LED (GE1) |
(6) Gigabit Ethernet port LED (GE2) |
|
(7) System LED (SYS) |
|
MSR3600-28-SI-GL
Figure2-21 MSR3600-28-SI-GL LEDs
|
(1) Fast Ethernet port LEDs (FE3 to FE26) |
(2) Power supply LED (PWR) |
|
(3) SFP port LED (SFP27) |
(4) Gigabit Ethernet port LED (GE0) |
|
(5) Gigabit Ethernet port LED (GE1) |
(6) Gigabit Ethernet port LED (GE2) |
|
(7) System LED (SYS) |
|
MSR3600-28-X1/MSR3600-28-XS
Figure2-22 MSR3600-28-X1/MSR3600-28-XS LEDs
|
(1) Gigabit Ethernet copper port LEDs (GE3 to GE26) |
(2) Gigabit Ethernet copper port LED (GE1) |
|
(3) Gigabit Ethernet copper port LED (GE2) |
(4) System LED (SYS) |
|
(5) Power supply LED (PWR) |
(6) SFP port LEDs (SFP27 and SFP28) |
|
(7) Gigabit Ethernet copper port LED (GE0) |
|

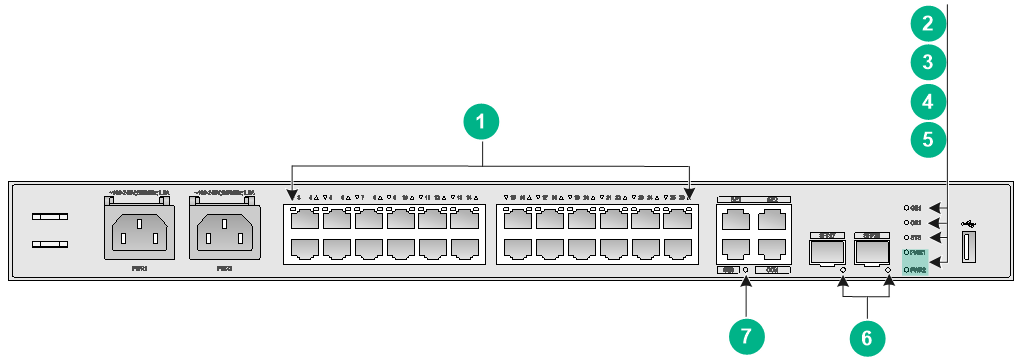

MSR3600-28-X1-DP
Figure2-23 MSR3600-28-X1-DP LEDs
|
(1) Gigabit Ethernet copper port LEDs (GE3 to GE26) |
(2) Gigabit Ethernet copper port LED (GE1) |
|
(3) Gigabit Ethernet copper port LED (GE2) |
(4) System LED (SYS) |
|
(5) Power supply LEDs (PWR1 and PWR2) |
(6) SFP port LEDs (SFP27 and SFP28) |
|
(7) Gigabit Ethernet copper port LED (GE0) |
|

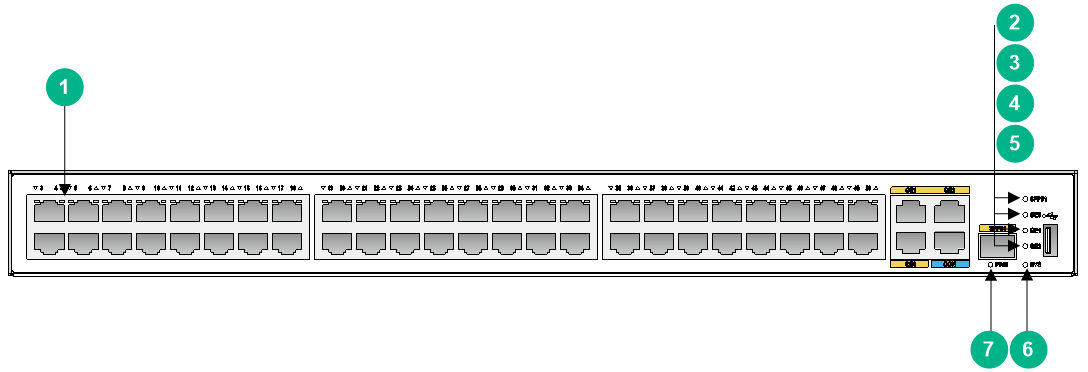

MSR3600-51

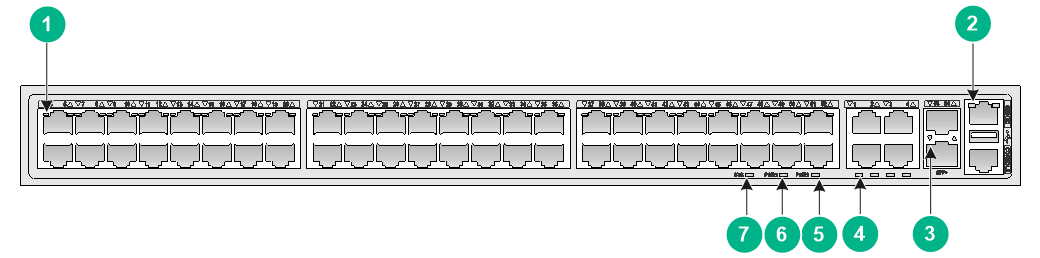

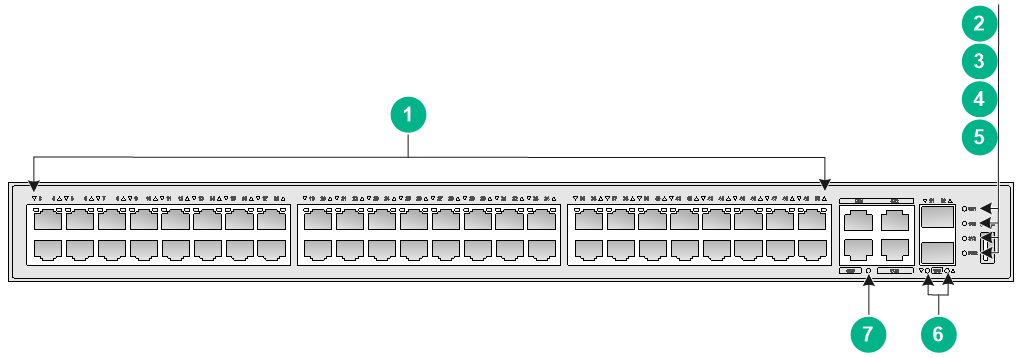

Figure2-24 MSR3600-51 LEDs
|
(1) Gigabit Ethernet ports LEDs (GE3 to GE50) |
(2) Power supply LED (PWR2) |
(3) Power supply LED (PWR1) |
|
(4) System LED (SYS) |
(5) Gigabit Ethernet port LED (GE2) |
(6) Gigabit Ethernet port LED (GE1) |
|
(7) Gigabit Ethernet port LED (GE0) |
||
MSR3600-51-SI
Figure2-25 MSR3600-51-SI LEDs
|
(1) Fast Ethernet port LEDs (FE3 to FE50) |
(2) SFP port LED (SFP51) |
|
(3) Gigabit Ethernet port LED (GE0) |
(4) Gigabit Ethernet port LED (GE1) |
|
(5) Gigabit Ethernet port LED (GE2) |
(6) System LED (SYS) |
|
(7) Power supply LED (PWR) |
|
MSR3600-51-X1
Figure2-26 MSR3600-51-X1 LEDs
|
(1) Gigabit Ethernet copper port LEDs (GE3 to GE50) |
(2) Gigabit Ethernet copper port LED (GE1) |
|
(3) Gigabit Ethernet copper port LED (GE2) |
(4) System LED (SYS) |
|
(5) Power supply LED (PWR) |
(6) SFP port LEDs (SFP51 and SFP52) |
|
(7) Gigabit Ethernet copper port LED (GE0) |
|
MSR3600-51-X1-DP
Figure2-27 MSR3600-51-X1-DP LEDs
|
(1) Gigabit Ethernet copper port LEDs (GE3 to GE50) |
(2) Gigabit Ethernet copper port LED (GE1) |
|
(3) Gigabit Ethernet copper port LED (GE2) |
(4) System LED (SYS) |
|
(5) Power supply LEDs (PWR1 and PWR2) |
(6) SFP port LEDs (SFP51 and SFP52) |
|
(7) Gigabit Ethernet copper port LED (GE0) |
|
MSR3600-28-G-DP
Figure2-28 MSR3600-28-G-DP LEDs
|
(1) Gigabit Ethernet copper port LEDs (GE5 to GE28) |
(2) System status LED (SYS) |
|
(3) Power supply LED (PWR1) |
(4) Power supply LED (PWR2) |
|
(5) Gigabit Ethernet copper port LED (GE0) |
(6) 10GBASE-R-SFP+ fiber port LEDs (29 to 36) |
|
(7) Gigabit Ethernet copper port LEDs (GE1 to GE4) |
|
MSR3600-51-G-DP
Figure2-29 MSR3600-51-G-DP LEDs
|
(1) Gigabit Ethernet copper port LEDs (GE5 to GE52) |
(2) Gigabit Ethernet copper port LED (GE0) |
|
(3) SFP+ port LEDs (SFP+53 and SFP+54) |
(4) Gigabit Ethernet copper port LEDs (GE1 to GE4) |
|
(5) Power supply LED (PWR2) |
(6) Power supply LED (PWR1) |
|
(7) System status LED (SYS) |
|
Power supply LEDs

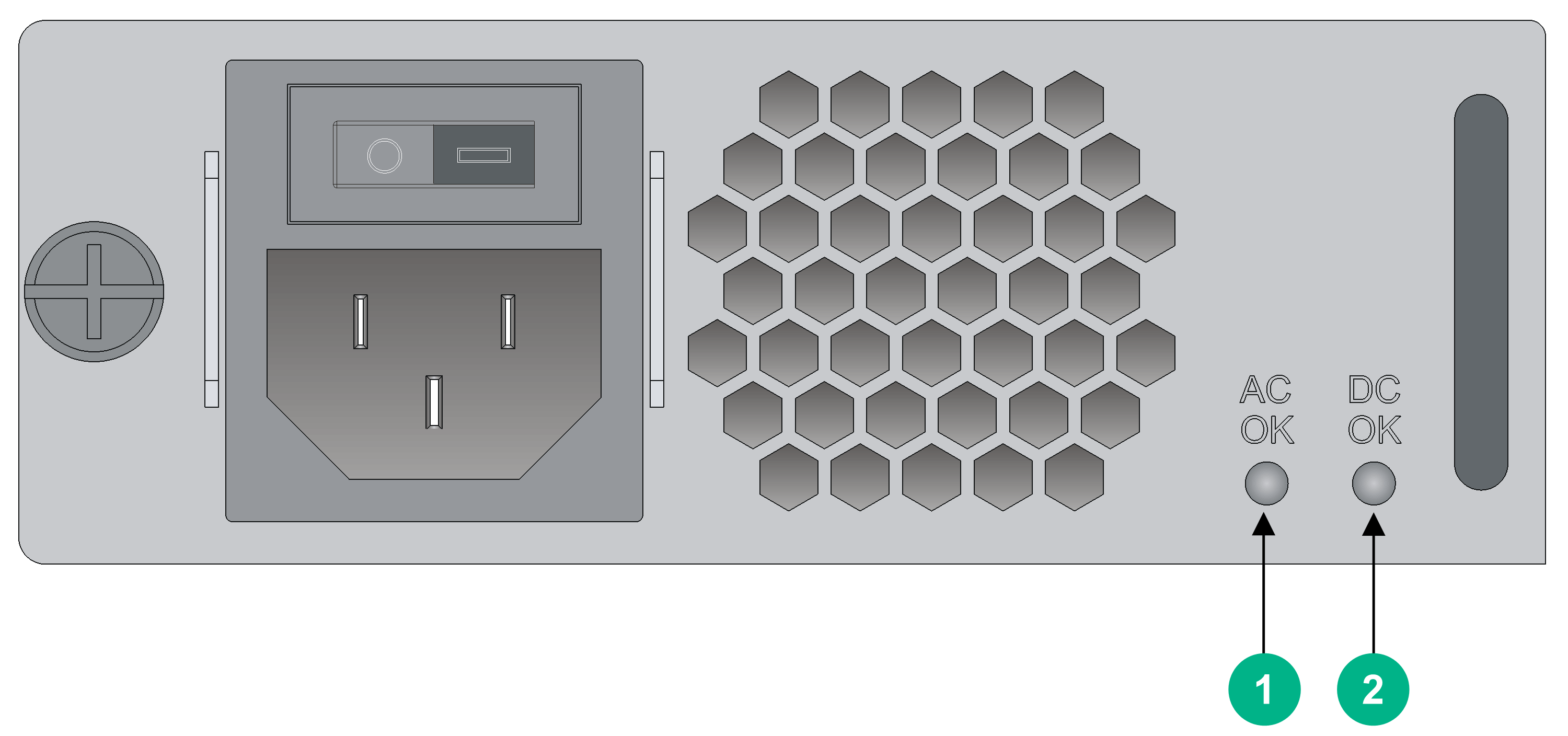

Figure2-30 AC power supply LEDs
|
(1) Power input LED |
(2) Power output LED |

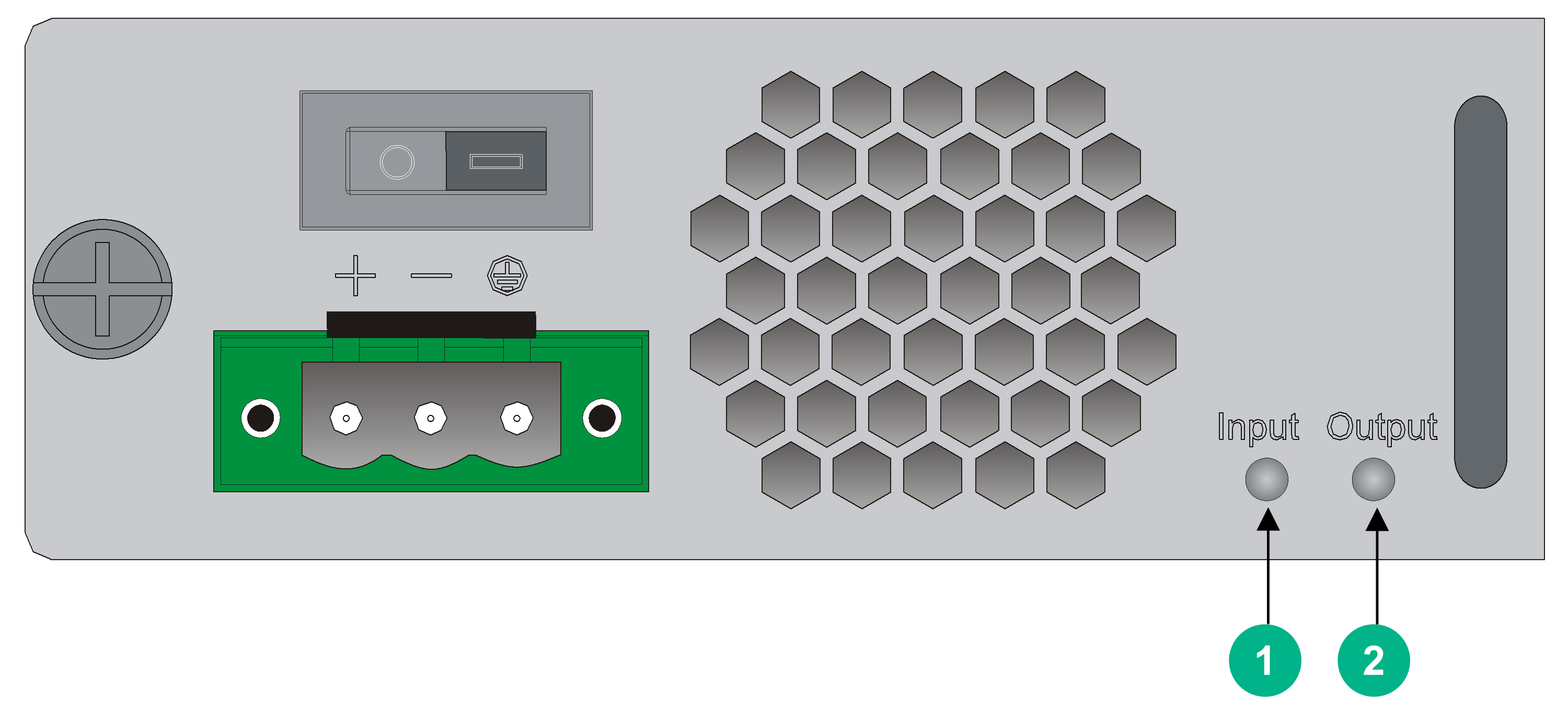

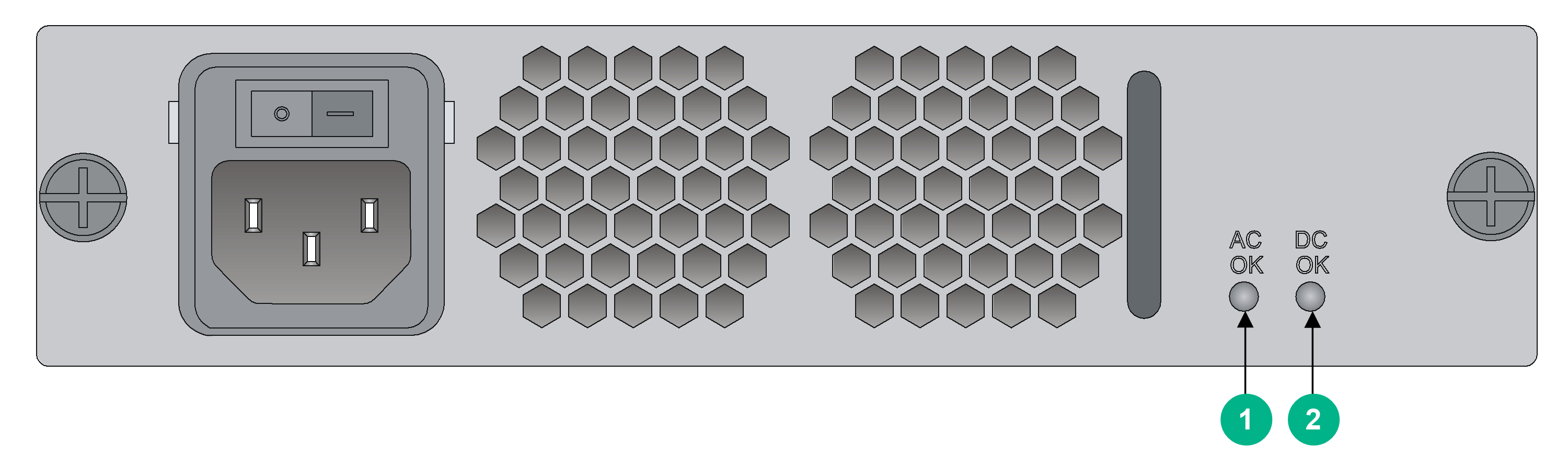

Figure2-31 DC power supply LEDs
|
(1) Power input LED |
(2) Power output LED |
Figure2-32 PoE power supply LEDs
|
(1) Power input LED |
(2) Power output LED |
LED description
SFP28 ports on an MSR3600-28-X1/MSR3600-28-XS/MSR3600-28-X1-DP router and SFP52 ports on an MSR3600-51-X1/MSR3600-51-X1-DP router can operate only at 1000 Mbps.
|
LEDs |
State |
Description |
|
SYS |
Flashing green (8 Hz) |
The BootWare is running. |
|
Steady green |
The SDRAM is performing self-test. |
|
|
Flashing green (1 Hz) |
Comware has started with the configuration file and the router has booted up. |
|
|
Flashing yellow (1 Hz) |
The DDR3 SDRAM has failed the self-test. |
|
|
Flashing yellow (8 Hz) |
The extended segment does not exist. |
|
|
Steady yellow |
The boot image does not exist. |
|
|
Off |
No power input, or exceptions have occurred. |
|
|
Flashing green (8 Hz) |
USB-based automatic configuration has succeeded. |
|
|
Flashing yellow (8 Hz) |
USB-based automatic configuration has failed. |
|
|
SYS (applicable to MSR3610-X1/MSR3610-XS/MSR3610-X1-DP/MSR3610-X1-DC/MSR3610-X1-DP-DC) |
Flashing green (1 Hz) |
Comware has started with the configuration file and the device has booted up. |
|
Flashing green (8 Hz) |
The BootWare is running. |
|
|
Steady green |
The SDRAM is performing self-test. |
|
|
Flashing yellow (1 Hz) |
The DDR3 SDRAM has failed the self-test. |
|
|
Flashing yellow (8 Hz) |
The BootWare extended segment does not exist. |
|
|
Steady yellow |
The boot image does not exist. |
|
|
Off |
No power input, or exceptions have occurred. |
|
|
Flashing yellow at 8 Hz for 5s |
USB-based automatic configuration has succeeded. |
|
|
Flashing yellow at 8 Hz for 10s |
USB-based automatic configuration has failed. |
|
|
SYS (applicable to MSR3620-X1/MSR3620-X1-XS/MSR3640-X1/MSR3640-XS/MSR3640-X1-HI/MSR3660-XS) |
Flashing green (8 Hz) |
The BootWare is running. |
|
Steady green |
The Kernel (including Eshell) is running. |
|
|
Flashing green (0.5 Hz) |
Comware has started with the configuration file and the router has booted up. |
|
|
Flashing yellow (0.5 Hz) |
The memory test has failed. |
|
|
Flashing yellow (8 Hz) |
The extended segment does not exist. |
|
|
Steady yellow |
The boot.bin file does not exist. |
|
|
Off |
No power input, or exceptions have occurred. |
|
|
SYS (applicable to MSR3610E-X1/MSR3610E-X1-DP/MSR3600-28-G-DP/MSR3600-51-G-DP/MSR3640-G) |
Flashing green (8 Hz) |
The BootWare is running. |
|
Steady green |
The Kernel (including Eshell) is running. |
|
|
Flashing green (1 Hz) |
Comware has started with the configuration file and the router has booted up. |
|
|
Flashing yellow (1 Hz) |
The memory test has failed. |
|
|
Flashing yellow (8 Hz) |
The extended segment does not exist. |
|
|
Steady yellow |
The boot.bin file does not exist. |
|
|
Off |
No power input, or exceptions have occurred. |
|
|
PWR |
Steady green |
The power supply is operating correctly. |
|
Steady yellow |
The power supply is not in position or is operating incorrectly. |
|
|
Off |
The MPU has failed or no power input. |
|
|
PoE |
Steady green |
The power supply is operating correctly. |
|
Steady yellow |
The internal power supply for at least one PoE has failed or no power supply for the PoE port. |
|
|
Off |
No power input. |
|
|
CF card LED |
Steady green |
An inserted CF card has passed the detection. |
|
Flashing green |
The system is accessing the CF card. The CF card cannot be removed. |
|
|
Steady yellow |
An inserted CF card did not pass the detection. |
|
|
Off |
No CF card is inserted or the inserted CF card cannot be identified. |
|
|
VPM |
Steady green |
An inserted VPM has passed the detection. |
|
Steady yellow |
An inserted VPM did not pass the detection. |
|
|
Off |
No VPM in the slot. |
|
|
USB console port LED |
Steady on |
The router is using the USB console port for configuration. |
|
Off |
The router is not using the USB console port. |
|
|
Console port LED |
Steady on |
The router is using the console port for configuration. |
|
Off |
The router is not using the console port. |
|
|
Micro SD card LED |
Steady green |
An inserted Micro SD card has passed the detection. |
|
Flashing green |
The system is writing data to the Micro SD card. |
|
|
Off |
No Micro SD card is inserted or a Micro SD card is incorrectly inserted. |
|
|
SYS (applicable to MSR3610-X1/MSR3610-XS/MSR3610-X1-DP/MSR3610-X1-DC/MSR3610-X1-DP-DC) |
Green |
The Micro SD card is in position and has passed the test. |
|
Flashing green at 8 Hz |
The system is accessing the Micro SD card and data is being sent and received. |
|
|
Yellow |
The Micro SD card has failed. |
|
|
Off |
No Micro SD card is in position, or the card is not identified. |
|
|
Hard disk LED (HD) |
Green |
The hard disk is in position and has passed the test. |
|
Flashing green (8 Hz) |
The system is accessing the hard disk and data is being sent and received. |
|
|
Yellow |
The hard disk has failed. |
|
|
Off |
No hard disk is in position or the hard disk is removed. |
|
|
GE Gigabit Ethernet copper port LED LED for combo copper port |
Steady green |
A 1000 Mbps link is present. |
|
Flashing green |
Data is being received or transmitted at 1000 Mbps. |
|
|
Steady yellow |
· For the MSR3610-G or MSR3620-G router, a 100 Mbps link is present. · For other routers, a 10/100 Mbps link is present. |
|
|
Flashing yellow |
· For the MSR3610-G or MSR3620-G router, data is being received or transmitted at 100 Mbps. · For other routers, data is being received or transmitted at 10/100 Mbps. |
|
|
Off |
No link is present. |
|
|
FE |
Steady green |
A link is present. |
|
Flashing green |
Data is being received or transmitted. |
|
|
Off |
No link is present. |
|
|
SFP LED for combo fiber port |
Steady green |
A 1000 Mbps link is present. |
|
Flashing green |
Data is being received or transmitted at 1000 Mbps. |
|
|
Steady yellow |
A 100 Mbps link is present. (Not supported on the MSR3610-G/MSR3620-G router.) |
|
|
Flashing yellow |
Data is being received or transmitted at 100 Mbps. (Not supported on the MSR3610-G/MSR3620-G router.) |
|
|
Off |
No link is present. |
|
|
SFP (applicable to MSR3610-X1/MSR3610-XS/MSR3610-X1-DP/MSR3610-X1-DC/MSR3610-X1-DP-DC) |
Steady green |
A 1000 Mbps link is present. |
|
Flashing green |
Data is being received or transmitted at 1000 Mbps. |
|
|
Steady yellow |
A 10/100 Mbps link is present. |
|
|
Flashing yellow |
Data is being received or transmitted at 10/100 Mbps |
|
|
Off |
No link is present. |
|
|
SFP+ |
Steady green |
A 10 Gbps link is present. |
|
Flashing green |
Data is being received or transmitted at 10 Gbps. |
|
|
Steady yellow |
A 1000 Mbps link is present. (Not supported on the SFP+16 and SFP+17 of an MSR3620-X1/MSR3620-X1-XS router, or SFP+9 to SFP+11 of an MSR3640-X1/MSR3640-XS router.) |
|
|
Flashing yellow |
Data is being received or transmitted at 1000 Mbps. Not supported on the SFP+16 and SFP+17 of an MSR3620-X1/MSR3620-X1-XS router, or SFP+9 to SFP+11 of an MSR3640-X1/MSR3640-XS router.) |
|
|
Off |
No link is present. |
|
|
SFP+ (applicable to MSR3600-28-G-DP/MSR3600-51-G-DP) |
Steady green |
A 10 Gbps link is present. |
|
Flashing green |
Data is being received or transmitted at 10 Gbps. |
|
|
Steady yellow |
A 100/1000 Mbps link is present. |
|
|
Flashing yellow |
Data is being received or transmitted at 100/1000 Mbps. |
|
|
Off |
No link is present. |
|
|
SFP28 |
Steady green |
A 25 Gbps link is present. |
|
Flashing green |
Data is being received or transmitted at 25 Gbps. |
|
|
Steady yellow |
A 10 Gbps link is present. |
|
|
Flashing yellow |
Data is being received or transmitted at 10 Gbps. |
|
|
Off |
No link is present. |
|
|
CTRL |
Steady green |
A WebSocket connection is present between the device and controller. |
|
Flashing yellow |
The router is connecting to the controller. |
|
|
Off |
No link is present between the router and controller. |
|
|
AC OK |
Off |
No power input or the power input is faulty. |
|
Steady green |
The power is input correctly. |
|
|
DC OK |
Off |
No power output or the power output is faulty. |
|
Steady green |
The power is output correctly. |
|
|
Input |
Off |
No power input or the power input is faulty. |
|
Steady green |
The power is input correctly. |
|
|
Output |
Off |
No power output or the power output is faulty. |
|
Steady green |
The power is output correctly. |
|
|
AC OK |
Off |
No power input or the power input is faulty. |
|
Steady green |
The power is input correctly. |
|
|
DC OK |
Off |
No power output or the power output is faulty. |
|
Steady green |
The power is output correctly. |
