Contents
1 Chassis views, technical specifications, and compatibility information
Power supply compatibility with routers
Interface module specifications
1 Chassis views, technical specifications, and compatibility information
Chassis views
The following figures are for illustration only.
MSR 36-10 AC

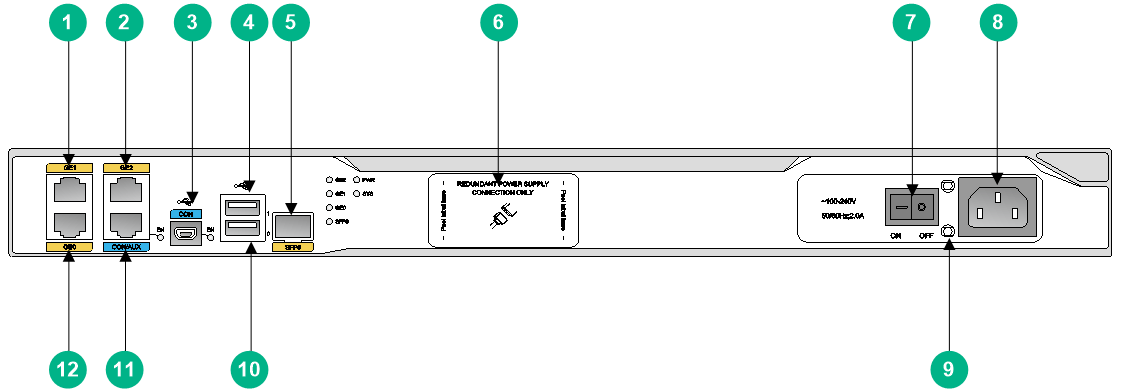

Figure1-1 MSR 36-10 AC front view
|
(2) Gigabit Ethernet port (GE2) |
(3) USB console port (CON) |
|
|
(4) USB port 1 |
(5) SFP interface (SFP0) |
(6) RPS receptacle cover |
|
(7) Power switch |
(8) AC-input power receptacle |
(9) Power cord retaining clip holder |
|
(10) USB port 0 |
(11) Console port/AUX port (CON/AUX) |
(12) Gigabit Ethernet port (GE0) |

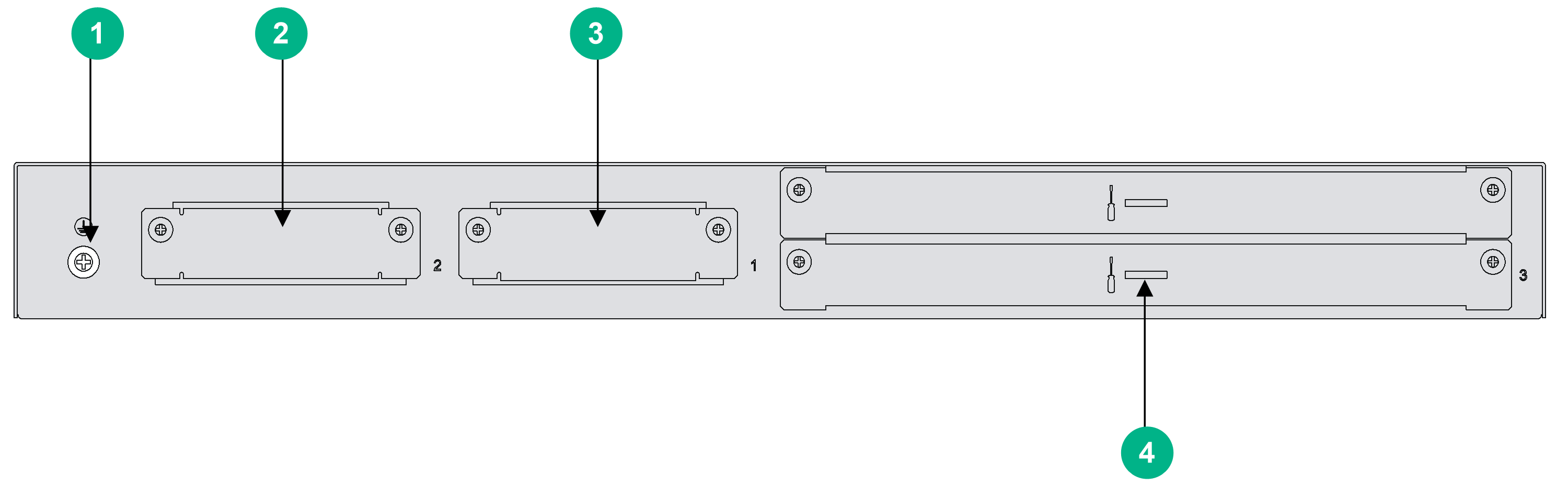

Figure1-2 MSR 36-10 AC rear view
|
(1) Grounding terminal |
(2) SIC slot (slot 2) |
(3) SIC slot (slot 1) |
|
(4) HMIM slot (slot 3) (use the lower half of the slot for a 0.5U HMIM) |
||
MSR 36-10 DC
Figure1-3 MSR 36-10 DC front view
|
(1) Gigabit Ethernet port (GE1) |
(2) Gigabit Ethernet port (GE2) |
(3) USB console port (CON) |
|
(4) USB port 1 |
(5) SFP interface (SFP0) |
(6) RPS receptacle cover |
|
(7) Power switch |
(8) DC-input power receptacle |
(9) USB port 0 |
|
(10) Console port/AUX port (CON/AUX) |
(11) Gigabit Ethernet port (GE0) |
|
Figure1-4 MSR 36-10 DC rear view
|
(1) Grounding terminal |
(2) SIC slot (slot 2) |
(3) SIC slot (slot 1) |
|
(4) HMIM slot (slot 3) (use the lower half of the slot for a 0.5U HMIM) |
||
MSR 36-20 AC

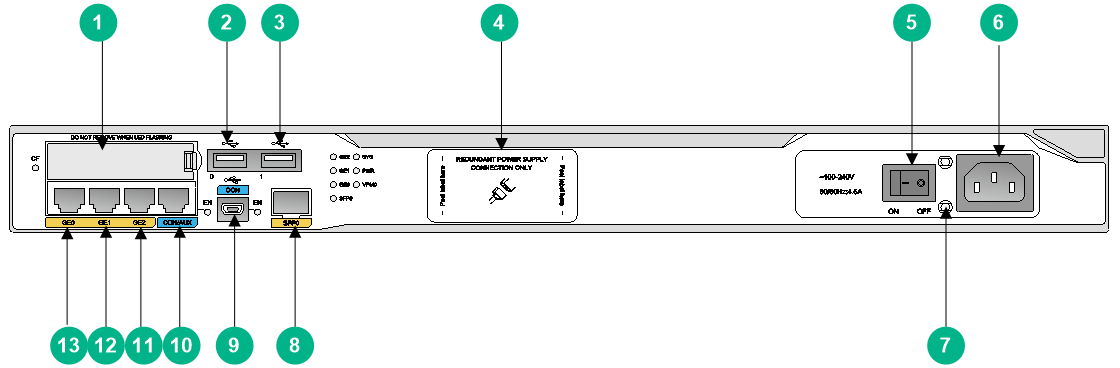

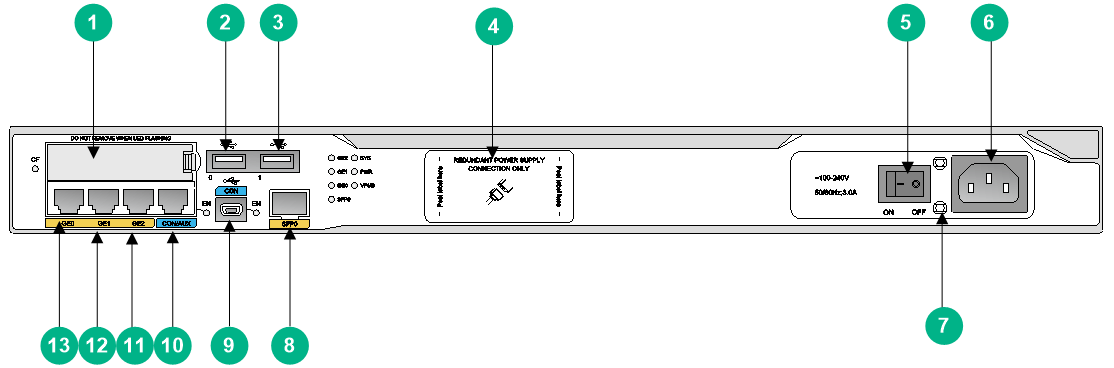

Figure1-5 MSR 36-20 AC front view
|
(1) CF card cover |
(2) USB port 0 |
(3) USB port 1 |
|
(4) RPS receptacle cover |
(5) Power switch |
(6) AC-input power receptacle |
|
(7) Power cord retaining clip holder |
(8) SFP port (SFP0) |
(9) USB console port (CON) |
|
(10) Console port/AUX port (CON/AUX) |
(11) Gigabit Ethernet port (GE2) |
(12) Gigabit Ethernet port (GE1) |
|
(13) Gigabit Ethernet port (GE0) |
||

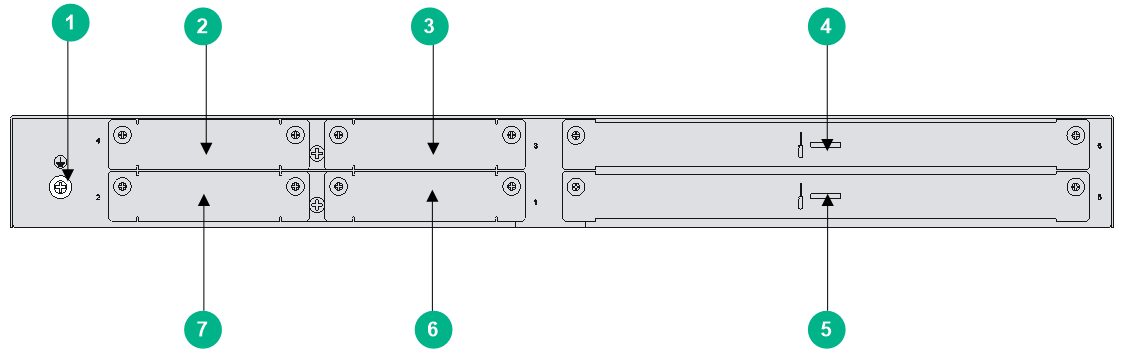

Figure1-6 MSR 36-20 AC rear view
|
(1) Grounding terminal |
(2) SIC slot (slot 4) |
(3) SIC slot (slot 3) |
|
(4) HMIM slot (slot 6) |
(5) HMIM slot (slot 5) |
(6) SIC slot (slot 1) |
|
(7) SIC slot (slot 2) |
|
|
MSR 36-20 DC

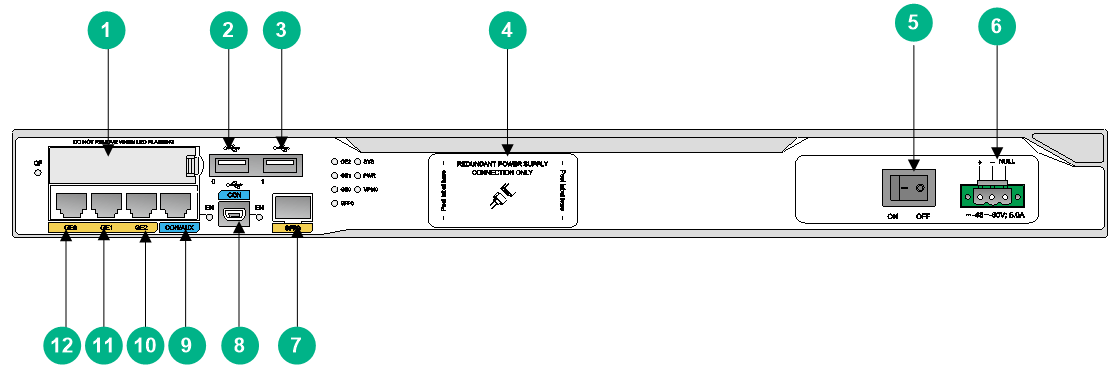

Figure1-7 MSR 36-20 DC front view
|
(1) CF card cover |
(2) USB port 0 |
(3) USB port 1 |
|
(4) RPS receptacle cover |
(5) Power switch |
(6) DC-input power receptacle |
|
(7) SFP port (SFP0) |
(8) USB console port (CON) |
(9) Console port/AUX port (CON/AUX) |
|
(10) Gigabit Ethernet port (GE2) |
(11) Gigabit Ethernet port (GE1) |
(12) Gigabit Ethernet port (GE0) |
Figure1-8 MSR 36-20 DC rear view
|
(1) Grounding terminal |
(2)SIC slot (slot 4) |
(3) SIC slot (slot 3) |
|
(4) HMIM slot (slot 6) |
(5) HMIM slot (slot 5) |
(6) SIC slot (slot 1) |
|
(7) SIC slot (slot 2) |
|
|
MSR 36-20 PoE
Figure1-9 MSR 36-20 PoE front view
|
(1) CF card cover |
(2) USB port 0 |
(3) USB port 1 |
|
(4) RPS receptacle cover |
(5) Power switch |
(6) AC-input power receptacle |
|
(7) Power cord retaining clip holder |
(8) SFP port (SFP0) |
(9) USB console port (CON) |
|
(10) Console port/AUX port (CON/AUX) |
(11) Gigabit Ethernet port (GE2) |
(12) Gigabit Ethernet port (GE1) |
|
(13) Gigabit Ethernet port (GE0) |
|
|
Figure1-10 MSR 36-20 PoE rear view
|
(1) Grounding terminal |
(2)SIC slot (slot 4) |
(3) SIC slot (slot 3) |
|
(4) HMIM slot (slot 6) |
(5) HMIM slot (slot 5) |
(6) SIC slot (slot 1) |
|
(7) SIC slot (slot 2) |
|
|
MSR3610-G
Figure1-11 MSR3610-G front view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 1) |
|
(4) SIC slot (slot 2) |
||

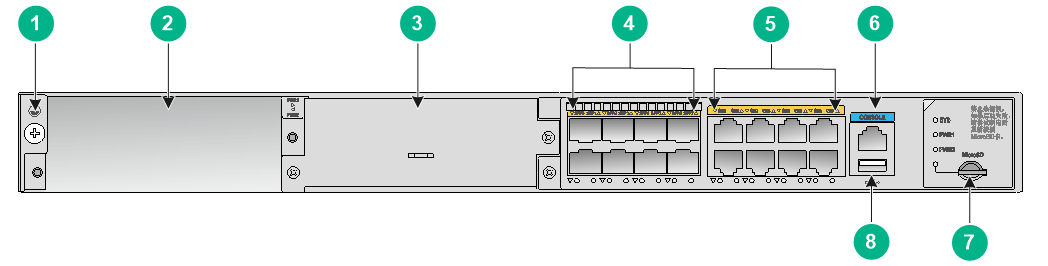

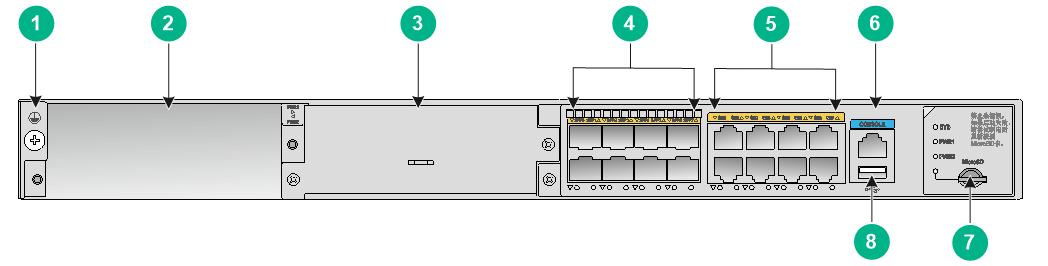

Figure1-12 MSR3610-G rear view
|
(1) Grounding terminal |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) SFP ports (SFP0 to SFP7) (combo interface) |
(5) Gigabit Ethernet copper ports (GE0 to GE7) (combo interface) |
(6) Console port (CON) |
|
(7) Micro SD card slot |
(8) USB port |
|
MSR3610-X1/MSR3610-XS
Figure1-13 Front panel
|
(1) AC power receptacle |
(2) Hard disk slot |
(3) HD button |
|
(4) Gigabit Ethernet port GE1 |
(5) Gigabit Ethernet port GE3 |
(6) SFP fiber ports 2 to 5 |
|
(7) Console port |
(8) Micro SD card slot |
(9) USB port |
|
(10) Gigabit Ethernet port GE2 |
(11) Gigabit Ethernet port GE0 |
|

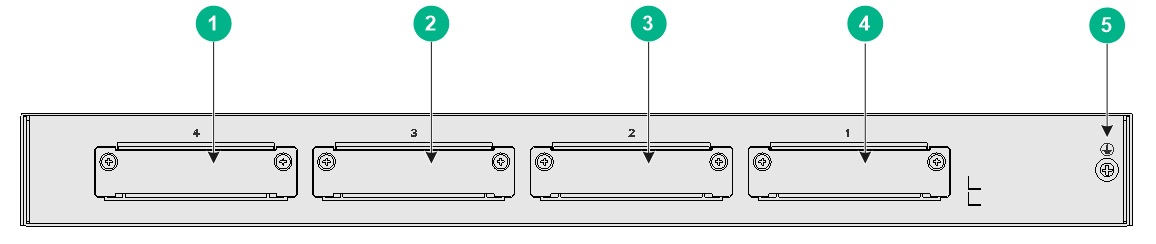

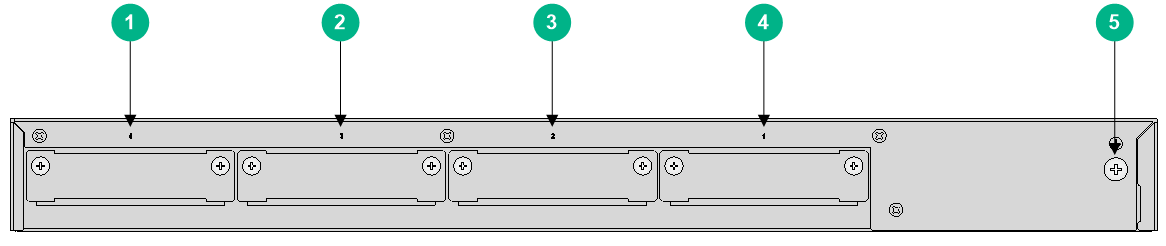

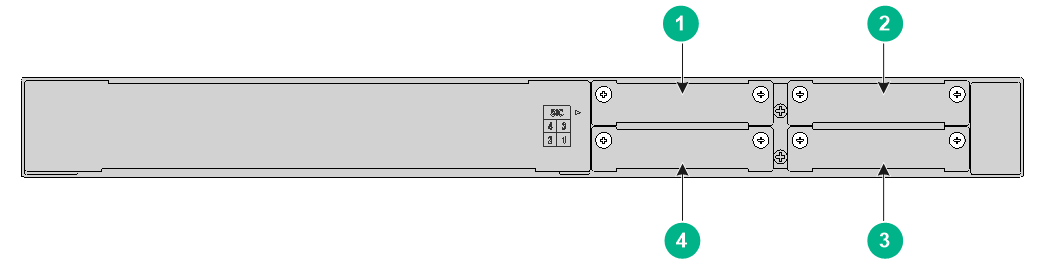

Figure1-14 Rear panel
|
(1) SIC slot 4 |
(2) SIC slot 3 |
(3) SIC slot 2 |
|
(4) SIC slot 1 |
(5) Grounding terminal |
|
MSR3610-X1-DP
Figure1-15 Front panel
|
(1) AC power receptacle (PWR1) |
(2) Hard disk slot |
(3) HD button |
|
(4) Gigabit Ethernet port GE1 |
(5) Gigabit Ethernet port GE3 |
(6) SFP ports SFP2 to SFP5 |
|
(7) Console port |
(8) Micro SD card slot |
(9) USB port |
|
(10) Gigabit Ethernet port GE2 |
(11) Gigabit Ethernet port GE0 |
(12) AC power receptacle (PWR2) |
Figure1-16 Rear panel
|
(1) SIC slot 4 |
(2) SIC slot 3 |
(3) SIC slot 2 |
|
(4) SIC slot 1 |
(5) Grounding terminal |
|
MSR3610-X1-DC

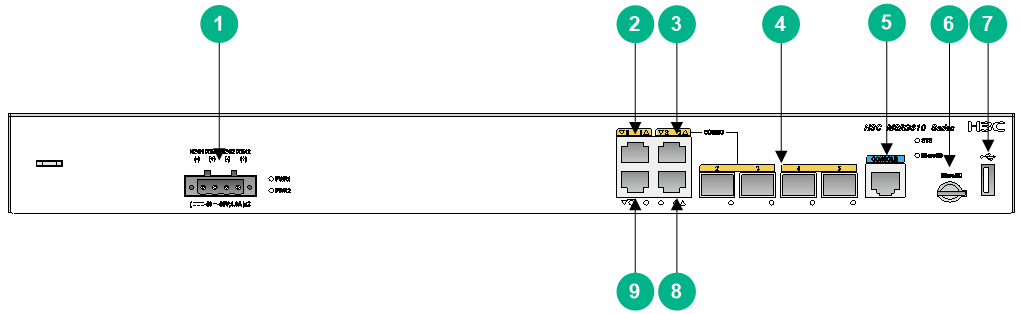

Figure1-17 Front panel
|
(1) DC power receptacle |
(2) Gigabit Ethernet port GE1 |
(3) Gigabit Ethernet port GE3 |
|
(4) SFP ports SFP2 to SFP5 |
(5) Console port |
(6) Micro SD card slot |
|
(7) USB port |
(8) Gigabit Ethernet port GE2 |
(9) Gigabit Ethernet port GE0 |
Figure1-18 Rear panel
|
(1) SIC slot 4 |
(2) SIC slot 3 |
(3) SIC slot 2 |
|
(4) SIC slot 1 |
(5) Grounding terminal |
|
MSR3610-X1-DP-DC

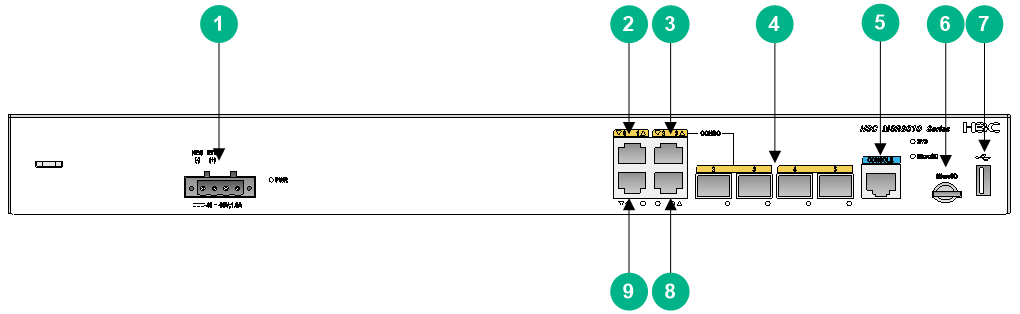

Figure1-19 Front panel
|
(1) DC power receptacle |
(2) Gigabit Ethernet port GE1 |
(3) Gigabit Ethernet port GE3 |
|
(4) SFP ports SFP2 to SFP5 |
(5) Console port |
(6) Micro SD card slot |
|
(7) USB port |
(8) Gigabit Ethernet port GE2 |
(9) Gigabit Ethernet port GE0 |
Figure1-20 Rear panel
|
(1) SIC slot 4 |
(2) SIC slot 3 |
(3) SIC slot 2 |
|
(4) SIC slot 1 |
(5) Grounding terminal |
|
MSR3610E-X1

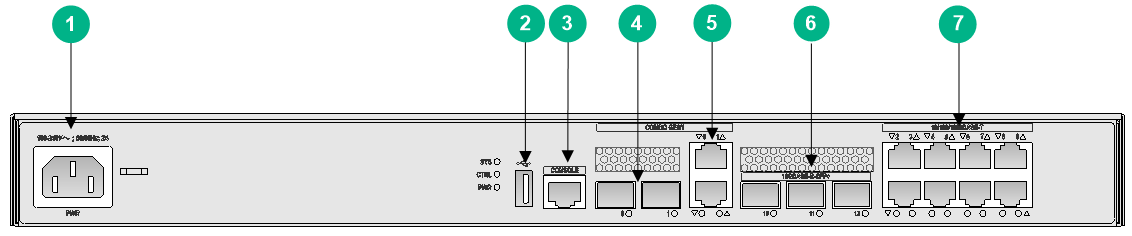

Figure1-21 Front panel
|
(2) USB port |
(3) Console port |
|
|
(4) SFP ports SFP0 and SFP1 (combo interfaces) |
(5) Gigabit Ethernet copper ports GE0 and GE1 (combo interfaces) |
(6) 10GBASE-R-SFP+ fiber ports (10 to 12) |
|
(7) 10/100/1000BASE-T Ethernet copper ports (2 to 9) |
||

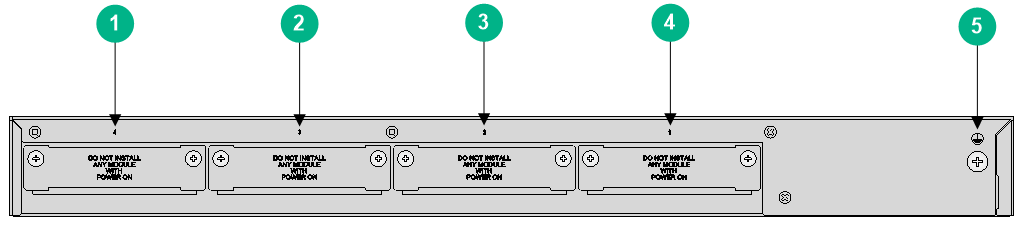

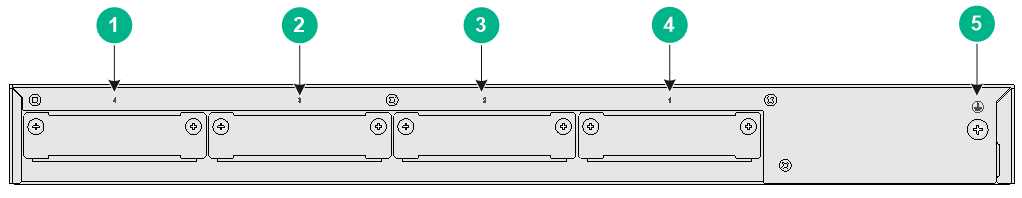

Figure1-22 Rear panel
|
(1) SIC slot 4 |
(2) SIC slot 3 |
(3) SIC slot 2 |
|
(4) SIC slot 1 |
(5) Grounding terminal |
|
MSR3610E-X1-DP

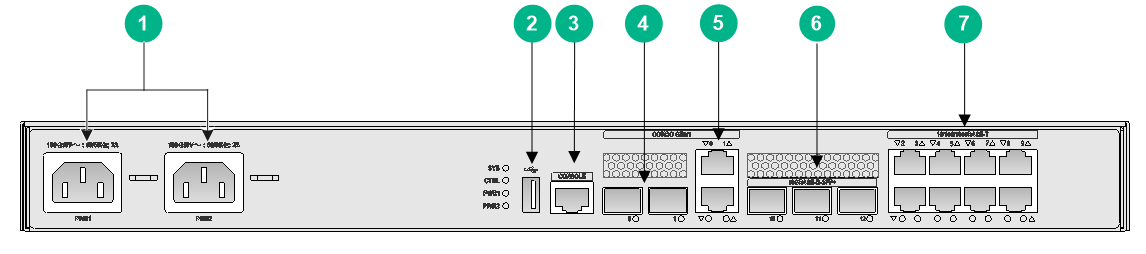

Figure1-23 Front panel
|
(1) AC power receptacles (PWR1 and PWR2) |
(2) USB port |
(3) Console port |
|
(4) SFP ports SFP0 and SFP1 (combo interfaces) |
(5) Gigabit Ethernet copper ports GE0 and GE1 (combo interfaces) |
(6) 10GBASE-R-SFP+ fiber ports (10 to 12) |
|
(7) 10/100/1000BASE-T Ethernet copper ports (2 to 9) |
||
Figure1-24 Rear panel
|
(1) SIC slot 4 |
(2) SIC slot 3 |
(3) SIC slot 2 |
|
(4) SIC slot 1 |
(5) Grounding terminal |
|
MSR3620-G
Figure1-25 MSR3620-G front view
|
(1) HMIM slot (slot 6) |
(2) SIC slot (slot 4) |
(3) SIC slot (slot 3) |
|
(4) SIC slot (slot 1) |
(5) SIC slot (slot 2) |
(6) HMIM slot (slot 5) |
Figure1-26 MSR3620-G rear view
|
(1) Grounding terminal |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) SFP ports (SFP0 to SFP7) (combo interface) |
(5) Gigabit Ethernet copper ports (GE0 to GE7) (combo interface) |
(6) Console port (CON) |
|
(7) Micro SD card slot |
(8) USB port |
|
MSR3620-X1/MSR3620-X1-XS

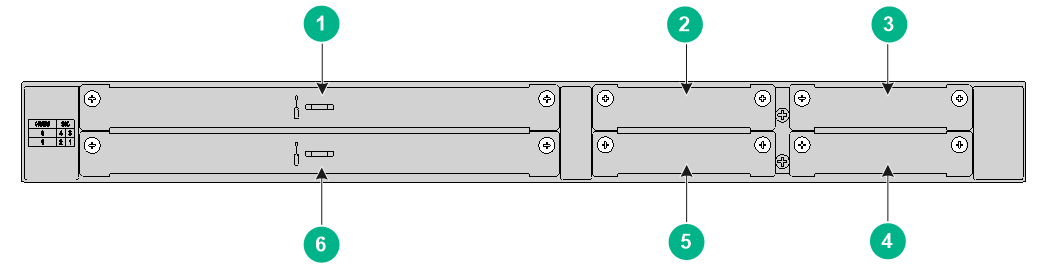

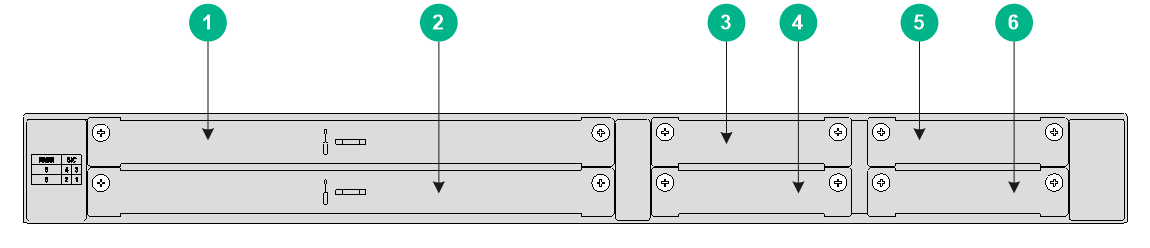

Figure1-27 MSR3620-X1/MSR3620-X1-XS front view
|
(1) HMIM slot (slot 6) |
(2) HMIM slot (slot 5) |
(3) SIC slot (slot 4) |
|
(4) SIC slot (slot 2) |
(5) SIC slot (slot 3) |
(6) SIC slot (slot 1) |
Figure1-28 MSR3620-X1/MSR3620-X1-XS rear view
|
(1) Grounding terminal |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) 10GBASE-R-SFP+ Ethernet fiber ports (16 to 21) |
(5) Console port (CON) |
(6) 10/100/1000BASE-T Ethernet copper ports (1 to 7) |
|
(7) 10/100/1000BASE-T Ethernet LAN/WAN ports (8 to 15) |
(8) Management Ethernet copper port 0 |
(9) USB port |
MSR3620-DP/MSR3620-XS
Figure1-29 MSR3620-DP/MSR3620-XS front view
|
(1) HMIM slot 6 |
(2) HMIM slot 5 |
(3) SIC slot 4 |
|
(4) SIC slot 2 |
(5) SIC slot 3 |
(6) SIC slot 1 |

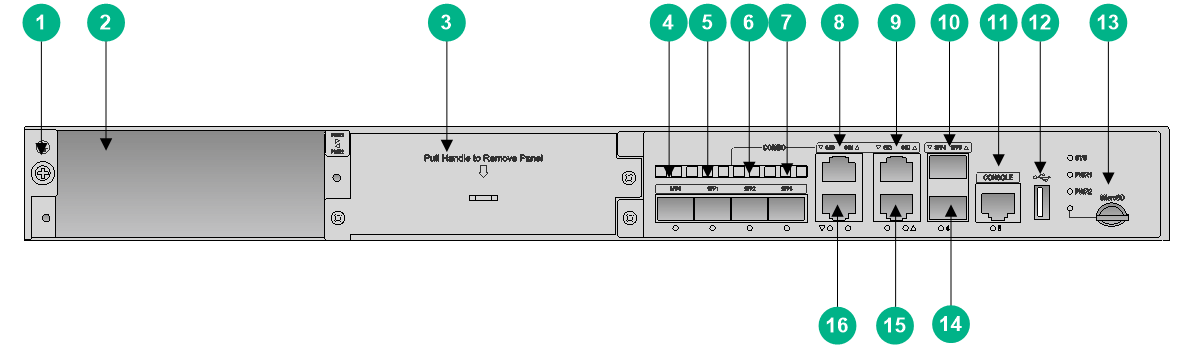

Figure1-30 MSR3620-DP/MSR3620-XS rear view
|
(1) Grounding terminal |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) SFP port (SFP0) (combo interface) |
(5) SFP port (SFP1) (combo interface) |
(6) SFP port (SFP2) (combo interface) |
|
(7) SFP port (SFP3) (combo interface) |
(8) Gigabit Ethernet copper port (GE1) (combo interface) |
(9) Gigabit Ethernet copper port (GE3) (combo interface) |
|
(10) SFP port (SFP4) |
(11) Console port/AUX port (CON/AUX) |
(12) USB port |
|
(13) Micro SD card slot |
(14) SFP port (SFP5) |
(15) Gigabit Ethernet port (GE2) (combo interface) |
|
(16) Gigabit Ethernet port (GE0) (combo interface) |
|
|
MSR 36-40

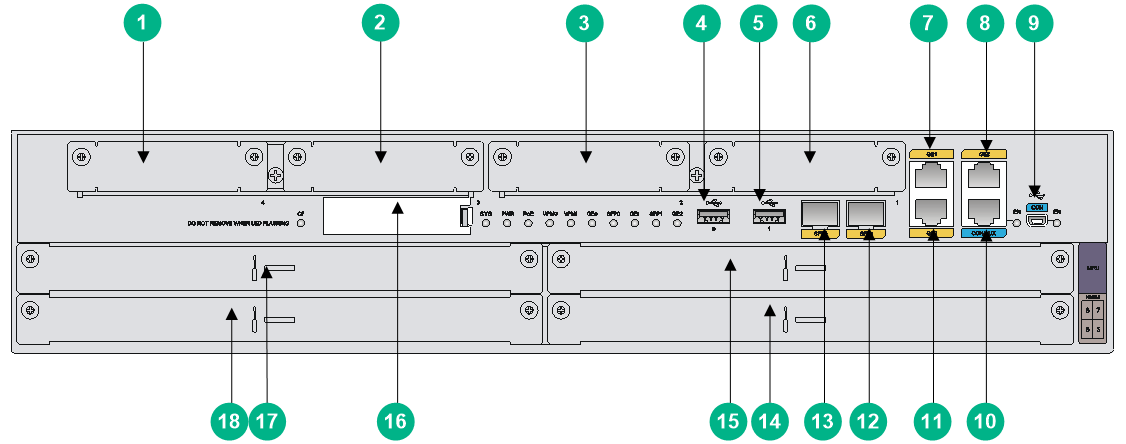

Figure1-31 MSR 36-40 front view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) USB port 0 |
(5) USB port 1 |
(6) SIC slot (slot 1) |
|
(7) Gigabit Ethernet copper port (GE1) (combo interface) |
(8) Gigabit Ethernet copper port (GE2) |
(9) USB console port (CON) |
|
(10) Console port/AUX port (CON/AUX) |
(11) Gigabit Ethernet copper port (GE0) (combo interface) |
(12) SFP port (SFP1) (combo interface) |
|
(13) SFP port (SFP0) (combo interface) |
(14) HMIM slot (slot 5) |
(15) HMIM slot (slot 7) |
|
(16) CF card cover |
(17) HMIM slot (slot 8) |
(18) HMIM slot (slot 6) |

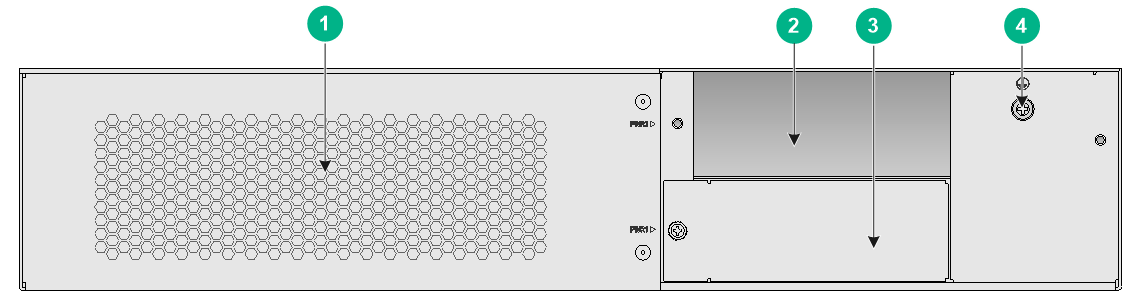

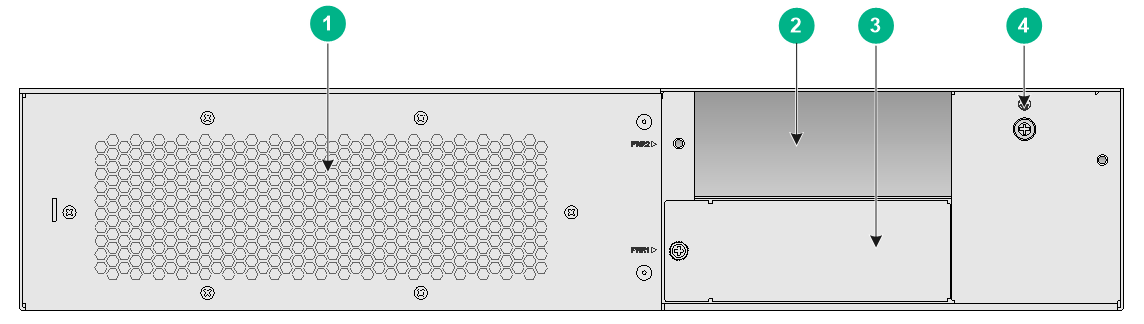

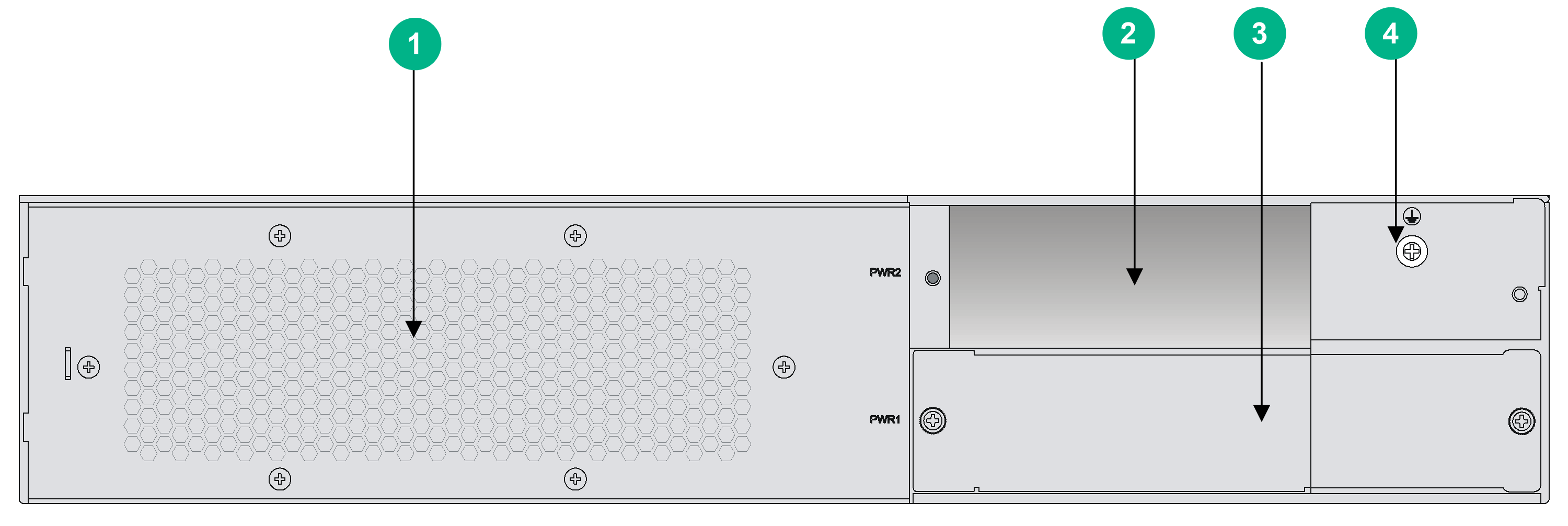

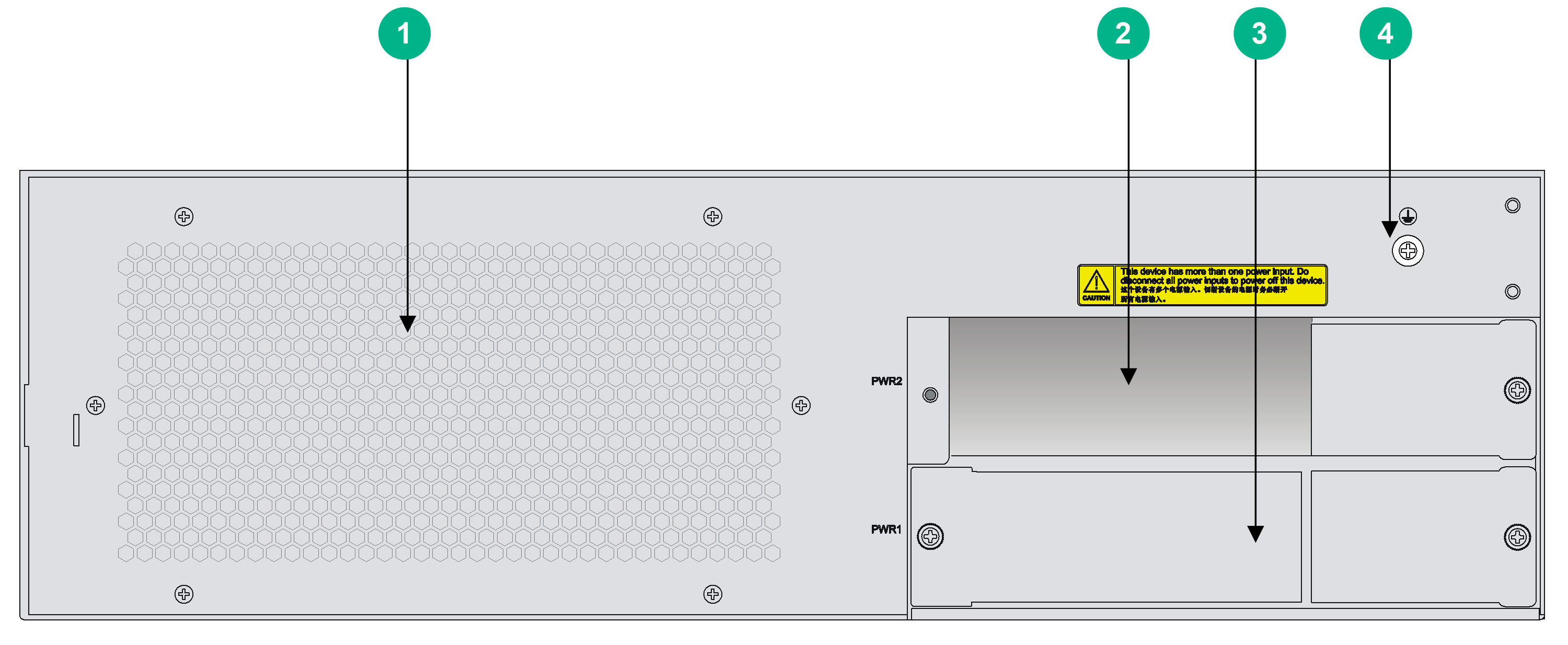

Figure1-32 MSR 36-40 rear view
|
(1) Fan ventilation panel |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) Grounding terminal |
||
MSR 36-60

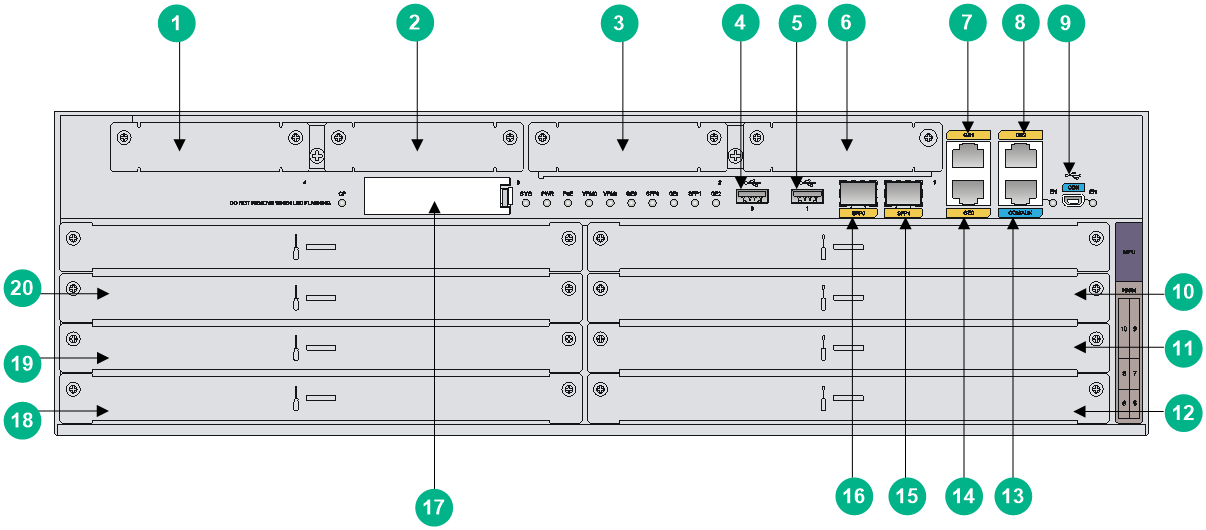

Figure1-33 MSR 36-60 front view
|
(1) SIC slot (slot 4) |
(2)SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) USB port 0 |
(5) USB port 1 |
(6) SIC slot (slot 1) |
|
(7) Gigabit Ethernet copper port (GE1) (combo interface) |
(8) Gigabit Ethernet copper port (GE2) |
(9) USB console port (CON) |
|
(10) HMIM slot (slot 9) |
(11) HMIM slot (slot 7) |
(12) HMIM slot (slot 5) |
|
(13) Console port/AUX port (CON/AUX) |
(14) Gigabit Ethernet copper port (GE0) (combo interface) |
(15) SFP port (SFP1) (combo interface) |
|
(16) SFP port (SFP0) (combo interface) |
(17) CF card cover |
(18) HMIM slot (slot 6) |
|
(19) HMIM slot (slot 8) |
(20) HMIM slot (slot 10) |
|
|
|
IMPORTANT: To install a 0.5U HMIM in slot 9 or 10, use the lower half of the slot. |
Figure1-34 MSR 36-60 rear view
|
(1) Fan ventilation panel |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) Grounding terminal |
||
MSR3640-G

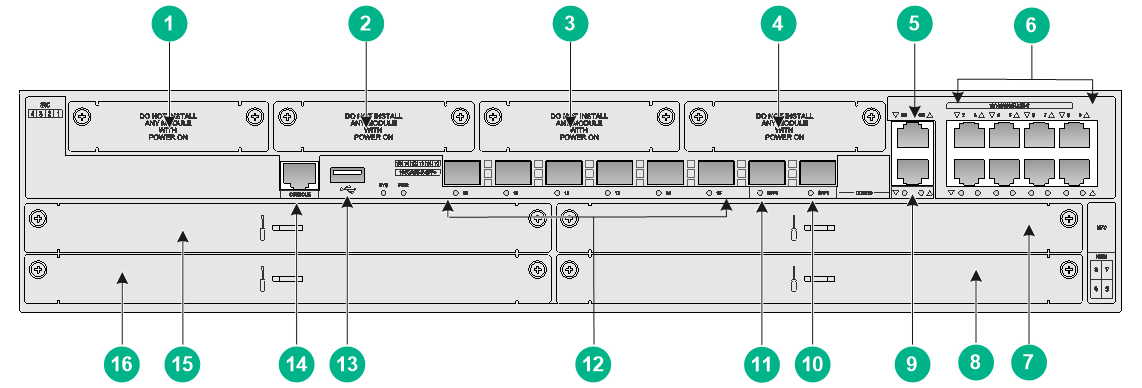

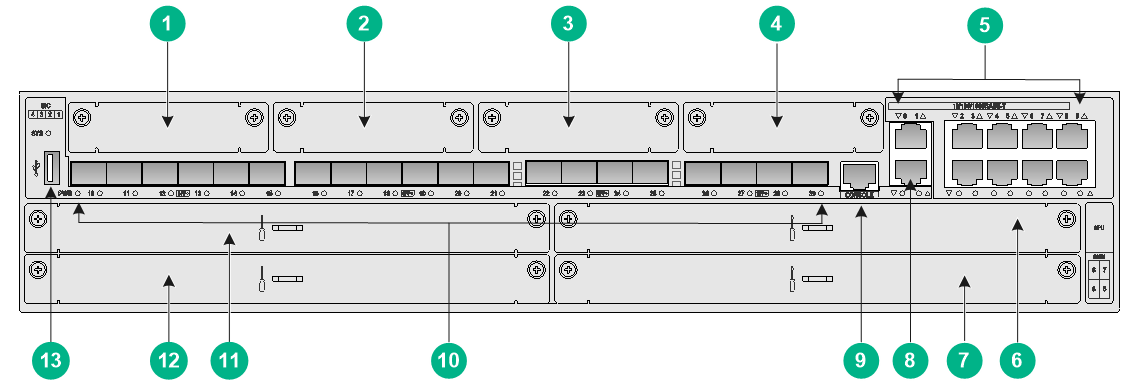

Figure1-35 MSR3640-G front view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
|
(3) SIC slot (slot 2) |
(4) SIC slot (slot 1) |
|
(5) Gigabit Ethernet copper port GE1 (combo interface) |
(6) 10/100/1000BASE-T Ethernet copper ports (2 to 9) |
|
(7) HMIM slot (slot 7) |
(8) HMIM slot (slot 5) |
|
(9) Management Ethernet port GE0 (combo interface) |
(10) SFP port SFP1 (combo interface) |
|
(11) SFP port SFP0 (combo interface) |
(12) 10GBASE-R-SFP+ Ethernet fiber ports (10 to 15) |
|
(13) USB port |
(14) Console port (CONSOLE) |
|
(15) HMIM slot (slot 8) |
(16) HMIM slot (slot 6) |
Figure1-36 MSR3640-G rear view
|
(1) Fan ventilation panel |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) Grounding terminal |
||
MSR3640-X1

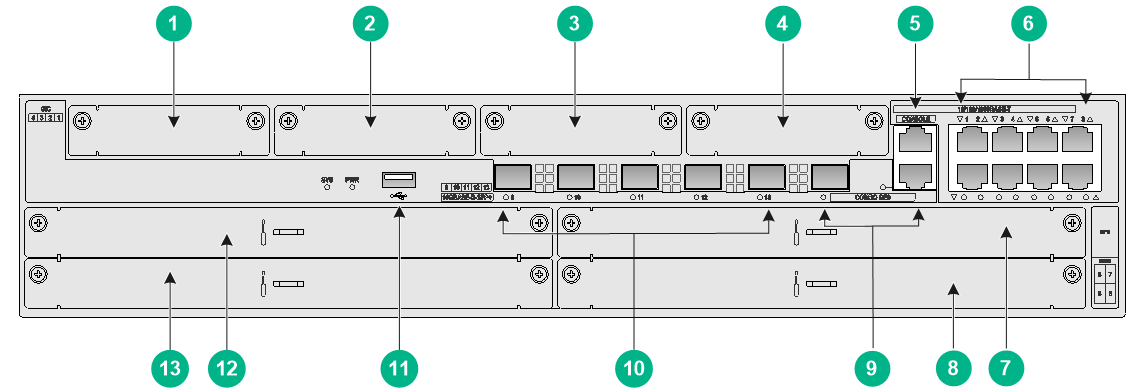

Figure1-37 MSR3640-X1 front view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
|
(3) SIC slot (slot 2) |
(4) SIC slot (slot 1) |
|
(5) Console port (CON) |
(6) 10/100/1000BASE-T Ethernet copper ports (1 to 8) |
|
(7) HMIM slot (slot 7) |
(8) HMIM slot (slot 5) |
|
(9) Management Ethernet ports SFP0 and GE0 (forming a combo interface) |
(10) 10GBASE-R-SFP+ Ethernet fiber ports (9 to 13) |
|
(11) USB port |
(12) HMIM slot (slot 8) |
|
(13) HMIM slot (slot 6) |
|
Figure1-38 MSR3640-X1 rear view
|
(1) Fan ventilation panel |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) Grounding terminal |
||
MSR3640-XS

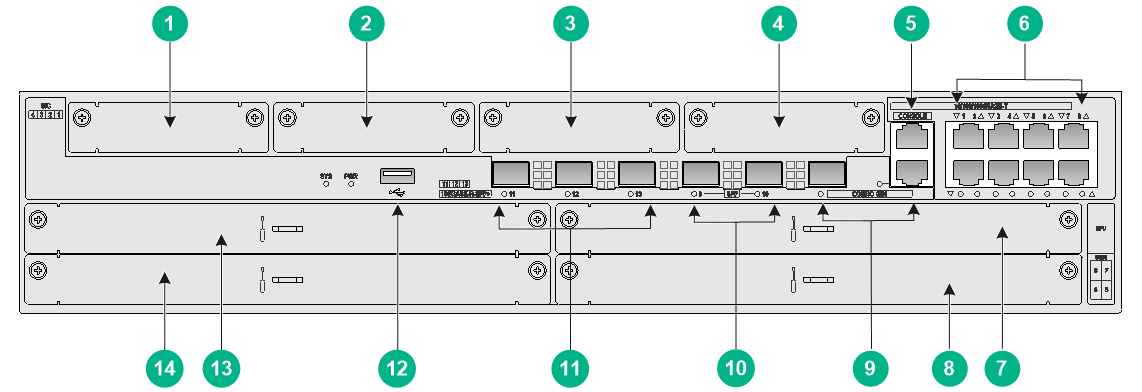

Figure1-39 MSR3640-XS front view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
|
(3) SIC slot (slot 2) |
(4) SIC slot (slot 1) |
|
(5) Console port (CON) |
(6) 10/100/1000BASE-T Ethernet copper ports (1 to 8) |
|
(7) HMIM slot (slot 7) |
(8) HMIM slot (slot 5) |
|
(9) Management Ethernet ports SFP0 and GE0 (forming a combo interface) |
(10) SFP ports (SFP9 and SFP10) |
|
(11) 10GBASE-R-SFP+ Ethernet fiber ports (11 to 13) |
(12) USB port |
|
(13) HMIM slot (slot 8) |
(14) HMIM slot (slot 6) |
Figure1-40 MSR3640-XS rear view
|
(1) Fan ventilation panel |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) Grounding terminal |
||
MSR3640-X1-H1

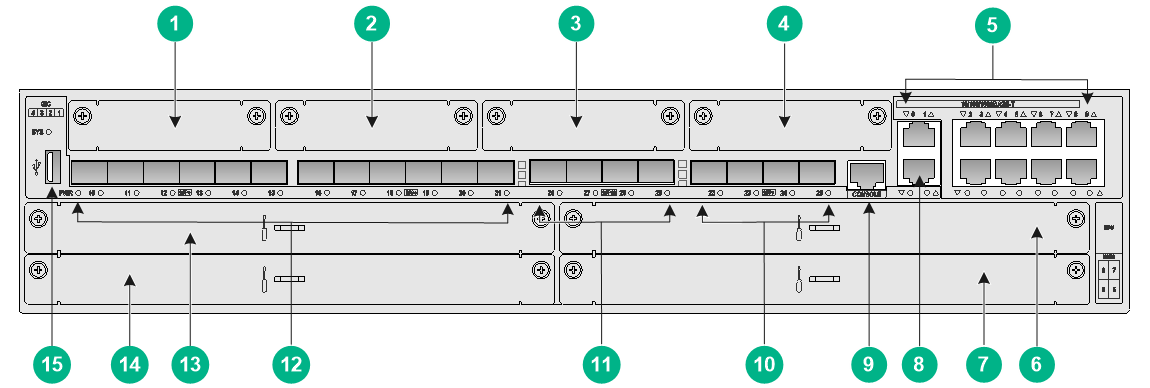

Figure1-41 MSR3640-X1-H1 front view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) 10/100/1000BASE-T Ethernet copper ports (0 to 9) |
(6) HMIM slot (slot 7) |
|
(7) HMIM slot (slot 5) |
(8) Management Ethernet copper port 0 |
(9) Console port |
|
(10) SFP+ fiber ports (SFP+22 to SFP+25) |
(11) SFP28 fiber ports (26 to 29) |
(12) SFP+ fiber ports ( SFP+10 to SFP+21) |
|
(13) HMIM slot (slot 8) |
(14) HMIM slot (slot 6) |
(15) USB port |
Figure1-42 MSR3640-X1-H1 rear view
|
(1) Fan ventilation panel |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) Grounding terminal |
||
MSR3660-XS
Figure1-43 MSR3660-XS front view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) 10/100/1000BASE-T Ethernet copper ports (0 to 9) |
(6) HMIM slot (slot 7) |
|
(7) HMIM slot (slot 5) |
(8) Management Ethernet copper port 0 |
(9) Console port |
|
(10) SFP+ fiber ports (SFP+10 to SFP+29) |
(11) HMIM slot (slot 8) |
(12) HMIM slot (slot 6) |
|
(13) USB port |
|
|
Figure1-44 MSR3660-XS rear view
|
(1) Fan ventilation panel |
(2) Power supply slot (PWR2) |
(3) Power supply slot (PWR1) |
|
(4) Grounding terminal |
||
MSR3600-28

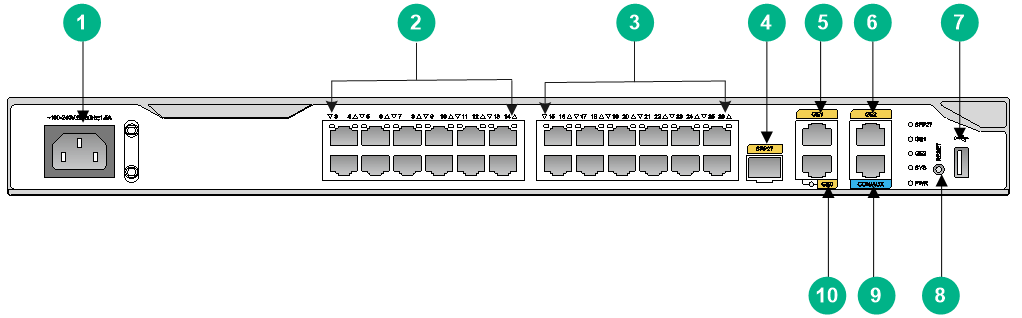

Figure1-45 MSR3600-28 front view
|
(1) AC-input power receptacle |
(2) Gigabit Ethernet copper ports (GE3 to GE14) |
(3) Gigabit Ethernet copper ports (GE15 to GE26) |
|
(4) SFP port (SFP27) |
(5) Gigabit Ethernet copper port (GE1) |
(6) Gigabit Ethernet copper port (GE2) |
|
(7) USB port |
(8) Reset button |
(9) Console port/AUX port (CON/AUX) |
|
(10) Gigabit Ethernet copper port (GE0) |
||
Figure1-46 MSR3600-28 rear view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) Grounding terminal |
|
MSR3600-28-SI

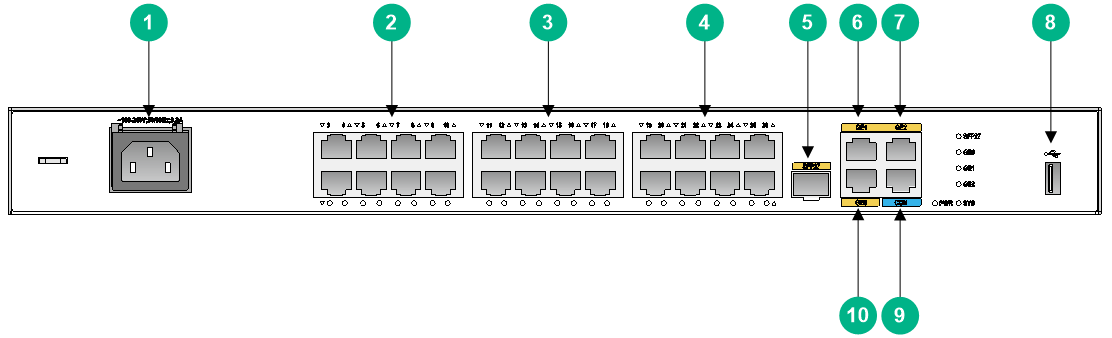

Figure1-47 MSR3600-28-SI front view
|
(1) AC-input power receptacle |
(2) Fast Ethernet copper ports (FE3 to FE10) |
|
(3) Fast Ethernet copper ports (FE11 to FE18) |
(4) Fast Ethernet copper ports (FE19 to FE26) |
|
(5) SFP port (SFP27) |
(6) Gigabit Ethernet copper port (GE1) |
|
(7) Gigabit Ethernet copper port (GE2) |
(8) USB port |
|
(9) Console port (CON) |
(10) Gigabit Ethernet copper port (GE0) |
Figure1-48 MSR3600-28-SI rear view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) Grounding terminal |
|
MSR3600-28-SI-GL
Figure1-49 MSR3600-28-SI-GL front view
|
(1) AC-input power receptacle |
(2) Fast Ethernet copper ports (FE3 to FE10) |
|
(3) Fast Ethernet copper ports (FE11 to FE18) |
(4) Fast Ethernet copper ports (FE19 to FE26) |
|
(5) SFP port (SFP27) |
(6) Gigabit Ethernet copper port (GE1) |
|
(7) Gigabit Ethernet copper port (GE2) |
(8) USB port |
|
(9) Console port (CON) |
(10) Gigabit Ethernet copper port (GE0) |
Figure1-50 MSR3600-28-SI-GL rear view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) Grounding terminal |
|
MSR3600-28-X1/MSR3600-28-XS
Figure1-51 MSR3600-28-X1/MSR3600-28-XS front view
|
(1) AC-input power receptacle |
(2) Gigabit Ethernet LAN ports (GE3 to GE26) |
|
(3) Gigabit Ethernet WAN ports (GE0 and GE1) |
(4) Gigabit Ethernet WAN port (GE2) |
|
(5) USB port |
(6) SFP ports (SFP27 and SFP28) |
|
(7) Console port (CON) |
|
Figure1-52 MSR3600-28-XI/MSR3600-28-XS rear view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) Grounding terminal |
|
MSR3600-28-X1-DP

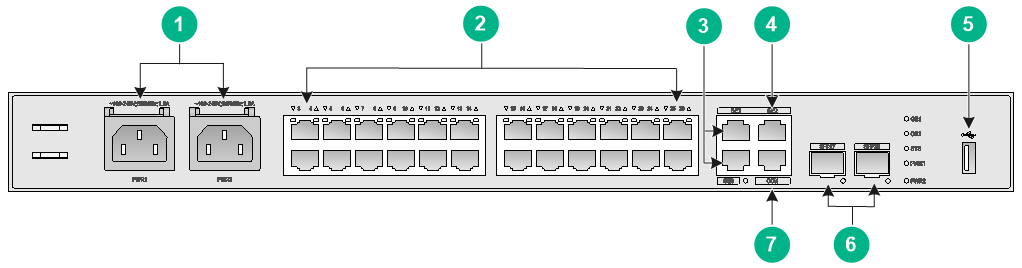

Figure1-53 MSR3600-28-X1-DP front view
|
(1) AC-input power receptacles (PWR1 and PWR2) |
(2) Gigabit Ethernet LAN ports (GE3 to GE26) |
|
(3) Gigabit Ethernet WAN ports (GE0 and GE1) |
(4) Gigabit Ethernet WAN port (GE2) |
|
(5) USB port |
(6) SFP ports (SFP27 and SFP28) |
|
(7) Console port (CON) |
|
Figure1-54 MSR3600-28-X1-DP rear view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) Grounding terminal |
|
MSR3600-51

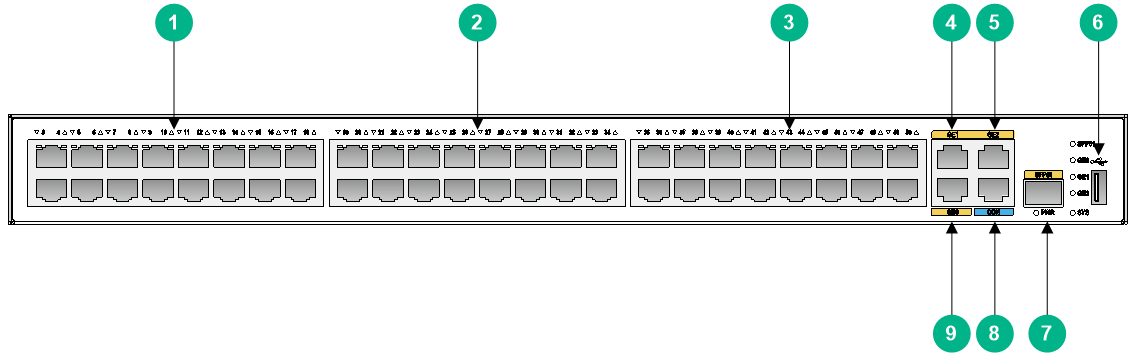

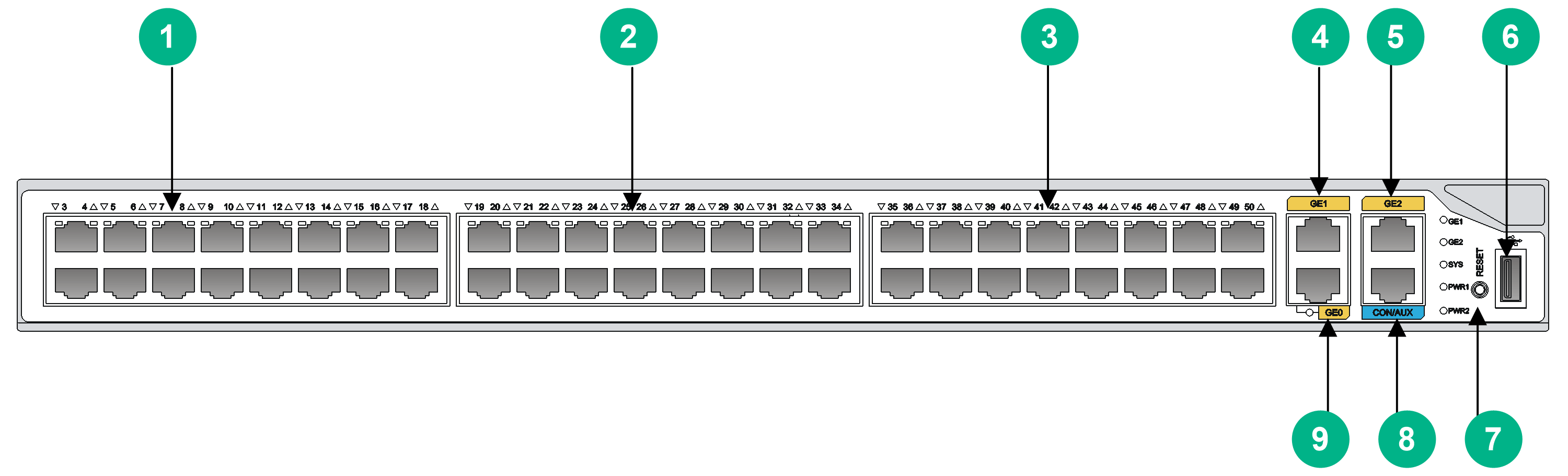

Figure1-55 MSR3600-51 front view
|
(1) Gigabit Ethernet copper ports (GE3 to GE18) |
(2) Gigabit Ethernet copper ports (GE19 to GE34) |
(3) Gigabit Ethernet copper ports (GE35 to GE50) |
|
(4) Gigabit Ethernet copper port (GE1) |
(5) Gigabit Ethernet copper port (GE2) |
(6) USB port |
|
(7) Reset button |
(8) Console port/AUX port (CON/AUX) |
(9) Gigabit Ethernet copper port (GE0) |
Figure1-56 MSR3600-51 rear view
|
(1) Power supply slot (PWR2) |
(2) Power supply slot (PWR1) |
(3) SIC slot (slot 4) |
|
(4) SIC slot (slot 3) |
(5) Grounding terminal |
(6) SIC slot (slot 1) |
|
(7) SIC slot (slot 2) |
||
MSR3600-51-SI
Figure1-57 MSR3600-51-SI front view
|
(1) Fast Ethernet copper ports (FE3 to FE18) |
(2) Fast Ethernet copper ports (FE19 to FE34) |
|
(3) Fast Ethernet copper ports (FE35 to FE50) |
(4) Gigabit Ethernet copper port (GE1) |
|
(5) Gigabit Ethernet copper port (GE2) |
(6) USB port |
|
(7) SFP port (SFP51) |
(8) Console port (CON) |
|
(9) Gigabit Ethernet copper port (GE0) |
|

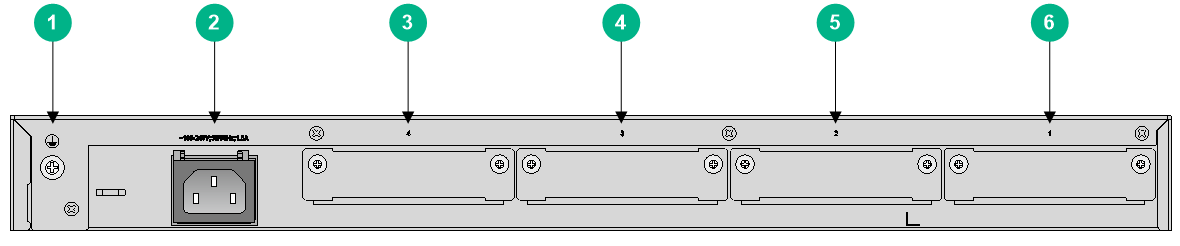

Figure1-58 MSR3600-51-SI rear view
|
(1) Grounding terminal |
(2) Power receptacle |
(3) SIC slot (slot 4) |
|
(4) SIC slot (slot 3) |
(5) SIC slot (slot 2) |
(6) SIC slot (slot 1) |
MSR3600-51-X1

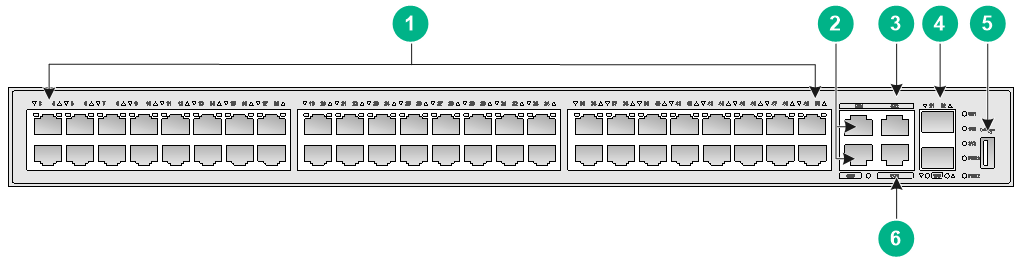

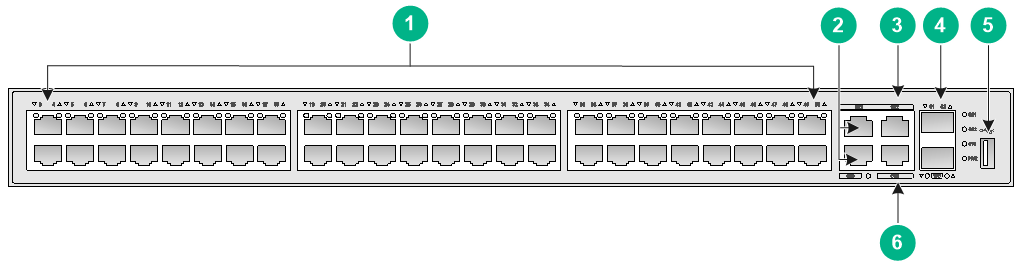

Figure1-59 MSR3600-51-X1 front view
|
(1) Gigabit Ethernet LAN ports (GE3 to GE50) |
(2) Gigabit Ethernet WAN ports (GE0 and GE1) |
|
(3) Gigabit Ethernet WAN port (GE2) |
(4) SFP ports (SFP 51 and SFP52) |
|
(5) USB port |
(6) Console port (CON) |
Figure1-60 MSR3600-51-X1 rear view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) Power receptacle |
(6) Grounding terminal |
MSR3600-51-X1-DP
Figure1-61 MSR3600-51-X1-DP front view
|
(1) Gigabit Ethernet LAN ports (GE3 to GE50) |
(2) Gigabit Ethernet WAN ports (GE0 and GE1) |
|
(3) Gigabit Ethernet WAN port (GE2) |
(4) SFP ports (SFP51 and SFP52) |
|
(5) USB port |
(6) Console port (CON) |

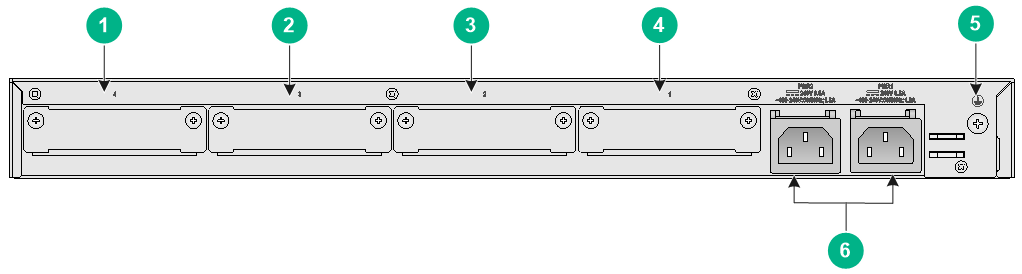

Figure1-62 MSR3600-51-X1-DP rear view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) Grounding terminal |
(6) AC Power receptacles (PWR2 and PWR1) |
MSR3600-28-G-DP

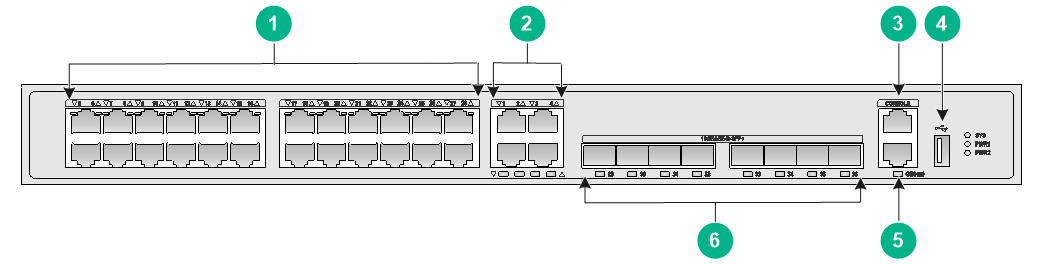

Figure1-63 MSR3600-28-G-DP front view
|
(1) Gigabit Ethernet LAN ports (GE5 to GE28) |
(2) Gigabit Ethernet WAN ports (GE1 and GE4) |
|
(3) Console port |
(4) USB port |
|
(5) Management Ethernet copper port GE0 |
(6) 10GBASE-R-SFP+ fiber ports (29 to 36) |
Figure1-64 MSR3600-28-G-DP rear view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) Power receptacles (PWR2 and PWR1) |
(6) Grounding terminal |
MSR3600-51-G-DP

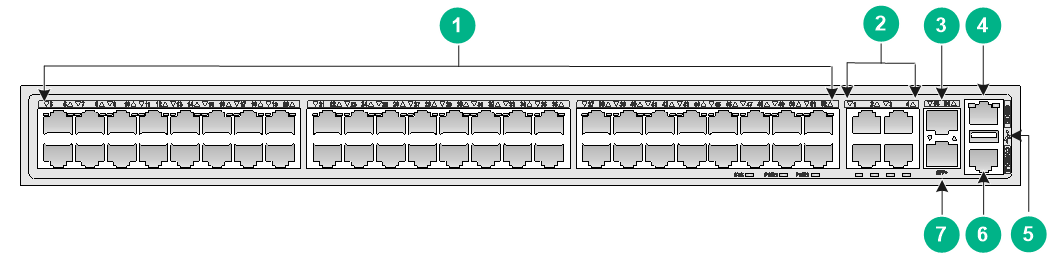

Figure1-65 MSR3600-51-G-DP front view
|
(1) Gigabit Ethernet LAN ports (GE5 to GE52) |
(2) Gigabit Ethernet WAN ports (GE1 to GE4) |
|
(3) SFP+ fiber port (SFP+54) |
(4) Management Ethernet copper port (GE0) |
|
(5) USB port |
(6) Console port |
|
(7) SFP+ fiber port (SFP+53) |
|

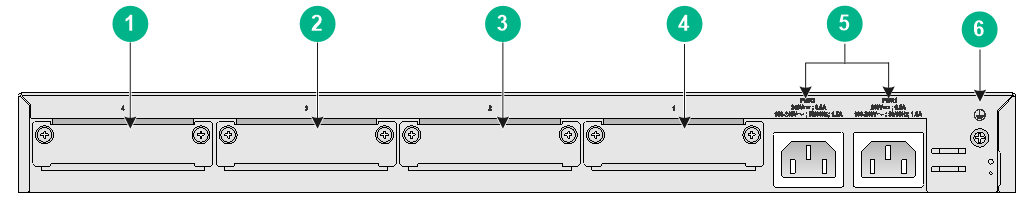

Figure1-66 MSR3600-51-G-DP rear view
|
(1) SIC slot (slot 4) |
(2) SIC slot (slot 3) |
(3) SIC slot (slot 2) |
|
(4) SIC slot (slot 1) |
(5) AC Power receptacles (PWR2 and PWR1) |
(6) Grounding terminal |
Power supplies
You can install one power supply, or two power supplies for redundancy.
AC power supplies
Figure1-67 PSR300-12A2 AC power supply
|
(1) Captive screw |
(2) Power switch |
|
(3) Air outlet vent |
(4) Power receptacle |
Figure1-68 PSR150-A1 AC power supply
|
(1) Captive screw |
(2) Fan |
|
(3) Power receptacle |
(4) Captive screw |

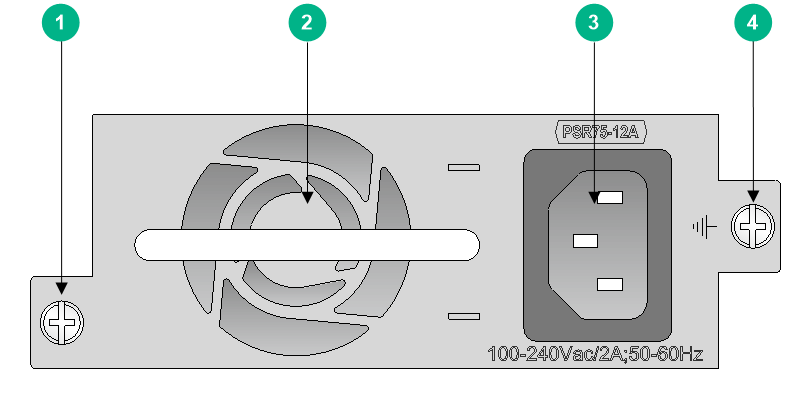

Figure1-69 PSR75-12A AC power supply
|
(1) Captive screw |
(2) Fan |
|
(3) Power receptacle |
(4) Captive screw |
DC power supplies

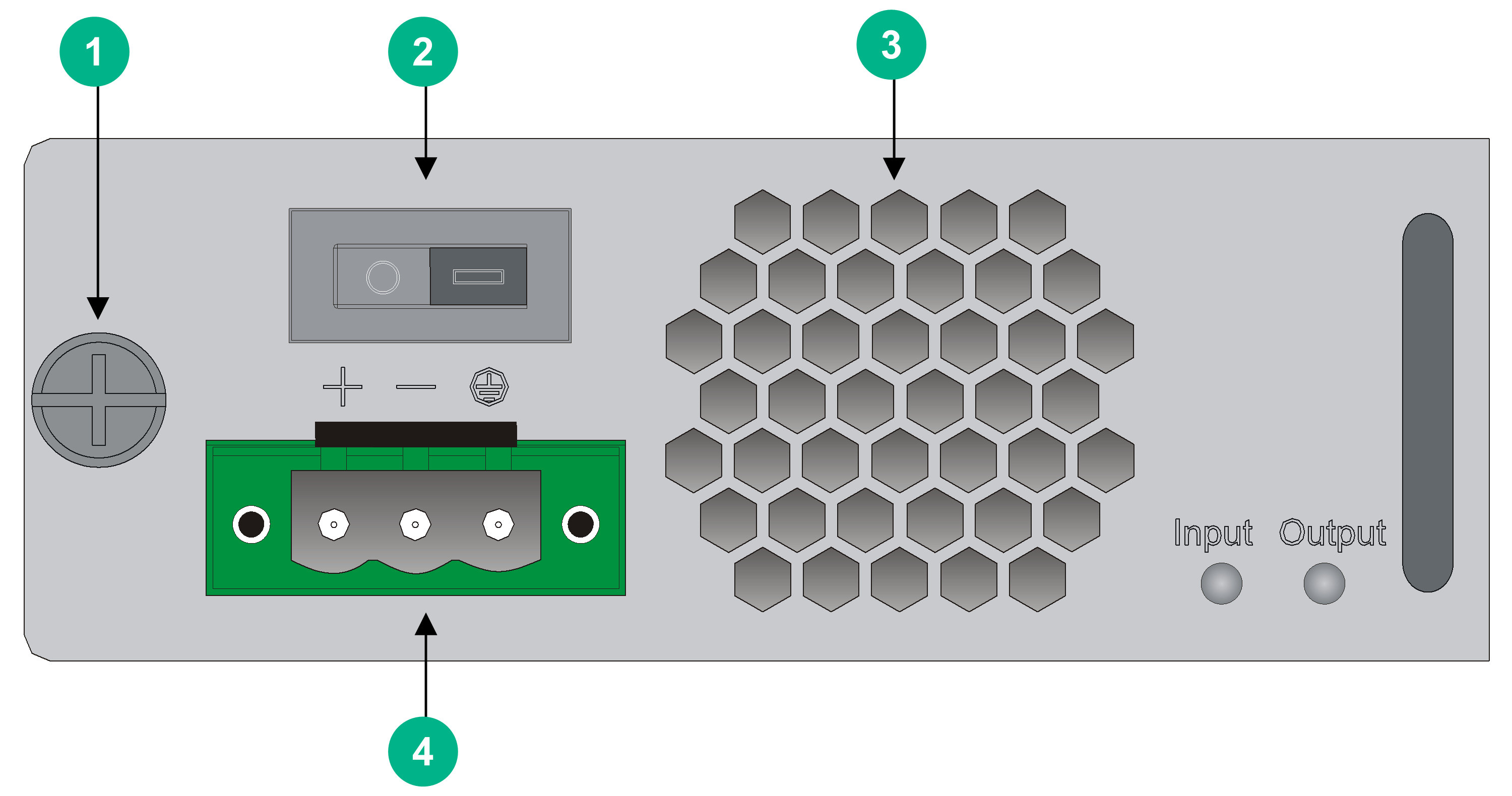

Figure1-70 PSR300-12D2 DC power supply
|
(1) Captive screw |
(2) Power switch |
|
(3) Air outlet vent |
(4) Power receptacle |

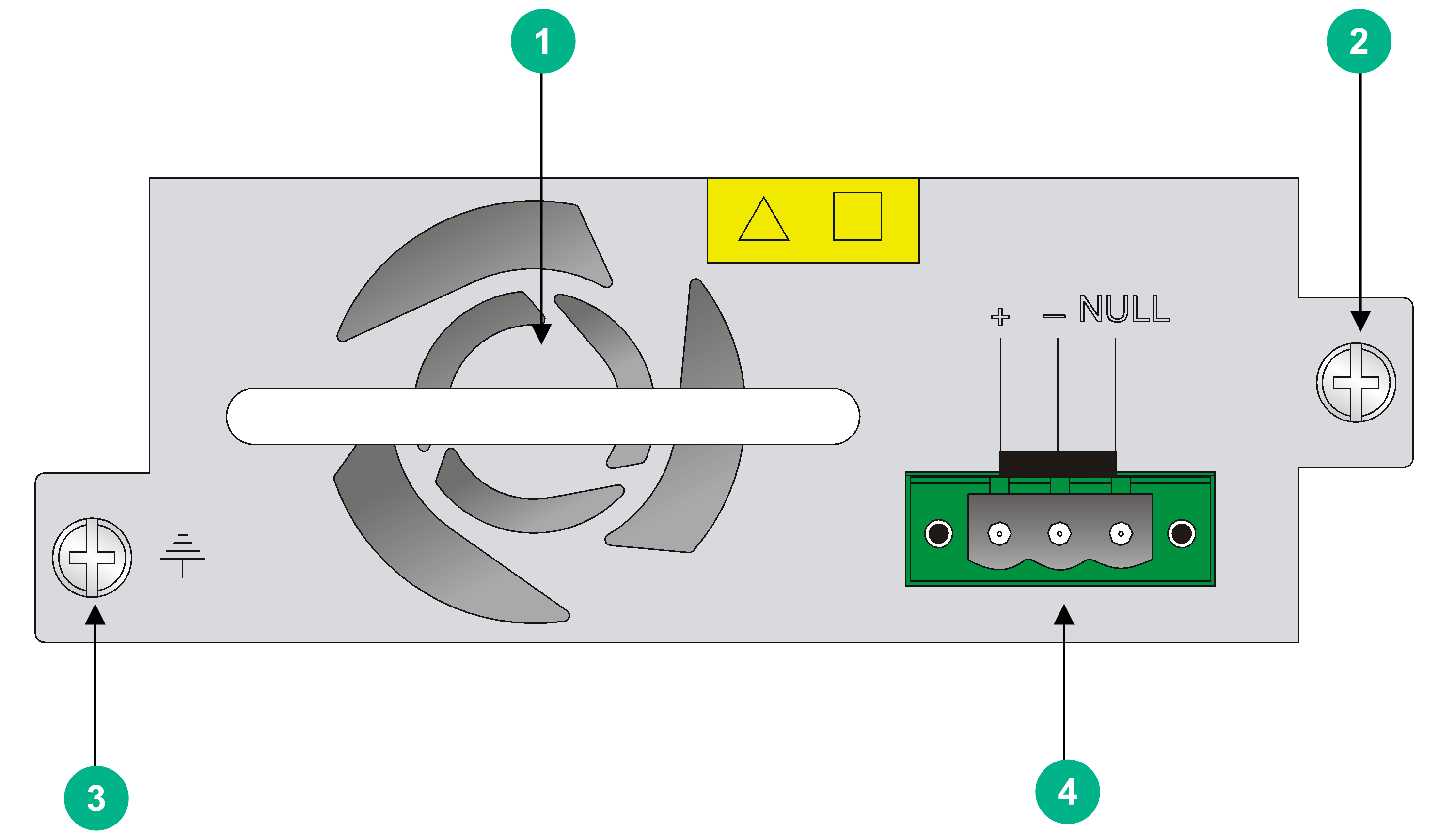

Figure1-71 PSR150-D1 DC power supply
|
(1) Fan |
(2) Captive screw |
|
(3) Captive screw |
(4) Power receptacle |
PoE power supplies
Figure1-72 PSR750-A PoE power supply
|
(1) Captive screw |
(2) Power switch |
|
(3) Air outlet vent |
(4) Power receptacle |
Power supply compatibility with routers
Table1-1 Power supply compatibility with routers
|
Router model |
PSR75-12A |
PSR150-A1 |
PSR150-D1 |
PSR300-12A2 |
PSR300-12D2 |
PSR750-A |
|
MSR3610-G |
No |
Yes |
Yes |
No |
No |
No |
|
MSR3620-G |
No |
Yes |
Yes |
No |
No |
No |
|
MSR3600-51 |
Yes |
Yes |
Yes |
No |
No |
No |
|
MSR3620-X1/MSR3620-X1-XS |
No |
Yes |
Yes |
No |
No |
No |
|
MSR3620-DP/MSR3620-XS |
Yes |
Yes |
Yes |
No |
No |
No |
|
MSR 36-40 |
No |
No |
No |
Yes |
Yes |
Yes |
|
MSR 36-60 |
No |
No |
No |
Yes |
Yes |
Yes |
|
MSR3640-G |
No |
No |
No |
Yes |
Yes |
No |
|
MSR3640-X1/MSR3640-XS/MSR3640-X1-HI/MSR3660-XS |
No |
No |
No |
Yes |
Yes |
No |
Technical specifications
For the routers that support a USB Bluetooth adapter, you can connect a USB Bluetooth adapter to a USB port on the device for fast configuration and deployment of the device from your mobile phone. For more information, see H3C MSR&LA Router Series Deployment Guide via Bluetooth.
Table1-2 MSR 36-10/MSR 36-20/MSR 36-40/MSR 36-60 technical specifications
|
Item |
MSR 36-10 |
MSR 36-20 |
MSR 36-40 |
MSR 36-60 |
|
|
CON/AUX ports |
1 |
1 |
1 |
1 |
|
|
USB console ports |
1 |
1 |
1 |
1 |
|
|
USB ports |
2 |
2 |
2 |
2 |
|
|
Gigabit Ethernet WAN ports |
3 |
3 |
3 (two are fiber ports of the combo interface) |
3 (two are fiber ports of the combo interface) |
|
|
Gigabit Ethernet LAN ports |
N/A |
N/A |
N/A |
N/A |
|
|
SFP ports |
1 (fiber port of the combo interface) |
1 (fiber port of the combo interface) |
2 (fiber ports of the combo interface) |
2 (fiber ports of the combo interface) |
|
|
SIC/DSIC slots |
2 SIC slots |
4 SIC slots (2 DSIC slots) |
4 SIC slots (2 DSIC slots) |
4 SIC slots (2 DSIC slots) |
|
|
HMIM slots |
1 |
2 |
4 |
6 |
|
|
VPM slots |
1 |
1 |
2 |
2 |
|
|
Memory |
1 GB DDR3 |
2 GB DDR3 |
2 GB DDR3 |
2 GB DDR3 |
|
|
Built-in CF card memory |
256 MB |
256 MB |
256 MB |
256 MB |
|
|
CF card slots |
N/A |
1 (Maximum 4 GB) |
1 (Maximum 4 GB) |
1 (Maximum 4 GB) |
|
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
44.2 × 440 × 480 mm (1.74 × 17.32 × 18.90 in) |
44.2 × 440 × 480 mm (1.74 × 17.32 × 18.90 in) |
88.1 × 440 × 480 mm (3.47 × 17.32 × 18.90 in) |
135 × 440 × 480 mm (5.32 × 17.32 × 18.90 in) |
|
|
Power supply slots |
N/A |
N/A |
2 (Slot PWR1 can hold a PoE module.) |
2 (Both slots can hold a PoE module.) |
|
|
Rated AC input voltage range |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
||||
|
Rated DC input voltage range |
–48 VDC to –60 VDC |
||||
|
Max input current |
MSR 36-10 AC: 2 A MSR 36-10 DC: 5 A |
MSR 36-20 AC: 3 A MSR 36-20 DC: 5 A |
N/A |
N/A |
|
|
Max power of the power supplies |
100 W |
125 W |
Single power supply: 300 W Multiple power supplies: 450 W |
Single power supply: 300 W Multiple power supplies: 450 W |
|
|
Rated power for AC/DC power supply |
125 W |
125 W |
300 W |
300 W |
|
|
Rated power for PoE power supply |
Not supported |
275 W |
750 W |
750 W |
|
|
Rated power for each PoE port |
15.4 W |
15.4 W |
15.4 W |
15.4 W |
|
|
RPS power |
800 W |
800 W |
N/A |
N/A |
|
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
|||
|
Humidity |
5% RH to 95% RH (noncondensing) |
|
|||
Table1-3 MSR3610-G/MSR3620-G technical specifications
|
Item |
MSR3610-G |
MSR3620-G |
|
Console ports |
1 |
|
|
USB ports |
1 |
|
|
Gigabit Ethernet WAN ports |
8 (combo interfaces) |
|
|
SFP ports |
8 (combo interfaces) |
|
|
SIC/DSIC slots |
4 SIC slots |
|
|
HMIM slots |
N/A |
2 |
|
Memory |
4 GB DDR3 |
|
|
Micro SD card slot |
1 |
|
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
44.2 × 440 × 470 mm (1.74 × 17.32 × 18.50 in) |
|
|
Power supply slots |
2 |
|
|
Rated AC input voltage range |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
|
|
Rated DC input voltage range |
–48 VDC to –60 VDC |
|
|
Max input current |
N/A |
|
|
Max power of the power supplies |
150 W |
|
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
|
Humidity |
5% RH to 95% RH (noncondensing) |
|
Table1-4 MSR3640-G technical specifications
|
Item |
MSR3640-G |
|
Console ports |
1 |
|
USB ports |
1 |
|
Gigabit Ethernet WAN ports |
10 (two combo interfaces) |
|
Gigabit Ethernet LAN ports |
N/A |
|
SFP fiber ports |
2 (combo interfaces) |
|
SFP+ fiber ports |
6 |
|
USB Bluetooth adapter |
N/A |
|
SIC/DSIC slots |
4 SIC slots |
|
HMIM slots |
4 |
|
Memory |
4 GB DDR4 |
|
Flash |
4 GB (eMMC) |
|
Built-in CF card |
N/A |
|
Micro SD card slot |
N/A |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
88.1 × 440 × 480 mm (3.47 × 17.32 × 18.90 in) |
|
Power supply slots |
2 |
|
Rated AC input voltage range |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
|
Rated DC input voltage range |
–48 VDC to –60 VDC |
|
Max input current |
N/A |
|
Max power of the power supplies |
300 W |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Relative humidity |
5% RH to 95% RH (noncondensing) |
Table1-5 MSR3610-X1/MSR3610-XS/MSR3610-X1-DP/MSR3610-X1-DC/MSR3610-X1-DP-DC technical specifications
|
Item |
MSR3610-X1/MSR3610-XS |
MSR3610-X1-DP |
MSR3610-X1-DC |
MSR3610-X1-DP-DC |
|
Console ports |
1 |
1 |
1 |
1 |
|
USB ports |
1 |
1 |
1 |
1 |
|
GE WAN ports |
4, including two copper combo ports |
4, including two copper combo ports |
4, including two copper combo ports |
4, including two copper combo ports |
|
GE LAN ports |
N/A |
N/A |
N/A |
N/A |
|
SFP ports |
2 |
2 |
2 |
2 |
|
USB Bluetooth adapter |
Supported only by MSR3610-X1 |
Supported |
Supported |
Supported |
|
Memory |
2GB DDR3 |
2GB DDR3 |
2GB DDR3 |
2GB DDR3 |
|
Flash |
512 MB |
512 MB |
512 MB |
512 MB |
|
Hard disks |
1 (2.5 inch, SATA connectors) |
1 (2.5 inch, SATA connectors) |
N/A |
N/A |
|
Micro SD card slots |
1 |
1 |
1 |
1 |
|
SIC slots |
4 |
4 |
4 |
4 |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
|
Power supply slots |
N/A |
N/A |
N/A |
N/A |
|
Rated AC/DC input voltage range |
100 VAC to 240 VAC @ 50/60 Hz |
100 VAC to 240 VAC @ 50/60 Hz |
–48 VDC to –60 VDC |
–48 VDC to –60 VDC |
|
Max input current |
1.5 A |
1.5 A |
1.8 A |
1.8 A |
|
Maximum power consumption |
54 W |
54 W |
66 W |
66 W |
|
Operating temperature |
· Without a hard disk: 0°C to 45°C (32°F to 113°F) · With a hard disk: 5°C to 40°C (41°F to 104°F) |
· Without a hard disk: 0°C to 45°C (32°F to 113°F) · With a hard disk: 5°C to 40°C (41°F to 104°F) |
0°C to 45°C (32°F to 113°F) |
0°C to 45°C (32°F to 113°F) |
|
Relative humidity (non-condensing) |
5% to 95% |
5% to 95% |
5% to 95% |
5% to 95% |
Table1-6 MSR3610E-X1/MSR3610E-X1-DP technical specifications
|
Item |
MSR3610E-X1 |
MSR3610E-X1-DP |
|
Console port |
1 |
1 |
|
GE copper ports |
2 (combo interfaces) |
2 (combo interfaces) |
|
GE LAN/WAN ports |
4 |
4 |
|
GE LAN ports |
4 |
4 |
|
SPF ports |
2 (combo interfaces) |
2 (combo interfaces) |
|
SPF+ ports |
3 |
3 |
|
USB port |
1 |
1 |
|
SIC slots |
4 |
4 |
|
Memory |
4 GB DDR4 |
4 GB DDR4 |
|
Flash |
4 GB EMMC |
4 GB EMMC |
|
Dimensions (H × W × D) (excluding mounting brackets and rubber feet) |
44.2 × 440 × 320 mm (1.74 × 17.32 × 12.60 in) |
44.2 × 440 × 320 mm (1.74 × 17.32 × 12.60 in) |
|
Power supply slots |
N/A |
N/A |
|
Rated AC input voltage range |
100 VAC to 240 VAC @ 50/60 Hz |
100 VAC to 240 VAC @ 50/60 Hz |
|
Max input current |
2 A |
2 A |
|
Maximum power consumption |
54 W |
54 W |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
0°C to 45°C (32°F to 113°F) |
|
Relative humidity (non-condensing) |
5% RH to 95% RH |
5% RH to 95% RH |
Table1-7 MSR3600-28/MSR3600-51/MSR3620-DP/MSR3620-XS/MSR3600-28-SI/MSR3600-51-SI
|
Item |
MSR3600-28 |
MSR3600-51 |
MSR3620-DP/MSR3620-XS |
MSR3600-28-SI |
MSR3600-51-SI |
|
CON/AUX ports |
1 |
1 |
N/A |
N/A |
N/A |
|
Console ports |
N/A |
N/A |
1 |
1 |
1 |
|
USB ports |
1 |
1 |
1 |
1 |
1 |
|
Gigabit Ethernet WAN ports |
3 |
3 |
4 |
3 |
3 |
|
Gigabit Ethernet LAN ports |
24 |
48 |
N/A |
24 |
48 |
|
SFP ports |
1 |
N/A |
6 (four are fiber ports of the combo interfaces) |
1 |
1 |
|
USB Bluetooth adapter |
N/A |
N/A |
Supported only on MSR3620-DP routers |
N/A |
N/A |
|
SIC/DSIC slots |
4 SIC slots |
4 SIC slots |
4 SIC slots |
4 SIC slots |
4 SIC slots |
|
HMIM slots |
N/A |
N/A |
2 |
N/A |
N/A |
|
Memory |
1 GB DDR3 |
1 GB DDR3 |
2 GB DDR3 |
512 MB DDR3 |
512 MB DDR3 |
|
Flash memory |
N/A |
N/A |
512 MB |
256 MB |
256 MB |
|
Built-in CF card memory |
256 MB |
256 MB |
N/A |
N/A |
N/A |
|
Micro SD card slot |
N/A |
N/A |
1 (Read/write rate: 100 Mbps; Maximum capacity: 8 GB) |
N/A |
N/A |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
44.2 x 440 × 360 mm (1.74 x 17.32 x 14.17 in) |
44.2 x 440 × 400 mm (1.74 x 17.32 x 15.75 in) |
44.2 × 440 × 470 mm (1.74 × 17.32 × 18.50 in) |
43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
|
Power supply slots |
N/A |
2 |
2 |
N/A |
N/A |
|
Rated AC input voltage range |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
||||
|
Rated DC input voltage range |
N/A |
–48 VDC to –60 VDC |
–48 VDC to –60 VDC |
N/A |
N/A |
|
Max input current |
1.5 A |
N/A |
N/A |
0.8 A |
1.5 A |
|
Max power of the power supplies |
54 W |
150 W |
150 W |
30 W |
54 W |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
||||
|
Humidity |
5% RH to 95% RH (noncondensing) |
||||
Table1-8 MSR3620-X1/MSR3620-X1-XS/MSR3640-X1/MSR3640-XS/MSR3640-X1-H1/MSR3660-XS
|
Item |
MSR3620-X1 |
MSR3620-X1-XS |
MSR3640-X1 |
MSR3640-XS |
MSR3640-X1-H1 |
MSR3660-XS |
|
Console ports |
1 |
1 |
1 |
1 |
1 |
1 |
|
USB ports |
1 |
1 |
1 |
1 |
1 |
1 |
|
Gigabit Ethernet WAN ports |
8 |
8 |
9 (one is a combo port) |
9 (one is a combo port) |
10 |
10 |
|
Gigabit Ethernet LAN/WAN ports |
8 |
8 |
N/A |
N/A |
N/A |
N/A |
|
SFP ports |
N/A |
N/A |
1 (combo port) |
3 (one is a combo port) |
N/A |
N/A |
|
SFP+ ports |
6 |
6 |
5 |
3 |
16 |
20 |
|
SFP28 ports |
N/A |
N/A |
N/A |
N/A |
4 |
N/A |
|
SIC/DSIC slots |
4 SIC slots |
4 SIC slots |
4 SIC slots |
4 SIC slots |
4 SIC slots |
4 SIC slots |
|
HMIM slots |
2 |
2 |
4 |
4 |
4 |
4 |
|
Memory |
4 GB DDR4 |
2 GB DDR4 |
4 GB DDR4 |
2 GB DDR4 |
8 GB DDR4 |
4 GB DDR4 |
|
Flash memory |
1 GB |
1 GB |
1 GB |
1 GB |
1 GB |
1 GB |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
44.2 × 440 × 470 mm (1.74 × 17.32 × 18.50 in) |
44.2 × 440 × 470 mm (1.74 × 17.32 × 18.50 in) |
88.1 × 440 × 480 mm (3.47 × 17.32 × 18.90 in) |
88.1 × 440 × 480 mm (3.47 × 17.32 × 18.90 in) |
88.1 × 440 × 480 mm (3.47 × 17.32 × 18.90 in) |
88.1 × 440 × 480 mm (3.47 × 17.32 × 18.90 in) |
|
Power supply slots |
2 |
2 |
2 |
2 |
2 |
2 |
|
Rated AC input voltage range |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
|||||
|
Rated DC input voltage range |
–48 VDC to –60 VDC |
|||||
|
Max input current |
N/A |
|||||
|
Max power of the power supplies |
150 W |
150 W |
300 W |
300 W |
300 W |
300 W |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|||||
|
Humidity |
5% RH to 95% RH (noncondensing) |
|||||
Table1-9 MSR3600-28-SI-GL/MSR3600-28-X1/MSR3600-28-XS/MSR3600-28-X1-DP/MSR3600-51-X1/MSR3600-51-X1-DP technical specifications
|
Item |
MSR3600-28-SI-GL |
MSR3600-28-X1/MSR3600-28-XS |
MSR3600-28-X1-DP |
MSR3600-51-X1 |
MSR3600-51-X1-DP |
|
|
Console ports |
1 |
1 |
1 |
1 |
1 |
|
|
USB ports |
1 |
1 |
1 |
1 |
1 |
|
|
Gigabit Ethernet WAN ports |
3 |
3 |
3 |
3 |
3 |
|
|
Gigabit Ethernet LAN ports |
24 |
24 |
24 |
48 |
48 |
|
|
SFP ports |
1 |
2 |
2 |
2 |
2 |
|
|
USB Bluetooth adapter |
N/A |
Supported |
Supported |
Supported |
Supported |
|
|
SIC/DSIC slots |
4 SIC slots |
|||||
|
HMIM slots |
N/A |
N/A |
||||
|
Memory |
512 MB DDR3 |
1 GB DDR3 |
1 GB DDR3 |
1 GB DDR3 |
1 GB DDR3 |
|
|
Flash memory |
256 MB |
|||||
|
Built-in CF card memory |
N/A |
|||||
|
Micro SD card slot |
N/A |
|||||
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
43.6 × 440 ×360 mm (1.72 × 17.32 × 14.17 in) |
43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in) |
43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in) |
|
|
Power supply slots |
N/A |
|||||
|
Rated AC input voltage range |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
|||||
|
Max input range |
0.8 A |
1.5 A |
1.5 A |
1.5 A |
1.5 A |
|
|
Max power of the power supplies |
30 W |
54 W |
54 W |
54 W |
54 W |
|
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|||||
|
Humidity |
5% RH to 95% RH (noncondensing) |
|||||
Table1-10 MSR3600-28-G-DP/MSR3600-51-G-DP technical specifications
|
Item |
MSR3600-28-G-DP |
MSR3600-51-G-DP |
|
Console ports |
1 |
1 |
|
USB ports |
1 |
1 |
|
Gigabit Ethernet WAN ports |
5 |
5 |
|
Gigabit Ethernet LAN ports |
24 |
48 |
|
SFP+ ports |
8 |
2 |
|
USB Bluetooth |
N/A |
N/A |
|
SIC/DSIC slots |
4 |
4 |
|
HMIM slots |
N/A |
N/A |
|
Memory |
2 GB DDR4 |
2 GB DDR4 |
|
Flash |
4 GB |
4 GB |
|
Built-in CF card |
N/A |
N/A |
|
Micro SD card slot |
N/A |
N/A |
|
Dimensions (H × W × D) (excluding rubber feet and mounting brackets) |
43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in) |
43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in) |
|
Power supply slots |
N/A |
N/A |
|
Rated AC input voltage range |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
|
Max input current |
1.5 A |
1.5 A |
|
Max power |
100 W |
100 W |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
0°C to 45°C (32°F to 113°F) |
|
Humidity |
5% RH to 95% RH (noncondensing) |
5% RH to 95% RH (noncondensing) |
Table1-11 PSR300-12A2 AC power supply specifications
|
Item |
Specification |
|
Rated input voltage range |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
Max input current |
4 A |
|
Rated power |
300 W |
Table1-12 PSR300-12D2 DC power supply specifications
|
Item |
Specification |
|
Rated input voltage range |
–48 VDC to –60 VDC |
|
Max input current |
10 A |
|
Rated power |
300 W |
Table1-13 PSR750-A PoE power supply specifications
|
Item |
Specification |
|
Rated input voltage range |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
Max input current |
10 A |
|
Rated power |
300 W to the system 450 W to PDs |
Table1-14 PSR150-A1 AC power supply specifications
|
Item |
Specification |
|
Rated input voltage range |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
Max input current |
2 A |
|
Rated power |
150 W |
Table1-15 PSR150-D1 DC power supply specifications
|
Item |
Specification |
|
Rated input voltage range |
–48 VDC to –60 VDC |
|
Max input current |
6 A |
|
Rated power |
150 W |
Table1-16 PSR75-12A AC power supply specifications
|
Item |
Specification |
|
Rated input voltage range |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
Max input current |
2.5 A |
|
Rated power |
75 W |
Interface module specifications
The MSR3600 series supports SIC, DSIC, HMIM, and MIM interface modules. For more information about the interface module specifications, see H3C MSR Router Series Interface Module Guide.
Link mode of interfaces
For information about link mode change of interfaces on interface modules, see H3C MSR Router Series Interface Module Guide.
Table1-17 Fixed interfaces that can operate only as Layer 3 Ethernet interfaces
|
Device model |
Interfaces |
|
MSR 36-10 |
Combo 0 (GE0, SFP0), GE1, GE2 |
|
MSR 36-20 |
Combo 0 (GE0, SFP0), GE1, GE2 |
|
MSR3610-G |
· GE0 to GE7 (combo interfaces) · SFP0 to SFP7 (combo interfaces) |
|
MSR3610-X1/MSR3610-XS |
GE0, GE1, Combo 2 (GE2, SFP2), Combo 3 (GE3, SFP3), SFP4, SFP5 |
|
MSR3610-X1-DP |
GE0, GE1, Combo 2 (GE2, SFP2), Combo 3 (GE3, SFP3), SFP4, SFP5 |
|
MSR3610-X1-DC |
GE0, GE1, Combo 2 (GE2, SFP2), Combo 3 (GE3, SFP3), SFP4, SFP5 |
|
MSR3610-X1-DP-DC |
GE0, GE1, Combo 2 (GE2, SFP2), Combo 3 (GE3, SFP3), SFP4, SFP5 |
|
MSR3610E-X1/MSR3610E-X1-DP |
Combo 0 (GE0, SFP0), Combo 1 (GE1, SFP1), SFP+10 to SFP+12 |
|
MSR3620-G |
· GE0 to GE7 (combo interfaces) · SFP0 to SFP7 (combo interfaces) |
|
MSR3620-X1/MSR3620-X1-XS |
10GBASE-R-SFP+ Ethernet fiber ports (16 to 21), 10/100/1000BASE-T Ethernet copper ports (0 to 7) |
|
MSR3620-DP/MSR3620-XS |
GE0 to GE3 (combo interfaces), SFP0 to SFP3 (combo interfaces), SFP4, SFP5 |
|
MSR 36-40 |
Combo 0 (GE0, SFP0), Combo 1 (GE1, SFP1), GE2 |
|
MSR 36-60 |
Combo 0 (GE0, SFP0), Combo 1 (GE1, SFP1), GE2 |
|
MSR3640-G |
10/100/1000BASE-T copper ports (2 to 9), 10GBASE-R-SFP+ fiber ports (10 to 15), Combo 0 (GE0, SFP0), Combo 1 (GE1, SFP1) |
|
MSR3640-X1 |
10GBASE-R-SFP+ Ethernet fiber ports (9 to 13), Combo 0 (GE0, SFP0) |
|
MSR3640-XS |
10GBASE-R-SFP+ Ethernet fiber ports (11 to 13), Combo 0 (GE0, SFP0), SFP9, SFP10 |
|
MSR3640-X1-HI |
10/100/1000BASE-T Ethernet copper port 0 |
|
MSR3660-XS |
10/100/1000BASE-T Ethernet copper port 0 |
|
MSR3600-28 |
GE0 to GE2 |
|
MSR3600-51 |
GE0 to GE2 |
|
MSR3600-28-SI |
GE0 to GE2, SFP27 |
|
MSR3600-51-SI |
GE0 to GE2, SFP51 |
|
MSR3600-28-SI-GL |
GE0 to GE2, SFP27 |
|
MSR3600-28-X1/MSR3600-28-XS |
GE0 to GE2, SFP27, SFP28 |
|
MSR3600-51-X1 |
GE0 to GE2, SFP51, SFP52 |
|
MSR3600-28-X1-DP |
GE0 to GE2, SFP27, SFP28 |
|
MSR3600-51-X1-DP |
GE0 to GE2, SFP51, SFP52 |
|
MSR3600-28-G-DP |
GE0 to GE4 |
|
MSR3600-51-G-DP |
GE0 to GE4 |
Table1-18 Fixed interfaces that can operate only as Layer 2 Ethernet interfaces
|
Device model |
Interfaces |
|
MSR 36-10 |
N/A |
|
MSR 36-20 |
N/A |
|
MSR3610-G |
N/A |
|
MSR3610-X1/MSR3610-XS |
N/A |
|
MSR3610-X1-DP |
N/A |
|
MSR3610-X1-DC |
N/A |
|
MSR3610-X1-DP-DC |
N/A |
|
MSR3610E-X1/MSR3610E-X1-DP |
10/100/1000BASE-T Ethernet copper ports (6 to 9) |
|
MSR3620-G |
N/A |
|
MSR3620-X1/MSR3620-X1-XS |
N/A |
|
MSR3620-DP/MSR3620-XS |
N/A |
|
MSR 36-40 |
N/A |
|
MSR 36-60 |
N/A |
|
MSR3640-G |
N/A |
|
MSR3640-X1 |
N/A |
|
MSR3640-XS |
N/A |
|
MSR3640-X1-HI |
N/A |
|
MSR3660-XS |
N/A |
|
MSR3600-28 |
N/A |
|
MSR3600-51 |
N/A |
|
MSR3600-28-SI |
N/A |
|
MSR3600-51-SI |
N/A |
|
MSR3600-28-SI-GL |
N/A |
|
MSR3600-28-X1/MSR3600-28-XS |
N/A |
|
MSR3600-51-X1 |
N/A |
|
MSR3600-28-X1-DP |
N/A |
|
MSR3600-51-X1-DP |
N/A |
|
MSR3600-28-G-DP |
N/A |
|
MSR3600-51-G-DP |
N/A |
Table1-19 Fixed interfaces that support link mode change
|
Device model |
Interfaces |
|
MSR 36-10 |
N/A |
|
MSR 36-20 |
N/A |
|
MSR3610-G |
N/A |
|
MSR3610-X1/MSR3610-XS |
N/A |
|
MSR3610-X1-DP |
N/A |
|
MSR3610-X1-DC |
N/A |
|
MSR3610-X1-DP-DC |
N/A |
|
MSR3610E-X1/MSR3610E-X1-DP |
10/100/1000BASE-T Ethernet copper ports (2 to 5) |
|
MSR3620-G |
N/A |
|
MSR3620-X1/MSR3620-X1-XS |
10/100/1000BASE-T copper ports (8 to 15) |
|
MSR3620-DP/MSR3620-XS |
N/A |
|
MSR 36-40 |
N/A |
|
MSR 36-60 |
N/A |
|
MSR3640-G |
N/A |
|
MSR3640-X1 |
10/100/1000BASE-T Ethernet copper ports (1 to 8) |
|
MSR3640-XS |
10/100/1000BASE-T Ethernet copper ports (1 to 8) |
|
MSR3640-X1-HI |
SFP+ ports (SFP+10 to SFP+25), SFP28 ports (26 to 29), 10/100/1000BASE-T Ethernet copper ports (1 to 9) |
|
MSR3660-XS |
SFP+ ports (SFP+10 to SFP+29), 10/100/1000BASE-T Ethernet copper ports (1 to 9) |
|
MSR3600-28 |
GE3 to GE26, SFP 27 |
|
MSR3600-51 |
GE3 to GE50 |
|
MSR3600-28-SI |
FE3 to FE26 |
|
MSR3600-51-SI |
FE3 to FE50 |
|
MSR3600-28-SI-GL |
FE3 to FE26 |
|
MSR3600-28-X1/MSR3600-28-XS |
GE3 to GE26 |
|
MSR3600-51-X1 |
GE3 to GE50 |
|
MSR3600-28-X1-DP |
GE3 to GE26 |
|
MSR3600-51-X1-DP |
GE3 to GE50 |
|
MSR3600-28-G-DP |
GE5 to GE28, 10GBASE-R-SFP+ fiber ports (29 to 36) |
|
MSR3600-51-G-DP |
GE5 to GE52, SFP+53, SFP+54 |
