3 FRUs
For more information about modules and transceiver modules, see the card manuals or user guide for the router.
Weights, dimensions, and power consumptions
Modules
Table3-1 Module weights, dimensions, and power consumptions
|
Module model |
Net weight |
Dimensions (H × W × D) |
Power consumption |
|
CR-19K-MPU-20A |
6.1 kg (13.45 lb) |
40 × 433 × 512 mm (1.57 × 17.05 × 20.16 in) |
100 W |
|
CR-19K-MPU-20B |
7.2 kg (15.87 lb) |
440 × 433 × 512 mm (1.57 × 17.05 × 20.16 in) |
230 W |
|
CR-19K-MPU-20C |
6.2 kg (13.67 lb) |
40 × 433 ×512 mm (1.57 × 17.05 × 20.16 in) |
113 W |
|
CR-19K-SFU-20C |
6.4 kg (14.11 lb) |
40 × 475 × 519 mm (1.57 × 18.70 × 20.43 in) |
375 W |
|
CR-19K-MSFU-20B |
6.8 kg (14.99 lb) |
40 × 475 × 519 mm (1.57 × 18.70 × 20.43 in) |
335 W |
|
CR-19K-MSFU-20C |
9.2 kg (20.28 lb) |
40 × 475 × 519 mm (1.57 × 18.70 × 20.43 in) |
1020 W |
|
CR-19K-LPU-CQ18 |
11.8 kg (26.01 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
1390 W |
|
CR-19K-LPU-CQ12 |
11.5 kg (25.35 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
1130 W |
|
CR-19K-LPU-CQ12B |
11.6 kg (25.57 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
1224 W |
|
CR-19K-LPU-CQ06B |
11.4 kg (25.13 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
1115 W |
|
CR-19K-LPU-CC08 |
10.1 kg (22.27 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
835 W |
|
CR-19K-LPU-CC04 |
99.8 kg (21.60 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
480 W |
|
CR-19K-LPU-CC04B |
10.0 kg (22.05 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
827 W |
|
CR-19K-LPU-XP72 |
10.6 kg (23.37 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
830 W |
|
CR-19K-LPU-XP48 |
10.5 kg (23.15 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
750 W |
|
CR-19K-LPU-XP40 |
9.7 kg (21.38 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
595 W |
|
CR-19K-LPU-XP20CC02 |
9.7 kg (21.38 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
535 W |
|
CR-19K-LPU-8004 |
9.8 kg (21.60 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
880 W |
|
CR-19K-LPU-4004 |
7.4 kg (16.31 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
595 W |
|
CR-19K-LPU-2002 |
6.8 kg (14.99 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
350 W |
|
CR-19K-LPU-2002B |
7.4 kg (16.31 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
485 W |
|
CR-19K-LPU-SP |
6.3 kg (13.89 lb) |
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in) |
143 W |
|

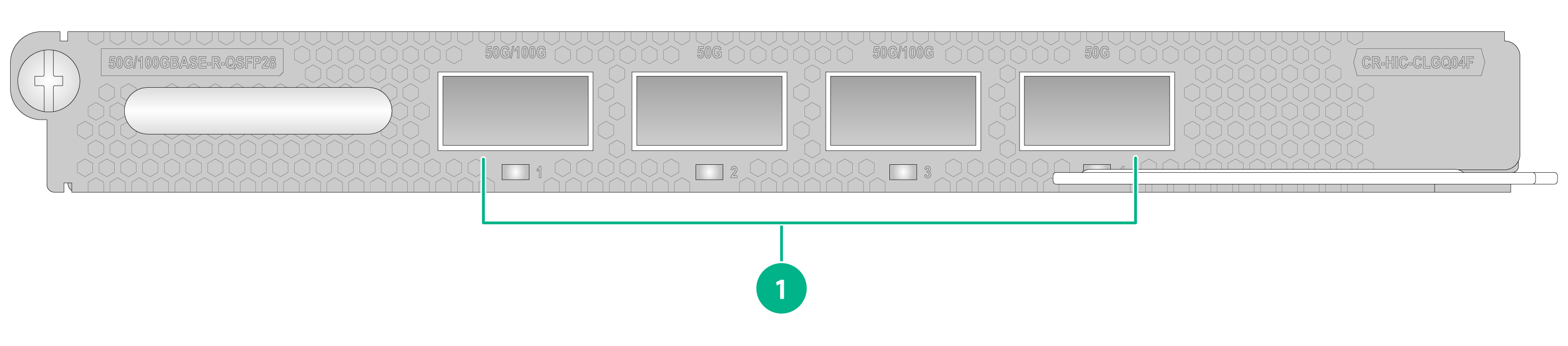

CR-HIC-CLGQ04F |
0.8 kg (1.76 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
98 W |
|
CR-HIC-CQ02 |
0.6 kg (1.32 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
13 W |
|
CR-HIC-CQ01 |
0.5 kg (1.10 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
9 W |
|
CR-HIC-CC01 |
0.6 kg (1.32 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
25 W |
|
CR-HIC-QQ03 |
0.5 kg (1.10 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
10 W |
|

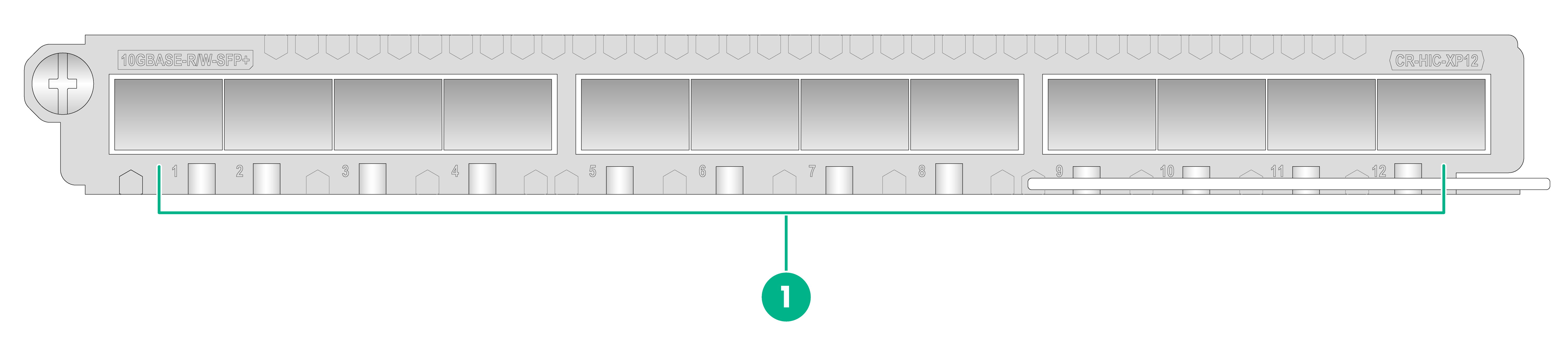

CR-HIC-XP12 |
0.6 kg (1.32 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
55 W |
|
CR-HIC-XP12B |
0.6 kg (1.32 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
34 W |
|
CR-HIC-XP10 |
0.6 kg (1.32 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
40 W |
|
CR-HIC-GP12 |
0.6 kg (1.32 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
55 W |
|
CR-HIC-PU02 |
0.5 kg (1.10 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
22 W |
|
CR-HIC-PS04 |
0.6 kg (1.32 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
19 W |
|
CR-HIC-PHP08 |
0.6 kg (1.32 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
20 W |
|
CR-HIC-CLP04 |
0.5 kg (1.10 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
17 W |
|
CR-HIC-ET16 |
0.5 kg (1.10 lb) |
21 × 195 × 162 mm (0.83 × 7.68 × 6.38 in) |
11 W |
|
|
NOTE: Module dimensions are expressed in the Height (H) × Width (W) × Depth (D) format: · H—Height of the front panel of the module. · W—Width of the front panel of the module. · D—Depth from the front panel of the module to the connector ends. (The depth includes the connectors and excludes the ejector levers and captive screws). |
Power supplies
Table3-2 Power supply weights and dimensions
|
Power supply model |
Net weight |
Dimensions (H × W × D) |
|

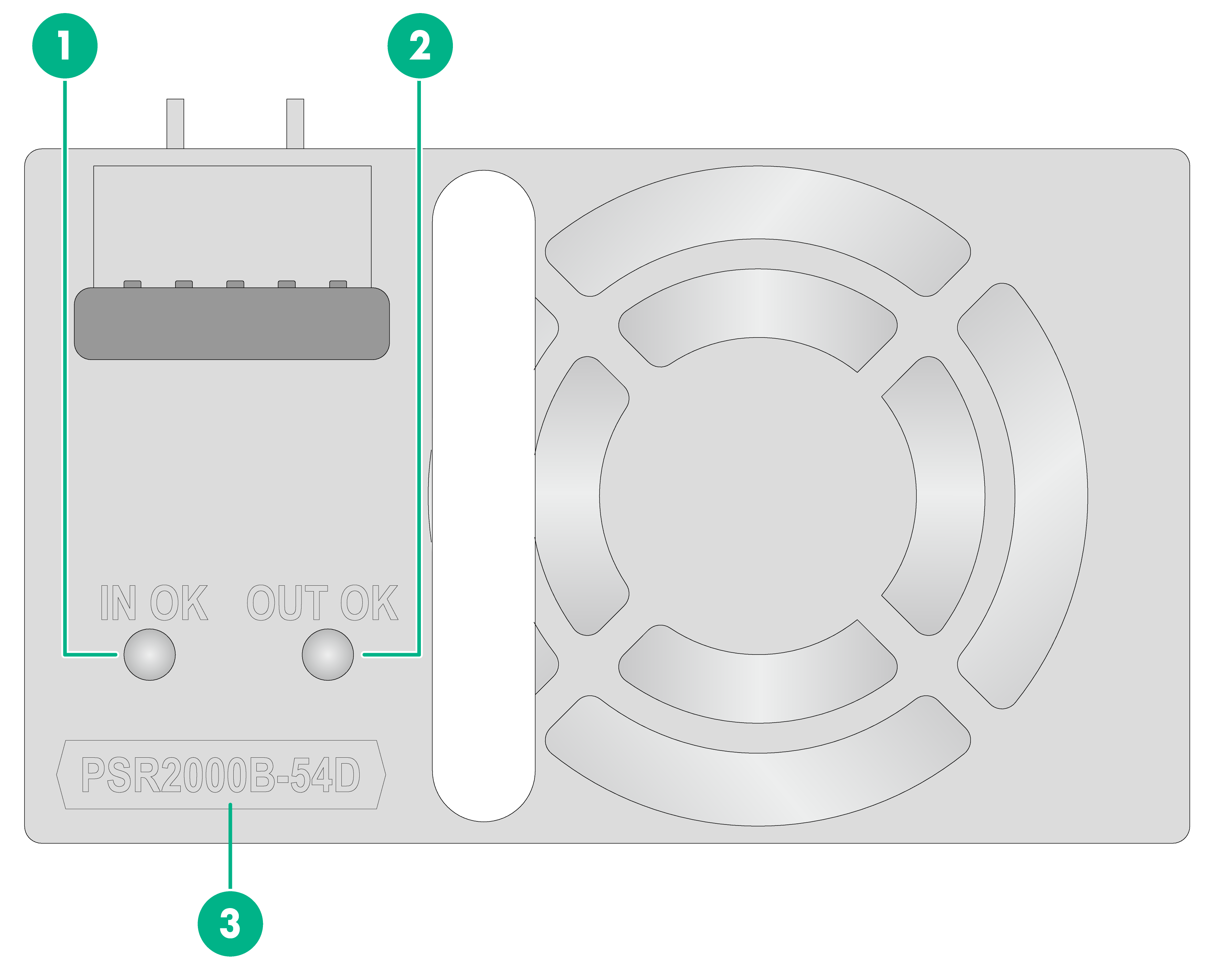

PSR2000B-54D |
2.0 kg (4.41 lb) |
41 × 68 × 440 mm (1.61 × 2.68 × 17.32 in) |
|

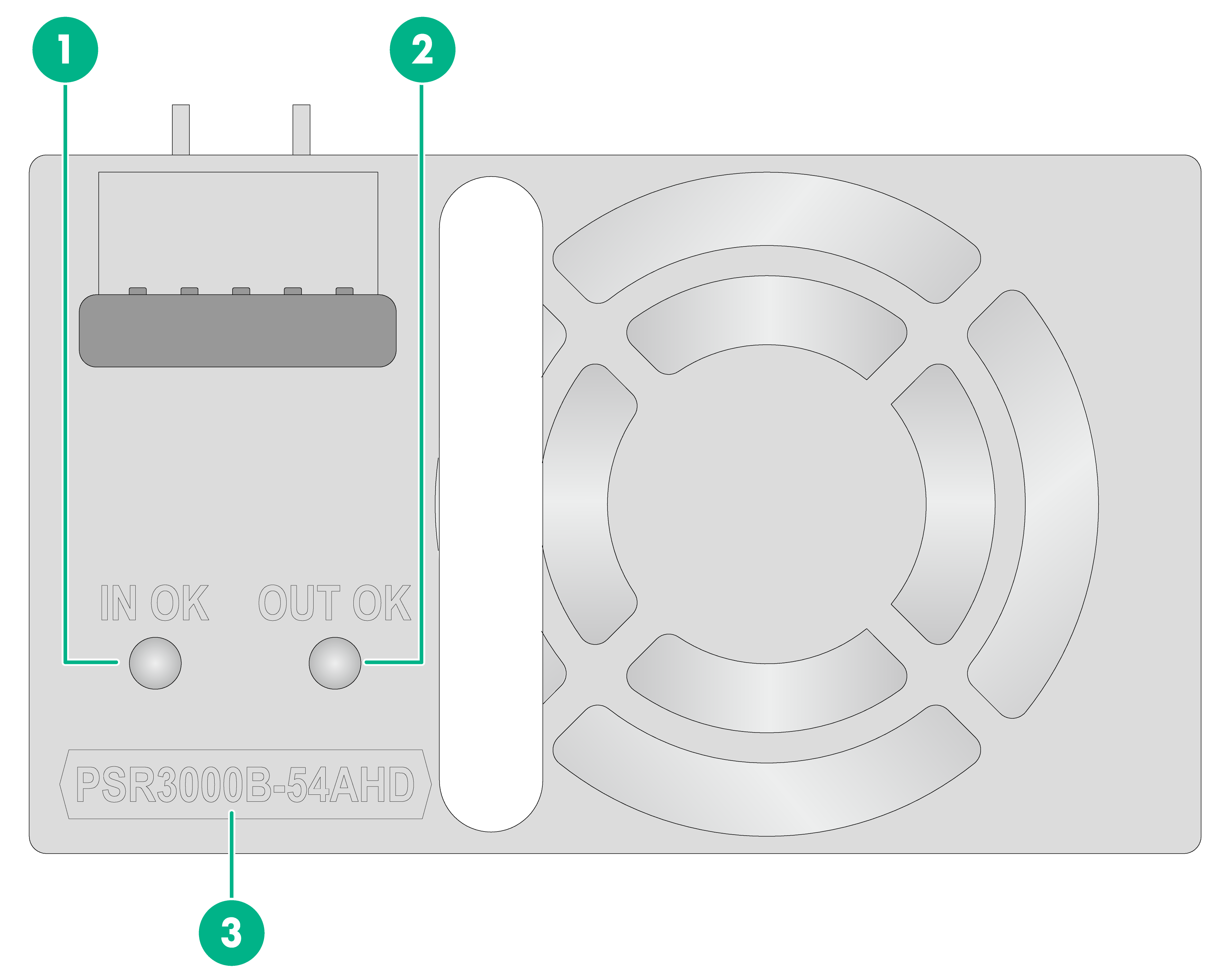

PSR3000B-54AHD |
2.0 kg (4.41 lb) |
41 × 68 × 440 mm (1.61 × 2.68 × 17.32 in) |

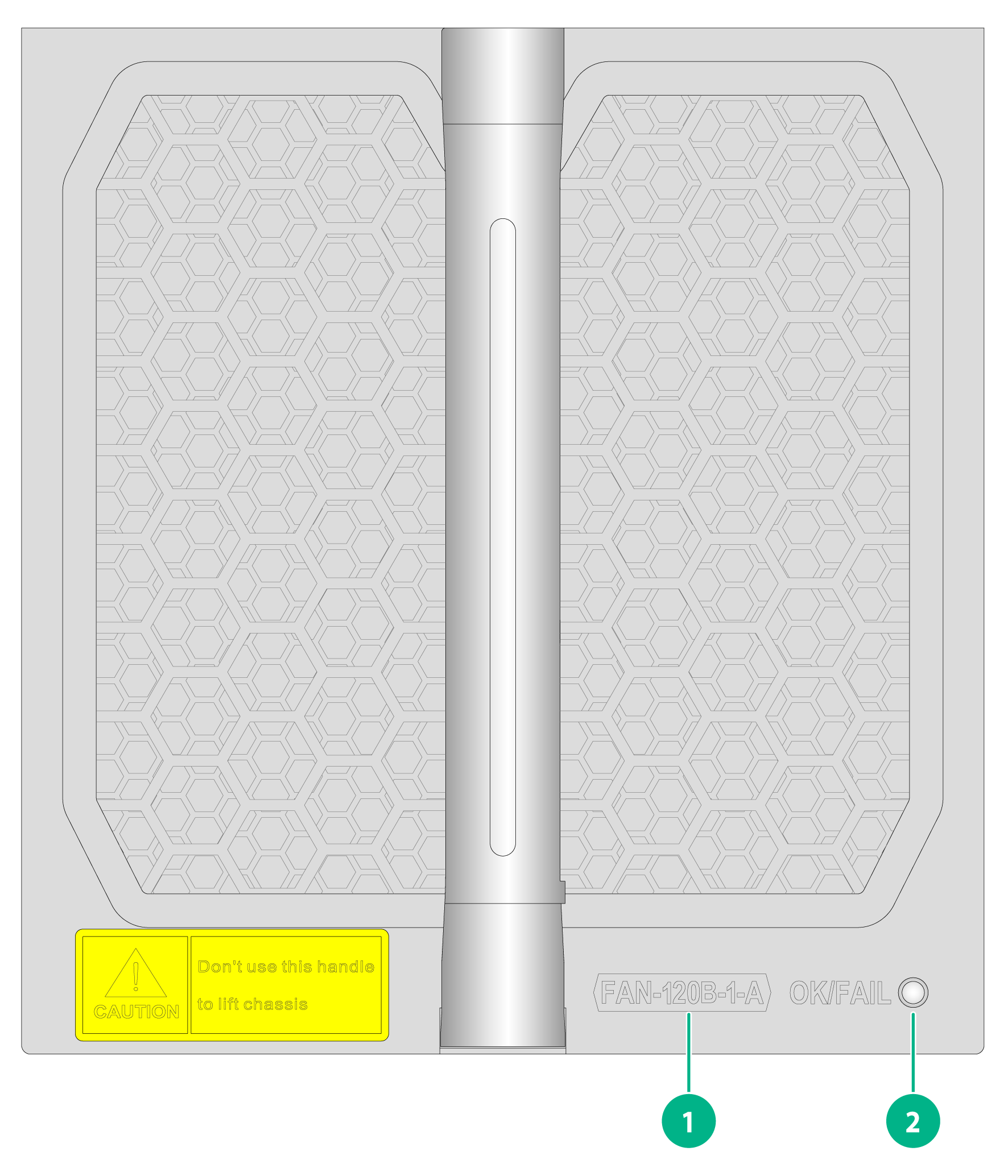

Fan trays
The router uses 33 micro fan trays. FAN-120B-1-A fan trays are available for the router.
Table3-3 Fan tray weights and dimensions
|
Fan tray model |
Net weight |
Dimensions (H × W × D) (Lying flat a workbench, including the handle) |
Power consumption |
|
FAN-120B-1-A |
1.6 kg (3.53 lb) |
139 × 129 × 171 mm (5.47 × 5.08 × 6.73 in) |
105 W |
LEDs
The major components of the router provide varieties of LEDs to indicate their operating status.
MPU LEDs
CR-19K-MPU-20A
Figure3-1 CR-19K-MPU-20A MPU LEDs
|
(1) Fan tray status LEDs (FAN OK and FAIL) |
(2) Power supply status LEDs (PWR OK and FAIL) |
|
(3) Module status LED (RUN) |
(4) MPU active/standby status LED (ACT) |
|
(5) Reset button |
(6) System alarm LED |
|
(7) Management port LED (MANAGEMENT) |
(8) 10GBASE-R-SFP+ port LEDs 1 to 4 |
|
|
NOTE: The 10GBASE-R-SFP+ ports on the MPU can be used for cluster control plane connections. |
Table3-4 CR-19K-MPU-20A MPU LED descriptions
|
LED |
Status |
Description |
|
|
10GBASE-R-SFP+ 1 to 4 |
LINK/ACT |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
||
|
Flashing green |
The port is sending or receiving data. |
||
|
MANAGEMENT |
LINK/ACT |
Off |
No link is present on the port. |
|
Steady green |
A 1000 Mbps link is present on the port. |
||
|
Flashing green |
The port is sending or receiving data at 1000 Mbps. |
||
|
Steady yellow |
A 10/100 Mbps link is present. |
||
|
Flashing yellow |
The port is sending or receiving data at 10/100 Mbps. |
||
|
FAN |
OK |
Steady green |
All fan trays are operating correctly. |
|
Off |
· A minimum of one fan tray is faulty. · No fan tray is present in a minimum of one fan tray slot. |
||
|
FAIL |
Off |
All fan trays are operating correctly. |
|
|
Steady red |
· A minimum of one fan tray is faulty. · No fan tray is present in a minimum of one fan tray slot. |
||
|
PWR |
OK |
Steady green |
All present power supplies are operating correctly. |
|
Off |
A minimum of one power supply is faulty. |
||
|
FAIL |
Off |
All present power supplies are operating correctly. |
|
|
Steady red |
A minimum of one power supply is faulty. |
||
|
RUN |
Off |
· A minimum of one module is faulty. · No module is present in a minimum of one module slot. |
|
|
Slow flashing green (0.5 Hz) |
The modules are operating correctly. |
||
|
Fast flashing green (4 Hz) |
The modules are loading software.
To avoid module damage, do not power off the router or hot swap a module when the modules are loading software. |
||
|
ALM |
Off |
No alarm has occurred on the system. |
|
|
Steady red |
An alarm has occurred on the system. |
||
|
ACT |
Off |
The router is in single chassis mode, and the MPU is in standby mode. |
|
|
Flashing green (0.5 Hz) |
The router is in cluster mode, and the MPU is in standby mode. |
||
|
Steady green |
The MPU is the active MPU of the chassis or the cluster. |
||
CR-19K-MPU-20B
Figure3-2 CR-19K-MPU-20B MPU LEDs
|
(1) Fan tray status LEDs (FAN OK and FAIL) |
(2) Power supply status LEDs (PWR OK and FAIL) |
|
(3) Module status LED (RUN) |
(4) MPU active/standby status LED (ACT) |
|
(5) Reset button |
(6) Hard disk status LED (HD) |
|
(7) System alarm LED |
(8) EXT port LEDs |
|
(9) Management port LED (MANAGEMENT) |
(10) 10GBASE-R-SFP+ port LEDs 1 to 4 |
|
|
NOTE: · The 10GBASE-R-SFP+ ports on the MPU can be used for cluster control plane connections. · EXT ports are used for loading third-party operating systems and applications. The EXT ports include a USB port, a BMC port, a 10/100/1000BASE-T port, and two 10GBASE-R ports. |
Table3-5 CR-19K-MPU-20B MPU LED description
|
LED |
Status |
Description |
|
|
10GBASE-R-SFP+ 1 to 4 |
LINK/ACT |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
||
|
Flashing green |
The port is sending or receiving data. |
||
|
MANAGEMENT |
LINK/ACT |
Off |
No link is present on the port. |
|
Steady green |
A 1000 Mbps link is present on the port. |
||
|
Flashing green |
The port is sending or receiving data at 1000 Mbps. |
||
|
Steady yellow |
A 10/100 Mbps link is present. |
||
|
Flashing yellow |
The port is sending or receiving data at 10/100 Mbps. |
||
|
EXT: BMC, ETH 1 to 3 |
LINK/ACT |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
||
|
Flashing green |
The port is sending or receiving data. |
||
|
FAN |
OK |
Steady green |
All fan trays are operating correctly. |
|
Off |
· A minimum of one fan tray is faulty. · No fan tray is present in a minimum of one fan tray slot. |
||
|
FAIL |
Off |
All fan trays are operating correctly. |
|
|
Steady red |
· A minimum of one fan tray is faulty. · No fan tray is present in a minimum of one fan tray slot. |
||
|
PWR |
OK |
Steady green |
All present power supplies are operating correctly. |
|
Off |
A minimum of one power supply is faulty. |
||
|
FAIL |
Off |
All present power supplies are operating correctly. |
|
|
Steady red |
A minimum of one power supply is faulty. |
||
|
RUN |
Off |
· A minimum of one module is faulty. · No module is present in a minimum of one module slot. |
|
|
Slow flashing green (0.5 Hz) |
The modules are operating correctly. |
||
|
Fast flashing green (4 Hz) |
The modules are loading software.
To avoid module damage, do not power off the router or hot swap a module when the modules are loading software. |
||
|
ALM |
Off |
No alarm has occurred on the system |
|
|
Steady red |
An alarm has occurred on the system. |
||
|
HD |
Flashing green (4 Hz) |
The system is reading data from and writing data to the hard disk.
To avoid data loss, do not power off the router or hot swap the hard disk when the system is reading data from and writing data to the hard disk. |
|
|
ACT |
Off |
The router is in single chassis mode, and the MPU is in standby mode. |
|
|
Flashing green |
The router is in cluster mode, and the MPU is in standby mode. |
||
|
Steady green |
The MPU is the active MPU of the chassis or the cluster. |
||
CR-19K-MPU-20C

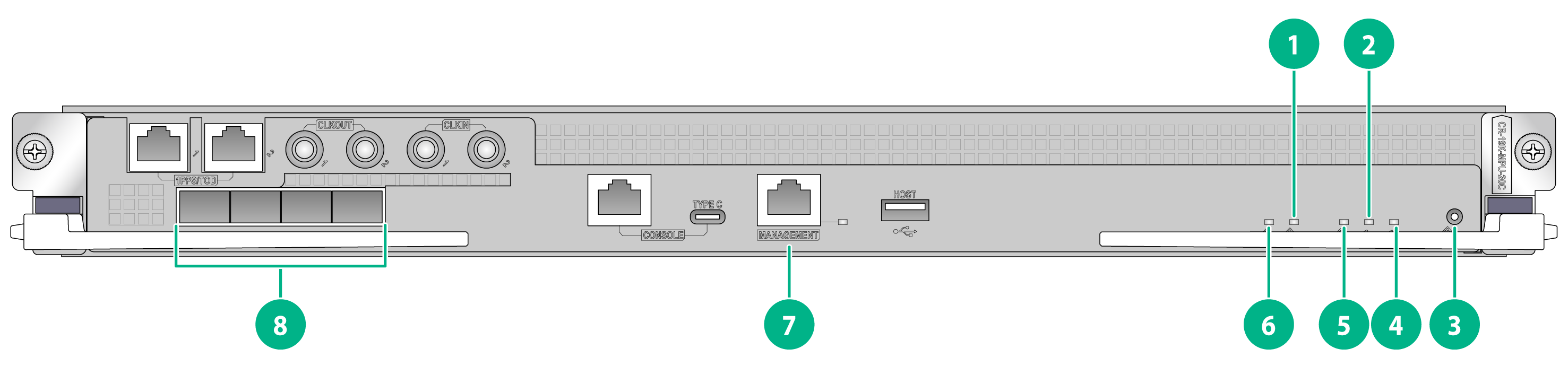

Figure3-3 CR-19K-MPU-20C MPU LEDs
|
(1) Power supply status LED |
(2) System alarm LED |
|
(3) Reset button |
(4) MPU active/standby status LED (ACT) |
|
(5) Module status LED (RUN) |
(6) Fan tray status LED |
|
(7) Management port LED (MANAGEMENT) |
(8) 10GBASE-R-SFP+ port LEDs 1 to 4 |
|
|
NOTE: The 10GBASE-R-SFP+ ports on the MPU can be used for cluster control plane connections. |
Table3-6 CR-19K-MPU-20C MPU LED description
|
LED |
Status |
Description |
|
|
10GBASE-R-SFP+ 1 to 4 |
LINK/ACT |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
||
|
Flashing green |
The port is sending or receiving data. |
||
|
MANAGEMENT |
LINK/ACT |
Off |
No link is present on the port. |
|
Steady green |
A 1000 Mbps link is present on the port. |
||
|
Flashing green |
The port is sending or receiving data at 1000 Mbps. |
||
|
Steady yellow |
A 10/100 Mbps link is present. |
||
|
Flashing yellow |
The port is sending or receiving data at 10/100 Mbps. |
||
|
FAN |
Off |
· A minimum of one fan tray is faulty. · No fan tray is present in a minimum of one fan tray slot. |
|
|
Steady green |
All fan trays are operating correctly. |
||
|
Steady red |
· A minimum of one fan tray is faulty. · No fan tray is present in a minimum of one fan tray slot. |
||
|
PWR |
Off |
A minimum of one power supply is faulty. |
|
|
Steady green |
All present power supplies are operating correctly. |
||
|
Steady red |
A minimum of one power supply is faulty. |
||
|
RUN |
Off |
A minimum of one module is faulty. |
|
|
Slow flashing green (0.5 Hz) |
The modules are operating correctly. |
||
|
Fast flashing green (4 Hz) |
The modules are loading software.
To avoid module damage, do not power off the router or hot swap a module when the modules are loading software. |
||
|
ALM |
Off |
No alarm has occurred on the system. |
|
|
Steady red |
An alarm has occurred on the system. |
||
|
ACT |
Off |
The router is in single chassis mode, and the MPU is in standby mode. |
|
|
Flashing green (0.5 Hz) |
The router is in cluster mode, and the MPU is in standby mode. |
||
|
Steady green |
The MPU is the active MPU of the chassis or the cluster. |
||
Fabric module LEDs
CR-19K-SFU-20C

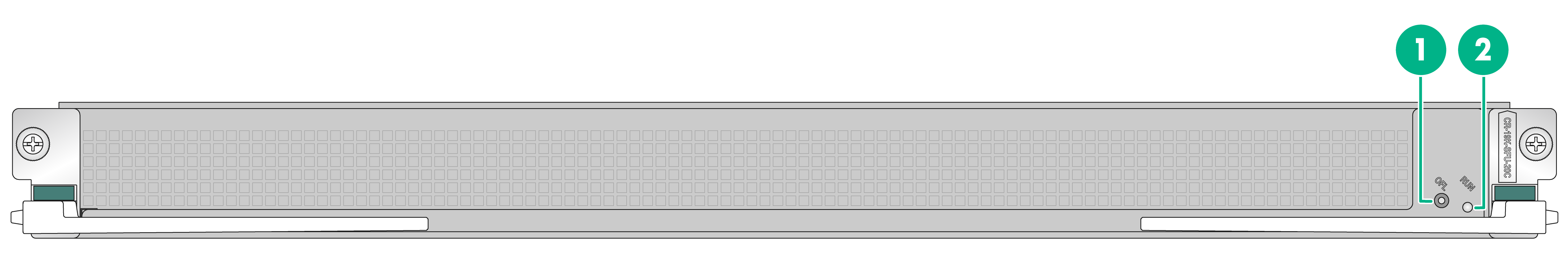

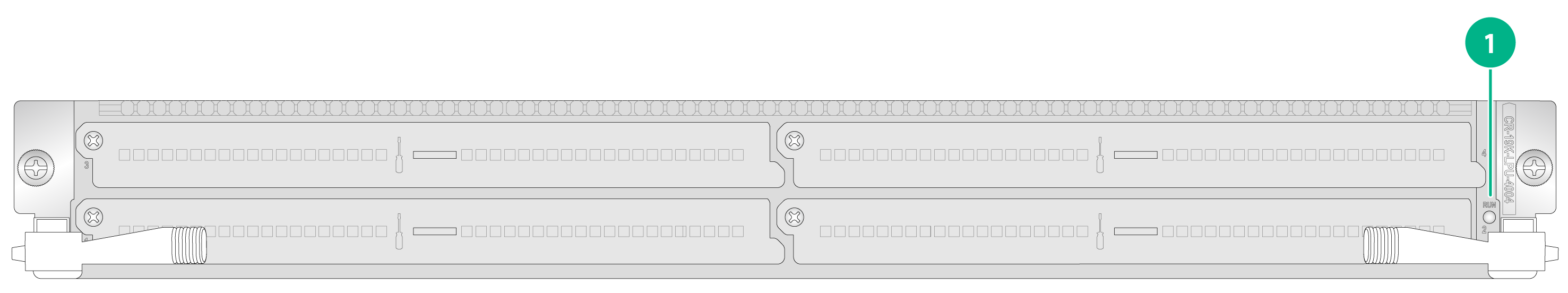

Figure3-4 CR-19K-SFU-20C fabric module LEDs
|
(1) OFL button |
(2) Running status LED (RUN) |
Table3-7 CR-19K-SFU-20C fabric module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Off |
The fabric module is faulty or not fully inserted. |
|
Slow flashing green (0.5 Hz) |
The fabric module is operating correctly. |
|
|
Fast flashing green (4 Hz) |
The fabric module is loading software.
To avoid damaging the fabric module, do not power off the router or hot swap the fabric module when the fabric module is loading software. |
|
|
Steady red |
An alarm has occurred on the fabric module. |
|
|
Flashing red (8 Hz) |
After you press the OFL button, the LED flashes red at 8 Hz for 3 seconds. You can remove the fabric module after the LED is off. |
CR-19K-MSFU-20B
Figure3-5 CR-19K-MSFU-20B fabric module LEDs
|
(1) Cluster port LEDs 1 to 4 |
(2) OFL button |
(3) Running status LED (RUN) |
Table3-8 CR-19K-MSFU-20B LED description
|
LED |
Status |
Description |
|
RUN |
Off |
The fabric module is faulty or not fully inserted. |
|
Slow flashing green (0.5 Hz) |
The fabric module is operating correctly. |
|
|
Fast flashing green (4 Hz) |
The fabric module is loading software.
To avoid damaging the fabric module, do not power off the router or hot swap the fabric module when the fabric module is loading software. |
|
|
Steady red |
An alarm has occurred on the fabric module. |
|
|
Flashing red (8 Hz) |
After you press the OFL button, the LED flashes red at 8 Hz for 3 seconds. You can remove the module after the LED is off. |
|
|
LINK (1 to 4) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-MSFU-20C

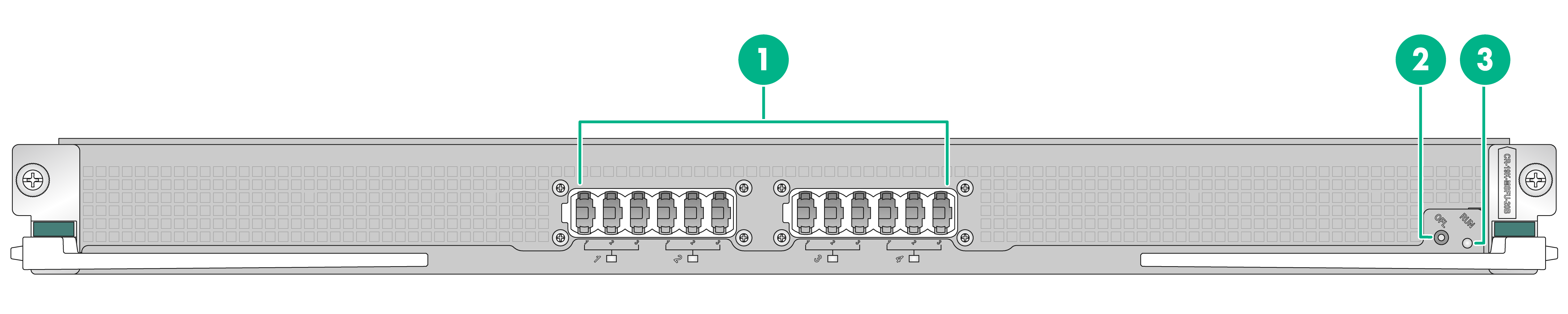

Figure3-6 CR-19K-MSFU-20C fabric module LEDs
|
(1) Cluster port LEDs 1 to 12 |
(2) OFL button |
(3) Running status LED (RUN) |
Table3-9 CR-19K-MSFU-20C LED description
|
LED |
Status |
Description |
|
RUN |
Off |
The fabric module is faulty or not fully inserted. |
|
Slow flashing green (0.5 Hz) |
The fabric module is operating correctly. |
|
|
Fast flashing green (4 Hz) |
The fabric module is loading software.
To avoid damaging the fabric module, do not power off the router or hot swap the fabric module when the fabric module is loading software. |
|
|
Steady red |
An alarm has occurred on the fabric module. |
|
|
Flashing red (8 Hz) |
After you press the OFL button, the LED flashes red at 8 Hz for 3 seconds. You can remove the fabric module after the LED is off. |
|
|
LINK (1 to 12) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
A link is being established on the port. |
Interface module LEDs
CR-19K-LPU-CQ18

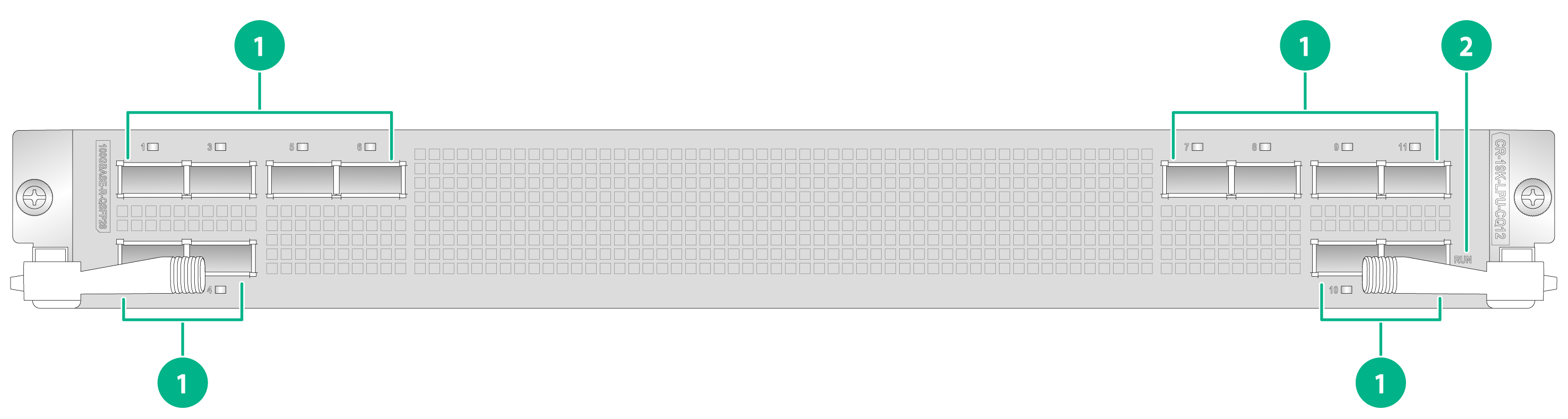

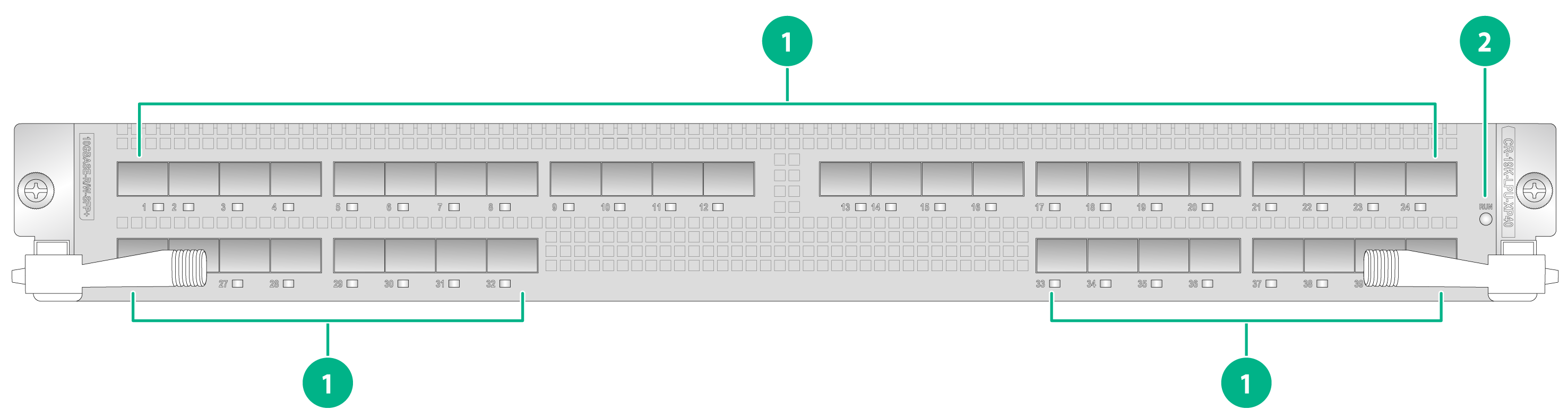

Figure3-7 CR-19K-LPU-CQ18 interface module LEDs
|
(1) 100GBASE-R-QSFP28 Ethernet port LEDs 1 to 18 |
(2) Running status LED (RUN) |
Table3-10 CR-19K-LPU-CQ18 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 18) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-CQ12

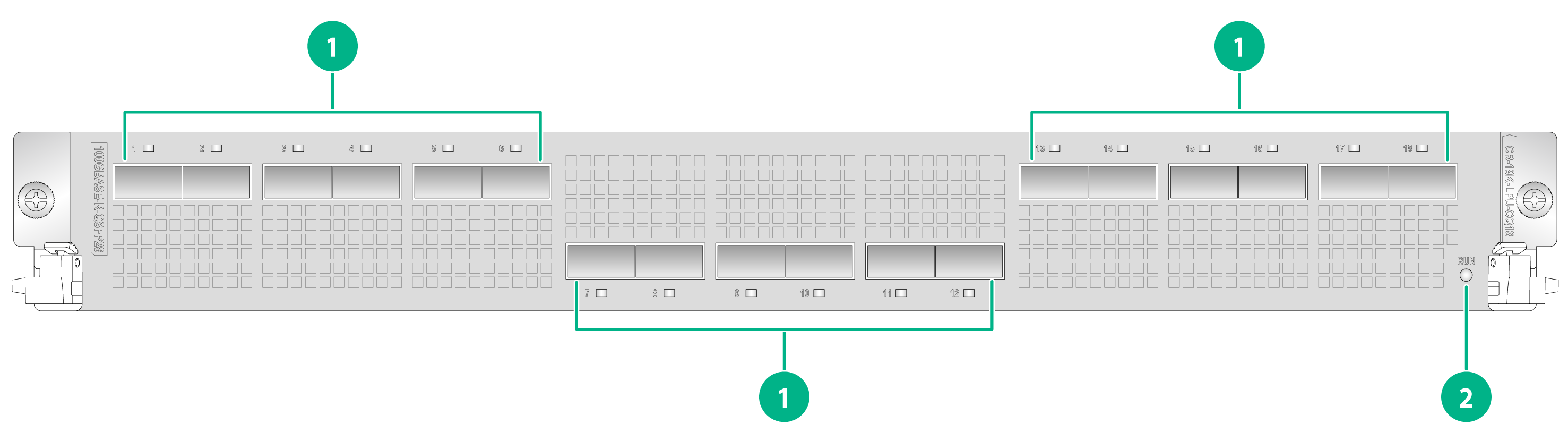

Figure3-8 CR-19K-LPU-CQ12 interface module LEDs
|
(1) 100GBASE-R-QSFP28 Ethernet port LEDs 1 to 12 |
(2) Running status LED (RUN) |
Table3-11 CR-19K-LPU-CQ12 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 12) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-CQ12B
Figure3-9 CR-19K-LPU-CQ12B interface module LEDs
|
(1) 100GBASE-R-QSFP28 Ethernet port LEDs 1 to 12 |
(2) Running status LED (RUN) |
Table3-12 CR-19K-LPU-CQ12B interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 12) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-CQ06B
Figure3-10 CR-19K-LPU-CQ06B interface module LEDs
|
(1) 100GBASE-R-QSFP28 port LEDs 1 to 6 |
(2) Running status LED (RUN) |
Table3-13 CR-19K-LPU-CQ06B interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 6) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-CC08

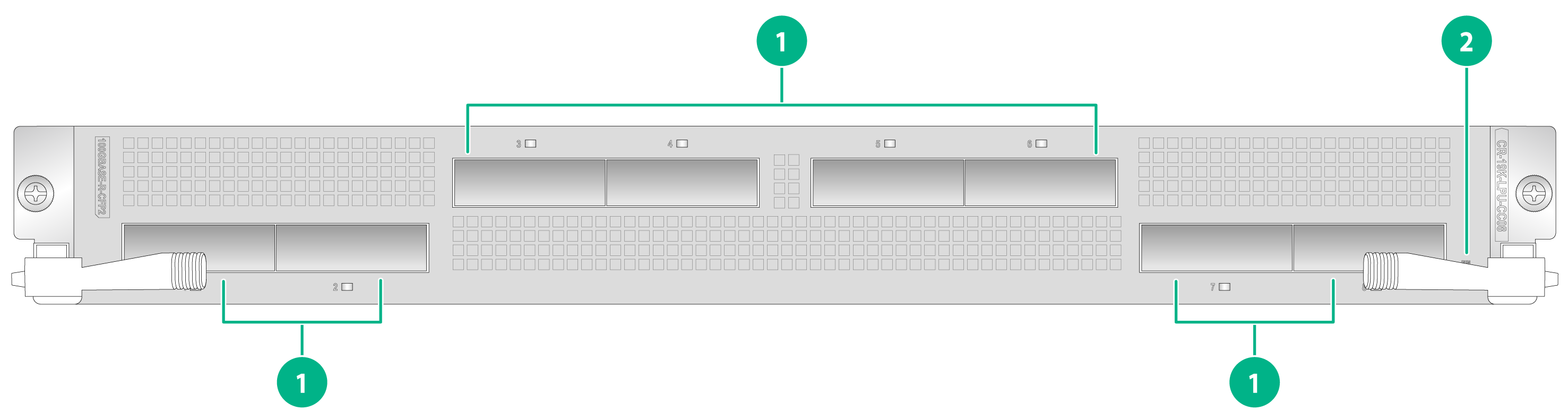

Figure3-11 CR-19K-LPU-CC08 interface module LEDs
|
(1) 100GBASE-R-CFP2 port LEDs 1 to 8 |
(2) Running status LED (RUN) |
Table3-14 CR-19K-LPU-CC08 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 8) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-CC04

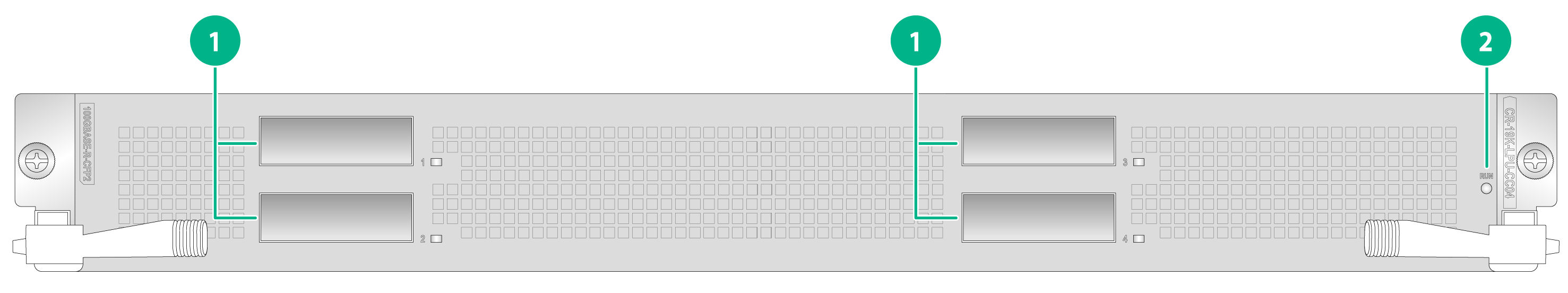

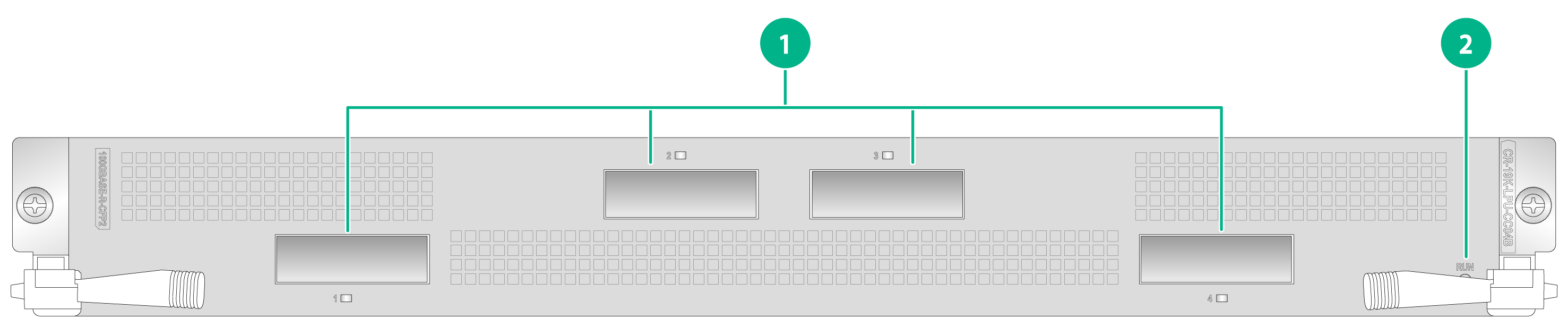

Figure3-12 CR-19K-LPU-CC04 interface module LEDs
|
(1) 100GBASE-R-CFP2 port LEDs 1 to 4 |
(2) Running status LED (RUN) |
Table3-15 CR-19K-LPU-CC04 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 4) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-CC04B
Figure3-13 CR-19K-LPU-CC04B interface module LEDs
|
(1) 100GBASE-R-CFP2 port LEDs 1 to 4 |
(2) Running status LED (RUN) |
Table3-16 CR-19K-LPU-CC04B interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 4) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-XP72
Figure3-14 CR-19K-LPU-XP72 interface module LEDs
|
(1) 10GBASE-R/W-SFP+ port LEDs 1 to 72 |
(2) Running status LED (RUN) |
Table3-17 CR-19K-LPU-XP72 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 72) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-XP48

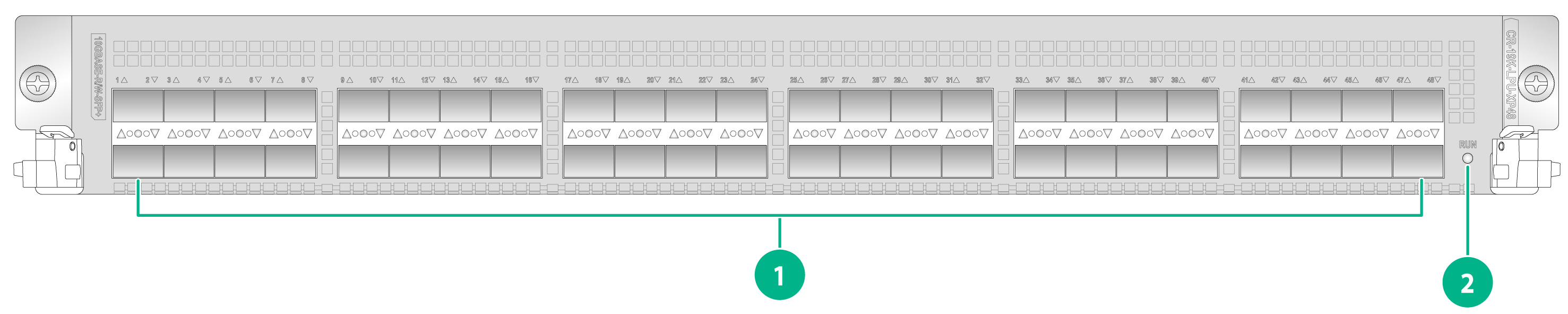

Figure3-15 CR-19K-LPU-XP48 interface module LEDs
|
(1) 10GBASE-R/W-SFP+ port LEDs 1 to 48 |
(2) Running status LED (RUN) |
Table3-18 CR-19K-LPU-XP48 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 48) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-XP40
Figure3-16 CR-19K-LPU-XP40 interface module LEDs
|
(1) 10GBASE-R/W-SFP+ port LEDs 1 to 40 |
(2) Running status LED (RUN) |
Table3-19 CR-19K-LPU-XP40 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 40) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-XP20CC02

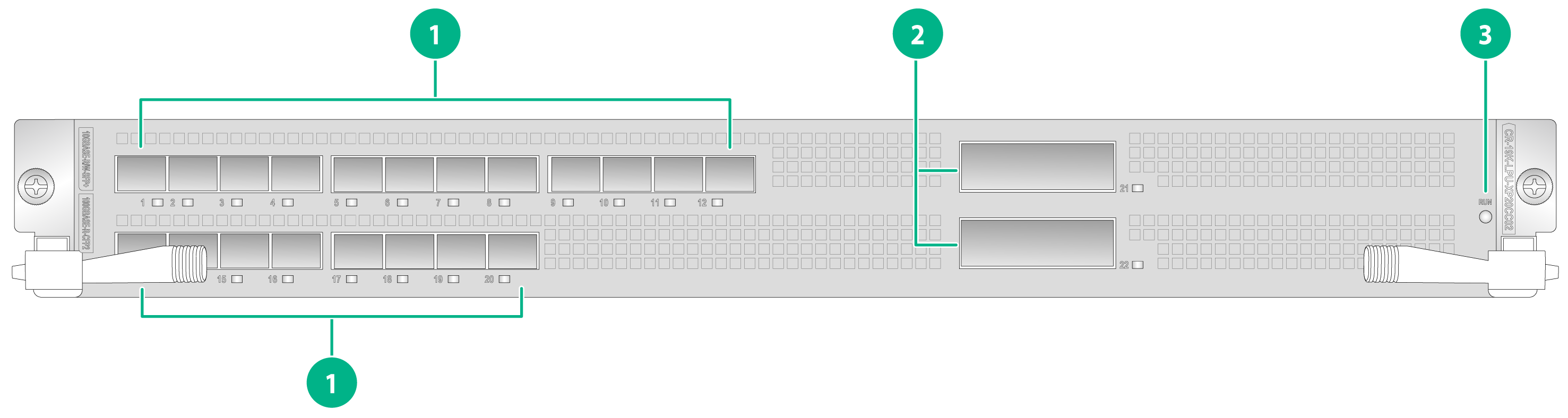

Figure3-17 CR-19K-LPU-XP20CC02 interface module LEDs
|
(1) 10GBASE-R/W-SFP+ port LEDs 1 to 20 |
(2) 100GBASE-R-CFP2 port LEDs 21 and 22 |
|
(3) Running status LED (RUN) |
|
Table3-20 CR-19K-LPU-XP20CC02 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
|
|
LINK/ACT (1 to 22) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending or receiving data. |
CR-19K-LPU-8004

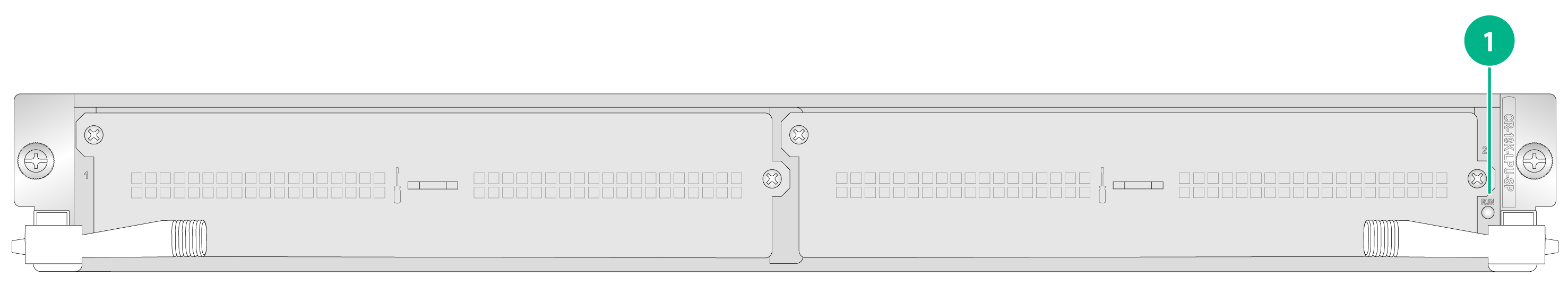

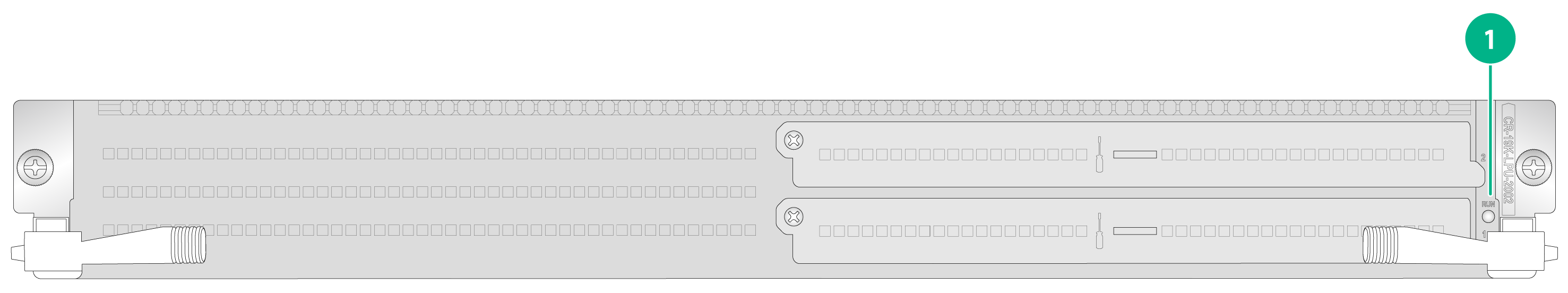

Figure3-18 CR-19K-LPU-8004 interface module LEDs
|
(1) Running status LED (RUN) |
Table3-21 CR-19K-LPU-8004 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
CR-19K-LPU-4004
Figure3-19 CR-19K-LPU-4004 interface module LEDs
|
(1) Running status LED (RUN) |
Table3-22 CR-19K-LPU-4004 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
CR-19K-LPU-2002
Figure3-20 CR-19K-LPU-2002 interface module LEDs
|
(1) Running status LED (RUN) |
Table3-23 CR-19K-LPU-2002 interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
CR-19K-LPU-2002B
Figure3-21 CR-19K-LPU-2002B interface module LEDs
|
(1) Running status LED (RUN) |
Table3-24 CR-19K-LPU-2002B interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
CR-19K-LPU-SP

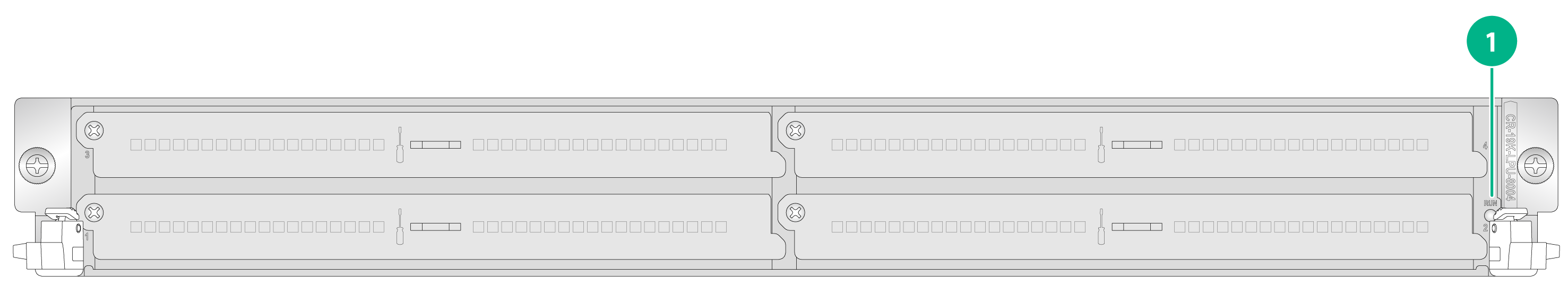

Figure3-22 CR-19K-LPU-SP interface module LEDs
|
(1) Running status LED (RUN) |
Table3-25 CR-19K-LPU-SP interface module LED descriptions
|
LED |
Status |
Description |
|
RUN |
Slow flashing green (0.5 Hz) |
The module is operating correctly. |
|
Fast flashing green (4 Hz) |
The module is loading software.
To avoid damaging the module, do not power off the router or hot swap the module when the module is loading software. |
|
|
Steady red |
An alarm has occurred on the module. |
|
|
Off |
The module is faulty. |
Interface subcard LEDs
CR-HIC-CLGQ04F
Figure3-23 CR-HIC-CLGQ04F interface subcard LEDs
|
(1) 50G/100GBASE-R-QSFP28 port LEDs 1 to 4 (LINK/ACT) |
Table3-26 CR-HIC-CLGQ04F interface subcard LED descriptions
|
LED |
Status |
Description |
|
LINK/ACT (1 to 4) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending and receiving data. |
CR-HIC-CQ02

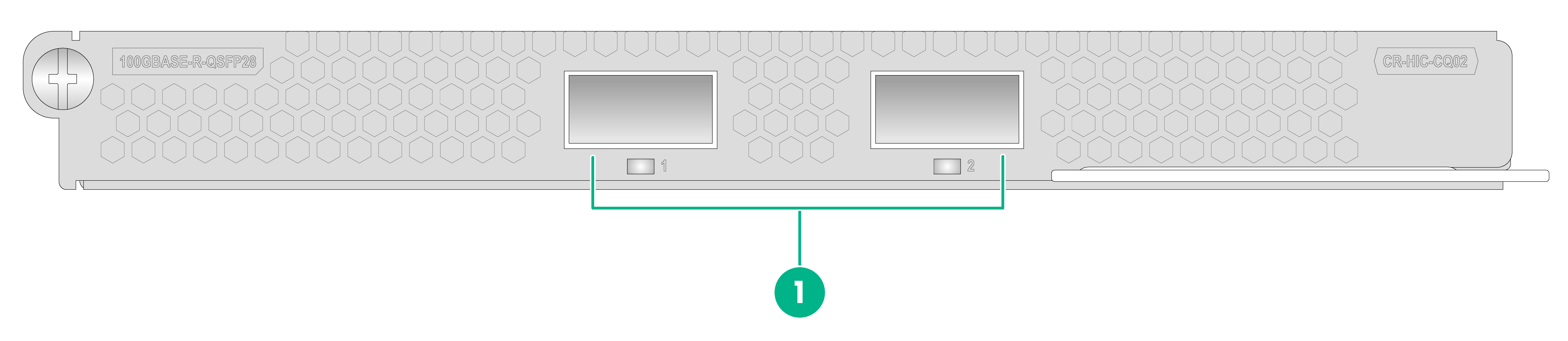

Figure3-24 CR-HIC-CQ02 interface subcard LEDs
|
(1) 100GBASE-R-QSFP28 port LEDs 1 and 2 (LINK/ACT) |
Table3-27 CR-HIC-CQ02 interface subcard LED descriptions
|
LED |
Status |
Description |
|
LINK/ACT (1 and 2) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending and receiving data. |
CR-HIC-CQ01

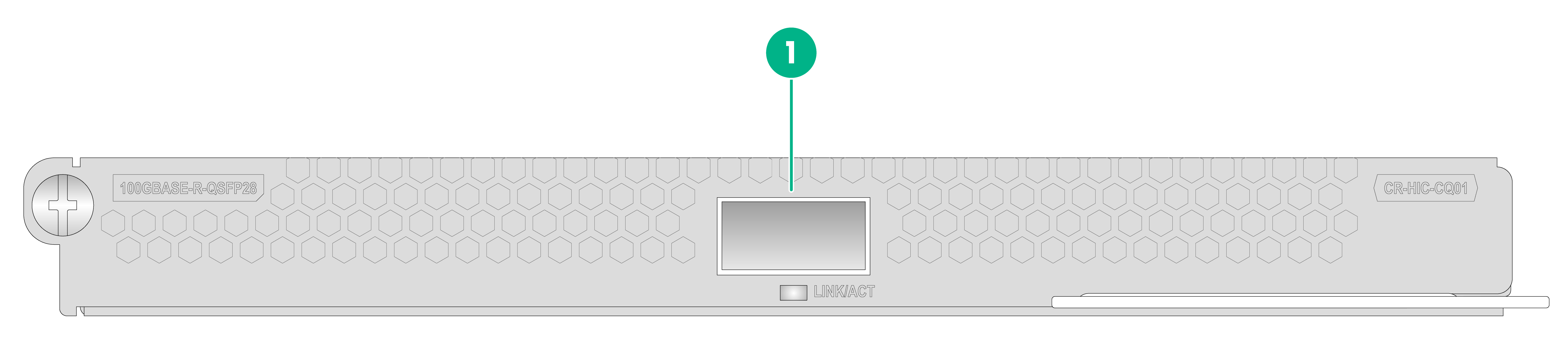

Figure3-25 CR-HIC-CQ01 interface subcard LEDs
|
(1) 100GBASE-R-QSFP28 port LED (LINK/ACT) |
Table3-28 CR-HIC-CQ01 interface subcard LED descriptions
|
LED |
Status |
Description |
|
LINK/ACT |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending and receiving data. |
CR-HIC-CC01

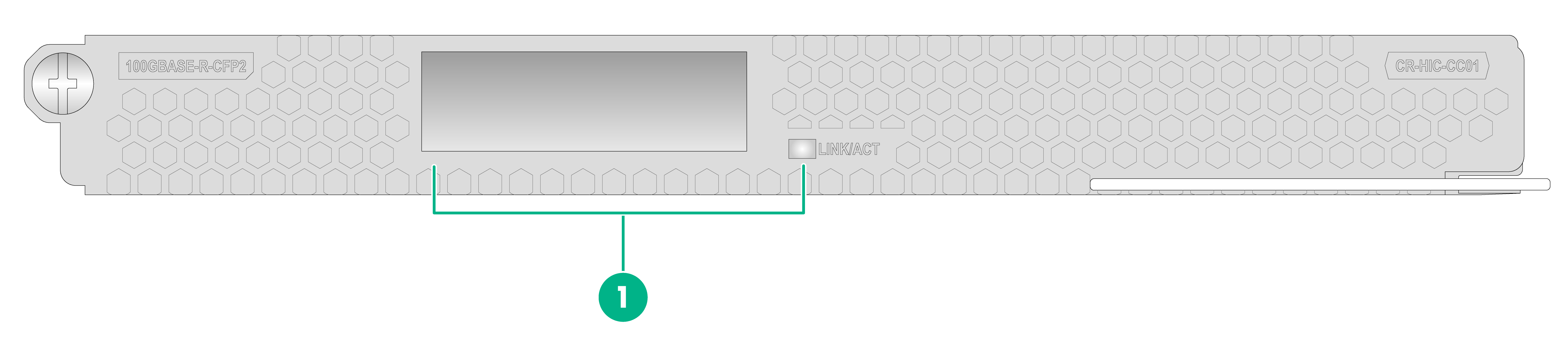

Figure3-26 CR-HIC-CC01 interface subcard LEDs
|
(1) 100GBASE-R-CFP2 Ethernet port LED (LINK/ACT) |
Table3-29 CR-HIC-CC01 interface subcard LED descriptions
|
LED |
Status |
Description |
|
LINK/ACT |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending and receiving data. |
CR-HIC-QQ03
Figure3-27 CR-HIC-QQ03 interface subcard LEDs
|
(1) 40GBASE-R-QSFP+port LEDs 1 to 3 |
Table3-30 CR-HIC-QQ03 interface subcard LED descriptions
|
LED |
Status |
Description |
|
LINK/ACT (1 to 3) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending and receiving data. |
CR-HIC-XP12
Figure3-28 CR-HIC-XP12 interface subcard LEDs
|
(1) 10GBASE-R/W-SFP+ port LEDs 1 to 12 |
Table3-31 CR-HIC-XP12 interface subcard LED descriptions
|
LED |
Status |
Description |
|
LINK/ACT (1 to 12) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending and receiving data. |
CR-HIC-XP12B
Figure3-29 CR-HIC-XP12B interface subcard LEDs
|
(1) 10GBASE-R/W-SFP+ port LEDs 1 to 12 |
Table3-32 CR-HIC-XP12B interface subcard LED descriptions
|
LED |
Status |
Description |
|
LINK/ACT (1 to 12) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending and receiving data. |
CR-HIC-XP10

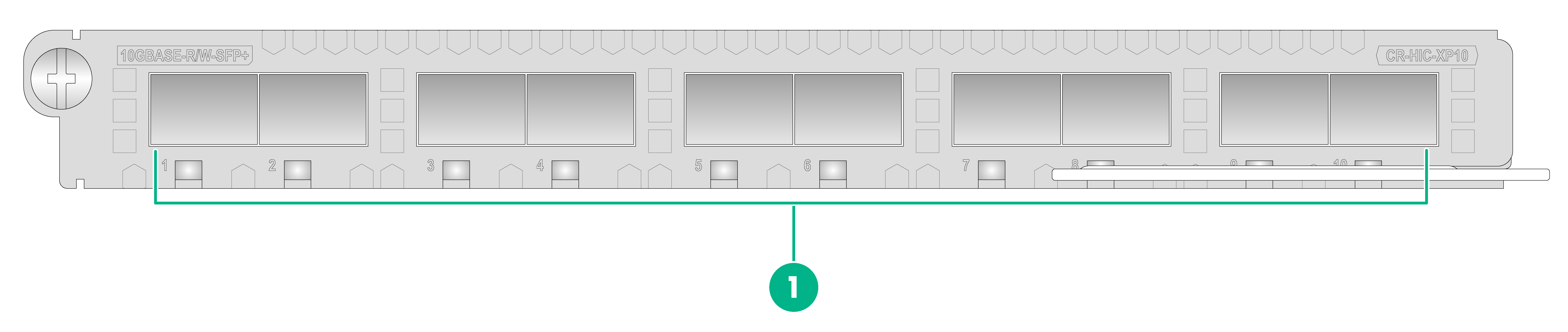

Figure3-30 CR-HIC-XP10 interface subcard LEDs
|
(1) 1000BASE-X-SFP or 10GBASE-R/W-SFP+ port LEDs 1 to 10 |
Table3-33 CR-HIC-XP10 interface subcard LED descriptions
|
LED |
Status |
Description |
|
LINK/ACT (1 to 10) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending and receiving data. |
CR-HIC-GP12

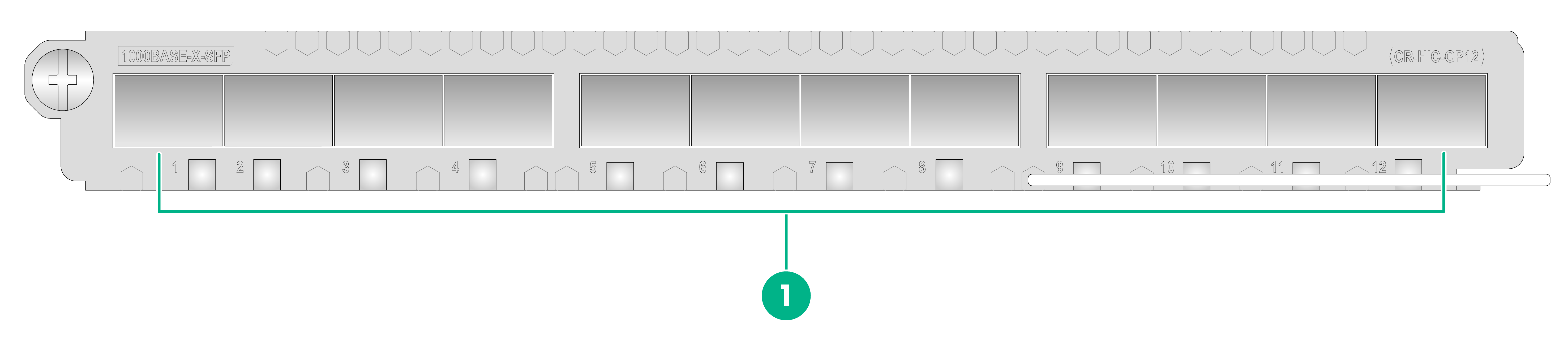

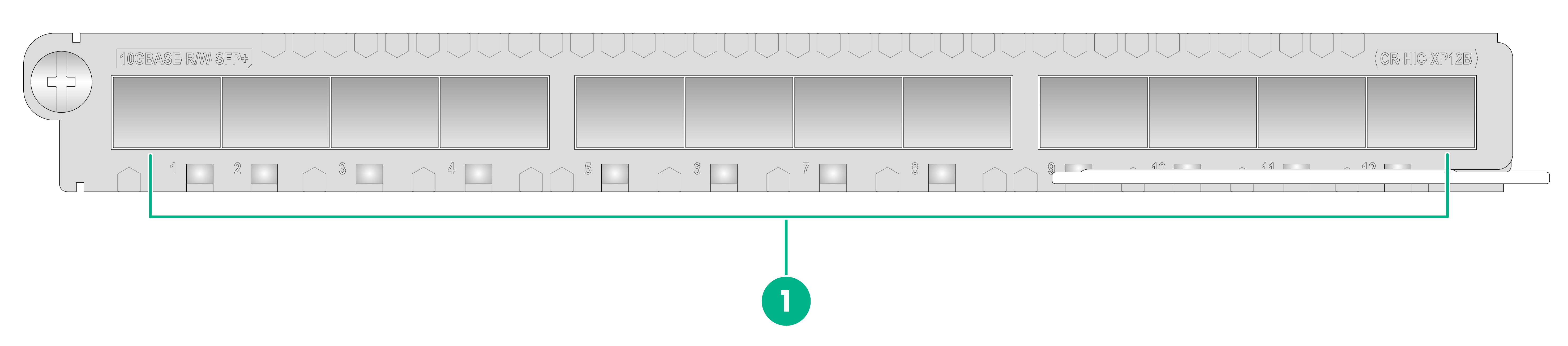

Figure3-31 CR-HIC-GP12 interface subcard LEDs
|
(1) 1000BASE-X-SFP port LEDs 1 to 12 |
Table3-34 CR-HIC-GP12 interface subcard LED descriptions
|
LED |
Status |
Description |
|
LINK/ACT (1 to 12) |
Off |
No link is present on the port. |
|
Steady green |
A link is present on the port. |
|
|
Flashing green |
The port is sending and receiving data. |
CR-HIC-PU02

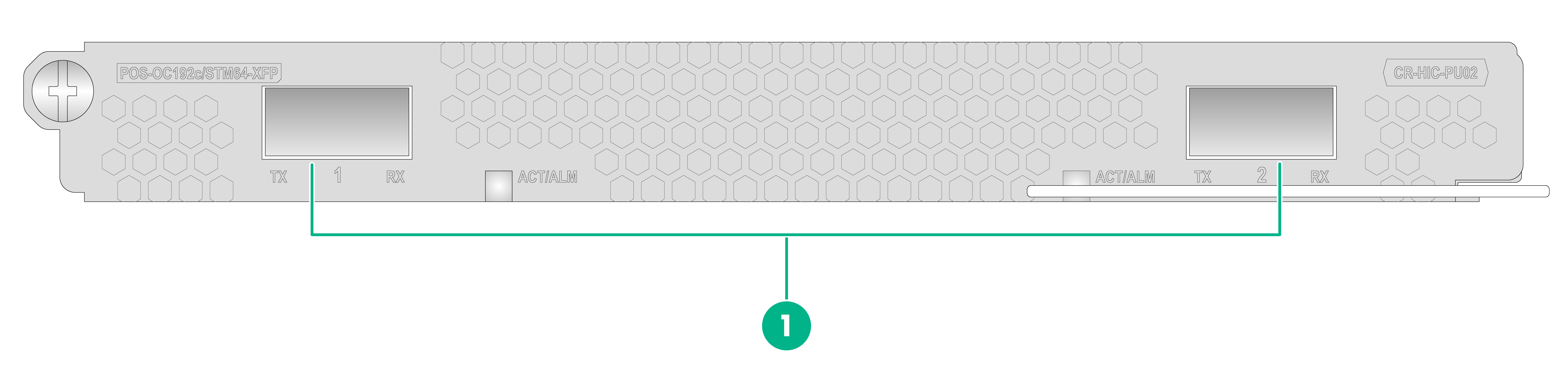

Figure3-32 CR-HIC-PU02 interface subcard LEDs
|
(1) POS-OC192c/STM64-XFP port LEDs 1 and 2 (ACT/ALM) |
Table3-35 CR-HIC-PU02 interface subcard LED descriptions
|
LED |
Status |
Description |
|
ACT/ALM (1 and 2) |
Off |
The port is down. |
|
Steady green |
The port is up and is sending and receiving data correctly. |
|
|
Steady red |
A loss of signal (LOS) alarm has occurred on the port. |
CR-HIC-PS04

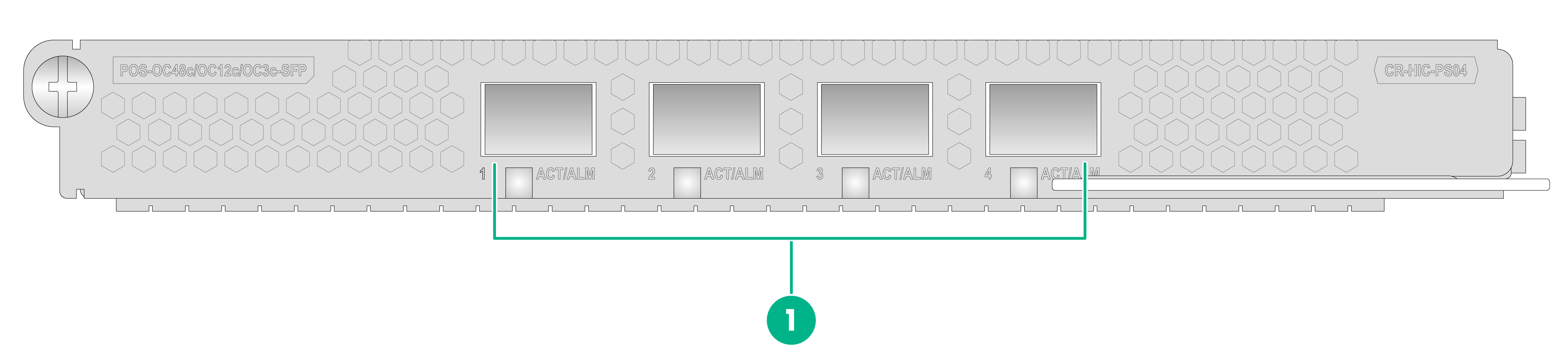

Figure3-33 CR-HIC-PS04 interface subcard LEDs
|
(1) 155M/622M/2.5G POS port LEDs 1 to 4 (ACT/ALM) |
Table3-36 CR-HIC-PS04 interface subcard LED descriptions
|
LED |
Status |
Description |
|
ACT/ALM (1 to 4) |
Off |
The port is down. |
|
Steady green |
The port is up and is sending and receiving data correctly. |
|
|
Steady red |
A LOS alarm has occurred on the port. |
CR-HIC-PHP08

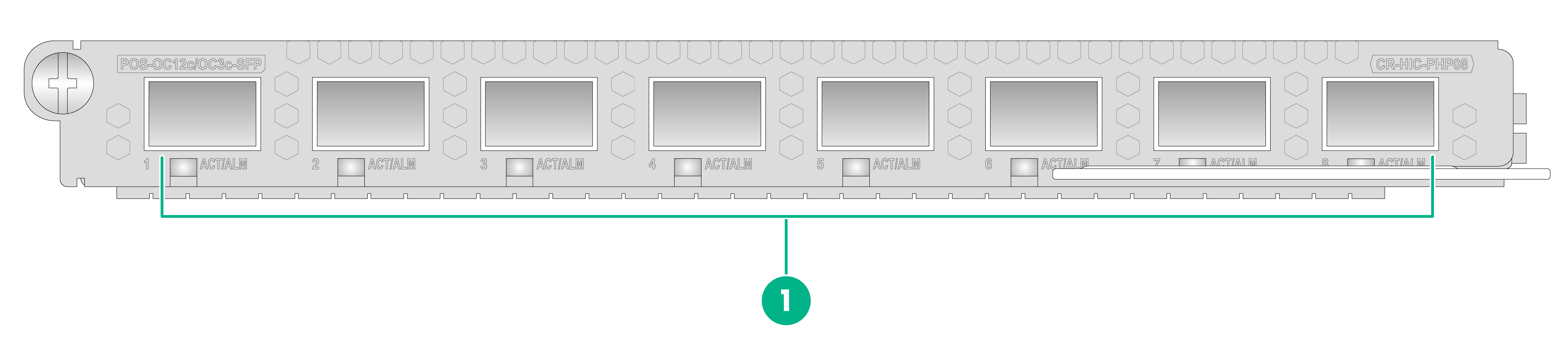

Figure3-34 CR-HIC-PHP08 interface subcard LEDs
|
(1) 155M/622M POS port LEDs 1 to 8 (ACT/ALM) |
Table3-37 CR-HIC-PHP08 interface subcard LED descriptions
|
LED |
Status |
Description |
|
ACT/ALM (1 to 8) |
Off |
The port is down. |
|
Steady green |
The port is up and is sending and receiving data correctly. |
|
|
Steady red |
A LOS alarm has occurred on the port. |
CR-HIC-CLP04

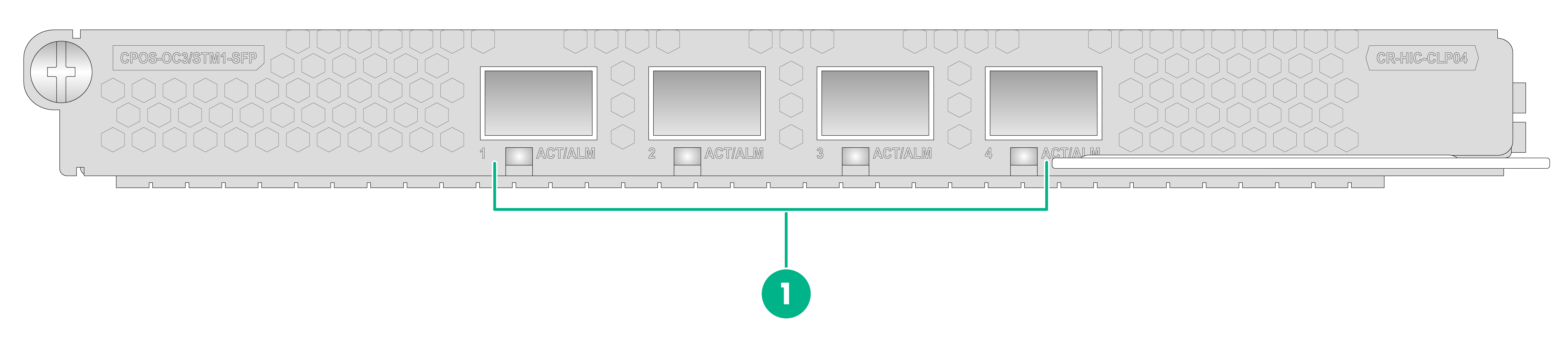

Figure3-35 CR-HIC-CLP04 interface subcard LEDs
|
(1) 155M CPOS port LEDs 1 to 4 (ACT/ALM) |
Table3-38 CR-HIC-CLP04 interface subcard LED descriptions
|
LED |
Status |
Description |
|
ACT/ALM (1 to 4) |
Off |
The port is down. |
|
Steady green |
The port is up but no data is transmitted on the port. |
|
|
Flashing green |
The port is up and is sending and receiving data correctly. |
|
|
Steady red |
An alarm has occurred on the port. |
CR-HIC-ET16

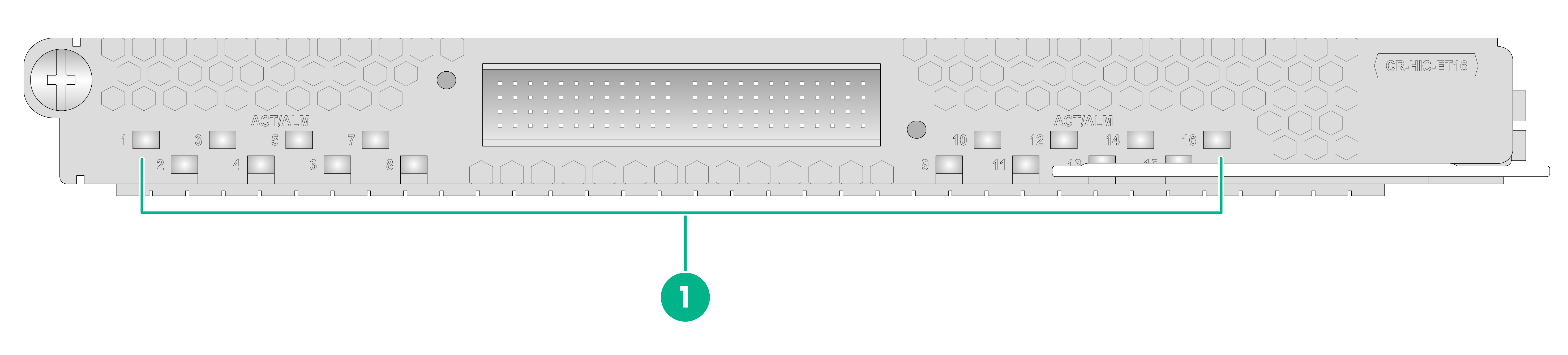

Figure3-36 CR-HIC-ET16 interface subcard LEDs
|
(1) E1 interface LEDs 1 to 16 (ACT/ALM) |
Table3-39 CR-HIC-ET16 interface subcard LED descriptions
|
LED |
Status |
Description |
|
ACT/ALM (1 to 16) |
Off |
The port is down. |
|
Steady green |
The port is up but no data is transmitted on the port. |
|
|
Flashing green |
The port is up and is sending and receiving data correctly. |
|
|
Steady red |
An alarm has occurred on the port. |
Power supply LEDs
PSR2000B-54D
Figure3-37 PSR2000B-54D DC power supply LEDs
|
(1) Power input LED (IN OK) |
(2) Power output LED (OUT OK) |
|
(3) Power supply identifier (PSR2000B-54D) |
|
Table3-40 PSR2000B-54D power supply LED descriptions
|
LED |
Status |
Description |
|
IN OK OUT OK |
IN OK: Steady green OUT OK: Steady green |
The power supply is operating correctly. |
|
IN OK: Steady red OUT OK: Steady red |
Input undervoltage or overvoltage or no power input. |
|
|
IN OK: Steady green OUT OK: Steady red |
The power supply has entered output overvoltage, output overcurrent, or overtemperature protection state. |
|
|
IN OK: Off OUT OK: Off |
No power input. |
PSR3000B-54AHD
Figure3-38 PSR3000B-54AHD power supply LEDs
|
(1) Power input LED (IN OK) |
(2) Power output LED (OUT OK) |
|
(3) Power supply identifier (PSR3000B-54AHD) |
|
Table3-41 PSR3000B-54AHD power supply LED descriptions
|
LED |
Status |
Description |
|
IN OK OUT OK |
IN OK: Steady green OUT OK: Steady green |
The power supply is operating correctly. |
|
IN OK: Steady red OUT OK: Steady red |
Input undervoltage or overvoltage or no power input. |
|
|
IN OK: Steady green OUT OK: Steady red |
The power supply has entered output overvoltage, output overcurrent, or overtemperature protection state. |
|
|
IN OK: Off OUT OK: Off |
No power input. |
Fan tray LEDs
The FAN-120B-1-A fan trays are available for the router.
Figure3-39 FAN-120B-1-A fan tray LEDs
|
(1) Fan tray identifier (FAN-120B-1-A) |
(2) Status LED (OK/FAIL) |
Table3-42 FAN-120B-1-A fan tray LED description
|
LED |
Status |
Description |
|
OK/FAIL |
Off |
The fan tray is faulty, or not fully inserted. |
|
Steady green |
The fan tray is operating correctly. |
|
|
Steady red |
The fan tray is faulty. |
FRU specifications
MPUs
Table3-43 describes the MPUs available for the router.
Table3-43 MPUs available for the router
|
Models |
Port type |
|
CR-19K-MPU-20A |
· 1 × console port · 1 × USB 2.0 port (Type A, host mode) · 1 × 10/100/1000BASE-T management port · 4 × 10GBASE-R-SFP+ ports · 2 × 1PPS/ToD time synchronization ports · 2 × SMB clock input ports · 2 × SMB clock output ports |
|
CR-19K-MPU-20B |
· 1 × console port · 1 × USB 2.0 port (Type A, host mode) · 1 ×10/100/1000BASE-T management port · 4 × 10GBASE-R-SFP+ ports · 2 × 1PPS/ToD time synchronization ports · 2 × SMB clock input ports · 2 × SMB clock output ports · EXT ports: ¡ 1 × 10/100/1000BASE-T BMC port ¡ ETH ports: 1 × 10/100/1000BASE-T port and 2 × 10GBASE-R-SFP+ ports · 1 × USB 2.0 port (Type A) |
|
CR-19K-MPU-20C |
· 1 × serial RJ-45 console port · 1 × USB console port (Type C) · 1 × USB 2.0 port (Type A, host mode) · 1 ×10/100/1000BASE-T management port · 4 × 10GBASE-R-SFP+ ports · 2 × 1PPS/ToD time synchronization ports · 2 × SMB clock input ports · 2 × SMB clock output ports |
Fabric modules
Table3-44 describes the fabric modules available for the router.
Table3-44 Fabric modules available for the router
|
Models |
Port type |
|
CR-19K-SFU-20C |
N/A |
|
CR-19K-MSFU-20B |
4 × cluster ports (each cluster port is formed by three MTP ports and provides 72-core fiber links) |
|
CR-19K-MSFU-20C |
12 × cluster ports (each cluster port is formed by three MTP ports and provides 72-core fiber links) |
Interface modules
Table3-45 describes the interface modules available for the router.
Table3-45 Interface modules available for the router and their specifications
|
Interface module model |
Description |
Connector type |
Port type and quantity |
Port speed |
|
CR-19K-LPU-CQ18 |
H3C CR 18-port 100G QSFP28 Ethernet optical interface module |
· MPO · LC |
18 × 100GBASE-R-QSFP28 fiber ports |
103.125 Gbps |
|
CR-19K-LPU-CQ12 |
H3C CR 12-port 100G QSFP28 Ethernet optical interface module |
· MPO · LC |
12 × 100GBASE-R-QSFP28 fiber ports |
103.125 Gbps |
|
CR-19K-LPU-CQ12B |
H3C CR 12-port 100G QSFP28 Ethernet optical interface module |
· MPO · LC |
12 × 100GBASE-R-QSFP28 fiber ports |
103.125 Gbps |
|
CR-19K-LPU-CQ06B |
H3C CR 6-port 100G QSFP28 Ethernet optical interface module B |
· MPO · LC |
6 × 100GBASE-R-QSFP28 fiber ports |
103.125 Gbps |
|
CR-19K-LPU-CC08 |
H3C CR 8-port 100G CFP2 Ethernet optical interface module |
· MPO · LC |
8 × 100GBASE-R-CFP2 fiber ports |
103.125 Gbps |
|
CR-19K-LPU-CC04 |
H3C CR 4-port 100G CFP2 Ethernet optical interface module |
· MPO · LC |
4 × 100GBASE-R-CFP2 fiber ports |
103.125 Gbps |
|
CR-19K-LPU-CC04B |
H3C CR 4-port 100G CFP2 Ethernet optical interface module B |
· MPO · LC |
4 × 100GBASE-R-CFP2 fiber ports |
103.125 Gbps |
|
CR-19K-LPU-XP72 |
H3C CR 72-port 10G SFP+ Ethernet optical interface module |
LC |
72 × 10GBASE-R/W-SFP+ fiber ports |
· LAN: 10.3125 Gbps · WAN: 9.95328 Gbps |
|
CR-19K-LPU-XP48 |
H3C CR 48-port 10G SFP+ Ethernet optical interface module |
LC |
48 × 10GBASE-R/W-SFP+ fiber ports |
· LAN: 10.3125 Gbps · WAN: 9.95328 Gbps |
|
CR-19K-LPU-XP40 |
H3C CR 40-port 10G SFP+ Ethernet optical interface module |
LC |
40 × 10GBASE-R/W-SFP+ fiber ports |
· LAN: 10.3125 Gbps · WAN: 9.95328 Gbps |
|
CR-19K-LPU-XP20CC02 |
H3C CR 20-port 10G SFP+ + 2-port 100G CFP2 Ethernet optical interface module |
· MPO · LC |
20 × 10GBASE-R/W-SFP+ fiber ports and 2 × 100GBASE-R-CFP2 fiber ports |
· SFP+ port: ¡ LAN: 10.3125 Gbps ¡ WAN: 9.95328 Gbps · CFP2 port: 103.125 Gbps |
|
CR-19K-LPU-8004 |
H3C CR 800G flexible interface module |
N/A |
4 × interface subcard slots |
N/A |
|
CR-19K-LPU-4004 |
H3C CR 400G flexible interface module |
N/A |
4 × interface subcard slots |
N/A |
|
CR-19K-LPU-2002 |
H3C CR 200G flexible interface module |
N/A |
2 × interface subcard slots |
N/A |
|
CR-19K-LPU-2002B |
H3C CR 200G flexible interface module B |
N/A |
2 × interface subcard slots |
N/A |
|
CR-19K-LPU-SP |
H3C CR flexible service processing module |
N/A |
N/A |
N/A |
Interface subcards
Table3-46 describes the interface subcards available for the router.
Table3-46 Interface subcards available for the router and their specifications
|
Interface subcard model |
Description |
Connector type |
Port type and quantity |
Port speed |
|
CR-HIC-CLGQ04F |
4-port 50G/2-port 100G QSFP28 Ethernet optical interface subcard |
· MPO · LC |
4 × 50GBASE-R-QSFP28 ports or 2 × 100GBASE-R-QSFP28 ports |
53.025/103.125 Gbps |
|
CR-HIC-CQ02 |
2-port 100G QSFP28 Ethernet optical interface subcard |
· MPO · LC |
2 × 100GBASE-R-QSFP28 ports |
103.125 Gbps |
|
CR-HIC-CQ01 |
1-port 100G QSFP28 Ethernet optical interface subcard |
· MPO · LC |
1 × 100GBASE-R-QSFP28 port |
103.125 Gbps |
|
CR-HIC-CC01 |
1-port 100G CFP2 Ethernet optical interface subcard |
· MPO · LC |
1 × 100GBASE-R-CFP2 port |
103.125 Gbps |
|
CR-HIC-QQ03 |
3-port 40G QSFP+ Ethernet optical interface subcard |
· MPO · LC |
3 × 40GBASE-R-QSFP+ ports |
41.25 Gbps |
|
CR-HIC-XP12 |
12-port 10G SFP+ Ethernet optical interface subcard |
LC |
12 × 10GBASE-R/W-SFP+ ports |
· LAN: 10.3125 Gbps · WAN: 9.95328 Gbps |
|
CR-HIC-XP12B |
12-port 10G SFP+ Ethernet optical interface subcard |
LC |
12 × 10GBASE-R/W-SFP+ ports |
· LAN: 10.3125 Gbps · WAN: 9.95328 Gbps |
|
CR-HIC-XP10 |
10-port GE SFP or 10G SFP+ Ethernet optical interface subcard |
LC |
10 × 1000BASE-X-SFP or 10GBASE-R/W-SFP+ ports |
· SFP port: 1.25 Gbps · SFP+ port: ¡ LAN: 10.3125 Gbps ¡ WAN: 9.95328 Gbps |
|
CR-HIC-GP12 |
12-port GE SFP Ethernet optical interface subcard |
LC |
12 × 1000BASE-X-SFP ports |
1.25 Gbps |
|
CR-HIC-PU02 |
2-port 10G POS XFP optical interface subcard |
LC |
2 × 10G POS XFP ports |
9.95328 Gbps |
|
CR-HIC-PS04 |
4-port 155M/622M/2.5G POS SFP optical interface subcard |
LC |
4 × 155M/622M/2.5G POS SFP ports |
155.52/622.08/2488.32 Mbps |
|
CR-HIC-PHP08 |
8-port 155M/622M POS SFP optical interface subcard |
LC |
8 × 155M/622M POS SFP ports |
155.52/622.08 Mbps |
|
CR-HIC-CLP04 |
4-port 155M CPOS SFP optical interface subcard |
LC |
4 × 155M CPOS SFP ports |
155.52 Mbps |
|
CR-HIC-ET16 |
16-port E1 copper interface subcard (HM96 male connector) |
HM96 |
16 × E1 ports |
2.048 Mbps |
Power supplies
The PSR2000B-54D and PSR3000B-54AHD power supplies are available for the router.
The PSR2000B-54D is a DC input and DC output power supply. The PSR3000B-54AHD is an AC or high-voltage DC input and DC output power supply.
Table3-47 describes the specifications of the PSR2000B-54D and PSR3000B-54AHD power supplies.
Table3-47 Power supply specifications
|
Item |
PSR2000B-54D |
PSR3000B-54AHD |
|
Rated input voltage |
–48 to –60 VDC |
· 100 to 130 VAC @ 60 Hz · 200 to 240 VAC @ 50 Hz · 240 VDC · 336 VDC |
|
Max. input voltage |
–39 to –72 VDC |
· 90 to 150 VAC @ 47 to 63 Hz · 176 to 290 VAC @ 47 to 63 Hz · 180 to 290 VDC · 260 to 400 VDC |
|
Input current |
60 A (max) |
16 A (rated) |
|
Rated output voltage |
54 VDC |
54 VDC |
|
Max. output current |
37 A |
55.6 A |
|
Max. output power |
2000 W |
· 100 to 130 VAC @ 60 Hz: 1500 W · 200 to 240 VAC @ 50 Hz: 3000 W · 240 VDC: 3000 W · 336 VDC: 3000 W |
|
Ambient temperature |
· Operating: –10°C to +50°C (14°F to 122°F) · Storage: –40°C to +70°C (–40°F to +158°F) |
· Operating: –10°C to +50°C (14°F to 122°F) · Storage: –40°C to +70°C (–40°F to +158°F) |
|
Compatible power tray |
CR-PEM-DC2000 |
· AC power input: CR-PEM-AC3000 and CR-PEM-HVDC3000 · 240 VDC power input: CR-PEM-AC3000 and CR-PEM-HVDC3000 · 336 VDC power input: CR-PEM-HVDC3000 |
Fan trays
The router uses 33 micro fan trays. FAN-120B-1-A fan trays are available for the router.
Table3-48 FAN-120B-1-A fan tray specifications
|
Item |
Specifications |
|
Diameter |
120 mm (4.72 in) |
|
Number of fans |
1 |
|
Max fan speed |
12000 R.P.M |
|
Max air volume |
290 CFM |
|
Weight |
1.6 kg (3.53 lb) |
