H3C S3100-52P Ethernet Switch Operation Manual-Release 1500(V1.02)

HomeSupportResource CenterSwitchesH3C S3100 Switch SeriesH3C S3100 Switch SeriesTechnical DocumentsConfigure & DeployConfiguration GuidesH3C S3100-52P Ethernet Switch Operation Manual-Release 1500(V1.02)
02-Login Operation
Title Size Download
02-Login Operation 1.81 MB

Table of Contents

Chapter 1 Logging into an Ethernet Switch. 1-1

1.1 Logging into an Ethernet Switch. 1-1

1.2 Introduction to the User Interface. 1-1

1.2.1 Supported User Interfaces. 1-1

1.2.2 User Interface Number 1-1

1.2.3 Common User Interface Configuration. 1-2

Chapter 2 Logging in through the Console Port 2-1

2.1 Introduction. 2-1

2.2 Logging in through the Console Port 2-1

2.3 Console Port Login Configuration. 2-3

2.3.1 Common Configuration. 2-3

2.3.2 Console Port Login Configurations for Different Authentication Modes. 2-4

2.4 Console Port Login Configuration with Authentication Mode Being None. 2-6

2.4.1 Configuration Procedure. 2-6

2.4.2 Configuration Example. 2-8

2.5 Console Port Login Configuration with Authentication Mode Being Password. 2-9

2.5.1 Configuration Procedure. 2-9

2.5.2 Configuration Example. 2-11

2.6 Console Port Login Configuration with Authentication Mode Being Scheme. 2-13

2.6.1 Configuration Procedure. 2-13

2.6.2 Configuration Example. 2-15

Chapter 3 Logging in through Telnet 3-1

3.1 Introduction. 3-1

3.1.1 Common Configuration. 3-1

3.1.2 Telnet Configurations for Different Authentication Modes. 3-2

3.2 Telnet Configuration with Authentication Mode Being None. 3-4

3.2.1 Configuration Procedure. 3-4

3.2.2 Configuration Example. 3-5

3.3 Telnet Configuration with Authentication Mode Being Password. 3-7

3.3.1 Configuration Procedure. 3-7

3.3.2 Configuration Example. 3-8

3.4 Telnet Configuration with Authentication Mode Being Scheme. 3-10

3.4.1 Configuration Procedure. 3-10

3.4.2 Configuration Example. 3-14

3.5 Telneting to a Switch. 3-15

3.5.1 Telneting to a Switch from a Terminal 3-15

3.5.2 Telneting to another Switch from the Current Switch. 3-18

Chapter 4 Logging in Using Modem.. 4-1

4.1 Introduction. 4-1

4.2 Configuration on the Administrator Side. 4-1

4.3 Configuration on the Switch Side. 4-1

4.3.1 Modem Configuration. 4-1

4.3.2 Switch Configuration. 4-2

4.4 Modem Connection Establishment 4-3

Chapter 5 Logging in through Web-based Network Management System.. 5-1

5.1 Introduction. 5-1

5.2 HTTP Connection Establishment 5-1

5.3 Web Server Shutdown/Startup. 5-2

Chapter 6 Logging in through NMS. 6-1

6.1 Introduction. 6-1

6.2 Connection Establishment Using NMS. 6-1

Chapter 7 Configuring Source IP Address for Telnet Service Packets. 7-1

7.1 Configuring Source IP Address for Telnet Service Packets. 7-1

7.2 Displaying Source IP Address Configuration. 7-2

Chapter 8 User Control 8-1

8.1 Introduction. 8-1

8.2 Controlling Telnet Users. 8-1

8.2.1 Prerequisites. 8-1

8.2.2 Controlling Telnet Users by Source IP Addresses. 8-1

8.2.3 Controlling Telnet Users by Source and Destination IP Addresses. 8-2

8.2.4 Controlling Telnet Users by Source MAC Addresses. 8-3

8.2.5 Configuration Example. 8-4

8.3 Controlling Network Management Users by Source IP Addresses. 8-5

8.3.1 Prerequisites. 8-5

8.3.2 Controlling Network Management Users by Source IP Addresses. 8-5

8.3.3 Configuration Example. 8-7

8.4 Controlling Web Users by Source IP Address. 8-7

8.4.1 Prerequisites. 8-8

8.4.2 Controlling Web Users by Source IP Addresses. 8-8

8.4.3 Disconnecting a Web User by Force. 8-8

8.4.4 Configuration Example. 8-9




Chapter 1  Logging into an Ethernet Switch

1.1  Logging into an Ethernet Switch

You can log into an S3100-52P Ethernet switch in one of the following ways:

l           Logging in locally through the Console port

l           Telneting locally or remotely to an Ethernet port

l           Telneting to the Console port using a modem

l           Logging into the Web-based network management system

l           Logging in through NMS (network management station)

1.2  Introduction to the User Interface

1.2.1  Supported User Interfaces

S3100-52P Ethernet switch support two types of user interfaces: AUX and VTY.

Table 1-1 Description on user interface

User interface

Applicable user

Port used

Description

AUX

Users logging in through the Console port

Console port

Each switch can accommodate one AUX user.

VTY

Telnet users and SSH users

Ethernet port

Each switch can accommodate up to five VTY users.



&  Note:

The AUX port and the Console port of a H3C series Ethernet switch are the same port. You will be in the AUX user interface if you log in through this port.



1.2.2  User Interface Number

Two kinds of user interface index exist: absolute user interface index and relative user interface index.

1)         The absolute user interface indexes are as follows:

l           AUX user interface: 0

l           VTY user interfaces: Numbered after AUX user interfaces and increases in the step of 1

2)         A relative user interface index can be obtained by appending a number to the identifier of a user interface type. It is generated by user interface type. The relative user interface indexes are as follows:

l           AUX user interface: AUX 0

l           VTY user interfaces: VTY 0, VTY 1, VTY 2, and so on.

1.2.3  Common User Interface Configuration

Table 1-2 Common user interface configuration

Operation

Command

Description

Lock the current user interface

lock

Optional

Execute this command in user view.

A user interface is not locked by default.

Specify to send messages to all user interfaces/a specified user interface

send { all | number | type number }

Optional

Execute this command in user view.

Disconnect a specified user interface

free user-interface [ type ] number

Optional

Execute this command in user view.

Enter system view

system-view

Enter user interface view

user-interface [ type ] first-number [ last-number ]

Set the command that is automatically executed when a user logs into the user interface

auto-execute command text

Optional

By default, no command is automatically executed when a user logs into a user interface.

Display the information about the current user interface/all user interfaces

display users [ all ]

Optional

You can execute the display command in any view.

Display the physical attributes and configuration of the current/a specified user interface

display user-interface [ type number | number ]

Display the information about the current web users

display web users



  Caution:

l      The auto-execute command command may cause you unable to perform common configuration in the user interface, so use it with caution.

l      Before executing the auto-execute command command and save your configuration, make sure you can log into the switch in other modes and cancel the configuration.




Chapter 2  Logging in through the Console Port

2.1  Introduction

To log in through the Console port is the most common way to log into a switch. It is also the prerequisite to configure other login methods. Normally, you can log into an S3100-52P Ethernet switch through its Console port.

To log into an Ethernet switch through its Console port, the communication configuration of the user terminal must be in accordance with that of the Console port.

Table 2-1 lists the default settings of a Console port.

Table 2-1 The default settings of a Console port

Setting

Default

Baud rate

9,600 bps

Flow control

None

Check mode (Parity)

None

Stop bits

1

Data bits

8



After logging into a switch, you can perform configuration for AUX users. Refer to section 2.3  Console Port Login Configuration” for more.

2.2  Logging in through the Console Port

Following are the procedures to connect to a switch through the Console port.

1)         Connect the serial port of your PC/terminal to the Console port of the switch, as shown in Figure 2-1.

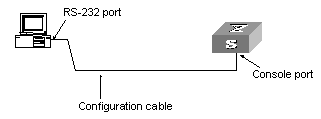

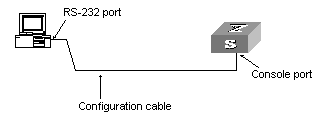

Figure 2-1 Diagram for setting the connection to the Console port

2)         If you use a PC to connect to the Console port, launch a terminal emulation utility (such as Terminal in Windows 3.X or HyperTerminal in Windows 9X) and perform the configuration shown in Figure 2-2 through Figure 2-4 for the connection to be created. Normally, the parameters of a terminal are configured as those listed in Table 2-1. And the type of the terminal is set to VT100.

Figure 2-2 Create a connection

Figure 2-3 Specify the port used to establish the connection

Figure 2-4 Set port parameters

3)         Turn on the switch. You will be prompted to press the Enter key if the switch successfully completes POST (power-on self test). The prompt (such as <H3C>) appears after you press the Enter key.

4)         You can then configure the switch or check the information about the switch by executing the corresponding commands. You can also acquire help by typing the ? character. The commands available on a switch are described in the command manuals.

2.3  Console Port Login Configuration

2.3.1  Common Configuration

Table 2-2 lists the common configuration of Console port login.

Table 2-2 Common configuration of Console port login

Configuration

Remarks

Console port configuration

Baud rate

Optional

The default baud rate is 9,600 bps.

Check mode

Optional

By default, the check mode of the Console port is set to “none”, which means no check bit.

Stop bits

Optional

The default stop bits of a Console port is 1.

Data bits

Optional

The default data bits of a Console port is 8.

AUX user interface configuration

Configure the command level available to the users logging into the AUX user interface

Optional

By default, commands of level 3 are available to the users logging into the AUX user interface.

Terminal configuration

Make terminal services available

Optional

By default, terminal services are available in all user interfaces

Set the maximum number of lines the screen can contain

Optional

By default, the screen can contain up to 24 lines.

Set history command buffer size

Optional

By default, the history command buffer can contain up to 10 commands.

Set the timeout time of a user interface

Optional

The default timeout time is 10 minutes.



  Caution:

Changing of Console port configuration terminates the connection to the Console port. To establish the connection again, you need to modify the configuration of the termination emulation utility running on your PC accordingly. Refer to section 2.2  Logging in through the Console Port” for more.



2.3.2  Console Port Login Configurations for Different Authentication Modes

Table 2-3 lists Console port login configurations for different authentication modes.

Table 2-3 Console port login configurations for different authentication modes

Authentication mode

Console port login configuration

Remarks

None

Perform common configuration

Perform common configuration for Console port login

Optional

Refer to section 2.3.1  Common Configuration” for more.

Password

Configure the password

Configure the password for local authentication

Required

Perform common configuration

Perform common configuration for Console port login

Optional

Refer to section 2.3.1  Common Configuration” for more.

Scheme

Specify to perform local authentication or RADIUS authentication

AAA configuration specifies whether to perform local authentication or RADIUS authentication

Optional

Local authentication is performed by default.

Refer to the AAA&RADIUS&HWTACACS&EAD module for more.

Configure user name and password



Configure user names and passwords for local/RADIUS users

Required

l      The user name and password of a local user are configured on the switch.

l      The user name and password of a RADIUS user are configured on the RADIUS server. Refer to user manual of RADIUS server for more.

Manage AUX users

Set service type for AUX users

Required

Perform common configuration

Perform common configuration for Console port login

Optional

Refer to section 2.3.1  Common Configuration” for more.



&  Note:

Changes of the authentication mode of Console port login will not take effect unless you quit the command-line interface and then enter it again.



2.4  Console Port Login Configuration with Authentication Mode Being None

2.4.1  Configuration Procedure

Table 2-4 Console port login configuration with the authentication mode being none

Operation

Command

Description

Enter system view

system-view

Enter AUX user interface view

user-interface aux 0

Configure not to authenticate users

authentication-mode none

Required

By default, users logging in through the Console port are not authenticated.

Configure the Console port

Set the baud rate

speed speed-value

Optional

The default baud rate of an AUX port (also the Console port) is 9,600 bps.

Set the check mode

parity { even | none | odd }

Optional

By default, the check mode of a Console port is set to none, that is, no check bit.

Set the stop bits

stopbits { 1 | 1.5 | 2 }

Optional

The stop bits of a Console port is 1.

Set the data bits

databits { 7 | 8 }

Optional

The default data bits of a Console port is 8.

Configure the command level available to users logging into the user interface

user privilege level level

Optional

By default, commands of level 3 are available to users logging into the AUX user interface.

Make terminal services available

shell

Optional

By default, terminal services are available in all user interfaces.

Set the maximum number of lines the screen can contain

screen-length screen-length

Optional

By default, the screen can contain up to 24 lines.

You can use the screen-length 0 command to disable the function to display information in pages.

Set the history command buffer size

history-command max-size value

Optional

The default history command buffer size is 10. That is, a history command buffer can store up to 10 commands by default.

Set the timeout time for the user interface

idle-timeout minutes [ seconds ]

Optional

The default timeout time of a user interface is 10 minutes.

With the timeout time being 10 minutes, the connection to a user interface is terminated if no operation is performed in the user interface within 10 minutes.

You can use the idle-timeout 0 command to disable the timeout function.



Note that the command level available to users logging into a switch depends on both the authentication-mode none command and the user privilege level level command, as listed in the following table.

Table 2-5 Determine the command level (A)

Scenario

Command level

Authentication mode

User type

Command

None (authentication-mode none)

Users logging in through Console port

The user privilege level level command not executed

Level 3

The user privilege level level command already executed

Determined by the level argument



2.4.2  Configuration Example

I. Network requirements

Assume that you are a level 3 VTY user and want to perform the following configuration for users logging in through the Console port:

l           Do not authenticate users logging in through the Console port.

l           Commands of level 2 are available to users logging into the AUX user interface.

l           The baud rate of the Console port is 19,200 bps.

l           The screen can contain up to 30 lines.

l           The history command buffer can contain up to 20 commands.

l           The timeout time of the AUX user interface is 6 minutes.

II. Network diagram

Figure 2-5  Network diagram for AUX user interface configuration (with the authentication mode being none)

III. Configuration procedure

# Enter system view.

<H3C> system-view

# Enter AUX user interface view.

[H3C] user-interface aux 0

# Specify not to authenticate users logging in through the Console port.

[H3C-ui-aux0] authentication-mode none

# Specify commands of level 2 are available to users logging into the AUX user interface.

[H3C-ui-aux0] user privilege level 2

# Set the baud rate of the Console port to 19,200 bps.

[H3C-ui-aux0] speed 19200

# Set the maximum number of lines the screen can contain to 30.

[H3C-ui-aux0] screen-length 30

# Set the maximum number of commands the history command buffer can store to 20.

[H3C-ui-aux0] history-command max-size 20

# Set the timeout time of the AUX user interface to 6 minutes.

[H3C-ui-aux0] idle-timeout 6

2.5  Console Port Login Configuration with Authentication Mode Being Password

2.5.1  Configuration Procedure

Table 2-6 Console port login configuration with the authentication mode being password

Operation

Command

Description

Enter system view

system-view

Enter AUX user interface view

user-interface aux 0

Configure to authenticate users using the local password

authentication-mode password

Required

By default, users logging into a switch through the Console port are not authenticated; while those logging in through Modems or Telnet are authenticated.

Set the local password

set authentication password { cipher | simple } password

Required

Configure the Console port

Set the baud rate

speed speed-value

Optional

The default baud rate of an AUX port (also the Console port) is 9,600 bps.

Set the check mode

parity { even | none | odd }

Optional

By default, the check mode of a Console port is set to none, that is, no check bit.

Set the stop bits

stopbits { 1 | 1.5 | 2 }

Optional

The default stop bits of a Console port is 1.

Set the data bits

databits { 7 | 8 }

Optional

The default data bits of a Console port is 8.

Configure the command level available to users logging into the user interface

user privilege level level

Optional

By default, commands of level 3 are available to users logging into the AUX user interface.

Make terminal services available to the user interface

shell

Optional

By default, terminal services are available in all user interfaces.

Set the maximum number of lines the screen can contain

screen-length screen-length

Optional

By default, the screen can contain up to 24 lines.

You can use the screen-length 0 command to disable the function to display information in pages.

Set history command buffer size

history-command max-size value

Optional

The default history command buffer size is 10. That is, a history command buffer can store up to 10 commands by default.

Set the timeout time for the user interface

idle-timeout minutes [ seconds ]

Optional

The default timeout time of a user interface is 10 minutes.

With the timeout time being 10 minutes, the connection to a user interface is terminated if no operation is performed in the user interface within 10 minutes.

You can use the idle-timeout 0 command to disable the timeout function.



Note that the level the commands of which are available to users logging into a switch depends on both the authentication-mode password and the user privilege level level command, as listed in the following table.

Table 2-7 Determine the command level (B)

Scenario

Command level

Authentication mode

User type

Command

Local authentication (authentication-mode password)

Users logging in through Console port

The user privilege level level command is not executed

Level 3

The user privilege level level command is already executed

Determined by the level argument



2.5.2  Configuration Example

I. Network requirements

Assume that you are a level 3 VTY user and want to perform the following configuration for users logging in through the Console port:

l           Authenticate users logging in through the Console port using the local password.

l           Set the local password to 123456 (in plain text).

l           The commands of level 2 are available to users logging into the AUX user interface.

l           The baud rate of the Console port is 19,200 bps.

l           The screen can contain up to 30 lines.

l           The history command buffer can store up to 20 commands.

l           The timeout time of the AUX user interface is 6 minutes.

II. Network diagram

Figure 2-6 Network diagram for AUX user interface configuration (with the authentication mode being password)

III. Configuration procedure

# Enter system view.

<H3C> system-view

# Enter AUX user interface view.

[H3C] user-interface aux 0

# Specify to authenticate users logging in through the Console port using the local password.

[H3C-ui-aux0] authentication-mode password

# Set the local password to 123456 (in plain text).

[H3C-ui-aux0] set authentication password simple 123456

# Specify commands of level 2 are available to users logging into the AUX user interface.

[H3C-ui-aux0] user privilege level 2

# Set the baud rate of the Console port to 19,200 bps.

[H3C-ui-aux0] speed 19200

# Set the maximum number of lines the screen can contain to 30.

[H3C-ui-aux0] screen-length 30

# Set the maximum number of commands the history command buffer can store to 20.

[H3C-ui-aux0] history-command max-size 20

# Set the timeout time of the AUX user interface to 6 minutes.

[H3C-ui-aux0] idle-timeout 6

2.6  Console Port Login Configuration with Authentication Mode Being Scheme

2.6.1  Configuration Procedure

Table 2-8 Console port login configuration with the authentication mode being scheme

Operation

Command

Description

Enter system view

system-view

Configure the authentication mode

Enter the default ISP domain view

domain domain-name

Optional

By default, the local AAA scheme is applied.

If you specify to apply the local AAA scheme, you need to perform the configuration concerning local user as well.

If you specify to apply an existing scheme by providing the radius-scheme-name argument, you need to perform the following configuration as well:

l      Perform AAA&RADIUS configuration on the switch. (Refer to the AAA&RADIUS&HWTACACS&EAD module for more.)

l      Configure the user name and password accordingly on the AAA server. (Refer to the user manual of AAA server.)

Specify the AAA scheme to be applied to the domain

scheme { local | none | radius-scheme radius-scheme-name [ local ] | hwtacacs-scheme hwtacacs-scheme-name [ local ] }

Quit to system view

quit

Create a local user (Enter local user view.)

local-user user-name

Required

No local user exists by default.

Set the authentication password for the local user

password { simple | cipher } password

Required

Specify the service type for AUX users

service-type terminal [ level level ]

Required

Quit to system view

quit

Enter AUX user interface view

user-interface aux 0

Configure to authenticate users locally or remotely

authentication-mode scheme [ command- authorization ]

Required

The specified AAA scheme determines whether to authenticate users locally or remotely.

Users are authenticated locally by default.

Configure the Console port

Set the baud rate

speed speed-value

Optional

The default baud rate of the AUX port (also the Console port) is 9,600 bps.

Set the check mode

parity { even | none | odd }

Optional

By default, the check mode of a Console port is set to none, that is, no check bit.

Set the stop bits

stopbits { 1 | 1.5 | 2 }

Optional

The default stop bits of a Console port is 1.

Set the data bits

databits { 7 | 8 }

Optional

The default data bits of a Console port is 8.

Configure the command level available to users logging into the user interface

user privilege level level

Optional

By default, commands of level 3 are available to users logging into the AUX user interface.

Make terminal services available to the user interface

shell

Optional

By default, terminal services are available in all user interfaces.

Set the maximum number of lines the screen can contain

screen-length screen-length

Optional

By default, the screen can contain up to 24 lines.

You can use the screen-length 0 command to disable the function to display information in pages.

Set history command buffer size

history-command max-size value

Optional

The default history command buffer size is 10. That is, a history command buffer can store up to 10 commands by default.

Set the timeout time for the user interface

idle-timeout minutes [ seconds ]

Optional

The default timeout time of a user interface is 10 minutes.

With the timeout time being 10 minutes, the connection to a user interface is terminated if no operation is performed in the user interface within 10 minutes.

You can use the idle-timeout 0 command to disable the timeout function.



Note that the command level available to users logging into a switch depends on both the authentication-mode scheme [ command-authorization ] command and the service-type terminal [ level level ] command, as listed in Table 2-9.

Table 2-9 Determine the command level

Scenario

Command level

Authentication mode

User type

Command

authentication-mode scheme [ command-authorization ]

Users logging into the Console port and passing AAA&RADIUS or local authentication

The service-type terminal command does not specify the available command level.

Level 0

The default command level of local users is level 0.

The service-type terminal command specifies the available command level.

Determined by the command level specified by the service-type terminal command



2.6.2  Configuration Example

I. Network requirements

Assume that you are a level 3 VTY user and want to perform the following configuration for users logging in through the Console port:

l           Configure the name of the local user to be “guest”.

l           Set the authentication password of the local user to 123456 (in plain text).

l           Set the service type of the local user to Terminal.

l           Configure to authenticate users logging in through the Console port in the scheme mode.

l           The commands of level 2 are available to users logging into the AUX user interface.

l           The baud rate of the Console port is 19,200 bps.

l           The screen can contain up to 30 lines.

l           The history command buffer can store up to 20 commands.

l           The timeout time of the AUX user interface is 6 minutes.

II. Network diagram

Figure 2-7 Network diagram for AUX user interface configuration (with the authentication mode being scheme)

III. Configuration procedure

# Enter system view.

<H3C> system-view

# Create a local user named guest and enter local user view.

[H3C] local-user guest

# Set the authentication password to 123456 (in plain text).

[H3C-luser-guest] password simple 123456

# Set the service type to Terminal, Specify commands of level 2 are available to users logging into the AUX user interface.

[H3C-luser-guest] service-type terminal level 2

[H3C-luser-guest] quit

# Enter AUX user interface view.

[H3C] user-interface aux 0

# Configure to authenticate users logging in through the Console port in the scheme mode.

[H3C-ui-aux0] authentication-mode scheme

# Set the baud rate of the Console port to 19,200 bps.

[H3C-ui-aux0] speed 19200

# Set the maximum number of lines the screen can contain to 30.

[H3C-ui-aux0] screen-length 30

# Set the maximum number of commands the history command buffer can store to 20.

[H3C-ui-aux0] history-command max-size 20

# Set the timeout time of the AUX user interface to 6 minutes.

[H3C-ui-aux0] idle-timeout 6




Chapter 3  Logging in through Telnet

3.1  Introduction

You can manage and maintain a switch remotely by Telneting to the switch. To achieve this, you need to configure both the switch and the Telnet terminal accordingly.

Table 3-1 Requirements for Telneting to a switch

Item

Requirement

Switch

The management VLAN of the switch is created and the route between the switch and the Telnet terminal is available. (Refer to the Management VLAN Configuration module for more.)

The authentication mode and other settings are configured. Refer to Table 3-2 and Table 3-3.

Telnet terminal

Telnet is running.

The IP address of the management VLAN of the switch is available.



3.1.1  Common Configuration

Table 3-2 lists the common Telnet configuration.

Table 3-2 Common Telnet configuration

Configuration

Description

VTY user interface configuration

Configure the command level available to users logging into the VTY user interface

Optional

By default, commands of level 0 are available to users logging into a VTY user interface.

Configure the protocols the user interface supports

Optional

By default, Telnet and SSH protocol are supported.

VTY terminal configuration

Make terminal services available

Optional

By default, terminal services are available in all user interfaces

Set the maximum number of lines the screen can contain

Optional

By default, the screen can contain up to 24 lines.

Set history command buffer size

Optional

By default, the history command buffer can contain up to 10 commands.

Set the timeout time of a user interface

Optional

The default timeout time is 10 minutes.



3.1.2  Telnet Configurations for Different Authentication Modes

 Table 3-3 lists Telnet configurations for different authentication modes.

Table 3-3 Telnet configurations for different authentication modes

Authentication mode

Telnet configuration

Description

None

Perform common configuration

Perform common Telnet configuration

Optional

Refer to Table 3-2.

Password

Configure the password

Configure the password for local authentication

Required

Perform common configuration

Perform common Telnet configuration

Optional

Refer to Table 3-2.

Scheme

Specify to perform local authentication or RADIUS authentication

AAA configuration specifies whether to perform local authentication or RADIUS authentication

Optional

Local authentication is performed by default.

Refer to the AAA&RADIUS&HWTACACS&EAD module for more.

Configure user name and password

Configure user names and passwords for local/RADIUS users

Required

l      The user name and password of a local user are configured on the switch.

l      The user name and password of a remote user are configured on the DADIUS server. Refer to user manual of RADIUS server for more.

Manage VTY users

Set service type for VTY users

Required

Perform common configuration

Perform common Telnet configuration

Optional

Refer to Table 3-2.



&  Note:

To improve security and avoid malicious attack to the unused SOCKETs, TCP 23 and TCP 22, ports for Telnet and SSH services respectively, will be enabled or disabled after corresponding configurations.

l      If the authentication mode is none, TCP 23 will be enabled, and TCP 22 will be disabled.

l      If the authentication mode is password, and the corresponding password has been set, TCP 23 will be enabled, and TCP 22 will be disabled.

l      If the authentication mode is scheme, there are three scenarios: when the supported protocol is specified as telnet, TCP 23 will be enabled; when the supported protocol is specified as ssh, TCP 22 will be enabled; when the supported protocol is specified as all, both the TCP 23 and TCP 22 port will be enabled.



3.2  Telnet Configuration with Authentication Mode Being None

3.2.1  Configuration Procedure

Table 3-4 Telnet configuration with the authentication mode being none

Operation

Command

Description

Enter system view

system-view

Enter one or more VTY user interface views

user-interface vty first-number [ last-number ]

Configure not to authenticate users logging into VTY user interfaces

authentication-mode none

Required

By default, VTY users are authenticated after logging in.

Configure the command level available to users logging into VTY user interface

user privilege level level

Optional

By default, commands of level 0 are available to users logging into VTY user interfaces.

Configure the protocols to be supported by the VTY user interface

protocol inbound { all | ssh | telnet }

Optional

By default, both Telnet protocol and SSH protocol are supported.

Make terminal services available

shell

Optional

By default, terminal services are available in all user interfaces.

Set the maximum number of lines the screen can contain

screen-length screen-length

Optional

By default, the screen can contain up to 24 lines.

You can use the screen-length 0 command to disable the function to display information in pages.

Set the history command buffer size

history-command max-size value

Optional

The default history command buffer size is 10. That is, a history command buffer can store up to 10 commands by default.

Set the timeout time of the VTY user interface

idle-timeout minutes [ seconds ]

Optional

The default timeout time of a user interface is 10 minutes.

With the timeout time being 10 minutes, the connection to a user interface is terminated if no operation is performed in the user interface within 10 minutes.

You can use the idle-timeout 0 command to disable the timeout function.



Note that if you configure not to authenticate the users, the command level available to users logging into a switch depends on both the authentication-mode none command and the user privilege level level command, as listed in Table 3-5.

Table 3-5 Determine the command level when users logging into switches are not authenticated

Scenario

Command level

Authentication mode

User type

Command

None (authentication-mode none)

VTY users

The user privilege level level command is not executed

Level 0

The user privilege level level command is already executed

Determined by the level argument



3.2.2  Configuration Example

I. Network requirements

Assume that you are a level 3 AUX user and want to perform the following configuration for Telnet users logging into VTY 0:

l           Do not authenticate users logging into VTY 0.

l           Commands of level 2 are available to users logging into VTY 0.

l           Telnet protocol is supported.

l           The screen can contain up to 30 lines.

l           The history command buffer can contain up to 20 commands.

l           The timeout time of VTY 0 is 6 minutes.

II. Network diagram

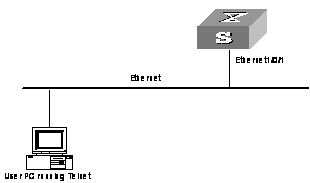

Figure 3-1 Network diagram for Telnet configuration (with the authentication mode being none)

III. Configuration procedure

# Enter system view.

<H3C> system-view

# Enter VTY 0 user interface view.

[H3C] user-interface vty 0

# Configure not to authenticate Telnet users logging into VTY 0.

[H3C-ui-vty0] authentication-mode none

# Specify commands of level 2 are available to users logging into VTY 0.

[H3C-ui-vty0] user privilege level 2

# Configure Telnet protocol is supported.

[H3C-ui-vty0] protocol inbound telnet

# Set the maximum number of lines the screen can contain to 30.

[H3C-ui-vty0] screen-length 30

# Set the maximum number of commands the history command buffer can store to 20.

[H3C-ui-vty0] history-command max-size 20

# Set the timeout time to 6 minutes.

[H3C-ui-vty0] idle-timeout 6

3.3  Telnet Configuration with Authentication Mode Being Password

3.3.1  Configuration Procedure

Table 3-6 Telnet configuration with the authentication mode being password

Operation

Command

Description

Enter system view

system-view

Enter one or more VTY user interface views

user-interface vty first-number [ last-number ]

Configure to authenticate users logging into VTY user interfaces using the local password

authentication-mode password

Required

Set the local password

set authentication password { cipher | simple } password

Required

Configure the command level available to users logging into the user interface

user privilege level level

Optional

By default, commands of level 0 are available to users logging into VTY user interface.

Configure the protocol to be supported by the user interface

protocol inbound { all | ssh | telnet }

Optional

By default, both Telnet protocol and SSH protocol are supported.

Make terminal services available

shell

Optional

By default, terminal services are available in all user interfaces.

Set the maximum number of lines the screen can contain

screen-length screen-length

Optional

By default, the screen can contain up to 24 lines.

You can use the screen-length 0 command to disable the function to display information in pages.

Set the history command buffer size

history-command max-size value

Optional

The default history command buffer size is 10. That is, a history command buffer can store up to 10 commands by default.

Set the timeout time of the user interface

idle-timeout minutes [ seconds ]

Optional

The default timeout time of a user interface is 10 minutes.

With the timeout time being 10 minutes, the connection to a user interface is terminated if no operation is performed in the user interface within 10 minutes.

You can use the idle-timeout 0 command to disable the timeout function.



Note that if you configure to authenticate the users in the password mode, the command level available to users logging into a switch depends on both the authentication-mode password command and the user privilege level level command, as listed in Table 3-7.

Table 3-7 Determine the command level when users logging into switches are authenticated in the password mode

Scenario

Command level

Authentication mode

User type

Command

Password (authentication-mode password)

VTY users

The user privilege level level command not executed

Level 0

The user privilege level level command already executed

Determined by the level argument



3.3.2  Configuration Example

I. Network requirements

Assume that you are a level 3 AUX user and want to perform the following configuration for Telnet users logging into VTY 0:

l           Authenticate users logging into VTY 0 using the local password.

l           Set the local password to 123456 (in plain text).

l           Commands of level 2 are available to users logging into VTY 0.

l           Telnet protocol is supported.

l           The screen can contain up to 30 lines.

l           The history command buffer can contain up to 20 commands.

l           The timeout time of VTY 0 is 6 minutes.

II. Network diagram

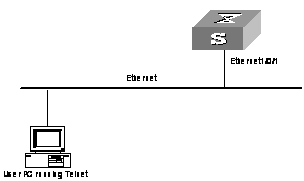

Figure 3-2 Network diagram for Telnet configuration (with the authentication mode being password)

III. Configuration procedure

# Enter system view.

<H3C> system-view

# Enter VTY 0 user interface view.

[H3C] user-interface vty 0

# Configure to authenticate users logging into VTY 0 using the local password.

[H3C-ui-vty0] authentication-mode password

# Set the local password to 123456 (in plain text).

[H3C-ui-vty0] set authentication password simple 123456

# Specify commands of level 2 are available to users logging into VTY 0.

[H3C-ui-vty0] user privilege level 2

# Configure Telnet protocol is supported.

[H3C-ui-vty0] protocol inbound telnet

# Set the maximum number of lines the screen can contain to 30.

[H3C-ui-vty0] screen-length 30

# Set the maximum number of commands the history command buffer can store to 20.

[H3C-ui-vty0] history-command max-size 20

# Set the timeout time to 6 minutes.

[H3C-ui-vty0] idle-timeout 6

3.4  Telnet Configuration with Authentication Mode Being Scheme

3.4.1  Configuration Procedure

Table 3-8 Telnet configuration with the authentication mode being scheme

Operation

Command

Description

Enter system view

system-view

Configure the authentication scheme

Enter the default ISP domain view

domain domain-name

Optional

By default, the local AAA scheme is applied. If you specify to apply the local AAA scheme, you need to perform the configuration concerning local user as well.

If you specify to apply an existing scheme by providing the radius-scheme-name argument, you need to perform the following configuration as well:

l      Perform AAA&RADIUS configuration on the switch. (Refer to the AAA&RADIUS&HWTACACS&EAD module for more.)

l      Configure the user name and password accordingly on the AAA server. (Refer to the user manual of AAA server.)

Configure the AAA scheme to be applied to the domain

scheme { local | none | radius-scheme radius-scheme-name [ local ] | hwtacacs-scheme hwtacacs-scheme-name [ local ] }

Quit to system view

quit

Create a local user and enter local user view

local-user user-name

No local user exists by default.

Set the authentication password for the local user

password { simple | cipher } password

Required

Specify the service type for VTY users

service-type telnet [ level level ]

Required

Quit to system view

quit

Enter one or more VTY user interface views

user-interface vty first-number [ last-number ]

Configure to authenticate users locally or remotely

authentication-mode scheme [ command- authorization ]

Required

The specified AAA scheme determines whether to authenticate users locally or remotely.

Users are authenticated locally by default.

Configure the command level available to users logging into the user interface

user privilege level level

Optional

By default, commands of level 0 are available to users logging into the VTY user interfaces.

Configure the supported protocol

protocol inbound { all | ssh | telnet }

Optional

Both Telnet protocol and SSH protocol are supported by default.

Make terminal services available

shell

Optional

Terminal services are available in all use interfaces by default.

Set the maximum number of lines the screen can contain

screen-length screen-length

Optional

By default, the screen can contain up to 24 lines.

You can use the screen-length 0 command to disable the function to display information in pages.

Set history command buffer size

history-command max-size value

Optional

The default history command buffer size is 10. That is, a history command buffer can store up to 10 commands by default.

Set the timeout time for the user interface

idle-timeout minutes [ seconds ]

Optional

The default timeout time of a user interface is 10 minutes.

With the timeout time being 10 minutes, the connection to a user interface is terminated if no operation is performed in the user interface within 10 minutes.

You can use the idle-timeout 0 command to disable the timeout function.



Note that if you configure to authenticate the users in the scheme mode, the command level available to users logging into a switch depends on the authentication-mode scheme [ command-authorization ] command, the user privilege level level command, and the service-type { ftp | lan-access | { ssh | telnet | terminal }* [ level level ] } command, as listed in Table 3-9.

Table 3-9 Determine the command level when users logging into switches are authenticated in the scheme mode

Scenario

Command level

Authentication mode

User type

Command

authentication-mode scheme [ command-authorization ]

VTY users that are AAA&RADIUS authenticated or locally authenticated

The user privilege level level command is not executed, and the service-type command does not specify the available command level.

Level 0

The user privilege level level command is not executed, and the service-type command specifies the available command level.

Determined by the service-type command

The user privilege level level command is executed, and the service-type command does not specify the available command level.

Level 0

The user privilege level level command is executed, and the service-type command specifies the available command level.

Determined by the service-type command

VTY users that are authenticated in the RSA mode of SSH

The user privilege level level command is not executed, and the service-type command does not specify the available command level.

Level 0

The user privilege level level command is not executed, and the service-type command specifies the available command level.

The user privilege level level command is executed, and the service-type command does not specify the available command level.

Determined by the user privilege level level command

The user privilege level level command is executed, and the service-type command specifies the available command level.

VTY users that are authenticated in the password mode of SSH

The user privilege level level command is not executed, and the service-type command does not specify the available command level.

Level 0

The user privilege level level command is not executed, and the service-type command specifies the available command level.

Determined by the service-type command

The user privilege level level command is executed, and the service-type command does not specify the available command level.

Level 0

The user privilege level level command is executed, and the service-type command specifies the available command level.

Determined by the service-type command



&  Note:

Refer to the corresponding modules in this manual for information about AAA, RADIUS, and SSH.



3.4.2  Configuration Example

I. Network requirements

Assume that you are a level 3 AUX user and want to perform the following configuration for Telnet users logging into VTY 0:

l           Configure the name of the local user to be “guest”.

l           Set the authentication password of the local user to 123456 (in plain text).

l           Set the service type of VTY users to Telnet.

l           Configure to authenticate users logging into VTY 0 in scheme mode.

l           The commands of level 2 are available to users logging into VTY 0.

l           Only Telnet protocol is supported in VTY 0.

l           The screen can contain up to 30 lines.

l           The history command buffer can store up to 20 commands.

l           The timeout time of VTY 0 is 6 minutes.

II. Network diagram

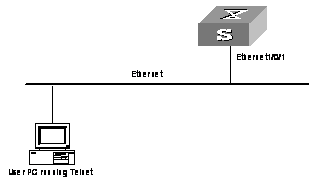

Figure 3-3 Network diagram for Telnet configuration (with the authentication mode being scheme)

III. Configuration procedure

# Enter system view.

<H3C> system-view

# Create a local user named “guest” and enter local user view.

[H3C] local-user guest

# Set the authentication password of the local user to 123456 (in plain text).

[H3C-luser-guest] password simple 123456

# Set the service type to Telnet, Specify commands of level 2 are available to users logging into VTY 0..

[H3C-luser-guest] service-type telnet level 2

[H3C-luser-guest] quit

# Enter VTY 0 user interface view.

[H3C] user-interface vty 0

# Configure to authenticate users logging into VTY 0 in the scheme mode.

[H3C-ui-vty0] authentication-mode scheme

# Configure Telnet protocol is supported.

[H3C-ui-vty0] protocol inbound telnet

# Set the maximum number of lines the screen can contain to 30.

[H3C-ui-vty0] screen-length 30

# Set the maximum number of commands the history command buffer can store to 20.

[H3C-ui-vty0] history-command max-size 20

# Set the timeout time to 6 minutes.

[H3C-ui-vty0] idle-timeout 6

3.5  Telneting to a Switch

3.5.1  Telneting to a Switch from a Terminal

1)         Assign an IP address to the interface of the management VLAN of a switch. This can be achieved by executing the ip address command in VLAN interface view after you log in through the Console port.

l           Connect the serial port of your PC/terminal to the Console port of the switch, as shown in Figure 3-4

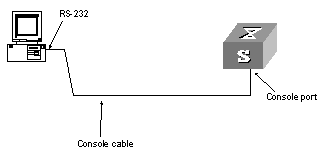

Figure 3-4 Diagram for establishing connection to a Console port

l           Launch a terminal emulation utility (such as Terminal in Windows 3.X or HyperTerminal in Windows 9X) on the PC, with the baud rate set to 9,600 bps, data bits set to 8, parity check set to none, and flow control set to none.

l           Turn on the switch and press Enter as prompted. The prompt (such as <H3C>) appears, as shown in the following figure.

Figure 3-5 The terminal window

l           Perform the following operations in the terminal window to assign an IP address to the management VLAN interface of the switch.

# Enter system view

<H3C> system-view

# Enter management VLAN interface view.

[H3C] interface Vlan-interface 1

# Set the IP address of the management VLAN interface to 202.38.160.92, with the mask set to 255.255.255.0.

[H3C-Vlan-interface1] ip address 202.38.160.92 255.255.255.0

2)         Perform Telnet-related configuration on the switch. Refer to section 3.2  "Telnet Configuration with Authentication Mode Being None”, section 3.3  Telnet Configuration with Authentication Mode Being Password”, and section 3.4  Telnet Configuration with Authentication Mode Being Scheme” for more.

3)         Connect your PC/terminal and the Switch to an Ethernet, as shown in Figure 3-6. Make sure the port through which the switch is connected to the Ethernet belongs to the management VLAN and the route between your PC and the management VLAN interface is reachable.

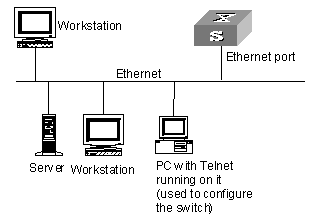

Figure 3-6 Network diagram for Telnet connection establishment

4)         Launch Telnet on your PC, with the IP address of the management VLAN interface of the switch as the parameter, as shown in Figure 3-7.

Figure 3-7 Launch Telnet

5)         Enter the password when the Telnet window displays “Login authentication” and prompts for login password. The CLI prompt (such as <H3C>) appears if the password is correct. If all VTY user interfaces of the switch are in use, you will fail to establish the connection and receive the message that says “All user interfaces are used, please try later!”. A H3C series Ethernet switch can accommodate up to five Telnet connections at same time.

6)         After successfully Telneting to a switch, you can configure the switch or display the information about the switch by executing corresponding commands. You can also type ? at any time for help. Refer to the following chapters for the information about the commands.



&  Note:

l      A Telnet connection is terminated if you delete or modify the IP address of the VLAN interface in the Telnet session.

l      By default, commands of level 0 are available to Telnet users authenticated by password. Refer to section 1.2 “Command Hierarchy/Command View” in CLI module for information about command hierarchy.



3.5.2  Telneting to another Switch from the Current Switch

You can Telnet to another switch from the current switch. In this case, the current switch operates as the client, and the other operates as the server. If the interconnected Ethernet ports of the two switches are in the same LAN segment, make sure the IP addresses of the two management VLAN interfaces to which the two Ethernet ports belong to are of the same network segment, or the route between the two VLAN interfaces is available.

As shown in Figure 3-8, after Telneting to a switch (labeled as Telnet client), you can Telnet to another switch (labeled as Telnet server) by executing the telnet command and then configure it.

Figure 3-8 Network diagram for Telneting to another switch from the current switch

1)         Perform Telnet-related configuration on the switch operating as the Telnet server. Refer to section 3.2  "Telnet Configuration with Authentication Mode Being None”, section 3.3  Telnet Configuration with Authentication Mode Being Password”, and section 3.4  Telnet Configuration with Authentication Mode Being Scheme” for more.

2)         Telnet to the switch operating as the Telnet client.

3)         Execute the following command on the switch operating as the Telnet client:

<H3C> telnet xxxx

Where xxxx is the IP address or the host name of the switch operating as the Telnet server. You can use the ip host to assign a host name to a switch.

4)         Enter the password. If the password is correct, the CLI prompt (such as <H3C>) appears. If all VTY user interfaces of the switch are in use, you will fail to establish the connection and receive the message that says “All user interfaces are used, please try later!”.

5)         After successfully Telneting to the switch, you can configure the switch or display the information about the switch by executing corresponding commands. You can also type ? at any time for help. Refer to the following chapters for the information about the commands.




Chapter 4  Logging in Using Modem

4.1  Introduction

The administrator can log into the Console port of a remote switch using a modem through PSTN (public switched telephone network) if the remote switch is connected to the PSTN through a modem to configure and maintain the switch remotely. When a network operates improperly or is inaccessible, you can log into the switches in the network in this way to configure these switches, to query logs and warning messages, and to locate problems.

To log into a switch in this way, you need to configure the administrator side and the switch properly, as listed in the following table.

Table 4-1 Requirements for logging into a switch using a modem

Item

Requirement

Administrator side

The PC can communicate with the modem connected to it.

The modem is properly connected to PSTN.

The telephone number of the switch side is available.

Switch side

The modem is connected to the Console port of the switch properly.

The modem is properly configured.

The modem is properly connected to PSTN and a telephone set.

The authentication mode and other related settings are configured on the switch. Refer to Table 2-3.



4.2  Configuration on the Administrator Side

The PC can communicate with the modem connected to it. The modem is properly connected to PSTN. And the telephone number of the switch side is available.

4.3  Configuration on the Switch Side

4.3.1  Modem Configuration

Perform the following configuration on the modem directly connected to the switch:

AT&F     ----------------------- Restore the factory settings

ATS0=1   ----------------------- Configure to answer automatically after the first ring

AT&D     ----------------------- Ignore DTR signal

AT&K0        ----------------------- Disable flow control

AT&R1        ----------------------- Ignore RTS signal

AT&S0        ----------------------- Set DSR to high level by force

ATEQ1&W  ----------------------- Disable the modem from returning command response and the result, save the changes

You can verify your configuration by executing the AT&V command.



&  Note:

l      The above configuration is unnecessary to the modem on the administrator side.

l      The configuration commands and the output of different modems may differ. Refer to the user manual of the modem when performing the above configuration.



4.3.2  Switch Configuration



&  Note:

After logging into a switch through its Console port by using a modem, you will enter the AUX user interface. The corresponding configuration on the switch is the same as those when logging into the switch locally through its Console port except that:

l      When you log in through the Console port using a modem, the baud rate of the Console port is usually set to a value lower than the transmission speed of the modem. Otherwise, packets may get lost.

l      Other settings of the Console port, such as the check mode, the stop bits, and the data bits, remain the default.



The configuration on the switch depends on the authentication mode the user is in. Refer to Table 2-3 for the information about authentication mode configuration.

I. Configuration on switch when the authentication mode is none

Refer to section 2.4  Console Port Login Configuration with Authentication Mode Being None”.

II. Configuration on switch when the authentication mode is password

Refer to section 2.5  Console Port Login Configuration with Authentication Mode Being Password”.

III. Configuration on switch when the authentication mode is scheme

Refer to section 2.6  Console Port Login Configuration with Authentication Mode Being Scheme”.

4.4  Modem Connection Establishment

1)         Before using Modem to log in the switch, perform corresponding configuration for different authentication modes on the switch. Refer to section 2.4  "Console Port Login Configuration with Authentication Mode Being None”, section 2.5  Console Port Login Configuration with Authentication Mode Being Password”, and section 2.6  Console Port Login Configuration with Authentication Mode Being Scheme” for more.

2)         Perform the following configuration to the modem directly connected to the switch.

AT&F     ----------------------- Restore the factory settings

ATS0=1   ----------------------- Configure to answer automatically after the first ring

AT&D     ----------------------- Ignore DTR signal

AT&K0        ----------------------- Disable flow control

AT&R1        ----------------------- Ignore RTS signal

AT&S0        ----------------------- Set DSR to high level by force

ATEQ1&W  ----------------------- Disable the modem from returning command response and the result, save the changes

You can verify your configuration by executing the AT&V command.



&  Note:

l      The configuration commands and the output of different modems may differ. Refer to the user manual of the modem when performing the above configuration.

l      It is recommended that the baud rate of the AUX port (also the Console port) be set to a value lower than the transmission speed of the modem. Otherwise, packets may get lost.



3)         Connect your PC, the modems, and the switch, as shown in the following figure.

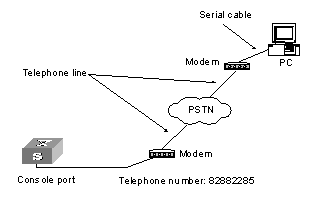

Figure 4-1 Establish the connection by using modems

4)         Launch a terminal emulation utility on the PC and set the telephone number to call the modem directly connected to the switch, as shown in Figure 4-2 and Figure 4-3. Note that you need to set the telephone number to that of the modem directly connected to the switch.

Figure 4-2 Set the telephone number

Figure 4-3 Call the modem

5)         Provide the password when prompted. If the password is correct, the prompt (such as <H3C>) appears. You can then configure or manage the switch. You can also enter the character ? at anytime for help. Refer to the following chapters for information about the configuration commands.



&  Note:

If you perform no AUX user-related configuration on the switch, the commands of level 3 are available to modem users. Refer to the CLI module for information about command level.




Chapter 5  Logging in through Web-based Network Management System

5.1  Introduction

An S3100-52P Ethernet switch has a Web server built in. You can log into an S3100-52P Ethernet switch through a Web browser and manage and maintain the switch intuitively by interacting with the built-in Web server.

To log into an S3100-52P Ethernet switch through the built-in Web-based network management system, you need to perform the related configuration on both the switch and the PC operating as the network management terminal.

Table 5-1 Requirements for logging into a switch through the Web-based network management system

Item

Requirement

Switch

The management VLAN of the switch is configured. The route between the switch and the network management terminal is available. (Refer to the Management VLAN Configuration module for more.)

The user name and password for logging into the Web-based network management system are configured.

PC operating as the network management terminal

IE is available.

The IP address of the management VLAN interface of the switch is available.



5.2  HTTP Connection Establishment

1)         Log into the switch through the Console port and assign an IP address to the management VLAN interface of the switch See section 3.5.1  "Telneting to a Switch from a Terminal" for more.

2)         Through the Console port, configure the user name and the password for the Web-based network management system.

# Configure the user name to be admin.

[H3C] local-user admin

# Set the user level to level 3.

[H3C-luser-admin] service-type telnet level 3

# Set the password to admin.

[H3C-luser-admin] password simple admin

3)         Establish an HTTP connection between your PC and the switch, as shown in the following figure.

Figure 5-1 Establish an HTTP connection between your PC and the switch

4)         Log into the switch through IE. Launch IE on the Web-based network management terminal (your PC) and enter the IP address of the management VLAN interface of the switch (here it is http://10.153.17.82) in the address bar. (Make sure the route between the Web-based network management terminal and the switch is available.)

5)         When the login interface (as shown in Figure 5-2) appears, enter the user name and the password configured in step 2 and click <Login> to bring up the main page of the Web-based network management system.

Figure 5-2 The login page of the Web-based network management system

5.3  Web Server Shutdown/Startup

You can shut down or start up the Web server.

Table 5-2 Shut down/start up Web server

Operation

Command

Description

Shut down the Web server

ip http shutdown

Required

Execute this command in system view.

Start the Web server

undo ip http shutdown

Required

Execute this command in system view.



The Web server is started by default.



&  Note:

To improve security and avoid malicious attack to the unused SOCKETs, TCP 80 port for HTTP service will be enabled or disabled after corresponding configurations.

If you use the undo ip http shutdown command to enable the Web Server, TCP 80 will be enabled; if you use the ip http shutdown command to disabled the Web Server, TCP 80 will be disabled.



  Caution:

After the Web files are upgraded, you need to specify a new Web file from the boot menu after the reboot. Otherwise, the Web Server function cannot be used normally.




Chapter 6  Logging in through NMS

6.1  Introduction

You can also log into a switch through an NMS (network management station), and then configure and manage the switch through the agent module on the switch.

l           The agent here refers to the software running on network devices (switches) and as the server.

l           SNMP (simple network management protocol) is applied between the NMS and the agent.

To log into a switch through an NMS, you need to perform related configuration on both the NMS and the switch.

Table 6-1 Requirements for logging into a switch through an NMS

Item

Requirement

Switch

The management VLAN of the switch is configured. The route between the NMS and the switch is available. (Refer to the Management VLAN Configuration module for more.)

The basic SNMP functions are configured. (Refer to the SNMP module for more.)

NMS

The NMS is properly configured. (Refer to the user manual of your NMS for more.)



6.2  Connection Establishment Using NMS

Figure 6-1 Network diagram for logging in through an NMS


Chapter 7  Configuring Source IP Address for Telnet Service Packets

You can configure source IP address or source interface for the Telnet server and Telnet client. This provides a way to manage services.

7.1  Configuring Source IP Address for Telnet Service Packets

I. Configuration in user view

Table 7-1 Configure a source IP address for service packets in user view

Operation

Command

Description

Specify a source IP address for the Telnet client

telnet remote-server source-ip ip-address

Optional

Specify a source interface for the Telnet client

telnet remote-server source-interface interface-type interface-number

Optional



II. Configuration in system view

Table 7-2 Configure a source IP address for service packets in system view

Operation

Command

Description

Specify a source IP address for Telnet server

telnet-server source-ip ip-address

Optional

Specify a source interface for Telnet server

telnet-server source-interface interface-type interface-number

Optional

Specify source IP address for Telnet client

telnet source-ip ip-address

Optional

Specify a source interface for Telnet client

telnet source-interface interface-type interface-number

Optional



&  Note:

To perform the configurations listed in Table 7-1 and Table 7-2, make sure that:

l      The IP address specified is that of the local device.

l      The interface specified exists.



7.2  Displaying Source IP Address Configuration

Execute the display command in any view to display the operation state after the above configurations. You can verify the configuration effect through the displayed information.

Table 7-3 Display the source IP address configuration

Operation

Command

Display the source IP address configured for the Telnet client

display telnet source-ip

Display the source IP address configured for the Telnet server

display telnet-server source-ip




Chapter 8  User Control

8.1  Introduction

A switch provides ways to control different types of login users, as listed in Table 8-1.

Table 8-1 Ways to control different types of login users

Login mode

Control method

Implementation

Related section

Telnet

By source IP address

Through basic ACL

Section 8.2.2  Controlling Telnet Users by Source IP Addresses”.

By source and destination IP address

Through advanced ACL

Section 8.2.3  Controlling Telnet Users by Source and Destination IP Addresses”.

By source MAC address

Through Layer 2 ACL

Section 8.2.4  Controlling Telnet Users by Source MAC Addresses

SNMP

By source IP addresses

Through basic ACL

Section 8.3  Controlling Network Management Users by Source IP Addresses”.

WEB

By source IP addresses

Through basic ACL

Section 8.4  Controlling Web Users by Source IP Address”.

Disconnect Web users by force

By executing commands in CLI

Section 8.4.3  Disconnecting a Web User by Force”.



8.2  Controlling Telnet Users

8.2.1  Prerequisites

The controlling policy against Telnet users is determined, including the source and destination IP addresses and source MAC addresses to be controlled and the controlling actions (permitting or denying).

8.2.2  Controlling Telnet Users by Source IP Addresses

Controlling Telnet users by source IP addresses is achieved by applying basic ACLs, which are numbered from 2000 to 2999.

Table 8-2 Control Telnet users by source IP addresses

Operation

Command

Description

Enter system view

system-view

Create a basic ACL or enter basic ACL view

acl number acl-number [ match-order { config | auto } ]

As for the acl number command, the config keyword is specified by default.

Define rules for the ACL

rule [ rule-id ] { permit | deny } [ fragment | source { sour-addr sour-wildcard | any } | time-range time-name ]*

Required

Quit to system view

quit

Enter user interface view

user-interface [ type ] first-number [ last-number ]

Apply the ACL to control Telnet users by source IP addresses

acl acl-number { inbound | outbound }

Required

The inbound keyword specifies to filter the users trying to Telnet to the current switch.

The outbound keyword specifies to filter users trying to Telnet to other switches from the current switch.



8.2.3  Controlling Telnet Users by Source and Destination IP Addresses

Controlling Telnet users by source and destination IP addresses is achieved by applying advanced ACLs, which are numbered from 3000 to 3999. Refer to the ACL module for information about defining an ACL.

Table 8-3 Control Telnet users by source and destination IP addresses

Operation

Command

Description

Enter system view

system-view

Create an advanced ACL or enter advanced ACL view

acl number acl-number [ match-order { config | auto } ]

As for the acl number command, the config keyword is specified by default.

Define rules for the ACL

rule [ rule-id ] { permit | deny } protocol [ source { source-addr wildcard | any } ] [ destination { dest-addr wildcard | any } ] [ source-port operator port1 [ port2 ] ] [ destination-port operator port1 [ port2 ] ] [ icmp-type type code ] [ established ] [ { precedence precedence tos tos | dscp dscp }* | fragment | time-range name ]*

Required

You can define rules as needed to filter by specific source and destination IP addresses.

Quit to system view

quit

Enter user interface view

user-interface [ type ] first-number [ last-number ]

Apply the ACL to control Telnet users by specified source and destination IP addresses

acl acl-number { inbound | outbound }

Required

The inbound keyword specifies to filter the users trying to Telnet to the current switch.

The outbound keyword specifies to filter users trying to Telnet to other switches from the current switch.



8.2.4  Controlling Telnet Users by Source MAC Addresses

Controlling Telnet users by source MAC addresses is achieved by applying Layer 2 ACLs, which are numbered from 4000 to 4999. Refer to the ACL module for information about defining an ACL.

Table 8-4 Control Telnet users by source MAC addresses

Operation

Command

Description

Enter system view

system-view

Create or enter Layer 2 ACL view

acl number acl-number

Define rules for the ACL

rule [ rule-id ] { permit | deny } [ [ type protocol-type type-mask | lsap lsap-type type-mask ] | format-type | cos cos | source { source-vlan-id | source-mac-addr source-mac-mask }* | dest { dest-mac-addr dest-mac-mask } | time-range name ]*

Required

You can define rules as needed to filter by specific source MAC addresses.

Quit to system view

quit

Enter user interface view

user-interface [ type ] first-number [ last-number ]

Apply the ACL to control Telnet users by specified source MAC addresses

acl acl-number { inbound | outbound }

Required

The inbound keyword specifies to filter the users trying to Telnet to the current switch.

The outbound keyword specifies to filter users trying to Telnet to other switches from the current switch.



8.2.5  Configuration Example

I. Network requirements

Only the Telnet users sourced from the IP address of 10.110.100.52 and 10.110.100.46 are permitted to log into the switch.

II. Network diagram

Figure 8-1 Network diagram for controlling Telnet users using ACLs

III. Configuration procedure

# Define a basic ACL.

<H3C> system-view

[H3C] acl number 2000 match-order config

[H3C-acl-basic-2000] rule 1 permit source 10.110.100.52 0

[H3C-acl-basic-2000] rule 2 permit source 10.110.100.46 0

[H3C-acl-basic-2000] rule 3 deny source any

[H3C-acl-basic-2000] quit

# Apply the ACL.

[H3C] user-interface vty 0 4

[H3C-ui-vty0-4] acl 2000 inbound

8.3  Controlling Network Management Users by Source IP Addresses

You can manage an S3100-52P Ethernet switch through network management software. Network management users can access switches through SNMP.

You need to perform the following two operations to control network management users by source IP addresses.

l           Defining an ACL

l           Applying the ACL to control users accessing the switch through SNMP

8.3.1  Prerequisites

The controlling policy against network management users is determined, including the source IP addresses to be controlled and the controlling actions (permitting or denying).

8.3.2  Controlling Network Management Users by Source IP Addresses

Controlling network management users by source IP addresses is achieved by applying basic ACLs, which are numbered from 2000 to 2999.

Table 8-5 Control network management users by source IP addresses

Operation

Command

Description

Enter system view

system-view

Create a basic ACL or enter basic ACL view

acl number acl-number [ match-order { config | auto } ]

As for the acl number command, the config keyword is specified by default.

Define rules for the ACL

rule [ rule-id ] { permit | deny } [ fragment | source { sour-addr sour-wildcard | any } | time-range time-name ]*

Required

Quit to system view

quit

Apply the ACL while configuring the SNMP community name

snmp-agent community { read | write } community-name [ mib-view view-name | acl acl-number ]*

Optional

By default, SNMPv1 and SNMPv2c use community name to access.

Apply the ACL while configuring the SNMP group name

snmp-agent group { v1 | v2c } group-name [ read-view read-view ] [ write-view write-view ] [ notify-view notify-view ] [ acl acl-number ]

snmp-agent group v3 group-name [ authentication | privacy ] [ read-view read-view ] [ write-view write-view ] [ notify-view notify-view ] [ acl acl-number ]

Optional

By default, the authentication mode and the encryption mode are configured as none for the group.

Apply the ACL while configuring the SNMP user name

snmp-agent usm-user { v1 | v2c } user-name group-name [ acl acl-number ]

snmp-agent usm-user v3 user-name group-name [ authentication-mode { md5 | sha } auth-password [ privacy-mode des56 priv-password ] [ acl acl-number ]

Optional



&  Note:

You can specify different ACLs while configuring the SNMP community name, SNMP group name, and SNMP user name..



As SNMP community name is a feature of SNMPv1 and SNMPv2c, the specified ACLs in the command that configures SNMP community names (the snmp-agent community command) take effect in the network management systems that adopt SNMPv1 or SNMPv2c.

Similarly, as SNMP group name and SNMP username name are a feature of SNMPv2c and the higher SNMP versions, the specified ACLs in the commands that configure SNMP group names and SNMP user names take effect in the network management systems that adopt SNMPv2c or higher SNMP versions. If you specify ACLs in the commands, the network management users are filtered by the SNMP group name and SNMP user name.

8.3.3  Configuration Example

I. Network requirements

Only SNMP users sourced from the IP addresses of 10.110.100.52 and 10.110.100.46 are permitted to access the switch.

II. Network diagram

Figure 8-2 Network diagram for controlling SNMP users using ACLs

III. Configuration procedure

# Define a basic ACL.

<H3C> system-view

[H3C] acl number 2000 match-order config

[H3C-acl-basic-2000] rule 1 permit source 10.110.100.52 0

[H3C-acl-basic-2000] rule 2 permit source 10.110.100.46 0

[H3C-acl-basic-2000] rule 3 deny source any

[H3C-acl-basic-2000] quit

# Apply the ACL to only permit SNMP users sourced from the IP addresses of 10.110.100.52 and 10.110.100.46 to access the switch.

[H3C] snmp-agent community read aaa acl 2000

[H3C] snmp-agent group v2c groupa acl 2000

[H3C] snmp-agent usm-user v2c usera groupa acl 2000

8.4  Controlling Web Users by Source IP Address

You can manage an S3100-52P Ethernet switch remotely through Web. Web users can access a switch through HTTP connections.

You need to perform the following two operations to control Web users by source IP addresses.

l           Defining an ACL

l           Applying the ACL to control Web users

8.4.1  Prerequisites

The controlling policy against Web users is determined, including the source IP addresses to be controlled and the controlling actions (permitting or denying).

8.4.2  Controlling Web Users by Source IP Addresses

Controlling Web users by source IP addresses is achieved by applying basic ACLs, which are numbered from 2000 to 2999.

Table 8-6 Control Web users by source IP addresses

Operation

Command

Description

Enter system view

system-view

Create a basic ACL or enter basic ACL view

acl number acl-number [ match-order { config | auto } ]

As for the acl number command, the config keyword is specified by default.

Define rules for the ACL

rule [ rule-id ] { permit | deny } [ fragment | source { sour-addr sour-wildcard | any } | time-range time-name ]*

Required

Quit to system view

quit

Apply the ACL to control Web users

ip http acl acl-number

Optional



8.4.3  Disconnecting a Web User by Force

The administrator can disconnect a Web user by force using the related command.

Table 8-7 Disconnect a Web user by force

Operation

Command

Description

Disconnect a Web user by force

free web-users { all | user-id user-id | user-name user-name }

Required

Execute this command in user view.



8.4.4  Configuration Example

I. Network requirements

Only the users sourced from the IP address of 10.110.100.46 are permitted to access the switch.

II. Network diagram

Figure 8-3 Network diagram for controlling Web users using ACLs

III. Configuration procedure

# Define a basic ACL.

<H3C> system-view

[H3C] acl number 2030 match-order config

[H3C-acl-basic-2030] rule 1 permit source 10.110.100.46 0

[H3C-acl-basic-2030] rule 2 deny source any

# Apply the ACL to only permit the Web users sourced from the IP address of 10.110.100.46 to access the switch.

[H3C] ip http acl 2030
