Chapter 1  RPR Configuration

When configuring RPR, go to these sections for information you are interested in:

l           Introduction to RPR

l           Configuring RPR

l           Displaying and Maintaining RPR

l           RPR Configuration Examples

1.1  Introduction to RPR

This section covers these topics:

l           Introduction to RPR

l           Ring Structure of RPR

l           Data Operations on RPR

l           Topology Discovery

l           Fault Response Methods

l           RPR Timers

l           RPR Ports

l           Protocols and Standards

1.1.1  Overview

Resilient packet ring (RPR) is a new MAC layer protocol designed for transferring mass data services over MANs. It can operate on synchronous optical network/synchronous digital hierarchy (SONET/SDH), dense wavelength division multiplexing (DWDM) and Ethernet to provide flexible and efficient networking schemes for broadband IP MANs carriers. The RPR technology delivers these benefits:

l           Physical layer diversity

l           High bandwidth utilization

l           Multicast and broadcast support

l           Automatic topology discovery

l           Quick protection mechanism

l           Traffic level guarantee based on bandwidth reservation and rate limiting

l           Bandwidth sharing fairness among stations on the ring

1.1.2  Ring Structure of RPR

RPR is made up of dual unidirectional counter-rotating ringlets identified as Ringlet 0 and Ringlet 1, as shown in Figure 1-1:

Figure 1-1 Ring structure of RPR

Ringlet 0, also called outer ring, is for clockwise or west data traffic. Ringlet 1, also called inner ring, is for counterclockwise or east data traffic.

On Ringlet 0, stations send data frames out of east interfaces and receive data frames from west interfaces; on Ringlet 1, stations send data frames out of west interfaces and receive data frames from east interfaces. A group of consecutive stations associated with the same attribute form a domain.

Any two adjacent stations are connected by a pair of unidirectional logical channels called links transmitting in opposite directions. These two links form a span. A span on which data frames are not allowed to pass is called an edge. If a ring contains at least one detected edge, it is called open ring. If it does not contain any detected edges, it is called closed ring.

1.1.3  Data Operations on RPR

Stations on an RPR handle data frames by performing the following operations:

l           Insertion, to place a frame on a ringlet.

l           Copy, to deliver an inbound frame from the ring to the upper layer. The copying of a frame does not imply its removal from the ring.

l           Transit, to pass a frame to the next station.

l           Stripping, to remove a frame from a ringlet.

By performing these operations, stations implement unicast transmission, broadcast transmission, and multicast transmission.

I. Unicast transmission

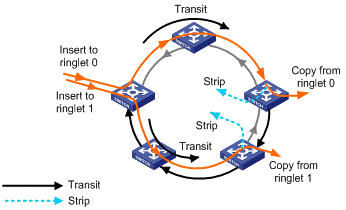

Figure 1-2 Unicast transmission on an RPR ring

Figure 1-2 shows how a unicast data frame is transmitted on an RPR ringlet:

1)         Source station inserts the unicast frame into the data stream on Ringlet 0 or Ringlet 1.

2)         Transit stations transit the frame.

3)         The frame is copied and stripped when it reaches the destination station or when its time to live (TTL) expires.

Different from traditional ring technologies where unicast frames are removed from the ring at the source station, RPR adopts destination stripping to remove unicast frames from the ring at the destination station. This increases bandwidth utilization and spatial bandwidth reuse efficiency.

II. Broadcast transmission

Figure 1-3 Broadcast/flooded transmission on an RPR ring

Figure 1-3 shows how a frame is flooded or broadcasted on an RPR ringlet:

1)         Source station inserts the frame into the data stream on Ringlet 0 or Ringlet 1.

2)         Transit and destination stations copy and transit the frame if the TTL of the frame has not expired.

3)         The frame is stripped when it returns to the source station or when its TTL expires.

III. Multicast transmission

Figure 1-4 Multicast transmission on an RPR ring

Figure 1-4 shows how a multicast frame is transmitted on an RPR ringlet:

l           Source station inserts the frame into the data stream on Ringlet 0 or Ringlet 1.

l           Transit stations transit the frame.

l           Destination station transits and copies the frame.

l           The frame is stripped when it returns to the source station or when its TTL expires.

1.1.4  Topology Discovery

RPR performs automatic topology discovery to collect such information as the number of stations, ring state, order of the stations on the ring to build a topology database. This database does not change after the ring topology becomes stable.

I. Topology database

Each RPR station maintains a topology database that describes the topology of the entire RPR ring. Based on this database, the station creates its ringlet selection table.

A topology database contains three categories of information:

l           Ringlet topology information, such as the number of stations, ring state, and available bandwidth.

l           Local station topology information, such as the MAC address, protection mode, protection state, station name, topology checksum of the local station and the neighbor stations.

l           Topology information of other stations, such as the MAC address, validity state, reachability, protection mode, station ID, station name, and reserved bandwidth.

II. Topology discovery process

RPR uses three types of control frames for topology discovery: attribute discovery (ATD), topology protection (TP), and topology checksum (TC).

l           TP frames convey configuration and status information of stations. The stations on an RPR ring broadcast TP frames to advertise their configuration and status information and update their own topology databases after receiving TP frames from other stations. Finally, all the stations reach an agreement on the topology of the ring.

l           TC frames convey topology checksum information. They are sent between adjacent stations to check whether the topology databases on them are synchronized, thus identifying stability of the RPR ring topology.

l           ATD frames convey attributes of the local station such as the MAC address and station name. These attributes will be included in the topology database.

All these control frames are sent at regular intervals, which are user configurable. For TP and TC frames, two types of intervals, fast sending interval and slow sending interval, are used.

When a station on the ring starts initializing or detects a topology change, it sends TP frames to propagate topology information throughout the network. When doing that, it sends the first nine TP frames at fast intervals and subsequent TP frames at slow intervals.

After the RPR ring topology converges, the station starts to send TC frames. When doing that, it sends first five TC frames at fast intervals and then subsequent TC frames at slow intervals.

Only one type of interval is available for sending ATD frames, regardless of topology change.

1.1.5  Fault Response Methods

RPR delivers strong self-recovery capability. Its protection mechanism provides event detection, quick self-recovery, and fast service recovery when faults occur to the fiber-optic or stations. The network can thus detect faults quickly and react appropriately to restore services in 50 ms.

RPR is available with two fault response methods: passthrough and protection.

I. Passthrough

The passthrough approach mainly applies to handle station faults. When a station detects an internal fault, it can enter the passthrough mode where it behaves similar to a repeater and does not handle any services on the ring. Frames arriving at this station are forwarded directly as if it was transparent, and the station is invisible on the ring. See Figure 1-5.

Figure 1-5 Passthrough mode

II. Protection

If a station is unable to forward traffic as the result of power failure or fiber cut for example, it should enter protection mode.

1)         Protection mode

RPR provides two protection modes: wrapping and steering.

l           Wrapping

In wrapping mode, after a span or station fails, protected traffic is directed at the point of failure to the opposing ringlet. The two ringlets thus form a closed single ring around the point of the failure.

As shown in Figure 1-6, after the span between station A and station B fails on Ringlet 0, traffic that should originally travel from station B to A along Ringlet 0 is directed to Ringlet 1 to reach station B.

Figure 1-6 Wrapping mode

As the wrapping mode allows quick switchover, data frame loss can be minimized. This, however, wastes bandwidth.

l           Steering mode

Unlike in wrapping mode, in steering mode, the two stations at the two sides of the point of failure updates their topology databases first; and then sends TP frames at fast intervals to the other stations on the ring. After a new topology database is stabilized, the source station directs protected frames to the ringlet that retains connectivity to their destinations.

As shown in Figure 1-7, traffic that should have traveled from station A to station B along Ringlet 0 is steered to Ringlet 1 for transmission.

Figure 1-7 Steering mode

The steering mode can avoid the bandwidth waste with wrapping mode, but as it requires topology reconvergence, it can cause frame loss and service interruption.

2)         Protection switching

RPR protection switching uses the following protection hierarchy listed in the order of decreasing severity:

l           Forced switch (FS)

l           Signal fail (SF), related to current physical status.

l           Signal degrade (SD), related to current physical status.

l           Manual switch (MS)

l           Wait to restore (WTR)

l           Idle

Protection switching occurs only when requested by a station on the ring. The hierarchy of protection requests is the same as this protection switching hierarchy. Among protection requests, FS and MS requests are sent manually, whereas SF, SD, and WTR requests are sent automatically.

The MS request sent by a station will not be processed if a higher priority protection request is present on the RPR ring.

If an FS request is present on the current ring, the SF or SD request automatically sent as the result of a link failure will be processed only after the FS request is cleared.

1.1.6  RPR Timers

RPR is available with the following user-configurable timers:

l           TP fast timer: defines the fast interval at which TP frames are sent. A TP fast timer starts when a station starts initializing or detects a topology change. After sending nine TP frames at fast intervals, the station begins to send TP frames at slow intervals.

l           TP slow timer: defines the slow interval at which TP frames are sent. This timer is active when the ring topology is stable.

l           TC fast timer: defines the fast interval at which TC frames are sent. A TC fast timer starts on a station when the ring topology becomes converged. After sending five TC frames at fast intervals, the station begins to send TC frames at slow intervals.

l           TC slow timer: defines the slow interval at which TC frames are sent. TC frames are sent in slow intervals when the ring topology is stable.

l           ATD timer: defines the interval at which ATD frames are sent.

l           WTR timer: When a protection switching event occurs on a station due to link failure, the station enters automatic protection state; after the link recovers, the station enters the idle protection state. The WTR timer defines the delay that a station transits to the idle protection state after entering the automatic protection state.

l           Hold-off timer: defines the delay for the physical layer (PHY) to report a protection request after detecting a link failure.

l           Keepalive timer: A single choke fairness frame (SCFF) is transmitted point to point every fairness algorithm period. When a station fails to receive a SCFF, a keepalive timer starts. If no SCFF frame is received after the timer expires, the station sends an SF protection request.

l           Topology stability timer: When a station detects a topology change on the ring, it starts the topology stability timer and begins to collect topology information to update its topology database. After the timer expires, the station checks the validity of received topology information. If the information is valid, the station enters topology valid state; if not, the station re-starts the timer.

1.1.7  RPR Ports

An RPR station comprises one RPR logical interface and two physical ports. The two physical ports are used to transmit data to or receive data from the ring and the logical port is provided for you to make configuration.

Logical port is available for RPR stations: XGE (10GE).

Three types of physical ports are available for RPR stations: XGE, 2.5 Gbps POS, and 10 Gbps POS.

The RPR logical ports are available depend on the physical RPR ports on your station, as shown in the following table:

Table 1-1 RPR physical and logical port dependencies

RPR physical port	RPR logical port
XGE	XGE
2.5 Gbps POS	XGE
10 Gbps POS	XGE





1.1.8  Protocols and Standards

The RPR implementation follows the following document:

IEEE802.17: Resilient packet ring (RPR) access method and physical layer specifications

1.2  Configuring RPR

Complete these tasks to configure RPR:

Task	Remarks
Configuring Protection Mode	Optional
Configuring Protection Reversion Mode	Optional
Configuring Ringlet Selection Table	Optional
Configuring Rate Limiting	Optional
Configuring Station Weight	Optional
Configuring Timers	Optional
Configuring RPR POS Interface	Optional
Configuring Port Type	Optional
Configuring Station Name	Optional
Configuring Protection Requests	Optional
Configuring RPR VLAN Tunnel	Optional
Testing Connectivity Between Stations	Optional



1.3  Configuring Protection Mode

Follow these steps to configure the protection mode on the RPR station:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Configure the protection mode	rpr protect-mode { steer | wrap }	Optional Steering mode applies by default.





1.4  Configuring Protection Reversion Mode

Two protection reversion modes are available:

l           Revertive mode, where a station resumes the idle protection state once the WTR timer expires.

l           Non-revertive mode, where the station remains in automatic protection state upon expiration of the WTR timer and does not resume the idle state until a higher protection request is present on the ring.

Follow these steps to configure the protection reversion mode on the RPR station:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Configure the protection reversion mode	rpr reversion-mode { revertive | non-revertive }	Optional Revertive mode applies by default.



1.5  Configuring Ringlet Selection Table

Each RPR station maintains a ringlet selection table, based on which the decision as to which ringlet should be selected to transmit frames is made. A ringlet selection table entry contains such information as the MAC address of a station, the ringlet through which frames are transmitted.

The RPR ringlet selection table comprises a static ringlet selection table, a dynamic ringlet selection table, a default ringlet selection table, an overall ringlet selection table, an IPv6 ringlet selection table, and a VRRP ringlet selection table.

l           Static ringlet selection table is administratively configured to specify the ringlet for delivering a frame to a destination station.

l           Dynamic ringlet selection table is built dynamically based on the topology database.

l           Default ringlet selection table specifies the default ringlet for delivering frames.

l           Overall ringlet selection table is created from the above three tables. Static ringlet selection table has the highest priority. If a static ringlet selection entry is available for reaching a destination station, it is added into the overall ringlet selection table. If no static entry is available, the system looks at the dynamic ringlet selection table. If two shortest paths are available, default ringlet selection applies to pick up one from them. The selected entry is then added into the overall ringlet selection table. When sending frames, the station consults this table to identify the path to the destination MAC address.





1.5.1  Adding a static ringlet selection entry

Follow these steps to add an entry into the static ringlet selection table:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Add a static ringlet selection entry	rpr static-rs mac-address { ringlet0 | ringlet1 }	Required No static ringlet selection entry is created by default.





1.5.2  Configuring default ringlet selection

Follow these steps to configure default ringlet selection:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Configure default ringlet selection	rpr default-rs { ringlet0 | ringlet1 }	Optional By default, the default ringlet is Ringlet 0.





1.6  Configuring Rate Limiting

RPR services fall into three classes: class A, class B and class C, with decreasing priorities.

Class A is further divided into subclass A0 and subclass A1. RPR can reserve bandwidth for the subclass A0 service. When congestion occurs, the unused reserved bandwidth cannot be used by lower priority services. For the subclass A1 service, rate limiting is used. When congestion occurs, subclass A1 allows lower priority services to use its unused bandwidth and the bandwidth allocation in this case is regulated by fairness algorithms.

Class B can also be divided into two subclasses: committed information rate (CIR) and excess information rate (EIR). For class B traffic, the portion within the predefined rate limit uses the class B CIR service and the portion exceeding the limit uses the class B EIR service. Similar to the class C service, the class B EIR service is regulated by fairness algorithms.

The class C service is regulated by fairness algorithms and takes the lowest priority.

Follow these steps to assign reserved bandwidths to service classes:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Assign reserved bandwidth to a service class	rpr rate-limiter { high | low | medium | reserved } { ringlet0 | ringlet1 } value	Optional By default, no bandwidth is reserved for subclass A0; the rate limit is 2‰ for subclass A1, 0 for class B CIR and class B EIR, and 1000‰ for class C.





1.7  Configuring Station Weight

On an RPR ring, bandwidth resources are shared among stations. When traffic size is small, RPR can handle bandwidth requests of all stations on the ring well. When traffic size gets heavy, congestion may occur. To prevent some stations from taking advantage of their spatially or chronologically favorable position on the ring to occupy excessive bandwidth, RPR adopts a fairness algorithm to ensure bandwidth allocation fairness.

The fairness algorithm of RPR mainly regulates class B-EIR and class C traffic on the RPR ring. You can assign a weight to a station to adjust the ratio of its available service bandwidth to the total non-reserved bandwidth on a ringlet. The fairness weight of a station is configured as an exponent of 2.

Follow these steps to assign the bandwidth allocation fairness weight to the RPR station on a ringlet:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Configure the weight of the station	rpr weight { ringlet0 | ringlet1 } value	Optional The value argument is an exponent of 2. By default, the fairness weight of a station is 1 on both Ringlet 0 and Ringlet 1.



1.8  Configuring Timers

Follow these steps to configure timers:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Set the ATD timer	rpr timer atd value	Optional 1 second by default
Set the hold-off timer	rpr timer holdoff value	Optional 0 milliseconds by default
Set the keepalive timer	rpr timer keepalive value	Optional 3 milliseconds by default
Set the topology stability timer	rpr timer stability value	Optional 40 milliseconds by default
Set the TC fast timer	rpr timer tc-fast value	Optional 10 milliseconds by default
Set the TC slow timer	rpr timer tc-slow value	Optional 100 milliseconds by default
Set the TP fast timer	rpr timer tp-fast value	Optional 10 milliseconds by default
Set the TP slow timer	rpr timer tp-slow value	Optional 100 milliseconds by default
Set the WTR timer	rpr timer wtr value	Optional 10 seconds by default



1.9  Configuring RPR POS Interface

Follow these steps to configure an RPR POS interface:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR POS interface view	interface rprpos interface-number	Required
Configure SD1 and SF2 thresholds	threshold { sd | sf } value	Optional The default SD threshold is 5 and the default SF threshold is 3. The value of SF must be smaller than SD, and their difference must not be larger than 2.
Note: 1. SD = Signal degrade 2. SF = Signal failure





1.10  Configuring Port Type

Follow these steps to set physical RPR port type on an RPR logical port:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Set RPR physical port type	rpr port-type { 10gpos | 10ge }	Optional The RPR port type detected at initialization applies by default.





1.11  Configuring Station Name

Follow these steps to assign a name to the RPR station:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Configure a station name	rpr station-name station-name	Required No station name is configured by default.



1.12  Configuring Protection Requests

A station can automatically send protection requests onto an RPR ringlet to trigger protection. Besides that, you may send FS or MS protection requests manually to trigger protection or send idle protection requests to clear the manually sent protection requests present on a ringlet.

Follow these steps to send an FS or MS protection request onto the ringlet:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Send an RPR protection request onto a ringlet	rpr admin-request { fs | ms | idle } { ringlet0 | ringlet1 }	Optional The default is idle.



1.13  Configuring RPR VLAN Tunnel

RPR stations that adopt the RPR VLAN tunnel technology directly unicast frames to destination stations rather than flood them on ringlets. This improves bandwidth utilization efficiency.

RPR tunnels are configured specific to VLAN ID on RPR logical interfaces. You may configure up to 4096 tunnels on an RPR logical interface. For each tunnel, you need to specify its frame copying station. In addition, to distinguish traffic destined to the same MAC address but using different tunnels, you need to configure static ringlet selection entries for them.

Follow these steps to configure an RPR VLAN tunnel:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Configure an RPR VLAN tunnel	rpr tunnel vlan { vlan-id-list | all } dest-mac mac-address [ ringlet0 | ringlet1 ]	Required





1.14  Testing Connectivity Between Stations

You may send Echo Request/Echo Response messages to test the connectivity between two stations and locate failure points if any. The connectivity between the current station and the destination station is considered as normal if the connection between the two stations is normal on both the specific sending ringlet and the receiving ringlet. In this case, the destination station should be able to receive the Echo Request messages that the current station sends along the specific ringlet and the current station should be able to receive the Echo Response message that the destination station sends along the specific ringlet. Otherwise, the connectivity between the current station and the destination station is considered as having failed.

Follow these steps to test the connectivity to a specific station:

To do...	Use the command...	Remarks
Enter system view	system-view	—
Enter RPR logical interface view	interface interface-type interface-number	—
Test the connectivity to a specific station	rpr echo mac mac-address [ -c value | -r { ringlet0 | ringlet1 | reverse } | -s { ringlet0 | ringlet1 } | -t value ] *	Required If the number of test frames is not specified (-c value), 5 test frame is sent; if the receiving ringlet (-r)/sending ringlet (-s) is not specified, the default ringlet is used. If the echo timeout (-t) is not specified, the default timeout of 10 milliseconds applies.





1.15  Displaying and Maintaining RPR

To do...	Use the command...
Display information about an RPR physical port	display interface { RPRXGE | RPRPOS } interface-number
Display RPR defect information	display rpr defect [ interface-type interface-number ]
Display RPR fairness settings	display rpr fairness [ interface-type interface-number ]
Display RPR protection information	display rpr protection [ interface-type interface-number ]
Display RPR ringlet selection table information	display rpr rs-table { default | dynamic | ipv6 | overall | static | dynamic| vrrp } [ interface-type interface-number ]
Display statistics about traffic on the RPR ring	display rpr statistics { dmac | smac } [ mac-address ] [ interface-type interface-number ]
Display the settings of all configurable RPR timers	display rpr timers [ interface-type interface-number ]
Display RPR topology information	display rpr topology { all | local | ring | stations } [ summary ] [ interface-type interface-number ]
Display VRRP standby group information of RPR	display rpr vrrp-info [ interface-type interface-number ]
Clear the statistics about protection events on the RPR station	reset rpr protection statistics [ interface-type interface-number ]
Display RPR VLAN tunnels	display rpr tunnel vlan { vlan-id1 [ to vlan-id2 ] | all } [ valid | invalid ] [ interface-type interface-number ]





1.16  RPR Configuration Examples

1.16.1  RPR Protection Mode/Static Ringlet Selection Configuration Examples

I. Network requirements

Stations A through E form an RPR ring and work in steer protection mode by default.

Do the following:

l           Change the protection mode of the ring to wrapping.

l           Configure a static ringlet selection entry to allow frames from Station A to Station B to travel Ringlet 1 when no edge occurs on the RPR ring (that is, the ring remains closed).

II. Network diagram

Figure 1-8 Network diagram for protection mode configuration

III. Configuration procedure

On Station A:

# Configure the protection mode as wrapping.

<Sysname> system-view

[Sysname] interface ten-gigabitethernet 1/1/1

[Sysname-Ten-GigabitEthernet1/1/1] rpr protect-mode wrap

Repeat the above steps to configure Station B through Station E.

# Configure a static ringlet selection entry for frames destined for Station B to travel Ringlet 1.

[Sysname-Ten-GigabitEthernet1/1/1] rpr static-rs 000f-e257-0002 ringlet1

# Display ring topology information to verify the configuration.

[Sysname-Ten-GigabitEthernet1/1/1] display rpr topology ring

Ring topology information of interface: Ten-GigabitEthernet1/1/1

  Stations on ringlet0:4

  Stations on ringlet1:4

  Total stations on ring:5

  Jumbo preference:regular

  Ring topology type:closed ring

# Display the static ring selection table information to verify the configuration.

[Sysname-Ten-GigabitEthernet1/1/1] display rpr rs-table static

Static ringlet selection table of interface: Ten-GigabitEthernet1/1/1

MAC-Address      Ringlet   Valid

000f-e257-0002      1        1



---   Total entries: 1   ---

# Display the information of the overall ring selection table to verify the configuration.

[Sysname-Ten-GigabitEthernet1/1/1] display rpr rs-table overall

Overall ringlet selection table of  interface: Ten-GigabitEthernet1/1/1

MAC-Address      Ringlet   TTL   Type      IP-Address        Station-Name

000f-e257-0002      1       4    static    0.0.0.0

000f-e257-0003      0       2    dynamic    0.0.0.0

000f-e257-0004      1       2    dynamic    0.0.0.0

000f-e257-0005      1       1    dynamic    0.0.0.0

---   Total entries: 4   ---

1.16.2  RPR VLAN Tunnel Configuration Examples

I. Network requirements

On an RPR network, station A uses interface Ten-GigabitEthernet1/1/1 as its RPR logical port; station D uses MAC address 000F-E200-8582.

Configure an RPR VLAN tunnel on station A to tunnel VLAN 10 streams to station D.

II. Network diagram

Figure 1-9 Network diagram for RPR VLAN tunnel configuration

III. Configuration procedure

On station A:

# Enter system view.

<Sysname> system-view

# Enter RPR logical interface view.

[Sysname] interface ten-gigabitEthernet 1/1/1

# Configure the link type of the interface as trunk.

[Sysname-Ten-GigabitEthernet1/1/1] port link-type trunk

# Permit the specified VLAN to pass the current trunk port.

[Sysname-Ten-GigabitEthernet1/1/1] port trunk permit vlan 10

# Configure a tunnel for VLAN 10 traffic to reach station D.

[Sysname-Ten-GigabitEthernet1/1/1] rpr tunnel vlan 10 dest-mac 000f-e200-8582 ringlet1

# Verify the configuration of the RPR VLAN tunnel.

[Sysname-Ten-GigabitEthernet1/1/1] display rpr tunnel vlan 10

Vlan tunnel table of interface: Ten-GigabitEthernet1/0

VLAN-ID   MAC-Address      Cfg-Ringlet   Eft-Ringlet   TTL   Valid

  10      000f-e200-8582      1               1         2    valid

---   Total entries: 1, Valid entries: 1, Invalid entries: 0    ---
