Appendix A Chassis views and technical specifications
Chassis views
|

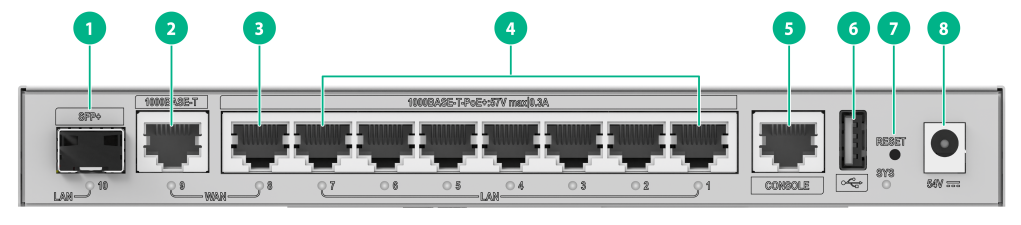

(1) SFP+ port |
(2) 1000BASE-T Ethernet port WAN 9 |
|
(3) 1000BASE-T-PoE+ autosensing Ethernet port WAN 8 |
(4) 1000BASE-T-PoE+ autosensing Ethernet ports LAN 1 to LAN 7 |
|
(5) Console port |
(6) USB port |
|
(7) Reset button (RESET) |
(8) 54V power input receptacle |
Figure5-2 Rear view
|

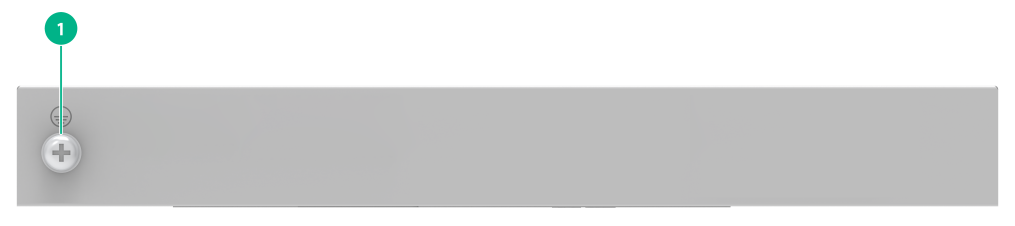

(1) Grounding screw |
Interface arrangement
The access controller provides fixed interfaces GigabitEthernet 1/0/1 through GigabitEthernet 1/0/9, Ten-GigabitEthernet 1/0/10. You can identify an interface by its mark.
· GigabitEthernet 1/0/1 through GigabitEthernet 1/0/8—100/1000BASE-T-PoE+ autosensing Ethernet ports.
· GigabitEthernet 1/0/9—1000BASE-T Ethernet port.
· Ten-GigabitEthernet 1/0/10—SFP+ port.
Technical specifications
Table5-1 Technical specifications
|
Item |
Specification |
|
Console port |
1, 9600 bps ( default ) to 115200 bps |
|
USB port |
USB 2.0, used for data transfer |
|
GE port |
· 1 × 1000BASE-T Ethernet copper port: WAN 9 · 8 × 1000BASE-T-PoE+ autosensing Ethernet copper ports (LAN 1 to LAN 7 and WAN 8): The ports can provide PoE+ power. Each can provide a maximum PoE+ power of 30 W. |
|
SFP+ port |
1 |
|
Reset button (RESET) |
· To restore the device to factory default settings, press and hold the button for more than 5 seconds after the device starts up normally. · To reset the device, press and hold the button for more than 15 ms. NOTE: During startup of the device, you can only use the reset button to reset the device. |
|
Memory |
2GB DDR4 |
|
Storage media |
4GB eMMC memory |
|
Dimensions (H × W × D) (excluding the rubber feet and mounting brackets) |
27 × 220 × 145.5 mm (1.06 × 8.66 × 5.73 in) |
|
Power supply |
Input: 100 VAC to 240 VAC, 1.6 A Max, 50 Hz or 60 Hz Output: 54 VDC, 1.85 A |
|
System power consumption |
7 W to 97 W (80 W if PoE output is included) |
|
Weight (including the power adapter) |
1.1 kg (2.43 lb) |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating humidity |
5% RH to 95% RH |
