Appendix B LEDs
LEDs
During startup of the device, the status LEDs for ports 1 to 4 being on for a while indicates that the chip is in self-test state.
|

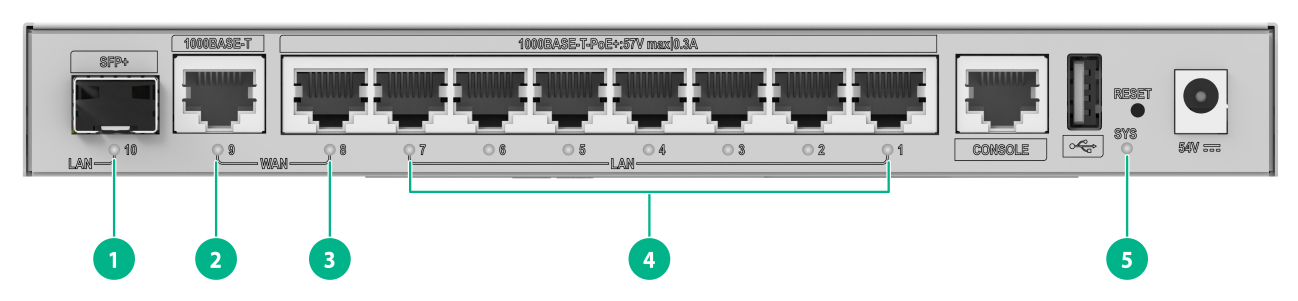

(1) SFP+ port LED |
(2) 1000BASE-T port LED |
|
(3) and (4) 1000BASE-T-PoE+ autosensing port LEDs |
(5) System status LED (SYS) |
LED description
|
LED |
Mark |
Status |
Description |
|
System status LED |
SYS |
Flashing green (4 Hz) |
The system is starting up. |
|
Flashing green (0.5 Hz) |
The system is operating correctly. |
||
|
Steady red |
A critical alarm has occurred, such as a power supply alarm, fan tray alarm, high temperature alarm, or software missing alarm. |
||
|
Off |
The device has not started up. |
||
|
100/1000M autosensing port LED (green) |
1000BASE-T-PoE+ |
Steady green |
A 100/1000 Mbps link is present on the port. |
|
Flashing green |
The port is receiving or sending data at 100/1000 Mbps. |
||
|
Off |
No link is present on the port. |
||
|
1000M port LED (green) |
1000BASE-T |
Steady green |
A 1000 Mbps link is present on the port. |
|
Flashing green |
The port is receiving or sending data at 1000 Mbps. |
||
|
Off |
No link is present on the port. |
||
|
SFP+ port LED (green) |
SFP+ |
Steady green |
A 1000 Mbps or 10 Gbps link is present on the port. |
|
Flashing green |
The port is receiving or sending data at 1000 Mbps or 10 Gbps. |
||
|
Off |
No link is present on the port. |
