3 Appendix A  AP views and technical specifications

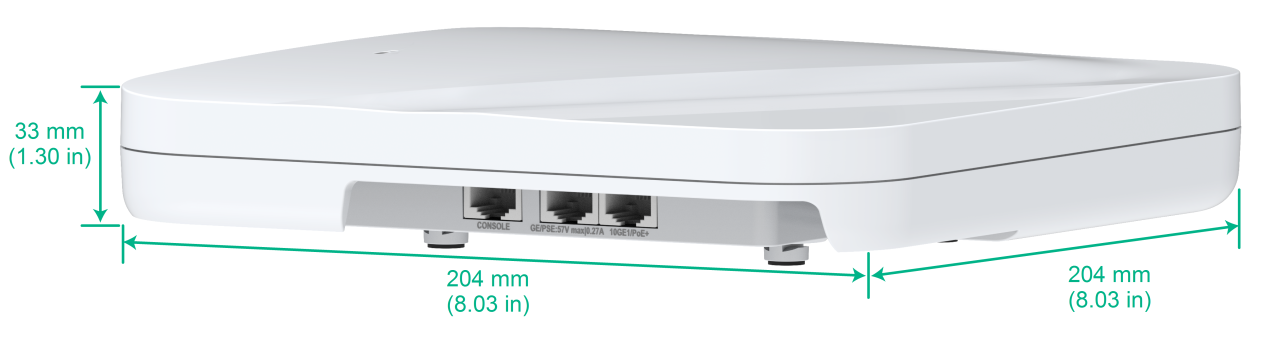

Dimensions (H × W × D) (without the mounting bracket)

33 × 204 × 204 mm (1.30 × 8.03 × 8.03 in)

Weight

0.8 kg (1.76 lb)

Power consumption

39 W

Antenna

Built-in antenna

Standard compliance

·     IEEE802.11a/b/g/n/ac/ax/be

·     IEEE802.3at

Powering option

IEEE802.3at powering standard-compliant:

·     Power adapter

·     PoE

·     PoE optical transceiver module

Operating temperature

0°C to 50°C (32°F to 122°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

5%RH to 95%RH, non-condensing

Storage humidity

5%RH to 95%RH, non-condensing

Operating altitude

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

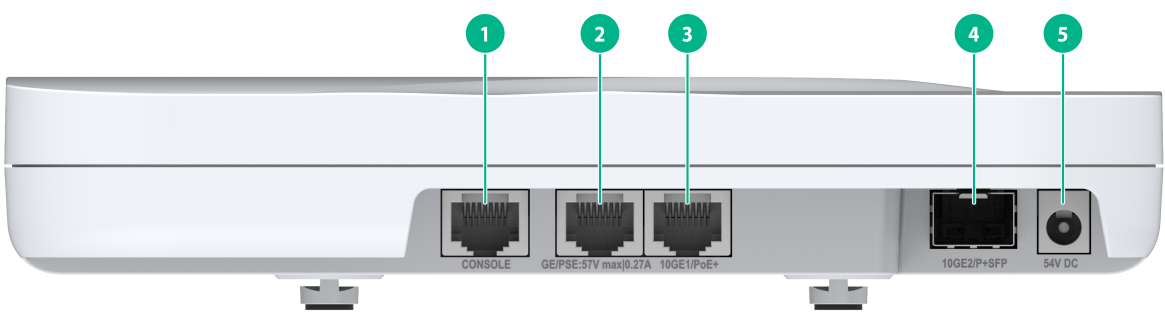

Console port

Control port, used for debugging by the maintenance personnel

10GE2/P+SFP port

1000M/2.5G/5G/10G photoelectric hybrid port

10GE1/PoE+ port

100M/1000M/2.5G/5G/10G Ethernet copper port that can act as the device uplink port to connect to the Internet or MAN and as the standard PoE port at the same time.

When the AP operates in fit AP mode, the port is represented by interface number 10GE1/0/1 in the MAP file and Ten-GigabitEthernet 1 for configuration on the AC.

GE/PSE port

100M/1000M Ethernet copper port, used for connecting a downlink device. The AP can supply power through this port to a device with a maximum power consumption of 15 W.

When the AP operates in fit AP mode, the port is represented by interface number GE1/0/1 in the MAP file and gigabitethernet 1 for configuration on the AC.

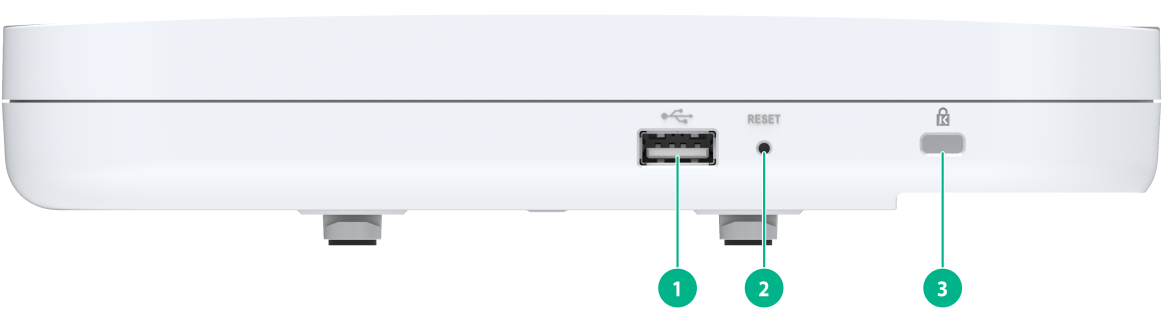

USB port

USB-compliant USB port.

NOTE:

By default, the USB port is disabled. To enable the USB port, execute the usb enable command in AP view.

Power port (54VDC)

Used for receiving power from a local power source.

Reset button

For more information, see "Appendix B  LEDs and buttons."

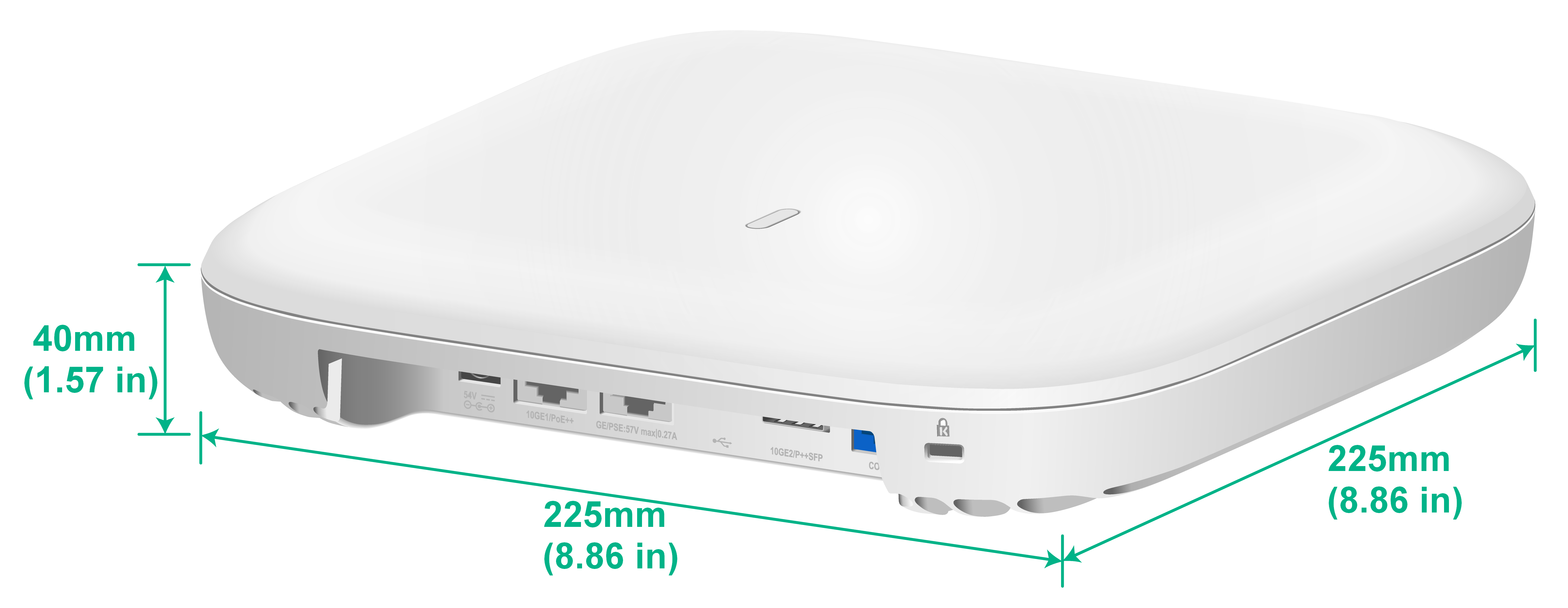

Dimensions (H × W × D) (without the mounting bracket)

40 × 225 × 225 mm (1.57 × 8.86 × 8.86 in)

Weight

1.5 kg (3.31 lb)

Power consumption

≤ 54 W

Antenna

Built-in antenna

Standard compliance

·     IEEE802.11a/b/g/n/ac/ax/be

·     IEEE802.3at/bt

Powering option

IEEE802.3at/bt powering standard-compliant:

·     Power adapter

·     PoE

·     PoE optical transceiver module

Operating temperature

0°C to 50°C (32°F to 122°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

5%RH to 95%RH, non-condensing

Storage humidity

5%RH to 95%RH, non-condensing

Operating altitude

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

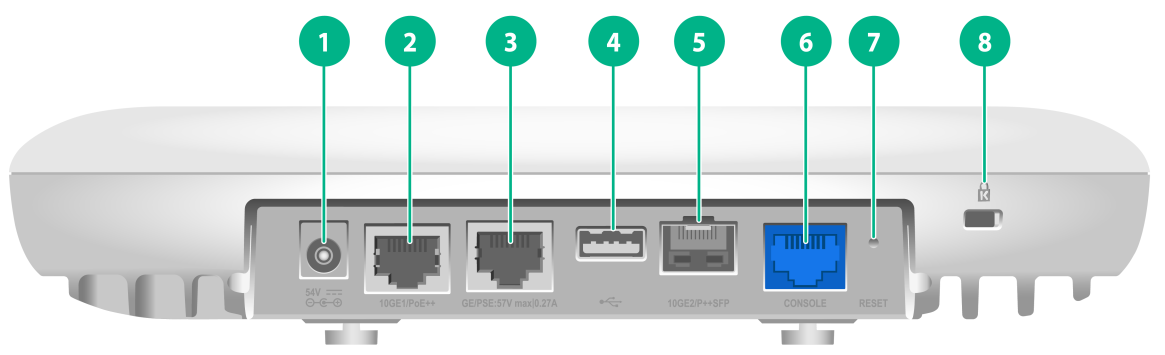

Console port

Control port, used for debugging by the maintenance personnel

10GE2/P++SFP port

1000M/2.5G/5G/10G photoelectric hybrid port

10GE1/PoE++ port

100M/1000M/2.5G/5G/10G Ethernet copper port that can act as the device uplink port to connect to the Internet or MAN and as the standard PoE port at the same time.

When the AP operates in fit AP mode, the port is represented by interface number 10GE1/0/1 in the MAP file and Ten-GigabitEthernet 1 for configuration on the AC.

GE/PSE port

100M/1000M Ethernet copper port, used for connecting a downlink device. The AP can supply power through this port to a device with a maximum power consumption of 15 W.

When the AP operates in fit AP mode, the port is represented by interface number GE1/0/1 in the MAP file and gigabitethernet 1 for configuration on the AC.

USB port

USB-compliant USB port.

NOTE:

By default, the USB port is disabled. To enable the USB port, execute the usb enable command in AP view.

Power port (54VDC)

Used for receiving power from a local power source.

Reset button

For more information, see "Appendix B  LEDs and buttons."

Item

Description

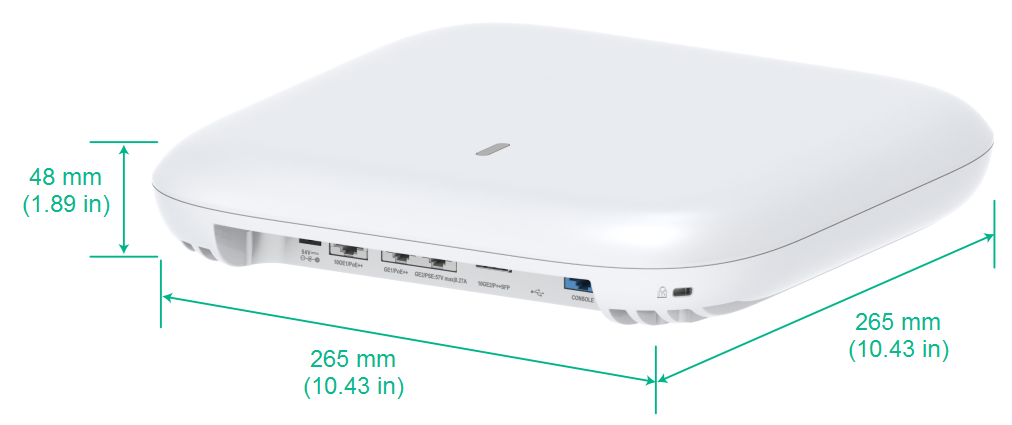

Dimensions (H × W × D) (without the mounting bracket)

48 × 265 × 265 mm (1.89 × 10.43 × 10.43 in)

Weight

1.9 kg (4.19 lb)

Power consumption in standby state

≤ 57.9 W (including PoE_OUT/USB)

≤ 40.4 W (excluding PoE_OUT/USB)

Antenna

Built-in antenna

Standard compliance

·     IEEE802.11a/b/g/n/ac/ax/be

·     IEEE802.3at/bt

Powering option

IEEE802.3at/bt powering standard-compliant:

·     Power adapter

·     PoE

·     PoE optical transceiver module

Operating temperature

0°C to 50°C (32°F to 122°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

5%RH to 95%RH, non-condensing

Storage humidity

5%RH to 95%RH, non-condensing

Operating altitude

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

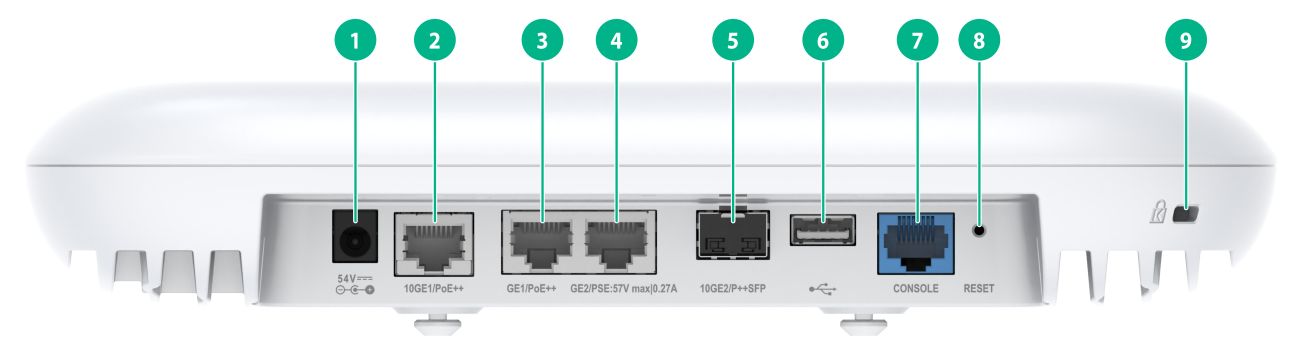

Console port

Control port, used for debugging by the maintenance personnel

10GE2/P++SFP

1000M/2.5G/5G/10G photoelectric hybrid port

GE1/PoE++

100M/1000M Ethernet copper port, which can act as the uplink interface to connect the device to Internet or the MAN or act as the standard PoE interface.

When the AP operates in fit AP mode, the port is represented by interface number GE1/0/1 in the MAP file and GigabitEthernet 1 for configuration on the AC.

10GE1/PoE++

100M/1000M/2.5G/5G/10G Ethernet copper port that can act as the device uplink port to connect to the Internet or MAN and as the standard PoE port at the same time.

When the AP operates in fit AP mode, the port is represented by interface number 10GE1/0/1 in the MAP file and Ten-GigabitEthernet 1 for configuration on the AC.

GE2/PSE

100M/1000M Ethernet copper port, used for connecting a downlink device. The AP can supply power through this port to a device with a maximum power consumption of 15 W.

When the AP operates in fit AP mode, the port is represented by interface number GE1/0/2 in the MAP file and GigabitEthernet 2 for configuration on the AC.

USB port

USB-compliant USB port.

NOTE:

By default, the USB port is disabled. To enable the USB port, execute the usb enable command in AP view.

Power port (54VDC)

Used for receiving power from a local power source.

Reset button

For more information, see "Appendix B  LEDs and buttons."
