Configuring BFD
About BFD
Bidirectional forwarding detection (BFD) provides a general-purpose, standard, medium- and protocol-independent fast failure detection mechanism. It can detect and monitor the connectivity of forwarding paths to detect communication failures quickly so that measures can be taken to ensure service continuity and enhance network availability.
BFD can uniformly and quickly detect the failures of the bidirectional forwarding paths between two devices for upper-layer protocols such as routing protocols. The hello mechanism used by upper-layer protocols needs seconds to detect a link failure, while BFD can provide detection measured in milliseconds.
Mechanism
BFD establishes a session between two network devices to detect failures on the bidirectional forwarding paths between the devices and provide services for upper-layer protocols. BFD provides no neighbor discovery mechanism. Protocols that BFD services notify BFD of devices to which it needs to establish sessions. After a session is established, if no BFD control packet is received from the peer within the negotiated BFD interval, BFD notifies a failure to the protocol, which then takes appropriate measures.
Figure 1 describes the operation of BFD for OSPF.
1. OSPF discovers neighbors by sending Hello packets and establishes neighbor relationships.
2. After establishing neighbor relationships, OSPF notifies BFD of the neighbor information, including destination and source addresses.
3. BFD uses the information to establish BFD sessions.

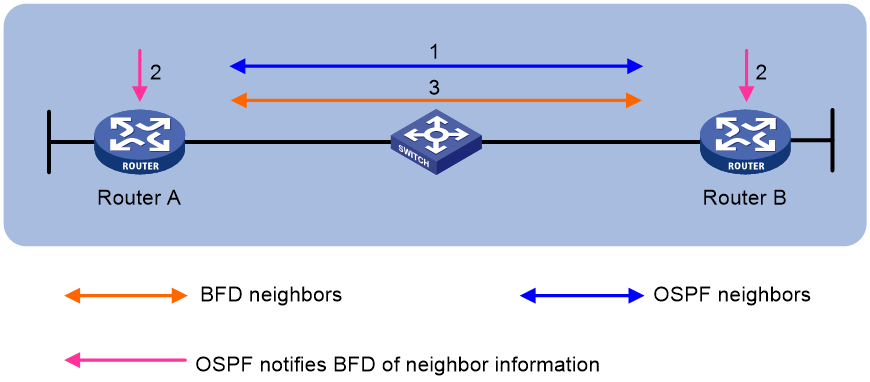

Figure 1 BFD session establishment

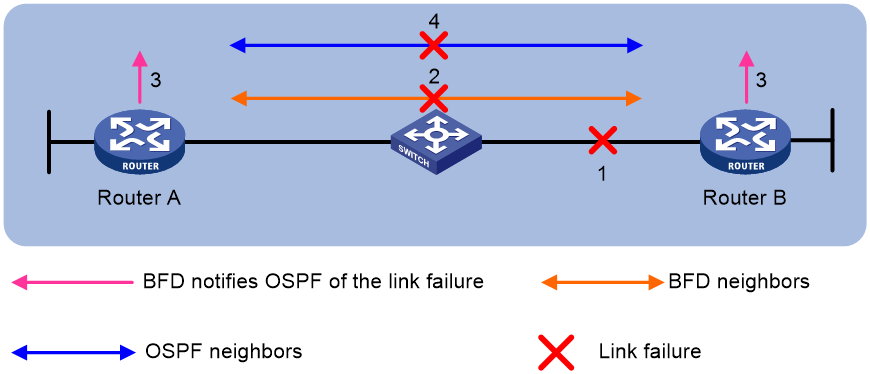

Figure 2 describes the BFD fault detection process.
1. BFD detects a link failure and tears down the session.
2. BFD notifies the neighbor unreachability to OSPF.
3. OSPF terminates the neighbor relationship on the link.
BFD establishes sessions in echo packet mode or control packet mode depending on the BFD packets used.
Single-hop detection and multihop detection
BFD can be used for single-hop and multihop detections.
· Single-hop detection—Detects the IP connectivity between two directly connected systems, for example, Device A and Device B as shown in Figure 3.
· Multihop detection—Detects any of the paths between two systems, for example, Device A and Device B as shown in Figure 4. These paths have multiple hops, and might overlap.
BFD session modes
BFD sessions use echo packets and control packets.
Echo packet mode
Echo packets are encapsulated into UDP packets. The packet contains destination port 3785, a destination IP address (transmitting interface's IP address), and a source IP address (transmitting interface's IP address).
The local end of the link sends echo packets to establish BFD sessions and monitor link status. The peer end does not establish BFD sessions and only forwards the packets back to the originating end. If the local end does not receive echo packets from the peer end within the detection time, it considers the session down.
BFD sessions in echo packet mode do not require both ends to support BFD. Upon receiving BFD echo packets, the peer end loops back the packets for detection purposes.
In echo packet mode, BFD supports only single-hop detection and the BFD sessions are independent of the operating mode.
Control packet mode
Control packets are encapsulated into UDP packets with port number 3784 for single-hop detection or port number 4784 for multihop detection.
The two ends of the link negotiate the establishment of BFD sessions by using the session parameters carried in control packets. Session parameters include session discriminators, desired minimum packet sending and receiving intervals, and local BFD session state.
Hardware BFD
Software BFD uses the CPU to receive and send BFD packets and to maintain the BFD state machine. Software BFD greatly consumes CPU resources and cannot support a large number of BFD sessions.
Hardware BFD uses hardware chips to process CPU-intensive tasks, such as receiving and sending BFD packets and fault detection. Hardware BFD improves CPU utilization and can support a large number of BFD sessions.
The Hardware mode field in the output from the display bfd session verbose command indicates whether BFD packets are processed in hardware:
· Enabled—BFD packets are processed in hardware.
· Disabled—BFD packets are processed in software.
You can take the following actions to disable hardware BFD:
· Execute commands that are not supported by hardware BFD.
· Remove cards that support hardware BFD.
When you disable hardware BFD, the BFD session might flap. Before performing this operation, make sure you understand its potential impact on the network.
Supported features
Table 1 shows the features supported by BFD.
Table 1 Features supported by BFD
|
Feature |
Reference |
|
Link aggregation |
Ethernet link aggregation in Layer 2—LAN Switching Configuration Guide |
|
IPv4 static routing |
Static routing in Layer 3—IP Routing Configuration Guide |
|
IPv6 static routing |
IPv6 static routing in Layer 3—IP Routing Configuration Guide |
|
RIP |
RIP in Layer 3—IP Routing Configuration Guide |
|
OSPF |
OSPF in Layer 3—IP Routing Configuration Guide |
|
OSPFv3 |
OSPFv3 in Layer 3—IP Routing Configuration Guide |
|
IS-IS |
IS-IS in Layer 3—IP Routing Configuration Guide |
|
BGP |
BGP in Layer 3—IP Routing Configuration Guide |
|
PIM |
PIM in IP Multicast Configuration Guide |
|
IPv6 PIM |
IPv6 PIM in IP Multicast Configuration Guide |
|
MPLS |
MPLS OAM in IP Multicast Configuration Guide |
|
Track |
"Configuring Track" |
Protocols and standards
· RFC 5880, Bidirectional Forwarding Detection (BFD)
· RFC 5881, Bidirectional Forwarding Detection (BFD) for IPv4 and IPv6 (Single Hop)
· RFC 5882, Generic Application of Bidirectional Forwarding Detection (BFD)
· RFC 5883, Bidirectional Forwarding Detection (BFD) for Multihop Paths
· RFC 7130, Bidirectional Forwarding Detection (BFD) on Link Aggregation Group (LAG) Interfaces
Restrictions and guidelines: BFD configuration
· By default, the device runs BFD version 1 and is compatible with BFD version 0. You cannot change the BFD version to 0 through commands. When the peer device runs BFD version 0, the local device automatically switches to BFD version 0.
· After a BFD session is established, the two ends negotiate BFD parameters, including minimum sending interval, minimum receiving interval, initialization mode, and packet authentication, by exchanging negotiation packets. They use the negotiated parameters without affecting the session status.
· BFD session flapping might occur on an aggregate interface with member ports on different IRF member devices. When the master device, which receives and sends BFD packets, is removed or restarted, a subordinate device might not immediately take over. For example, a subordinate device will not take over when the subordinate device has a short detection time or a large number of BFD sessions.
· You cannot specify a VSI interface as the output interface for a hardware BFD session.
BFD tasks at a glance
All the BFD tasks are optional.
1. Configuring BFD sessions in echo packet mode
¡ Creating a static BFD session
¡ Configuring detection time settings
2. Configuring BFD sessions in control packet mode
¡ Configuring the session establishment mode
¡ Configuring the detection mode
¡ Creating a static BFD session
¡ Configuring detection time settings
¡ Configuring the authentication mode
¡ Configuring the notification delay timer for session establishment failures
¡ Creating a static BFD session for detecting the aggregate link of a Layer 3 aggregate interface
¡ Configuring the TTL value for BFD packets
3. Configuring BFD session flapping suppression
5. Enabling SNMP notifications for BFD
Configuring BFD sessions in echo packet mode
About BFD session creation methods
A BFD session can be created manually by using the bfd static command or created dynamically through collaboration between an application module and BFD.
Creating a static BFD session
About this task
A static BFD session in echo packet mode can be used to perform single-hop detection or multihop detection.
Restrictions and guidelines
You need to create a static BFD session in echo packet mode on only the local device to perform detection.
When creating a static BFD session, you must specify a peer IPv4 or IPv6 address. The system checks only the format of the IP address but not its correctness. If the peer IPv4 or IPv6 address is incorrect, the static BFD session cannot be established.
Different static BFD sessions cannot have the same local discriminator.
As a best practice, specify the source IP address for echo packets when creating a static BFD session. If you do not specify the source IP address, the device uses the IP address specified in the bfd echo-source-ip or bfd echo-source-ipv6 command as the source IP address of echo packets.
Creating a static BFD session for single-hop detection
1. Enter system view.
system-view
2. Configure the source IP address of echo packets.
¡ Configure the source IP address of echo packets.
bfd echo-source-ip ip-address
By default, no source IPv4 address is configured for echo packets.
As a best practice, do not configure the source IPv4 address to be on the same network segment as any local interfaces. This can avoid network congestion caused a large number of ICMP redirect packets sent from the peer.
¡ Configure the source IPv6 address of echo packets.
bfd echo-source-ipv6 ipv6-address
By default, no source IPv6 address is configured for echo packets.
The source IPv6 address of echo packets can only be a global unicast address.
3. Create a static BFD session and enter static BFD session view.
IPv4:
bfd static session-name [ peer-ip ipv4-address interface interface-type interface-number destination-ip ipv4-address [ source-ip ipv4-address ] one-arm-echo [ discriminator { auto | local local-value } ] ]
IPv6:
bfd static session-name [ peer-ipv6 ipv6-address interface interface-type interface-number destination-ipv6 ipv6-address [ source-ipv6 ipv6-address ] one-arm-echo [ discriminator { auto | local local-value } ] ]
4. (Optional.) Specify a local discriminator for the static BFD session.
discriminator local local-value
By default, no local discriminator is specified.
You can use this command only if you do not specify a local discriminator when creating a static BFD session.
Creating a static BFD session for multihop detection
1. Enter system view.
system-view
2. (Optional.) Configure the source IP address of echo packets.
¡ Configure the source IPv4 address of echo packets.
bfd echo-source-ip ip-address
By default, no source IPv4 address is configured for echo packets.
As a best practice, do not configure the source IPv4 address to be on the same network segment as any local interfaces. If you configure such a source IPv4 address, a large number of ICMP redirect packets might be sent from the peer, resulting in link congestion.
¡ Configure the source IPv6 address of echo packets.
bfd echo-source-ipv6 ipv6-address
By default, no source IPv6 address is configured for echo packets.
The source IPv6 address of echo packets can only be a global unicast address.
3. Create a static BFD session and enter static BFD session view.
IPv4:
bfd static session-name [ peer-ip ipv4-address [ vpn-instance vpn-instance-name ] destination-ip ipv4-address [ source-ip ipv4-address ] one-arm-echo[ discriminator { auto | local local-value } ] ]
IPv6:
bfd static session-name [ peer-ipv6 ipv6-address [ vpn-instance vpn-instance-name ] destination-ipv6 ipv6-address [ source-ipv6 ipv6-address ] one-arm-echo [ discriminator { auto | local local-value } ] ]
4. (Optional.) Specify a local discriminator for the static BFD session.
discriminator local local-value
By default, no local discriminator is specified.
You can use this command only if you do not specify a local discriminator when creating a static BFD session.
Configuring detection time settings
About this task
When creating a BFD session in echo packet mode, you can configure the minimum interval for receiving BFD echo packets and the detection time multiplier for the device.
Restrictions and guidelines
When the same BFD session (with the same source IP address, destination IP address, interface, VPN, and destination port number) is associated with multiple upper layer applications, BFD selects the detection time settings for the BFD session as follows:
1. Minimum values of the following settings:
¡ Settings configured in static BFD session view.
¡ Settings configured in the BFD template specified by the upper layer application.
¡ Settings configured by the upper layer application.
2. Settings configured in interface view or system view.
3. Default settings.
When a BFD session is associated with only one upper layer application, BFD selects the detection time settings for the BFD session as follows:
1. BFD selects the detection time settings for the BFD session based on whether the upper layer application supports using a BFD template and configuring detection time settings:
¡ If a BFD template is specified and detection time settings are also configured for the upper layer application, BFD selects the settings configured in the specified BFD template.
¡ If a BFD template is specified for the upper layer application that does not support configuring detection time settings, BFD selects the settings configured in the specified BFD template.
¡ If detection time settings are configured for the upper layer application that does not support using a BFD template, BFD selects the configured settings.
2. Settings configured in interface view or system view.
3. Default settings.
Configure detection time settings for single-hop BFD detection
1. Enter system view.
system-view
2. Enter interface view or static BFD session view.
¡ Enter interface view.
interface interface-type interface-number
¡ Enter static BFD session view.
bfd static session-name
The static BFD session must already exist.
To configure parameters for a static BFD session, you must enter its view.
3. Set the minimum interval for receiving BFD echo packets.
bfd min-echo-receive-interval interval
The default setting is 400 milliseconds.
4. Set the detection time multiplier.
bfd detect-multiplier value
The default setting is 5.
Configure detection time settings for multihop BFD detection
1. Enter system view.
system-view
2. (Optional.) Enter static BFD session view.
bfd static session-name
The static BFD session must already exist.
To configure parameters for a static BFD session, you must enter its view.
3. Set the minimum interval for receiving BFD echo packets.
bfd multi-hop min-echo-receive-interval interval
The default setting is 400 milliseconds.
4. Set the detection time multiplier.
bfd multi-hop detect-multiplier value
The default setting is 5.
Configuring BFD sessions in control packet mode
About BFD session creation methods
BFD sessions in control packet mode can be created statically or established dynamically.
BFD sessions are distinguished by the local discriminator and remote discriminator in control packets. The main difference between a statically created session and a dynamically established session is that they obtain the local discriminator and remote discriminator in different ways.
· The local discriminator and remote discriminator of a static BFD session are specified manually in the bfd static command or in the commands that associate specific applications with BFD.
· The local discriminator of a dynamic BFD session is assigned by the device, and the remote discriminator is obtained during BFD session negotiation. The device can automatically assign the local discriminator to the BFD session in the following conditions:
¡ The auto keyword is specified for the bfd static command.
¡ The local and remote discriminators are not specified for the BFD session associated with a specific application.
Restrictions and guidelines
After an upper-layer protocol is configured to support BFD, the device automatically creates BFD sessions in control packet mode. You do not need to perform this task.
Configuring the session establishment mode
About this task
BFD can use the following operating modes to establish a session:
· Active mode—BFD actively sends BFD control packets regardless of whether any BFD control packet is received from the peer.
· Passive mode—BFD does not send control packets until a BFD control packet is received from the peer.
At least one end must operate in active mode for a BFD session to be established.
Procedure
1. Enter system view.
system-view
2. Configure the BFD session establishment mode.
bfd session init-mode { active | passive }
By default, BFD uses the active mode to establish a session.
Configuring the detection mode
About this task
After a BFD session is established, the two ends can operate in the following modes:
· Asynchronous mode—The device periodically sends BFD control packets. The device considers that the session is down if it does not receive any BFD control packets within the detection interval.
· Demand mode—The Demand mode can be used to reduce the overhead when a large number of BFD sessions exist.
¡ If the peer end is operating in Asynchronous mode (default), the peer end stops sending BFD control packets after receiving control packets with the D bit set. In this scenario, BFD detects only the link between the local end and the peer end. The device considers that the session is down if it does not receive any BFD control packets within the detection interval.
¡ If the peer end is operating in Demand mode, both ends stop sending BFD control packets. In this scenario, the system uses features other than BFD, such as Hello packets and hardware CC, to verify the connectivity to another system.
Procedure
1. Enter system view.
system-view
2. Enter interface view.
interface interface-type interface-number
3. Specify the Demand mode for the BFD session.
bfd demand enable
By default, a BFD session is in Asynchronous mode.
Creating a static BFD session
About this task
A static BFD session can be used for single-hop detection and multihop detection. By working with Track, a static BFD session can provide fast failure detection. For more information about Track association with BFD, see "Configuring Track."
Restrictions and guidelines for static BFD session configuration
If a static BFD session is created on the remote end, the static BFD session must be created on the local end.
When creating a static BFD session, you must specify a peer IPv4 or IPv6 address. The system checks only the format of the IP address but not its correctness. If the peer IPv4 or IPv6 address is incorrect, the static BFD session cannot be established.
Different static BFD sessions cannot have the same local discriminator.
Creating a static BFD session for single-hop detection
1. Enter system view.
system-view
2. Create a static BFD session and enter static BFD session view.
IPv4:
bfd static session-name peer-ip ipv4-address interface interface-type interface-number source-ip ipv4-address [ discriminator { auto | local local-value remote remote-value } ]
For a static BFD session to be established, specify the IPv4 address of the peer interface where the static BFD session resides for the peer-ip ipv4-address option. Specify the IPv4 address of the local interface where the static BFD session resides for the source-ip ipv4-address option.
IPv6:
bfd static session-name peer-ipv6 ipv6-address interface interface-type interface-number source-ipv6 ipv6-address [ discriminator { auto | local local-value remote remote-value } ]
For a static BFD session to be established, specify the IPv6 address of the peer interface where the static BFD session resides for the peer-ipv6 ipv6-address option. Specify the IPv6 address of the local interface where the static BFD session resides for the source-ipv6 ipv6-address option.
3. (Optional.) Specify the local and remote discriminators for the static BFD session.
discriminator { local local-value | remote remote-value }
By default, no local discriminator or remote discriminator is specified for a static BFD session.
Use this command only if you do not specify the local or remote discriminator when creating a static BFD session.
Create a static BFD session for multihop detection
1. Enter system view.
system-view
2. Create a static BFD session and enter static BFD session view.
IPv4:
bfd static session-name peer-ip ipv4-address [ vpn-instance vpn-instance-name ] source-ip ipv4-address [ discriminator { auto |local local-value remote remote-value } ] [ track-interface interface-type interface-number ]
IPv6:
bfd static session-name peer-ipv6 ipv6-address [ vpn-instance vpn-instance-name ] source-ipv6 ipv6-address [ discriminator { auto | local local-value remote remote-value } ] [ track-interface interface-type interface-number ]
3. (Optional.) Specify the local and remote discriminators for the static BFD session.
discriminator { local local-value | remote remote-value }
By default, no local discriminator or remote discriminator is specified for a static BFD session.
Use this command only if you do not specify the local or remote discriminator when creating a static BFD session.
Configuring detection time settings
About this task
When creating a BFD session in control packet mode, you can configure the minimum interval for receiving and transmitting BFD control packets and the detection time multiplier for the device.
Restrictions and guidelines
When the same BFD session (with the same source IP address, destination IP address, interface, VPN, and destination port number) is associated with multiple upper layer applications, BFD selects the detection time settings for the BFD session as follows:
1. Minimum values of the following settings:
¡ Settings configured in static BFD session view.
¡ Settings configured in the BFD template specified by the upper layer application.
¡ Settings configured by the upper layer application.
2. Settings configured in interface view or system view.
3. Default settings.
When a BFD session is associated with only one upper layer application, BFD selects the detection time settings for the BFD session as follows:
1. BFD selects the detection time settings for the BFD session based on whether the upper layer application supports using a BFD template and configuring detection time settings:
¡ If a BFD template is specified and detection time settings are also configured for the upper layer application, BFD selects the settings configured in the specified BFD template.
¡ If a BFD template is specified for the upper layer application that does not support configuring detection time settings, BFD selects the settings configured in the specified BFD template.
¡ If detection time settings are also configured for the upper layer application that does not support using a BFD template, BFD selects the configured settings.
2. Settings configured in interface view or system view.
3. Default settings.
You can use the bfd min-receive-interval and bfd min-control-interval commands to set the minimum interval for receiving single-hop BFD control packets.
· If you execute both the bfd min-receive-interval and bfd min-control-interval commands, the bfd min-receive-interval command takes effect.
· If you execute neither the bfd min-receive-interval nor bfd min-control-interval command, the default setting of the bfd min-receive-interval command takes effect.
· If you execute either the bfd min-receive-interval or bfd min-control-interval command, the configured value takes effect.
You can use the bfd min-transmit-interval and bfd min-control-interval commands to set the minimum interval for transmitting single-hop BFD control packets.
· If you execute both the bfd min-transmit-interval and bfd min-control-interval commands, the bfd min-transmit-interval command takes effect.
· If you execute neither the bfd min-transmit-interval nor bfd min-control-interval command, the default setting of the bfd min-transmit-interval command takes effect.
· If you execute either the bfd min-transmit-interval or bfd min-control-interval command, the configured value takes effect.
You can use the bfd multi-hop min-receive-interval and bfd multi-hop min-control-interval commands to set the minimum interval for receiving multihop BFD control packets.
· If you execute both the bfd multi-hop min-receive-interval and bfd multi-hop min-control-interval commands, the bfd multi-hop min-receive-interval command takes effect.
· If you execute neither the bfd multi-hop min-receive-interval nor bfd multi-hop min-control-interval command, the default setting of the bfd multi-hop min-receive-interval command takes effect.
· If you execute either the bfd multi-hop min-receive-interval or bfd multi-hop min-control-interval command, the configured value takes effect.
You can use the bfd multi-hop min-transmit-interval and bfd multi-hop min-control-interval commands to set the minimum interval for transmitting multihop BFD control packets.
· If you execute both the bfd multi-hop min-transmit-interval and bfd multi-hop min-control-interval commands, the bfd multi-hop min-transmit-interval command takes effect.
· If you execute neither the bfd multi-hop min-transmit-interval nor bfd multi-hop min-control-interval command, the default setting of the bfd multi-hop min-transmit-interval command takes effect.
· If you execute either the bfd multi-hop min-transmit-interval or bfd multi-hop min-control-interval command, the configured value takes effect.
Configure detection time settings for single-hop BFD detection
1. Enter system view.
system-view
2. Enter interface view or static BFD session view.
¡ Enter interface view.
interface interface-type interface-number
¡ Enter static BFD session view.
bfd static session-name
To configure parameters for a static BFD session, you must enter its view.
3. Set the minimum interval for receiving echo packets.
bfd min-echo-receive-interval interval
The default setting is 400 milliseconds.
4. Set the minimum interval for transmitting and receiving single-hop BFD control packets.
¡ Set the minimum interval for transmitting single-hop BFD control packets.
bfd min-transmit-interval interval
The default setting is 400 milliseconds.
¡ Set the minimum interval for receiving single-hop BFD control packets.
bfd min-receive-interval interval
The default setting is 400 milliseconds.
5. Set the minimum interval for transmitting and receiving single-hop BFD control packets.
bfd min-control-interval interval
The default setting is 400 milliseconds.
6. Set the single-hop detection time multiplier.
bfd detect-multiplier value
The default setting is 5.
Configure detection time settings for multihop BFD detection
1. Enter system view.
system-view
2. (Optional.) Enter static BFD session view.
bfd static session-name
To configure parameters for a static BFD session, you must enter its view.
3. Set the multihop detection time multiplier.
bfd multi-hop detect-multiplier value
The default setting is 5.
4. Set the minimum interval for transmitting and receiving multihop BFD control packets.
¡ Set the minimum interval for transmitting multihop BFD control packets.
bfd multi-hop min-transmit-interval interval
The default setting is 400 milliseconds.
¡ Set the minimum interval for receiving multihop BFD control packets.
bfd multi-hop min-receive-interval interval
The default setting is 400 milliseconds.
5. Set the minimum interval for transmitting and receiving multihop BFD control packets.
bfd multi-hop min-control-interval interval
The default setting is 400 milliseconds.
Configuring the authentication mode
About this task
You can configure authentication settings, including algorithm and key, to enhance BFD session security.
Configure the authentication mode for a single-hop BFD session
1. Enter system view.
system-view
2. Enter interface view or static BFD session view.
¡ Enter interface view.
interface interface-type interface-number
¡ Enter static BFD session view.
bfd static session-name
The static BFD session must already exist.
To configure parameters for a static BFD session, you must enter its view.
3. Configure the authentication mode for single-hop control packets.
bfd authentication-mode { hmac-md5 | hmac-mmd5 | hmac-msha1 | hmac-sha1 | m-md5 | m-sha1 | md5 | sha1 | simple } key-id { cipher cipher-string | plain plain-string }
By default, no authentication mode is configured for single-hop control packets.
Configure the authentication mode for a multihop BFD session
1. Enter system view.
system-view
2. (Optional.) Enter static BFD session view.
bfd static session-name
The static BFD session must already exist.
To configure parameters for a static BFD session, you must enter its view.
3. Configure the authentication mode for multihop BFD control packets.
bfd multi-hop authentication-mode { hmac-md5 | hmac-mmd5 | hmac-msha1 | hmac-sha1 | m-md5 | m-sha1 | md5 | sha1 | simple } key-id { cipher cipher-string | plain plain-string }
By default, no authentication mode is configured for multihop BFD control packets.
Configuring the notification delay timer for session establishment failures
About this task
By default, BFD does not notify upper-layer protocols of session establishment failures. The notification is required in some scenarios. For example, upon a session establishment failure in an aggregate link, the aggregate link can place the associated member port in Unselected state based on the failure notification. You can configure the delay timer for BFD to notify upper-layer protocols of session establishment failures.
Restrictions and guidelines
This feature does not apply to BFD sessions in echo packet mode.
Procedure
1. Enter system view.
system-view
2. Set the delay timer for BFD to notify upper-layer protocols of session establishment failures.
bfd init-fail-timer seconds
By default, BFD does not notify upper-layer protocols of session establishment failures.
|
|
CAUTION: For session establishment failures caused by configuration mismatches at the two ends, this command can cause the upper-layer protocol to act incorrectly. Therefore, use this command with caution. BFD status mismatch and BFD authentication configuration mismatch are examples of configuration mismatches. |
Enabling the echo function
About this task
When you use Asynchronous mode BFD to detect the connectivity between directly connected devices, you can enable the echo function. This function enables the local system to periodically send echo packets to the remote system and reduces the control packet receiving rate to save bandwidth usage. The remote system loops back the echo packets to the local system without processing them. If the local system does not receive echo packets looped back from the remote system in a consecutive number of times, the local system declares the BFD session down.
This function is supported only for single-hop detection.
Restrictions and guidelines
This function does not take effect on BFD sessions associated with interface states.
Procedure
1. Enter system view.
system-view
2. Enter interface view or static BFD session view.
¡ Enter interface view.
interface interface-type interface-number
¡ Enter static BFD session view.
bfd static session-name
The static BFD session must already exist.
3. Enable the echo function.
bfd echo [ receive | send ] enable
By default, the echo function is disabled.
Creating a static BFD session for detecting the aggregate link of a Layer 3 aggregate interface
About this task
To use BFD to detect an aggregate link, choose one as needed:
· Method 1: Execute the link-aggregation bfd command to enable BFD for an aggregation group.
· Method 2: Execute the bfd static command with the bind-route-aggregation keyword specified to create static BFD sessions for detecting an aggregate link and its member links.
If you use Method 1, the Ethernet link aggregation module will mistakenly consider the aggregation link unavailable when the BFD session goes down due to the failure of a single member link. To avoid this issue, use Method 2. To perform multihop detection, use Method 1, because Method 2 only supports single-hop detection.
The operating mechanisms and restrictions and guidelines of the two methods are as shown in Table 2. You can choose only one of the methods.
Table 2 Methods of using BFD to detect an aggregate link
|
Method |
Operating mechanism |
Single-hop/multihop detection |
Restrictions and guidelines |
|
Method 1 |
Create a BFD session for detecting the aggregate link. Each member interface of the aggregate link takes turns to send BFD packets. |
Both single-hop detection and multihop detection are supported. |
· Make sure the source and destination IP addresses are reversed between the two ends of the aggregate link. For example, if you execute link-aggregation bfd ipv4 source 1.1.1.1 destination 2.2.2.2 at the local end, execute link-aggregation bfd ipv4 source 2.2.2.2 destination 1.1.1.1 at the peer end. The source and destination IP addresses must be different unicast addresses other than 0.0.0.0. · You can configure only one static BFD session to detect the aggregate link of an aggregate interface. · You cannot execute the bfd static bind-route-aggregation command for aggregate sub-interfaces. |
|
Method 2 |
1. Create a static BFD session to associate with the aggregated link. 2. Create a static BFD sub-session for detecting each member interface of the aggregated link. 3. The BFD session is in up state as long as a sub-session is in up state, indicating the aggregated link is available. The BFD session goes down only when all sub-sessions are in down state, indicating the aggregated link is unavailable. |
Only single-hop detection is supported. |
· Make sure the source and destination IP addresses are reversed between the two ends. For example, if you execute bfd static abc bind-route-aggregation peer-ipv4 1.1.1.1 interface route-aggregation 1 source-ipv4 1.1.1.2 discriminator auto at the local end, execute bfd static abc bind-route-aggregation peer-ipv4 1.1.1.2 interface route-aggregation 1 source-ipv4 1.1.1.1 discriminator auto at the peer end. The source and destination IP addresses must be different unicast addresses other than 0.0.0.0. · You can configure only one static BFD session to detect the aggregate link of an aggregate interface. · You cannot execute the bfd static bind-route-aggregation command for aggregate sub-interfaces. |
Procedure
1. Enter system view.
system-view
2. Create a static BFD session and enter static BFD session view.
IPv4:
bfd static session-name [ bind-route-aggregation peer-ip ipv4-address interface interface-type interface-number source-ip ipv4-address discriminator auto ]
Make sure the source and destination IP addresses are reversed between the two ends of the aggregate link. The source and destination IP addresses must be different unicast addresses other than 0.0.0.0.
IPv6:
bfd static session-name [ bind-route-aggregation peer-ipv6 ipv6-address interface interface-type interface-number source-ipv6 ipv6-address discriminator auto ]
Make sure the source and destination IP addresses are reversed between the two ends of the aggregate link. The source and destination IP addresses must be different unicast addresses other than 0::0.
Configuring the TTL value for BFD packets
About this task
When you connect an H3C device to a third-party device, for successful BFD session negotiation, make sure the TTL value settings for BFD packets on both ends of the BFD session are the same. When the device receives a BFD packet in DOWN or INIT state from its peer, it verifies the TTL value of the packet and performs one of the following actions:
· For a single-hop BFD session, if the device receives a packet that carries a TTL value that is different from the TTL value specified with the bfd ttl command, the device drops the packet.
· For a multihop BFD session, if the device receives a packet that carries a TTL value that is greater than the TTL value specified with the bfd ttl command, the device drops the packet.
· If the BFD session is already up, the device sets the BFD session state to AdminDown, which triggers a BFD session renegotiation.
Restrictions and guidelines
· The bfd ttl command does not take effect on BFD sessions in echo packet mode.
· The bfd ttl command does not take effect on SBFD packets,and the device does not verify the TTL value in SBFD packets.
· For an IPv4 or IPv6 addresswith different mask lengths or prefix lengths, the device uses the TTL value specified with the longest mask or prefix length.
· For an IPv4 or IPv6 subnet, the TTL value of single-hop BFD packets must be greater than the TTL value of multihop BFD packets.
Procedure
1. Enter system view.
system-view
2. Specify the TTL value for BFD packets.
bfd { peer-ip ipv4-address mask-length | peer-ipv6 ipv6-address prefix-length } ttl { single-hop | multi-hop } ttl-value
By default, the TTL value of single-hop BFD packets is 255 and the TTL value of multihop BFD packets is 64.
Configuring BFD session flapping suppression
About this task
When BFD detects a link failure, it tears down the BFD session and notifies the upper-layer protocol of the failure. When the upper-layer protocol re-establishes a neighbor relationship, the BFD session comes up again. BFD session flaps occur when a link fails and recovers repeatedly, which consumes significant system resources and causes network instability.
This feature allows you to suppress BFD session flapping by using the initial-interval, secondary-interval, and maximum-interval arguments.
· A BFD session is suppressed within the specified interval. The suppression time does not exceed the maximum-interval.
· After a BFD session goes down for the second time, it cannot be re-established within the initial-interval.
· After a BFD session goes down for the third time, it cannot be re-established within the secondary-interval.
· After a BFD session goes down for the fourth time and at any later time, the following rules apply:
¡ If secondary-interval × 2n-3 is smaller than or equal to the maximum-interval, the BFD session cannot be re-established within the secondary-interval × 2n-3.
¡ If secondary-interval × 2n-3 is greater than the maximum-interval, the BFD session cannot be re-established within the maximum-interval.
The letter n, starting from 4, is the number of times the BFD session flaps.
Procedure
1. Enter system view.
system-view
2. Configure BFD session flapping suppression.
bfd dampening [ maximum maximum-interval initial initial-interval secondary secondary-interval ]
By default, BFD sessions are not suppressed.
The values for the initial-interval and secondary-interval arguments cannot be greater than or equal to the value for the maximum-interval argument.
Configuring a BFD template
About this task
Perform this task to specify BFD parameters in a template for sessions without next hops. You can configure BFD parameters for LSPs and PWs through a BFD template.
This task can also be used to specify BFD parameters for BFD sessions that detect interface states.
Procedure
1. Enter system view.
system-view
2. Create a BFD template and enter BFD template view.
bfd template template-name
3. (Optional.) Configure the authentication mode for BFD control packets.
bfd authentication-mode { hmac-md5 | hmac-mmd5 | hmac-msha1 | hmac-sha1 | m-md5 | m-sha1 | md5 | sha1 | simple } key-id { cipher cipher-string | plain plain-string }
By default, no authentication is performed.
4. Set the detection time multiplier.
bfd detect-multiplier value
The default setting is 5.
5. Set the minimum interval for transmitting and receiving BFD control packets.
¡ Set the minimum interval for transmitting BFD control packets.
bfd min-transmit-interval interval
The default setting is 400 milliseconds.
¡ Set the minimum interval for receiving BFD control packets.
bfd min-receive-interval interval
The default setting is 400 milliseconds.
Enabling SNMP notifications for BFD
About this task
To report critical BFD events to an NMS, enable SNMP notifications for BFD. For BFD event notifications to be sent correctly, you must also configure SNMP as described in Network Management and Monitoring Configuration Guide.
Procedure
1. Enter system view.
system-view
2. Enable SNMP notifications for BFD.
snmp-agent trap enable bfd
By default, SNMP notifications are enabled for BFD.
Display and maintenance commands for BFD
Execute the display command in any view and the reset command in user view.
|
Task |
Command |
|
Display BFD session information. |
display bfd session [ discriminator local local-value | static session-name | verbose ] display bfd session [ [ dynamic ] [ control | echo ] [ ip ] [ state { down | admin-down | init | up } ] [ discriminator remote remote-value ] [ peer-ip ipv4-address [ vpn-instance vpn-instance-name ] ] [ verbose ] ] display bfd session [ [ dynamic ] [ control | echo ] [ ipv6 ] [ state { down | admin-down | init | up } ] [ discriminator remote remote-value ] [ peer-ipv6 ipv6-address [ vpn-instance vpn-instance-name ] ] [ verbose ] ] display bfd session [ [ static ] [ ip ] [ state { down | admin-down | init | up } ] [ discriminator remote remote-value ] [ peer-ip ipv4-address [ vpn-instance vpn-instance-name ] ] [ verbose ] display bfd session [ [ static ] [ ipv6 ] [ state { down | admin-down | init | up } ] [ discriminator remote remote-value ] [ peer-ipv6 ipv6-address [ vpn-instance vpn-instance-name ] ] [ verbose ] |
|
Display information about static BFD sessions created to detect the aggregate links and member links of Layer 3 aggregate interfaces. |
display bfd session route-aggregation [ interface interface-type interface-number ] |
|
Display the TTL values for BFD packets. |
display bfd ttl |
|
Clear BFD session statistics. |
reset bfd session statistics |
