· Intermediate system—Similar to a router in TCP/IP, IS is the basic unit used in an IS-IS routing domain to generate and propagate routing information. Throughout this chapter, an IS refers to a router.

· End system—Similar to a host in TCP/IP, an ES does not run IS-IS. ISO defines the ES-IS protocol for communication between an ES and an IS.

· Routing domain—An RD comprises a group of ISs that exchange routing information with each other by using the same routing protocol.

· Area—An IS-IS routing domain can be split into multiple areas.

· Link State Database—All link states in the network form the LSDB. Each IS has a minimum of one LSDB. An IS uses the SPF algorithm and LSDB to generate IS-IS routes.

· Link State Protocol Data Unit or Link State Packet—An IS advertises link state information in an LSP.

· Network Protocol Data Unit—An NPDU is a network layer protocol packet in OSI, similar to an IP packet in TCP/IP.

· Designated IS—A DIS is elected on a broadcast network.

· Network service access point—An NSAP is an OSI network layer address. The NSAP identifies an abstract network service access point and describes the network address format in the OSI reference model.

IS-IS address

As shown in Figure 1, an NSAP address comprises the Initial Domain Part (IDP) and the Domain Specific Part (DSP). The IDP is analogous to the network ID of an IP address, and the DSP is analogous to the subnet and host ID.

The IDP includes the Authority and Format Identifier (AFI) and the Initial Domain Identifier (IDI).

The DSP includes:

· High Order Part of DSP (HO-DSP)—Identifies the area.

· System ID—Identifies the host.

· SEL—Also known as the N-SEL or the NSAP selector (SEL). It is similar to the protocol identifier in IP and is used to identify the type of service. Different transport layer protocols correspond to different SELs.

The IDP and DSP are variable in length. The length of an NSAP address is in the range of 8 to 20 bytes.

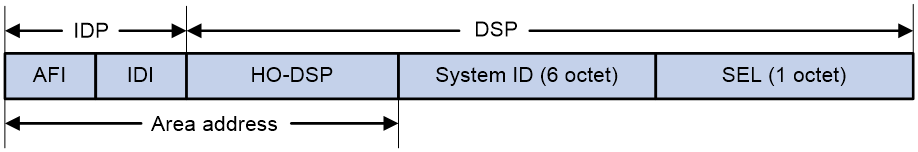

Figure 1 NSAP address format

‌

An IS-IS address contains the following components:

· Area address

The area address comprises the IDP and the HO-DSP of the DSP, which identify the area and the routing domain. Different routing domains cannot have the same area address.

Typically, a router only needs one area address, and all nodes in the same area must have the same area address. To support smooth area merging, partitioning, and switching, a router can have a maximum of three area addresses.

· System ID

A system ID uniquely identifies a host or router. It has a fixed length of 48 bits (6 bytes).

The system ID of a device can be generated from the router ID. For example, suppose a router uses the IP address 168.10.1.1 of Loopback 0 as the router ID. The system ID can be obtained in the following steps:

a. Extend each decimal number of the IP address to three digits by adding 0s from the left, such as 168.010.001.001.

b. Divide the extended IP address into three sections that each has four digits to get the system ID 1680.1000.1001.

If you use other methods to define a system ID, make sure that it can uniquely identify the host or router.

· SEL

An SEL is used to identify the type of service. Different transport layer protocols correspond to different SELs. It has a fixed length of 8 bits. All SELs in IP are 00.

NET

A network entity title (NET) identifies the network layer information of an IS. It does not include transport layer information. A NET is a special NSAP address with the SEL being 0. The length of a NET is in the range of 8 to 20 bytes, same as a NSAP address.

A NET includes the following parts:

· Area ID—Has a length of 1 to 13 bytes.

· System ID—A system ID uniquely identifies a host or router in the area and has a fixed length of 6 bytes.

· SEL—Has a value of 0 and a fixed length of 1 byte.

For example, for a NET ab.cdef.1234.5678.9abc.00, the area ID is ab.cdef, the system ID is 1234.5678.9abc, and the SEL is 00.

Typically, a router only needs one NET, but it can have a maximum of three NETs for smooth area merging and partitioning. When you configure multiple NETs, make sure the system IDs are the same.

IS-IS area

IS-IS has a 2-level hierarchy to support large-scale networks. A large-scale routing domain is divided into multiple areas. Typically, a Level-1 router is deployed within an area. A Level-2 router is deployed between areas. A Level-1-2 router is deployed between Level-1 and Level-2 routers.

Level-1 router

A Level-1 router establishes neighbor relationships with Level-1 and Level-1-2 routers in the same area. It maintains an LSDB comprising intra-area routing information. A Level-1 router forwards packets destined for external areas to the nearest Level-1-2 router. Level-1 routers in different areas cannot establish neighbor relationships.

Level-2 router

A Level-2 router establishes neighbor relationships with Level-2 and Level-1-2 routers in the same area or in different areas. It maintains a Level-2 LSDB containing inter-area routing information. All the Level-2 and Level-1-2 routers must be contiguous to form the backbone of the IS-IS routing domain. Level-2 routers can establish neighbor relationships even if they are in different areas.

Level-1-2 router

A router with both Level-1 and Level-2 router functions is a Level-1-2 router. It can establish Level-1 neighbor relationships with Level-1 and Level-1-2 routers in the same area. It can establish Level-2 neighbor relationships with Level-2 and Level-1-2 routers in different areas. A Level-1 router can reach other areas only through a Level-1-2 router. The Level-1-2 router maintains two LSDBs, a Level-1 LSDB for intra-area routing and a Level-2 LSDB for inter-area routing.

IS-IS topology

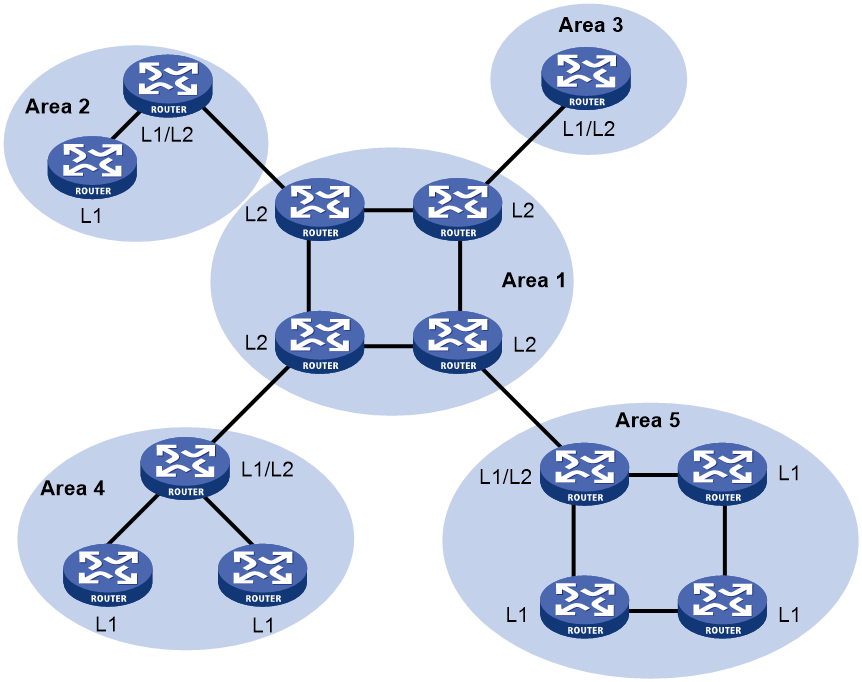

Figure 2 shows one IS-IS network topology. Area 1 is the backbone that comprises a set of Level-2 routers. The other four areas are non-backbone areas connected to the backbone through Level-1-2 routers.

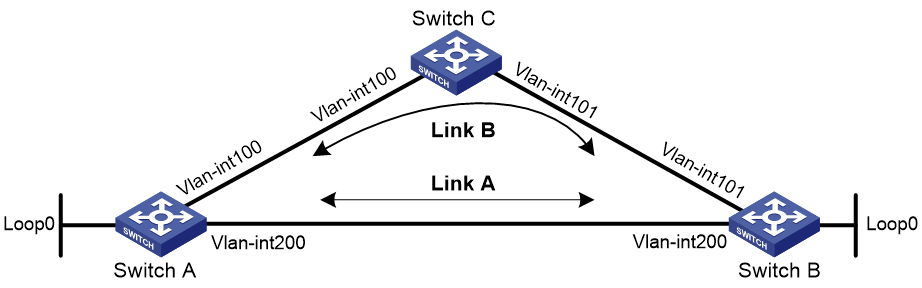

Figure 2 IS-IS topology 1

‌

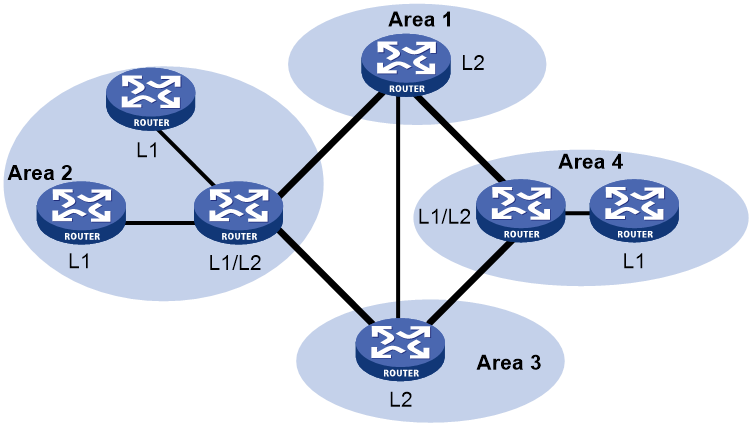

Figure 3 shows another IS-IS topology. No area is defined as the backbone in this topology. The backbone comprises all contiguous Level-2 and Level-1-2 routers in different areas. The IS-IS backbone does not need to be a specific area.

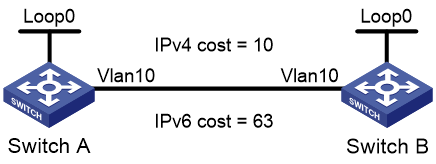

Figure 3 IS-IS topology 2

‌

Both the Level-1 and Level-2 routers use the SPF algorithm to generate the shortest path tree.

Route leaking

Level-2 and Level-1-2 routers form a Level-2 area. An IS-IS routing domain comprises only one Level-2 area and multiple Level-1 areas. A Level-1 area must connect to the Level-1-2 area rather than another Level-1 area.

Level-1-2 routers send the routing information of Level-1 areas to the Level-2 area. Level-2 routers know the routing information of the entire IS-IS routing domain. By default, a Level-2 router does not advertise the routing information of other areas to a Level-1 area. A Level-1 router simply sends packets destined for other areas to the nearest Level-1-2 router. The path passing through the Level-1-2 router might not be the best. To solve this problem, IS-IS provides the route leaking feature.

Route leaking enables a Level-1-2 router to advertise the routes of other areas to the connected Level-1 area so that the Level-1 routers can select the optimal routes.

IS-IS network types

IS-IS supports broadcast networks (for example, Ethernet and Token Ring) and point-to-point networks (for example, PPP and HDLC). Point-to-point networks are not supported in the current software version.

IS-IS cannot run on P2MP links.

DIS and pseudonodes

IS-IS routers on a broadcast network must elect a DIS.

The Level-1 and Level-2 DISs are elected separately. You can assign different priorities to a router for different level DIS elections. The higher the router priority, the more likely the router becomes the DIS. If multiple routers with the same highest DIS priority exist, the one with the highest Subnetwork Point of Attachment (SNPA) address will be elected. On a broadcast network, the SNPA address is the MAC address. A router can be the DIS for different levels.

IS-IS DIS election differs from OSPF DIS election in the following ways:

· A router with priority 0 can also participate in the DIS election.

· When a router with a higher priority is added to the network, an LSP flooding process is performed to elect the router as the new DIS.

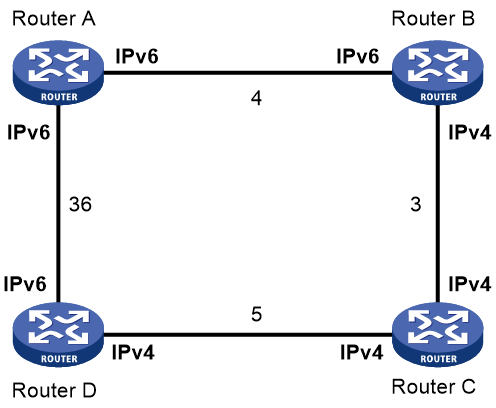

As shown in Figure 4, the same level routers on a network, including non-DIS routers, establish adjacency with each other.

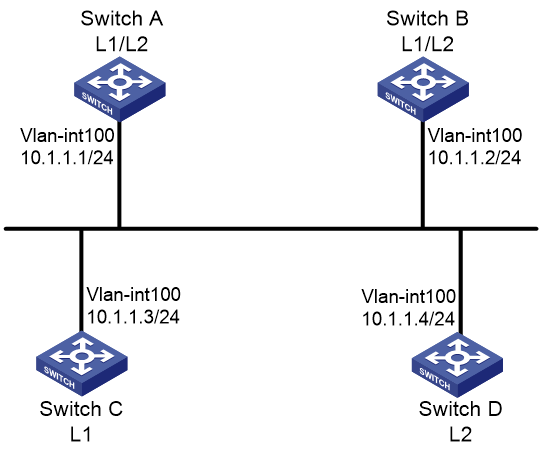

Figure 4 DIS in the IS-IS broadcast network

‌

The DIS creates and updates pseudonodes, and generates LSPs for the pseudonodes, to describe all routers on the network.

A pseudonode represents a virtual node on the broadcast network. It is not a real router. In IS-IS, it is identified by the system ID of the DIS and a 1-byte Circuit ID (a non-zero value).

Using pseudonodes simplifies network topology and can reduce the amount of resources consumed by SPF.

NOTE:

On an IS-IS broadcast network, all routers establish adjacency relationships, but they synchronize their LSDBs through the DIS.

‌

IS-IS PDUs

PDU

IS-IS PDUs are encapsulated into link layer frames. An IS-IS PDU has two parts, the headers and the variable length fields. The headers comprise the PDU common header and the PDU specific header. All PDUs have the same PDU common header. The specific headers vary by PDU type.

Figure 5 PDU format

‌

Table 1 PDU types

Type	PDU Type	Acronym
15	Level-1 LAN IS-IS hello PDU	L1 LAN IIH
16	Level-2 LAN IS-IS hello PDU	L2 LAN IIH
17	Point-to-Point IS-IS hello PDU	P2P IIH
18	Level-1 Link State PDU	L1 LSP
20	Level-2 Link State PDU	L2 LSP
24	Level-1 Complete Sequence Numbers PDU	L1 CSNP
25	Level-2 Complete Sequence Numbers PDU	L2 CSNP
26	Level-1 Partial Sequence Numbers PDU	L1 PSNP
27	Level-2 Partial Sequence Numbers PDU	L2 PSNP

‌

Hello PDU

IS-to-IS hello (IIH) PDUs are used by routers to establish and maintain neighbor relationships. On broadcast networks, Level-1 routers use Level-1 LAN IIHs, and Level-2 routers use Level-2 LAN IIHs. The P2P IIHs are used on point-to-point networks.

LSP

The LSPs carry link state information. LSPs include Level-1 LSPs and Level-2 LSPs. The Level-2 LSPs are sent by the Level-2 routers, and the Level-1 LSPs are sent by the Level-1 routers. The Level-1-2 router can send both types of LSPs.

SNP

A sequence number PDU (SNP) describes the complete or partial LSPs for LSDB synchronization.

SNPs include CSNP and PSNP, which are further divided into Level-1 CSNP, Level-2 CSNP, Level-1 PSNP, and Level-2 PSNP.

A CSNP describes the summary of all LSPs for LSDB synchronization between neighboring routers. On broadcast networks, CSNPs are sent by the DIS periodically (every 10 seconds by default). On point-to-point networks, CSNPs are sent only during the first adjacency establishment.

A PSNP only contains the sequence numbers of one or multiple latest received LSPs. It can acknowledge multiple LSPs at one time. When LSDBs are not synchronized, a PSNP is used to request missing LSPs from a neighbor.

CLV

The variable fields of PDU comprise multiple Code-Length-Value (CLV) triplets.

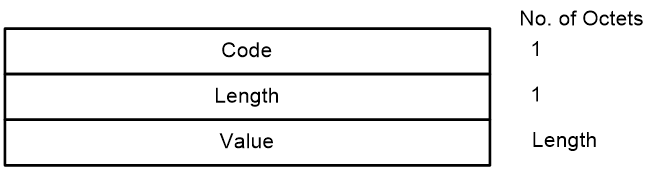

Figure 6 CLV format

‌

Table 2 shows that different PDUs contain different CLVs. Codes 1 through 10 are defined in ISO 10589 (code 3 and 5 are not shown in the table). Codes 128 through 132 are defined in RFC 1195.

Table 2 CLV codes and PDU types

CLV Code	Name	PDU Type
1	Area Addresses	IIH, LSP
2	IS Neighbors (LSP)	LSP
4	Partition Designated Level 2 IS	L2 LSP
6	IS Neighbors (MAC Address)	LAN IIH
7	IS Neighbors (SNPA Address)	LAN IIH
8	Padding	IIH
9	LSP Entries	SNP
10	Authentication Information	IIH, LSP, SNP
128	IP Internal Reachability Information	LSP
129	Protocols Supported	IIH, LSP
130	IP External Reachability Information	L2 LSP
131	Inter-Domain Routing Protocol Information	L2 LSP
132	IP Interface Address	IIH, LSP

‌

IPv6 IS-IS

IS-IS supports multiple network protocols, including IPv6. To support IPv6, the IETF added two type-length-values (TLVs) and a new network layer protocol identifier (NLPID).

The TLVs are as follows:

· IPv6 Reachability—Contains routing prefix and metric information to describe network reachability and has a type value of 236 (0xEC).

· IPv6 Interface Address—Same as the "IP Interface Address" TLV in IPv4 ISIS, except that the 32-bit IPv4 address is translated to the 128-bit IPv6 address.

The new NLPID is an 8-bit field that identifies which network layer protocol is supported. For IPv6, the NLPID is 142 (0x8E).

Protocols and standards

· ISO 8348, Ad2 Network Services Access Points

· ISO 9542, ES-IS Routing Protocol

· ISO 10589, ISO IS-IS Routing Protocol

· RFC 1195, Use of OSI IS-IS for Routing in TCP/IP and Dual Environments

· RFC 2973, IS-IS Mesh Groups

· RFC 3277, IS-IS Transient Blackhole Avoidance

· RFC 3358, Optional Checksums in ISIS

· RFC 3359, Reserved Type, Length and Value (TLV) Codepoints in Intermediate System to Intermediate System

· RFC 3563, Cooperative Agreement Between the ISOC/IETF and ISO/IEC Joint Technical Committee 1/Sub Committee 6 (JTC1/SC6) on IS-IS Routing Protocol Development

· RFC 3719, Recommendations for Interoperable Networks using Intermediate System to Intermediate System (IS-IS)

· RFC 3787, Recommendations for Interoperable IP Networks using Intermediate System to Intermediate System (IS-IS)

· RFC 4444, Management Information Base for Intermediate System to Intermediate System (IS-IS)

· RFC 5029, Definition of an IS-IS Link Attribute Sub-TLV

· RFC 5130, A Policy Control Mechanism in IS-IS Using Administrative Tags

· RFC 5301, Dynamic Hostname Exchange Mechanism for IS-IS

· RFC 5302, Domain-Wide Prefix Distribution with Two-Level IS-IS

· RFC 5303, Three-Way Handshake for IS-IS Point-to-Point Adjacencies

· RFC 5304, IS-IS Cryptographic Authentication

· RFC 5306, Restart Signaling for IS-IS

· RFC 5308, Routing IPv6 with IS-IS

· RFC 5310, IS-IS Generic Cryptographic Authentication

· RFC 5311, Simplified Extension of Link State PDU (LSP) Space for IS-IS

· RFC 6165, Extensions to IS-IS for Layer-2 Systems

· RFC 6213, IS-IS BFD-Enabled TLV

· RFC 6232, Purge Originator Identification TLV for IS-IS

· RFC 6233, IS-IS Registry Extension for Purges

· RFC 6329, IS-IS Extensions Supporting IEEE 802.1aq Shortest Path Bridging

· RFC 6571, Loop-Free Alternate (LFA) Applicability in Service Provider (SP) Networks

· RFC 6823, Advertising Generic Information in IS-IS

· RFC 7142, OSI IS-IS Intra-domain Routing Protocol

· RFC 7356, IS-IS Flooding Scope Link State PDUs (LSPs)

· RFC 7370, Updates to the IS-IS TLV Codepoints Registry

· RFC 7602, IS-IS Extended Sequence Number TLV

· RFC 7645, The Keying and Authentication for Routing Protocol (KARP) IS-IS Security Analysis

· RFC 7775, IS-IS Route Preference for Extended IP and IPv6 Reachability

· RFC 7794, IS-IS Prefix Attributes for Extended IPv4 and IPv6 Reachability

· RFC 7813, IS-IS Path Control and Reservation

· RFC 7917, Advertising Node Administrative Tags in IS-IS

· RFC 7981, IS-IS Extensions for Advertising Router Information

· RFC 7987, IS-IS Minimum Remaining Lifetime

IPv4 IS-IS tasks at a glance

To configure IPv4 IS-IS, perform the following tasks:

1. Configuring basic IS-IS

a. Enabling IPv4 IS-IS

b. (Optional.) Setting the IS level and circuit level

c. (Optional.) Configuring P2P network type for an interface

2. (Optional.) Configuring IS-IS multi-instance processes

3. (Optional.) Configuring IS-IS route control

¡ Configuring IS-IS link cost

¡ Specifying a preference for IS-IS

¡ Configuring the maximum number of ECMP routes

¡ Configuring IS-IS route summarization

¡ Advertising a default route

¡ Configuring IS-IS route redistribution

¡ Filtering routes calculated from received LSPs

¡ Configuring IS-IS route leaking

¡ Advertising IS-IS link state information to other protocols

4. (Optional.) Configuring IS-IS to advertise network performance parameters

5. (Optional.) Configuring IS-IS timers

¡ Specifying the interval for sending IS-IS hello packets

¡ Specifying the interval for sending IS-IS CSNP packets

¡ Setting the maximum age of LSPs

¡ Setting the LSP refresh interval and generation interval

¡ Setting LSP sending intervals

¡ Setting the LSP receiving interval

¡ Setting the SPF calculation interval

6. (Optional.) Configuring IS-IS packet-related features

¡ Configuring a DIS priority for an interface

¡ Configuring the tag value for an interface

¡ Specifying the IS-IS hello multiplier

¡ Disabling an interface from sending/receiving IS-IS packets

¡ Enabling an interface to send small hello packets

¡ Setting LSP lengths

¡ Enabling LSP flash flooding

¡ Enabling LSP fragment extension

7. (Optional.) Controlling LSP generation, advertisement and reception

¡ Limiting LSP flooding

¡ Configuring IS-IS route update suppression

8. (Optional.) Configuring advanced IS-IS features

¡ Enabling source address check for hello packets on a P2P interface

¡ Configuring convergence priorities for specific routes

¡ Setting the LSDB overload bit

¡ Setting IS-IS interface cost upon LSDB overload

¡ Configuring IS-IS isolation

¡ Configuring IS-IS shutdown

¡ Configuring the ATT bit

¡ Configuring system ID to host name mappings

9. (Optional.) Configuring IS-IS logging and SNMP notifications

¡ Enabling the logging of neighbor state changes

¡ Configuring IS-IS network management

10. (Optional.) Configuring IS-IS fast convergence

¡ Enabling ISPF

¡ Enabling prefix suppression

¡ Configuring IS-IS PIC

11. (Optional.) Enhancing IS-IS network security

¡ Configuring neighbor relationship authentication

¡ Configuring area authentication

¡ Configuring routing domain authentication

12. (Optional.) Enhancing IS-IS network reliability

¡ Configuring IS-IS GR

¡ Configuring BFD for IS-IS

¡ Configuring IS-IS FRR

IPv6 IS-IS tasks at a glance

To configure IPv6 IS-IS, perform the following tasks:

1. Configuring basic IS-IS

a. Enabling IPv6 IS-IS

b. (Optional.) Setting the IS level and circuit level

c. (Optional.) Configuring P2P network type for an interface

2. (Optional.) Configuring IS-IS multi-instance processes

3. Configuring IPv6 IS-IS MTR

4. (Optional.) Configuring IS-IS route control

¡ Configuring IS-IS link cost

¡ Specifying a preference for IS-IS

¡ Configuring the maximum number of ECMP routes

¡ Configuring IS-IS route summarization

¡ Advertising a default route

¡ Configuring IS-IS route redistribution

¡ Filtering routes calculated from received LSPs

¡ Configuring IS-IS route leaking

5. (Optional.) Configuring IS-IS to advertise network performance parameters

6. (Optional.) Configuring IS-IS timers

¡ Specifying the interval for sending IS-IS hello packets

¡ Specifying the interval for sending IS-IS CSNP packets

¡ Setting the maximum age of LSPs

¡ Setting the LSP refresh interval and generation interval

¡ Setting LSP sending intervals

¡ Setting the LSP receiving interval

¡ Setting the SPF calculation interval

7. (Optional.) Configuring IS-IS packet-related features

¡ Configuring a DIS priority for an interface

¡ Configuring the tag value for an interface

¡ Specifying the IS-IS hello multiplier

¡ Disabling an interface from sending/receiving IS-IS packets

¡ Enabling an interface to send small hello packets

¡ Setting LSP lengths

¡ Enabling LSP flash flooding

¡ Enabling LSP fragment extension

8. (Optional.) Controlling LSP generation, advertisement and reception

¡ Limiting LSP flooding

¡ Configuring IS-IS route update suppression

9. (Optional.) Configuring advanced IS-IS features

¡ Enabling source address check for hello packets on a P2P interface

¡ Configuring convergence priorities for specific routes

¡ Setting the LSDB overload bit

¡ Setting IS-IS interface cost upon LSDB overload

¡ Configuring IS-IS isolation

¡ Configuring IS-IS shutdown

¡ Configuring the ATT bit

¡ Configuring system ID to host name mappings

10. (Optional.) Configuring IS-IS logging and SNMP notifications

¡ Enabling the logging of neighbor state changes

¡ Configuring IS-IS network management

11. (Optional.) Configuring IS-IS fast convergence

¡ Enabling ISPF

¡ Enabling prefix suppression

¡ Configuring IS-IS PIC

12. (Optional.) Enhancing IS-IS network security

¡ Configuring neighbor relationship authentication

¡ Configuring area authentication

¡ Configuring routing domain authentication

13. (Optional.) Enhancing IS-IS network reliability

¡ Configuring IS-IS GR

¡ Configuring BFD for IS-IS

¡ Configuring IS-IS FRR

Configuring basic IS-IS

Enabling IPv4 IS-IS

1. Enter system view.

system-view

2. Enable IS-IS and enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

By default, IS-IS is disabled.

3. Assign a NET.

network-entity net

By default, NET is not assigned.

CAUTION:

When you execute the network-entity command together with the cost-style and is-level commands for the same IS-IS process, execute the network-entity command at last. Incorrect configuration order might cause data loss because the IS-IS process will restart.

‌

4. Return to system view.

quit

5. Enter interface view.

interface interface-type interface-number

6. Enable IS-IS on the interface.

isis enable [ process-id ]

By default, IS-IS is disabled.

Enabling IPv6 IS-IS

1. Enter system view.

system-view

2. Enable an IS-IS process and enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

By default, no IS-IS process is enabled.

3. Configure the NET for the IS-IS process.

network-entity net

By default, the NET is not configured.

CAUTION:

‌

4. Create the IPv6 address family and enter its view.

address-family ipv6 [ unicast ]

5. Return to IS-IS view.

quit

6. Return to system view.

quit

7. Enter interface view.

interface interface-type interface-number

8. Enable IPv6 for IS-IS on the interface.

isis ipv6 enable [ process-id ]

By default, IPv6 is disabled for IS-IS on an interface.

Setting the IS level and circuit level

About this task

Follow these guidelines when you configure the IS level for routers in only one area:

· Set the IS level of all routers to Level-1 or Level-2 rather than different levels because the routers do not need to maintain two identical LSDBs.

· Set the IS level to Level-2 on all routers in an IP network for good scalability.

For an interface of a Level-1 or Level-2 router, the circuit level can only be Level-1 or Level-2. For an interface of a Level-1-2 router, the default circuit level is Level-1-2. If the router only needs to form Level-1 or Level-2 neighbor relationships, set the circuit level for its interfaces to Level-1 or Level-2. This will limit neighbor relationship establishment.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Specify the IS level.

is-level { level-1 | level-1-2 | level-2 }

By default, the IS level is Level-1-2.

4. Return to system view.

quit

5. Enter interface view.

interface interface-type interface-number

6. Specify the circuit level.

isis circuit-level [ level-1 | level-1-2 | level-2 ]

By default, an interface can establish either the Level-1 or Level-2 adjacency.

Configuring P2P network type for an interface

About this task

Interfaces with different network types operate differently. For example, broadcast interfaces on a network must elect the DIS and flood CSNP packets to synchronize the LSDBs. However, P2P interfaces on a network do not need to elect the DIS, and have a different LSDB synchronization mechanism.

If only two routers exist on a broadcast network, set the network type of attached interfaces to P2P. This avoids DIS election and CSNP flooding, saving network bandwidth and speeding up network convergence.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Configure P2P network type for an interface.

isis [ process-id process-id ] circuit-type p2p

By default, the network type of an interface varies by physical media. The network type of a VLAN interface is broadcast.

Perform this task only for a broadcast network that has two attached devices.

Configuring IS-IS multi-instance processes

About this task

NOTE:

IS-IS processes not enabled with the multi-instance process feature are called traditional IS-IS processes. IS-IS processes enabled with the multi-instance process feature are called IS-IS multi-instance processes.

‌

By default, an interface supports only one IS-IS process. To configure multiple IS-IS processes on a device, you must add more interfaces to the device and configure the interfaces manually. To simplify configuration, use the IS-IS multi-instance process feature to configure multiple IS-IS multi-instance processes as well as a traditional IS-IS process on an interface.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enable the IS-IS multi-instance process and specify an instance ID for the process.

multi-instance enable iid iid-value

By default, IS-IS multi-instance process is disabled.

4. Configure IS-IS multi-instance processes on an interface:

a. Return to system view.

quit

b. Enter interface view.

interface interface-type interface-number

c. Enable an IS-IS multi-instance process on the interface:

IPv4:

isis enable [ process-id ]

By default, IPv4 IS-IS is disabled on an interface, and the interface is not enabled with any IS-IS processes.

IPv6:

isis ipv6 enable [ process-id ]

By default, IPv6 IS-IS is disabled on an interface, and the interface is not enabled with any IS-IS processes.

Configuring IPv6 IS-IS MTR

About this task

On a network, IPv4 and IPv6 topologies must be consistent so that both IPv6 IS-IS and IPv4 IS-IS can use the SPF algorithm to perform route calculation. If they are different, routers supporting both IPv4 and IPv6 might send IPv6 packets to routers that do not support IPv6, resulting in packet loss.

To resolve this issue, configure IPv6 IS-IS MTR to perform route calculation separately in IPv4 and IPv6 topologies.

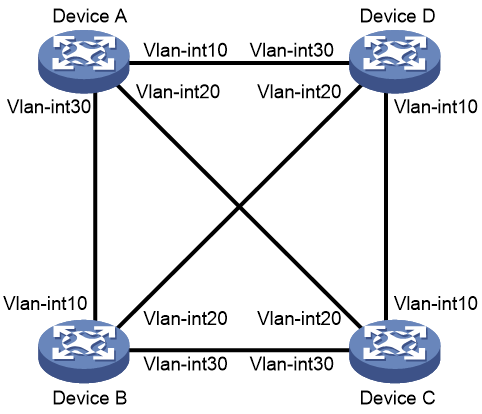

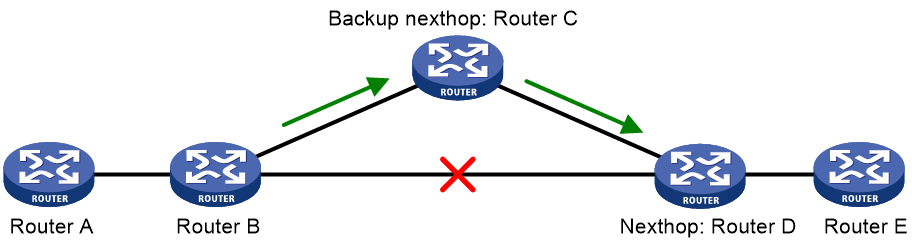

Figure 7 Network diagram

‌

As shown in Figure 7, the numbers refer to the link costs. Router A, Router B, and Router D support both IPv4 and IPv6. Router C supports only IPv4 and cannot forward IPv6 packets.

Enable IPv6 IS-IS MTR on Router A, Router B, Router C, and Router D to make them perform route calculation separately in IPv4 and IPv6 topologies. With this configuration, Router A does not forward IPv6 packets destined to Router D through Router B, avoiding packet loss.

Restrictions and guidelines

As a best practice to avoid route calculation failures, configure this feature when both IPv4 and IPv6 topologies exist in the network.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Specify an IS-IS cost style.

cost-style { compatible | wide | wide-compatible }

By default, IS-IS only transmits and receives packets using the narrow cost style.

4. Enter IPv6 address family view.

address-family ipv6 [ unicast ]

5. Enable IPv6 IS-IS MTR.

multi-topology [ compatible ]

By default, IPv6 IS-IS MTR is disabled.

Configuring IS-IS route control

Configuring IS-IS link cost

About this task

The IS-IS cost of an interface is determined in the following order:

1. IS-IS cost specified in interface view.

2. IS-IS cost specified in system view.

The cost is applied to the interfaces associated with the IS-IS process.

3. Automatically calculated cost.

If the cost style is wide or wide-compatible, IS-IS automatically calculates the cost using the formula: Interface cost = (Bandwidth reference value / Expected interface bandwidth) × 10, in the range of 1 to 16777214. For other cost styles, Table 3 applies.

Configure the expected bandwidth of an interface with the bandwidth command.

Table 3 Automatic cost calculation scheme for cost styles other than wide and wide-compatible

Interface bandwidth	Interface cost
≤ 10 Mbps	60
≤ 100 Mbps	50
≤ 155 Mbps	40
≤ 622 Mbps	30
≤ 2500 Mbps	20
> 2500 Mbps	10

‌

4. If none of the above costs is used, a default cost of 10 applies.

Configuring an IPv4 IS-IS cost for an interface

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. (Optional.) Specify an IS-IS cost style.

cost-style { narrow | wide | wide-compatible | { compatible | narrow-compatible } [ relax-spf-limit ] }

By default, the IS-IS cost type is narrow.

4. Return to system view.

quit

5. Enter interface view.

interface interface-type interface-number

6. Specify a cost for the IS-IS interface.

isis [ process-id process-id ] cost cost-value [ level-1 | level-2 ]

By default, no cost for the interface is specified.

Configuring a global IPv4 IS-IS cost

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Specify a global IS-IS cost.

circuit-cost cost-value [ level-1 | level-2 ]

By default, no global cost is specified.

Enabling automatic IPv4 IS-IS cost calculation

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enable automatic IS-IS cost calculation.

auto-cost enable

By default, automatic IS-IS cost calculation is disabled.

4. (Optional.) Configure a bandwidth reference value for automatic IS-IS cost calculation.

bandwidth-reference value

The default setting is 100 Mbps.

Configuring an IPv6 IS-IS cost for an interface

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. (Optional.) Specify an IS-IS cost style.

cost-style { narrow | wide | wide-compatible | { compatible | narrow-compatible } [ relax-spf-limit ] }

By default, the IS-IS cost type is narrow.

4. Enter IPv6 address family view.

address-family ipv6 [ unicast ]

5. Return to IS-IS view.

quit

6. Return to system view.

quit

7. Enter interface view.

interface interface-type interface-number

8. Enable IPv6 for IS-IS on the interface.

isis ipv6 enable [ process-id ]

By default, IPv6 is disabled for IS-IS on an interface.

9. Specify an IPv6 cost for the IS-IS interface.

isis [ process-id process-id ] ipv6 cost cost-value [ level-1 | level-2 ]

By default, no IPv6 cost is specified for the interface.

Configuring a global IPv6 IS-IS cost

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IPv6 address family view.

address-family ipv6 [ unicast ]

4. Specify a global IPv6 IS-IS cost.

circuit-cost cost-value [ level-1 | level-2 ]

By default, no global IPv6 cost is specified.

Enabling automatic IPv6 IS-IS cost calculation

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. (Optional.) Specify an IS-IS cost style.

cost-style { narrow | wide | wide-compatible | { compatible | narrow-compatible } [ relax-spf-limit ] }

4. Enter IPv6 address family view.

address-family ipv6 [ unicast ]

5. Enable automatic IPv6 IS-IS cost calculation.

auto-cost enable

By default, automatic IPv6 IS-IS cost calculation is disabled.

6. (Optional.) Configure a bandwidth reference value for automatic IPv6 IS-IS cost calculation.

bandwidth-reference value

By default, the bandwidth reference value is 100 Mbps.

Enabling IS-IS to advertise the maximum link cost to neighbors

About this task

On an IS-IS network, when a link recovers from failures or the state of an interface changes, IS-IS will re-establish neighbor relationships and perform route convergence. During the route convergence process, routing loops and traffic loss might occur because the convergence speeds of the nodes are different. To address this issue, enable IS-IS to advertise the maximum link cost to neighbors within the specified period of time, so the traffic forwarding path remains unchanged. After the specified period of time, IS-IS advertises the original link cost to neighbors and performs optimal route selection again.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable IS-IS to advertise the maximum link cost to neighbors within the specified period of time.

isis peer hold-max-cost duration time

By default, IS-IS advertises the original link cost to neighbors during a route convergence.

Specifying a preference for IS-IS

About this task

If multiple routing protocols find routes to the same destination, the route found by the routing protocol that has the highest preference is selected as the optimal route.

Perform this task to assign a preference to IS-IS directly or by using a routing policy. For more information about the routing policy, see "Configuring routing policies."

Configuring a preference for IPv4 IS-IS

1. Enter system view.

system-view

2. Enter IS-IS IPv4 unicast address family view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

address-family ipv4 [ unicast ]

3. Configure a preference for IPv4 IS-IS.

preference { preference | route-policy route-policy-name } *

The default setting is 15.

Configuring a preference for IPv6 IS-IS

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv6 address family view.

address-family ipv6 [ unicast ]

4. Configure a preference for IPv6 IS-IS.

preference { preference | route-policy route-policy-name } *

The default setting is 15.

Configuring the maximum number of ECMP routes

About this task

Perform this task to implement load sharing over ECMP routes in order to improve link utilization.

Configuring the maximum number of ECMP routes for IPv4 IS-IS

1. Enter system view.

system-view

2. Enter IS-IS IPv4 unicast address family view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

address-family ipv4 [ unicast ]

3. Specify the maximum number of ECMP routes.

maximum load-balancing number

By default, the maximum number of IPv4 IS-IS ECMP routes equals the maximum number of ECMP routes, which is configurable by using the max-ecmp-num command.

Configuring the maximum number of ECMP routes for IPv6 IS-IS

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv6 address family view.

address-family ipv6 [ unicast ]

4. Specify the maximum number of ECMP routes.

maximum load-balancing number

By default, the maximum number of IPv6 IS-IS ECMP routes equals the maximum number of ECMP routes, which is configurable by using the max-ecmp-num command.

Configuring IS-IS route summarization

About this task

Perform this task to summarize specific routes, including IS-IS routes and redistributed routes, into a single route. Route summarization can reduce the routing table size and the LSDB scale.

Route summarization applies only to locally generated LSPs.

Configuring IPv4 IS-IS route summarization

1. Enter system view.

system-view

2. Enter IS-IS IPv4 unicast address family view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

address-family ipv4 [ unicast ]

3. Configure IPv4 IS-IS route summarization.

summary ip-address { mask-length | mask } [ avoid-feedback | generate_null0_route | [ level-1 | level-1-2 | level-2 ] | tag tag ] *

By default, IPv4 IS-IS route summarization is not configured.

The cost of the summary route is the lowest one among the costs of the more-specific routes.

Configuring IPv6 IS-IS route summarization

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv6 address family view.

address-family ipv6 [ unicast ]

4. Configure IPv6 IS-IS route summarization.

By default, IPv6 IS-IS route summarization is not configured.

Advertising a default route

About this task

IS-IS cannot redistribute a default route to its neighbors. This task enables IS-IS to advertise a default route of 0.0.0.0/0 in an LSP to the same-level neighbors. Upon receiving the default route, the neighbors add it into their routing table.

Advertising an IPv4 IS-IS default route

1. Enter system view.

system-view

2. Enter IS-IS IPv4 unicast address family view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

address-family ipv4 [ unicast ]

3. Advertise a Level-1 or Level-2 default route.

By default, IPv4 IS-IS does not advertise a Level-1 or Level-2 default route.

Advertising an IPv6 IS-IS default route

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv6 address family view.

address-family ipv6 [ unicast ]

4. Advertise a Level-1 or Level-2 default route.

By default, IPv6 IS-IS does not advertise a Level-1 or Level-2 default route.

Configuring IS-IS route redistribution

About this task

Perform this task to redistribute routes from other routing protocols into IS-IS. You can specify a cost for redistributed routes and specify the maximum number of redistributed routes. IS-IS filters redistributed routes by using ACLs, IP prefix lists, or routing policies. Only routes that match the criteria will be added to the IS-IS routing table and can be advertised in LSPs.

Configuring IPv4 IS-IS route redistribution

1. Enter system view.

system-view

2. Enter IS-IS IPv4 unicast address family view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

address-family ipv4 [ unicast ]

3. Redistribute routes from other routing protocols or other IS-IS processes.

import-route bgp [ as-number ] [ allow-ibgp ] [ cost cost-value | cost-type { external | internal } | [ level-1 | level-1-2 | level-2 ] | route-policy route-policy-name | tag tag ] *

import-route { direct | static } [ cost cost-value | cost-type { external | internal } | [ level-1 | level-1-2 | level-2 ] | route-policy route-policy-name | tag tag ] *

import-route { isis | ospf } [ process-id | all-processes ] [ allow-direct | cost cost-value | cost-type { external | internal } | [ level-1 | level-1-2 | level-2 ] | route-policy route-policy-name | tag tag ] *

By default, IS-IS does not redistribute routes.

This command redistributes only active routes. To display active routes, use the display ip routing-table protocol command.

4. (Optional.) Configure the maximum number of redistributed Level 1/Level 2 IPv4 routes.

import-route limit number

By default, the maximum number of redistributed Level 1/Level 2 IPv4 routes is 1413120.

5. Enable IPv4 IS-IS to filter redistributed routes.

filter-policy { ipv4-acl-number | prefix-list prefix-list-name | route-policy route-policy-name } export [ bgp | direct | { isis | ospf } [ process-id ] | static ]

By default, IPv4 IS-IS does not filter redistributed routes.

Configuring IPv6 IS-IS route redistribution

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv6 address family view.

address-family ipv6 [ unicast ]

4. Redistribute routes from other routing protocols or other IS-IS processes.

By default, IPv6 IS-IS does not redistribute routes.

5. (Optional.) Configure the maximum number of redistributed Level 1/Level 2 IPv6 routes.

import-route limit number

By default, the maximum number of redistributed Level 1/Level 2 IPv6 routes is 1331200.

6. Enable IPv6 IS-IS to filter redistributed routes.

filter-policy { ipv6-acl-number | prefix-list prefix-list-name | route-policy route-policy-name } export [ bgp4+ | direct | { isisv6 | ospfv3 } [ process-id ] | static ]

By default, IPv6 IS-IS does not filter redistributed routes.

Filtering routes calculated from received LSPs

About this task

IS-IS saves LSPs received from neighbors in the LSDB, and uses the SPF algorithm to calculate the shortest path tree with itself as the root. IS-IS installs the calculated routes to the IS-IS routing table and the optimal routes to the IP routing table.

Perform this task to filter calculated routes. Only routes that are not filtered can be added to the IP routing table. The filtered routes retain in the IS-IS routing table and can be advertised to neighbors.

Filtering IPv4 IS-IS routes calculated from received LSPs

1. Enter system view.

system-view

2. Enter IS-IS IPv4 unicast address family view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

address-family ipv4 [ unicast ]

3. Filter routes calculated using received LSPs.

filter-policy { ipv4-acl-number | prefix-list prefix-list-name | route-policy route-policy-name } import

By default, IPv4 IS-IS route filtering is not configured.

Filtering IPv6 IS-IS routes calculated from received LSPs

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv6 address family view.

address-family ipv6 [ unicast ]

4. Filter routes calculated using received LSPs.

filter-policy { ipv6-acl-number | prefix-list prefix-list-name | route-policy route-policy-name } import

By default, IPv6 IS-IS route filtering is not configured.

Configuring IS-IS route leaking

About this task

Perform this task to control route advertisement (route leaking) between Level-1 and Level-2.

You can configure IS-IS to advertise routes from Level-2 to Level-1, and to not advertise routes from Level-1 to Level-2.

Configuring IPv4 IS-IS route leaking

1. Enter system view.

system-view

2. Enter IS-IS IPv4 unicast address family view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

address-family ipv4 [ unicast ]

3. Configure route leaking from Level-1 to Level-2.

import-route isis level-1 into level-2 [ filter-policy { ipv4-acl-number | prefix-list prefix-list-name | route-policy route-policy-name } | tag tag ] *

By default, IS-IS advertises routes from Level-1 to Level-2.

4. Configure route leaking from Level-2 to Level-1.

import-route isis level-2 into level-1 [ filter-policy { ipv4-acl-number | prefix-list prefix-list-name | route-policy route-policy-name } | tag tag ] *

By default, IS-IS does not advertise routes from Level-2 to Level-1.

Configuring IPv6 IS-IS route leaking

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv6 address family view.

address-family ipv6 [ unicast ]

4. Configure route leaking from Level-2 to Level-1.

import-route isisv6 level-2 into level-1 [ filter-policy { ipv6-acl-number | prefix-list prefix-list-name | route-policy route-policy-name } | tag tag ] *

By default, IS-IS does not advertise routes from Level-2 to Level-1.

5. Configure route leaking from Level-1 to Level-2.

import-route isisv6 level-1 into level-2 [ filter-policy { ipv6-acl-number | prefix-list prefix-list-name | route-policy route-policy-name } | tag tag ] *

By default, IS-IS advertises routes from Level-1 to Level-2.

Advertising IS-IS link state information to other protocols

About this task

After the device advertises IS-IS link state information to other protocols, these protocols can then advertise the information for intended applications. For more information about BGP LS, see "Configuring BGP LS."

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Advertise IS-IS link state information to other protocols.

distribute bgp-ls [ instance-id id ] [ level-1 | level-2 ]

By default, the device does not advertise IS-IS link state information to any other protocol.

Configuring IS-IS to advertise network performance parameters

About IS-IS network performance parameters

A controller in a network performance-sensitive scenario uses parameters that can reflect the network performance as route calculation metrics.

Perform this task to enable IS-IS to advertise network performance parameters and report the information to the controller through BGP-LS. Then, the controller performs optimal route calculation based on the network performance parameters.

Network performance parameters include the following:

· Delay—Unidirectional link delay performance metrics, including:

¡ Average link delay—Average unidirectional link delay.

¡ Min/Max link delay—Minimum/maximum unidirectional link delay.

¡ Average link delay variation—Average unidirectional link delay variation.

· Bandwidth—Unidirectional link bandwidth performance metrics, including:

¡ Remaining bandwidth—Remaining unidirectional link bandwidth.

¡ Available bandwidth—Available unidirectional link bandwidth.

¡ Utilized bandwidth—Unidirectional link bandwidth usage.

Restrictions and guidelines

For link delay advertisement and link bandwidth advertisement to take effect, use the advertise link-attributes command to enable IS-IS to advertise link attributes in LSPs.

Enabling IS-IS to advertise link attributes in LSPs

About this task

Perform this task to enable IS-IS to advertise network performance parameters through sub-TLVs in the extended IS reachability TLV (type 22).

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv4 address family view or IS-IS IPv6 address family view.

¡ Enter IS-IS IPv4 address family view.

address-family ipv4 [ unicast ]

¡ Enter IS-IS IPv6 address family view.

address-family ipv6 [ unicast ]

4. Enable IS-IS to advertise link attributes in LSPs.

advertise link-attributes

By default, IS-IS does not advertise link attributes in LSPs.

Advertising link delay information

About this task

Perform this task to enable IS-IS to advertise link delay information and report the information to the controller through BGP-LS. Then, the controller performs optimal route calculation based on the link delay information.

Perform either of the following tasks to obtain link delay information of an interface:

· Static configuration—Execute the isis link-delay command to manually configure link delay parameters on the interface.

· Dynamic acquisition—Execute the test-session bind interface command to bind the interface as the out interface of a TWAMP Light test session. Then, TWAMP Light will send the detected link delay information to the interface, and the interface will report the link delay information to IS-IS at periodic intervals. For more information about TWAMP Light, see NQA configuration in Network Management and Monitoring Configuration Guide.

In dynamic acquisition mode, an interface reports link delay information to IS-IS at rather short intervals, for example, 100 milliseconds. As a result, IS-IS needs to frequently process the link delay information and reports the information to the controller through BGP-LS, which consumes a lot of device and network resources. To resolve this issue, you can configure IS-IS to suppress advertisement of link delay information.

Link delay advertisement suppression works as follows:

· An interface reports link delay information to IS-IS at negotiated intervals.

· IS-IS advertises link delay information through BGP-LS at intervals specified by the time-value argument. IS-IS does not advertise link delay information within the suppression timer except for the following conditions:

¡ The variation ratio between two consecutive minimum delays is larger than or equivalent to the suppression threshold for the delay variation ratio.

¡ The absolute value of the difference between two consecutive minimum delays is larger than or equivalent to the suppression threshold for the absolute value of the delay variation.

Restrictions and guidelines

For an interface, static link delay parameters take precedence over the parameters obtained through dynamic acquisition.

As a best practice, set the link delay advertisement suppression interval to be larger than or equivalent to the NQA delay measurement interval.

Configuring link delay parameters

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Configure link delay parameters.

isis link-delay { average average-delay-value | min min-delay-value max max-delay-value | variation variation-value } *

By default, link delay parameters are not configured.

Enabling IPv4 IS-IS to advertise link delay information

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv4 address family view.

address-family ipv4 [ unicast ]

4. Enable IPv4 IS-IS to advertise link delay information in LSPs.

metric-delay advertisement enable [ level-1 | level-2 ]

By default, IPv4 IS-IS does not advertise link delay information in LSPs.

Enabling IPv6 IS-IS to advertise link delay information

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv6 address family view.

address-family ipv6 [ unicast ]

4. Enable IPv6 IS-IS to advertise link delay information in LSPs.

metric-delay advertisement enable [ level-1 | level-2 ]

By default, IPv6 IS-IS does not advertise link delay information in LSPs.

Configuring IS-IS to suppress link delay information advertisement

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Configure IS-IS to suppress link delay information advertisement.

metric-delay suppression timer time-value percent-threshold percent-value absolute-threshold absolute-value

By default, IS-IS suppresses link delay information advertisement.

If you set an argument to 0, the corresponding suppression mechanism does not take effect. If you set all arguments to 0, IS-IS does not suppress link delay information advertisement.

Advertising link bandwidth information

About this task

Perform this task to enable IS-IS to advertise link bandwidth information and report the information to the controller through BGP-LS. Then, the controller performs optimal route calculation based on the link bandwidth information.

By default, an interface reports link bandwidth information to IS-IS at short intervals, for example, 100 milliseconds. As a result, IS-IS needs to frequently process the link bandwidth information and reports the information to the controller through BGP-LS, which consumes a lot of device and network resources. To resolve this issue, you can configure IS-IS to suppress advertisement of link bandwidth information.

Link bandwidth advertisement suppression works as follows:

· An interface reports link bandwidth information to IS-IS at negotiated intervals.

· IS-IS advertises link bandwidth information through BGP-LS at intervals specified by the time-value argument. IS-IS does not advertise link bandwidth information within the suppression timer.

Restrictions and guidelines

As a best practice, set the link bandwidth advertisement suppression interval to be larger than or equivalent to the Ethernet interface bandwidth measurement interval.

Enabling IPv4 IS-IS to advertise link bandwidth information

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IS-IS IPv4 address family view.

address-family ipv4 [ unicast ]

4. Enable IPv4 IS-IS to advertise link bandwidth information in LSPs.

metric-bandwidth advertisement enable [ level-1 | level-2 ]

By default, IPv4 IS-IS does not advertise link bandwidth information in LSPs.

Enabling IPv6 IS-IS to advertise link bandwidth information

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ]

3. Enter IS-IS IPv6 address family view.

address-family ipv6 [ unicast ]

4. Enable IPv6 IS-IS to advertise link bandwidth information in LSPs.

metric-bandwidth advertisement enable [ level-1 | level-2 ]

By default, IPv6 IS-IS does not advertise link bandwidth information in LSPs.

Configuring IS-IS to suppress link bandwidth information advertisement

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Configure IS-IS to suppress link bandwidth information advertisement.

metric-bandwidth suppression timer time-value

By default, IS-IS suppresses link bandwidth information advertisement.

If you set the time-value argument to 0, IS-IS does not suppress link bandwidth information advertisement.

Configuring IS-IS timers

Specifying the interval for sending IS-IS hello packets

About this task

If a neighbor does not receive any hello packets from the router within the advertised hold time, it considers the router down and recalculates the routes. The hold time is the hello multiplier multiplied by the hello interval.

Restrictions and guidelines

The interval between hello packets sent by the DIS is 1/3 the hello interval set with the isis timer hello command.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Specify the interval for sending hello packets.

isis timer hello seconds [ level-1 | level-2 ]

The default setting is 10 seconds.

Specifying the interval for sending IS-IS CSNP packets

About this task

On a broadcast network, perform this task on the DIS that uses CSNP packets to synchronize LSDBs.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Specify the interval for sending CSNP packets on the DIS of a broadcast network.

isis timer csnp seconds [ level-1 | level-2 ]

The default setting is 10 seconds.

Setting the maximum age of LSPs

About this task

Each LSP has an age that decreases in the LSDB. Any LSP with an age of 0 is deleted from the LSDB. You can adjust the age value based on the scale of a network.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Set the maximum LSP age.

timer lsp-max-age seconds

The default setting is 1200 seconds.

Setting the LSP refresh interval and generation interval

About this task

Each router needs to refresh its LSPs at a configurable interval and send them to other routers to prevent valid routes from aging out. A smaller refresh interval speeds up network convergence but consumes more bandwidth.

When network topology changes such as neighbor state, interface metric, system ID, or area ID changes occur, the router generates an LSP after a configurable interval. If such a change occurs frequently, excessive LSPs are generated, consuming a large amount of router resources and bandwidth. To solve the problem, you can adjust the LSP generation interval.

Restrictions and guidelines

Follow these restrictions and guidelines when you configure the timer lsp-generation command:

· If you specify only the maximum-interval argument, the LSP generation interval is maximum-interval.

· If you do not specify the incremental-interval argument, the LSP generation interval is in the range of minimum-interval to maximum-interval.

· If you specify the incremental-interval argument, the LSP generation interval is as follows:

¡ When network changes are not frequent, the minimum-interval is adopted.

¡ When network changes are frequent, the LSP generation interval increases by incremental-interval × 2n-2 (n is the number of calculation times) each time a generation occurs until the maximum-interval is reached.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Set the LSP refresh interval.

timer lsp-refresh seconds

By default, the LSP refresh interval is 900 seconds.

4. Set the LSP generation interval.

timer lsp-generation maximum-interval [ minimum-interval [ incremental-interval ] ] [ level-1 | level-2 ]

By default:

¡ The maximum interval is 5 seconds.

¡ The minimum interval is 50 milliseconds.

¡ The incremental interval is 200 milliseconds.

Setting LSP sending intervals

About this task

If a change occurs in the LSDB, IS-IS advertises the changed LSP to neighbors. You can specify the minimum interval for sending these LSPs to control the amount of LSPs on the network.

On a P2P link, IS-IS requires an advertised LSP be acknowledged. If no acknowledgment is received within a configurable interval, IS-IS will retransmit the LSP.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Specify the minimum interval for sending LSPs and the maximum LSP number that can be sent at a time.

isis timer lsp time [ count count ]

By default, the minimum interval is 33 milliseconds, and the maximum LSP number that can be sent at a time is 5.

4. Specify the LSP retransmission interval on a P2P link.

isis timer retransmit seconds

By default, the LSP retransmission interval on a P2P link is 5 seconds.

Setting the LSP receiving interval

About this task

When the network is stable, IS-IS uses the minimum receiving interval. When the network changes frequently, the receiving interval increases by the incremental interval each time the same LSP is received until the maximum receiving interval is reached.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Set the LSP receiving interval.

timer lsp-arrival maximum-interval [ minimum-interval [ incremental-interval ] ] [ level-1 | level-2 ]

By default, the LSP receiving interval is not set.

Setting the SPF calculation interval

About this task

Based on the LSDB, an IS-IS router uses the SPF algorithm to calculate the shortest path tree with itself being the root, and uses the shortest path tree to determine the next hop to a destination network. By adjusting the SPF calculation interval, you can prevent bandwidth and router resources from being over consumed due to frequent topology changes.

When network changes are not frequent, the minimum-interval is adopted. If network changes become frequent, the SPF calculation interval increases by incremental-interval × 2n-2 (n is the number of calculation times) each time a calculation occurs until the maximum-interval is reached.

Setting the IPv4 SPF calculation interval

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Set the SPF calculation interval.

timer spf { maximum-interval [ minimum-interval [ incremental-interval [ conservative ] ] ] | millisecond millisecond-interval } [ exclude-prc ]

By default:

¡ The maximum interval is 5 seconds.

¡ The minimum interval is 50 milliseconds.

¡ The incremental interval is 200 milliseconds.

Setting the IPv6 SPF calculation interval

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IPv6 address family view.

address-family ipv6 [ unicast ]

4. Set the SPF calculation interval.

timer spf { maximum-interval [ minimum-interval [ incremental-interval [ conservative ] ] ] | millisecond millisecond-interval } [ exclude-prc ]

By default:

¡ The maximum interval is 5 seconds.

¡ The minimum interval is 50 milliseconds.

¡ The incremental interval is 200 milliseconds.

Configuring IS-IS packet-related features

Configuring a DIS priority for an interface

About this task

On a broadcast network, IS-IS must elect a router as the DIS at a routing level. You can specify a DIS priority at a level for an interface. The greater the interface's priority, the more likely it becomes the DIS. If multiple routers in the broadcast network have the same highest DIS priority, the router with the highest MAC address becomes the DIS.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Configure a DIS priority for the interface.

isis dis-priority priority [ level-1 | level-2 ]

The default setting is 64.

Configuring the tag value for an interface

About this task

Perform this task when the link cost style is wide, wide-compatible, or compatible.

When IS-IS advertises a prefix with a tag value, IS-IS adds the tag to the IP reachability information TLV of the prefix.

Configuring the IPv4 IS-IS tag value for an interface

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Configure the IPv4 IS-IS tag value for the interface.

isis tag tag

By default, the IPv4 IS-IS tag value of the interface is not configured.

Configuring the IPv6 IS-IS tag value for an interface

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Configure the IPv6 IS-IS tag value for the interface.

isis ipv6 tag tag

By default, the IPv6 IS-IS tag value of the interface is not configured.

When IS-IS advertises an IPv6 prefix with a tag value, it adds the tag to the IPv6 reachability information TLV, regardless of the link cost style.

Specifying the IS-IS hello multiplier

About this task

The hello multiplier is the number of hello packets a neighbor must miss before it declares that the router is down.

If a neighbor receives no hello packets from the router within the advertised hold time, it considers the router down and recalculates the routes. The hold time is the hello multiplier multiplied by the hello interval.

On a broadcast link, Level-1 and Level-2 hello packets are advertised separately. You must set a hello multiplier for each level.

On a P2P link, Level-1 and Level-2 hello packets are advertised in P2P hello packets. You do not need to specify Level-1 or Level-2.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Specify the hello multiplier.

isis timer holding-multiplier value [ level-1 | level-2 ]

The default setting is 3.

Disabling an interface from sending/receiving IS-IS packets

About this task

After being disabled from sending and receiving hello packets, an interface cannot form any neighbor relationship, but can advertise directly connected networks in LSPs through other interfaces. This can save bandwidth and CPU resources, and ensures that other routers know networks directly connected to the interface.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Disable the interface from sending and receiving IS-IS packets.

isis silent

By default, the interface can send and receive IS-IS packets.

Enabling an interface to send small hello packets

About this task

IS-IS messages cannot be fragmented at the IP layer because they are directly encapsulated in frames. Any two IS-IS neighboring routers must negotiate a common MTU. To avoid sending big hellos to save bandwidth, enable the interface to send small hello packets without CLVs.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable the interface to send small hello packets without CLVs.

isis small-hello

By default, the interface sends standard hello packets.

Setting LSP lengths

About this task

IS-IS messages cannot be fragmented at the IP layer because they are directly encapsulated in frames. IS-IS routers in an area must send LSPs smaller than the smallest interface MTU in the area.

If the IS-IS routers have different interface MTUs, configure the maximum size of generated LSP packets to be smaller than the smallest interface MTU in the area. Without the configuration, the routers must dynamically adjust the LSP packet size to fit the smallest interface MTU, which takes time and affects other services.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Specify the maximum length of generated Level-1 LSPs or Level-2 LSPs.

lsp-length originate size [ level-1 | level-2 ]

By default, the maximum length of generated Level-1 LSPs or Level-2 LSPs is 1497 bytes.

4. Specify the maximum length of received LSPs.

lsp-length receive size

By default, the maximum length of received LSPs is 1497 bytes.

Enabling LSP flash flooding

About this task

Changed LSPs can trigger SPF recalculation. To advertise the changed LSPs before the router recalculates routes for faster network convergence, enable LSP flash flooding.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enable LSP flash flooding.

flash-flood [ flood-count flooding-count | max-timer-interval flooding-interval | [ level-1 | level-2 ] ] *

By default, LSP flash flooding is disabled.

Enabling LSP fragment extension

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enable LSP fragment extension.

lsp-fragments-extend [ level-1 | level-1-2 | level-2 ]

By default, LSP fragment extension is disabled.

The MTUs of all interfaces running the IS-IS process must not be less than 512. Otherwise, LSP fragment extension does not take effect.

4. Configure a virtual system ID.

virtual-system virtual-system-id

By default, no virtual system ID is configured.

Configure a minimum of one virtual system to generate extended LSP fragments.

Controlling LSP generation, advertisement and reception

Limiting LSP flooding

About this task

On an NBMA network, many P2P links might exist. As shown in Figure 8, Routers A, B, C and D run IS-IS. When Router A generates an LSP, it floods the LSP out of VLAN-interface 10, VLAN-interface 20, and VLAN-interface 30. After Router D receives the LSP from VLAN-interface 30, it floods it out of VLAN-interface 10 and VLAN-interface 20 to Router B and Router C. However, Router B and Router C have already received the LSP from Router A. Repeated LSP flooding consumes extra bandwidth.

Figure 8 Network diagram of a fully meshed network

‌

To avoid this problem, you can add interfaces to a mesh group or block some interfaces.

· An interface in a mesh group floods a received LSP only to interfaces not in the mesh group.

· A blocked interface sends LSPs only after receiving LSP requests.

Restrictions and guidelines

Before you configure this task, you must consider redundancy for interfaces in case LSP packets cannot be flooded because of link failures.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Limit LSP flooding.

¡ Add the interface to a mesh group.

isis mesh-group mesh-group-number

¡ Block the interface.

isis mesh-group mesh-blocked

By default, the interface does not belong to any mesh group and is not blocked.

The commands take effect only on P2P interfaces.

Configuring IS-IS route update suppression

About this task

Perform this task to protect network resources and routers from being overwhelmed by LSPs when route flapping occurs.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Configure IS-IS route update suppression.

¡ Suppress LSP generation.

timer lsp-generation suppress-flapping delay-interval [ threshold threshold-value] [ level-1 | level-2 ]

By default, IS-IS does not suppress LSP generation.

¡ Suppress LSP flooding.

timer lsp-flood suppress-flapping delay-interval [ threshold threshold-value ] [ level-1 | level-2 ]

By default, IS-IS does not suppress LSP flooding.

¡ Suppress route calculation.

timer route-calculate suppress-flapping delay-interval [ threshold threshold-value ] [ level-1 | level-2 ]

By default, IS-IS does not suppress route calculation.

¡ Suppress route calculation after fragment 0 of a purge LSP is received.

timer purge-zero-lsp route-calculate-delay delay-interval [ level-1 | level-2 ]

By default, IS-IS suppresses route calculation for 10 seconds after fragment 0 of a purge LSP is received.

Configuring advanced IS-IS features

Enabling source address check for hello packets on a P2P interface

About this task

An IS-IS P2P interface can have a peer on a different network. Perform this task to configure an IS-IS P2P interface to establish neighbor relationship only with a peer on the same network.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable source address check for hello packets on a P2P interface.

isis peer-ip-check

By default, an IS-IS P2P interface can have a peer on a different network.

Configuring convergence priorities for specific routes

About this task

A topology change causes IS-IS routing convergence. To improve convergence speed, you can assign convergence priorities to IS-IS routes. Convergence priority levels are critical, high, medium, and low. The higher the convergence priority, the faster the convergence speed.

By default, IS-IS host routes have medium convergence priority, and other IS-IS routes have low convergence priority.

Configuring convergence priorities for specific IPv4 IS-IS routes

1. Enter system view.

system-view

2. Enter IS-IS IPv4 unicast address family view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

address-family ipv4 [ unicast ]

3. Assign convergence priorities to specific IPv4 IS-IS routes.

¡ Assign a convergence priority to IPv4 IS-IS routes matching the specified prefix list.

prefix-priority { critical | high | medium } { prefix-list prefix-list-name | tag tag-value }

¡ Assign a convergence priority to IPv4 IS-IS routes by using a route policy.

prefix-priority route-policy route-policy-name

By default, IPv4 IS-IS routes, except IS-IS host routes, have the low convergence priority.

Configuring convergence priorities for specific IPv6 IS-IS routes

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IPv6 address family view.

address-family ipv6 [ unicast ]

4. Assign convergence priorities to specific IPv6 IS-IS routes.

prefix-priority { critical | high | medium } { prefix-list prefix-list-name | tag tag-value }

prefix-priority route-policy route-policy-name

By default, IPv6 IS-IS routes, except IS-IS host routes, have the low convergence priority.

Setting the LSDB overload bit

About this task

By setting the overload bit in sent LSPs, a router informs other routers of failures that make it unable to select routes and forward packets.

When an IS-IS router cannot record the complete LSDB, for example, because of memory insufficiency, it will calculate wrong routes. To make troubleshooting easier, temporarily isolate the router from the IS-IS network by setting the overload bit.

Restrictions and guidelines

Follow these guidelines when you set the LSDB overload bit:

· If route calculation is not performed separately for IPv4 and IPv6 topologies, the configuration takes effect as follows:

¡ The configuration in IS-IS view sets the OL bit for LSPs flooded to IPv4 and IPv6 topologies.

¡ The configuration in IPv6 address family view does not take effect.

· If route calculation is performed separately for IPv4 and IPv6 topologies, the configuration takes effect as follows:

¡ The configuration in IS-IS view sets the OL bit for only the LSPs flooded to the IPv4 topology.

¡ The configuration in IPv6 address family view sets the OL bit for only the LSPs flooded to the IPv6 topology.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view or IPv6 address family view.

¡ Enter IS-IS view:

isis [ process-id ] [ vpn-instance vpn-instance-name ]

¡ Execute the following commands in sequence to enter IPv6 address family view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

address-family ipv6 [ unicast ]

3. Set the overload bit.

set-overload [ on-startup [ [ start-from-nbr system-id [ timeout1 [ nbr-timeout ] ] ] | timeout2 | wait-for-bgp [ timeout3 ] ] ] [ allow { external | interlevel } * ]

By default, the overload bit is not set.

Setting IS-IS interface cost upon LSDB overload

About this task

Perform this task to prevent neighbor devices from sending traffic to an overloaded device in an anycast scenario.

Upon entering the overload state, the device sends an LSP with the OL bit set to its neighbors. The neighbor that receives the LSP performs path calculation and forwards packets as follows:

· For packets destined to a network not directly connected to the overloaded device, the neighbor device does not forward the packets to the overloaded device.

· For packets destined to the network directly connected to the overloaded device, the neighbor device forwards the packets to the overloaded device.

These processing methods might cause problems in an anycast scenario where the destination address of packets is an anycast address. The neighbor device will send such packets to the anycast node with the smallest cost, and that node might have already entered the overload state. To avoid such problems, perform this task to enable an overloaded device to increase its cost. Neighbors will not select the device during path calculation.

The command takes effect when the device enters the overload state as follows:

· When the device is in overload state, the system increases the cost of all IS-IS interfaces on the device. Neighbors will not select the device during path calculation.

· When the device exits the overload state or you execute the undo overload adjust-cost command, the IS-IS interfaces resume their original costs.

Restrictions and guidelines

Follow these guidelines when you set IS-IS interface cost upon LSDB overload:

· If route calculation is not performed separately for IPv4 and IPv6 topologies, the configuration takes effect as follows:

¡ The configuration in IS-IS view applies to both IPv4 and IPv6 IS-IS interfaces.

¡ The configuration in IPv6 address family view does not take effect.

· If route calculation is performed separately for IPv4 and IPv6 topologies, the configuration takes effect as follows:

¡ The configuration in IS-IS view applies only to IPv4 IS-IS interfaces.

¡ The configuration in IPv6 address family view applies only to IPv6 IS-IS interfaces.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view or IPv6 address family view.

¡ Enter IS-IS view:

isis [ process-id ] [ vpn-instance vpn-instance-name ]

¡ Execute the following commands in sequence to enter IPv6 address family view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

address-family ipv6 [ unicast ]

3. Set the cost for all IS-IS interfaces when the device enters the overload state.

overload adjust-cost { cost-offset | max }

By default, the device does not change the cost for any IS-IS interfaces when it enters the overload state.

Configuring IS-IS isolation

About this task

Isolation is a method used for network device maintenance. It gracefully removes a device from the packet forwarding path for maintenance and gracefully adds the device to the network after maintenance.

To reduce impact on traffic forwarding, you can isolate a device before upgrading it. IS-IS isolation works as follows:

1. After IS-IS isolation is enabled for a device, IS-IS sets the overload bit in the LSPs advertised by the device and sets the link cost to the maximum value.

2. Each neighbor of the device reselects an optimal route based on the LSPs and stops forwarding traffic to the device. The device is fully isolated from the network and you can upgrade the device.

3. After the maintenance, disable IS-IS isolation on the device by using the undo isolate enable command. The device can return to the network gracefully after the overload bit is cleared and the link cost restores to the original value.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Configure IS-IS isolation.

a. Enable IS-IS isolation to gracefully remove the device from the network.

isolate enable

b. Disable IS-IS isolation to gracefully add the device to the network.

undo isolate enable

By default, IS-IS isolation is disabled.

Configuring IS-IS shutdown

About this task

For maintenance purposes, you can use this feature to shut down IS-IS processes on the device with small impact on the network. If you shut down an IS-IS process, it will perform the following operations:

· Change the state of all neighbors to down.

· Stop receiving and sending IS-IS packets.

· Clear its neighbor, LSDB, and IS-IS route information.

If the neighbors do not receive any hello packets from the IS-IS process within the hold time, they consider the process down and recalculate the routes.

After maintenance, you can use the undo shutdown process command to restart the IS-IS process for neighbor relationship re-establishment.

This feature shuts down an IS-IS process while retaining the process-associated settings to facilitate your maintenance.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Configure IS-IS shutdown.

a. Shut down an IS-IS process to isolate it from the network.

shutdown process

b. Restart the IS-IS process to add it back to the network.

undo shutdown process

By default, the IS-IS process is not shut down.

Configuring the ATT bit

About this task

The ATT bit is used to identify the connection status between a Level-1 area and other areas. By default, a Level-1-2 router sets the ATT bit for Level-1 LSPs as follows:

· The Level-1-2 router sets the ATT bit in Level-1 LSPs to inform the Level-1 routers that it can reach other areas. After a Level-1 router receives a Level-1 LSP with the ATT bit set, it generates a default route destined for the Level-1-2 router.

· The Level-1-2 router does not set the ATT bit in Level-1 LSPs if it can reach only one area.

To edit the default ATT bit setting rule for a Level-1-2 router, perform the following tasks as needed:

· To enable ATT bit setting for all Level-1 LSPs, execute the set-att always command on the Level-1-2 router.

· To disable a Level-1 router from generating a default route upon receiving an ATT-bit-set Level-1 LSP from the Level-1-2 router, you can perform one of the following tasks:

¡ Execute the ignore-att command on the Level-1 router.

¡ Execute the set-att never command on the Level-1-2 router.

Configuring IS-IS not to calculate the default route through the ATT bit

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Configure IS-IS not to calculate the default route through the ATT bit.

ignore-att

By default, IS-IS uses the ATT bit to calculate the default route.

Setting the IPv4 ATT bit of Level-1 LSPs

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Set the IPv4 ATT bit of Level-1 LSPs.

set-att { always | never }

By default, the Level-1-2 router sets the ATT bit for IPv4 Level-1 LSPs in accordance with the default ATT bit setting rule.

Setting the IPv6 ATT bit of Level-1 LSPs

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IPv6 address family view.

address-family ipv6 [ unicast ]

4. Set the IPv6 ATT bit of Level-1 LSPs.

set-att { always | never }

By default, the Level-1-2 router sets the ATT bit for IPv6 Level-1 LSPs in accordance with the default ATT bit setting rule.

Configuring system ID to host name mappings

About this task

A 6-byte system ID in hexadecimal notation uniquely identifies a router or host in an IS-IS network. To make a system ID easy to read, the system allows you to use host names to identify devices. It also provides mappings between system IDs and host names.

The mappings can be configured manually or dynamically.

· Static system ID to host name mapping—You must manually configure a mapping for each router in the network. When a new router is added to the network or a mapping must be modified, you must configure all routers manually.

· Dynamic system ID to host name mapping—You only need to configure a host name for each router in the network. Each router advertises the host name in a dynamic host name CLV to other routers so all routers in the network can have all mappings. To help check the origin of LSPs in the LSDB, you can configure a name for the DIS in a broadcast network.

Restrictions and guidelines

Follow these guidelines when you configure the mappings:

· To view host names rather than system IDs by using the display isis lsdb command, you must enable dynamic system ID to host name mapping.

· If you configure both dynamic mapping and static mapping on a router, the host name specified for dynamic mapping applies.

Configuring a static system ID to host name mapping

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Configure a system ID to host name mapping for a remote IS.

is-name map sys-id map-sys-name

By default, no system ID to host name mapping is configured for a remote IS.

A system ID can correspond to only one host name.

Configuring dynamic system ID to host name mapping

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Specify a host name for the IS and enable dynamic system ID to host name mapping.

is-name sys-name

By default, dynamic system ID to host name mapping is disabled and no host name is specified for the router.

4. Return to system view.

quit

5. Enter interface view.

interface interface-type interface-number

6. Configure a DIS name.

isis dis-name symbolic-name

By default, no DIS name is configured.

This command takes effect only on a router enabled with dynamic system ID to host name mapping.

This command is not available on P2P interfaces.

Configuring IS-IS logging and SNMP notifications

Enabling the logging of neighbor state changes

About this task

With this feature enabled, the router delivers logs about neighbor state changes to its information center. The information center processes the logs according to user-defined output rules (whether to output logs and where to output). For more information about the information center, see information center configuration in System Management Configuration Guide.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enable the logging of neighbor state changes.

log-peer-change

By default, the logging of neighbor state changes is enabled.

Configuring IS-IS network management

About this task

This task includes the following configurations:

· Bind an IS-IS process to MIB so that you can use network management software to manage the specified IS-IS process.

· Enable IS-IS notifications to report important events.

To report critical IS-IS events to an NMS, enable SNMP notifications for IS-IS. For SNMP notifications to be sent correctly, you must also configure SNMP on the device. For more information about SNMP configuration, see the network management and monitoring configuration guide for the device.

Procedure

1. Enter system view.

system-view

2. Bind MIB to an IS-IS process.

isis mib-binding process-id

By default, MIB is bound to the IS-IS process with the smallest process ID.

3. Enable IS-IS notification sending.

By default, IS-IS notification sending is enabled.

4. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

5. Configure the context name for the SNMP object for managing IS-IS.

snmp context-name context-name

By default, no context name is set for the SNMP object for managing IS-IS.

Configuring IS-IS fast convergence

Enabling ISPF

About this task

When the network topology changes, Incremental Shortest Path First (ISPF) computes only the affected part of the SPT, instead of the entire SPT.

Enabling IPv4 IS-IS ISPF

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enable IPv4 IS-IS ISPF.

ispf enable

By default, IPv4 IS-IS ISPF is enabled.

Enabling IPv6 IS-IS ISPF

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IPv6 address family view.

address-family ipv6 [ unicast ]

4. Enable IPv6 IS-IS ISPF.

ispf enable

By default, IPv6 IS-IS ISPF is enabled.

Enabling prefix suppression

About this task

Perform this task to disable an interface from advertising its prefix in LSPs. This enhances network security by preventing IP routing to the interval nodes and speeds up network convergence.

Enabling IPv4 IS-IS prefix suppression

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable IPv4 IS-IS prefix suppression on the interface.

isis prefix-suppression

By default, IPv4 IS-IS prefix suppression is disabled on the interface.

This command is also applicable to the secondary IP address of the interface.

Enabling IPv6 IS-IS prefix suppression

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable IPv6 IS-IS prefix suppression on the interface.

isis ipv6 prefix-suppression

By default, IPv6 IS-IS prefix suppression is disabled on the interface.

Configuring IS-IS PIC

About this task

Prefix Independent Convergence (PIC) enables the device to speed up network convergence by ignoring the number of prefixes.

Restrictions and guidelines for IS-IS PIC

Follow these restrictions and guidelines when you configure IS-IS PIC:

· When both IS-IS PIC and IS-IS FRR are configured, IS-IS FRR takes effect.

· IS-IS PIC applies only to LSPs sent by neighbors.

Enabling IS-IS PIC

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enable PIC for IS-IS.

pic [ additional-path-always ]

By default, IS-IS PIC is enabled.

Enabling BFD control packet mode for IS-IS PIC

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable BFD control packet mode for IS-IS PIC.

isis primary-path-detect bfd ctrl

By default, BFD control packet mode is disabled for IS-IS PIC.

To use BFD (control packet mode) to detect primary link failures, you must enable BFD control packet mode on both ends of the link.

Enabling BFD echo packet mode for IS-IS PIC

1. Enter system view.

system-view

2. (Optional.) Configure the source IP address of BFD echo packets.

bfd echo-source-ip ip-address

By default, the source IP address of BFD echo packets is not configured.

To avoid network congestion caused by a large number of ICMP redirect packets from neighbors, use this command. The source IP address cannot be on the same network segment as any local interface's IP address.

For more information, see High Availability Command Reference.

3. Enter interface view.

interface interface-type interface-number

4. Enable BFD echo packet mode for IS-IS PIC.

isis primary-path-detect bfd echo

By default, BFD echo packet mode is disabled for IS-IS PIC.

To use BFD (echo packet mode) to detect primary link failures, you only need to enable BFD echo packet mode on one end of the link.

Enhancing IS-IS network security

To enhance the security of an IS-IS network, you can configure IS-IS authentication. IS-IS authentication involves neighbor relationship authentication, area authentication, and routing domain authentication.

Configuring neighbor relationship authentication

About this task

With neighbor relationship authentication configured, an interface adds the key in the specified mode into hello packets to the peer and checks the key in the received hello packets. If the authentication succeeds, it forms the neighbor relationship with the peer.

The authentication mode and key at both ends must be identical.

To prevent packet exchange failure in case of an authentication key change, configure the interface not to check the authentication information in the received packets.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Specify the authentication mode and key.

isis [ process-id process-id ] authentication-mode { { gca key-id { hmac-sha-1 | hmac-sha-224 | hmac-sha-256 | hmac-sha-384 | hmac-sha-512 } [ nonstandard ] | md5 | simple } { cipher | plain } string } [ level-1 | level-2 ] [ ip | osi ]

By default, the authentication mode and key are not configured.

4. (Optional.) Configure the interface not to check the authentication information in the received hello packets.

isis authentication send-only [ level-1 | level-2 ]

When the authentication mode and key are configured, the interface checks the authentication information in the received packets by default.

Configuring area authentication

About this task

Area authentication prevents the router from installing routing information from untrusted routers into the Level-1 LSDB. The router encapsulates the authentication key in the specified mode in Level-1 packets (LSP, CSNP, and PSNP). It also checks the key in received Level-1 packets.

Routers in a common area must have the same authentication mode and key.

To prevent packet exchange failure in case of an authentication key change, configure IS-IS not to check the authentication information in the received packets.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Specify the area authentication mode and key.

area-authentication-mode { { gca key-id { hmac-sha-1 | hmac-sha-224 | hmac-sha-256 | hmac-sha-384 | hmac-sha-512 } [ nonstandard ] | md5 | simple } { cipher | plain } string } [ ip | osi ]

By default, the area authentication mode and key are not configured.

4. (Optional.) Configure the interface not to check the authentication information in the received Level-1 packets, including LSPs, CSNPs, and PSNPs.

area-authentication send-only

When the authentication mode and key are configured, the interface checks the authentication information in the received packets by default.

Configuring routing domain authentication

About this task

Routing domain authentication prevents untrusted routing information from entering into a routing domain. A router with the authentication configured encapsulates the key in the specified mode into Level-2 packets (LSP, CSNP, and PSNP) and check the key in received Level-2 packets.

To prevent packet exchange failure in case of an authentication key change, configure IS-IS not to check the authentication information in the received packets.

Restrictions and guidelines

A router configured with routing domain authentication can establish neighbor relationships with routers not configured with routing domain authentication, but it will discard LSPs not carrying the authentication information. In this situation, IS-IS might fail to learn the expected routes. To resolve this issue, configure the same authentication mode and key on all routers in the backbone area.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Specify the routing domain authentication mode and key.

domain-authentication-mode { { gca key-id { hmac-sha-1 | hmac-sha-224 | hmac-sha-256 | hmac-sha-384 | hmac-sha-512 } [ nonstandard ] | md5 | simple } { cipher | plain } string } [ ip | osi ]

By default, the routing domain authentication mode and key are not configured.

4. (Optional.) Configure the interface not to check the authentication information in the received Level-2 packets, including LSPs, CSNPs, and PSNPs.

domain-authentication send-only

When the authentication mode and key are configured, the interface checks the authentication information in the received packets by default.

Configuring IS-IS GR

About this task

GR ensures forwarding continuity when a routing protocol restarts or an active/standby switchover occurs.

Two routers are required to complete a GR process. The following are router roles in a GR process.

· GR restarter—Graceful restarting router. It must have GR capability.

· GR helper—A neighbor of the GR restarter. It assists the GR restarter to complete the GR process. By default, the device acts as the GR helper.

Configure IS-IS GR on the GR restarter.

GR restarter uses the following timers:

· T1 timer—Specifies the times that GR restarter can send a Restart TLV with the RR bit set. When rebooted, the GR restarter sends a Restart TLV with the RR bit set to its neighbor. If the GR restarter receives a Restart TLV with the RA set from its neighbor before the T1 timer expires, the GR process starts. Otherwise, the GR process fails.

· T2 timer—Specifies the LSDB synchronization interval. Each LSDB has a T2 timer. The Level-1-2 router has a Level-1 timer and a Level-2 timer. If the LSDBs have not synchronized before the two timers expire, the GR process fails.

· T3 timer—Specifies the GR interval. The GR interval is set as the holdtime in hello PDUs. Within the interval, the neighbors maintain their adjacency with the GR restarter. If the GR process has not completed within the holdtime, the neighbors tear down the neighbor relationship and the GR process fails.

Restrictions and guidelines

Follow these restrictions and guidelines when you configure IS-IS GR:

· The product of the T1 timer and the number of times that the T1 timer can expire must be smaller than the T2 timer.

· The T2 timer must be smaller than the T3 timer.

Procedure

1. Enter system view.

system-view

2. Enable IS-IS and enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enable IS-IS GR.

graceful-restart

By default, the GR capability for IS-IS is disabled.

4. (Optional.) Suppress the SA bit during restart.

graceful-restart suppress-sa

By default, the SA bit is not suppressed.

By enabling the GR restarter to suppress the Suppress-Advertisement (SA) bit in the hello PDUs, the neighbors will still advertise their adjacency with the GR restarter.

5. (Optional.) Configure the T1 timer.

graceful-restart t1 seconds count count

By default, the T1 timer is 3 seconds and can expire 10 times.

6. (Optional.) Configure the T2 timer.

graceful-restart t2 seconds

By default, the T2 timer is 60 seconds.

7. (Optional.) Configure the T3 timer.

graceful-restart t3 seconds

By default, the T2 timer is 300 seconds.

Configuring BFD for IS-IS

Enabling BFD for IS-IS

About this task

IS-IS exchanges hello packets at specific intervals with its neighbors to detect neighbor state changes. If IS-IS does not receive any hello packets from a neighbor within the advertised neighbor relationship hold time, it considers the neighbor down and recalculates the routes. The hold time is the hello multiplier multiplied by the hello interval and the default hold time is 30 seconds. This mechanism is not efficient at neighbor state change detection. Serious packet loss might occur when a neighbor goes down.

To resolve this issue, perform this task to enable BFD for IS-IS. BFD provides a single mechanism to quickly detect and monitor the connectivity of links between IS-IS neighbors, reducing network convergence time. For more information about BFD, see High Availability Configuration Guide.

Restrictions and guidelines

You can use the bfd all-interfaces enable, isis bfd enable, or isis ipv6 bfd enable command to enable IS-IS BFD. These commands are different as follows:

· The bfd all-interfaces enable command takes effect on all interfaces in an IPv4 or IPv6 IS-IS process. To disable BFD on an interface in the IS-IS process, use the isis bfd exclude or isis ipv6 bfd exclude command on the interface.

· The isis bfd enable and isis ipv6 bfd enable commands take effect only on one IS-IS interface. To enable BFD on an IS-IS interface, perform the following tasks:

a. Make sure the IS-IS process to which the interface belongs is not enabled with BFD session state-based interface cost adjustment.

You can use the undo bfd all-interfaces enable command to disable BFD for an IS-IS process.

b. Use the isis bfd enable or isis ipv6 bfd enable command to enable BFD on the IS-IS interface.

Configuring BFD for an IS-IS process

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IPv4 address family view or IPv6 address family view.

¡ Enter IPv4 address family view.

address-family ipv4 [ unicast ]

¡ Enter IPv6 address family view.

address-family ipv6 [ unicast ]

4. Enable BFD for the IS-IS process.

bfd all-interfaces enable

By default, BFD is disabled for an IS-IS process.

5. (Optional.) Suppress the BFD capacity of an IPv4 IS-IS interface.

a. Return to IS-IS view.

quit

b. Return to system view.

quit

c. Enter interface view.

interface interface-type interface-number

d. Suppress the BFD capacity of the IS-IS interface.

IPv4:

isis bfd exclude

IPv6:

isis ipv6 bfd exclude

By default, the BFD capacity of an IS-IS interface is not suppressed.

Configuring BFD on an IS-IS interface

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable BFD on an IPv4 IS-IS interface.

¡ IPv4:

isis bfd enable

By default, the IPv4 IS-IS interface inherits the configuration of the bfd all-interfaces enable command in IS-IS IPv4 unicast address family view.

¡ IPv6:

isis ipv6 bfd enable

By default, the IPv6 IS-IS interface inherits the configuration of the bfd all-interfaces enable command in IS-IS IPv6 unicast address family view.

Enabling IS-IS to adjust the interface cost according to the BFD session state

About this task

After you enable BFD for IS-IS link failure detection, IS-IS neighbor relationship flapping will occur upon frequent BFD session state changes. The running of services (such as BGP) that rely on IPv4 IS-IS might be interrupted. To resolve this issue, enable IS-IS to adjust the interface cost according to the BFD session state. IS-IS will adjust the cost value for an interface as follows to ensure fast route convergence against link state changes:

· When the BFD session on the interface goes down, IS-IS increases the cost value for the interface.

· When the BFD session on the interface comes up again, IS-IS restores the cost value for the interface to the original value.

Restrictions and guidelines

This task can take effect on an IS-IS interface only when BFD is enabled on the interface.

You can use one of the following commands to enable IS-IS to adjust the interface cost according to the BFD session state:

· bfd all-interfaces adjust-cost

· isis bfd adjust-cost

· isis ipv6 bfd adjust-cost

These commands are different as follows:

· The bfd all-interfaces adjust-cost command takes effect on all interfaces in an IPv4 or IPv6 IS-IS process. To disable this feature on an interface in that IS-IS process, use the isis bfd adjust-cost exclude or isis ipv6 bfd adjust-cost exclude command on the interface.

· The isis bfd adjust-cost and isis ipv6 bfd adjust-cost commands take effect only on one IS-IS interface. For IS-IS to adjust the cost value for a single interface according to the BFD session state, perform the following tasks:

a. Make sure the IS-IS process to which the interface belongs is not enabled with BFD session state-based interface cost adjustment.

You can use the undo bfd all-interfaces adjust-cost command to disable this feature for an IS-IS process.

b. Use the isis bfd adjust-cost or isis ipv6 bfd adjust-cost command to enable this feature on the interface.

· For an IS-IS interface, the isis bfd adjust-cost or isis ipv6 bfd adjust-cost command takes precedence over the bfd all-interfaces adjust-cost command. The interface uses the configuration of the bfd all-interfaces adjust-cost command only when you do not execute the isis bfd adjust-cost or isis ipv6 bfd adjust-cost command on that interface.

Enabling BFD session state-based interface cost adjustment for an IS-IS process

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IPv4 address family view or IPv6 address family view.

¡ Enter IPv4 address family view.

address-family ipv4 [ unicast ]

¡ Enter IPv6 address family view.

address-family ipv6 [ unicast ]

4. Enable BFD session state-based interface cost adjustment for the IS-IS process and set the interface cost adjustment value.

bfd all-interfaces adjust-cost { cost-offset | max }

By default, BFD session state-based interface cost adjustment is disabled for an IS-IS process.

5. (Optional.) Suppress BFD session state-based interface cost adjustment on an IS-IS interface.

a. Return to IS-IS view.

quit

b. Return to system view.

quit

c. Enter interface view.

interface interface-type interface-number

d. Suppress BFD session state-based interface cost adjustment on the IS-IS interface.

IPv4:

isis bfd adjust-cost exclude

By default, IPv4 IS-IS can adjust the cost value for an interface according to the BFD session state.

IPv6:

isis ipv6 bfd adjust-cost exclude

By default, IPv6 IS-IS can adjust the cost value for an interface according to the BFD session state.

Enabling BFD session state-based interface cost adjustment on an IS-IS interface

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable BFD session state-based interface cost adjustment on the IS-IS interface and set the interface cost adjustment value.

¡ IPv4:

isis bfd adjust-cost { cost-offset | max }

By default, the IPv4 IS-IS interface inherits the configuration of the bfd all-interfaces adjust-cost command in IS-IS IPv4 unicast address family view.

¡ IPv6:

isis ipv6 bfd adjust-cost { cost-offset | max }

By default, the IPv6 IS-IS interface inherits the configuration of the bfd all-interfaces adjust-cost command in IS-IS IPv6 unicast address family view.

Controlling adjacency establishment and maintenance based on BFD session state

About this task

When BFD detects a Layer 3 forwarding failure between two routers, the BFD session goes down, which causes the IS-IS adjacency to go down. If Layer 2 forwarding is still available, the routers can exchange IS-IS packets and re-establish the adjacency, which might cause traffic loss.

To avoid the issue, enable this feature on the BFD-enabled interfaces of the local and remote routers, enabling the interfaces to carry BFD-enabled TLVs in hello packets. After the BFD session goes down, the routers do not establish an adjacency if the exchanged BFD-enabled TLVs are identical.

If two IS-IS routers establish both IPv4 and IPv6 adjacency relationships, the following rules apply:

· If route calculation is not performed separately for the IPv4 and IPv6 topologies, the IPv4 or IPv6 adjacency relationship is up only when both the IPv4 and IPv6 BFD sessions are up.

· If route calculation is performed separately for the IPv4 and IPv6 topologies, the IPv4 or IPv6 adjacency relationship is up when the corresponding IPv4 or IPv6 BFD session is up.

If two IS-IS routers establish only an IPv4 or IPv6 adjacency relationship, the adjacency relationship is up when the corresponding IPv4 or IPv6 BFD session is up.

For more information about BFD, see BFD configuration in High Availability Configuration Guide.

Restrictions and guidelines

This task can take effect on an IS-IS interface only when BFD is enabled on the interface.

You can use one of the following commands to enable BFD session state-based control of IS-IS adjacency establishment and maintenance:

· bfd all-interfaces session-restrict-adj

· isis bfd session-restrict-adj

· isis ipv6 bfd session-restrict-adj

These commands are different as follows:

· The bfd all-interfaces session-restrict-adj command takes effect on all interfaces in an IPv4 or IPv6 IS-IS process. To disable this feature on an interface in that IS-IS process, use the isis bfd session-restrict-adj exclude or isis ipv6 bfd session-restrict-adj exclude command on the interface.

· The isis bfd session-restrict-adj and isis ipv6 bfd session-restrict-adj commands take effect only on one IS-IS interface. To enable BFD session state-based control of IS-IS adjacency establishment and maintenance on a single IS-IS interface, perform the following tasks:

a. Make sure the IS-IS process to which the IS-IS interface belongs is not enabled with BFD session state-based control of adjacency establishment and maintenance.

You can use the undo bfd all-interfaces session-restrict-adj command to disable this feature for an IS-IS process.

b. Use the isis bfd session-restrict-adj or isis ipv6 bfd session-restrict-adj command to enable this feature on the IS-IS interface.

Enabling BFD session state-based control of IS-IS adjacency establishment and maintenance for an IS-IS process

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IPv4 address family view or IPv6 address family view.

¡ Enter IPv4 address family view.

address-family ipv4 [ unicast ]

¡ Enter IPv6 address family view.

address-family ipv6 [ unicast ]

4. Enable BFD session state-based control of IS-IS adjacency establishment and maintenance for the IS-IS process.

bfd all-interfaces session-restrict-adj

By default, BFD session state-based control of IS-IS adjacency establishment and maintenance is disabled for an IS-IS process.

5. (Optional.) Suppress BFD session state-based control of IS-IS adjacency establishment and maintenance on an IS-IS interface.

a. Return to IS-IS view.

quit

b. Return to system view.

quit

c. Enter interface view.

interface interface-type interface-number

d. Suppress BFD session state-based control of IS-IS adjacency establishment and maintenance on the IS-IS interface.

IPv4:

isis bfd session-restrict-adj exclude

By default, BFD session state-based control of IS-IS adjacency establishment and maintenance is not suppressed on an IPv4 IS-IS interface.

IPv6:

isis ipv6 bfd session-restrict-adj exclude

By default, BFD session state-based control of IS-IS adjacency establishment and maintenance is not suppressed on an IPv6 IS-IS interface.

Enabling BFD session state-based control of IS-IS adjacency establishment and maintenance on an IS-IS interface

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. (Optional.) Enable IS-IS BFD on the interface.

¡ IPv4:

isis bfd enable

By default, the IPv4 IS-IS interface inherits the configuration of the bfd all-interfaces enable command in IS-IS IPv4 unicast address family view.

¡ IPv6:

isis ipv6 bfd enable

By default, the IPv6 IS-IS interface inherits the configuration of the bfd all-interfaces enable command in IS-IS IPv6 unicast address family view.

4. Enable BFD session state-based control of IS-IS adjacency establishment and maintenance on the IS-IS interface.

¡ IPv4:

isis bfd session-restrict-adj

By default, the IPv4 IS-IS interface inherits the configuration of the bfd all-interfaces session-restrict-adj command in IS-IS IPv4 unicast address family view.

¡ IPv6:

isis ipv6 bfd session-restrict-adj

By default, the IPv6 IS-IS interface inherits the configuration of the bfd all-interfaces session-restrict-adj command in IS-IS IPv6 unicast address family view.

Configuring IS-IS FRR

About IS-IS FRR

IS-IS Fast Reroute (FRR) calculates a backup path based on the LSDB and saves the backup path information to the FIB. When the primary path fails, the system immediately switches traffic to the backup path to prevent traffic loss and reduce the route convergence time.

IS-IS supports only Loop Free Alternate (LFA) FRR.

Configuring IS-IS LFA FRR

About this task

A link or router failure on a path can cause packet loss. IS-IS LFA FRR enables fast rerouting to minimize the failover time.

Figure 9 Network diagram for IS-IS LFA FRR

In Figure 9, after you enable LFA FRR on Router B, IS-IS automatically calculates or designates a backup next hop when a link failure is detected. In this way, packets are directed to the backup next hop to reduce traffic recovery time. Meanwhile, IS-IS calculates the shortest path based on the new network topology, and forwards packets over the path after network convergence.

When a primary link failure occurs, BFD can detect and report the link failure to IS-IS for a primary-backup path switchover. This can shorten the duration of service interruption.

You can assign a backup next hop for IS-IS FRR through the following ways:

· Enable IS-IS LFA FRR to calculate a backup next hop through LFA calculation.

· Designate a backup next hop with a routing policy for routes matching specific criteria.

Restrictions and guidelines

To enable BFD-powered primary link failure detection for IS-IS FRR, you can use the fast-reroute primary-path-detect bfd , isis primary-path-detect bfd, or isis ipv6 primary-path-detect bfd command.

These commands are different as follows:

· The fast-reroute primary-path-detect bfd command takes effect on all interfaces in an IPv4 or IPv6 IS-IS process. To disable this feature on an interface in that IS-IS process, use the isis primary-path-detect bfd exclude or isis ipv6 primary-path-detect bfd exclude command on the interface.

· The isis primary-path-detect bfd and isis ipv6 primary-path-detect bfd commands take effect only on one IS-IS interface. To enable BFD-powered primary link failure detection on a single IS-IS interface, perform the following tasks:

a. Make sure the IS-IS process to which the IS-IS interface belongs is not enabled with BFD-powered primary link failure detection.

You can use the undo fast-reroute primary-path-detect bfd command to disable this feature for an IS-IS process.

b. Use the isis primary-path-detect bfd or isis ipv6 primary-path-detect bfd command to enable this feature on the IS-IS interface.

Configuring IS-IS LFA FRR to calculate a backup next hop through LFA calculation

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. (Optional.) Disable LFA calculation on the interface.

¡ IPv4:

isis fast-reroute lfa-backup exclude [ level-1 | level-2 ]

By default, the IPv4 IS-IS interface participates in LFA calculation, and can be elected as a backup interface.

¡ IPv6:

isis ipv6 fast-reroute lfa-backup exclude [ level-1 | level-2 ]

By default, the IPv6 IS-IS interface participates in LFA calculation, and can be elected as a backup interface.

4. Return to system view.

quit

5. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

6. Enter IPv4 address family view or IPv6 address family view.

¡ Enter IPv4 address family view.

address-family ipv4 [ unicast ]

¡ Enter IPv6 address family view.

address-family ipv6 [ unicast ]

7. Enable IS-IS FRR to calculate a backup next hop through LFA calculation.

fast-reroute lfa [ level-1 | level-2 ]

By default, IS-IS FRR is disabled.

Configuring LFA IS-IS FRR using a routing policy

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. (Optional.) Disable LFA calculation on the interface.

¡ IPv4:

isis fast-reroute lfa-backup exclude [ level-1 | level-2 ]

By default, the IPv4 IS-IS interface participates in LFA calculation, and can be elected as a backup interface.

¡ IPv6

isis ipv6 fast-reroute lfa-backup exclude [ level-1 | level-2 ]

By default, the IPv6 IS-IS interface participates in LFA calculation, and can be elected as a backup interface.

4. Return to system view.

quit

5. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

6. Enter IPv4 address family view or IPv6 address family view.

¡ Enter IPv4 address family view.

address-family ipv4 [ unicast ]

¡ Enter IPv6 address family view.

address-family ipv6 [ unicast ]

7. Enable IPv4 IS-IS FRR using a routing policy.

¡ Create a routing policy and specify a backup next hop.

apply fast-reroute backup-interface

For more information about the apply fast-reroute backup-interface command and routing policy, see Layer 3—IP Routing Configuration Guide.

¡ Configure IPv4 IS-IS FRR.

fast-reroute route-policy route-policy-name

By default, IPv4 IS-IS FRR is disabled.

Enabling BFD-powered primary link failure detection for an IS-IS process

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IPv4 address family view or IPv6 address family view.

¡ Enter IPv4 address family view.

address-family ipv4 [ unicast ]

¡ Enter IPv6 address family view.

address-family ipv6 [ unicast ]

4. Enable BFD-powered primary link failure detection for the IS-IS process.

fast-reroute primary-path-detect bfd { ctrl | echo }

By default, BFD-powered primary link failure detection is disabled for an IS-IS process.

To use BFD (echo packet mode) to detect primary link failures, configure the source IP address of BFD echo packets by using the bfd echo-source-ip or bfd echo-source-ipv6 command.

5. (Optional.) Suppress BFD-powered primary link failure detection on an IS-IS interface.

a. Return to IS-IS view.

quit

b. Return to system view.

quit

c. Enter interface view.

interface interface-type interface-number

d. Suppress BFD-powered primary link failure detection on the IS-IS interface.

IPv4:

isis primary-path-detect bfd exclude

By default, BFD-powered primary link failure detection is not suppressed on an IPv4 IS-IS interface.

IPv6:

isis ipv6 primary-path-detect bfd exclude

By default, BFD-powered primary link failure detection is not suppressed on an IPv6 IS-IS interface.

Enabling BFD-powered primary link failure detection on an IS-IS interface

1. Enter system view.

system-view

2. Enter interface view.

interface interface-type interface-number

3. Enable BFD-powered primary link failure detection on the IS-IS interface.

¡ IPv4:

isis primary-path-detect bfd { ctrl | echo }

By default, the IPv4 IS-IS interface inherits the configuration of the fast-reroute primary-path-detect bfd command in IS-IS IPv4 unicast address family view.

¡ IPv6:

isis ipv6 primary-path-detect bfd { ctrl | echo }

By default, the IPv6 IS-IS interface inherits the configuration of the fast-reroute primary-path-detect bfd command in IS-IS IPv6 unicast address family view.

To use BFD (echo packet mode) to detect primary link failures, configure the source IP address of BFD echo packets by using the bfd echo-source-ip or bfd echo-source-ipv6 command.

To use BFD (control packet mode) to detect primary link failures, you must enable BFD control packet mode on both ends of the link.

Setting the priority for FRR backup path selection policies

About this task

IS-IS FRR uses specific policies for backup path calculation. The fast-reroute tiebreaker command defines the priority for the backup path selection policy. The higher the value, the higher the priority of the associated backup path selection policy. Changing the backup path selection policy priority can affect the backup path calculation result for IS-IS FRR. The backup paths can provide node protection or link protection for traffic, or provide both node protection and link protection.

IS-IS FRR supports the following backup path selection policies that are used to generate different topologies for backup path calculation:

· Node protection—IS-IS FRR performs backup path calculation after excluding the primary next hop node.

· Lowest cost—IS-IS FRR performs backup path calculation after excluding the direct primary link.

· SRLG disjoint—When one link in the SRLG fails, the other links in the SRLG might also fail. If you use a link in this SRLG as the backup link for the faulty link, protection does not take effect. To avoid this issue, IS-IS FRR excludes the local links in the same SRLG as the direct primary link and then performs backup path calculation.

For IS-IS FRR, the SRLG disjoint policy depends on the node protection and lowest cost policies.

If multiple backup path selection policies exist in an IS-IS process, the policy with the highest priority is used to calculate the backup path. If the policy fails to calculate the backup path, another policy with higher priority is used. IS-IS performs backup path calculation by using the node protection and lowest cost policies as follows:

· If the node protection policy has higher priority and fails to calculate the backup path, IS-IS uses the lowest cost policy to calculate the backup path. If the lowest cost policy still fails to calculate the backup path, reliability cannot be ensured upon primary link failure.

· If the lowest cost policy has higher priority and fails to calculate the backup path, IS-IS does not perform further backup path calculation with the node protection policy. Reliability cannot be ensured upon primary link failure.

Table 4 shows the backup path selection mechanism for IS-IS FRR based on priorities of backup path selection policies.

Table 4 Backup path selection mechanism for IS-IS FRR

Priorities of link selection policies	Backup path selection mechanism for IS-IS FRR
Node protection > lowest cost > SRLG-disjoint	IS-IS FRR performs calculations based on the node protection and lowest cost policies in descending order of priority. IS-IS FRR performs a maximum of two calculations. If IS-IS FRR obtains a backup path with a link selection policy, it does not perform further calculation.
Node protection > SRLG-disjoint > lowest cost	IS-IS FRR performs calculations based on the node protection, node protection + SRLG-disjoint, lowest cost + SRLG-disjoint, and lowest cost policies in descending order of priority. IS-IS FRR performs a maximum of four calculations. If IS-IS FRR obtains a backup path with a link selection policy, it does not perform further calculation.
SRLG-disjoint > node protection > lowest cost	IS-IS FRR performs calculations based on the node protection + SRLG-disjoint, lowest cost + SRLG-disjoint, node protection, and lowest cost policies in descending order of priority. IS-IS FRR performs a maximum of four calculations. If IS-IS FRR obtains a backup path with a link selection policy, it does not perform further calculation.
Lowest cost > node protection > SRLG-disjoint	IS-IS FRR performs calculations based on the lowest cost policy. IS-IS FRR performs only one calculation.
Lowest cost > SRLG-disjoint > node protection	IS-IS FRR performs calculations based on the lowest cost policy. IS-IS FRR performs only one calculation.
SRLG-disjoint > lowest cost > node protection	IS-IS FRR performs calculations based on the node protection + SRLG-disjoint, lowest cost + SRLG-disjoint, and lowest cost policies in descending order of priority. IS-IS FRR performs a maximum of three calculations. If IS-IS FRR obtains a backup path with a link selection policy, it does not perform further calculation.

Procedure

1. Enter system view.

system-view

2. Enter IS-IS view.

isis [ process-id ] [ vpn-instance vpn-instance-name ]

3. Enter IPv4 address family view or IPv6 address family view.

¡ Enter IPv4 address family view.

address-family ipv4 [ unicast ]

¡ Enter IPv6 address family view.

address-family ipv6 [ unicast ]

4. Set the priority value for a backup path selection policy.

fast-reroute tiebreaker { lowest-cost | node-protecting } preference preference [ level-1 | level-2 ]

By default, the priority values of the node-protection and lowest-cost backup path selection policies are 40 and 20, respectively.

Displaying and maintaining IPv4 IS-IS

Displaying IPv4 IS-IS configuration and running status

Displaying basic IPv4 IS-IS configuration and running status

Perform display tasks in any view.

· Display IS-IS process information.

display isis [ process-id ]

· Display IS-IS interface information.

display isis interface [ [ interface-type interface-number ] [ verbose ] | statistics ] [ process-id ]

· Display IS-IS LSDB information.

· Display IS-IS neighbor information.

display isis peer [ statistics | verbose ] [ process-id ]

· Display IS-IS IPv4 routing information.

display isis route [ ipv4 [ ip-address mask-length ] ] [ [ level-1 | level-2 ] | verbose ] * [ process-id ]

· Display IS-IS IPv4 SPF tree information.

display isis spf-tree [ ipv4 ] [ [ level-1 | level-2 ] | [ source-id source-id | verbose ] ] * [ process-id ]

Displaying IPv4 IS-IS route redistribution configuration

To display IS-IS redistributed IPv4 route information, execute the following command in any view:

display isis redistribute [ ipv4 [ ip-address mask-length ] ] [ level-1 | level-2 ] [ process-id ]

Displaying IPv4 IS-IS LSP flooding limiting configuration

To display IS-IS mesh group information, execute the following command in any view:

display isis mesh-group [ process-id ]

Displaying IPv4 IS-IS system ID-to-host name mapping configuration

To display the host name-to-system ID mapping table information, execute the following command in any view:

display isis name-table [ process-id ]

Displaying IPv4 IS-IS network reliability configuration

Perform display tasks in any view.

· Display IS-IS GR information.

display isis graceful-restart status [ level-1 | level-2 ] [ process-id ]

Displaying and clearing IPv4 IS-IS statistics

Displaying IPv4 IS-IS statistics

Perform display tasks in any view.

· Display global IS-IS statistics.

display isis global-statistics [ public | vpn-instance vpn-instance-name ]

· Display IS-IS LSDB statistics.

display isis lsdb statistics [ level-1 | level-2 ] [ process-id ]

· Display IS-IS packet statistics.

display isis packet { csnp | hello | lsp | psnp } [ verbose ] [ interface-type interface-number ] [ process-id ]

· Display IS-IS statistics.

display isis statistics [ ipv4 ] [ level-1 | level-1-2 | level-2 ] [ process-id ]

Clearing IPv4 IS-IS statistics

To clear IS-IS packet statistics, execute the following command in user view:

reset isis packet [ csnp | hello | lsp | psnp ] by-interface [ interface-type interface-number ] [ process-id ]

Displaying and clearing IPv4 IS-IS log information

Displaying IPv4 IS-IS log information

Perform display tasks in any view.

· Display IS-IS GR log information.

display isis event-log graceful-restart slot slot-number

· Display IS-IS IPv4 route calculation log information.

display isis event-log spf [ ipv4 ] [ [ level-1 | level-2 ] | verbose ] * [ process-id ]

· Display IS-IS LSP log information.

display isis event-log lsp { purged | refreshed } [ level-1 | level-2 ] [ process-id ]

Clearing IPv4 IS-IS log information

Perform clear tasks in user view.

· Clear IS-IS GR log information.

reset isis event-log graceful-restart slot slot-number

· Clear IS-IS IPv4 route calculation log information.

reset isis event-log spf [ process-id ]

· Clear IS-IS LSP log information.

reset isis event-log lsp { purged | refreshed } [ process-id ]

Maintaining IPv4 IS-IS

Displaying IPv4 IS-IS OSI connection information and statistics

Perform display tasks in any view.

· Display OSI connection information.

display osi [ slot slot-number ]

· Display OSI connection statistics.

display osi statistics [ slot slot-number ]

Clearing IPv4 IS-IS data structure information and OSI statistics

Perform clear tasks in user view.

· Clear IS-IS process data structure information.

reset isis all [ process-id ] [ graceful-restart ]

This command will terminate all IS-IS neighbor relationships. Use this command when LSPs must be updated immediately.

· Clear data structure information about an IS-IS neighbor.

reset isis peer system-id [ process-id ]

Use this command when you re-establish an IS-IS neighbor relationship.

· Clear OSI connection statistics.

reset osi statistics

Displaying and maintaining IPv6 IS-IS

Displaying IPv6 IS-IS configuration and running status

Displaying basic IPv6 IS-IS configuration and running status

Perform display tasks in any view.

· Display IS-IS process information.

display isis [ process-id ]

· Display IS-IS interface information.

display isis interface [ [ interface-type interface-number ] [ verbose ] | statistics ] [ process-id ]

· Display IS-IS LSDB information.

· Display IS-IS neighbor information.

display isis peer [ statistics | verbose ] [ process-id ]

· Display IS-IS IPv6 routing information.

display isis route ipv6 [ ipv6-address ] [ [ level-1 | level-2 ] | verbose ] * [ process-id ]

· Display IS-IS IPv6 SPF tree information.

display isis spf-tree ipv6 [ [ level-1 | level-2 ] | verbose ] * [ process-id ]

Displaying IPv6 IS-IS route redistribution configuration

To display IS-IS redistributed IPv6 route information, execute the following command in any view:

display isis redistribute ipv6 [ ipv6-address mask-length ] [ level-1 | level-2 ] [ process-id ]

Displaying IPv6 IS-IS LSP flooding limiting configuration

To display IS-IS mesh group information, execute the following command in any view:

display isis mesh-group [ process-id ]

Displaying IPv6 IS-IS system ID-to-host name mapping configuration

To display the host name-to-system ID mapping table information, execute the following command in any view:

display isis name-table [ process-id ]

Displaying and clearing IPv6 IS-IS information

Displaying IPv6 IS-IS information

Perform display tasks in any view.

· Display IS-IS LSDB statistics.

display isis lsdb statistics [ level-1 | level-2 ] [ process-id ]

· Display IS-IS packet statistics.

display isis packet { csnp | hello | lsp | psnp } [ verbose ] [ interface-type interface-number ] [ process-id ]

· Display IPv6 IS-IS statistics.

display isis statistics ipv6 [ level-1 | level-1-2 | level-2 ] [ process-id ]

· Display global IS-IS statistics.

display isis global-statistics [ public | vpn-instance vpn-instance-name ]

Clearing IPv6 IS-IS statistics

To clear IS-IS packet statistics, execute the following command in user view:

reset isis packet [ csnp | hello | lsp | psnp ] by-interface [ interface-type interface-number ] [ process-id ]

Displaying and clearing IPv6 IS-IS log information

Displaying IPv6 IS-IS log information

Perform display tasks in any view.

· Display IPv6 IS-IS route calculation log information.

display isis event-log spf ipv6 [ [ level-1 | level-2 ] | verbose ] * [ process-id ]

· Display IPv6 IS-IS LSP log information.

display isis event-log lsp { purged | refreshed } [ level-1 | level-2 ] [ process-id ]

Clearing IPv6 IS-IS log information

Perform clear tasks in user view.

· Clear IPv6 IS-IS route calculation log information.

reset isis event-log spf [ process-id ]

· Clear IPv6 IS-IS LSP log information.

reset isis event-log lsp { purged | refreshed } [ process-id ]

Maintaining IPv6 IS-IS

Displaying OSI connection information and statistics

Perform display tasks in user view.

· Display OSI connection information.

display osi [ slot slot-number ]

· Display OSI connection statistics.

display osi statistics [ slot slot-number ]

Clearing IPv6 IS-IS data structure information and OSI statistics

Perform clear tasks in user view.

· Clear IS-IS process data structure information.

reset isis all [ process-id ] [ graceful-restart ]

This command will terminate all IS-IS neighbor relationships. Use this command when LSPs must be updated immediately.

· Clear data structure information about an IS-IS neighbor.

reset isis peer system-id [ process-id ]

Use this command when you re-establish an IS-IS neighbor relationship.

· Clear OSI connection statistics.

reset osi statistics

IS-IS configuration examples

Example: Configuring basic IS-IS

Network configuration

As shown in Figure 10, Switch A, Switch B, Switch C, and Switch D reside in an IS-IS AS.

Switch A and B are Level-1 switches, Switch D is a Level-2 switch, and Switch C is a Level-1-2 switch. Switch A, Switch B, and Switch C are in Area 10, and Switch D is in Area 20.

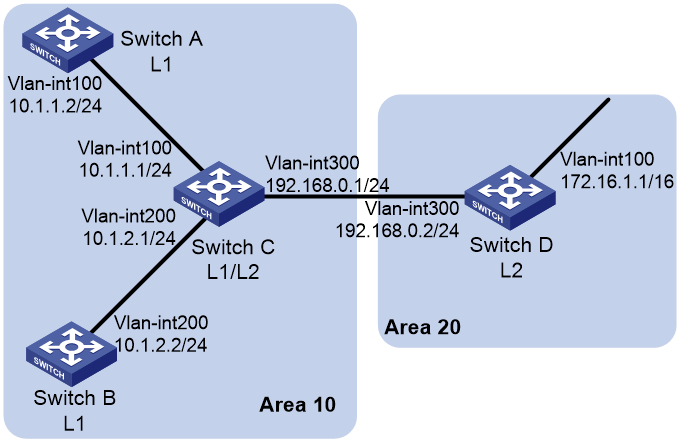

Figure 10 Network diagram

‌

Procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure IS-IS:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] is-level level-1

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] isis enable 1

[SwitchA-Vlan-interface100] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] is-level level-1

[SwitchB-isis-1] network-entity 10.0000.0000.0002.00

[SwitchB-isis-1] quit

[SwitchB] interface vlan-interface 200

[SwitchB-Vlan-interface200] isis enable 1

[SwitchB-Vlan-interface200] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] isis 1

[SwitchC-isis-1] network-entity 10.0000.0000.0003.00

[SwitchC-isis-1] quit

[SwitchC] interface vlan-interface 100

[SwitchC-Vlan-interface100] isis enable 1

[SwitchC-Vlan-interface100] quit

[SwitchC] interface vlan-interface 200

[SwitchC-Vlan-interface200] isis enable 1

[SwitchC-Vlan-interface200] quit

[SwitchC] interface vlan-interface 300

[SwitchC-Vlan-interface300] isis enable 1

[SwitchC-Vlan-interface300] quit

# Configure Switch D.

<SwitchD> system-view

[SwitchD] isis 1

[SwitchD-isis-1] is-level level-2

[SwitchD-isis-1] network-entity 20.0000.0000.0004.00

[SwitchD-isis-1] quit

[SwitchD] interface vlan-interface 100

[SwitchD-Vlan-interface100] isis enable 1

[SwitchD-Vlan-interface100] quit

[SwitchD] interface vlan-interface 300

[SwitchD-Vlan-interface300] isis enable 1

[SwitchD-Vlan-interface300] quit

Verifying the configuration

# Display the IS-IS LSDB on each switch to verify the LSPs.

[SwitchA] display isis lsdb

Database information for IS-IS(1)

---------------------------------

Level-1 Link State Database

---------------------------

LSPID Seq Num Checksum Holdtime Length ATT/P/OL

--------------------------------------------------------------------------

0000.0000.0001.00-00* 0x00000004 0xdf5e 1096 68 0/0/0

0000.0000.0002.00-00 0x00000004 0xee4d 1102 68 0/0/0

0000.0000.0002.01-00 0x00000001 0xdaaf 1102 55 0/0/0

0000.0000.0003.00-00 0x00000009 0xcaa3 1161 111 1/0/0

0000.0000.0003.01-00 0x00000001 0xadda 1112 55 0/0/0

*-Self LSP, +-Self LSP(Extended), ATT-Attached, P-Partition, OL-Overload

[SwitchB] display isis lsdb

Database information for IS-IS(1)

---------------------------------

Level-1 Link State Database

---------------------------

LSPID Seq Num Checksum Holdtime Length ATT/P/OL

--------------------------------------------------------------------------

0000.0000.0001.00-00 0x00000006 0xdb60 988 68 0/0/0

0000.0000.0002.00-00* 0x00000008 0xe651 1189 68 0/0/0

0000.0000.0002.01-00* 0x00000005 0xd2b3 1188 55 0/0/0

0000.0000.0003.00-00 0x00000014 0x194a 1190 111 1/0/0

0000.0000.0003.01-00 0x00000002 0xabdb 995 55 0/0/0

*-Self LSP, +-Self LSP(Extended), ATT-Attached, P-Partition, OL-Overload

[SwitchC] display isis lsdb

Database information for IS-IS(1)

---------------------------------

Level-1 Link State Database

---------------------------

LSPID Seq Num Checksum Holdtime Length ATT/P/OL

--------------------------------------------------------------------------

0000.0000.0001.00-00 0x00000006 0xdb60 847 68 0/0/0

0000.0000.0002.00-00 0x00000008 0xe651 1053 68 0/0/0

0000.0000.0002.01-00 0x00000005 0xd2b3 1052 55 0/0/0

0000.0000.0003.00-00* 0x00000014 0x194a 1051 111 1/0/0

0000.0000.0003.01-00* 0x00000002 0xabdb 854 55 0/0/0

*-Self LSP, +-Self LSP(Extended), ATT-Attached, P-Partition, OL-Overload

Level-2 Link State Database

---------------------------

LSPID Seq Num Checksum Holdtime Length ATT/P/OL

--------------------------------------------------------------------------

0000.0000.0003.00-00* 0x00000012 0xc93c 842 100 0/0/0

0000.0000.0004.00-00 0x00000026 0x331 1173 84 0/0/0

0000.0000.0004.01-00 0x00000001 0xee95 668 55 0/0/0

*-Self LSP, +-Self LSP(Extended), ATT-Attached, P-Partition, OL-Overload

[SwitchD] display isis lsdb

Database information for IS-IS(1)

---------------------------------

Level-2 Link State Database

---------------------------

LSPID Seq Num Checksum Holdtime Length ATT/P/OL

-------------------------------------------------------------------------------

0000.0000.0003.00-00 0x00000013 0xc73d 1003 100 0/0/0

0000.0000.0004.00-00* 0x0000003c 0xd647 1194 84 0/0/0

0000.0000.0004.01-00* 0x00000002 0xec96 1007 55 0/0/0

*-Self LSP, +-Self LSP(Extended), ATT-Attached, P-Partition, OL-Overload

# Display the IS-IS routing information on each switch.

[SwitchA] display isis route

Route information for IS-IS(1)

------------------------------

Level-1 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

10.1.1.0/24 10 NULL Vlan100 Direct D/L/-

10.1.2.0/24 20 NULL Vlan100 10.1.1.1 R/-/-

192.168.0.0/24 20 NULL Vlan100 10.1.1.1 R/-/-

0.0.0.0/0 10 NULL Vlan100 10.1.1.1 R/-/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

[SwitchC] display isis route

Route information for IS-IS(1)

------------------------------

Level-1 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

192.168.0.0/24 10 NULL Vlan300 Direct D/L/-

10.1.1.0/24 10 NULL Vlan100 Direct D/L/-

10.1.2.0/24 10 NULL Vlan200 Direct D/L/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

Level-2 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

192.168.0.0/24 10 NULL D/L/-

10.1.1.0/24 10 NULL D/L/-

10.1.2.0/24 10 NULL D/L/-

172.16.0.0/16 20 NULL Vlan300 192.168.0.2 R/-/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

[SwitchD] display isis route

Route information for IS-IS(1)

------------------------------

Level-2 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

192.168.0.0/24 10 NULL Vlan300 Direct D/L/-

10.1.1.0/24 20 NULL Vlan300 192.168.0.1 R/-/-

10.1.2.0/24 20 NULL Vlan300 192.168.0.1 R/-/-

172.16.0.0/16 10 NULL Vlan100 Direct D/L/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

The output shows that the routing table of Level-1 switches contains a default route with the next hop as the Level-1-2 switch. The routing table of Level-2 switch contains both routing information of Level-1 and Level-2.

Example: Configuring DIS election

Network configuration

As shown in Figure 11, Switches A, B, C, and D reside in IS-IS area 10 on a broadcast network (Ethernet). Switch A and Switch B are Level-1-2 switches, Switch C is a Level-1 switch, and Switch D is a Level-2 switch.

Change the DIS priority of Switch A to make it elected as the Level-1-2 DIS router.

Figure 11 Network diagram

‌

Procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Enable IS-IS:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] isis enable 1

[SwitchA-Vlan-interface100] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] network-entity 10.0000.0000.0002.00

[SwitchB-isis-1] quit

[SwitchB] interface vlan-interface 100

[SwitchB-Vlan-interface100] isis enable 1

[SwitchB-Vlan-interface100] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] isis 1

[SwitchC-isis-1] network-entity 10.0000.0000.0003.00

[SwitchC-isis-1] is-level level-1

[SwitchC-isis-1] quit

[SwitchC] interface vlan-interface 100

[SwitchC-Vlan-interface100] isis enable 1

[SwitchC-Vlan-interface100] quit

# Configure Switch D.

<SwitchD> system-view

[SwitchD] isis 1

[SwitchD-isis-1] network-entity 10.0000.0000.0004.00

[SwitchD-isis-1] is-level level-2

[SwitchD-isis-1] quit

[SwitchD] interface vlan-interface 100

[SwitchD-Vlan-interface100] isis enable 1

[SwitchD-Vlan-interface100] quit

# Display information about IS-IS neighbors on Switch A.

[SwitchA] display isis peer

Peer information for IS-IS(1)

----------------------------

System ID: 0000.0000.0002

Interface: Vlan100 Circuit Id: 0000.0000.0003.01

State: Up HoldTime: 21s Type: L1(L1L2) PRI: 64

System ID: 0000.0000.0003

Interface: Vlan100 Circuit Id: 0000.0000.0003.01

State: Up HoldTime: 27s Type: L1 PRI: 64

System ID: 0000.0000.0002

Interface: Vlan100 Circuit Id: 0000.0000.0004.01

State: Up HoldTime: 28s Type: L2(L1L2) PRI: 64

System ID: 0000.0000.0004

Interface: Vlan100 Circuit Id: 0000.0000.0004.01

State: Up HoldTime: 30s Type: L2 PRI: 64

# Display information about IS-IS interfaces on Switch A.

[SwitchA] display isis interface

Interface information for IS-IS(1)

----------------------------------

Interface: Vlan-interface100

Index IPv4 state IPv6 state Circuit ID MTU Type DIS

00001 Up Down 1 1497 L1/L2 No/No

# Display information about IS-IS interfaces on Switch C.

[SwitchC] display isis interface

Interface information for IS-IS(1)

----------------------------------

Interface: Vlan-interface100

Index IPv4 state IPv6 state Circuit ID MTU Type DIS

00001 Up Down 1 1497 L1/L2 Yes/No

# Display information about IS-IS interfaces on Switch D.

[SwitchD] display isis interface

Interface information for IS-IS(1)

----------------------------------

Interface: Vlan-interface100

Index IPv4 state IPv6 state Circuit ID MTU Type DIS

00001 Up Down 1 1497 L1/L2 No/Yes

The output shows that when the default DIS priority is used, Switch C is the DIS for Level-1, and Switch D is the DIS for Level-2. The pseudonodes of Level-1 and Level-2 are 0000.0000.0003.01 and 0000.0000.0004.01.

#Configure the DIS priority of Switch A.

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] isis dis-priority 100

[SwitchA-Vlan-interface100] quit

# Display IS-IS neighbors on Switch A.

[SwitchA] display isis peer

Peer information for IS-IS(1)

----------------------------

System ID: 0000.0000.0002

Interface: Vlan100 Circuit Id: 0000.0000.0001.01

State: Up HoldTime: 21s Type: L1(L1L2) PRI: 64

System ID: 0000.0000.0003

Interface: Vlan100 Circuit Id: 0000.0000.0001.01

State: Up HoldTime: 27s Type: L1 PRI: 64

System ID: 0000.0000.0002

Interface: Vlan100 Circuit Id: 0000.0000.0001.01

State: Up HoldTime: 28s Type: L2(L1L2) PRI: 64

System ID: 0000.0000.0004

Interface: Vlan100 Circuit Id: 0000.0000.0001.01

State: Up HoldTime: 30s Type: L2 PRI: 64

# Display information about IS-IS interfaces on Switch A.

[SwitchA] display isis interface

Interface information for IS-IS(1)

----------------------------------

Interface: Vlan-interface100

Index IPv4 state IPv6 state Circuit ID MTU Type DIS

00001 Up Down 1 1497 L1/L2 Yes/Yes

The output shows that after the DIS priority configuration, Switch A becomes the DIS for Level-1-2, and the pseudonode is 0000.0000.0001.01.

# Display information about IS-IS neighbors and interfaces on Switch C.

[SwitchC] display isis peer

Peer information for IS-IS(1)

----------------------------

System ID: 0000.0000.0002

Interface: Vlan100 Circuit Id: 0000.0000.0001.01

State: Up HoldTime: 25s Type: L1 PRI: 64

System ID: 0000.0000.0001

Interface: Vlan100 Circuit Id: 0000.0000.0001.01

State: Up HoldTime: 7s Type: L1 PRI: 100

[SwitchC] display isis interface

Interface information for IS-IS(1)

----------------------------------

Interface: Vlan-interface100

Index IPv4 state IPv6 state Circuit ID MTU Type DIS

00001 Up Down 1 1497 L1/L2 No/No

# Display information about IS-IS neighbors and interfaces on Switch D.

[SwitchD] display isis peer

Peer information for IS-IS(1)

----------------------------

System ID: 0000.0000.0001

Interface: Vlan100 Circuit Id: 0000.0000.0001.01

State: Up HoldTime: 9s Type: L2 PRI: 100

System ID: 0000.0000.0002

Interface: Vlan100 Circuit Id: 0000.0000.0001.01

State: Up HoldTime: 28s Type: L2 PRI: 64

[SwitchD] display isis interface

Interface information for IS-IS(1)

----------------------------------

Interface: Vlan-interface100

Index IPv4 state IPv6 state Circuit ID MTU Type DIS

00001 Up Down 1 1497 L1/L2 No/No

Example: Configuring IS-IS route redistribution

Network configuration

As shown in Figure 12, Switch A, Switch B, Switch C, and Switch D reside in the same AS. They use IS-IS to interconnect. Switch A and Switch B are Level-1 routers, Switch D is a Level-2 router, and Switch C is a Level-1-2 router.

Redistribute RIP routes into IS-IS on Switch D.

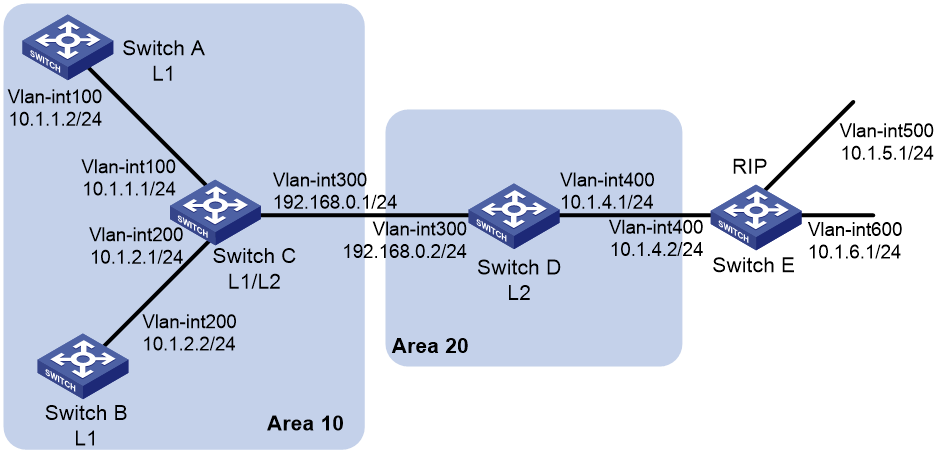

Figure 12 Network diagram

‌

Procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure basic IS-IS:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] is-level level-1

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] isis enable 1

[SwitchA-Vlan-interface100] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] is-level level-1

[SwitchB-isis-1] network-entity 10.0000.0000.0002.00

[SwitchB-isis-1] quit

[SwitchB] interface vlan-interface 200

[SwitchB-Vlan-interface200] isis enable 1

[SwitchB-Vlan-interface200] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] isis 1

[SwitchC-isis-1] network-entity 10.0000.0000.0003.00

[SwitchC-isis-1] quit

[SwitchC] interface vlan-interface 200

[SwitchC-Vlan-interface200] isis enable 1

[SwitchC-Vlan-interface200] quit

[SwitchC] interface vlan-interface 100

[SwitchC-Vlan-interface100] isis enable 1

[SwitchC-Vlan-interface100] quit

[SwitchC] interface vlan-interface 300

[SwitchC-Vlan-interface300] isis enable 1

[SwitchC-Vlan-interface300] quit

# Configure Switch D.

<SwitchD> system-view

[SwitchD] isis 1

[SwitchD-isis-1] is-level level-2

[SwitchD-isis-1] network-entity 20.0000.0000.0004.00

[SwitchD-isis-1] quit

[SwitchD] interface interface vlan-interface 300

[SwitchD-Vlan-interface300] isis enable 1

[SwitchD-Vlan-interface300] quit

[SwitchD] interface interface vlan-interface 400

[SwitchD-Vlan-interface400] isis enable 1

[SwitchD-Vlan-interface400] quit

# Display IS-IS routing information on each switch.

[SwitchA] display isis route

Route information for IS-IS(1)

------------------------------

Level-1 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

10.1.1.0/24 10 NULL Vlan100 Direct D/L/-

10.1.2.0/24 20 NULL Vlan100 10.1.1.1 R/-/-

192.168.0.0/24 20 NULL Vlan100 10.1.1.1 R/-/-

0.0.0.0/0 10 NULL Vlan100 10.1.1.1 R/-/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

[SwitchC] display isis route

Route information for IS-IS(1)

------------------------------

Level-1 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

10.1.1.0/24 10 NULL Vlan100 Direct D/L/-

10.1.2.0/24 10 NULL Vlan200 Direct D/L/-

192.168.0.0/24 10 NULL Vlan300 Direct D/L/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

Level-2 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

10.1.1.0/24 10 NULL D/L/-

10.1.2.0/24 10 NULL D/L/-

10.1.4.0/24 10 NULL D/L/-

192.168.0.0/24 10 NULL D/L/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

[SwitchD] display isis route

Route information for IS-IS(1)

------------------------------

Level-2 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

10.1.1.0/24 20 NULL Vlan300 192.168.0.1 R/-/-

10.1.2.0/24 20 NULL Vlan300 192.168.0.1 R/-/-

10.1.4.0/24 10 NULL Vlan300 Direct D/L/-

192.168.0.0/24 10 NULL Vlan300 Direct D/L/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

3. Run RIPv2 between Switch D and Switch E, and configure IS-IS to redistribute RIP routes on Switch D:

# Configure RIPv2 on Switch D.

[SwitchD] rip 1

[SwitchD-rip-1] network 10.0.0.0

[SwitchD-rip-1] version 2

[SwitchD-rip-1] undo summary

# Configure RIPv2 on Switch E.

[SwitchE] rip 1

[SwitchE-rip-1] network 10.0.0.0

[SwitchE-rip-1] version 2

[SwitchE-rip-1] undo summary

# Configure IS-IS to redistribute RIP routes on Switch D.

[SwitchD-rip-1] quit

[SwitchD] isis 1

[SwitchD–isis-1] address-family ipv4

[SwitchD–isis-1-ipv4] import-route rip level-2

# Display IS-IS routing information on Switch C.

[SwitchC] display isis route

Route information for IS-IS(1)

------------------------------

Level-1 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

10.1.1.0/24 10 NULL Vlan100 Direct D/L/-

10.1.2.0/24 10 NULL Vlan200 Direct D/L/-

192.168.0.0/24 10 NULL Vlan300 Direct D/L/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

Level-2 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

10.1.1.0/24 10 NULL D/L/-

10.1.2.0/24 10 NULL D/L/-

192.168.0.0/24 10 NULL D/L/-

10.1.4.0/24 20 NULL VLAN300 192.168.0.2 R/L/-

10.1.5.0/24 10 0 VLAN300 192.168.0.2 R/L/-

10.1.6.0/24 10 0 VLAN300 192.168.0.2 R/L/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

Example: Configuring IS-IS authentication

Network configuration

As shown in Figure 13, Switch A, Switch B, Switch C, and Switch D reside in the same IS-IS routing domain. Run IS-IS among them.

Switch A, Switch B, and Switch C belong to Area 10, and Switch D belongs to Area 20.

· Configure neighbor relationship authentication between neighbors.

· Configure area authentication in Area 10 to prevent untrusted routes from entering into the area.

· Configure routing domain authentication on Switch C and Switch D to prevent untrusted routes from entering the routing domain.

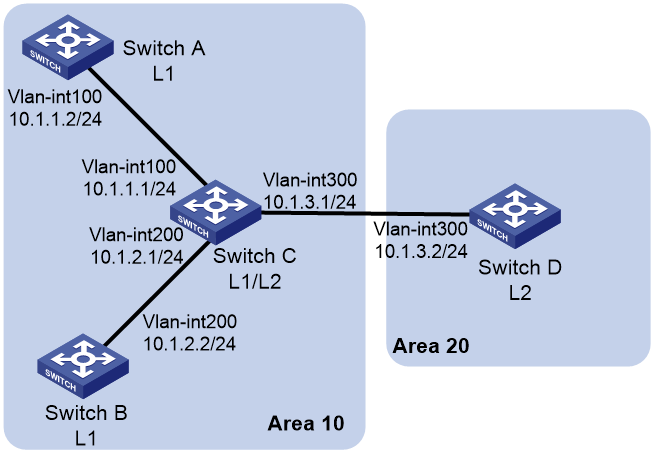

Figure 13 Network diagram

‌

Procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure basic IS-IS:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] isis enable 1

[SwitchA-Vlan-interface100] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] network-entity 10.0000.0000.0002.00

[SwitchB-isis-1] quit

[SwitchB] interface vlan-interface 200

[SwitchB-Vlan-interface200] isis enable 1

[SwitchB-Vlan-interface200] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] isis 1

[SwitchC-isis-1] network-entity 10.0000.0000.0003.00

[SwitchC-isis-1] quit

[SwitchC] interface vlan-interface 200

[SwitchC-Vlan-interface200] isis enable 1

[SwitchC-Vlan-interface200] quit

[SwitchC] interface vlan-interface 300

[SwitchC-Vlan-interface300] isis enable 1

[SwitchC-Vlan-interface300] quit

[SwitchC] interface vlan-interface 300

[SwitchC-Vlan-interface300] isis enable 1

[SwitchC-Vlan-interface300] quit

# Configure Switch D.

<SwitchD> system-view

[SwitchD] isis 1

[SwitchD-isis-1] network-entity 20.0000.0000.0001.00

[SwitchD-isis-1] quit

[SwitchD] interface vlan-interface 300

[SwitchD-Vlan-interface300] isis enable 1

[SwitchD-Vlan-interface300] quit

3. Configure neighbor relationship authentication between neighbors:

# Set the authentication mode to MD5 and set the plaintext key to eRq on VLAN-interface 100 of Switch A and on VLAN-interface 100 of Switch C.

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] isis authentication-mode md5 plain eRg

[SwitchA-Vlan-interface100] quit

[SwitchC] interface vlan-interface 100

[SwitchC-Vlan-interface100] isis authentication-mode md5 plain eRg

[SwitchC-Vlan-interface100] quit

# Set the authentication mode to MD5 and set the plaintext key to t5Hr on VLAN-interface 200 of Switch B and on VLAN-interface 200 of Switch C.

[SwitchB] interface vlan-interface 200

[SwitchB-Vlan-interface200] isis authentication-mode md5 plain t5Hr

[SwitchB-Vlan-interface200] quit

[SwitchC] interface vlan-interface 200

[SwitchC-Vlan-interface200] isis authentication-mode md5 plain t5Hr

[SwitchC-Vlan-interface200] quit

# Set the authentication mode to MD5 and set the plaintext key to hSec on VLAN-interface 300 of Switch D and on VLAN-interface 300 of Switch C.

[SwitchC] interface vlan-interface 300

[SwitchC-Vlan-interface300] isis authentication-mode md5 plain hSec

[SwitchC-Vlan-interface300] quit

[SwitchD] interface vlan-interface 300

[SwitchD-Vlan-interface300] isis authentication-mode md5 plain hSec

[SwitchD-Vlan-interface300] quit

4. Set the area authentication mode to MD5 and set the plaintext key to 10Sec on Switch A, Switch B, and Switch C.

[SwitchA] isis 1

[SwitchA-isis-1] area-authentication-mode md5 plain 10Sec

[SwitchA-isis-1] quit

[SwitchB] isis 1

[SwitchB-isis-1] area-authentication-mode md5 plain 10Sec

[SwitchB-isis-1] quit

[SwitchC] isis 1

[SwitchC-isis-1] area-authentication-mode md5 plain 10Sec

[SwitchC-isis-1] quit

5. Set routing domain authentication mode to MD5 and set the plaintext key to 1020Sec on Switch C and Switch D.

[SwitchC] isis 1

[SwitchC-isis-1] domain-authentication-mode md5 plain 1020Sec

[SwitchC-isis-1] quit

[SwitchD] isis 1

[SwitchD-isis-1] domain-authentication-mode md5 plain 1020Sec

Example: Configuring IS-IS GR

Network configuration

As shown in Figure 14, Switch A, Switch B, and Switch C belong to the same IS-IS routing domain.

Figure 14 Network diagram

‌

Procedure

1. Configure IP addresses and subnet masks for interfaces. (Details not shown.)

2. Configure IS-IS on the switches to make sure Switch A, Switch B, and Switch C can communicate with each other at layer 3 and dynamic route update can be implemented among them with IS-IS. (Details not shown.)

3. Enable IS-IS GR on Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] graceful-restart

[SwitchA-isis-1] return

Verifying the configuration

# Restart the IS-IS process on Switch A.

<SwitchA> reset isis all 1 graceful-restart

Reset IS-IS process? [Y/N]:y

# Check the GR state of the IS-IS process on Switch A.

<SwitchA> display isis graceful-restart status

Restart information for IS-IS(1)

--------------------------------

Restart status: COMPLETE

Restart phase: Finish

Restart t1: 3, count 10; Restart t2: 60; Restart t3: 300

SA Bit: supported

Level-1 restart information

---------------------------

Total number of interfaces: 1

Number of waiting LSPs: 0

Level-2 restart information

---------------------------

Total number of interfaces: 1

Number of waiting LSPs: 0

Example: Configuring BFD for IS-IS

Network configuration

· As shown in Figure 15, run IS-IS on Switch A, Switch B and Switch C so that they can reach each other at the network layer.

· After the link over which Switch A and Switch B communicate through the Layer-2 switch fails, BFD can quickly detect the failure and notify IS-IS of the failure. Switch A and Switch B then communicate through Switch C.

Figure 15 Network diagram

‌

Table 5 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
Switch A	Vlan-int10	10.1.0.102/24	Switch B	Vlan-int10	10.1.0.100/24
	Vlan-int11	11.1.1.1/24		Vlan-int13	13.1.1.1/24
	Loop0	121.1.1.1/32		Loop0	120.1.1.1/32
Switch C	Vlan-int11	11.1.1.2/24
	Vlan-int13	13.1.1.2/24

‌

Procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure basic IS-IS:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] quit

[SwitchA] interface loopback 0

[SwitchA-LoopBack0] isis enable

[SwitchA-LoopBack0] quit

[SwitchA] interface vlan-interface 10

[SwitchA-Vlan-interface10] isis enable

[SwitchA-Vlan-interface10] quit

[SwitchA] interface vlan-interface 11

[SwitchA-Vlan-interface11] isis enable

[SwitchA-Vlan-interface11] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis

[SwitchB-isis-1] network-entity 10.0000.0000.0002.00

[SwitchB-isis-1] quit

[SwitchB] interface loopback 0

[SwitchB-LoopBack0] isis enable

[SwitchB-LoopBack0] quit

[SwitchB] interface vlan-interface 10

[SwitchB-Vlan-interface10] isis enable

[SwitchB-Vlan-interface10] quit

[SwitchB] interface vlan-interface 13

[SwitchB-Vlan-interface13] isis enable

[SwitchB-Vlan-interface13] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] isis

[SwitchC-isis-1] network-entity 10.0000.0000.0003.00

[SwitchC-isis-1] quit

[SwitchC] interface vlan-interface 11

[SwitchC-Vlan-interface11] isis enable

[SwitchC-Vlan-interface11] quit

[SwitchC] interface vlan-interface 13

[SwitchC-Vlan-interface13] isis enable

[SwitchC-Vlan-interface13] quit

3. Configure BFD functions:

# Enable BFD and configure BFD parameters on Switch A.

[SwitchA] bfd session init-mode passive

[SwitchA] interface vlan-interface 10

[SwitchA-Vlan-interface10] isis bfd enable

[SwitchA-Vlan-interface10] bfd min-receive-interval 500

[SwitchA-Vlan-interface10] bfd min-transmit-interval 500

[SwitchA-Vlan-interface10] bfd detect-multiplier 7

# Enable BFD and configure BFD parameters on Switch B.

[SwitchB] bfd session init-mode active

[SwitchB] interface vlan-interface 10

[SwitchB-Vlan-interface10] isis bfd enable

[SwitchB-Vlan-interface10] bfd min-receive-interval 500

[SwitchB-Vlan-interface10] bfd min-transmit-interval 500

[SwitchB-Vlan-interface10] bfd detect-multiplier 8

[SwitchB-Vlan-interface10] return

Verifying the configuration

# Display the BFD session information on Switch A.

<SwitchA> display bfd session

Total sessions: 1 Up sessions: 1 Init mode: Active

IPv4 session working in control packet mode:

LD/RD SourceAddr DestAddr State Holdtime Interface

3/1 192.168.0.102 192.168.0.100 Up 1700ms Vlan10

# Display routes destined for 120.1.1.1/32 on Switch A.

<SwitchA> display ip routing-table 120.1.1.1 verbose

Summary count : 1

Destination: 120.1.1.1/32

Protocol: IS_L1

Process ID: 1

SubProtID: 0x1 Age: 04h20m37s

Cost: 10 Preference: 10

IpPre: N/A QosLocalID: N/A

Tag: 0 State: Active Adv

OrigTblID: 0x0 OrigVrf: default-vrf

TableID: 0x2 OrigAs: 0

NibID: 0x26000002 LastAs: 0

AttrID: 0xffffffff Neighbor: 0.0.0.0

Flags: 0x1008c OrigNextHop: 192.168.0.100

Label: NULL RealNextHop: 192.168.0.100

BkLabel: NULL BkNextHop: N/A

SRLabel: NULL Interface: Vlan-interface10

BkSRLabel: NULL BkInterface: N/A

Tunnel ID: Invalid IPInterface: Vlan-interface10

BkTunnel ID: Invalid BkIPInterface: N/A

InLabel: NULL ColorInterface: N/A

SIDIndex: NULL BkColorInterface: N/A

FtnIndex: 0x0 TunnelInterface: N/A

TrafficIndex: N/A BkTunnelInterface: N/A

Connector: N/A PathID: 0x0

SRTunnelID: Invalid

SID Type: N/A NID: Invalid

FlushNID: Invalid BkNID: Invalid

BkFlushNID: Invalid StatFlags: 0x0

Exp: N/A

VpnPeerId: N/A Dscp: N/A

SID: N/A OrigLinkID: 0x0

BkSID: N/A RealLinkID: 0x0

CommBlockLen: 0

The output shows that Switch A and Switch B communicate through VLAN-interface 10. Then the link over VLAN-interface 10 fails.

# Display routes destined for 120.1.1.1/32 on Switch A.

<SwitchA> display ip routing-table 120.1.1.1 verbose

Summary count : 1

Destination: 120.1.1.1/32

Protocol: IS_L1

Process ID: 1

SubProtID: 0x1 Age: 04h20m37s

Cost: 20 Preference: 10

IpPre: N/A QosLocalID: N/A

Tag: 0 State: Active Adv

OrigTblID: 0x0 OrigVrf: default-vrf

TableID: 0x2 OrigAs: 0

NibID: 0x26000002 LastAs: 0

AttrID: 0xffffffff Neighbor: 0.0.0.0

Flags: 0x1008c OrigNextHop: 10.1.1.100

Label: NULL RealNextHop: 10.1.1.100

BkLabel: NULL BkNextHop: N/A

SRLabel: NULL Interface: Vlan-interface11

BkSRLabel: NULL BkInterface: N/A

Tunnel ID: Invalid IPInterface: Vlan-interface11

BkTunnel ID: Invalid BkIPInterface: N/A

InLabel: NULL ColorInterface: N/A

SIDIndex: NULL BkColorInterface: N/A

FtnIndex: 0x0 TunnelInterface: N/A

TrafficIndex: N/A BkTunnelInterface: N/A

Connector: N/A PathID: 0x0

SRTunnelID: Invalid

SID Type: N/A NID: Invalid

FlushNID: Invalid BkNID: Invalid

BkFlushNID: Invalid StatFlags: 0x0

Exp: N/A

VpnPeerId: N/A Dscp: N/A

SID: N/A OrigLinkID: 0x0

BkSID: N/A RealLinkID: 0x0

CommBlockLen: 0

The output shows that Switch A and Switch B communicate through VLAN-interface 11.

Example: Configuring IS-IS FRR

Network configuration

As shown in Figure 16, Switch A, Switch B, and Switch C belong to the same IS-IS routing domain. Configure IS-IS FRR so that when the Link A fails, traffic can be switched to Link B immediately.

Figure 16 Network diagram

‌

Table 6 Interface and IP address assignment

Device	Interface	IP address	Device	Interface	IP address
Switch A	Vlan-int100	12.12.12.1/24	Switch B	Vlan-int101	24.24.24.4/24
	Vlan-int200	13.13.13.1/24		Vlan-int200	13.13.13.2/24
	Loop0	1.1.1.1/32		Loop0	4.4.4.4/32
Switch C	Vlan-int100	12.12.12.2/24
	Vlan-int101	24.24.24.2/24

‌

Procedure

1. Configure IP addresses and subnet masks for interfaces on the switches. (Details not shown.)

2. Configure IS-IS on the switches to make sure Switch A, Switch B, and Switch C can communicate with each other at Layer 3. (Details not shown.)

3. Configure IS-IS FRR:

Enable IS-IS FRR to calculate a backup next hop through LFA calculation, or designate a backup next hop by using a referenced routing policy.

¡ (Method 1.) Enable IS-IS FRR to calculate a backup next hop through LFA calculation:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] address-family ipv4

[SwitchA-isis-1-ipv4] fast-reroute lfa

[SwitchA-isis-1-ipv4] quit

[SwitchA-isis-1] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] address-family ipv4

[SwitchB-isis-1-ipv4] fast-reroute lfa

[SwitchB-isis-1-ipv4] quit

[SwitchB-isis-1] quit

¡ (Method 2.) Enable IS-IS FRR to designate a backup next hop by using a referenced routing policy:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] ip prefix-list abc index 10 permit 4.4.4.4 32

[SwitchA] route-policy frr permit node 10

[SwitchA-route-policy-frr-10] if-match ip address prefix-list abc

[SwitchA-route-policy-frr-10] apply fast-reroute backup-interface vlan-interface 100 backup-nexthop 12.12.12.2

[SwitchA-route-policy-frr-10] quit

[SwitchA] isis 1

[SwitchA-isis-1] address-family ipv4

[SwitchA-isis-1-ipv4] fast-reroute route-policy frr

[SwitchA-isis-1-ipv4] quit

[SwitchA-isis-1] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] ip prefix-list abc index 10 permit 1.1.1.1 32

[SwitchB] route-policy frr permit node 10

[SwitchB-route-policy-frr-10] if-match ip address prefix-list abc

[SwitchB-route-policy-frr-10] apply fast-reroute backup-interface vlan-interface 101 backup-nexthop 24.24.24.2

[SwitchB-route-policy-frr-10] quit

[SwitchB] isis 1

[SwitchB-isis-1] address-family ipv4

[SwitchB-isis-1-ipv4] fast-reroute route-policy frr

[SwitchB-isis-1-ipv4] quit

[SwitchB-isis-1] quit

Verifying the configuration

# Display route 4.4.4.4/32 on Switch A to view the backup next hop information.

[SwitchA] display ip routing-table 4.4.4.4 verbose

Summary count : 1

Destination: 4.4.4.4/32

Protocol: IS_L1

Process ID: 1

SubProtID: 0x1 Age: 04h20m37s

Cost: 10 Preference: 10

IpPre: N/A QosLocalID: N/A

Tag: 0 State: Active Adv

OrigTblID: 0x0 OrigVrf: default-vrf

TableID: 0x2 OrigAs: 0

NibID: 0x26000002 LastAs: 0

AttrID: 0xffffffff Neighbor: 0.0.0.0

Flags: 0x1008c OrigNextHop: 13.13.13.2

Label: NULL RealNextHop: 13.13.13.2

BkLabel: NULL BkNextHop: 12.12.12.2

SRLabel: NULL Interface: Vlan-interface200

BkSRLabel: NULL BkInterface: Vlan-interface100

Tunnel ID: Invalid IPInterface: Vlan-interface200

BkTunnel ID: Invalid BkIPInterface: Vlan-interface100

InLabel: NULL ColorInterface: N/A

SIDIndex: NULL BkColorInterface: N/A

FtnIndex: 0x0 TunnelInterface: N/A

TrafficIndex: N/A BkTunnelInterface: N/A

Connector: N/A PathID: 0x0

SRTunnelID: Invalid

SID Type: N/A NID: Invalid

FlushNID: Invalid BkNID: Invalid

BkFlushNID: Invalid StatFlags: 0x0

Exp: N/A

VpnPeerId: N/A Dscp: N/A

SID: N/A OrigLinkID: 0x0

BkSID: N/A RealLinkID: 0x0

CommBlockLen: 0

# Display route 1.1.1.1/32 on Switch B to view the backup next hop information.

[SwitchB] display ip routing-table 1.1.1.1 verbose

Summary count : 1

Destination: 1.1.1.1/32

Protocol: IS_L1

Process ID: 1

SubProtID: 0x1 Age: 04h20m37s

Cost: 10 Preference: 10

IpPre: N/A QosLocalID: N/A

Tag: 0 State: Active Adv

OrigTblID: 0x0 OrigVrf: default-vrf

TableID: 0x2 OrigAs: 0

NibID: 0x26000002 LastAs: 0

AttrID: 0xffffffff Neighbor: 0.0.0.0

Flags: 0x1008c OrigNextHop: 13.13.13.1

Label: NULL RealNextHop: 13.13.13.1

BkLabel: NULL BkNextHop: 24.24.24.2

SRLabel: NULL Interface: Vlan-interface200

BkSRLabel: NULL BkInterface: Vlan-interface101

Tunnel ID: Invalid IPInterface: Vlan-interface200

BkTunnel ID: Invalid BkIPInterface: Vlan-interface101

InLabel: NULL ColorInterface: N/A

SIDIndex: NULL BkColorInterface: N/A

FtnIndex: 0x0 TunnelInterface: N/A

TrafficIndex: N/A BkTunnelInterface: N/A

Connector: N/A PathID: 0x0

SRTunnelID: Invalid

SID Type: N/A NID: Invalid

FlushNID: Invalid BkNID: Invalid

BkFlushNID: Invalid StatFlags: 0x0

Exp: N/A

VpnPeerId: N/A Dscp: N/A

SID: N/A OrigLinkID: 0x0

BkSID: N/A RealLinkID: 0x0

CommBlockLen: 0

Example: Configuring IS-IS multi-instance processes

Network configuration

As shown in Figure 17, the IPv4 and IPv6 costs are different on an interface. Configure IS-IS multi-instance processes to isolate the IPv4 and IPv6 network and avoid IPv6 route calculation errors.

Figure 17 Network diagram

‌

Table 7 Interface and IP address assignment

Device	Interface	IPv4 address	IPv6 address
Switch A	Vlan10	10.1.1.1/24	2001::1/64
	Loop0	1.1.1.1/32	10::1/128
Switch B	Vlan10	10.1.1.2/24	2001::2/64
	Loop0	2.2.2.2/32	20::1/128

‌

Prerequisites

Configure IPv4 and IPv6 addresses for the interfaces. (Details not shown.)

Procedure

1. Configure traditional IPv4 IS-IS processes:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] quit

[SwitchA] interface vlan-interface 10

[SwitchA-Vlan-interface10] isis enable 1

[SwitchA-Vlan-interface10] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] network-entity 10.0000.0000.0002.00

[SwitchB-isis-1] quit

[SwitchB] interface vlan-interface 10

[SwitchB-Vlan-interface10] isis enable 1

[SwitchB-Vlan-interface10] quit

2. Configure IPv6 IS-IS multi-instance processes:

# Configure Switch A.

[SwitchA] isis 2

[SwitchA-isis-2] network-entity 20.0000.0000.0010.00

[SwitchA-isis-2] multi-instance enable iid 1

[SwitchA-isis-2] address-family ipv6

[SwitchA-isis-2-ipv6] quit

[SwitchA-isis-2] quit

[SwitchA] interface loopback 0

[SwitchA-LoopBack0] isis ipv6 enable 2

[SwitchA-LoopBack0] quit

[SwitchA] interface vlan-interface 10

[SwitchA-Vlan-interface10 ] isis ipv6 enable 2

[SwitchA-Vlan-interface10] isis process-id 2 cost 63

[SwitchA-Vlan-interface10] quit

# Configure Switch B.

[SwitchB] isis 2

[SwitchB-isis-2] network-entity 20.0000.0000.0020.00

[SwitchB-isis-2] multi-instance enable iid 1

[SwitchB-isis-2] address-family ipv6

[SwitchB-isis-2-ipv6] quit

[SwitchB-isis-2] quit

[SwitchB] interface loopback 0

[SwitchB-LoopBack0] isis ipv6 enable 2

[SwitchB-LoopBack0] quit

[SwitchB] interface vlan-interface 10

[SwitchB-Vlan-interface10] isis ipv6 enable 2

[SwitchB-Vlan-interface10] isis process-id 2 cost 63

[SwitchB-Vlan-interface10] quit

Verifying the configuration

# View information about the IPv4 IS-IS routing table of Switch A.

[SwitchA] display isis route ipv4

Route information for IS-IS(1)

------------------------------

Level-1 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

1.1.1.1/32 0 NULL Loop0 Direct D/L/-

10.1.1.0/24 10 NULL Vlan10 Direct D/L/-

2.2.2.2/32 10 NULL Vlan10 10.1.1.2 R/L/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

Level-2 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

1.1.1.1/32 0 NULL Loop0 Direct D/L/-

10.1.1.0/24 10 NULL Vlan10 Direct D/L/-

2.2.2.2/32 10 NULL

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

The output shows that route calculation results are correct.

# View information about the IPv4 IS-IS routing table of Switch B.

[SwitchB] display isis route ipv4

Route information for IS-IS(1)

------------------------------

Level-1 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

1.1.1.1/32 10 NULL Vlan10 10.1.1.1 R/L/-

10.1.1.0/24 10 NULL Vlan10 Direct D/L/-

2.2.2.2/32 0 NULL Loop0 Direct D/L/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

Level-2 IPv4 Forwarding Table

-----------------------------

IPv4 Destination IntCost ExtCost ExitInterface NextHop Flags

-------------------------------------------------------------------------------

1.1.1.1/32 10 NULL

10.1.1.0/24 10 NULL Vlan10 Direct D/L/-

2.2.2.2/32 0 NULL Loop0 Direct D/L/-

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

The output shows that route calculation results are correct.

# View information about the IPv6 IS-IS routing table of Switch A.

[SwitchA] display isis route ipv6

Route information for IS-IS(2)

------------------------------

Level-1 IPv6 forwarding table

-----------------------------

Destination : 10::1 PrefixLen: 128

Flag : D/L/- Cost : 0

Next hop : Direct Interface: Loop0

Destination : 2001:: PrefixLen: 64

Flag : D/L/- Cost : 63

Next hop : Direct Interface: Vlan10

Destination : 20::1 PrefixLen: 128

Flag : R/L/- Cost : 63

Next hop : FE80::861F:31FF:FE6D:201 Interface: Vlan10

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

Level-2 IPv6 forwarding table

-----------------------------

Destination : 10::1 PrefixLen: 128

Flag : D/L/- Cost : 0

Next hop : Direct Interface: Loop0

Destination : 2001:: PrefixLen: 64

Flag : D/L/- Cost : 63

Next hop : Direct Interface: Vlan10

Destination : 20::1 PrefixLen: 128

Flag : -/-/- Cost : 63

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

The output shows that route calculation results are correct.

# View information about the IPv6 IS-IS routing table of Switch B.

[SwitchB] display isis route ipv6

Route information for IS-IS(2)

------------------------------

Level-1 IPv6 forwarding table

-----------------------------

Destination : 10::1 PrefixLen: 128

Flag : R/L/- Cost : 63

Next hop : FE80::861F:29FF:FE93:101 Interface: Vlan10

Destination : 2001:: PrefixLen: 64

Flag : D/L/- Cost : 63

Next hop : Direct Interface: Vlan10

Destination : 20::1 PrefixLen: 128

Flag : D/L/- Cost : 0

Next hop : Direct Interface: Loop0

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

Level-2 IPv6 forwarding table

-----------------------------

Destination : 10::1 PrefixLen: 128

Flag : -/-/- Cost : 63

Destination : 2001:: PrefixLen: 64

Flag : D/L/- Cost : 63

Next hop : Direct Interface: Vlan10

Destination : 20::1 PrefixLen: 128

Flag : D/L/- Cost : 0

Next hop : Direct Interface: Loop0

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

The output shows that route calculation results are correct.

IPv6 IS-IS configuration examples

Example: Configuring IPv6 IS-IS basics

Network configuration

As shown in Figure 18, Switch A, Switch B, Switch C, and Switch D, all enabled with IPv6, reside in the same AS. Configure IPv6 IS-IS on the switches so that they can reach each other.

Switch A and Switch B are Level-1 switches, Switch D is a Level-2 switch, and Switch C is a Level-1-2 switch.

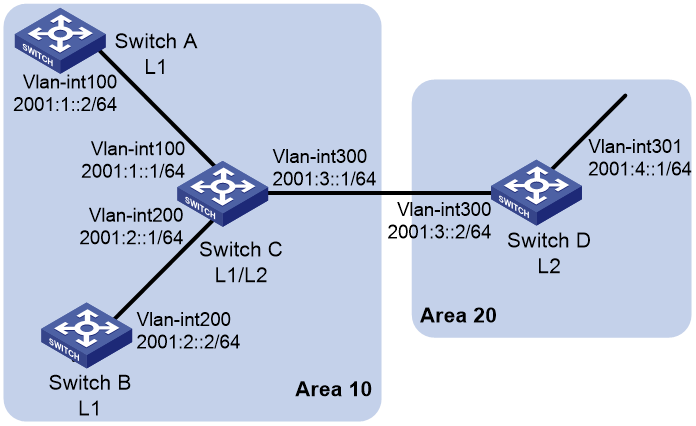

Figure 18 Network diagram

‌

Procedure

1. Configure IPv6 addresses for interfaces. (Details not shown.)

2. Configure IPv6 IS-IS:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] is-level level-1

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] address-family ipv6

[SwitchA-isis-1-ipv6] quit

[SwitchA-isis-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] isis ipv6 enable 1

[SwitchA-Vlan-interface100] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] is-level level-1

[SwitchB-isis-1] network-entity 10.0000.0000.0002.00

[SwitchB-isis-1] address-family ipv6

[SwitchB-isis-1-ipv6] quit

[SwitchB-isis-1] quit

[SwitchB] interface vlan-interface 200

[SwitchB-Vlan-interface200] isis ipv6 enable 1

[SwitchB-Vlan-interface200] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] isis 1

[SwitchC-isis-1] network-entity 10.0000.0000.0003.00

[SwitchC-isis-1] address-family ipv6

[SwitchC-isis-1-ipv6] quit

[SwitchC-isis-1] quit

[SwitchC] interface vlan-interface 100

[SwitchC-Vlan-interface100] isis ipv6 enable 1

[SwitchC-Vlan-interface100] quit

[SwitchC] interface vlan-interface 200

[SwitchC-Vlan-interface200] isis ipv6 enable 1

[SwitchC-Vlan-interface200] quit

[SwitchC] interface vlan-interface 300

[SwitchC-Vlan-interface300] isis ipv6 enable 1

[SwitchC-Vlan-interface300] quit

# Configure Switch D.

<SwitchD> system-view

[SwitchD] isis 1

[SwitchD-isis-1] is-level level-2

[SwitchD-isis-1] network-entity 20.0000.0000.0004.00

[SwitchD-isis-1] address-family ipv6

[SwitchD-isis-1-ipv6] quit

[SwitchD-isis-1] quit

[SwitchD] interface vlan-interface 300

[SwitchD-Vlan-interface300] isis ipv6 enable 1

[SwitchD-Vlan-interface300] quit

[SwitchD] interface vlan-interface 301

[SwitchD-Vlan-interface301] isis ipv6 enable 1

[SwitchD-Vlan-interface301] quit

Verifying the configuration

# Display the IPv6 IS-IS routing table on Switch A.

[SwitchA] display isis route ipv6

Route information for IS-IS(1)

------------------------------

Level-1 IPv6 forwarding table

-----------------------------

Destination : :: PrefixLen: 0

Flag : R/-/- Cost : 10

Next hop : FE80::200:FF:FE0F:4 Interface: Vlan100

Destination : 2001:1:: PrefixLen: 64

Flag : D/L/- Cost : 10

Next hop : Direct Interface: Vlan100

Destination : 2001:2:: PrefixLen: 64

Flag : R/-/- Cost : 20

Next hop : FE80::200:FF:FE0F:4 Interface: Vlan100

Destination : 2001:3:: PrefixLen: 64

Flag : R/-/- Cost : 20

Next hop : FE80::200:FF:FE0F:4 Interface: Vlan100

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

# Display the IPv6 IS-IS routing table on Switch B.

[SwitchB] display isis route ipv6

Route information for IS-IS(1)

------------------------------

Level-1 IPv6 forwarding table

-----------------------------

Destination : :: PrefixLen: 0

Flag : R/-/- Cost : 10

Next hop : FE80::200:FF:FE0F:4 Interface: Vlan200

Destination : 2001:1:: PrefixLen: 64

Flag : D/L/- Cost : 10

Next hop : FE80::200:FF:FE0F:4 Interface: Vlan200

Destination : 2001:2:: PrefixLen: 64

Flag : R/-/- Cost : 20

Next hop : Direct Interface: Vlan200

Destination : 2001:3:: PrefixLen: 64

Flag : R/-/- Cost : 20

Next hop : FE80::200:FF:FE0F:4 Interface: Vlan200

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

# Display the IPv6 IS-IS routing table on Switch C.

[SwitchC] display isis route ipv6

Route information for IS-IS(1)

------------------------------

Level-1 IPv6 forwarding table

-----------------------------

Destination : 2001:1:: PrefixLen: 64

Flag : D/L/- Cost : 10

Next hop : Direct Interface: Vlan100

Destination : 2001:2:: PrefixLen: 64

Flag : D/L/- Cost : 10

Next hop : Direct Interface: Vlan200

Destination : 2001:3:: PrefixLen: 64

Flag : D/L/- Cost : 10

Next hop : Direct Interface: Vlan300

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

Level-2 IPv6 forwarding table

-----------------------------

Destination : 2001:1:: PrefixLen: 64

Flag : D/L/- Cost : 10

Destination : 2001:2:: PrefixLen: 64

Flag : D/L/- Cost : 10

Destination : 2001:3:: PrefixLen: 64

Flag : D/L/- Cost : 10

Destination : 2001:4:: PrefixLen: 64

Flag : R/-/- Cost : 10

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

# Display the IPv6 IS-IS routing table on Switch D.

[SwitchD] display isis route ipv6

Route information for IS-IS(1)

------------------------------

Level-2 IPv6 forwarding table

-----------------------------

Destination : 2001:1:: PrefixLen: 64

Flag : R/-/- Cost : 20

Next hop : FE80::200:FF:FE0F:4 Interface: Vlan300

Destination : 2001:2:: PrefixLen: 64

Flag : R/-/- Cost : 20

Next hop : FE80::200:FF:FE0F:4 Interface: Vlan300

Destination : 2001:3:: PrefixLen: 64

Flag : D/L/- Cost : 10

Next hop : Direct Interface: Vlan300

Destination : 2001:4:: PrefixLen: 64

Flag : D/L/- Cost : 0

Next hop : Direct Interface: Loop1

Flags: D-Direct, R-Added to Rib, L-Advertised in LSPs, U-Up/Down Bit Set

Example: Configuring BFD for IPv6 IS-IS

Network configuration

As shown in Figure 19:

· Configure IPv6 IS-IS on Switch A and Switch B so that they can reach other.

· Enable BFD on VLAN-interface 10 of Switch A and Switch B.

After the link between Switch B and the Layer 2 switch fails, BFD can quickly detect the failure and notify IPv6 IS-IS of the failure. Then Switch A and Switch B communicate through Switch C.

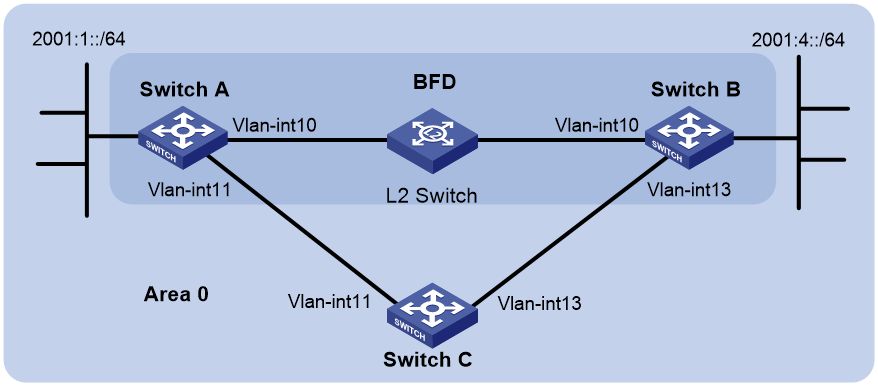

Figure 19 Network diagram

‌

Table 8 Interface and IP address assignment

Device	Interface	IPv6 address	Device	Interface	IPv6 address
Switch A	Vlan-int10	2001::1/64	Switch B	Vlan-int10	2001::2/64
	Vlan-int11	2001:2::1/64		Vlan-int13	2001:3::2/64
Switch C	Vlan-int11	2001:2::2/64
	Vlan-int13	2001:3::1/64

‌

Procedure

1. Configure IPv6 addresses for interfaces. (Details not shown.)

2. Configure IPv6 IS-IS:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] is-level level-1

[SwitchA-isis-1] network-entity 10.0000.0000.0001.00

[SwitchA-isis-1] address-family ipv6

[SwitchA-isis-1-ipv6] quit

[SwitchA-isis-1] quit

[SwitchA] interface vlan-interface 10

[SwitchA-Vlan-interface10] isis ipv6 enable 1

[SwitchA-Vlan-interface10] quit

[SwitchA] interface vlan-interface 11

[SwitchA-Vlan-interface11] isis ipv6 enable 1

[SwitchA-Vlan-interface11] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] is-level level-1

[SwitchB-isis-1] network-entity 10.0000.0000.0002.00

[SwitchB-isis-1] address-family ipv6

[SwitchB-isis-1-ipv6] quit

[SwitchB-isis-1] quit

[SwitchB] interface vlan-interface 10

[SwitchB-Vlan-interface10] isis ipv6 enable 1

[SwitchB-Vlan-interface10] quit

[SwitchB] interface vlan-interface 13

[SwitchB-Vlan-interface13] isis ipv6 enable 1

[SwitchB-Vlan-interface13] quit

# Configure Switch C.

<SwitchC> system-view

[SwitchC] isis 1

[SwitchC-isis-1] network-entity 10.0000.0000.0003.00

[SwitchC-isis-1] address-family ipv6

[SwitchC-isis-1-ipv6] quit

[SwitchC-isis-1] quit

[SwitchC] interface vlan-interface 11

[SwitchC-Vlan-interface11] isis ipv6 enable 1

[SwitchC-Vlan-interface11] quit

[SwitchC] interface vlan-interface 13

[SwitchC-Vlan-interface13] isis ipv6 enable 1

[SwitchC-Vlan-interface13] quit

3. Configure BFD functions:

# Enable BFD and configure BFD parameters on Switch A.

[SwitchA] bfd session init-mode active

[SwitchA] interface vlan-interface 10

[SwitchA-Vlan-interface10] isis ipv6 bfd enable

[SwitchA-Vlan-interface10] bfd min-transmit-interval 500

[SwitchA-Vlan-interface10] bfd min-receive-interval 500

[SwitchA-Vlan-interface10] bfd detect-multiplier 7

[SwitchA-Vlan-interface10] return

# Enable BFD and configure BFD parameters on Switch B.

[SwitchB] bfd session init-mode active

[SwitchB] interface vlan-interface 10

[SwitchB-Vlan-interface10] isis ipv6 bfd enable

[SwitchB-Vlan-interface10] bfd min-transmit-interval 500

[SwitchB-Vlan-interface10] bfd min-receive-interval 500

[SwitchB-Vlan-interface10] bfd detect-multiplier 6

Verifying the configuration

# Display BFD session information on Switch A.

<SwitchA> display bfd session

Total sessions: 1 Up sessions: 1 Init mode: Active

IPv6 session working in control packet mode:

Local discr: 1441 Remote discr: 1450

Source IP: FE80::20F:FF:FE00:1202 (link-local address of Vlan-interface10 on Switch A)

Destination IP: FE80::20F:FF:FE00:1200 (link-local address of Vlan-interface10 on Switch B)

Session state: Up Interface: Vlan10

Hold time: 2319ms

# Display routes destined for 2001:4::0/64 on Switch A.

<SwitchA> display ipv6 routing-table 2001:4::0 64

Summary count : 1

Destination: 2001:4::/64 Protocol : IS_L1

NextHop : FE80::20F:FF:FE00:1200 Preference: 15

Interface : Vlan10 Cost : 10

The output shows that Switch A and Switch B communicate through VLAN-interface 10. Then the link over VLAN-interface 10 fails.

# Display routes destined for 2001:4::0/64 on Switch A.

<SwitchA> display ipv6 routing-table 2001:4::0 64

Summary count : 1

Destination: 2001:4::/64 Protocol : IS_L1

NextHop : FE80::BAAF:67FF:FE27:DCD0 Preference: 15

Interface : Vlan11 Cost : 20

The output shows that Switch A and Switch B communicate through VLAN-interface 11.

Example: Configuring IPv6 IS-IS FRR

Network configuration

As shown in Figure 20, Switch A, Switch B, and Switch C belong to the same IS-IS routing domain. Configure IPv6 IS-IS FRR so that when the Link A fails, traffic can be switched to Link B immediately.

Figure 20 Network diagram

‌

Table 9 Interface and IP address assignment

Device	Interface	IPv6 address	Device	Interface	IPv6 address
Switch A	Vlan-int100	1::1/64	Switch B	Vlan-int101	3::1/64
	Vlan-int200	2::1/64		Vlan-int200	2::2/64
	Loop0	10::1/128		Loop0	20::1/128
Switch C	Vlan-int100	1::2/64
	Vlan-int101	3::2/64

‌

Procedure

1. Configure IPv6 addresses for interfaces on the switches and enable IPv6 IS-IS. (Details not shown.)

2. Configure IPv6 IS-IS on the switches to make sure Switch A, Switch B, and Switch C can communicate with each other at Layer 3. (Details not shown.)

3. Configure IPv6 IS-IS FRR:

Enable IPv6 IS-IS FRR to calculate a backup next hop through LFA calculation, or designate a backup next hop by using a routing policy.

¡ (Method 1.) Enable IPv6 IS-IS FRR to calculate a backup next hop through LFA calculation:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] isis 1

[SwitchA-isis-1] address-family ipv6

[SwitchA-isis-1-ipv6] fast-reroute lfa

# Configure Switch B.

<SwitchB> system-view

[SwitchB] isis 1

[SwitchB-isis-1] address-family ipv6

[SwitchB-isis-1-ipv6] fast-reroute lfa

¡ (Method 2.) Enable IPv6 IS-IS FRR to designate a backup next hop by using a routing policy:

# Configure Switch A.

<SwitchA> system-view

[SwitchA] ipv6 prefix-list abc index 10 permit 20::1 128

[SwitchA] route-policy frr permit node 10

[SwitchA-route-policy-frr-10] if-match ipv6 address prefix-list abc

[SwitchA-route-policy-frr-10] apply ipv6 fast-reroute backup-interface vlan-interface 100 backup-nexthop 1::2

[SwitchA-route-policy-frr-10] quit

[SwitchA] isis 1

[SwitchA-isis-1] address-family ipv6

[SwitchA-isis-1-ipv6] fast-reroute route-policy frr

[SwitchA-isis-1-ipv6] quit

[SwitchA-isis-1] quit

# Configure Switch B.

<SwitchB> system-view

[SwitchB] ipv6 prefix-list abc index 10 permit 10::1 128

[SwitchB] route-policy frr permit node 10

[SwitchB-route-policy-frr-10] if-match ipv6 address prefix-list abc

[SwitchB-route-policy-frr-10] apply ipv6 fast-reroute backup-interface vlan-interface 101 backup-nexthop 3::2

[SwitchB-route-policy-frr-10] quit

[SwitchB] isis 1

[SwitchB-isis-1] address-family ipv6

[SwitchB-isis-1-ipv6] fast-reroute route-policy frr

[SwitchB-isis-1-ipv6] quit

[SwitchB-isis-1] quit

Verifying the configuration

# Display route 20::1/128 on Switch A to view the backup next hop information.

[SwitchA] display ipv6 routing-table 20::1 128 verbose

Summary count : 1

Destination: 20::1/128

Protocol: IS_L1

Process ID: 1

SubProtID: 0x1 Age: 00h27m45s

Cost: 10 Preference: 15

IpPre: N/A QosLocalID: N/A

Tag: 0 State: Active Adv

OrigTblID: 0xa OrigVrf: default-vrf

TableID: 0xa OrigAs: 0

NibID: 0x24000005 LastAs: 0

AttrID: 0xffffffff Neighbor: ::

Flags: 0x10041 OrigNextHop: FE80::34CD:9FF:FE2F:D02

Label: NULL RealNextHop: FE80::34CD:9FF:FE2F:D02

BkLabel: NULL BkNextHop: FE80::7685:45FF:FEAD:102

SRLabel: NULL Interface: Vlan-interface200

BkSRLabel: NULL BkInterface: Vlan-interface100

Tunnel ID: Invalid IPInterface: Vlan-interface200

BkTunnel ID: Invalid BkIPInterface: Vlan-interface100

InLabel: 0 ColorInterface: N/A

SIDIndex: 0 BkColorInterface: N/A

FtnIndex: 0x0 TunnelInterface: N/A

TrafficIndex: N/A BkTunnelInterface: N/A

Connector: N/A PathID: 0x0

SRTunnelID: Invalid

SID Type: N/A NID: Invalid

FlushNID: Invalid BkNID: Invalid

BkFlushNID: Invalid StatFlags: 0x0

Exp: N/A

VpnPeerId: N/A Dscp: N/A

SID: N/A OrigLinkID: 0x0

BkSID: N/A RealLinkID: 0x0

CommBlockLen: 0

# Display route 10::1/128 on Switch B to view the backup next hop information.

[SwitchB] display ipv6 routing-table 10::1 128 verbose

Summary count : 1

Destination: 10::1/128

Protocol: IS_L1

Process ID: 1

SubProtID: 0x1 Age: 00h33m23s

Cost: 10 Preference: 15

IpPre: N/A QosLocalID: N/A

Tag: 0 State: Active Adv

OrigTblID: 0xa OrigVrf: default-vrf

TableID: 0xa OrigAs: 0

NibID: 0x24000006 LastAs: 0

AttrID: 0xffffffff Neighbor: ::

Flags: 0x10041 OrigNextHop: FE80::34CC:E8FF:FE5B:C02

Label: NULL RealNextHop: FE80::34CC:E8FF:FE5B:C02

BkLabel: NULL BkNextHop: FE80::7685:45FF:FEAD:102

SRLabel: NULL Interface: Vlan-interface200

BkSRLabel: NULL BkInterface: Vlan-interface101

Tunnel ID: Invalid IPInterface: Vlan-interface200

BkTunnel ID: Invalid BkIPInterface: Vlan-interface101

InLabel: 0 ColorInterface: N/A

SIDIndex: 0 BkColorInterface: N/A

FtnIndex: 0x0 TunnelInterface: N/A

TrafficIndex: N/A BkTunnelInterface: N/A

Connector: N/A PathID: 0x0

SRTunnelID: Invalid

SID Type: N/A NID: Invalid

FlushNID: Invalid BkNID: Invalid

BkFlushNID: Invalid StatFlags: 0x0

Exp: N/A

VpnPeerId: N/A Dscp: N/A

SID: N/A OrigLinkID: 0x0

BkSID: N/A RealLinkID: 0x0

CommBlockLen: 0

06-Layer 3—IP Routing Configuration Guide

About IS-IS

IS-IS area

Level-1 router

Level-2 router

Level-1-2 router

IS-IS topology

IS-IS network types

IS-IS PDUs

PDU

Hello PDU

LSP

SNP

CLV

IPv6 IS-IS

IPv4 IS-IS tasks at a glance

IPv6 IS-IS tasks at a glance

Setting the IS level and circuit level

About this task

Procedure

About this task

Procedure

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Configuring an IPv4 IS-IS cost for an interface

Configuring a global IPv4 IS-IS cost

Enabling automatic IPv4 IS-IS cost calculation

Configuring a global IPv6 IS-IS cost

Enabling automatic IPv6 IS-IS cost calculation

About this task

Procedure

About this task

Configuring a preference for IPv4 IS-IS

About this task

Configuring the maximum number of ECMP routes for IPv4 IS-IS

About this task

Configuring IPv4 IS-IS route summarization

Configuring IPv6 IS-IS route summarization

About this task

Advertising an IPv4 IS-IS default route

About this task

Configuring IPv4 IS-IS route redistribution

About this task

Filtering IPv4 IS-IS routes calculated from received LSPs

Filtering IPv6 IS-IS routes calculated from received LSPs

About this task

Configuring IPv4 IS-IS route leaking

Configuring IPv6 IS-IS route leaking

About this task

Procedure

About IS-IS network performance parameters

About this task

Procedure

About this task

Restrictions and guidelines

Configuring link delay parameters

Enabling IPv4 IS-IS to advertise link delay information

Enabling IPv6 IS-IS to advertise link delay information

Configuring IS-IS to suppress link delay information advertisement

Advertising link bandwidth information

About this task

Restrictions and guidelines

Enabling IPv4 IS-IS to advertise link bandwidth information

Enabling IPv6 IS-IS to advertise link bandwidth information

Configuring IS-IS to suppress link bandwidth information advertisement

Configuring IS-IS timers

About this task

Restrictions and guidelines

Procedure

Specifying the interval for sending IS-IS CSNP packets

About this task

Procedure

About this task

Procedure

About this task

Restrictions and guidelines
