EVPN VXLAN uses EVPN routes for VXLAN tunnel establishment and assignment and MAC reachability information advertisement in the control plane and uses VXLAN for forwarding in the data plane.

EVPN network model

As shown in Figure 1, EVPN uses the VXLAN technology for traffic forwarding in the data plane. The transport edge devices assign user terminals to different VXLANs, and then forward traffic between sites for user terminals by using VXLAN tunnels. The transport edge devices are VXLAN tunnel endpoints (VTEPs). They can be servers that host VMs or independent network devices.

Supported user terminals include PCs, wireless terminals, and VMs on servers.

NOTE:

This document uses VMs as examples to describe the mechanisms of EVPN. The mechanisms do not differ between different kinds of user terminals.

A VTEP uses ESs, VSIs, and VXLAN tunnels to provide VXLAN services:

· Ethernet segment (ES)—An ES is a link that connects a site to a VTEP. Each ES is uniquely identified by an Ethernet segment identifier (ESI).

· VSI—A virtual switch instance is a virtual Layer 2 switched domain. Each VSI provides switching services only for one VXLAN. VSIs learn MAC addresses and forward frames independently of one another. User terminals in different sites have Layer 2 connectivity if they are in the same VXLAN. A VXLAN is identified by a 24-bit VXLAN ID which is also called the virtual network identifier (VNI). A VXLAN corresponds to an EVPN instance.

· VXLAN tunnel—Logical point-to-point tunnels between VTEPs over the transport network. Each VXLAN tunnel can trunk multiple VXLANs.

All VXLAN processing is performed on VTEPs. The ingress VTEP encapsulates VXLAN traffic in the VXLAN, outer UDP, and outer IP headers, and forwards the traffic through VXLAN tunnels. The egress VTEP removes the VXLAN encapsulation and forwards the traffic to the destination. Transport network devices (for example, the P device in Figure 1) forward VXLAN traffic only based on the outer IP header of VXLAN packets.

Figure 1 EVPN network model

Configuration automation

If EVPN is used for Layer 2 forwarding, VTEPs use the following BGP EVPN routes to discover VTEP neighbors, establish VXLAN tunnels, and assign the tunnels to VXLANs:

· IMET route—VTEPs advertise their VXLAN IDs through IMET routes. If two VTEPs have the same VXLAN ID, they automatically establish a VXLAN tunnel and assign the tunnel to the VXLAN.

· MAC/IP advertisement route—VTEPs advertise local MAC addresses and VXLAN IDs through MAC/IP advertisement routes. If two VTEPs have the same VXLAN ID, they automatically establish a VXLAN tunnel and assign the tunnel to the VXLAN.

If EVPN is used for Layer 3 forwarding, VTEPs use the following BGP EVPN routes to discover VTEP neighbors, establish VXLAN tunnels, and assign the tunnels to VXLANs:

· IMET route—VTEPs advertise the VXLAN IDs they have through IMET routes. If two VTEPs have the same VXLAN ID, they automatically establish a VXLAN tunnel and assign the tunnel to the VXLAN.

· MAC/IP advertisement route and IP prefix advertisement route—In the EVPN gateway deployment, VTEPs advertise MAC/IP advertisement routes or IP prefix advertisement routes which carry the export targets. When a VTEP receives a route, it compares the export targets of the route with the local import targets. If the route targets match, the VTEP establishes a VXLAN tunnel with the remote VTEP and associates the tunnel with the L3 VXLAN ID of the corresponding VPN instance. For more information about the L3 VXLAN ID, see "Distributed EVPN gateway deployment."

Assignment of traffic to VXLANs

Traffic from the local site to a remote site

The VTEP uses an Ethernet service instance or Layer 3 interface to match customer traffic on a site-facing interface. The VTEP assigns customer traffic to a VXLAN by mapping the Layer 3 interface or Ethernet service instance to a VSI.

An Ethernet service instance or Layer 3 interface is identical to an attachment circuit (AC) in L2VPN. An Ethernet service instance matches a list of VLANs on a Layer 2 Ethernet interface by using a frame match criterion. The frame match criterion specifies the characteristics of traffic from the VLANs, such as tagging status and VLAN IDs.

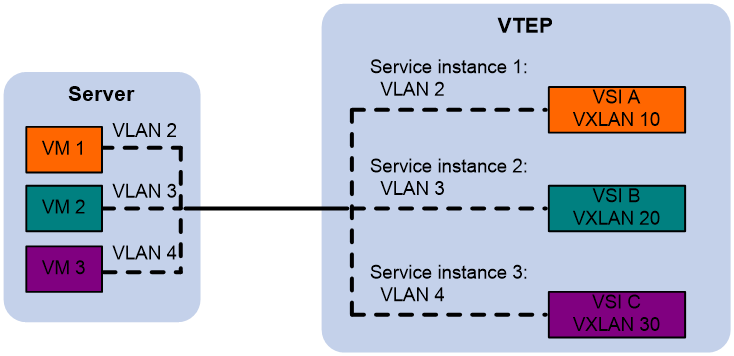

As shown in Figure 2, Ethernet service instance 1 matches VLAN 2 and is mapped to VSI A (VXLAN 10). When a frame from VLAN 2 arrives, the VTEP assigns the frame to VXLAN 10, and looks up VSI A's MAC address table for the outgoing interface.

Figure 2 Identifying traffic from the local site

‌

Traffic from a remote site to the local site

When a VXLAN packet arrives at a VXLAN tunnel interface, the VTEP uses the VXLAN ID in the packet to identify its VXLAN.

Layer 2 forwarding

MAC learning

The VTEP performs Layer 2 forwarding based on a VSI's MAC address table. The VTEP learns MAC addresses by using the following methods:

· Local MAC learning—The VTEP automatically learns the source MAC addresses of frames sent from the local site. The outgoing interfaces of local MAC address entries are site-facing interfaces on which the MAC addresses are learned.

· Remote MAC learning—The VTEP uses MP-BGP to advertise local MAC reachability information to remote sites and learn MAC reachability information from remote sites. The outgoing interfaces of MAC address entries advertised from a remote site are VXLAN tunnel interfaces.

Unicast

As shown in Figure 3, the VTEP performs typical Layer 2 forwarding for known unicast traffic within the local site.

Figure 3 Intra-site unicast

As shown in Figure 4, the following process applies to a known unicast frame between sites:

1. The source VTEP encapsulates the Ethernet frame in the VXLAN/UDP/IP header.

In the outer IP header, the source IP address is the source VTEP's VXLAN tunnel source IP address. The destination IP address is the VXLAN tunnel destination IP address.

2. The source VTEP forwards the encapsulated packet out of the outgoing VXLAN tunnel interface found in the VSI's MAC address table.

3. The intermediate transport devices (P devices) forward the packet to the destination VTEP by using the outer IP header.

4. The destination VTEP removes the headers on top of the inner Ethernet frame. It then performs MAC address table lookup in the VXLAN's VSI to forward the frame out of the matching outgoing interface.

Figure 4 Inter-site unicast

Flood

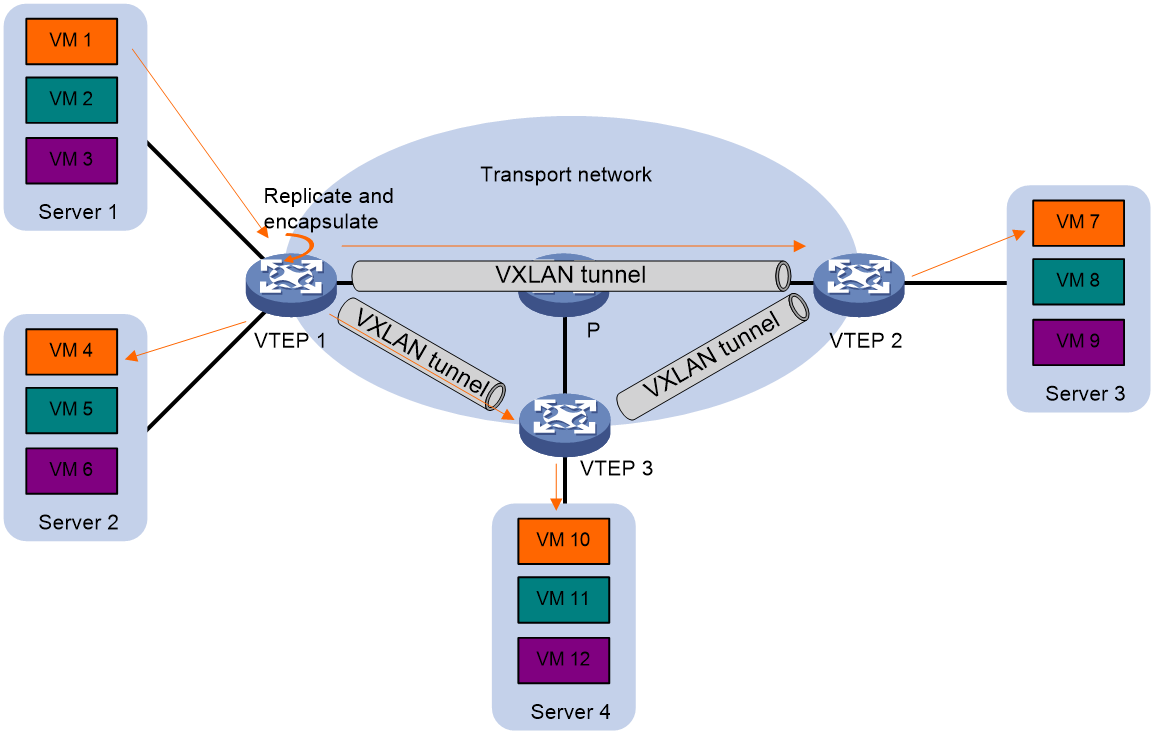

As shown in Figure 5, a VTEP floods a broadcast, multicast, or unknown unicast frame to all site-facing interfaces and VXLAN tunnels in the VXLAN, except for the incoming interface. The source VTEP replicates the flood frame, and then sends one replica to the destination IP address of each VXLAN tunnel in the VXLAN. Each destination VTEP floods the inner Ethernet frame to all the site-facing interfaces in the VXLAN. To avoid loops, the destination VTEPs do not flood the frame to VXLAN tunnels.

Figure 5 Forwarding of flood traffic

Centralized EVPN gateway deployment

Centralized EVPN gateway deployment uses one VTEP to provide Layer 3 forwarding for VXLANs. The VTEP uses virtual Layer 3 VSI interfaces as gateway interfaces for VXLANs. Typically, the gateway-collocated VTEP connects to other VTEPs and the external network. To use this design, make sure the gateway has sufficient bandwidth and processing capability. A centralized EVPN gateway can provide services only for IPv4 sites.

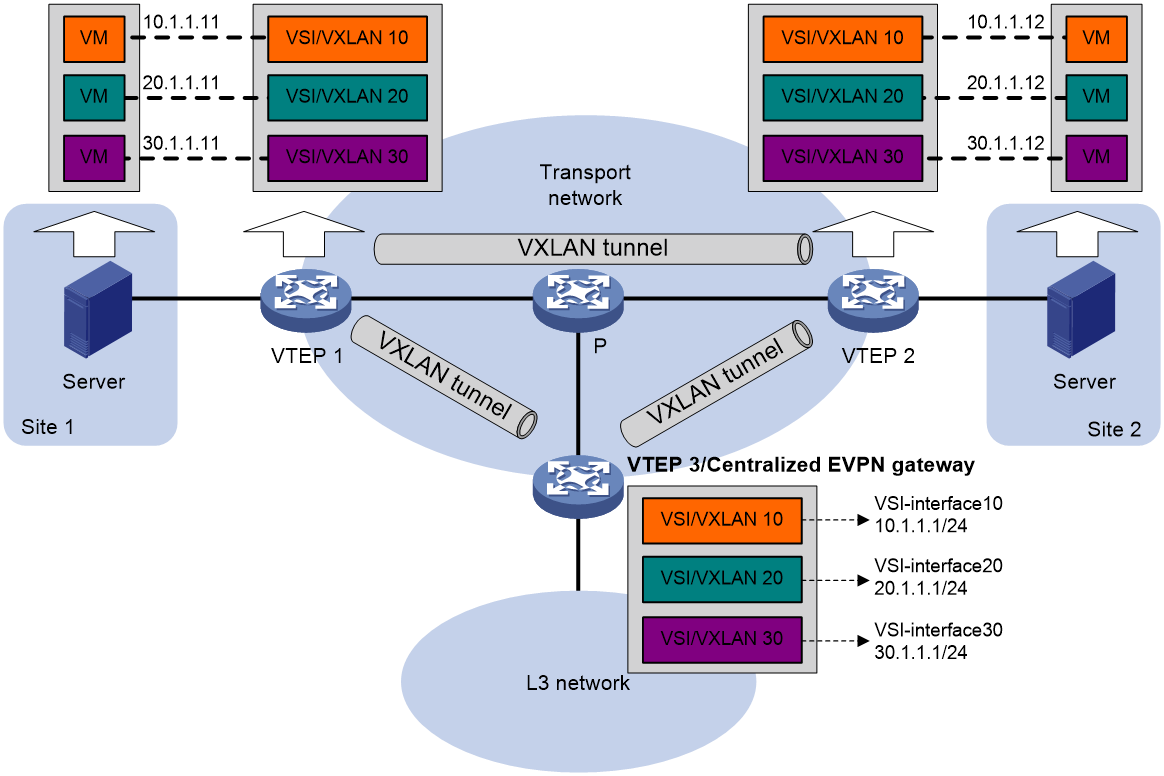

As shown in Figure 6, a VTEP acts as a gateway for VMs in the VXLANs. The VTEP both terminates the VXLANs and performs Layer 3 forwarding for the VMs. The network uses the following process to forward Layer 3 traffic from a VM to the destination:

1. The VM sends an ARP request to obtain the MAC address of the VSI interface that acts as the gateway, and then sends the Layer 3 traffic to the centralized EVPN gateway.

2. The local VTEP looks up the matching VSI's MAC address table and forwards the traffic to the centralized EVPN gateway through a VXLAN tunnel.

3. The centralized EVPN gateway removes the VXLAN encapsulation and forwards the traffic at Layer 3.

4. The centralized EVPN gateway forwards the replies sent by the destination node to the VM based on the ARP entry for the VM.

Figure 6 Example of centralized EVPN gateway deployment

Distributed EVPN gateway deployment

About distributed EVPN gateway deployment

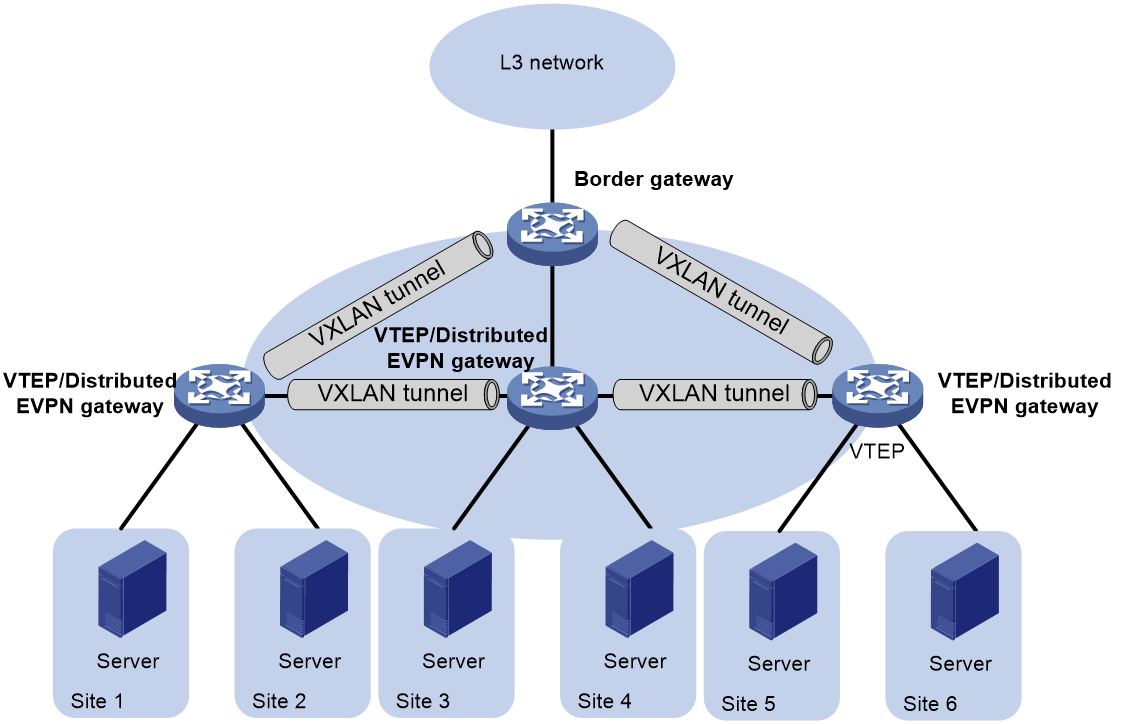

As shown in Figure 7, each site's VTEP acts as a gateway to perform Layer 3 forwarding for the VXLANs of the local site. A VTEP acts as a border gateway to the Layer 3 network for the VXLANs.

Figure 7 Distributed EVPN gateway placement design

‌

A distributed EVPN gateway supports the following traffic forwarding modes:

· Asymmetric IRB—The ingress gateway performs Layer 2 and Layer 3 lookups and the egress gateway performs only Layer 2 forwarding.

· Symmetric IRB—Both the ingress and egress gateways perform Layer 2 and Layer 3 lookups.

Symmetric IRB

Basic concepts

Symmetric IRB introduces the following concepts:

· L3 VXLAN ID—Also called L3 VNI. An L3 VXLAN ID identifies the traffic of a routing domain where devices have Layer 3 reachability. An L3 VXLAN ID is associated with one VPN instance. Distributed EVPN gateways use VPN instances to isolate traffic of different services on VXLAN tunnel interfaces.

· Router MAC address—Each distributed EVPN gateway has a unique router MAC address used for inter-gateway forwarding. The MAC addresses in the inner Ethernet header of VXLAN packets are router MAC addresses of distributed EVPN gateways.

VSI interfaces

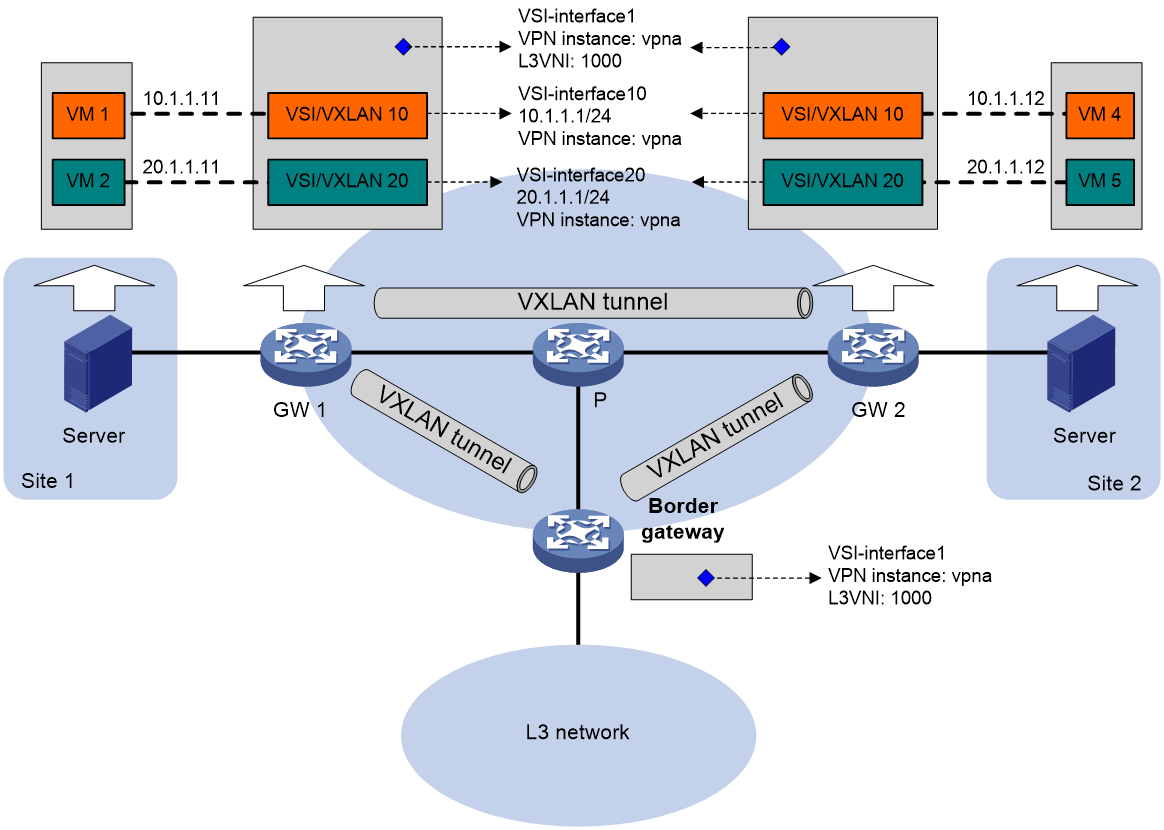

As shown in Figure 8, each distributed EVPN gateway has the following types of VSI interfaces:

· VSI interface as a gateway interface of a VXLAN—The VSI interface acts as the gateway interface for VMs in a VXLAN. The VSI interface is associated with a VSI and a VPN instance. On different distributed EVPN gateways, the VSI interface of a VXLAN use the same IP address to provide services.

· VSI interface associated with an L3 VXLAN ID—The VSI interface is associated with a VPN instance and assigned an L3 VXLAN ID. VSI interfaces associated with the same VPN instance share an L3 VXLAN ID.

A border gateway only has VSI interfaces that are associated with an L3 VXLAN ID.

Figure 8 Example of distributed EVPN gateway deployment

‌

Layer 3 forwarding entry learning

A distributed EVPN gateway forwards Layer 3 traffic based on FIB entries generated from BGP EVPN routes and ARP information.

A VTEP advertises an external route imported in the EVPN address family through MP-BGP. A remote VTEP adds the route to the FIB table of a VPN instance based on the L3 VXLAN ID carried in the route. In the FIB entry, the outgoing interface is a VXLAN tunnel interface, and the next hop is the peer VTEP address in the NEXT_HOP attribute of the route.

A VTEP has the following types of ARP information:

· Local ARP information—ARP information of VMs in the local site. The VTEP snoops GARP packets, RARP packets, and ARP requests for the gateway MAC address to learn the ARP information of the senders and generates ARP entries and FIB entries. In an ARP or FIB entry, the outgoing interface is the site-facing interface where the packet is received, and the VPN instance is the instance associated with the corresponding VSI interface.

· Remote ARP information—ARP information of VMs in remote sites. Each VTEP uses MP-BGP to advertise its local ARP information with L3 VXLAN IDs in routes to remote sites. A VTEP generates only FIB entries for the remote ARP information. A FIB entry contains the following information:

¡ Outgoing interface: VSI interface associated with the L3 VXLAN ID.

¡ Next hop: Peer VTEP address in the NEXT_HOP attribute of the route.

¡ VPN instance: VPN instance associated with the L3 VXLAN ID.

The VTEP then creates an ARP entry for the next hop in the FIB entry.

Traffic forwarding

A distributed EVPN gateway can work in one of the following mode:

· Switching and routing mode—Forwards Layer 2 traffic based on the MAC address table and forwards Layer 3 traffic based on the FIB table. In this mode, you need to enable ARP flood suppression on the distributed EVPN gateway to reduce flooding.

· Routing mode— Forwards both Layer 2 and Layer 3 traffic based on the FIB table. In this mode, you need to enable local proxy ARP on the distributed EVPN gateway.

For more information about MAC address table-based Layer 2 forwarding, see "Unicast."

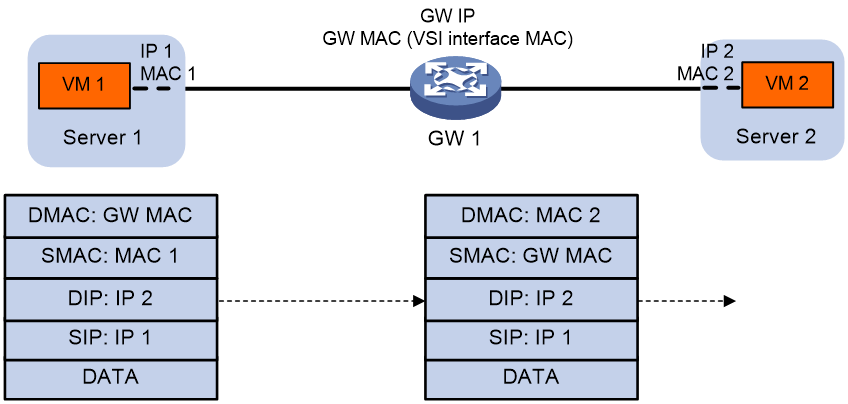

Figure 9 shows the intra-site Layer 3 forwarding process.

1. The source VM sends an ARP request to obtain the MAC address of the destination VM.

2. The gateway replies to the source VM with the MAC address of the VSI interface associated with the source VM's VSI.

3. The source VM sends a Layer 3 packet to the gateway.

4. The gateway looks up the FIB table of the VPN instance associated with the source VM's VSI and finds the matching outgoing site-facing interface.

5. The gateway processes the Ethernet header of the Layer 3 packet as follows:

¡ Replaces the destination MAC address with the destination VM's MAC address.

¡ Replaces the source MAC address with the VSI interface's MAC address.

6. The gateway forwards the Layer 3 packet to the destination VM.

Figure 9 Intra-site Layer 3 forwarding

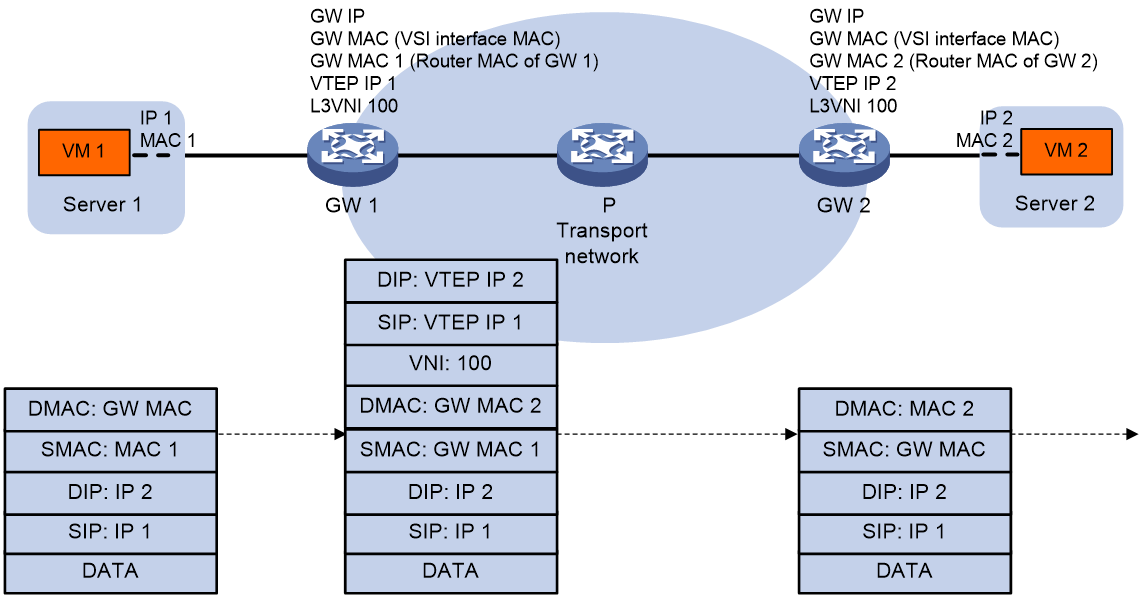

Figure 10 shows the inter-site Layer 3 forwarding process.

1. The source VM sends an ARP request to obtain the MAC address of the destination VM.

2. The gateway replies to the source VM with the MAC address of the VSI interface associated with the source VM's VSI.

3. The source VM sends a Layer 3 packet to the gateway.

4. The gateway looks up the FIB table of the VPN instance associated with the source VM's VSI and finds the matching outgoing VSI interface.

5. The gateway processes the Ethernet header of the Layer 3 packet as follows:

¡ Replaces the destination MAC address with the destination gateway's router MAC address.

¡ Replaces the source MAC address with its own router MAC address.

6. The gateway adds VXLAN encapsulation to the Layer 3 packet and forwards the packet to the destination gateway. The encapsulated VXLAN ID is the L3 VXLAN ID of the corresponding VPN instance.

7. The destination gateway identifies the VPN instance of the packet based on the L3 VXLAN ID and removes the VXLAN encapsulation. Then the gateway forwards the packet based on the matching ARP entry.

Figure 10 Inter-site Layer 3 forwarding

Communication between private and public networks

A distributed EVPN gateway uses the public instance to perform Layer 3 forwarding for the public network and to enable communication between private and public networks. The public instance is similar to a VPN instance. A distributed EVPN gateway processes traffic of the public instance in the same way it does for a VPN instance. For the public instance to work correctly, you must configure an RD, an L3 VXLAN ID, and route targets for it. If a VSI interface is not associated with any VPN instance, the VSI interface belongs to the public instance.

Asymmetric IRB

VSI interfaces

Asymmetric IRB uses the same distributed EVPN gateway deployment as symmetric IRB.

As shown in Figure 11, each distributed EVPN gateway has the following types of VSI interfaces:

· VSI interface as a gateway interface of a VXLAN—The VSI interface is associated with a VSI and a VPN instance. On different distributed EVPN gateways, the VSI interface of a VXLAN must use different IP addresses to provide services.

· VSI interface associated with an L3 VXLAN ID—The VSI interface acts as the gateway for VMs in a VXLAN to communicate with the external network through the border gateway. The VSI interface is associated with a VPN instance and assigned an L3 VXLAN ID. VSI interfaces associated with the same VPN instance share an L3 VXLAN ID.

A border gateway only has VSI interfaces that are associated with an L3 VXLAN ID.

Layer 3 forwarding

Asymmetric IRB supports only Layer 3 forwarding in the same VXLAN on distributed EVPN gateways.

After a distributed EVPN gateway learns ARP information about local VMs, it advertises the information to other distributed EVPN gateways through MAC/IP advertisement routes. Other distributed EVPN gateways generate FIB entries based on the advertised ARP information.

As shown in Figure 11, VM 1 and VM 2 belong to VXLAN 10 and they can reach each other at Layer 3 through the distributed EVPN gateways. The distributed EVPN gateways use the following process to perform Layer 3 forwarding in asymmetric IRB mode when VM 1 sends a packet to VM 2:

1. After GW 1 receives the packet from VM 1, it finds that the destination MAC address is itself. Then, GW 1 removes the Layer 2 frame header and looks up the FIB table for the destination IP address.

2. GW 1 matches the packet to the FIB entry generated based on the ARP information of VM 2.

3. GW 1 encapsulates the packet source and destination MAC addresses as the MAC addresses of GW 1 and VM 2, respectively. Then, GW 1 adds VXLAN encapsulation to the packet and forwards the packet to GW 2 through a VXLAN tunnel.

4. GW 2 removes the VXLAN encapsulation from the packet, and performs Layer 2 forwarding in VXLAN 10 by looking up the MAC address table for the destination MAC address.

5. GW 2 forwards the packet to VM 2 based on the MAC address table lookup result.

Figure 11 Layer 3 forwarding in the same VXLAN (asymmetric IRB)

‌

EVPN VXLAN multihoming

About EVPN VXLAN multihoming

As shown in Figure 12, EVPN supports deploying multiple VTEPs at a site for redundancy and high availability. On the redundant VTEPs, Ethernet links connected to the site form an Ethernet segment (ES) that is uniquely identified by an Ethernet segment identifier (ESI).

Figure 12 EVPN VXLAN multihoming

DF election

To prevent redundant VTEPs from sending duplicate flood traffic to a multihomed site, a designated forwarder (DF) is elected from the VTEPs to forward flood traffic to the site. VTEPs that fail the election are assigned the backup designated forwarder (BDF) role. BDFs do not forward flood traffic to the site.

Redundant VTEPs at a site send Ethernet segment routes to one another to advertise ES and VTEP IP mappings. A VTEP accepts the Ethernet segment routes only when it is configured with an ESI. Then, the VTEPs select a DF for each AC based on the ES and VTEP IP mappings. DF election can be performed by using a VLAN tag-based algorithm or preference-based algorithm.

Figure 13 DF election

VLAN tag-based DF election

VTEPs select a DF for each AC based on the VLAN tag and VTEP IP address as follows:

1. Arrange source IP addresses in Ethernet segment routes with the same ESI in ascending order and assign a sequence number to each IP address, starting from 0.

2. Divide the lowest VLAN ID permitted on an AC by the number of the redundant VTEPs, and match the reminder to the sequence numbers of IP addresses.

3. Assign the DF role to the VTEP that uses the IP address with the matching sequence number.

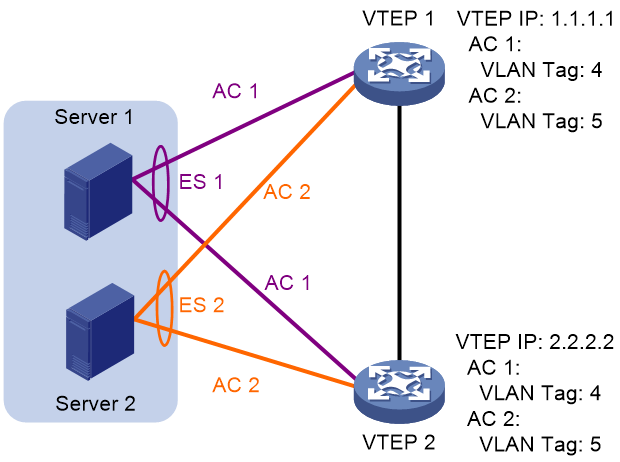

The following uses AC 1 in Figure 14 as an example to explain the DF election procedure:

4. VTEP 1 and VTEP 2 send Ethernet segment routes to each other.

5. The VTEPs assign sequence numbers 0 and 1 to IP addresses 1.1.1.1 and 2.2.2.2 in the Ethernet segment routes, respectively.

6. The VTEPs divide 4 (the lowest VLAN ID permitted by AC 1) by 2 (the number of redundant VTEPs), and match the reminder 0 to the sequence numbers of the IP addresses.

7. The DF role is assigned to VTEP 1 at 1.1.1.1.

Figure 14 VLAN tag-based DF election

Preference-based DF election

VTEPs select a DF for each ES based on the DF election preference, the Don't Preempt Me (DP) bit in Ethernet segment routes, and VTEP IP address. The DP bit can be set to one of the following values:

· 1—DF preemption is disabled. A DF retains its role when a new DF is elected.

· 0—DF preemption is enabled.

Preference-based DF election uses the following rules to select a DF for an ES:

· The VTEP with higher preference becomes the DF.

· If two VTEPs have the same preference, the VTEP with the DP bit set to 1 becomes the DF. If both of the VTEPs have the DP bit set to 1, the VTEP with a lower IP address becomes the DF.

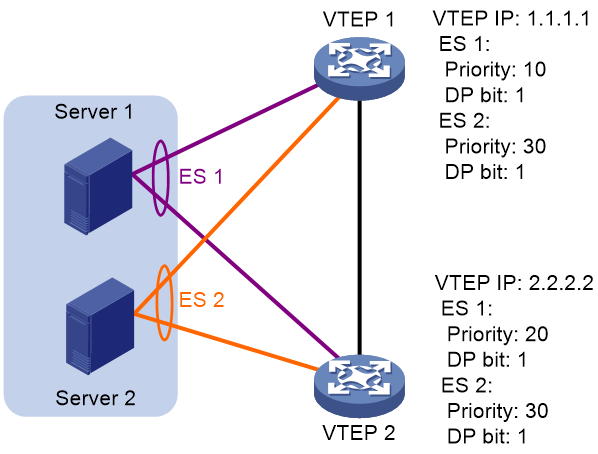

As shown in Figure 15, VTEP 2 is the DF for ES 1, and VTEP 1 is the DF for ES 2.

Figure 15 Preference-based DF election

Split horizon

In a multihomed site, a VTEP forwards multicast, broadcast, and unknown unicast frames received from ACs out of all site-facing interfaces and VXLAN tunnels in the corresponding VXLAN, except for the incoming interface. As a result, the other VTEPs at the site receive these flood frames and forward them to site-facing interfaces, which causes duplicate floods and loops. EVPN introduces split horizon to resolve this issue. Split horizon disables a VTEP to forward flood traffic received from another local VTEP to site-facing interfaces if an ES on that local VTEP has the same ESI as these interfaces. As shown in Figure 16, both VTEP 1 and VTEP 2 have ES 1. When receiving flood traffic from VTEP 1, VTEP 2 does not forward the traffic to interfaces with ESI 1.

Figure 16 Split horizon

Redundancy mode

The device supports the all-active redundancy mode of EVPN VXLAN multihoming. This mode allows all redundant VTEPs at a multihomed site to forward broadcast, multicast, and unknown unicast traffic.

· For flood frames received from remotes sites, a VTEP forwards them to the ACs of which it is the DF.

· For flood frames received from the local site, a VTEP forwards them out of all site-facing interfaces and VXLAN tunnels in the corresponding VXLAN, except for the incoming interfaces. For flood frames to be sent out of a VXLAN tunnel interface, a VTEP replicates each flood frame and sends one replica to all the other VTEPs in the corresponding VXLAN.

IP aliasing

In all-active redundancy mode, all redundant VTEPs of an ES advertise the ES to remote VTEPs through MP-BGP. IP aliasing allows a remote VTEP to add the IP addresses of all the redundant VTEPs as the next hops for the MAC or ARP information received from one of these VTEPs. This mechanism creates ECMP routes between the remote VTEP and the redundant VTEPs.

ARP and ND flood suppression

ARP or ND flood suppression reduces ARP request broadcasts or ND request multicasts by enabling the VTEP to reply to ARP or ND requests on behalf of VMs.

As shown in Figure 17, this feature snoops ARP or ND requests, ARP or ND responses, and BGP EVPN routes to populate the ARP or ND flood suppression table with local and remote MAC addresses. If an ARP or ND request has a matching entry, the VTEP replies to the request on behalf of the VM. If no match is found, the VTEP floods the request to both local and remote sites.

Figure 17 ARP flood suppression

The following uses ARP flood suppression as an example to explain the flood suppression workflow:

1. VM 1 sends an ARP request to obtain the MAC address of VM 7.

2. VTEP 1 creates a suppression entry for VM 1, floods the ARP request in the VXLAN, and sends the suppression entry to VTEP 2 and VTEP 3 through BGP EVPN.

3. VTEP 2 and VTEP 3 de-encapsulate the ARP request and broadcast the request in the local site.

4. VM 7 sends an ARP reply.

5. VTEP 2 creates a suppression entry for VM 7, forwards the ARP reply to VTEP 1, and sends the suppression entry to VTEP 1 and VTEP 3 through BGP EVPN.

6. VTEP 1 de-encapsulates the ARP reply and forwards the ARP reply to VM 1.

7. VM 4 sends an ARP request to obtain the MAC address of VM 1.

8. VTEP 1 creates a suppression entry for VM 4 and replies to the ARP request.

9. VM 10 sends an ARP request to obtain the MAC address of VM 1.

10. VTEP 3 creates a suppression entry for VM 10 and replies to the ARP request.

MAC mobility

MAC mobility refers to that a VM or host moves from one ES to another. The source VTEP is unaware of the MAC move event. To notify other VTEPs of the change, the destination VTEP advertises a MAC/IP advertisement route for the MAC address. The source VTEP withdraws the old route for the MAC address after receiving the new route. The MAC/IP advertisement route has a sequence number that increases when the MAC address moves. The sequence number identifies the most recent move if the MAC address moves multiple times.

EVPN M-LAG

‌

IMPORTANT:

You can use EVPN M-LAG on IPv4 sites extended by IPv4 underlay networks or on IPv6 sites extended by IPv6 underlay networks.

‌

About EVPN M-LAG

As shown in Figure 18, EVPN M-LAG virtualizes two VTEPs or EVPN gateways into one M-LAG system to avoid single points of failure. The VTEPs or EVPN gateways are called M-LAG member devices. For more information about M-LAG, see Layer 2—LAN Switching Configuration Guide.

Figure 18 EVPN M-LAG

VM reachability information synchronization

To ensure VM reachability information consistency in the M-LAG system, the M-LAG member devices synchronize MAC address entries and ARP or ND information with each other over a peer link. The peer link can be an Ethernet aggregate link or a VXLAN tunnel, which are referred to as direct peer link and tunnel peer link, respectively.

·	IMPORTANT: The VXLAN tunnel that acts as the peer link is automatically associated with all VXLANs on each M-LAG member device.

Virtual VTEP address

The M-LAG member devices use a virtual VTEP address to set up VXLAN tunnels with remote VTEPs or EVPN gateways.

Independent BGP neighbor relationship establishment

The M-LAG member devices use different BGP peer addresses to establish neighbor relationships with remote devices. For load sharing and link redundancy, a neighbor sends traffic destined for the virtual VTEP address to both of the M-LAG member devices through ECMP routes of the underlay network.

Site-facing link redundancy

IMPORTANT:

This mechanism ensures service continuity in case of site-facing AC failure.

As shown in Figure 18, a VM accesses the EVPN network through multiple Ethernet links that connect to the VTEPs. On each VTEP, all site-facing Ethernet links are assigned to a Layer 2 aggregation group for high availability. On the corresponding Layer 2 aggregate interfaces, Ethernet service instances are configured as ACs of VXLANs to match customer traffic.

Link redundancy mechanism for a direct peer link

If the peer link is an Ethernet aggregate link, VTEPs in the M-LAG system transmit data traffic between them over the peer link or a VXLAN tunnel when a site-facing AC fails.

· Data traffic transmission over a VXLAN tunnel—The VTEPs automatically set up a VXLAN tunnel between them and assign it to all VXLANs. When a site-facing AC on one M-LAG member device fails, the device forwards the remote packets destined for the AC to the other M-LAG member device over the VXLAN tunnel. The remote packets are encapsulated with the VXLAN ID of the failed site-facing AC. When the other M-LAG member device receives the packets, it decapsulates them and forwards them in the VXLAN where they belong.

· Data traffic transmission over the peer link—Each VTEP in the M-LAG system creates dynamic ACs on the peer-link interface by using one of the following methods:

¡ Creation based on site-facing ACs—When a site-facing AC is created, a VTEP automatically creates an AC on the peer-link interface. The automatically created AC uses the same traffic match criterion as the site-facing AC and is mapped to the same VSI as the site-facing AC.

¡ Creation based on VXLAN IDs—When a VXLAN is created, a VTEP automatically creates an AC on the peer-link interface. The automatically created AC uses a frame match criterion generated based on the VXLAN ID and is mapped to the VSI of the VXLAN.

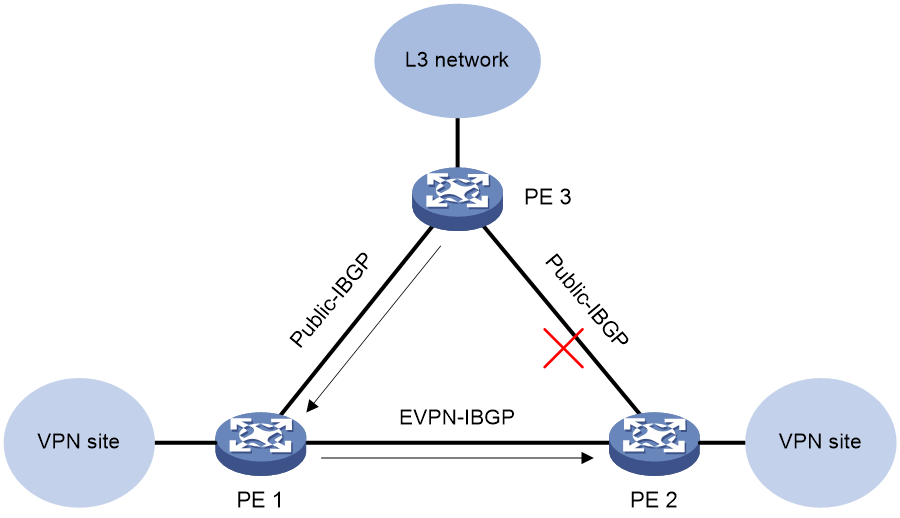

When a site-facing AC goes down, traffic that a remote device sends to the AC is forwarded to the other M-LAG member device through the peer link. The other M-LAG member device identifies the VSI of the traffic and forwards the traffic to the destination.

Link redundancy mechanism for a tunnel peer link

If a site-facing AC on an M-LAG member device is down, traffic received from a VXLAN tunnel and destined for the AC will be encapsulated into VXLAN packets. The VXLAN ID belongs to the VXLAN that is associated with the VSI of the site-facing AC. The M-LAG member device forwards the VXLAN packets through the peer-link VXLAN tunnel to the peer M-LAG member device. The peer M-LAG member device assigns the traffic to the correct VSI based on the VXLAN ID in the received packets.

Configuring EVPN VXLAN

Restrictions and guidelines: EVPN VXLAN configuration

Make sure the following VXLAN tunnels are not associated with the same VXLAN when they have the same tunnel destination IP address:

· A VXLAN tunnel automatically created by EVPN.

· A manually created VXLAN tunnel.

For more information about manual tunnel configuration, see VXLAN Configuration Guide.

As a best practice to ensure correct traffic forwarding, configure the same MAC address for all VSI interfaces on an EVPN gateway.

By default, all interfaces on the device operate in Layer 3 mode. Before you configure Ethernet service instances on interfaces, configure the interfaces to operate in Layer 2 mode.

EVPN VXLAN tasks at a glance

To configure EVPN VXLAN, perform the following tasks:

1. Setting the forwarding mode for VXLANs

2. Configuring a VXLAN on a VSI

3. Configuring an EVPN instance

4. (Optional.) Configuring EVPN VXLAN multihoming

a. Assigning an ESI to an interface

b. (Optional.) Configuring the DF election algorithm

c. (Optional.) Setting the DF election delay

d. (Optional.) Disabling advertisement of EVPN multihoming routes

e. (Optional.) Enabling the device to ignore the Ethernet tag when advertising Ethernet auto-discovery routes and MAC/IP advertisement routes

f. (Optional.) Enabling the device to monitor the BGP peer status of another local edge device

5. Configuring BGP to advertise BGP EVPN routes

a. Enabling BGP to advertise BGP EVPN routes

b. (Optional.) Configuring route advertisement settings

c. (Optional.) Preferring routes with an IPv6 next hop during optimal route selection

d. (Optional.) Configuring routing policy-based recursive lookup

e. (Optional.) Maintaining BGP sessions

6. Mapping ACs to a VSI

7. Configuring an EVPN gateway

Choose one of the following tasks:

¡ Configuring a centralized EVPN gateway

¡ Configuring a distributed EVPN gateway

8. (Optional.) Managing remote MAC address entries and remote ARP learning

¡ Disabling remote MAC address learning and remote ARP learning

¡ Disabling MAC address advertisement

¡ Enabling MAC mobility event suppression

¡ Disabling learning of MAC addresses from ARP or ND information

¡ Disabling ARP information advertisement

¡ Disabling the VSI interface on a centralized EVPN gateway from learning ARP or ND information across subnets

¡ Enabling ARP mobility event suppression

¡ Enabling ARP request proxy

9. Enabling conversational learning for host route FIB entries

To save device hardware resources, host route FIB entries are issued to the hardware only when the entries are required for packet forwarding.

10. (Optional.) Configuring BGP EVPN route redistribution and advertisement

¡ Redistributing MAC/IP advertisement routes into BGP unicast routing tables

¡ Setting the metric of BGP EVPN routes added to a VPN instance's routing table

¡ Enabling BGP EVPN route advertisement to the local site

11. (Optional.) Maintaining and optimizing an EVPN network

¡ Disabling flooding for a VSI

¡ Enabling ARP or ND flood suppression

¡ Testing the connectivity of a VXLAN tunnel

12. (Optional.) Configuring EVPN M-LAG

Perform this task to virtualize two VTEPs or EVPN gateways into one M-LAG system to avoid single points of failure.

Setting the forwarding mode for VXLANs

About this task

The device performs Layer 2 or Layer 3 forwarding for VXLANs depending on your configuration.

· In Layer 3 forwarding mode, the device uses the FIB table to forward traffic.

· In Layer 2 forwarding mode, the device uses the MAC address table to forward traffic.

Use Layer 2 forwarding mode if you use the device as a VTEP. Use Layer 3 forwarding mode if you use the device as an EVPN gateway.

If you enable Layer 3 forwarding for VXLANs, the tagging status of VXLAN packets is not determined by the link type of the outgoing interface. You must use this command to set the tagging mode of VXLAN packets.

· Set the tagging mode to untagged if the following requirements are met:

¡ The link type of the outgoing interface is access, trunk, or hybrid.

¡ VXLAN packets are transmitted to the next hop through the PVID of the outgoing interface.

· Set the tagging mode to tagged if the following requirements are met:

¡ The link type of the outgoing interface is trunk or hybrid.

¡ VXLAN packets are transmitted to the next hop through a VLAN other than the PVID of the outgoing interface.

Restrictions and guidelines

You must delete all VSIs, VSI interfaces, and VXLAN tunnel interfaces before you can change the forwarding mode. As a best practice, finish VXLAN network planning and determine the VXLAN forwarding mode of each device before your configuration, and set the VXLAN forwarding mode before other VXLAN settings.

You must delete all VXLAN tunnel interfaces before you can change the tagging mode of VXLAN packets.

Procedure

1. Enter system view.

system-view

2. Enable Layer 2 or Layer 3 forwarding for VXLANs.

¡ Enable Layer 2 forwarding.

undo vxlan ip-forwarding

¡ Enable Layer 3 forwarding.

vxlan ip-forwarding [ tagged | untagged ]

By default, Layer 3 forwarding is enabled for VXLANs.

For more information about this command, see VXLAN Command Reference.

Configuring a VXLAN on a VSI

Restrictions and guidelines

For more information about the VXLAN commands in this task, see VXLAN Command Reference.

Procedure

1. Enter system view.

system-view

2. Enable L2VPN.

l2vpn enable

By default, L2VPN is disabled.

3. Create a VSI and enter VSI view.

vsi vsi-name

4. Configure a VSI description.

description text

By default, a VSI does not have a description.

5. Enable the VSI.

undo shutdown

By default, a VSI is enabled.

6. Create a VXLAN and enter VXLAN view.

vxlan vxlan-id

You can create only one VXLAN on a VSI. The VXLAN ID must be unique for each VSI.

Configuring an EVPN instance

About EVPN instance configuration

If a VXLAN requires only Layer 2 connectivity, you do not need to associate a VPN instance with it. The BGP EVPN routes advertised by a VTEP carry the RD and route targets configured for the EVPN instance associated with the VXLAN.

Use one of the following methods to create an EVPN instance:

· Create an EVPN instance in system view—You can bind an EVPN instance created in system view to multiple VSIs to simplify configuration.

· Create an EVPN instance on a VSI—An EVPN instance created in VSI view is automatically bound with the VSI.

In EVPN instance view, you can configure routing policies to filer the routes redistributed from BGP EVPN to an EVPN instance and vice versa.

Restrictions and guidelines for EVPN instance configuration

If you have created an EVPN instance in VSI view for a VSI, you cannot bind the VSI to an EVPN instance created in system view. If you have bound a VSI to an EVPN instance created in system view, you cannot create an EVPN instance in VSI view for the VSI.

Configuring an EVPN instance created in system view

1. Enter system view.

system-view

2. Create an EVPN instance and enter its view.

evpn instance instance-name

3. Configure an RD for the EVPN instance.

route-distinguisher route-distinguisher

By default, no RD is configured for an EVPN instance.

4. Configure route targets for the EVPN instance.

vpn-target vpn-target&<1-8> [ both | export-extcommunity | import-extcommunity ]

By default, an EVPN instance does not have route targets.

Make sure the following requirements are met:

¡ The export targets of EVPN instances do not overlap. The export targets configured for EVPN instances in system view, VSI view, VPN instance view, public instance view, and cross-connect group view do not overlap.

¡ The import targets configure for the EVPN instance in VPN instance view, public instance view, or other views do not match the export targets of a cross-connect group EVPN instance, and vice versa.

For more information about VPN instance configuration and public instance configuration, see "Configuring an L3 VXLAN ID for a VSI interface."

5. (Optional.) Apply an export routing policy to the EVPN instance.

export route-policy route-policy

By default, no export routing policy is applied to an EVPN instance.

6. (Optional.) Apply an import routing policy to the EVPN instance.

import route-policy route-policy

By default, no import routing policy is applied to an EVPN instance.

7. (Optional.) Apply a tunnel policy to EVPN.

tunnel-policy tunnel-policy-name

By default, no tunnel policy is specified for EVPN.

8. Return to system view.

quit

9. Enter VSI view.

vsi vsi-name

10. Bind the VSI to the EVPN instance.

evpn encapsulation vxlan binding instance instance-name vsi-tag { tag-id | auto-vxlan }

By default, a VSI is not bound to an EVPN instance created in system view.

You can bind a VSI to one or two EVPN instances. If you bind two EVP instances to a VSI, make sure one EVPN instance uses MPLS encapsulation and the other uses VXLAN encapsulation.

Configuring an EVPN instance created in VSI view

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Create an EVPN instance and enter VSI EVPN instance view.

evpn encapsulation vxlan

4. Configure an RD for the EVPN instance.

route-distinguisher { route-distinguisher | auto }

By default, no RD is configured for an EVPN instance.

5. Configure route targets for the EVPN instance.

vpn-target { vpn-target&<1-8> | auto } [ both | export-extcommunity | import-extcommunity ]

By default, an EVPN instance does not have route targets.

Make sure the import targets of the EVPN instance do not match the export targets of VPN instances or the public instance, and vice versa. For more information about VPN instance configuration and public instance configuration, see "Configuring an L3 VXLAN ID for a VSI interface."

6. (Optional.) Apply an export routing policy to the EVPN instance.

export route-policy route-policy

By default, no export routing policy is applied to an EVPN instance.

7. (Optional.) Apply an import routing policy to the EVPN instance.

import route-policy route-policy

By default, no import routing policy is applied to an EVPN instance.

8. (Optional.) Apply a tunnel policy to EVPN.

tunnel-policy tunnel-policy-name

By default, no tunnel policy is specified for EVPN.

Configuring EVPN VXLAN multihoming

Restrictions and guidelines for EVPN VXLAN multihoming

In a multihomed site, AC configuration and VXLAN IDs must be consistent on redundant VTEPs of the same ES. For each VXLAN ID, you must configure unique RDs for the EVPN instance of VSIs on the redundant VTEPs. You must configure different RDs for the VPN instances and the public instance that use the same VXLAN IP gateway.

You can assign ESIs to a main interface and its subinterfaces.

· If you assign an ESI to a subinterface, the subinterface-specific ESI and ES configuration take precedence over those configured on the main interface. The ES configuration includes the following:

¡ evpn df-election algorithm.

¡ evpn df-election preference.

¡ evpn df-election preference non-revertive.

¡ evpn timer es-delay.

· If you do not assign an ESI to a subinterface, it inherits the ESI and ES configuration (if configured) of the main interface. In this scenario, the ES configuration on the subinterface does not take effect.

Assigning an ESI to an interface

About this task

An ESI uniquely identifies an ES. The links on interfaces with the same ESI belong to the same ES. Traffic of the ES can be distributed among the links for load sharing.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

¡ Enter Layer 3 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 3 aggregate interface view.

interface route-aggregation interface-number

3. Assign an ESI to the interface.

esi esi-id

By default, no ESI is assigned to an interface.

Configuring the DF election algorithm

About this task

At a multihomed EVPN network site, you can modify the DF election algorithm to control the DF election result.

Restrictions and guidelines

Do not configure ambiguous VLAN termination on a subinterface acting as an AC. If you do so, the device cannot perform DF election based on the VLAN tag, and traffic will be forwarded incorrectly.

You can configure the DF election algorithm in system view and in interface view. The global DF election algorithm takes effect on all ESs, and the interface-specific DF election algorithm takes effect only on the ESs on an interface. The interface-specific DF election algorithm takes precedence over the global DF election algorithm.

Configuring the DF election algorithm globally

1. Enter system view.

system-view

2. Configure the DF election algorithm.

evpn df-election algorithm algorithm

By default, the VLAN tag-based algorithm is used for DF election.

Configuring the DF election algorithm on an interface

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

¡ Enter Layer 3 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 3 aggregate interface view.

interface route-aggregation interface-number

3. Configure the DF election algorithm.

evpn df-election algorithm algorithm

By default, the DF election algorithm specified in system view takes effect.

Configuring preference-based DF election

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

¡ Enter Layer 3 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 3 aggregate interface view.

interface route-aggregation interface-number

3. Set the DF election preference.

evpn df-election preference preference

By default, the DF election preference is 32767.

The larger the value, the higher the preference.

4. (Optional.) Enable non-revertive mode for preference-based DF election.

evpn df-election preference non-revertive

By default, non-revertive mode is disabled for preference-based DF election.

Setting the DF election delay

About this task

The DF election can be triggered by site-facing interface status changes, redundant VTEP membership changes, and interface ESI changes. To prevent frequent DF elections from degrading network performance, set the DF election delay. The DF election delay defines the minimum interval allowed between two DF elections.

Procedure

1. Enter system view.

system-view

2. Set the DF election delay.

evpn multihoming timer df-delay delay-value

By default, the DF election delay is 3 seconds.

Disabling advertisement of EVPN multihoming routes

About this task

EVPN multihoming routes include Ethernet auto-discovery routes and Ethernet segment routes.

In a multihomed EVPN network, perform this task on a redundant VTEP before you reboot it. This operation allows other VTEPs to refresh their EVPN routing table to prevent traffic interruption caused by the reboot.

Procedure

1. Enter system view.

system-view

2. Disable advertisement of EVPN multihoming routes and withdraw the EVPN multihoming routes that have been advertised to remote sites.

evpn multihoming advertise disable

By default, the device advertises EVPN multihoming routes.

Enabling the device to ignore the Ethernet tag when advertising Ethernet auto-discovery routes and MAC/IP advertisement routes

About this task

This task enables the device to withdraw the Ethernet auto-discovery routes and MAC/IP advertisement routes that have been advertised, set their Ethernet tag field to 0, and then re-advertise them.

After you configure ESIs for ACs on the redundant edge devices at a dualhomed site, the edge devices advertise Ethernet auto-discovery routes and MAC/IP advertisement routes that carry Ethernet tags. If the remote peers are unable to identify Ethernet tags, you must perform this task on the redundant edge devices to enable communication with the peers.

Restrictions and guidelines

After you assign an ESI to a Layer 2 Ethernet or aggregate interface, you must map the Ethernet service instances created on the interface to different VSIs. If two interfaces use the same ESI, you must map the Ethernet service instances created on them to different VSIs.

After you assign an ESI to a Layer 3 main interface, its subinterfaces inherit the ESI if they do not have one. In addition, you must map two subinterfaces to different VSIs if the subinterfaces have the same ESI.

Procedure

1. Enter system view.

system-view

2. Enable the device to ignore the Ethernet tag when advertising Ethernet auto-discovery routes and MAC/IP advertisement routes.

evpn multihoming advertise ignore-ethernet-tag

By default, the device advertises Ethernet auto-discovery routes and MAC/IP advertisement routes that carry Ethernet tags.

Enabling the device to monitor the BGP peer status of another local edge device

About this task

Perform this task on the CE-facing interfaces of the edge devices multihomed to a site to prevent device reboots from causing inter-site forwarding failure.

This task excludes unavailable edge devices from DF election at a multihomed site. After an edge device recovers from failure and brings up its CE-facing interface, it starts the advertisement delay timer for Ethernet segment routes and checks the status of the BGP peer specified in the evpn track peer command. If the BGP peer comes up before the timer expires, the edge device advertises Ethernet segment routes to the peer. If the BGP peer is still down when the timer expires, the edge device does not advertise Ethernet segment routes to the peer. The edge devices then perform DF election based on the Ethernet segment routes they have received.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

¡ Enter Layer 3 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 3 aggregate interface view.

interface route-aggregation interface-number

3. Enable the device to monitor the BGP peer status of another local edge device.

evpn track peer { peer-ipv4-address | peer-ipv6-address }

By default, the device does not monitor the BGP peer status of the other edge devices at a multihomed site.

4. Set the advertisement delay timer for Ethernet segment routes.

evpn timer es-delay delay-time

By default, advertisement of Ethernet segment routes is not delayed.

Configuring BGP to advertise BGP EVPN routes

Restrictions and guidelines for BGP EVPN route advertisement

For more information about BGP commands in this task, see Layer 3—IP Routing Command Reference.

Enabling BGP to advertise BGP EVPN routes

1. Enter system view.

system-view

2. Configure a global router ID.

router id router-id

By default, no global router ID is configured.

3. Enable a BGP instance and enter BGP instance view.

bgp as-number [ instance instance-name ]

By default, BGP is disabled and no BGP instances exist.

4. Specify remote VTEPs as BGP peers.

peer { group-name | ipv4-address [ mask-length ] } as-number as-number

5. Create the BGP EVPN address family and enter BGP EVPN address family view.

address-family l2vpn evpn

6. Enable BGP to exchange BGP EVPN routes with a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } enable

By default, BGP does not exchange BGP EVPN routes with peers.

Configuring route advertisement settings

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Advertise a default route to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } default-route-advertise { ipv4 | ipv6 } vpn-instance vpn-instance-name

By default, no default route is advertised to any peers or peer groups.

5. Permit the local AS number to appear in routes from a peer or peer group and set the number of appearances.

peer { group-name | ipv4-address [ mask-length ] } allow-as-loop [ number ]

By default, the local AS number is not allowed in routes from peers.

6. Enable route target filtering for BGP EVPN routes.

policy vpn-target

By default, route target filtering is enabled for BGP EVPN routes.

7. Enable the device to filter advertised objects based on the first AS number in EBGP routes.

peer-as-check enable

By default, the device advertises a received EBGP route to all BGP peers except the peer that sends the EBGP route.

After you execute this command, the device checks the first AS number in the AS_Path attribute of an EBGP route when advertising the EBGP route to EBGP peers. The device will not advertise the EBGP route to the EBGP peers in that AS.

8. Configure BGP route reflection settings:

a. Configure the device as an RR and specify a peer or peer group as its client.

peer { group-name | ipv4-address [ mask-length ] } reflect-client

By default, no RR or client is configured.

b. (Optional.) Enable BGP EVPN route reflection between clients.

reflect between-clients

By default, BGP EVPN route reflection between clients is enabled.

c. (Optional.) Configure the cluster ID of the RR.

reflector cluster-id { cluster-id | ipv4-address }

By default, an RR uses its own router ID as the cluster ID.

d. (Optional.) Create a reflection policy for the RR to filter reflected BGP EVPN routes.

rr-filter { ext-comm-list-number | ext-comm-list-name }

By default, an RR does not filter reflected BGP EVPN routes.

9. Configure the device to not change the next hop of routes advertised to an EBGP peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } next-hop-invariable

By default, the device uses its address as the next hop of routes advertised to EBGP peers.

10. Set a preferred value for routes received from a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } preferred-value value

By default, the preferred value is 0 for routes received from a peer or peer group.

11. Prefer routes learned from the specified peer or peer group during optimal route selection.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } high-priority

By default, BGP does not prefer routes learned from any peer or peer groups during optimal route selection.

12. Apply a routing policy to routes received from or advertised to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } route-policy route-policy-name { export | import }

By default, no routing policies are applied to routes received from or advertised to peers or peer groups.

13. Advertise the COMMUNITY attribute to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } advertise-community

By default, the device does not advertise the COMMUNITY attribute to peers or peer groups.

14. Remove the default-gateway extended community attribute from the EVPN gateway routes advertised to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } default-gateway no-advertise

By default, EVPN gateway routes advertised to peers and peer groups contain the default-gateway extended community attribute.

15. Configure the device to advertise BGP routes with the lowest priority to peers. Choose one of the following options:

¡ Configure the device to advertise BGP routes with the lowest priority to a peer within a specified period of time after the peer goes down.

advertise lowest-priority on-peer-up duration seconds

¡ Configure the device to advertise BGP routes with the lowest priority to peers within a specified period of time after the BGP process restarts because of a device reboot.

advertise lowest-priority on-startup duration seconds

By default, the device does not change the priority of the BGP routes advertised to peers.

To set the priority of BGP routes to the lowest, the device sets the local preference and MED value of the BGP routes to 0 and 4294967295, respectively. To restore the original priority of the BGP routes during the specified duration, execute the reset bgp advertise lowest-priority command in user view.

16. Configure the BGP additional path feature:

¡ Configure BGP additional path capabilities.

peer { group-name | ipv4-address [ mask-length ] } additional-paths { receive | send } *

By default, no BGP Additional Paths capabilities are configured.

¡ Set the maximum number of Add-Path optimal routes that can be advertised to a peer or peer group.

peer { group-name | ipv4-address [ mask-length ] } advertise additional-paths best number

By default, a maximum of one Add-Path optimal route can be advertised to a peer or peer group.

¡ Set the maximum number of Add-Path optimal routes that can be advertised to all peers.

additional-paths select-best best-number

By default, a maximum of one Add-Path optimal route can be advertised to all peers.

17. Enable BGP FRR.

pic

By default, BGP FRR is disabled.

Preferring routes with an IPv6 next hop during optimal route selection

About this task

Configure this feature for the VXLAN packets in an EVPN network to be forwarded through IPv6 routes when both IPv4 and IPv6 routes exist.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Enable BGP to prefer routes with an IPv6 next hop during optimal route selection.

bestroute ipv6-nexthop

By default, BGP prefers routes with an IPv4 next hop during optimal route selection.

Configuring routing policy-based recursive lookup

About this task

Configure routing policy-based recursive lookup to control route recursion results, such as to prefer a path during route recursion or to ensure correctness of recursive routes.

If routing policy-based recursive lookup is configured, all recursive routes are filtered by using the specified routing policy. If no recursive route for a route matches a permit node in the routing policy, that route is considered unreachable and invalid.

To disable routing policy-based recursive lookup for the BGP routes learned from a specific peer or peer group, use the peer nexthop-recursive-policy disable command.

Restrictions and guidelines

The nexthop recursive-lookup route-policy command does not take effect on the routes learned from directly connected EBGP peers.

The protocol nexthop recursive-lookup command executed in RIB IPv4 or IPv6 address family view also takes effect on BGP routes of the BGP EVPN address family. If you execute both the nexthop recursive-lookup route-policy and protocol nexthop recursive-lookup commands, the nexthop recursive-lookup route-policy command is preferred for BGP EVPN routes.

For more information about the nexthop recursive-lookup route-policy and peer nexthop-recursive-policy disable commands, see BGP commands in Layer 3—IP Routing Command Reference.

For more information about the protocol nexthop recursive-lookup command, see IP routing basics commands in Layer 3—IP Routing Command Reference.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Configure routing policy-based recursive lookup.

nexthop recursive-lookup route-policy route-policy-name

By default, BGP does not perform routing policy-based recursive lookup.

IMPORTANT:

If no recursive route of the BGP EVPN address family matches a permit node in the specified routing policy, all BGP routes of this address family will become unreachable. To avoid traffic interruption, plan your desired recursive routes and configure the routing policy accordingly.

5. (Optional.) Disable routing policy-based recursive lookup for the BGP routes learned from a peer or peer group.

a. Return to BGP instance view.

quit

b. Exempt a peer or peer group from routing policy-based recursive lookup.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } nexthop-recursive-policy disable

By default, routing policy-based recursive lookup takes effect on routes learned from all peers and peer groups.

For more information about this command, see BGP commands in Layer 3—IP Routing Command Reference.

The nexthop recursive-lookup route-policy and protocol nexthop recursive-lookup commands do not take effect on the exempted peers and peer groups.

Maintaining BGP sessions

Perform the following tasks in user view:

· Reset BGP sessions of the BGP EVPN address family.

reset bgp [ instance instance-name ] { as-number | ipv4-address [ mask-length ] | all | external | group group-name | internal } l2vpn evpn

· Soft-reset BGP sessions of the BGP EVPN address family.

refresh bgp [ instance instance-name ] { ipv4-address [ mask-length ] | all | external | group group-name | internal } { export | import } l2vpn evpn

Mapping ACs to a VSI

Mapping a Layer 3 interface to a VSI

About this task

To assign the customer traffic on a Layer 3 interface to a VXLAN, map the interface to the VXLAN's VSI. The VSI uses its MAC address table to forward the customer traffic.

For more information about the VXLAN commands in this task, see VXLAN Command Reference.

Procedure

1. Enter system view.

system-view

2. Enter Layer 3 interface view.

interface interface-type interface-number

3. Map the Layer 3 interface to a VSI.

xconnect vsi vsi-name [ track track-entry-number&<1-3> ]

By default, a Layer 3 interface is not mapped to any VSI.

Mapping an Ethernet service instance to a VSI

About this task

An Ethernet service instance matches a list of VLANs on a site-facing interface by using a frame match criterion. The VTEP assigns traffic from the VLANs to a VXLAN by mapping the Ethernet service instance to a VSI. The VSI performs Layer 2 forwarding for the VLANs based on its MAC address table.

For more information about the VXLAN commands in this task, see VXLAN Command Reference.

Restrictions and guidelines

For information about the frame match criterion configuration restrictions and guidelines of Ethernet service instances, see VXLAN Command Reference.

Procedure

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

3. Create an Ethernet service instance and enter Ethernet service instance view.

service-instance instance-id

4. Choose one option to configure a frame match criterion.

¡ Match frames with the specified inner VLAN tags.

encapsulation s-vid vlan-id-list [ only-tagged ]

¡ Match frames with the specified inner and outer VLAN tags.

encapsulation s-vid vlan-id-list c-vid vlan-id-list

¡ Match any VLAN untagged frames.

encapsulation untagged

¡ Match frames that do not match any other service instance on the interface.

encapsulation default

An interface can contain only one Ethernet service instance that uses the encapsulation default match criterion.

An Ethernet service instance that uses the encapsulation default match criterion matches any frames if it is the only instance on the interface.

By default, an Ethernet service instance does not contain a frame match criterion.

5. Map the Ethernet service instance to a VSI.

xconnect vsi vsi-name [ access-mode { ethernet | vlan } ] [ track track-entry-number&<1-3> ]

By default, an Ethernet service instance is not mapped to any VSI.

Mapping dynamic Ethernet service instances to VSIs

About this task

The 802.1X or MAC authentication feature can use the authorization VSI, the guest VSI, the Auth-Fail VSI, and the critical VSI to control the access of users to network resources. When assigning a user to a VSI, 802.1X or MAC authentication sends the VXLAN feature the VSI information and the user's access information, including access interface, VLAN, and MAC address. Then the VXLAN feature creates a dynamic Ethernet service instance for the user and maps it to the VSI. For more information about 802.1X authentication and MAC authentication, see Security Configuration Guide.

A dynamic Ethernet service instance supports the following traffic match modes:

· VLAN-based mode—Matches frames by VLAN ID.

· MAC-based mode—Matches frames by VLAN ID and source MAC address.

By default, dynamic Ethernet service instances use VLAN-based traffic match mode. To use MAC-based traffic match mode for dynamic Ethernet service instances, you must enable MAC authentication or 802.1X authentication that uses MAC-based access control.

Configuring the VLAN-based traffic match mode

To use the VLAN-based traffic match mode, configure 802.1X authentication or MAC authentication and perform one of the following tasks:

· Configure the guest VSI, Auth-Fail VSI, or critical VSI on the 802.1X- or MAC authentication-enabled interface.

· Issue an authorization VSI to an 802.1X or MAC authentication user from a remote AAA server.

Then, the device will automatically create a dynamic Ethernet service instance for the 802.1X or MAC authentication user and map the Ethernet service instance to a VSI.

For more information about configuring 802.1X authentication and MAC authentication, see Security Configuration Guide.

Configuring the MAC-based traffic match mode

1. Enter system view.

system-view

2. Enter interface view.

¡ Enter Layer 2 Ethernet interface view.

interface interface-type interface-number

¡ Enter Layer 2 aggregate interface view.

interface bridge-aggregation interface-number

3. Enable MAC-based traffic match mode for dynamic Ethernet service instances on the interface.

mac-based ac

By default, VLAN-based traffic match mode is used for dynamic Ethernet service instances.

For more information about this command, see VXLAN Command Reference.

4. Enable MAC authentication or 802.1X authentication that uses MAC-based access control.

To use the MAC-based traffic match mode, configure MAC authentication or 802.1X authentication that uses MAC-based access control and perform one of the following tasks:

¡ Configure the guest VSI, Auth-Fail VSI, or critical VSI on the 802.1X- or MAC authentication-enabled interface.

¡ Issue an authorization VSI to an 802.1X or MAC authentication user from a remote AAA server.

Then, the device will automatically create a dynamic Ethernet service instance for the 802.1X or MAC authentication user and map the Ethernet service instance to a VSI.

For more information about configuring 802.1X authentication and MAC authentication, see Security Configuration Guide.

Configuring a centralized EVPN gateway

Configuring a centralized gateway interface

Restrictions and guidelines

If an EVPN network contains a centralized EVPN gateway, you must enable ARP or ND flood suppression on VTEPs. Typically remote ARP or ND learning is disabled in an EVPN network. When ARP or ND requests for the gateway MAC address are sent to the centralized EVPN gateway through VXLAN tunnels, the gateway does not respond to the requests. If ARP or ND flood suppression is disabled on VTEPs, VMs cannot obtain the MAC address of the gateway.

Prerequisites

You must enable Layer 3 forwarding for VXLANs on a centralized EVPN gateway.

Procedure

1. Enter system view.

system-view

2. Create a VSI interface and enter VSI interface view.

interface vsi-interface vsi-interface-id

For more information about this command, see VXLAN Command Reference.

3. Assign an IPv4 address to the VSI interface.

ip address ip-address { mask | mask-length } [ sub ]

By default, no IPv4 address is assigned to a VSI interface.

4. Return to system view.

quit

5. Enter VSI view.

vsi vsi-name

6. Specify the VSI interface as the gateway interface for the VSI.

gateway vsi-interface vsi-interface-id

By default, no gateway interface is specified for a VSI.

For more information about this command, see VXLAN Command Reference.

Setting the static flag for the MAC addresses of centralized gateway interfaces

About this task

In a network with a centralized EVPN gateway deployed, a VTEP considers a MAC address move occurs if an endpoint uses a MAC address identical to that of a centralized gateway interface. As a result, the VTEP overwrites the MAC address entry created for the centralized gateway interface with that created for the endpoint, and errors will occur in traffic forwarding.

To resolve this issue, set the static flag for the MAC addresses of centralized gateway interfaces on the centralized EVPN gateway. When advertising those MAC addresses through MAC/IP advertisement routes, the centralized EVPN gateway will set the static flag bit to 1 in the MAC mobility extended community. If an endpoint accesses the network with a MAC address identical to that of a centralized gateway interface, the endpoint's MAC address entry will not overwrite the entry for the centralized gateway interface.

Procedure

1. Enter system view.

system-view

2. Set the static flag for the MAC addresses of centralized gateway interfaces.

evpn route gateway-mac unmovable

By default, the static flag is not set for the MAC addresses of centralized gateway interfaces.

Configuring a distributed EVPN gateway

Restrictions and guidelines for distributed EVPN gateway configuration

Make sure a VSI interface uses the same MAC address to provide service on distributed EVPN gateways connected to IPv4 sites.

If distributed EVPN gateways are attached to both IPv4 and IPv6 sites, assign unique link-local addresses to the VSI interfaces that provide the gateway service for the same VXLAN.

As a best practice, do not use ARP flood suppression and local proxy ARP or ND flood suppression and local ND proxy together on distributed EVPN gateways. If both ARP flood suppression and local proxy ARP are enabled on a distributed EVPN gateway, only local proxy ARP takes effect. If both ND flood suppression and local ND proxy are enabled on a distributed EVPN gateway, only local ND proxy takes effect.

On a distributed EVPN gateway, make sure the VSI interfaces configured with L3 VXLAN IDs use the same MAC address. To modify the MAC address of a VSI interface, use the mac-address command.

Prerequisites for distributed EVPN gateway configuration

You must enable Layer 3 forwarding for VXLANs on a distributed EVPN gateway.

For a VXLAN to access the external network, specify the VXLAN's VSI interface on the border gateway as the next hop on distributed EVPN gateways by using one of the following methods:

· Configure a static route.

· Configure a routing policy, and apply the policy by using the apply default-next-hop or apply next-hop command. For more information about configuring routing policies, see routing policy configuration in Layer 3—IP Routing Configuration Guide.

Configuring the traffic forwarding mode for EVPN VXLAN

Restrictions and guidelines

The asymmetric IRB mode is supported only on distributed EVPN gateways. The mode takes effect only on Layer 3 traffic forwarded in the same VXLAN. In addition, the same VSI interface on different distributed EVPN gateways must have different IP addresses.

Procedure

1. Enter system view.

system-view

2. Configure the traffic forwarding mode for EVPN VXLAN. Choose one of the following options:

¡ Enable asymmetric IRB mode.

evpn irb asymmetric [ route-policy route-policy-name ]

¡ Enable symmetric IRB mode.

undo evpn irb asymmetric

By default, a distributed EVPN gateway forwards EVPN VXLAN traffic in symmetric IRB mode.

Configuring a VSI interface

About this task

To save Layer 3 interface resources on a distributed EVPN gateway, multiple VSIs can share one VSI interface. You can assign one primary IPv4 address and multiple secondary IPv4 addresses or multiple IPv6 addresses to the VSI interface for the VSIs to use as gateway addresses.

When VSIs share a VSI interface, you must specify the subnet of each VSI for the VSI interface to identify the VSI of a packet. The subnets must be unique.

Procedure

1. Enter system view.

system-view

2. Create a VSI interface and enter VSI interface view.

interface vsi-interface vsi-interface-id

For more information about this command, see VXLAN Command Reference.

3. Assign an IP address to the VSI interface.

IPv4:

ip address ip-address { mask | mask-length } [ sub ]

IPv6:

See IPv6 basics in Layer 3—IP Services Configuration Guide.

By default, no IP address is assigned to a VSI interface.

4. Assign a MAC address to the VSI interface.

mac-address mac-address

By default, VSI interfaces use the default MAC address of Layer 3 Ethernet interfaces.

To ensure correct forwarding after VM migration, you must assign the same MAC address to the VSI interfaces of a VXLAN on all distributed gateways.

5. Specify the VSI interface as a distributed gateway.

distributed-gateway local

By default, a VSI interface is not a distributed gateway.

For more information about this command, see VXLAN Command Reference.

6. (Optional.) Enable local proxy ARP.

local-proxy-arp enable [ ip-range startIP to endIP ]

By default, local proxy ARP is disabled.

For more information about the command, see proxy ARP commands in Layer 3—IP Services Command Reference.

7. Return to system view.

quit

8. Enter VSI view.

vsi vsi-name

9. Specify the VSI interface as the gateway interface for the VSI.

gateway vsi-interface vsi-interface-id

By default, no gateway interface is specified for a VSI.

For more information about this command, see VXLAN Command Reference.

10. Assign a subnet to the VSI.

gateway subnet { ipv4-address wildcard-mask | ipv6-address prefix-length }

By default, no subnet exists on a VSI.

For more information about this command, see VXLAN Command Reference.

Configuring an L3 VXLAN ID for a VSI interface

Restrictions and guidelines for L3 VXLAN ID configuration

The L3 VXLAN ID of a VSI interface cannot be the same as the VXLAN ID specified by using the mapping vni command. For more information about this command, see "Configuring EVPN-DCI."

Configuring an L3 VXLAN ID for the VSI interface of a VPN instance

1. Enter system view.

system-view

2. Configure a VPN instance:

a. Create a VPN instance and enter VPN instance view.

ip vpn-instance vpn-instance-name

b. Configure an RD for the VPN instance.

route-distinguisher route-distinguisher

By default, no RD is configured for a VPN instance.

c. Configure route targets for the VPN instance.

vpn-target { vpn-target&<1-8> [ both | export-extcommunity | import-extcommunity ]

By default, a VPN instance does not have route targets.

d. (Optional.) Apply an export routing policy to the VPN instance.

export route-policy route-policy

By default, no export routing policy is applied to a VPN instance.

e. (Optional.) Apply an import routing policy to the VPN instance.

import route-policy route-policy

By default, no import routing policy is applied to a VPN instance. The VPN instance accepts a route when the export route targets of the route match local import route targets.

3. Configure EVPN on the VPN instance:

a. Enter VPN instance EVPN view.

address-family evpn

b. Configure route targets for EVPN on the VPN instance.

vpn-target vpn-target&<1-8> [ both | export-extcommunity | import-extcommunity ]

By default, EVPN does not have route targets on a VPN instance.

Make sure the following requirements are met:

- The import targets of EVPN do not match the export targets of the VPN instance.

- The export targets of EVPN do not match the import targets of the VPN instance.

c. (Optional.) Apply an export routing policy to EVPN on the VPN instance.

export route-policy route-policy

By default, no export routing policy is applied to EVPN on a VPN instance.

d. (Optional.) Apply an import routing policy to EVPN on the VPN instance.

import route-policy route-policy

By default, no import routing policy is applied to EVPN on a VPN instance. The VPN instance accepts a route when the route targets of the route match local import route targets.

4. Execute the following commands in sequence to return to system view.

a. quit

b. quit

5. Create a VSI interface and enter VSI interface view.

interface vsi-interface vsi-interface-id

6. Associate the VSI interface with the VPN instance.

ip binding vpn-instance vpn-instance-name

By default, a VSI interface is not associated with a VPN instance. The interface is on the public network.

7. Configure an L3 VXLAN ID for the VSI interface.

l3-vni vxlan-id

By default, no L3 VXLAN ID is configured for a VSI interface.

A VPN instance can have only one L3 VXLAN ID. If multiple L3 VXLAN IDs are configured for a VPN instance, the VPN instance uses the lowest one. To view the L3 VXLAN ID of a VPN instance, use the display evpn routing-table command.

Configuring an L3 VXLAN ID for the VSI interface of the public instance

1. Enter system view.

system-view

2. Create the public instance and enter its view.

ip public-instance

3. Configure an RD for the public instance.

route-distinguisher route-distinguisher

By default, no RD is configured for the public instance.

4. (Optional.) Configure route targets for the public instance.

vpn-target vpn-target&<1-8> [ both | export-extcommunity | import-extcommunity ]

By default, the public instance does not have route targets.

5. Configure an L3 VXLAN ID for the public instance.

l3-vni vxlan-id

By default, the public instance does not have an L3 VXLAN ID.

The public instance can have only one L3 VXLAN ID. To modify the L3 VXLAN ID for the public instance, you must first delete the original L3 VXLAN ID.

6. Enter IPv4 address family view, IPv6 address family view, or EVPN view.

¡ Enter IPv4 address family view.

address-family ipv4

¡ Enter IPv6 address family view.

address-family ipv6

¡ Enter EVPN view.

address-family evpn

7. Configure route targets for IPv4 VPN, IPv6 VPN, or EVPN.

vpn-target vpn-target&<1-8> [ both | export-extcommunity | import-extcommunity ]

By default, IPv4 VPN and EVPN do not have route targets on the public instance.

Make sure the following requirements are met:

¡ The import targets of an EVPN instance do not match the export targets of the public instance.

¡ The export targets of an EVPN instance do not match the import targets of the public instance.

8. Execute the following commands in sequence to return to system view.

a. quit

b. quit

9. Enter VSI interface view.

interface vsi-interface vsi-interface-id

10. Configure an L3 VXLAN ID for the VSI interface.

l3-vni vxlan-id

By default, no L3 VXLAN ID is configured for a VSI interface.

Of the VSI interfaces associated with the public instance, a minimum of one VSI interface must use the same L3 VXLAN ID as the public instance.

Configuring IP prefix route advertisement

About this task

If IGP routes are imported to the BGP-VPN IPv4 unicast address family or BGP-VPN IPv6 unicast address family and the corresponding VPN instance has an L3 VXLAN ID, the device advertises the imported routes as IP prefix advertisement routes.

If IGP routes are imported to the BGP IPv4 unicast address family or BGP-VPN IPv6 unicast address family and the public instance has an L3 VXLAN ID, the device advertises the imported routes as IP prefix advertisement routes.

A VTEP compares the export route targets of received IP prefix advertisement routes with the import route targets configured for IPv4 VPN or IPv6 VPN on a VPN instance or the public instance. If the route targets match, the VTEP accepts the routes and adds the routes to the routing table of the VPN instance or public instance.

Restrictions and guidelines

This feature is supported only by distributed EVPN gateway deployment.

For more information about the BGP commands in this task, see Layer 3—IP Routing Command Reference.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP address family view.

¡ Enter BGP IPv4 unicast address family view.

address-family ipv4 [ unicast ]

¡ Execute the following commands in sequence to enter BGP-VPN IPv4 unicast address family view.

ip vpn-instance vpn-instance-name

address-family ipv4 [ unicast ]

¡ Enter BGP IPv6 unicast address family view.

address-family ipv6 [ unicast ]

¡ Execute the following commands in sequence to enter BGP-VPN IPv6 unicast address family view.

ip vpn-instance vpn-instance-name

address-family ipv6 [ unicast ]

4. Enable BGP to redistribute routes from an IGP protocol.

import-route protocol [ { process-id | all-processes } [ allow-direct | med med-value | route-policy route-policy-name ] * ]

By default, BGP does not redistribute IGP routes.

5. (Optional.) Enable default route redistribution into the BGP routing table.

default-route imported

By default, default route redistribution into the BGP routing table is disabled.

6. (Optional.) Configure ECMP VPN route redistribution:

a. Return to BGP instance view.

quit

b. Enter BGP EVPN address family view.

address-family l2vpn evpn

c. Enable ECMP VPN route redistribution.

vpn-route cross multipath

By default, ECMP VPN route redistribution is disabled. If multiple routes have the same prefix and RD, BGP only imports the optimal route into the EVPN routing table.

ECMP VPN route redistribution enables BGP to import all routes that have the same prefix and RD into the EVPN routing table.

Configuring BGP route exchange between the public instance and VPN instances

About this task

By default, the BGP routes of one VPN instance are isolated from those of another VPN instance. If inter-VPN route exchange is required and the routes of a VPN instance must be hidden, configure other VPN instances to advertise routes of that VPN instance.

Figure 19 BGP route exchange between the public instance and VPN instances

As shown in Figure 19, PE 1 and PE 2 set up public IBGP sessions with PE 3, and the public instance and VPN instances exchange routes to enable communication between the public network and the VPN sites. PE 1 and PE 2 set up BGP EVPN IBGP peer relationships with each other to exchange VPN instance routes. When all links operate correctly, PE 2 receives the public routes advertised by PE 3 and redistributes the routes to the local VPN site. When the link between PE 2 and PE 3 fails, perform the following tasks for PE 1 to reoriginate the public routes in a specified VPN instance and advertise them to PE 2:

1. Configure route targets for the public instance on PE 1. Make sure the route targets match those of the VPN instance to redistribute public routes.

2. Execute the route-replicate enable command on PE 1 to redistribute the BGP routes of the public instance to the target VPN instance.

3. Execute the advertise route-reoriginate command on PE 1 to enable reoriginating the BGP routes of other VPN instances in the target VPN instance. This command enables reoriginating BGP routes based on only the BGP routes that match the route targets of the target VPN instance. The VPN instance does not reoriginate BGP routes based on the redistributed local routes, such as the IGP routes redistributed by using the import-route command.

4. Execute the peer advertise vpn-reoriginate ibgp command on PE 1 to advertised reoriginated routes to IBGP peer PE 2.

Restrictions and guidelines

You must use the peer advertise vpn-reoriginate ibgp command in combination with the advertise route-reoriginate command. If you execute only the peer advertise vpn-reoriginate ibgp command, it does not take effect.

In BGP-VPN IPv4 unicast address family view, the advertise route-reoriginate command enables reoriginating IPv4 unicast routes. In BGP-VPN IPv6 unicast address family view, the advertise route-reoriginate command enables reoriginating IPv6 unicast routes.

For more information about the advertise route-reoriginate and route-replicate enable commands, see MPLS L3VPN commands in MPLS Command Reference.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. (Optional.) Enable BGP route replication between public and VPN instances.

route-replicate enable

By default, BGP route replication between public and VPN instances is disabled

4. Enter BGP address family view.

¡ Execute the following commands in sequence to enter BGP-VPN IPv4 unicast address family view.

ip vpn-instance vpn-instance-name

address-family ipv4 [ unicast ]

¡ Execute the following commands in sequence to enter BGP-VPN IPv6 unicast address family view.

ip vpn-instance vpn-instance-name

address-family ipv6 [ unicast ]

5. Enable reoriginating BGP routes for a VPN instance based on the BGP routes received from other VPN instances.

advertise route-reoriginate [ route-policy route-policy-name ] [ replace-rt ]

By default, a VPN instance does not reoriginate BGP unicast routes for the BGP routes of other VPN instances.

This command enables reoriginating BGP routes based on only the BGP routes that match the route targets of the current VPN instance. The VPN instance does not reoriginate BGP routes based on the redistributed local routes.

6. (Optional.) Enable advertising the IP prefix advertisement routes reoriginated for a VPN instance to an IBGP peer or peer group.

a. Return to BGP instance view.

quit

b. Enter BGP EVPN address family view.

address-family l2vpn evpn

c. Enable advertising the IP prefix advertisement routes reoriginated for a VPN instance to an IBGP peer or peer group.

peer { group-name | ipv4-address [ mask-length ] | ipv6-address [ prefix-length ] } advertise vpn-reoriginate ibgp

By default, the device does not advertise the IP prefix advertisement routes reoriginated for a VPN instance to IBGP peers or peer groups.

Configuring the EVPN global MAC address

About this task

The EVPN global MAC address is used only by VSI interfaces associated with an L3 VXLAN ID. For such a VSI interface, the MAC address assigned to it by using the mac-address command takes precedence over the EVPN global MAC address.

A distributed EVPN gateway selects the lowest-numbered VSI interface that is associated with an L3 VXLAN ID as its router MAC address. In an M-LAG system, distributed EVPN gateways that act as M-LAG member devices might use different router MAC addresses, which causes forwarding errors. To resolve this problem, you can configure the same EVPN global MAC address on the gateways.

Restrictions and guidelines

Do not use a reserved MAC address as the EVPN global MAC address.

Procedure

1. Enter system view.

system-view

2. Configure the EVPN global MAC address.

evpn global-mac mac-address

By default, no EVPN global MAC address is configured.

Enabling the device to advertise ARP information for the distributed EVPN gateway interfaces through MAC/IP advertisement routes

About this task

If a distributed EVPN gateway has downstream VTEPs attached, the gateway advertises ARP information for gateway interfaces through IP prefix advertisement routes. Because the VTEPs do not have gateway configuration, they cannot learn the ARP information for the gateway interfaces or forward traffic to the gateway. For the VTEPs to learn ARP information for the gateway interfaces, enable the distributed EVPN gateway to advertise ARP information for the gateway interfaces through MAC/IP advertisement routes.

Procedure

1. Enter system view.

system-view

2. Enable the device to advertise ARP information for the distributed EVPN gateway interfaces through MAC/IP advertisement routes.

evpn mac-ip advertise distributed-gateway

By default, the device does not advertise ARP information for the distributed EVPN gateway interfaces through MAC/IP advertisement routes.

Managing remote MAC address entries and remote ARP learning

Disabling remote MAC address learning and remote ARP learning

About this task

By default, the device learns MAC information and ARP information of remote user terminals from packets received on VXLAN tunnel interfaces. The automatically learned remote MAC and ARP information might conflict with the remote MAC and ARP information advertised through BGP. As a best practice to avoid the conflicts, disable remote MAC address learning and remote ARP learning on the device.

For more information about the VXLAN commands in this task, see VXLAN Command Reference.

Procedure

1. Enter system view.

system-view

2. Disable remote MAC address learning.

vxlan tunnel mac-learning disable

By default, remote MAC address learning is enabled.

3. Disable remote ARP learning.

vxlan tunnel arp-learning disable

By default, remote ARP learning is enabled.

Disabling MAC address advertisement

About this task

The MAC information and ARP information advertised by the VTEP overlap. To avoid duplication, disable MAC address advertisement and withdraw the MAC addresses advertised to remote VTEPs.

Disabling MAC address advertisement in EVPN instance view

1. Enter system view.

system-view

2. Enter EVPN instance view.

evpn instance instance-name

3. Disable MAC address advertisement and withdraw advertised MAC addresses.

mac-advertising disable

By default, MAC address advertisement is enabled.

Disabling MAC address advertisement in VSI EVPN instance view

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Enter VSI EVPN instance view.

evpn encapsulation vxlan

4. Disable MAC address advertisement and withdraw advertised MAC addresses.

mac-advertising disable

By default, MAC address advertisement is enabled.

Enabling MAC mobility event suppression

About this task

On an EVPN VXLAN network, misconfiguration of MAC addresses might cause two sites to contain the same MAC address. In this condition, VTEPs at the two sites constantly synchronize and update EVPN MAC entries and determine that MAC mobility events occur. As a result, an inter-site loop might occur, and the bandwidth is occupied by MAC entry synchronization traffic. To eliminate loops and suppress those MAC mobility events, enable MAC mobility event suppression on the VTEPs.

The MAC mobility event suppression feature allows a MAC address to move at most the specified number of times (MAC mobility suppression threshold) out of a site within a MAC mobility detection cycle. If the suppression threshold has been reached for a MAC address within a detection cycle, the VTEP at the site suppresses the subsequent move after the MAC address moves back to the site. In addition, the VTEP learns the MAC address but does not advertise it.

Restrictions and guidelines

After you execute the undo evpn route mac-mobility suppression command or when the MAC mobility suppression time expires, a VTEP acts as follows:

· Advertises MAC address entries immediately for the suppressed MAC address entries that have not aged out.

· Relearns the MAC addresses for the suppressed MAC address entries that have aged out and advertises the MAC address entries.

If both MAC address entry conflicts and ARP entry conflicts exist for a MAC address, you must enable both MAC mobility event suppression and ARP mobility event suppression. If you enable only MAC mobility event suppression, the system cannot suppress MAC mobility events for the MAC address.

Procedure

1. Enter system view.

system-view

2. Enable MAC mobility event suppression.

evpn route mac-mobility suppression [ detect-cycle detect-time | detect-threshold move-times | suppression-time [ suppression-time | permanent ] ] *

By default, MAC mobility event suppression is disabled.

Disabling learning of MAC addresses from ARP or ND information

About this task

The MAC information and ARP or ND information advertised by a remote VTEP overlap. To avoid duplication, disable the learning of MAC addresses from ARP or ND information. EVPN will learn remote MAC addresses only from the MAC information advertised from remote sites.

Disabling learning of MAC addresses from ARP or ND information in EVPN instance view

1. Enter system view.

system-view

2. Enter EVPN instance view.

evpn instance instance-name

3. Disable the EVPN instance from learning MAC addresses from ARP information.

arp mac-learning disable

By default, an EVPN instance learns MAC addresses from ARP information.

4. Disable the EVPN instance from learning MAC addresses from ND information.

nd mac-learning disable

By default, an EVPN instance learns MAC addresses from ND information.

Disabling learning of MAC addresses from ARP or ND information in VSI EVPN instance view

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Enter VSI EVPN instance view.

evpn encapsulation vxlan

4. Disable the EVPN instance from learning MAC addresses from ARP information.

arp mac-learning disable

By default, an EVPN instance learns MAC addresses from ARP information.

5. Disable the EVPN instance from learning MAC addresses from ND information.

nd mac-learning disable

By default, an EVPN instance learns MAC addresses from ND information.

Disabling ARP information advertisement

About this task

In an EVPN network with distributed gateways, you can disable ARP information advertisement for a VXLAN to save resources if all its user terminals use the same EVPN gateway device. The EVPN instance of the VXLAN will stop advertising ARP information through MAC/IP advertisement routes and withdraw advertised ARP information. When ARP information advertisement is disabled, user terminals in other VXLANs still can communicate with that VXLAN through IP prefix advertisement routes.

Disabling ARP information advertisement in EVPN instance view

1. Enter system view.

system-view

2. Enter EVPN instance view.

evpn instance instance-name

3. Disable ARP information advertisement for the EVPN instance.

arp-advertising disable

By default, ARP information advertisement is enabled for an EVPN instance.

Disabling ARP information advertisement in VSI EVPN instance view

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Enter VSI EVPN instance view.

evpn encapsulation vxlan

4. Disable ARP information advertisement for the EVPN instance.

arp-advertising disable

By default, ARP information advertisement is enabled for an EVPN instance.

Disabling the VSI interface on a centralized EVPN gateway from learning ARP or ND information across subnets

About this task

On an EVPN VXLAN network deployed with a centralized EVPN gateway, VM 1 and VM 2 belong to the same VXLAN in subnet 10.1.1.0/24. The gateway interface is VSI-interface 1 and the gateway is connected to external Layer 3 network 10.1.2.0/24. The VTEP to which VM 2 is attached is configured with ARP or ND flood suppression. The IP address of VM 2 is mistakenly configured as an IP address in subnet 10.1.2.0/24 (for example, 10.1.2.2). In this situation, the VTEP connected to VM 2 advertises MAC/IP advertisement routes that contain ARP or ND information to the gateway. The IP address and MAC address in the routes are the IP address and MAC address of VM 2, respectively. The gateway learns the ARP or ND information and issues the information to the forwarding table. When VM 1 visits 10.1.2.2 in the external network, the gateway will forward the traffic to VM 2. As a result, VM 1 cannot visit 10.1.2.2.

To resolve the above issue, perform this task on the VSI interface to disable the VSI interface from learning ARP or ND information across subnets from MAC/IP advertisement routes.

Procedure

1. Enter system view.

system-view

2. Enter VSI interface view on a centralized EVPN gateway.

interface vsi-interface vsi-interface-id

For more information about this command, see VXLAN Command Reference.

3. Disable the VSI interface from learning ARP or ND information that does not belong to its subnet from MAC/IP advertisement routes.

evpn span-segment { arp-learning | nd-learning } disable

By default, the VSI interface on a centralized EVPN gateway learns ARP or ND information that does not belong to its subnet from MAC/IP advertisement routes.

Enabling ARP mobility event suppression

About this task

On an EVPN VXLAN network, misconfiguration of IP addresses might cause two sites to contain the same IP address. In this condition, VTEPs at the two sites constantly synchronize and update EVPN ARP entries and determine that ARP mobility events occur. As a result, an inter-site loop might occur, and the bandwidth is occupied by ARP entry synchronization traffic. To eliminate loops and suppress those ARP mobility events, enable ARP mobility event suppression on the VTEPs.

The ARP mobility event suppression feature allows an IP address to move at most the specified number of times (ARP mobility suppression threshold) out of a site within an ARP mobility detection cycle. If the suppression threshold has been reached for an IP address within a detection cycle, the VTEP at the site suppresses the subsequent move after the IP address moves back to the site. In addition, the VTEP learns ARP information for the IP address but does not advertise the ARP information.

Restrictions and guidelines

ARP mobility event suppression takes effect only on an EVPN VXLAN network configured with distributed VXLAN IP gateways.

After you execute the undo evpn route arp-mobility suppression command or when the ARP mobility suppression time expires, a VTEP acts as follows:

· Advertises ARP information immediately for the suppressed ARP entries that have not aged out.

· Relearns ARP information for the suppressed ARP entries that have aged out and advertises the ARP information.

Procedure

1. Enter system view.

system-view

2. Enable ARP mobility event suppression.

evpn route arp-mobility suppression [ detect-cycle detect-time | detect-threshold move-times | suppression-time [ suppression-time | permanent ] ] *

By default, ARP mobility event suppression is disabled.

Enabling ARP request proxy

About this task

ARP request proxy allows a VSI interface to send an ARP request sourced from itself when the VTEP forwards an ARP request. This feature helps resolve certain communication issues.

In an EVPN VXLAN network, VM 1 and VM 2 are attached to VTEP 1 and VTEP 2, respectively, and the VMs are in the same subnet. The gateway interfaces of VM 1 and VM 2 are VSI-interface 1 on VTEP 1 and VSI-interface 2 on VTEP 2, respectively. The following conditions exist on the VTEPs:

· The VTEPs have established BGP EVPN neighbor relationships.

· EVPN is disabled from learning MAC addresses from ARP information.

· MAC address advertisement is disabled, and advertised MAC addresses are withdrawn.

· Remote-MAC address learning is disabled.

· Local proxy ARP is enabled on the VSI interfaces.

· The VSI interfaces use different IP addresses and MAC addresses.

In this network, when VM 1 attempts to communicate with VM 2, the following procedure occurs:

1. VM 1 sends an ARP request.

2. VTEP 1 learns the MAC address of VM 1 from the ARP request, replies to VM 1 on behalf of VM 2, and sends an ARP request to obtain the MAC address of VM 2.

3. VTEP 2 forwards the ARP request, and VM 2 replies to VTEP 1.

4. VTEP 2 forwards the ARP reply sent by VM 2 without learning the MAC address of VM 2 because EVPN is disabled from learning MAC addresses from ARP information.

5. VTEP 1 does not learn the MAC address of VM 2 because remote-MAC address learning is disabled.

As a result, VM 1 fails to communicate with VM 2.

For VM 1 to communicate with VM 2, enable ARP request proxy on VSI-interface 2 of VTEP 2. When receiving the ARP request sent by VTEP 1, VTEP 2 forwards it and sends an ARP request sourced from VSI-interface 2 simultaneously, and VM 2 replies to both ARP requests. Then, VTEP 2 learns the MAC address of VM 2 from the ARP reply destined from VSI-interface 2 and advertises the MAC address to VTEP 1 through BGP EVPN routes. In this way, VTEP 1 obtains the MAC address of VM 2, and VM 1 and VM 2 can communicate.

Procedure

1. Enter system view.

system-view

2. Enter VSI interface view.

interface vsi-interface vsi-interface-id

3. Enable ARP request proxy.

arp proxy-send enable

By default, ARP request proxy is disabled on VSI interfaces.

Enabling conversational learning for host route FIB entries

About this task

By default, the device issues a host route FIB entry to the hardware after the entry is generated. This feature enables the device to issue a host route FIB entry to the hardware only when the entry is required for packet forwarding. This feature saves hardware resources on the device.

Restrictions and guidelines

Perform the tasks in this section only on an EVPN network.

Set an appropriate aging timer for host route FIB entries according to your network. A much longer or shorter aging timer will degrade the device performance.

· If the aging timer is too long, the device will save many outdated host route FIB entries and fail to accommodate the most recent network changes. These entries cannot be used for correct packet forwarding and exhaust FIB resources.

· If the aging timer is too short, the device will delete the valid host route FIB entries that can still be effective for packet forwarding. As a result, FIB entry flapping will occur, and the device performance will be affected.

With conversational learning enabled for host route FIB entries, the device periodically sends ARP requests to learn the host route for an IP address if the following conditions exist:

· Incoming packets are destined for the IP address, and the IP address matches a direct route.

· The device does not have a host route for the IP address.

Before the probe node ages out, if the device has not learned a host route after receiving 50 packets destined for that IP address, the device adds a blackhole route for the IP address. The device retains the blackhole route until the probe node ages out or it learns a host route for the IP address.

Procedure

1. Enter system view.

system-view

2. Enable conversational learning for host route FIB entries.

ip forwarding-conversational-learning [ aging aging-time ]

By default, conversational learning is disabled for host route FIB entries.

Configuring BGP EVPN route redistribution and advertisement

Redistributing MAC/IP advertisement routes into BGP unicast routing tables

About this task

This task enables the device to redistribute received MAC/IP advertisement routes that contain ARP or ND information into a BGP unicast routing table.

· If you perform this task for the BGP IPv4 or IPv6 unicast address family, the device will redistribute the routes into the BGP IPv4 or IPv6 unicast routing table. In addition, the device will advertise the routes to the local site.

· If you perform this task for the BGP-VPN IPv4 or IPv6 unicast address family, the device will redistribute the routes into the BGP-VPN IPv4 or IPv6 unicast routing table of the corresponding VPN instance. To advertise the routes to the local site, you must configure the advertise l2vpn evpn command.

Procedure (BGP instance view)

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP IPv4 or IPv6 unicast address family view.

address-family { ipv4 | ipv6 }

4. Redistribute MAC/IP advertisement routes that contain ARP or ND information into the BGP IPv4 or IPv6 unicast routing table.

import evpn mac-ip

By default, MAC/IP advertisement routes that contain ARP or ND information are not redistributed into the BGP IPv4 or IPv6 unicast routing table.

Procedure (BGP-VPN instance view)

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP-VPN instance view.

ip vpn-instance vpn-instance-name

4. Enter BGP-VPN IPv4 or IPv6 unicast address family view.

address-family { ipv4 | ipv6 }

5. Redistribute MAC/IP advertisement routes that contain ARP or ND information into the BGP-VPN IPv4 or IPv6 unicast routing table.

import evpn mac-ip

By default, MAC/IP advertisement routes that contain ARP or ND information are not redistributed into the BGP-VPN IPv4 or IPv6 unicast routing table.

Setting the metric of BGP EVPN routes added to a VPN instance's routing table

About this task

After you perform this task, the device sets the metric of a BGP EVPN route added to a VPN instance's routing table to the metric of the IGP route pointing to the next hop in the original BGP EVPN route.

Procedure

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP EVPN address family view.

address-family l2vpn evpn

4. Set the metric of a BGP EVPN route added to a VPN instance's routing table to the metric of the IGP route pointing to the next hop in the original BGP EVPN route.

igp-metric inherit

By default, the device sets the metric to 0 when adding BGP EVPN routes a VPN instance's routing table.

Enabling BGP EVPN route advertisement to the local site

About this task

This feature enables the device to advertise private BGP EVPN routes to the local site after the device adds the routes to the routing table of a VPN instance.

Procedure (IPv4)

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP-VPN instance view.

ip vpn-instance vpn-instance-name

4. Enter BGP-VPN IPv4 unicast address family view.

address-family ipv4 [ unicast ]

5. Enable BGP EVPN route advertisement to the local site.

advertise l2vpn evpn

By default, BGP EVPN route advertisement to the local site is enabled.

Procedure (IPv6)

1. Enter system view.

system-view

2. Enter BGP instance view.

bgp as-number [ instance instance-name ]

3. Enter BGP-VPN instance view.

ip vpn-instance vpn-instance-name

4. Enter BGP-VPN IPv6 unicast address family view.

address-family ipv6 [ unicast ]

5. Enable BGP EVPN route advertisement to the local site.

advertise l2vpn evpn

By default, BGP EVPN route advertisement to the local site is enabled.

Disabling flooding for a VSI

About this task

By default, the VTEP floods broadcast, unknown unicast, and unknown multicast frames received from the local site to the following interfaces in the frame's VXLAN:

· All site-facing interfaces except for the incoming interface.

· All VXLAN tunnel interfaces.

When receiving broadcast, unknown unicast, and unknown multicast frames on VXLAN tunnel interfaces, the device floods the frames to all site-facing interfaces in the frames' VXLAN.

To confine a kind of flood traffic, disable flooding for that kind of flood traffic on the VSI bound to the VXLAN.

You can use selective flood to exclude a remote MAC address from the remote flood suppression done by using the flooding disable command. The VTEP will flood the frames destined for the specified MAC address to remote sites when floods are confined to the local site.

For more information about the VXLAN commands in this task, see VXLAN Command Reference.

Procedure

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Disable flooding for the VSI.

flooding disable { all | { broadcast | unknown-multicast | unknown-unicast } * } [ all-direction | dci ]

By default, flooding is enabled for a VSI.

If VXLAN-DCI is configured, flood traffic is also sent out of VXLAN-DCI tunnel interfaces. To confine flood traffic to the site-facing interfaces and VXLAN tunnels within a data center, you can specify the dci keyword to disable flooding only to VXLAN-DCI tunnel interfaces.

The all-direction keyword disables flooding traffic received from an AC or VXLAN tunnel interface to any other ACs and VXLAN tunnel interfaces of the same VSI. If VXLAN-DCI is configured, this keyword also disables flooding between VXLAN tunnel interfaces and VXLAN-DCI tunnel interfaces.

4. (Optional.) Enable selective flood for a MAC address.

selective-flooding mac-address mac-address

Enabling ARP or ND flood suppression

About this task

Use ARP or ND flood suppression to reduce ARP or ND request broadcasts.

The aging timer is fixed at 25 minutes for ARP or ND flood suppression entries. If the flooding disable command is configured, set the MAC aging timer to a higher value than the aging timer for ARP or ND flood suppression entries on all VTEPs. This setting prevents the traffic blackhole that occurs when a MAC address entry ages out before its ARP or ND flood suppression entry ages out. To set the MAC aging timer, use the mac-address timer command.

When remote ARP or ND learning is disabled for VXLANs, the device does not use ARP or ND flood suppression entries to respond to ARP or ND requests received on VXLAN tunnels.

To delete ARP flood suppression entries, use the reset arp suppression vsi command instead of the reset arp command. For more information about the reset arp suppression vsi command, see VXLAN Command Reference. For more information about the reset arp command, see ARP commands in Layer 3—IP Services Command Reference.

To delete ND flood suppression entries, use the reset ipv6 nd suppression vsi command instead of the reset ipv6 neighbors command. For more information about the reset ipv6 nd suppression vsi command, see VXLAN Command Reference. For more information about the reset ipv6 neighbors command, see IPv6 basics commands in Layer 3—IP Services Command Reference.

Enabling ARP flood suppression

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Enable ARP flood suppression.

arp suppression enable

By default, ARP flood suppression is disabled.

For more information about this command, see VXLAN Command Reference.

Enabling ND flood suppression

1. Enter system view.

system-view

2. Enter VSI view.

vsi vsi-name

3. Enable ND flood suppression.

ipv6 nd suppression enable

By default, ND flood suppression is disabled.

For more information about this command, see VXLAN Command Reference.

Testing the connectivity of a VXLAN tunnel

Enabling overlay OAM

About this task

You must enable overlay OAM on the tunnel destination device for a VXLAN tunnel before you can use the ping vxlan or tracert vxlan command to test reachability of the VXLAN tunnel on the tunnel source device.

Restrictions and guidelines

To specify the -r 3 parameter in the ping vxlan or tracert vxlan command on the tunnel source device, you must also enable overlay OAM on the tunnel source device.

Procedure

1. Enter system view.

system-view

2. Enable overlay OAM.

overlay oam enable

By default, overlay OAM is disabled.

Pinging a VXLAN tunnel destination

About this task

Perform this task to test the connectivity of a VXLAN tunnel in an EVPN VXLAN network when the tunnel has traffic loss or interruption issues. The process of a ping VXLAN operation is as follows:

1. The tunnel source VTEP sends VXLAN-encapsulated VXLAN echo requests to the tunnel destination VTEP.

2. The tunnel destination VTEP responds with VXLAN echo replies.

3. The tunnel source VTEP outputs packet statistics and the test result based on the received VXLAN echo replies.

Restrictions and guidelines

Before you perform this task on the tunnel source device, you must enable overlay OAM on the tunnel destination device by using the overlay oam enable command.

The VTEP can distribute VXLAN echo requests among multiple paths to the destination based on the source UDP port. When a VXLAN tunnel has multiple paths on the transport network, you can configure load sharing parameters to ensure accuracy of the test result. You can use one of the following methods to configure source UDP ports for VXLAN echo requests:

· Specify a source UDP port range. The device will send VXLAN echo requests sourced from each UDP port in the UDP port range. You need to execute the ping vxlan command only once.

· Specify load balancing parameters such as source and destination MAC addresses, source and destination IP addresses, and protocol for the VTEP to calculate a source UDP port number. You need to execute the ping vxlan command multiple times to test connectivity of all paths.

The load balancing parameters change only the source UDP port number of VXLAN echo requests. Other fields of the requests will not be changed.

If you specify the vxlan-source-udpport vxlan-source-udpport [ end-vxlan-src-udpport ] parameters, the number of VXLAN echo requests sourced from each UDP port in the UDP port range is determined by the -c count parameter.

Procedure

Execute the following command in any view.

ping vxlan [ -a inner-src-address | -c count | -m interval | -r reply-mode | -t timeout | -tos tos-value ] * vxlan-id vxlan-id tunnel-source source-address tunnel-destination dest-address [ destination-udpport dest-port ] [ vxlan-source-address vxlan-source-address ] [ load-balance { vxlan-source-udpport vxlan-source-udpport [ end-vxlan-src-udpport ] | source-address lb-src-address destination-address lb-dest-address protocol { udp | lb-protocol-id } source-port lb-src-port destination-port lb-dest-port source-mac lb-source-mac destination-mac lb-destination-mac } ]

For more information about this command, see VXLAN Command Reference.

Tracing the path to a VXLAN tunnel destination

About this task

Perform this task to locate failed nodes on the path for a VXLAN tunnel that has traffic loss or interruption issues in an EVPN VXLAN network. The process of a tracert VXLAN operation is as follows:

1. The tunnel source VTEP sends VXLAN-encapsulated VXLAN echo requests to the tunnel destination VTEP. The TTL in the IP header of the requests is set to 1.

2. The first hop on the path responds to the tunnel source VTEP with a TTL-expired ICMP error message.

3. The tunnel source VTEP sends VXLAN echo requests with the TTL set to 2.

4. The second hop responds with a TTL-expired ICMP error message.

5. This process continues until a VXLAN echo request reaches the tunnel destination VTEP or the maximum TTL value is reached. If a VXLAN echo request reaches the tunnel destination VTEP, the tunnel destination VTEP sends a VXLAN echo reply to the tunnel source VTEP.

6. The tunnel source VTEP outputs packet statistics and the test result based on the received ICMP error messages and whether a VXLAN echo reply is received.

Restrictions and guidelines

Before you perform this task on the tunnel source device, you must enable overlay OAM on the tunnel destination device by using the overlay oam enable command.

· Specify a source UDP port range. The device will send VXLAN echo requests sourced from each UDP port in the UDP port range. You need to execute the ping vxlan command only once.

The load balancing parameters change only the source UDP port number of VXLAN echo requests. Other fields of the requests will not be changed.

Procedure

Execute the following command in any view.

tracert vxlan [ -a inner-src-address | -h ttl-value | -r reply-mode | -t timeout ] * vxlan-id vxlan-id tunnel-source source-address tunnel-destination dest-address [ destination-udpport dest-port ] [ vxlan-source-address vxlan-source-address ] [ load-balance { vxlan-source-udpport vxlan-source-udpport | source-address lb-src-address destination-address lb-dest-address protocol { udp | lb-protocol-id } source-port lb-src-port destination-port lb-dest-port source-mac lb-source-mac destination-mac lb-destination-mac } ]

For more information about this command, see VXLAN Command Reference.

Configuring EVPN M-LAG

About this task

EVPN M-LAG virtualizes two VTEPs or EVPN gateways into one M-LAG system to avoid single points of failure. The VTEPs or EVPN gateways use a virtual VTEP address to establish VXLAN tunnels to remote devices.

An AC that is attached to only one of the VTEPs in an M-LAG system is called a single-homed AC. To ensure that the traffic of a single-homed AC is forwarded to its attached VTEP, specify the IP addresses of the VTEPs in the M-LAG system by using the evpn m-lag local command. After you configure this command, each VTEP in an M-LAG system changes the next hop of the routes for single-homed ACs to its local VTEP IP address when advertising the routes. When a VTEP receives BGP EVPN routes from the peer VTEP IP address specified by using this command, it does not set up a VXLAN tunnel to the peer VTEP.

You must execute the evpn m-lag local command if single-homed ACs are attached to an M-LAG system that uses a direct peer link. You do not need to execute this command on an M-LAG system that uses a tunnel peer link. In such an M-LAG system, a VTEP uses the source IP address of the peer link as the next hop of routes for single-homed ACs to ensure correct traffic forwarding.

Restrictions and guidelines

EVPN M-LAG restrictions and guidelines

When you configure EVPN M-LAG, follow these restrictions and guidelines:

· For an M-LAG member device to re-establish VXLAN tunnels, you must execute the address-family l2vpn evpn command in BGP instance view after you enable or disable EVPN M-LAG.

· You cannot specify a secondary IP address of an interface as the virtual VTEP address.

· For an M-LAG system collocated with distributed EVPN gateways, use the evpn global-mac command to assign the same EVPN global MAC address to the M-LAG member devices for them to select the same router MAC address.

· Specify a virtual IPv4 VTEP address if the underlay network is an IPv4 network, and specify a virtual IPv6 VTEP address if the underlay network is an IPv6 network. Otherwise, the VTEPs in an M-LAG group cannot set up VXLAN tunnels with remote VTEPs.

If an Ethernet aggregate link is used as the peer link, follow these restrictions:

· If the frame match criteria of dynamic ACs on the peer link are created based on site-facing Ethernet service instances, you can configure only the following criteria for site-facing Ethernet service instances:

¡ encapsulation s-vid { vlan-id | vlan-id-list }

¡ encapsulation untagged

In addition, you must set the access mode to VLAN for the site-facing Ethernet service instances.

The above restrictions are not applicable when the frame match criteria of dynamic ACs on the peer link are created based on VXLAN IDs.

· You must configure VLAN access mode for the site-facing Ethernet service instances when the frame match criteria of dynamic ACs on the peer link are created based on VXLAN IDs.

· Make sure the following settings are consistent on the M-LAG member devices:

¡ Ethernet service instances and their match criterion on the M-LAG interfaces in the same M-LAG group or single-homed site-facing interfaces.

¡ VXLAN IDs of VSIs.

In addition, the Ethernet service instances must be created manually.

· As a best practice, do not redistribute external routes on the M-LAG member devices.

If a VXLAN tunnel is used as the peer link, make sure the following settings are consistent on the M-LAG member devices:

· Ethernet service instances and their match criterion on the M-LAG interfaces in the same M-LAG group.

· VXLAN IDs of VSIs.

In addition, the Ethernet service instances must be created manually.

Forwarding entry configuration restrictions and guidelines

The VTEPs in an M-LAG system synchronize local and remote MAC address entries with each other over the peer link. However, they do not synchronize MAC address entry deletions. When you delete a MAC address entry from one VTEP, the other VTEP retains the entry that contains the same MAC address until the entry ages out.

At an IPv6 site, if you enable ND flood suppression on the VTEPs in an M-LAG system, both VTEPs reply with NA packets when one of the VTEPs receives an NS packet on an M-LAG interface.

If a route reflector reflects routes between the VTEPs in an M-LAG system, after you execute the evpn m-lag local command on both VTEPs or execute the undo evpn m-lag local command on one of the VTEPs, also execute the following commands on the VTEPs:

· reset arp.

· reset arp suppression vsi.

· reset ipv6 neighbors.

· reset ipv6 nd suppression vsi.

These command clears ARP- and ND-related entries on the VTEPs to ensure correct forwarding.

Prerequisites

In addition to EVPN M-LAG configuration, you must configure the following settings:

· Configure other M-LAG and EVPN settings depending on your network. For information about M-LAG configuration, see Layer 2—LAN Switching Configuration Guide.

· Use the m-lag mad exclude interface command to exclude all interfaces used by EVPN from the MAD shutdown action by M-LAG. The interfaces include VSI interfaces, interfaces that provide BGP peer addresses, interfaces used for setting up the keepalive link, and transport-facing outgoing interfaces of VXLAN tunnels.

· Use the m-lag mad exclude interface command to exclude VXLAN tunnel interfaces and their traffic outgoing interfaces from the MAD shutdown action by M-LAG before you configure them as peer-link interfaces. If you have configured the VXLAN tunnel interfaces as peer-link interfaces before excluding them and their traffic outgoing interfaces from the MAD shutdown action, you must first remove the peer-link interface configuration. After the VXLAN tunnel interfaces and their traffic outgoing interfaces come up, exclude the interfaces from the MAD shutdown action by M-LAG. Then, configure the VXLAN tunnel interfaces as peer-link interfaces.

· Execute the m-lag restore-delay command to set the data restoration interval to a value equal to or larger than 180 seconds.

If you use a tunnel peer link, you must also complete the following tasks:

· Manually create the VXLAN tunnel interface and configure it as the peer-link interface. An automatically created VXLAN tunnel cannot be used as a peer link.

· The source address of the peer-link VXLAN tunnel must be the address used by the device to establish BGP peer relationships with other devices.

· To prioritize transmission of M-LAG protocol packets on the peer link, use the tunnel tos command on the VXLAN tunnel interface to set a high ToS value for tunneled packets.

· Specify the virtual VTEP address and the source address of the peer-link VXLAN tunnel as the IP addresses of different loopback interfaces. Configure a routing protocol to advertise the IP addresses.

· You must disable spanning tree on the Layer 2 Ethernet interface that acts as the physical traffic outgoing interface of the peer-link VXLAN tunnel. If you enable spanning tree on that interface, the upstream device will falsely block the interfaces connected to the M-LAG member devices.

· Use the reserved vxlan command to specify a reserved VXLAN to forward M-LAG protocol packets. The M-LAG member devices in an M-LAG system must have the same reserved VXLAN.

Procedure (IPv4)

1. Enter system view.

system-view

2. Enable EVPN M-LAG and specify the virtual VTEP address.

evpn m-lag group virtual-vtep-ipv4

By default, EVPN M-LAG is disabled.

To modify the virtual VTEP address, you must first delete the original virtual VTEP address.

3. Specify the IP addresses of the VTEPs in the M-LAG system.

evpn m-lag local local-ipv4-address remote remote-ipv4-address

By default, the IP addresses of the VTEPs in an M-LAG system are not specified.

Make sure the IP address of the local VTEP belongs to a local interface. Make sure the local VTEP IP address and peer VTEP IP address are reversed on the VTEPs in the M-LAG system.

4. (Optional.) Specify how to transmit data traffic between the M-LAG member devices when the M-LAG system uses a direct peer link. Choose one of the following options:

¡ Enable the device to automatically set up a VXLAN tunnel with the M-LAG peer.

l2vpn m-lag peer-link tunnel source source-ipv4 destination destination-ipv4

By default, the M-LAG member devices in an M-LAG system do not set up a VXLAN tunnel between them when the M-LAG system uses a direct peer link.

¡ Enable the device to create frame match criteria based on VXLAN IDs for the dynamic ACs on the peer link.

l2vpn m-lag peer-link ac-match-rule vxlan-mapping

By default, on an EVPN M-LAG system that uses a direct peer link, dynamic ACs on the peer link use frame match criteria that are identical to those of site-facing ACs.

If you do not execute this command, do not configure overlapping outer VLAN IDs for Ethernet service instances of different VSIs.

If you execute this command, do not create VXLANs with IDs larger than 16000000.

Procedure (IPv6)

1. Enter system view.

system-view

2. Enable EVPN M-LAG and specify the virtual VTEP address.

evpn m-lag group virtual-vtep-ipv6

By default, EVPN M-LAG is disabled.

To modify the virtual VTEP address, you must first delete the original virtual VTEP address.

3. Specify the IP addresses of the VTEPs in the M-LAG system.

evpn m-lag local local-ipv6-address remote remote-ipv6-address

By default, the IP addresses of the VTEPs in an M-LAG system are not specified.

Make sure the IP address of the local VTEP belongs to a local interface. Make sure the local VTEP IP address and peer VTEP IP address are reversed on the VTEPs in the M-LAG system.

4. (Optional.) Specify how to transmit data traffic between the M-LAG member devices when the M-LAG system uses a direct peer link. Choose one of the following options:

¡ Enable the device to automatically set up a VXLAN tunnel with the M-LAG peer.

l2vpn m-lag peer-link tunnel source source-ipv6 destination destination-ipv6

By default, the M-LAG member devices in an M-LAG system do not set up a VXLAN tunnel between them when the M-LAG system uses a direct peer link.

¡ Enable the device to create frame match criteria based on VXLAN IDs for the dynamic ACs on the peer link.

l2vpn m-lag peer-link ac-match-rule vxlan-mapping

By default, on an EVPN M-LAG system that uses a direct peer link, dynamic ACs on the peer link use frame match criteria that are identical to those of site-facing ACs.

If you do not execute this command, do not configure overlapping outer VLAN IDs for Ethernet service instances of different VSIs.

If you execute this command, do not create VXLANs with IDs larger than 16000000.

Verifying and maintaining EVPN VXLAN

Displaying EVPN running status and statistics

Perform display tasks in any view.

· Display BGP peer group information.

display bgp [ instance instance-name ] group l2vpn evpn [ group-name group-name ]

For more information about this command, see basic BGP commands in Layer 3—IP Routing Command Reference.

· Display BGP peer or peer group information.

display bgp [ instance instance-name ] peer l2vpn evpn [ ipv4-address mask-length | { ipv4-address | group-name group-name } log-info | [ ipv4-address ] verbose ]

For more information about this command, see basic BGP commands in Layer 3—IP Routing Command Reference.

· Display information about BGP update groups.

display bgp [ instance instance-name ] update-group l2vpn evpn [ ipv4-address ]

For more information about this command, see basic BGP commands in Layer 3—IP Routing Command Reference.

· Display information about IPv4 peers that are automatically discovered through BGP.

display evpn auto-discovery { imet [ peer ip-address ] [ vsi vsi-name ] | macip-prefix [ nexthop next-hop ] [ count ] }

· Display EVPN instance information.

display evpn instance [ name instance-name | vsi vsi-name ]

· Display VSI information.

display l2vpn vsi [ name vsi-name | evpn-vxlan ] [ count | verbose ]

· Display DF election information.

display evpn df-election [ vsi vsi-name ] [ esi esi-id ]

· Display EVPN ES information.

display evpn es { local [ count | [ vsi vsi-name ] [ esi esi-id ] [ verbose ] ] | remote [ vsi vsi-name ] [ esi esi-id ] [ nexthop next-hop ] [ verbose ] }

· Display site-facing interfaces excluded from traffic forwarding by split horizon.

display l2vpn forwarding evpn split-horizon { ac interface interface-type interface-number | ac interface interface-type interface-number service-instance instance-id | tunnel tunnel-number } [ slot slot-number ]

· Display information about IPv6 peers that are automatically discovered through BGP.

display evpn ipv6 auto-discovery { { imet | mac-ip } [ vxlan ] [ peer ipv6-address ] [ vsi vsi-name ] | macip-prefix [ nexthop next-hop ] [ count ] }

· Display EVPN routing table information.

display evpn routing-table [ ipv6 ] { public-instance | vpn-instance vpn-instance-name } [ count ]

· Display BGP EVPN routes.

display bgp [ instance instance-name ] l2vpn evpn [ peer { ipv4-address | ipv6-address } { advertised-routes | received-routes } [ statistics ] | [ route-distinguisher route-distinguisher | route-type { auto-discovery | es | igmp-js | igmp-ls | imet | ip-prefix | mac-ip | smet } ] * [ { evpn-route route-length | evpn-prefix } [ advertise-info | as-path | cluster-list | community | ext-community ] | ipv4-address | ipv6-address | mac-address ] | statistics ]

display bgp [ instance instance-name ] l2vpn evpn [ route-distinguisher route-distinguisher ] [ statistics ] community [ community-number&<1-32> | aa:nn&<1-32> ] [ internet | no-advertise | no-export | no-export-subconfed ] [ whole-match ]

display bgp [ instance instance-name ] l2vpn evpn [ route-distinguisher route-distinguisher ] [ statistics ] community-list { basic-community-list-number | comm-list-name | adv-community-list-number } [ whole-match ]

display bgp [ instance instance-name ] l2vpn evpn [ route-distinguisher route-distinguisher ] [ statistics ] ext-community [ bandwidth link-bandwidth-value | rt route-target | soo site-of-origin | color color ]&<1-32> [ whole-match ]

Verifying MAC address information and ARP and ND information

Perform display tasks in any view.

· Display IPv4 EVPN MAC address entries.

display evpn route mac [ vxlan ] [ local | remote ] [ vsi vsi-name ] [ mac-address mac-address ] [ count ]

· Display M-LAG-synchronized MAC address entries.

display evpn m-lag synchronized-mac [ vsi vsi-name ] [ count ]

· Display EVPN ARP entries.

display evpn route arp [ local | remote ] [ public-instance | vpn-instance vpn-instance-name [ ip ipv4-address ] ] [ count ]

· Display ARP flood suppression entries.

display evpn route arp suppression [ vxlan ] [ local | remote ] [ vsi vsi-name ] [ ip ipv4-address ] [ count ]

· Display EVPN ND entries.

display evpn route nd [ local | remote ] [ public-instance | vpn-instance vpn-instance-name ] [ ipv6 ipv6-address ] [ count ]

· Display ND flood suppression entries.

display evpn route nd suppression [ local | remote ] [ vsi vsi-name ] [ ipv6 ipv6-address ] [ count ]

· Display EVPN ARP mobility information.

display evpn route arp-mobility [ public-instance | vpn-instance vpn-instance-name ] [ ip ip-address ]

· Display EVPN MAC mobility information.

display evpn route mac-mobility [ vsi vsi-name ] [ mac-address mac-address ]

Advertising suppressed MAC addresses and ARP/ND information for suppressed IP addresses

Perform reset tasks in user view.

· Advertise suppressed MAC addresses for one time.

reset evpn route mac-mobility suppression [ vsi vsi-name [ mac mac-address ] ]

· Advertise ARP information for suppressed IP addresses for one time.

reset evpn route arp-mobility suppression [ public-instance | vpn-instance vpn-instance-name [ ip ip-address ] ]

· Advertise ND information for suppressed IP addresses for one time.

reset evpn route nd-mobility suppression [ public-instance | vpn-instance vpn-instance-name [ ipv6 ipv6-address ] ]

EVPN VXLAN configuration examples

Example: Configuring a centralized IPv4 EVPN gateway

Network configuration

As shown in Figure 20:

· Configure VXLAN 10 and VXLAN 20 on Switch A, Switch B, and Switch C to provide connectivity for the VMs in the VXLANs across the network sites.

· Configure Switch C as a centralized EVPN gateway to provide gateway services and access to the connected Layer 3 network.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

Figure 20 Network diagram

‌

Procedure

‌

IMPORTANT:

By default, interfaces on the device operate in Layer 3 mode. In this example, you must use the port link-mode command to configure the interfaces that host Ethernet service instances to operate in Layer 2 mode.

‌

1. On VM 1 and VM 3, specify 10.1.1.1 as the gateway address. On VM 2 and VM 4, specify 10.1.2.1 as the gateway address. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 20. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Enable Layer 2 forwarding for VXLANs.

[SwitchA] undo vxlan ip-forwarding

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] arp suppression enable

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] arp suppression enable

[SwitchA-vsi-vpnb] evpn encapsulation vxlan

[SwitchA-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchA-vsi-vpnb] vxlan 20

[SwitchA-vsi-vpnb-vxlan-20] quit

[SwitchA-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchA] interface hundredgige 1/0/1

[SwitchA-HundredGigE1/0/1] service-instance 1000

[SwitchA-HundredGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-HundredGigE1/0/1-srv1000] quit

# On HundredGigE 1/0/1, create Ethernet service instance 2000 to match VLAN 3.

[SwitchA-HundredGigE1/0/1] service-instance 2000

[SwitchA-HundredGigE1/0/1-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchA-HundredGigE1/0/1-srv2000] xconnect vsi vpnb

[SwitchA-HundredGigE1/0/1-srv2000] quit

[SwitchA-HundredGigE1/0/1] quit

4. Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Enable Layer 2 forwarding for VXLANs.

[SwitchB] undo vxlan ip-forwarding

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] arp suppression enable

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] arp suppression enable

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB] interface hundredgige 1/0/1

[SwitchB-HundredGigE1/0/1] service-instance 1000

[SwitchB-HundredGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchB-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchB-HundredGigE1/0/1-srv1000] quit

[SwitchB-HundredGigE1/0/1] quit

# On HundredGigE 1/0/2, create Ethernet service instance 2000 to match VLAN 3.

[SwitchB] interface hundredgige 1/0/2

[SwitchB-HundredGigE1/0/2] service-instance 2000

[SwitchB-HundredGigE1/0/2-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchB-HundredGigE1/0/2-srv2000] xconnect vsi vpnb

[SwitchB-HundredGigE1/0/2-srv2000] quit

[SwitchB-HundredGigE1/0/2] quit

5. Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchC] vsi vpna

[SwitchC-vsi-vpna] evpn encapsulation vxlan

[SwitchC-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchC-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchC-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchC-vsi-vpna] vxlan 10

[SwitchC-vsi-vpna-vxlan-10] quit

[SwitchC-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchC] vsi vpnb

[SwitchC-vsi-vpnb] evpn encapsulation vxlan

[SwitchC-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchC-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchC-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchC-vsi-vpnb] vxlan 20

[SwitchC-vsi-vpnb-vxlan-20] quit

[SwitchC-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Create VSI-interface 1 and assign the interface an IP address. The IP address will be used as the gateway address for VXLAN 10.

[SwitchC] interface vsi-interface 1

[SwitchC-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchC-Vsi-interface1] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchC] vsi vpna

[SwitchC-vsi-vpna] gateway vsi-interface 1

[SwitchC-vsi-vpna] quit

# Create VSI-interface 2 and assign the interface an IP address. The IP address will be used as the gateway address for VXLAN 20.

[SwitchC] interface vsi-interface 2

[SwitchC-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchC-Vsi-interface2] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchC] vsi vpnb

[SwitchC-vsi-vpnb] gateway vsi-interface 2

[SwitchC-vsi-vpnb] quit

6. Configure Switch D:

# Establish BGP connections with other transport network switches.

<SwitchD> system-view

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering for BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the EVPN gateway settings on Switch C:

# Verify that Switch C has advertised MAC/IP advertisement routes and IMET routes for the gateways and received MAC/IP advertisement routes and IMET routes from Switch A and Switch B. (Details not shown.)

# Verify that the VXLAN tunnel interfaces are up on Switch C.

[SwitchC] display interface tunnel

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 3.3.3.3, destination 2.2.2.2

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 7 bytes/sec, 56 bits/sec, 0 packets/sec

Input: 10 packets, 980 bytes, 0 drops

Output: 85 packets, 6758 bytes, 0 drops

Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 3.3.3.3, destination 1.1.1.1

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 1 bytes/sec, 8 bits/sec, 0 packets/sec

Last 300 seconds output rate: 9 bytes/sec, 72 bits/sec, 0 packets/sec

Input: 277 packets, 20306 bytes, 0 drops

Output: 1099 packets, 85962 bytes, 0 drops

# Verify that the VSI interfaces are up on Switch C.

[SwitchC] display interface vsi-interface

Vsi-interface1

Current state: UP

Line protocol state: UP

Description: Vsi-interface1 Interface

Bandwidth: 1000000 kbps

Maximum transmission unit: 1444

Internet address: 10.1.1.1/24 (primary)

IP packet frame type: Ethernet II, hardware address: 0003-0003-0003

IPv6 packet frame type: Ethernet II, hardware address: 0003-0003-0003

Physical: Unknown, baudrate: 1000000 kbps

Last clearing of counters: Never

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 64 packets, 6272 bytes, 0 drops

Vsi-interface2

Current state: UP

Line protocol state: UP

Description: Vsi-interface2 Interface

Bandwidth: 1000000 kbps

Maximum transmission unit: 1444

Internet address: 10.1.2.1/24 (primary)

IP packet frame type: Ethernet II, hardware address: 0005-0005-0005

IPv6 packet frame type: Ethernet II, hardware address: 0005-0005-0005

Physical: Unknown, baudrate: 1000000 kbps

Last clearing of counters: Never

Last 300 seconds input rate: 41 bytes/sec, 328 bits/sec, 0 packets/sec

Last 300 seconds output rate: 52 bytes/sec, 416 bits/sec, 0 packets/sec

Input: 2016 packets, 190272 bytes, 0 drops

Output: 2144 packets, 197568 bytes, 0 drops

# Verify that the VXLAN tunnels have been assigned to the VXLANs, and that the VSI interfaces are the gateway interfaces of their respective VXLANs.

[SwitchC] display l2vpn vsi verbose

VSI Name: vpna

VSI Index : 0

VSI State : Up

MTU : -

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 1

VXLAN ID : 10

EVPN Encapsulation : VXLAN

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel0 0x5000000 UP Auto Disabled

Tunnel1 0x5000001 UP Auto Disabled

VSI Name: vpnb

VSI Index : 1

VSI State : Up

MTU : -

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 2

VXLAN ID : 20

EVPN Encapsulation : VXLAN

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel0 0x5000000 UP Auto Disabled

Tunnel1 0x5000001 UP Auto Disabled

# Verify that Switch C has created EVPN ARP entries for the VMs.

[SwitchC] display evpn route arp

Flags: D - Dynamic B - BGP L - Local active

G - Gateway S - Static M - Mapping

Public instance Interface: Vsi-interface1

IP address MAC address Router MAC VSI index Flags

10.1.1.1 0003-0003-0003 - 0 GL

10.1.1.10 0000-1234-0001 - 0 B

10.1.1.20 0000-1234-0003 - 0 B

Public instance Interface: Vsi-interface2

IP address MAC address Router MAC VSI index Flags

10.1.2.1 0005-0005-0005 - 1 GL

10.1.2.10 0000-1234-0002 - 1 B

10.1.2.20 0000-1234-0004 - 1 B

# Verify that Switch C has created FIB entries for the VMs.

[SwitchC] display fib 10.1.1.10

Destination count: 1 FIB entry count: 1

Flag:

U:Usable G:Gateway H:Host B:Blackhole D:Dynamic S:Static

R:Relay F:FRR

Destination/Mask Nexthop Flag OutInterface/Token Label

10.1.1.10/32 10.1.1.10 UH Vsi1 Null

2. Verify that VM 1, VM 2, VM 3, and VM 4 can communicate with one another.

Example: Configuring distributed IPv4 EVPN gateways in symmetric IRB mode

Network configuration

As shown in Figure 21:

· Configure VXLAN 10 and VXLAN 20 on Switch A and Switch B to provide connectivity for the VMs in the VXLANs across the network sites.

· Configure Switch A and Switch B as distributed EVPN gateways to provide gateway services in symmetric IRB mode. Configure Switch C as a border gateway to provide access to the connected Layer 3 network.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

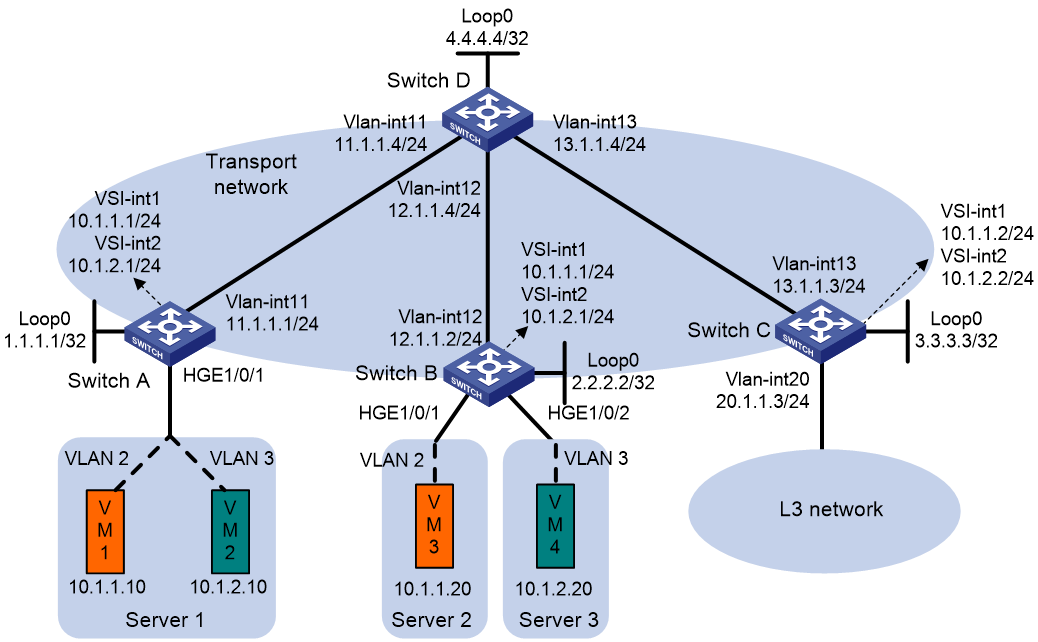

Figure 21 Network diagram

‌

Procedure

‌

IMPORTANT:

‌

1. On VM 1 and VM 3, specify 10.1.1.1 as the gateway address. On VM 2 and VM 4, specify 10.1.2.1 as the gateway address. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 21. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] evpn encapsulation vxlan

[SwitchA-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchA-vsi-vpnb] vxlan 20

[SwitchA-vsi-vpnb-vxlan-20] quit

[SwitchA-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchA] interface hundredgige 1/0/1

[SwitchA-HundredGigE1/0/1] service-instance 1000

[SwitchA-HundredGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-HundredGigE1/0/1-srv1000] quit

# On HundredGigE 1/0/1, create Ethernet service instance 2000 to match VLAN 3.

[SwitchA-HundredGigE1/0/1] service-instance 2000

[SwitchA-HundredGigE1/0/1-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchA-HundredGigE1/0/1-srv2000] xconnect vsi vpnb

[SwitchA-HundredGigE1/0/1-srv2000] quit

[SwitchA-HundredGigE1/0/1] quit

# Configure RD and route target settings for VPN instance l3vpna.

[SwitchA] ip vpn-instance l3vpna

[SwitchA-vpn-instance-l3vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-l3vpna] address-family ipv4

[SwitchA-vpn-ipv4-l3vpna] vpn-target 2:2

[SwitchA-vpn-ipv4-l3vpna] quit

[SwitchA-vpn-instance-l3vpna] address-family evpn

[SwitchA-vpn-evpn-l3vpna] vpn-target 1:1

[SwitchA-vpn-evpn-l3vpna] quit

[SwitchA-vpn-instance-l3vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance l3vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] mac-address 1-1-1

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance l3vpna

[SwitchA-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchA-Vsi-interface2] mac-address 2-2-2

[SwitchA-Vsi-interface2] distributed-gateway local

[SwitchA-Vsi-interface2] local-proxy-arp enable

[SwitchA-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance l3vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] ip binding vpn-instance l3vpna

[SwitchA-Vsi-interface3] l3-vni 1000

[SwitchA-Vsi-interface3] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] gateway vsi-interface 2

[SwitchA-vsi-vpnb] quit

4. Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB] interface hundredgige 1/0/1

[SwitchB-HundredGigE1/0/1] service-instance 1000

[SwitchB-HundredGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchB-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchB-HundredGigE1/0/1-srv1000] quit

[SwitchB-HundredGigE1/0/1] quit

# On HundredGigE 1/0/2, create Ethernet service instance 2000 to match VLAN 3.

[SwitchB] interface hundredgige 1/0/2

[SwitchB-HundredGigE1/0/2] service-instance 2000

[SwitchB-HundredGigE1/0/2-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchB-HundredGigE1/0/2-srv2000] xconnect vsi vpnb

[SwitchB-HundredGigE1/0/2-srv2000] quit

[SwitchB-HundredGigE1/0/2] quit

# Configure RD and route target settings for VPN instance l3vpna.

[SwitchB] ip vpn-instance l3vpna

[SwitchB-vpn-instance-l3vpna] route-distinguisher 1:1

[SwitchB-vpn-instance-l3vpna] address-family ipv4

[SwitchB-vpn-ipv4-l3vpna] vpn-target 2:2

[SwitchB-vpn-ipv4-l3vpna] quit

[SwitchB-vpn-instance-l3vpna] address-family evpn

[SwitchB-vpn-evpn-l3vpna] vpn-target 1:1

[SwitchB-vpn-evpn-l3vpna] quit

[SwitchB-vpn-instance-l3vpna] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance l3vpna

[SwitchB-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchB-Vsi-interface1] mac-address 1-1-1

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance l3vpna

[SwitchB-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchB-Vsi-interface2] mac-address 2-2-2

[SwitchB-Vsi-interface2] distributed-gateway local

[SwitchB-Vsi-interface2] local-proxy-arp enable

[SwitchB-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance l3vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchB] interface vsi-interface 3

[SwitchB-Vsi-interface3] ip binding vpn-instance l3vpna

[SwitchB-Vsi-interface3] l3-vni 1000

[SwitchB-Vsi-interface3] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] gateway vsi-interface 2

[SwitchB-vsi-vpnb] quit

5. Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance l3vpna.

[SwitchC] ip vpn-instance l3vpna

[SwitchC-vpn-instance-l3vpna] route-distinguisher 1:1

[SwitchC-vpn-instance-l3vpna] address-family ipv4

[SwitchC-vpn-ipv4-l3vpna] vpn-target 2:2

[SwitchC-vpn-ipv4-l3vpna] quit

[SwitchC-vpn-instance-l3vpna] address-family evpn

[SwitchC-vpn-evpn-l3vpna] vpn-target 1:1

[SwitchC-vpn-evpn-l3vpna] quit

[SwitchC-vpn-instance-l3vpna] quit

# Associate VSI-interface 3 with VPN instance l3vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchC] interface vsi-interface 3

[SwitchC-Vsi-interface3] ip binding vpn-instance l3vpna

[SwitchC-Vsi-interface3] l3-vni 1000

[SwitchC-Vsi-interface3] quit

# Configure a default route. The next hop is the IP address of a device in the Layer 3 network.

[SwitchC] ip route-static vpn-instance l3vpna 0.0.0.0 0 20.1.1.100

# Import the default route to the BGP IPv4 unicast routing table of VPN instance l3vpna.

[SwitchC] bgp 200

[SwitchC-bgp-default] ip vpn-instance l3vpna

[SwitchC-bgp-default-l3vpna] address-family ipv4 unicast

[SwitchC-bgp-default-ipv4-l3vpna] default-route imported

[SwitchC-bgp-default-ipv4-l3vpna] import-route static

[SwitchC-bgp-default-ipv4-l3vpna] quit

[SwitchC-bgp-default-l3vpna] quit

[SwitchC-bgp-default] quit

# Associate VLAN-interface 20 with VPN instance l3vpna.

[SwitchC] interface vlan-interface 20

[SwitchC-Vlan-interface20] ip binding vpn-instance l3vpna

[SwitchC-Vlan-interface20] ip address 20.1.1.3 24

[SwitchC-Vlan-interface20] quit

6. Configure Switch D:

# Establish BGP connections with other transport network switches.

<SwitchD> system-view

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering for BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the distributed EVPN gateway settings on Switch A:

# Verify that Switch A has advertised the IP prefix advertisement routes for the gateways and the MAC/IP advertisement routes and IMET routes for each VSI. Verify that Switch A has received the IP prefix advertisement routes for the gateways and the MAC/IP advertisement routes and IMET routes for each VSI from Switch B. (Details not shown.)

# Verify that the VXLAN tunnel interfaces are up on Switch A. (This example uses Tunnel 0.)

[SwitchA] display interface tunnel 0

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 1.1.1.1, destination 2.2.2.2

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 9 packets, 882 bytes, 0 drops

Output: 9 packets, 882 bytes, 0 drops

# Verify that the VSI interfaces are up on Switch A. (This example uses VSI-interface 1.)

[SwitchA] display interface vsi-interface 1

Vsi-interface1

Current state: UP

Line protocol state: UP

Description: Vsi-interface1 Interface

Bandwidth: 1000000 kbps

Maximum transmission unit: 1444

Internet address: 10.1.1.1/24 (primary)

IP packet frame type: Ethernet II, hardware address: 0001-0001-0001

IPv6 packet frame type: Ethernet II, hardware address: 0001-0001-0001

Physical: Unknown, baudrate: 1000000 kbps

Last clearing of counters: Never

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 192 packets, 18816 bytes, 0 drops

# Verify that the VXLAN tunnels have been assigned to the VXLANs, and that the VSI interfaces are the gateway interfaces of their respective VXLANs.

[SwitchA] display l2vpn vsi verbose

VSI Name: Auto_L3VNI1000_3

VSI Index : 1

VSI State : Down

MTU : -

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 3

VXLAN ID : 1000

EVPN Encapsulation : VXLAN

VSI Name: vpna

VSI Index : 0

VSI State : Up

MTU : -

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 1

VXLAN ID : 10

EVPN Encapsulation : VXLAN

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel0 0x5000001 Up Auto Disabled

Tunnel1 0x5000002 Up Auto Disabled

ACs:

AC Link ID State Type

HGE1/0/1 srv1000 0x0 Up

Statistics: Disabled

VSI Name: vpnb

VSI Index : 2

VSI State : Up

MTU : -

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 2

VXLAN ID : 20

EVPN Encapsulation : VXLAN

Tunnels:

Tunnel Name Link ID State Type Flood proxy

Tunnel0 0x5000001 Up Auto Disabled

Tunnel1 0x5000002 Up Auto Disabled

ACs:

AC Link ID State Type

HGE1/0/1 srv2000 0x0 Up

Statistics: Disabled

# Verify that Switch A has created ARP entries for the VMs.

[SwitchA] display arp

Type: S-Static D-Dynamic O-Openflow R-Rule I-Invalid

IP address MAC address VLAN/VSI name Interface Aging Type

10.1.1.10 0000-1234-0001 0 HGE1/0/1 20 D

10.1.2.10 0000-1234-0002 0 HGE1/0/1 19 D

2.2.2.2 a0ce-5e24-0100 1 Tunnel0 -- R

# Verify that Switch A has created EVPN ARP entries for the local VMs.

[SwitchA] display evpn route arp

Flags: D - Dynamic B - BGP L - Local active

G - Gateway S - Static M - Mapping

VPN instance: l3vpna Interface: Vsi-interface1

IP address MAC address Router MAC VSI Index Flags

10.1.1.1 0001-0001-0001 a0ce-7e40-0400 0 GL

10.1.1.10 0000-1234-0001 a0ce-7e40-0400 0 DL

10.1.2.10 0000-1234-0002 a0ce-7e40-0400 0 DL

10.1.1.20 0000-1234-0003 a0ce-7e40-0400 0 B

10.1.2.20 0000-1234-0004 a0ce-7e40-0400 0 B

2. Verify that VM 1, VM 2, VM 3, and VM 4 can communicate with one another. (Details not shown.)

Example: Configuring distributed IPv4 EVPN gateways in asymmetric IRB mode

Network configuration

As shown in Figure 22:

· Configure VXLAN 10 and VXLAN 20 on Switch A and Switch B to provide connectivity for the VMs in the VXLANs across the network sites.

· Configure Switch A and Switch B as distributed EVPN gateways to provide gateway services in asymmetric IRB mode. Configure Switch C as a border gateway to provide access to the connected Layer 3 network.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

Figure 22 Network diagram

‌

Procedure

‌

IMPORTANT:

‌

1. Specify 10.1.1.1, 10.1.2.1, 20.1.1.1, and 20.1.2.1 as the gateway addresses on VM 1, VM 2, VM 3, and VM 4, respectively. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 22. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Enable asymmetric IRB mode for EVPN VXLAN.

[SwitchA] evpn irb asymmetric

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] evpn encapsulation vxlan

[SwitchA-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchA-vsi-vpnb] vxlan 20

[SwitchA-vsi-vpnb-vxlan-20] quit

[SwitchA-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchA] interface hundredgige 1/0/1

[SwitchA-HundredGigE1/0/1] service-instance 1000

[SwitchA-HundredGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-HundredGigE1/0/1-srv1000] quit

# On HundredGigE 1/0/1, create Ethernet service instance 2000 to match VLAN 3.

[SwitchA-HundredGigE1/0/1] service-instance 2000

[SwitchA-HundredGigE1/0/1-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchA-HundredGigE1/0/1-srv2000] xconnect vsi vpnb

[SwitchA-HundredGigE1/0/1-srv2000] quit

[SwitchA-HundredGigE1/0/1] quit

# Configure RD and route target settings for VPN instance l3vpna.

[SwitchA] ip vpn-instance l3vpna

[SwitchA-vpn-instance-l3vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-l3vpna] address-family ipv4

[SwitchA-vpn-ipv4-l3vpna] vpn-target 2:2

[SwitchA-vpn-ipv4-l3vpna] quit

[SwitchA-vpn-instance-l3vpna] address-family evpn

[SwitchA-vpn-evpn-l3vpna] vpn-target 1:1

[SwitchA-vpn-evpn-l3vpna] quit

[SwitchA-vpn-instance-l3vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance l3vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] mac-address 1-1-1

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance l3vpna

[SwitchA-Vsi-interface2] ip address 10.1.2.1 255.255.255.0

[SwitchA-Vsi-interface2] mac-address 2-2-2

[SwitchA-Vsi-interface2] distributed-gateway local

[SwitchA-Vsi-interface2] local-proxy-arp enable

[SwitchA-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance l3vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] ip binding vpn-instance l3vpna

[SwitchA-Vsi-interface3] l3-vni 1000

[SwitchA-Vsi-interface3] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchA] vsi vpnb

[SwitchA-vsi-vpnb] gateway vsi-interface 2

[SwitchA-vsi-vpnb] quit

4. Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Enable asymmetric IRB mode for EVPN VXLAN.

[SwitchB] evpn irb asymmetric

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB] interface hundredgige 1/0/1

[SwitchB-HundredGigE1/0/1] service-instance 1000

[SwitchB-HundredGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchB-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchB-HundredGigE1/0/1-srv1000] quit

[SwitchB-HundredGigE1/0/1] quit

# On HundredGigE 1/0/2, create Ethernet service instance 2000 to match VLAN 3.

[SwitchB] interface hundredgige 1/0/2

[SwitchB-HundredGigE1/0/2] service-instance 2000

[SwitchB-HundredGigE1/0/2-srv2000] encapsulation s-vid 3

# Map Ethernet service instance 2000 to VSI vpnb.

[SwitchB-HundredGigE1/0/2-srv2000] xconnect vsi vpnb

[SwitchB-HundredGigE1/0/2-srv2000] quit

[SwitchB-HundredGigE1/0/2] quit

# Configure RD and route target settings for VPN instance l3vpna.

[SwitchB] ip vpn-instance l3vpna

[SwitchB-vpn-instance-l3vpna] route-distinguisher 1:1

[SwitchB-vpn-instance-l3vpna] address-family ipv4

[SwitchB-vpn-ipv4-l3vpna] vpn-target 2:2

[SwitchB-vpn-ipv4-l3vpna] quit

[SwitchB-vpn-instance-l3vpna] address-family evpn

[SwitchB-vpn-evpn-l3vpna] vpn-target 1:1

[SwitchB-vpn-evpn-l3vpna] quit

[SwitchB-vpn-instance-l3vpna] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance l3vpna

[SwitchB-Vsi-interface1] ip address 20.1.1.1 255.255.255.0

[SwitchB-Vsi-interface1] mac-address 1-1-1

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] ip binding vpn-instance l3vpna

[SwitchB-Vsi-interface2] ip address 20.1.2.1 255.255.255.0

[SwitchB-Vsi-interface2] mac-address 2-2-2

[SwitchB-Vsi-interface2] distributed-gateway local

[SwitchB-Vsi-interface2] local-proxy-arp enable

[SwitchB-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance l3vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchB] interface vsi-interface 3

[SwitchB-Vsi-interface3] ip binding vpn-instance l3vpna

[SwitchB-Vsi-interface3] l3-vni 1000

[SwitchB-Vsi-interface3] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] gateway vsi-interface 2

[SwitchB-vsi-vpnb] quit

5. Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD and route target settings for VPN instance l3vpna.

[SwitchC] ip vpn-instance l3vpna

[SwitchC-vpn-instance-l3vpna] route-distinguisher 1:1

[SwitchC-vpn-instance-l3vpna] address-family ipv4

[SwitchC-vpn-ipv4-l3vpna] vpn-target 2:2

[SwitchC-vpn-ipv4-l3vpna] quit

[SwitchC-vpn-instance-l3vpna] address-family evpn

[SwitchC-vpn-evpn-l3vpna] vpn-target 1:1

[SwitchC-vpn-evpn-l3vpna] quit

[SwitchC-vpn-instance-l3vpna] quit

# Associate VSI-interface 3 with VPN instance l3vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchC] interface vsi-interface 3

[SwitchC-Vsi-interface3] ip binding vpn-instance l3vpna

[SwitchC-Vsi-interface3] l3-vni 1000

[SwitchC-Vsi-interface3] quit

# Configure a default route. The next hop is the IP address of a device in the Layer 3 network.

[SwitchC] ip route-static vpn-instance l3vpna 0.0.0.0 0 20.1.1.100

# Import the default route to the BGP IPv4 unicast routing table of VPN instance l3vpna.

[SwitchC] bgp 200

[SwitchC-bgp-default] ip vpn-instance l3vpna

[SwitchC-bgp-default-l3vpna] address-family ipv4 unicast

[SwitchC-bgp-default-ipv4-l3vpna] default-route imported

[SwitchC-bgp-default-ipv4-l3vpna] import-route static

[SwitchC-bgp-default-ipv4-l3vpna] quit

[SwitchC-bgp-default-l3vpna] quit

[SwitchC-bgp-default] quit

# Associate VLAN-interface 20 with VPN instance l3vpna. VLAN-interface 20 provides access to the Layer 3 network connected to Switch C.

[SwitchC] interface vlan-interface 20

[SwitchC-Vlan-interface20] ip binding vpn-instance l3vpna

[SwitchC-Vlan-interface20] ip address 20.1.1.3 24

[SwitchC-Vlan-interface20] quit

6. Configure Switch D:

# Establish BGP connections with other transport network switches.

<SwitchD> system-view

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering for BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the distributed EVPN gateway settings on Switch A:

# Verify that the VXLAN tunnel interfaces are up on Switch A. (This example uses Tunnel 0.)

[SwitchA] display interface tunnel 0

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Tunnel source 1.1.1.1, destination 2.2.2.2

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

# Verify that the VSI interfaces are up on Switch A. (This example uses VSI-interface 1.)

[SwitchA] display interface vsi-interface 1

Vsi-interface1

Current state: UP

Line protocol state: UP

Description: Vsi-interface1 Interface

Bandwidth: 1000000 kbps

Maximum transmission unit: 1500

Internet address: 10.1.1.1/24 (primary)

IP packet frame type: Ethernet II, hardware address: 0003-0003-0003

IPv6 packet frame type: Ethernet II, hardware address: 0003-0003-0003

Physical: Unknown, baudrate: 1000000 kbps

Last clearing of counters: Never

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

# Verify that the VXLAN tunnels have been assigned to the VXLANs, and that the VSI interfaces are the gateway interfaces of their respective VXLANs.

[SwitchA] display l2vpn vsi verbose

VSI Name: Auto_L3VNI1000_3

VSI Index : 1

VSI State : Down

MTU : 1500

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 3

VXLAN ID : 1000

EVPN Encapsulation : VXLAN

Tunnel Statistics : Disabled

VSI Name: vpna

VSI Index : 0

VSI State : Up

MTU : 1500

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 1

VXLAN ID : 10

EVPN Encapsulation : VXLAN

Tunnels:

Tunnel Name Link ID State Type Flood Proxy

Tunnel0 0x5000000 UP Auto Disabled

ACs:

AC Link ID State Type

HGE1/0/1 srv1000 0x0 Up

Statistics: Disabled

VSI Name: vpnb

VSI Index : 2

VSI State : Up

MTU : 1500

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 2

VXLAN ID : 20

EVPN Encapsulation : VXLAN

Tunnels:

Tunnel Name Link ID State Type Flood Proxy

Tunnel0 0x5000000 UP Auto Disabled

ACs:

AC Link ID State Type

HGE1/0/1 srv2000 0x0 Up

Statistics: Disabled

# Verify that Switch A has created ARP entries for the VMs.

[SwitchA] display arp

Type: S-Static D-Dynamic O-Openflow R-Rule M-Multiport I-Invalid

IP address MAC address VLAN/VSI name Interface Aging Type

10.1.1.10 0000-1234-0001 vpna HGE1/0/1 20 D

10.1.2.10 0000-1234-0002 vpnb HGE1/0/1 19 D

20.1.1.20 0000-1234-0001 vpna Tunnel0 20 D

20.1.2.20 0000-1234-0002 vpnb Tunnel0 19 D

2.2.2.2 a0ce-5e24-0100 Auto_L3VNI100 Tunnel0 -- R

# Verify that Switch A has created EVPN ARP entries for the VMs.

[SwitchA] display evpn route arp

Flags: D - Dynamic B - BGP L - Local active

G - Gateway S - Static M - Mapping I - Invalid

E - Multihoming ES sync F - Leaf

VPN instance: l3vpna Interface: Vsi-interface1

IP address MAC address Router MAC VSI index Flags

10.1.1.1 0001-0001-0001 522b-3413-0200 0 GL

10.1.1.10 521f-b814-0106 522b-3413-0200 0 DL

20.1.1.20 522b-3c6a-0406 522b-38cd-0300 0 B

2. Verify that VM 1, VM 2, VM 3, and VM 4 can communicate with one another. (Details not shown.)

Example: Configuring communication between IPv4 EVPN networks and the public network

Network configuration

As shown in Figure 23:

· Configure VXLAN 10, VXLAN 20, and VXLAN 30 on Switch A, Switch B, and Switch C to meet the following requirements:

¡ VXLAN 10 and VXLAN 20 are on the private network, and VXLAN 30 is on the public network.

¡ VXLAN 10 can communicate with VXLAN 20 and VXLAN 30, and VXLAN 20 is isolated from VXLAN 30.

· Configure Switch A, Switch B, and Switch C as distributed EVPN gateways to provide gateway services for the VXLANs.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

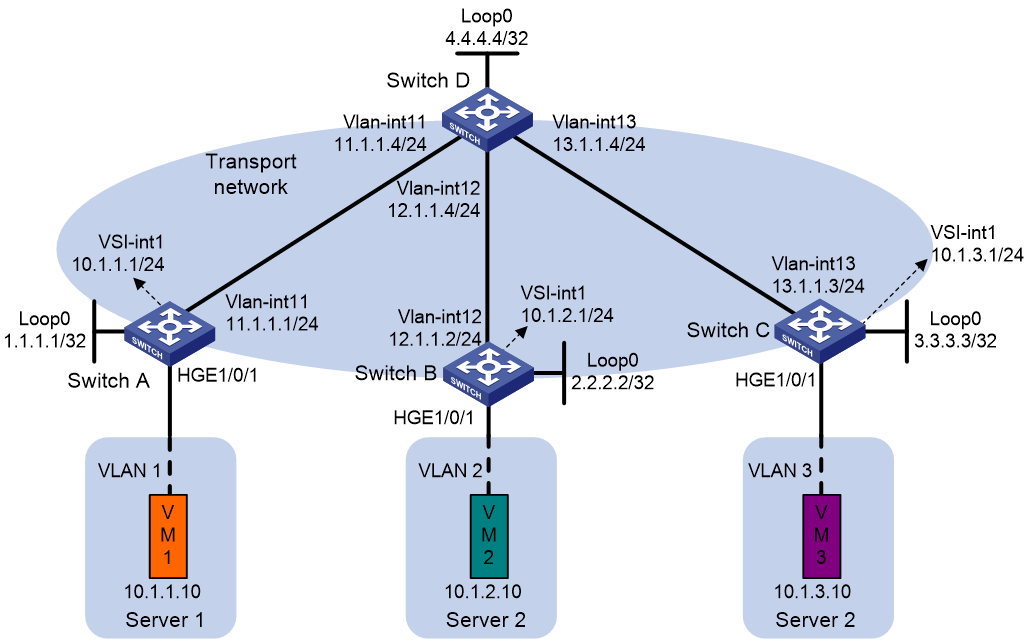

Figure 23 Network diagram

‌

Procedure

‌

IMPORTANT:

‌

1. On VM 1, VM 2, and VM 3, specify 10.1.1.1, 10.1.2.1, and 10.1.3.1 as the gateway address, respectively. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to interfaces, as shown in Figure 23. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 1.

[SwitchA] interface hundredgige 1/0/1

[SwitchA-HundredGigE1/0/1] service-instance 1000

[SwitchA-HundredGigE1/0/1-srv1000] encapsulation s-vid 1

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-HundredGigE1/0/1-srv1000] quit

# Configure RD and route target settings for VPN instance l3vpna.

[SwitchA] ip vpn-instance l3vpna

[SwitchA-vpn-instance-l3vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-l3vpna] address-family ipv4

[SwitchA-vpn-ipv4-l3vpna] vpn-target 1:1

[SwitchA-vpn-ipv4-l3vpna] vpn-target 2:2 import-extcommunity

[SwitchA-vpn-ipv4-l3vpna] vpn-target 3:3 import-extcommunity

[SwitchA-vpn-ipv4-l3vpna] quit

[SwitchA-vpn-instance-l3vpna] address-family evpn

[SwitchA-vpn-evpn-l3vpna] vpn-target 1:1

[SwitchA-vpn-evpn-l3vpna] vpn-target 2:2 import-extcommunity

[SwitchA-vpn-evpn-l3vpna] vpn-target 3:3 import-extcommunity

[SwitchA-vpn-evpn-l3vpna] quit

[SwitchA-vpn-instance-l3vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance l3vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Associate VSI-interface 2 with VPN instance l3vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 2

[SwitchA-Vsi-interface2] ip binding vpn-instance l3vpna

[SwitchA-Vsi-interface2] l3-vni 1000

[SwitchA-Vsi-interface2] quit

# Create VSI-interface 3 and configure its L3 VXLAN ID as 2000 for matching routes from Switch B.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] l3-vni 2000

[SwitchA-Vsi-interface3] quit

# Create VSI-interface 4 and configure its L3 VXLAN ID as 3000 for matching routes from Switch C.

[SwitchA] interface vsi-interface 4

[SwitchA-Vsi-interface4] l3-vni 3000

[SwitchA-Vsi-interface4] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

4. Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] evpn encapsulation vxlan

[SwitchB-vsi-vpnb-evpn-vxlan] route-distinguisher auto

[SwitchB-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchB-vsi-vpnb] vxlan 20

[SwitchB-vsi-vpnb-vxlan-20] quit

[SwitchB-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchB] interface hundredgige 1/0/1

[SwitchB-HundredGigE1/0/1] service-instance 1000

[SwitchB-HundredGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpnb.

[SwitchB-HundredGigE1/0/1-srv1000] xconnect vsi vpnb

[SwitchB-HundredGigE1/0/1-srv1000] quit

[SwitchB-HundredGigE1/0/1] quit

# Configure RD and route target settings for VPN instance l3vpnb.

[SwitchB] ip vpn-instance l3vpnb

[SwitchB-vpn-instance-l3vpnb] route-distinguisher 2:2

[SwitchB-vpn-instance-l3vpnb] address-family ipv4

[SwitchB-vpn-ipv4-l3vpnb] vpn-target 2:2

[SwitchB-vpn-ipv4-l3vpnb] vpn-target 1:1 import-extcommunity

[SwitchB-vpn-ipv4-l3vpnb] quit

[SwitchB-vpn-instance-l3vpnb] address-family evpn

[SwitchB-vpn-evpn-l3vpnb] vpn-target 2:2

[SwitchB-vpn-evpn-l3vpnb] vpn-target 1:1 import-extcommunity

[SwitchB-vpn-evpn-l3vpnb] quit

[SwitchB-vpn-instance-l3vpnb] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance l3vpnb

[SwitchB-Vsi-interface1] ip address 10.1.2.1 255.255.255.0

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Create VSI-interface 2, and configure its L3 VXLAN ID as 1000 for matching routes from Switch A.

[SwitchB] interface vsi-interface 2

[SwitchB-Vsi-interface2] l3-vni 1000

[SwitchB-Vsi-interface2] qui

# Associate VSI-interface 3 with VPN instance l3vpnb, and configure the L3 VXLAN ID as 2000 for the VPN instance.

[SwitchB] interface vsi-interface 3

[SwitchB-Vsi-interface3] ip binding vpn-instance l3vpnb

[SwitchB-Vsi-interface3] l3-vni 2000

[SwitchB-Vsi-interface3] quit

# Create VSI-interface 4, and configure its L3 VXLAN ID as 3000 for matching routes from Switch C.

[SwitchB] interface vsi-interface 4

[SwitchB-Vsi-interface4] l3-vni 3000

[SwitchB-Vsi-interface4] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpnb.

[SwitchB] vsi vpnb

[SwitchB-vsi-vpnb] gateway vsi-interface 1

[SwitchB-vsi-vpnb] quit

5. Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpnc, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchC] vsi vpnc

[SwitchC-vsi-vpnc] evpn encapsulation vxlan

[SwitchC-vsi-vpnc-evpn-vxlan] route-distinguisher auto

[SwitchC-vsi-vpnc-evpn-vxlan] vpn-target auto

[SwitchC-vsi-vpnc-evpn-vxlan] quit

# Create VXLAN 30.

[SwitchC-vsi-vpnc] vxlan 30

[SwitchC-vsi-vpnc-vxlan-30] quit

[SwitchC-vsi-vpnc] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family ipv4 unicast

[SwitchC-bgp-default-ipv4] quit

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Configure RD, route target, and L3 VXLAN ID settings for the public instance.

[SwitchC] ip public-instance

[SwitchC-public-instance] route-distinguisher 3:3

[SwitchC-public-instance] l3-vni 3000

[SwitchC-public-instance] address-family ipv4

[SwitchC-public-instance-ipv4] vpn-target 3:3

[SwitchC-public-instance-ipv4] vpn-target 1:1 import-extcommunity

[SwitchC-public-instance-ipv4] quit

[SwitchC-public-instance] address-family evpn

[SwitchC-public-instance-evpn]vpn-target 3:3

[SwitchC-public-instance-evpn] vpn-target 1:1 import-extcommunity

[SwitchC-public-instance-evpn] quit

[SwitchC-public-instance] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 3.

[SwitchC] interface hundredgige 1/0/1

[SwitchC-HundredGigE1/0/1] service-instance 1000

[SwitchC-HundredGigE1/0/1-srv1000] encapsulation s-vid 3

# Map Ethernet service instance 1000 to VSI vpnc.

[SwitchC-HundredGigE1/0/1-srv1000] xconnect vsi vpnc

[SwitchC-HundredGigE1/0/1-srv1000] quit

[SwitchC-HundredGigE1/0/1] quit

# Configure VSI-interface 1.

[SwitchC] interface vsi-interface 1

[SwitchC-Vsi-interface1] ip address 10.1.3.1 255.255.255.0

[SwitchC-Vsi-interface1] distributed-gateway local

[SwitchC-Vsi-interface1] local-proxy-arp enable

[SwitchC-Vsi-interface1] quit

# Create VSI-interface 2, and configure its L3 VXLAN ID as 1000 for matching routes from Switch A.

[SwitchC] interface vsi-interface 2

[SwitchC-Vsi-interface2] l3-vni 1000

[SwitchC-Vsi-interface2] quit

# Create VSI-interface 3, and configure its L3 VXLAN ID as 2000 for matching routes from Switch B.

[SwitchC] interface vsi-interface 3

[SwitchC-Vsi-interface3] l3-vni 2000

[SwitchC-Vsi-interface3] quit

# Create VSI-interface 4 for the public instance, and configure the L3 VXLAN ID as 3000 for the VSI interface.

[SwitchC] interface vsi-interface 4

[SwitchC-Vsi-interface4] l3-vni 3000

[SwitchC-Vsi-interface4] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpnc.

[SwitchC] vsi vpnc

[SwitchC-vsi-vpnc] gateway vsi-interface 1

[SwitchC-vsi-vpnc] quit

6. Configure Switch D:

# Establish BGP connections with other transport network switches.

<SwitchD> system-view

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering for BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the distributed EVPN gateway settings on Switch A:

# Verify that the VXLAN tunnel interfaces are up on Switch A.

[SwitchA] display interface tunnel

Tunnel0

Current state: UP

Line protocol state: UP

Description: Tunnel0 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 1.1.1.1, destination 2.2.2.2

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 15 packets, 1470 bytes, 0 drops

Output: 15 packets, 1470 bytes, 0 drops

Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1464

Internet protocol processing: Disabled

Last clearing of counters: Never

Tunnel source 1.1.1.1, destination 3.3.3.3

Tunnel protocol/transport UDP_VXLAN/IP

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 22 packets, 2156 bytes, 0 drops

Output: 23 packets, 2254 bytes, 0 drops

# Verify that the VSI interfaces are up on Switch A.

[SwitchA] display interface vsi-interface

Vsi-interface1

Current state: UP

Line protocol state: UP

Description: Vsi-interface1 Interface

Bandwidth: 1000000 kbps

Maximum transmission unit: 1444

Internet address: 10.1.1.1/24 (primary)

IP packet frame type: Ethernet II, hardware address: 582e-81f2-0600

IPv6 packet frame type: Ethernet II, hardware address: 582e-81f2-0600

Physical: Unknown, baudrate: 1000000 kbps

Last clearing of counters: Never

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 4 bytes/sec, 32 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 2656 packets, 138432 bytes, 0 drops

Vsi-interface2

Current state: UP

Line protocol state: UP

Description: Vsi-interface2 Interface

Bandwidth: 1000000 kbps

Maximum transmission unit: 1444

Internet protocol processing: Disabled

IP packet frame type: Ethernet II, hardware address: 582e-81f2-0600

IPv6 packet frame type: Ethernet II, hardware address: 582e-81f2-0600

Physical: Unknown, baudrate: 1000000 kbps

Last clearing of counters: Never

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

Vsi-interface3

Current state: UP

Line protocol state: UP

Description: Vsi-interface3 Interface

Bandwidth: 1000000 kbps

Maximum transmission unit: 1444

Internet protocol processing: Disabled

IP packet frame type: Ethernet II, hardware address: 582e-81f2-0600

IPv6 packet frame type: Ethernet II, hardware address: 582e-81f2-0600

Physical: Unknown, baudrate: 1000000 kbps

Last clearing of counters: Never

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

Vsi-interface4

Current state: UP

Line protocol state: UP

Description: Vsi-interface4 Interface

Bandwidth: 1000000 kbps

Maximum transmission unit: 1444

Internet protocol processing: Disabled

IP packet frame type: Ethernet II, hardware address: 582e-81f2-0600

IPv6 packet frame type: Ethernet II, hardware address: 582e-81f2-0600

Physical: Unknown, baudrate: 1000000 kbps

Last clearing of counters: Never

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

# Verify that the VXLAN tunnels have been assigned to the VXLANs, and that the VSI interfaces are the gateway interfaces of their respective VXLANs.

[SwitchA] display l2vpn vsi verbose

VSI Name: Auto_L3VNI1000_2

VSI Index : 1

VSI State : Down

MTU : -

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 2

VXLAN ID : 1000

EVPN Encapsulation : VXLAN

VSI Name: Auto_L3VNI2000_3

VSI Index : 2

VSI State : Down

MTU : -

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 3

VXLAN ID : 2000

EVPN Encapsulation : VXLAN

VSI Name: Auto_L3VNI3000_4

VSI Index : 3

VSI State : Down

MTU : -

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 4

VXLAN ID : 3000

EVPN Encapsulation : VXLAN

VSI Name: vpna

VSI Index : 0

VSI State : Up

MTU : -

Diffserv Mode : -

Bandwidth : Unlimited

Broadcast Restrain : Unlimited

Multicast Restrain : Unlimited

Unknown Unicast Restrain: Unlimited

MAC Learning : Enabled

MAC Table Limit : -

MAC Learning rate : -

Drop Unknown : -

PW Redundancy Mode : Slave

Flooding : Enabled

ESI : 0000.0000.0000.0000.0000

Redundancy Mode : All-active

Statistics : Disabled

Gateway Interface : VSI-interface 1

VXLAN ID : 10

EVPN Encapsulation : VXLAN

ACs:

AC Link ID State Type

HGE1/0/1 srv1000 0x0 Up

Statistics: Disabled

# Verify that Switch A has created ARP entries for the VMs.

[SwitchA] display arp

Type: S-Static D-Dynamic O-Openflow R-Rule I-Invalid

IP address MAC address VLAN/VSI name Interface Aging Type

10.1.1.10 582e-aaec-0806 0 HGE1/0/1 10 D

11.1.1.4 582c-1385-0517 -- Vlan11 14 D

2.2.2.2 582e-8ba6-0700 2 Tunnel0 -- R

3.3.3.3 9a51-95ba-1000 3 Tunnel1 -- R

2. Verify that VM 1 can communicate with VM 2 and VM 3, and VM 2 cannot communicate with VM 3. (Details not shown.)

Example: Configuring IPv4 EVPN VXLAN multihoming

Network configuration

As shown in Figure 24:

· Configure VXLANs as follows:

¡ Configure VXLAN 10 on Switch A, Switch B, and Switch C. Configure Switch A and Switch B as redundant VTEPs for Server 2, and configure Switch B and Switch C as redundant VTEPs for Server 3.

¡ Configure VXLAN 20 on Switch C.

· Configure Switch A, Switch B, and Switch C as distributed EVPN gateways.

· Configure Switch D as an RR to reflect BGP EVPN routes between Switch A, Switch B, and Switch C.

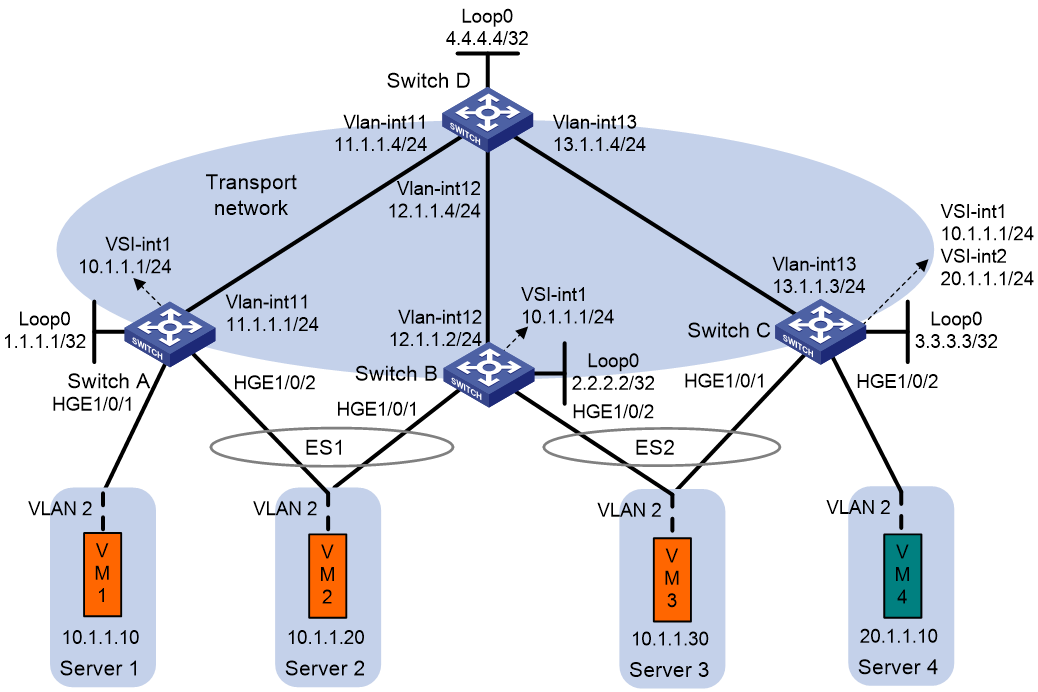

Figure 24 Network diagram

‌

Procedure

‌

IMPORTANT:

‌

1. On VM 1, VM 2, and VM 3, specify 10.1.1.1 as the gateway address. On VM 4, specify 20.1.1.1 as the gateway address. (Details not shown.)

2. Configure IP addresses and unicast routing settings:

# Assign IP addresses to the interfaces, as shown in Figure 24. (Details not shown.)

# Configure OSPF on all transport network switches (Switches A through D) for them to reach one another. (Details not shown.)

3. Configure Switch A:

# Enable L2VPN.

<SwitchA> system-view

[SwitchA] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchA] vxlan tunnel mac-learning disable

[SwitchA] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] evpn encapsulation vxlan

[SwitchA-vsi-vpna-evpn-vxlan] route-distinguisher auto router-id

[SwitchA-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchA-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchA-vsi-vpna] vxlan 10

[SwitchA-vsi-vpna-vxlan-10] quit

[SwitchA-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchA] bgp 200

[SwitchA-bgp-default] peer 4.4.4.4 as-number 200

[SwitchA-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchA-bgp-default] address-family l2vpn evpn

[SwitchA-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchA-bgp-default-evpn] quit

[SwitchA-bgp-default] quit

# On HundredGigE 1/0/1, create Ethernet service instance 1000 to match VLAN 2.

[SwitchA] interface hundredgige 1/0/1

[SwitchA-HundredGigE1/0/1] service-instance 1000

[SwitchA-HundredGigE1/0/1-srv1000] encapsulation s-vid 2

# Map Ethernet service instance 1000 to VSI vpna.

[SwitchA-HundredGigE1/0/1-srv1000] xconnect vsi vpna

[SwitchA-HundredGigE1/0/1-srv1000] quit

[SwitchA-HundredGigE1/0/1] quit

# Assign an ESI to HundredGigE 1/0/2.

[SwitchA] interface hundredgige 1/0/2

[SwitchA-HundredGigE1/0/2] esi 0.0.0.0.1

# On HundredGigE 1/0/2, create Ethernet service instance 2000 to match VLAN 2.

[SwitchA-HundredGigE1/0/2] service-instance 2000

[SwitchA-HundredGigE1/0/2-srv2000] encapsulation s-vid 2

# Map Ethernet service instance 2000 to VSI vpna.

[SwitchA-HundredGigE1/0/2-srv2000] xconnect vsi vpna

[SwitchA-HundredGigE1/0/2-srv2000] quit

[SwitchA-HundredGigE1/0/2] quit

# Configure RD and route target settings for VPN instance l3vpna.

[SwitchA] ip vpn-instance l3vpna

[SwitchA-vpn-instance-l3vpna] route-distinguisher 1:1

[SwitchA-vpn-instance-l3vpna] address-family ipv4

[SwitchA-vpn-ipv4-l3vpna] vpn-target 2:2

[SwitchA-vpn-ipv4-l3vpna] quit

[SwitchA-vpn-instance-l3vpna] address-family evpn

[SwitchA-vpn-evpn-l3vpna] vpn-target 1:1

[SwitchA-vpn-evpn-l3vpna] quit

[SwitchA-vpn-instance-l3vpna] quit

# Configure VSI-interface 1.

[SwitchA] interface vsi-interface 1

[SwitchA-Vsi-interface1] ip binding vpn-instance l3vpna

[SwitchA-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchA-Vsi-interface1] mac-address 1-1-1

[SwitchA-Vsi-interface1] distributed-gateway local

[SwitchA-Vsi-interface1] local-proxy-arp enable

[SwitchA-Vsi-interface1] quit

# Associate VSI-interface 3 with VPN instance l3vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchA] interface vsi-interface 3

[SwitchA-Vsi-interface3] ip binding vpn-instance l3vpna

[SwitchA-Vsi-interface3] l3-vni 1000

[SwitchA-Vsi-interface3] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchA] vsi vpna

[SwitchA-vsi-vpna] gateway vsi-interface 1

[SwitchA-vsi-vpna] quit

4. Configure Switch B:

# Enable L2VPN.

<SwitchB> system-view

[SwitchB] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchB] vxlan tunnel mac-learning disable

[SwitchB] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] evpn encapsulation vxlan

[SwitchB-vsi-vpna-evpn-vxlan] route-distinguisher auto router-id

[SwitchB-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchB-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchB-vsi-vpna] vxlan 10

[SwitchB-vsi-vpna-vxlan-10] quit

[SwitchB-vsi-vpna] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchB] bgp 200

[SwitchB-bgp-default] peer 4.4.4.4 as-number 200

[SwitchB-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchB-bgp-default] address-family l2vpn evpn

[SwitchB-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchB-bgp-default-evpn] quit

[SwitchB-bgp-default] quit

# Assign an ESI to HundredGigE 1/0/1.

[SwitchB] interface hundredgige 1/0/1

[SwitchB-HundredGigE1/0/1] esi 0.0.0.0.1

# On HundredGigE 1/0/1, create Ethernet service instance 2000 to match VLAN 2.

[SwitchB-HundredGigE1/0/1] service-instance 2000

[SwitchB-HundredGigE1/0/1-srv2000] encapsulation s-vid 2

# Map Ethernet service instance 2000 to VSI vpna.

[SwitchB-HundredGigE1/0/1-srv2000] xconnect vsi vpna

[SwitchB-HundredGigE1/0/1-srv2000] quit

[SwitchB-HundredGigE1/0/1] quit

# Assign an ESI to HundredGigE 1/0/2.

[SwitchB] interface hundredgige 1/0/2

[SwitchB-HundredGigE1/0/2] esi 0.0.0.0.2

# On HundredGigE 1/0/2, create Ethernet service instance 3000 to match VLAN 2.

[SwitchB-HundredGigE1/0/2] service-instance 3000

[SwitchB-HundredGigE1/0/2-srv3000] encapsulation s-vid 2

# Map Ethernet service instance 3000 to VSI vpna.

[SwitchB-HundredGigE1/0/2-srv3000] xconnect vsi vpna

[SwitchB-HundredGigE1/0/2-srv3000] quit

[SwitchB-HundredGigE1/0/2] quit

# Configure RD and route target settings for VPN instance l3vpna.

[SwitchB] ip vpn-instance l3vpna

[SwitchB-vpn-instance-l3vpna] route-distinguisher 2:2

[SwitchB-vpn-instance-l3vpna] address-family ipv4

[SwitchB-vpn-ipv4-l3vpna] vpn-target 2:2

[SwitchB-vpn-ipv4-l3vpna] quit

[SwitchB-vpn-instance-l3vpna] address-family evpn

[SwitchB-vpn-evpn-l3vpna] vpn-target 1:1

[SwitchB-vpn-evpn-l3vpna] quit

[SwitchB-vpn-instance-l3vpna] quit

# Configure VSI-interface 1.

[SwitchB] interface vsi-interface 1

[SwitchB-Vsi-interface1] ip binding vpn-instance l3vpna

[SwitchB-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchB-Vsi-interface1] mac-address 1-1-1

[SwitchB-Vsi-interface1] distributed-gateway local

[SwitchB-Vsi-interface1] local-proxy-arp enable

[SwitchB-Vsi-interface1] quit

# Associate VSI-interface 3 with VPN instance l3vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchB] interface vsi-interface 3

[SwitchB-Vsi-interface3] ip binding vpn-instance l3vpna

[SwitchB-Vsi-interface3] l3-vni 1000

[SwitchB-Vsi-interface3] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchB] vsi vpna

[SwitchB-vsi-vpna] gateway vsi-interface 1

[SwitchB-vsi-vpna] quit

5. Configure Switch C:

# Enable L2VPN.

<SwitchC> system-view

[SwitchC] l2vpn enable

# Disable remote MAC address learning and remote ARP learning.

[SwitchC] vxlan tunnel mac-learning disable

[SwitchC] vxlan tunnel arp-learning disable

# Create an EVPN instance on VSI vpna, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchC] vsi vpna

[SwitchC-vsi-vpna] evpn encapsulation vxlan

[SwitchC-vsi-vpna-evpn-vxlan] route-distinguisher auto router-id

[SwitchC-vsi-vpna-evpn-vxlan] vpn-target auto

[SwitchC-vsi-vpna-evpn-vxlan] quit

# Create VXLAN 10.

[SwitchC-vsi-vpna] vxlan 10

[SwitchC-vsi-vpna-vxlan-10] quit

[SwitchC-vsi-vpna] quit

# Create an EVPN instance on VSI vpnb, and configure the switch to automatically generate an RD and a route target for the EVPN instance.

[SwitchC] vsi vpnb

[SwitchC-vsi-vpnb] evpn encapsulation vxlan

[SwitchC-vsi-vpnb-evpn-vxlan] route-distinguisher auto router-id

[SwitchC-vsi-vpnb-evpn-vxlan] vpn-target auto

[SwitchC-vsi-vpnb-evpn-vxlan] quit

# Create VXLAN 20.

[SwitchC-vsi-vpnb] vxlan 20

[SwitchC-vsi-vpnb-vxlan-20] quit

[SwitchC-vsi-vpnb] quit

# Configure BGP to advertise BGP EVPN routes.

[SwitchC] bgp 200

[SwitchC-bgp-default] peer 4.4.4.4 as-number 200

[SwitchC-bgp-default] peer 4.4.4.4 connect-interface loopback 0

[SwitchC-bgp-default] address-family l2vpn evpn

[SwitchC-bgp-default-evpn] peer 4.4.4.4 enable

[SwitchC-bgp-default-evpn] quit

[SwitchC-bgp-default] quit

# Assign an ESI to HundredGigE 1/0/1.

[SwitchC] interface hundredgige 1/0/1

[SwitchC-HundredGigE1/0/1] esi 0.0.0.0.2

# On HundredGigE 1/0/1, create Ethernet service instance 3000 to match VLAN 2.

[SwitchC-HundredGigE1/0/1] service-instance 3000

[SwitchC-HundredGigE1/0/1-srv3000] encapsulation s-vid 2

# Map Ethernet service instance 3000 to VSI vpna.

[SwitchC-HundredGigE1/0/1-srv3000] xconnect vsi vpna

[SwitchC-HundredGigE1/0/1-srv3000] quit

[SwitchC-HundredGigE1/0/1] quit

# On HundredGigE 1/0/2, create Ethernet service instance 4000 to match VLAN 3.

[SwitchC] interface hundredgige 1/0/2

[SwitchC-HundredGigE1/0/2] service-instance 4000

[SwitchC-HundredGigE1/0/2-srv4000] encapsulation s-vid 3

# Map Ethernet service instance 4000 to VSI vpnb.

[SwitchC-HundredGigE1/0/2-srv4000] xconnect vsi vpnb

[SwitchC-HundredGigE1/0/2-srv4000] quit

[SwitchC-HundredGigE1/0/2] quit

# Configure RD and route target settings for VPN instance l3vpna.

[SwitchC] ip vpn-instance l3vpna

[SwitchC-vpn-instance-l3vpna] route-distinguisher 3:3

[SwitchC-vpn-instance-l3vpna] address-family ipv4

[SwitchC-vpn-ipv4-l3vpna] vpn-target 2:2

[SwitchC-vpn-ipv4-l3vpna] quit

[SwitchC-vpn-instance-l3vpna] address-family evpn

[SwitchC-vpn-evpn-l3vpna] vpn-target 1:1

[SwitchC-vpn-evpn-l3vpna] quit

[SwitchC-vpn-instance-l3vpna] quit

# Configure VSI-interface 1.

[SwitchC] interface vsi-interface 1

[SwitchC-Vsi-interface1] ip binding vpn-instance l3vpna

[SwitchC-Vsi-interface1] ip address 10.1.1.1 255.255.255.0

[SwitchC-Vsi-interface1] mac-address 1-1-1

[SwitchC-Vsi-interface1] distributed-gateway local

[SwitchC-Vsi-interface1] local-proxy-arp enable

[SwitchC-Vsi-interface1] quit

# Configure VSI-interface 2.

[SwitchC] interface vsi-interface 2

[SwitchC-Vsi-interface2] ip binding vpn-instance l3vpna

[SwitchC-Vsi-interface2] ip address 20.1.1.1 255.255.255.0

[SwitchC-Vsi-interface2] mac-address 2-2-2

[SwitchC-Vsi-interface2] distributed-gateway local

[SwitchC-Vsi-interface2] local-proxy-arp enable

[SwitchC-Vsi-interface2] quit

# Associate VSI-interface 3 with VPN instance l3vpna, and configure the L3 VXLAN ID as 1000 for the VPN instance.

[SwitchC] interface vsi-interface 3

[SwitchC-Vsi-interface3] ip binding vpn-instance l3vpna

[SwitchC-Vsi-interface3] l3-vni 1000

[SwitchC-Vsi-interface3] quit

# Specify VSI-interface 1 as the gateway interface for VSI vpna.

[SwitchC] vsi vpna

[SwitchC-vsi-vpna] gateway vsi-interface 1

[SwitchC-vsi-vpna] quit

# Specify VSI-interface 2 as the gateway interface for VSI vpnb.

[SwitchC] vsi vpnb

[SwitchC-vsi-vpnb] gateway vsi-interface 2

[SwitchC-vsi-vpnb] quit

6. Configure Switch D:

# Establish BGP connections with other transport network switches.

<SwitchD> system-view

[SwitchD] bgp 200

[SwitchD-bgp-default] group evpn

[SwitchD-bgp-default] peer 1.1.1.1 group evpn

[SwitchD-bgp-default] peer 2.2.2.2 group evpn

[SwitchD-bgp-default] peer 3.3.3.3 group evpn

[SwitchD-bgp-default] peer evpn as-number 200

[SwitchD-bgp-default] peer evpn connect-interface loopback 0

# Configure BGP to advertise BGP EVPN routes, and disable route target filtering for BGP EVPN routes.

[SwitchD-bgp-default] address-family l2vpn evpn

[SwitchD-bgp-default-evpn] peer evpn enable

[SwitchD-bgp-default-evpn] undo policy vpn-target

# Configure Switch D as an RR.

[SwitchD-bgp-default-evpn] peer evpn reflect-client

[SwitchD-bgp-default-evpn] quit

[SwitchD-bgp-default] quit

Verifying the configuration

1. Verify the EVPN VXLAN multihoming configuration on Switch C. (Details not shown.)

# Verify that Switch C has advertised and received the following BGP EVPN routes:

¡ IP prefix advertisement routes for the gateways.

¡ IMET routes for VSIs.

¡ MAC/IP advertisement routes.

¡ Ethernet auto-discovery routes and Ethernet segment routes.

# Verify that Switch C has ECMP routes to VM 2.

<SwitchC> display evpn routing-table vpn-instance l3vpna

Flags: E - with valid ESI A - AD ready L - Local ES exists

VPN instance:l3vpna Local L3VNI:1000

IP address Next hop Outgoing interface NibID Flags

10.1.1.10 1.1.1.1 Vsi-interface3 0x18000001 -

10.1.1.20 2.2.2.2 Vsi-interface3 0x18000000 EA

1.1.1.1 Vsi-interface3 0x18000001 EA

# Verify that Switch C has equal-cost L2VPN MAC address entries and EVPN MAC address entries for VM 2.

<SwitchC> display l2vpn mac-address

MAC Address State VSI Name Link ID/Name Aging

0001-0001-0010 EVPN vpna Tunnel0 NotAging

0001-0001-0020 EVPN vpna Tunnel0 NotAging

Tunnel1 NotAging

0001-0001-0030 Dynamic vpna 0x0 NotAging

0002-0001-0010 Dynamic vpnb 0x0 NotAging

<SwitchC> display evpn route mac

Flags: D - Dynamic B - BGP L - Local active

G - Gateway S - Static M - Mapping I - Invalid

E – Multihoming ES sync

VSI name: vpna

MAC address Link ID/Name Flags Encap Next hop

0001-0001-0030 0 DL VXLAN -

0001-0001-0010 Tunnel0 B VXLAN 1.1.1.1

0001-0001-0020 Tunnel0 B VXLAN 1.1.1.1

Tunnel1 B VXLAN 2.2.2.2

VSI name: vpnb

MAC address Link ID/Name Flags Next hop

0002-0001-0010 0 DL -

# Verify that Switch C has information about local and remote ESs.

<SwitchC> display evpn es local

Redundancy mode: A - All active, S - Single active

VSI name : vpna

EVPN instance: -

ESI Tag ID DF address Mode State ESI label

0000.0000.0000.0000.0002 0 2.2.2.2 A Up -

<SwitchC> display evpn es remote

Control Flags: P - Primary, B - Backup, C - Control word

VSI name : vpna

EVPN instance: -

ESI : 0000.0000.0000.0000.0001

A-D per ES routes :

Peer IP Remote Redundancy mode

1.1.1.1 All-active

2.2.2.2 All-active

A-D per EVI routes :

Tag ID Peer IP

0 1.1.1.1

0 2.2.2.2

ESI : 0000.0000.0000.0000.0002

Ethernet segment routes :

Peer IP Remote Redundancy mode

2.2.2.2 All-active

A-D per ES routes :

2.2.2.2

A-D per EVI routes :

Tag ID Peer IP

0 2.2.2.2

2. Verify that the VMs can communicate with one another.

11-EVPN Configuration Guide

EVPN network model

Assignment of traffic to VXLANs

Centralized EVPN gateway deployment

Distributed EVPN gateway deployment

Basic concepts

VSI interfaces

Layer 3 forwarding entry learning

Traffic forwarding

Communication between private and public networks

VSI interfaces

Layer 3 forwarding

VLAN tag-based DF election

Preference-based DF election

ARP and ND flood suppression

EVPN M-LAG

About EVPN M-LAG

Link redundancy mechanism for a direct peer link

Link redundancy mechanism for a tunnel peer link

Restrictions and guidelines: EVPN VXLAN configuration

About this task

Restrictions and guidelines

Procedure

Procedure

Restrictions and guidelines for EVPN VXLAN multihoming

About this task

Procedure

About this task

Restrictions and guidelines

Configuring the DF election algorithm globally

Configuring the DF election algorithm on an interface

Configuring preference-based DF election

About this task

Procedure

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Procedure

Configuring BGP to advertise BGP EVPN routes

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

Mapping ACs to a VSI

About this task

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Configuring the VLAN-based traffic match mode

Configuring the MAC-based traffic match mode

Restrictions and guidelines

Prerequisites

Procedure

About this task

Procedure

Configuring a distributed EVPN gateway

Restrictions and guidelines

Procedure

About this task

Procedure

Restrictions and guidelines for L3 VXLAN ID configuration

Configuring an L3 VXLAN ID for the VSI interface of a VPN instance

Configuring an L3 VXLAN ID for the VSI interface of the public instance

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Restrictions and guidelines

Procedure

About this task

Procedure
