4 Slot arrangement and interface numbering
Slot arrangement for MPUs, switching fabric modules, and service modules
4 Slot arrangement and interface numbering
Slot arrangement

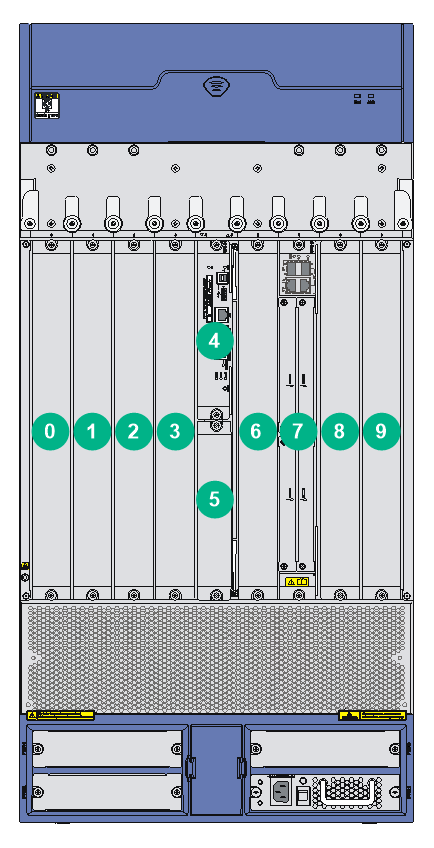

Figure4-1 Slot arrangement on the SR6616 configured with an RPE-X1/RPE-X3/RPE-X5/RPE-X5E MPU

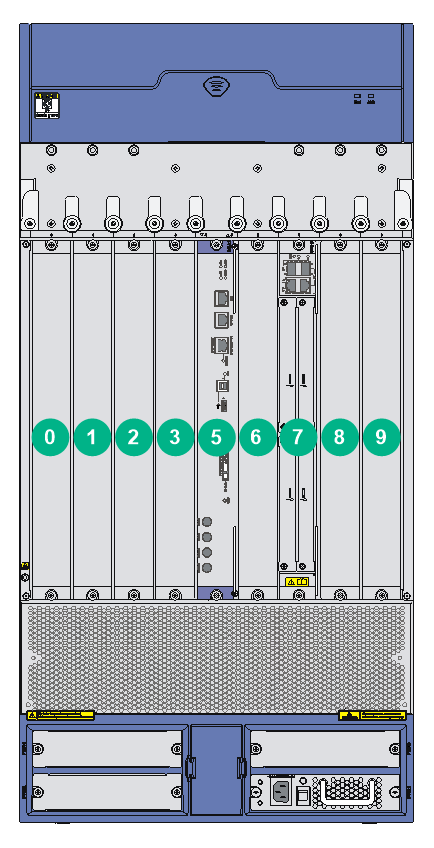

Figure4-2 Slot arrangement for the SR6616 configured with an RSE-X1/MCP-X1/X2 MPU
|
|
NOTE: · The numbers in Figure4-1 and Figure4-2 represent corresponding slot numbers. · A router configured with an RSE-X1 or MCP-X1/X2 MPU does not have slot 4. |
Slot arrangement for MPUs, switching fabric modules, and service modules
Table4-1 Slot arrangement for MPUs, switching fabric modules, and service modules
|
MPUs, switching fabric modules, and service modules |
Slot arrangement |
|
MPUs |
|
|
RPE-X1/RPE-X3/RPE-X5/RPE-X5E (supporting 1+1 redundancy) |
Slot 4 and slot 5 An SR6616-DS router does not support the RPE-X1 MPU. |
|
RSE-X1 (supporting 1+1 redundancy) |
Slot 5 and slot 6 Not supported on an SR6616-DS router. |
|
MCP-X1/X2 (supporting 1+1 redundancy) |
Slot 5 and slot 6 Not supported on an SR6616-DS router. |
|
Switching fabric modules |
|
|
SFE-L1 |
Slot 0 through slot 3, slot 6 through slot 9 Not supported on an SR6616-DS router. |
|
SFE-L2 |
Slot 3 and slot 6 on an SR6616-DS router. (To install the SFE-L2 switching fabric module in slot 3 on an SR6616-DS router, first install a carrier in the slot.) |
|
Service modules |
|
|
FIP-10/FIP-20/FIP-110/FIP-210/FIP-240/FIP-260/FIP-300/FIP-310/FIP-380/FIP-600/FIP-660/FIP-680 SAP/OAP |
· Slot 0 through slot 3, slot 6 through slot 9 · Slot 0 through slot 3 and slot 7 through slot
9 on an SR6616-DS router |
Interface numbering
Before installing a HIM/MIM/MIC/MIC-X, you must install a FIP.
The interfaces of the router are numbered in the form of interface-type X/Y/Z,
Where,
· interface-type—Type of the interface such as GE port and serial port.
· X—Number of the slot where the FIP/SAP resides.
· Y—Number of the slot where the HIM/MIM/MIC resides on the FIP. For a SAP, the subslot number is 0.
· Z—Number of the interface on the HIM/MIM/MIC or on the SAP.
For each interface type on a HIM/MIM/MIC/MIC-X or SAP, the number Z starts from 0.
|
|
NOTE: · Different interface modules on the same FIP have the same slot number. · Different interfaces on the same HIM/MIM/MIC have the same subslot number. |
Examples
Example 1
A MIM-2GBE module is installed on a FIP-110 in slot 3 of the router.
· Fixed GigabitEthernet interfaces 0 and 1 on the FIP-110 are numbered GigabitEthernet 3/0/0 and GigabitEthernet 3/0/1, respectively.
|
|
NOTE: The subslot number Y of fixed GE interfaces on a FIP is 0. |
· If the MIM-2GBE module is installed in slot 1 of the FIP-110, the two GigabitEthernet interfaces 0 and 1 on the MIM-2GBE are numbered GigabitEthernet 3/1/0 and GigabitEthernet 3/1/1, respectively,
· If the MIM-2GBE module is installed in slot 2 of the FIP-110, the two GigabitEthernet interfaces 0 and 1 on the MIM-2GBE are numbered GigabitEthernet 3/2/0 and GigabitEthernet 3/2/1, respectively.
Example 2
A HIM-4GBE module is installed on a FIP-210 in slot 3 of the router.
· The two fixed GigabitEthernet interfaces 0 and 1 on the FIP-210 are numbered GigabitEthernet 3/0/0 and GigabitEthernet 3/0/1, respectively.
· If the HIM-4GBE is installed in slot 1 of the FIP-210, the GigabitEthernet interfaces 0 and 3 on the HIM-4GBE are numbered GigabitEthernet 3/1/0 to GigabitEthernet 3/1/3, respectively.
· If the HIM-4GBE is installed in slot 2 of the FIP-210, the GigabitEthernet interfaces 0 and 3 on the HIM-4GBE are numbered GigabitEthernet 3/2/0 to GigabitEthernet 3/2/3, respectively.
