1 Chassis views and technical specifications
Chassis views
|
|
CAUTION: Do not use the handle on the rear cover to move the router chassis. This handle is designed to help you remove the rear cover and cannot support the chassis weight. |

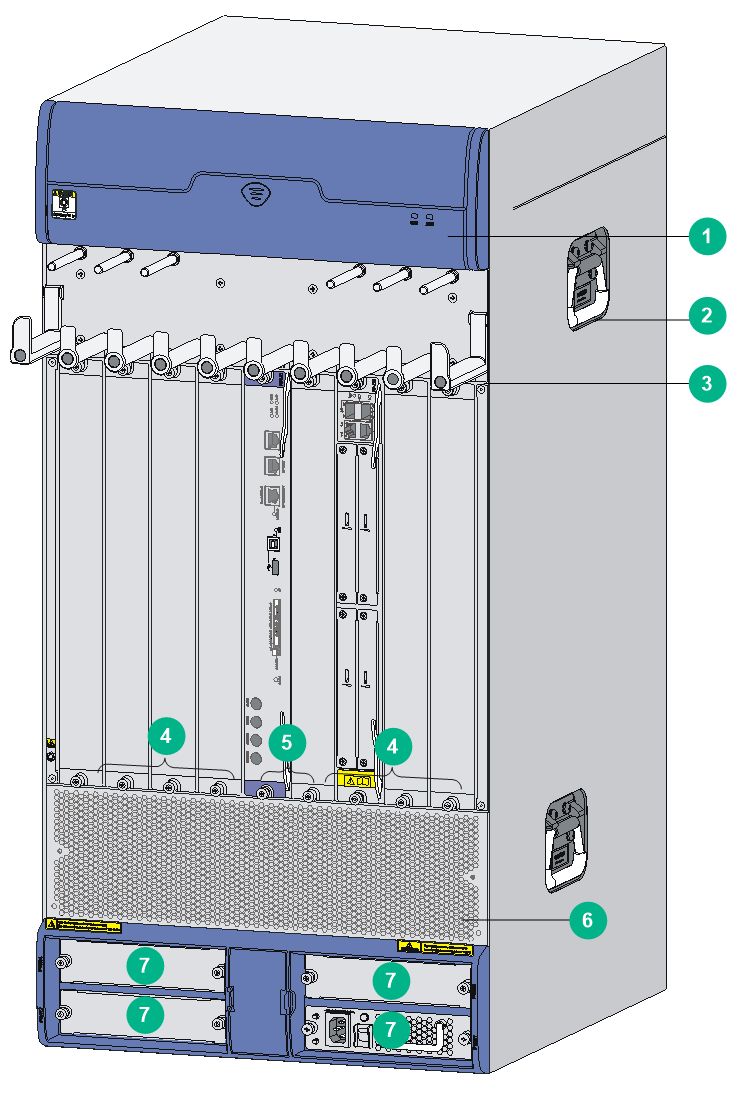

Figure1-1 SR6616 front view (an RPE-X1 MPU installed)
|
(1) Fan tray |
(2) Chassis handle |
|
(3) Cable management bracket |
|
|
(4) Service module/switching fabric module slots (slot 0 to slot 3 and slot 6 to slot 9) |
|
|
(5) MPU slots (slot 4 and slot 5) |
(6) Air intake vents (an optional air filter can be installed) |
|
(7) Power supply slots |
|
|
|
NOTE: · The router installed with RPE-X3, RPE-X5, or RPE-X5E MPUs has the same front view as installed with RPE-X1 MPUs. · Before installing an RPE-X1, RPE-X3, RPE-X5, or RPE-X5E MPU, install a compatible carrier in the MPU slot. |
Figure1-2 SR6616 front view (an RSE-X1 MPU installed)
|
(1) Fan tray |
(2) Chassis handle |
|
(3) Cable management bracket |
|
|
(4) Service module/switching fabric module slots (slot 0 to slot 3 and slot 7 to slot 9) |
|
|
(5) MPU slots (slot 5 and slot 6) |
(6) Air intake vents (an optional air filter can be installed) |
|
(7) Power supply slots |
|
Figure1-3 SR6616 front view (an MCP-X1 installed)
|
(1) Fan tray |
(2) Chassis handle |
|
(3) Service module/switching fabric module slots (slot 0 to slot 3 and slot 6 to slot 9) |
|
|
(4) MPU slots (slot 5 and slot 6) |
(5) Air intake vents (an optional air filter can be installed) |
|
(6) Power supply slots |
|
Figure1-4 SR6616 front view (an MCP-X2 installed)
|
(1) Fan tray |
(2) Chassis handle |
|
(3) Service module/switching fabric module slots (slot 0 to slot 3 and slot 6 to slot 9) |
|
|
(4) MPU slots (slot 5 and slot 6) |
(5) Air intake vents (an optional air filter can be installed) |
|
(6) Power supply slots |
|
Figure1-5 SR6616-DS front view
|
(1) Fan tray |
(2) Chassis handle |
|
(3) Service module slots (slots 0 to 2 and slots 7 to 9) |
|
|
(4) Service module/switching fabric module slot (slot 3) |
|
|
(5) MPU slots (slots 4 and 5) |
(6) Switching fabric module slot (slot 6) |
|
(7) Air intake vents (an optional air filter can be installed) |
(8) Power supply slots |
|
|
IMPORTANT: · An SFE-L2 switching fabric module is provided with the SR6616-DS router. As a best practice, install the module in slot 6. For the installation procedure, see H3C SR6616 Routers Installation Guide. · To install an SFE-L2 switching fabric module in slot 3 on the SR6616-DS router, first install an SFU carrier in the slot. |

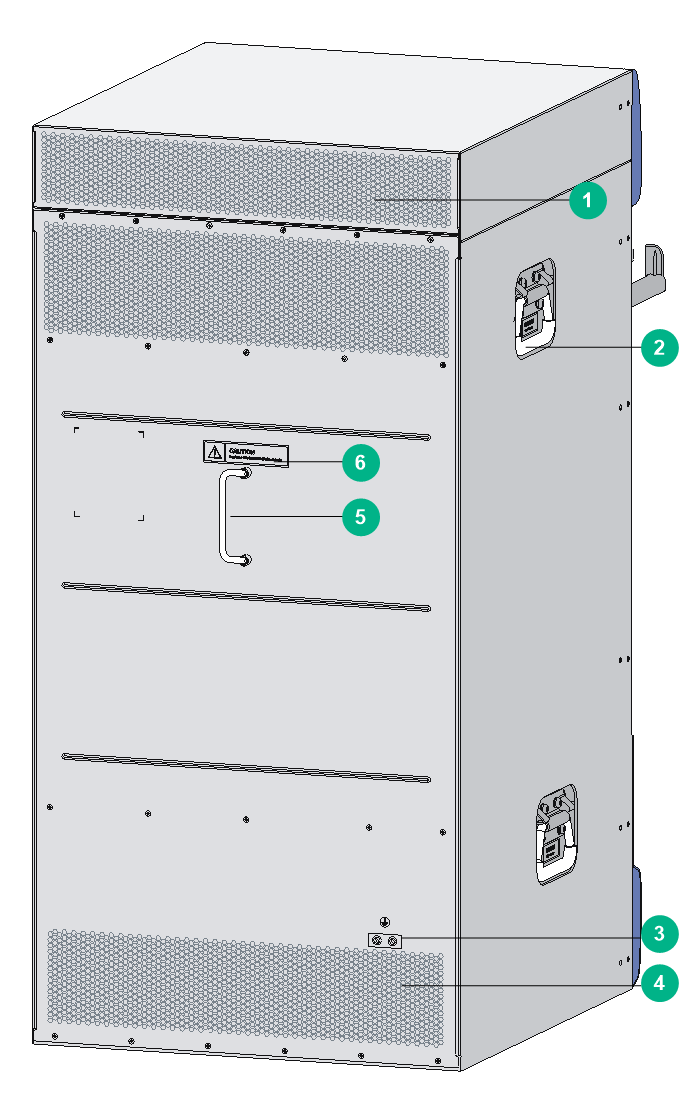

Figure1-6 SR6616 rear view
|
(1) Chassis air exhaust vents |
(2) Chassis handle |
|
(3) Grounding screw and grounding sign |
(4) Power supply air exhaust vents |
|
(5) Rear cover handle |
(6) Warning label |
Dimensions and weights
Chassis
Table1-1 Router dimensions and weights
|
Dimensions and weight |
|
|
Height (H) |
886 mm (34.88 in) (20 RU) |
|
Width (W) |
436 mm (17.17 in) |
|
Depth (D) |
480 mm (18.9 in) |
|
Weight (full configuration) |
102 kg (224.87 lb) |
Cards
Table1-2 Card weights and dimensions
|
Model |
Net weight |
Dimensions (H × W × D) |
|
RPE-X1 |
1.4 kg (3.09 lb) |
40 × 199 × 282 mm (1.57 × 7.83 × 11.10 in) |
|
RPE-X3 |
0.85 kg (1.87 lb) |
40 × 199 × 282 mm (1.57 × 7.83 × 11.10 in) |
|
RPE-X5 |
0.95 kg (2.09 lb) |
40 × 198.6 × 284.4 mm (1.57 × 7.82 × 11.20 in) |
|
RPE-X5E |
0.95 kg (2.09 lb) |
40 × 198.6 × 284.4 mm (1.57 × 7.82 × 11.20 in) |
|
RT-BKEB |
N/A |
44.1 × 376.6 × 414.8 mm (1.74 × 14.83 × 16.33 in) |
|
RT-BKEC |
N/A |
44.1 × 376.6 × 414.8 mm (1.74 × 14.83 × 16.33 in) |
|
RT-BKED |
N/A |
44.1 × 376.6 × 414.8 mm (1.74 × 14.83 × 16.33 in) |
|
RT-BKEE |
N/A |
44.1 × 376.6 × 414.8 mm (1.74 × 14.83 × 16.33 in) |
|
RSE-X1 |
3.4 kg (7.5 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
MCP-X1 |
3.5 kg (7.72 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
MCP-X2 |
3.5 kg (7.72 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
SFE-L1 |
2.1 kg (4.63 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
SFE-L2 |
0.65 kg (1.43 lb) |
40.6 × 172 × 270 mm (1.60 × 6.77 × 10.63 in) |
|
FIP-10 |
3 kg (6.61 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-110 |
3.25 kg (7.16 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-20 |
3 kg (6.61 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-210 |
3.35 kg (7.39 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-240 |
3.45 kg (7.61 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-260 |
3.55 kg (7.83 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-300 |
3.60 kg (7.94 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-310 |
3.60 kg (7.94 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-380 |
3.55 kg (7.83 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-600 |
3.55 kg (7.83 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-660 |
3.85 kg (8.49 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
FIP-680 |
3.9 kg (8.60 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
SAP-48GBE |
3.8 kg (8.38 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
SAP-24GBP |
3.3 kg (7.28 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
SAP-48GBP |
3.65 kg (8.05 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
SAP-20GE2XP |
3.65 kg (8.05 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
SAP-28GE |
4.15 kg (9.15 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
|
SAP-XP4GE32 |
3.75 kg (8.27 lb) |
45 × 399 × 412 mm (1.77 × 15.71 × 16.22 in) |
Power supplies
Table1-3 Power supply weights and dimensions
|
Model |
Net weight |
Dimensions (H × W × D) |
|
PSR650-A |
2.43 kg (5.36 lb) |
41 × 140 × 340 mm (1.61 × 5.51 × 13.39 in) |
|
PSR1200-A |
2.6 kg (5.73 lb) |
41 × 140 × 340 mm (1.61 × 5.51 × 13.39 in) |
|
PSR650-D |
2.25 kg (4.96 lb) |
41 × 140 × 340 mm (1.61 × 5.51 × 13.39 in) |
|
PSR1200-D |
2.25 kg (4.96 lb) |
41 × 140 × 340 mm (1.61 × 5.51 × 13.39 in) |
Power consumption
Cards
Table1-4 Card power consumption
|
Model |
Min. power consumption |
Max. power consumption |
|
RPE-X1 |
12.60 W |
16.40 W |
|
RPE-X3 |
10.60 W |
10.75 W |
|
RPE-X5 |
8.99 W |
9.97 W |
|
RPE-X5E |
14.23 W |
15.58 W |
|
RSE-X1 |
29 W |
31.20 W |
|
MCP-X1 |
50.11 W |
52.32 W |
|
MCP-X2 |
50.11 W |
52.32 W |
|
SFE-L1 |
12.20 W |
13.80 W |
|
SFE-L2 |
5 W |
5 W |
|
FIP-10 |
10.80 W |
32.16 W |
|
FIP-110 |
27.40 W |
60 W |
|
FIP-20 |
10.36 W |
54.60 W |
|
FIP-210 |
57.30 W |
104.70 W |
|
FIP-240 |
72 W |
156 W |
|
FIP-260 |
56.51 W |
59.56 W |
|
FIP-300 |
73.64 W |
132.72 W |
|
FIP-310 |
77.76 W |
128.64 W |
|
FIP-380 |
66.81 W |
83.79 W |
|
FIP-600 |
89.24 W |
113.38 W |
|
FIP-660 |
91.5 W |
131.76 W |
|
FIP-680 |
88 W |
148 W |
|
SAP-48GBE |
116 W |
162 W |
|
SAP-24GBP |
72.79 W |
124.60 W |
|
SAP-48GBP |
102.67 W |
132.60 W |
|
SAP-20GE2XP |
95.96 W |
149.34 W |
|
SAP-28GE |
91.84 W |
153.42 W |
|
SAP-XP4GE32 |
79.3 W |
96.38 W |
Fan trays
Table1-5 Fan tray power consumption
|
Model |
Power consumption |
|
SR6616 fan tray |
65.46 W to 262.80 W |
