2 FRUs and compatibility matrixes
For information about transceiver modules and cables available for the cards, see H3C S7500X-G Switch Series Cards and Transceiver Modules Compatibility Matrixes.
To verify compatibility of a card with the host and software version you are using, see the card manuals.
MPUs
For the S7503X-M-G switch, only the following MPUs can be installed together:
· LSCM2CGP24TSSC0 and LSCM2CGT24TSSC0.
· LSCM2CTGS12GPSC0 and LSCM2CTGS12GTSC0.
Table 2-1 MPU description
|
Model |
Description |
|
LSCM1SUP03A0 |
H3C S7503X-G supervisor engine unit |
|
LSCM3SUP03A0 |
H3C S7503X-G supervisor engine unit |
|
LSCM2SUP03B0 |
H3C S7503X-G supervisor engine unit |
|
LSCM2CGP24TSSC0 |
H3C S7503X-M-G main processing unit with switching and routing,with 24*1000BASE Ethernet optical interfaces(SFP)+ 4*10G Ethernet optical interfaces(SFP+) |
|
LSCM2CGT24TSSC0 |
H3C S7503X-M-G main processing unit with switching and routing,with 24*10/100/1000BASE-T Ethernet copper interfaces(RJ45)+ 4*10G Ethernet optical interfaces(SFP+) |
|
LSCM2CTGS12GPSC0 |
H3C S7503X-M-G main processing unit with switching and routing,with 16*1000BASE Ethernet optical interfaces(SFP)+ 12*10G Ethernet optical interfaces(SFP+) |
|
LSCM2CTGS12GTSC0 |
H3C S7503X-M-G main processing unit with switching and routing,with 16*10/100/1000BASE-T Ethernet copper interfaces(RJ45)+ 12*10G Ethernet optical interfaces(SFP+) |
|
LSCM1MPUS06A0 |
H3C S7506X-G main processing unit with switching |
|
LSCM2MPUS06AS0 |
H3C S7506X-G main processing unit with switching |
|
LSCM3MPUS06A0 |
H3C S7506X-G main processing unit with switching |
|
LSCM2SRP6C4Y06A0 |
H3C S7506X-G main processing unit with switching and routing |
|
LSCM3MPUS10B0 |
H3C S7510X-G main processing unit with switching |
|
Model |
Flash memory |
NVRAM |
SDRAM |
Ports |
Applicable switch model |
|
LSCM1SUP03A0 |
1 GB |
1 MB |
2 GB |
· 1 × console port · 1 × USB console port · 2 × management Ethernet ports (one 10/100/1000BASE-T copper port and one SFP port) · 1 × USB port |
S7503X-G |
|
LSCM3SUP03A0 |
2 GB |
1 MB |
4 GB |
· 1 × console port · 1 × USB console port · 2 × management Ethernet ports (one 10/100/1000BASE-T copper port and one SFP port) · 1 × USB port |
S7503X-G |
|
LSCM2SUP03B0 |
4 GB |
1 MB |
4 GB |
· 1 × console port · 1 × USB console port · 2 × management Ethernet ports (one RJ-45 port and one SFP port) · 1 × USB port |
S7503X-G |
|
LSCM2CGP24TSSC0 |
4 GB |
1 MB |
2 GB |
· 1 × console port · 1 × USB console port · 1 × management Ethernet port · 1 × USB port · 4 × SFP+ ports · 24 × SFP ports |
S7503X-M-G |
|
LSCM2CGT24TSSC0 |
4 GB |
1 MB |
2 GB |
· 1 × console port · 1 × USB console port · 1 × management Ethernet port · 1 × USB host port · 4 × SFP+ ports · 24 × RJ-45 copper ports |
S7503X-M-G |
|
LSCM2CTGS12GPSC0 |
4 GB |
1 MB |
2 GB |
· 1 × console port · 1 × USB console port · 1 × management Ethernet port · 1 × USB port · 12 × SFP+ ports · 16 × SFP ports |
S7503X-M-G |
|
LSCM2CTGS12GTSC0 |
4 GB |
1 MB |
2 GB |
· 1 × console port · 1 × USB console port · 1 × management Ethernet port · 12 × SFP+ ports · 16 × RJ-45 ports |
S7503X-M-G |
|
LSCM1MPUS06A0 |
1 GB |
1 MB |
2 GB |
· 1 × console port · 1 × USB console port · 2 × management Ethernet ports (one 10/100/1000BASE-T copper port and one SFP port) · 1 × USB port |
S7506X-G |
|
LSCM2MPUS06AS0 |
4 GB |
1 MB |
2 GB |
· 1 × console port · 1 × USB console port · 2 × management Ethernet ports (one 10/100/1000BASE-T copper port and one SFP port) · 1 × USB port |
S7506X-G |
|
LSCM3MPUS06A0 |
2 GB |
1 MB |
4 GB |
· 1 × console port · 1 × USB console port · 2 × management Ethernet ports (one 10/100/1000BASE-T copper port and one SFP port) · 1 × USB port |
S7506X-G |
|
LSCM2SRP6C4Y06A0 |
8 GB |
1 MB |
8 GB |
· 1 × console port · 1 × USB port · 2 × management Ethernet ports (one RJ-45 port and one SFP port) · 4 × SFP28 ports · 6 × QSFP28 ports |
S7506X-G S7506X-G-PoE |
|
LSCM3MPUS10B0 |
2 GB |
1 MB |
4 GB |
· 1 × console port · 1 × USB console port · 2 × management Ethernet ports (one 10/100/1000BASE-T copper port and one SFP port) · 1 × USB port |
S7510X-G |
|
|
NOTE: · Among the management Ethernet ports on an LSCM1SUP03A0, LSCM3SUP03A0, LSCM2SUP03B0, LSCM1MPUS06A0, LSCM2MPUS06AS0, LSCM3MPUS06A0, or LSCM3MPUS10B0 MPU, only port 0 is available during the startup of the switch. · To connect an SFP management Ethernet port on the MPUs, make sure the peer port operates at 1000 Mbps in full-duplex mode. · The USB ports on the MPUs do not support USB extension cables. · For the S7503X-M-G switch, you can install an MPU or interface module in slot 1. |
Interface modules
Restrictions and guidelines
Do not install an LSCM1GT48SC0 interface module and an SC, SD, or SF module prefixed with LSCM2 on the same switch.
For the S7503X-M-G switch, you can install an MPU or interface module in slot 1.
Interface modules
Multiple interface modules are available for the switch. These interface modules provide different types and numbers of ports.
Table 2-3 Interface module description
|
Model |
Description |
|
LSCM2YGS16TS8SF0 |
H3C S7500X-G 16-port 25G Ethernet optical interface(SFP28)+8-port 10G Ethernet optical interface module (SFP+) |
|
LSCM2YGS32TS16SF0 |
H3C S7500X-G 32-port 25G Ethernet optical interface(SFP28)+16-port 10G Ethernet optical interface module (SFP+) |
|
LSCM2CGS8QS8SF0 |
H3C S7500X-G 8-port 40G Ethernet optical interface(QSFP+)+8-port 100G Ethernet optical interface module (QSFP28) |
|
LSCM1QGS8CSSE0 |
H3C S7500X-G 8-port 40G Ethernet optical interface(QSFP+)+4-port 100G Ethernet optical interface module(QSFP28) |
|
LSCM3QGS8CSSE0 |
H3C S7500X-G 8-port 40G Ethernet optical interface(QSFP+)+4-port 100G Ethernet optical interface module(QSFP28) |
|
LSCM2GT24GPTSSC0 |
H3C S7500X-G 24-port 10/100/1000BASE-T Ethernet copper interface(RJ45)+20-port 1000BASE Ethernet optical interface(SFP)+4-port 10G Ethernet optical interface module (SFP+) |
|
LSCM2GT24GPTSSD0 |
H3C S7500X-G 24-port 10/100/1000BASE-T Ethernet copper interface(RJ45)+20-port 1000BASE Ethernet optical interface(SFP)+4-port 10G Ethernet optical interface module (SFP+) |
|
LSCM2TGS16GPSC0 |
H3C S7500X-G 16-port 10G Ethernet optical interface(SFP+)+24-port 1000BASE Ethernet optical interface module (SFP) |
|
LSCM2TGS16GPSD0 |
H3C S7500X-G 16-port 10G Ethernet optical interface(SFP+)+24-port 1000BASE Ethernet optical interface module (SFP) |
|
LSCM2TGS16GP32SD0 |
H3C S7500X-G 32-port 1000BASE Ethernet optical interface(SFP)+16-port 10G Ethernet optical interface module (SFP+) |
|
LSCM1TGS48SE0 |
H3C S7500X-G 48-port 10G Ethernet optical interface module(SFP+) |
|
LSCM2TGS48SF0 |
H3C S7500X-G 48-port 10G Ethernet optical interface module (SFP+) |
|
LSCM3TGS48SE0 |
H3C S7500X-G 48-port 10G Ethernet optical interface module(SFP+) |
|
LSCM2GP24GTSC0 |
H3C S7500X-G 24-port 1000BASE Ethernet optical interface(SFP)+8-port 10/100/1000BASE-T Ethernet copper interface module (RJ45) |
|
LSCM2GP24GTSD0 |
H3C S7500X-G 24-port 1000BASE Ethernet optical interface(SFP)+8-port 10/100/1000BASE-T Ethernet copper interface module (RJ45) |
|
LSCM2GP48SC0 |
H3C S7500X-G 48-port 1000BASE Ethernet optical interface module (SFP) |
|
LSCM2GP48SD0 |
H3C S7500X-G 48-port 1000BASE Ethernet optical interface module (SFP) |
|
LSCM2GT24GPSC0 |
H3C S7500X-G 24-port 10/100/1000BASE-T Ethernet copper interface(RJ45)+8-port 1000BASE Ethernet optical interface module (SFP) |
|
LSCM2GT24GPSD0 |
H3C S7500X-G 24-port 10/100/1000BASE-T Ethernet copper interface(RJ45)+8-port 1000BASE Ethernet optical interface module (SFP) |
|
LSCM1GT48SC0 |
H3C S7500X-G 48-port 1000BASE-T Ethernet copper interface module(RJ45) |
|
LSCM2GT48SC0 |
H3C S7500X-G 48-port 10/100/1000BASE-T Ethernet copper interface module (RJ45) |
|
LSCM2GT48SD0 |
H3C S7500X-G 48-port 10/100/1000BASE-T Ethernet copper interface module (RJ45) |
|
LSCM2GV48SC0 |
H3C S7500X-G 48-port 10/100/1000BASE-T Ethernet copper interface module (RJ45) |
|
LSCM2GV48SD0 |
H3C S7500X-G 48-port 10/100/1000BASE-T Ethernet copper interface module (RJ45) |
Table 2-4 Interface module specifications
|
Model |
Port quantity |
Port type |
Available transceiver modules and network cables |
|
LSCM2YGS16TS8SF0 |
32 |
· 16 × 25GBASE-R-SFP28 ports · 8 × 10GBASE-R-SFP+ ports |
· SFP28 transceiver module · SFP28 DAC cable · SFP28 AOC cable · 10-GE SFP+ module · 10-GE SFP+ DAC cable · GE SFP module |
|
LSCM2YGS32TS16SF0 |
48 |
· 32 × 25GBASE-R-SFP28 ports · 16 × 10GBASE-R-SFP+ ports |
· SFP28 transceiver module · SFP28 DAC cable · SFP28 AOC cable · 10-GE SFP+ module · 10-GE SFP+ DAC cable · GE SFP module |
|
LSCM2CGS8QS8SF0 |
16 |
· 8 × 100GBASE-R-QSFP28 ports · 8 × 40GBASE-R-QSFP+ ports |
· QSFP+ module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable · QSFP+ fiber cable · QSFP28 module · QSFP28 fiber cable |
|
LSCM1QGS8CSSE0 |
12 |
· 4 × 100GBASE-R QSFP28 fiber ports · 8 × 40GBASE-R QSFP+ fiber ports |
· QSFP+ module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable · QSFP+ fiber cable · QSFP28 module · QSFP28 fiber cable |
|
LSCM3QGS8CSSE0 |
12 |
· 4 × 100GBASE-R QSFP28 fiber ports · 8 × 40GBASE-R QSFP+ fiber ports |
· QSFP+ module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable · QSFP+ fiber cable · QSFP28 module · QSFP28 fiber cable |
|
LSCM2GT24GPTSSC0 |
48 |
· 4 × 10GBASE-R-SFP+ ports · 20 × 1000BASE-X-SFP ports · 24 × 10M/100M/1000M autosensing RJ-45 copper ports |
· 10-GE SFP+ module · 10-GE SFP+ DAC cable · FE/GE SFP module · Category 5 twisted pair cable |
|
LSCM2GT24GPTSSD0 |
48 |
· 4 × 10GBASE-R-SFP+ ports · 20 × 1000BASE-X-SFP ports · 24 × 10M/100M/1000M autosensing RJ-45 copper ports |
· 10-GE SFP+ module · 10-GE SFP+ DAC cable · FE/GE SFP module · Category 5 twisted pair cable |
|
LSCM2TGS16GPSC0 |
40 |
· 16 × 10GBASE-R-SFP+ ports · 24 × 1000BASE-X-SFP ports |
· 10-GE SFP+ module · 10-GE SFP+ DAC cable · FE/GE SFP module |
|
LSCM2TGS16GPSD0 |
40 |
· 16 × 10GBASE-R-SFP+ ports · 24 × 1000BASE-X-SFP ports |
· 10-GE SFP+ module · 10-GE SFP+ DAC cable · FE/GE SFP module |
|
LSCM2TGS16GP32SD0 |
48 |
· 16 × 10GBASE-R-SFP+ ports · 32 × 1000BASE-X-SFP ports |
· 10-GE SFP+ module · 10-GE SFP+ DAC cable · FE/GE SFP module |
|
LSCM1TGS48SE0 |
48 |
48 × 10GBASE-R-SFP+ fiber ports |
· 10-GE SFP+ module · 10-GE SFP+ DAC cable · GE SFP module |
|
LSCM2TGS48SF0 |
48 |
48 × 10GBASE-R-SFP+ fiber ports |
· 10-GE SFP+ module · 10-GE SFP+ DAC cable · GE SFP module |
|
LSCM3TGS48SE0 |
48 |
48 × 10GBASE-R SFP+ fiber ports |
· 10-GE SFP+ module · 10-GE SFP+ DAC cable · GE SFP module |
|
LSCM2GP24GTSC0 |
32 |
· 24 × 1000BASE-X-SFP ports · 8 × 10M/100M/1000M autosensing RJ-45 copper ports |
· FE/GE SFP module · Category 5 twisted pair cable |
|
LSCM2GP24GTSD0 |
32 |
· 24 × 1000BASE-X-SFP ports · 8 × 10M/100M/1000M autosensing RJ-45 copper ports |
· FE/GE SFP module · Category 5 twisted pair cable |
|
LSCM2GP48SC0 |
48 |
48 × 1000BASE-X-SFP ports |
FE/GE SFP module |
|
LSCM2GP48SD0 |
48 |
48 × 1000BASE-X-SFP ports |
FE/GE SFP module |
|
LSCM2GT24GPSC0 |
32 |
· 8 × 1000BASE-X-SFP ports · 24 × 10M/100M/1000M autosensing RJ-45 copper ports |
· GE SFP module · Category 5 twisted pair cable |
|
LSCM2GT24GPSD0 |
32 |
· 8 × 1000BASE-X-SFP ports · 24 × 10M/100M/1000M autosensing RJ-45 copper ports |
· GE SFP module · Category 5 twisted pair cable |
|
LSCM1GT48SC0 |
48 |
48 × 10/100/1000BASE-T-RJ45 copper ports |
Category 5 twisted pair cable |
|
LSCM2GT48SC0 |
48 |
48 × 10M/100M/1000M autosensing RJ-45 copper ports |
Category 5 twisted pair cable |
|
LSCM2GT48SD0 |
48 |
48 × 10M/100M/1000M autosensing RJ-45 copper ports |
Category 5 twisted pair cable |
|
LSCM2GV48SC0 |
48 |
48 × 10M/100M/1000M autosensing RJ-45 copper ports |
Category 5 twisted pair cable |
|
LSCM2GV48SD0 |
48 |
48 × 10M/100M/1000M autosensing RJ-45 copper ports |
Category 5 twisted pair cable |
Power system
Restrictions and guidelines
Follow these restrictions and guidelines to configure and use power modules for the switch:
· A chassis must be configured with a minimum of one power module. To improve power supply availability, you can configure a chassis with two power modules for redundancy.
· The power modules installed on the switch must be the same type (AC or DC) and model.
· Make sure the maximum output power of a power module is greater than the total power consumption of the switch. As a best practice, reserve 20% of the maximum output power. For more information about the system power consumption, see "Module power consumption."
Power modules
Table 2-5 shows the power modules available for the switch.
Table 2-5 Power module specifications
|
Item |
Power input |
Rated input voltage |
Max system output power |
Support for PoE |
Max PoE output capacity |
|
|
PSR320-A |
AC |
100 VAC to 240 VAC @ 50/60 Hz |
300 W |
No |
N/A |
|
|
PSR650-A |
AC |
100 VAC to 240 VAC @ 50/60 Hz |
650 W |
No |
N/A |
|
|
PSR650-D |
DC |
–48 VDC to –60 VDC |
650 W |
No |
N/A |
|
|
PSR650C-12A |
AC |
100 VAC to 240 VAC @ 50/60 Hz |
650 W |
No |
N/A |
|
|
PSR650C-12D |
DC |
–48 VDC to –60 VDC |
650 W |
No |
N/A |
|
|
PSR1200-A |
AC |
100 VAC to 240 VAC @ 50/60 Hz |
1213 W |
No |
N/A |
|
|
PSR1200-D |
DC |
–48 VDC to –60 VDC |
1213 W |
No |
N/A |
|
|
PSR1400-A |
AC |
100 VAC to 240 VAC @ 50/60 Hz |
110 V |
1150 W |
No |
N/A |
|
220 V |
1400 W |
|||||
|
PSR1400-12D1 |
DC |
–48 VDC to –60 VDC |
1400 W |
No |
N/A |
|
|
PSR2500-12D |
DC |
–48 VDC to –60 VDC |
2500 W |
No |
N/A |
|
|
PSR2500-12AHD |
AC/HVDC |
100 VAC to 180 VAC @ 50/60 Hz |
1200 W |
No |
N/A |
|
|
180 VAC to 240 VAC @ 50/60 Hz |
2500 W |
|||||
|
240 VDC to 380 VDC |
2500 W |
|||||
|
PSR2800-ACV |
AC |
100 VAC to 240 VAC @ 50/60 Hz |
110 V |
1150 W |
Yes |
1150 W |
|
220 V |
1400 W |
1400 W |
||||
Table 2-6 shows the compatibility between power modules and switches.
Table 2-6 Power module and switch compatibility matrix
|
Power module |
S7503X-G |
S7503X-M-G |
S7506X-G |
S7506X-G-PoE |
S7510X-G |
S7510X-G-PoE |
|
PSR320-A |
l |
l |
— |
— |
— |
— |
|
PSR650-A |
l |
l |
¡ |
¡ |
¡ |
¡ |
|
PSR650-D |
l |
l |
¡ |
¡ |
¡ |
¡ |
|
PSR1200-A |
— |
— |
¡ |
¡ |
¡ |
¡ |
|
PSR1200-D |
— |
— |
¡ |
¡ |
¡ |
¡ |
|
PSR650C-12A |
— |
— |
l |
l |
l |
l |
|
PSR650C-12D |
— |
— |
l |
l |
l |
l |
|
PSR1400-A |
— |
— |
l |
l |
l |
l |
|
PSR1400-12D1 |
— |
— |
l |
l |
l |
l |
|
PSR2500-12D |
— |
— |
l |
l |
l |
l |
|
PSR2500-12AHD |
— |
— |
l |
l |
l |
l |
|
PSR2800-ACV |
— |
— |
— |
l |
— |
l |
|
|
NOTE: · "l" indicates that the power module can be directly installed on the chassis. · "¡" indicates that you must first install a power module adapter on the chassis and then install the power module on the power module adapter. For more information about installing a power module and a power module adapter, see H3C S7500X-G Switch Series Installation Guide. · "—" indicates that the power module cannot be installed on the chassis. |
Power cords
DC power cords
A DC power cord connects a DC power module to an external DC power source.
Table 2-7 DC power cords available for the power modules
|
DC power module |
DC power cord code |
DC power cord length |
|
PSR650-D/PSR650C-12D |
0404A06T |
3 m (9.84 ft) (provided) |
|
0404A01N |
5 m (16.40 ft) |
|
|
0404A01P |
10 m (32.81 ft) |
|
|
0404A073 |
20 m (65.62 ft) |
|
|
PSR1400-12D1/PSR2500-12D |
0404A07G |
3 m (9.84 ft) (provided) |
|
0404A08T |
10 m (32.81 ft) |
|
|
0404A08U |
20 m (65.62 ft) |
|
|
0404A072 |
25 m (82.02 ft) |
|
|
PSR1200-D |
0404A0DU |
3 m (9.84 ft) |
|
PSR2500-12AHD |
0404A0RL |
3 m (9.84 ft) |
AC power cords
AC power cords are used for connecting the AC power modules of the switch to the external AC power source. Before you order an AC power cord, make sure you have read the following restrictions and guidelines:
· Select AC power cords according to the power of the power module.
· The connector type varies by country or region. Select a compliant connector type as needed.
· For the PSR320-A, PSR650-A, and PSR650C-12A power modules, select 10A AC power cords. For the connector types of different countries or regions, see Table 2-8.
· For the PSR1200-A, PSR1400-A, PSR2500-12AHD, and PSR2800-ACV power modules, select 16A AC power cords. For the connector types of different countries or regions, see Table 2-9. For the PSR2500-12AHD power module, select the 0404A0RP or 0404A0RQ AC power cord. The 0404A0RP and 0404A0RQ AC power cords can only be used for the PSR2500-12AHD power module.
Table 2-8 10A AC power cords used in different countries or regions
|
1 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||||||||||||||
|

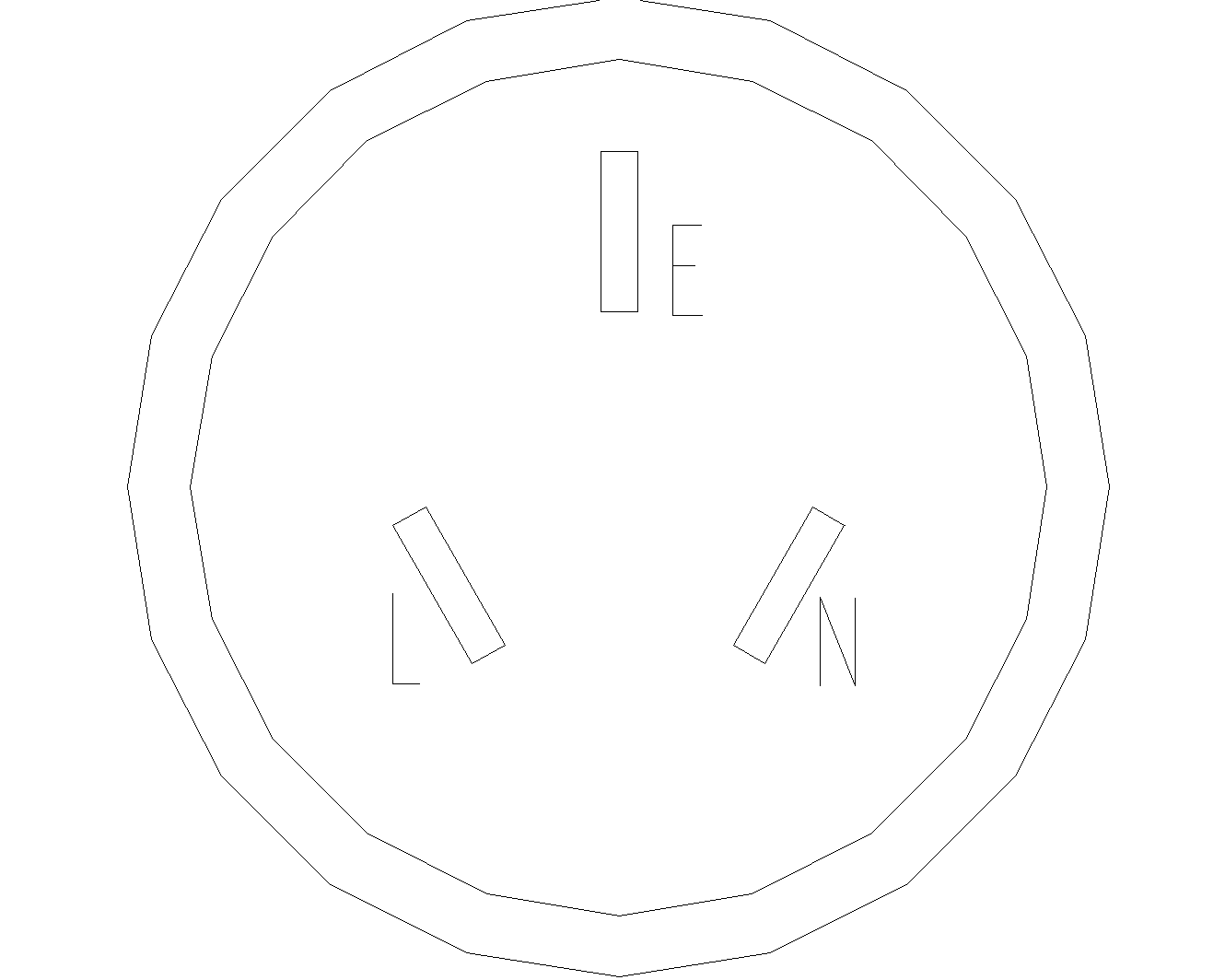

I type |
04041104: 3 m (9.8 ft) |
Mainland China |
|
|
|||||||||||||||||
|

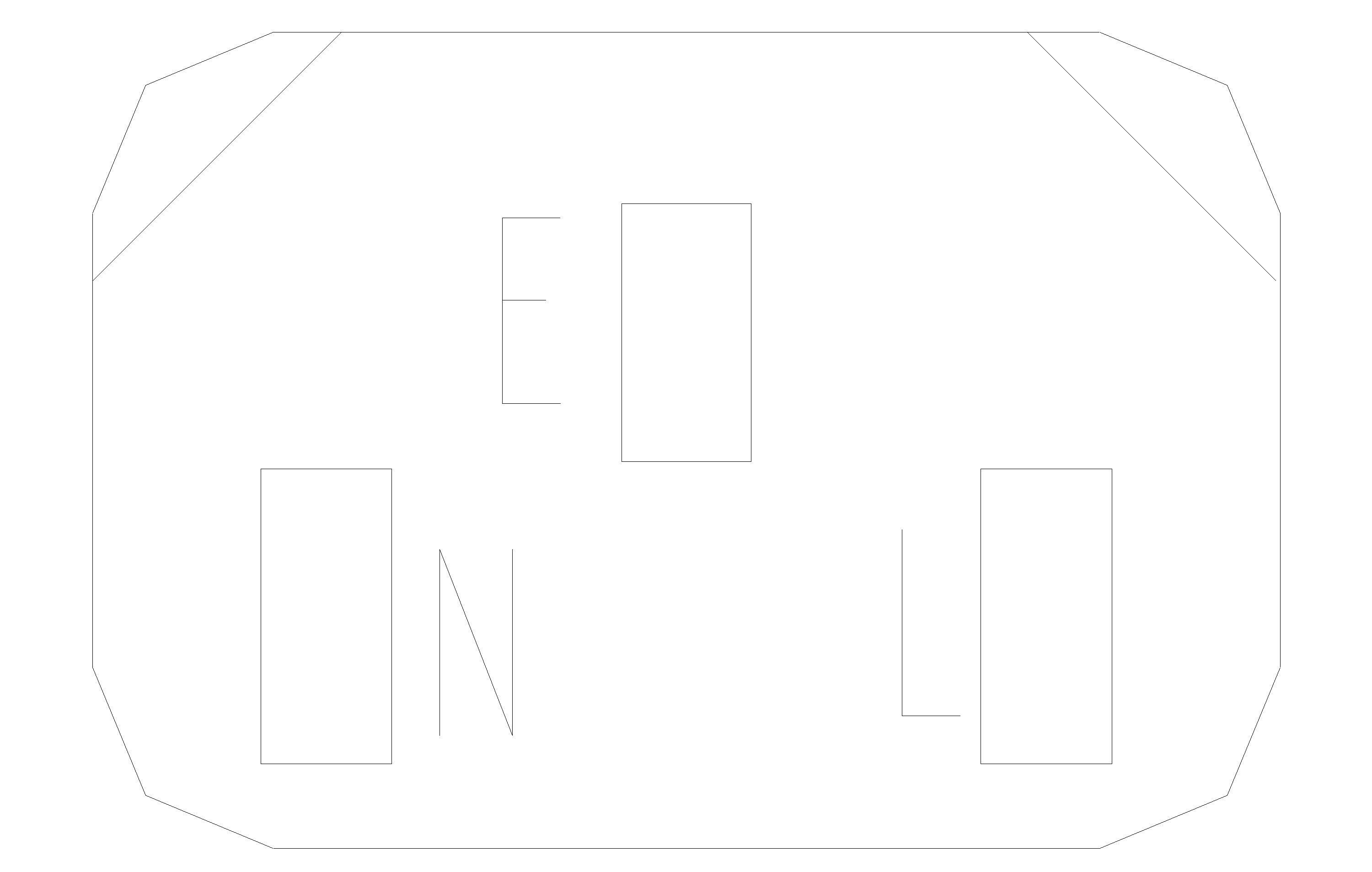

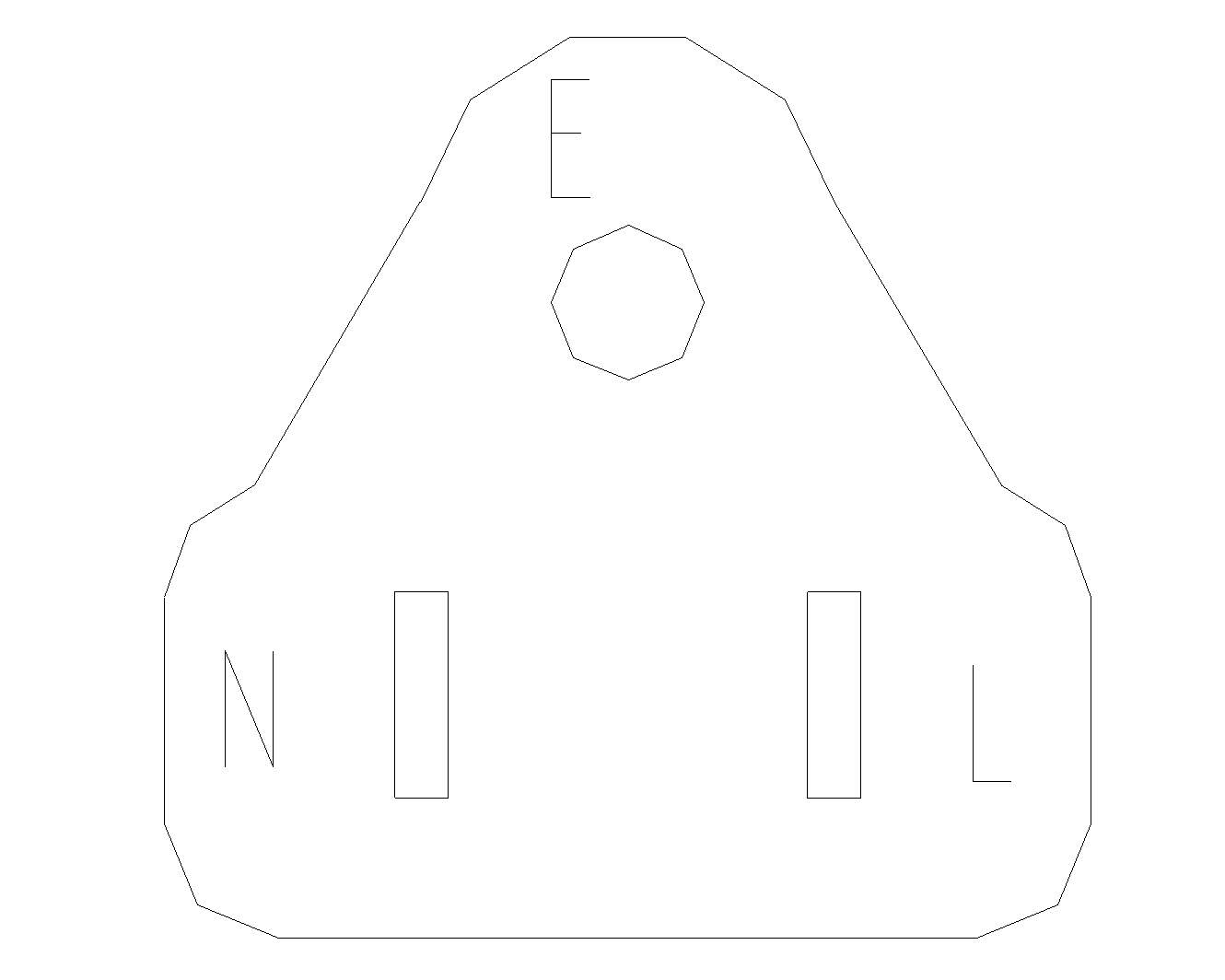

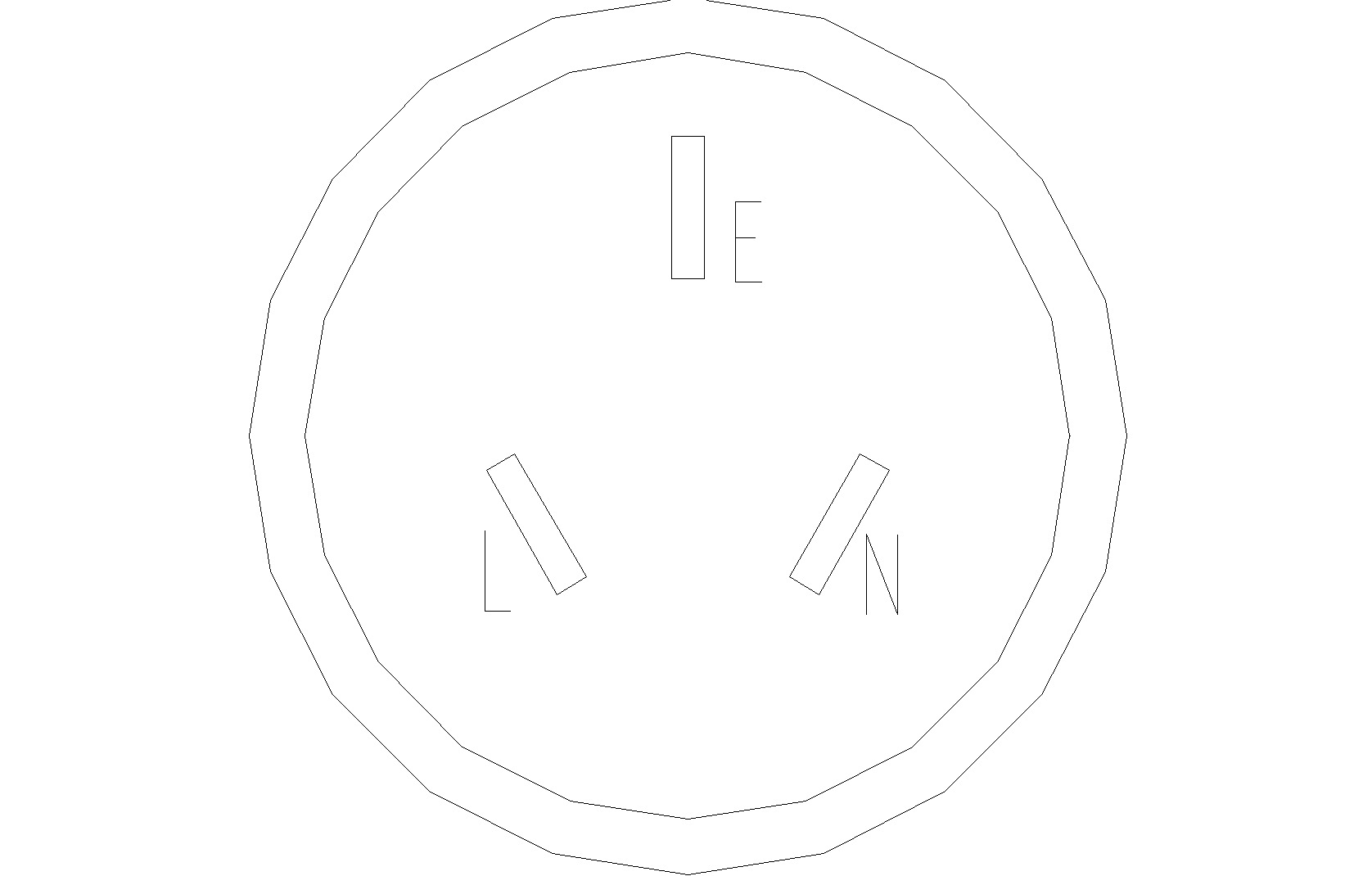

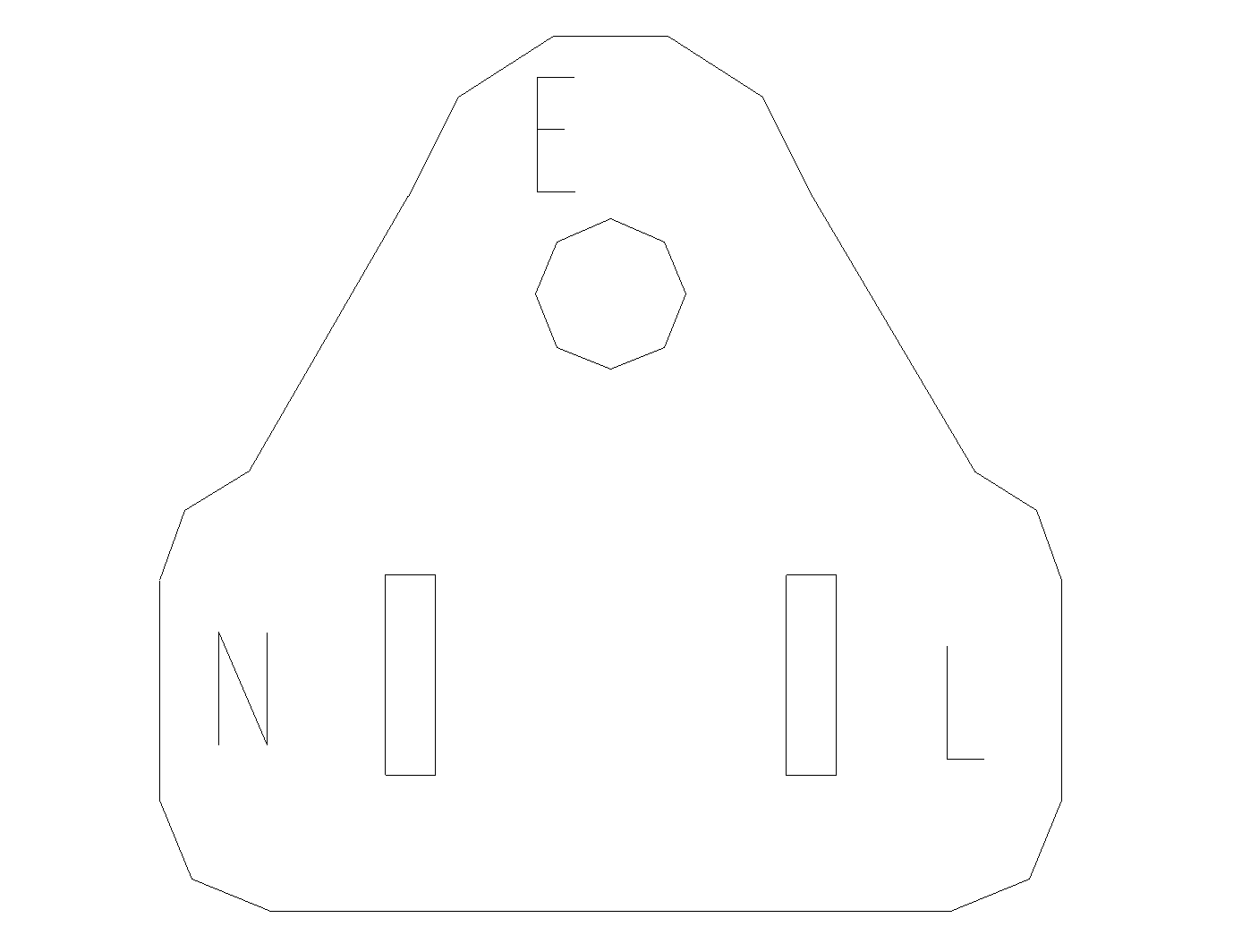

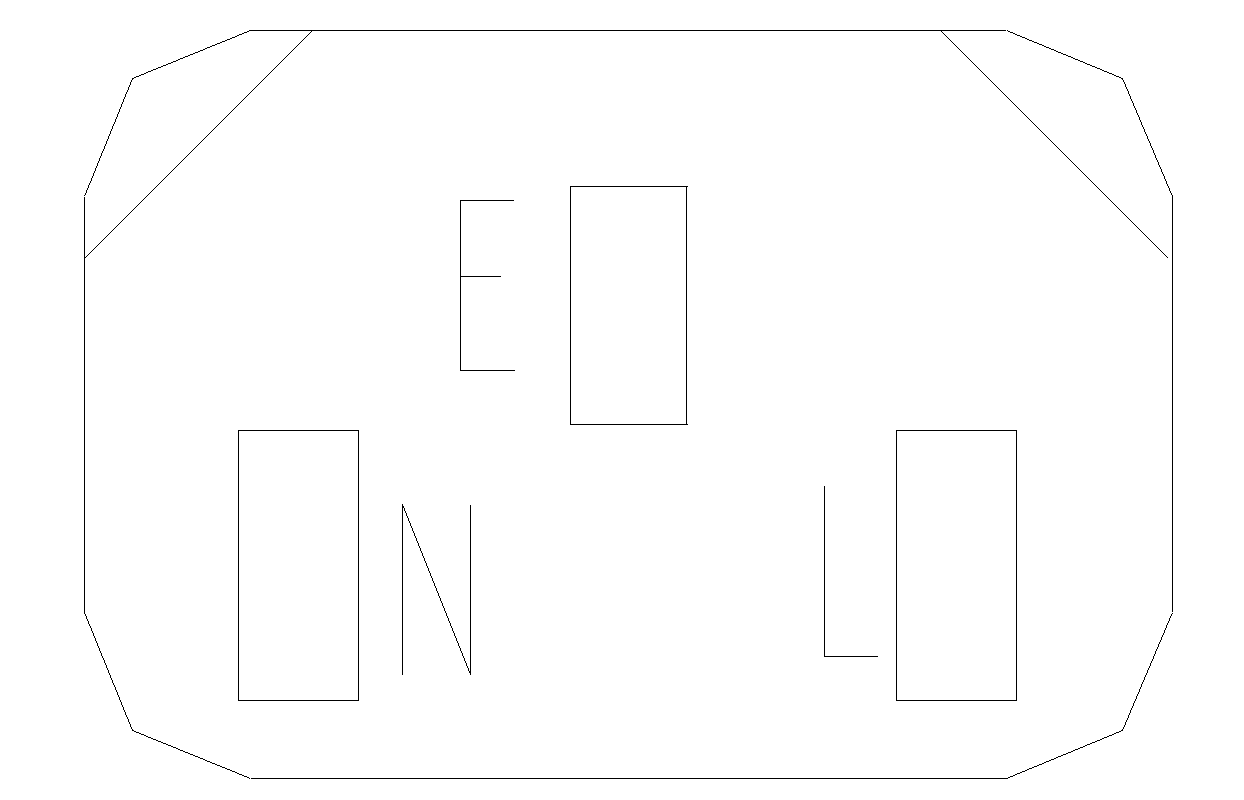

Connector outline |

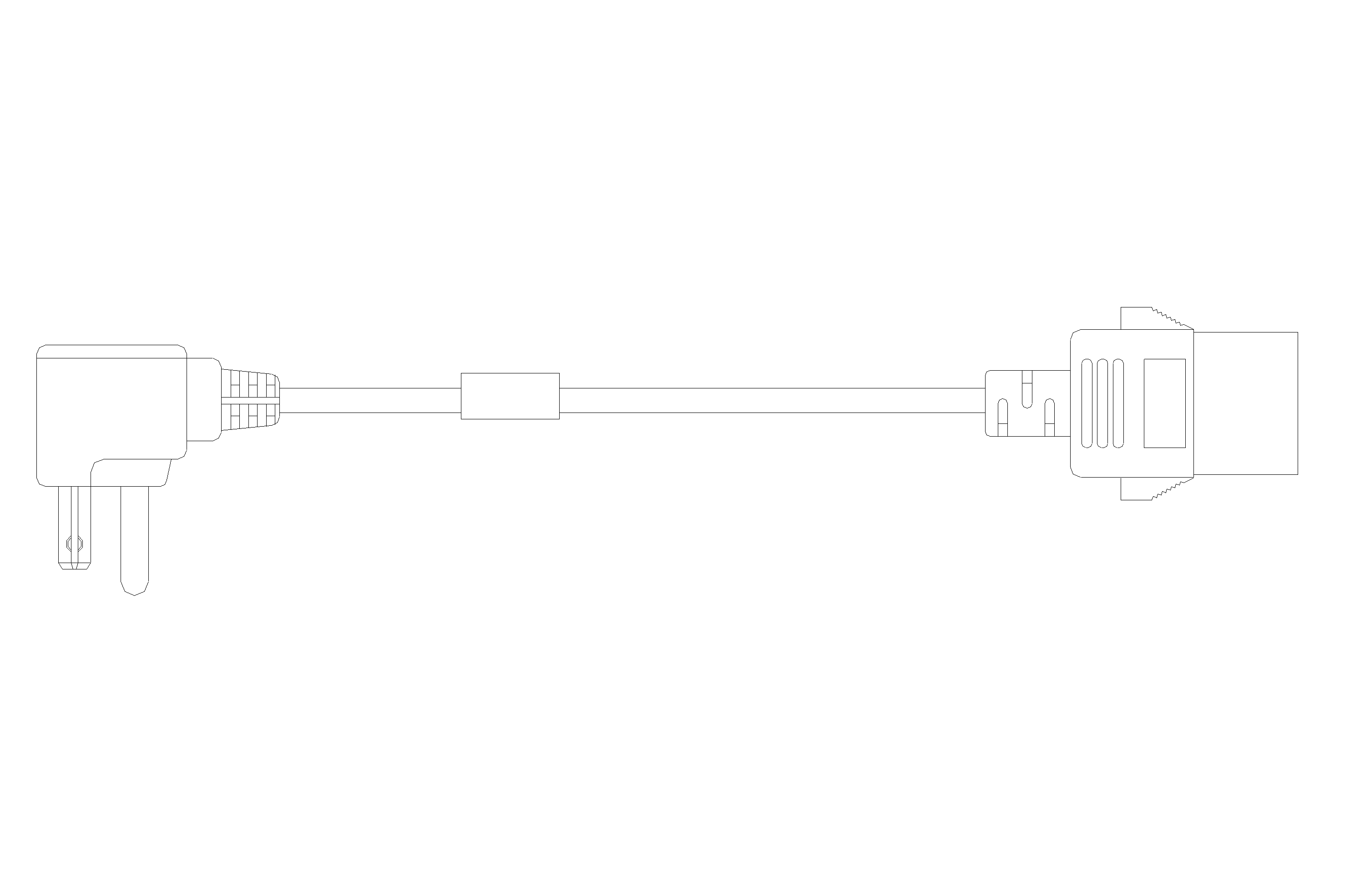

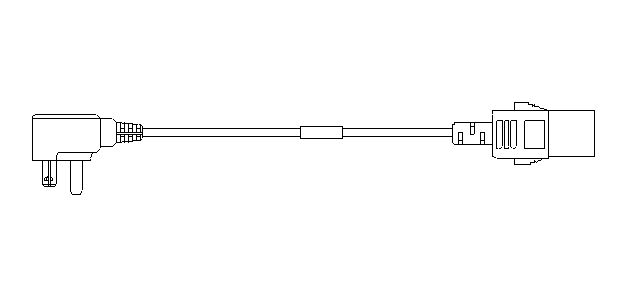

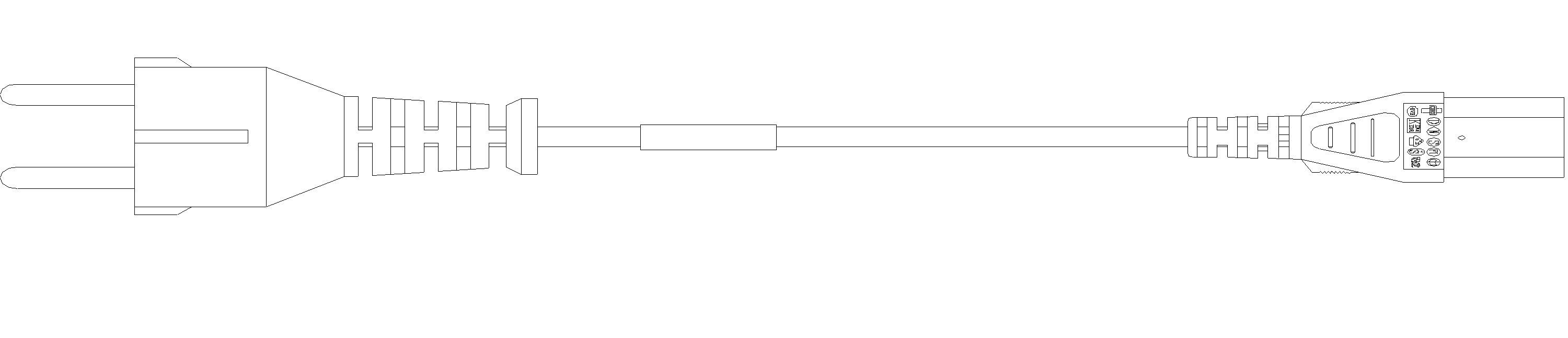

Power cord outline |
Connector outline |
|||||||||||||||||||
|
|
|
|
|||||||||||||||||||
|
2 |
Connector type |
Code (Length) |
Countries or regions where the type of power cables conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||||||||||||||
|

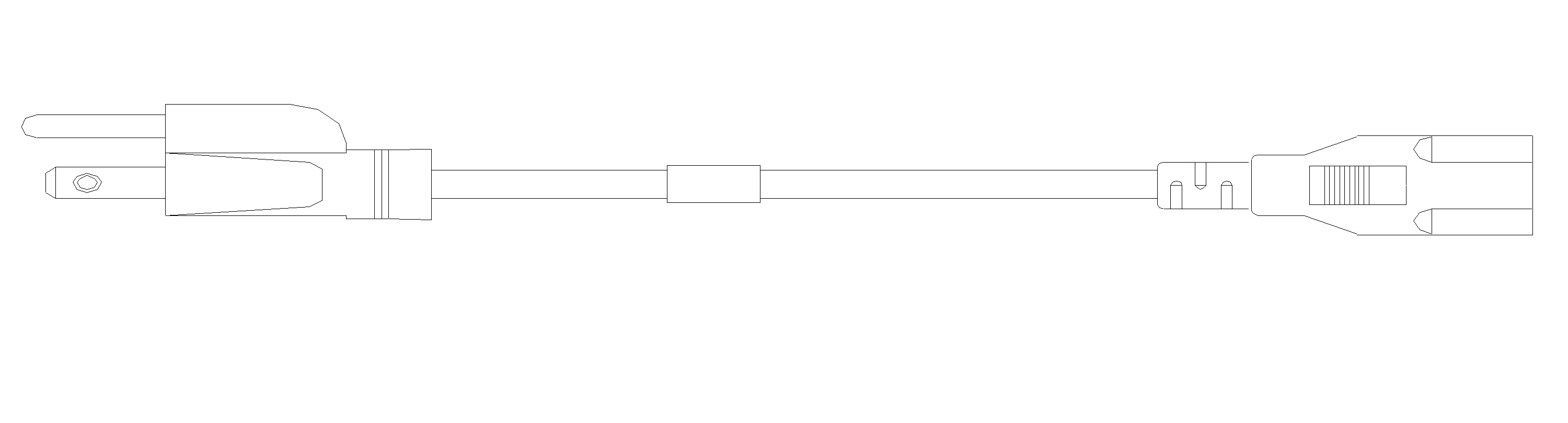

B type |
04020728: 3 m (9.8 ft) |
Canada and U.S.A |
Mexico, Argentina, Brazil, Columbia, Venezuela, Thailand, Peru, Philippine, and A6 countries or regions |
|
|||||||||||||||||
|
Connector outline |

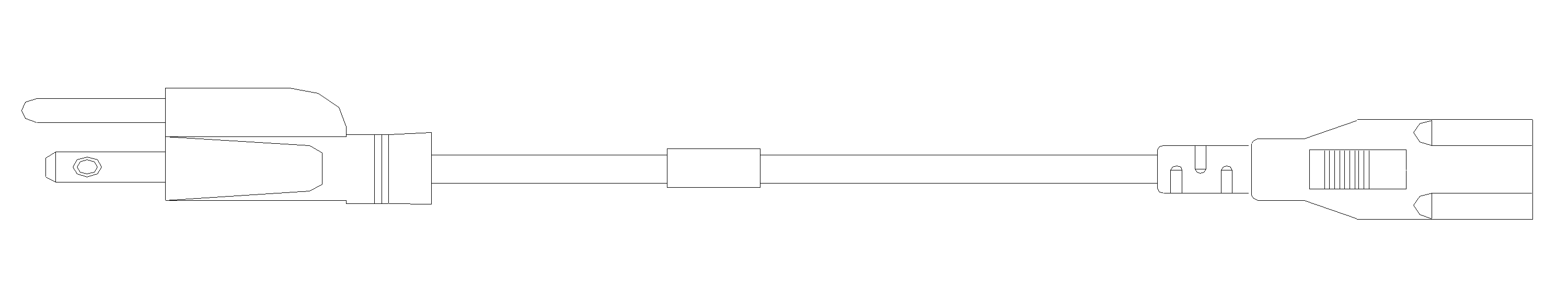

Power cord outline |
Connector outline |
|||||||||||||||||||
|
|
|
|
|||||||||||||||||||
|
3 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||||||||||||||
|

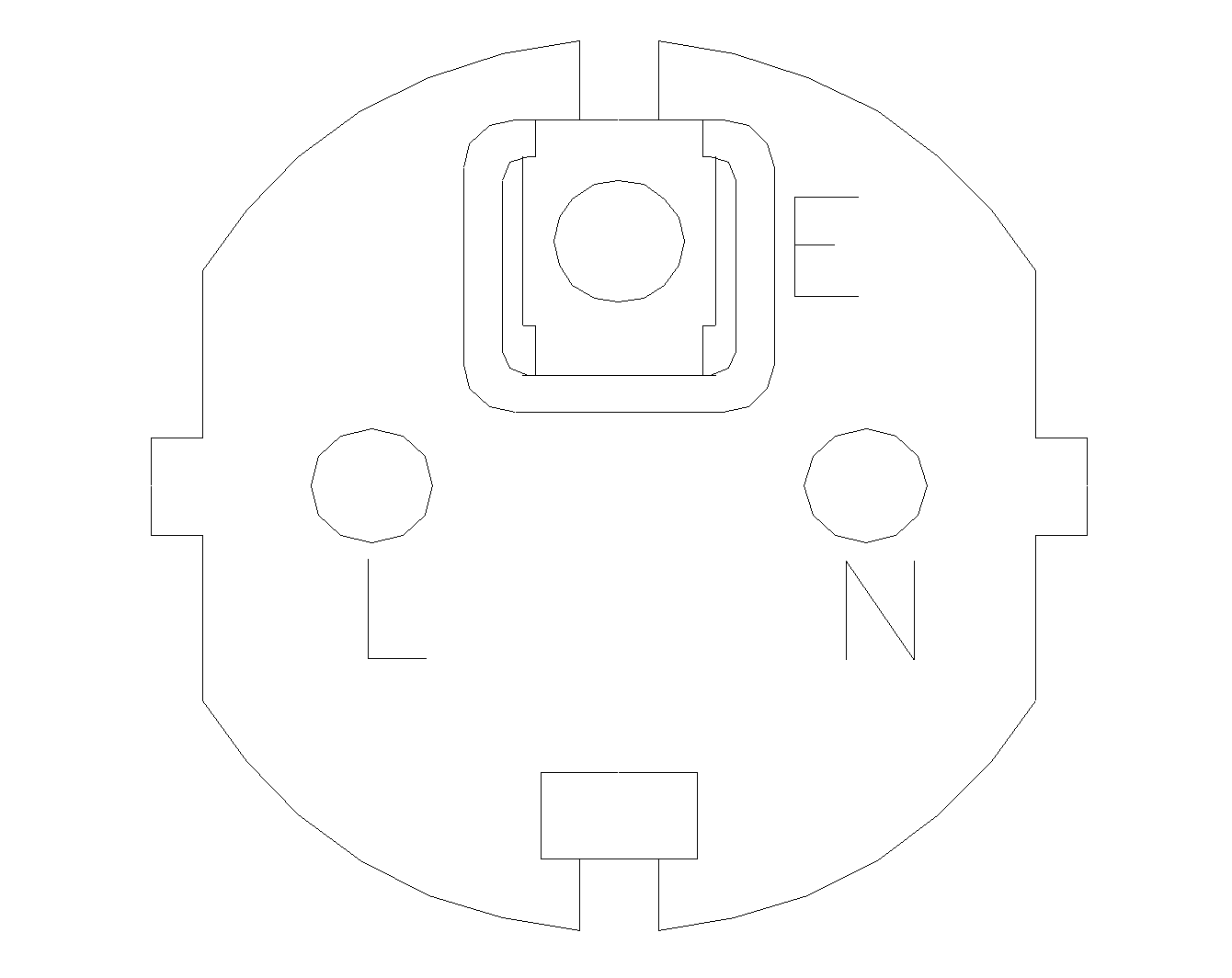

F type |
04041056: 3 m (9.8 ft) |
Holland, Denmark, Sweden, Finland, Norway, Germany, France, Austria, Belgium, and Italy |
Indonesia, Türkiye, Russia, and CIS |
|
|||||||||||||||||
|

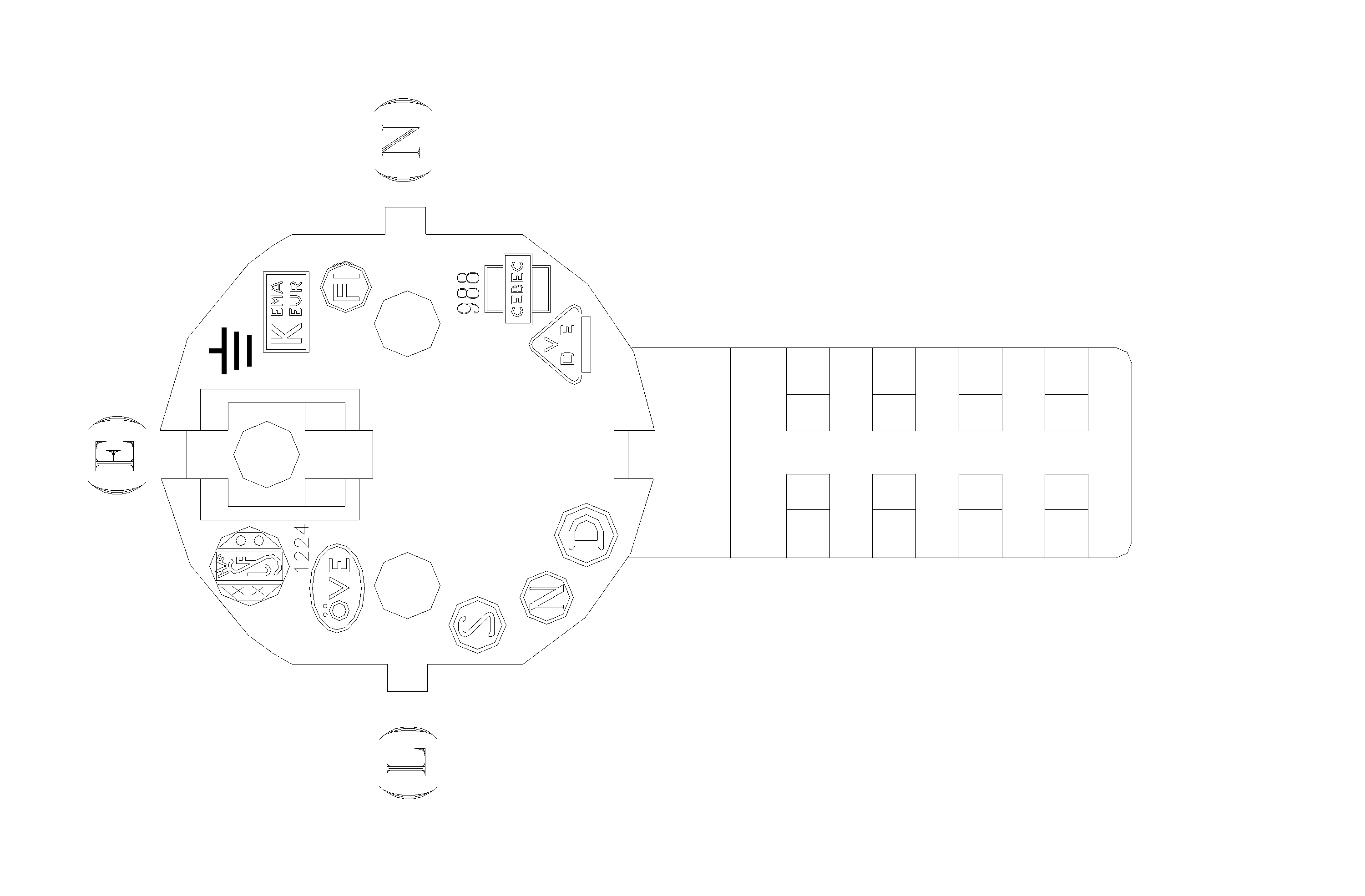

Connector outline |
Power cord outline |
Connector outline |
|||||||||||||||||||
|
|
|
|
|||||||||||||||||||
|
4 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||||||||||||||
|

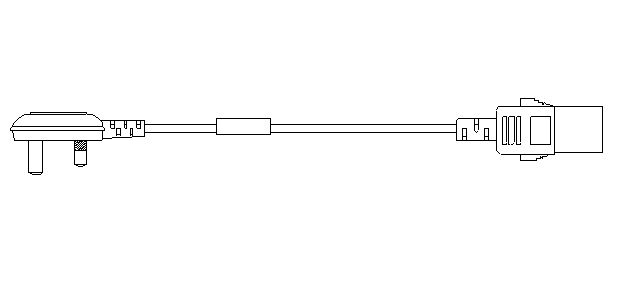

G type |
04040890: 3 m (9.8 ft) |
U.K. |
Malaysia, Hong Kong, and Egypt |
|
|||||||||||||||||
|

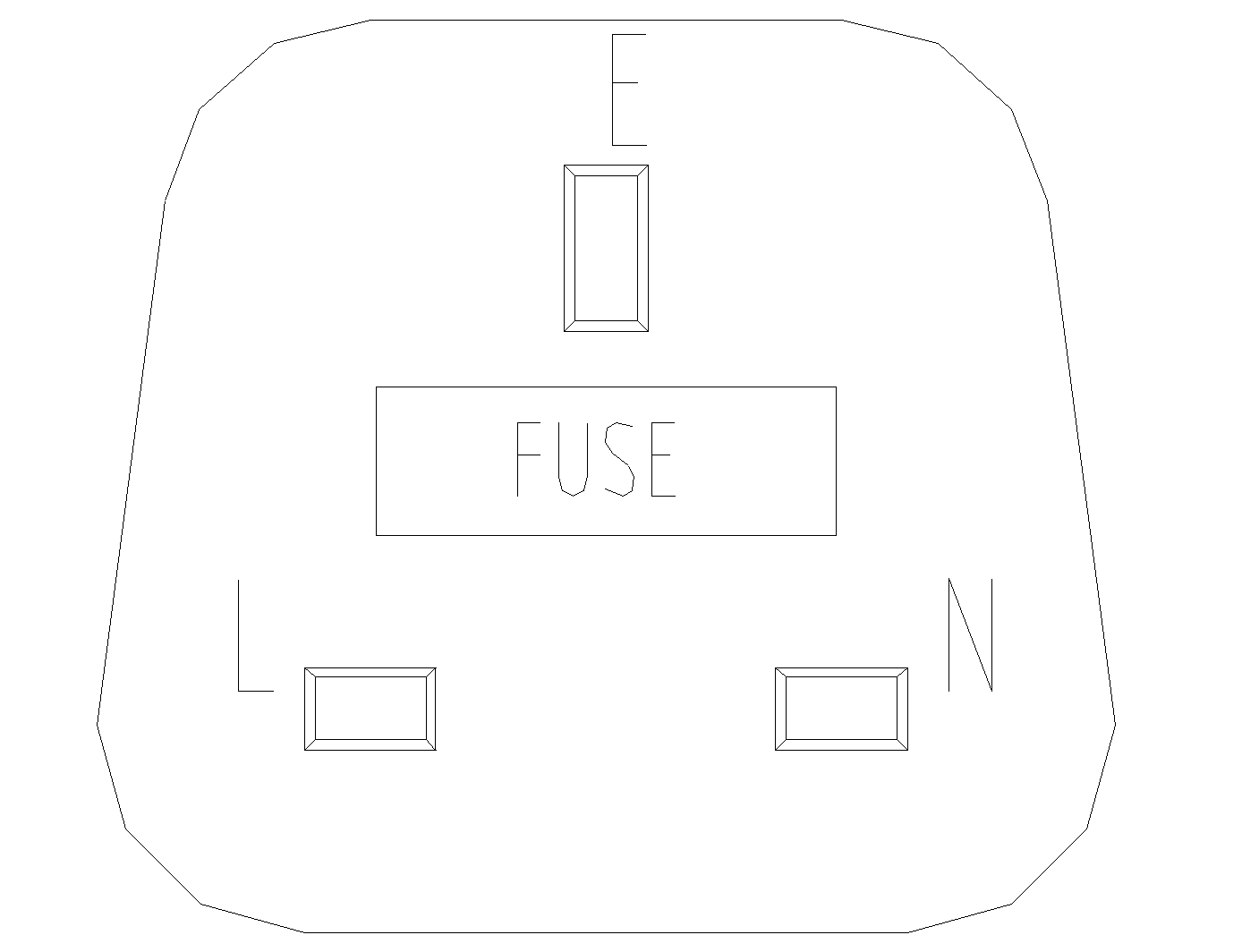

Connector outline |

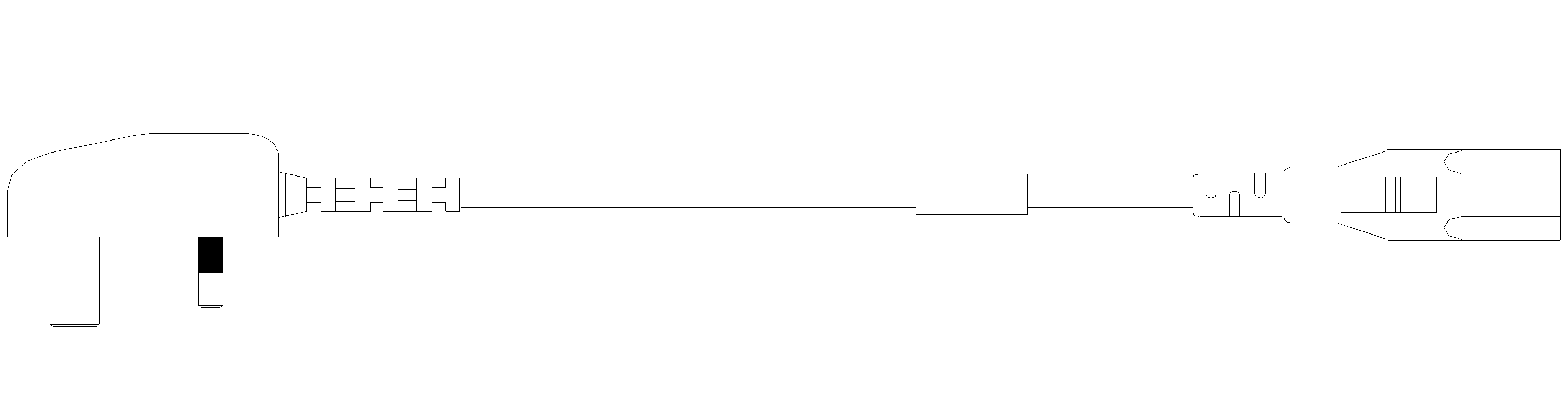

Power cord outline |
Connector outline |
|||||||||||||||||||
|
|
|
|
|||||||||||||||||||
|
5 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||||||||||||||
|
B type |
04040887: 3 m (9.8 ft) |
Japan |
|
|
|||||||||||||||||
|

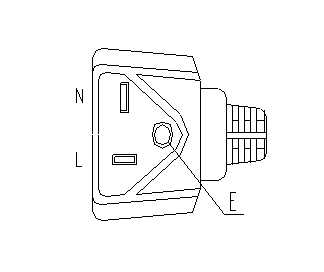

Connector outline |
Power cord outline |
Connector outline |
|||||||||||||||||||
|
|
|
|
|||||||||||||||||||
|
6 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||||||||||||||
|
I type |
04040888: 3 m (9.8 ft) |
Australia |
|
|
|||||||||||||||||
|

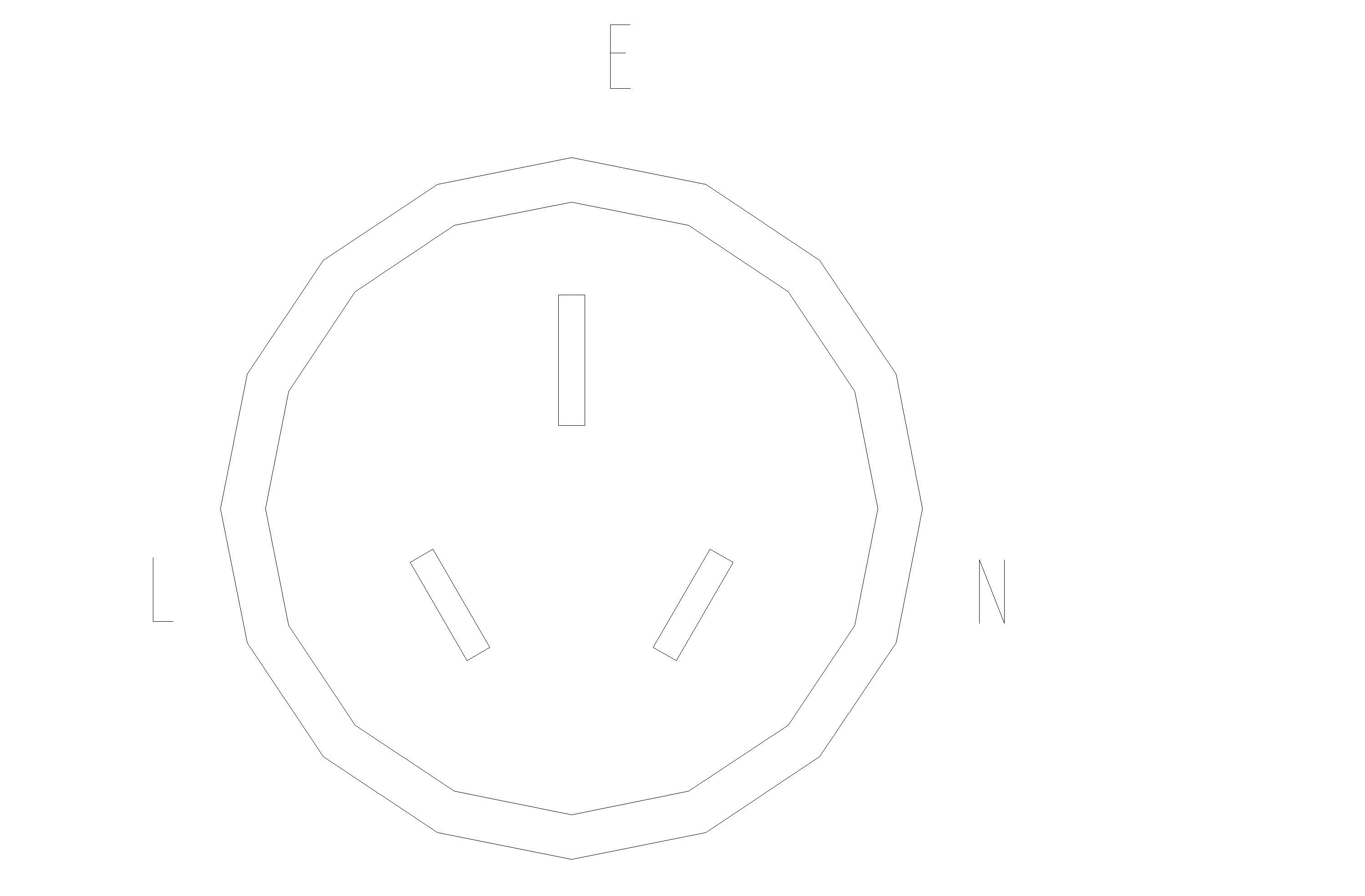

Connector outline |

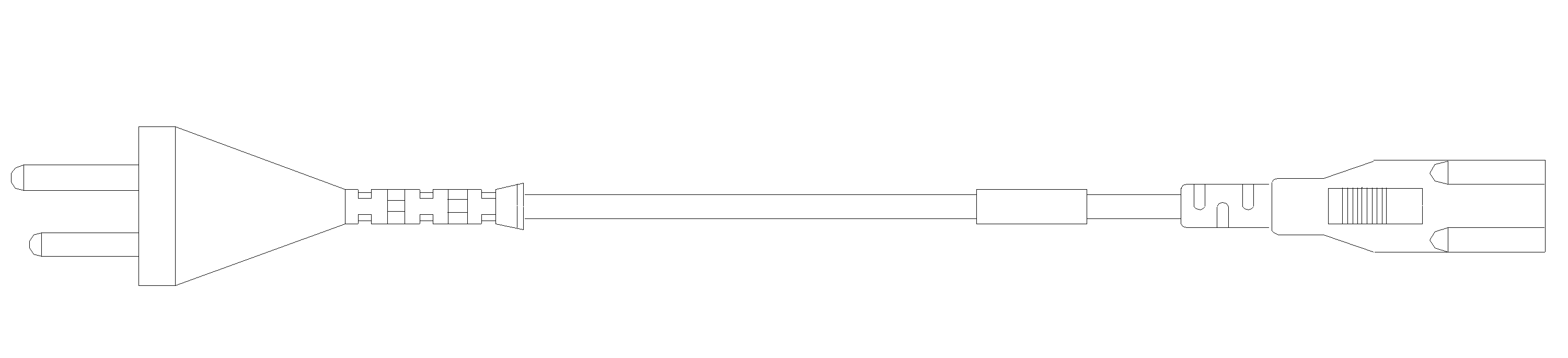

Power cord outline |
Connector outline |
|||||||||||||||||||
|
|
|
|
|||||||||||||||||||
|
7 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||||||||||||||
|

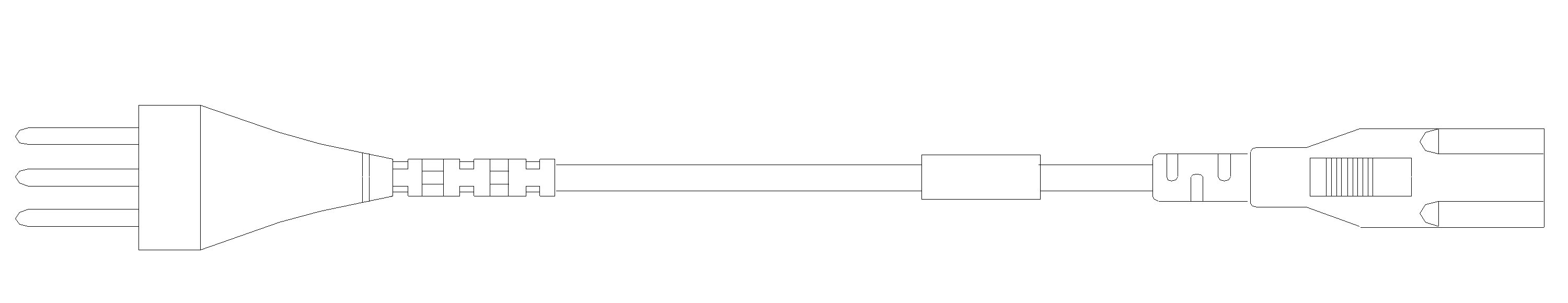

J type |
04041119: 3 m (9.8 ft) |
Switzerland |
|
|
|||||||||||||||||
|

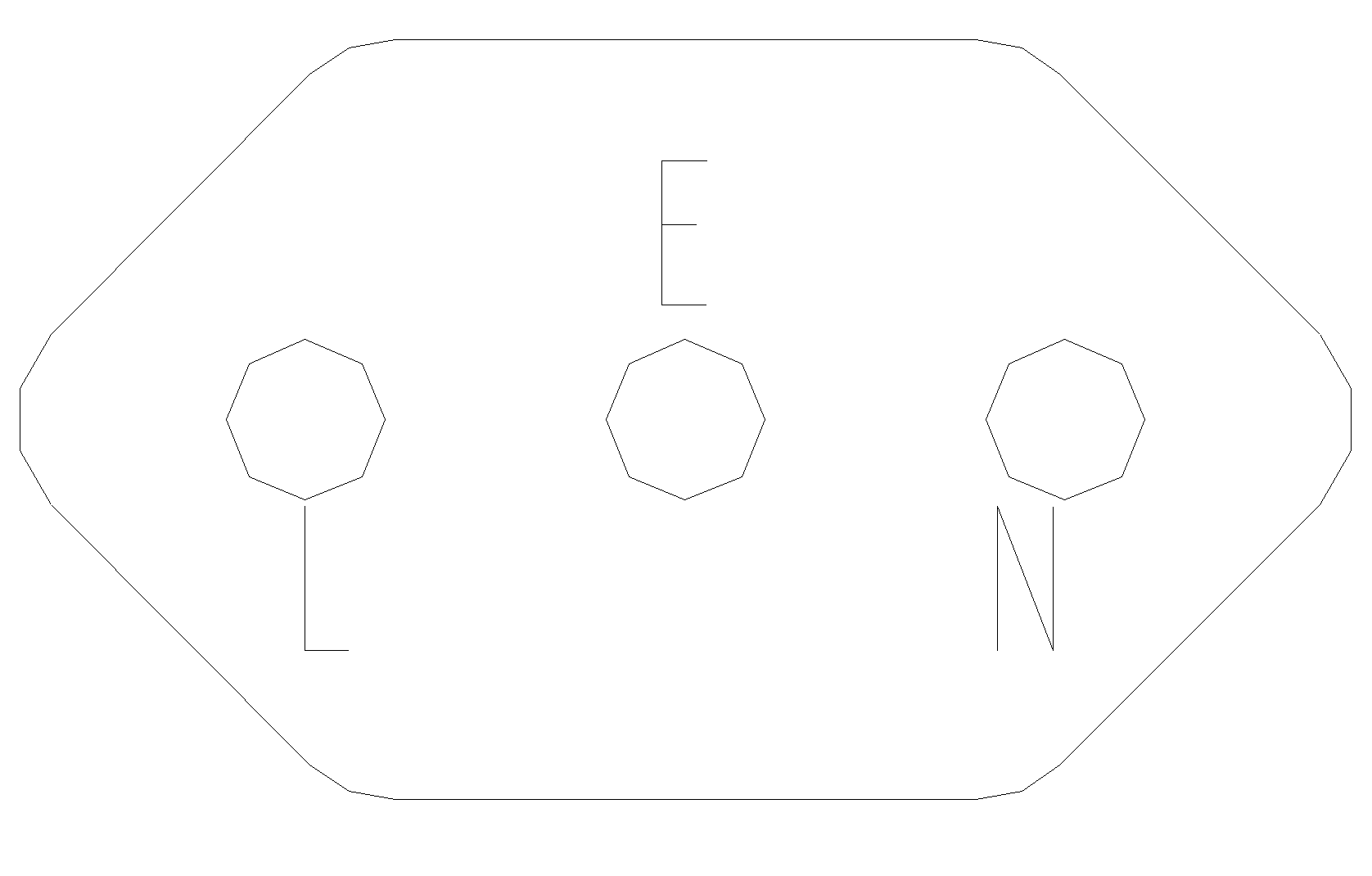

Connector outline |
Power cord outline |
Connector outline |
|||||||||||||||||||
|
|
|
|
|||||||||||||||||||
|
8 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||||||||||||||
|
L type |
04041120: 3 m (9.8 ft) |
Italy |
|
|
|||||||||||||||||
|
Connector outline |

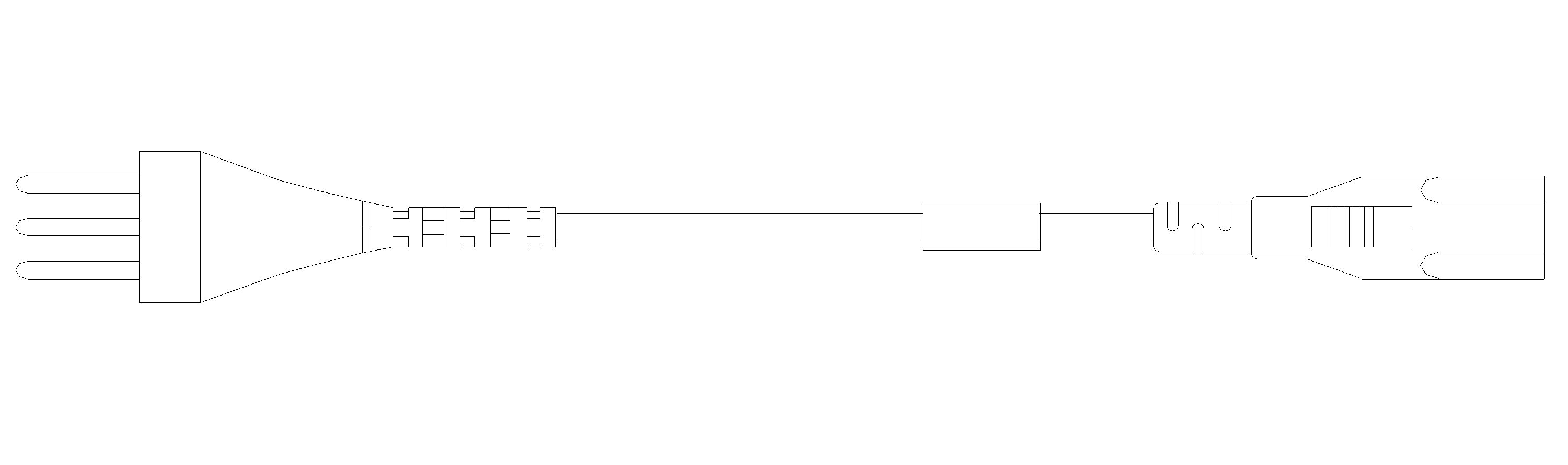

Power cord outline |
Connector outline |
|||||||||||||||||||
|
|
|
|
|||||||||||||||||||
|
9 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
||||||||||||||||
|
D type |
0404A0Q0: 3 m (9.8 ft) |

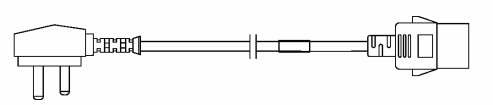

India |
|
|
|||||||||||||||||
|
Connector outline |

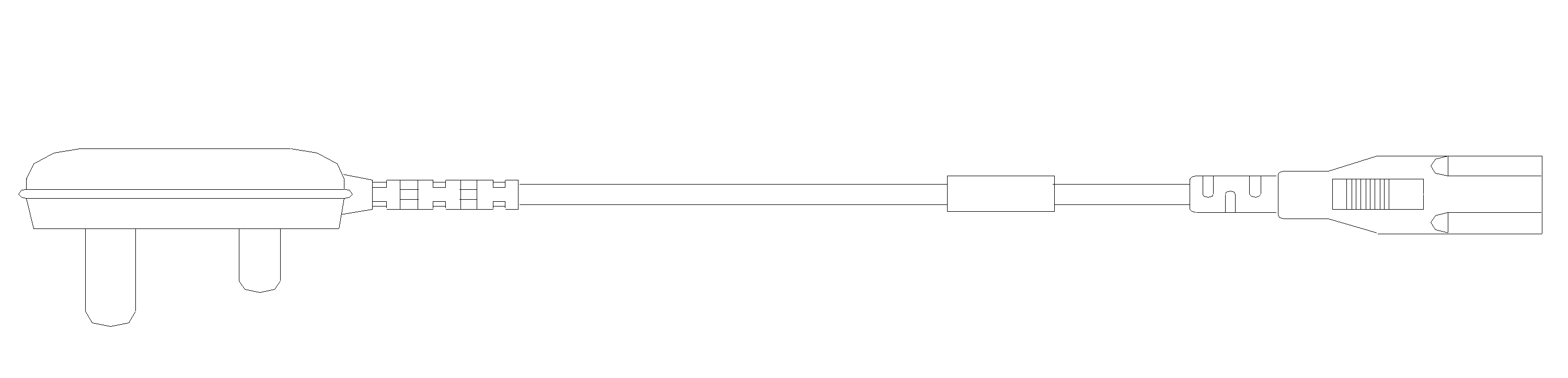

Power cord outline |
Connector outline |
|||||||||||||||||||
|
|
|
|
|||||||||||||||||||
|
|

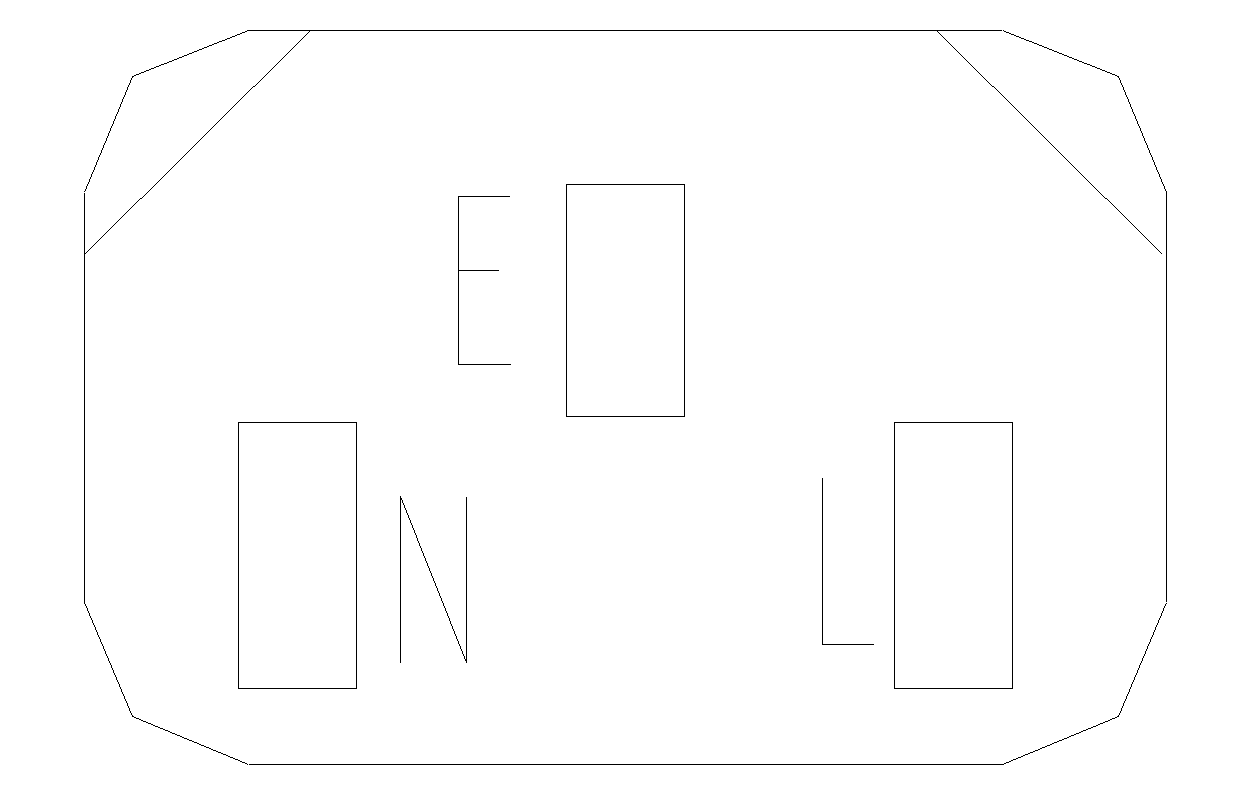

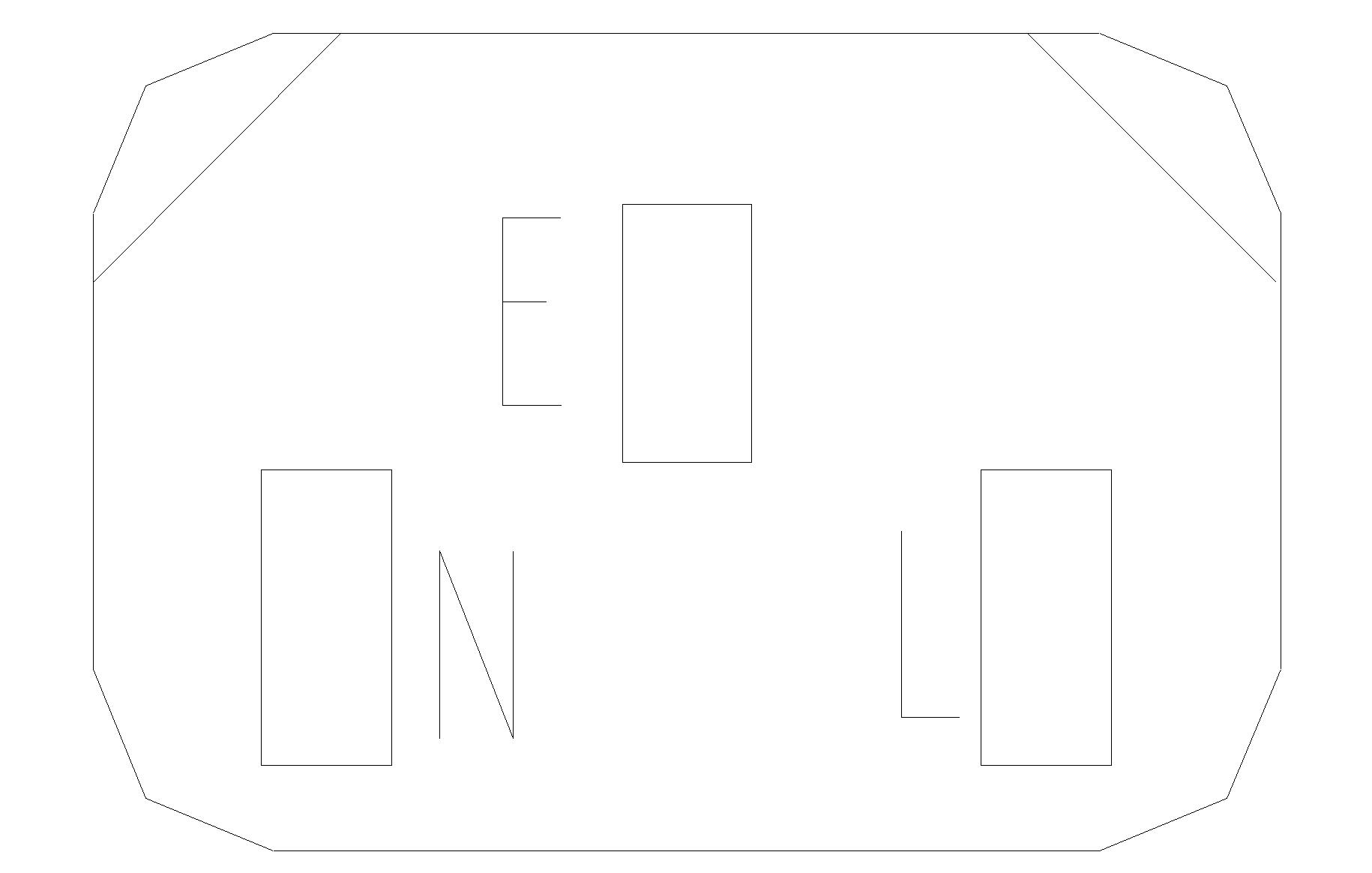

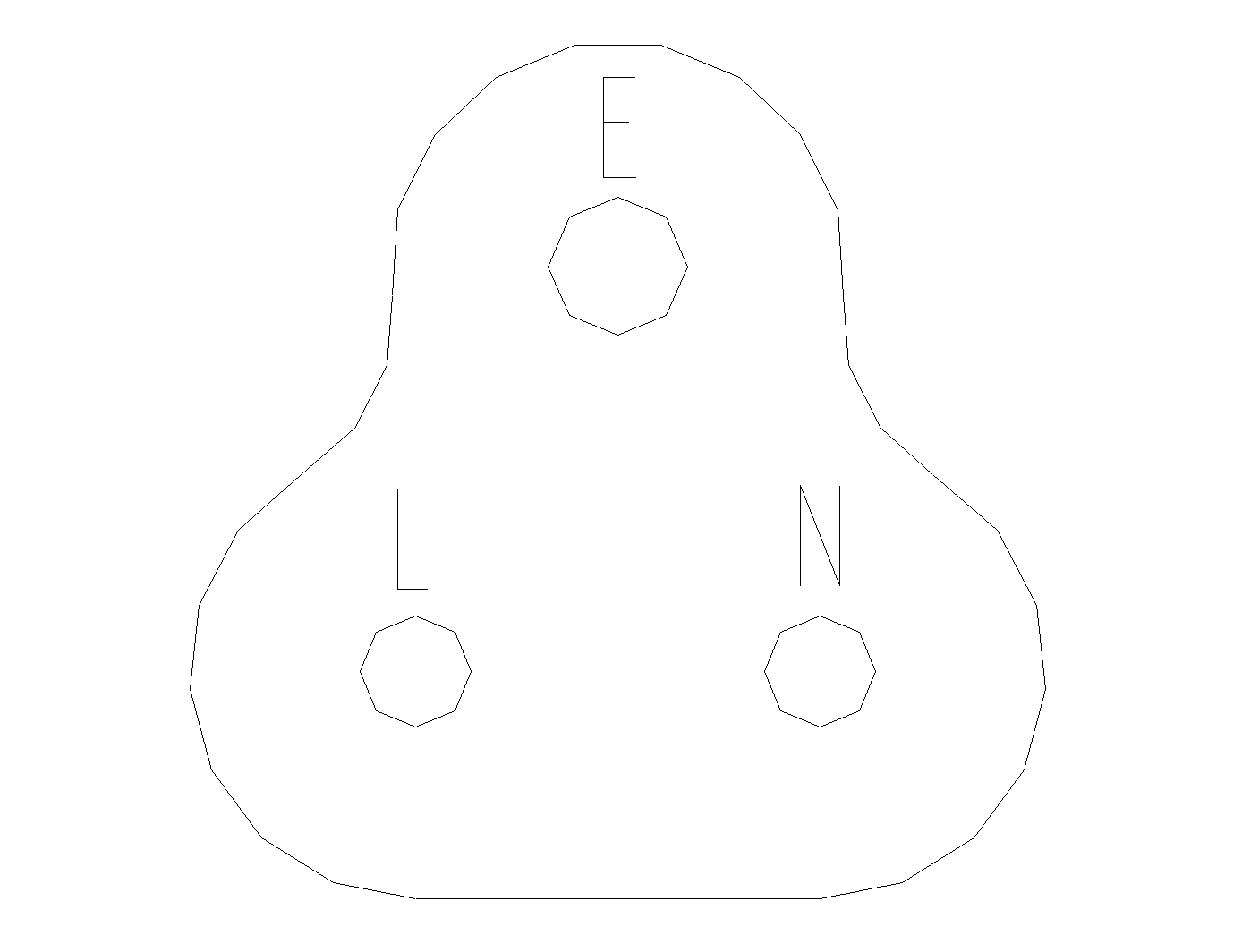

NOTE: The connector outline figures shown in Table 2-8 are connectors for connecting the device. |
Table 2-9 16A AC power cords used in different countries or regions
|
1 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
|||||||
|
I type |
04043396: 3 m (9.8 ft) |
Mainland China |
|
|
||||||||
|
Connector outline |
Power cord outline |
Connector outline |
||||||||||
|
|
|
|
||||||||||
|
2 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
|||||||
|

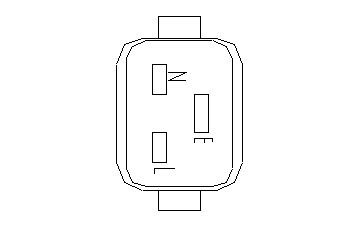

C20 type |
0404A0C2: 3 m (9.8 ft) |
Mainland China |
N/A |
N/A |
||||||||
|

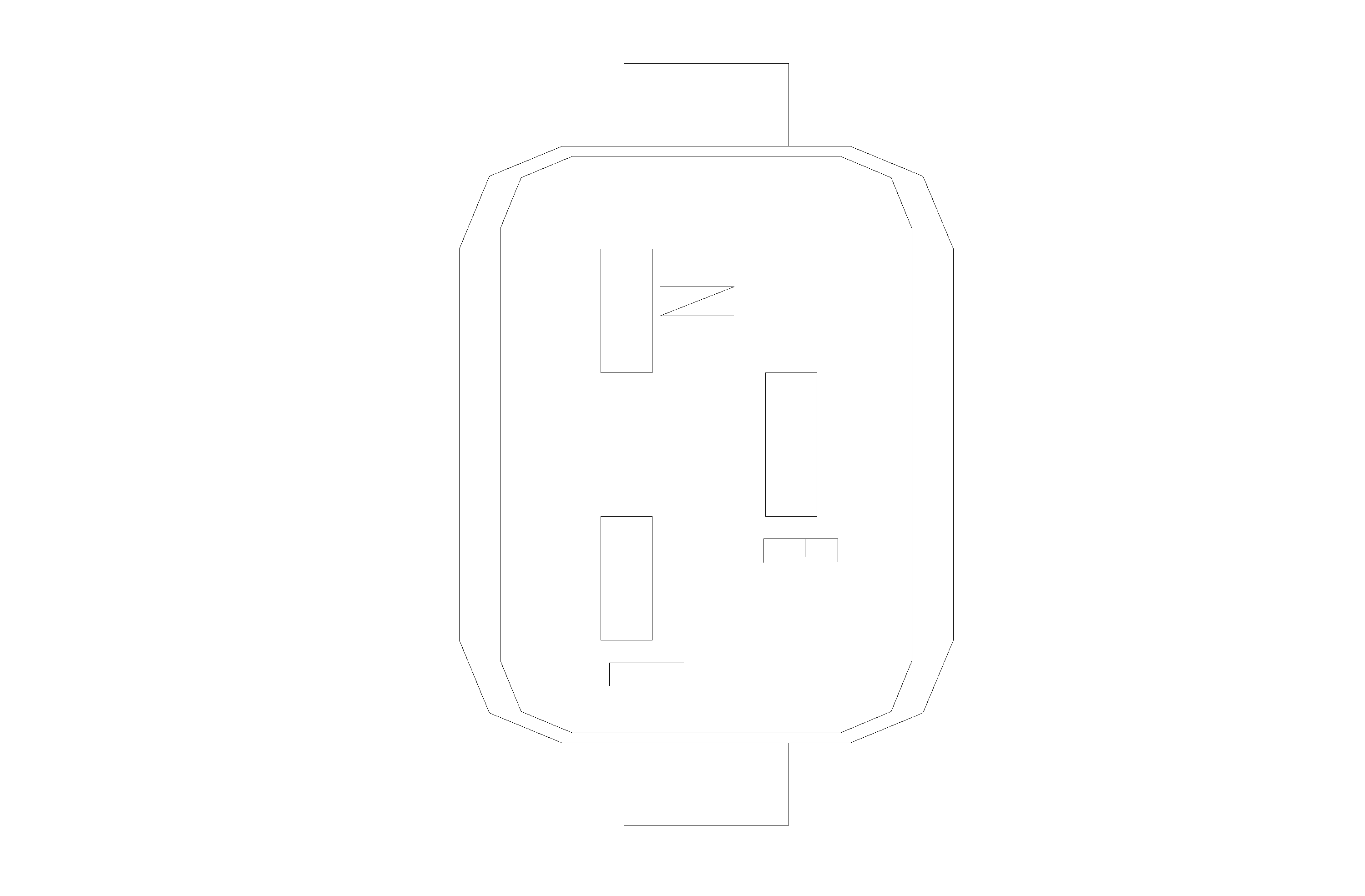

Connector outline |

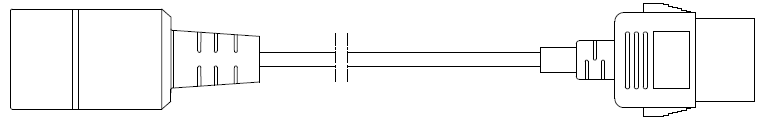

Power cord outline |
Connector outline |
||||||||||
|
|
|
|
||||||||||
|
3 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
|||||||
|
N/A |
0404A0RP: 3 m (9.8 ft) |
Mainland China |
N/A |
N/A |
||||||||
|
Connector outline |
Power cord outline |
Connector outline |
||||||||||
|
|
|
|
||||||||||
|
4 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
|||||||
|
I type |
0404A0RQ: 3 m (9.8 ft) |
Mainland China |
N/A |
N/A |
||||||||
|
Connector outline |
Power cord outline |
Connector outline |
||||||||||
|
|
|
|
||||||||||
|
5 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
|||||||
|
B type |
0404A063: 3 m (9.8 ft) |
Canada and U.S.A |
Mexico, Argentina, Brazil, Columbia, Venezuela, Thailand, Peru, Philippine, and A6 countries or regions |
|
||||||||
|
Connector outline |
Power cord outline |
Connector outline |
||||||||||
|
|
|
|
||||||||||
|
6 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
|||||||
|
F type |
0404A061: 3 m (9.8 ft) |
Holland, Denmark, Sweden, Finland, Norway, Germany, France, Austria, Belgium, and Italy |
Indonesia, Türkiye, Russia, and CIS |
|
||||||||
|
Connector outline |

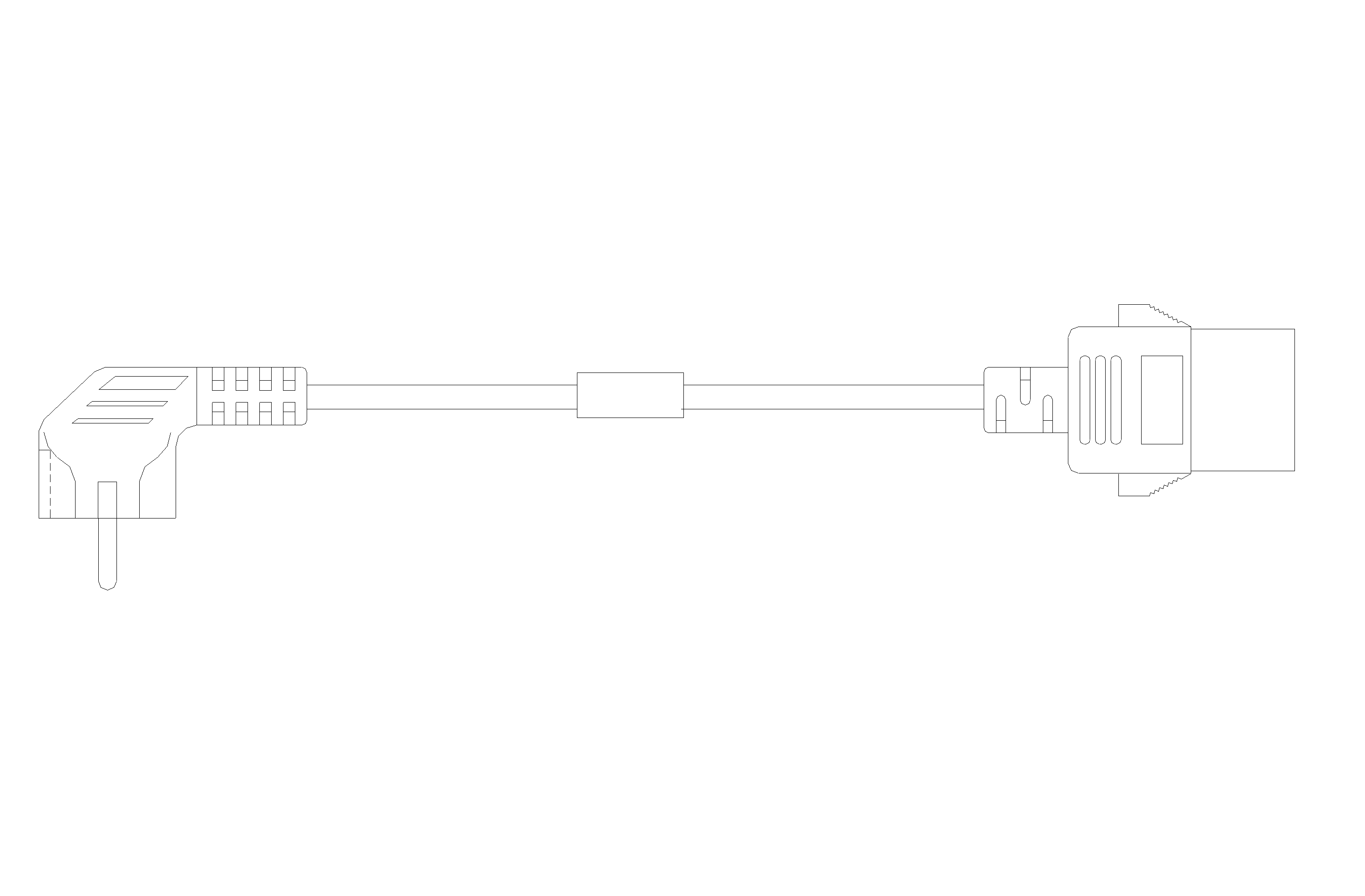

Power cord outline |
Connector outline |
||||||||||
|
|
|
|
||||||||||
|
7 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
|||||||
|
B type |
0404A062: 3 m (9.8 ft) |
Japan |
|
|
||||||||
|
Connector outline |
Power cord outline |
Connector outline |
||||||||||
|
|
|
|
||||||||||
|
8 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
|||||||
|
I type |
0404A01A: 3 m (9.8 ft) |
Australia |
|
|
||||||||
|
Connector outline |
Power cord outline |
Connector outline |
||||||||||
|
|
|
|
||||||||||
|
9 |
Connector type |
Code (Length) |
Countries or regions where the type of power cords conforms to local safety regulations and can be used legally |
Other countries or regions using this type of power cords |
Countries or regions seldom using this type of power cords |
|||||||
|
D type |
0404A0PY: 3 m (9.8 ft) |
India |
|
|
||||||||
|
Connector outline |
Power cord outline |
Connector outline |
||||||||||
|
|
|
|
||||||||||
|
|

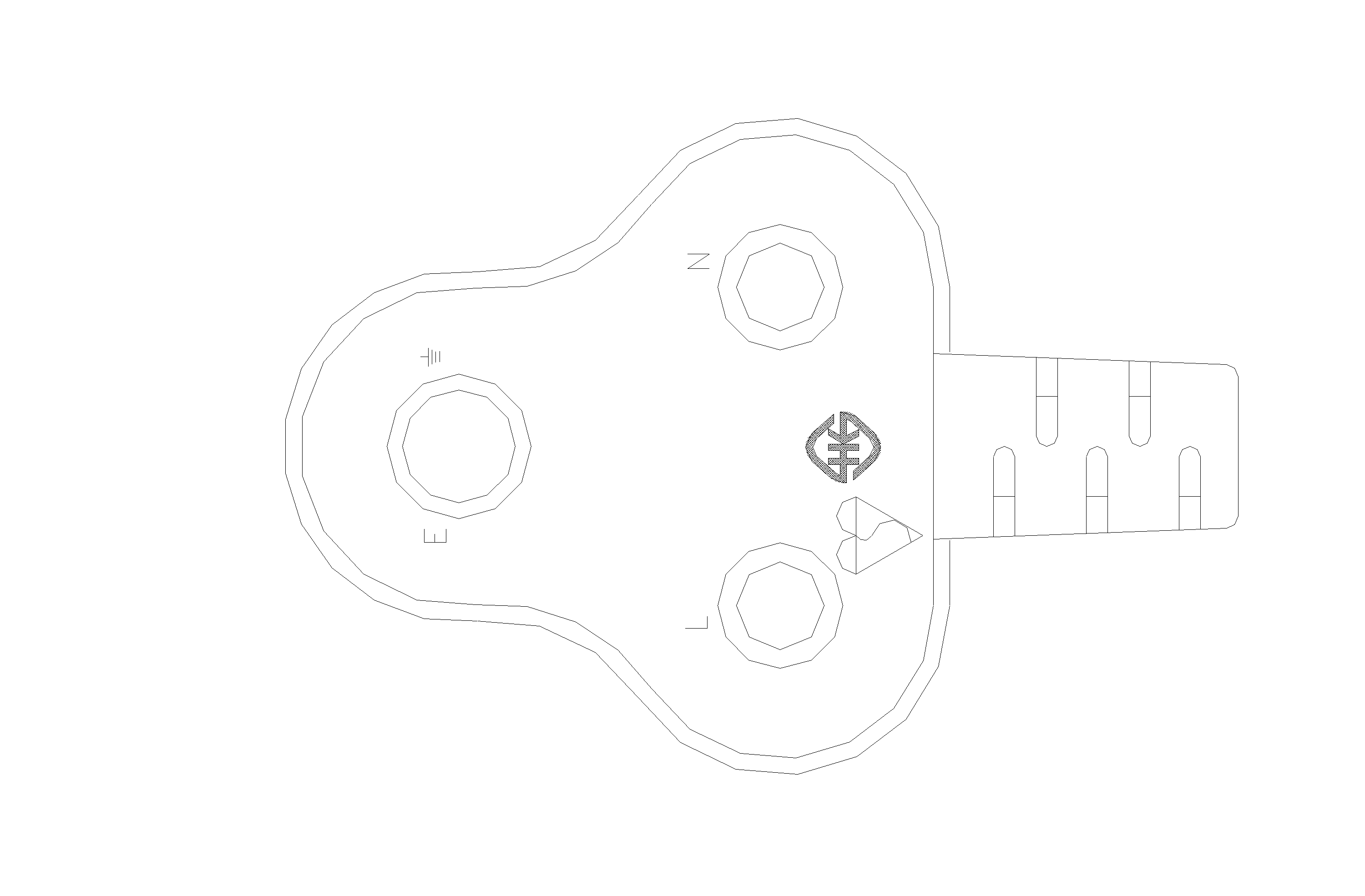

NOTE: The connector outline figures shown in Table 2-9 are connectors for connecting devices. |
Fan trays
Table 2-10 Fan tray specifications
|
Fan tray |
Number of fans |
Fan diameter |
Max air flow rate |
|
S7503X-G fan tray |
2 |
120 mm (4.72 in) |
150 CFM (4.25 m3/min) |
|
S7503X-M-G fan tray |
3 |
92 mm (3.62 in) |
165 CFM (4.67 m3/min) |
|
S7506X-G/S7506X-G-PoE fan tray |
9 |
92 mm (3.62 in) |
495 CFM (14.02 m3/min) |
|
S7510X-G/S7510X-G-PoE fan tray |
6 |
92 mm (3.62 in) (small fan) |
662 CFM (18.75 m3/min) |
|
4 |
120 mm (4.72 in) (large fan) |
662 CFM (18.75 m3/min) |
The switch came with the fan tray installed. To replace the fan tray, make sure the new fan tray is compatible with the switch.
