1 Chassis views and technical specifications
The S7500X-G switch series includes the models in Table1-1.
|
Model |
Description |
|
S7503X-G |
H3C S7503X-G Ethernet switch chassis |
|
S7503X-M-G |
H3C S7503X-M-G Ethernet switch chassis |
|
S7506X-G |
H3C S7506X-G Ethernet switch chassis |
|
S7506X-G-PoE |
H3C S7506X-G-POE Ethernet switch chassis |
|
S7510X-G |
H3C S7510X-G Ethernet switch chassis |
|
S7510X-G-PoE |
H3C S7510X-G-POE Ethernet switch chassis |
Chassis views
The figures in this section are for illustration only.
S7503X-G
Figure1-1 S7503X-G front panel
|
(2) MPU sections |
|
|
(3) Interface module section |
(4) Fan tray section |
S7503X-M-G

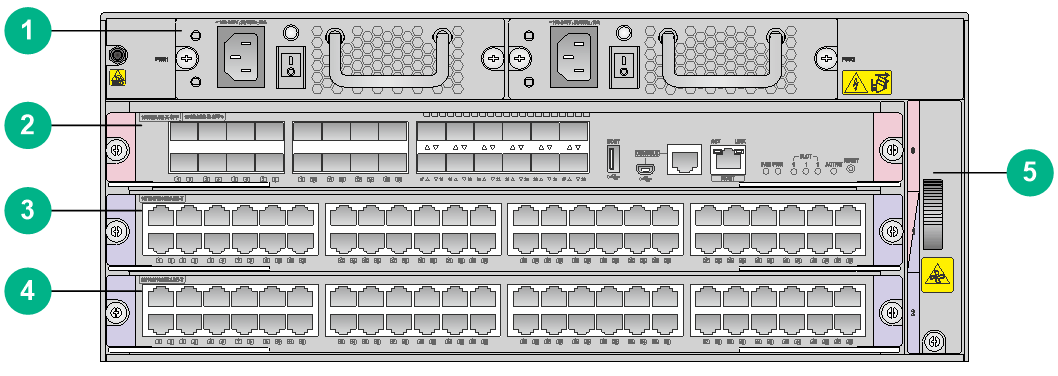

Figure1-2 S7503X-M-G front panel
|
(1) Power module section |
(2) MPU section |
|
(3) MPU section/interface module section (You can install an MPU or interface module in this slot) |
|
|
(4) Interface module section |
(5) Fan tray section |
S7506X-G
Figure1-3 S7506X-G front panel
|
(1) Interface module sections |
(2) MPU section |
|
(3) Power module sections |
(4) Fan tray section |
S7506X-G-PoE

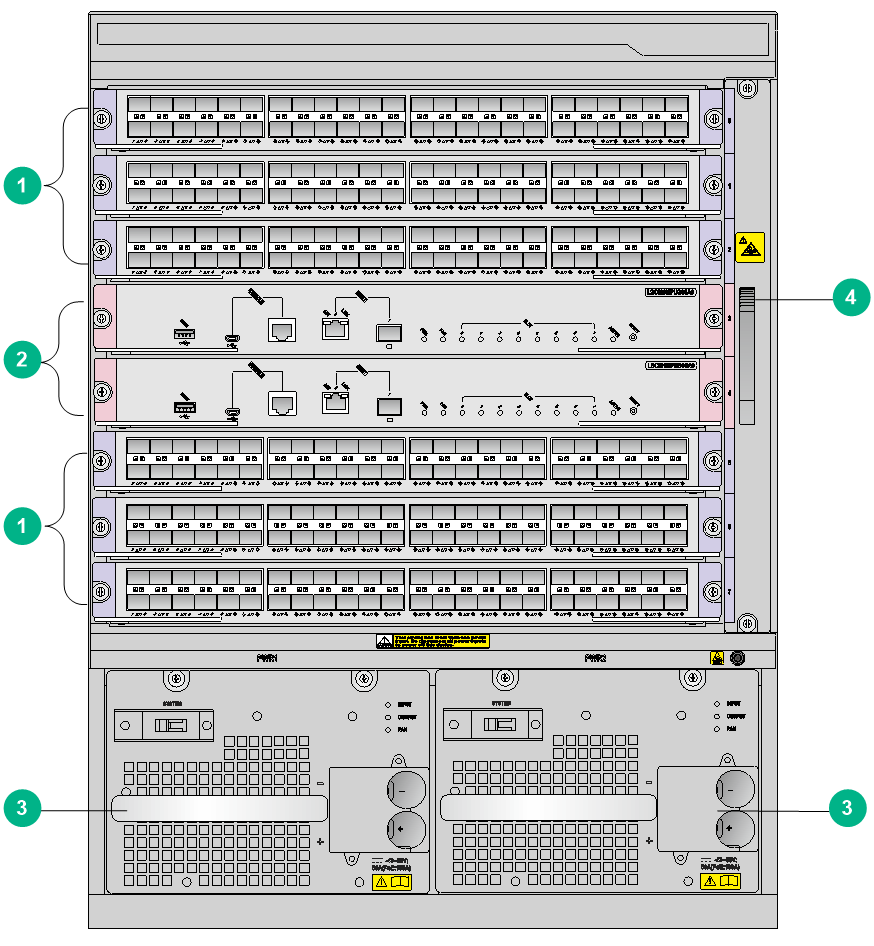

Figure1-4 S7506X-G-PoE front panel
|
(1) Interface module sections |
(2) MPU section |
|
(3) Power module sections |
(4) Fan tray section |
S7510X-G

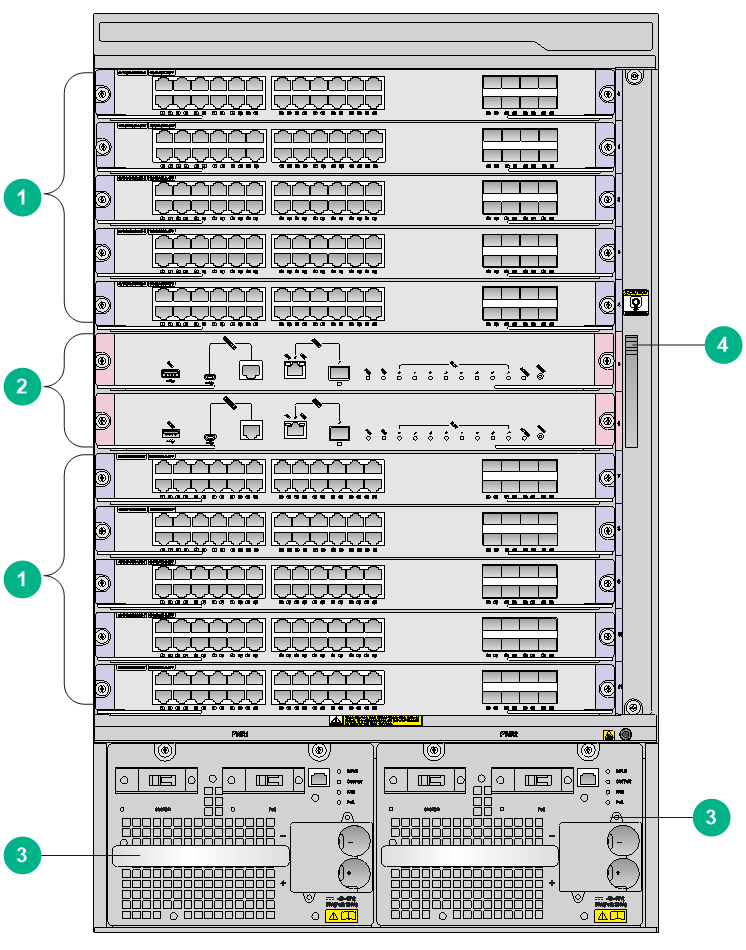

Figure1-5 S7510X-G front panel
|
(1) Interface module sections |
(2) MPU section |
|
(3) Power module sections |
(4) Fan tray section |
S7510X-G-PoE

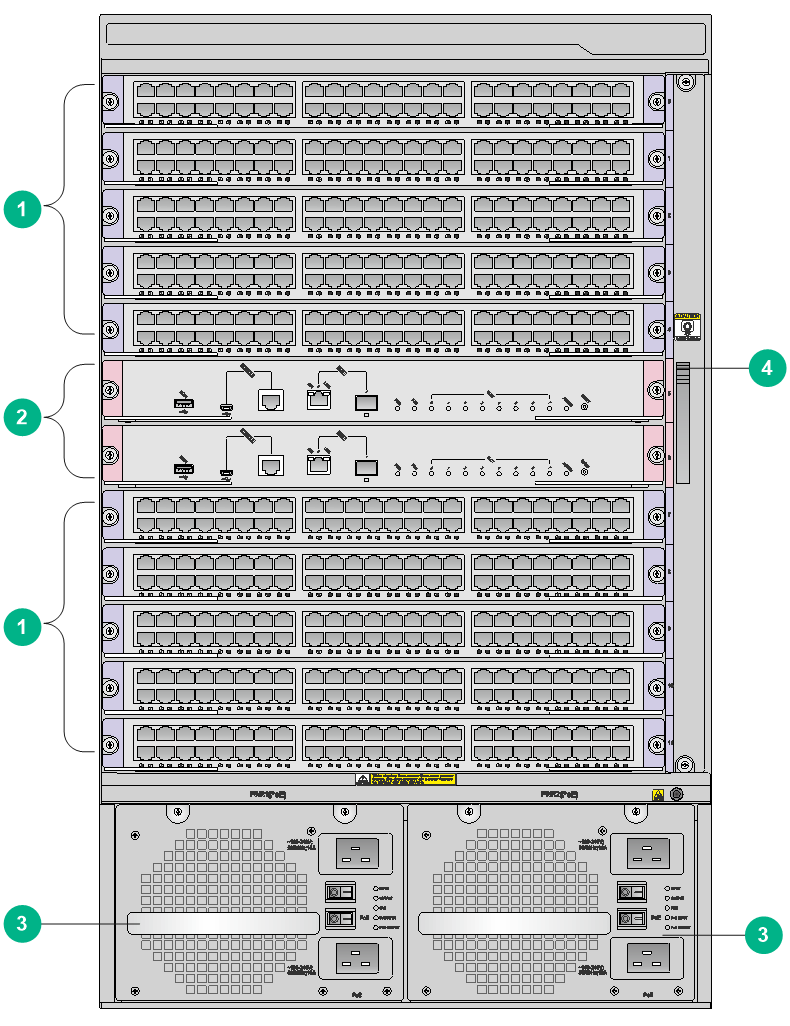

Figure1-6 S7510X-G-PoE front panel
|
(1) Interface module sections |
(2) MPU section |
|
(3) Power module sections |
(4) Fan tray section |
Weights and dimensions
Table1-2 Chassis weights and dimensions
|
Model |
Weight (fully configured) |
Height |
Width |
Depth |
|
S7503X-G |
< 35 kg (77.16 lb) |
216 mm (8.50 in)/5 RU |
436 mm (17.17 in) |
420 mm (16.54 in) |
|
S7503X-M-G |
< 28 kg (61.73 lb) |
175 mm (6.89 in)/4 RU |
436 mm (17.17 in) |
420 mm (16.54 in) |
|
S7506X-G |
< 75 kg (165.34 lb) |
575 mm (22.64 in)/13 RU |
436 mm (17.17 in) |
420 mm (16.54 in) |
|
S7506X-G-PoE |
< 80 kg (176.37 lb) |
575 mm (22.64 in)/13 RU |
436 mm (17.17 in) |
420 mm (16.54 in) |
|
S7510X-G |
< 95 kg (209.44 lb) |
708 mm (27.87 in)/16 RU |
436 mm (17.17 in) |
420 mm (16.54 in) |
|
S7510X-G-PoE |
< 100 kg (220.46 lb) |
708 mm (27.87 in)/16 RU |
436 mm (17.17 in) |
420 mm (16.54 in) |
|
|
NOTE: · A rack unit (RU) is 44.45 mm (1.75 in). It is a used as a measurement for the rack height. · Net weight is the chassis weight, excluding the weights of cards, power modules and other removable modules. |
Table1-3 Card weights and dimensions
|
Model |
Weight |
Height |
Width |
Depth |
|
LSCM1SUP03A0 |
1.45 kg (3.20 lb) |
45 mm (1.77 in) |
199 mm (7.83 in) |
355 mm (13.98 in) |
|
LSCM3SUP03A0 |
1.45 kg (3.20 lb) |
45 mm (1.77 in) |
199 mm (7.83 in) |
355 mm (13.98 in) |
|
LSCM2SUP03B0 |
1.35 kg (2.98 lb) |
45 mm (1.77 in) |
199 mm (7.83 in) |
355 mm (13.98 in) |
|
LSCM2CGP24TSSC0 |
3.30 kg (7.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2CGT24TSSC0 |
3.40 kg (7.50 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2CTGS12GPSC0 |
3.30 kg (7.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2CTGS12GTSC0 |
3.30 kg (7.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM1MPUS06A0 |
3.40 kg (7.50 lb) |
45 mm (1.77 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2MPUS06AS0 |
3.15 kg (6.94 lb) |
45 mm (1.77 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM3MPUS06A0 |
3.40 kg (7.50 lb) |
45 mm (1.77 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2SRP6C4Y06A0 |
3.35 kg (7.39 lb) |
45 mm (1.77 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM3MPUS10B0 |
3.40 kg (7.50 lb) |
45 mm (1.77 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM1QGS8CSSE0 |
3.35 kg (7.39 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2YGS16TS8SF0 |
3.35 kg (7.39 lb) |
45 mm (1.77 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2YGS32TS16SF0 |
3.55 kg (7.83 lb) |
45 mm (1.77 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2CGS8QS8SF0 |
3.35 kg (7.39 lb) |
45 mm (1.77 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM3QGS8CSSE0 |
3.35 kg (7.39 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GT24GPTSSC0 |
3.55 kg (7.83 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GT24GPTSSD0 |
3.55 kg (7.83 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2TGS16GPSC0 |
3.40 kg (7.50 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2TGS16GPSD0 |
3.40 kg (7.50 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2TGS16GP32SD0 |
3.45 kg (7.61 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM1TGS48SE0 |
3.50 kg (7.72 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2TGS48SF0 |
3.60 kg (7.94 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM3TGS48SE0 |
3.50 kg (7.72 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GP24GTSC0 |
3.30 kg (7.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GP24GTSD0 |
3.30 kg (7.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GP48SC0 |
3.60 kg (7.94 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GP48SD0 |
3.60 kg (7.94 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GT24GPSC0 |
3.40 kg (7.50 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GT24GPSD0 |
3.40 kg (7.50 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM1GT48SC0 |
2.85 kg (6.28 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GT48SC0 |
3.60 kg (7.94 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GT48SD0 |
3.60 kg (7.94 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GV48SC0 |
2.90 kg (6.39 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
LSCM2GV48SD0 |
2.90 kg (6.39 lb) |
40 mm (1.57 in) |
399 mm (15.71 in) |
355 mm (13.98 in) |
|
|
NOTE: Card dimensions are expressed in the H × W × D format. · H—Height of the front panel of the card. · W—Width of the front panel of the card. · D—Depth from the front panel of the card to the connector. |
Table1-4 Power module adapter weights and dimensions
|
Model |
Weight |
Height |
Width |
Depth |
|
LSQM1PWRSPB |
4.95 kg (10.91 lb) |
128 mm (5.04 in) |
196 mm (7.72 in) |
382 mm (15.04 in) |
Table1-5 Power module weights and dimensions
|
Model |
Weight |
Height |
Width |
Depth |
|
PSR320-A |
1.89 kg (4.17 lb) |
40 mm (1.57 in)/1 RU |
140 mm (5.51 in) |
350 mm (13.78 in) |
|
PSR650-A |
2.42 kg (5.34 lb) |
40 mm (1.57 in)/1 RU |
140 mm (5.51 in) |
350 mm (13.78 in) |
|
PSR650-D |
2.25 kg (4.96 lb) |
40 mm (1.57 in)/1 RU |
140 mm (5.51 in) |
350 mm (13.78 in) |
|
PSR650C-12A |
4.70 kg (10.36 lb) |
128 mm (5.04 in)/3 RU |
196 mm (7.72 in) |
382 mm (15.04 in) |
|
PSR650C-12D |
4.20 kg (9.26 lb) |
128 mm (5.04 in)/3 RU |
196 mm (7.72 in) |
382 mm (15.04 in) |
|
PSR1200-A |
2.56 kg (5.64 lb) |
40 mm (1.57 in)/1 RU |
140 mm (5.51 in) |
350 mm (13.78 in) |
|
PSR1200-D |
2.51 kg (5.53 lb) |
40 mm (1.57 in)/1 RU |
140 mm (5.51 in) |
350 mm (13.78 in) |
|
PSR1400-A |
6.35 kg (14.00 lb) |
128 mm (5.04 in)/3 RU |
196 mm (7.72 in) |
382 mm (15.04 in) |
|
PSR1400-12D1 |
6.39 kg (14.09 lb) |
128 mm (5.04 in)/3 RU |
196 mm (7.72 in) |
382 mm (15.04 in) |
|
PSR2500-12AHD |
5.70 kg (12.57 lb) |
128 mm (5.04 in)/3 RU |
196 mm (7.72 in) |
382 mm (15.04 in) |
|
PSR2500-12D |
5.70 kg (12.57 lb) |
128 mm (5.04 in)/3 RU |
196 mm (7.72 in) |
382 mm (15.04 in) |
|
PSR2800-ACV |
9.87 kg (21.76 lb) |
128 mm (5.04 in)/3 RU |
196 mm (7.72 in) |
380 mm (14.96 in) |
Table1-6 Fan tray weights and dimensions
|
Model |
Weight |
Height |
Width |
Depth |
|
S7503X-G fan tray |
1.00 kg (2.20 lb) |
29 mm (1.14 in) |
167 mm (6.57 in) |
337 mm (13.27 in) |
|
S7503X-M-G fan tray |
0.80 kg (1.76 lb) |
30 mm (1.18 in) |
127 mm (5.00 in) |
351 mm (13.82 in) |
|
S7506X-G/S7506X-G-PoE fan tray |
2.20 kg (4.85 lb) |
29 mm (1.14 in) |
347 mm (13.66 in) |
367 mm (14.45 in) |
|
S7510X-G/S7510X-G-PoE fan tray |
2.94 kg (6.48 lb) |
28 mm (1.10 in) |
497 mm (19.57 in) |
351 mm (13.82 in) |
Module power consumption
Card power consumption
A card has different power consumptions in static and dynamic states.
· Static power consumption (min)—Power consumed by the card when the following conditions exist:
¡ The card is running but all ports on the card are down.
¡ No transceiver modules are installed in the fiber ports on the card.
· Dynamic power consumption (max)—Power consumed by the card when all the ports on the card are link up and broadcast storm occurs.
Table1-7 Card power consumption
|
Model |
Static power consumption (min) |
Dynamic power consumption (max) |
|
19 W |
23 W |
|
|
LSCM3SUP03A0 |
23 W |
29 W |
|
LSCM2SUP03B0 |
9 W |
16 W |
|
LSCM2CGP24TSSC0 |
23 W |
45 W |
|
LSCM2CGT24TSSC0 |
23 W |
41 W |
|
LSCM2CTGS12GPSC0 |
25 W |
53 W |
|
LSCM2CTGS12GTSC0 |
24 W |
49 W |
|
LSCM1MPUS06A0 |
64 W |
92 W |
|
LSCM2MPUS06AS0 |
23 W |
31 W |
|
LSCM3MPUS06A0 |
68 W |
98 W |
|
LSCM2SRP6C4Y06A0 |
77 W |
137 W |
|
LSCM3MPUS10B0 |
71 W |
99 W |
|
LSCM2YGS16TS8SF0 |
61 W |
115 W |
|
LSCM2YGS32TS16SF0 |
74 W |
168 W |
|
LSCM2CGS8QS8SF0 |
75 W |
175 W |
|
LSCM1QGS8CSSE0 |
66 W |
118 W |
|
LSCM3QGS8CSSE0 |
70 W |
124 W |
|
LSCM2GT24GPTSSC0 |
25 W |
49 W |
|
LSCM2GT24GPTSSD0 |
25 W |
49 W |
|
LSCM2TGS16GPSC0 |
26 W |
58 W |
|
LSCM2TGS16GPSD0 |
26 W |
58 W |
|
LSCM2TGS16GP32SD0 |
31 W |
69 W |
|
LSCM1TGS48SE0 |
60 W |
115 W |
|
LSCM2TGS48SF0 |
73 W |
149 W |
|
LSCM3TGS48SE0 |
64 W |
121 W |
|
LSCM2GP24GTSC0 |
24 W |
40 W |
|
LSCM2GP24GTSD0 |
24 W |
40 W |
|
LSCM2GP48SC0 |
26 W |
52 W |
|
LSCM2GP48SD0 |
26 W |
52 W |
|
LSCM2GT24GPSC0 |
22 W |
36 W |
|
LSCM2GT24GPSD0 |
22 W |
36 W |
|
LSCM1GT48SC0 |
44 W |
48 W |
|
LSCM2GT48SC0 |
24 W |
44 W |
|
LSCM2GT48SD0 |
24 W |
44 W |
|
LSCM2GV48SC0 (excluding PoE) |
27 W |
51 W |
|
LSCM2GV48SD0 |
27 W |
51 W |
Fan tray power consumption
The switch uses fan trays that can automatically adjust the fan speed based on the heat dissipation condition of the switch. The power consumed by a fan tray varies by fan speed. Table1-8 shows the power consumption of different fan trays.
Table1-8 Fan tray power consumption
|
Model |
Min fan tray power consumption |
Max fan tray power consumption |
|
S7503X-G |
7 W |
11 W |
|
S7503X-M-G |
7.5 W |
14.5 W |
|
S7506X-G/S7506X-G-PoE |
24.5 W |
42.5 W |
|
S7510X-G/S7510X-G-PoE |
28 W |
48.5 W |
Total power consumption
For the S7503X-G, S7503X-M-G, S7506X-G, S7506X-G-PoE, S7510X-G, and S7510X-G-PoE switches, the total power consumption equals the system power consumption.
The total power consumption of the switch is the power consumptions of all operating cards and fan trays. It varies by the type and number of the operating cards and the fan tray power consumption.
· The minimum system power consumption is the total static power consumption of all cards plus the minimum fan tray power consumption. For example, an S7506X-G switch is installed with two LSCM1MPUS06A0 MPUs, three LSCM1GT48SC0 interface modules, and one fan tray. The minimum system power consumption of the switch is 2 × 64 + 3 × 44 + 24.5 = 284.5 W.
· The maximum system power consumption is the total dynamic power consumption of all cards plus the maximum fan tray power consumption. For example, an S7506X-G switch is installed with two LSCM1MPUS06A0 MPUs, three LSCM1GT48SC0 interface modules, and one fan tray. The maximum system power consumption of the switch is 2 × 92 + 3 × 48 + 42.5 = 370.5 W.
Table1-9 lists the max power consumption for the switch.
· Max system power consumption (full and max configuration)—Max system power consumption when the switch is fully configured with cards that have the highest power consumptions.
· Max card and fan tray power consumption (full and max configuration)—Max card and fan tray power consumption when the switch is fully configured with cards and fan trays that have the highest power consumptions.
Table1-9 Max system/Max card and fan tray power consumption in full and max configuration
|
Model |
Max system power consumption (full and max configuration) |
Max card and fan tray power consumption (full and max configuration) |
|
S7503X-G-AC |
550 W |
441 W |
|
S7503X-G-DC |
530 W |
441 W |
|
S7503X-M-G-AC |
400 W |
316 W |
|
S7503X-M-G-DC |
380 W |
316 W |
|
S7506X-G-AC |
1230 W |
983 W |
|
S7506X-G-DC |
1170 W |
983 W |
|
S7506X-G-PoE-AC |
1230 W |
983 W |
|
S7506X-G-PoE-DC |
1850 W |
1487 W |
|
S7510X-G-AC |
1850 W |
1487 W |
|
S7510X-G-DC |
1770 W |
1487 W |
|
S7510X-G-PoE-AC |
1170 W |
983 W |
|
S7510X-G-PoE-DC |
1770 W |
1487 W |
Heat dissipation
Heat dissipation is measured in BTU/h, and 1 W equals 3.4121 BTU/h.
The heat dissipation of a switch depends on its power consumption. To calculate heat dissipation of the switch, assume 90% power consumption is converted to heat, and the efficiency of the power module is 90%. Heat dissipation/hour of the switch is 0.9 × (total power consumption of the cards plus power consumption of the fan tray)/0.9 × 3.4121.
Table1-10 shows the heat dissipation for each switch model.
|
Model |
Heat dissipation (BTU/h) |
|
S7503X-G |
1504 |
|
S7503X-M-G |
1076 |
|
S7506X-G/S7506X-G-PoE |
3352 |
|
S7510X-G/S7510X-G-PoE |
5072 |
For the power consumption of the cards and fan trays available for the switch, see "Module power consumption."
Noise
The switch uses fan trays that can adjust the fan speed automatically based on the device temperature. The sound pressure levels vary by fan speed. For more information, see Table1-11.
Table1-11 Sound pressure levels
|
Model |
Sound pressure level when the fan tray operates at low speed |
Sound pressure level when the fan tray operates at middle speed |
Sound pressure level when the fan tray operates at full speed |
|
S7503X-G |
52.2 dBA |
54.0 dBA |
56.0 dBA |
|
S7503X-M-G |
49.8 dBA |
51.6 dBA |
56.7 dBA |
|
S7506X-G/S7506X-G-PoE |
53.6 dBA |
56.2 dBA |
57.7 dBA |
|
S7510X-G/S7510X-G-PoE |
53.5 dBA |
55.8 dBA |
56.7 dBA |
