Switch series		Model	Product code (PID)
S5590-HI switch series	Non-PoE models	S5590-28T8XC-HI	LS-5590-28T8XC-HI
		S5590-48T4XC-HI	LS-5590-48T4XC-HI
		S5590-28S8XC-HI	LS-5590-28S8XC-HI
		S5590-48S4XC-HI	LS-5590-48S4XC-HI
S5590-EI switch series	Non-PoE models	S5590-28T8XC-EI	LS-5590-28T8XC-EI
		S5590-48T4XC-EI	LS-5590-48T4XC-EI
		S5590-28S8XC-EI	LS-5590-28S8XC-EI
		S5590-28S8XC-EI	LS-5590-28S8XC-EI-GL
		S5590-48S4XC-EI	LS-5590-48S4XC-EI
		S5590-48S4XC-EI	LS-5590-48S4XC-EI-GL
	PoE models	S5590-28P8XC-EI	LS-5590-28P8XC-EI
		S5590-28P8XC-EI	LS-5590-28P8XC-EI-GL
		S5590-48P6XC-EI	LS-5590-48P6XC-EI
		S5590-48P6XC-EI	LS-5590-48P6XC-EI-GL
S5500V3-HI switch series	Non-PoE models	LS-5500V3-28T8XC-HI	S5500V3-28T8XC-HI
		LS-5500V3-48T4XC-HI	S5500V3-48T4XC-HI
		LS-5500V3-28S8XC-HI	S5500V3-28S8XC-HI

Safety recommendations

To avoid any equipment damage or bodily injury caused by improper use, read the following safety recommendations before installation. Note that the recommendations do not cover every possible hazardous condition.

· Before cleaning the switch, remove all power cords from the switch. Do not clean the switch with wet cloth or liquid.

· Do not place the switch near water or in a damp environment. Prevent water or moisture from entering the switch chassis.

· Do not place the switch on an unstable case or desk. The switch might be severely damaged in case of a fall.

· Ensure good ventilation of the equipment room and keep the air inlet and outlet vents of the switch free of obstruction.

· Make sure the power input voltage is as required by the power supply.

· To avoid electrical shocks, do not open the chassis while the switch is operating or when the switch is just powered off.

· Wear an ESD wrist strap when you replace an expansion card, removable power supply, or fan tray. Make sure the strap makes good skin contact and is reliably grounded.

Examining the installation environment

To ensure correct operation of your switch, make sure the installation environment meets the requirements listed in Table1-2.

Table1-2 Checking list for the installation environment

Item	Requirements
Ventilation and heat dissipation	CAUTION: To ensure correct operation of your device, make sure the installation environment is adequately ventilated to prevent the switch from overheating. · Ensure a minimum clearance of 10 cm (3.94 in) around the chassis. · Do not install the device near a heat source, for example, a stove or heater. · Ensure air ventilation in the installation environment. · Do not block the ventilation holes in the device or power adapter.
Anti-moisture	CAUTION: Water or moisture might damage the circuits of the device. · Do not place the device near water or in a damp environment. · Install the switch in a clean, dry, and ventilated place where temperature is controlled in a stable range. · Make sure the installation environment is free from water leakage or condensation. If required, install a dehumidification device (such as an air conditioner with a dehumidification function or a dedicated dehumidifier). · Do not operate the device under or near the water source, such as the wash basin, laundry room, or areas with high humidity. · Do not touch the device with wet hands.
Temperature/humidity	For correct operation and long service life of your switch, maintain the temperature and humidity in the equipment room at acceptable ranges. · Lasting high relative humidity can cause poor insulation, electricity leakage, mechanical property change of materials, and metal corrosion. · Lasting low relative humidity can cause washer contraction and ESD and cause issues including loose mounting screws and circuit failure. · High temperature can accelerate the aging of insulation materials and significantly lower the reliability and lifespan of the switch. For the temperature and humidity requirements of the switch, see technical specifications in the hardware information and specifications for the switch.
Lightning protection	CAUTION: Ground the switch correctly and verify the grounding. For more information, see "Grounding the switch." · If you ground the switch by using a grounding strip, make sure the grounding resistance of the grounding strip in the equipment room is less than 1W. · If you ground the switch by using a grounding conductor buried in the earth ground, make sure the grounding resistance of the grounding conductor in the ground is less than 10W. · Route the signal cables along indoor walls, bury the cables in the earth ground, or thread the cables through steel tubes. Install a signal lightning arrester with a nominal discharge current for a corresponding network interface. · Keep the signal cables far from power cords and lightning rod down conductors. · As a best practice, route power cords indoors. If an AC power cord is routed from outdoors, connect the AC power cord first to a power lightning arrester before leading it to the AC power port on the switch. Make sure the power lightning arrester has a nominal discharge current and the total length of the power cord from the power lighting arrester to the power port on the switch is less than 5 m (16.40 ft). · Ground the switch, rack, independent power supplies, and lightning arresters separately. · You must ground optical fibers with reinforcing metal stiffener from outdoors on an optical distribution frame (ODF) or fiber splice enclosure.
Cable routing	CAUTION: Do not run an Ethernet cable and power cord in parallel. · Route different types of cables separately. · Keep power cords a minimum of 5 cm (1.97 in) away from other cables.
ESD prevention	· Ground the switch correctly. · To avoid ESD damage to the device or FRUs, always wear an ESD wrist strap when you install or remove the device or FRUs. · Make sure the wrist strap has good skin contact and is reliably grounded.
Cleanliness	For more information, see "Cleanliness."
Corrosive gas prevention	The installation site must be free from corrosive gases such as acid gases and alkaline gases. For more information, see "Corrosive gas limit."
EMI	· If AC power is used, use a single-phase three-wire power receptacle with protection earth (PE) to filter interference from the power grid. · Keep the device far away from radio transmitting stations, radar stations, and high-frequency devices. · Use electromagnetic shielding, for example, shielded interface cables, when necessary.

Cleanliness

Dust buildup on the chassis might cause electrostatic adsorption and dust corrosion, resulting in poor contact of metal connectors and contact points. This might shorten the device's lifetime and even cause device failure in the worst case. Table1-3 describes the switch requirement for cleanliness.

Table1-3 Switch requirement for cleanliness

Substance	Particle diameter	Concentration limit
Dust particles	≥ 0.5 µm	≤ 1.8 × 107 particles/m3

To maintain cleanliness in the equipment room, follow these guidelines:

· Keep the equipment room away from pollution sources. Do not smoke, eat, or drink in the equipment room.

· Use double-layer glass in windows and seal doors and windows with dust-proof rubber strips. Use screen doors and window screens for doors and windows open to the outside and make sure the external windows are air tight.

· Use dustproof materials for floors, walls, and ceilings and use wallpaper or matt paint that does not produce powders.

· Clean the equipment room regularly and clean the air filters of the rack each month.

· Wear ESD clothing and shoe covers before entering the equipment room, keep the ESD clothing and shoe covers clean, and change them frequently.

Corrosive gas limit

Corrosive gases can accelerate corrosion and aging of metal components. Make sure the corrosive gases do not exceed the concentration limits as shown in Table1-4.

Table1-4 Corrosive gas concentration limits

Gas	Average concentration (mg/m3)	Maximum concentration (mg/m3)
SO2	0.3	1.0
H2S	0.1	0.5
Cl2	0.1	0.3
HCI	0.1	0.5
HF	0.01	0.03
NH3	1.0	3.0
O3	0.05	0.1
NOX	0.5	1.0

CAUTION:

As a best practice, control the corrosive gas concentrations in the equipment room at their average values. Make sure the corrosive gas concentrations do not exceed 30 minutes per day at their maximum values.

To control corrosive gases, use the following guidelines:

· As a best practice, do not build the equipment room in a place with a high concentration of corrosive gases.

· Make sure the equipment room is not connected to sewer, vertical shaft, or septic tank pipelines and keep it far away from these pipelines. The air inlet of the equipment room must be away from such pollution sources.

· Use environmentally friendly materials to decorate the equipment room. Avoid using organic materials that contains harmful gases, such as sulfur or chlorine-containing insulation cottons, rubber mats, sound-proof cottons, and avoid using plasterboards with high sulfur concentration.

· Place fuel (diesel or gasoline) engines separately. Do not place them in the same equipment room with the device. Make sure the exhausted air of the engines will not flow into the equipment room or towards the air inlet of the air conditioners.

· Place batteries separately. Do not place them in the same room with the device.

· Employ a professional company to monitor and control corrosive gases in the equipment room regularly.

Examining the installation site

Before you install the switch, verify that the installation site meets the installation requirements. The switch can operate correctly in an A1 or A2 installation site. Availability issues might occur if you install the switch in an A3, B1, B2, or C installation site.

Table1-5 Installation sites

Category	Definition	Example
A1: indoor controlled environment	· Indoor environments where temperature and humidity are controlled. · Completely enclosed or shielded indoor environments.	Central equipment rooms, IDC equipment rooms, mobile cabins with air conditioners, outdoor air conditioner cabinets, and heat exchanger cabinets.
A2: indoor partially controlled environment	· Indoor environments where temperature and humidity are partially controlled. · Incompletely enclosed or shielded places. · Places far from pollution sources.	Simple equipment rooms, ordinary houses, garages, corridors, and direct ventilation cabinets far from pollution sources, houses without direct exposure to sunlight or rain, railway station platforms, and stadiums.
A3: indoor uncontrolled environment	· Indoor environments where temperature and humidity are uncontrolled. · Incompletely enclosed or shielded places. · Places near pollution sources.	Simple equipment rooms, ordinary houses, garages, corridors, and direct ventilation cabinets near pollution sources, houses without direct exposure to sunlight or rain, railway station platforms, stadiums, uncleaned rooms after decoration, and rooms under decoration.
B1: outdoor general environment	· Unshielded places where the temperature and humidity are not controlled. · Places far from pollution sources.	Completely exposed outdoor places far from pollution sources.
B2: harsh environment	· Unshielded places where the temperature and humidity are not controlled. · Sea environments or outdoor land environments near pollution sources.	Islands, ships, and completely exposed outdoor places near pollution sources.
C: special environments	Special application environments	Buried, underwater, or undersea environments and manholes.

Table1-6 Pollution sources

Category	Radius range
Saline water areas such as oceans and saline lakes	≤ 3.7 km (2.30 miles)
Serious pollution sources such as metallurgic plants, coal mines, and heat and power plants	≤ 3 km (1.86 miles)
Medium pollution sources such as chemical factories, rubber plants, and electroplating factories	≤ 2 km (1.24 miles)
Light pollution sources, such as food factories, tanneries, and heating boilers	≤ 1 km (0.62 miles)

Checking power distribution or power supply environment

Table1-7 Requirements for power distribution or power supply environment

Item	Requirements
Preparation	The power supply must be available before you install the switch.
Voltage	The voltage provided to the switch must be within the operating voltage range. For the operating voltage range, see technical specifications in the hardware information and specifications for the switch.
Power receptacle and cables	· If the external power supply system provides an AC power outlet, prepare a country-specific AC power cord yourself. Make sure the PE wire of the AC power supply is grounded reliably. · If the external power supply system provides a DC distribution box, prepare DC power cords yourself. · Do not use the power cord provided with the switch on other devices.

Laser safety

WARNING!

The switch is Class 1 laser device. Disconnected optical fibers or transceiver modules might emit invisible laser light. Do not stare into beams or view directly with optical instruments when the switch is operating.

Installation tools

No installation tools are provided with the switch. Prepare the following tools yourself as required:

· ESD wrist strap

· Flat-blade screwdriver

· Phillips screwdriver

· Needle-nose pliers

· Diagonal pliers

· Marker

Installation accessories

Before installation, make sure you have all the required installation accessories. If an installation accessory is damaged or lost, purchase a new one by using the BOM code in Table1-8.

Table1-8 Installation accessories

Code	Description	Quantity	Applicable device models
2150A03X	Mounting bracket kit, including a pair of mounting brackets and eight M4 screws	1 pair, provided	All models
N/A	M6 screw and cage nut	User supplied	All models
63200063	Rubber feet	Four, provided	All models
N/A	Grounding cable This figure is for illustration only. The appearance of the grounding cable might vary.	1, provided	All models
N/A	Grounding screw	1, provided	All models
2114A082	Expansion card filler panel	S5590-HI series: 2, provided S5590-EI S5500V3-HI series: 1, provided	All models
N/A	Power cord The appearance and parameters for power cords vary depending on countries and regions. The power cord in this table is a standard power cord in China.	1, provided with removable power supplies	All models

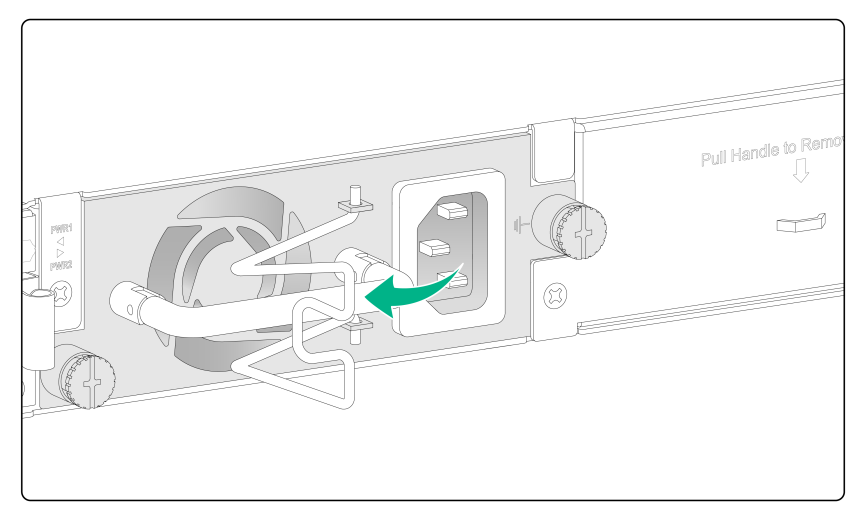

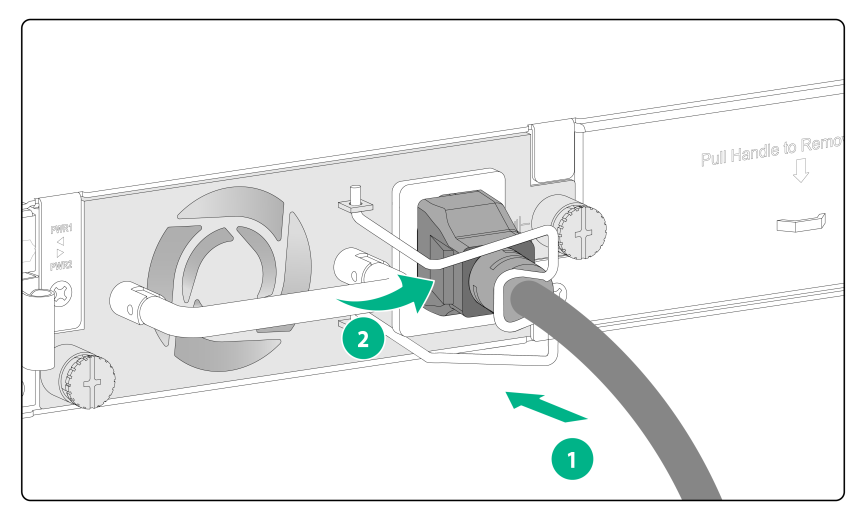

N/A	AC power cord bail latch The appearance of the bail latch might differ.	1, provided with the PSR180-12A-B and PSR180-12A-F power supplies	S5590-28T8XC-EI S5590-48T4XC-EI S5590-28S8XC-EI S5590-48S4XC-EI S5500V3-28T8XC-HI S5500V3-48T4XC-HI S5500V3-28S8XC-HI
N/A	DC power cord	1, provided with the PSR180-12D-B power supply	S5590-28T8XC-EI S5590-48T4XC-EI S5590-28S8XC-EI S5590-48S4XC-EI S5500V3-28T8XC-HI S5500V3-48T4XC-HI S5500V3-28S8XC-HI
04042967	DB9-to-RJ45 console cable	1, optional	All models
0404A1EE	USB-to-RJ45 console cable	1, optional	All models

2 Installing the switch

CAUTION:

Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. Otherwise, H3C shall not be liable for any consequence.

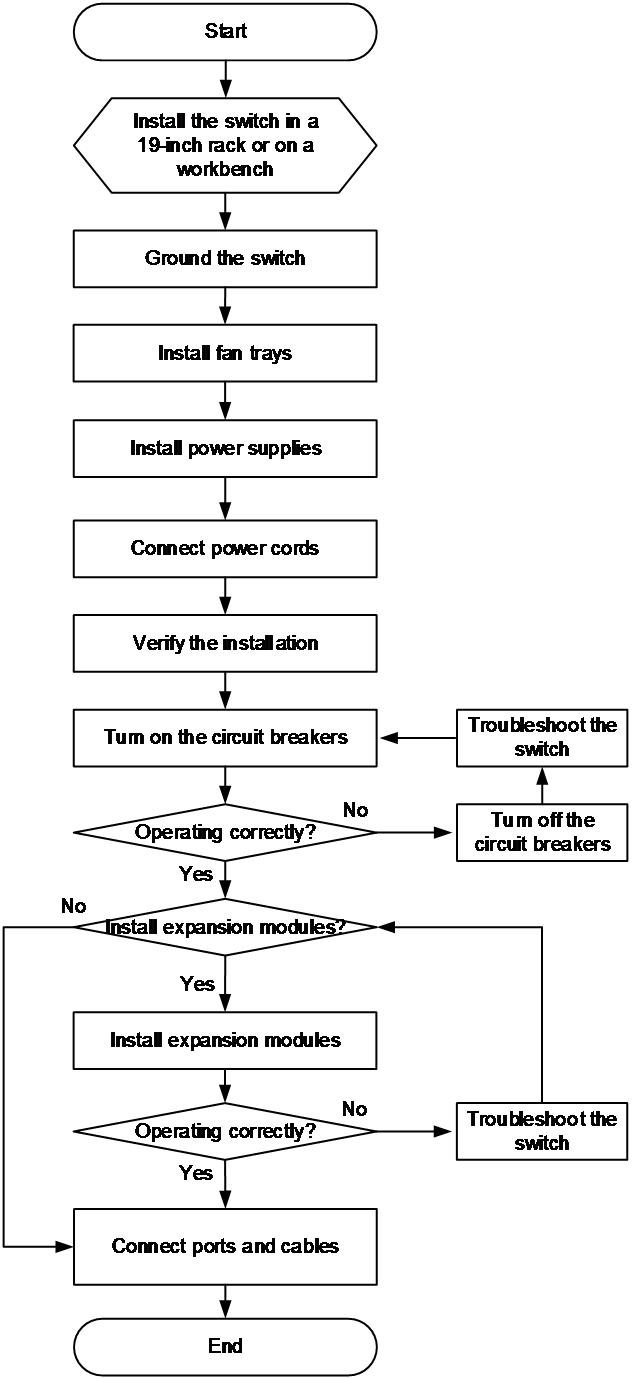

Figure2-1 Hardware installation flow

Installing the switch in a 19-inch rack

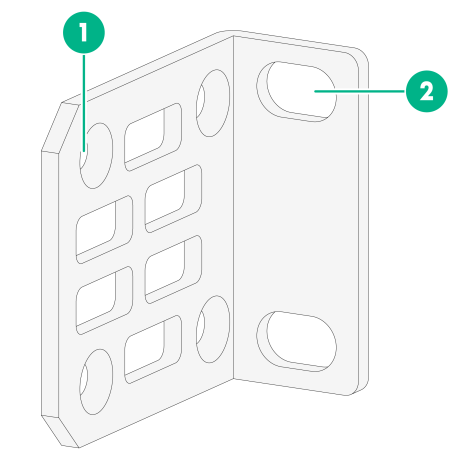

Figure2-2 Mounting bracket

(1) Screw hole for attaching the bracket to the switch	(2) Screw hole for attaching the bracket to the rack

Attaching the mounting brackets to the switch

The switch has one mounting position near the network ports and the other mounting position near the power supplies for the mounting brackets. Select one position as needed.

To attach the front mounting brackets to the chassis:

1. Place the wide flange of the mounting bracket against the chassis side panel. Align the mounting bracket installation holes with the screw holes in the chassis.

¡ To install the mounting brackets at the port-side mounting position, see Figure2-3.

¡ To install the mounting brackets at the power supply-side mounting position, see Figure2-3.

2. Fasten the M4 screws (provided) to secure the mounting bracket to the switch.

3. Attach the mounting bracket to the other side of the chassis in the same way.

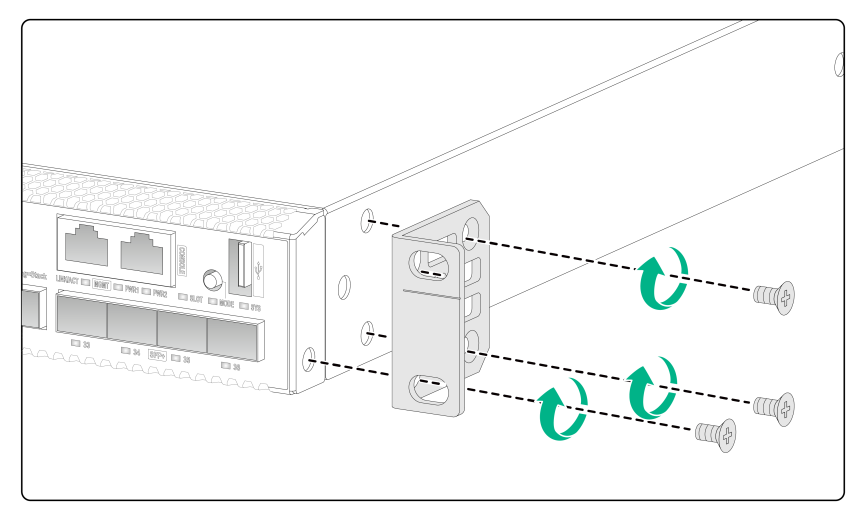

Figure2-3 Attaching the mounting brackets to the port-side mounting position

Figure2-4 Attaching the mounting brackets to the power supply-side mounting position

Mounting the switch in the rack

This task requires two people.

To mount the switch in the rack:

1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.

2. Verify that the mounting brackets have been securely attached to the switch chassis. See "Attaching the mounting brackets to the switch."

3. Attach cage nuts to the front rack posts.

4. One person supports the bottom of the switch, and moves the switch to an appropriate position based on the installation positions of the mounting brackets.

5. Another person uses user supplied M6 screws and cage nuts (user supplied, with anti-rust coating) to attach the mounting brackets to the rack and verifies that the brackets are level and secure.

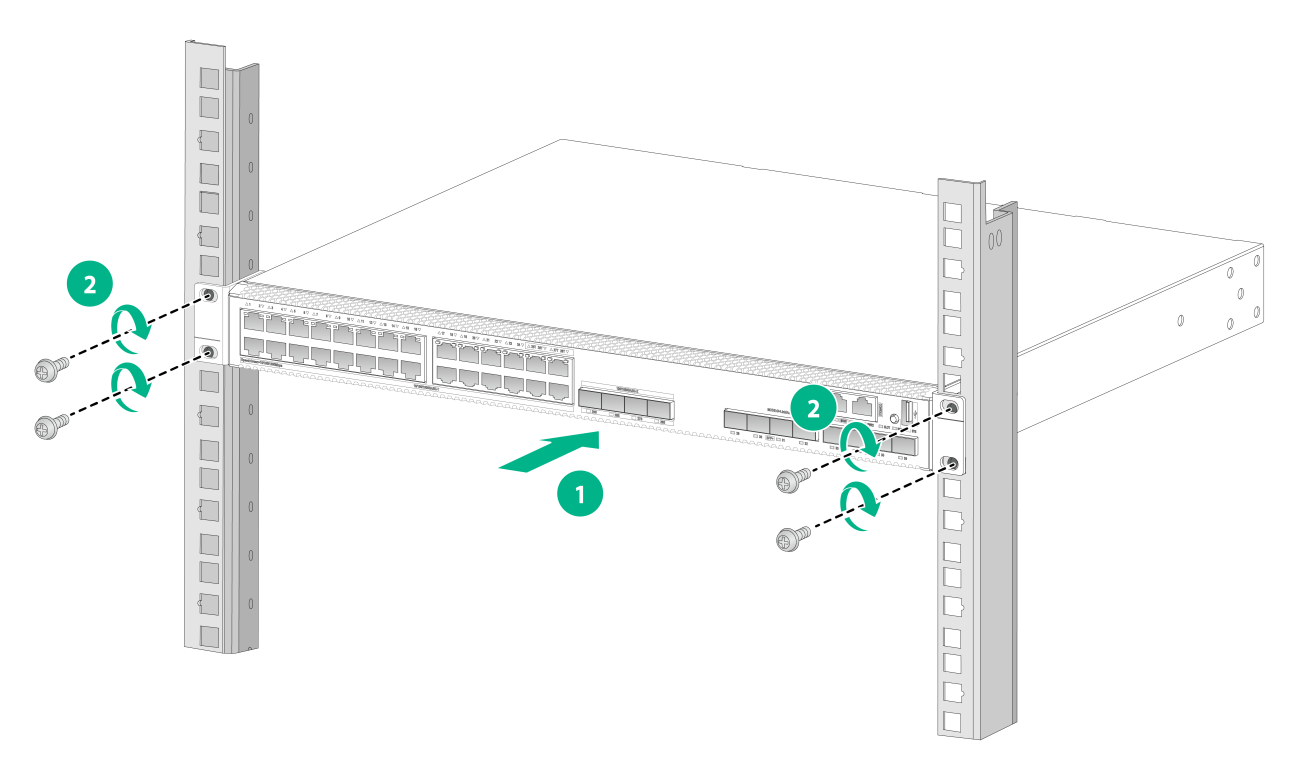

Figure2-5 Mounting the switch in the rack

Mounting the switch on a workbench

IMPORTANT:

· Reserve a minimum clearance of 10 cm (3.9 in) around the chassis for heat dissipation.

· Do not place heavy objects on the switch.

To mount the switch on a workbench:

1. Verify that the workbench is sturdy and reliably grounded.

2. Place the switch with bottom up, and clean the round holes in the chassis bottom with dry cloth.

3. Attach the rubber feet to the four round holes in the chassis bottom.

4. Place the switch with upside up on the workbench.

Grounding the switch

WARNING!

· Correctly connecting the grounding cable is crucial to lightning protection and ESD and EMI protection. You must connect the grounding cable correctly and reliably for the switch.

· For information about lightning protection for the switch, see H3C Network Devices Lightning Protection Guide.

The power input end of the switch has a noise filter, whose central ground is directly connected to the chassis to form the chassis ground (commonly known as PGND). You must securely connect this chassis ground to the earth to minimize the potential for system damage, maximize the safety at the site, and minimize EMI susceptibility of the system.

Select a grounding method based on the installation environment.

NOTE:

The power and grounding terminals in this section are for illustration only.

Grounding the switch by using a grounding strip

CAUTION:

· Connect the grounding cable to the grounding strip in the equipment room. Do not connect it to a fire main or lightning rod.

· To guarantee the grounding effect and avoid switch damage, use the grounding cable provided with the switch to connect the switch to a grounding strip in the equipment room.

If a grounding strip is available at the installation site, use the grounding cable provided with the switch to connect the switch to the grounding strip.

Connecting the grounding cable to the chassis

1. Remove the grounding screw in the rear panel of the chassis.

2. Use the grounding screw to attach the ring terminal of the grounding cable to the grounding screw hole. Fasten the screw. As a best practice, use a torque of 12 kgf-cm (1.18 Nm) to fasten the grounding screw.

IMPORTANT:

Orient the grounding cable as shown in Figure2-5 so that you can easily install or remove the expansion cards.

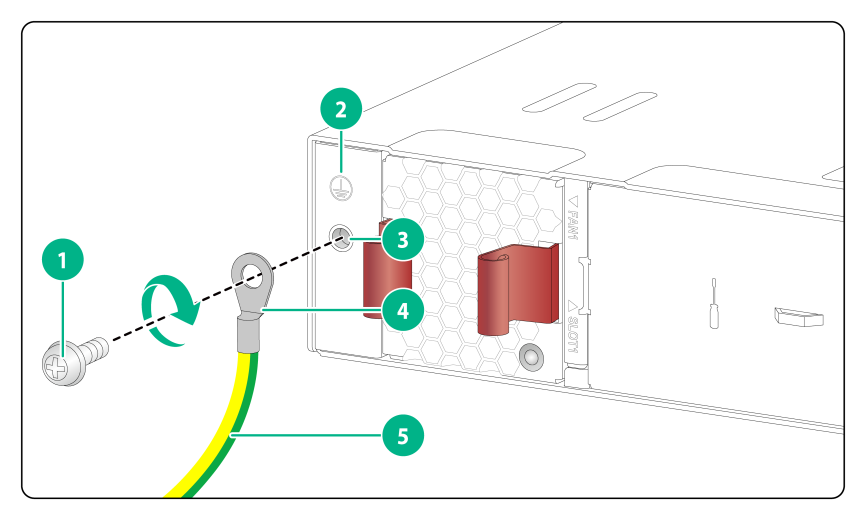

Figure2-6 Connecting the grounding cable to the chassis (non PoE model)

(1) Grounding screw	(2) Grounding sign
(3) Grounding hole	(4) Ring terminal
(5) Grounding cable

Connecting the grounding cable to a grounding strip (non PoE model)

1. Use needle-nose pliers to bend the bare metal part to the shape as shown in Figure2-3. Make sure the bended part can securely attached to the grounding post on the grounding strip.

2. Attach the bended part of the grounding cable to the grounding post and use the hex nut to fasten the bended part to the post.

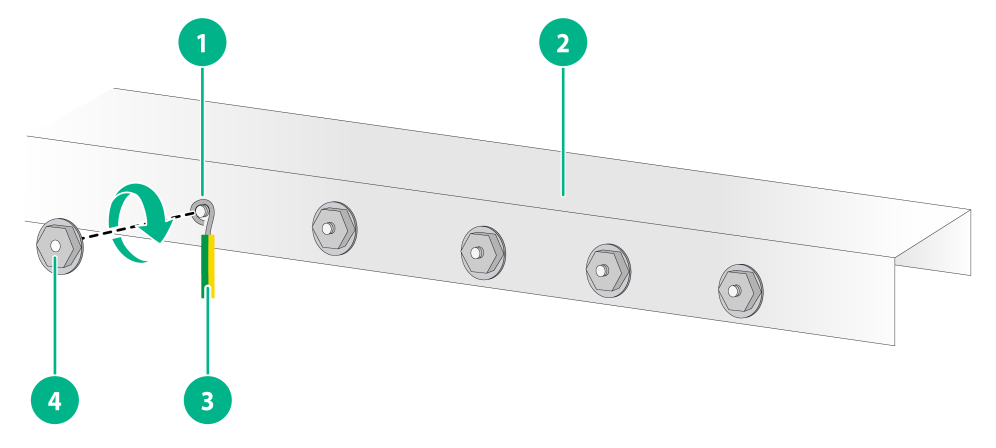

Figure2-7 Connecting the grounding cable to a grounding strip

(1) Grounding post	(2) Grounding strip
(3) Grounding cable	(4) Hex nut

Connecting the grounding cable to a grounding strip (PoE model)

1. Remove the hex nut of a grounding post on the grounding strip.

2. Cut the grounding cable to a length required for connecting to the grounding strip.

3. Attach a ring terminal to the grounding cable:

a. Use a wire stripper to strip 5 mm (0.20 in) of insulation off the end of the grounding cable.

b. Slide the heat-shrink tubing onto the cable and insert the bare metal part into the end of the ring terminal.

c. Use a crimper to secure the metal part of the cable to the ring terminal.

d. Slide the heat-shrink tubing down the cable until the tube covers the joint.

e. Use a heat gun to shrink the tubing around the cable.

4. Connect the ring terminal of the grounding cable to the grounding post of the grounding strip, and fasten it with the removed hex nut.

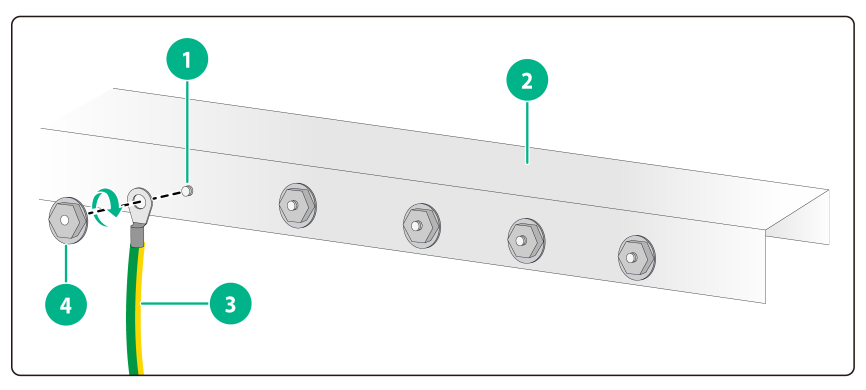

Figure2-8 Connecting the grounding cable to a grounding strip

(1) Grounding post	(2) Grounding strip
(3) Grounding cable	(4) Hex nut

Grounding the switch by using a grounding conductor buried in the earth ground

If the installation site does not have grounding strips, but earth ground is available, hammer a 0.5 m (1.64 ft) or longer angle iron or steel tube into the earth ground to act as a grounding conductor.

The dimensions of the angle iron must be a minimum of 50 × 50 × 5 mm (1.97 × 1.97 × 0.20 in). The steel tube must be zinc-coated and its wall thickness must be at least 3.5 mm (0.14 in).

Weld the yellow-green grounding cable to the angel iron or steel tube and treat the joint for corrosion protection.

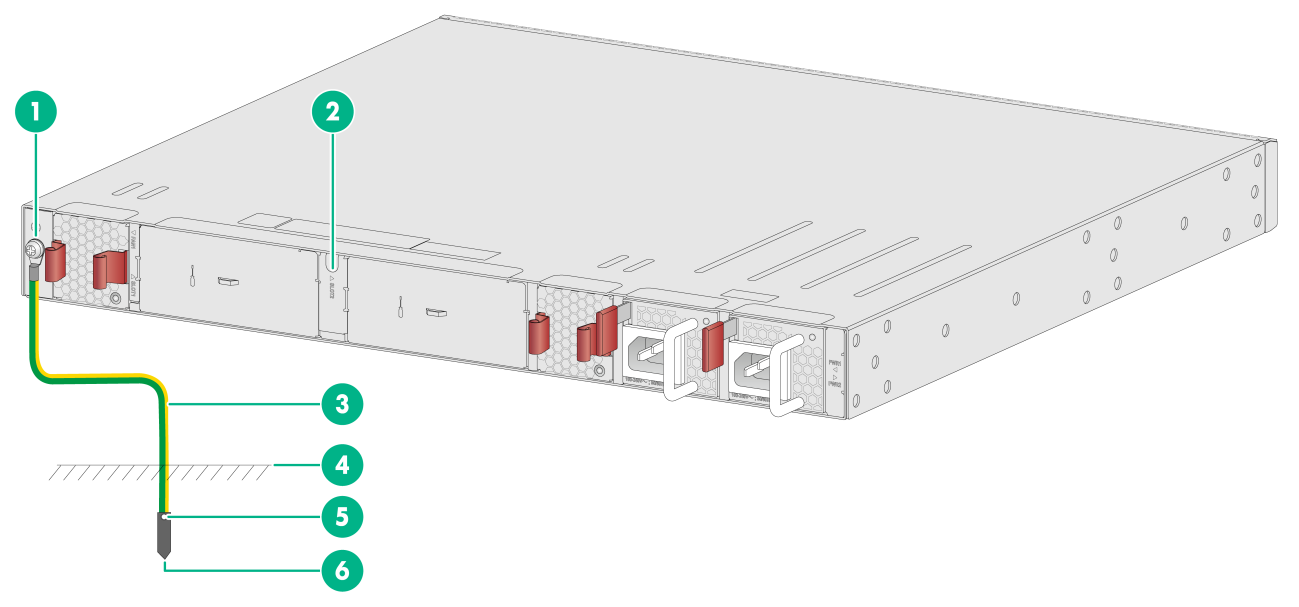

Figure2-9 Grounding the switch by burying the grounding conductor into the earth ground

(1) Grounding screw	(2) Chassis rear panel	(3) Grounding cable
(4) Earth	(5) Welding point	(6) Grounding conductor

Verifying the connection after grounding the switch

· If you ground the switch by using a grounding strip, perform the following tasks:

a. Use a multimeter to measure the resistance between the switch grounding terminal and grounding point, and make sure the resistance is less than 0.1W.

b. Use a grounding resistance tester to measure the grounding resistance of the grounding strip, and make sure the grounding resistance is less than 1W.

· If you ground the switch by using a grounding conductor buried in the earth ground, perform the following tasks:

a. Use a multimeter to measure the resistance between the switch grounding terminal and grounding point, and make sure the resistance is less than 0.1W.

b. Use a grounding resistance tester to measure the grounding resistance of the angle iron in the ground, and make sure the grounding resistance is less than 10W. For locations with high soil resistivity, sprinkle some resistance reducer to reduce soil resistivity or replace soil around the grounding strip with soil with lower resistance.

For information about resistance measurement, see H3C Network Devices Lightning Protection Guide.

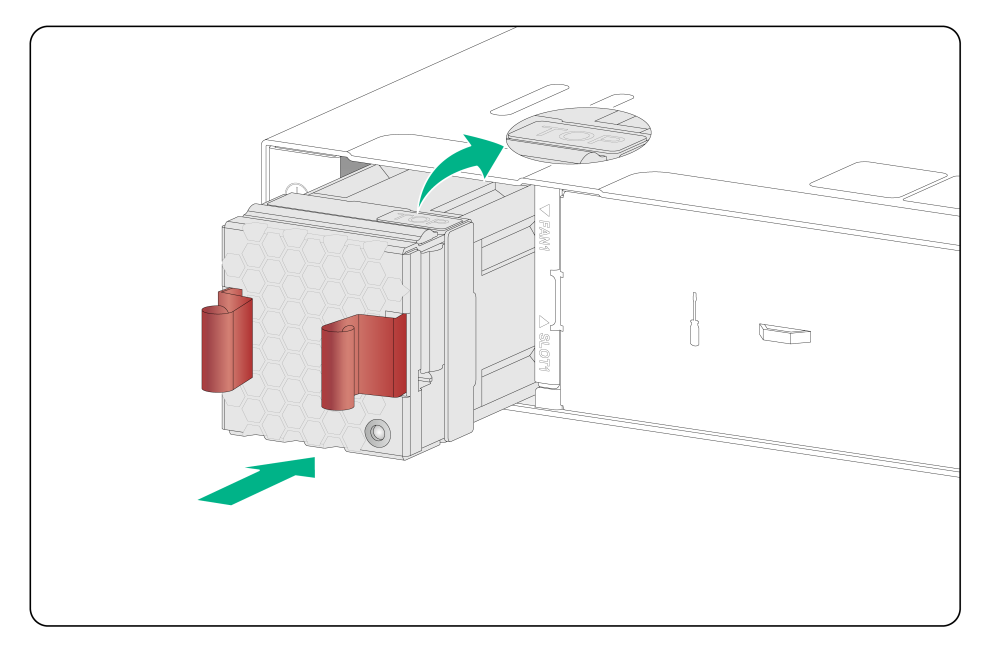

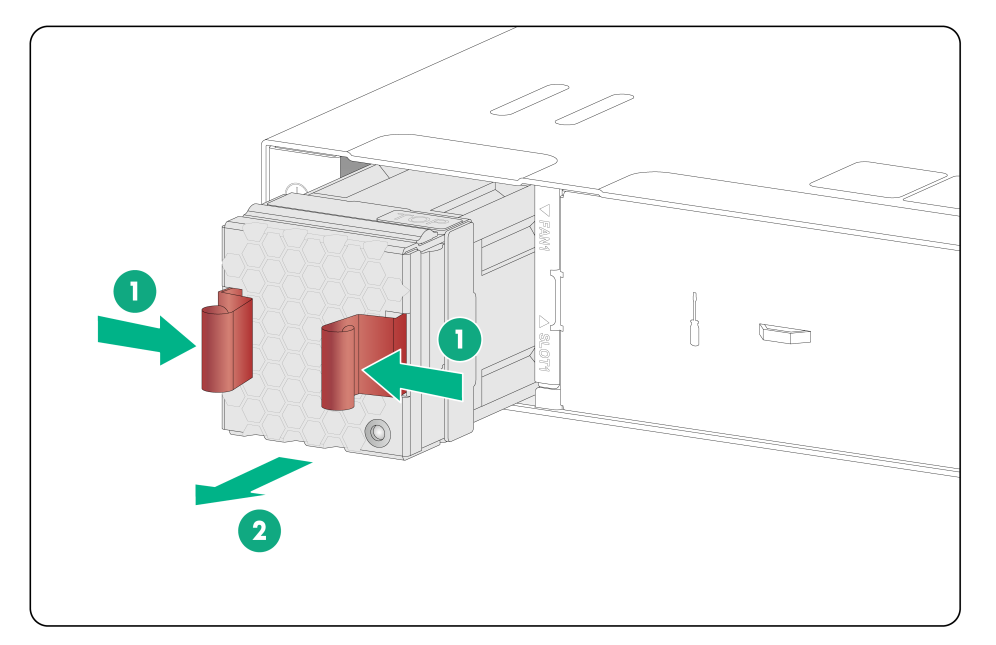

Installing/removing a fan tray

CAUTION:

· Install two fan trays of the same model on the switch. Do not power on the switch when it does not have fan trays or has only one fan tray installed.

· Do not leave any fan tray slots empty when the switch is operating.

· If both fan trays fail while the switch is operating, replace them within 2 minutes while the switch is operating.

· If one fan tray fails while the switch is operating, perform either of the following tasks:

¡ If the ambient temperature is not higher than 27°C (80.6°F), replace the fan tray within 24 hours and make sure the failed fan tray is in position before the replacement.

¡ If the ambient temperature is higher than 27°C (80.6°F), replace the fan tray immediately.

· If you power cycle the switch after a fan tray fails, the switch will fail to start up.

The S5590-28P8XC-EI (LS-5590-28P8XC-EI-GL), S5590-48P6XC-EI (LS-5590-48P6XC-EI-GL), S5590-28S8XC-EI (LS-5590-28S8XC-EI-GL), and S5590-48S4XC-EI (LS-5590-48S4XC-EI-GL) switches support shipping with fan trays installed. For the switch to be shipped with fan trays installed, contact the marketing staff.

S5590-HI & S5590-EI & S5500V3-HI provides fan tray slots and support hot swapping of fan trays.

The switch came with empty fan tray slots. Choose fan tray models for the switch based on the ventilation requirement of the site. The air flow direction varies by fan tray model.

· The LSPM1FANSA-SN fan tray intakes air from the fan tray panel. The fan tray handle is blue.

· The LSPM1FANSB-SN fan tray exhausts air from the fan tray panel. The fan tray handle is red.

For more information about the fan trays, see technical specifications in the hardware information and specifications for the switch.

Installing a fan tray

CAUTION:

To prevent damage to the fan tray or the connectors in the chassis, insert the fan tray gently. If you encounter a hard resistance while inserting the fan tray, pull out the fan tray and insert it again.

To install a fan tray:

1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.

2. Unpack the fan tray and verify that the fan tray model is correct.

3. Grasp the two handles of the fan tray with the side marked TOP facing up, and slide the fan tray along the guide rails into the slot until the fan tray seats in the slot and has a firm contact with the backplane.

Figure2-10 Installing a fan tray

Removing a fan tray

WARNING!

· To avoid bodily injury, disturbing the dynamic balance of the fan tray, or causing loud noises, do not touch the rotation axis, or any bare wires, fan blades, or terminals on the fan tray.

· Do not place the fan tray in a moist place. Prevent liquid from entering the fan tray.

· Fan trays with faulty internal wiring and conductors require maintenance from maintenance engineers. Do not disassemble the faulty fan trays.

To remove a fan tray:

1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.

2. Grasp the two handles of the fan tray, as shown by callout 1 in Figure2-6, and pull out the fan tray slowly along the guide rails.

3. Put the removed fan tray in an antistatic bag.

Figure2-11 Removing a fan tray

Installing and removing a power supply

The S5590-28P8XC-EI (LS-5590-28P8XC-EI-GL), S5590-48P6XC-EI (LS-5590-48P6XC-EI-GL), S5590-28S8XC-EI (LS-5590-28S8XC-EI-GL), and S5590-48S4XC-EI (LS-5590-48S4XC-EI-GL) switches support shipping with power supplies installed. For the switch to be shipped with power supplies installed, contact the marketing staff.

The S5590-HI & S5590-EI & S5500V3-HI series switches are shipped with power supply slot PWR1 empty and power supply slot PWR2 installed with a filler panel. You can install one or two power supplies for the switch as required. For the power supplies available for the switch and their specifications, see technical specifications in the hardware information and specifications for the switch.

WARNING!

· To avoid bodily injury or switch damage, strictly follow the procedures in Figure2-7 and Figure2-8 to install and remove a power supply.

· You must provide a circuit breaker for each power supply.

Figure2-12 Installation procedure

Figure2-13 Removal procedure

CAUTION:

· To prevent damage to the power supply and the connectors on the backplane, insert the power supply gently. If you encounter a hard resistance when inserting the power supply, pull out the power supply and insert it again. Make sure the power supply has a good contact with the connectors.

· When the switch has two power supplies working in 1+1 redundancy, removing one power supply does not affect system operation. If the switch has only one power supply, removing the power supply causes power down of the switch.

· If you are not to install a new power supply after removing the old one, install a filler panel in the slot in time.

Installing a PSR250-12A, PSR250-12A1, PSR920-54A-B, PSR600-54A-B, or PSR1600-54A-B power supply

The installation procedure is the same for the PSR250-12A, PSR250-12A1, PSR920-54A-B, PSR600-54A-B, and PSR1600-54A-B power supplies. The following procedure installs a PSR250-12A1 power supply.

To install a PSR250-12A1 power supply:

1. Wear an ESD wrist strap. Make sure the strap makes good skin contact and is reliably grounded.

2. Remove the filler panel, if any, from the target power supply slot.

Put your forefinger into the hole in the filler panel and then pull the filler panel out of the slot gently.

Keep the removed filler panel secure for future use.

Figure2-14 Removing the filler panel from the target power supply slot

3. Unpack the power supply. Make sure the power supply model is as required.

Keep the packaging box and packaging bag for the power supply secure for future use.

4. Correctly orient the power supply. Make sure the lettering on the power supply is upward.

5. Align the power supply with the power supply slot. Grasping the handle of the power supply with one hand and supporting its bottom with the other, slide the power supply slowly into the slot along the guide rails until the latch of the power supply clicks into the slot.

To prevent damage to the power supply or the connectors on the backplane, insert the power supply gently. If you encounter a hard resistance when inserting the power supply, pull out the power supply and insert it again.

Figure2-15 Installing a power supply

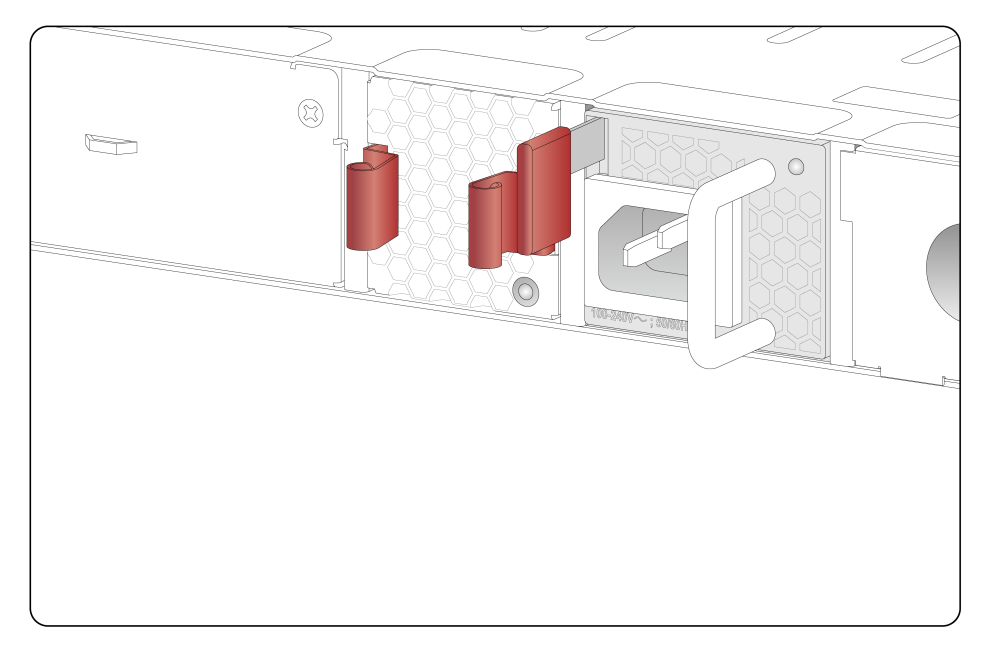

Figure2-16 Installation completed

Removing a PSR250-12A, PSR250-12A1, PSR920-54A-B, PSR600-54A-B, or PSR1600-54A-B power supply

1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.

2. Disconnect the power cord.

3. Press the latch towards the handle, and pull the power supply along the guide rails until it is part-way out.

4. Grasp the handle of the power supply with one hand, support the bottom with the other hand, and pull the power supply slowly along the guide rails out of the slot.

Keep the removed power supply in an antistatic bag or the power supply package bag for future use.

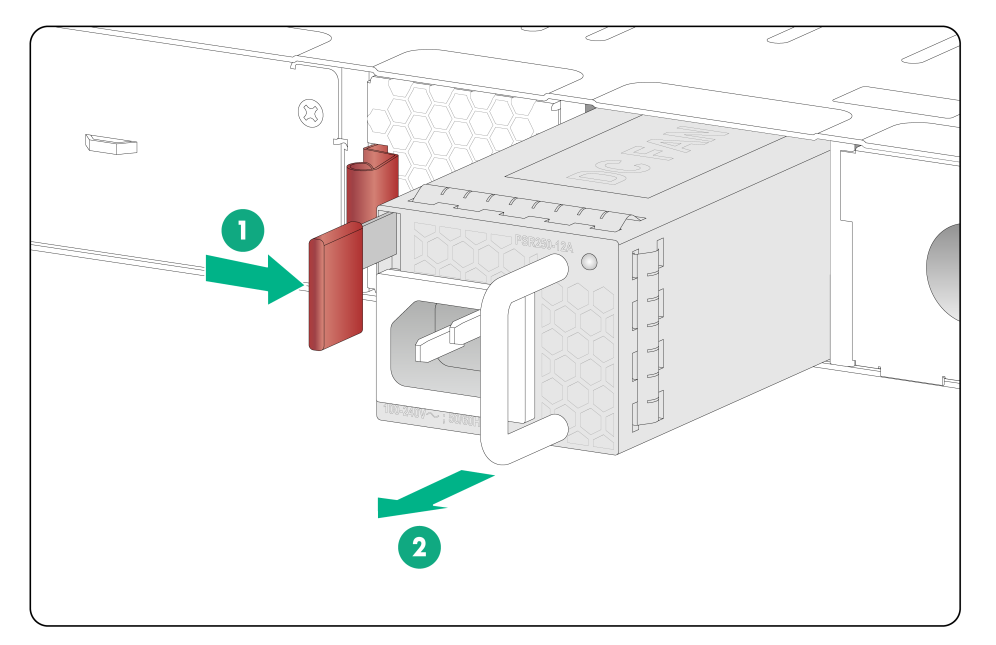

Figure2-17 Removing the power supply

Installing a PSR180-12A-B, PSR180-12A-F, or PSR180-12D-B power supply

The installation procedure is the same for the PSR180-12A-B, PSR180-12A-F, and PSR180-12D-B power supplies. The following procedure installs a PSR180-12A-B power supply.

To install a PSR180-12A-B power supply:

1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.

2. Remove the filler panel from the target power supply slot as follows:

a. Remove the screws from the filler panel.

b. Use a flathead screwdriver to remove the filler panel.

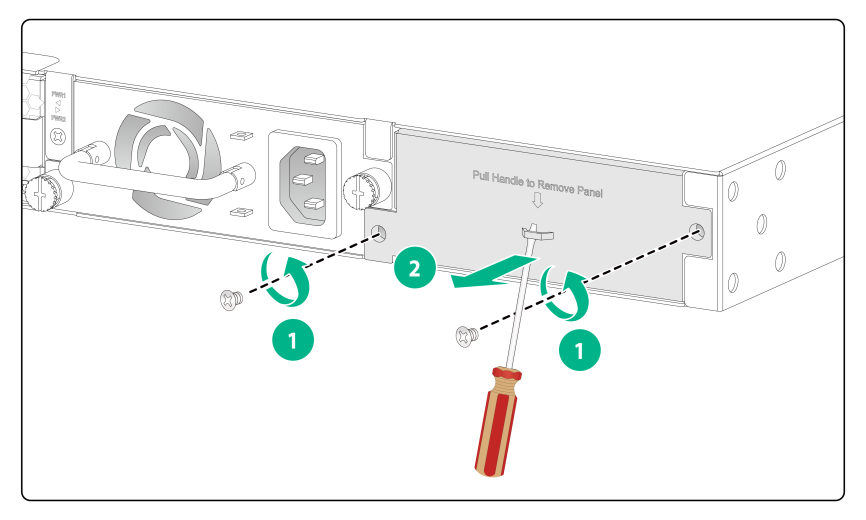

Figure2-18 Removing the filler panel

3. Unpack the power supply and verify that the power supply model is correct.

4. Correctly orient the power supply with the power supply slot (use the letters on the power supply faceplate for orientation), grasp the handle of the power supply with one hand and support its bottom with the other, and slide the power supply slowly along the guide rails into the slot (see callout 1 in Figure2-14).

5. Fasten the captive screws on the power supply with a Phillips screwdriver to secure the power supply in the chassis (see callout 2 in Figure2-14). If the captive screw cannot be tightly fastened, verify the installation of the power supply.

As a best practice, use a torque of 5 kgf-cm (0.49 Nm) to fasten the captive screws.

6. Install the filler panel over the empty power supply slot to prevent dust and ensure good ventilation if you install only one power supply.

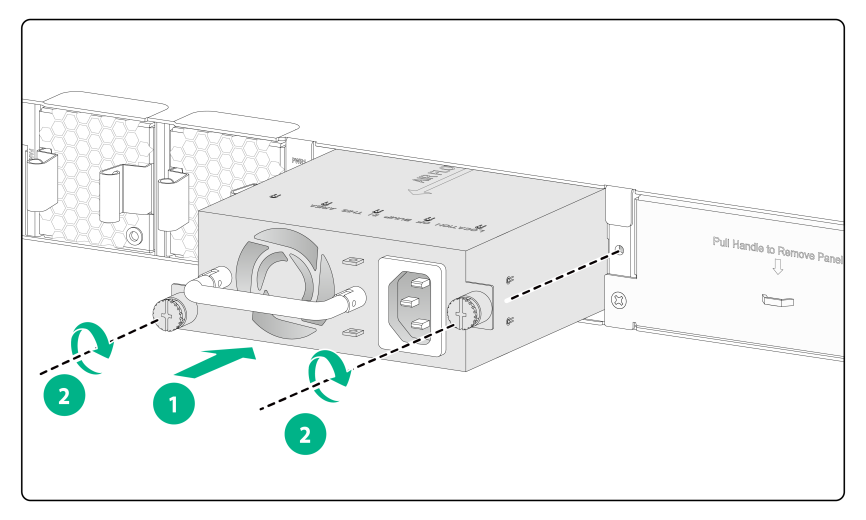

Figure2-19 Installing a power supply

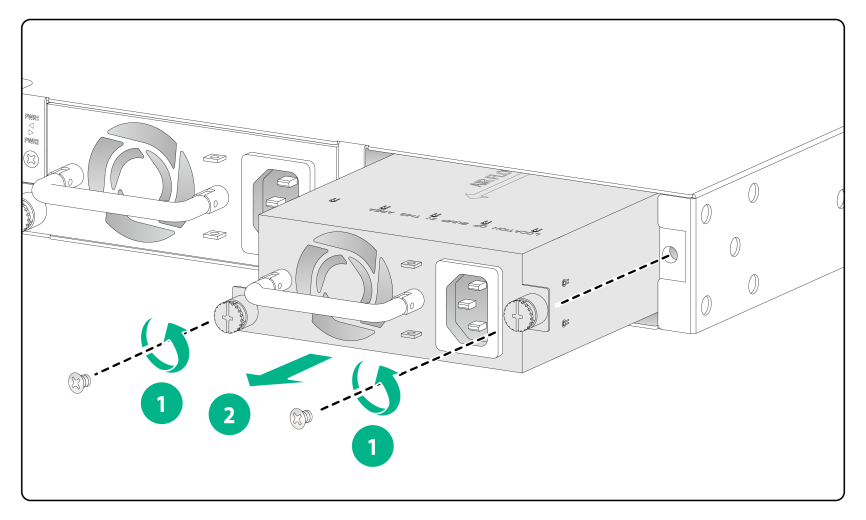

Removing a PSR180-12A-B, PSR180-12A-F, or PSR180-12D-B power supply

1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.

2. Disconnect the power cord.

3. Loosen the captive screws on the power supply with a Phillips screwdriver until they are completely disengaged.

4. Grasp the handle of the power supply with one hand and pull it out a little, support the bottom with the other hand, and pull the power supply slowly along the guide rails out of the slot.

Put away the removed power supply in an antistatic bag or the power supply package bag for future use.

Figure2-20 Removing a power supply

Connecting the power cord

CAUTION:

Provide a circuit breaker for each power supply and make sure the circuit breaker is off before installation.

Table2-2 Power cord connection procedures at a glance

Power supply model	Available power source	Connection procedure reference
PSR250-12A/PSR250-12A1/PSR920-54A-B/PSR600-54A-B/PSR1600-54A-B	AC power source	Connecting the power cord for a PSR250-12A, PSR250-12A1, PSR920-54A-B, PSR600-54A-B, or PSR1600-54A-B supply
	240 V HVDC power source
PSR180-12A-B/PSR180-12A-F	AC power source	Connecting the power cord for a PSR180-12A-B or PSR180-12A-F power supply
PSR180-12D-B	–48 VDC power source in the equipment room	Connecting the power cord for a PSR180-12D-B power supply
PSR180-12D-B	RPS800-A or RPS1600-A	Connecting the power cord for a PSR180-12D-B power supply

Connecting the power cord for a PSR250-12A, PSR250-12A1, PSR920-54A-B, PSR600-54A-B, or PSR1600-54A-B supply

The power cord connection procedure is the same for the PSR250-12A, PSR250-12A1, PSR920-54A-B, PSR600-54A-B, and PSR1600-54A-B. The following uses a PSR250-12A1 as an example.

To connect the power cord:

1. Wear an ESD wrist strap. Make sure the strap makes good skin contact and is reliably grounded.

2. Plug the female connector of the power cord into the power receptacle on the power supply, as shown by callout 1 in Figure2-16.

3. Use a releasable cable tie to secure the power cord to the handle of the power supply, as shown by callouts 2 and 3 in Figure2-16.

4. Connect the other end of the power cord to an AC power source.

Figure2-21 Connecting the power cord for a PSR250-12A1 power supply

Connecting the power cord for a PSR180-12A-B or PSR180-12A-F power supply

The power cord connection procedure is similar for the PSR180-12A-B and PSR180-12A-F power supplies. The following procedure connects the power cord for a PSR180-12A-B power supply.

To connect the power cord for a PSR180-12A-B power supply:

1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.

2. Attach the power cord retainer clip (supplied with the power supply) into the two holes next to the AC-input power receptacle on the power supply, and pull the retainer clip leftwards (see Figure2-17).

3. Connect the female connector of the AC power cord supplied with the power supply to the power receptacle (see callout 1 in Figure2-18).

4. Pull the retainer clip rightwards to secure the connector to the AC-input power receptacle (see callout 2 in Figure2-18).

5. Connect the other end of the power cord to an AC power source.

Figure2-22 Connecting a power cord (1)

Figure2-23 Connecting a power cord (2)

Connecting the power cord for a PSR180-12D-B power supply

CAUTION:

· To use a –48 VDC power source to supply power to the power supply, use the DC power cord supplied with the power supply.

· To use an H3C RPS to supply power to the power supply, use a compatible RPS power cord to connect the RPS to the power supply.

· To connect a DC power cord to a –48 VDC power source, identify the positive (+) and negative (-) marks on the two wires of the power cord to avoid connection mistakes.

To connect the power cord for a PSR180-12D-B power supply:

1. Correctly orient the plug at one end of the cable with the power receptacle on the power supply, and then insert the plug into the power receptacle (see callout 1 in Figure2-19).

If you orient the plug upside down, you cannot insert it into the power receptacle.

2. Fasten the screws on the plug with a flat-head screwdriver to secure the plug in the power receptacle (see callout 2 in Figure2-19).

3. Connect the other end of the power cord to a –48 VDC power source or an RPS.

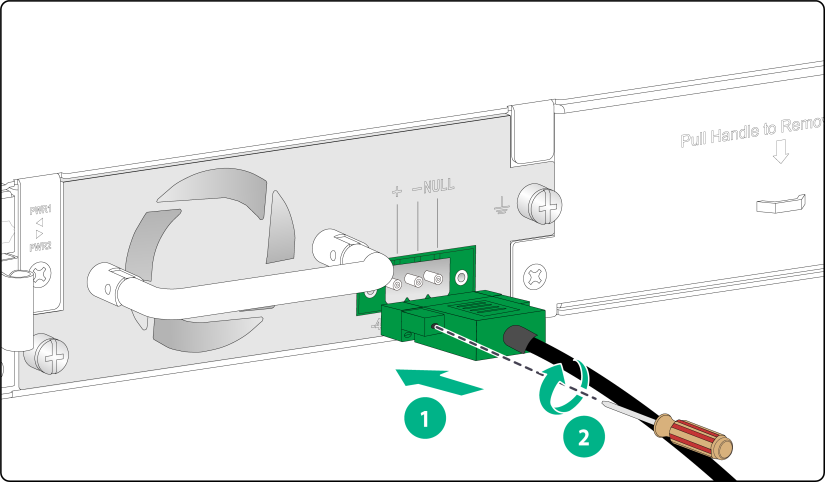

Figure2-24 Connecting the power cord for a PSR180-12D-B power supply

Installing/removing an expansion card

CAUTION:

· Do not touch the surface-mounted components directly with your hands.

· Do not use excessive force when you install or remove an expansion card.

· You can install or remove an expansion card when the switch is operating correctly. Do not install or remove an expansion card on a starting switch.

S5590-HI switches each provide two expansion slots at the rear. S5590-EI and S5500V3-HI switches each provide one expansion slot at the rear. For the expansion cards available for the switch, see technical specifications in the hardware information and specifications for the switch.

The installation and removal procedure is similar for expansion cards. The following procedure uses the LSWM2QP2P card (with an ejector lever) and the LSPM6FWD card (without an ejector lever) as examples.

Installing an expansion card

1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.

2. Use a Phillips screwdriver to remove the mounting screw on the filler panel over the expansion slot. Then remove the filler panel.

Keep the filler panel for future use.

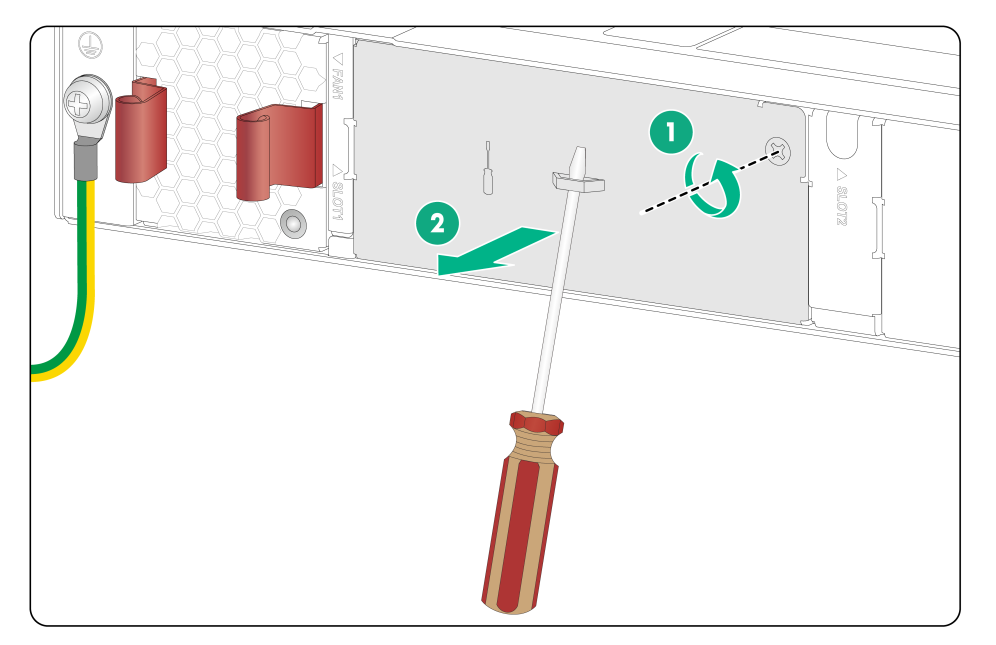

Figure2-25 Removing the filler panel over the expansion slot

3. Unpack the expansion card.

4. If the expansion card has an ejector lever, follow these steps to install it:

a. Rotate out the ejector lever, as shown by callout 1 in Figure2-21.

b. Gently push the expansion card into the slot along the guide rails until the expansion card has good contact with the chassis. See callout 2 in Figure2-21.

c. Rotate in the ejector lever, as shown by callout 3 in Figure2-21.

d. Use a Phillips screwdriver to tighten the captive screws on the expansion card to secure it in the slot. See callout 4 in Figure2-21.

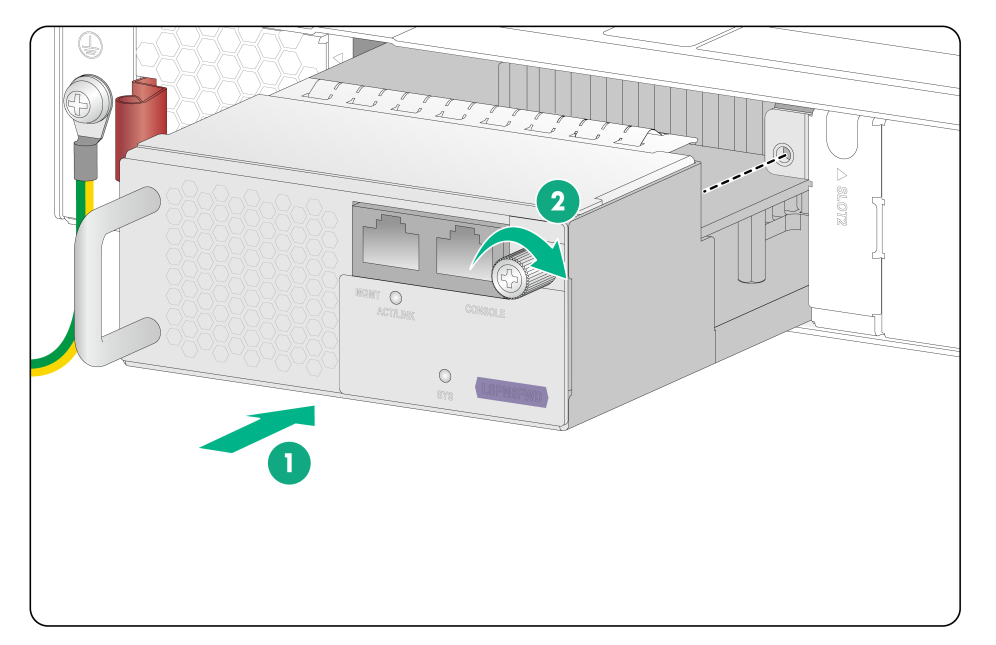

5. If the expansion card does not have an ejector lever, follow these steps to install it:

a. Gently push the expansion card into the slot along the guide rails until the expansion card has good contact with the chassis. See callout 1 Figure2-22.

b. Use a Phillips screwdriver to tighten the captive screws on the expansion card to secure it in the slot. See callout 2 Figure2-22.

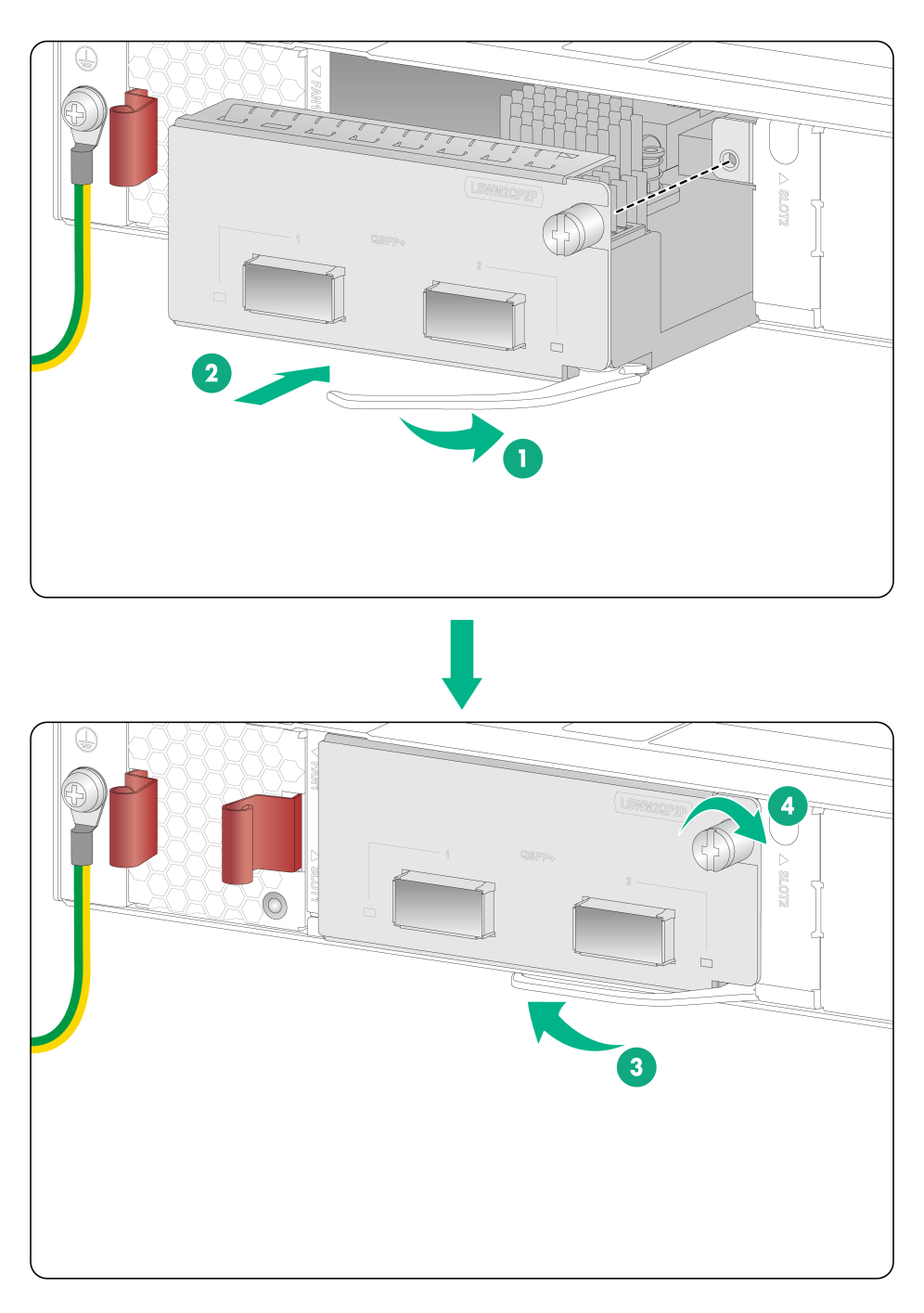

Figure2-26 Installing an expansion card with an ejector lever (LSWM2QP2P)

Figure2-27 Installing an expansion card without an ejector lever (LSPM6FWD)

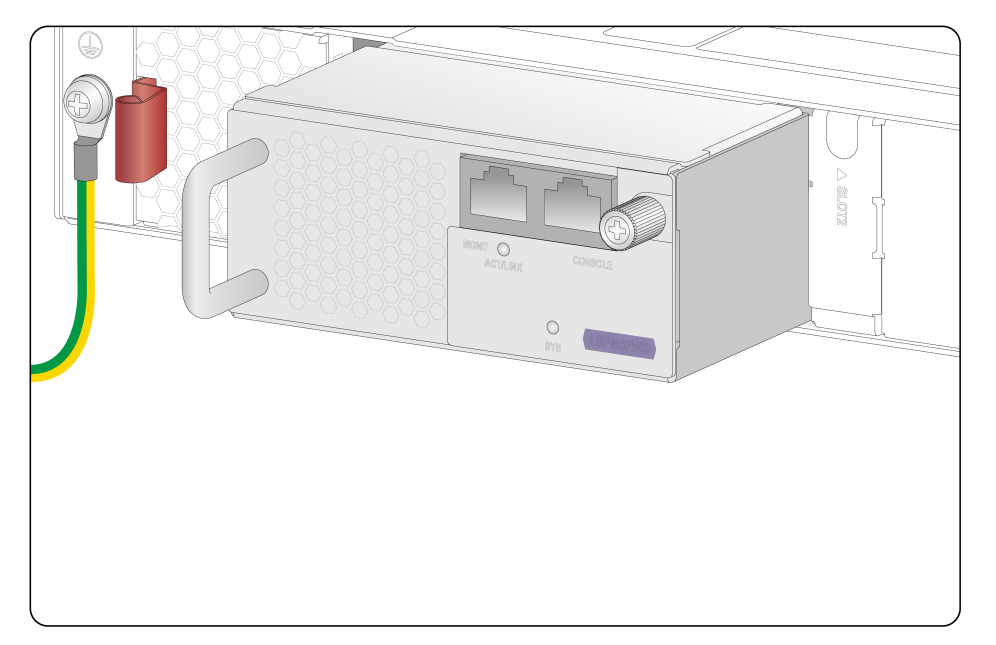

Figure2-28 LSPM6FWD firewall card installed in the switch

NOTE:

An LSPM6FWD firewall card (including its handle) adds 75 mm (2.95 in) to the chassis depth when installed on the device. An LSWM2EC card (including its handle) adds 76 mm (2.99 in) to the chassis depth when installed on the device.

Removing an expansion card

1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.

2. Use a Phillips screwdriver to remove the captive screw on the expansion card.

3. (Optional.) If the expansion card has an ejector lever, rotate out the ejector lever.

Skip this step if the expansion card does not have an ejector lever.

4. Gently pull the expansion card out of the chassis along the guide rails.

5. If you are not to install a new expansion card after removing the original one, install a filler panel in the slot to prevent dust and ensure good ventilation in the switch.

Verifying the installation

Before powering on the switch, verify the following items:

· There is enough space around the switch for heat dissipation.

· The rack or workbench on which the switch is mounted is stable.

· The grounding cable is securely connected.

· The power source specifications are as required by the device.

· The power input cables are correctly connected.

· If part of the network cable for a port is routed outdoors, verify that a network port lightning protector is used for the port.

· If a power line is routed from outdoors, verify that a surge protected power strip is used for the switch.

NOTE:

For information about lightning protection for the switch, see H3C Lightning Protection Guide.

3 Accessing the switch for the first time

Connecting the switch to a configuration terminal

The switch provides a serial console for connecting to a configuration terminal.

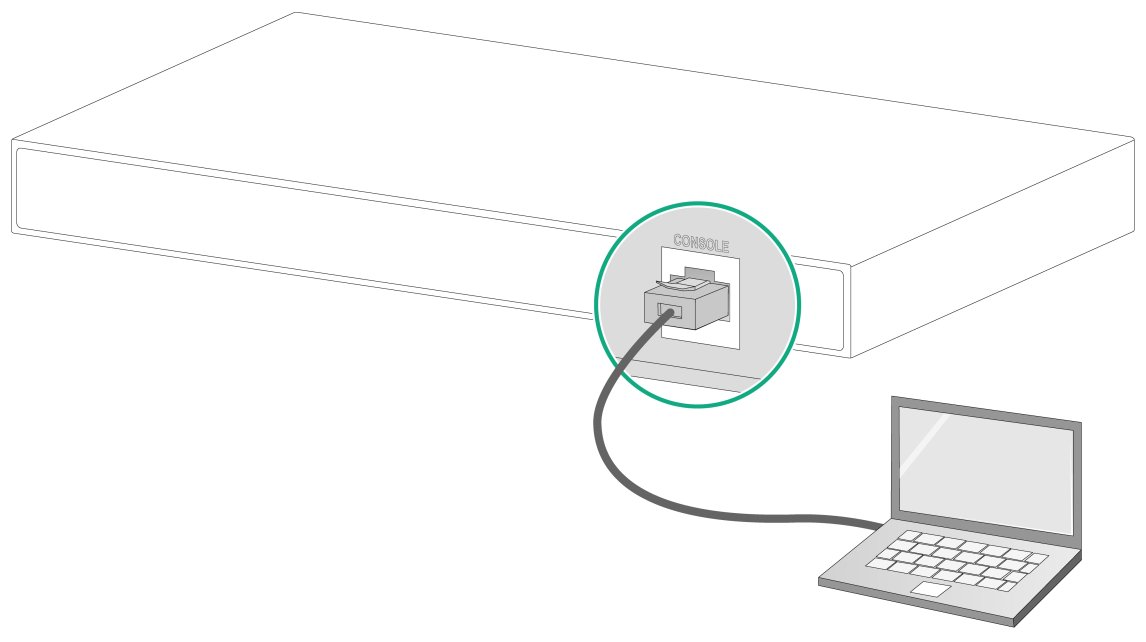

In Figure3-1, the switch is connected to a configuration terminal (PC as an example) from the serial console port.

Figure3-1 Connecting the switch to a configuration terminal

As shown in Table3-1, two types of console cables can be used for connecting the switch to a configuration terminal.

Table3-1 Connection methods and console cables

Connection method	Console cable type	Configuration terminal-side connector	Switch-side connector
Using the serial console port for connection	DB9-to-RJ45 console cable	DB-9 female connector	RJ-45 connector
Using the serial console port for connection	USB-to-RJ45 console cable	USB connector	RJ-45 connector

The signal pinout for a DB9-to-RJ45 console cable depends on the vendor of the cable. To avoid abnormal configuration terminal display, use a serial console cable provided by H3C. For more information, see Table1-8. To prepare a serial console cable yourself, make sure the signal pinout for the RJ-45 connector is the same as that shown in Table3-2.

Connecting a DB9-to-RJ45 console cable

CAUTION:

Follow these guidelines when you connect a DB9-to-RJ45 console cable:

· Identify the mark on the serial console port and make sure you are connecting to the correct port.

· The serial ports on PCs do not support hot swapping. To connect a PC to an operating switch, first connect the PC end. To disconnect a PC from an operating switch, first disconnect the switch end.

A DB9-to-RJ45 console cable is an 8-core shielded cable, with a crimped RJ-45 connector at one end for connecting to the serial console port of the switch, and a DB-9 female connector at the other end for connecting to the serial port on the console terminal.

Figure3-2 DB9-to-RJ45 console cable

Table3-2 DB9-to-RJ45 console cable signal pinout

RJ-45	Signal	DB-9	Signal
1	RTS	8	CTS
2	DTR	6	DSR
3	TXD	2	RXD
4	SG	5	SG
5	SG	5	SG
6	RXD	3	TXD
7	DSR	4	DTR
8	CTS	7	RTS

To connect the switch to a configuration terminal (for example, a PC) through a DB9-to-RJ45 console cable:

1. Plug the DB-9 female connector of the DB9-to-RJ45 console cable to the serial port on the PC.

2. Connect the RJ-45 connector to the serial console port on the switch.

Connecting a USB-to-RJ45 console cable

IMPORTANT:

· To use a USB-to-RJ45 console cable to connect the switch to a configuration terminal, first download and install the USB-to-RJ45 console driver on the configuration terminal and then connect the USB-to-RJ45 console cable to the configuration terminal.

· If you have connected a USB-to-RJ45 console cable to the configuration terminal before driver installation, you must remove and reconnect the USB-to-RJ45 console cable to the configuration terminal.

Figure3-3 USB-to-RJ45 console cable

The following installs the driver on the Windows system. To install the driver on other operating systems, see the installation guide in the driver compression package named by the corresponding operating system.

To connect the switch to the configuration terminal through a USB-to-RJ45 console cable:

1. Click the following link, or copy it to the address bar on your browser and download the USB-to-RJ45 console driver.

http://www.h3c.com/en/home/USB_to_RJ45_Console/

2. View the TXT file Read me in the Windows folder to check whether the Windows system of the configuration terminal supports the driver.

3. If the Windows system supports the driver, install PL23XX-M_LogoDriver_Setup_v200_20190815.exe.

4. Click Next on the welcome page of the driver installation wizard.

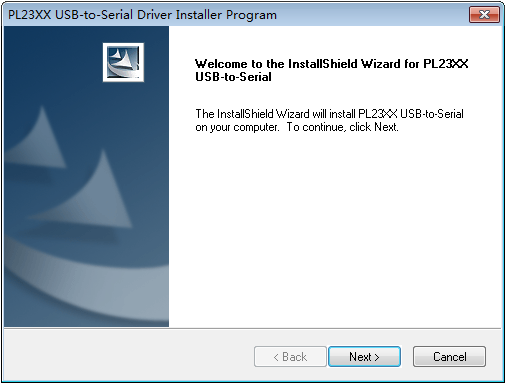

Figure3-4 Driver installation wizard

5. Click Finish after the drive installation is completed.

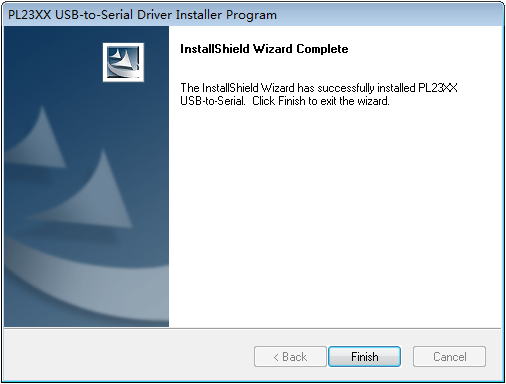

Figure3-5 Finishing the driver installation

6. Connect the standard USB connector of the cable to the USB port of the configuration terminal.

7. Connect the RJ-45 connector of the cable to the console port of the switch.

Setting terminal parameters

To configure and manage the switch through the console port, you must run a terminal emulator program, such as TeraTermPro, on your configuration terminal. You can use the emulator program to connect a network device, a Telnet site, or an SSH site. For more information about the terminal emulator programs, see the user guides for these programs.

Configure the terminal parameters as follows:

· Bits per second—9600.

· Data bits—8.

· Parity—None.

· Stop bits—1.

· Flow control—None.

Starting the switch

Pre-start checklist

Before powering on the switch, verify the following items:

· The power cord is correctly connected.

· The input power voltage is as required by the switch.

· The console cable is correctly connected.

· The PC has started, and the terminal parameters have been correctly configured.

Powering on the switch

During the startup process, you can access Boot ROM menus to perform tasks such as software upgrade and file management. The Boot ROM interface and menu options differ with software versions. For more information about Boot ROM menu options, see the software-matching release notes for the device.

After the startup process is completed, you can access the CLI to configure the switch.

For more information about the configuration commands, see the configuration guides and command references for the switch.

4 Setting up an IRF fabric

You can use H3C IRF technology to connect and virtualize S5590-HI, S5590-EI, or S5500V3-HI switches into a large virtual switch called an "IRF fabric" for flattened network topology, and high availability, scalability, and manageability.

A switch can set up an IRF fabric only with switches from the same switch series.

IRF fabric setup flowchart

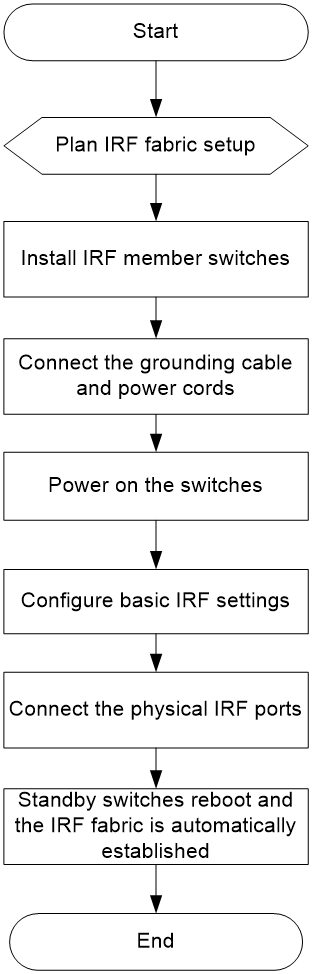

Figure4-1 IRF fabric setup flowchart

To set up an IRF fabric:

Step	Description
1. Plan IRF fabric setup	Plan the installation site and IRF fabric setup parameters: · Planning IRF fabric size and the installation site · Identifying the master switch and planning IRF member IDs · Planning IRF topology and connections · Identifying physical IRF ports on the member switches · Planning the cabling scheme
2. Install IRF member switches	See "Installing the switch in a 19-inch rack" or "Mounting the switch on a workbench."
3. Connect grounding cables and power cords	See "Grounding the switch" and "Connecting the power cord."
4. Power on the switches	N/A
5. Configure basic IRF settings	See Virtual Technologies Configuration Guide for the switch series.
6. Connect the physical IRF ports	Connect physical IRF ports on switches. All switches except the master switch automatically reboot, and the IRF fabric is established.

Planning IRF fabric setup

This section describes issues that an IRF fabric setup plan must cover.

Planning IRF fabric size and the installation site

Choose switch models and identify the number of required IRF member switches, depending on the user density and upstream bandwidth requirements. The switching capacity of an IRF fabric equals the total switching capacities of all member switches.

Plan the installation site depending on your network solution, as follows:

· Place all IRF member switches in one rack for centralized high-density access.

· Distribute the IRF member switches in different racks to implement the ToR access solution for a data center.

NOTE:

For the maximum IRF member devices supported by the switch, see the release notes that come with the switch.

Identifying the master switch and planning IRF member IDs

Determine which switch you want to use as the master for managing all member switches in the IRF fabric.

An IRF fabric has only one master switch. You configure and manage all member switches in the IRF fabric at the CLI of the master switch. IRF member switches automatically elect a master.

You can affect the election result by assigning a high member priority to the intended master switch. For more information about master election, see Virtual Technologies Configuration Guide for the switch.

Prepare an IRF member ID assignment scheme. An IRF fabric uses member IDs to uniquely identify and manage its members, and you must assign each IRF member switch a unique member ID.

Planning IRF topology and connections

You can create an IRF fabric in daisy chain topology or more reliable ring topology. In ring topology, the failure of one IRF link does not cause the IRF fabric to split as in daisy chain topology. Instead, the IRF fabric changes to a daisy chain topology without interrupting network services.

You connect the IRF member switches through IRF ports, the logical interfaces for the connections between IRF member switches. Each IRF member switch has two IRF ports: IRF-port 1 and IRF-port 2. To use an IRF port, you must bind a minimum of one physical port to it.

When connecting two neighboring IRF member switches, you must connect the physical ports of IRF-port 1 on one switch to the physical ports of IRF-port 2 on the other switch. See Table4-1 for the available IRF physical ports. You can bind several IRF physical ports to an IRF port for increased bandwidth and availability.

Figure4-2 and Figure4-3 show the topologies of an IRF fabric made up of three S5590-28T8XC-HI switches. The IRF port connections in the two figures are for illustration only, and more connection methods are available.

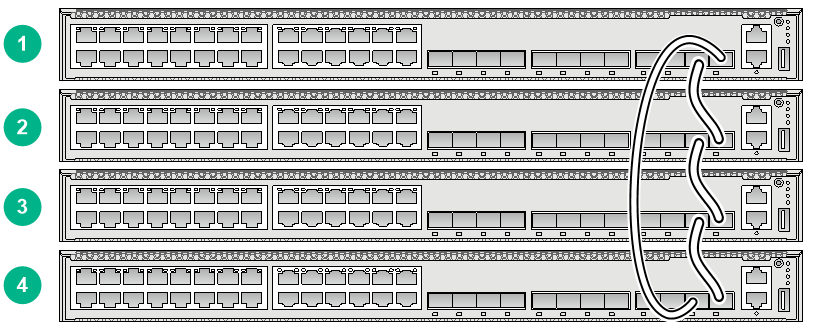

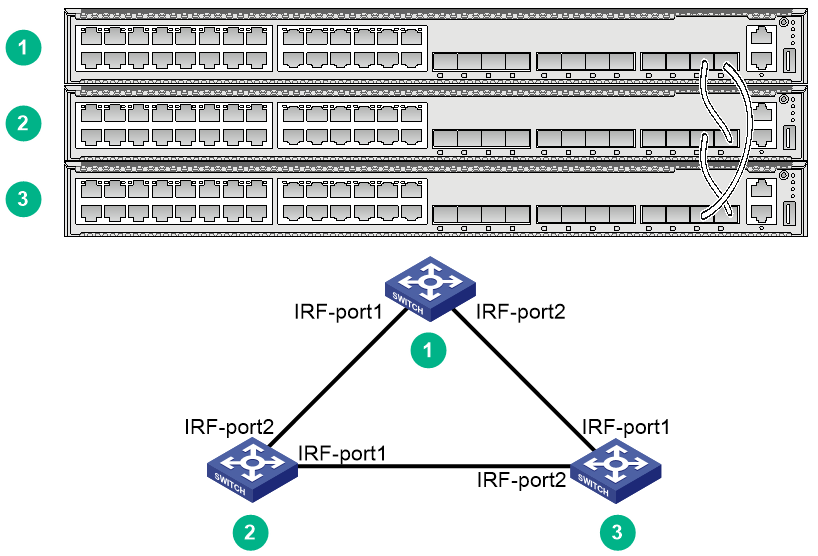

Figure4-2 IRF fabric in daisy chain topology

Figure4-3 IRF fabric in ring topology

Identifying physical IRF ports on the member switches

Identify the physical IRF ports on the member switches according to your topology and connection scheme.

Table4-1 shows the physical ports that can be used for IRF connection and the port use restrictions.

Table4-1 Candidate physical IRF ports and their use restrictions

Chassis	Candidate physical IRF ports	Use restrictions
S5590-HI & S5590-EI & S5500V3-HI	· SFP+ ports on the front panel · Ports that can be provided by the expansion card on the rear panel: ¡ SFP+ ports except for those on the LSWM2SP2PB and LSWM2SP4PB ¡ SFP28 ports ¡ QSFP+ ports ¡ QSFP28 ports	· All physical ports to be bound to an IRF logical interface must have the same data rate. · Physical ports on interface cards and the front panel can be bound to the same IRF port. · An SFP+ port can be used as an IRF physical port only when it operates at 10 Gbps. · An SFP28 port can be used as an IRF physical port only when it operates at 25 Gbps. · A QSFP+ port can be used as an IRF physical port only when it operates at 40 Gbps. · A QSFP28 port can be used as an IRF physical port only when it operates at 40 or 100 Gbps.

Chassis

Candidate physical IRF ports

Use restrictions

S5590-HI & S5590-EI & S5500V3-HI

· SFP+ ports on the front panel

· Ports that can be provided by the expansion card on the rear panel:

¡ SFP+ ports except for those on the LSWM2SP2PB and LSWM2SP4PB

¡ SFP28 ports

¡ QSFP+ ports

¡ QSFP28 ports

· All physical ports to be bound to an IRF logical interface must have the same data rate.

· Physical ports on interface cards and the front panel can be bound to the same IRF port.

· An SFP+ port can be used as an IRF physical port only when it operates at 10 Gbps.

· An SFP28 port can be used as an IRF physical port only when it operates at 25 Gbps.

· A QSFP+ port can be used as an IRF physical port only when it operates at 40 Gbps.

· A QSFP28 port can be used as an IRF physical port only when it operates at 40 or 100 Gbps.

Planning the cabling scheme

Use the following cables to connect the IRF physical ports on the switch:

· SFP+ port—SFP+ fiber transceiver module and optical fiber or SFP+ cable. For the available transceiver models and cables, see ports in the hardware information and specifications for the switch.

· SFP28 port—SFP28 fiber transceiver module and optical fiber or SFP28 cable. For the available transceiver models and cables, see ports in the hardware information and specifications for the switch.

· QSFP+ port—QSFP+ fiber transceiver module and optical fiber or QSFP+ cable. For the available transceiver models and cables, see ports in the hardware information and specifications for the switch.

· QSFP28 port—QSFP28/QSFP+ fiber transceiver module and optical fiber or QSFP28/QSFP+ cable. For the available transceiver models and cables, see ports in the hardware information and specifications for the switch.

For a short-distance IRF connection in an equipment room, use an SFP+/SFP28/QSFP+/QSFP28 cable.

For a long-distance IRF connection, use SFP+/SFP28/QSFP+/QSFP28 transceiver modules and optical fibers.

The following subsections describe several H3C recommended IRF connection schemes by using SFP+ cables and SFP+ transceiver modules and fibers. All these schemes use a ring topology.

IMPORTANT:

In these schemes, all physical IRF ports are located on the same side. If physical IRF ports are on different sides, you must measure the distance between them to select an appropriate cable.

Connecting the IRF member switches in one rack

Connect the IRF member switches (4 switches in this example) in a rack as shown in Figure4-4. The switches in the ring topology (see Figure4-5) are in the same order as connected in the rack.

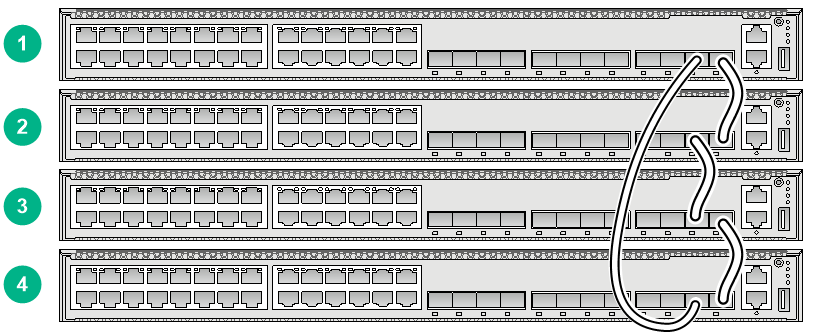

Figure4-4 Connecting the switches in one rack

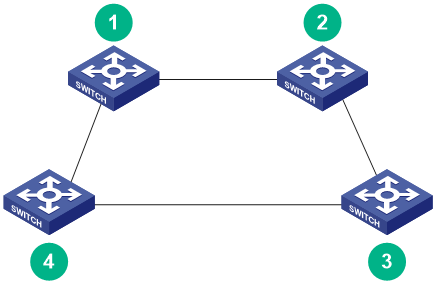

Figure4-5 IRF fabric topology

Connecting the IRF member switches in a ToR solution

You can install IRF member switches in different racks side by side to deploy a top of rack (ToR) solution.

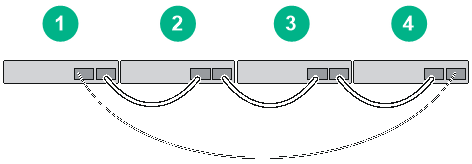

Figure4-6 ToR cabling

Configuring basic IRF settings

After you install the IRF member switches, power on the switches, and log in to each IRF member switch to configure their member IDs, member priorities, and IRF port bindings.

Follow these guidelines when you configure the switches:

· Assign the master switch higher member priority than any other switch.

· Bind physical ports to IRF port 1 on one switch and to IRF port 2 on the other switch. You perform IRF port binding before or after connecting IRF physical ports depending on the software release.

· To bind the ports on an interface module to an IRF port, you must install the interface module first.

· Execute the display irf configuration command to verify the basic IRF settings.

For the S5590-48T4XC-HI and S5590-48S4XC-HI switches, you can use the port-speed-mode command to configure the port rate mode for an expansion slot. By default, the port rate mode for an expansion slot is mode0. To have the configuration take effect, you must save the configuration and restart the switch. For more information about the port-speed-mode command, see Ethernet interface commands in the command references for the switch.

To use a port on an expansion card as an IRF port, install an expansion card, and then configure IRF ports.

For more information about configuring basic IRF settings, see Virtual Technologies Configuration Guide in the configuration guides for the switch.

Connecting the physical IRF ports

Connect the IRF member switches as planned.

Wear an ESD wrist strap when you connect cables or transceiver modules and fibers. For how to connect them, see H3C Transceiver Modules and Network Cables Installation Guide.

Verifying the IRF fabric setup

To verify the basic functionality of the IRF fabric after you finish configuring basic IRF settings and connecting IRF ports:

1. Log in to the IRF fabric through the console port of any member switch.

2. Create a Layer 3 interface, assign it an IP address, and make sure the IRF fabric and the remote network management station can reach each other.

3. Use Telnet, web, or SNMP to access the IRF fabric from the network management station. (See Fundamentals Configuration Guide in the configuration guides for the switch.)

4. Verify that you can manage all member switches as if they were one node.

5. Display the running status of the IRF fabric by using the commands in Table4-2.

Table4-2 Displaying and maintaining IRF configuration and running status

Task	Command
Display information about the IRF fabric.	display irf
Display all members’ IRF configurations that take effect at a reboot.	display irf configuration
Display IRF fabric topology information.	display irf topology

NOTE:

To avoid IP address collision and network problems, configure a minimum of one multi-active detection (MAD) mechanism to detect the presence of multiple identical IRF fabrics and handle collisions. For more information about MAD detection, see Virtual Technologies in the configuration guides for the switch.

5 Maintenance and troubleshooting

Power supply failure

The switch series uses removable power supplies.

· S5590-HI—You can observe the power supply status LEDs (PWR1 and PWR2) on the switch to identify power supply failure. For more information, see H3C PSR250-12A & PSR250-12A1 Power Module User Manual.

· S5590-28P8XC-EI and S5590-48P6XC-EI—You can observe the power supply status LEDs (PWR1 and PWR2) on the switch in combination with the status LEDs on the power supplies to identify power supply failure. For more information, see H3C PSR600-54A-B Power Module User Manual, H3C PSR920-54A-B Power Module User Manual, and H3C PSR1600-54A-B Power Module User Manual.

· S5590-28T8XC-EI, S5590-28S8XC-EI, S5590-48T4XC-EI, S5590-48S4XC-EI, and S5500V3-HI—You can observe the power supply status LEDs (PWR1 and PWR2) on the switch to identify power supply failure. For more information, see technical specifications in the hardware information and specifications for the switch.

Symptom

The status LED indicates a power supply failure.

Solution

To resolve the issue:

1. Verify that the power supply model is as required by the switch.

2. Verify that the power supply is securely installed in the switch.

3. Verify that the operating temperature of the switch is in an acceptable range and the power supply has good ventilation.

4. If the issue persists, contact H3C Support.

To replace a power supply, see "Installing and removing a power supply."

Fan tray failure

WARNING!

· If both fan trays fail during switch operation, replace them within 2 minutes.

· If one fan tray fails, perform either of the following tasks:

¡ If the ambient temperature is not higher than 27°C (80.6°F), replace the fan tray within 24 hours and make sure the failed fan tray remains in position before the replacement.

¡ If the ambient temperature is higher than 27°C (80.6°F), replace the fan tray immediately.

The switch uses removable fan trays. If a fan tray fails, see "Installing/removing a fan tray" to replace the fan tray.

Symptom

The system status LEDs on the switch and the fan tray indicate a fan tray failure.

Solution

When a fan tray issue occurs, contact H3C Support.

Configuration terminal display issues

If the configuration environment setup is correct, the configuration terminal displays booting information when the switch is powered on. If the setup is incorrect, the configuration terminal displays nothing or garbled text.

No display

Symptom

The configuration terminal does not have display when the switch is powered on.

Solution

To resolve the issue:

1. Verify that the power supply is supplying power to the switch correctly.

2. Verify that the console cable is correctly connected.

3. Verify that the console cable does not have any issues and the terminal settings are correct.

4. If the issue persists, contact H3C Support.

Garbled display

Symptom

The display on the configuration terminal is garbled.

Solution

To resolve the issue:

1. Verify that the following settings are configured for the terminal:

¡ Baud rate—9600.

¡ Data bits—8.

¡ Stop bits—1.

¡ Parity—None.

¡ Flow control—None.

2. If the issue persists, contact H3C Support.

H3C S5590-HI[EI]&S5500V3-HI Switch Series Installation Guides-6W100

1 Preparing for installation

Safety recommendations

Examining the installation environment

Attaching the mounting brackets to the switch

Connecting the grounding cable to a grounding strip (non PoE model)

Connecting the grounding cable to a grounding strip (PoE model)

Installing and removing a power supply

Installing a PSR250-12A, PSR250-12A1, PSR920-54A-B, PSR600-54A-B, or PSR1600-54A-B power supply

Removing a PSR180-12A-B, PSR180-12A-F, or PSR180-12D-B power supply

Connecting the power cord for a PSR180-12A-B or PSR180-12A-F power supply

Connecting the power cord for a PSR180-12D-B power supply

Installing/removing an expansion card

Installing an expansion card

Removing an expansion card

Connecting the switch to a configuration terminal

Connecting a DB9-to-RJ45 console cable

Starting the switch

IRF fabric setup flowchart

Planning IRF fabric setup

Connecting the IRF member switches in one rack

Connecting the IRF member switches in a ToR solution

Symptom

Solution

Symptom

Solution

Symptom

Solution

Symptom

Solution

Cloud & AI

InterConnect

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Resources

Partner Business Management

Company Information

News & Events

Contact Us
