Contents
Appendix A Chassis views and technical specifications
Transceiver module, fiber connector, and optical fiber views
Transceiver module specifications
Chassis views

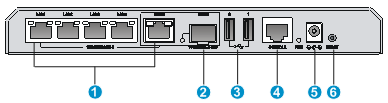

Figure 1 Front view
|
(1) 100/1000Base-T autosensing Ethernet copper ports 1 to 5 |
(2) 1000Base-X SFP fiber port |
|
(3) USB ports |
(4) Console port |
|
(5) Power adapter receptacle |
(6) Reset button (RESET) |
Figure 2 Rear view
|
(1) Grounding screw |
Transceiver module, fiber connector, and optical fiber views
To connect the 1000Base-X SFP fiber port, you need to install an SFP transceiver module in the port and connect an optical fiber with LC-type connector to the SFP transceiver module.

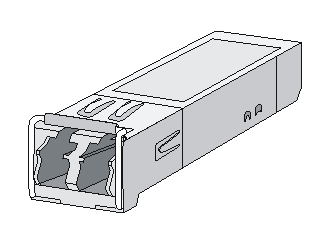

Figure 3 SFP transceiver module
Figure 4 Optical fiber with LC-type connector
|
(1) LC-type connector |
(2) Optical fiber |
Technical specifications
Table 1 Technical specifications
|
Item |
Specification |
|
Console port |
One, 9600 bps (default) to 115200 bps |
|
Gigabit Ethernet port |
5 x 100/1000 Base-T autosensing Ethernet copper port |
|
SFP port |
1 x 100Base-FX/1000Base-X SFP fiber port |
|
Memory |
2 x 512MB DDR3 |
|
Storage |
· 2 x 8MB Flash · 1 x 1GB NandFlash |
|
Dimensions (H × W × D) |
28 x 220 × 147 mm (1.10 x 8.66 × 5.79 in) |
|
Rated voltage range |
100 VAC to 240 VAC @ 50 Hz or 60 Hz |
|
System power consumption |
8 W to 15 W |
|
Weight |
0.9 kg (1.98 lb) |
|
Operating temperature |
0°C to 40°C (32°F to 104°F) |
|
Relative humidity (noncondensing) |
5% to 95% |
Transceiver module specifications
A transceiver module that has MM in its name supports multi-mode optical fibers. A transceiver module that has SM in its name supports single-mode optical fibers.
Table 2 SFP-GE-SX-MM850-A specifications
|
Item |
Specification |
|
Central wavelength |
850 nm |
|
Max transmission distance |
550 m (1804.46 ft) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
MMF |
|
Fiber diameter |
50 µm |
|
Transmit power |
–9.5 to 0 dBm |
|
Receive sensitivity |
≤ –17 dBm |
|
Saturation |
≤ –3 dBm |
Table 3 SFP-GE-LX-SM1310-A specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Max transmission distance |
10 km (6.21 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–9.5 to –3 dBm |
|
Receive sensitivity |
≤ –20 dBm |
|
Saturation |
≤ –3 dBm |
Table 4 SFP-GE-LH40-SM1310 specifications
|
Item |
Specification |
|
Central wavelength |
1310 nm |
|
Max transmission distance |
40 km (24.86 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–2 to +5 dBm |
|
Receive sensitivity |
≤ –22 dBm |
|
Saturation |
≤ –3 dBm |
Table 5 SFP-GE-LH40-SM1550 specifications
|
Item |
Specification |
|
Central wavelength |
1550 nm |
|
Max transmission distance |
40 km (24.86 miles) |
|
Transmission rate |
1250 Mbps |
|
Connector type |
Duplex LC |
|
Fiber mode |
SMF |
|
Fiber diameter |
9 µm |
|
Transmit power |
–4 to +1 dBm |
|
Receive sensitivity |
≤ –21 dBm |
|
Saturation |
≤ –3 dBm |
Interface arrangement
The device provides six fixed interfaces: GigabitEthernet 1/0/1 through GigabitEthernet 1/0/6.
· GigabitEthernet 1/0/1 through GigabitEthernet 1/0/5—100/1000 Base-T autosensing Ethernet copper ports.
· GigabitEthernet 1/0/6—1000Base-X SFP fiber port.
