Frame Relay uses statistical multiplexing technology and can establish multiple virtual circuits over a single physical cable to fully utilize network bandwidth. Frame Relay uses data link connection identifiers (DLCIs) to identify virtual circuits. Frame Relay uses the Local Management Interface (LMI) protocol to maintain the status of each virtual circuit.

The following interfaces support Frame Relay:

· Synchronous serial interfaces, including synchronous serial interfaces derived from other interfaces.

· POS interfaces.

· POS channels.

Frame Relay interface types

NOTE:

The router does not support NNI interfaces. You can learn about NNI interfaces for informational purposes.

As shown in Figure 1:

· A Frame Relay network provides data communications between user devices such as routers and hosts. The user devices are also called data terminal equipment (DTE).

· The devices that provide access to the Frame Relay network for DTEs are called data circuit-terminating equipment (DCE).

Frame Relay interfaces include the following types:

· User-to-network interface (UNI)—A DCE is connected to a DTE through UNI interfaces. UNI interfaces include the following types:

¡ DTE interface—The UNI interface on the DTE side.

¡ DCE interface—The UNI interface on the DCE side.

· Network-to-network interface (NNI)—A DCE is connected to a Frame Relay switch in the Frame Relay network through an NNI interface. The switches in the Frame Relay network are interconnected with NNI interfaces.

A DTE interface can connect only to a DCE interface, and an NNI interface can connect only to an NNI interface. On a Frame Relay switch, the Frame Relay interface type must be NNI or DCE.

As shown in Figure 1:

· Router B and Router C form a simple Frame Relay network.

· DTE devices Router A and Router D are attached to the network.

The interface type DTE or DCE is identified only for the UNI interfaces. A virtual circuit between two DTE devices can be assigned different DLCIs on different segments.

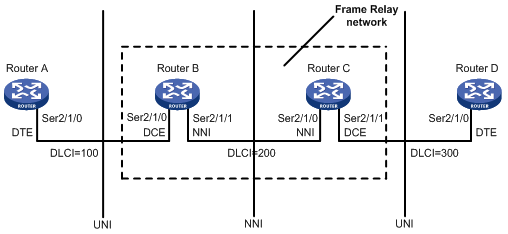

Figure 1 Frame Relay network

Virtual circuit

Virtual circuits are logical connections established between two devices. Depending on how they are established, virtual circuits include the following types:

· Permanent virtual circuit (PVC)—A PVC is manually configured or dynamically learned through the LMI negotiation. The availability of a PVC must be detected before the PVC can be used.

· Switched virtual circuit (SVC)—An SVC is dynamically established between two devices through calls. The network provides data transmission services on established SVCs. The terminal users can terminate an SVC through clearing the call.

Unlike SVCs, PVCs rarely break or disconnect. PVCs are used more than SVCs.

On a DTE device, the state of a PVC is determined by the DCE device. On a DCE device, the state of a PVC depends on the way that the DCE device is connected to the DTE device.

· When the DCE device is directly connected to the DTE device, they use LMI to negotiate the state of a PVC.

· When the DCE device is connected to the DTE device through a Frame Relay network, the state of a PVC is determined by the LMI negotiation result and the virtual circuit state in the Frame Relay network.

DLCI

A DLCI uniquely identifies a virtual circuit on a physical link and has local significance only for that link. A DLCI can be used on different physical ports to address different virtual circuits. A virtual circuit between two DTE devices can be addressed with different DLCIs at the two ends, as shown in Figure 1.

Because the virtual circuits in a Frame Relay network are connection oriented, each DLCI on a physical port is destined for a different peer device. DLCIs are the Frame Relay addresses of peer devices.

The maximum number of PVCs that can be created on a Frame Relay interface is 1024. The user configurable DLCIs for the PVCs are in the range 16 to 1007. Other DLCIs are reserved. For example, DLCI 0 and DLCI 1023 are reserved for the LMI protocol to transfer control messages.

Frame Relay address mapping

Frame Relay address mapping associates the protocol address of a peer device with a Frame Relay address (local DLCI). Then, the upper-layer protocol, for example, IP, can locate the peer device.

For example, an IPv4 or IPv6 packet is transmitted across a Frame Relay network as follows:

1. When a DTE device receives an IPv4 or IPv6 packet, the DTE device looks up the IP routing table for the outgoing interface and next-hop address.

2. When the outgoing interface is enabled with Frame Relay encapsulation, the device looks up the next-hop address in the address-to-DLCI maps for the DLCI.

3. The packet is transmitted over the virtual circuit identified by the DLCI.

The address-to-DLCI maps include the following types:

· Static—Manually created.

· Dynamic—Created through InARP or Inverse Neighbor Discovery (IND).

Frame Relay uses InARP to create an address-to-DLCI map through the following process:

4. InARP sends an InARP request to the peer end through a virtual circuit at the InARP request interval during an InARP learning process when the following conditions exist:

¡ A new virtual circuit is established.

¡ The local interface is configured with an IPv4 address.

The InARP request carries the local IPv4 address. By default, the InARP request interval during an InARP learning process (the detection timer) is 60 seconds.

5. When the peer device receives the InARP request, the peer device obtains the local IPv4 address and creates an address-to-DLCI map. At the same time, the peer device responds with an InARP reply carrying its IPv4 address.

6. When the local device receives the InARP reply, it creates an address-to-DLCI map.

7. After the local device creates the address-to-DLCI map, the local device modifies the InARP request interval to 12 minutes (the aging timer).

The aging timer is fixed. When the aging timer expires, the local device continues to send InARP requests.

8. The local device sets the aging timer value to the detection interval when the following conditions exist:

¡ The aging timer expires.

¡ The local device has not received any InARP replies.

9. When the local device has not received any InARP replies within three detection intervals, the learned dynamic address-to-DLCI map is deleted.

When the local device has not received InARP replies within a detection interval, the local device continues to send InARP requests. The local device stops sending InARP packets until the local interface is not configured with an IPv4 address or the local PVC is inactive.

IND creates IPv6 address-to-DLCI maps in a way similar to InARP.

LMI protocol

Frame Relay uses the LMI protocol to manage PVCs, including the following operations:

· Notify the addition of a PVC.

· Detect the deletion of a PVC.

· Monitor PVC status changes.

· Verify link integrity.

The system supports the following LMI standards:

· ITU-T Q.933 Annex A.

· ANSI T1.617 Annex D.

· Nonstandard LMI (compatible with other vendors).

To communicate properly, the DTE and the DCE must use the same type of LMI.

LMI messages

LMI messages include the following types:

· Status enquiry message—A DTE sends status enquiry messages regularly to a DCE to request the status of individual PVCs or verify the link integrity.

· Status message—When a DCE receiving a status enquiry message, the DCE responds with a status message. The status message is used to transmit the PVC status or verify the link integrity.

Status enquiry messages and status messages include the following types:

· Full status—Verifies the link integrity and transmits the PVC status.

· Link integrity verification (LIV)—Verifies the link integrity.

LMI negotiation parameters

Table 1 lists the parameters ITU-T Q.933 Annex A uses for message exchange. You can configure these parameters to optimize device performance.

Table 1 LMI negotiation parameters

Device role	Timer/counter	Value range	Default value	Description
DTE	Full status polling counter (N391)	1 to 255	6	Sets the ratio of link integrity request messages sent to full status enquiry messages sent. The ratio is (N391-1):1.
	Error threshold counter (N392)	1 to 10	3	Sets the number of errors required for LMI to declare a link dead, within the event count specified by N393.
	Monitored events counter (N393)	1 to 10	4	Sets the monitored event count. If the number of errors within the N393 status enquiry messages reaches N392, a DTE considers that the error threshold is reached.
	Keepalive (link integrity verification polling) timer (T391)	0 to 32767 0 means LMI disabled.	10	Sets the interval (in seconds) at which a DTE sends a status enquiry message. An error is recorded if the DTE has not received any replies when the timer expires.
DCE	Error threshold counter (N392)	1 to 10	3	Sets the number of errors required for LMI to declare a link dead, within the event count specified by N393.
	Monitored events count (N393)	1 to 10	4	Sets the monitored event count. If the number of errors within the N393 status enquiry messages reaches N392, a DCE considers that the error threshold is reached.
	Keepalive (polling verification) timer (T392)	5 to 30	15	Sets the interval (in seconds) for receiving a status enquiry message. If a DCE has not received any status enquiry messages when the timer expires, an error is recorded.

How LMI works

LMI works in the following process:

1. When a DTE physically goes up, it sends a full status enquiry message to a DCE to request the virtual circuit status. At the same time, the T391 timer and the V391 counter start. The T391 timer specifies the polling interval at which the DTE sends status enquiry messages.

¡ When V391<N391, the DTE sends a link integrity verification message and requests only the link integrity.

¡ When V391=N391, the following events occur:

- V391 is reset to 0.

- The DTE sends a full status enquiry message to request not only the link integrity but also the status of all PVCs.

2. When the DCE receives a request, the DCE sends a status message that carries the status requested by the DTE. At the same time, the DCE starts the T392 timer and waits for the next status enquiry message. If the DCE has not received status enquiry messages when the T392 timer expires, the DCE records the error and increases the error count by one. If the number of errors exceeds N392 among N393 events, the DCE considers the physical link and all virtual circuits unavailable and will not use them to forward packets.

3. When the DTE receives a reply, the DTE updates the link status and PVC status. If the DTE has not received status messages when the T391 timer expires, the DTE records the error and increases the error count by one. If the number of errors exceeds N392 among N393 events, the DTE considers that the physical link and all virtual circuits unavailable and will not use them to forward packets.

Application scenarios

Typically, Frame Relay is used for Frame Relay access. Frame Relay access encapsulates upper-layer packets on a user device by using Frame Relay and connects the user device to a Frame Relay network.

With Frame Relay, you can construct a public or private network as shown in Figure 2 and construct direct connections between data devices as shown in Figure 3.

Figure 2 Interconnecting LANs through a Frame Relay network

Figure 3 Interconnecting LANs through a dedicated line

Frame Relay configuration task list

Tasks at a glance
Configure DTE-side Frame Relay: · (Required.) Configuring basic DTE-side Frame Relay · (Required.) Configuring local Frame Relay virtual circuits · (Required.) Configuring Frame Relay address mapping · (Optional.) Configuring Frame Relay subinterfaces · (Optional.) Configuring Frame Relay IPHC · (Optional.) Enabling SNMP notifications for Frame Relay
Configure DCE-side Frame Relay: · (Required.) Configuring basic DCE-side Frame Relay · (Required.) Configuring local Frame Relay virtual circuits · (Required.) Configuring Frame Relay address mapping · (Optional.) Configuring Frame Relay subinterfaces · (Optional.) Configuring Frame Relay IPHC · (Optional.) Enabling SNMP notifications for Frame Relay

Tasks at a glance

Configure DTE-side Frame Relay:

· (Required.) Configuring basic DTE-side Frame Relay

· (Required.) Configuring local Frame Relay virtual circuits

· (Required.) Configuring Frame Relay address mapping

· (Optional.) Configuring Frame Relay subinterfaces

· (Optional.) Configuring Frame Relay IPHC

· (Optional.) Enabling SNMP notifications for Frame Relay

Configure DCE-side Frame Relay:

· (Required.) Configuring basic DCE-side Frame Relay

· (Required.) Configuring local Frame Relay virtual circuits

· (Required.) Configuring Frame Relay address mapping

· (Optional.) Configuring Frame Relay subinterfaces

· (Optional.) Configuring Frame Relay IPHC

· (Optional.) Enabling SNMP notifications for Frame Relay

Configuring basic DTE-side Frame Relay

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter the view of the interface connecting to the Frame Relay network.	interface interface-type interface-number	N/A
3. Enable Frame Relay encapsulation on the interface.	link-protocol fr	By default, PPP encapsulation is enabled on interfaces except Ethernet interfaces and VLAN interfaces.
4. (Optional.) Configure the encapsulation type for the Frame Relay interface.	fr encapsulation { ietf \| nonstandard }	The default setting is IETF.
5. (Optional.) Set the Frame Relay interface type to DTE.	fr interface-type dte	The default setting is DTE.
6. (Optional.) Configure the Frame Relay LMI protocol type.	fr lmi type { ansi \| nonstandard \| q933a }	The default setting is q933a.
7. (Optional.) Set the DTE-side N391 counter.	fr lmi n391dte n391-value	The default setting is 6.
8. (Optional.) Set the DTE-side N392 counter.	fr lmi n392dte n392-value	The default setting is 3.
9. (Optional.) Set the DTE-side N393 counter.	fr lmi n393dte n393-value	The default setting is 4.
10. (Optional.) Set the DTE-side T391 timer.	timer-hold seconds	The default setting is 10 seconds.

Configuring basic DCE-side Frame Relay

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter the view of the interface connecting to the Frame Relay network.	interface interface-type interface-number	N/A
3. Enable Frame Relay encapsulation on the interface.	link-protocol fr	By default, PPP encapsulation is enabled on interfaces except Ethernet interfaces and VLAN interfaces.
4. (Optional.) Configure the encapsulation type for the Frame Relay interface.	fr encapsulation { ietf \| nonstandard }	The default setting is IETF.
5. (Optional.) Set the Frame Relay interface type to DCE.	fr interface-type dce	The default setting is DTE.
6. (Optional.) Configure the Frame Relay LMI protocol type.	fr lmi type { ansi \| nonstandard \| q933a }	The default setting is q933a.
7. (Optional.) Set the DCE-side N392 counter.	fr lmi n392dce n392-value	The default setting is 3.
8. (Optional.) Set the DCE-side N393 counter.	fr lmi n393dce n393-value	The default setting is 4.
9. (Optional.) Set the DCE-side T392 timer.	fr lmi t392dce t392-value	The default setting is 15 seconds.

Configuring local Frame Relay virtual circuits

The available methods of creating virtual circuits vary by interface type.

· On a DCE main interface or subinterface, the virtual circuit must be manually created.

· On a DTE main interface, virtual circuits can be automatically created through negotiation with the peer interface or manually created.

· On a DTE subinterface, the virtual circuit must be manually created.

This section describes how to manually create virtual circuits.

Configuration restrictions and guidelines

When you configure local Frame Relay virtual circuits, follow these restrictions and guidelines:

· When manually creating virtual circuits on a DTE interface, make sure their DLCIs are the same as those used on the DCE.

· If the DLCI of a virtual circuit changes on a DCE interface, perform one of the following tasks for the DTE to quickly relearn the correct address-to-DLCI maps. Before performing either of the following tasks, make sure no services will be interrupted.

¡ Reset both the DCE and DTE interfaces.

¡ Execute the reset inarp command on both ends.

· The DLCI of a virtual circuit must be unique on a main interface and all its subinterfaces.

Configuration procedure

To configure a local Frame Relay virtual circuit:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	The interface can be a main interface or subinterface.
3. Create a virtual circuit on the interface.	fr dlci dlci-number	By default, no virtual circuits exist.
4. (Optional.) Configure the encapsulation type for the virtual circuit.	fr encapsulation { ietf \| nonstandard }	By default, a virtual circuit uses the encapsulation type configured on its interface.
5. (Optional.) Allow broadcast packets on the virtual circuit.	broadcast	By default, broadcast packets are forbidden on static virtual circuits and allowed on dynamic virtual circuits. When a virtual circuit allows broadcast packets, the broadcast or multicast packets on the Frame Relay interface of the virtual circuit are also transmitted on the virtual circuit.

Configuring Frame Relay address mapping

Use either of the following methods to configure Frame Relay address mapping:

· Static—Manually create static address-to-DLCI maps between peer IPv4 or IPv6 addresses and local DLCIs. Use this method when the network topology is stable and no new users are expected for a specific period of time. Because static address-to-DLCI maps do not change, the network connections are stable, and attacks from unknown users are avoided.

· Dynamic—Use InARP or IND to dynamically create IPv4 or IPv6 address-to-DLCI maps. Use this method in complex networks. Make sure the peer devices also support InARP or IND.

Configuring static address-to-DLCI maps

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	The interface can be a main interface or P2MP subinterface.
3. Create a static Frame Relay address-to-DLCI map.	· Create an IPv4 address-to-DLCI map: fr map ip { ip-address \| default } dlci-number · Create an IPv6 address-to-DLCI map: fr map ipv6 { ipv6-address \| default } dlci-number	By default, no static Frame Relay address-to-DLCI maps exist. When the DLCI specified in this command does not exist, the DLCI is automatically created. If you configure an IPv6 address-to-DLCI map, as a best practice, also configure an address-to-DLCI map for the link-local address of the peer. This ensures that packets with the link-local address as the destination address can be forwarded.

Configuring dynamic IPv4 address mapping

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable Frame Relay InARP for dynamic address mapping.	fr inarp ip [ dlci-number ]	By default, Frame Relay InARP is enabled for dynamic address mapping.
4. Set the InARP request interval during the InARP learning process.	fr inarp interval interval	The default setting is 60 seconds.

Configuring dynamic IPv6 address mapping

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable Frame Relay IND for dynamic address mapping.	fr ipv6 ind [ dlci-number ]	By default, Frame Relay IND is disabled for dynamic address mapping.
4. Set the IND request interval during the IND learning process.	ipv6 ind holdtime seconds	The default setting is 30 seconds.
5. Set the interval between continuous IND requests.	ipv6 ind solicitation retrans-timer seconds	The default setting is 1 second.

Configuring Frame Relay subinterfaces

Frame Relay provides main interfaces and subinterfaces. A subinterface is a logical interface. It can be configured with protocol addresses and virtual circuits. One physical interface can include multiple subinterfaces. The subinterfaces and main interfaces can all be configured with virtual circuits to connect to peer devices.

Frame Relay subinterfaces include the following types:

· Point-to-point (P2P) subinterface—A P2P subinterface connects to a single peer device.

· Point-to-multipoint (P2MP) subinterface—A P2MP subinterface connects to multiple peer devices. A P2MP subinterface can be configured with multiple virtual circuits. An address-to-DLCI map can be configured for each virtual circuit and its connected peer network address. Address-to-DLCI maps can be dynamically configured through InARP or manually configured.

The methods of configuring a virtual circuit and address-to-DLCI map for P2P subinterfaces and P2MP subinterfaces have the following differences:

· P2P subinterface—Because a P2P subinterface has only one peer address, the peer address is determined when a virtual circuit is configured for the subinterface. You cannot configure static address-to-DLCI maps or enable InARP for a P2P subinterface.

· P2MP subinterface—For a P2MP subinterface, a peer address can be mapped to the local DLCI through static address-to-DLCI maps or InARP. To enable InARP for dynamic address mapping on a P2MP subinterface, you only need to enable InARP on the main interface. If static address-to-DLCI maps are needed, you must configure a static address-to-DLCI map for each virtual circuit.

To configure a Frame Relay subinterface:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Create a subinterface and enter subinterface view.	interface interface-type interface-number.subnumber [ p2mp \| p2p ]	By default, no Frame Relay subinterfaces exist. If you do not specify a subinterface type when you create a Frame Relay interface, a P2MP subinterface is created.
3. Configure a virtual circuit on the Frame Relay subinterface.	See "Configuring local Frame Relay virtual circuits."	On a Frame Relay subinterface, virtual circuits must be created manually.
4. Configure address mapping.	See "Configuring Frame Relay address mapping."	Available on P2MP subinterfaces.

Configuring Frame Relay IPHC

IP header compression (IPHC) reduces the amount of bandwidth consumed by packet headers. It is typically used for voice communication on low-speed links.

IPHC includes the following types:

· RTP header compression—Compresses the IP/UDP/RTP header (40 bytes in total) in packets.

· TCP header compression—Compresses the TCP/IP header (40 bytes in total) in packets.

For the duration of a connection, some fields in the RTP/UDP/IP or TCP/IP header do not change, and other fields change in a predictable way. The IPHC compressor and decompressor maintain the fields that do not change and the fields that change in a predictable way. The compressor only needs to transmit the fields of a header that change.

Configuration restrictions and guidelines

When you configure Frame Relay IPHC, follow these restrictions and guidelines:

· To make IPHC take effect on a link, you must enable Frame Relay IPHC on both ends of the link.

· You can configure Frame Relay IPHC on either an interface or a virtual circuit. The settings on an interface take effect on all virtual circuits of the interface. The settings on a virtual circuit take effect only on the virtual circuit. When the interface settings are different from the virtual circuit settings, the virtual circuit settings take effect.

· When the encapsulation type is IETF, IPHC negotiation is triggered after you enable IPHC. IPHC takes effect only when IPHC negotiation succeeds. When the encapsulation type is nonstandard, IPHC takes effect without negotiation. In this case, the encapsulation type must be nonstandard on both ends of the link.

· Compression does not stop after you disable IPHC on an interface or virtual circuit. To stop compression, you must also execute the shutdown/undo shutdown command sequence on the interface or virtual circuit.

· You can set the maximum number of RTP/TCP header-compression connections only after you enable IPHC on an interface or virtual circuit. The configuration takes effect after you execute the shutdown/undo shutdown command sequence on the interface or virtual circuit. After you disable IPHC, the configuration is deleted.

· The maximum number of RTP/TCP header-compression connections configured on an interface is inherited by all virtual circuits of the interface. If you set a different maximum number on a virtual circuit of the interface, the configuration on the virtual circuit takes effect.

Configuring Frame Relay IPHC on an interface

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	N/A
3. Enable Frame Relay IPHC.	fr compression iphc enable [ nonstandard ]	By default, Frame Relay IPHC is disabled. If you specify the nonstandard keyword, only RTP header compression is supported, and TCP header compression is not supported.
4. Set the maximum number of RTP header-compression connections allowed.	fr compression iphc rtp-connections	The default setting is 16.
5. Set the maximum number of TCP header-compression connections allowed.	fr compression iphc tcp-connections	The default setting is 16.

Configuring Frame Relay IPHC on a virtual circuit

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter interface view.	interface interface-type interface-number	The interface can be a main interface or a subinterface.
3. Create a virtual circuit on the interface.	fr dlci dlci-number	By default, no virtual circuits exist on an interface.
4. Enable Frame Relay IPHC.	fr compression iphc enable [ nonstandard ]	By default, Frame Relay IPHC is disabled. If you specify the nonstandard keyword, only RTP header compression is supported, and TCP header compression is not supported.
5. Set the maximum number of RTP header-compression connections allowed.	fr compression iphc rtp-connections	The default setting is 16.
6. Set the maximum number of TCP header-compression connections allowed.	fr compression iphc tcp-connections	The default setting is 16.

Enabling SNMP notifications for Frame Relay

After you enable SNMP notifications for Frame Relay, Frame Relay generates notifications for important events and sends the notifications to the SNMP module. For more information about SNMP notifications, see Network Management and Monitoring Configuration Guide.

To enable SNMP notifications for Frame Relay:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enable SNMP notifications for Frame Relay.	snmp-agent trap enable fr	By default, SNMP notifications are enabled for Frame Relay.

Displaying and maintaining Frame Relay

Execute the display commands in any view and the reset commands in user view.

Task	Command
Display Frame Relay IPv4 address mapping of interfaces.	display fr map [ interface interface-type interface-number ]
Display the LMI information of interfaces.	display fr lmi [ interface interface-type interface-number ]
Display information on Frame Relay PVCs and statistics about data sent and received on them.	display fr pvc [ interface interface-type interface-number ] [ dlci dlci-number ]
Display statistics for Frame Relay InARP packets.	display fr inarp [ interface interface-type interface-number ]
Display Frame Relay IPv6 address mapping of interfaces.	display fr ipv6 map [ static \| dynamic ] [ interface interface-type interface-number [ dlci dlci-number ] ]
Display statistics for Frame Relay IPHC.	display fr compression iphc { rtp \| tcp } [ interface interface-type interface-number [ dlci dlci-number ] ]
Clear the address-to-DLCI maps established by InARP.	reset fr inarp [ interface interface-type interface-number [ dlci dlci-number ] ]
Clear the address-to-DLCI maps established by IND.	reset fr ipv6 ind [ interface interface-type interface-number [ dlci dlci-number ] ]
Clear statistics of PVCs.	reset fr pvc [ interface interface-type interface-number [ dlci dlci-number ] ]
Clear statistics for Frame Relay IPHC.	reset fr compression iphc { rtp \| tcp } [ interface interface-type interface-number [ dlci dlci-number ] ]

Frame Relay configuration example

Network requirements

As shown in Figure 4, configure Frame Relay so that Router A and Router B can communicate.

Figure 4 Network diagram

Configuration procedure

(Method 1) Using main interfaces

1. Configure Router A:

# Assign an IP address to interface Serial 2/1/0.

<RouterA> system-view

[RouterA] interface serial 2/1/0

[RouterA-Serial2/1/0] ip address 202.38.163.251 255.255.255.0

# Enable Frame Relay encapsulation on the interface.

[RouterA-Serial2/1/0] link-protocol fr

# Set the type of the interface to DCE.

[RouterA-Serial2/1/0] fr interface-type dce

# Configure a local virtual circuit.

[RouterA-Serial2/1/0] fr dlci 100

2. Configure Router B:

# Assign an IP address to interface Serial 2/1/0.

<RouterB> system-view

[RouterB] interface serial 2/1/0

[RouterB-Serial2/1/0] ip address 202.38.163.252 255.255.255.0

# Enable Frame Relay encapsulation on the interface.

[RouterB-Serial2/1/0] link-protocol fr

# Set the type of the interface to DTE.

[RouterB-Serial2/1/0] fr interface-type dte

[RouterB-Serial2/1/0] quit

(Method 2) Using subinterfaces

1. Configure Router A:

# Enable Frame Relay encapsulation on the interface Serial 2/1/0.

<RouterA> system-view

[RouterA] interface serial 2/1/0

[RouterA-Serial2/1/0] link-protocol fr

# Set the type of the interface Serial 2/1/0 to DCE.

[RouterA-Serial2/1/0] fr interface-type dce

[RouterA-Serial2/1/0] quit

# Create a subinterface Serial 2/1/0.1.

[RouterA] interface serial 2/1/0.1 p2p

# Configure the IP address and create a virtual circuit for the subinterface Serial 2/1/0.1.

[RouterA-Serial2/1/0.1] ip address 202.38.163.251 255.255.255.0

[RouterA-Serial2/1/0.1] fr dlci 100

2. Configure Router B:

# Enable Frame Relay encapsulation on interface Serial 2/1/0.

<RouterB> system-view

[RouterB] interface serial 2/1/0

[RouterB-Serial2/1/0] link-protocol fr

# Set the type of the interface Serial 2/1/0 to DTE.

[RouterB-Serial2/1/0] fr interface-type dte

[RouterB-Serial2/1/0] quit

# Create a subinterface Serial 2/1/0.1.

[RouterB] interface serial 2/1/0.1 p2p

# Configure the IP address and create a virtual circuit for the subinterface Serial 2/1/0.1.

[RouterB-Serial2/1/0.1] ip address 202.38.163.252 255.255.255.0

[RouterB-Serial2/1/0.1] fr dlci 100

[RouterB-Serial2/1/0.1] quit

Verifying the configuration

This section verifies the configuration used in method 1.

# On Router B, verify that the PVC is active.

[RouterB] display fr pvc

PVC information for interface Serial2/1/0 (DTE, physically up)

DLCI: 100 Type: Dynamic Interface: Serial2/1/0

Encapsulation: IETF Broadcast

Creation time: 2014/02/19 01:38:00 Status: Active

Input: 2 packets, 60 bytes, 0 dropped

Output: 2 packets, 60 bytes, 0 dropped

# Verify that Router A and Router B can ping each other.

[RouterB] ping 202.38.163.251

Ping 202.38.163.251 (202.38.163.251): 56 data bytes, press CTRL_C to break

56 bytes from 202.38.163.251: icmp_seq=0 ttl=255 time=76.007 ms

56 bytes from 202.38.163.251: icmp_seq=1 ttl=255 time=8.790 ms

56 bytes from 202.38.163.251: icmp_seq=2 ttl=255 time=1.630 ms

56 bytes from 202.38.163.251: icmp_seq=3 ttl=255 time=0.841 ms

56 bytes from 202.38.163.251: icmp_seq=4 ttl=255 time=1.012 ms

--- Ping statistics for 202.38.163.251 ---

5 packets transmitted, 5 packets received, 0.0% packet loss

round-trip min/avg/max/std-dev = 0.841/17.656/76.007/29.326 ms

Troubleshooting Frame Relay

The physical layer is down

Symptom

The physical layer is down.

Solution

To resolve this problem:

1. Verify that the physical line is working correctly.

2. Verify that the peer device is working correctly.

3. If the problem persists, contact H3C Support.

The physical layer is already up, but the link layer protocol is down

Symptom

The physical layer is already up, but the link layer protocol is down.

Solution

To resolve this problem:

1. Verify that Frame Relay is enabled on the peer devices.

2. Verify that one end is in DTE mode and the other end is in DCE mode if the two devices are directly connected.

3. Verify that both ends are using the same LMI protocol.

4. Execute the debugging lmi command to identify whether one status message is received for each status enquiry message. If not, examine the physical layer.

5. If the problem persists, contact H3C Support.

The link layer protocol is up, but the peer cannot be pinged

Symptom

The link layer protocol is up, but the peer cannot be pinged.

Solution

To resolve this problem:

1. Verify that the devices at both ends have configured correct address-to-DLCI maps for the peer.

2. Verify that a route to the peer exists if the devices are not on the same subnet segment.

3. If the problem persists, contact H3C Support.

Configuring Multilink Frame Relay

Multilink Frame Relay (MFR) is a cost-effective bandwidth solution that is based on Frame Relay Forum Multilink Frame Relay UNI/NNI Implementation Agreement (FRF.16.1). This feature increases bandwidth by bundling multiple physical links into a logical link.

MFR uses the following concepts:

· Bundle—A virtual interface formed by combining multiple physical interfaces. A bundle corresponds to an MFR interface. A bundle is visible to the data link layer.

· Bundle link—Corresponds to a physical interface. A bundle contains and manages multiple bundle links, as shown in Figure 5. Bundle links are visible to the physical layer.

Figure 5 Bundle and bundle links

MFR interfaces support DTE and DCE interface types and QoS queuing mechanisms. Physical interfaces bundled into an MFR interface use the data link and network parameter settings of the MFR interface. Their original parameters settings do not work.

MFR configuration task list

Tasks at a glance
(Required.) Configuring an MFR bundle
(Required.) Configuring an MFR bundle link

Configuring an MFR bundle

As a best practice to maximize bandwidth that can be used, bundle physical interfaces of the same speed in one bundle.

To configure an MFR bundle:

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Create an MFR interface and enter MFR interface view.	interface mfr { interface-number \| interface-number.subnumber [ p2mp \| p2p ] }	By default, no MFR interfaces or subinterfaces exist. Before creating an MFR subinterface, make sure the main MFR interface already exists.
3. (Optional.) Set a description for the MFR interface.	description text	By default, the description of an MFR interface is interface name Interface, for example, MFR2/0/1 Interface.
4. (Optional.) Set the MFR bundle identifier.	mfr bundle-name name	The default bundle identifier is MFR + frame relay bundle number, for example, MFR2/0/1. You cannot set a bundle identifier in the MFR number format.
5. (Optional.) Enable MFR fragmentation.	mfr fragment enable	By default, MFR fragmentation is disabled.
6. (Optional.) Set the size of the MFR sliding window.	mfr window-size number	By default, the size of the MFR sliding window is the number of physical interfaces bundled by MFR.
7. (Optional.) Set maximum fragment size allowed for bundle links.	mfr fragment-size size	The default setting is 300 bytes.
8. (Optional.) Enable subinterface rate statistics collection for the MFR interface.	sub-interface rate-statistic	By default, this feature is disabled. When this feature is enabled for an MFR interface, the system periodically refreshes subinterface rate statistics. You can use the display interface command to view the collected statistics. This feature is resource intensive. When you use this feature, make sure you fully understand its impact on system performance.
9. (Optional.) Set the expected bandwidth for the MFR interface.	bandwidth bandwidth-value	By default, the expected bandwidth (in kbps) is the interface baud rate divided by 1000.
10. (Optional.) Restore the default settings for the MFR interface	default	N/A
11. Shut down and then bring up the MFR interface.	a shutdown b undo shutdown	By default, an MFR interface is up.
12. (Optional.) Configure other parameters for the MFR interface.	See "Configuring Frame Relay."	The fr interface-type and fr inarp commands can be used only on main MFR interfaces.

Configuring an MFR bundle link

Step	Command	Remarks
1. Enter system view.	system-view	N/A
2. Enter synchronous serial interface view or POS interface view.	interface interface-type interface-number	N/A
3. Enable MFR encapsulation on the interface.	link-protocol mfr	By default, synchronous serial interfaces and POS interfaces use PPP encapsulation.
4. Assign the interface to an MFR interface.	fr mfr interface-number	By default, an interface is not assigned to any MFR interfaces.
5. (Optional.) Set the MFR bundle link identifier.	mfr link-name name	By default, the name of the current interface is used.
6. (Optional.) Set the interval at which the MFR bundle link sends hello messages.	mfr timer hello seconds	The default setting is 10 seconds. Hello messages maintain link status.
7. (Optional.) Set the time that the bundle link waits for a hello acknowledgment before resending the hello message.	mfr timer ack seconds	The default setting is 4 seconds. A hello acknowledgment notifies the peer that the local end received a hello message.
8. (Optional.) Set the maximum number of times that the MFR bundle link can resend hello messages.	mfr retry retries	The default setting is 2.

Displaying and maintaining MFR

Execute display commands in any view and reset commands in user view.

Task	Command
Display MFR interface information.	display interface [ mfr [ interface-number ] ] [ brief [ description \| down ] ]
Display the configuration and statistics for MFR bundles and bundle links.	display mfr [ interface interface-type interface-number \| verbose ]
Clear statistics for MFR interfaces.	reset counters interface [ mfr [ interface-number \| interface-number.subnumber ] ]

<RouterA> system-view

[RouterA] interface mfr 2/0/1

[RouterA-MFR2/0/1] ip address 10.140.10.1 255.255.255.0

# Set the type of the interface to DTE.

[RouterA-MFR2/0/1] fr interface-type dte

# Configure a static Frame Relay address-to-DLCI map for the interface.

[RouterA-MFR2/0/1] fr map ip 10.140.10.2 100

[RouterA-MFR2/0/1] quit

# Bind Serial 2/1/0 and Serial 2/1/1 to MFR 2/0/1.

[RouterA] interface serial 2/1/0

[RouterA-Serial2/1/0] link-protocol mfr

[RouterA-Serial2/1/0] fr mfr mfr2/0/1

[RouterA-Serial2/1/0] quit

[RouterA] interface serial 2/1/1

[RouterA-Serial2/1/1] link-protocol mfr

[RouterA-Serial2/1/1] fr mfr mfr2/0/1

[RouterA-Serial2/1/1] quit

2. Configure Router B:

# Create interface MFR 2/0/1, and assign an IP address to the interface.

<RouterB> system-view

[RouterB] interface mfr 2/0/1

[RouterB-MFR2/0/1] ip address 10.140.10.2 255.255.255.0

# Set the type of the interface to DCE.

[RouterB-MFR2/0/1] fr interface-type dce

# Create a virtual circuit for the interface.

[RouterB-MFR2/0/1] fr dlci 100

[RouterB-MFR2/0/1-fr-dlci-100] quit

# Configure a static Frame Relay address-to-DLCI map for the interface.

[RouterB-MFR2/0/1] fr map ip 10.140.10.1 100

[RouterB-MFR2/0/1] quit

# Bind Serial 2/1/0 and Serial 2/1/1 to MFR 2/0/1.

[RouterB] interface serial 2/1/0

[RouterB-Serial2/1/0] link-protocol mfr

[RouterB-Serial2/1/0] fr mfr mfr2/0/1

[RouterB-Serial2/1/0] quit

[RouterB] interface serial 2/1/1

[RouterB-Serial2/1/1] link-protocol mfr

[RouterB-Serial2/1/1] fr mfr mfr2/0/1

[RouterB-Serial2/1/1] quit

Verifying the configuration

# On Router A, verify that the PVC is active.

[RouterA] display fr pvc

PVC information for interface MFR2/0/1 (DTE, physically up)

DLCI: 100 Type: Static Interface: MFR2/0/1

Encapsulation: IETF

Creation time: 2014/08/18 06:38:00 Status: Active

Input: 0 packets, 0 bytes, 0 dropped

Output: 0 packets, 0 bytes, 0 dropped

# Verify that Router A and Router B can ping each other.

[RouterA] ping 10.140.10.2

Ping 10.140.10.2 (10.140.10.2): 56 data bytes, press CTRL_C to break

56 bytes from 10.140.10.2: icmp_seq=0 ttl=255 time=76.007 ms

56 bytes from 10.140.10.2: icmp_seq=1 ttl=255 time=8.790 ms

56 bytes from 10.140.10.2: icmp_seq=2 ttl=255 time=1.630 ms

56 bytes from 10.140.10.2: icmp_seq=3 ttl=255 time=0.841 ms

56 bytes from 10.140.10.2: icmp_seq=4 ttl=255 time=1.012 ms

--- Ping statistics for 10.140.10.2 ---

5 packets transmitted, 5 packets received, 0.0% packet loss

round-trip min/avg/max/std-dev = 0.841/17.656/76.007/29.326 ms

05-Layer 2 - WAN Access Configuration Guide

Configuring Frame Relay

Overview

LMI messages

LMI negotiation parameters

How LMI works

Frame Relay configuration task list

Configuring basic DTE-side Frame Relay

Configuring basic DCE-side Frame Relay

Displaying and maintaining Frame Relay

Frame Relay configuration example

(Method 1) Using main interfaces

(Method 2) Using subinterfaces

Verifying the configuration

Troubleshooting Frame Relay

Symptom

Solution

Symptom

Solution

Symptom

Solution

Configuring Multilink Frame Relay

Displaying and maintaining MFR

Cloud & AI

InterConnect

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Resources

Partner Business Management

Company Information

News & Events

Contact Us
