MPU model	Specifications
MPU model	Flash memory	NVRAM	SDRAM	Ports	Compatible device models
LSQM1MPU06B0	1 GB	1 MB	8 GB	· 1 × console port · 1 × USB console port · 4 × network management port (two RJ-45 ports and two SFP ports) · 1 × RS485 port · 1 × USB port	S7506E-X
LSQM1MPU10A0	2 GB	1 MB	4 GB	· 1 × console port · 1 × USB console port · 4 × network management port (two RJ-45 ports and two SFP ports) · 2 × QSFP+ port (only for IRF connections) · 1 × RS485 port · 1 × USB port	S7510E-X
LSQM1MPU10C0	1 GB	1 MB	8 GB	· 1 × console port · 1 × USB console port · 4 × network management ports (two RJ-45 ports and two SFP ports) · 1 × RS485 port · 1 × USB port	S7510E-X
LSQM2MPU10C0	2 GB	1 MB	8 GB	· 1 × console port · 1 × USB console port · 4 × network management ports (two RJ-45 ports and two SFP ports) · 1 × RS485 port · 1 × USB port	S7510E-X

NOTE:

· Among the network management ports on the LSQM1MPU06B0, LSQM1MPU10A0, LSQM1MPU10C0, and LSQM2MPU10C0 MPUs, only port 0 is available during the startup of the switch.

· To connect an SFP network management port on the MPUs, make sure the peer port operates at 1000 Mbps in full-duplex mode.

· Do not use USB extension cables to connect the USB ports on the MPUs.

Service modules

Ethernet interface cards

Table 7-2 Ethernet interface card specifications

Model	Port quantity	Port type	Compatible transceiver modules and network cables
LSQM1CGS2XFE0	2	100GBASE-R QSFP28 fiber port	· QSFP28 transceiver module · QSFP28 DAC cable
LSQM1TGS24QSFD0	26	· 2 × 40GBASE-R-QSFP+ fiber ports or 1 × 100G QSFP28 fiber port · 24 × 10GBASE-R-SFP+ fiber ports	· QSFP28 transceiver module · QSFP28 DAC cable · QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable · 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM2CQGS12XSG0	12	12 × 40GBASE-R QSFP+ fiber ports or 4 × 100GBASE-R QSFP28 fiber ports	· QSFP28 transceiver module · QSFP28 DAC cable · QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable
LSQM2TGS32QSXSG0	36	· 4 × 40GBASE-R-QSFP+ fiber ports · 32 × 10GBASE-R-SFP+ fiber ports	· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable · 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM2QGS24RXSG0	24	40GBASE-R-QSFP+ fiber port	· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable
LSQM1QGS12SG0	12	40GBASE-R QSFP+ fiber port	· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable
LSQM2QGS12XSG0	12	40GBASE-R QSFP+ fiber port	· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable
LSQ1QGS4SC0	4	40GBASE-R QSFP+ fiber port	· QSFP+ transceiver module · QSFP+ DAC cable · QSFP+ to SFP+ DAC cable
LSQM2GT24PTSSC0	48	· 4 × 10GBASE-R SFP+/LC fiber ports · 20 × 1000BASE-X-SFP/LC fiber ports · 24 × 10/100/1000BASE-T-RJ45 copper ports	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module · Category 5 twisted-pair cable
LSQM2GP44TSSC0	48	· 4 × 10GBASE-R SFP+/LC fiber ports · 44 × 1000BASE-X-SFP/LC fiber ports	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module
LSQM3GP44TSSC0	48	· 4 × 10GBASE-R-SFP+ fiber ports (support for MACsec) · 44 × 1000BASE-X-SFP fiber ports (support for MACsec)	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module
LSQM2GP24TSSC0	28	· 4 × 10GBASE-R SFP+/LC fiber ports · 24 × 1000BASE-X-SFP/LC fiber ports	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module
LSQM2GT24TSSC0	28	· 4 × 10GBASE-R SFP+/LC fiber ports · 24 × 10/100/1000BASE-T-RJ45 copper ports	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module · Category 5 twisted-pair cable
LSQM1TGS48SG0	48	10GBASE-R/ SFP+/LC fiber port	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM2TGS48XSG0	48	10GBASE-R/ SFP+/LC fiber port	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM1GP40TS8FD0	48	· 8 × 10GBASE-R-SFP+/LC fiber ports · 40 × 1000BASE-X-SFP/LC fiber ports	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module
LSQM2GP40TS8FD0	48	· 8 × 10GBASE-R-SFP+/LC fiber ports · 40 × 1000BASE-X-SFP/LC fiber ports	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · FE/GE SFP transceiver module
LSQM1TGS48RSG0	48	10GBASE-R-SFP+ fiber port	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM1TGS48RFE0	48	10GBASE-R-SFP+ fiber port	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM1TGS16GPSA0	40	· 16 × 10GBASE-R-SFP+/LC fiber ports · 24 × 1000BASE-X-SFP/LC fiber ports	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM1TGS24XFD0	24	10GBASE-R SFP+/LC fiber port	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM2TGS16SF0	16	10GBASE-R SFP+/LC fiber port	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM1TGS16XFD0	16	10GBASE-R SFP+/LC fiber port	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM1TGS16FD0	16	10GBASE-R SFP+/LC fiber port	· 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable · GE SFP transceiver module
LSQM2GP24TSSA0	28	· 4 × 10GBASE-R/ SFP+/LC fiber ports · 24 × 1000BASE-X-SFP/LC fiber ports	· 10-GE SFP+ transceiver module · FE/GE SFP transceiver module
LSQM1TGS12EC0	12	10GBASE-R-SFP+ fiber port	10-GE SFP+ transceiver module
LSQM1GP48FD0	48	1000BASE-X-SFP/LC fiber port	GE SFP transceiver module
LSQM2GP48SA0	48	1000BASE-X-SFP/LC fiber port	FE/GE SFP transceiver module
LSQM2GP24SA0	24	1000BASE-X-SFP/LC fiber port	FE/GE SFP transceiver module
LSQM1TGT24SF0	24	10GBASE-T-RJ45 copper port	Category 6A/7 twisted-pair cable
LSQM1GT48FD0	48	10/100/1000BASE-T-RJ45 copper port	Category 5 twisted-pair cable
LSQM2GT48SA0	48	10/100/1000BASE-T-RJ45 copper port	Category 5 twisted-pair cable
LSQM2GT48SC0	48	10/100/1000BASE-T-RJ45 copper port	Category 5 twisted-pair cable
LSQM4GV48SA0	48	10/100/1000BASE-T-RJ45 copper port	Category 5 twisted-pair cable
LSQM4GV48SC0	48	10/100/1000BASE-T-RJ45 copper port	Category 5 twisted-pair cable

NOTE:

· A combo interface is a logical interface that contains an SFP port and an RJ-45 Ethernet port. Only one of them can be activated at a time.

· Fiber ports do not support the half-duplex mode. For more information about duplex modes, see H3C S7500E-X Switch Series Interface Configuration Guide.

· If you use the using hundredgige-from-fortygige interface command to convert 40-GE ports on the LSQM2QGS12XSG0 to 100-GE ports, only ports 1, 4, 7, and 10 are available.

Base cards

Table 7-3 Base card specifications

Model	Subcard slots	Description
LSUM1SPMAEC0	4	Multi-service base card

NOTE:

7522 and later versions do not support the LSUM1SPMAEC0 base card.

Subcards

You must install the subcards in base cards.

The LSR1DRUP1L1 subcards must be installed in both slots 1 and 2 of an LSUM1SPMAEC0 base card.

To connect two subcards in different switches, connect the subcard in slot 1 on one base card to that in slot 2 on the other-end base card, or vice versa.

7522 and later versions do not support the LSR1DRUP1L1 subcard.

Table 7-4 Subcard specifications

Model	Description	Connector	Number of ports	Available transceiver modules and cables
LSR1DRUP1L1	1-port OC192c/STM64c-XFP optical interface card	LC	1	10-GE XFP transceiver module
LSR1DRUP1L1	1-port OC192c/STM64c-XFP optical interface card	InfiniBand 4X	1	InfiniBand high-speed cable

OAA cards

Table 7-5 OAA card specifications

Model	Description	Ports	Compatible transceiver modules
LSU1WCME0	High-performance access controller module	· 1 × console port · 1 × 10/100/1000BASE-T management Ethernet port	Category 5 twisted-pair cable or above
LSU3WCMD0	High-performance access controller module	· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSUM1FWDEC0	Firewall module	· 1 × console port · 1 × USB port (reserved) · 1 × GE copper port · 1 × hard disk slot	Category 5 twisted-pair cable
LSUM1WCMX20RT	Access controller module	· 1 × console port · 1 × 100/1000BASE-T out-of-band management Ethernet port	Category 5 twisted-pair cable
LSUM1WCMX40RT	Access controller module	· 1 × console port · 1 × 100/1000BASE-T out-of-band management Ethernet port	Category 5 twisted-pair cable
LSQM1FWDSC0	Firewall module	· 1 × console port · 1 × USB port (reserved) · 1 × GE copper port · 1 × hard disk slot	Category 5 twisted-pair cable
LSU1FWCEA0	Firewall module	· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports (reserved) · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSU3FWCEA0	Firewall module	· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSUM1FWCEAB0	Firewall module	· 1 × console port · 2 × USB port · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSQ2FWBSC0	Firewall module	· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSQ1FWBSC0	Firewall module	· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSU1NSCEA0	High performance NetStream module	· 1 × console port · 2 × USB port (reserved) · 2 × GE combo interfaces	· Category 5 twisted-pair cable or above · GE SFP transceiver module
LSUM1NSDEC0	NetStream module	· 1 × console port · 1 × USB port (reserved) · 1 × GE copper port · 1 × hard disk slot	Category 5 twisted-pair cable
LSQM1NSDSC0	NetStream module	· 1 × console port · 1 × USB port (reserved) · 1 × GE copper port · 1 × hard disk slot	Category 5 twisted-pair cable
LSQ1NSMSC0	NetStream module	· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSQM1NSDSC0	NetStream module	· 1 × console port · 1 × USB port (reserved) · 1 × GE copper port · 1 × hard disk slot	Category 5 twisted-pair cable
LSU1IPSBEA0	Intrusion prevention system module	· 1 × console port · 2 × USB ports · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSQ1IPSSC0	Intrusion prevention system module	· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSQM1IPSDSC0	Intrusion prevention system module	· 1 × console port · 1 × USB port (only for PFC power supply) · 1 × 10/100/1000BASE-T copper port · 1 × hard disk slot	Category 5 twisted-pair cable
LSQ1SSLSC0	SSL VPN module	· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports	· Category 5 twisted-pair cable · GE SFP transceiver module
LSU1ADECEA0	Application delivery module	· 1 × console port · 2 × USB ports · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSQ1ACGASC0	Application control gateway module	· 1 × console port · 1 × CF card slot (supporting 256-MB, 512-MB, and 1-GB CF cards) · 2 × USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSQM1ACGDSC0	Application control gateway module	· 1 × console port · 1 × USB port (reserved) · 1 × 10/100/1000BASE-T copper port · 1 × hard disk slot	Category 5 twisted-pair cable
LSUM1ACGDEC0	Application control gateway module	· 1 × console port · 1 × USB port (reserved) · 1 × 10/100/1000BASE-T copper port · 1 × hard disk slot	Category 5 twisted-pair cable
LSQM2ACGDSC0	Application control gateway module	· 1 × console port · 1 × USB port (only for PFC power supply) · 1 × 10/100/1000BASE-T copper port · 1 × hard disk slot	Category 5 twisted-pair cable
LSQM1ADEDSC0	Application control gateway module	· 1 × console port · 1 × USB port (only for PFC power supply) · 1 × 10/100/1000BASE-T copper port · 1 × hard disk slot	Category 5 twisted-pair cable
LSQ1LBSC0	Load balancing module	· 1 × Console port · 1 × CF card slot (supporting a 256-MB, 512-MB, or 1-GB CF card) · 2 USB ports · 2 × 10/100/1000BASE-T copper ports · 2 × GE combo interfaces	· Category 5 twisted-pair cable · GE SFP transceiver module
LSQM2FWDSC0	High-performance module	· 1 × console port · 2 × USB ports · 2 × GE combo interfaces · 4 × 10GBASE-R fiber ports · 1 × hard disk slot	· Category 5 twisted-pair cable · GE SFP transceiver module · 10-GE SFP+ transceiver module · 10-GE SFP+ DAC cable
LSQM1EPSB0	EPS endpoint security module	· 3 × USB 2.0 ports (only for debugging use) · 1 × VGA connector · 1 × 10/100/1000BASE-T management Ethernet port · 1 × console port (only for debugging use)	Category 5 twisted-pair cable
LSQM1SDNB0	SDN automation module	· 3 × USB 2.0 ports (only for debugging use) · 1 × VGA connector · 1 × 10/100/1000BASE-T management Ethernet port · 1 × console port (only for debugging use)	Category 5 twisted-pair cable
LSQM1WBCZ720X	Multiservice access controller module	· 3 × USB 2.0 ports (only for debugging use) · 1 × VGA connector · 1 × 1000BASE-T management Ethernet port · 1 × console port	Category 5 twisted-pair cable

Restrictions and guidelines

Follow these restrictions and guidelines to use service modules:

· The LSQ series OAA cards are supported only on an S7506E-X switch.

· 7522 and later versions do not support the LSQ2FWBSC0, LSQ1NSMSC0, LSQ1FWBSC0, LSQ1LBSC0, LSQ1SSLSC0, LSQ1ACGASC0, and LSQ1IPSSC0 cards.

· An S7510E-X switch that uses the LSQM2MPU10C0 MPU does not support the following cards:

¡ SC cards.

¡ SA cards.

¡ SF card: LSQM2TGS16SF0.

¡ FD cards: LSQM1TGS16FD0, LSQM1GT48FD0, LSQM1GP48FD0, and LSQM1GP40TS8FD0.

¡ FE card: LSQM1TGS48RFE0.

¡ SG cards: LSQM1TGS48RSG0 and LSQM1QGS12SG0.

¡ EC card: LSQM1TGS12EC0.

¡ LSUM1SPMAEC0.

¡ OAA cards (excluding the LSUM1ACGDEC0, LSUM1FWDEC0, LSUM1NSDEC0, LSUM1WCMX20RT, and LSUM1WCMX40RT).

· Slots 4 to 9 on an S7510E-X switch do not support the following cards:

¡ SC cards.

¡ SA cards.

¡ SF card: LSQM2TGS16SF0.

¡ FD cards: LSQM1TGS16FD0, LSQM1GT48FD0, LSQM1GP48FD0, and LSQM1GP40TS8FD0.

¡ FE card: LSQM1TGS48RFE0.

¡ SG cards: LSQM1TGS48RSG0 and LSQM1QGS12SG0.

¡ EC card: LSQM1TGS12EC0.

¡ LSUM1SPMAEC0.

¡ OAA cards (excluding the LSUM1ACGDEC0, LSUM1FWDEC0, LSUM1NSDEC0, LSUM1WCMX20RT, and LSUM1WCMX40RT).

· Cards supported by an S7506E-X switch vary by the forwarding mode of the slots. For information about the supported cards, see device management configuration in H3C S7500E-X Switch Series Fundamentals Configuration Guide.

Switching fabric modules

CAUTION:

· The console port of the switching fabric module for the switch is used for H3C Support to maintain the switches. Do not use the console port if you have not been trained for that.

Table 7-6 Available switching fabric modules and specifications

Chassis model	Switching fabric module model	SDRAM	Connector	Port	Installation requirements
S7506E-X	LSQM1FAB06C0	1 GB	RJ-45	One console port	A maximum of one switching fabric module is required.
S7510E-X	LSQM1FAB10A0	1 GB	RJ-45	One console port	A maximum of one switching fabric module is required.
	LSQM1FAB10C0	1 GB	RJ-45	One console port	A maximum of one switching fabric module is required.
	LSQM2FAB10C0	1 GB	RJ-45	One console port	A maximum of one switching fabric module is required.

Power system

Power modules

CAUTION:

Do not install power modules of different models on the same switch.

The LSUM1AC1200 and LSUM2AC2500 AC power modules and the LSUM1DC2400 DC power module are available for the switch.

Table 7-7 Power module specifications

Item	LSUM1AC1200 specifications	LSUM1AC2500 specifications	LSUM1DC2400 specifications
Rated input voltage range	100 VAC to 240 VAC @ 50/60 Hz	100 VAC to 240 VAC @ 50/60 Hz	–48 VDC to –60 VDC
Rated output voltage	12 VDC	12 VDC	12 VDC
Maximum input current	16 A	16 A	60 A
Maximum output current	100 A	· 208 A (220 VAC) · 100 A (110 VAC)	200 A
Maximum output power	1200 W	· 1200 W (110 VAC) · 2500 W (220 VAC)	2400 W
Temperature requirements	Operating temperature: –10°C to +50°C (14°F to 122°F)	Operating temperature: –10°C to +50°C (14°F to 122°F)	Operating temperature: –10°C to +50°C (14°F to 122°F)
Temperature requirements	Storage temperature: –40°C to +85°C (–40°F to +185°F)	Storage temperature: –40°C to +85°C (–40°F to +185°F)	Storage temperature: –40°C to +85°C (–40°F to +185°F)
Compatible device models and quantity requirement	· S7506E-X: 1 to 4 · S7510E-X: 1 to 6	· S7506E-X: 1 to 4 · S7510E-X: 1 to 6	· S7506E-X: 1 to 4 · S7510E-X: 1 to 6

The S7506E-X supports a maximum of four power modules. The S7510E-X supports a maximum of six power modules. Make sure the total maximum output power of the ordered power modules is greater than the system power consumption. As a best practice, reserve 20% of the maximum output power.

NOTE:

When the temperature of a power module exceeds the acceptable temperature range, the power module is automatically powered off. When the temperature returns to the acceptable temperature range, the power module is automatically powered on.

Power cords

DC power cords

DC power cords are used for connecting DC power modules of the switch to the external DC power source.

Table 7-8 DC power cord quantity for different models of S7500E-X switches

Chassis model	Cable quantity
S7506E-X	1 to 4 pairs
S7510E-X	1 to 6 pairs

Table 7-9 DC power cord specifications

DC power cord	Cable length	Description
0404A0E1	3 m (9.84 ft)	Used for the LSUM1DC2400 power module
0404A0E2	15 m (49.21 ft)	Used for the LSUM1DC2400 power module

AC power cords

AC power cords are used for connecting AC power modules of the switch to the external AC power source.

· Select AC power cords according to the power of the power module.

· The connector type varies by country or region. Select a compliant type as needed.

· For the AC power module, select 16 A AC power cords. For the connector types of different countries or regions, see Table 7-10.

Table 7-10 16A AC power cords used in different countries or regions

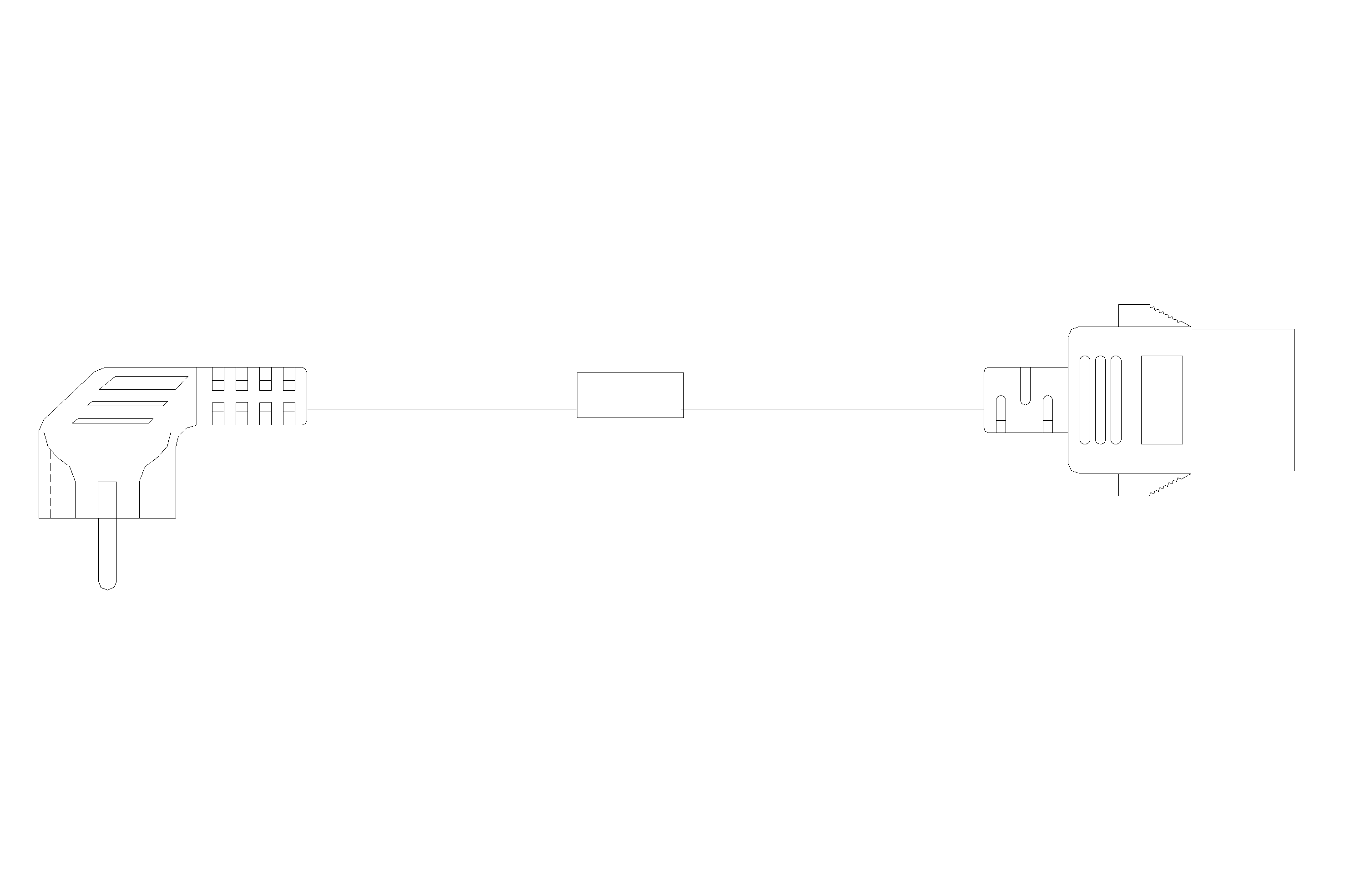

1	Plug type	Code (Length)		Countries or regions where the type of power cords conforms to local safety regulations and can be used legally	Other countries or regions using this type of power cords		Countries or regions seldom using this type of power cords
	I type	04043396 (3 m, or 9.8 ft)		Mainland China	N/A		N/A

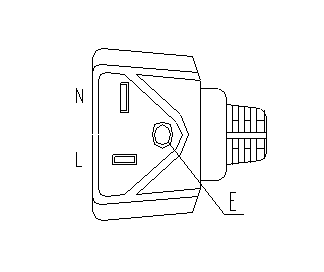

	Plug outline			Power cord outline			Connector outline

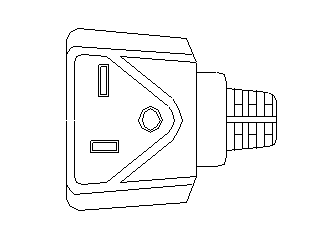

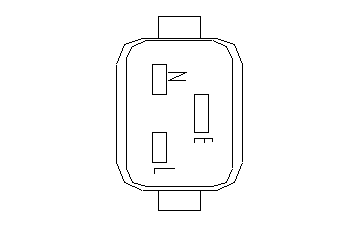

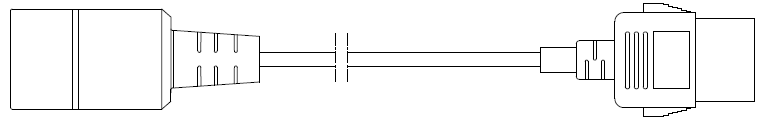

2	Plug type		Code (Length)	Countries or regions where the type of power cords conforms to local safety regulations and can be used legally		Other countries or regions using this type of power cords	Countries or regions seldom using this type of power cords
	C20 type		0404A0C2 (3 m, or 9.8 ft)	Mainland China		N/A	N/A

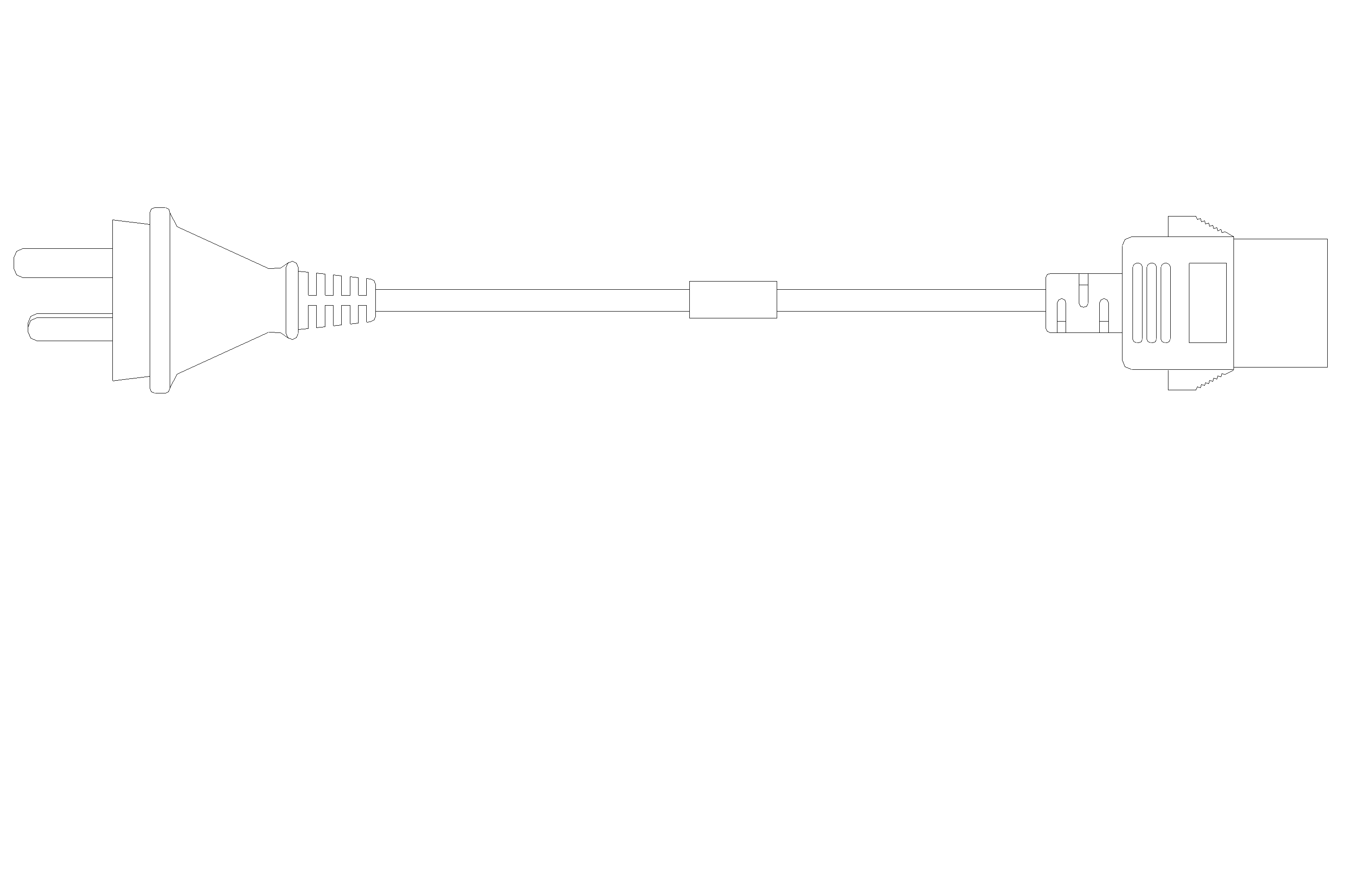

	Plug outline			Power cord outline			Connector outline

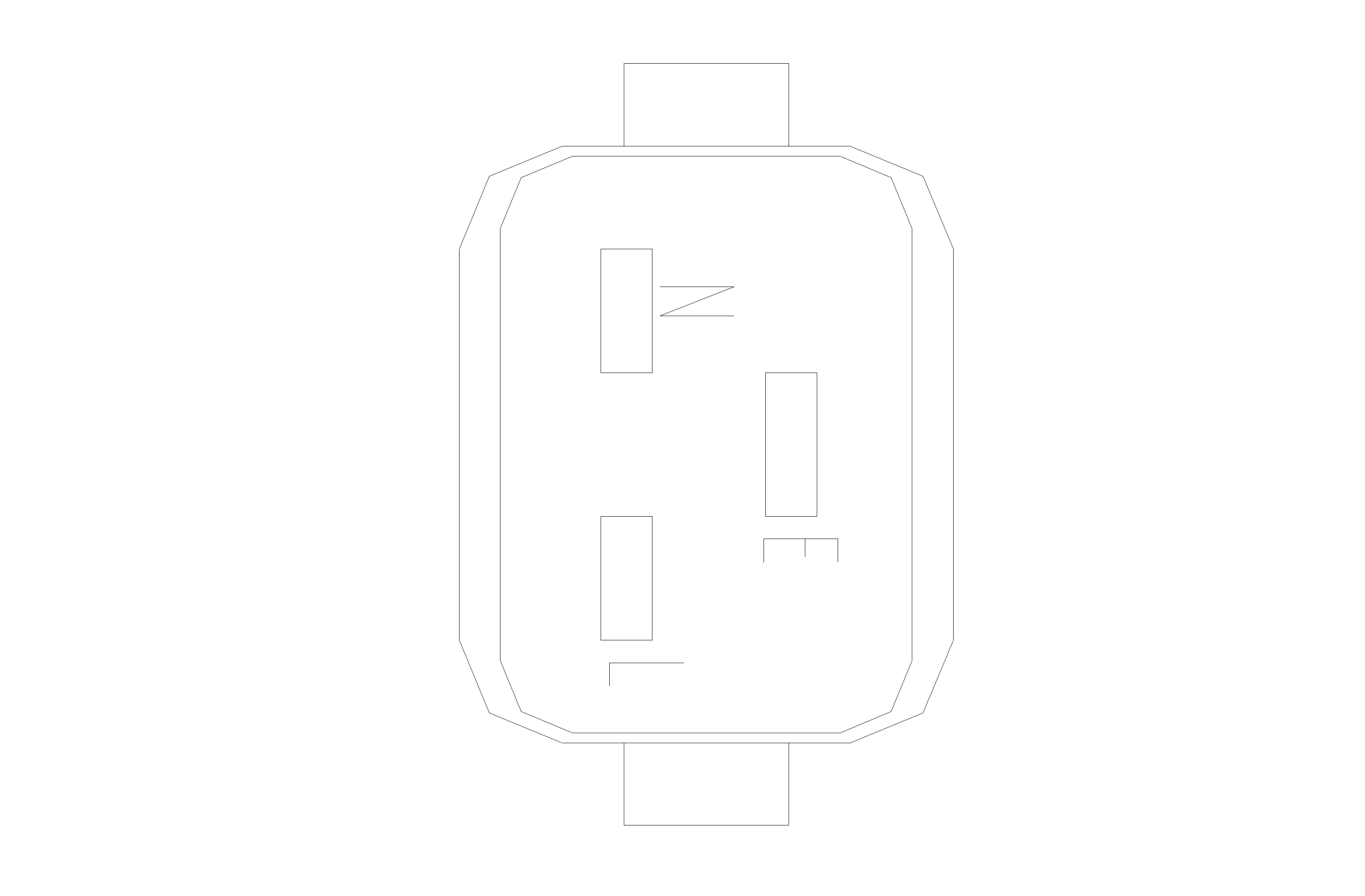

3	Plug type	Code (Length)		Countries or regions where the type of power cords conforms to local safety regulations and can be used legally	Other countries or regions using this type of power cords		Countries or regions seldom using this type of power cords
	B type	0404A063 (3 m, or 9.8 ft)		Canada and U.S.A	Mexico, Argentina, Brazil, Columbia, Venezuela, Thailand, Peru, Philippine, and A6 countries or regions		N/A

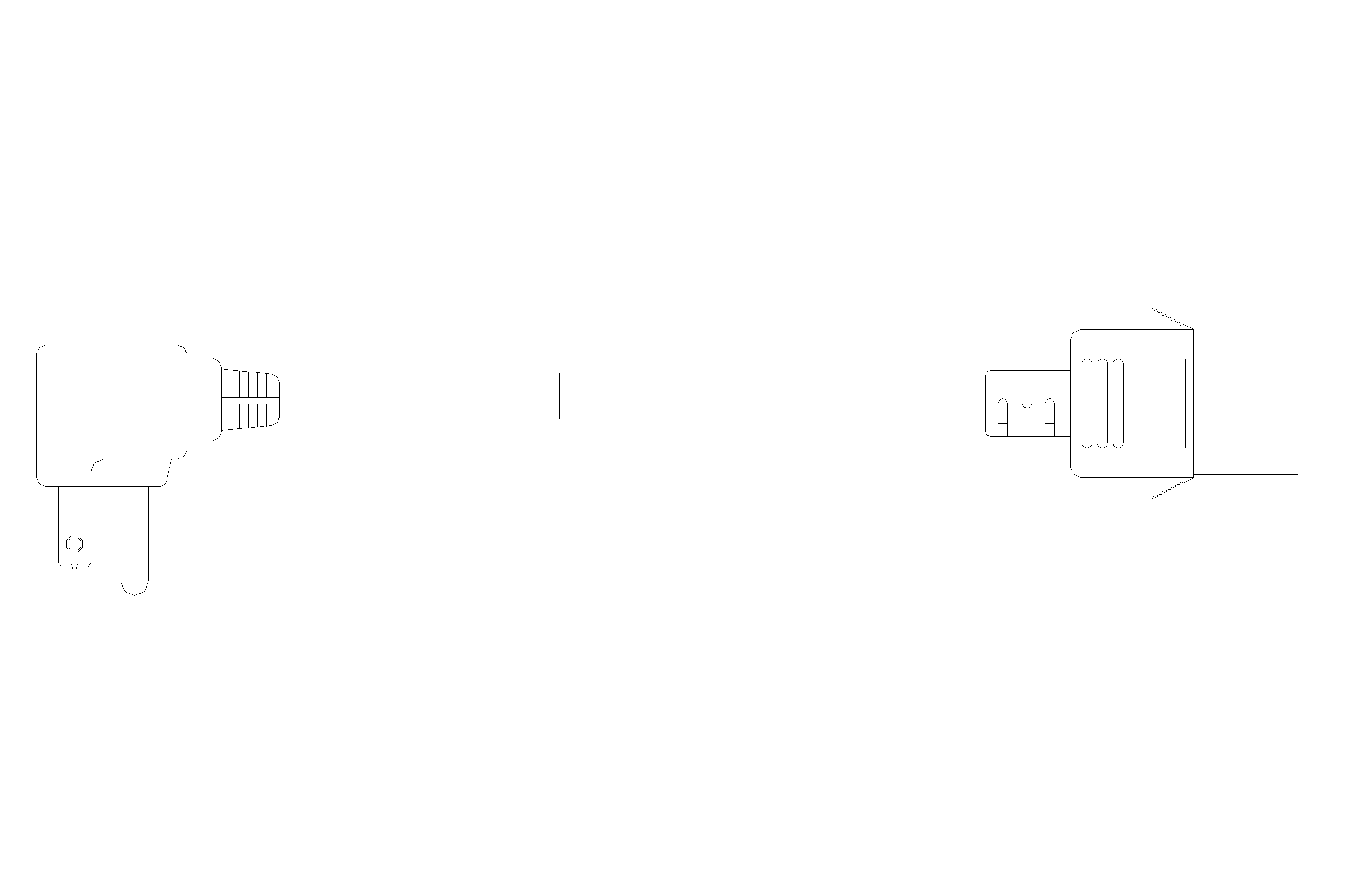

	Plug outline			Power cord outline			Connector outline

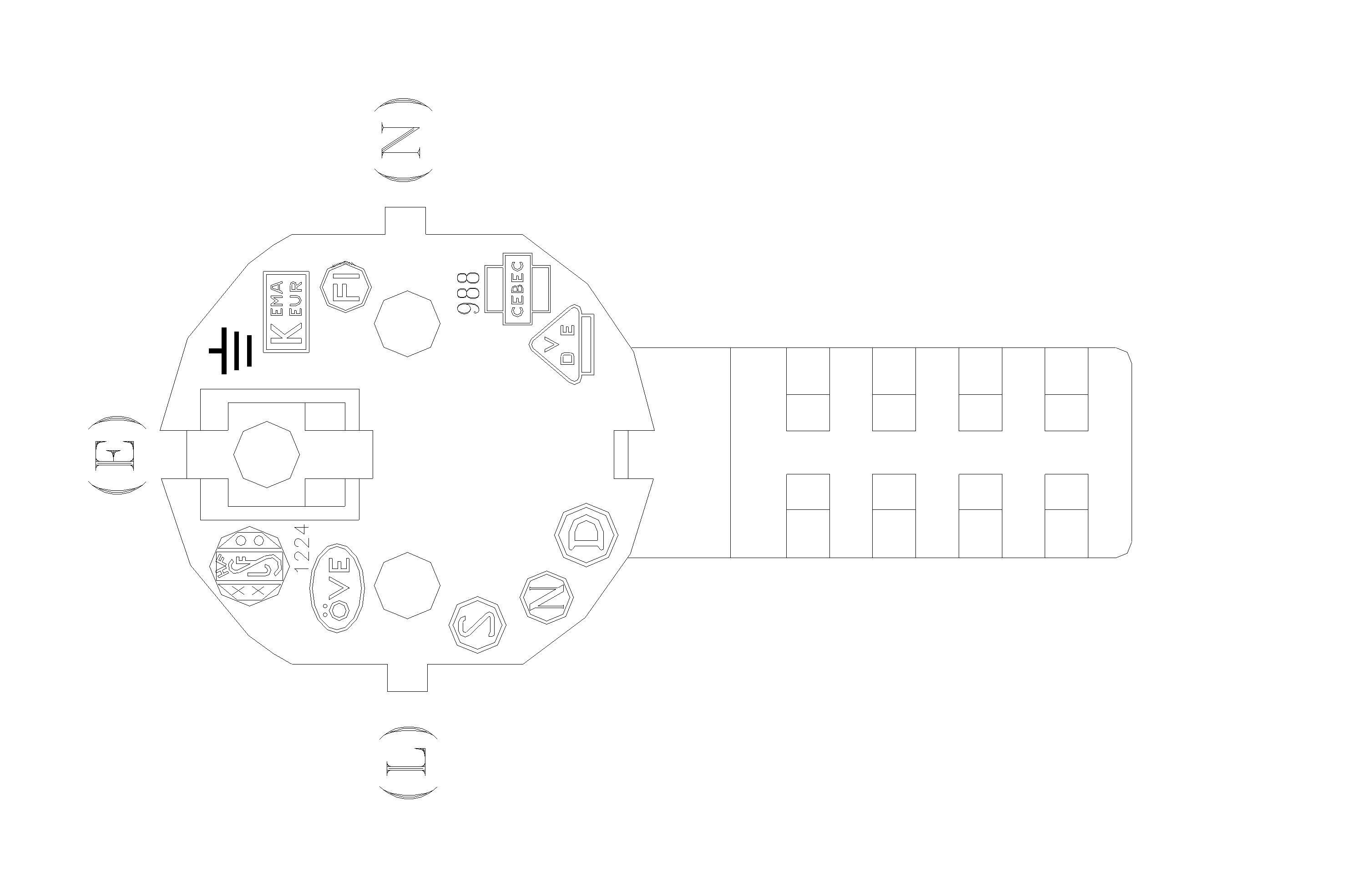

4	Plug type	Code (Length)		Countries or regions where the type of power cords conforms to local safety regulations and can be used legally	Other countries or regions using this type of power cords		Countries or regions seldom using this type of power cords
	F type	0404A061 (3 m, or 9.8 ft)		Holland, Denmark, Sweden, Finland, Norway, Germany, France, Austria, Belgium, and Italy	Indonesia, Turkey, Russia, and CIS		N/A
	Plug outline			Power cord outline			Connector outline

5	Plug type	Code (Length)		Countries or regions where the type of power cords conforms to local safety regulations and can be used legally	Other countries or regions using this type of power cords		Countries or regions seldom using this type of power cords
	B type	0404A062 (3 m, or 9.8 ft)		Japan	N/A		N/A

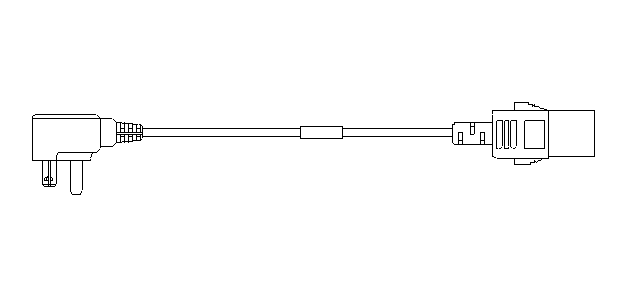

	Plug outline			Power cord outline			Connector outline

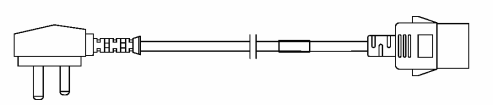

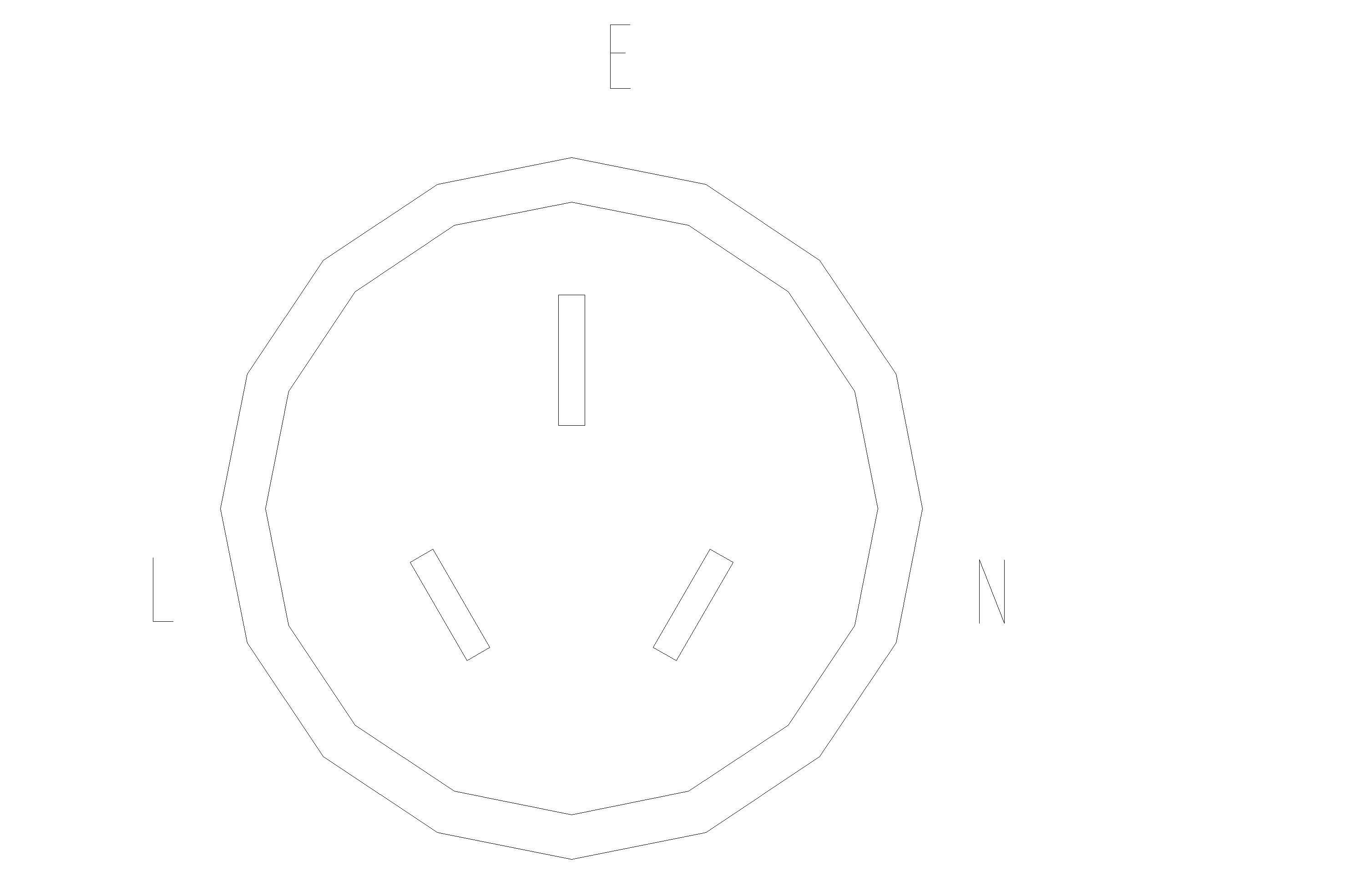

6	Plug type	Code (Length)		Countries or regions where the type of power cords conforms to local safety regulations and can be used legally	Other countries or regions using this type of power cords		Countries or regions seldom using this type of power cords
	I type	0404A01A (3 m, or 9.8 ft)		Australia	N/A		N/A
	Plug outline			Power cord outline			Connector outline

NOTE:

The connector outline figures shown in the table are connectors for connecting devices.

PoE power system (optional)

PoE PEM

Table 7-11 PoE PEM specifications

Item	LSUM1PPEMA0	LSUM1PPEMB0
Input voltage range	–52 to +57 VDC	–52 to +57 VDC
Input current	60 A	2 × 45 A
Compatible device models and quantity requirement	S7506E-X: 1	S7510E-X: 1

PoE power modules

You can use a maximum of six LSTM2PSRA PoE power modules for an external PoE power frame.

Table 7-12 PoE power module specifications

Item	Specification
Rated input voltage range	100 VAC to 120 VAC @ 50/60 Hz 200 VAC to 240 VAC @ 50/60 Hz
Maximum input voltage range	90 VAC to 264 VAC @ 47 to 63 Hz
Maximum input current	13.3 A
Maximum output power	1200 W (100 VAC to 120 VAC) 2000 W (200 VAC to 240 VAC)

PoE power cords

· PoE DC power cords

PoE DC power cords are used to connect the PoE PEMs and PoE external power frames for the S7506E-X and S7510E-X switches.

Table 7-13 PoE DC power cord specifications

Code	Length	Type	Description
0404A0KC	3 m (9.84 ft)	DC power cord	For the switch and the PSE16KA0 external PoE power frames.

· PoE AC power cords

PoE AC power cords are used to connect the PoE AC PEMs held in the PoE external power frames and the external AC power source. The connector type varies by country or region. For more information, see Table 7-10.

Fan trays

The switch comes with fan trays installed. If a fan tray fails, select a fan tray compatible with the switch to replace the failed one.

Table 7-14 Fan tray specifications

Fan tray	Number of fans	Fan diameter	Maximum air flow rate
S7506E-X fan tray	6 × 92 mm fans and 2 × 120 mm fans	92 mm (3.62 in)	1080 CFM
S7506E-X fan tray	6 × 92 mm fans and 2 × 120 mm fans	120 mm (4.72 in)	1080 CFM
S7510E-X fan tray	8	120 mm (4.72 in)	1440 CFM

H3C S7500E-X Switch Series Installation Guide-6W106

7 Appendix B FRUs and compatibility matrixes

Switching fabric modules

Power system

DC power cords

AC power cords

PoE PEM

PoE power modules

PoE power cords

Fan trays

Intelligent Terminal Products

Product Support Services

Technical Service Solutions

Resource Center

Policy

Online Help

Become a Partner

Partner Policy & Program

Global Learning

Partner Sales Resources

Service Business

News & Events

Contact Us
